The document discusses adding machine learning capabilities to mobile applications. It describes several cloud ML services that can be used, as well as the Firebase ML Kit which provides pre-trained models for tasks like face detection, barcode scanning, and image labeling that can run both on-device and in the cloud. The document also covers techniques for retraining existing models for custom purposes and optimizing models for mobile with tools like TensorFlow Lite. Live demos are provided of using Firebase ML Kit for image labeling and retraining models.

1. Creating Smarter
Applications
Maoz Tamir
<droidcon Tel Aviv>

2. Seeing the Whole Picture
<droidcon Tel Aviv>

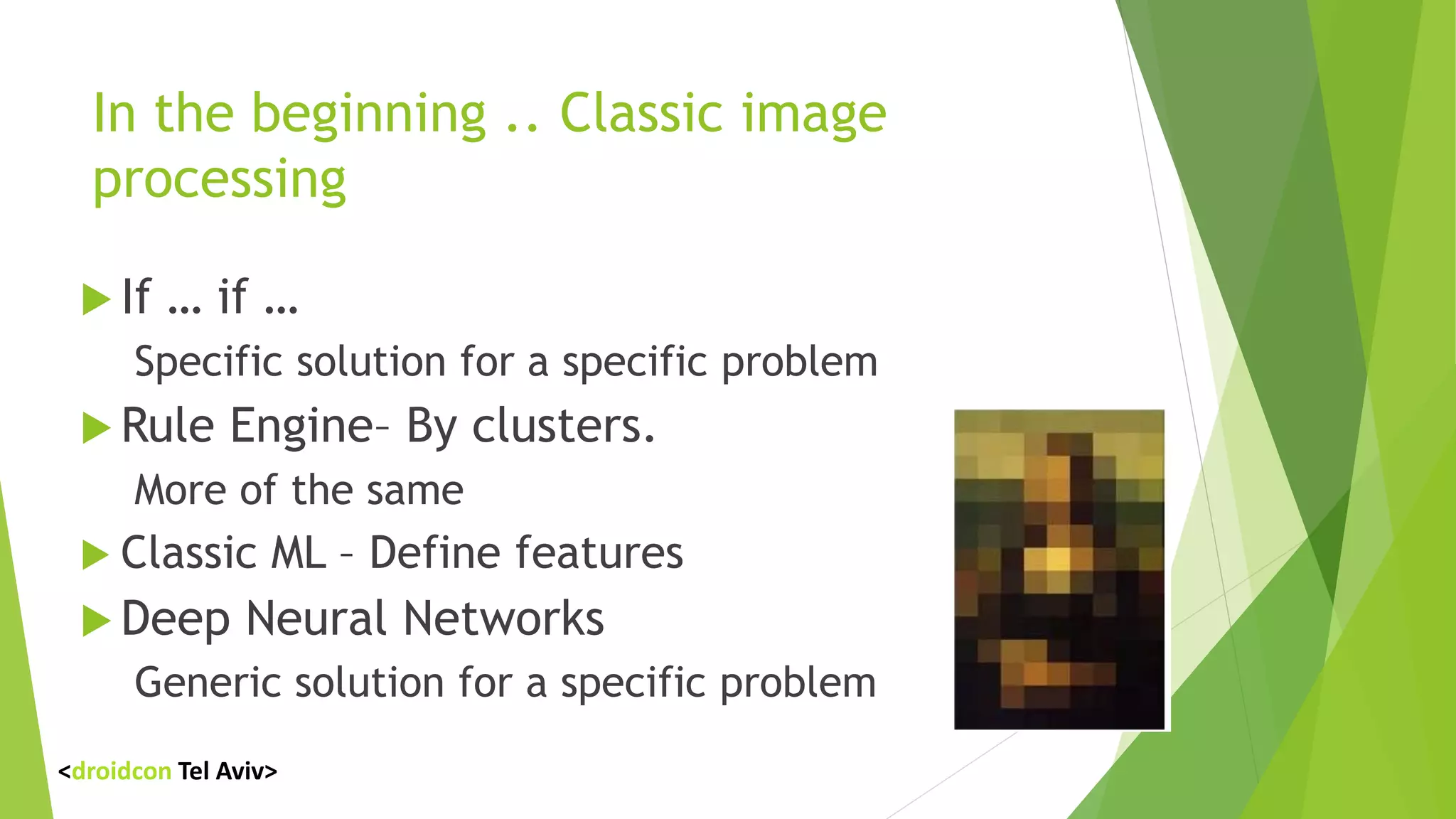

3. In the beginning .. Classic image
processing
 If … if …
Specific solution for a specific problem
 Rule Engine– By clusters.
More of the same
 Classic ML – Define features
 Deep Neural Networks
Generic solution for a specific problem
<droidcon Tel Aviv>

4. Add ML to your App
 Adding
personalization into
your App.
 Gather information
and providing
immediate feedback.
 Provides an efficient
searching experience.
 Detect And Control
<droidcon Tel Aviv>

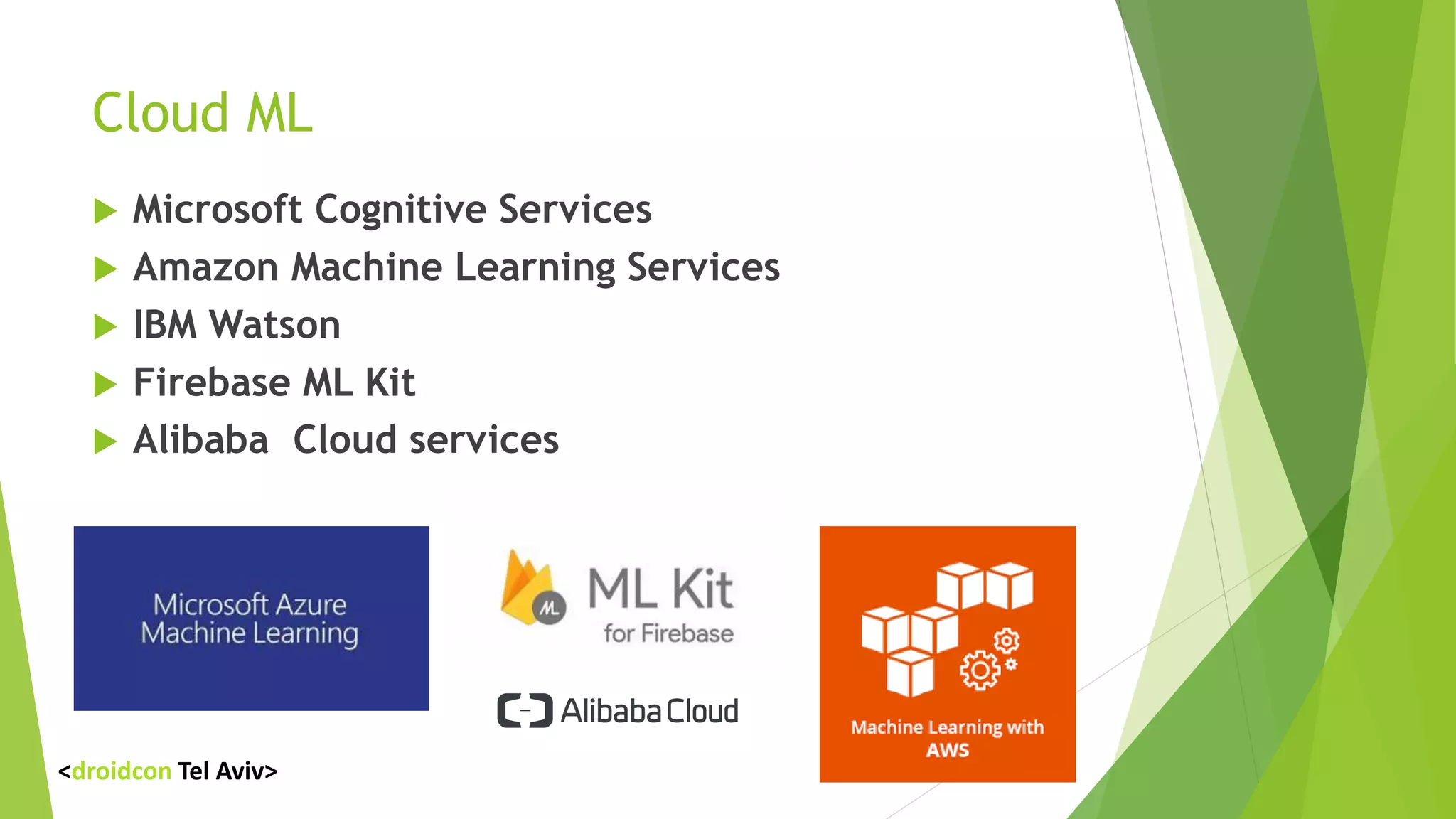

5. Cloud ML
 Microsoft Cognitive Services
 Amazon Machine Learning Services
 IBM Watson
 Firebase ML Kit
 Alibaba Cloud services
<droidcon Tel Aviv>

6. Firebase ML KIT
 Face Detection
 Barcode Scanning
 Landscape Detection
 Image Labeling
 Text Recognition
 Custom TensorFlow Model
<droidcon Tel Aviv>

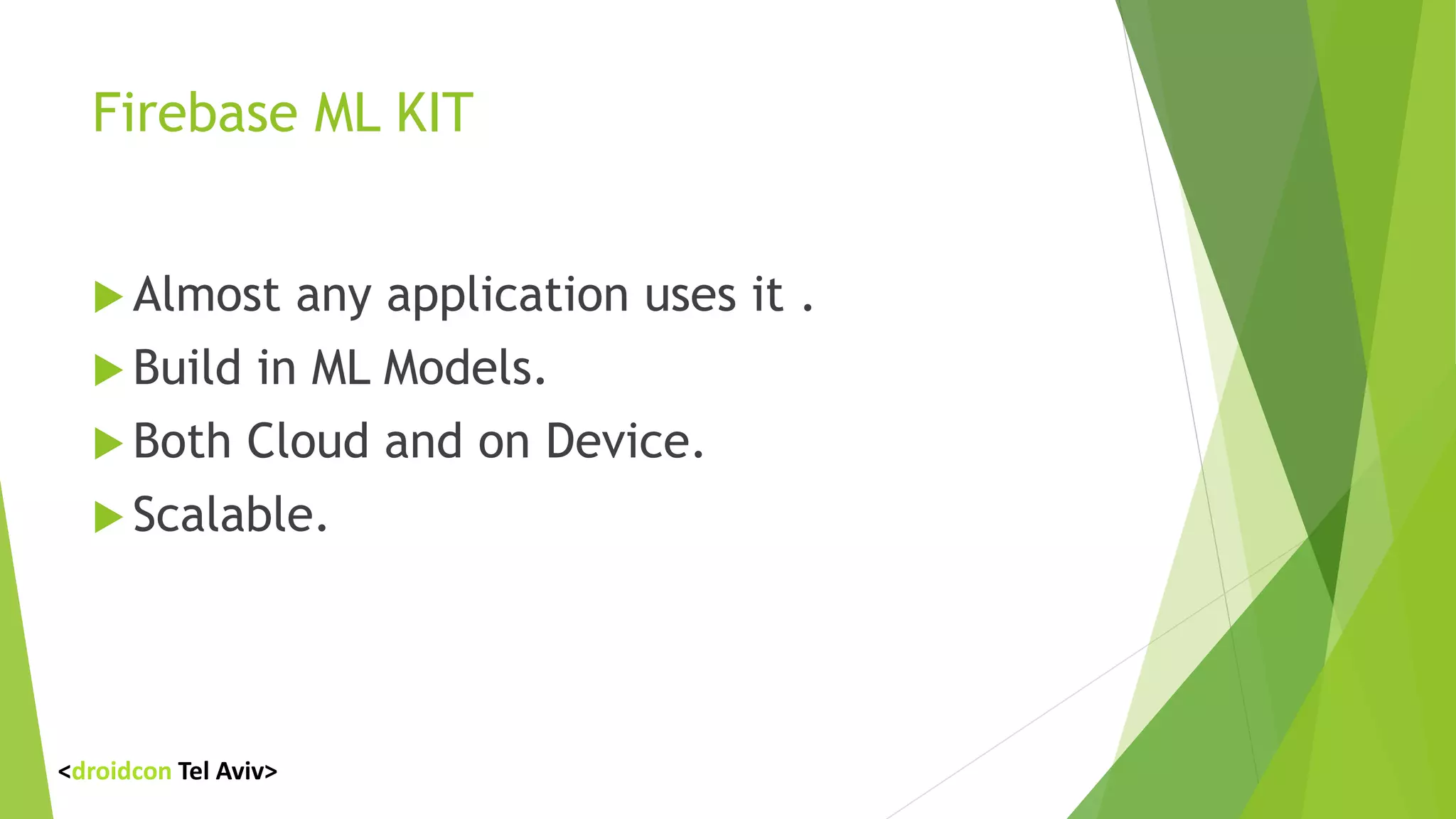

7. Firebase ML KIT
 Almost any application uses it .
 Build in ML Models.
 Both Cloud and on Device.
 Scalable.
<droidcon Tel Aviv>

8. Live Demo
<droidcon Tel Aviv>

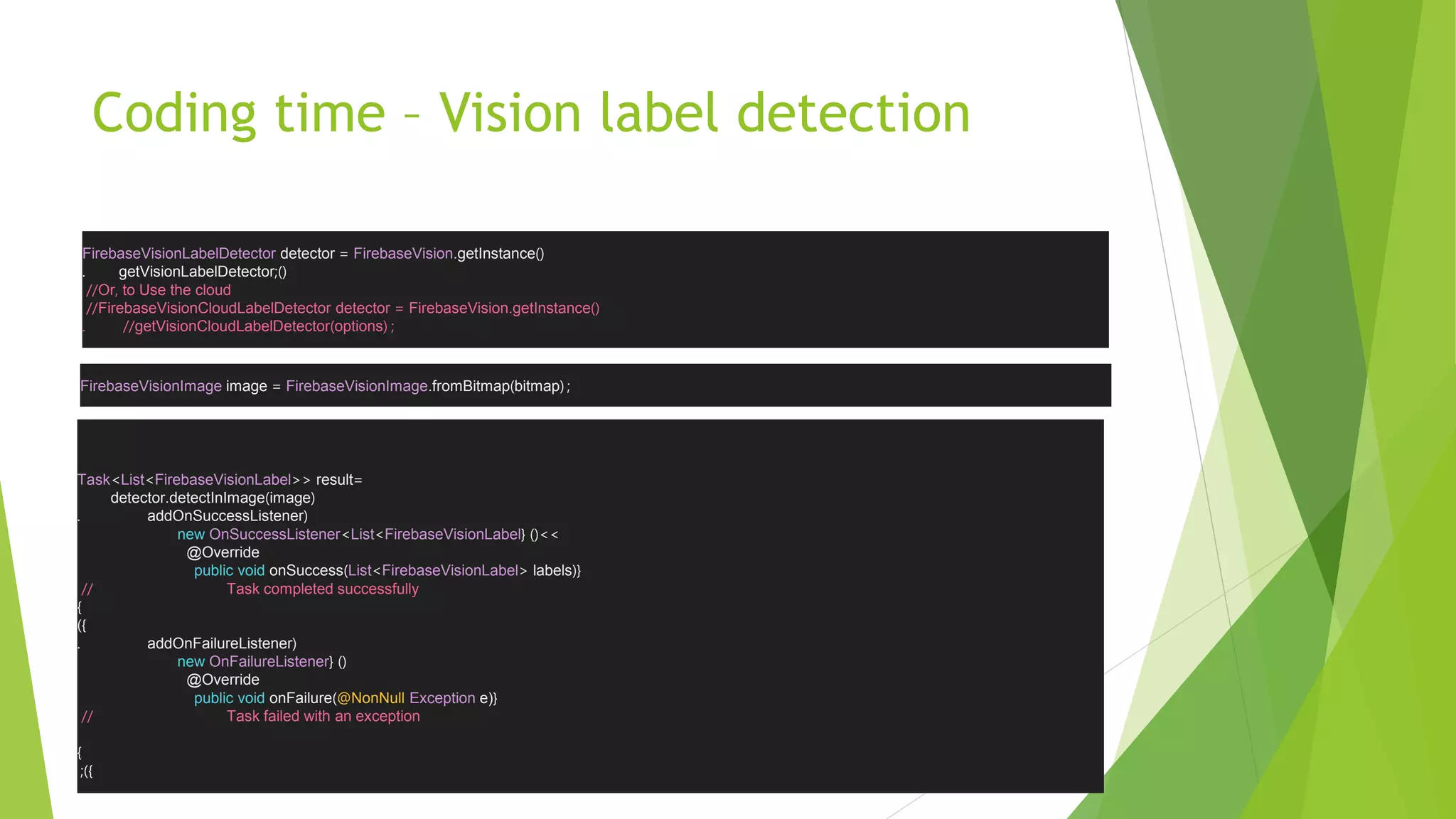

9. Coding time – Vision label detection
FirebaseVisionLabelDetector detector = FirebaseVision.getInstance)(
. getVisionLabelDetector )(;
//Or, to Use the cloud
//FirebaseVisionCloudLabelDetector detector = FirebaseVision.getInstance)(
//. getVisionCloudLabelDetector)options( ;
FirebaseVisionImage image = FirebaseVisionImage.fromBitmap)bitmap( ;
Task<List<FirebaseVisionLabel>> result=
detector.detectInImage)image(
. addOnSuccessListener(
new OnSuccessListener<List<FirebaseVisionLabel <<)({
@Override
public void onSuccess)List<FirebaseVisionLabel> labels({
// Task completed successfully
}
})
. addOnFailureListener(
new OnFailureListener )({
@Override
public void onFailure)@NonNull Exception e){
// Task failed with an exception
}
});

10. Creating something
different
oRecognize Something specific
oRun Offline
oResponse time
oCost
<droidcon Tel Aviv>

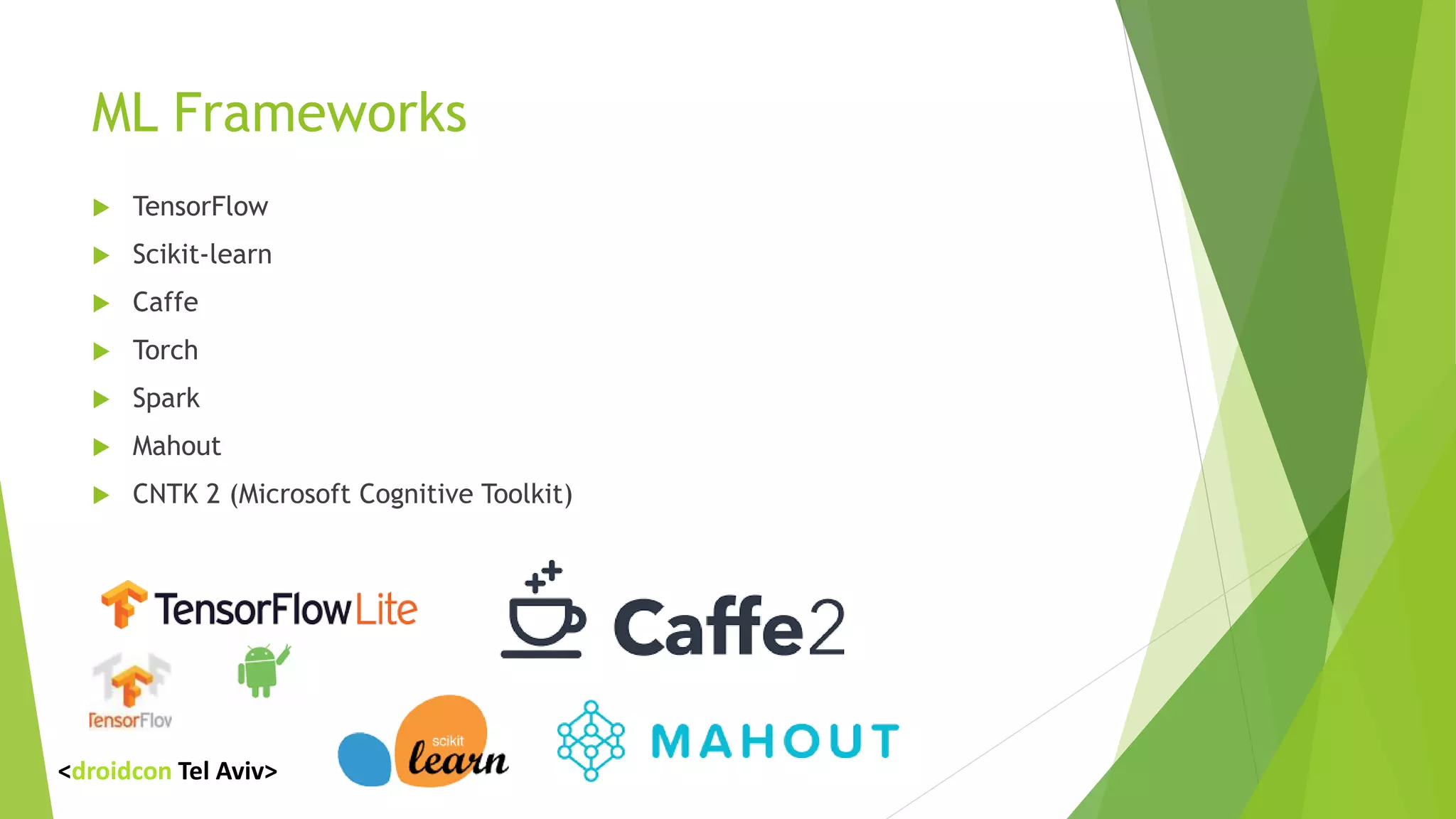

11. ML Frameworks
 TensorFlow
 Scikit-learn
 Caffe
 Torch
 Spark
 Mahout
 CNTK 2 (Microsoft Cognitive Toolkit)
<droidcon Tel Aviv>

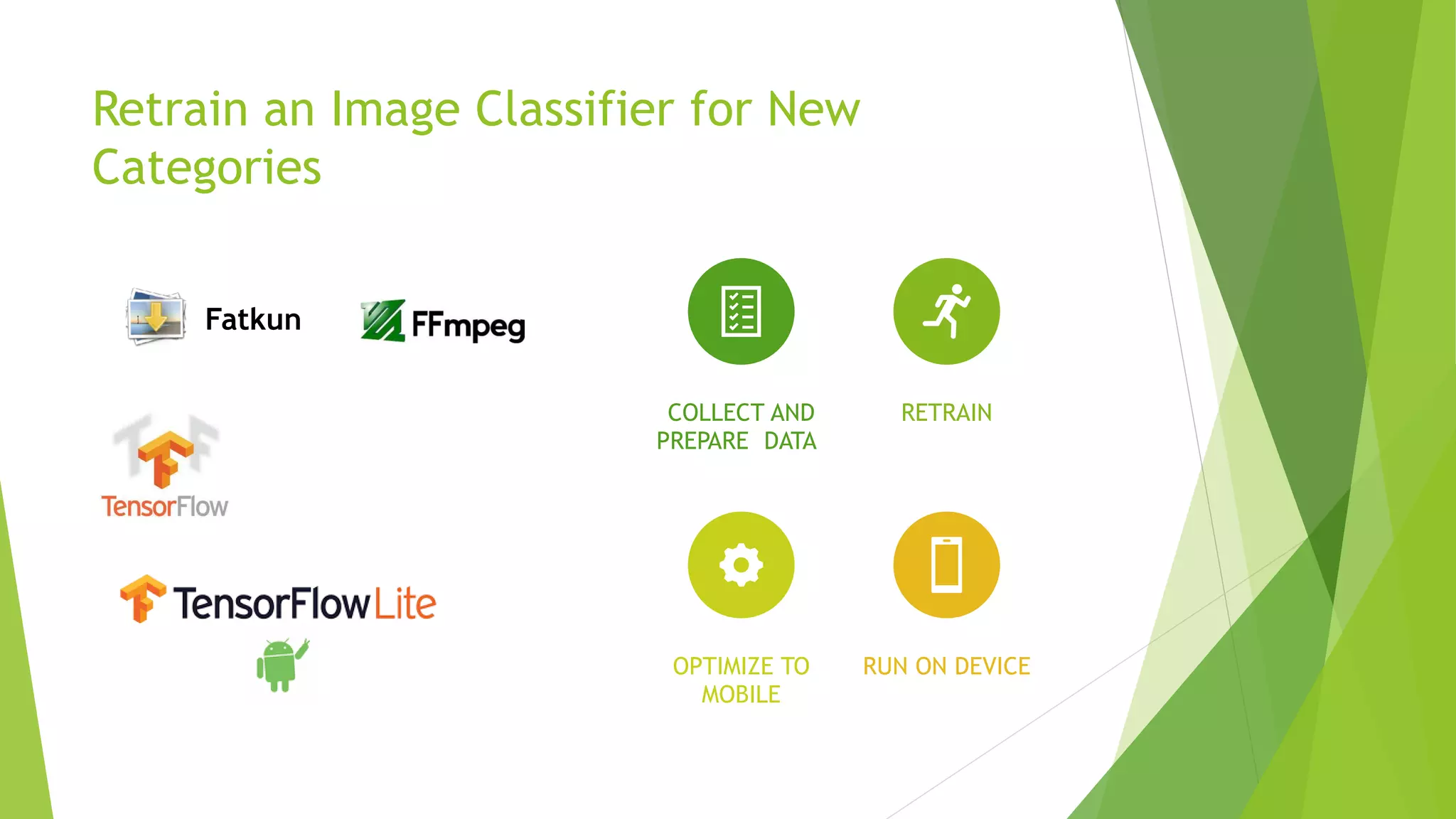

12. Retrain an Image Classifier for New
Categories
COLLECT AND
PREPARE DATA
RETRAIN
OPTIMIZE TO
MOBILE
RUN ON DEVICE
Fatkun

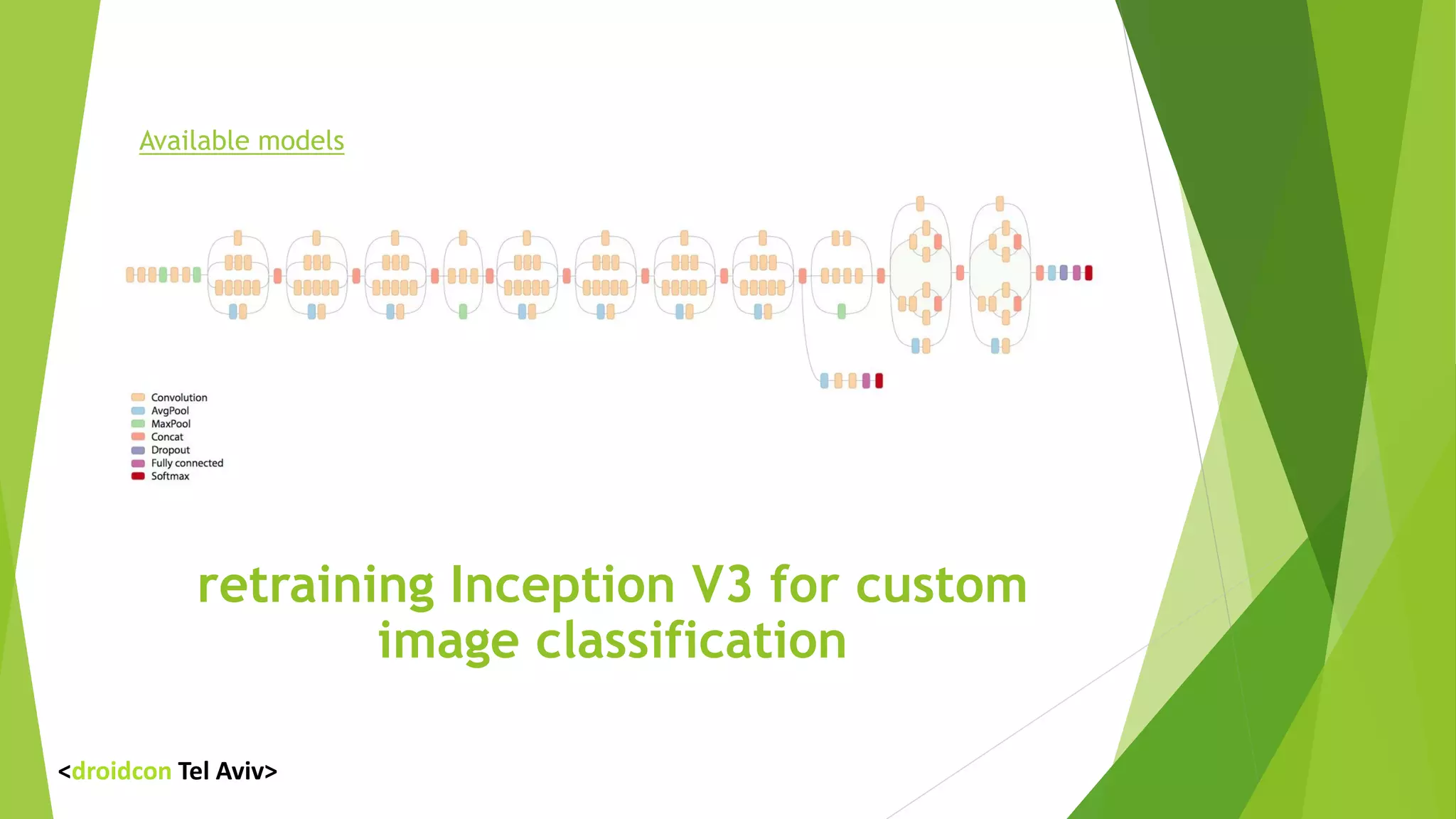

13. retraining Inception V3 for custom
image classification
Available models
<droidcon Tel Aviv>

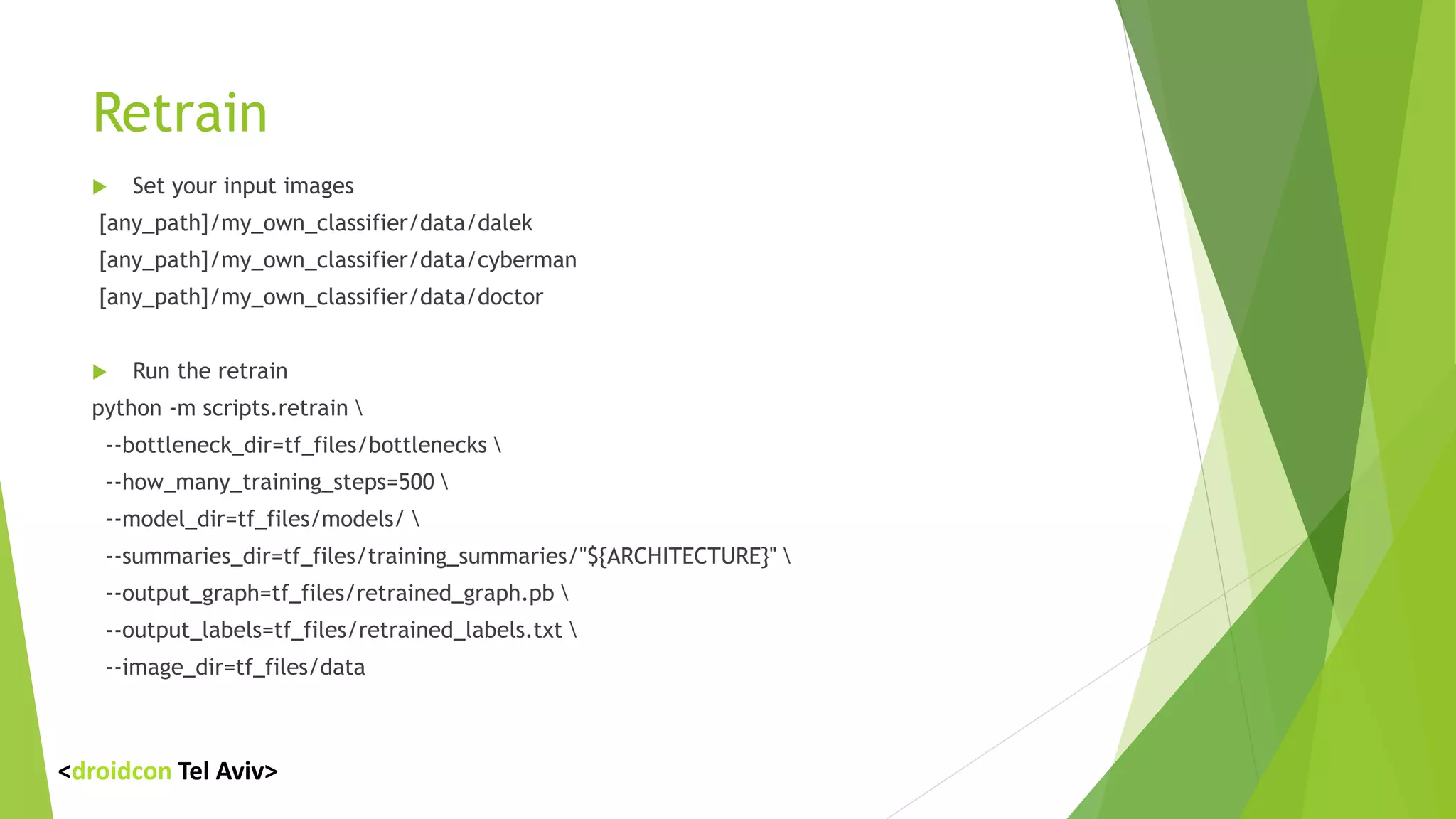

14. Retrain
 Set your input images
[any_path]/my_own_classifier/data/dalek
[any_path]/my_own_classifier/data/cyberman
[any_path]/my_own_classifier/data/doctor
 Run the retrain
python -m scripts.retrain
--bottleneck_dir=tf_files/bottlenecks
--how_many_training_steps=500
--model_dir=tf_files/models/
--summaries_dir=tf_files/training_summaries/"${ARCHITECTURE}"
--output_graph=tf_files/retrained_graph.pb
--output_labels=tf_files/retrained_labels.txt
--image_dir=tf_files/data
<droidcon Tel Aviv>

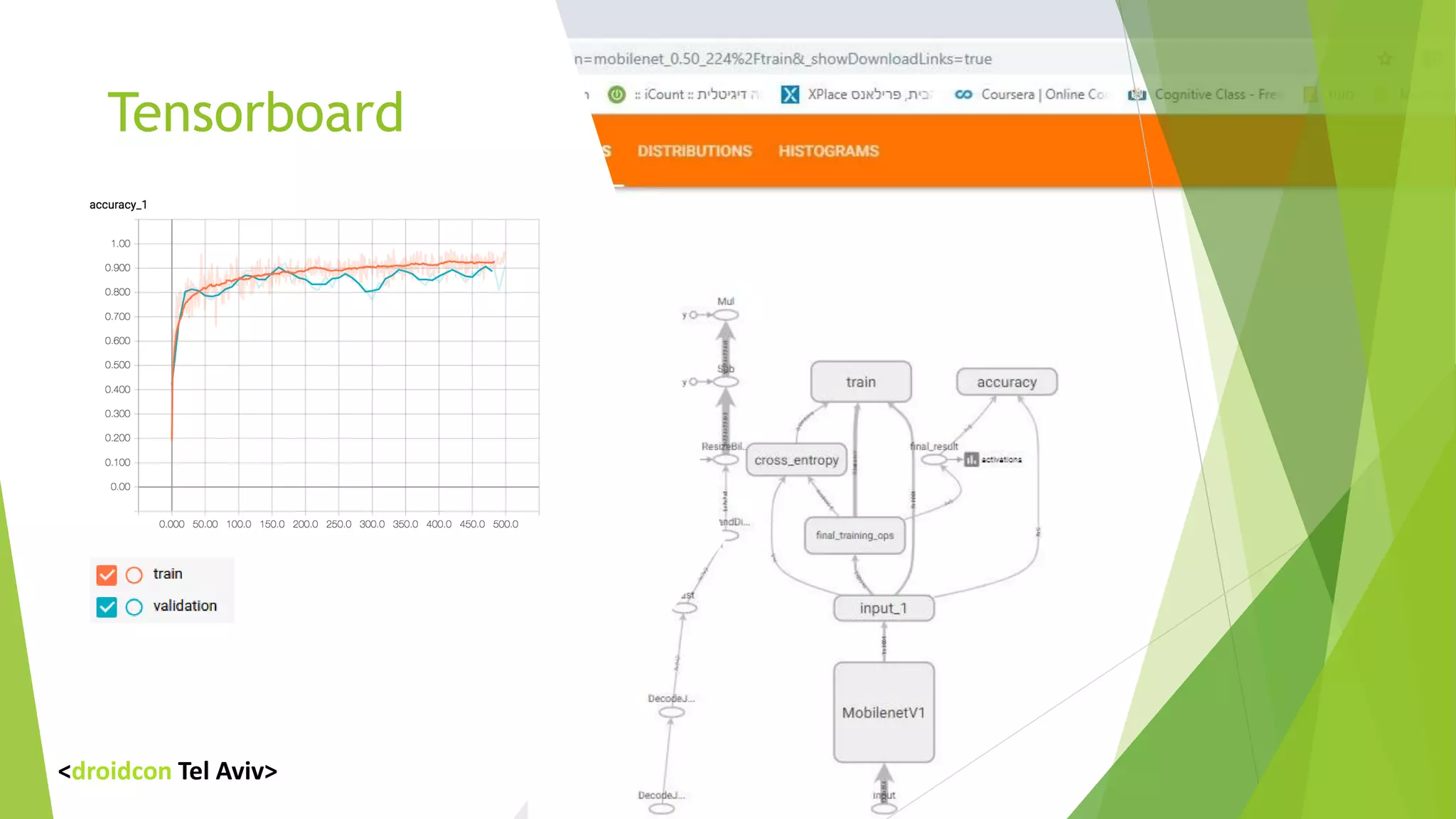

15. Tensorboard
<droidcon Tel Aviv>

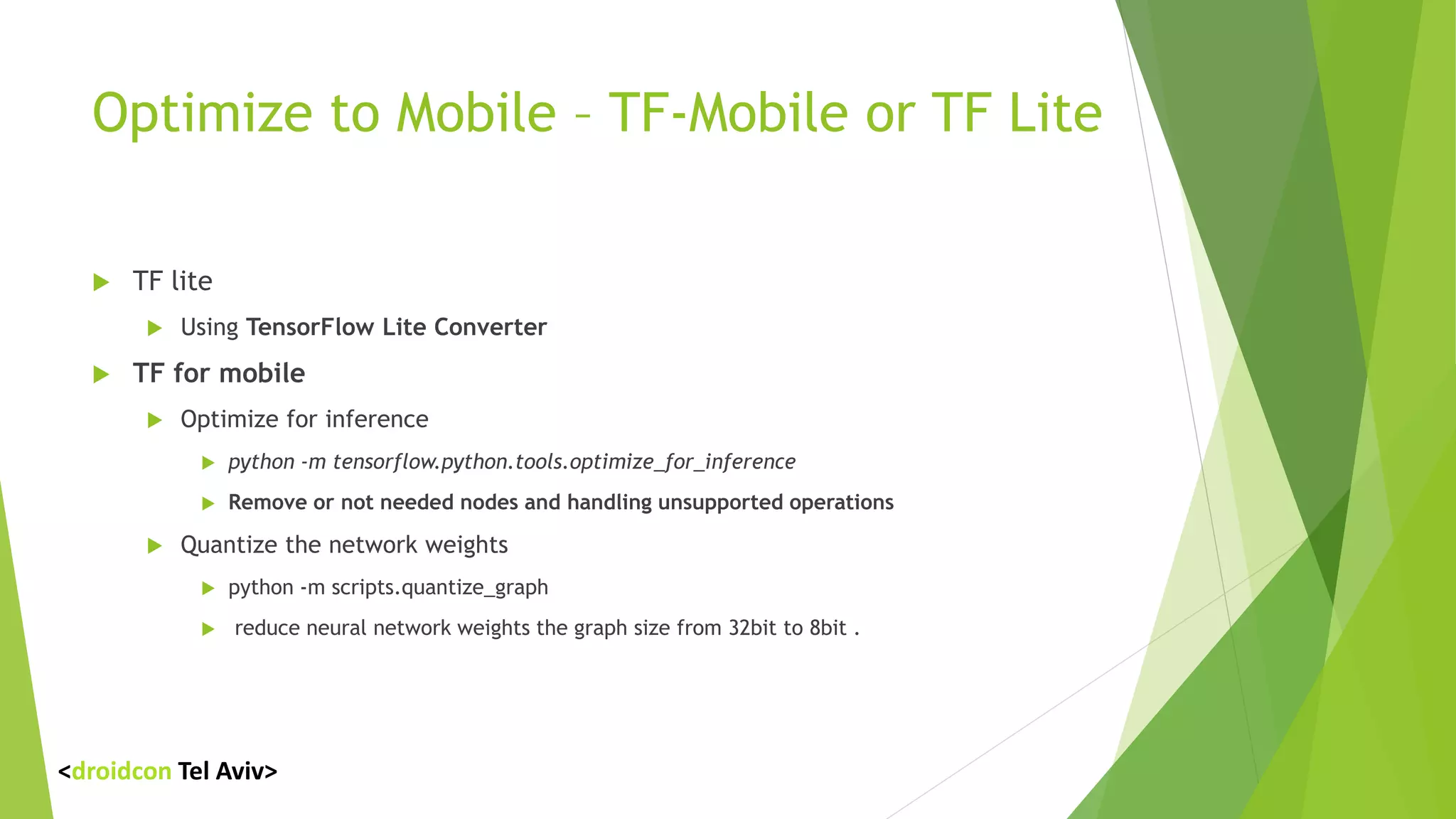

16. Optimize to Mobile – TF-Mobile or TF Lite
 TF lite
 Using TensorFlow Lite Converter
 TF for mobile
 Optimize for inference
 python -m tensorflow.python.tools.optimize_for_inference
 Remove or not needed nodes and handling unsupported operations
 Quantize the network weights
 python -m scripts.quantize_graph
 reduce neural network weights the graph size from 32bit to 8bit .
<droidcon Tel Aviv>

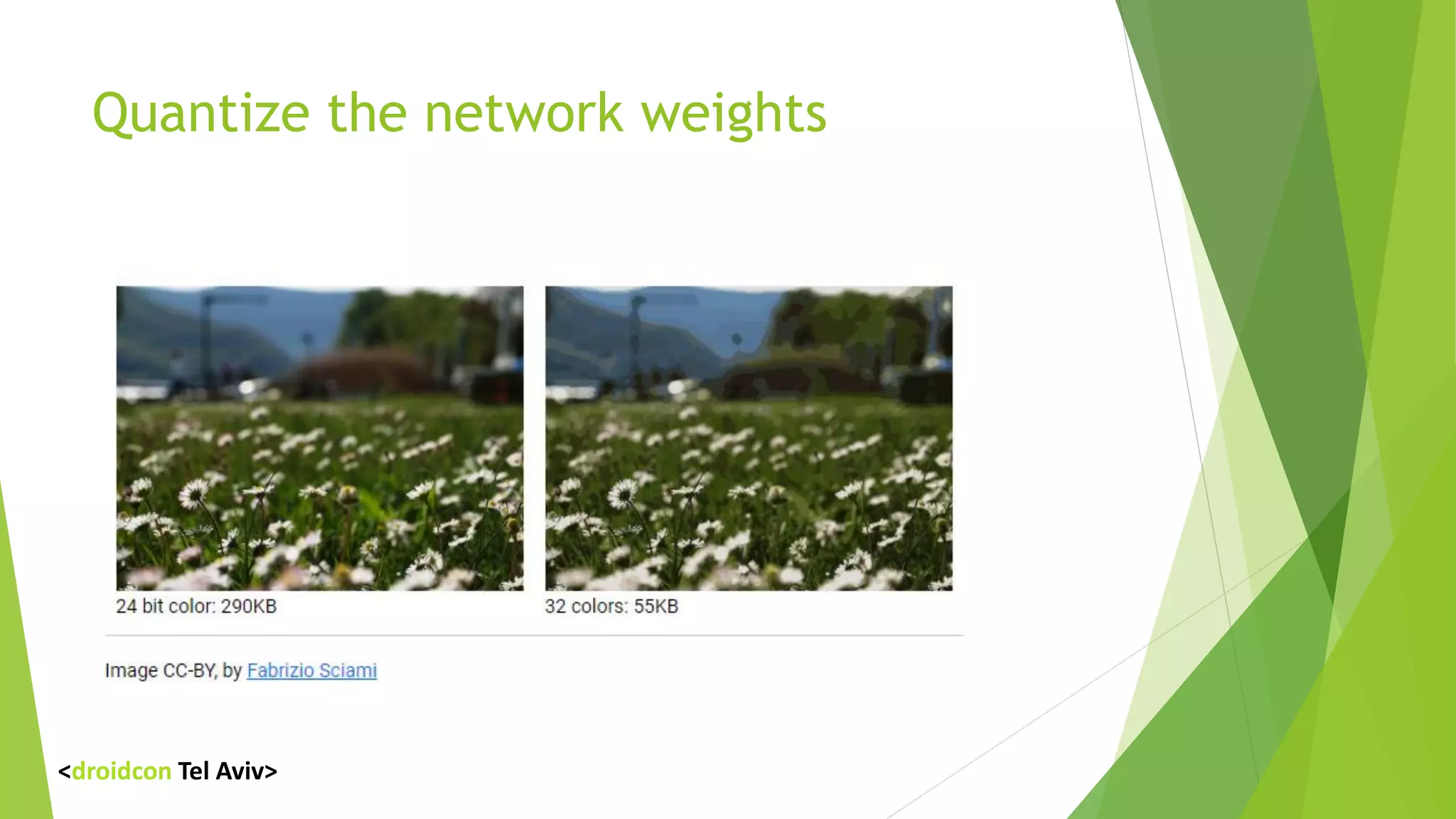

17. Quantize the network weights
<droidcon Tel Aviv>

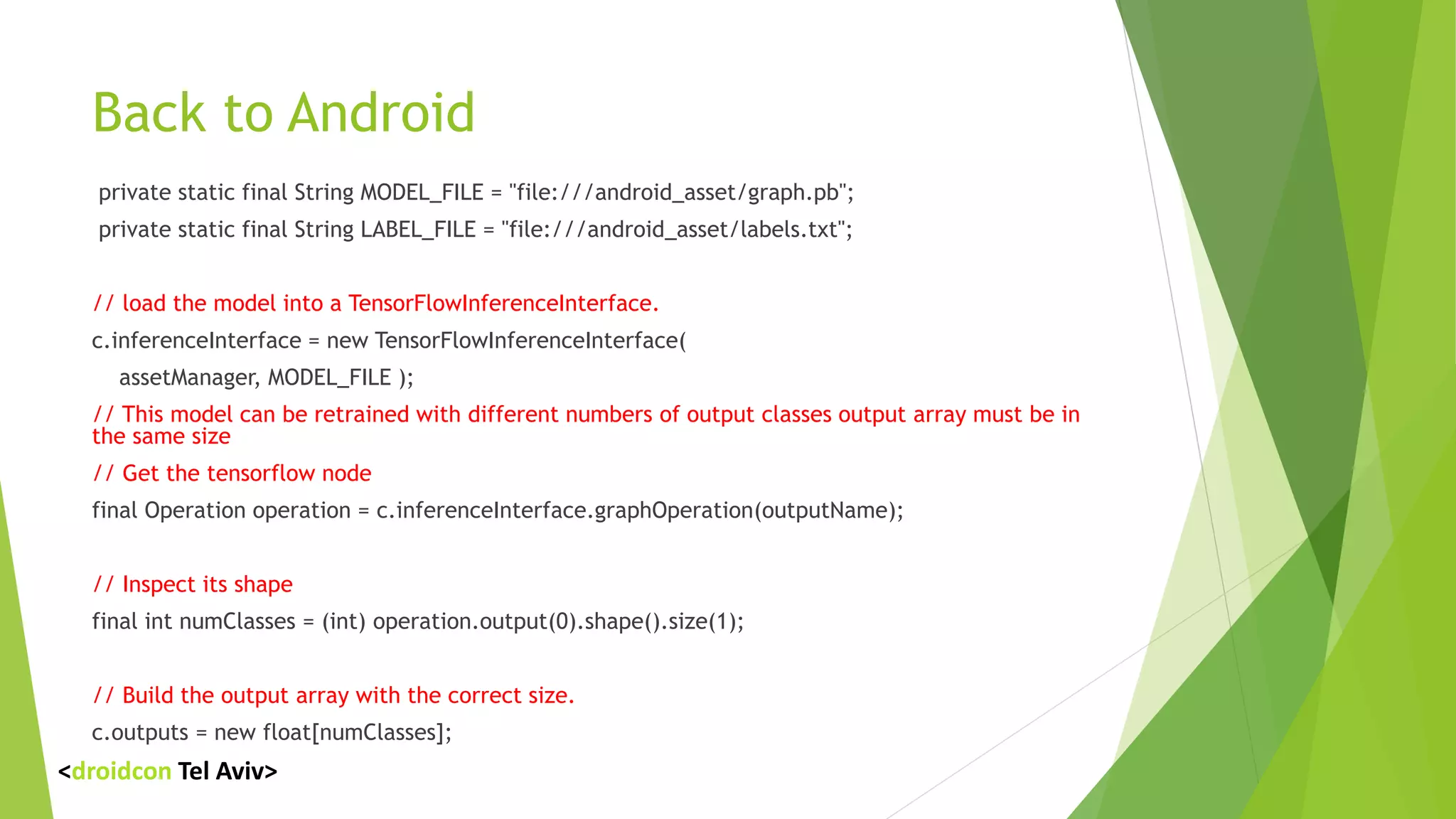

18. Back to Android
private static final String MODEL_FILE = "file:///android_asset/graph.pb";
private static final String LABEL_FILE = "file:///android_asset/labels.txt";
// load the model into a TensorFlowInferenceInterface.
c.inferenceInterface = new TensorFlowInferenceInterface(
assetManager, MODEL_FILE );
// This model can be retrained with different numbers of output classes output array must be in
the same size
// Get the tensorflow node
final Operation operation = c.inferenceInterface.graphOperation(outputName);
// Inspect its shape
final int numClasses = (int) operation.output(0).shape().size(1);
// Build the output array with the correct size.
c.outputs = new float[numClasses];
<droidcon Tel Aviv>

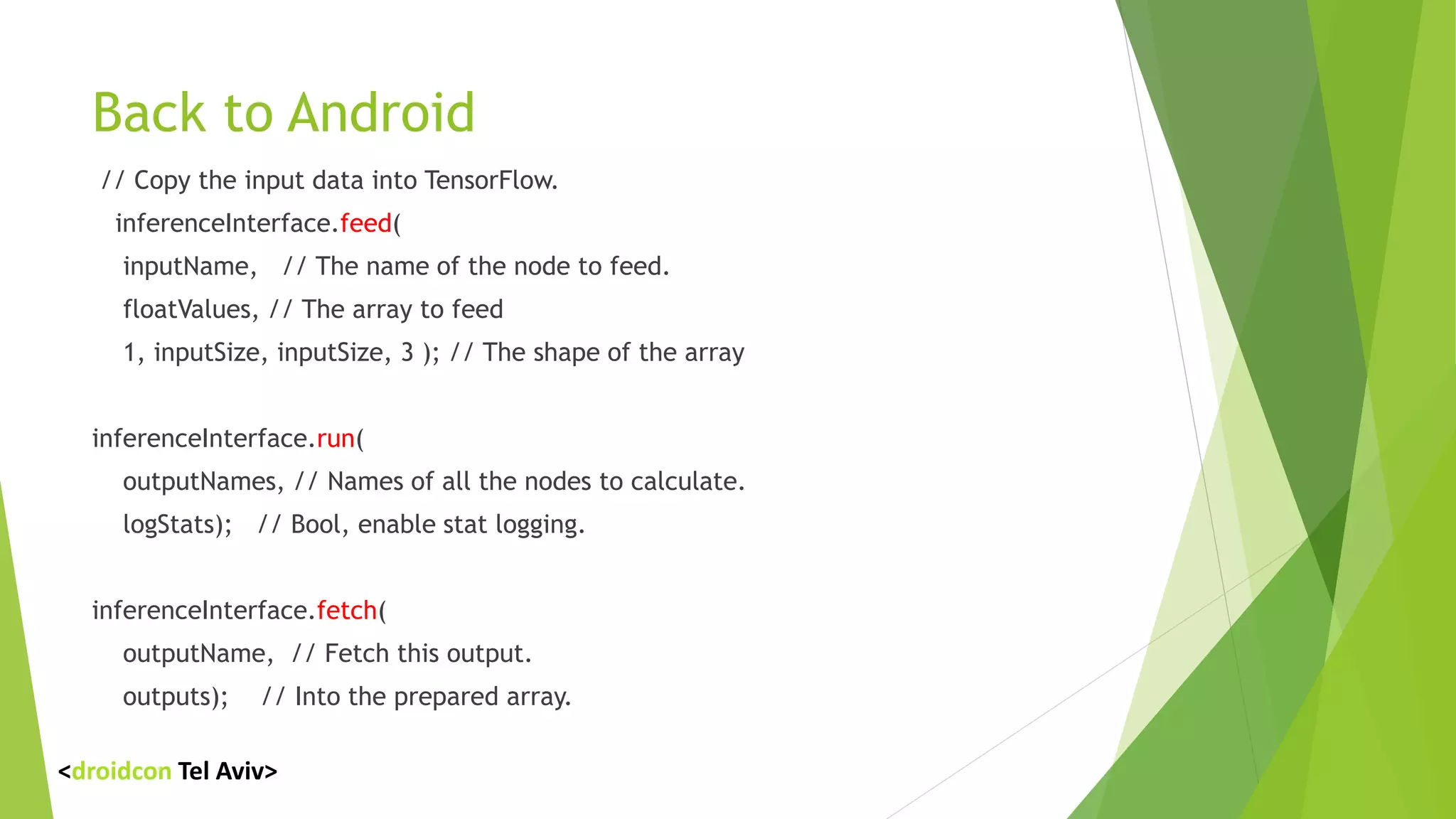

19. Back to Android
// Copy the input data into TensorFlow.
inferenceInterface.feed(
inputName, // The name of the node to feed.
floatValues, // The array to feed
1, inputSize, inputSize, 3 ); // The shape of the array
inferenceInterface.run(
outputNames, // Names of all the nodes to calculate.
logStats); // Bool, enable stat logging.
inferenceInterface.fetch(
outputName, // Fetch this output.
outputs); // Into the prepared array.
<droidcon Tel Aviv>

20. Live Demo
<droidcon Tel Aviv>

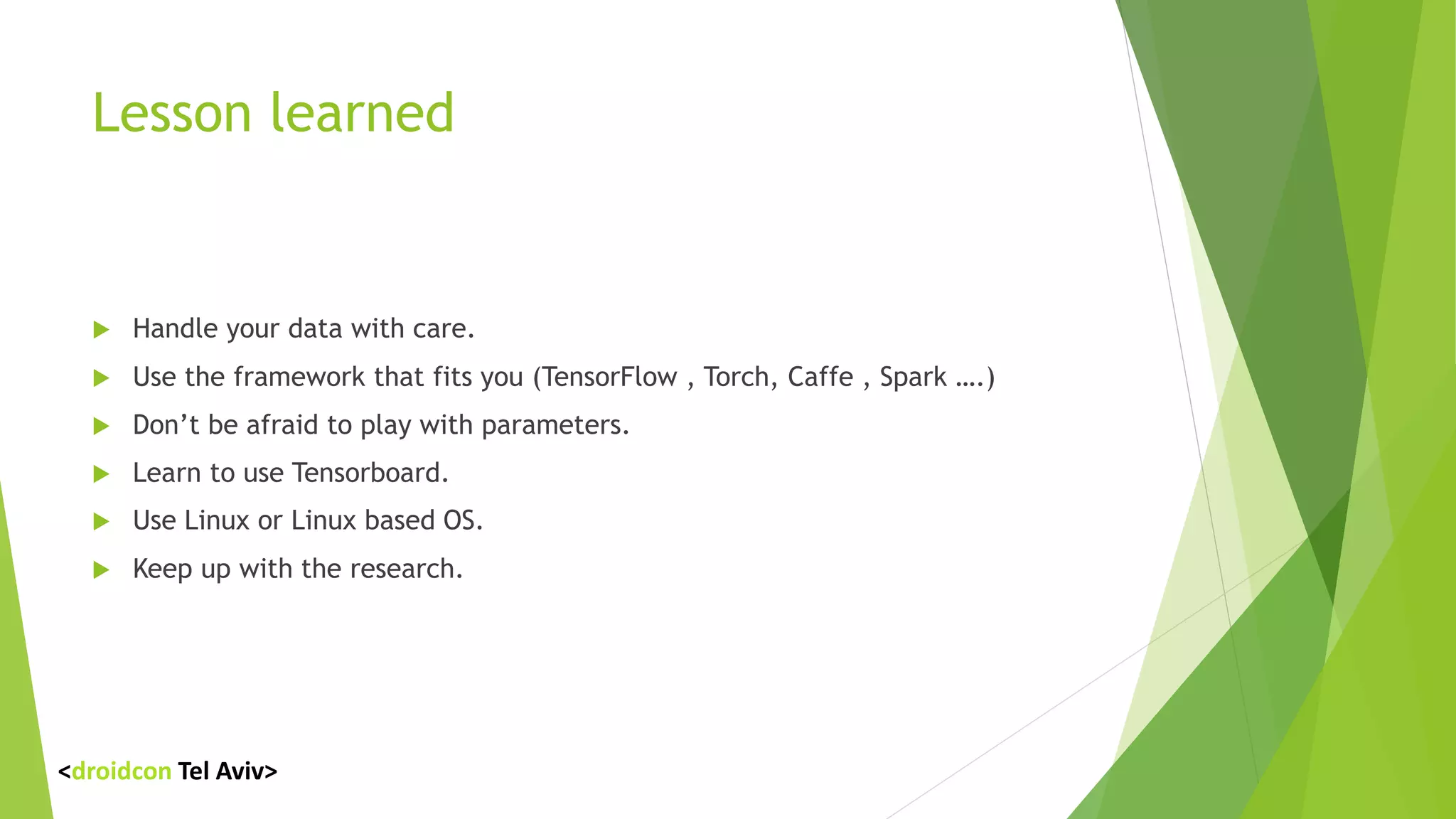

21. Lesson learned
 Handle your data with care.
 Use the framework that fits you (TensorFlow , Torch, Caffe , Spark ….)
 Don’t be afraid to play with parameters.
 Learn to use Tensorboard.
 Use Linux or Linux based OS.
 Keep up with the research.
<droidcon Tel Aviv>

22. Questions ?
<droidcon Tel Aviv>

23. Thanks
Maoz Tamir
maoz.tamir@gmail.com
053-3134223
Mobilefactory.co.il
<droidcon Tel Aviv>
