This document discusses layout and animation performance in Android. It begins with an overview of how motion is perceived by the human eye and how to achieve smooth motion. It then covers topics like measuring and laying out views, optimizing for the GPU, using hardware layers for animation, and getting size information during animation using ViewTreeObserver. The document provides guidance on profiling performance, reducing unnecessary layout requests, and techniques for creating smooth animations in Android.

1. Layout & Animation
Performance
Britt Barak
13/6/2016
Wifi: GoogleGuestPSK
pass: pUp3EkaP
3

2. First,

3. Britt Barak
Britt Barak
3
●Real - Android Team Leader
●Android Academy TLV

4. Yonatan Levin
Android Evangelist Gett
Idan Felix
Senior Android & Redhead
Varonis
Jonathan Yarkoni
Android Developer &
Advocate
Ironsource
Android Academy Staff
Britt Barak
Android Lead
Real
Muiriel Felix
Android Design

5. Logistics

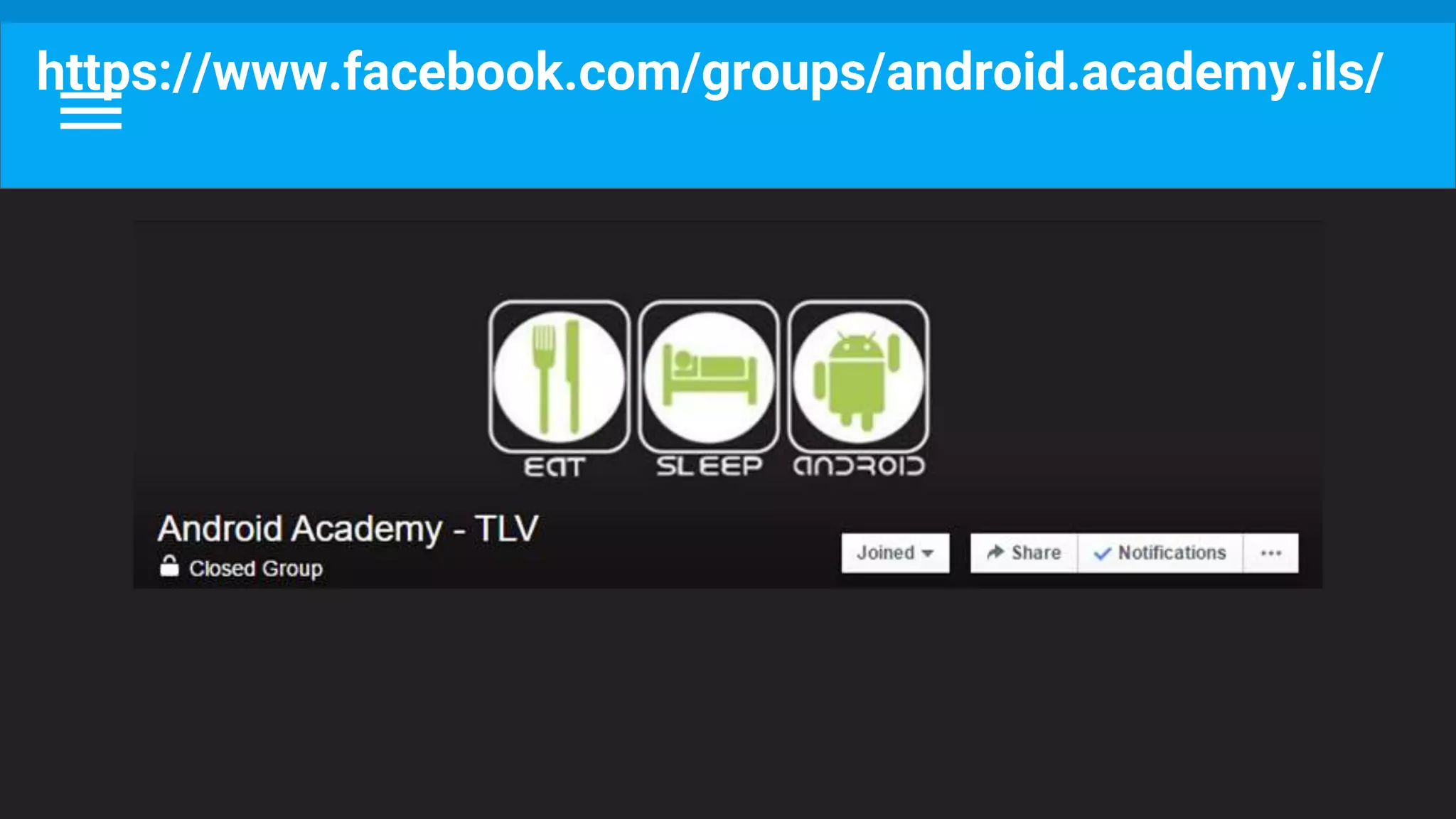

6. https://www.facebook.com/groups/android.academy.ils/

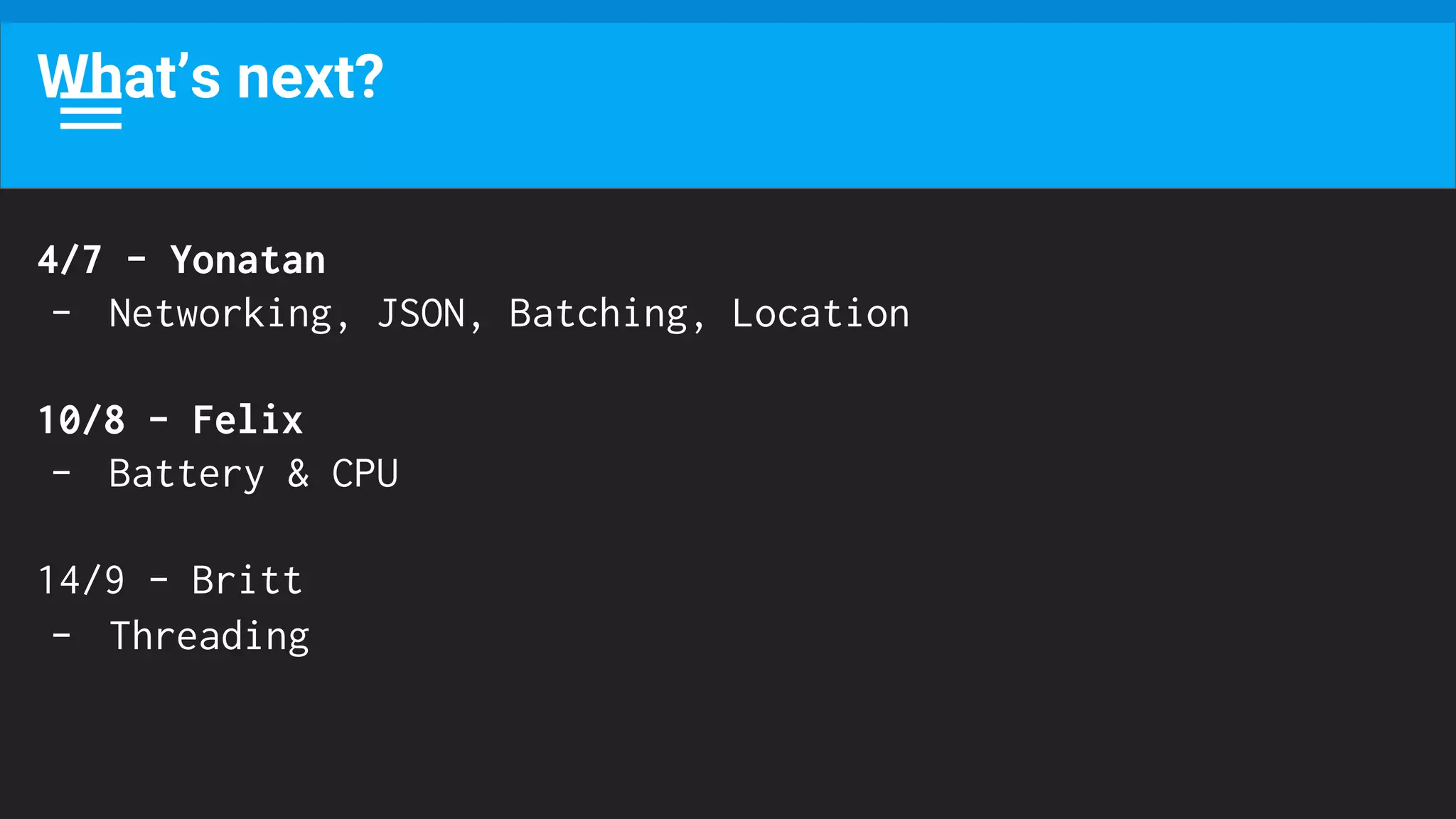

7. What’s next?
4/7 - Yonatan
- Networking, JSON, Batching, Location
10/8 - Felix
- Battery & CPU
14/9 - Britt
- Threading

8. 30 / 10 / 2016
New course coming

9. Today Will Be Awesome!
- Go deep
- Get practical
- Important tips
- Cool tools
- Learn brand new stuff!

10. Motivation

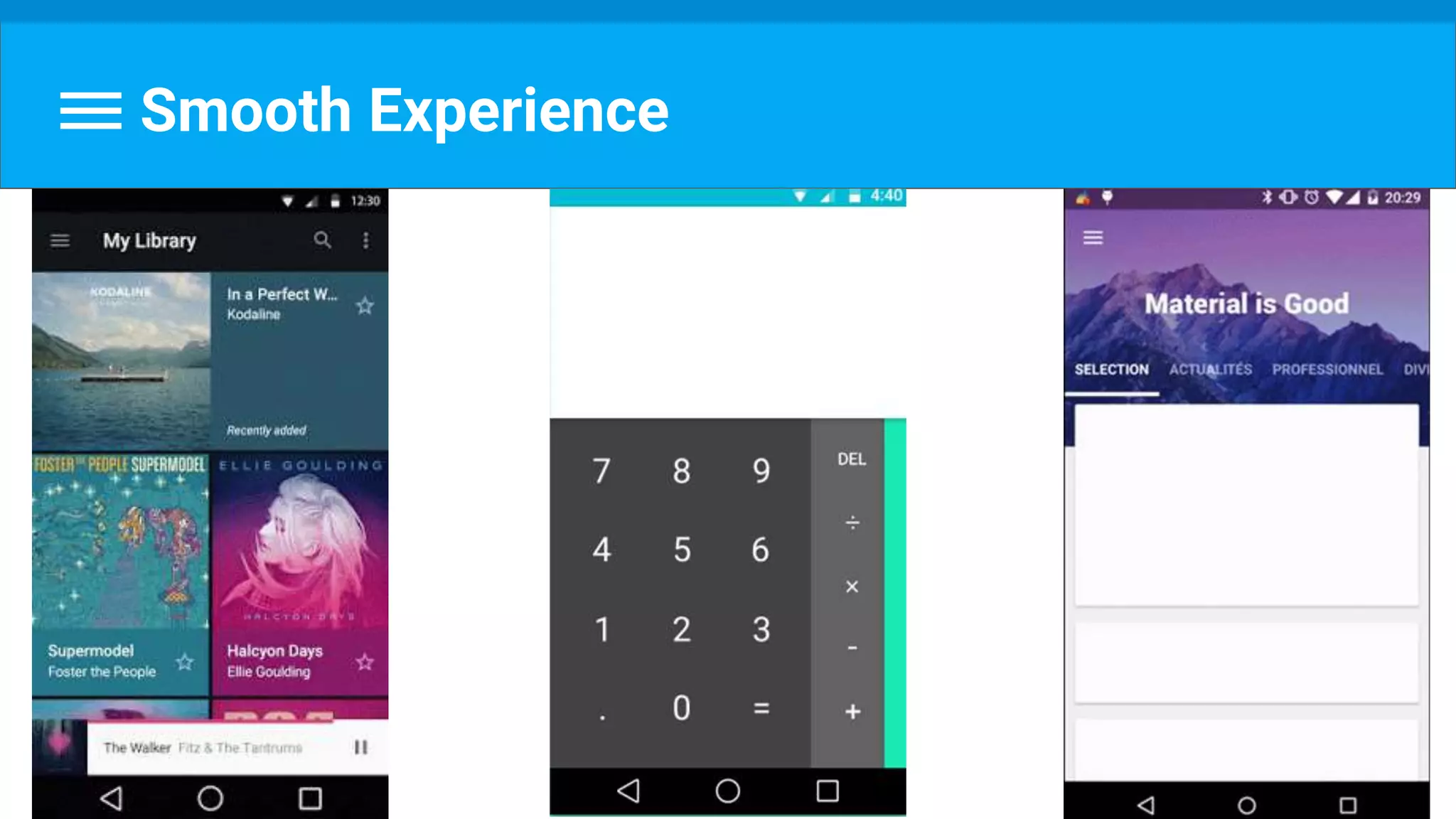

11. Smooth Experience

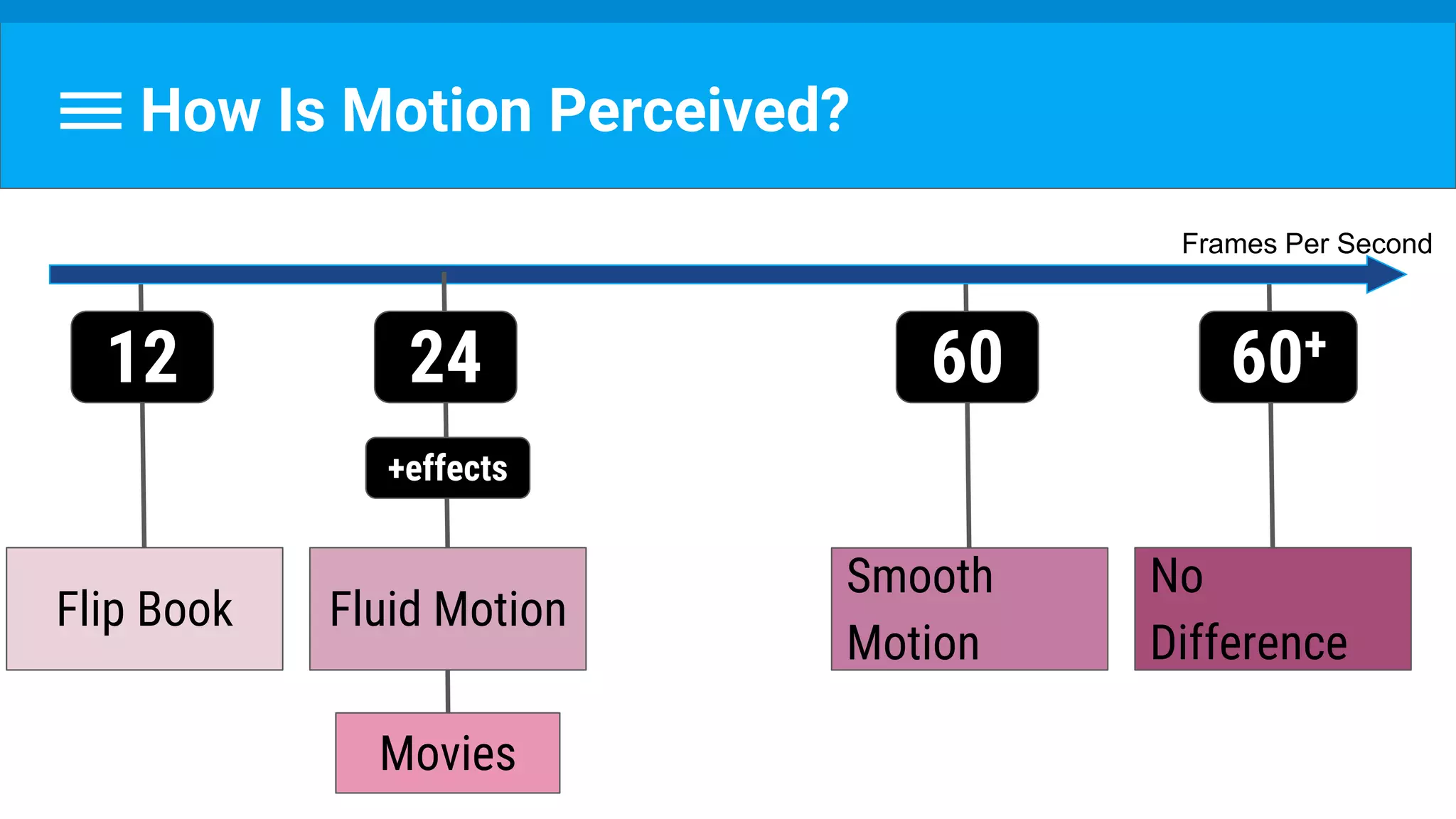

12. How Is Motion Perceived?

13. How Is Motion Perceived?
Smooth
Motion
60
No
Difference
60+
Flip Book
12
Movies
Frames Per Second
Fluid Motion
24
+effects

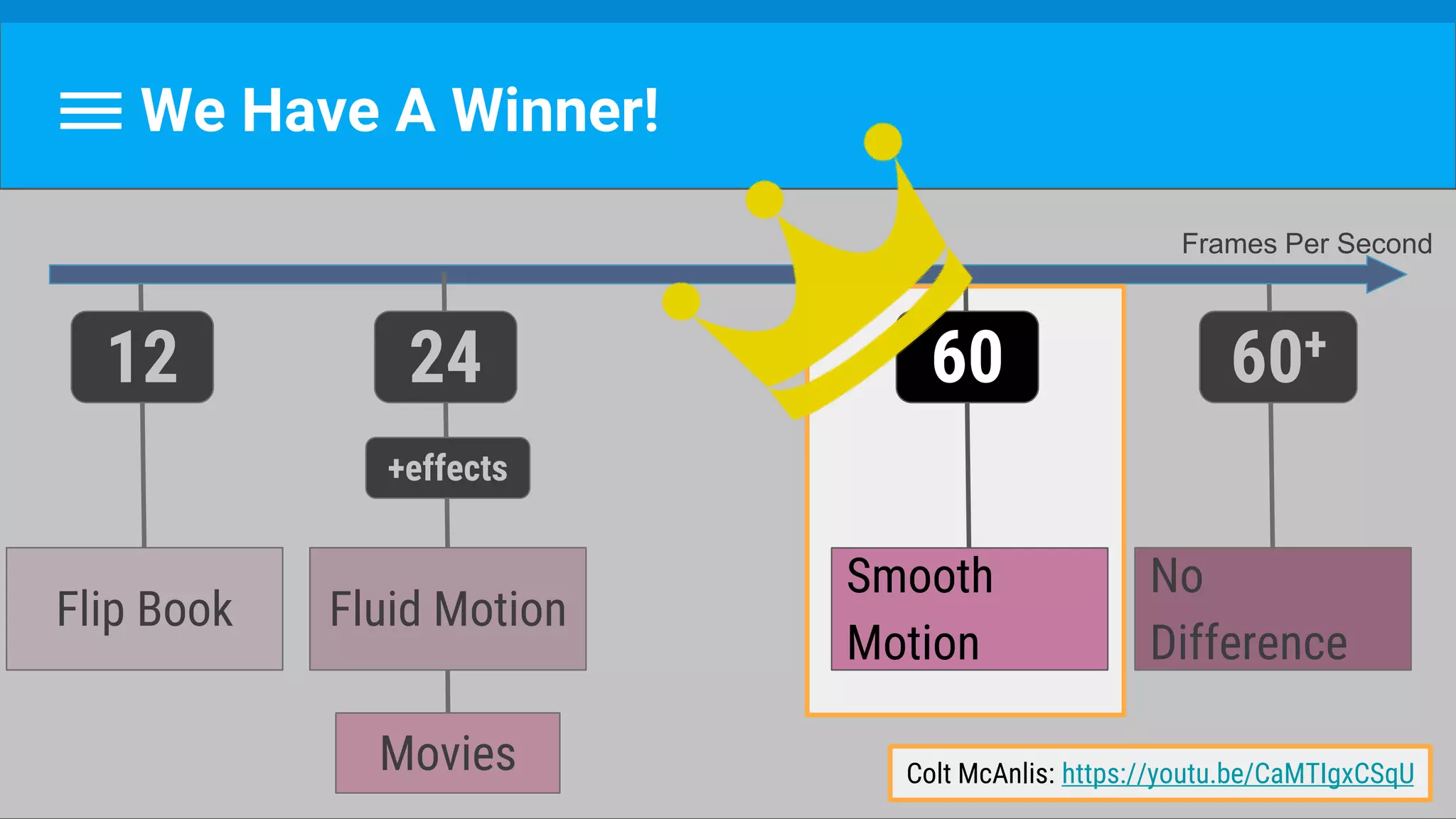

14. We Have A Winner!
Smooth
Motion
60
No
Difference
60+
Flip Book
12
Movies
Frames Per Second
Fluid Motion
24
+effects
Smooth
Motion
60
Colt McAnlis: https://youtu.be/CaMTIgxCSqU

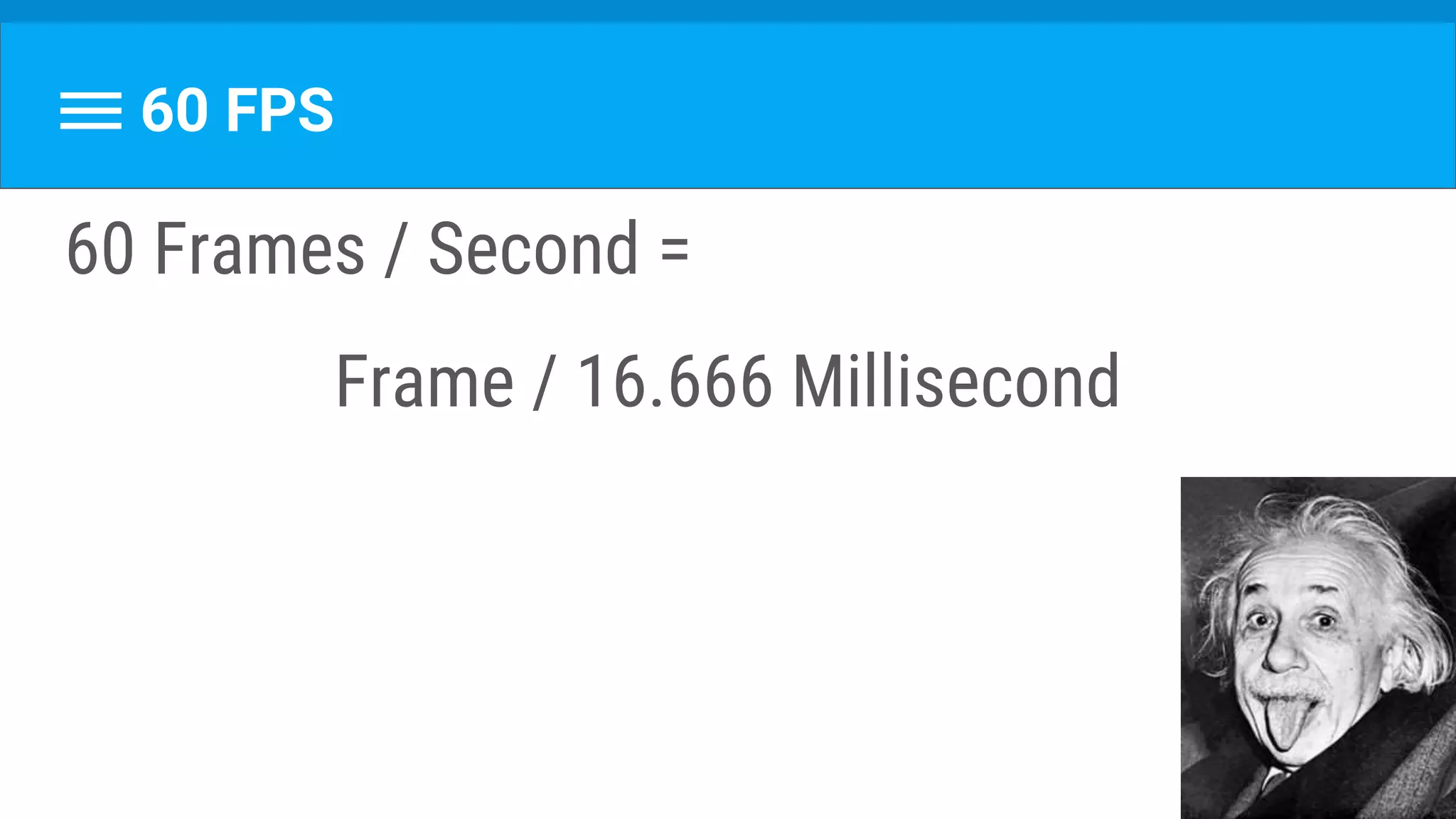

15. 60 FPS
60 Frames / Second =
Frame / 16.666 Millisecond

16. But First Thing First
But First Thing First
But First Thing First

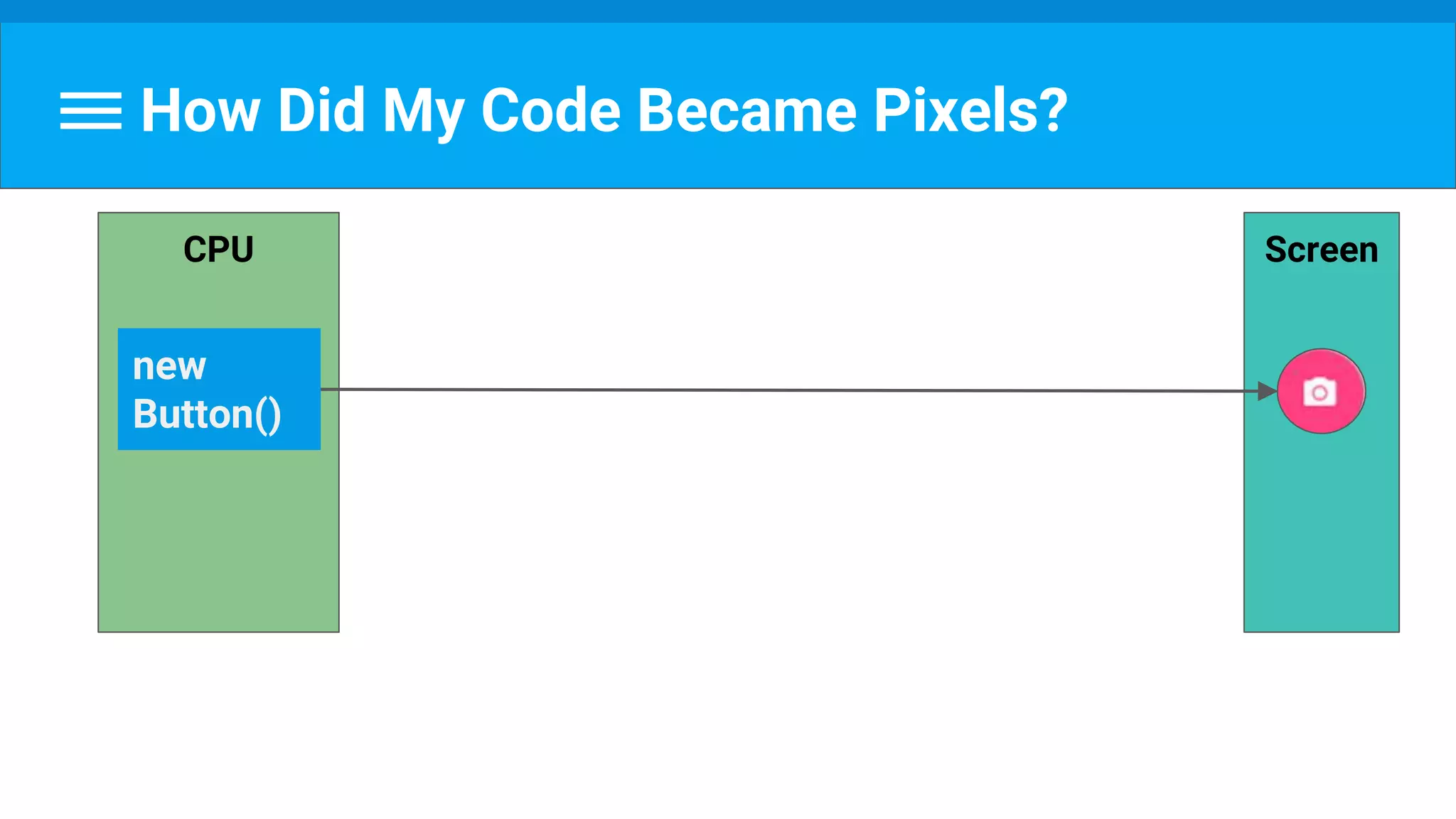

17. How Did My Code Became Pixels?
ScreenCPU
new
Button()

18. Scary Word Alert!!

19. Rasterization
From a high level object
into pixels on screen (or in texture).
https://en.wikipedia.org/wiki/Rasterisation

20. GPU - For The Rescue !

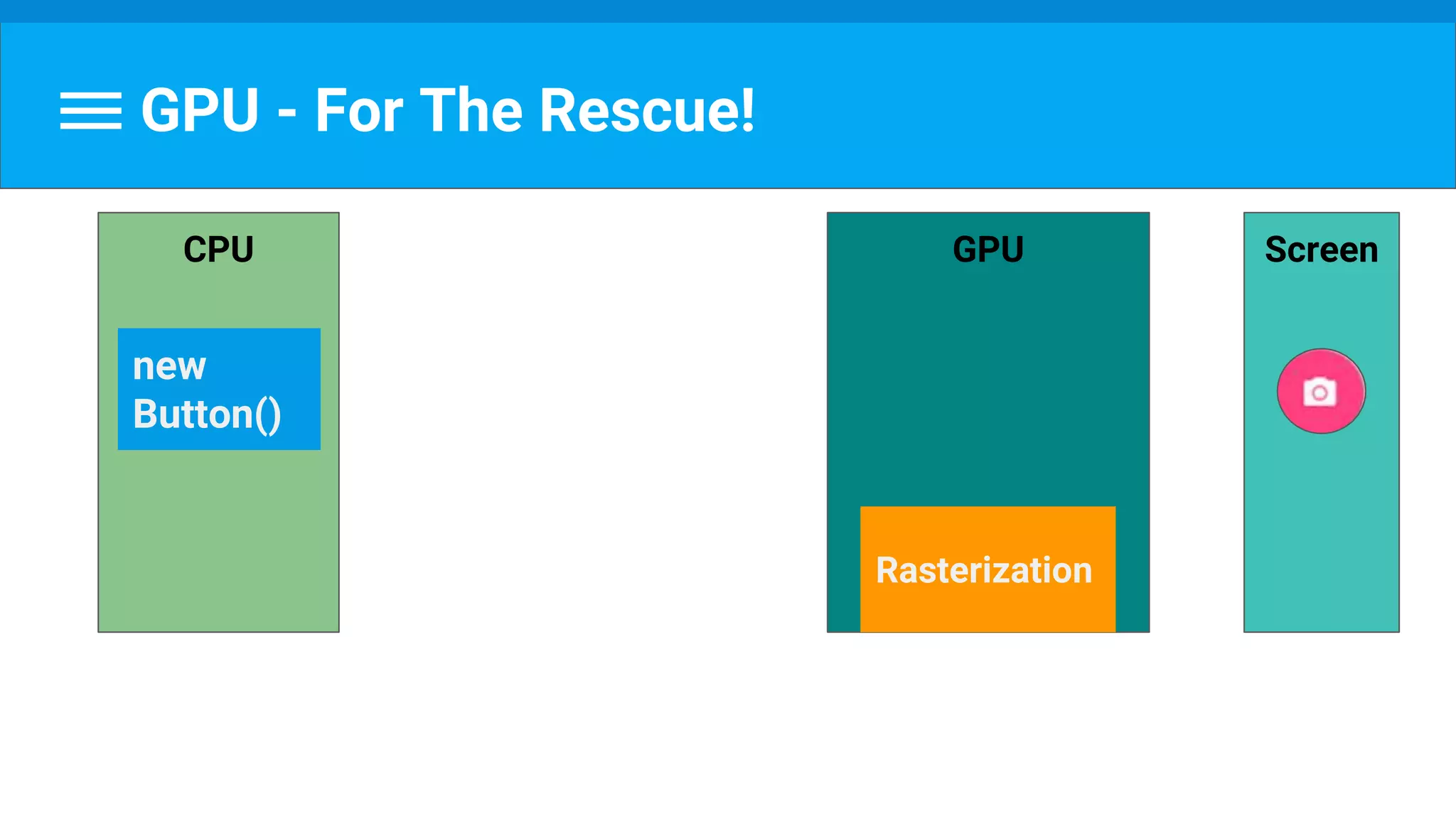

21. GPU - For The Rescue!
ScreenCPU
new
Button()
GPU
Rasterization

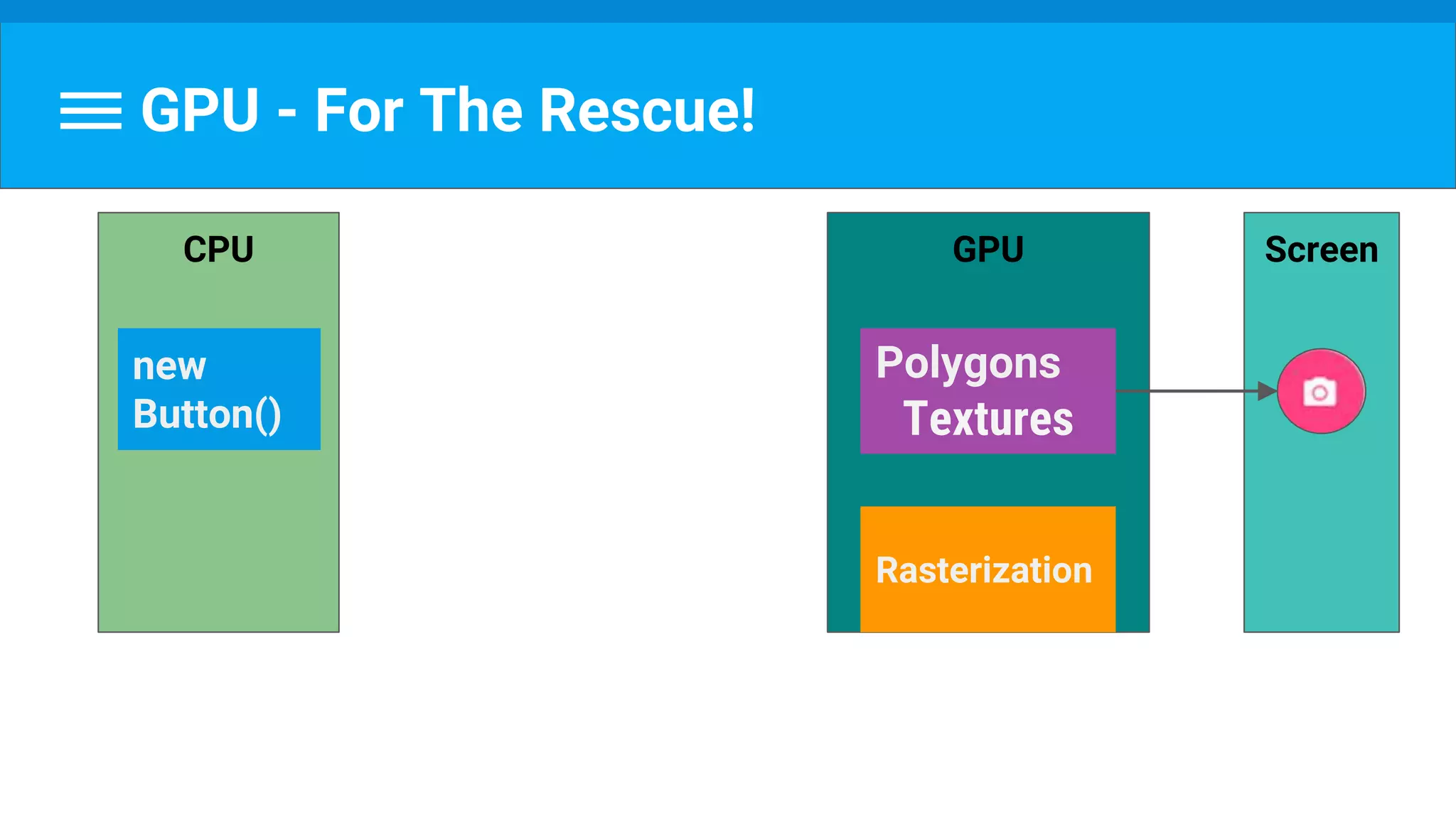

22. GPU - For The Rescue!
ScreenCPU
new
Button()
GPU
Polygons
Textures
Polygons
Textures
Rasterization

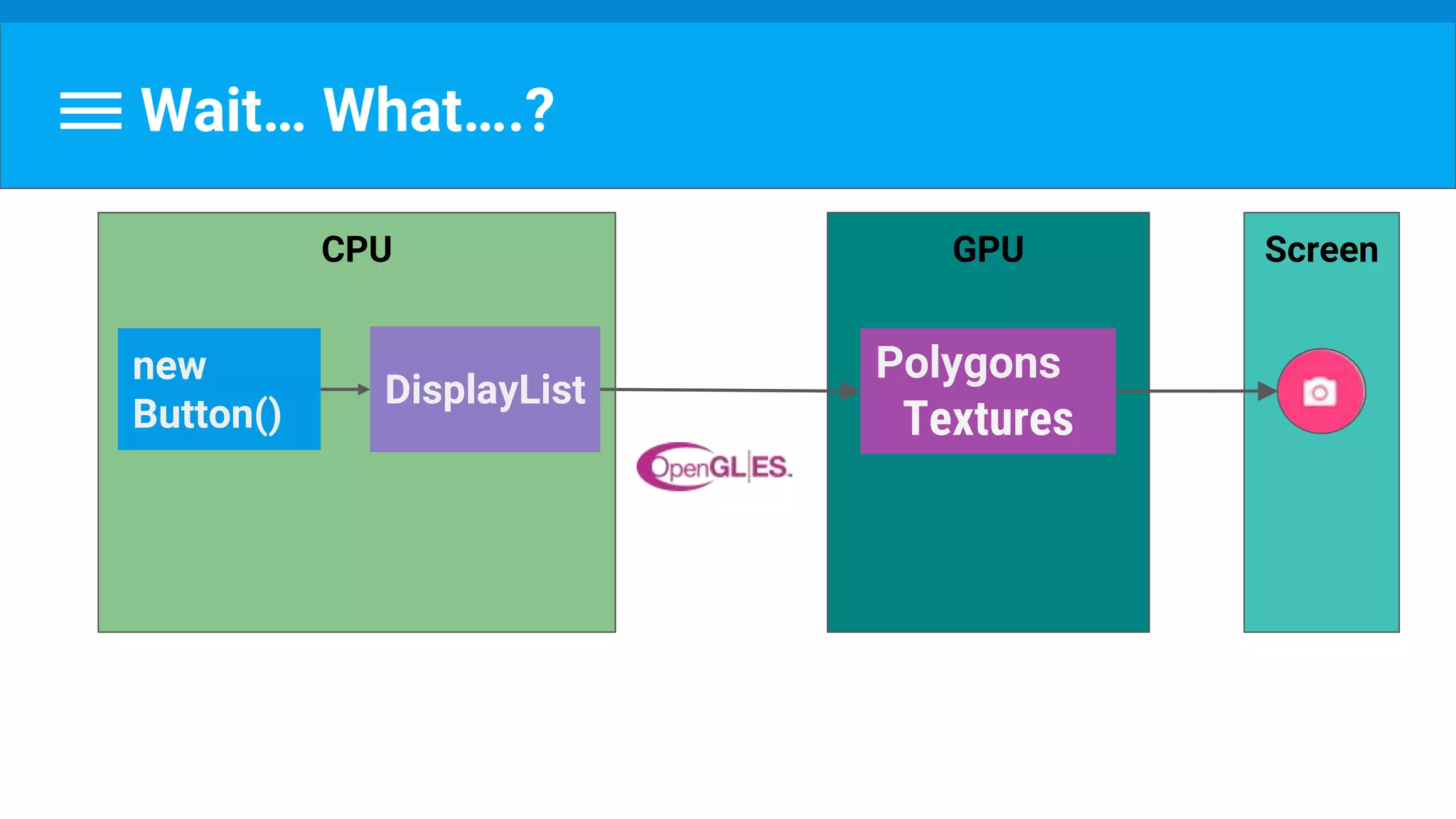

23. Wait… Polygons and Textures…?

24. GPU
Polygons
Textures
Wait… What….?
ScreenCPU
new
Button()
DisplayList

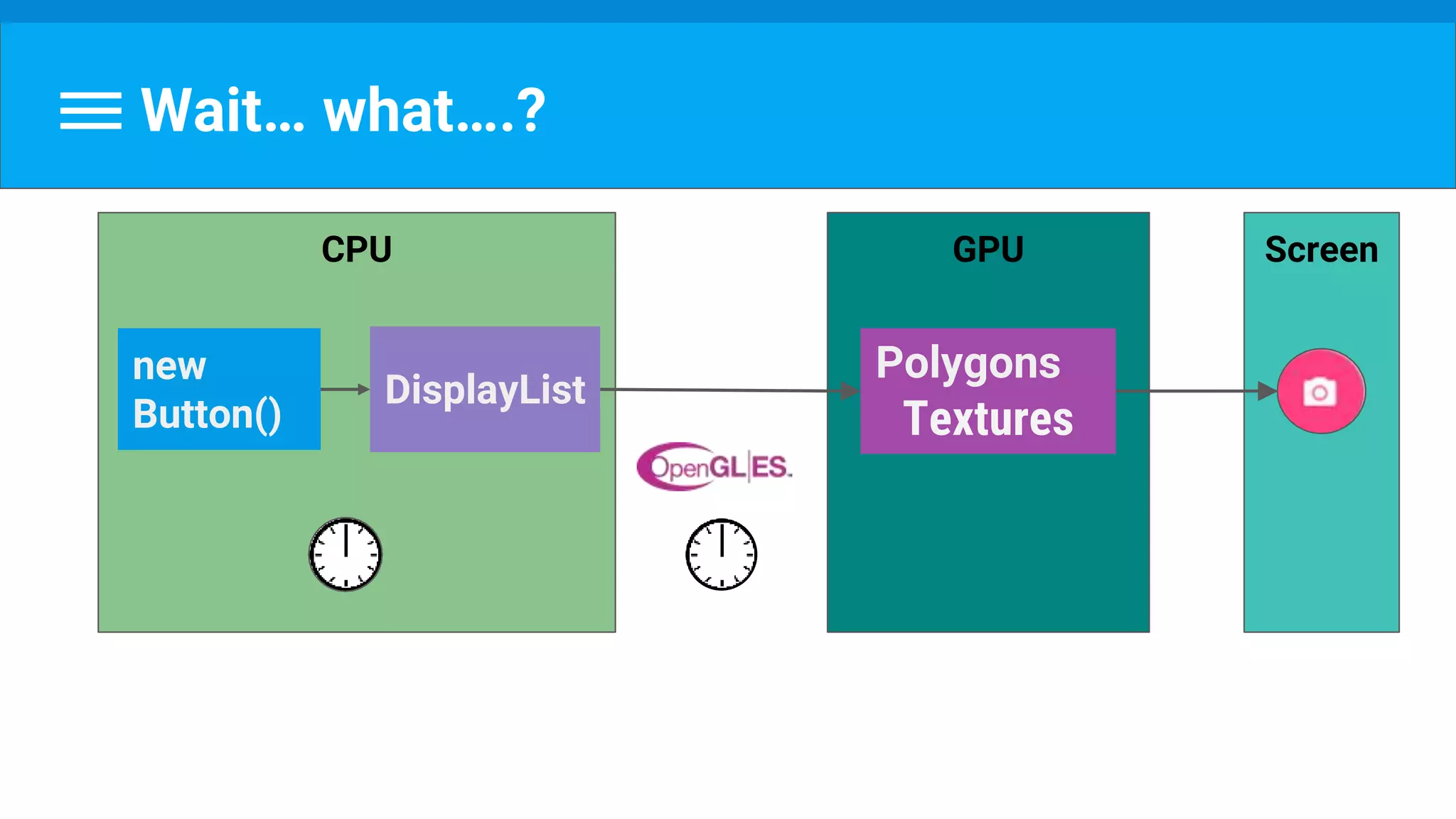

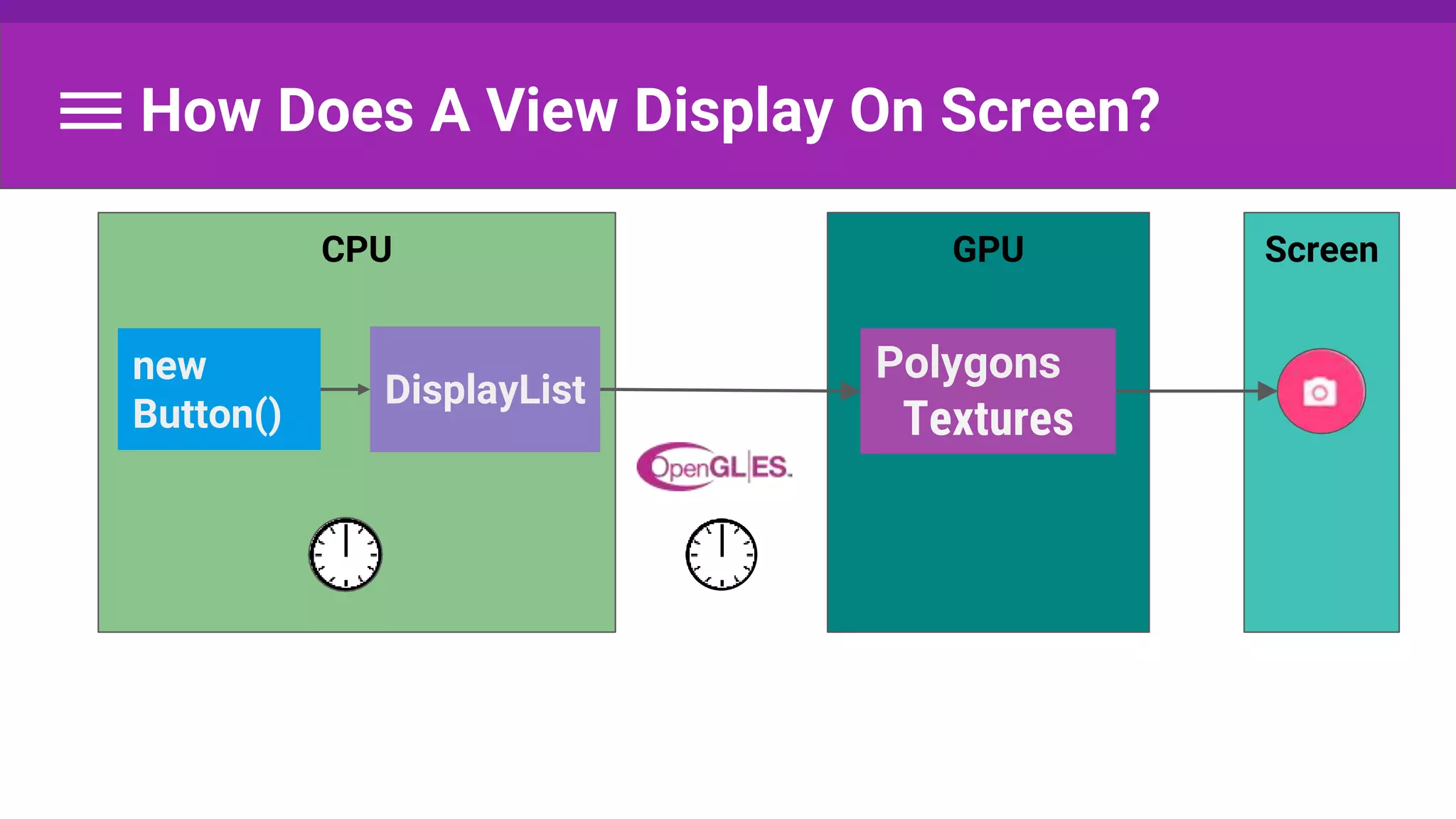

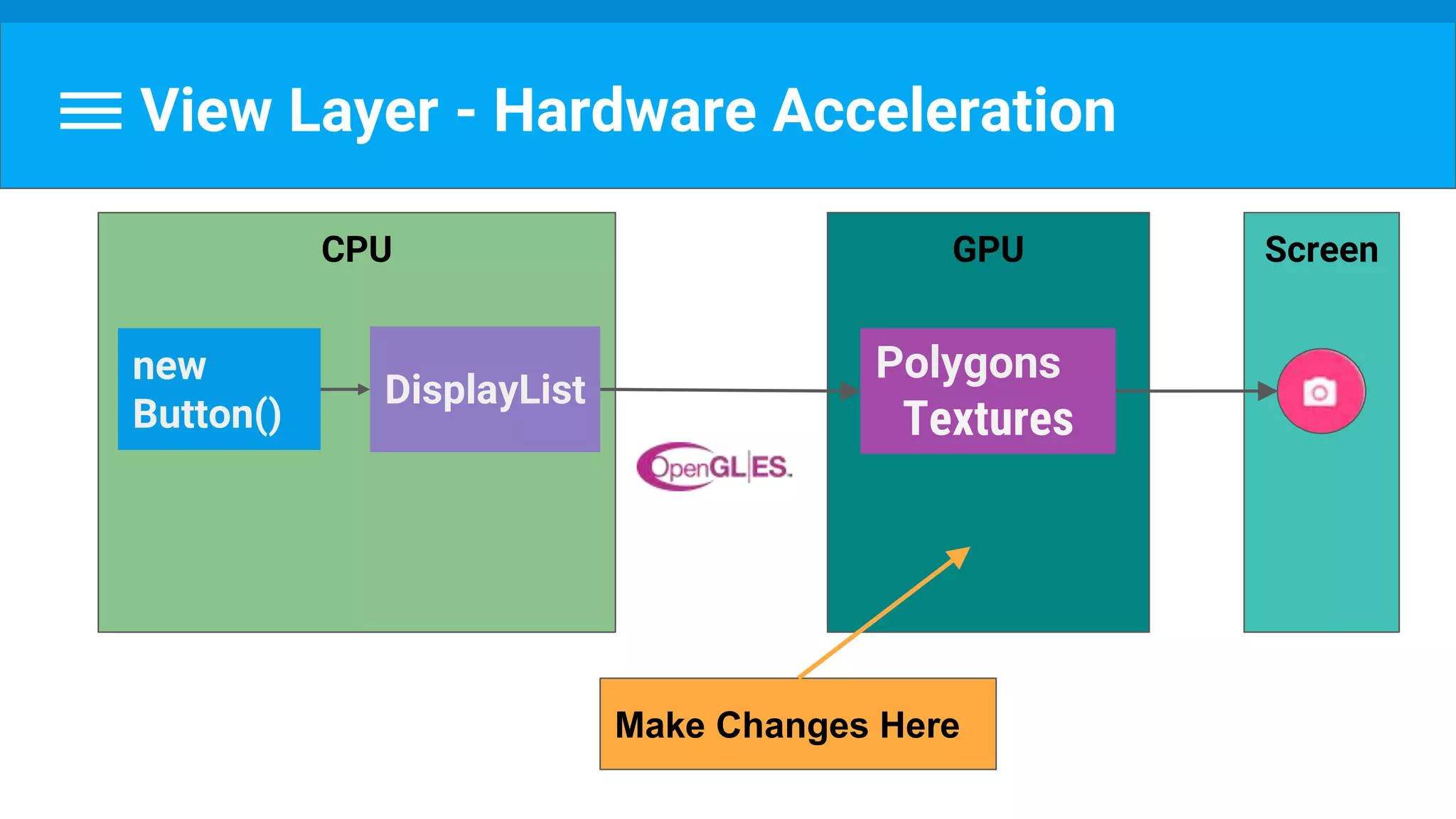

25. Wait… what….?
ScreenGPU
Polygons
Textures
CPU
new
Button()
DisplayList

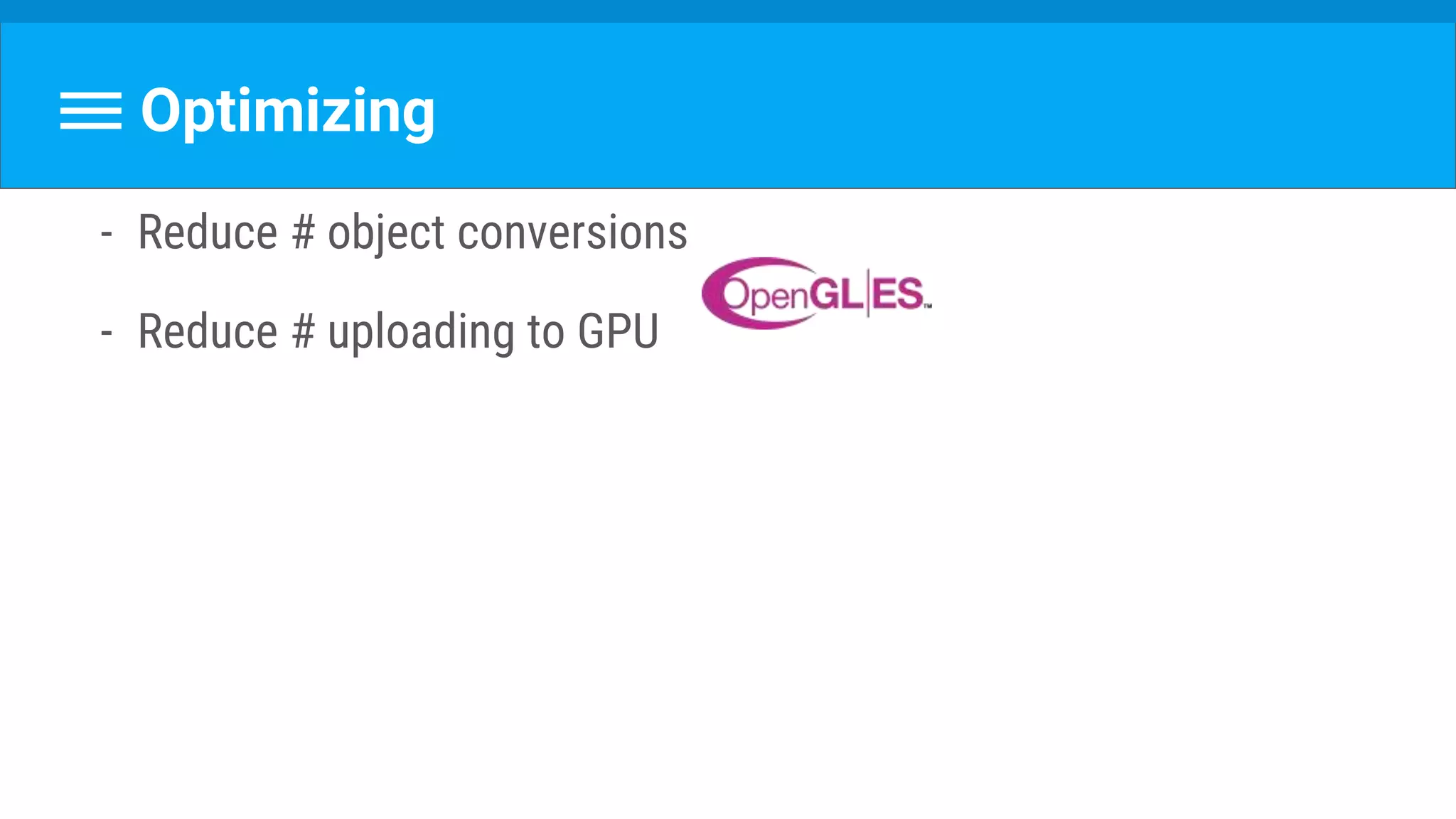

26. Optimizing
- Reduce # object conversions
- Reduce # uploading to GPU

27. By The Way...

28. By The Way...
(Geek Alert)

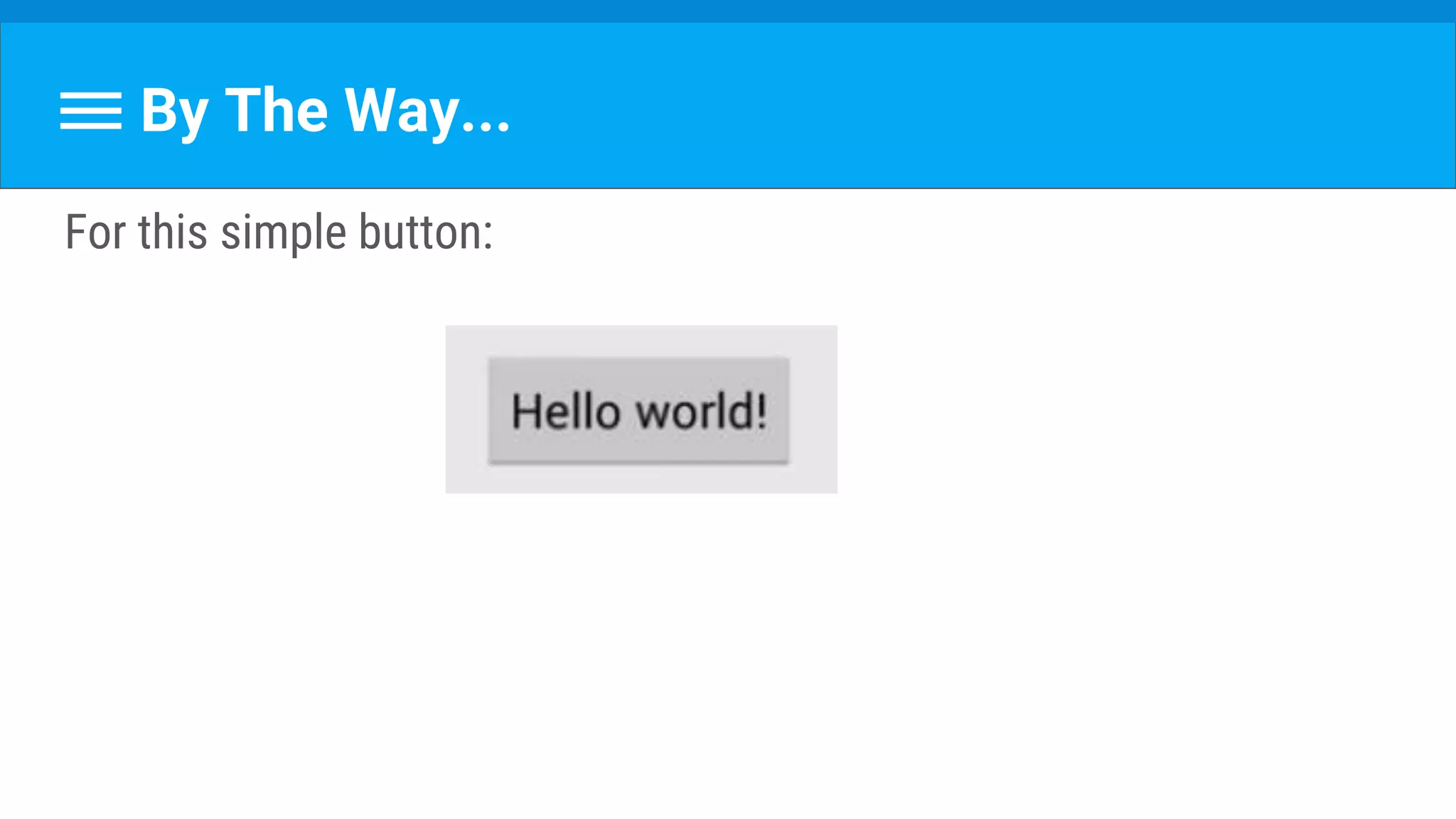

29. By The Way...
For this simple button:

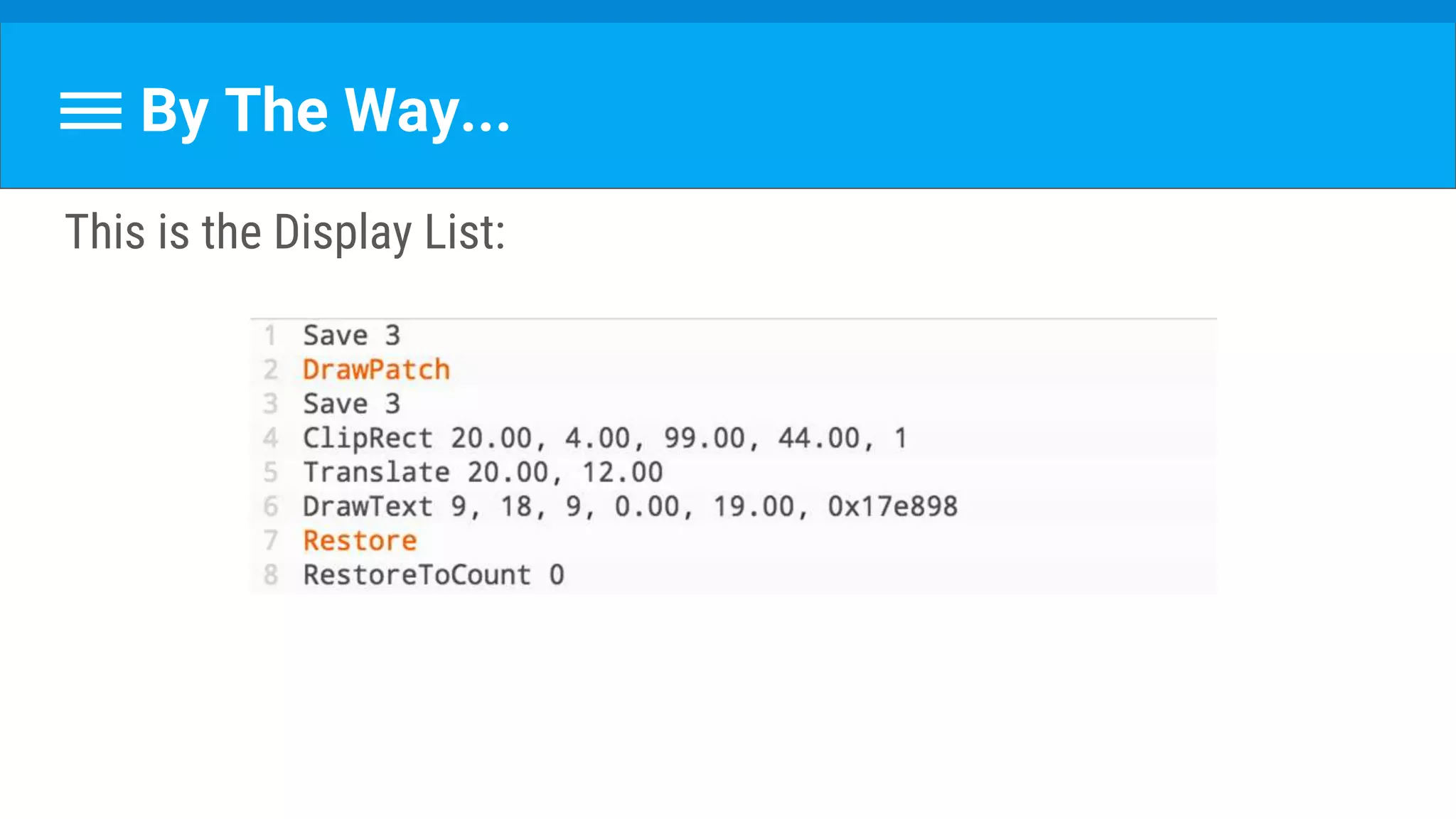

30. By The Way...
This is the Display List:

31. By The Way...
These are the OpenGl Commands:

32. Any Questions?

33. Reminder -
GPU Profiling Tool

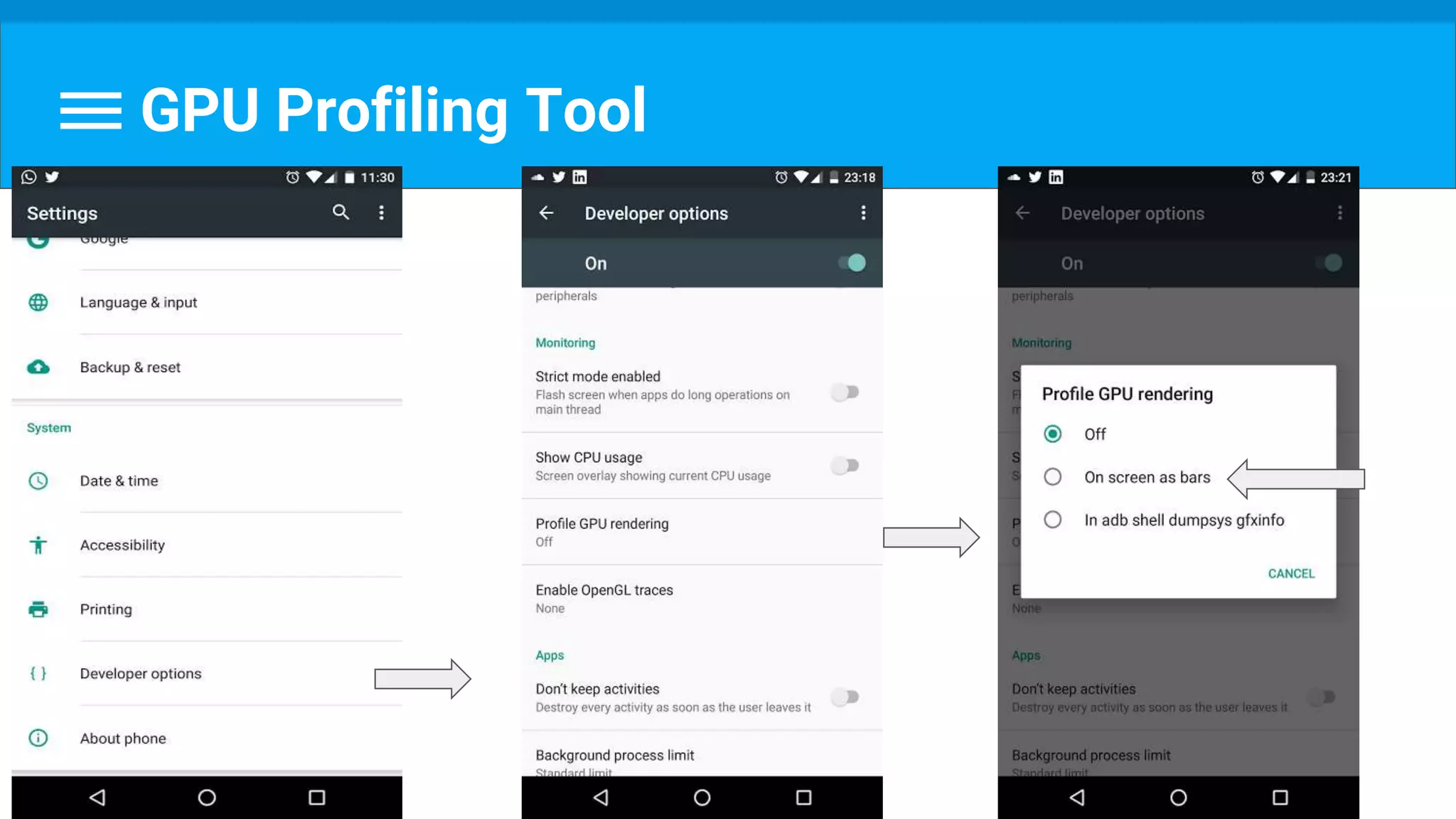

34. GPU Profiling Tool

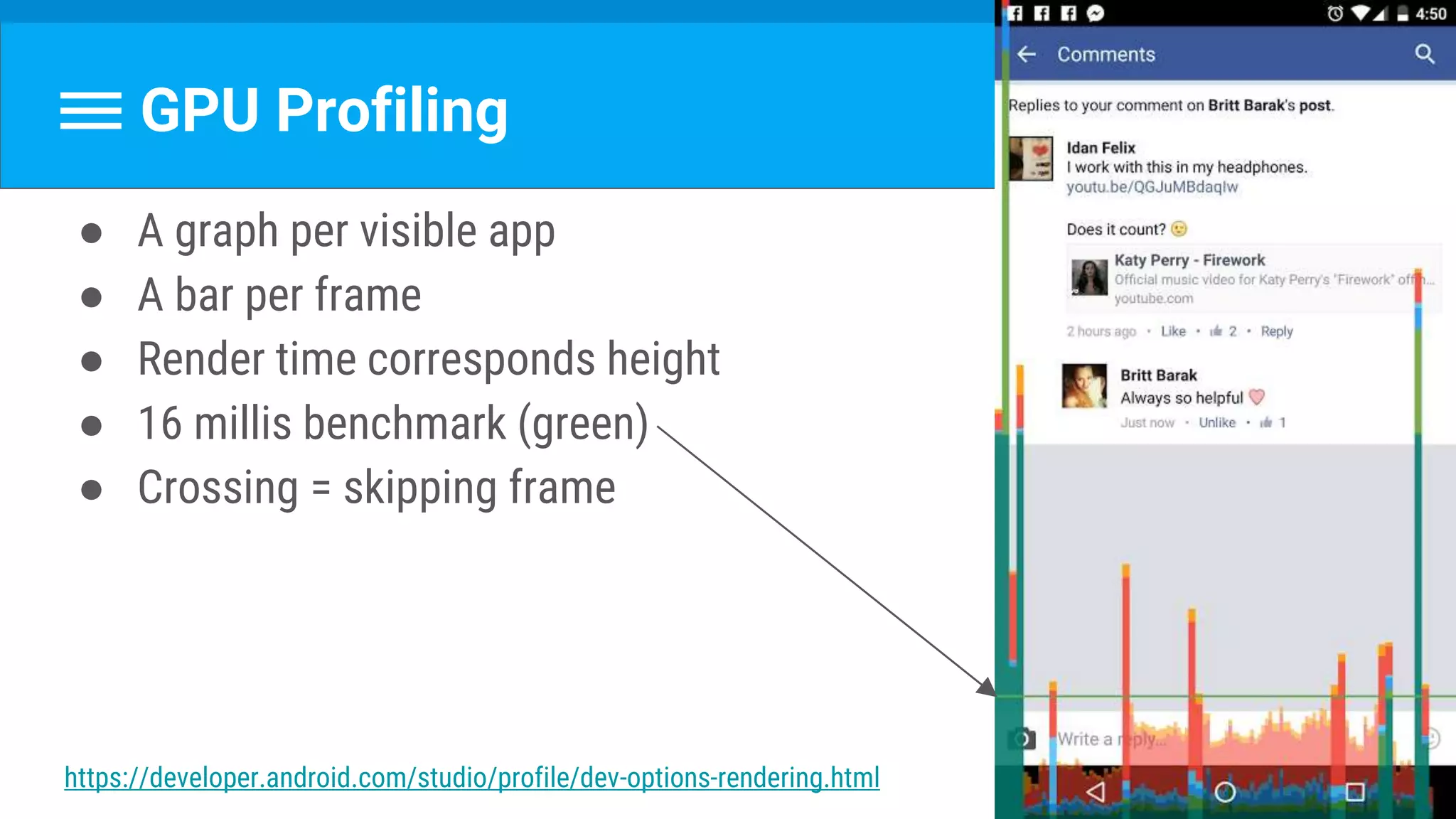

35. GPU Profiling
● A graph per visible app
● A bar per frame
● Render time corresponds height
● 16 millis benchmark (green)
● Crossing = skipping frame
https://developer.android.com/studio/profile/dev-options-rendering.html

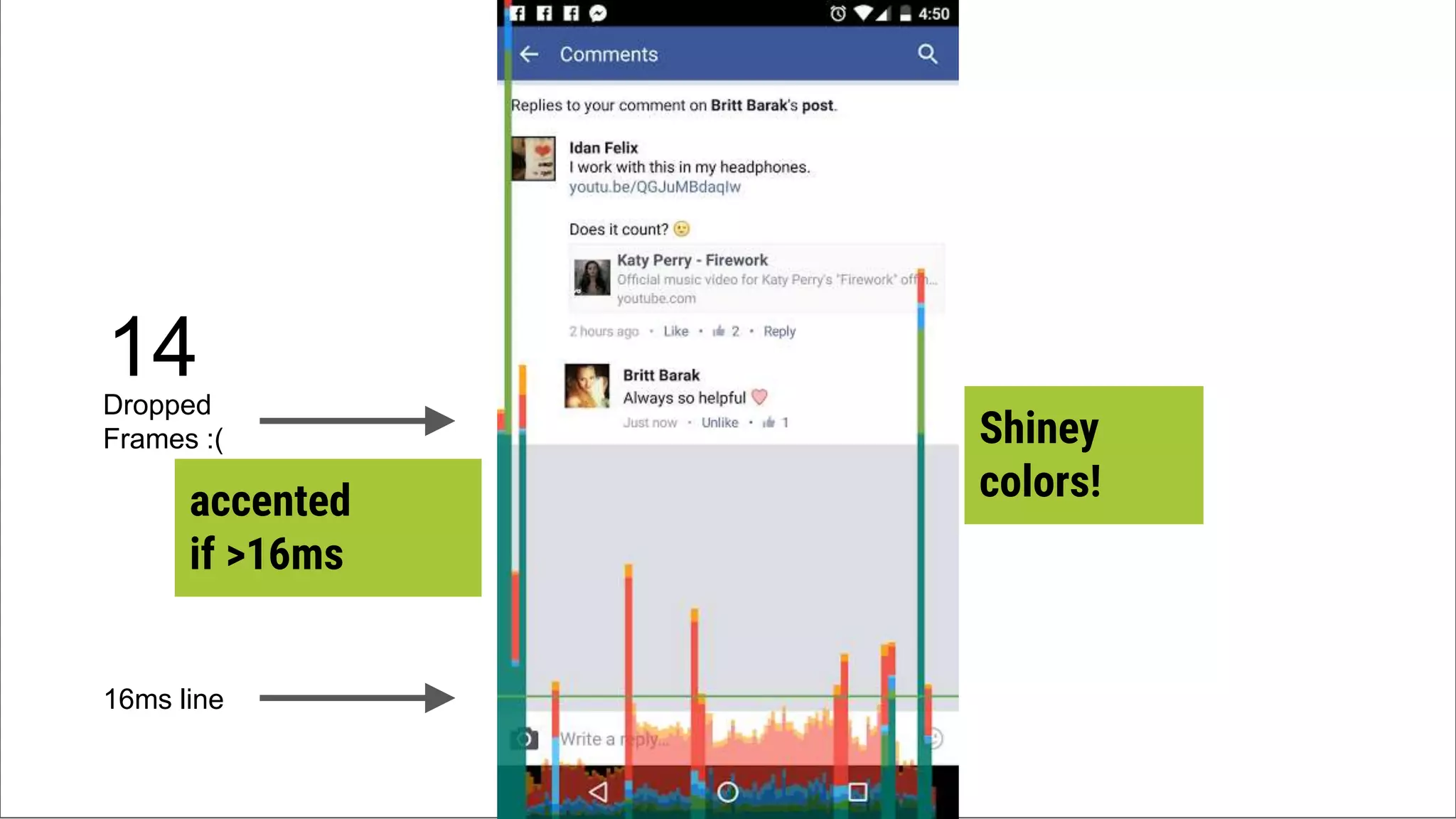

36. 16ms line
Dropped
Frames :(
14
accented
if >16ms
Shiney
colors!

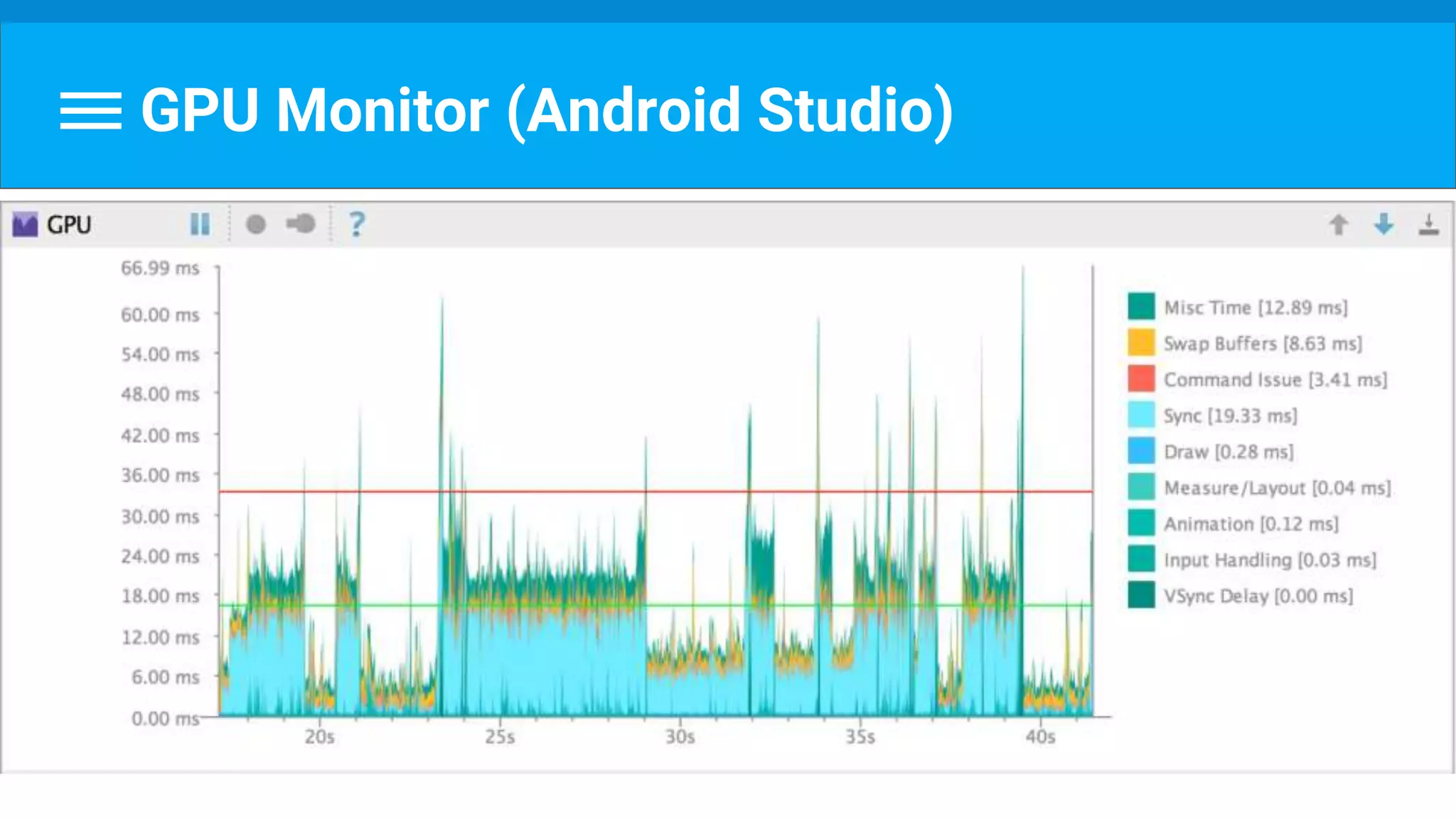

37. GPU Monitor (Android Studio)

38. VSync/Misc
Input
Animation
Measure/ Layout
Draw
Sync & Upload
Command Issue
Swap Buffers
So What Does That Mean?

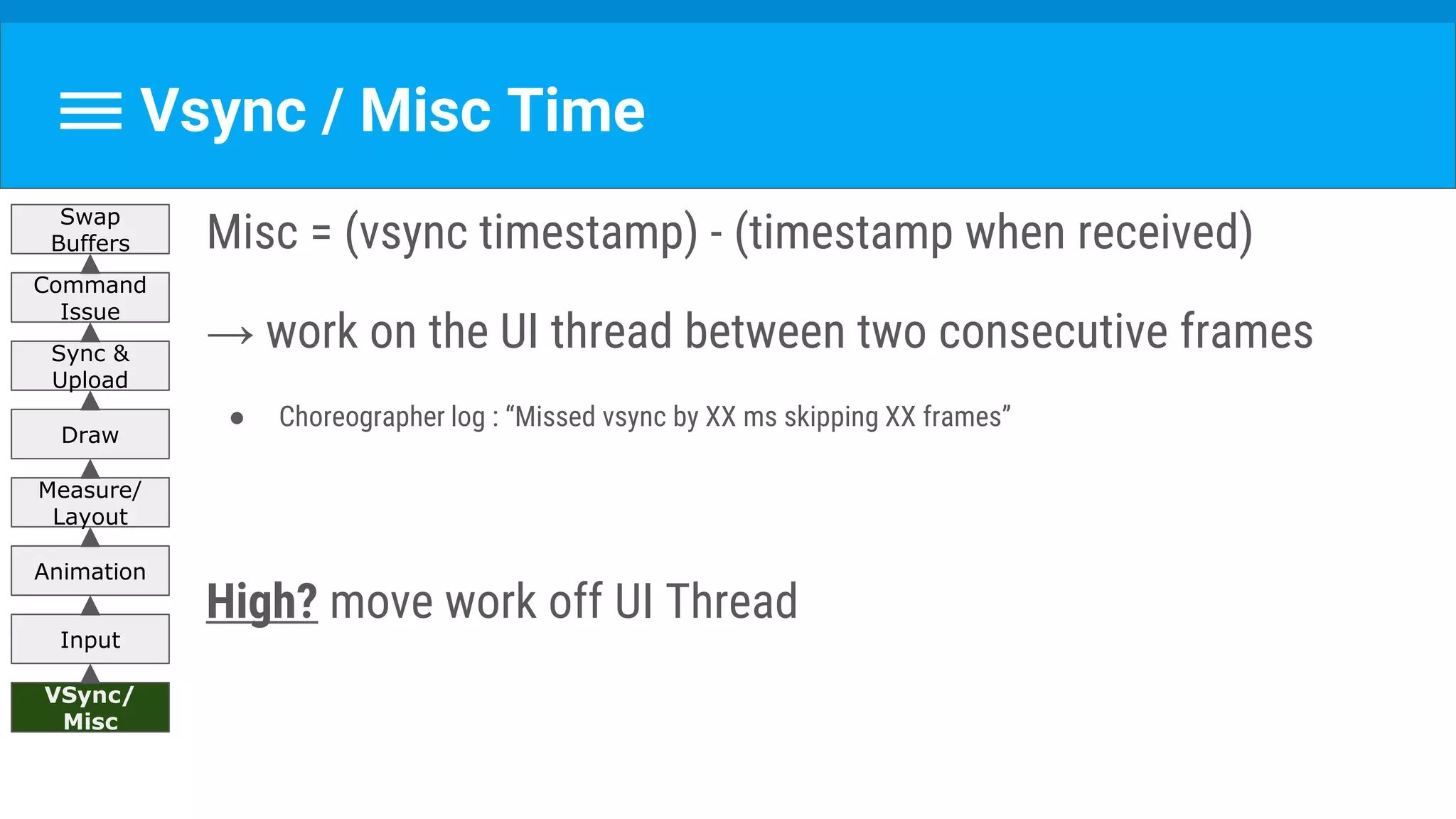

39. Vsync / Misc Time
Misc = (vsync timestamp) - (timestamp when received)
→ work on the UI thread between two consecutive frames
● Choreographer log : “Missed vsync by XX ms skipping XX frames”
High? move work off UI Thread
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

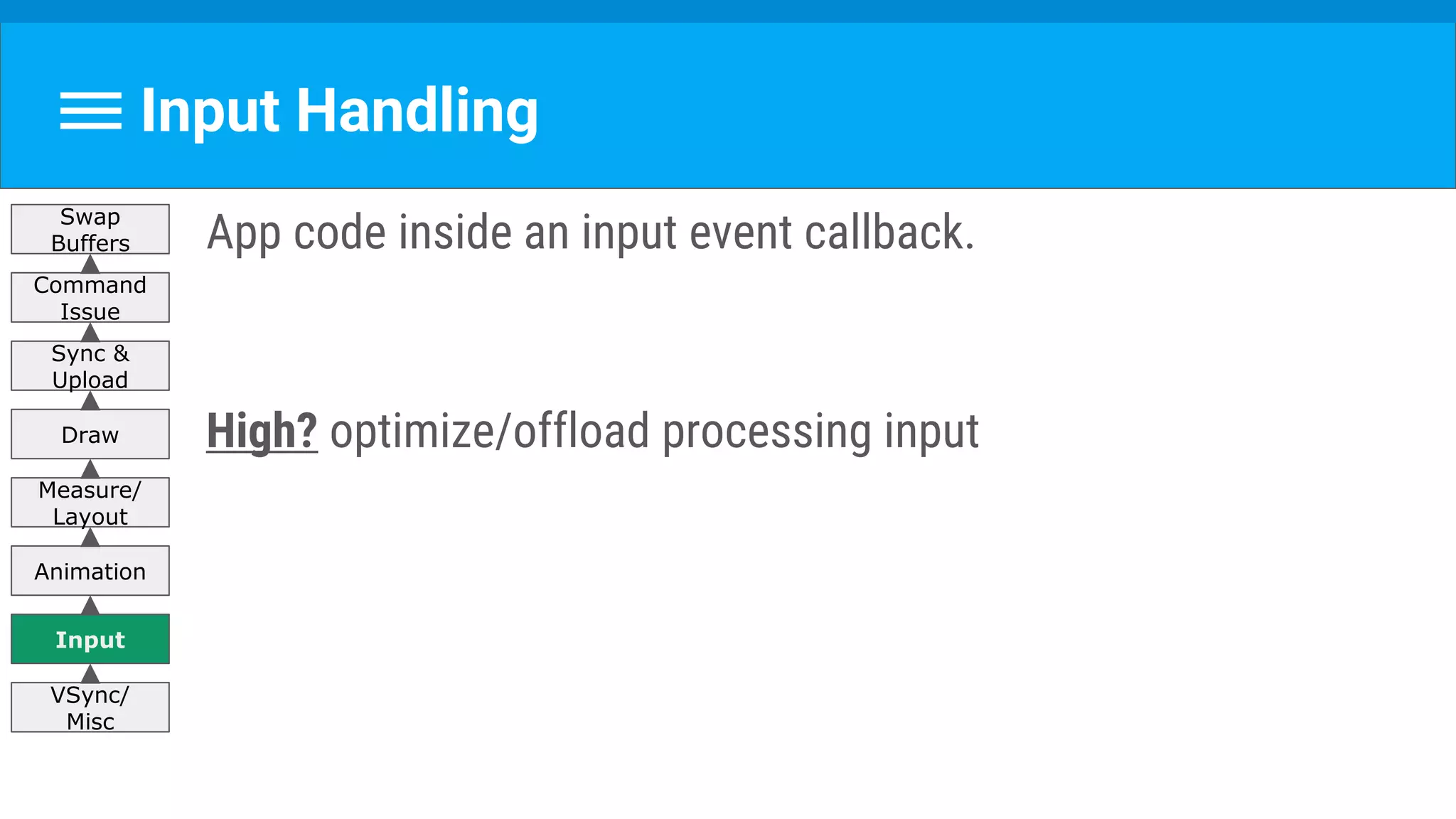

40. Input Handling
App code inside an input event callback.
High? optimize/offload processing input
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

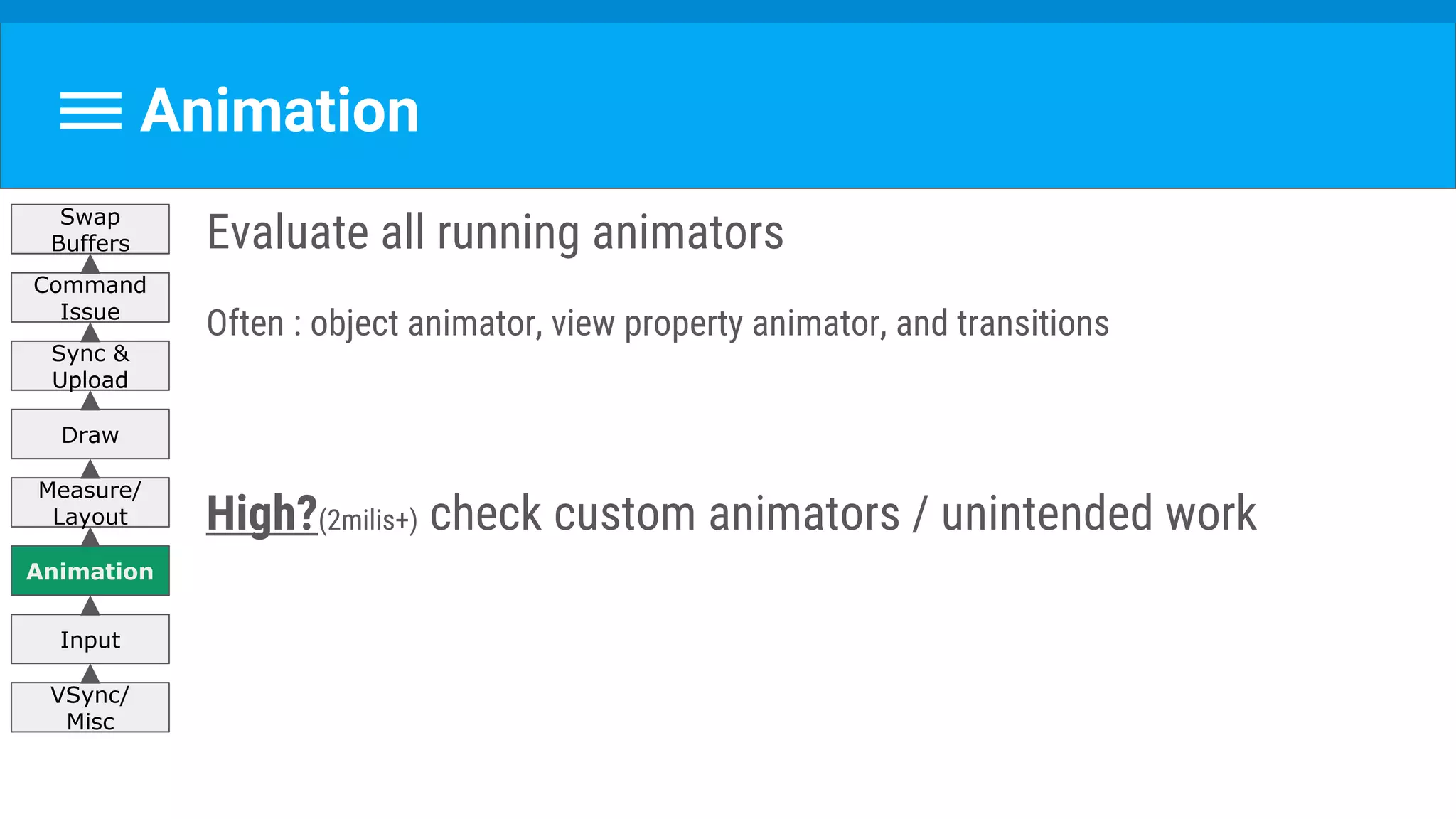

41. Animation
Evaluate all running animators
Often : object animator, view property animator, and transitions
High?(2milis+) check custom animators / unintended work
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

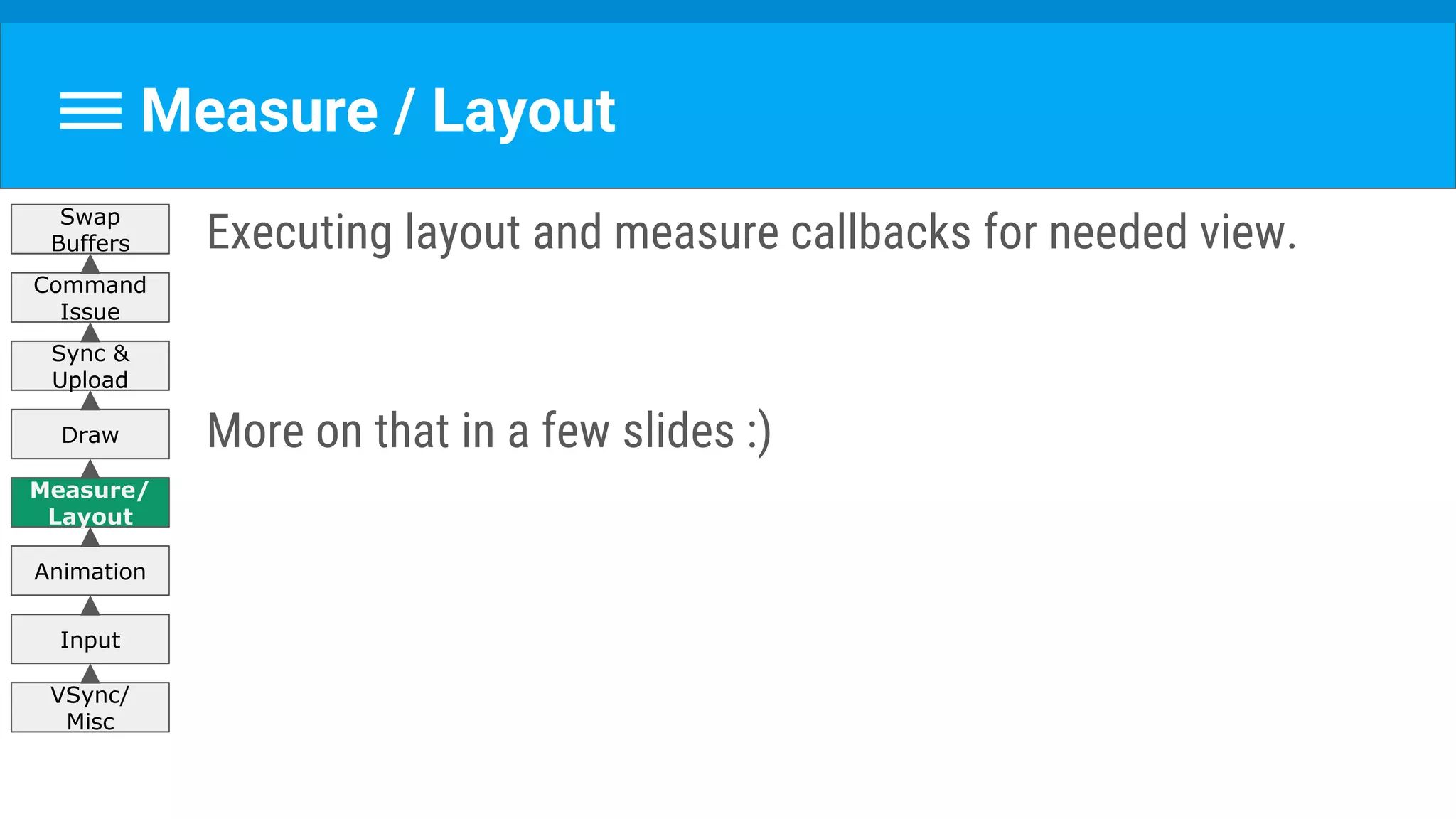

42. Measure / Layout
Executing layout and measure callbacks for needed view.
More on that in a few slides :)
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

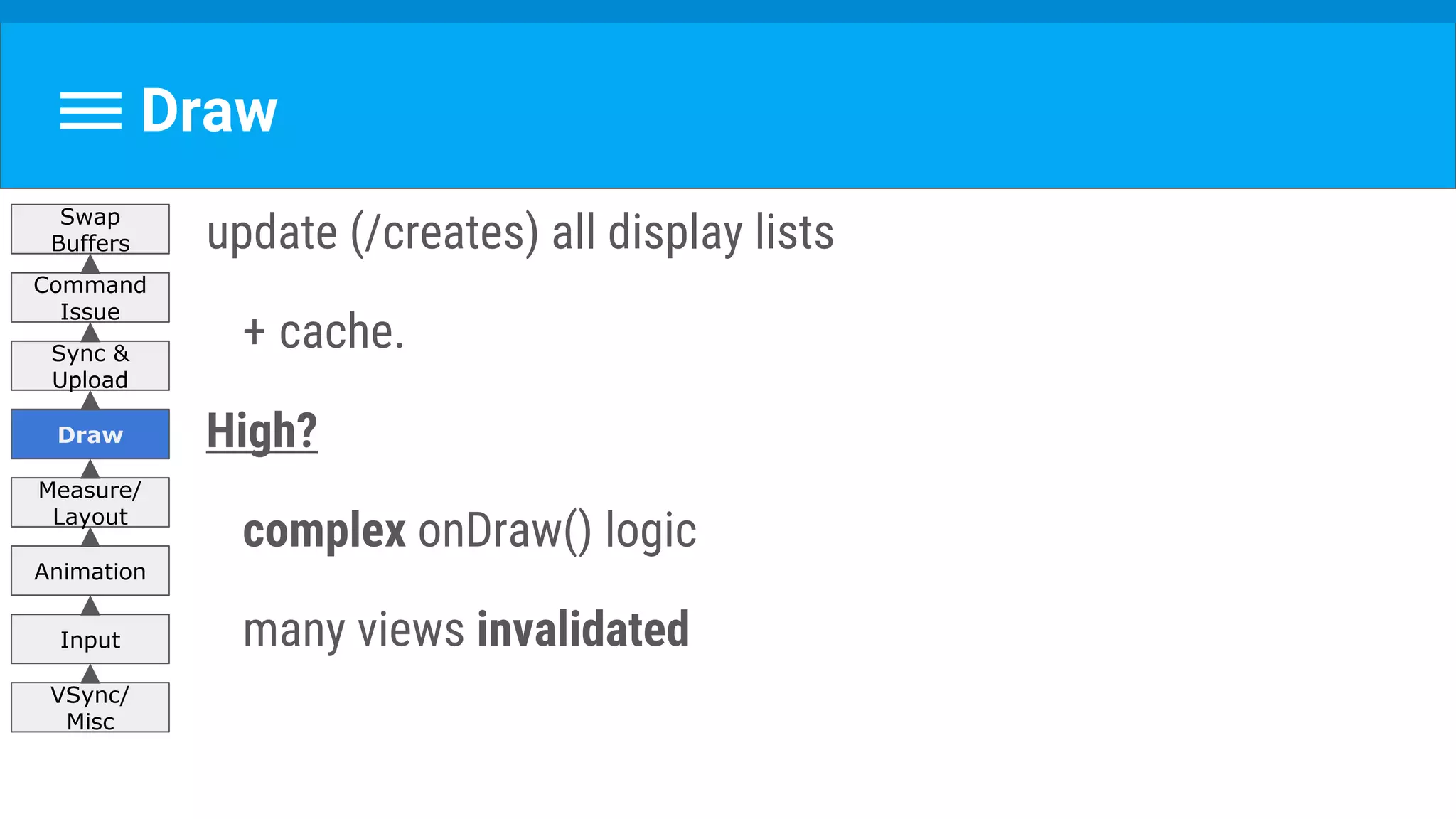

43. Draw
update (/creates) all display lists
+ cache.
High?
complex onDraw() logic
many views invalidated
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

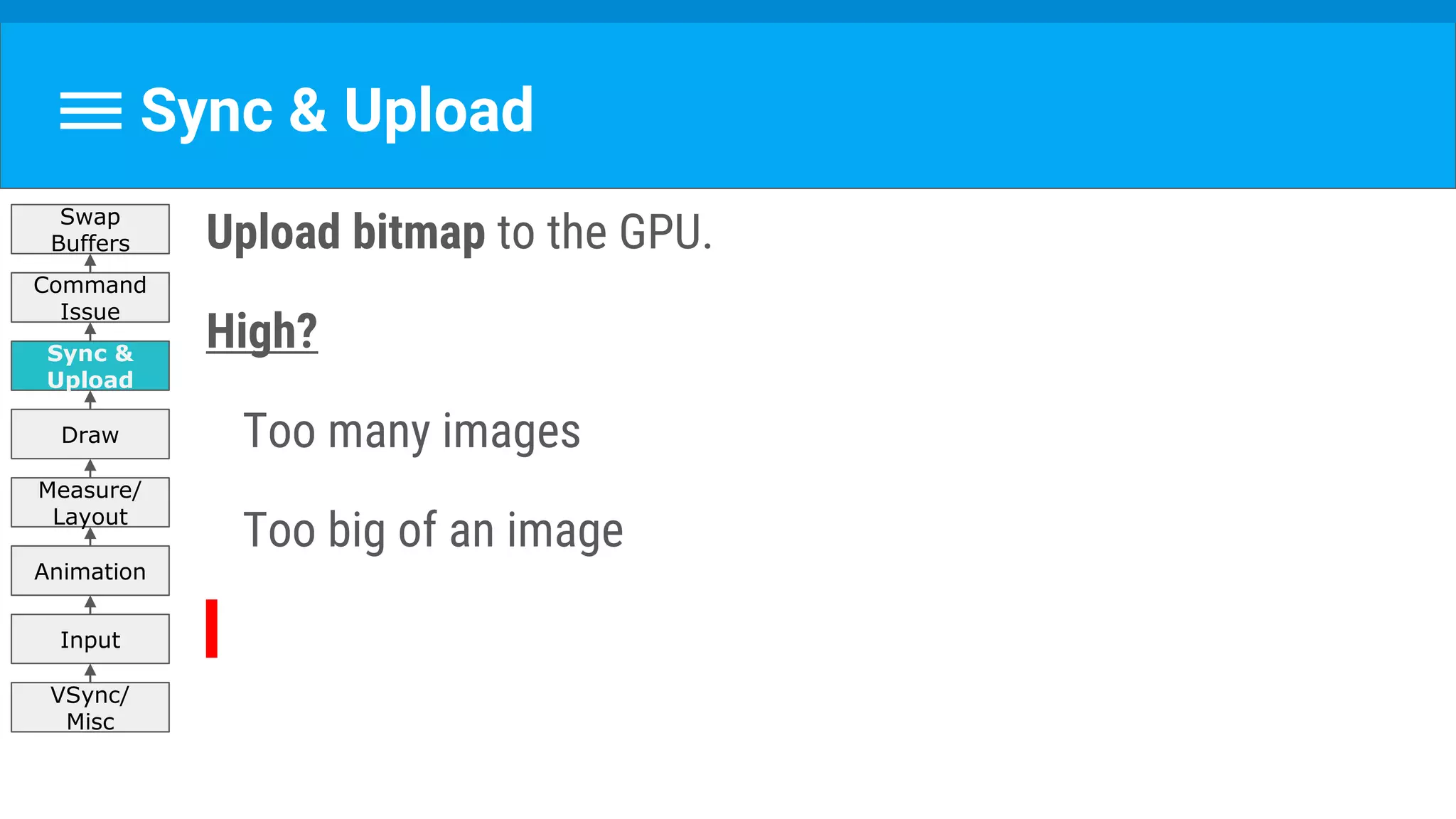

44. Sync & Upload
Upload bitmap to the GPU.
High?
Too many images
Too big of an image
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

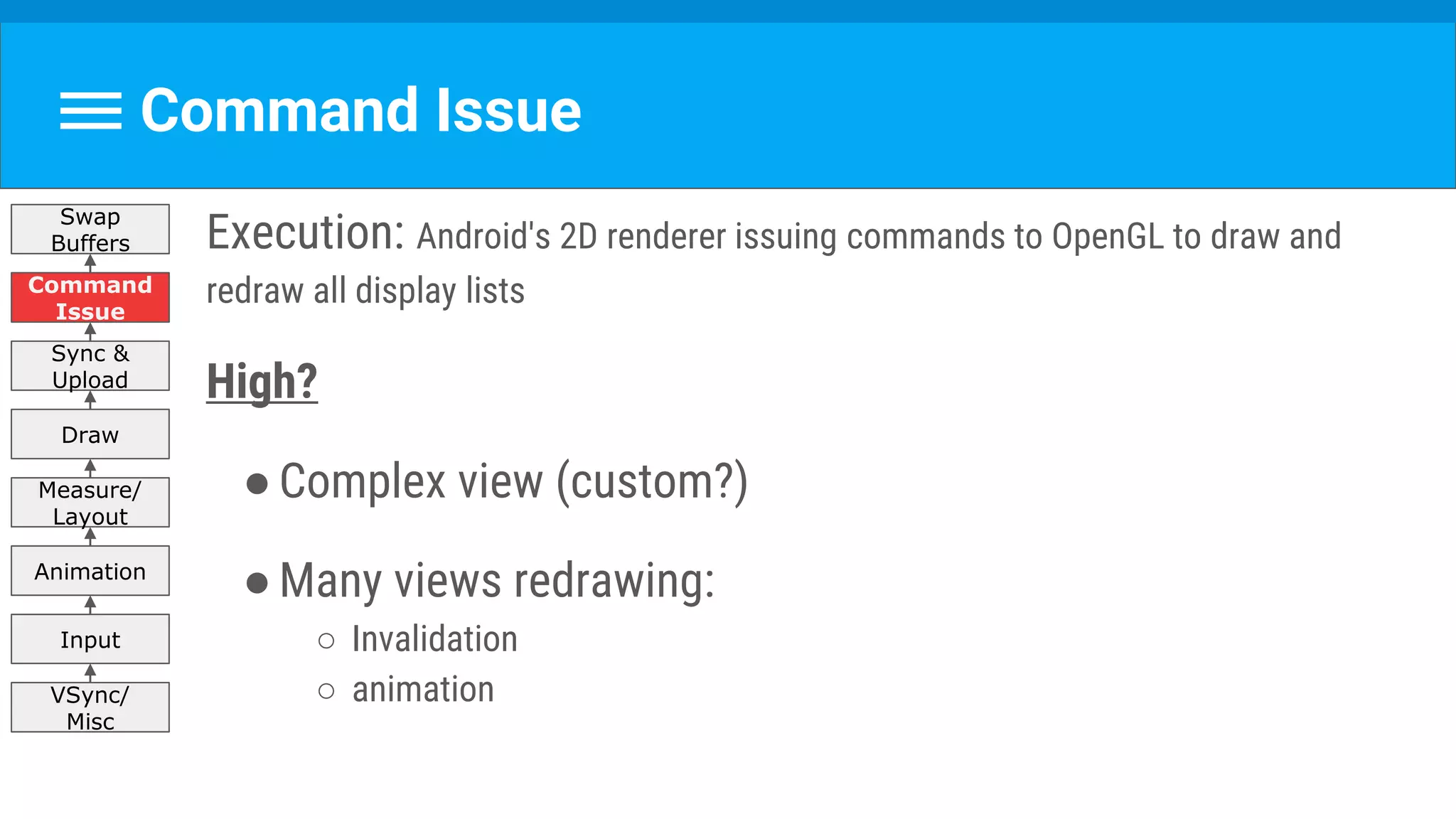

45. Command Issue
Execution: Android's 2D renderer issuing commands to OpenGL to draw and
redraw all display lists
High?
●Complex view (custom?)
●Many views redrawing:
○ Invalidation
○ animationVSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

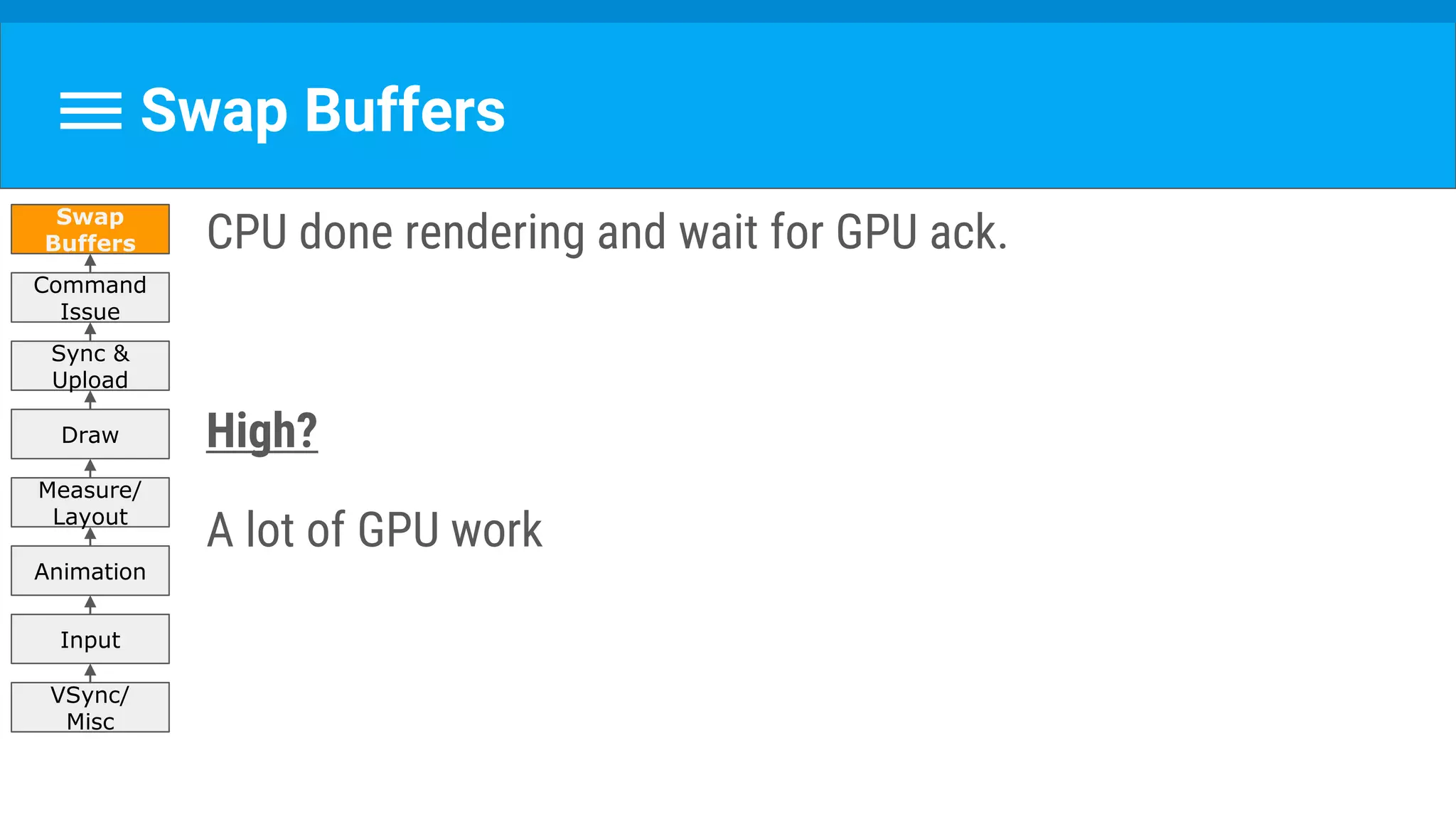

46. Swap Buffers
CPU done rendering and wait for GPU ack.
High?
A lot of GPU work
VSync/
Misc
Input
Animation
Measure/
Layout
Draw
Sync &
Upload
Command
Issue
Swap
Buffers

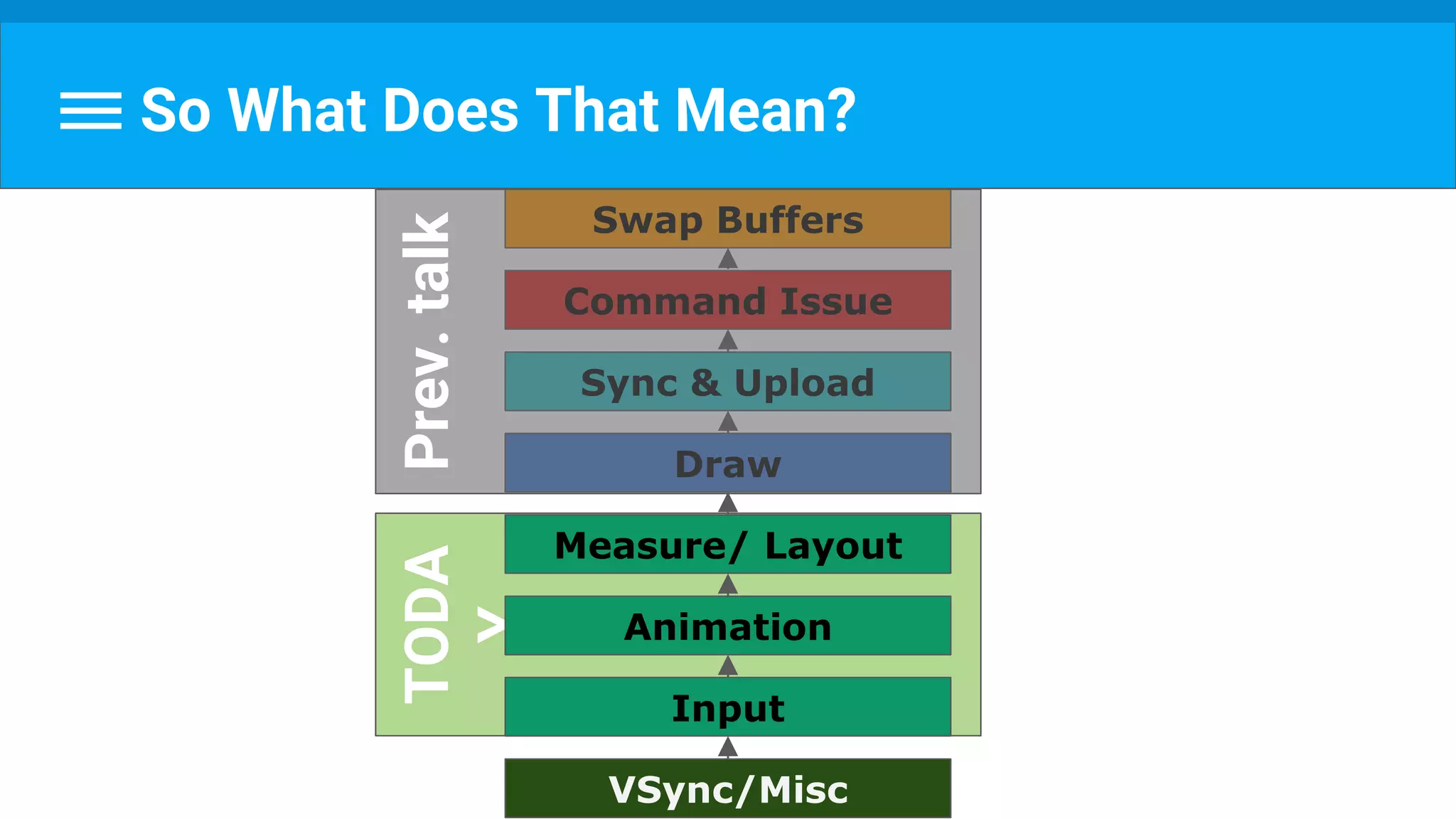

47. TODA
Y
VSync/Misc
Input
Animation
Measure/ Layout
Draw
Sync & Upload
Command Issue
Swap Buffers
So What Does That Mean?
Prev.talk

48. Any Questions?

49. So Let The Fun Begin :)

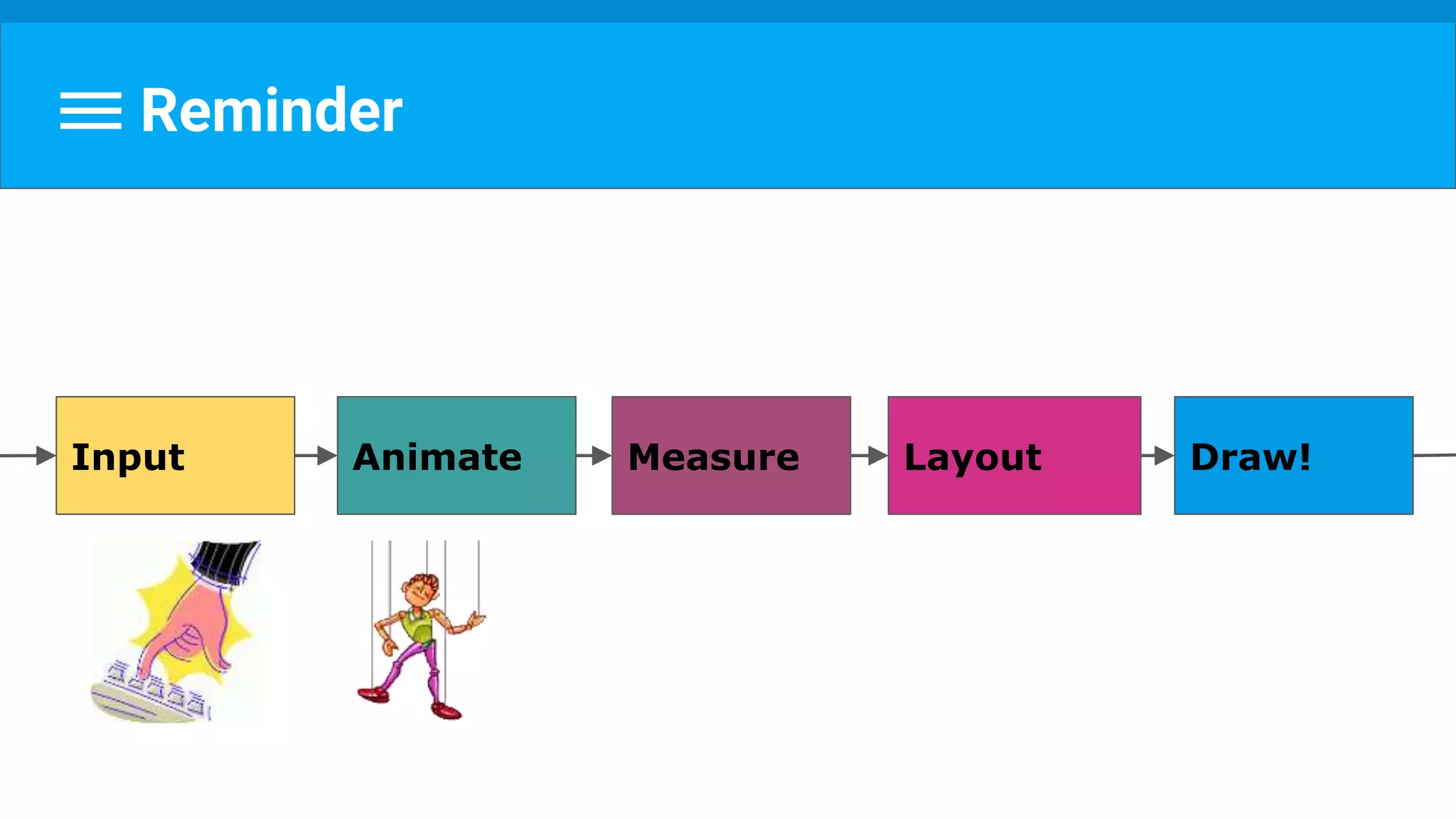

50. Reminder
Measure Layout Draw!

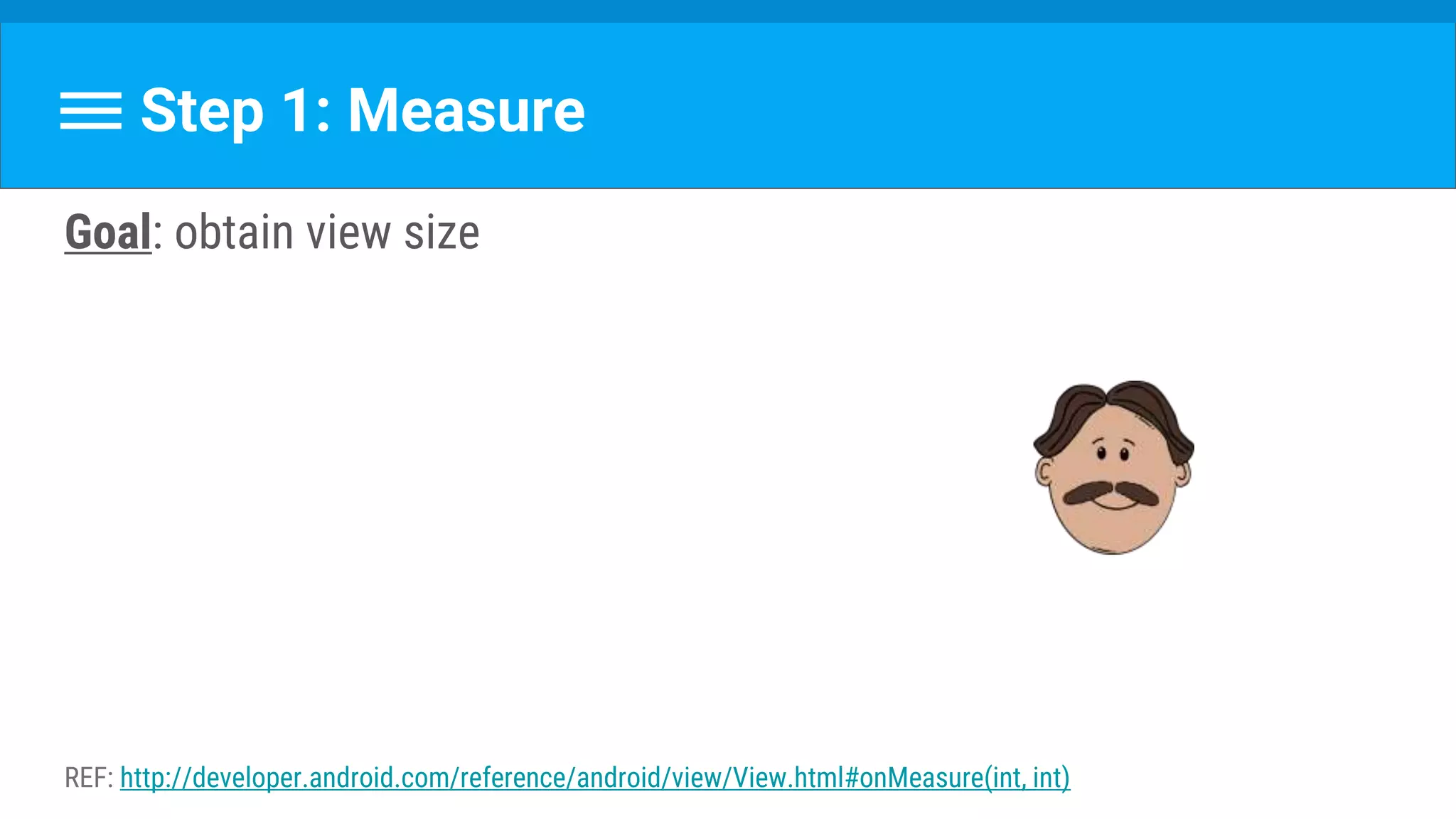

51. Step 1: Measure
Goal: obtain view size
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

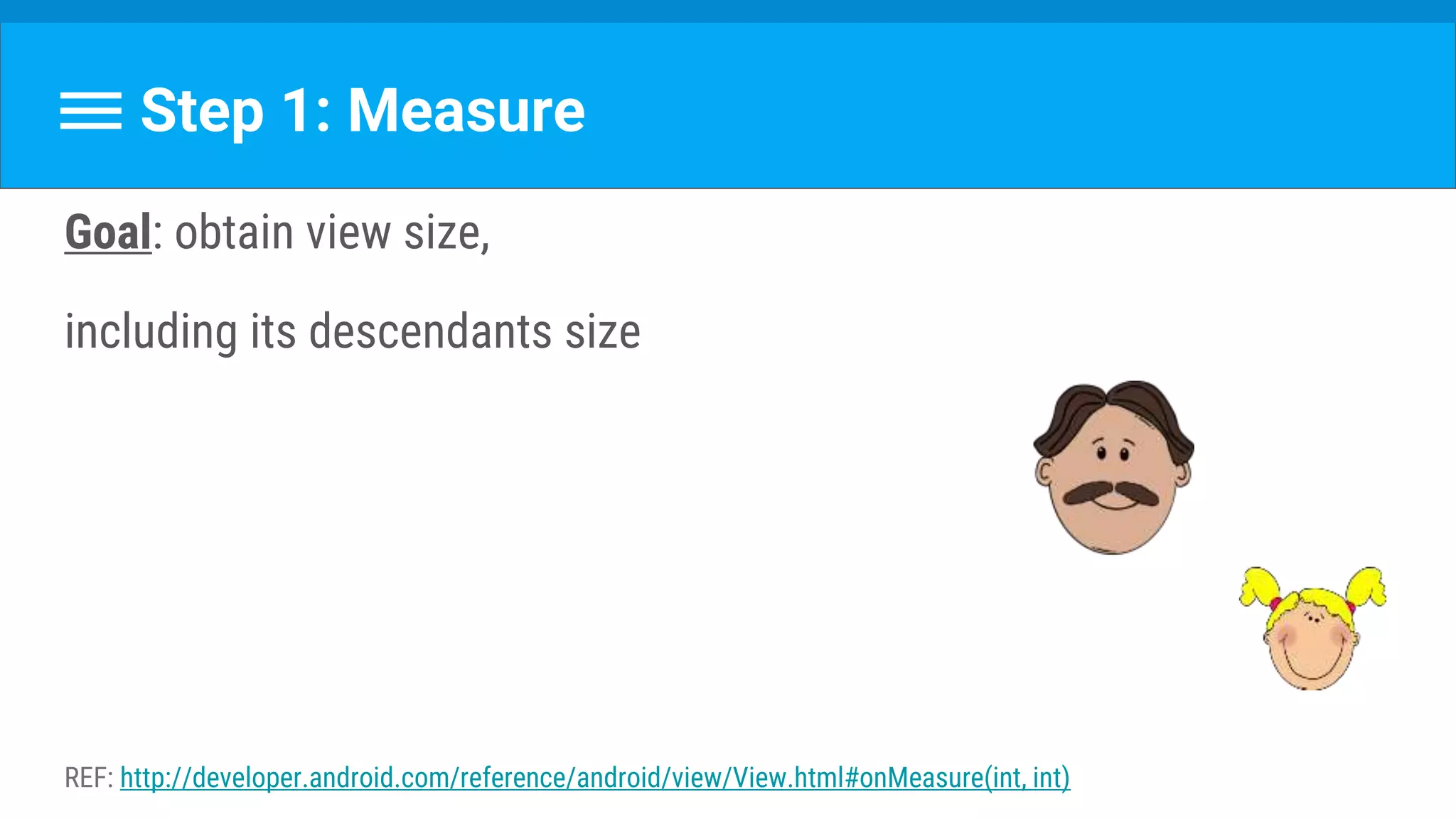

52. Step 1: Measure
Goal: obtain view size,
including its descendants size
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

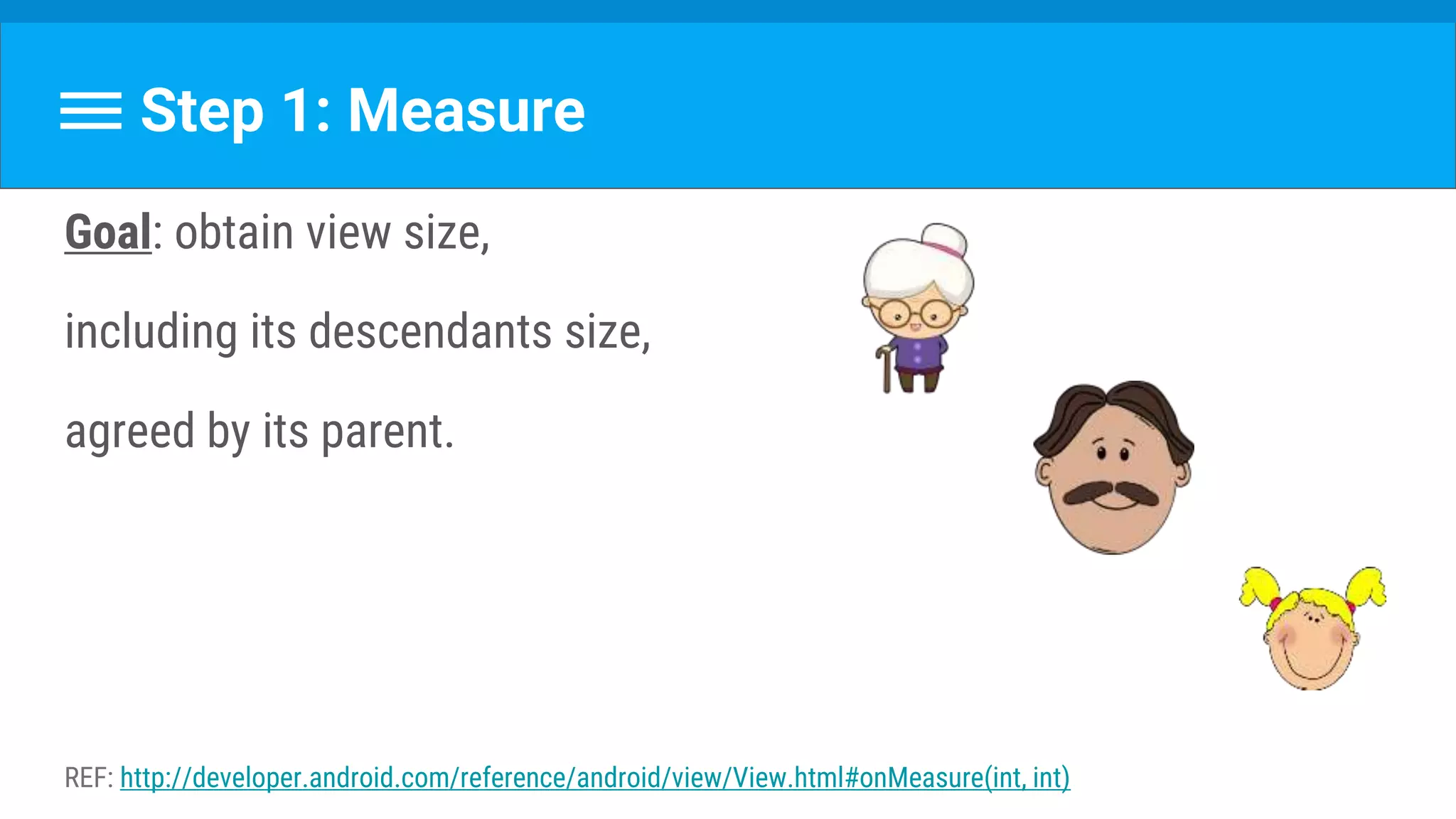

53. Step 1: Measure
Goal: obtain view size,
including its descendants size,
agreed by its parent.
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

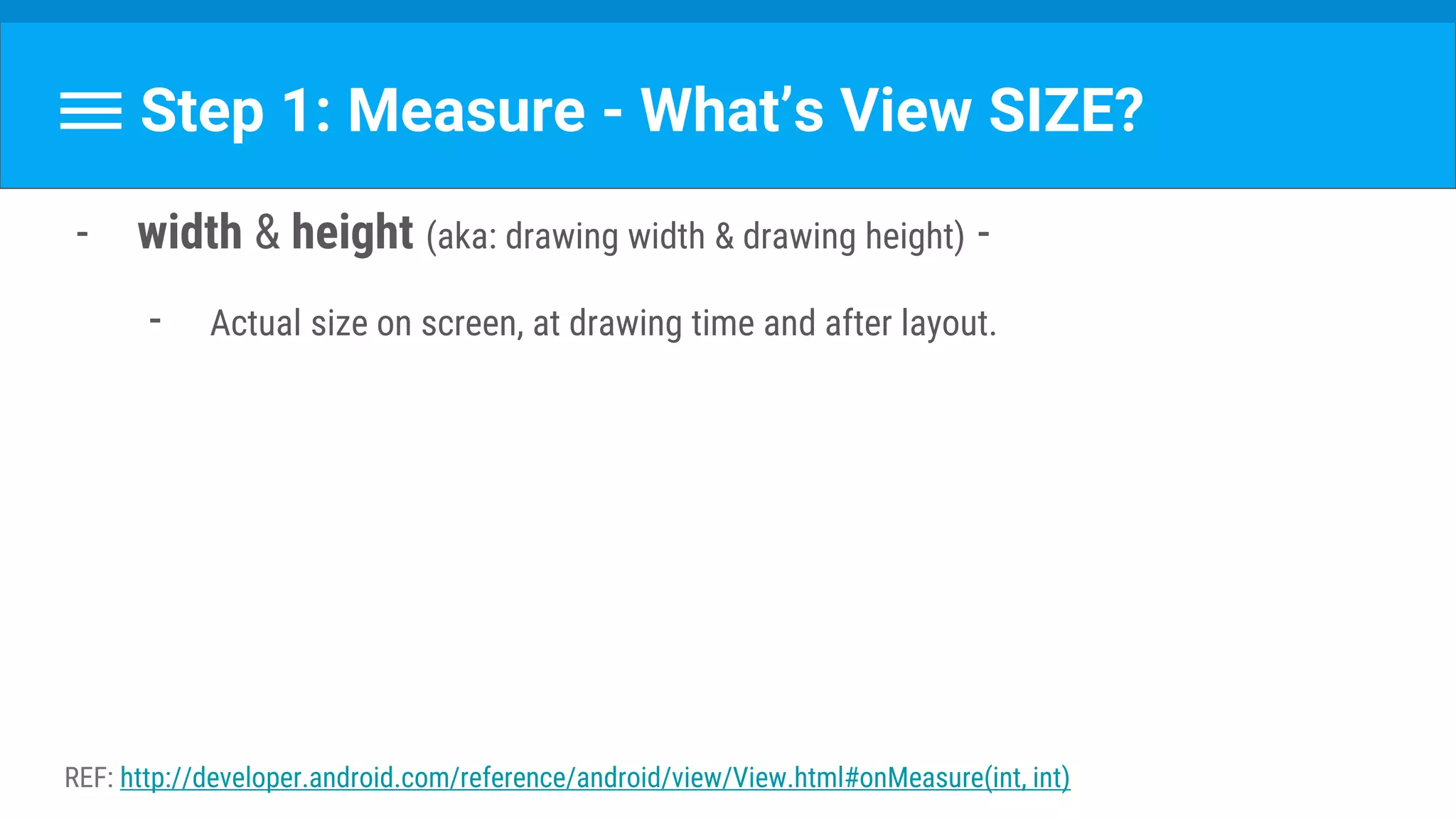

54. Step 1: Measure - What’s View SIZE?
- width & height (aka: drawing width & drawing height) -
- Actual size on screen, at drawing time and after layout.
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

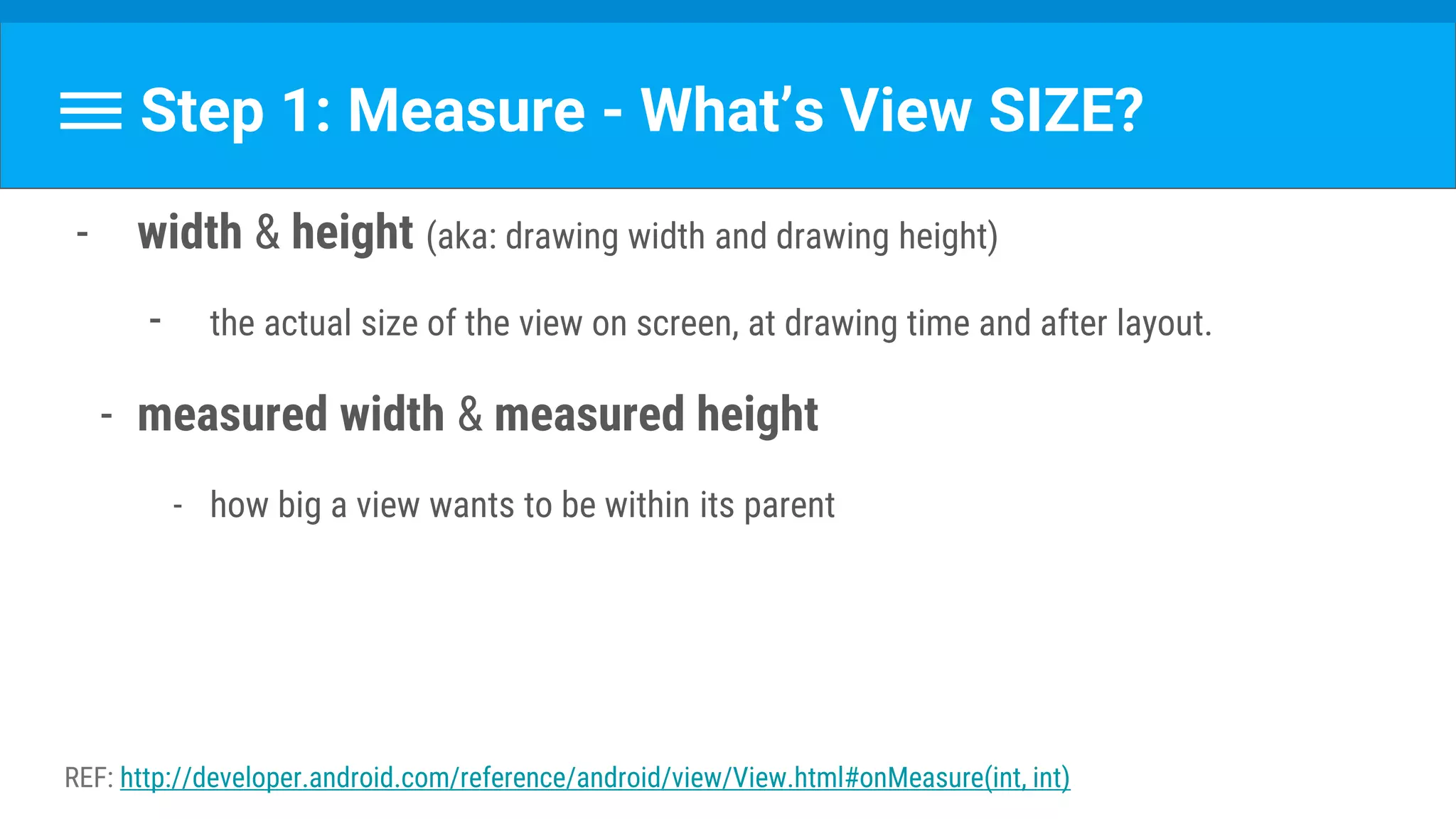

55. Step 1: Measure - What’s View SIZE?
- width & height (aka: drawing width and drawing height)
- the actual size of the view on screen, at drawing time and after layout.
- measured width & measured height
- how big a view wants to be within its parent
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

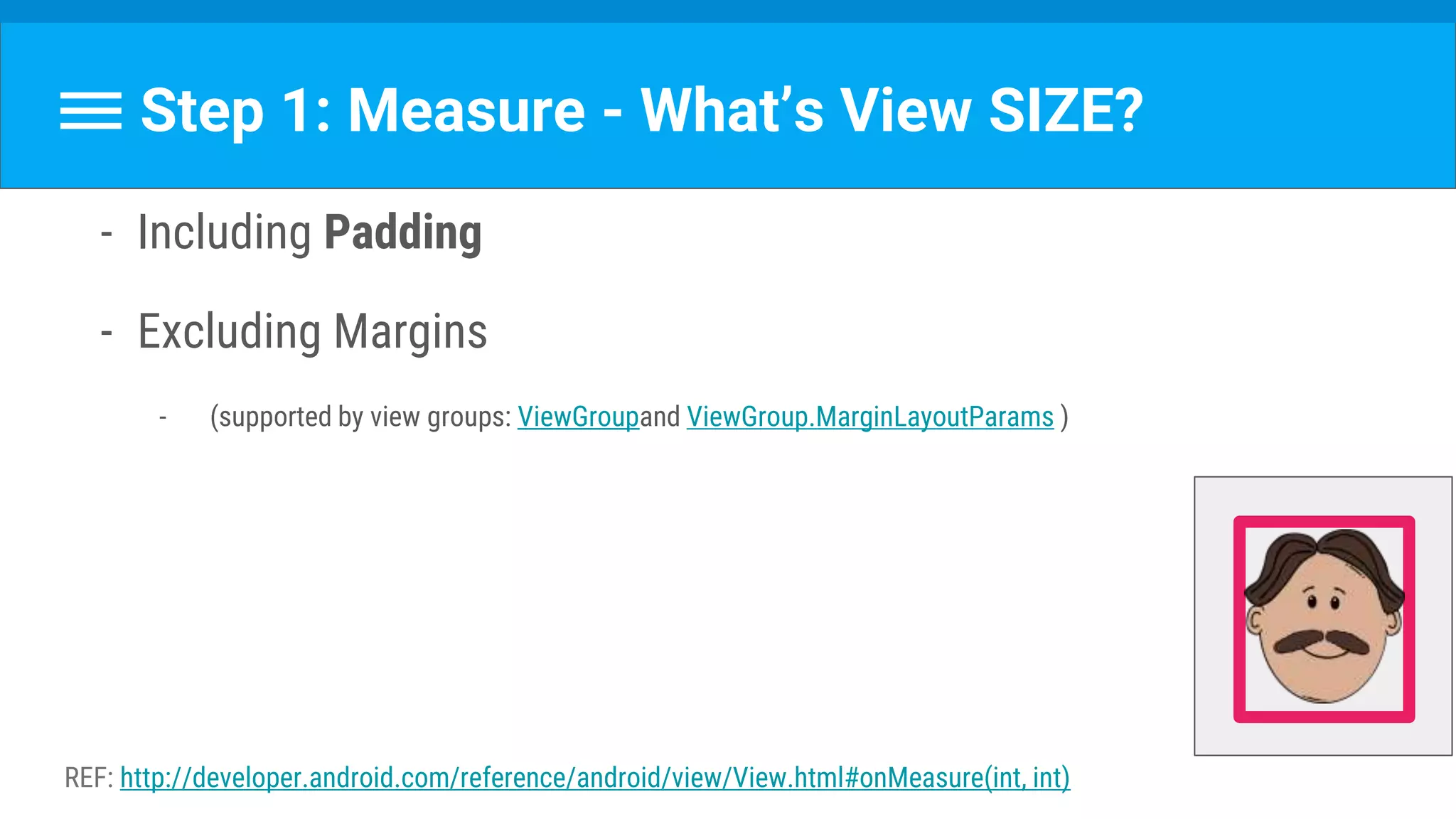

56. Step 1: Measure - What’s View SIZE?
- Including Padding
- Excluding Margins
- (supported by view groups: ViewGroupand ViewGroup.MarginLayoutParams )
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

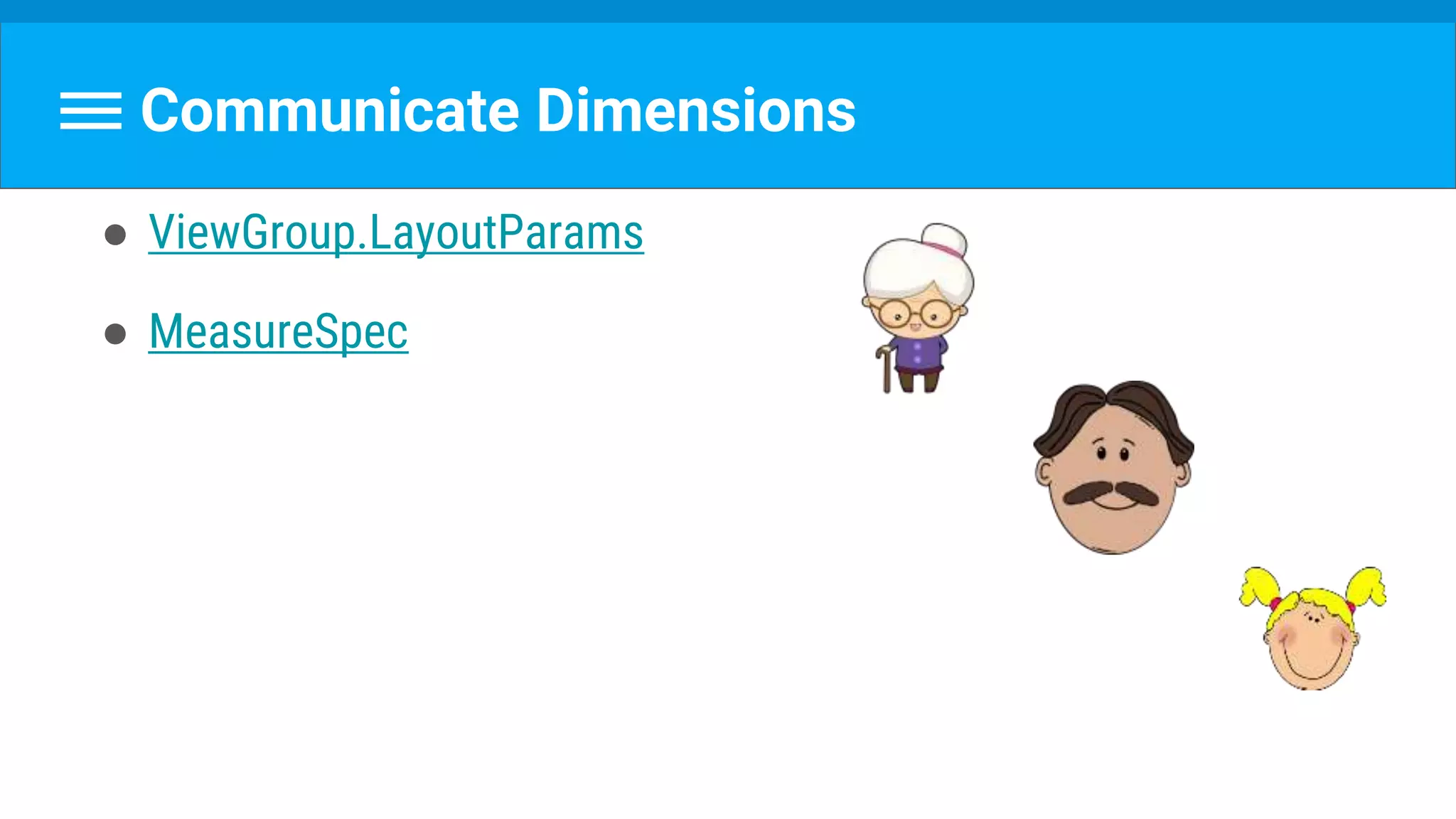

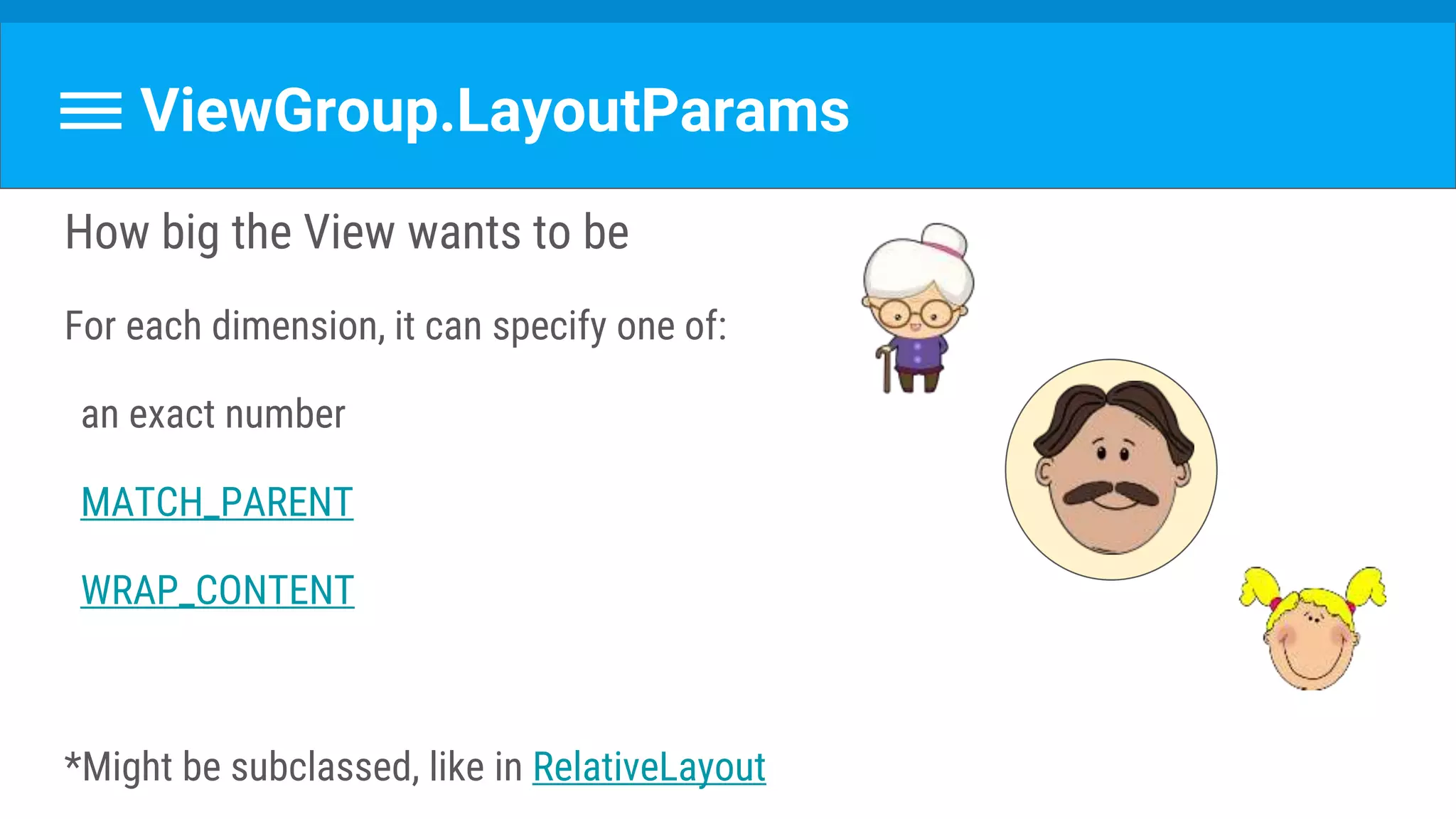

57. Communicate Dimensions
● ViewGroup.LayoutParams
● MeasureSpec

58. ViewGroup.LayoutParams
How big the View wants to be
For each dimension, it can specify one of:
an exact number
MATCH_PARENT
WRAP_CONTENT
*Might be subclassed, like in RelativeLayout

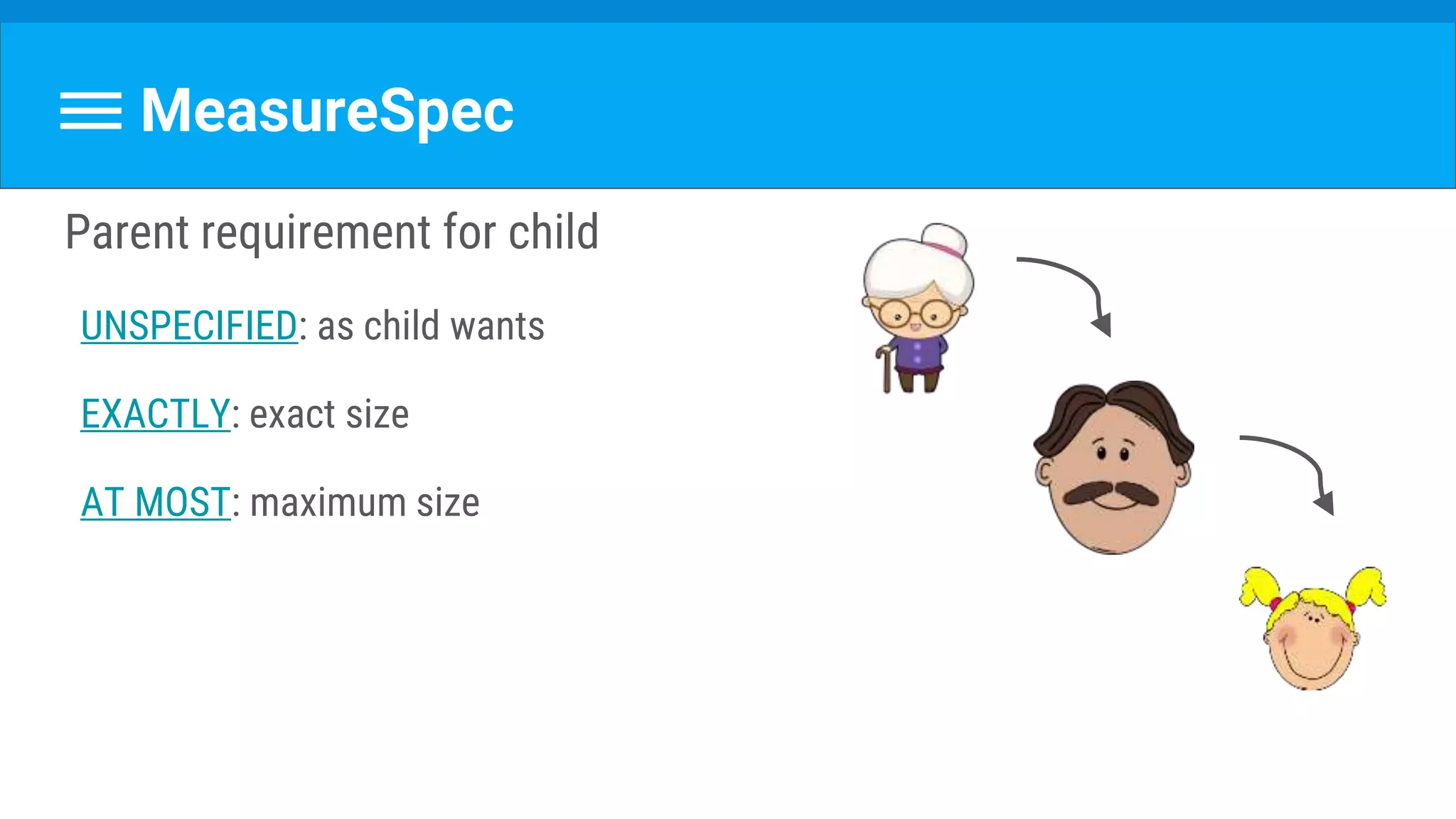

59. MeasureSpec
Parent requirement for child
UNSPECIFIED: as child wants
EXACTLY: exact size
AT MOST: maximum size

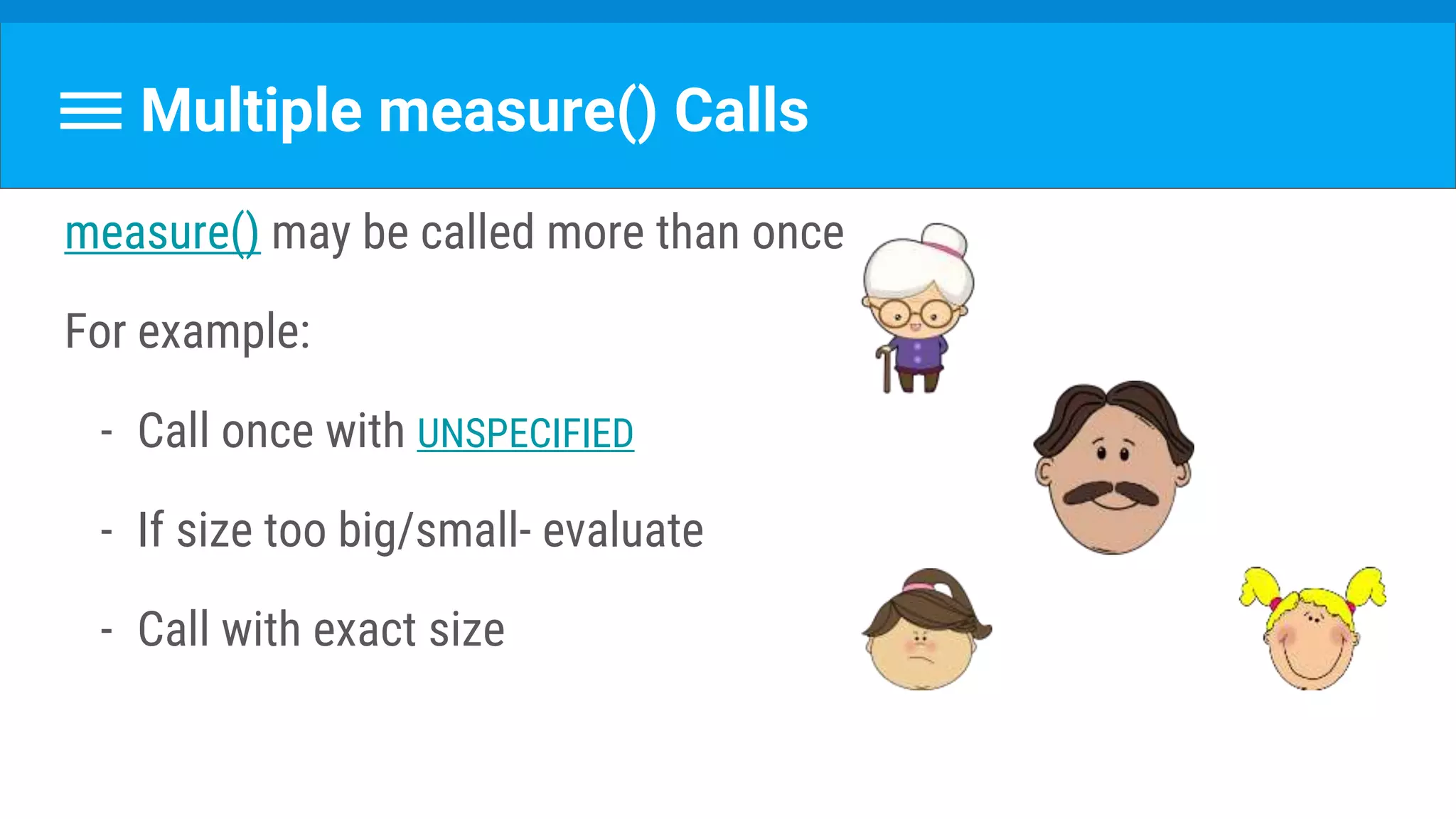

60. Multiple measure() Calls
measure() may be called more than once
For example:
- Call once with UNSPECIFIED
- If size too big/small- evaluate
- Call with exact size

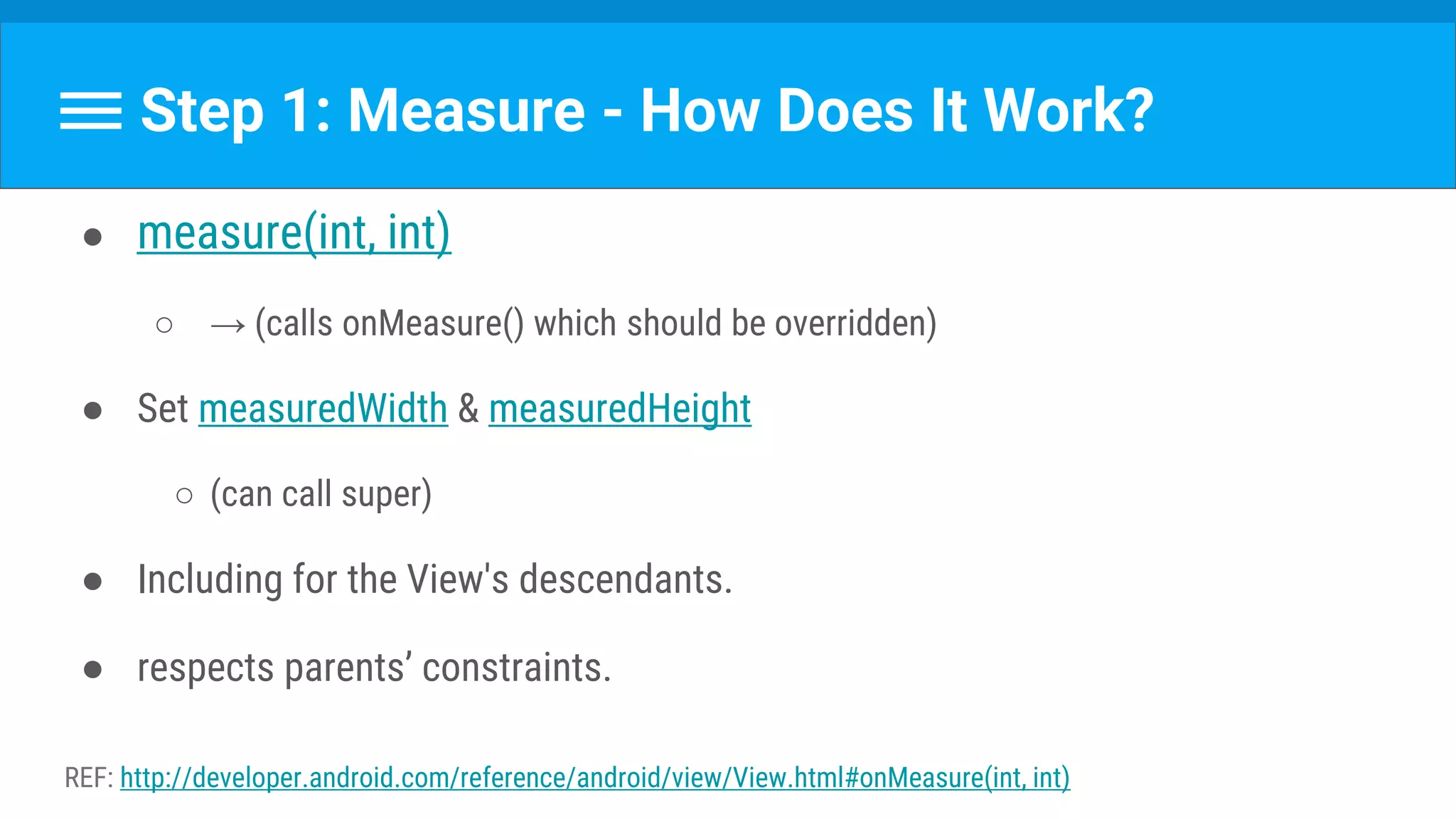

61. Step 1: Measure - How Does It Work?
● measure(int, int)
○ → (calls onMeasure() which should be overridden)
● Set measuredWidth & measuredHeight
○ (can call super)
● Including for the View's descendants.
● respects parents’ constraints.
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

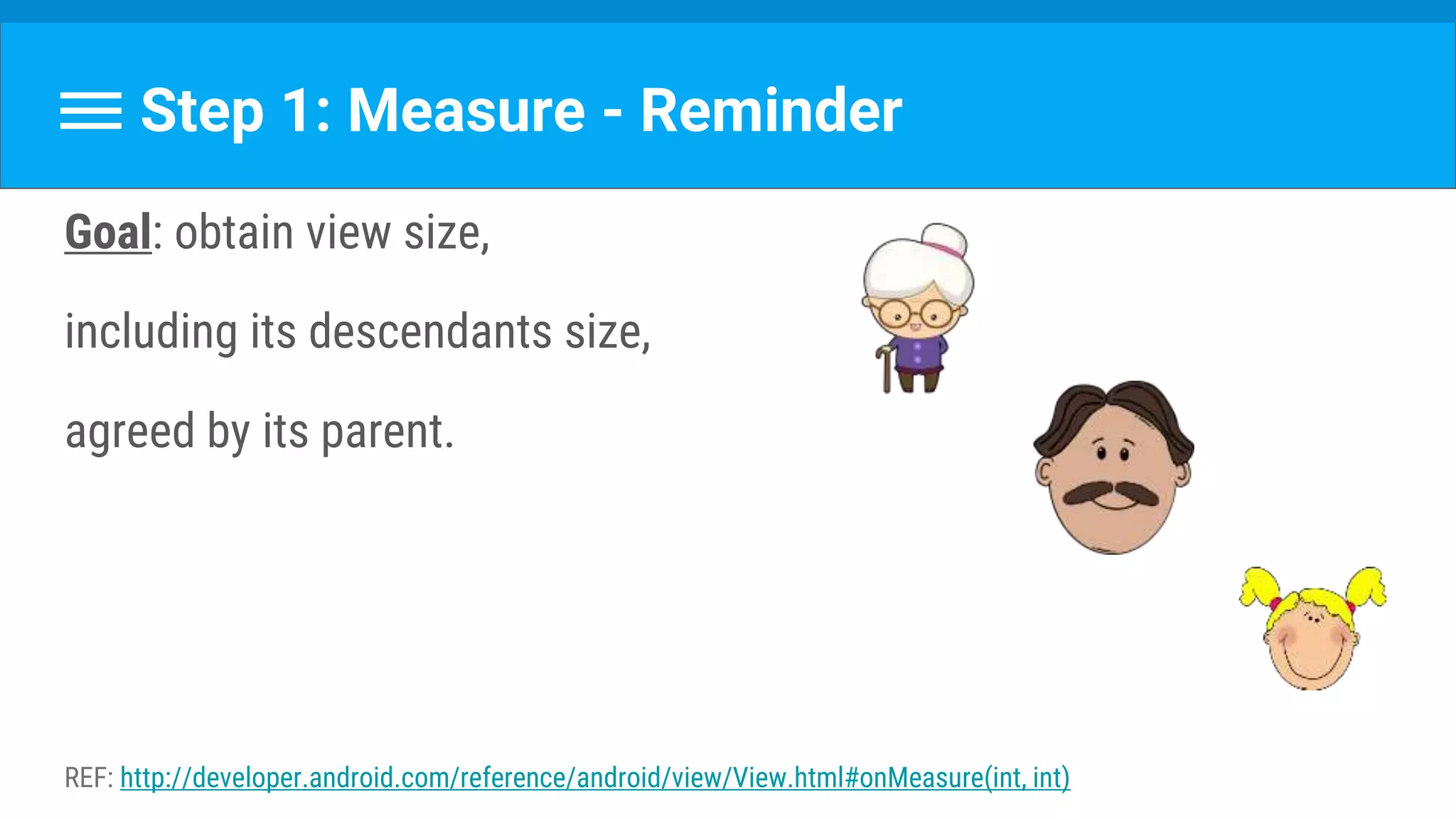

62. Step 1: Measure - Reminder
Goal: obtain view size,
including its descendants size,
agreed by its parent.
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

63. Any Questions?

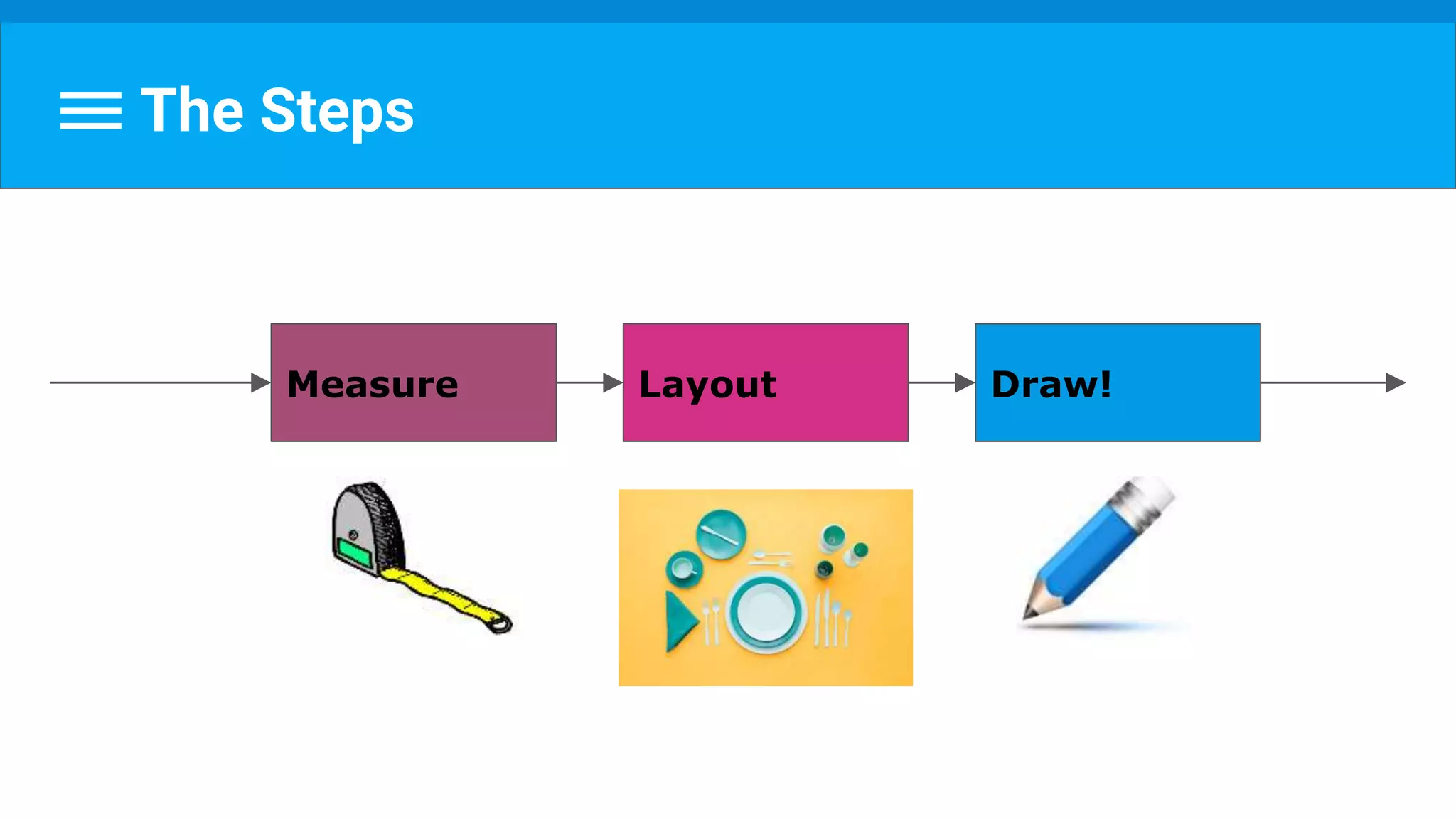

64. The Steps
Measure Layout Draw!

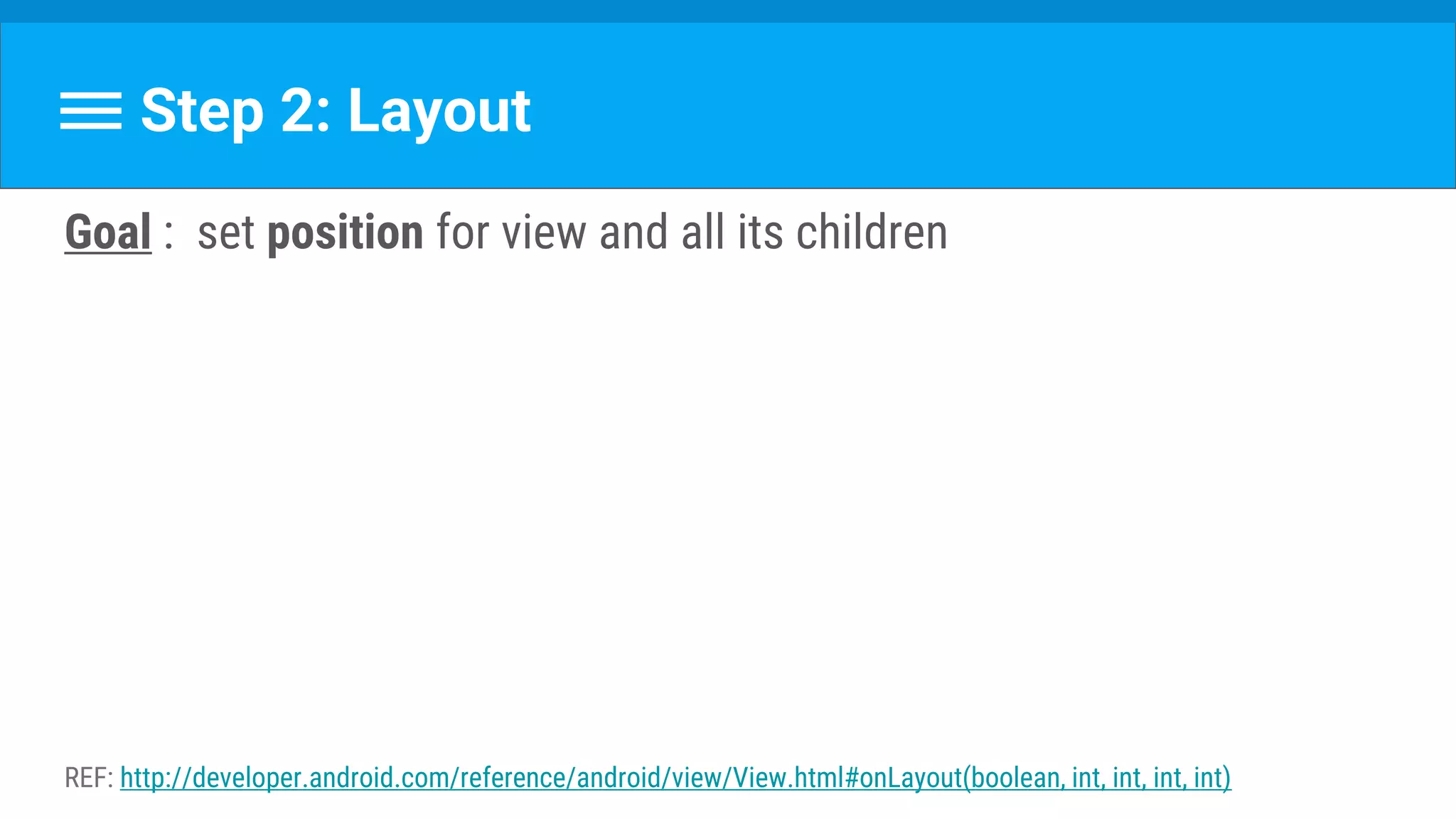

65. Step 2: Layout
Goal : set position for view and all its children
REF: http://developer.android.com/reference/android/view/View.html#onLayout(boolean, int, int, int, int)

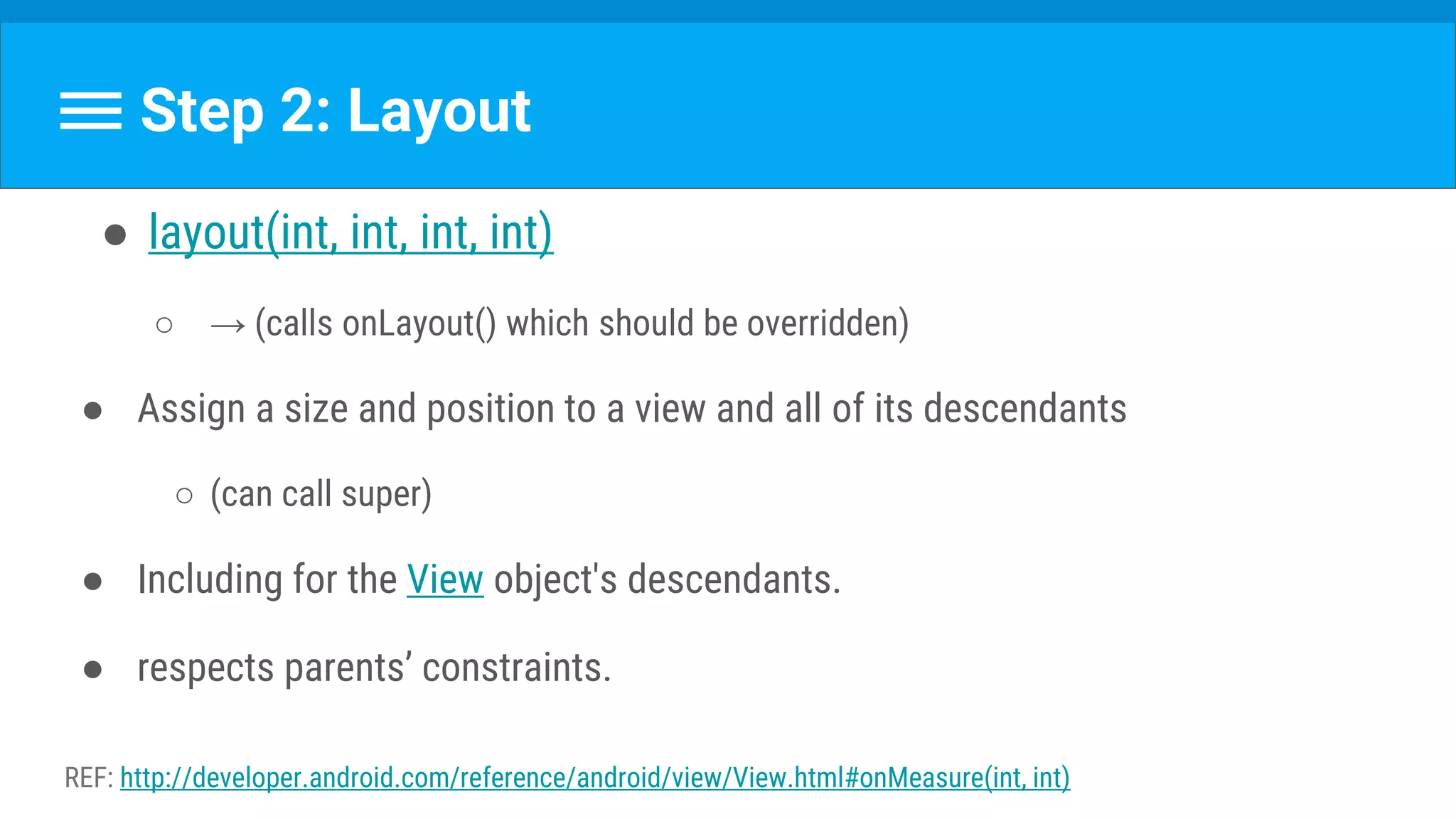

66. Step 2: Layout
● layout(int, int, int, int)
○ → (calls onLayout() which should be overridden)
● Assign a size and position to a view and all of its descendants
○ (can call super)
● Including for the View object's descendants.
● respects parents’ constraints.
REF: http://developer.android.com/reference/android/view/View.html#onMeasure(int, int)

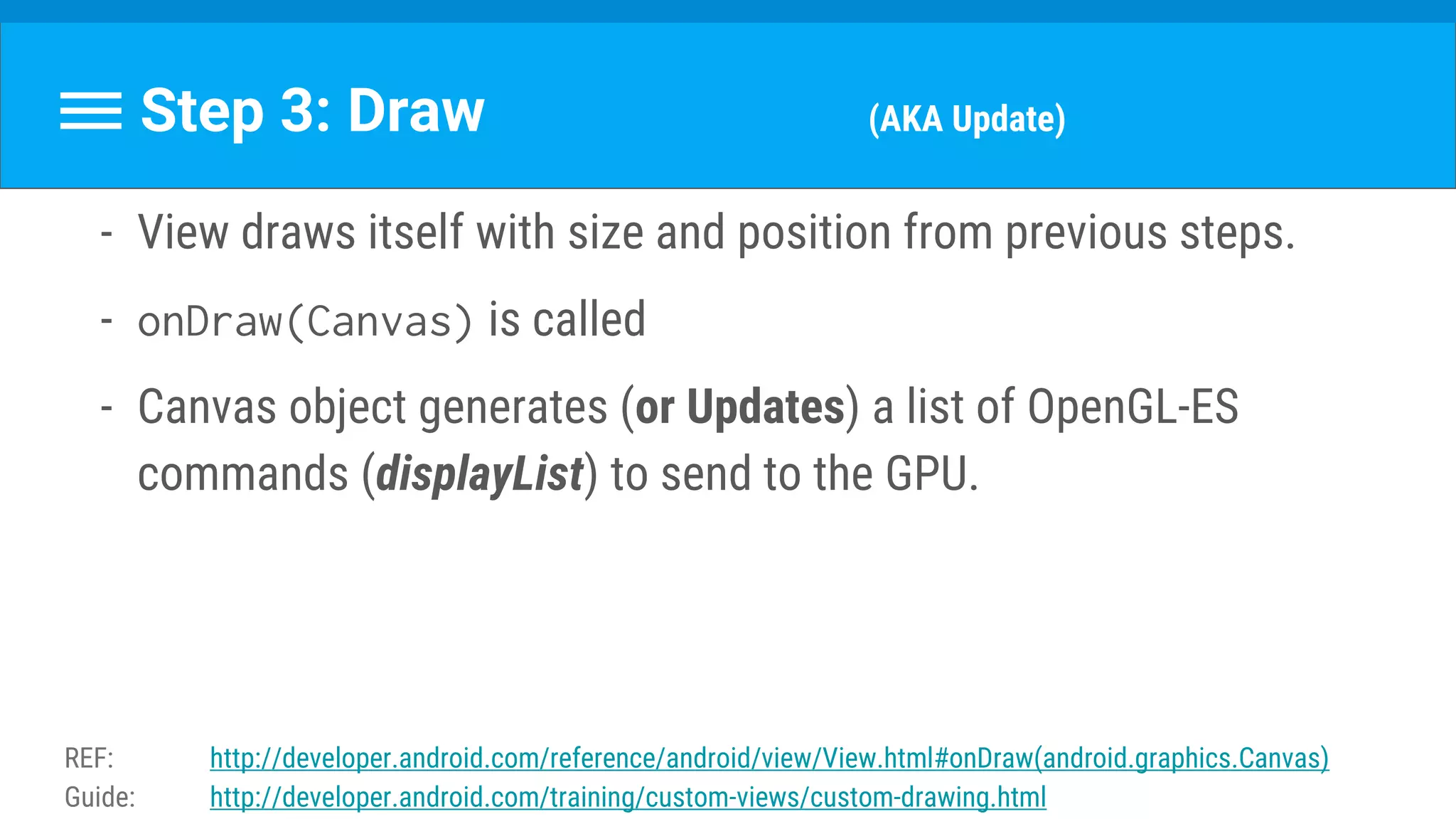

67. - View draws itself with size and position from previous steps.
- onDraw(Canvas) is called
- Canvas object generates (or Updates) a list of OpenGL-ES
commands (displayList) to send to the GPU.
Step 3: Draw (AKA Update)
REF: http://developer.android.com/reference/android/view/View.html#onDraw(android.graphics.Canvas)
Guide: http://developer.android.com/training/custom-views/custom-drawing.html

68. Plus ça change, plus c'est la même chose

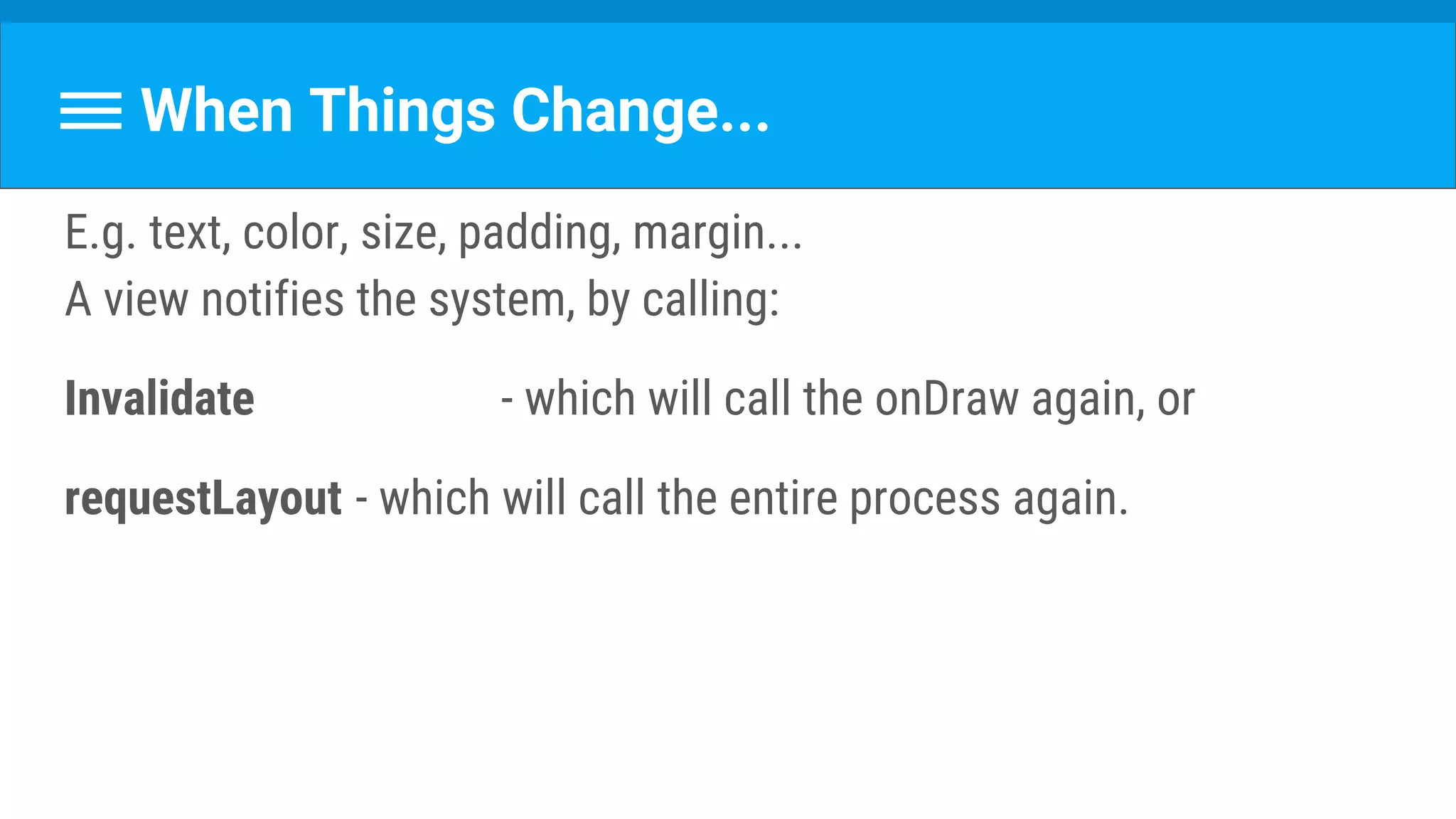

69. When Things Change...
E.g. text, color, size, padding, margin...
A view notifies the system, by calling:
Invalidate - which will call the onDraw again, or
requestLayout - which will call the entire process again.

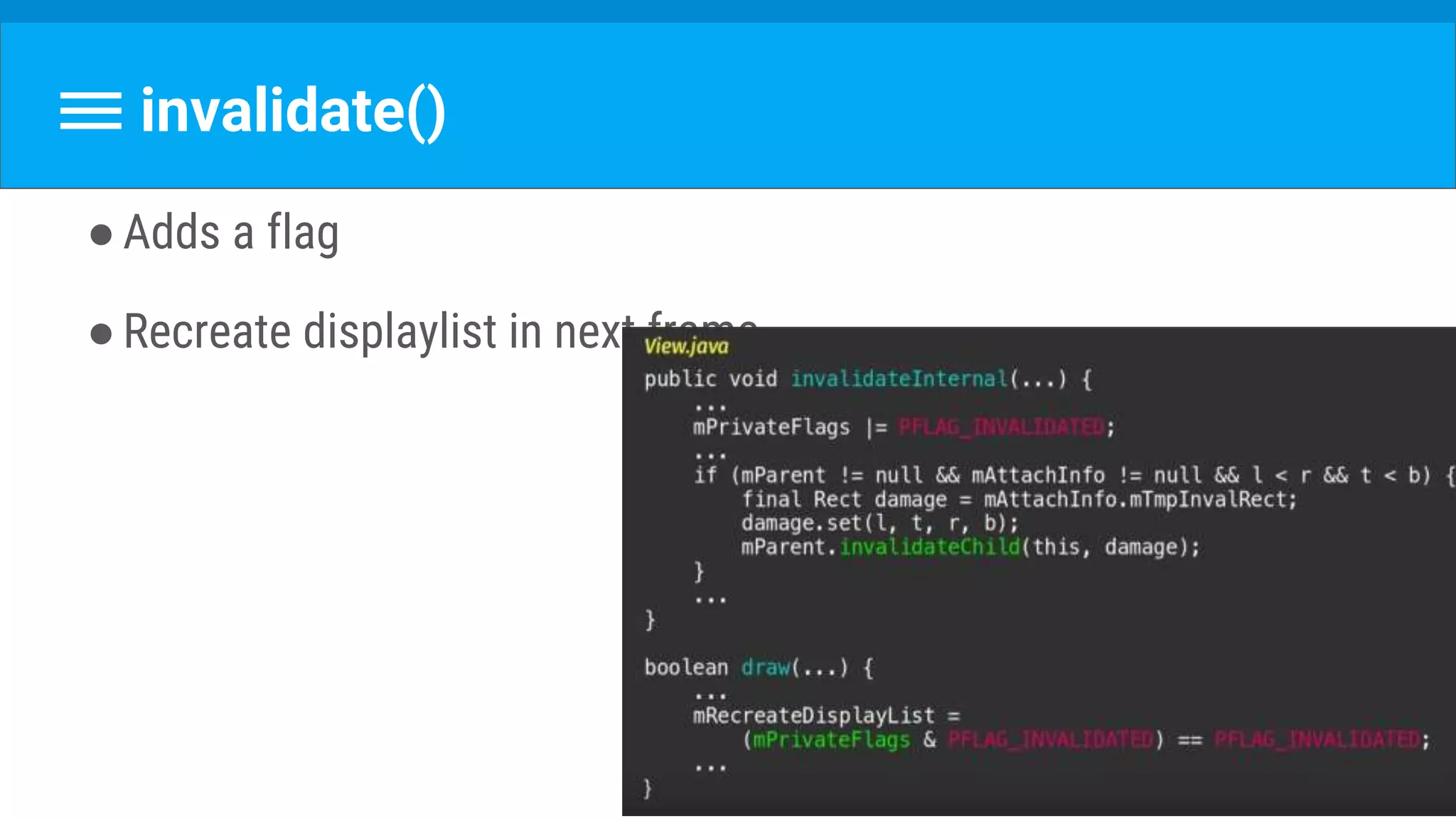

70. ●Adds a flag
●Recreate displaylist in next frame
invalidate()

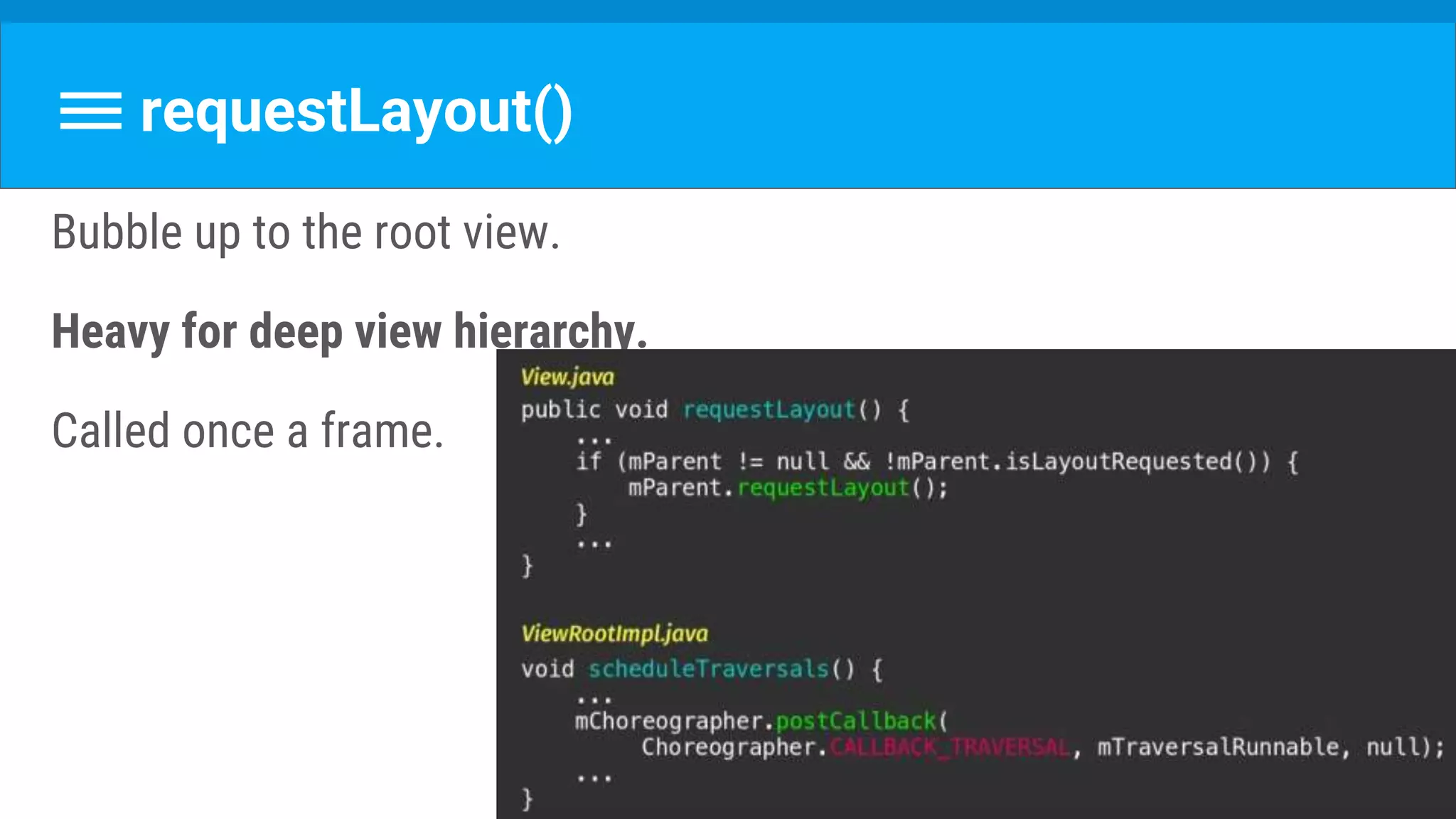

71. requestLayout()
Bubble up to the root view.
Heavy for deep view hierarchy.
Called once a frame.

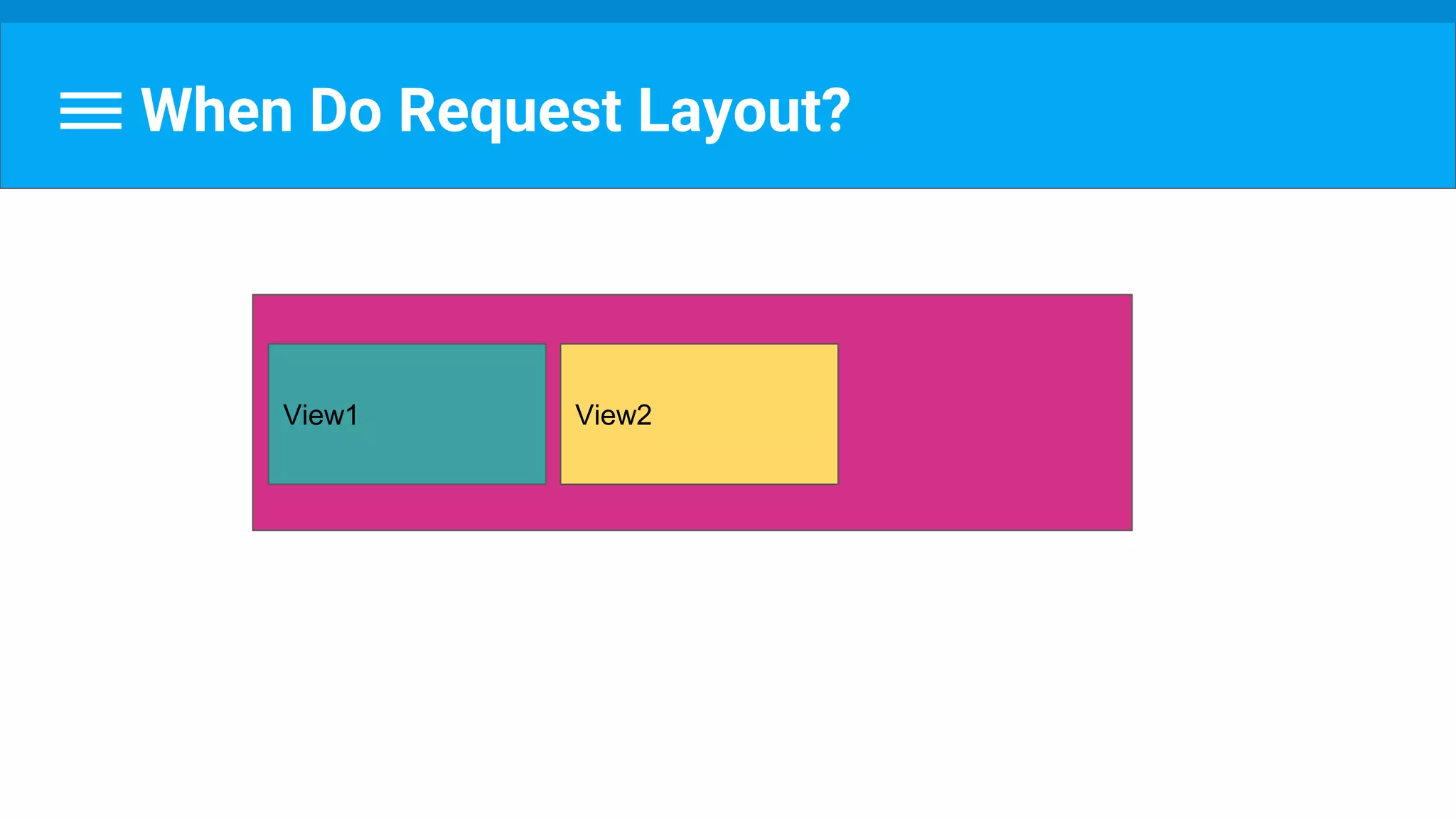

72. When Do Request Layout?
View1 View2

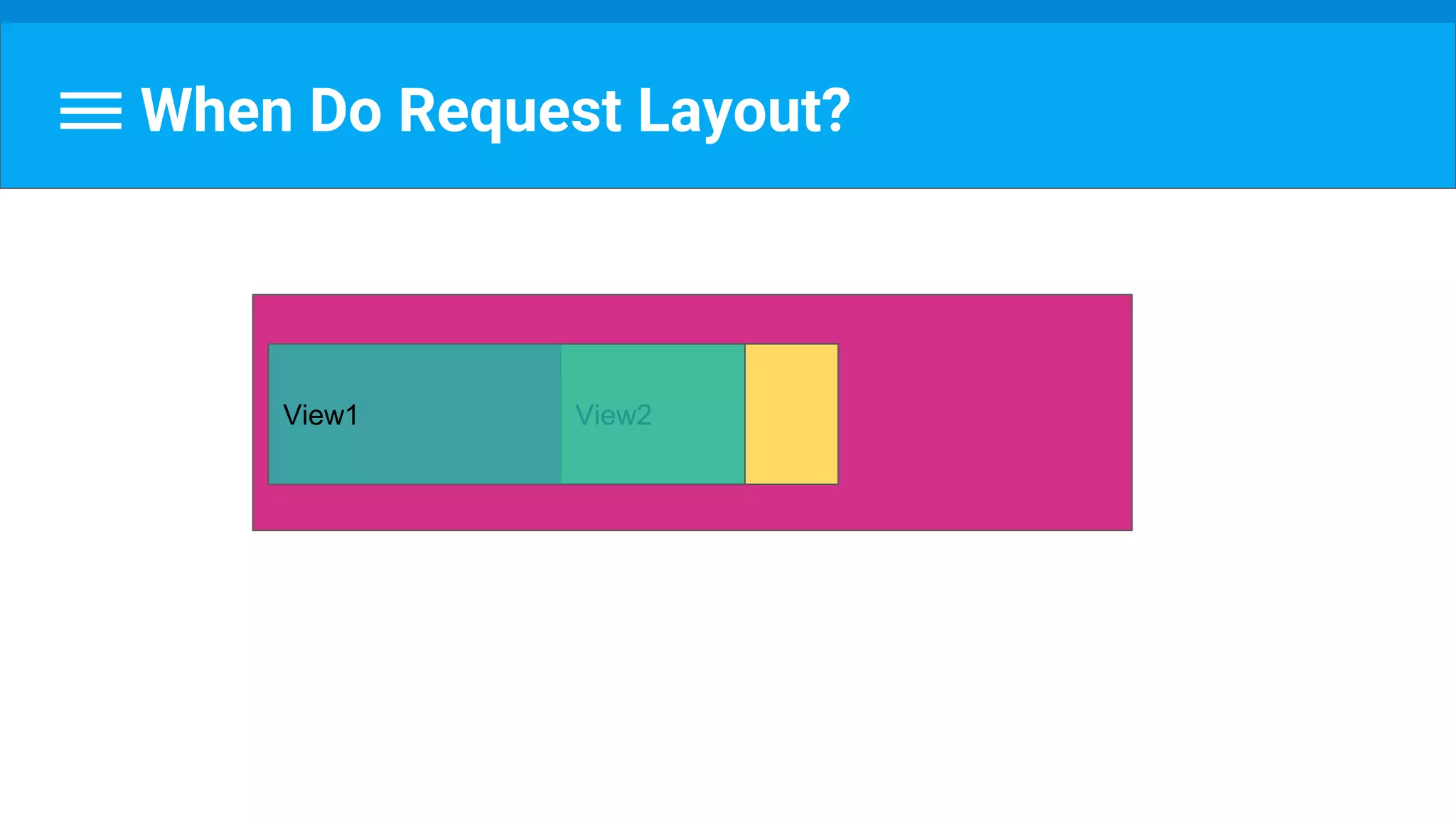

73. When Do Request Layout?
View2View1

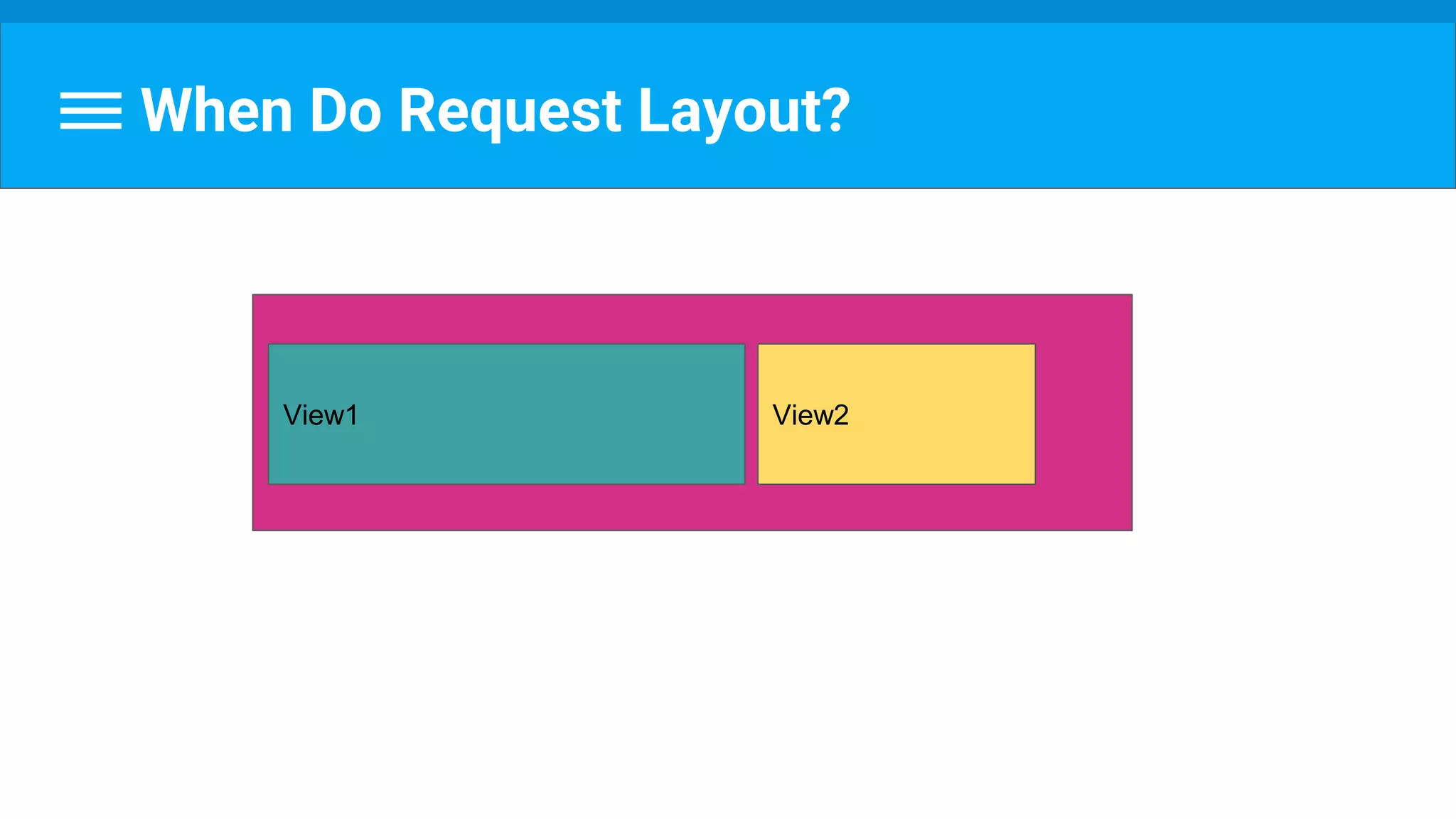

74. When Do Request Layout?
View2View1

75. So it seems that layout passes once...
Or is it?

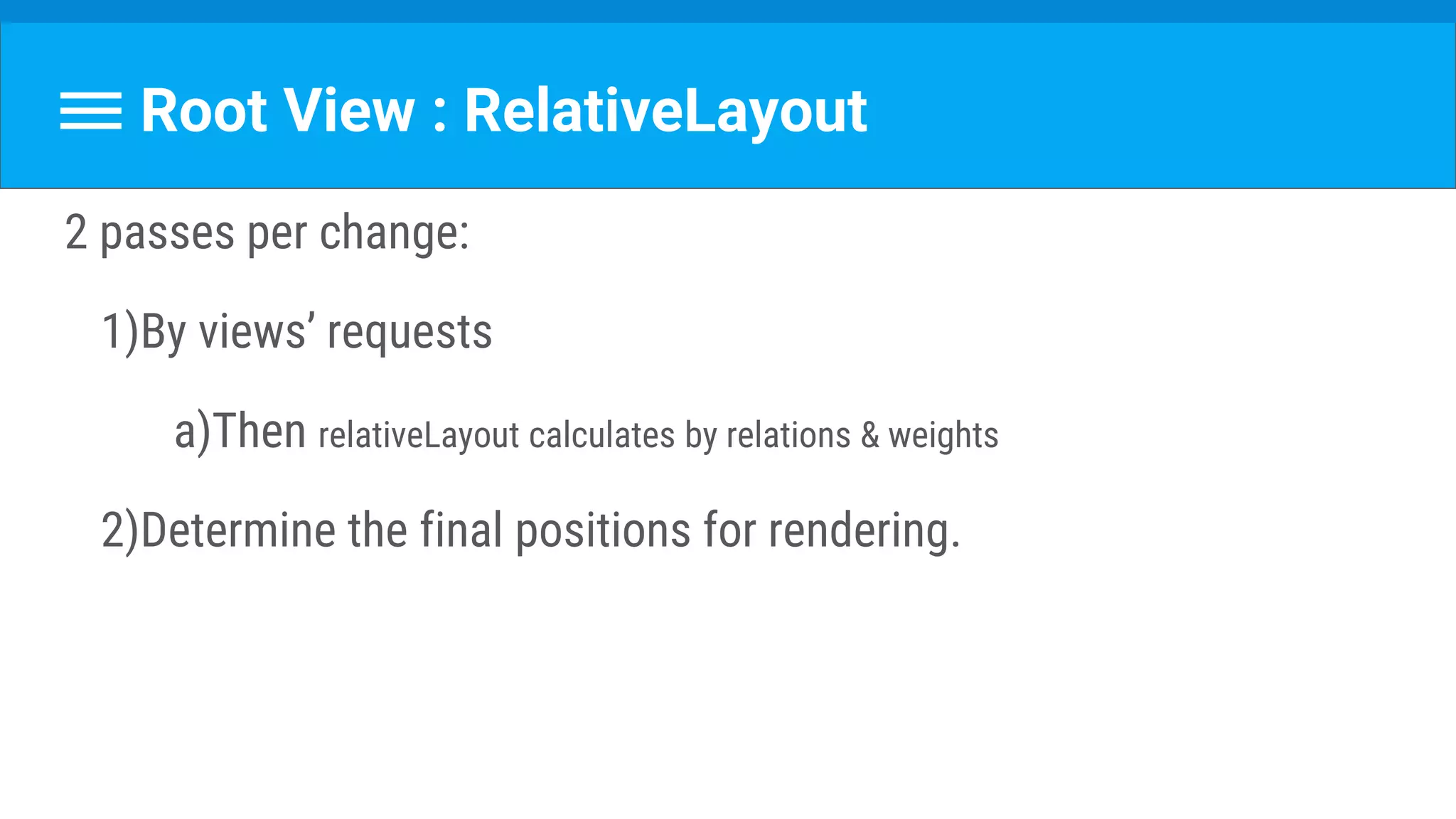

76. Root View : RelativeLayout
2 passes per change:
1)By views’ requests
a)Then relativeLayout calculates by relations & weights
2)Determine the final positions for rendering.

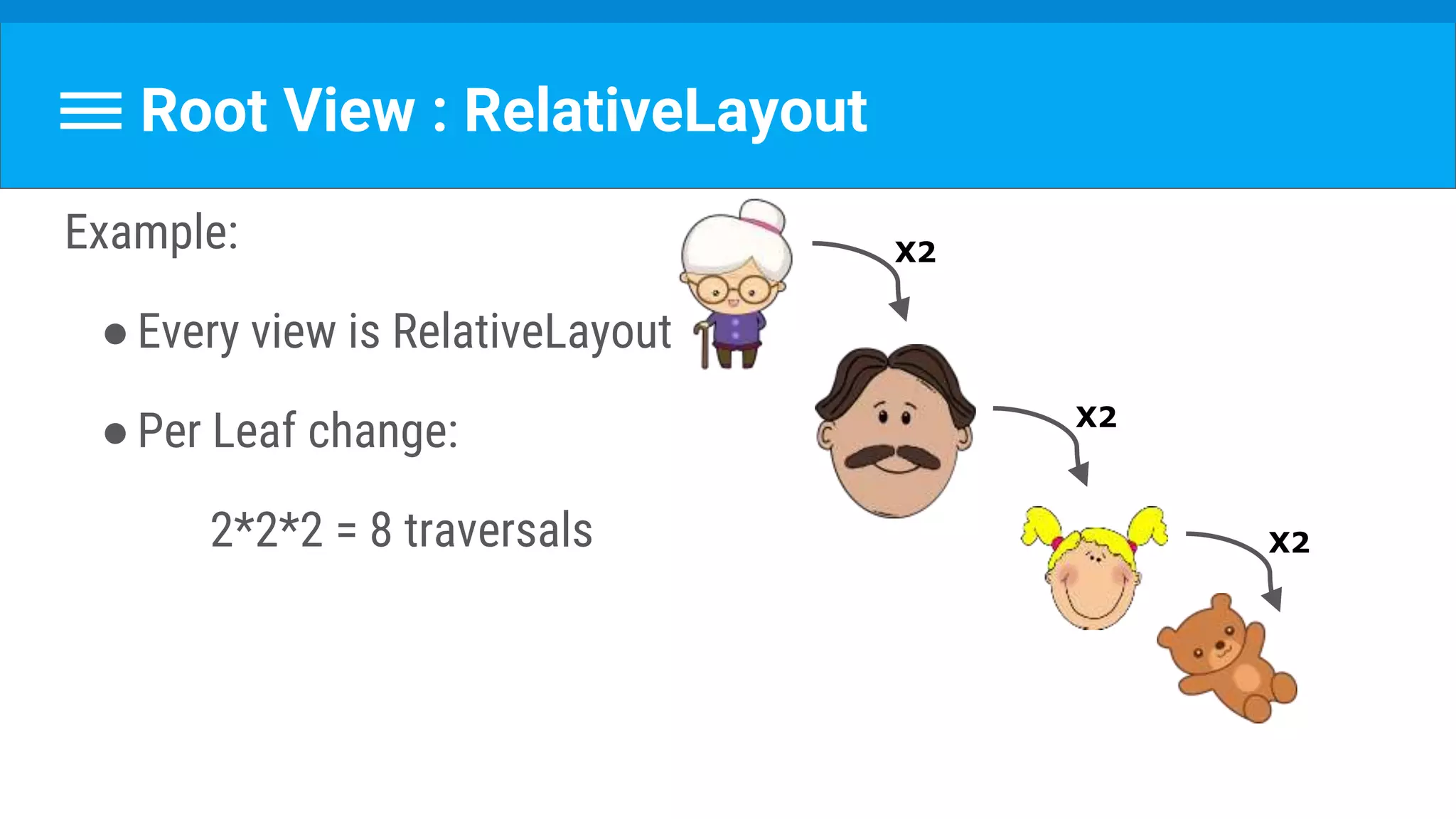

77. Root View : RelativeLayout
Example:
●Every view is RelativeLayout
●Per Leaf change:
2*2*2 = 8 traversals
X2
X2
X2

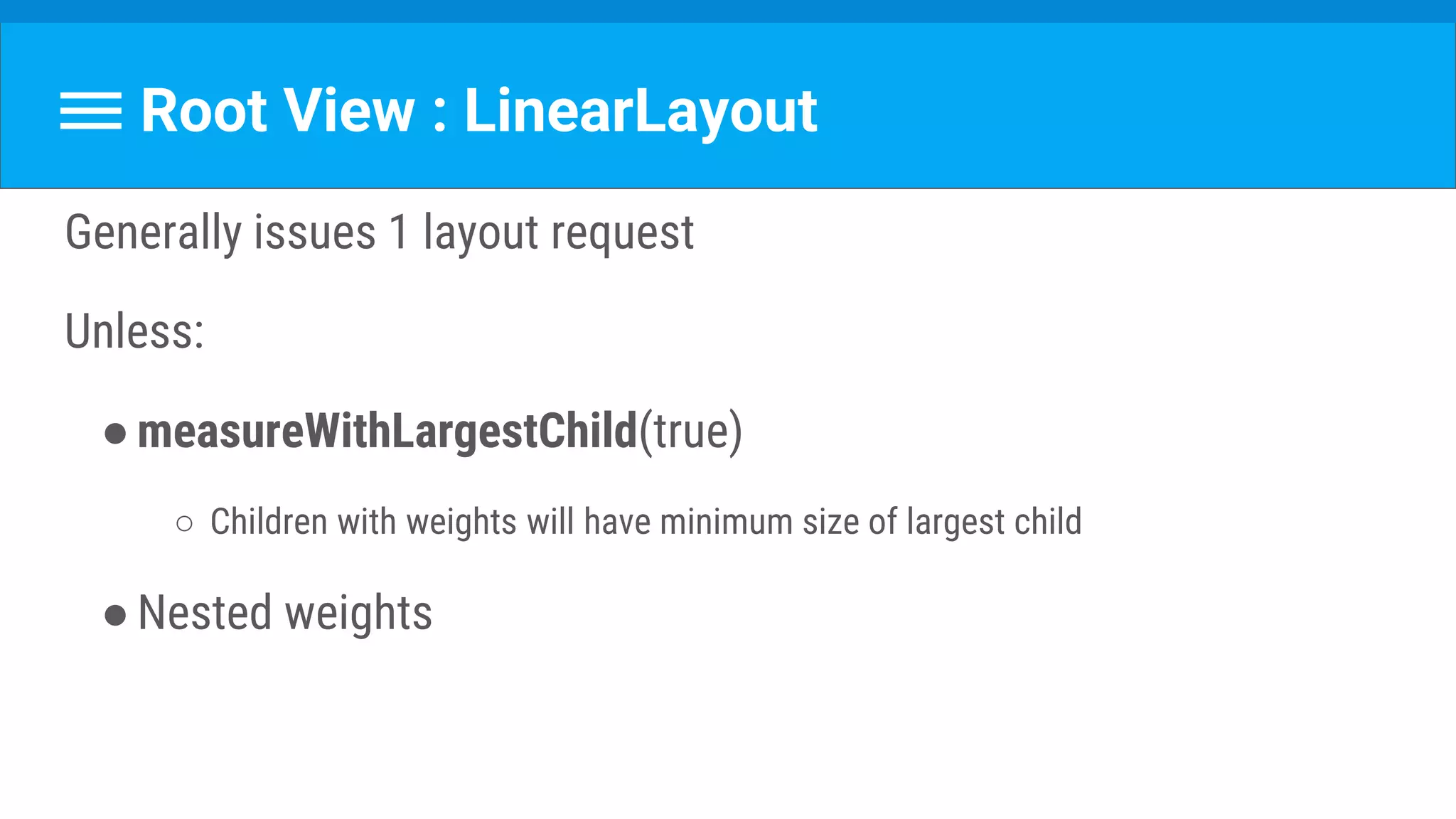

78. Root View : LinearLayout
Generally issues 1 layout request
Unless:
●measureWithLargestChild(true)
○ Children with weights will have minimum size of largest child
●Nested weights

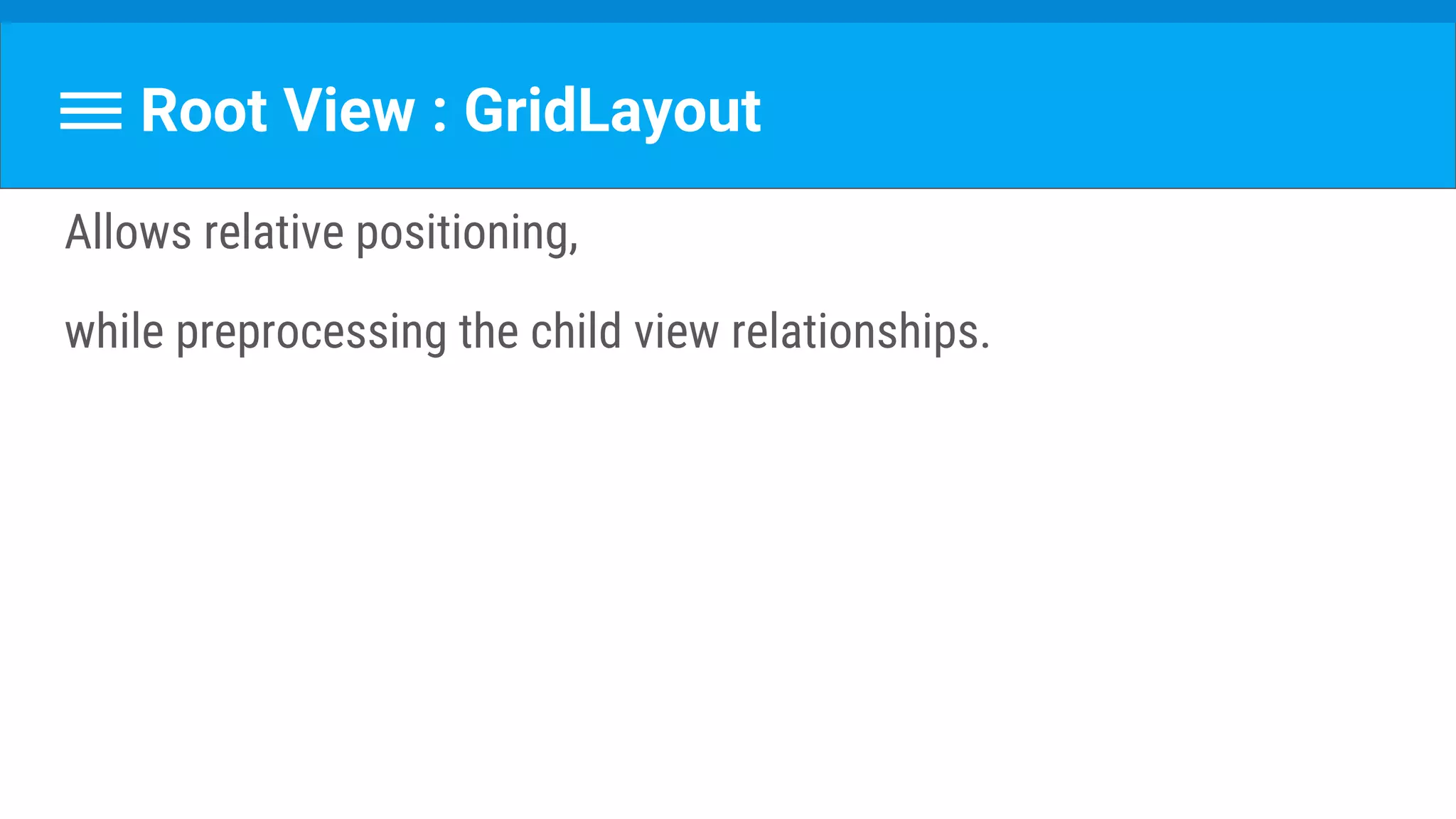

79. Root View : GridLayout
Allows relative positioning,
while preprocessing the child view relationships.

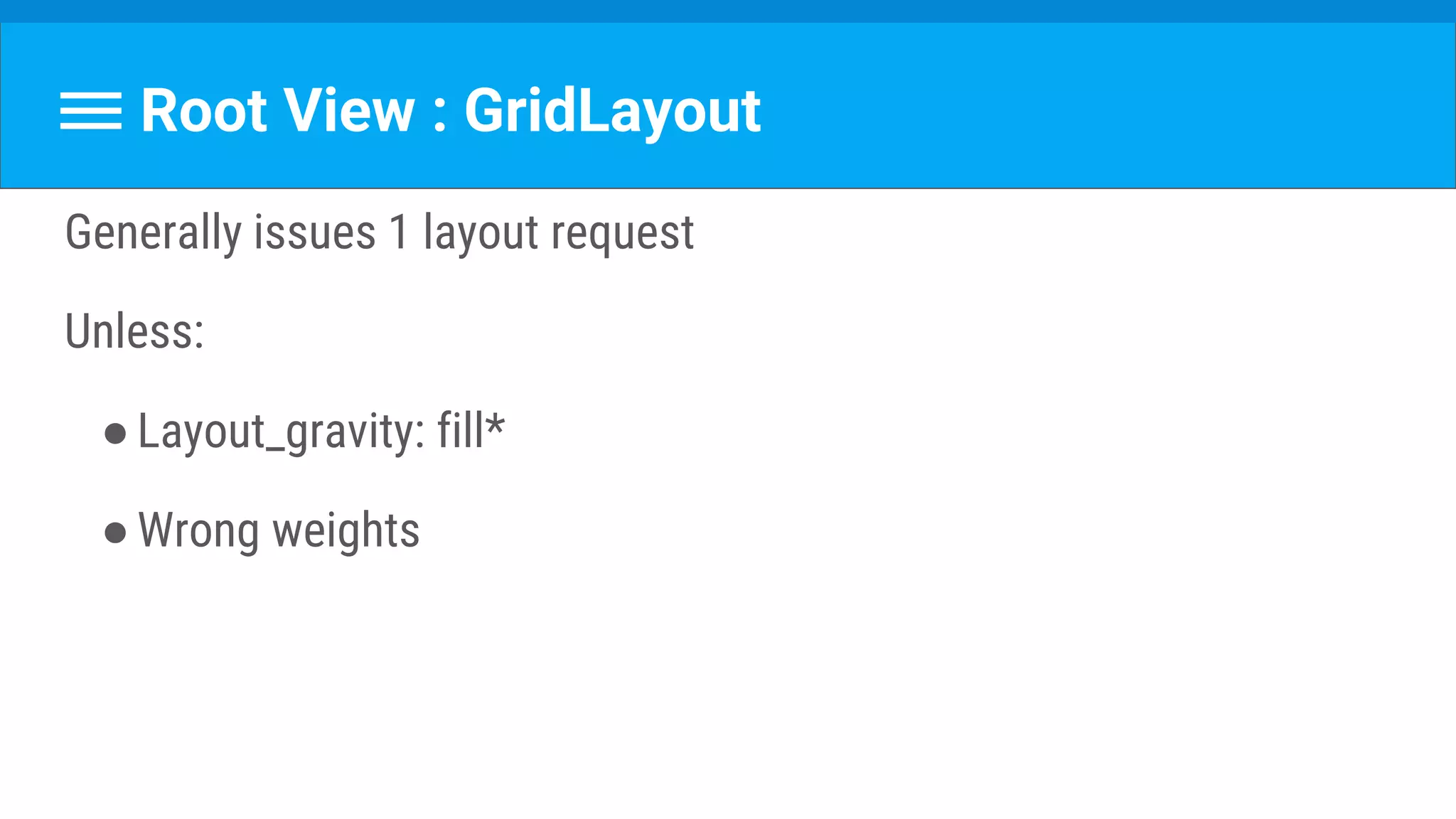

80. Root View : GridLayout
Generally issues 1 layout request
Unless:
●Layout_gravity: fill*
●Wrong weights

81. This is called
Double Layout Taxation

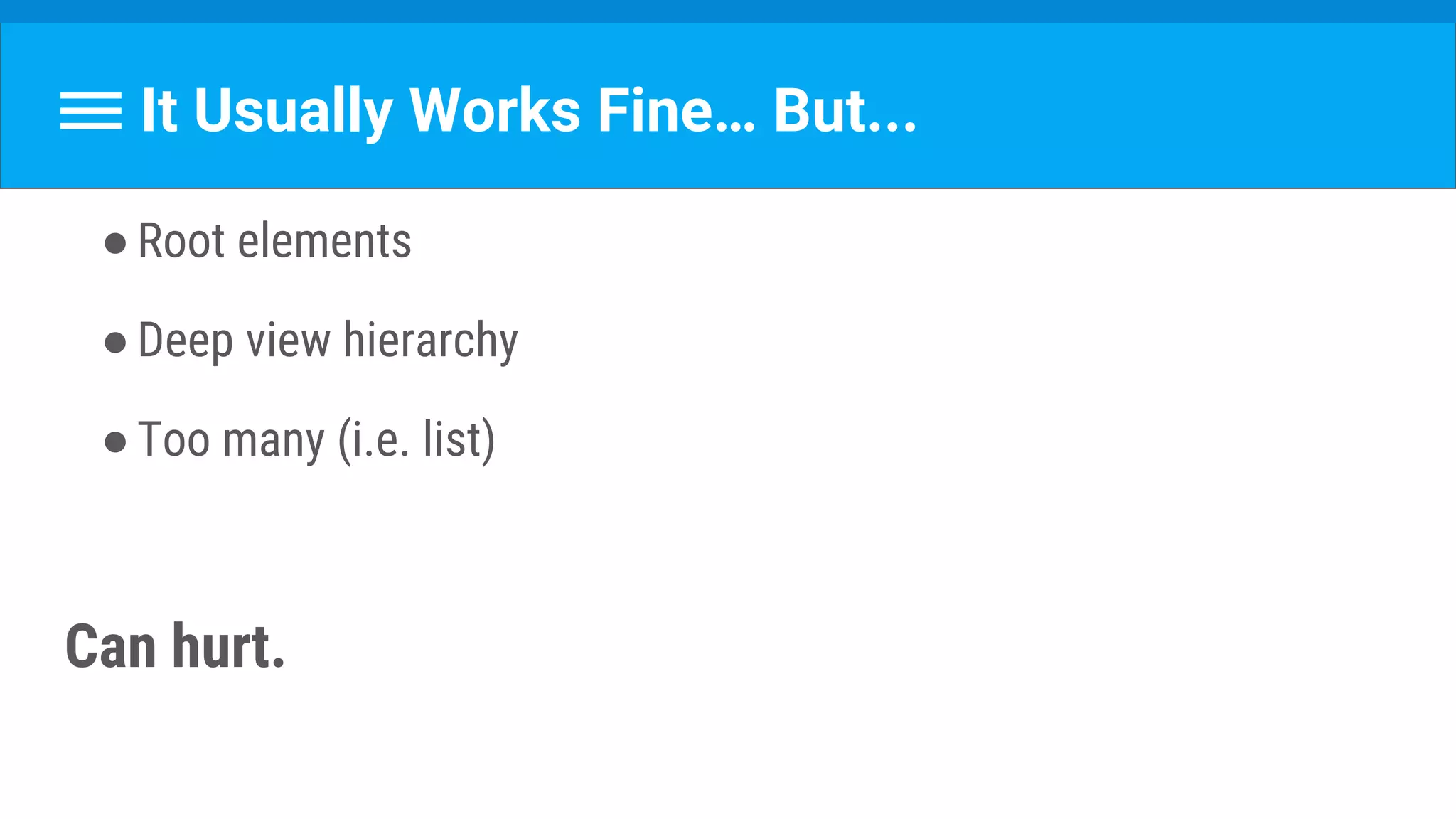

82. It Usually Works Fine… But...
●Root elements
●Deep view hierarchy
●Too many (i.e. list)
Can hurt.

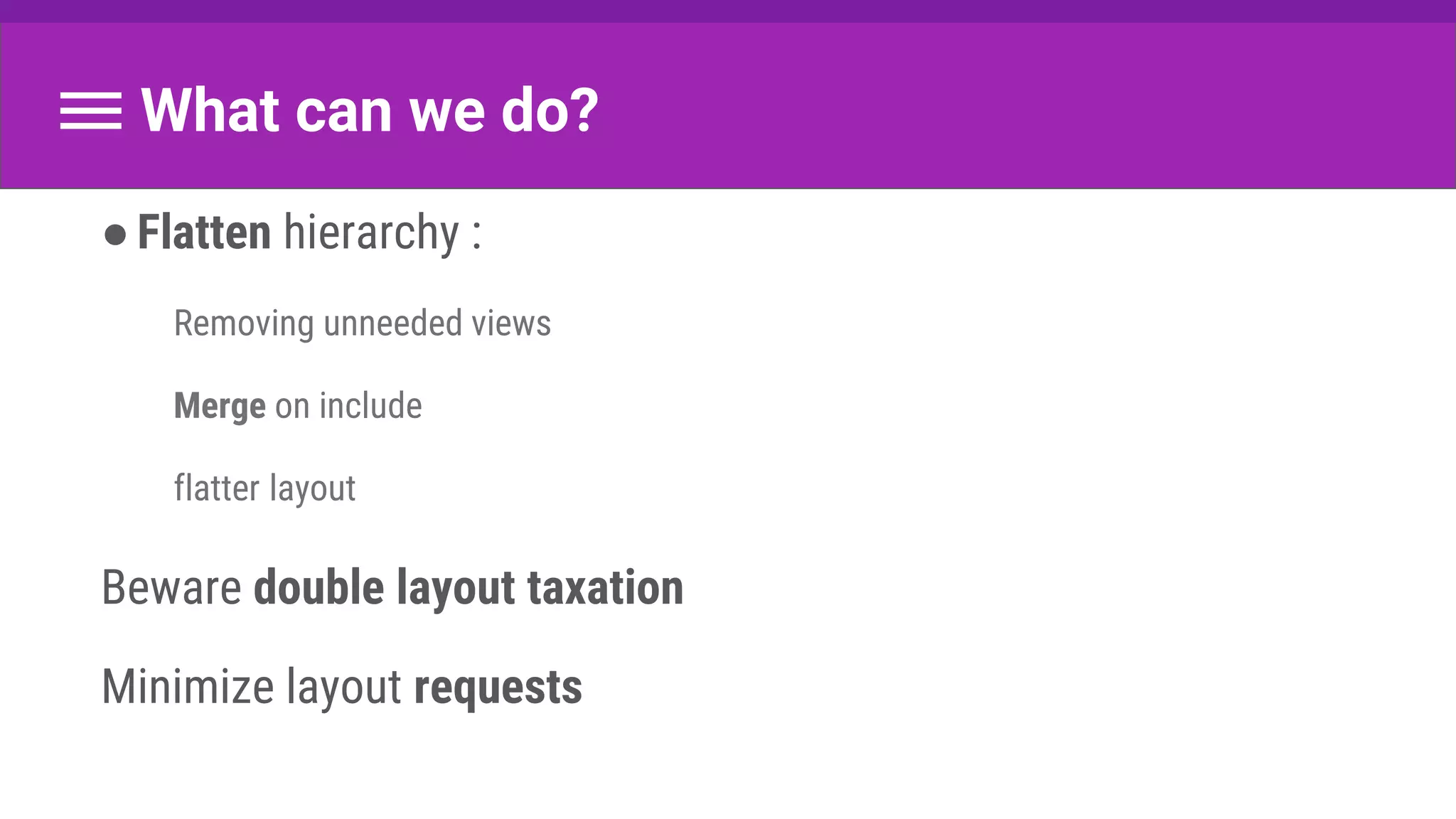

83. What can we do?
●Flatten hierarchy :
Removing unneeded views
Merge on include
flatter layout
Beware double layout taxation
Minimize layout requests

84. Any Questions?

85. Cool Tool
Hierarchy Viewer

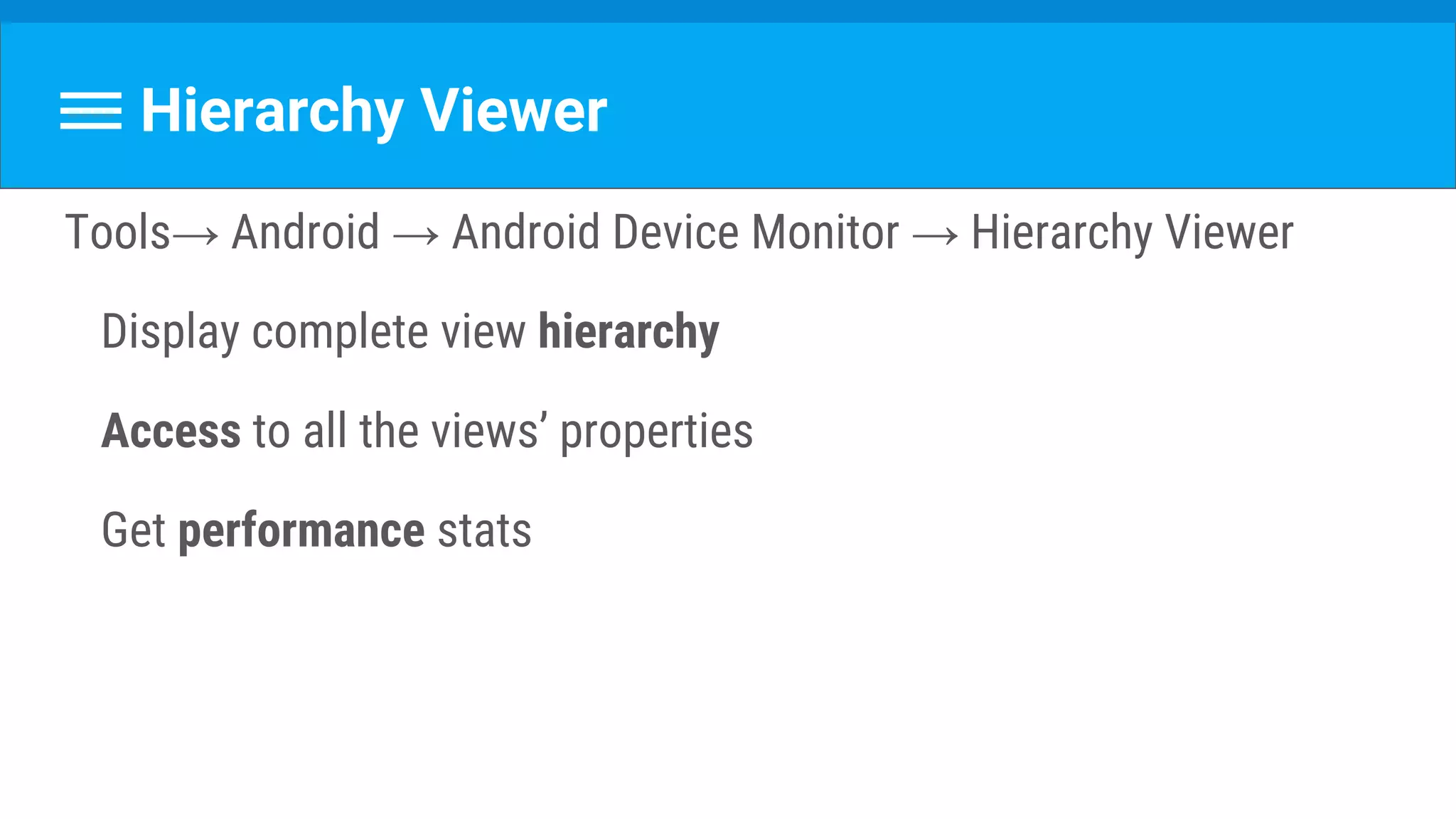

86. Hierarchy Viewer
Tools→ Android → Android Device Monitor → Hierarchy Viewer
Display complete view hierarchy
Access to all the views’ properties
Get performance stats

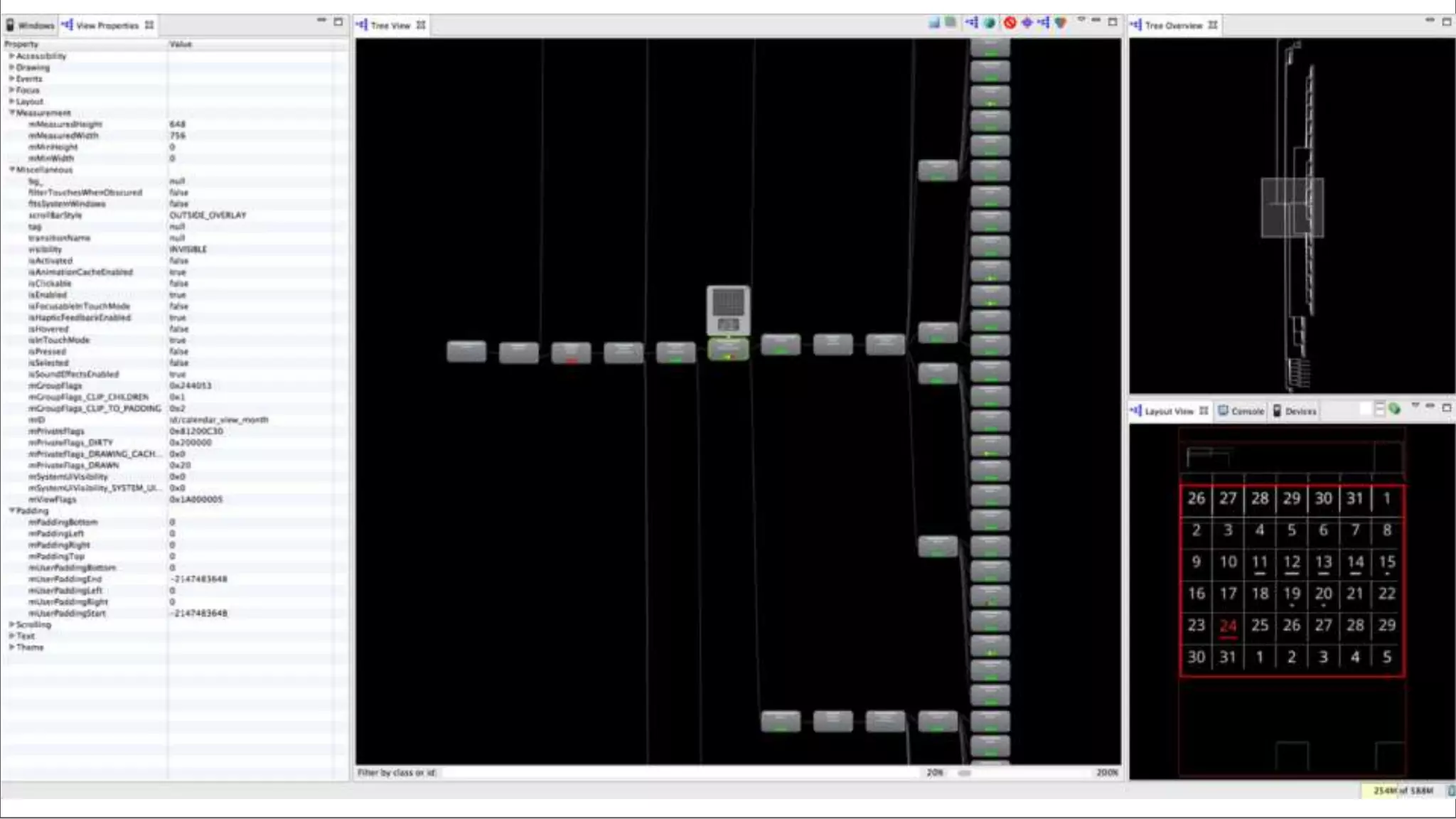

87. Hierarchy Viewer

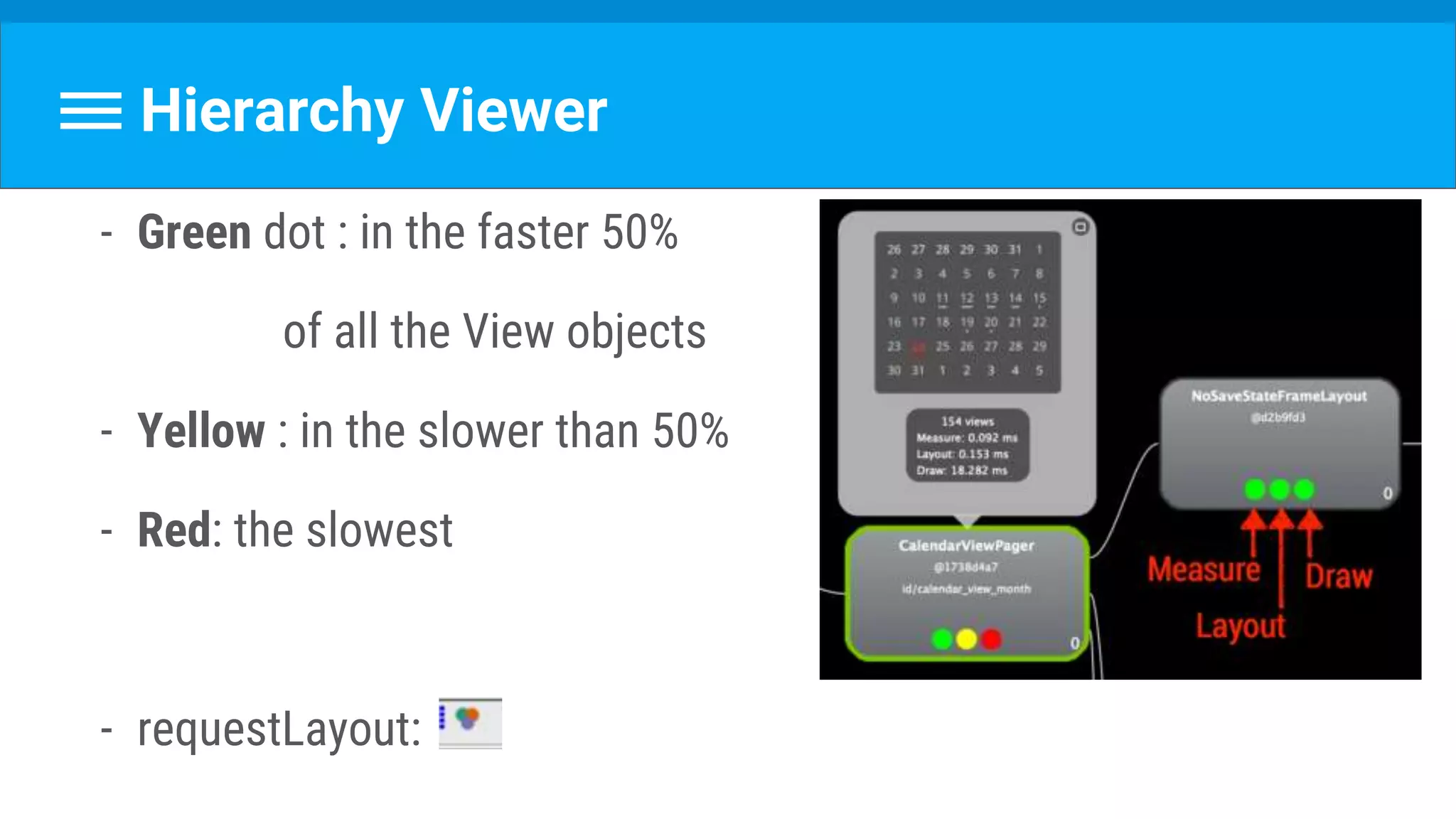

88. Hierarchy Viewer
- Green dot : in the faster 50%
of all the View objects
- Yellow : in the slower than 50%
- Red: the slowest
- requestLayout:

89. Ok ok ,
but which layout should I choose??

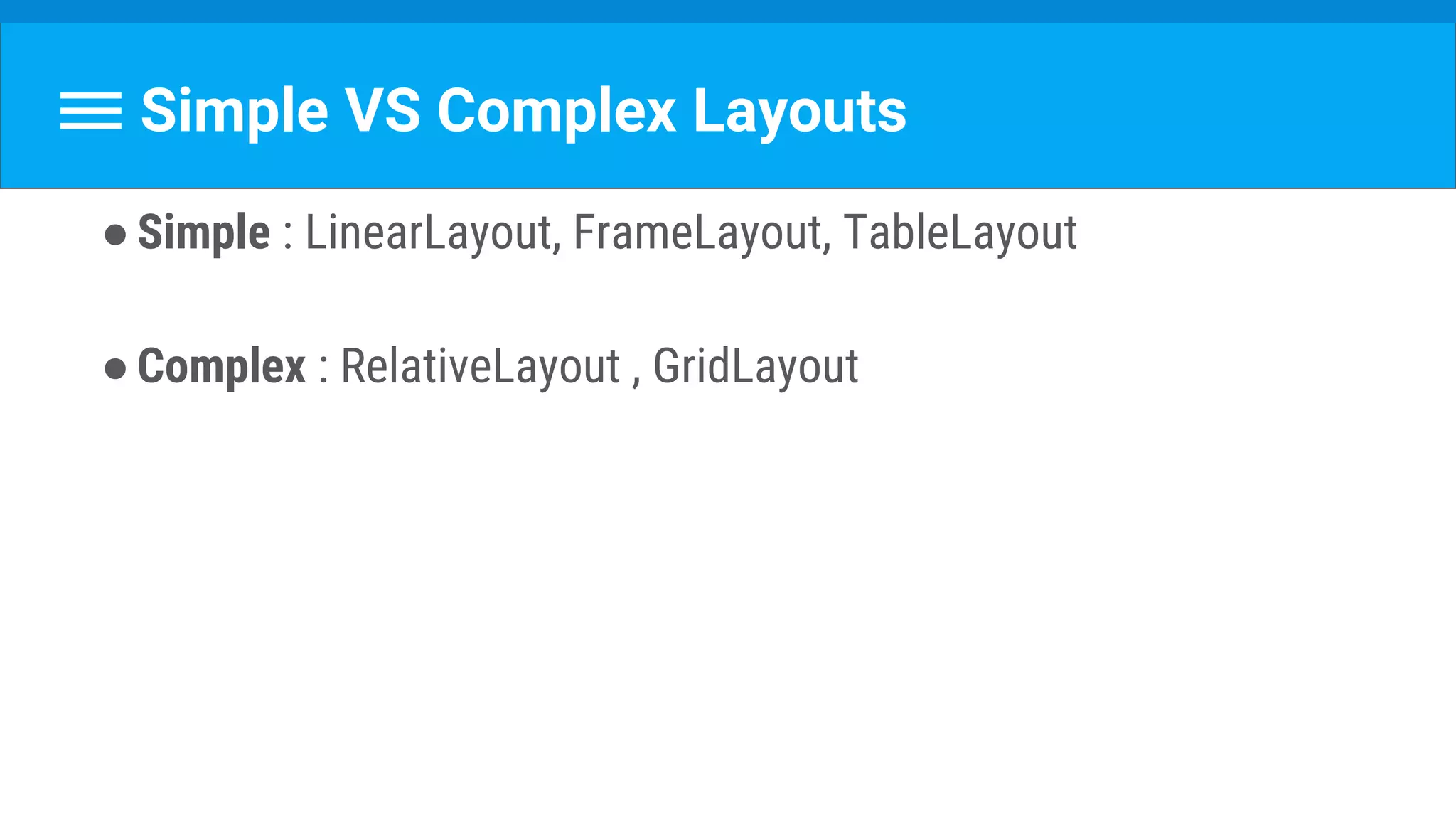

90. Simple VS Complex Layouts
●Simple : LinearLayout, FrameLayout, TableLayout
●Complex : RelativeLayout , GridLayout

91. Simple VS Complex Layouts
●Simple : LinearLayout, FrameLayout, TableLayout
○ → Nesting → Performance Problems
●Complex : RelativeLayout , GridLayout
○ → hard to use & maintain
○ → shouldn’t be @ top hierarchy

92. Isn’t there anything
smarter we can do??

93. Brand ew Alert!

94. Constraint Layout

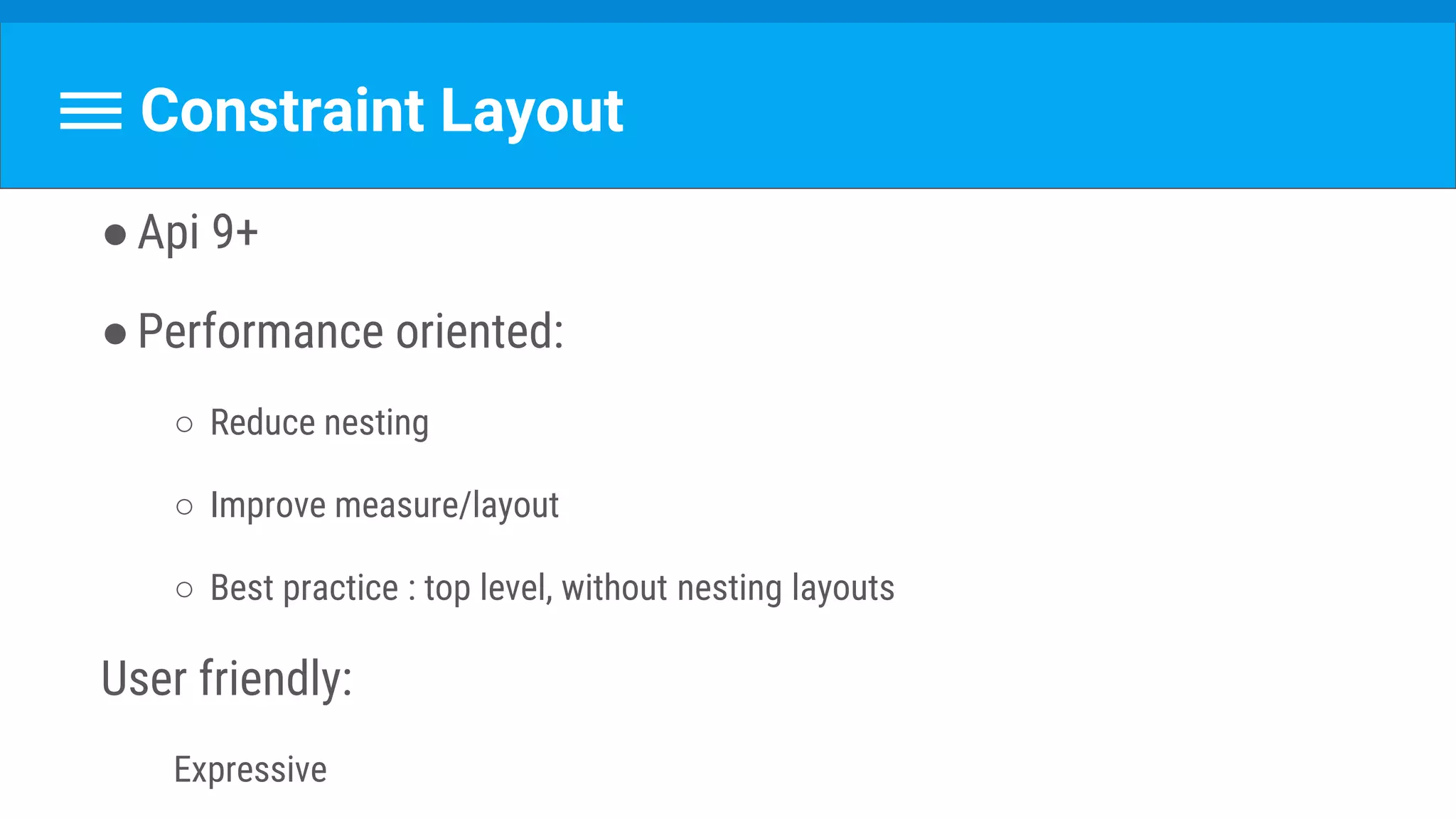

95. Constraint Layout
●Api 9+
●Performance oriented:
○ Reduce nesting
○ Improve measure/layout
○ Best practice : top level, without nesting layouts
User friendly:
Expressive

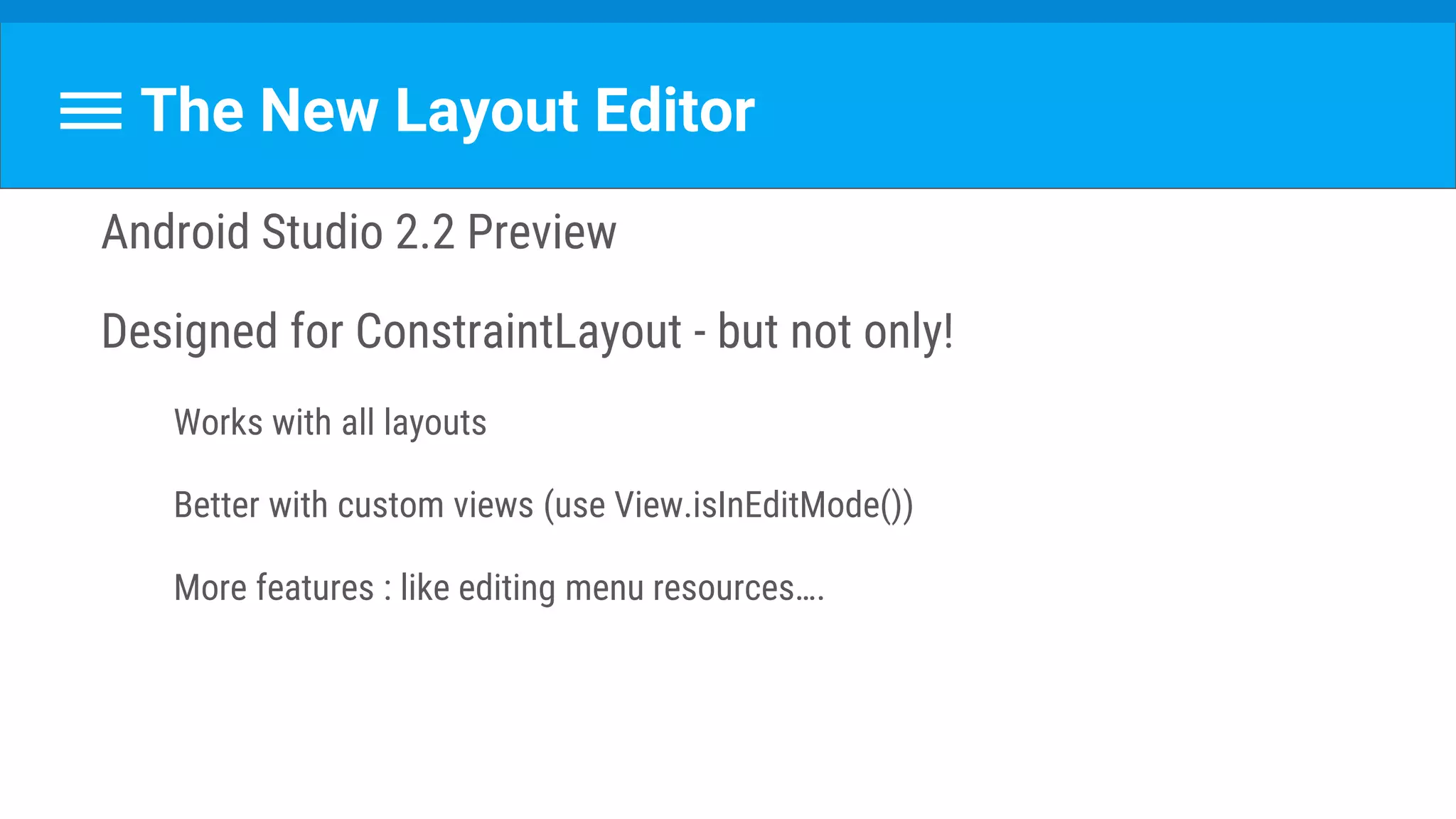

96. The New Layout Editor
Android Studio 2.2 Preview
Designed for ConstraintLayout - but not only!
Works with all layouts
Better with custom views (use View.isInEditMode())
More features : like editing menu resources….

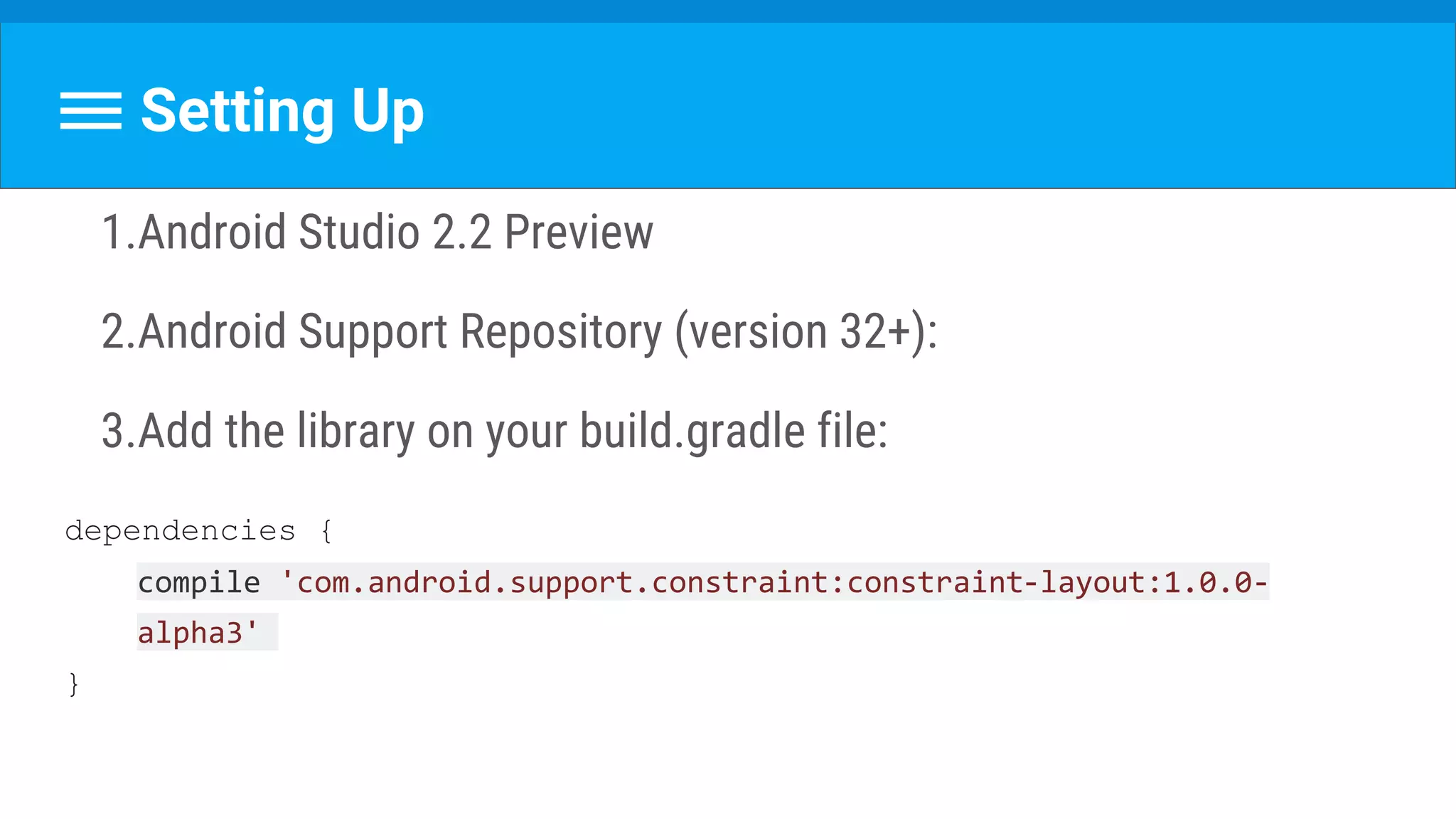

97. Setting Up
1.Android Studio 2.2 Preview
2.Android Support Repository (version 32+):
3.Add the library on your build.gradle file:
dependencies {
compile 'com.android.support.constraint:constraint-layout:1.0.0-
alpha3'
}

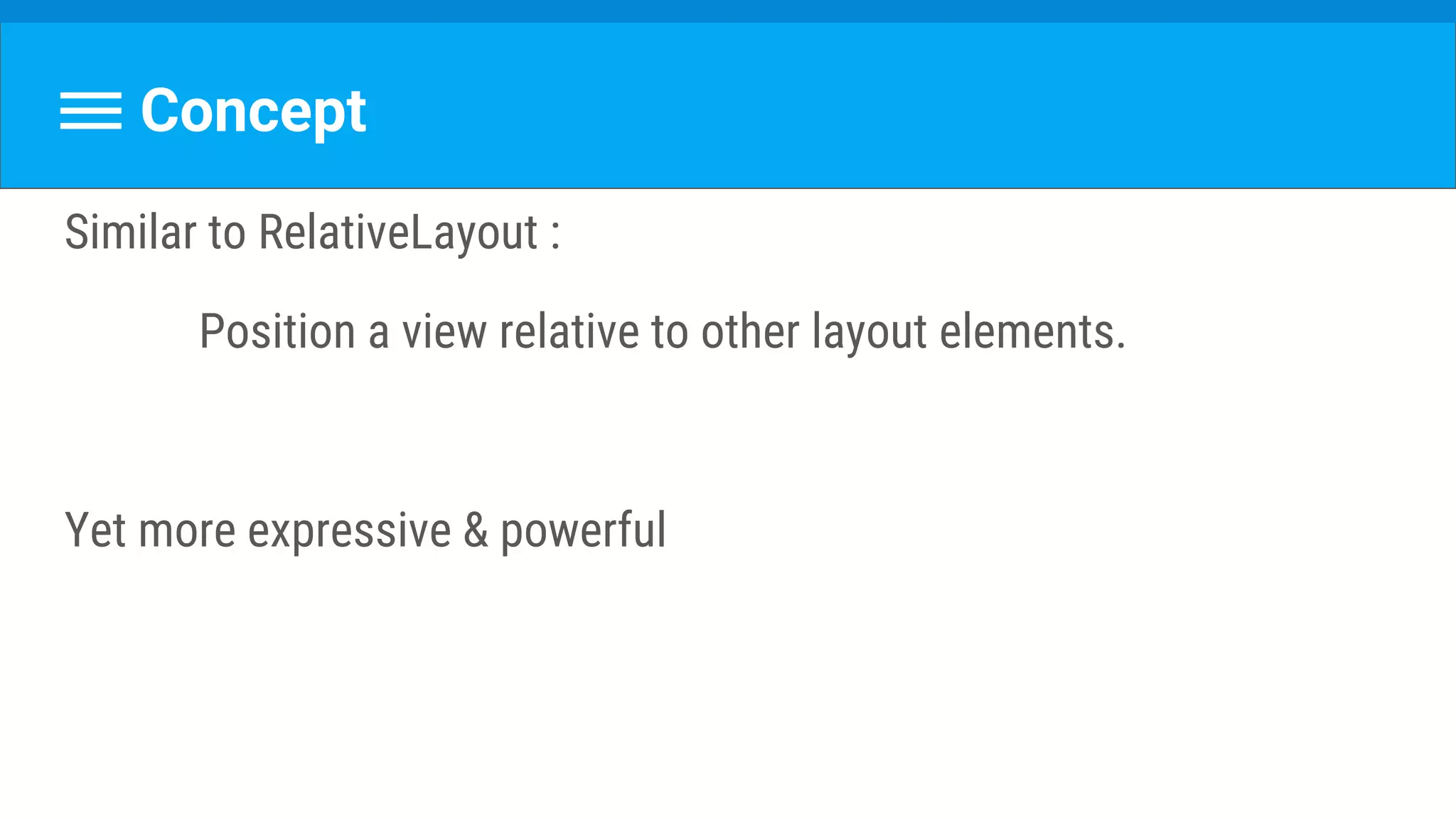

98. Concept
Similar to RelativeLayout :
Position a view relative to other layout elements.
Yet more expressive & powerful

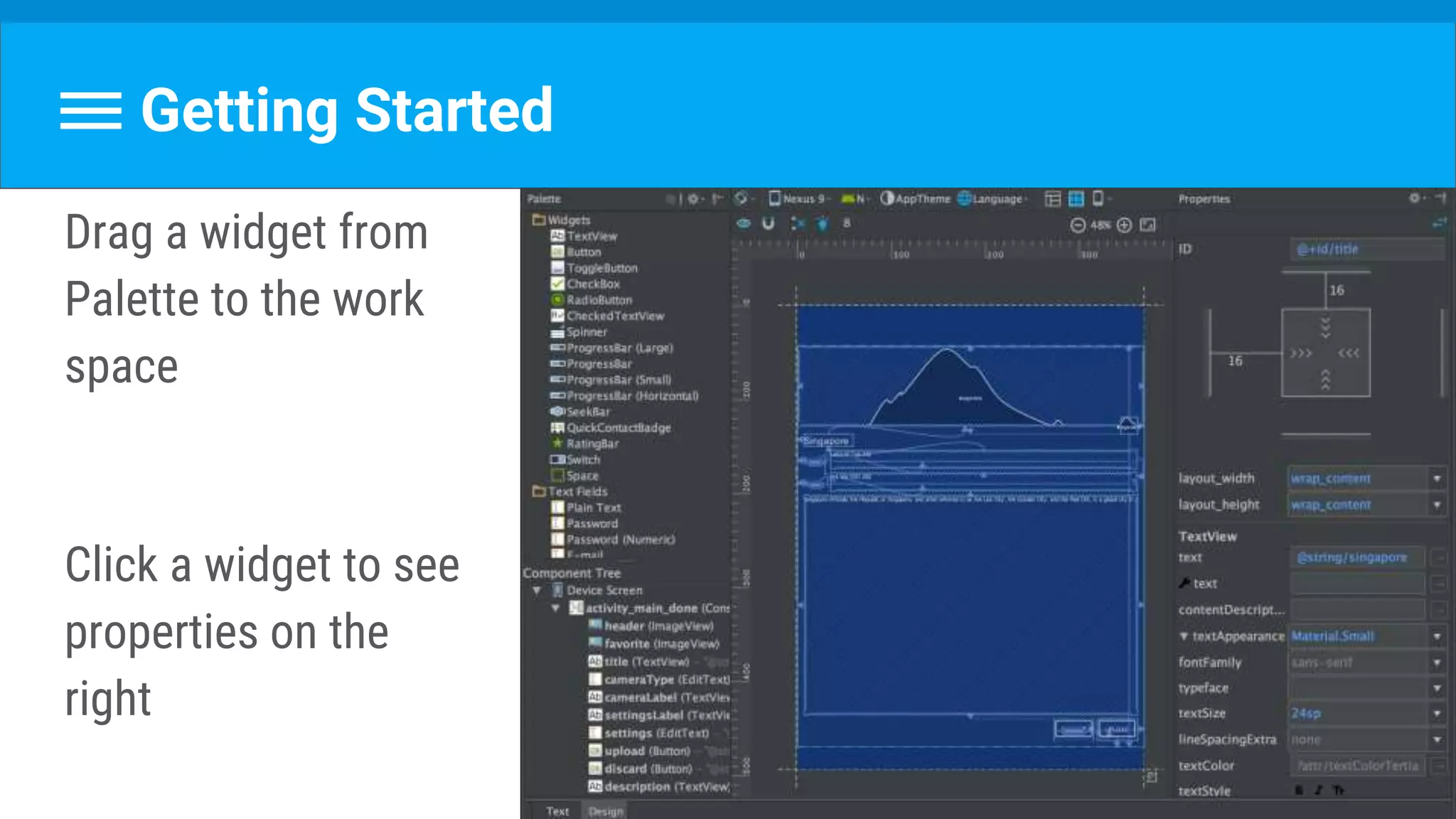

99. Getting Started
Drag a widget from
Palette to the work
space
Click a widget to see
properties on the
right

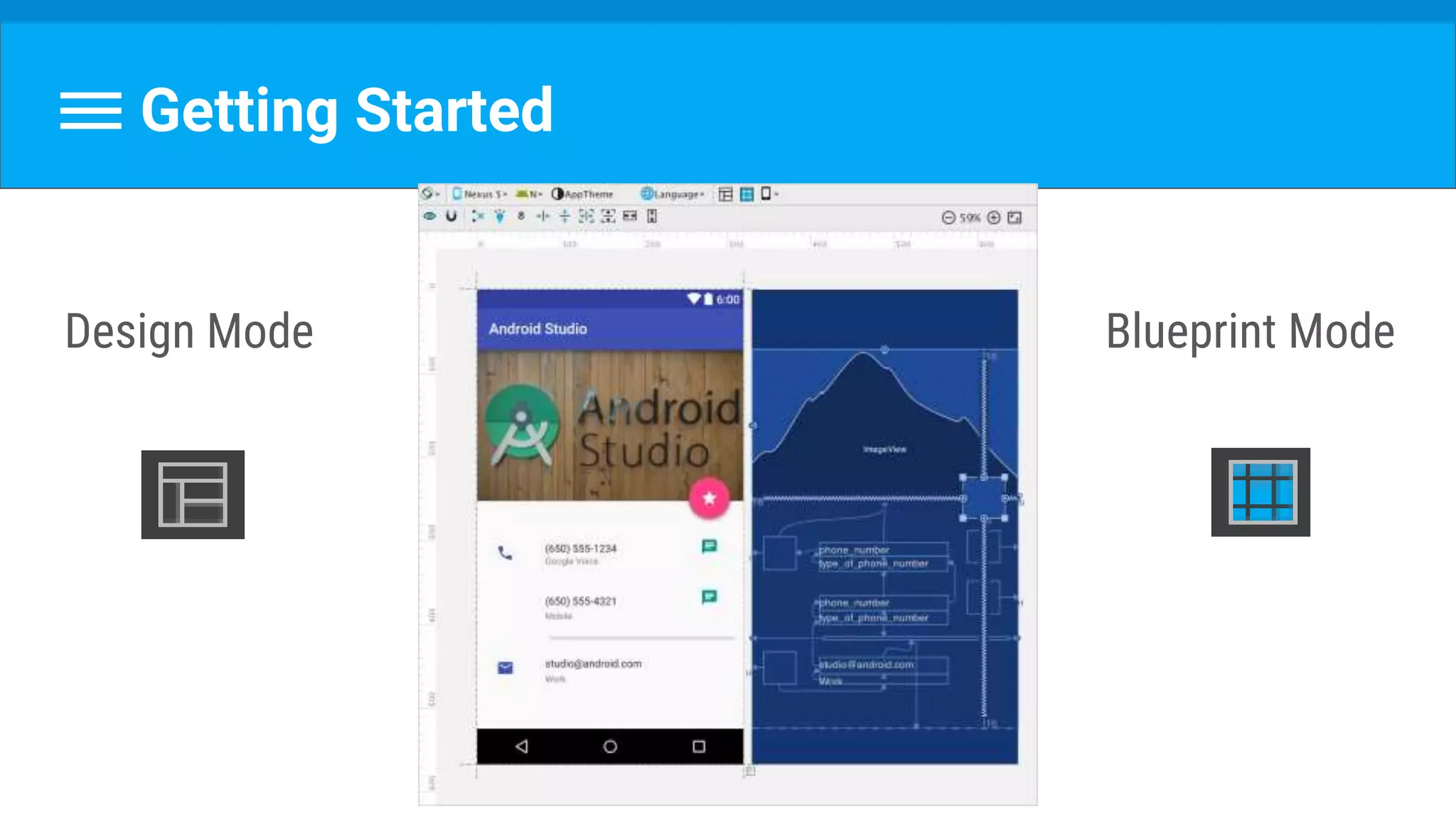

100. Getting Started
Design Mode Blueprint Mode

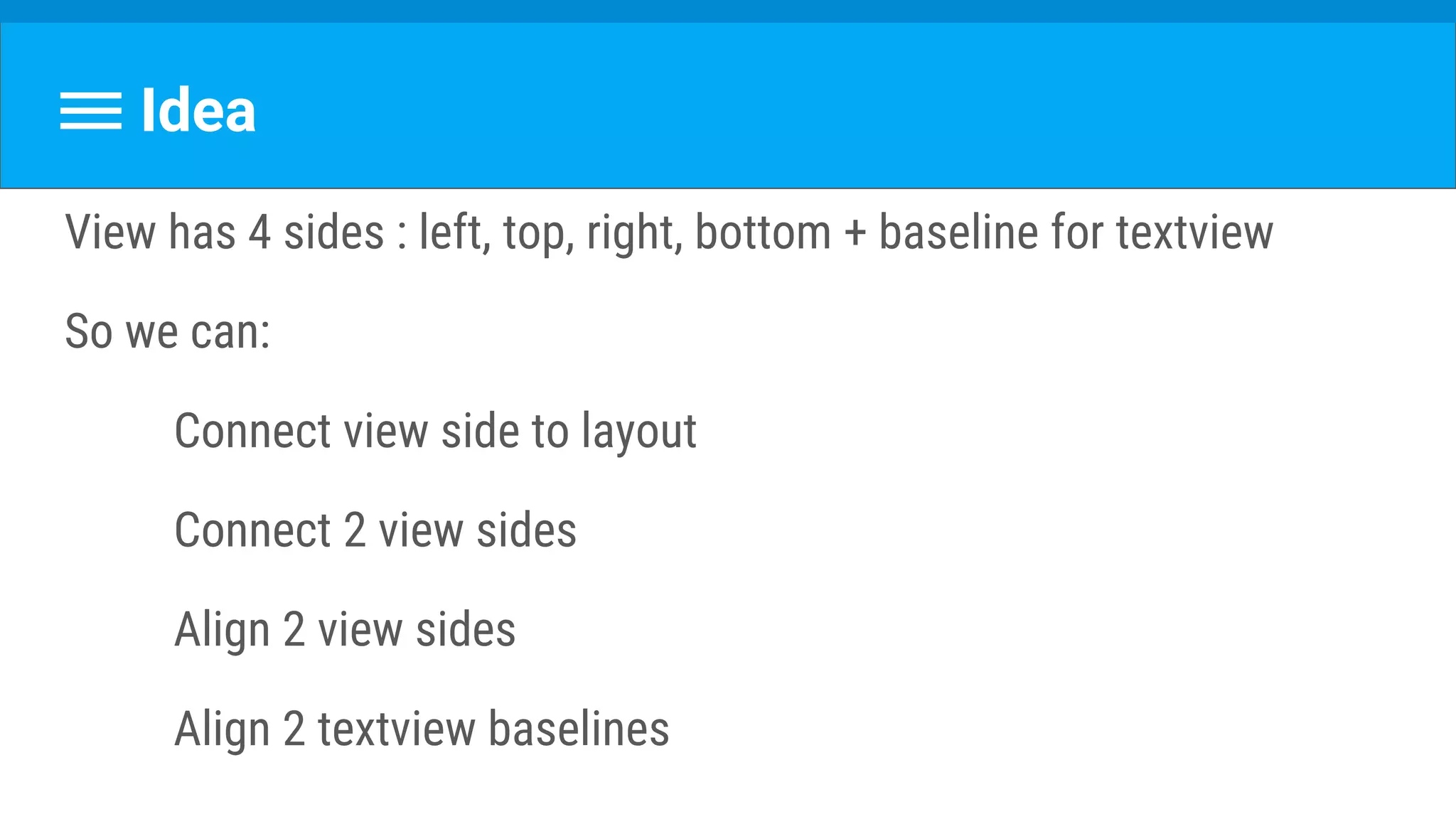

101. Idea
View has 4 sides : left, top, right, bottom + baseline for textview
So we can:
Connect view side to layout
Connect 2 view sides
Align 2 view sides
Align 2 textview baselines

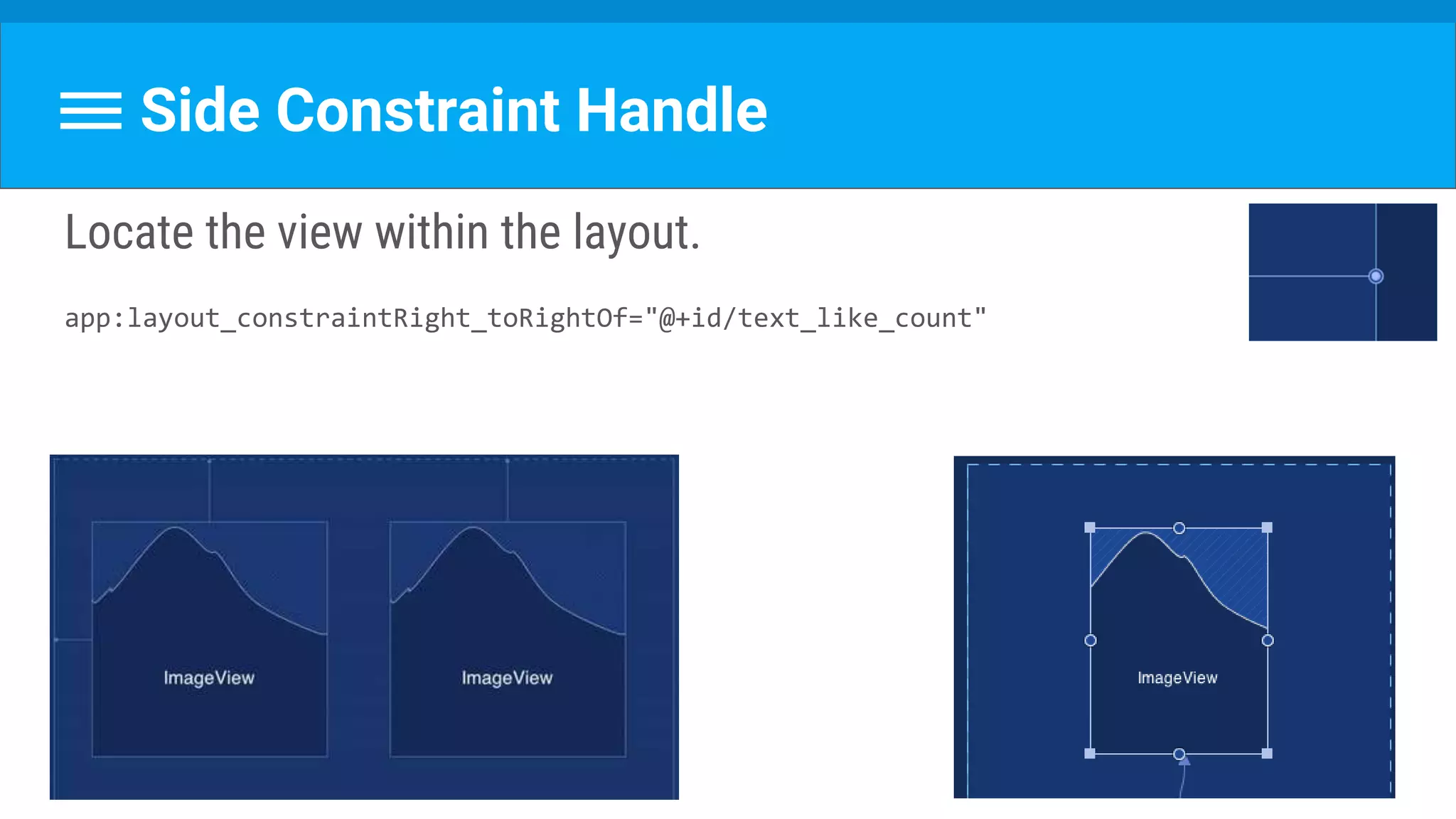

102. Side Constraint Handle
Locate the view within the layout.
app:layout_constraintRight_toRightOf="@+id/text_like_count"

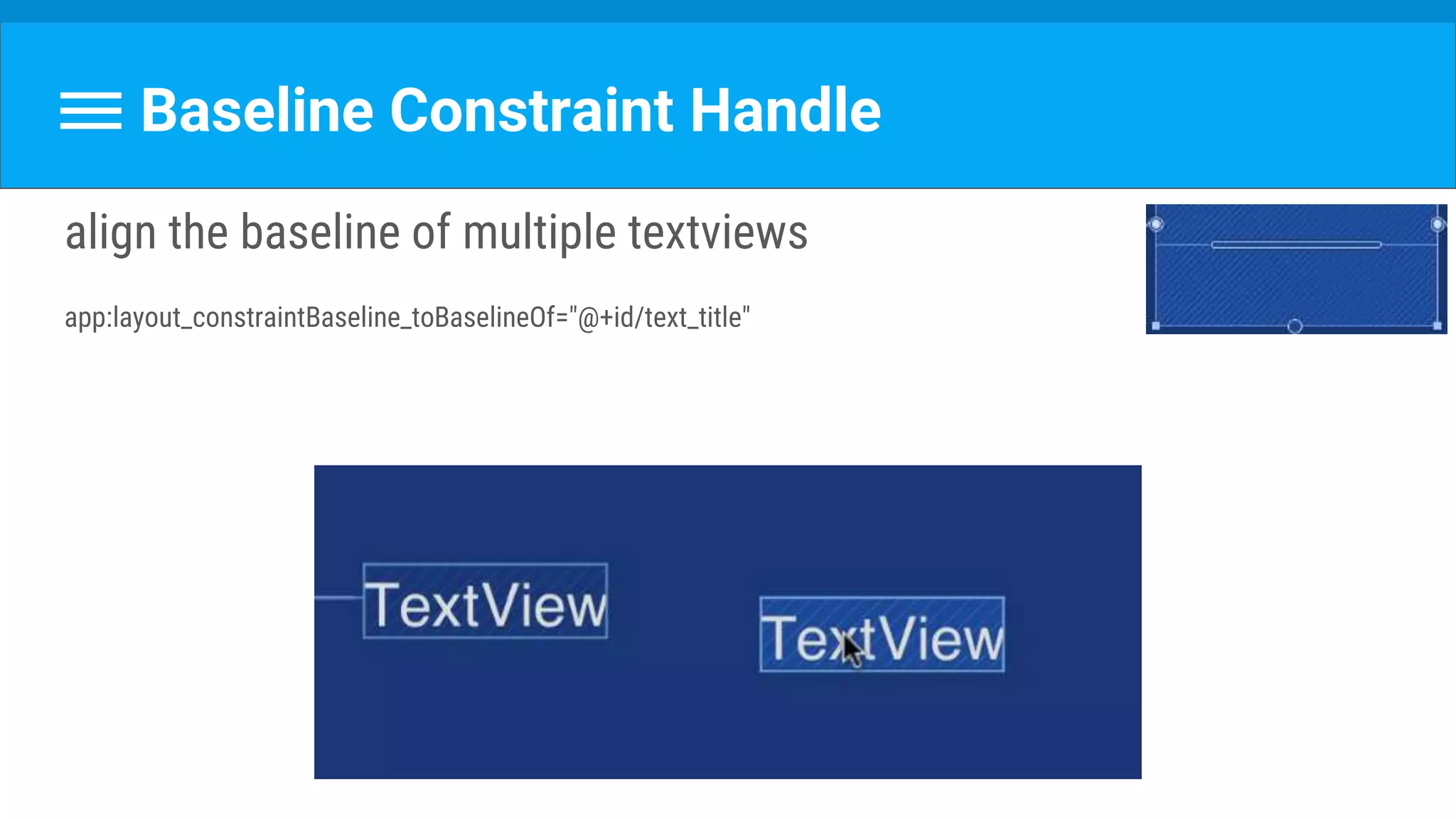

103. Baseline Constraint Handle
align the baseline of multiple textviews
app:layout_constraintBaseline_toBaselineOf="@+id/text_title"

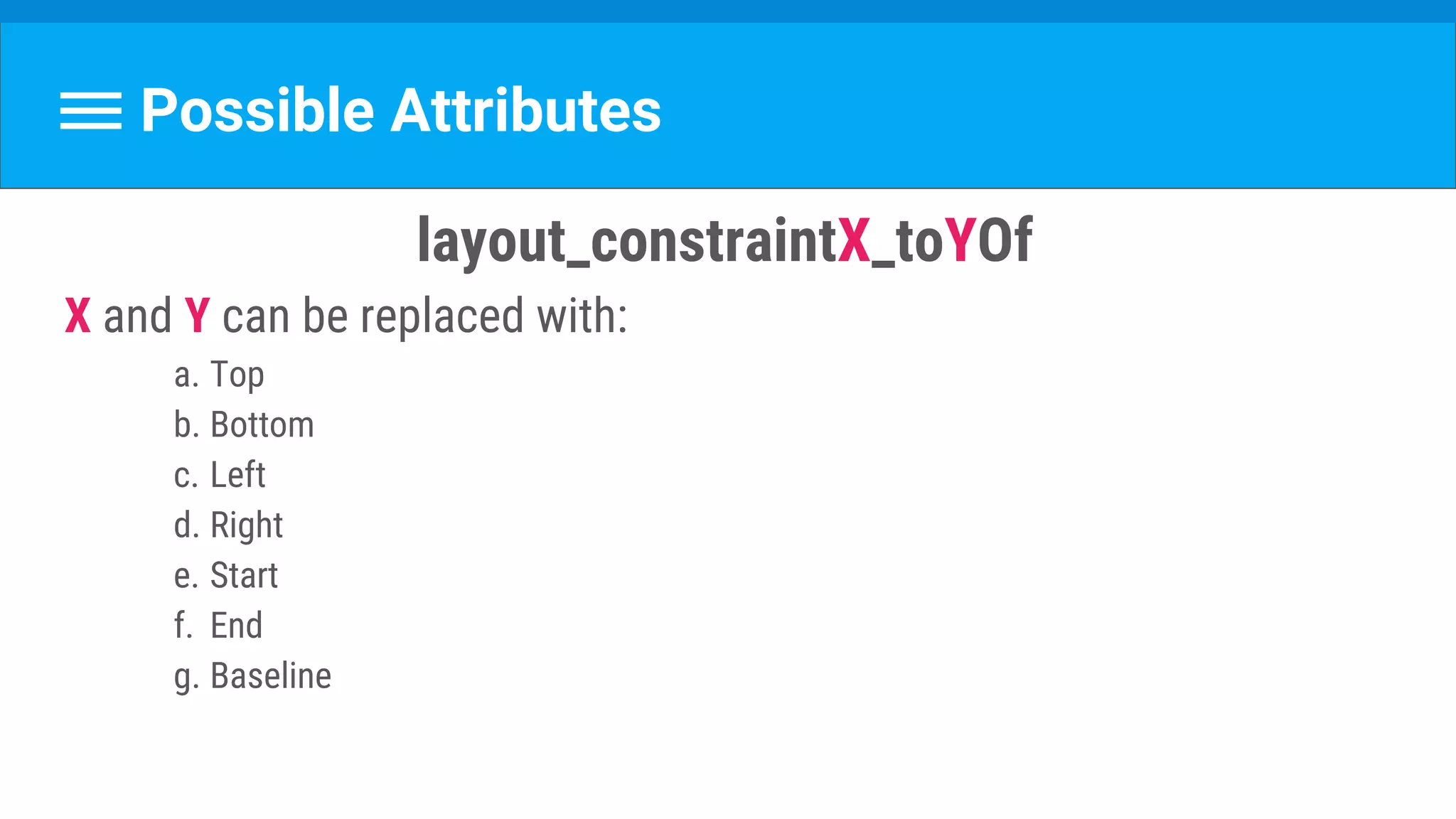

104. Possible Attributes
layout_constraintX_toYOf
X and Y can be replaced with:
a. Top
b. Bottom
c. Left
d. Right
e. Start
f. End
g. Baseline

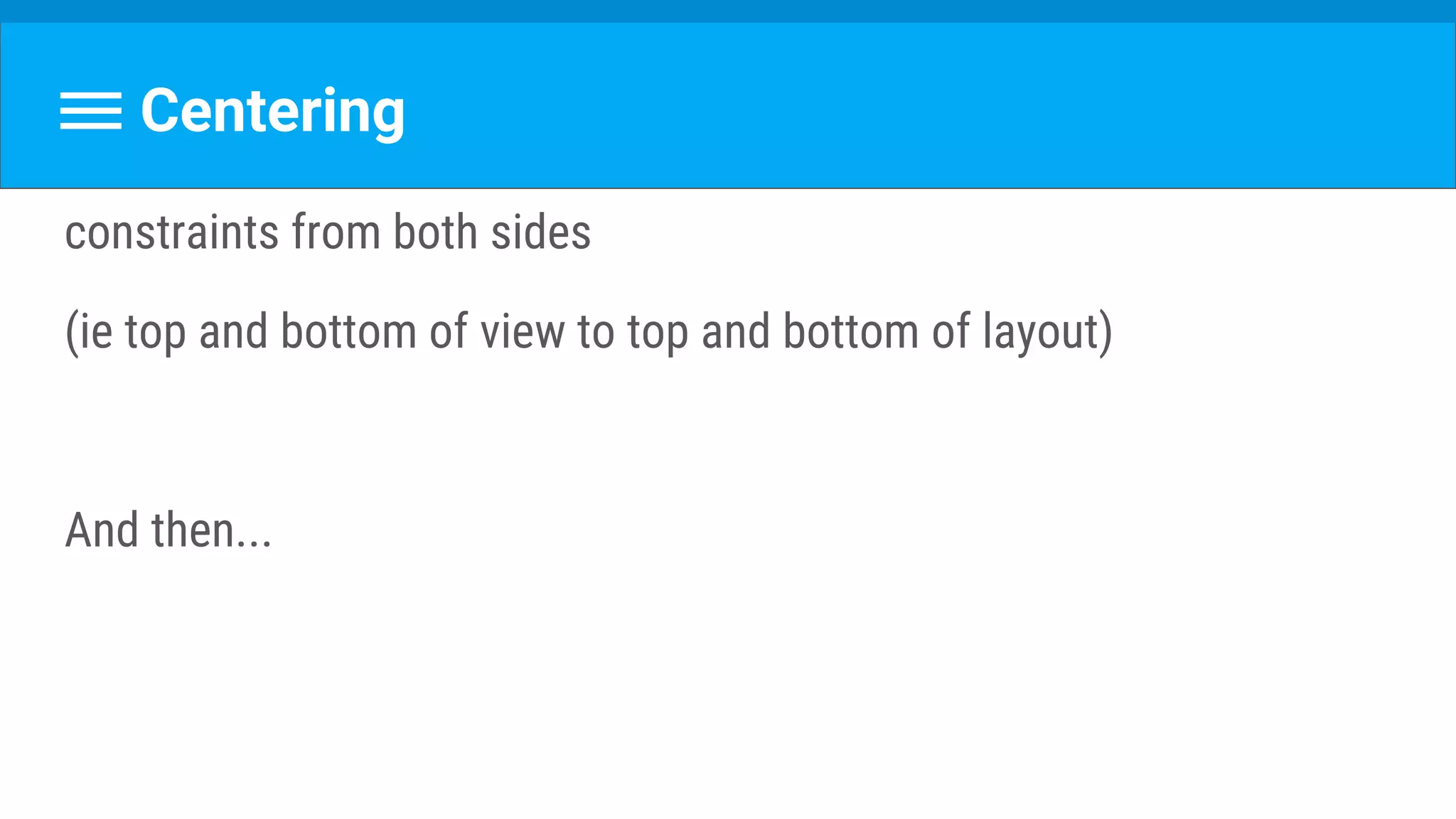

105. Centering
constraints from both sides
(ie top and bottom of view to top and bottom of layout)
And then...

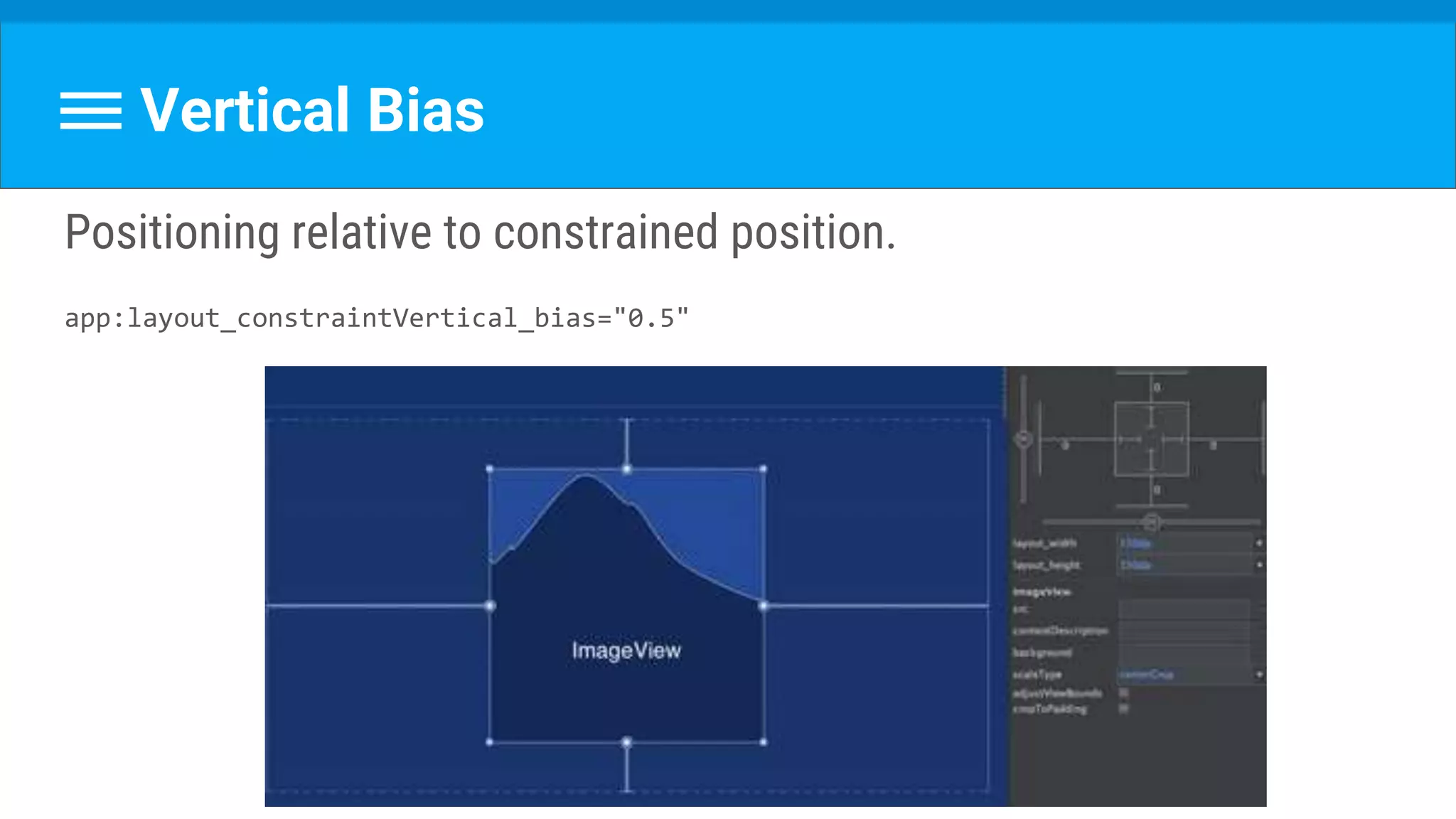

106. Vertical Bias
Positioning relative to constrained position.
app:layout_constraintVertical_bias="0.5"

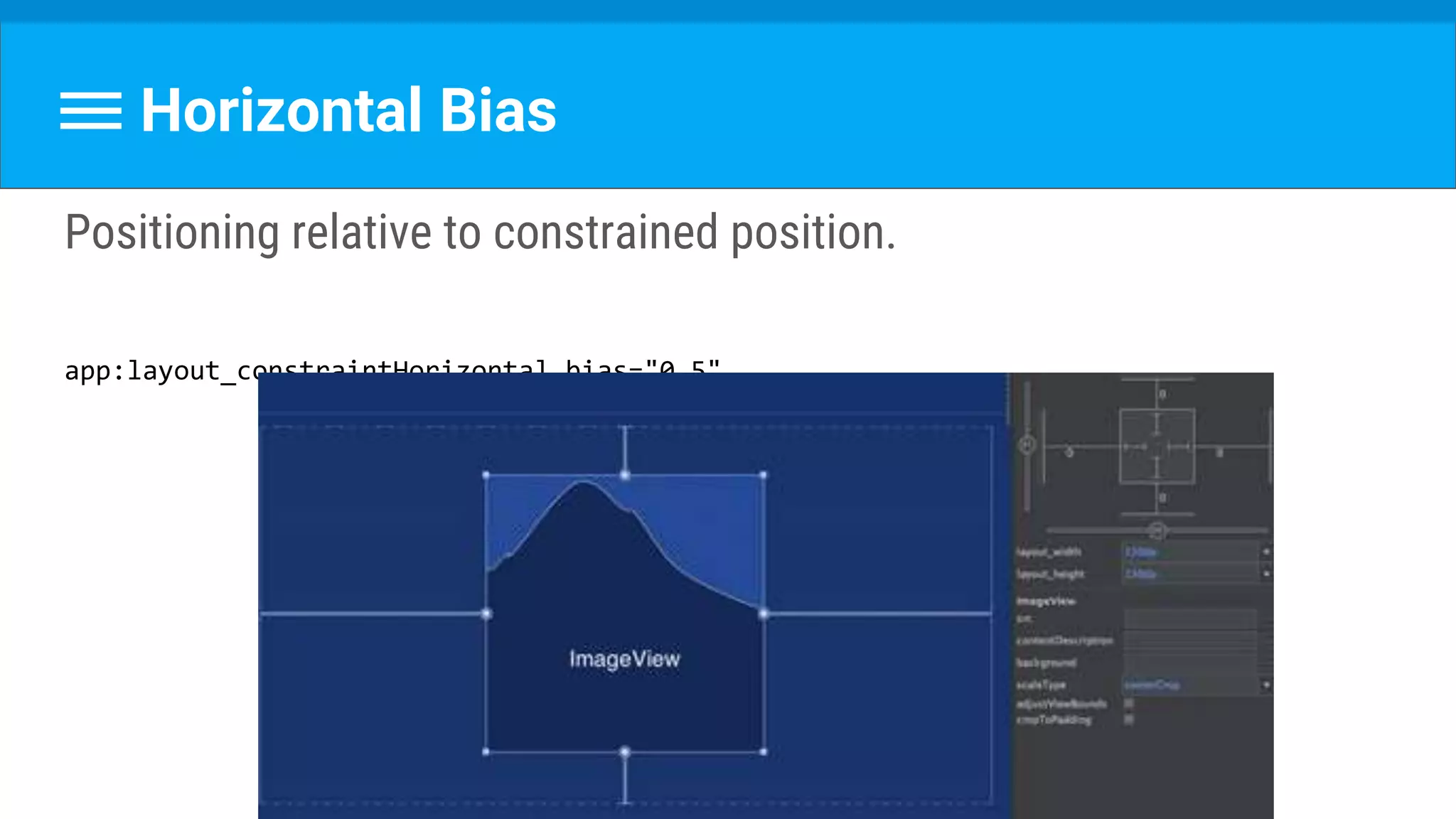

107. Horizontal Bias
Positioning relative to constrained position.
app:layout_constraintHorizontal_bias="0.5"

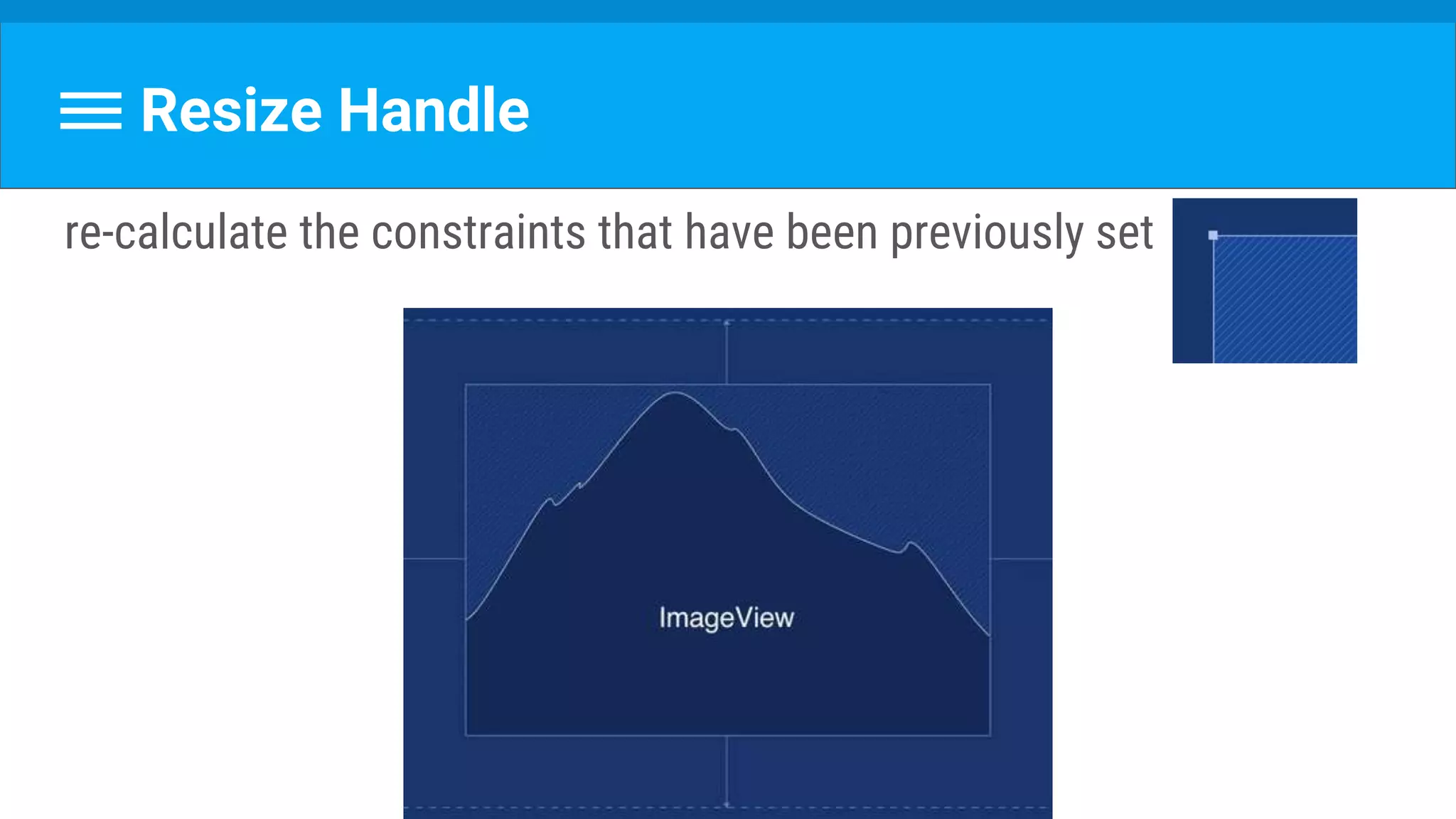

108. Resize Handle
re-calculate the constraints that have been previously set

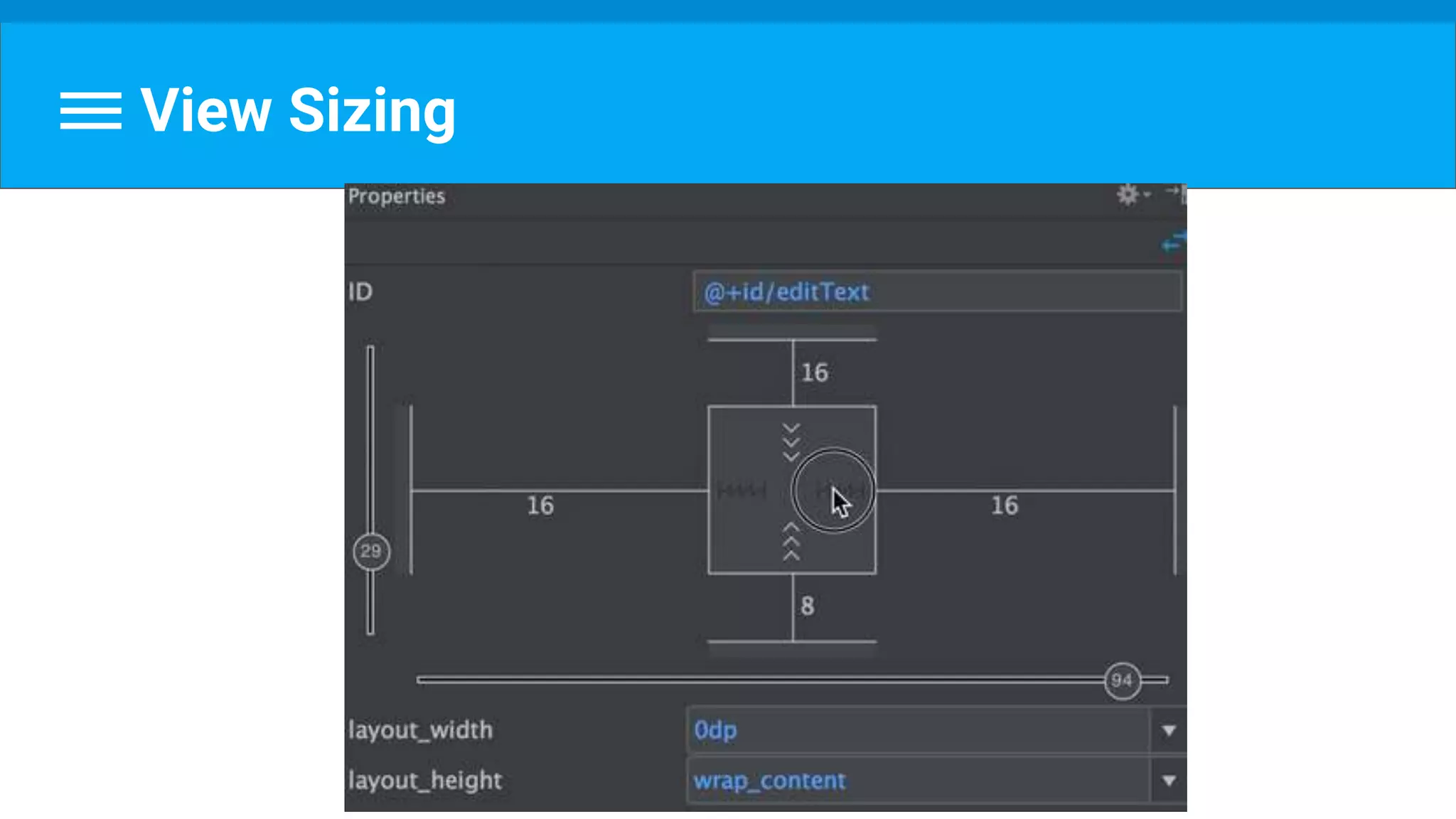

109. View Sizing

110. View Sizing : Any Size
match_parent and use the available space.

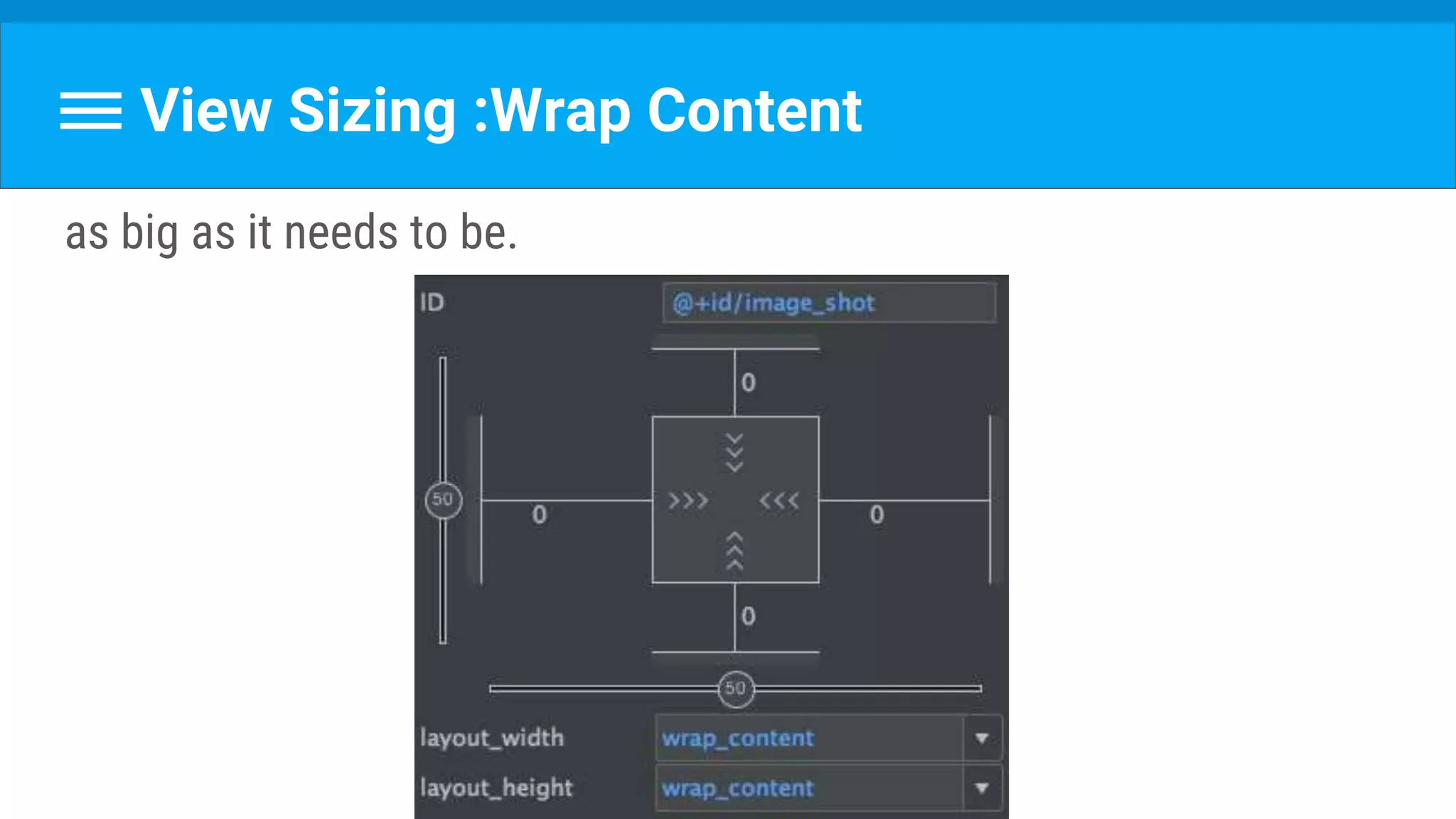

111. View Sizing :Wrap Content
as big as it needs to be.

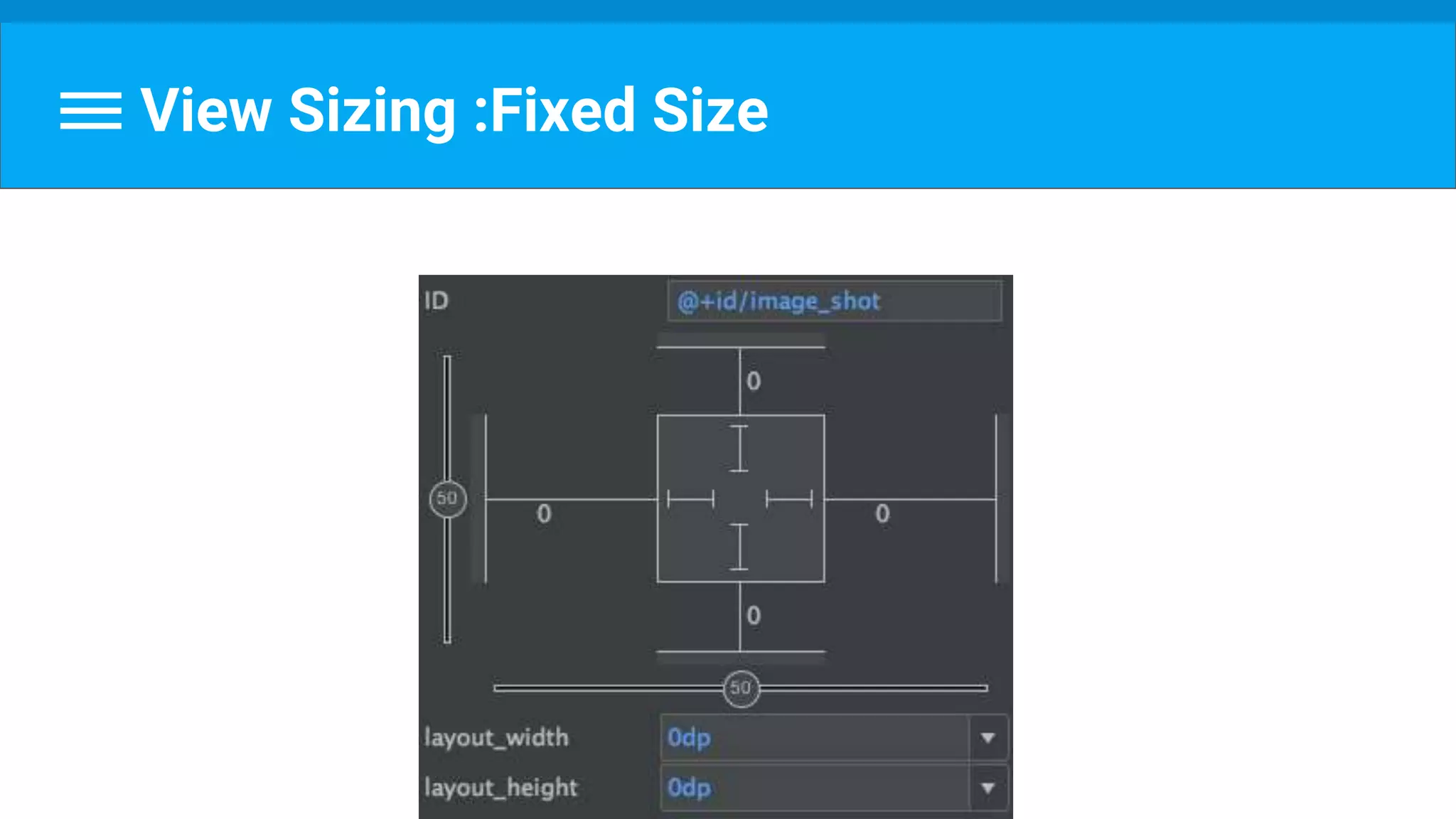

112. View Sizing :Fixed Size

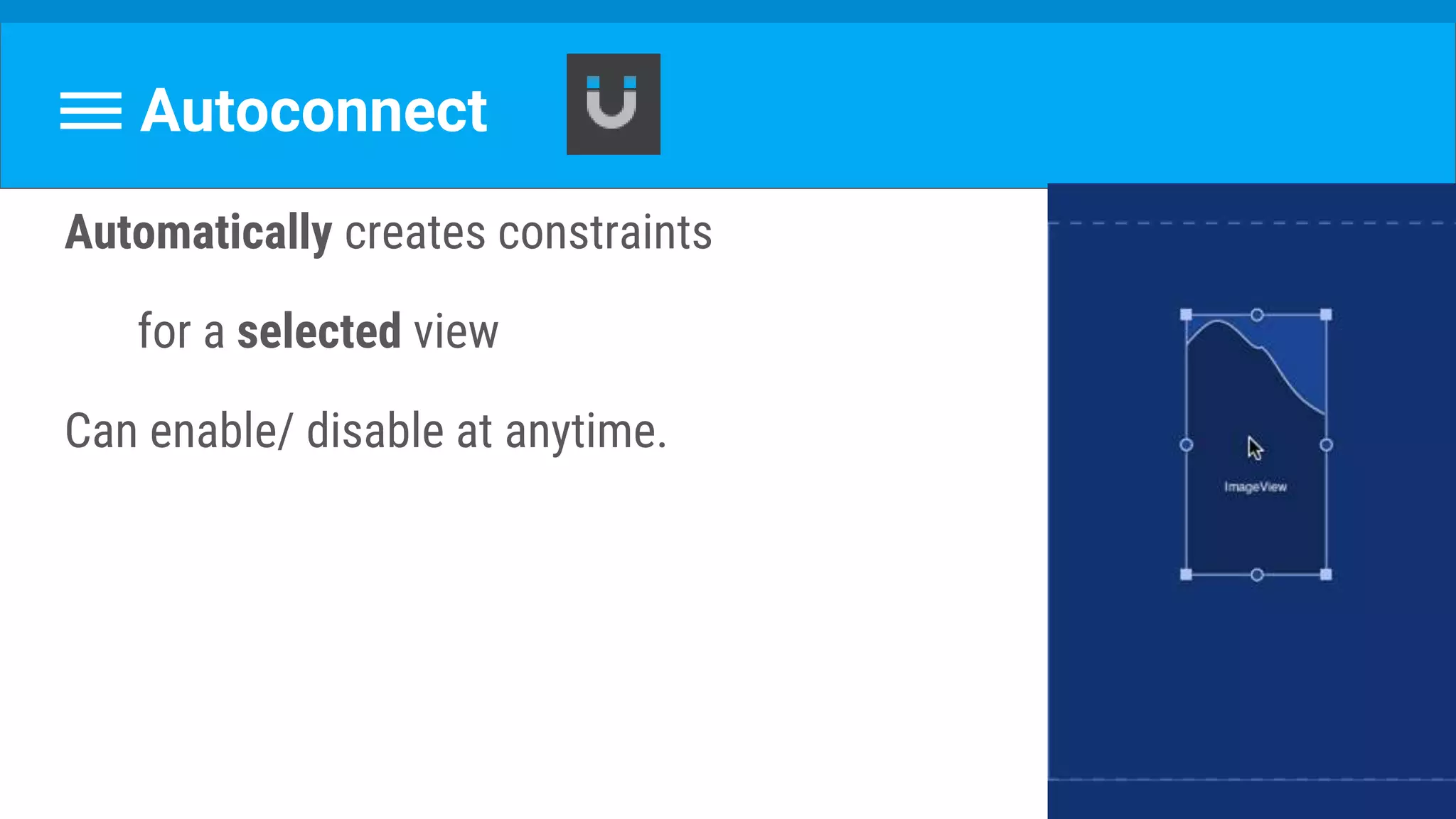

113. Autoconnect
Automatically creates constraints
for a selected view
Can enable/ disable at anytime.

114. Inference
Automatically create constraints for all of the views in your layout

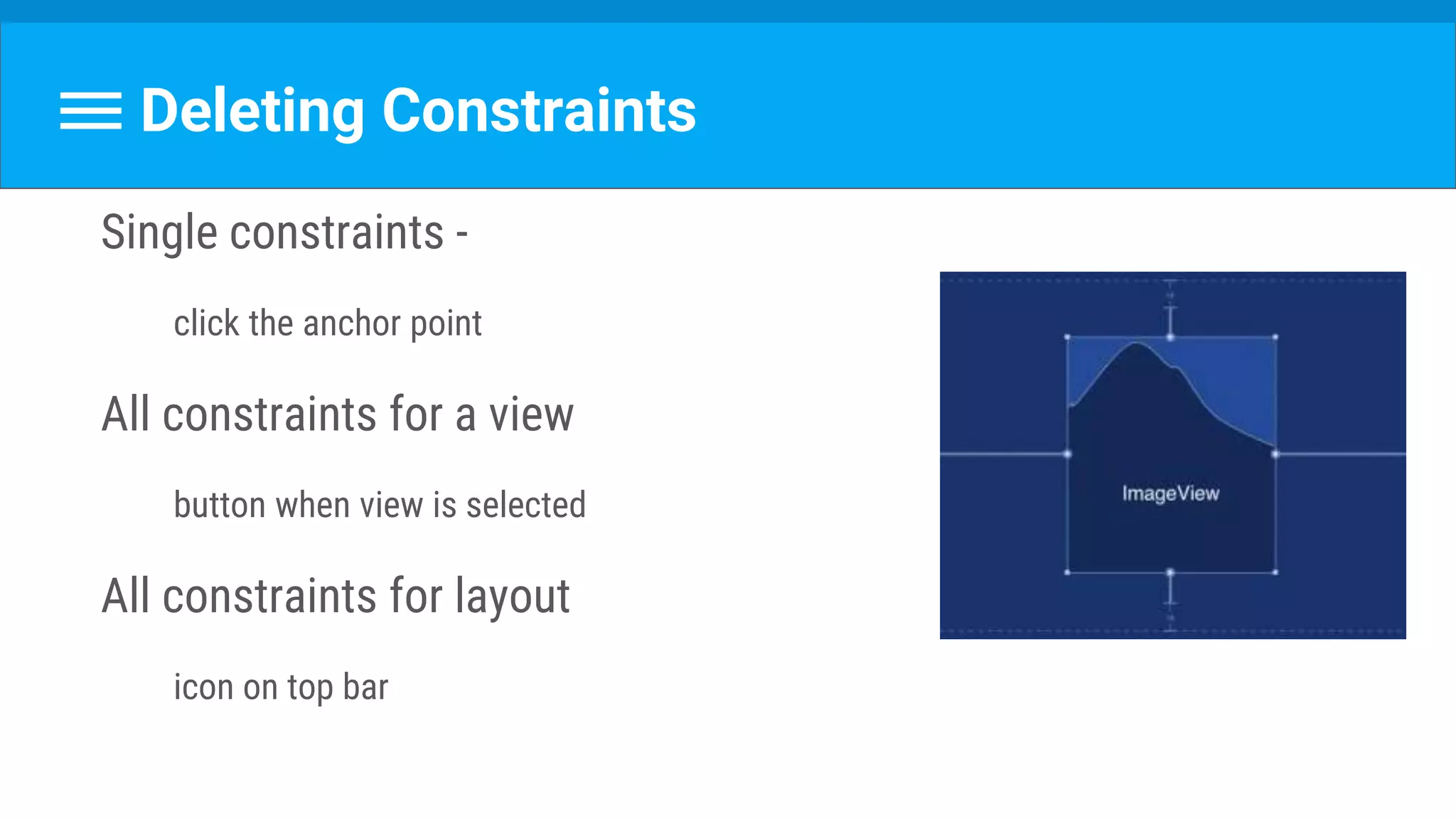

115. Deleting Constraints
Single constraints -
click the anchor point
All constraints for a view
button when view is selected
All constraints for layout
icon on top bar

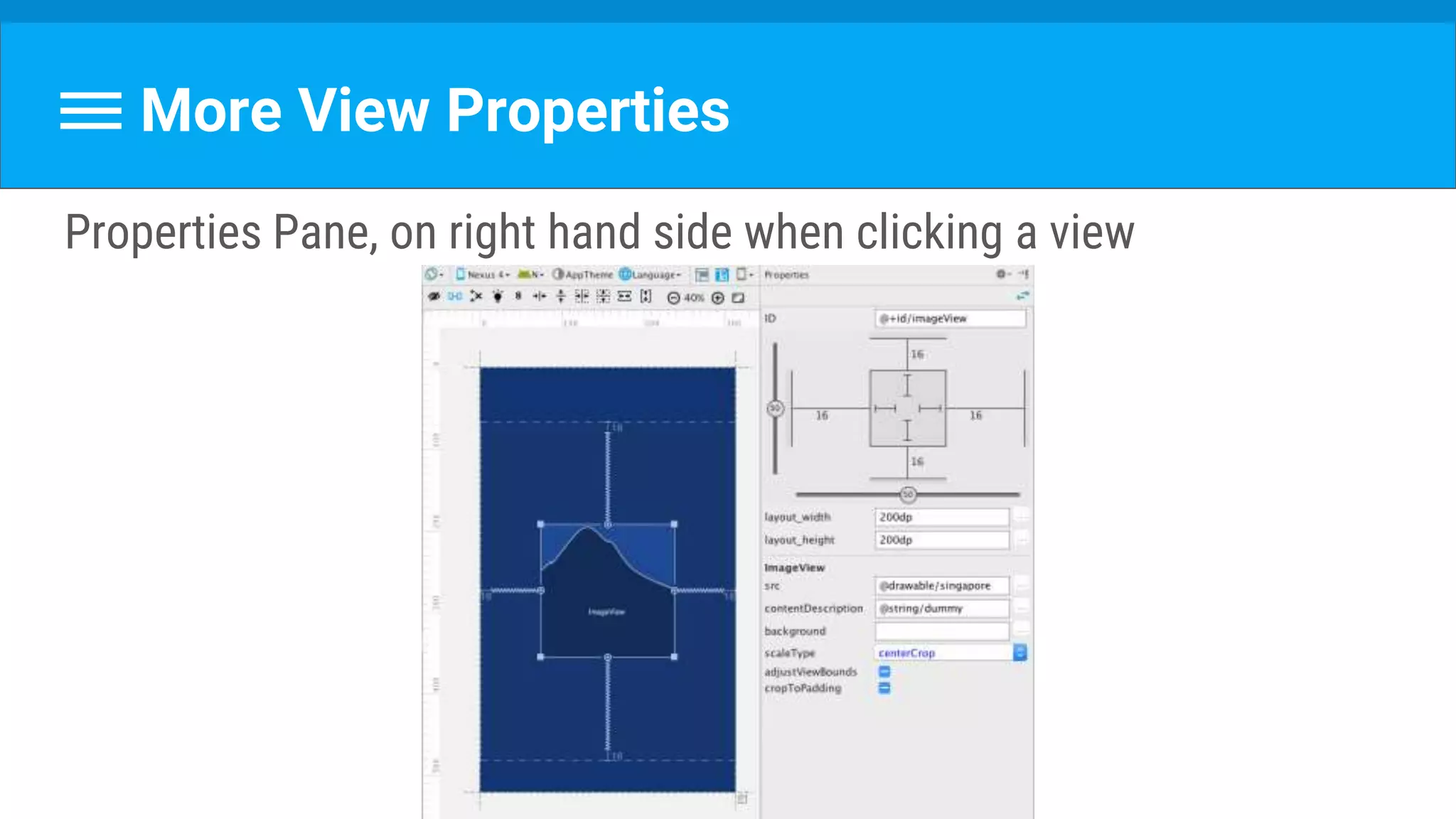

116. More View Properties
Properties Pane, on right hand side when clicking a view

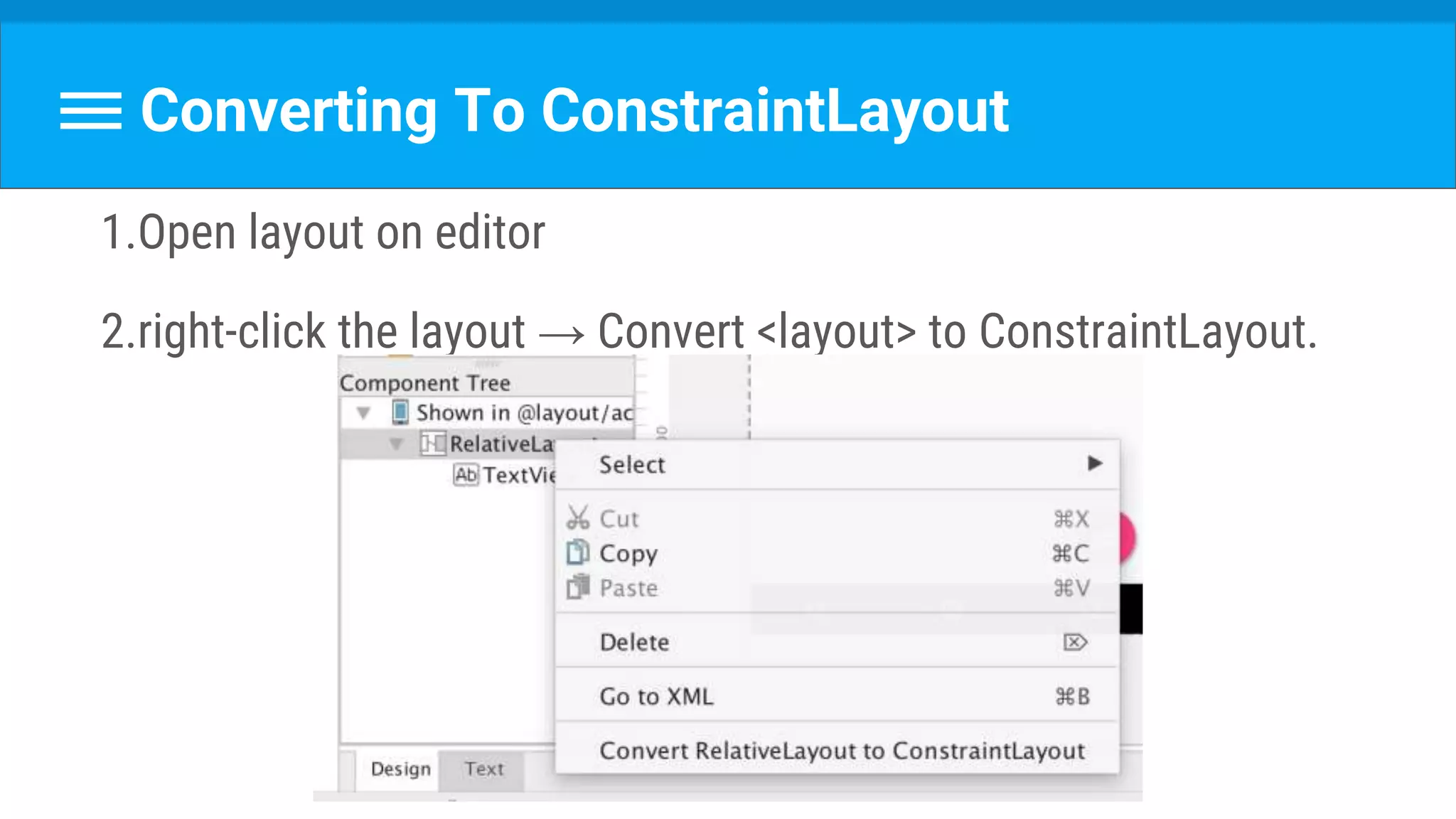

117. Converting To ConstraintLayout
1.Open layout on editor
2.right-click the layout → Convert <layout> to ConstraintLayout.

118. Well, that about it!
Not officially released, but quite stable.
Give it a try :)
https://codelabs.developers.google.com/codelabs/constraint-layout/index.html

119. Any Questions?

120. A bit about
Animation

121. Reminder
Measure Layout Draw!Input Animate

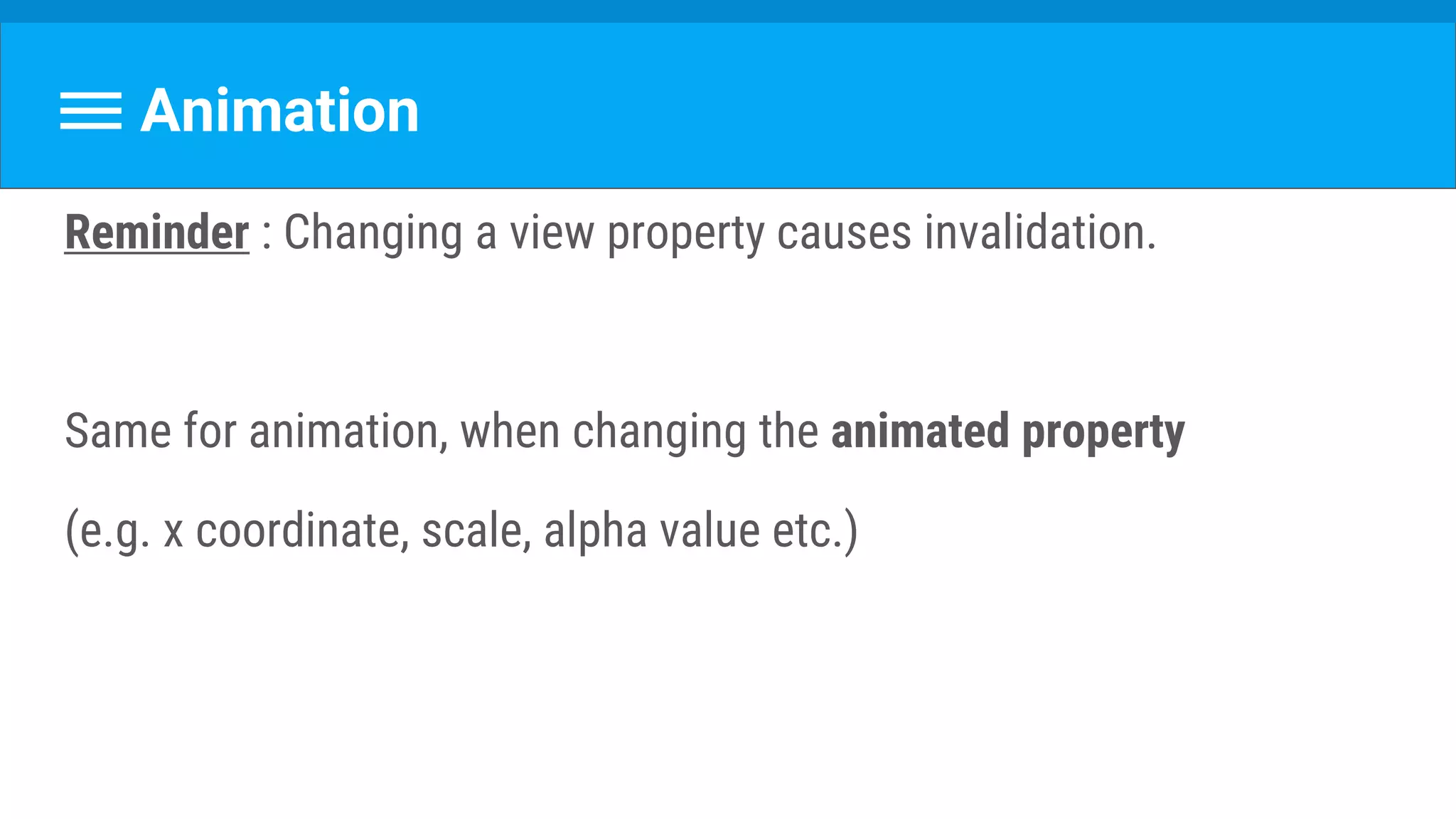

122. Animation
Reminder : Changing a view property causes invalidation.
Same for animation, when changing the animated property
(e.g. x coordinate, scale, alpha value etc.)

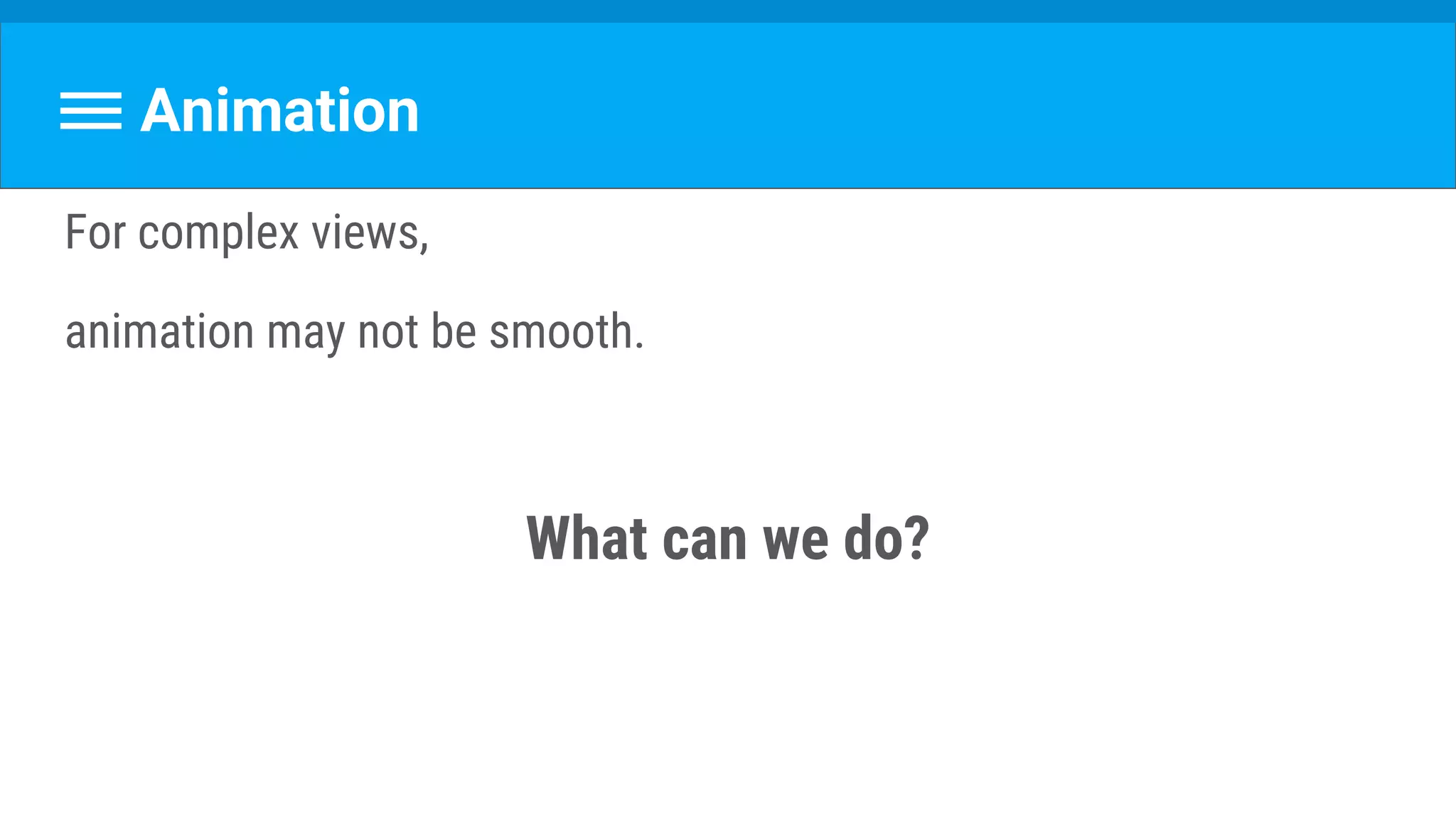

123. Animation
For complex views,
animation may not be smooth.
What can we do?

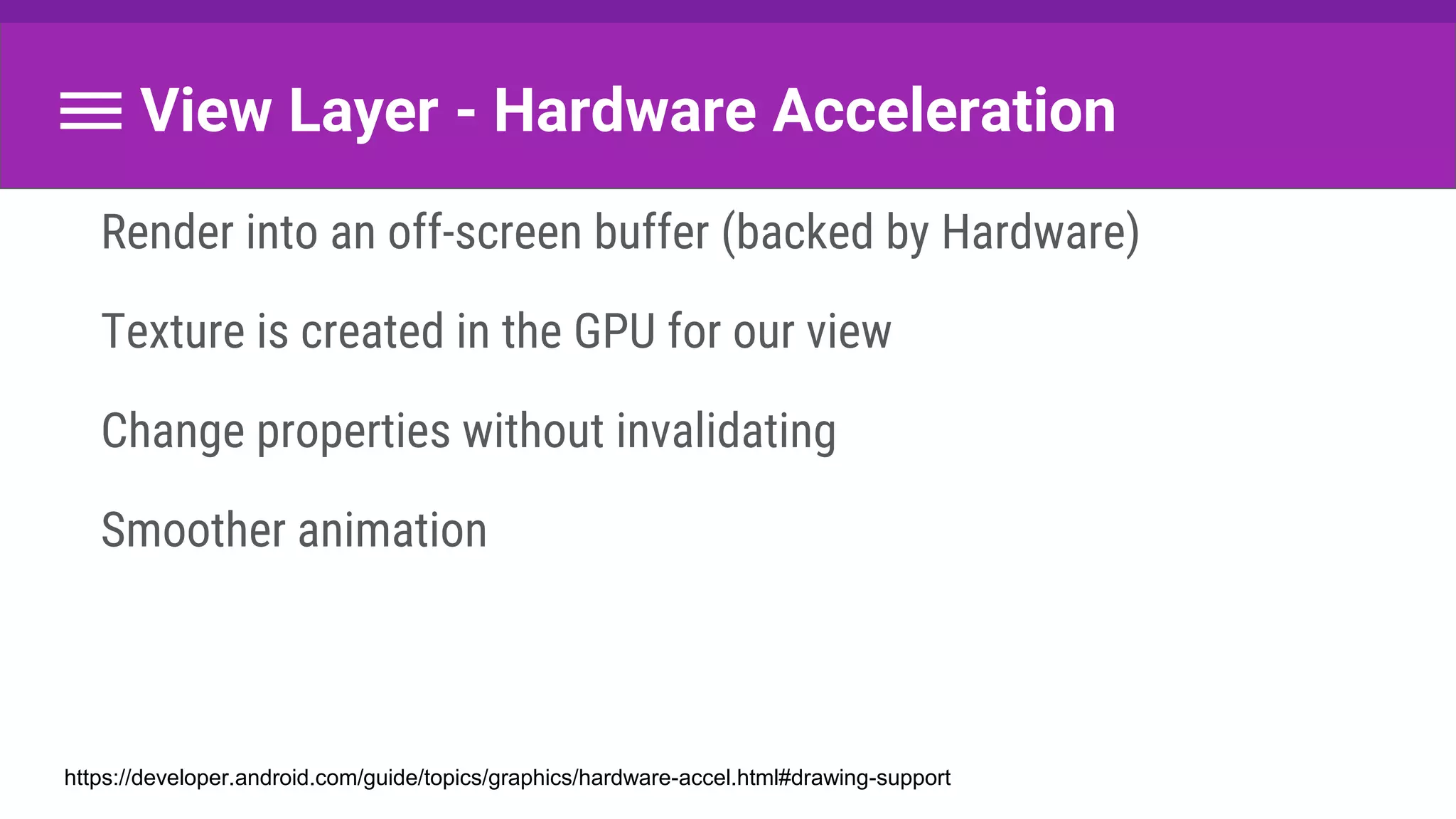

124. View Layer - Hardware Acceleration
Render into an off-screen buffer (backed by Hardware)
Texture is created in the GPU for our view
Change properties without invalidating
Smoother animation
https://developer.android.com/guide/topics/graphics/hardware-accel.html#drawing-support

125. View Layer - Hardware Acceleration
ScreenGPU
Polygons
Textures
CPU
new
Button()
DisplayList
Make Changes Here

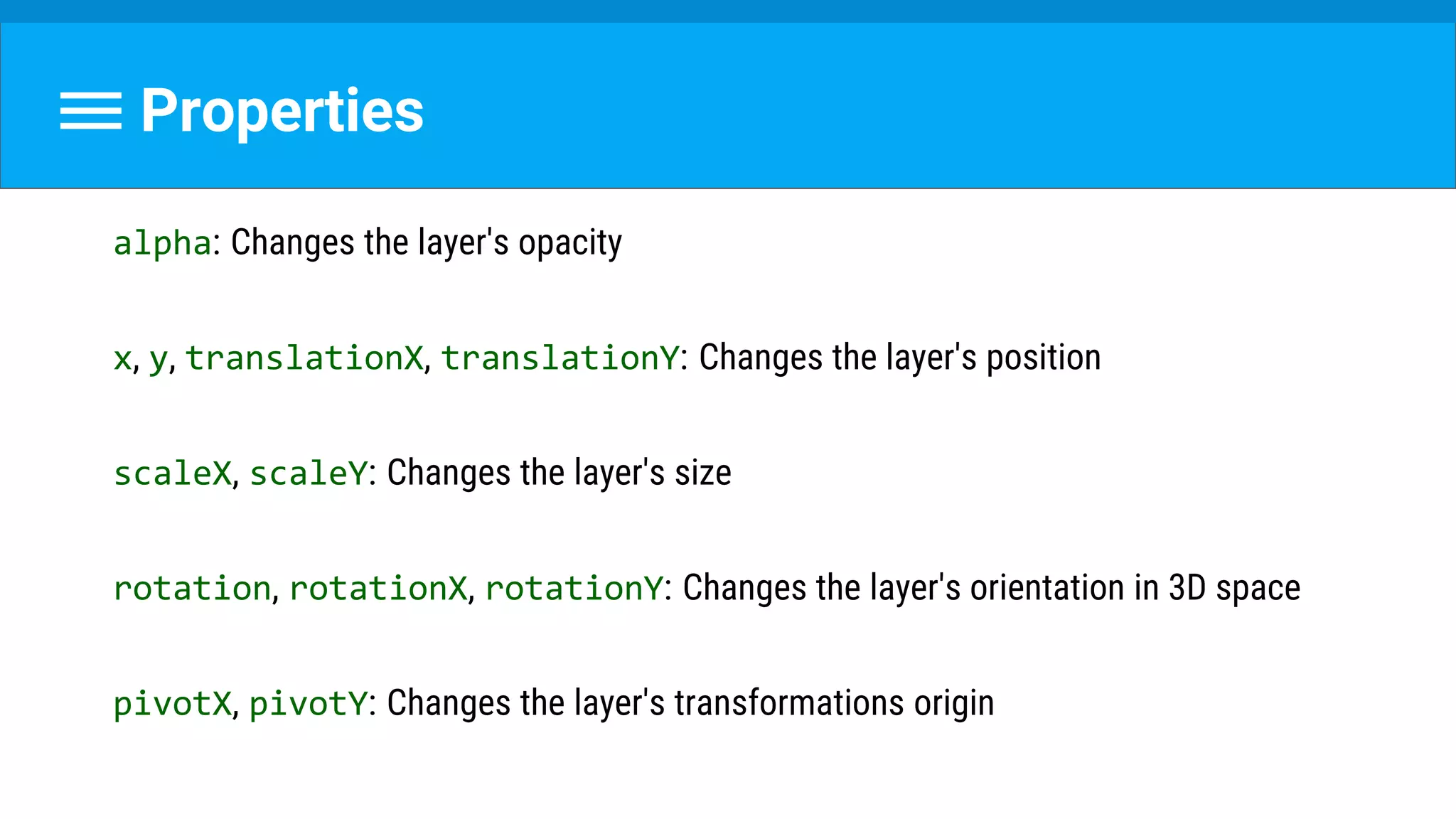

126. Properties
alpha: Changes the layer's opacity
x, y, translationX, translationY: Changes the layer's position
scaleX, scaleY: Changes the layer's size
rotation, rotationX, rotationY: Changes the layer's orientation in 3D space
pivotX, pivotY: Changes the layer's transformations origin

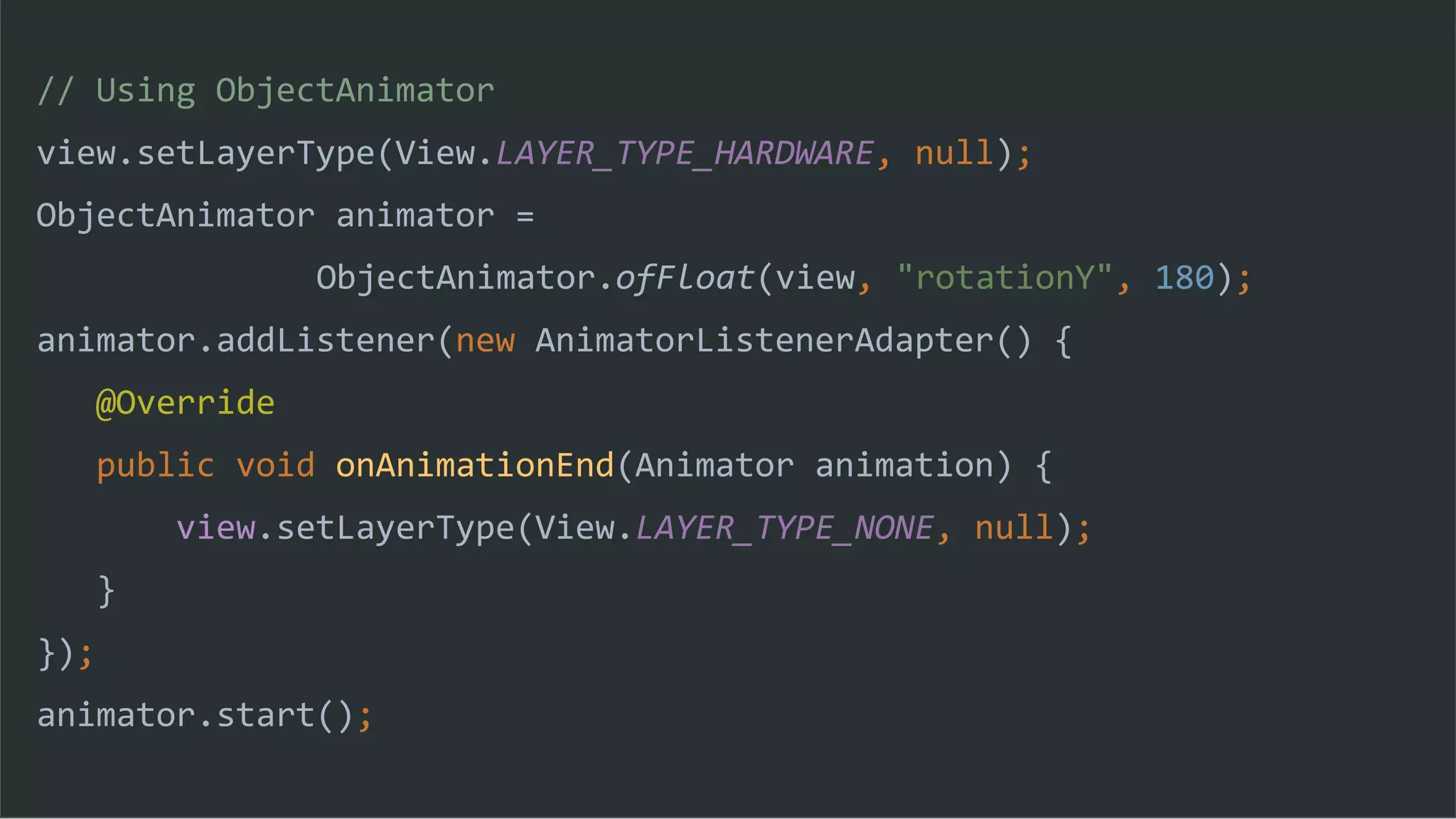

127. // Using ObjectAnimator
view.setLayerType(View.LAYER_TYPE_HARDWARE, null);
ObjectAnimator animator =
ObjectAnimator.ofFloat(view, "rotationY", 180);
animator.addListener(new AnimatorListenerAdapter() {
@Override
public void onAnimationEnd(Animator animation) {
view.setLayerType(View.LAYER_TYPE_NONE, null);
}
});
animator.start();

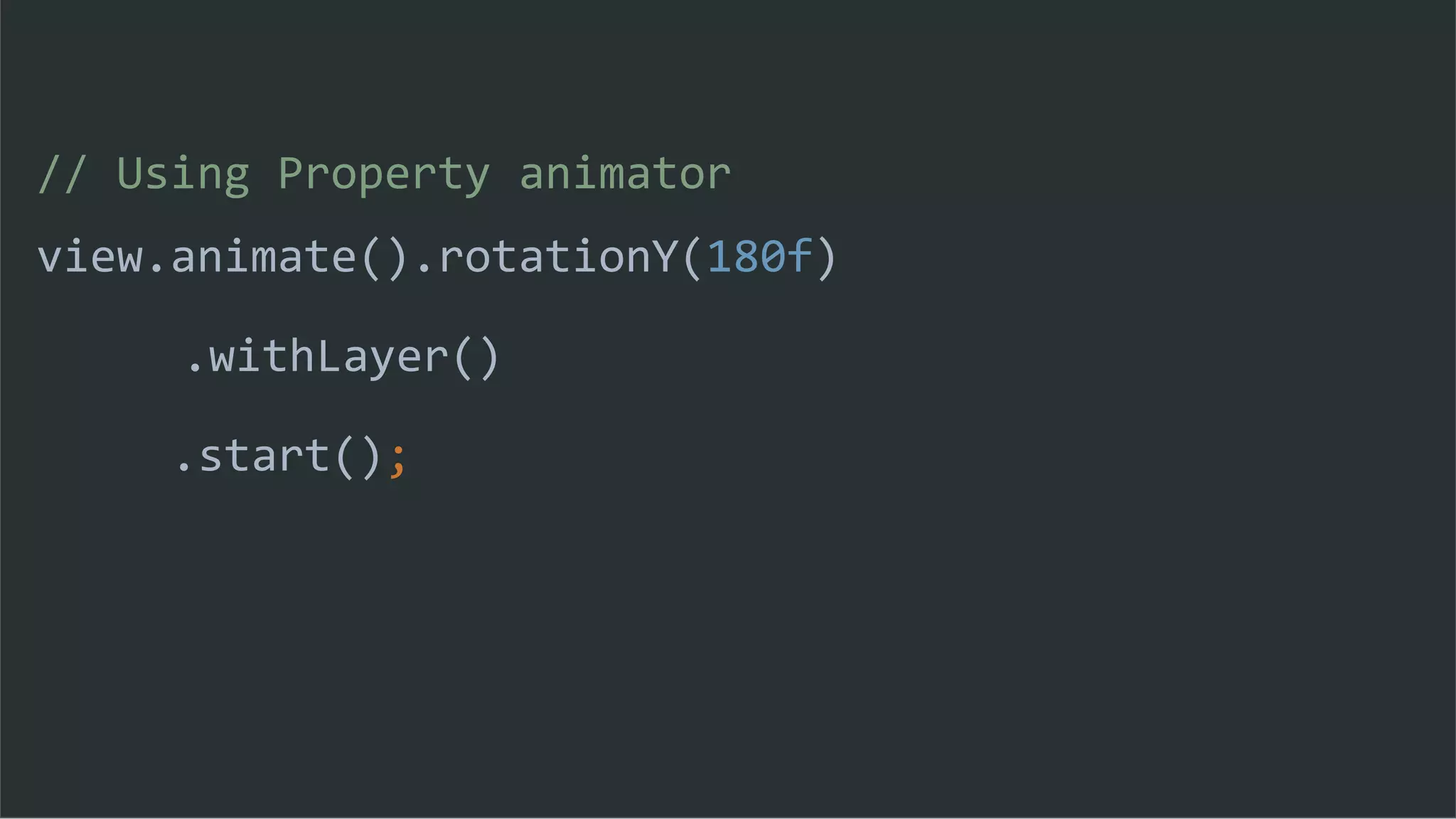

128. // Using Property animator
view.animate().rotationY(180f)
.withLayer()
.start();

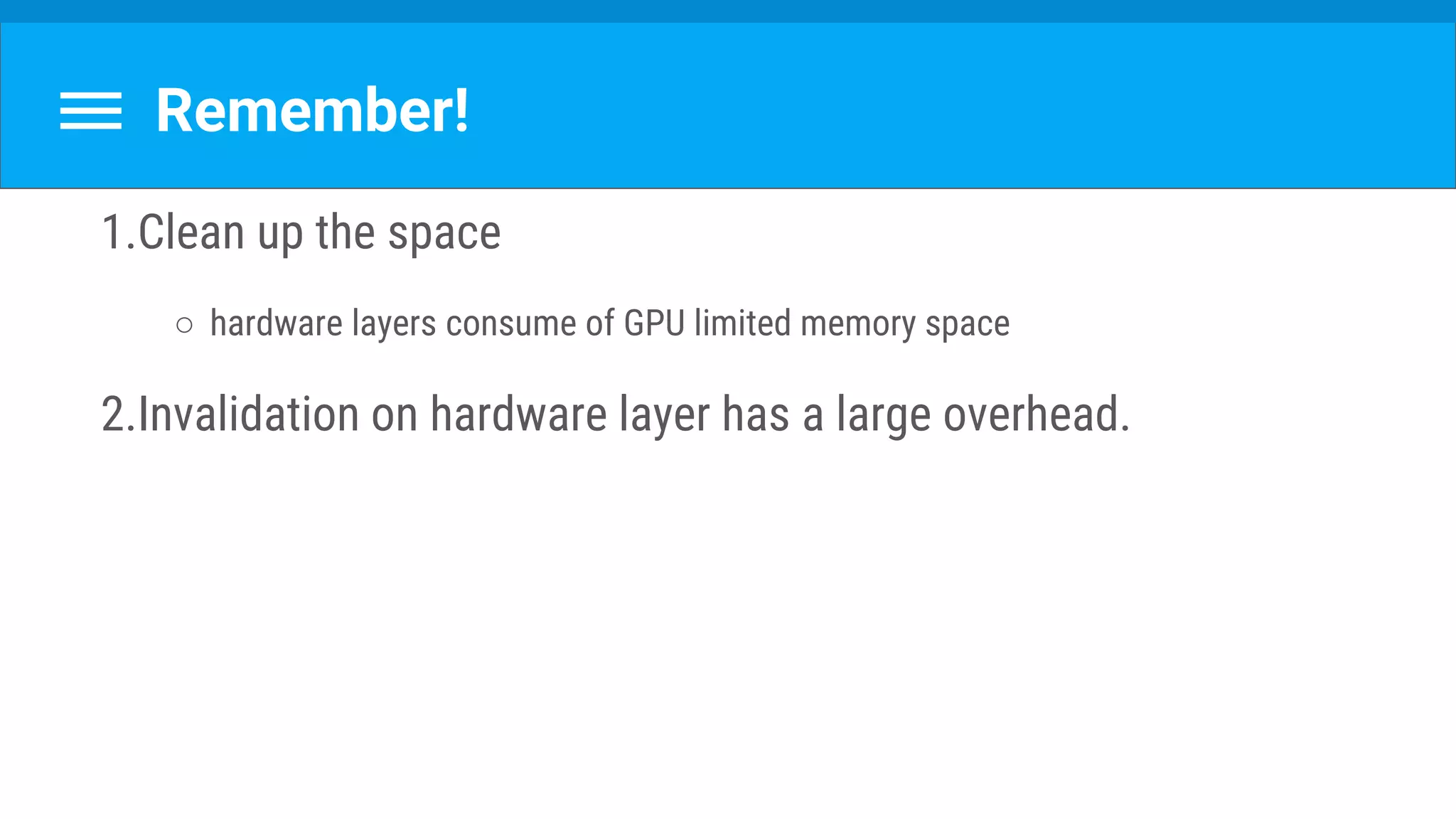

129. Remember!
1.Clean up the space
○ hardware layers consume of GPU limited memory space
2.Invalidation on hardware layer has a large overhead.

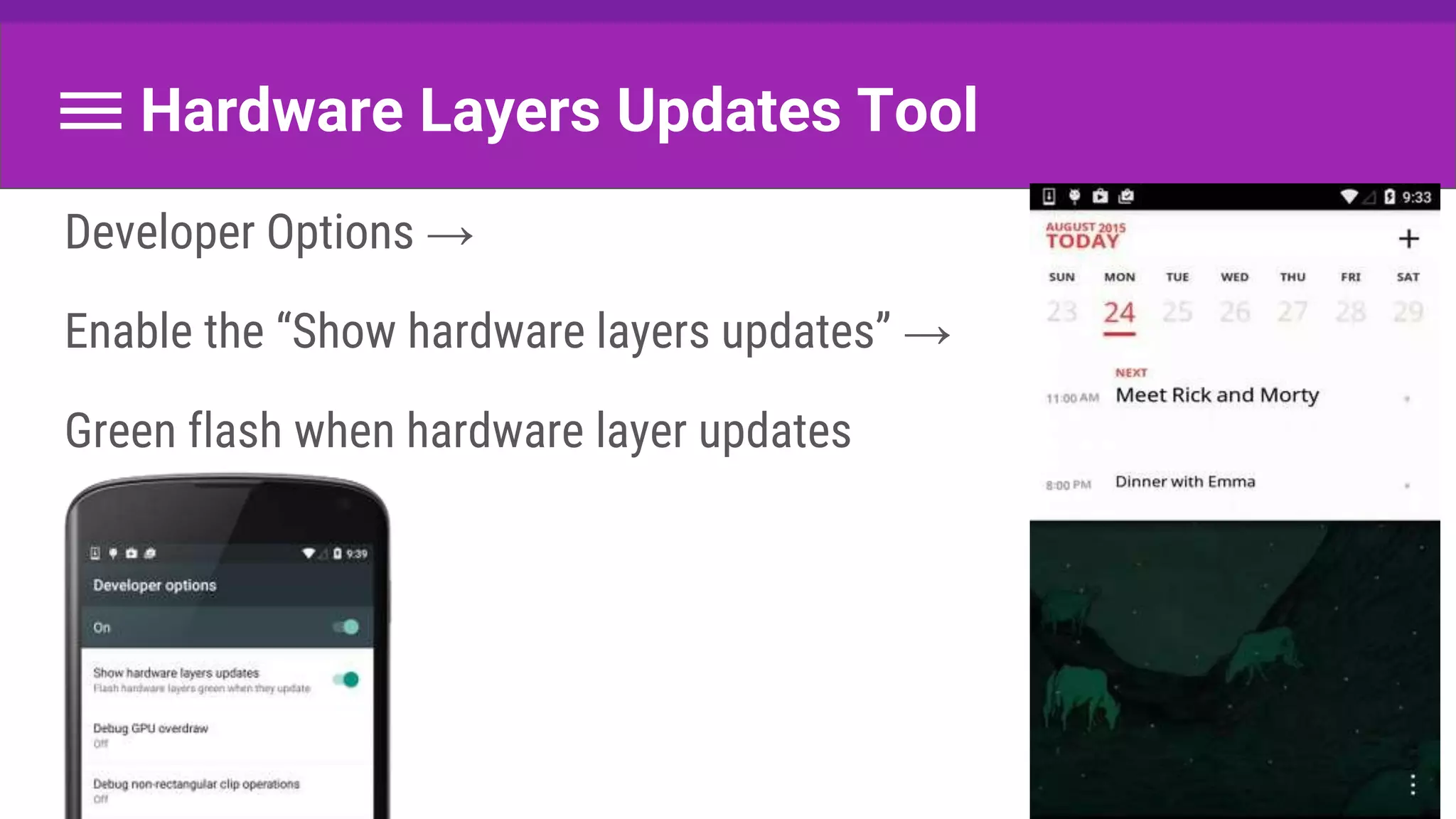

130. Hardware Layers Updates Tool
Developer Options →
Enable the “Show hardware layers updates” →
Green flash when hardware layer updates

131. Any Questions?

132. Reminder
Measure Layout Draw!Input Animate

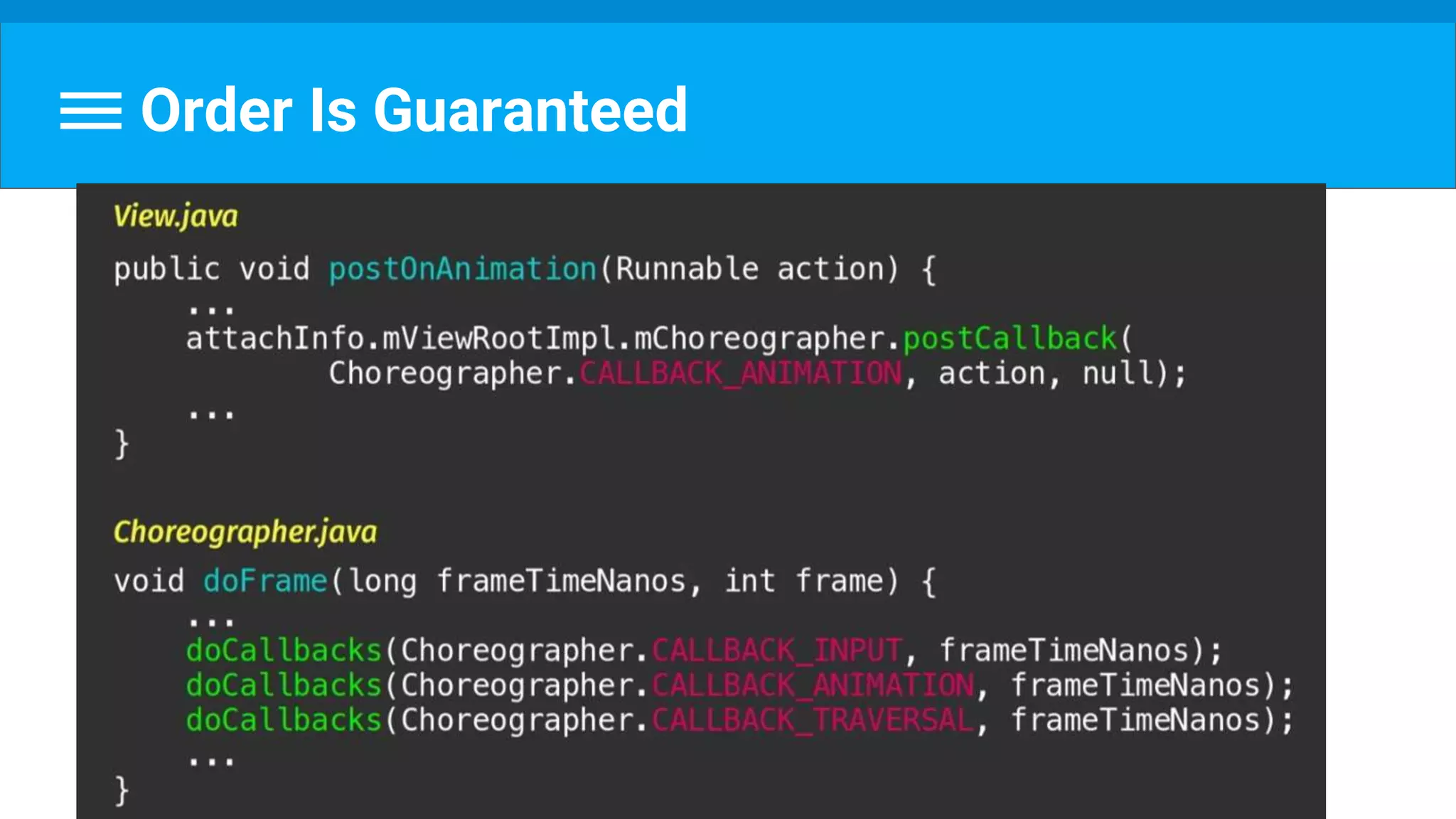

133. Order Is Guaranteed

134. What if we want the
size during an animation?

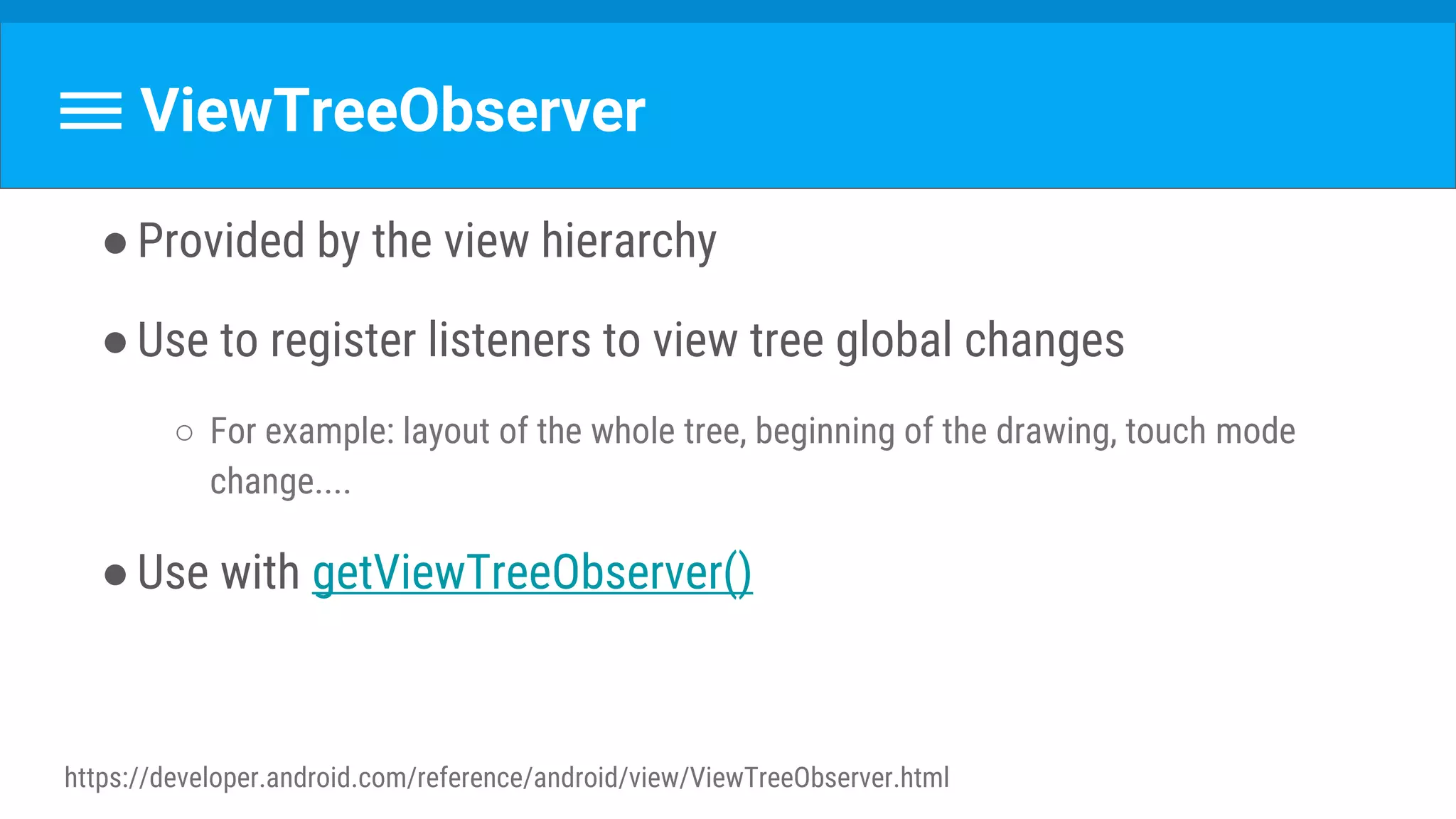

135. ViewTreeObserver
●Provided by the view hierarchy
●Use to register listeners to view tree global changes
○ For example: layout of the whole tree, beginning of the drawing, touch mode
change....
●Use with getViewTreeObserver()
https://developer.android.com/reference/android/view/ViewTreeObserver.html

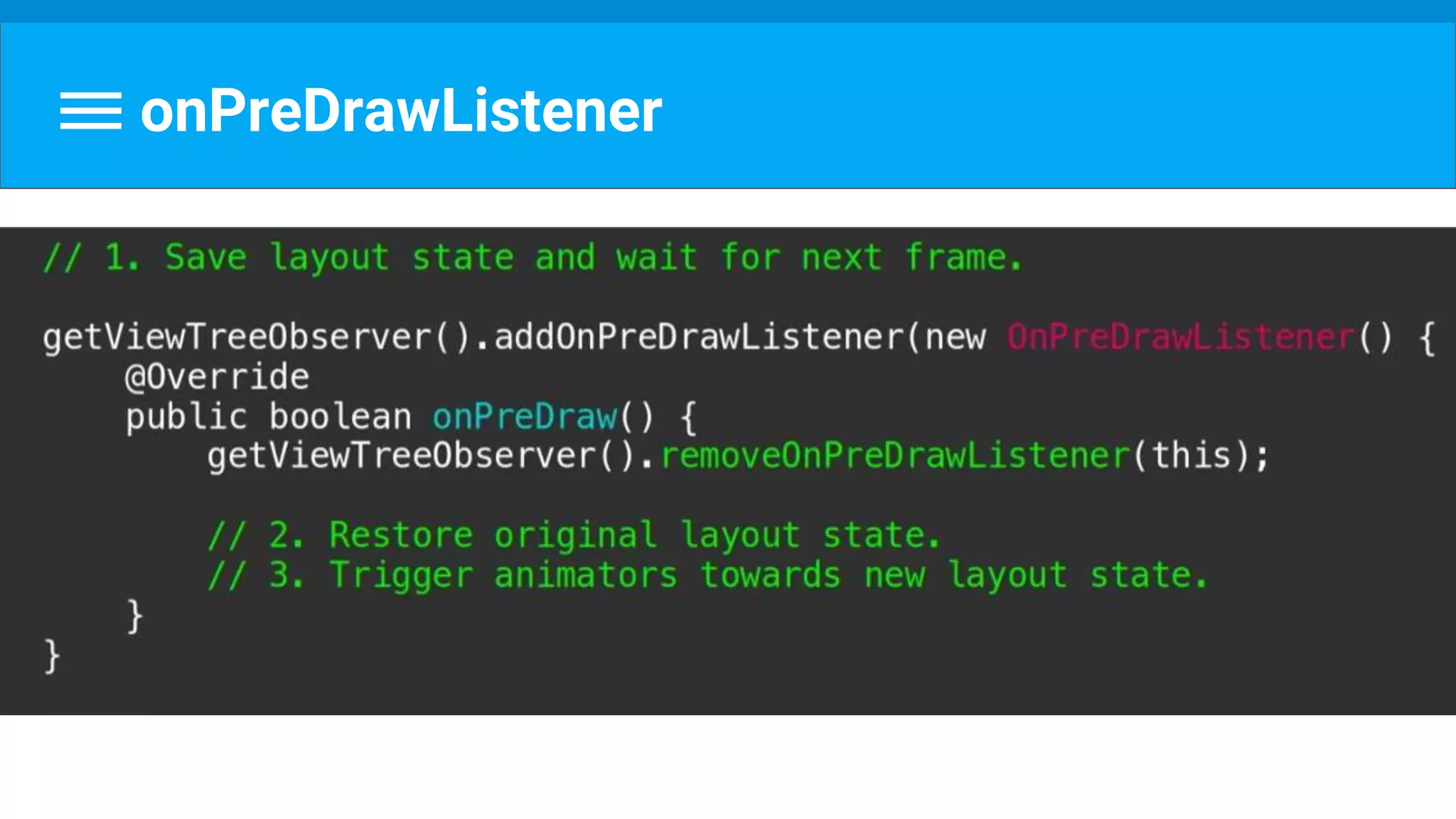

136. onPreDrawListener

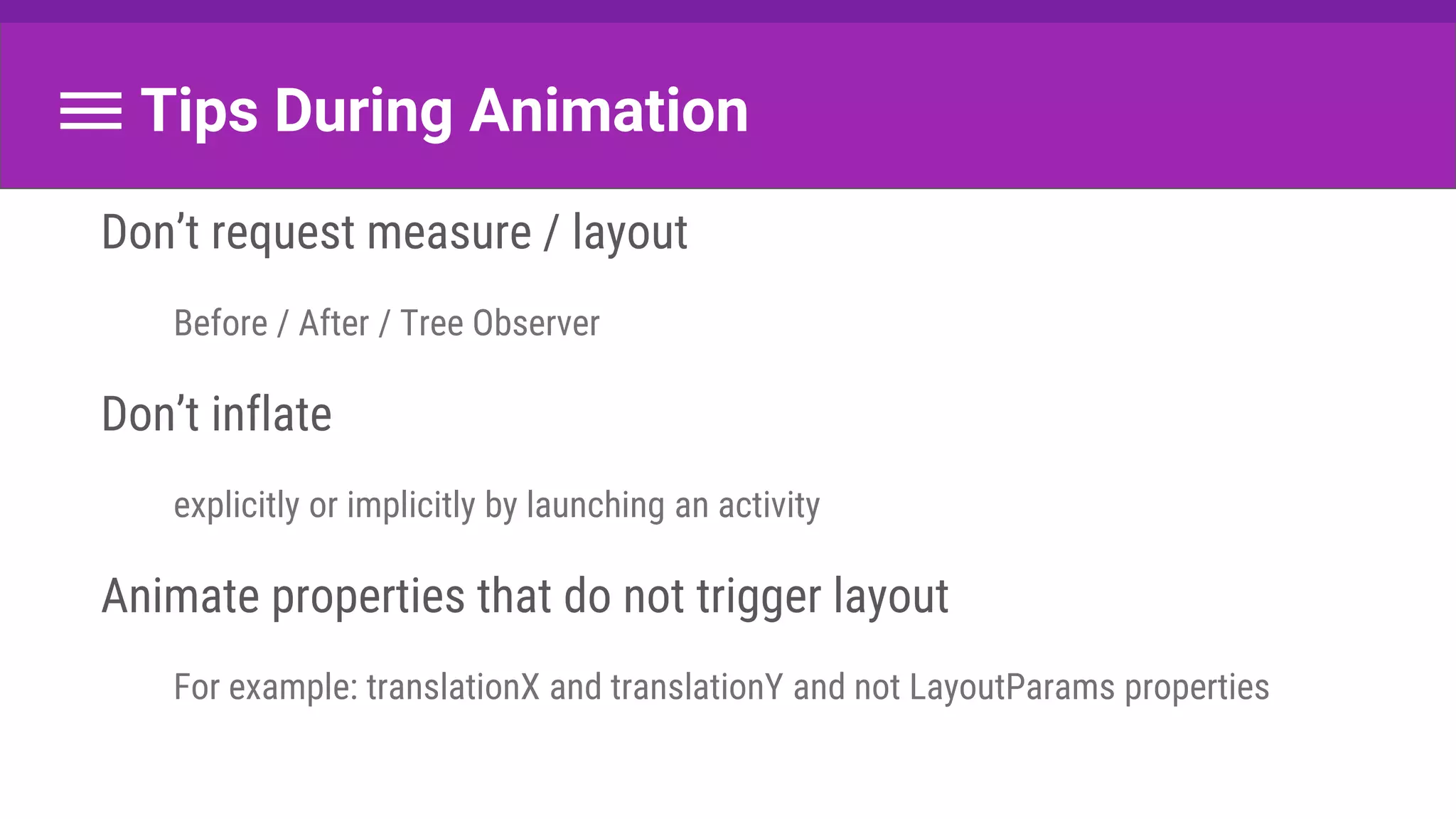

137. Tips During Animation
Don’t request measure / layout
Before / After / Tree Observer
Don’t inflate
explicitly or implicitly by launching an activity
Animate properties that do not trigger layout
For example: translationX and translationY and not LayoutParams properties

138. Any Questions?

139. What Happened Here Today?

140. How Does A View Display On Screen?
ScreenGPU
Polygons
Textures
CPU
new
Button()
DisplayList

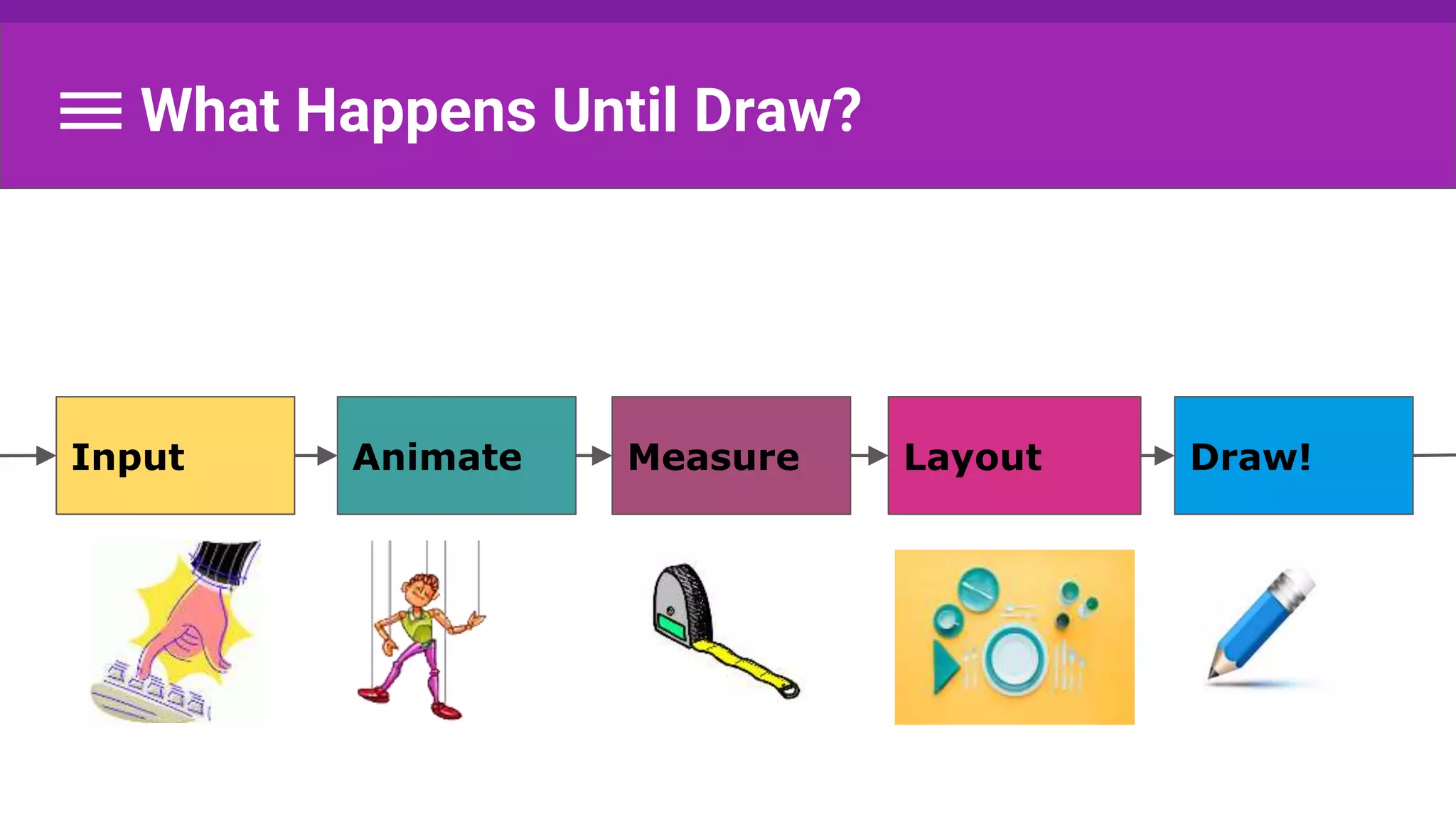

141. What Happens Until Draw?
Measure Layout Draw!Input Animate

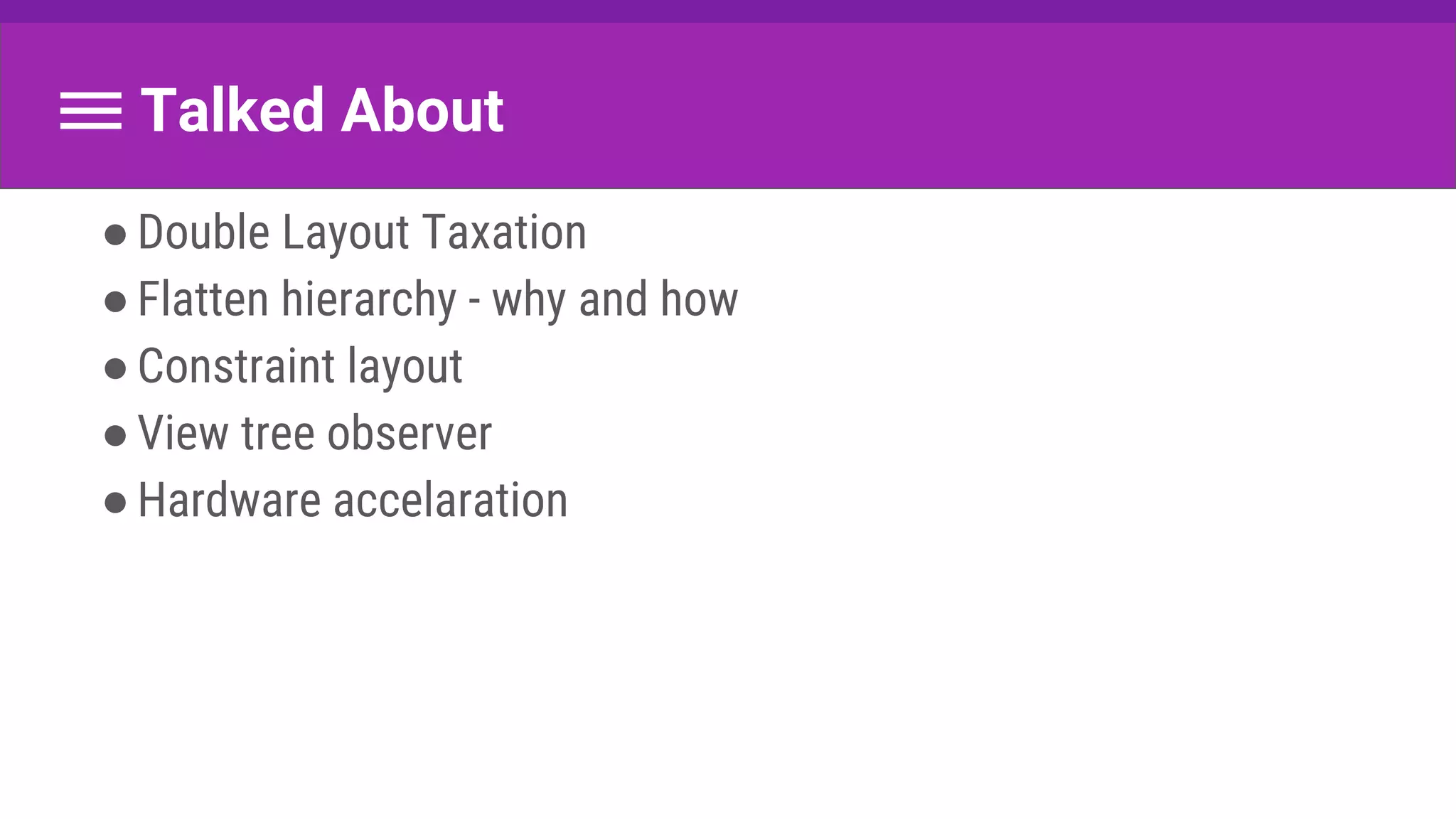

142. Talked About
●Double Layout Taxation
●Flatten hierarchy - why and how
●Constraint layout
●View tree observer
●Hardware accelaration

143. Tools
●GPU Profiling
●Hierarchy Viewer
●Hardware Layer Updates

144. Tips
1.measure() only during layout()
2.No layout() during layout()
3.No layout / measure during animation
4.No inflation during animation
5.Minimize requestLayout()
6.Invalidate regions when possible [rather than whole view]

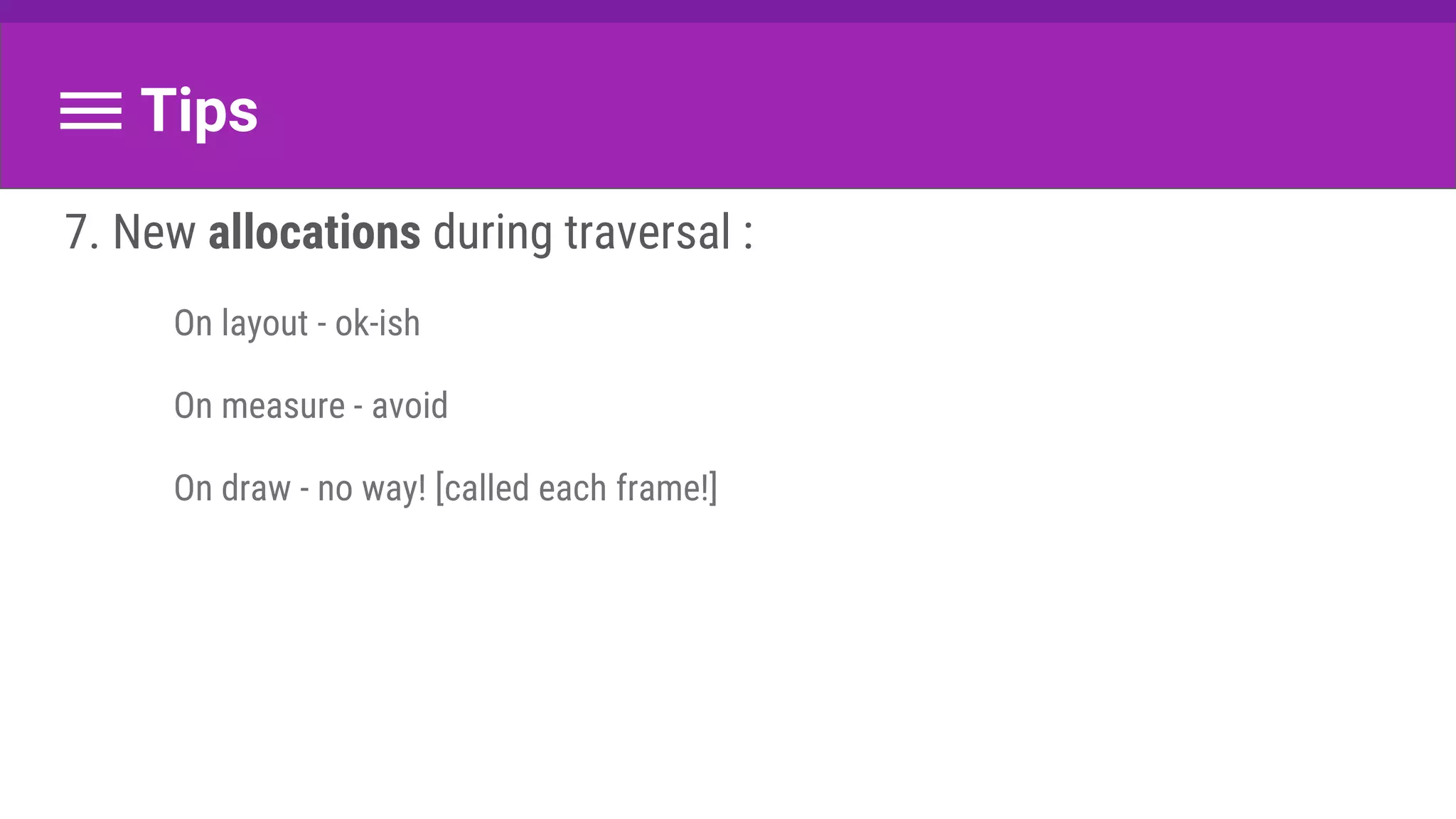

145. Tips
7. New allocations during traversal :
On layout - ok-ish
On measure - avoid
On draw - no way! [called each frame!]

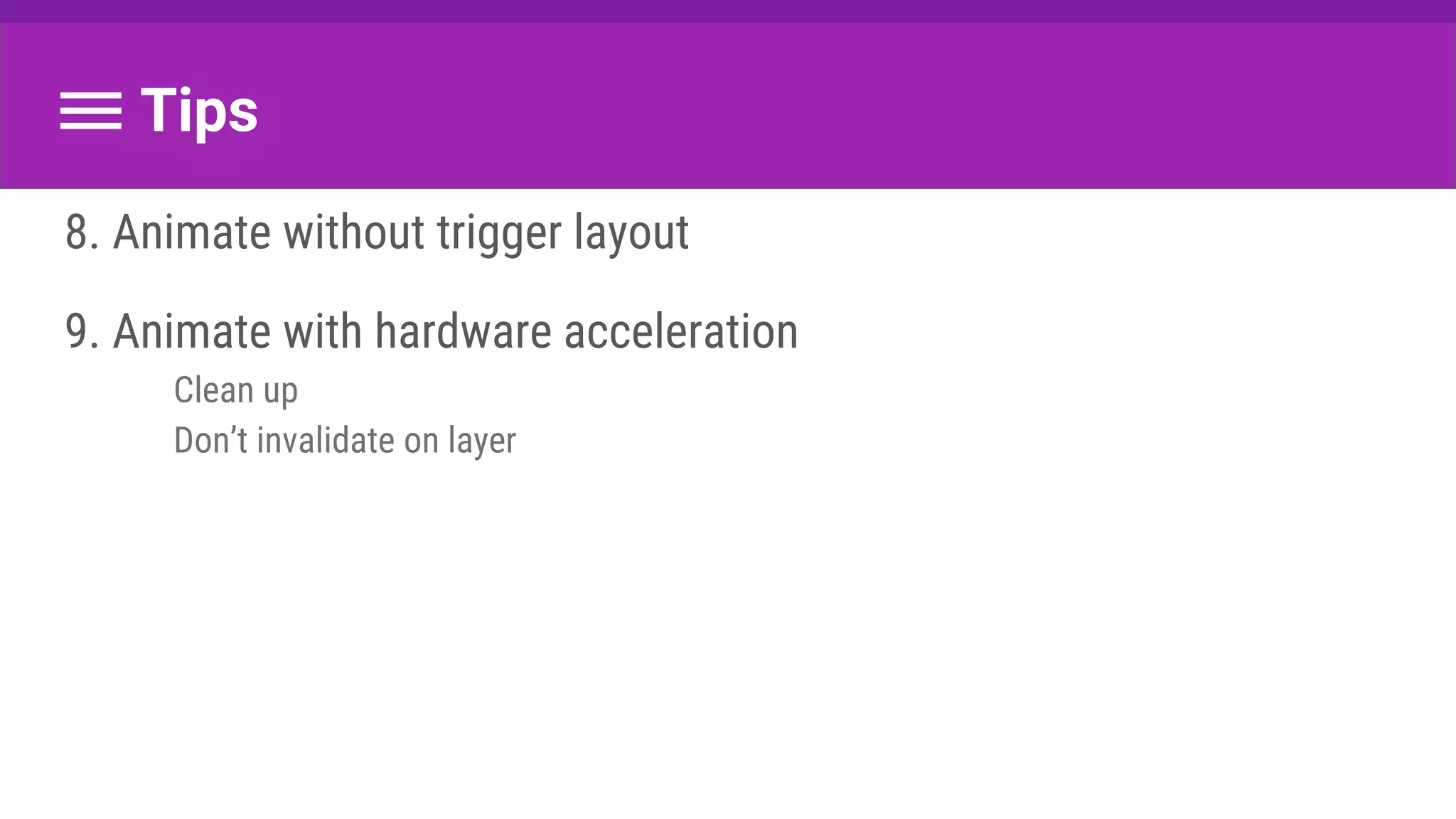

146. Tips
8. Animate without trigger layout
9. Animate with hardware acceleration
Clean up
Don’t invalidate on layer

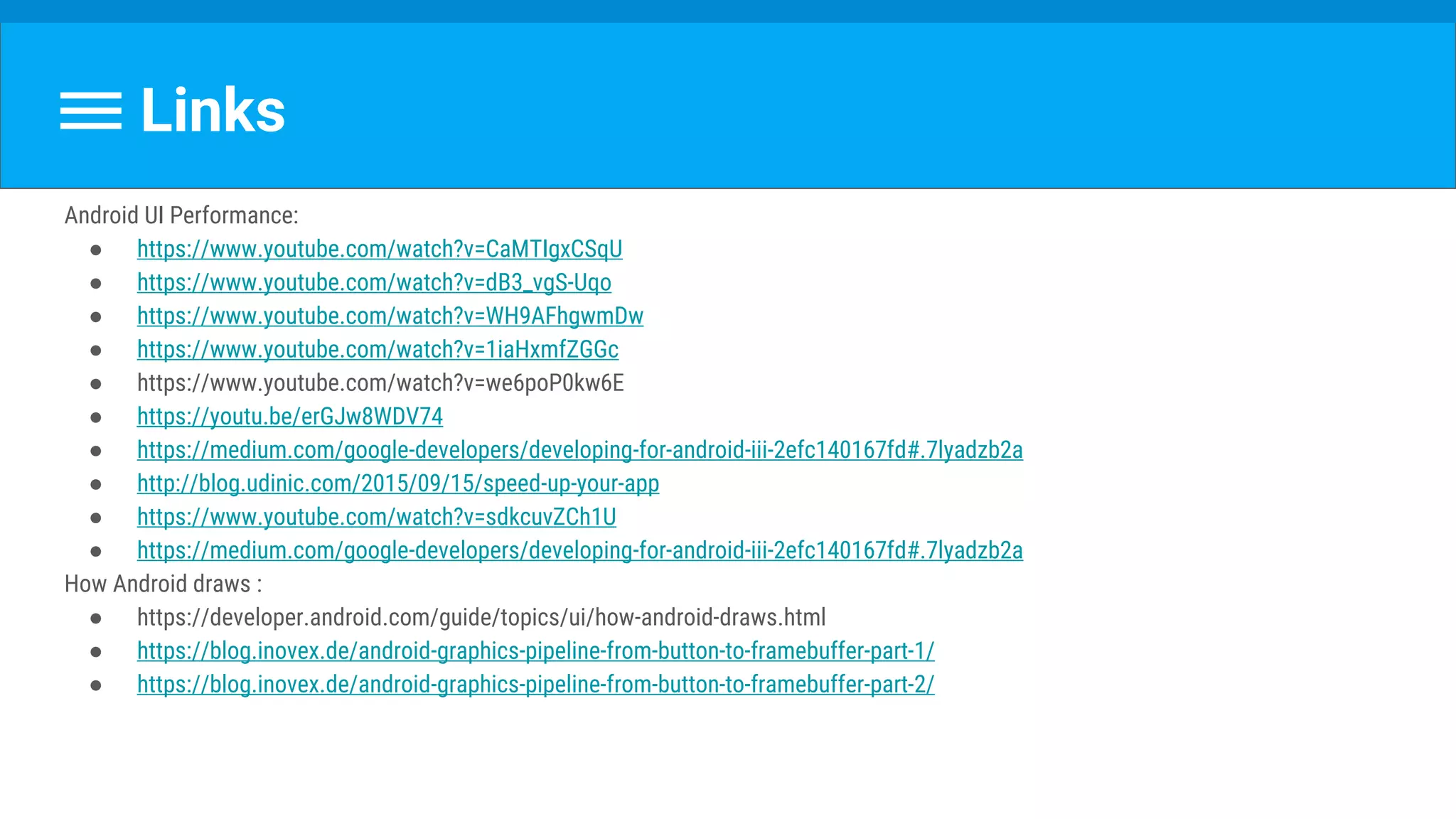

147. Links
Android UI Performance:
● https://www.youtube.com/watch?v=CaMTIgxCSqU
● https://www.youtube.com/watch?v=dB3_vgS-Uqo
● https://www.youtube.com/watch?v=WH9AFhgwmDw
● https://www.youtube.com/watch?v=1iaHxmfZGGc
● https://www.youtube.com/watch?v=we6poP0kw6E
● https://youtu.be/erGJw8WDV74
● https://medium.com/google-developers/developing-for-android-iii-2efc140167fd#.7lyadzb2a
● http://blog.udinic.com/2015/09/15/speed-up-your-app
● https://www.youtube.com/watch?v=sdkcuvZCh1U
● https://medium.com/google-developers/developing-for-android-iii-2efc140167fd#.7lyadzb2a
How Android draws :
● https://developer.android.com/guide/topics/ui/how-android-draws.html
● https://blog.inovex.de/android-graphics-pipeline-from-button-to-framebuffer-part-1/
● https://blog.inovex.de/android-graphics-pipeline-from-button-to-framebuffer-part-2/

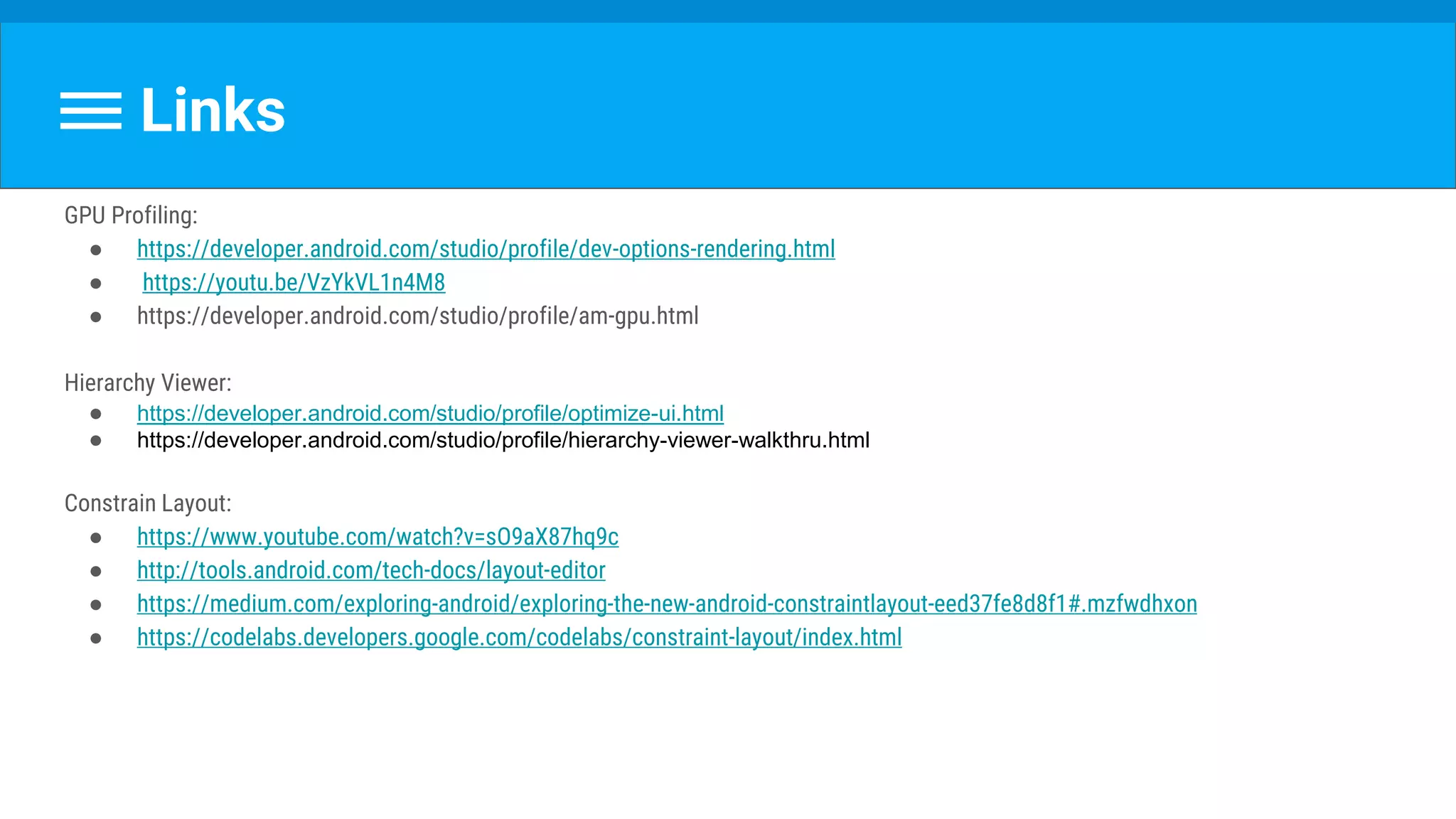

148. Links
GPU Profiling:
● https://developer.android.com/studio/profile/dev-options-rendering.html
● https://youtu.be/VzYkVL1n4M8
● https://developer.android.com/studio/profile/am-gpu.html
Hierarchy Viewer:
● https://developer.android.com/studio/profile/optimize-ui.html
● https://developer.android.com/studio/profile/hierarchy-viewer-walkthru.html
Constrain Layout:
● https://www.youtube.com/watch?v=sO9aX87hq9c
● http://tools.android.com/tech-docs/layout-editor
● https://medium.com/exploring-android/exploring-the-new-android-constraintlayout-eed37fe8d8f1#.mzfwdhxon
● https://codelabs.developers.google.com/codelabs/constraint-layout/index.html

149. Will Post Notes Soon :)

150. Any Questions?

151. Thank You !
