Graphics & Animation
in Android

3. 3/82
Android rendering options
• The Canvas API
• Renderscript
• OpenGL wrappers
• NDK OpenGL

4. 4/82

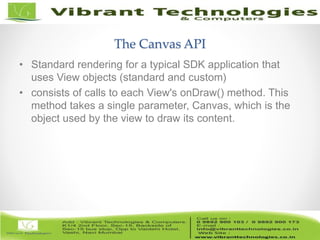

The Canvas API
• Standard rendering for a typical SDK application that
uses View objects (standard and custom)
• consists of calls to each View's onDraw() method. This
method takes a single parameter, Canvas, which is the
object used by the view to draw its content.

5. 5/82
Renderscript
• Introduced in Android 3.0
• API targeted high-performance 3D rendering and
compute operations
• a 3D rendering API on top of hardware acceleration,
language C99
• executing native code on the device still cross-platform
• use of extensions that are placed into the application
package

6. 6/82

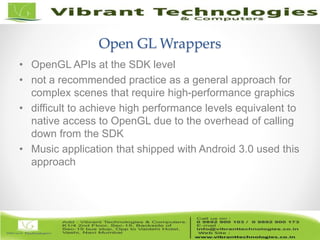

Open GL Wrappers
• OpenGL APIs at the SDK level
• not a recommended practice as a general approach for
complex scenes that require high-performance graphics
• difficult to achieve high performance levels equivalent to
native access to OpenGL due to the overhead of calling
down from the SDK
• Music application that shipped with Android 3.0 used this
approach

7. 7/82

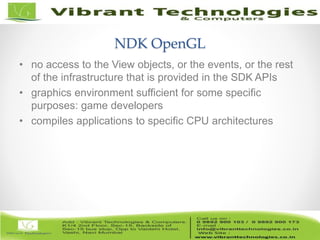

NDK OpenGL
• no access to the View objects, or the events, or the rest
of the infrastructure that is provided in the SDK APIs
• graphics environment sufficient for some specific
purposes: game developers
• compiles applications to specific CPU architectures

8. 8/82
Animations
• Animations prior to Android 3.0
o android.view.animation
o move, scale, rotate, and fade Views
o combine multiple animations together in an AnimationSet
o specify animations in a LayoutAnimationController to get automatically staggered
animation
o use Interpolator implementations like AccelerateInterpolator and Bounce to get
natural, nonlinear timing behavior

9. 9/82
Animations
• Animations prior to Android 3.0
o you can animate Views... and that's it
o How to animate the position of a Drawable in a custom drawing? Or
translucency?
o you can move, rotate, scale, and fade a View... and that's it.
o animating the background color of a View?
o hard-coded set of things they were able to do, and you could not make them do
anything else.

10. 10/82
Animations
• Animator
o superclass for classes which provide basic support for animations which can be
started, ended, and have AnimatorListeners added to them
java.lang.Object
↳ android.animation.Animator
↳ android.animation.AnimatorSet
java.lang.Object
↳
android.animation.Animator
↳
android.animation.ValueAnimator
↳
android.animation.ObjectAnimator

11. 11/82
Animations
• AnimatorSet
o choreograph multiple animators together into a single animation
o animations can be set up to play together, in sequence, or after a specified delay
o “It is possible to set up a AnimatorSet with circular dependencies between its
animations… results of this configuration are undefined… circular dependencies
should be avoided”

12. 12/82

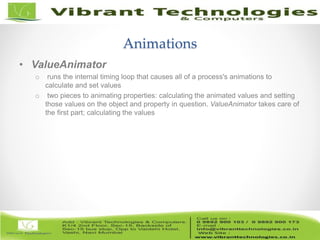

Animations
• ValueAnimator
o runs the internal timing loop that causes all of a process's animations to
calculate and set values
o two pieces to animating properties: calculating the animated values and setting
those values on the object and property in question. ValueAnimator takes care of
the first part; calculating the values

13. 13/82

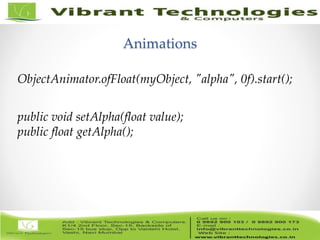

Animations
ObjectAnimator.ofFloat(myObject, "alpha", 0f).start();
public void setAlpha(float value);
public float getAlpha();

14. 14/82
Animations
• View properties
o added new properties to the View class in Honeycomb
• translationX and translationY
• rotation, rotationX, and rotationY
• scaleX and scaleY
• pivotX and pivotY
• x and y
• alpha

15. 15/82
Animations
• AnimatorSet
o choreograph multiple animations
ObjectAnimator fadeOut = ObjectAnimator.ofFloat(v1,
"alpha", 0f);
ObjectAnimator mover = ObjectAnimator.ofFloat(v2,
"translationX", -500f, 0f);
ObjectAnimator fadeIn = ObjectAnimator.ofFloat(v2,
"alpha", 0f, 1f);
AnimatorSet animSet = new
AnimatorSet().play(mover).with(fadeIn).after(fadeOut);

16. 16/82

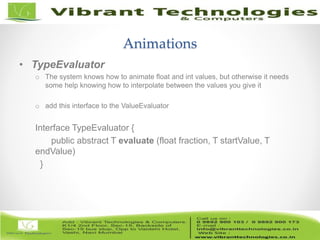

Animations
• TypeEvaluator
o The system knows how to animate float and int values, but otherwise it needs
some help knowing how to interpolate between the values you give it
o add this interface to the ValueEvaluator
Interface TypeEvaluator {
public abstract T evaluate (float fraction, T startValue, T
endValue)
}

17. 17/82
