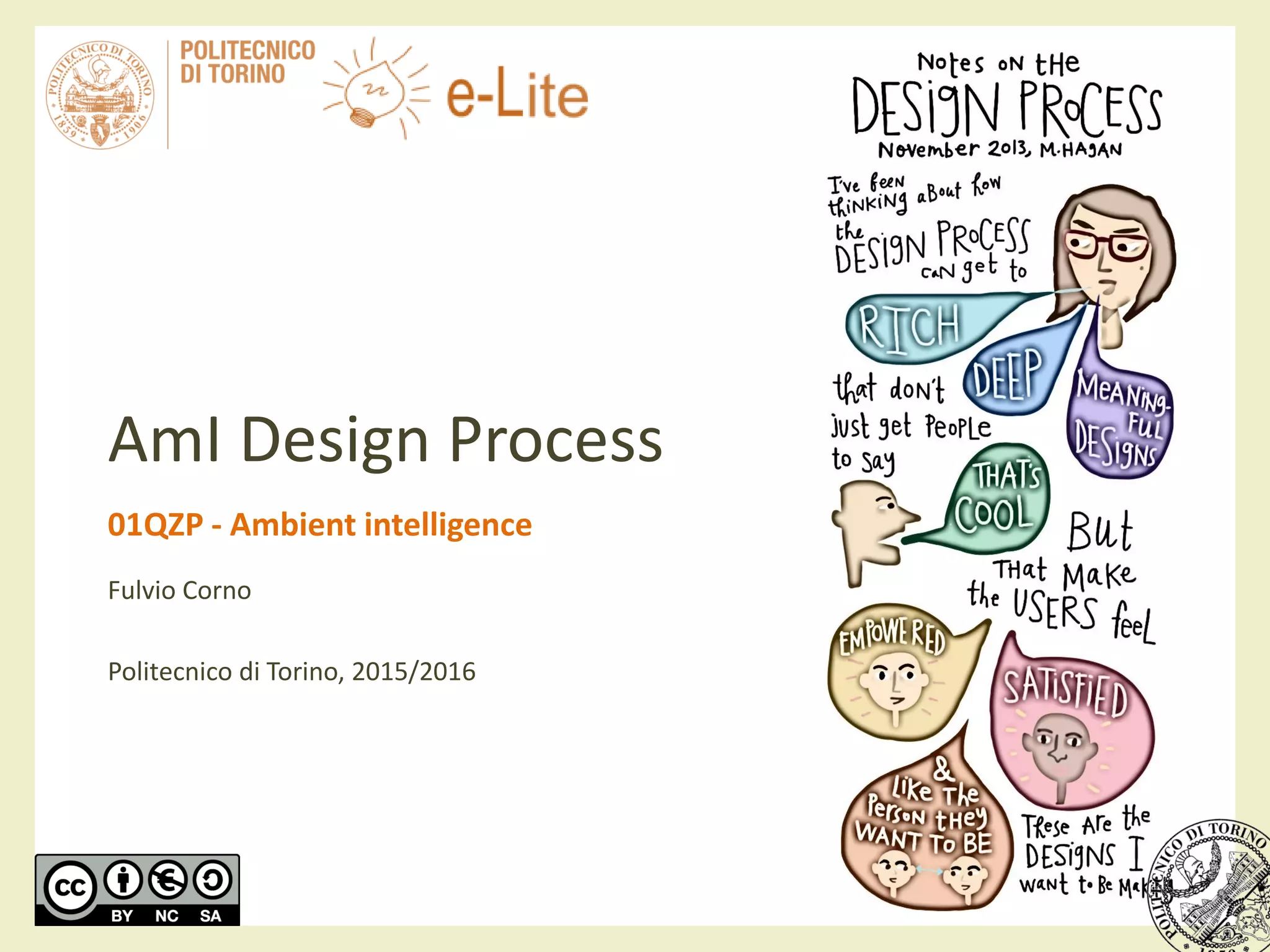

Lecture slides on the Design Process for Ambient Intelligence Systems.
Design process adopted in the Ambient Intelligence course at Politecnico di Torino, in year 2016.
More info at: http://bit.ly/polito-ami
Presentation made to the MyCharity Connects 2012 Conference, June 2012. Similar to the one I gave at SXSWi in Austin in March. (The theme . . . it's the organizers fault if people who 'put their hand up' on the social web don't do more.
Intranet 2.0 (Web 2.0) employee engagement, employee benefits presentation to Conference Board in NYC, June 2009, by Toby Ward, Prescient Digital Media. Shortened version.
In this webinar, Carmine Porco, GM and VP of Client Deliverables at Prescient, walks through several social media tools, explaining their pros and cons, their benefits to an organization, and the ideal intranet environment to support them.
View the webinar video here: http://bit.ly/cawgmh
Microblogging is synonymous with twitter, or at least it seems that way. In reality Facebook and many other social networking environments have adopted this communication paradigm extremely successfully.
The question really is how does this play in the enterprise space? Ian McNairn will discuss how IBM has adapted to this social computing phenomenon and exploits it internally extensively.
He will look at some of the reasons behind the exponential growth in activity as well as the tools and clients being used both within and outside IBM.
Programming with JavaFX
Topics:
1. About and History
2. Basic concepts
3. Minimal JavaFX Application
4. Application structure
5. The Scene Graph
6. Events
7. Model-View-Controller
8. The Controller in FXML
9. Properties and bindings
10. Resources
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Presentation made to the MyCharity Connects 2012 Conference, June 2012. Similar to the one I gave at SXSWi in Austin in March. (The theme . . . it's the organizers fault if people who 'put their hand up' on the social web don't do more.
Intranet 2.0 (Web 2.0) employee engagement, employee benefits presentation to Conference Board in NYC, June 2009, by Toby Ward, Prescient Digital Media. Shortened version.
In this webinar, Carmine Porco, GM and VP of Client Deliverables at Prescient, walks through several social media tools, explaining their pros and cons, their benefits to an organization, and the ideal intranet environment to support them.
View the webinar video here: http://bit.ly/cawgmh
Microblogging is synonymous with twitter, or at least it seems that way. In reality Facebook and many other social networking environments have adopted this communication paradigm extremely successfully.
The question really is how does this play in the enterprise space? Ian McNairn will discuss how IBM has adapted to this social computing phenomenon and exploits it internally extensively.
He will look at some of the reasons behind the exponential growth in activity as well as the tools and clients being used both within and outside IBM.
Programming with JavaFX
Topics:
1. About and History
2. Basic concepts
3. Minimal JavaFX Application
4. Application structure
5. The Scene Graph
6. Events
7. Model-View-Controller
8. The Controller in FXML
9. Properties and bindings
10. Resources
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Presentation given at the seminar "Humans - Eperiences toward the metadesign dimension" at Politecnico di Torino, on 2016-01-08.
For more info about the seminar: http://www.politocomunica.polito.it/events/appuntamenti/(id_news)/7137?fb_action_ids=1040619222668718
For info about the Ambient Intelligence course: http://bit.ly/polito-ami
For info about the e-Lite research group: http://elite.polito.it/
Presentation video (in Italian): https://youtu.be/cBkJK6q3wC4
Ingegneri e disabilità: abbattere il muroFulvio Corno
Presentazione presso la tavola rotonda "Dalla accessibilità all'inclusione. Idee, percorsi, strategie e strumenti." presso il convegno Abilitando 2015, il 26/09/2015.
http://abilitando.it/
Introduzione al Corso - Tecnologie per la Disabilità 2014/2015Fulvio Corno
Introduzione al Corso
Materiale relativo al corso di Tecnologie per la Disabilità tenuto al Politecnico di Torino nell'Anno Accademico 2014/2015.
Informazioni e materiale: http://bit.ly/tecndisab
Ausili: definizioni e normative - Tecnologie per la Disabilità 2014/2015Fulvio Corno
Ausili: definizioni e normative
- Definizioni
- La normativa ISO 9999
- Il Nomenclatore Tariffario italiano
Materiale relativo al corso di Tecnologie per la Disabilità tenuto al Politecnico di Torino nell'Anno Accademico 2014/2015.
Informazioni e materiale: http://bit.ly/tecndisab
Introduzione al Corso - Tecniche di Programmazione 2015Fulvio Corno
Introduzione al Corso
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Libraries and History
The “old” Date/Calendar classes
The new (≥Java8) java.time package
Basic concepts
Main classes
Date operations
Dealing with SQL dates
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Indicatori quantitativi per la valutazione dei processiFulvio Corno
Intervento presso il convegno "Valutare l'efficacia delle cure: un modello al servizio della Persona" organizzato dall'ASL-TO1 e tenutosi il 27/03/2015
Indicatori quantitativi per la valutazione dei processi
Argomenti:
Processi (Riconoscere e descrivere le attività)
Risultati (Valutazione e gestione basata sui risultati)
Indicatori (Condensare in un numero)
Considerazioni (Teoria e pratica)
Ambient Intelligence: Theme of the Year 2016Fulvio Corno
Definition of the Theme "Ambient Intelligence Systems for Health and Well-Being".
University course on Ambient Intelligence, Politecnico di Torino.
More information: http://bit.ly/polito-ami
A Healthcare Support System for Assisted Living Facilities: an IoT SolutionFulvio Corno
Presentation of the paper "A Healthcare Support System for Assisted Living Facilities: an IoT Solution" at the 40th IEEE Computer Society International Conference on Computers, Software & Applications (COMPSAC 2016) in Atlanta, Georgia, USA on June 10-14, 2016
Internet of Things - Cos'è e cosa ci posso fare?Fulvio Corno
Seminario introduttivo sull'Internet of Things, rivolto a studenti delle scuole tecniche secondarie nell'ambito dei programmi di alternanza scuola-lavoro. Organizzato a cura di Forte Chance Torino.
Topics:
- General design process
- Main steps of the process
- Step 1: Problem Statement
- Step 2: Requirements Elicitation
- Step 3: Requirements Identification
- Step 4: Architecture Definition
- Step 5: Component Selection
- Step 6: Design & Implementation
- Step 7: Test and Validation
- Simplified process adopted in the AmI course
Slides for the course of "Ambient Intelligence: Technology and Design" given at Politecnico di Torino during year 2013/2014.
Course website: http://bit.ly/polito-ami
IxDA Helsinki meet-up at Smartly.io, Thu, 25th August 2016Pekka Hartikainen
Topics in the meet-up
A Practical Approach to Icon Taxonomy
Teemu Korpilahti, Lead Designer at Crasman
Accept the Imperfectness
Sami Vuori, Visual / UX / UI Designer at Gapps
Losing Control: Design Systems for Complex User Interfaces
Pekka Hartikainen, Design Lead at Smartly.io
Applying Usability to Improve Value and Reduce RiskBonitasoft
This technical session was presented by Nathalie Cotte at the online IDEAS conference hosted by the Center for Information Development-Management - to explain how we care more and more about customers, but that we also need to remind everyone that developers also have needs to be considered!
Presentation given at the seminar "Humans - Eperiences toward the metadesign dimension" at Politecnico di Torino, on 2016-01-08.
For more info about the seminar: http://www.politocomunica.polito.it/events/appuntamenti/(id_news)/7137?fb_action_ids=1040619222668718
For info about the Ambient Intelligence course: http://bit.ly/polito-ami
For info about the e-Lite research group: http://elite.polito.it/
Presentation video (in Italian): https://youtu.be/cBkJK6q3wC4
Ingegneri e disabilità: abbattere il muroFulvio Corno
Presentazione presso la tavola rotonda "Dalla accessibilità all'inclusione. Idee, percorsi, strategie e strumenti." presso il convegno Abilitando 2015, il 26/09/2015.
http://abilitando.it/
Introduzione al Corso - Tecnologie per la Disabilità 2014/2015Fulvio Corno
Introduzione al Corso
Materiale relativo al corso di Tecnologie per la Disabilità tenuto al Politecnico di Torino nell'Anno Accademico 2014/2015.
Informazioni e materiale: http://bit.ly/tecndisab
Ausili: definizioni e normative - Tecnologie per la Disabilità 2014/2015Fulvio Corno
Ausili: definizioni e normative
- Definizioni
- La normativa ISO 9999
- Il Nomenclatore Tariffario italiano
Materiale relativo al corso di Tecnologie per la Disabilità tenuto al Politecnico di Torino nell'Anno Accademico 2014/2015.
Informazioni e materiale: http://bit.ly/tecndisab
Introduzione al Corso - Tecniche di Programmazione 2015Fulvio Corno
Introduzione al Corso
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Libraries and History
The “old” Date/Calendar classes
The new (≥Java8) java.time package
Basic concepts
Main classes
Date operations
Dealing with SQL dates
Teaching material for the course of "Tecniche di Programmazione" at Politecnico di Torino in year 2014/2015. More information: http://bit.ly/tecn-progr
Indicatori quantitativi per la valutazione dei processiFulvio Corno
Intervento presso il convegno "Valutare l'efficacia delle cure: un modello al servizio della Persona" organizzato dall'ASL-TO1 e tenutosi il 27/03/2015
Indicatori quantitativi per la valutazione dei processi
Argomenti:
Processi (Riconoscere e descrivere le attività)
Risultati (Valutazione e gestione basata sui risultati)
Indicatori (Condensare in un numero)
Considerazioni (Teoria e pratica)
Ambient Intelligence: Theme of the Year 2016Fulvio Corno
Definition of the Theme "Ambient Intelligence Systems for Health and Well-Being".
University course on Ambient Intelligence, Politecnico di Torino.
More information: http://bit.ly/polito-ami
A Healthcare Support System for Assisted Living Facilities: an IoT SolutionFulvio Corno
Presentation of the paper "A Healthcare Support System for Assisted Living Facilities: an IoT Solution" at the 40th IEEE Computer Society International Conference on Computers, Software & Applications (COMPSAC 2016) in Atlanta, Georgia, USA on June 10-14, 2016
Internet of Things - Cos'è e cosa ci posso fare?Fulvio Corno
Seminario introduttivo sull'Internet of Things, rivolto a studenti delle scuole tecniche secondarie nell'ambito dei programmi di alternanza scuola-lavoro. Organizzato a cura di Forte Chance Torino.
Topics:
- General design process
- Main steps of the process
- Step 1: Problem Statement
- Step 2: Requirements Elicitation
- Step 3: Requirements Identification
- Step 4: Architecture Definition
- Step 5: Component Selection
- Step 6: Design & Implementation
- Step 7: Test and Validation
- Simplified process adopted in the AmI course
Slides for the course of "Ambient Intelligence: Technology and Design" given at Politecnico di Torino during year 2013/2014.
Course website: http://bit.ly/polito-ami
IxDA Helsinki meet-up at Smartly.io, Thu, 25th August 2016Pekka Hartikainen
Topics in the meet-up
A Practical Approach to Icon Taxonomy
Teemu Korpilahti, Lead Designer at Crasman
Accept the Imperfectness
Sami Vuori, Visual / UX / UI Designer at Gapps
Losing Control: Design Systems for Complex User Interfaces
Pekka Hartikainen, Design Lead at Smartly.io
Applying Usability to Improve Value and Reduce RiskBonitasoft
This technical session was presented by Nathalie Cotte at the online IDEAS conference hosted by the Center for Information Development-Management - to explain how we care more and more about customers, but that we also need to remind everyone that developers also have needs to be considered!
Integrating User Experience Design into the Product LifecycleICS
There is overwhelming evidence that investing in the user experience (UX) produces a superior product. When the needs of the customer are met, it becomes much easier to meet business goals. Many companies still do not put their focus on UX, instead relying on what organically comes out of the software development process. Often, it is not a lack of interest in UX, but rather a gap in skills and knowledge that prevents good UX design practices from being applied to product development.
Learn how to put “UX First” in the product lifecycle, allowing developers to focus on engineering tasks and build the correct product to meet and exceed customer needs. We will explore the relationship of UX to Agile development methods, help explain some of the UX jargon and present strong business reasons to focus on UX no matter where you are currently in the product lifecycle.
Learn more: http://www.ics.com/ux-video
The goal of this presentation is to give attendees a deeper understanding of usability testing so they can leverage it in their own work. The material will shed light on what is important to the research buyer and will help the research provider to better understand how to plan, moderate, and report on a usability study. It will also provide information on where they can go to learn more about this very practical qualitative method.
Kay will cover what a usability test is and when to use it, the key planning steps, the language around it, and the unique insights this method produces. She will also discuss the various approaches a market researcher can take when running a usability study at different points in a product’s development (e.g., concept, early prototype, released product).
Julie Grundy gives an overview of user experience Design, why it's important, guiding principles, UX research overview, and tactics used by UX professionals. November 2015.
Slides Ian Multon recently used in his discussion w/ mentees of The Product Mentor.
The Product Mentor is a program designed to pair Product Mentors and Mentees from around the World, across all industries, from start-up to enterprise, guided by the fundamental goals…Better Decisions. Better Products. Better Product People.
Throughout the program, each mentor leads a conversation in an area of their expertise that is live streamed and available to both mentee and the broader product community.
http://TheProductMentor.com
Website Usability & Eye-tracking by Marco Pretorious (Certified Usability Ana...DrupalCape
Things to consider when designing a website to make your site visitor's life easier!!
Note: There were some videos which were show to illustrate a point, however the presentation provides sufficient information and suggestion so you will not miss them.
IASA eSummit Configuring an Agile Method for a Digital EnterpriseSriram Sabesan
A short talk using a hypothetical company that enters the IoT, AR/VR & other modern digital technologies. What factors influence the selection of an Agile Method that can work across software development, device development, mass production, and decisions that drive appropriate investments.
Francesca Gottschalk - How can education support child empowerment.pptxEduSkills OECD
Francesca Gottschalk from the OECD’s Centre for Educational Research and Innovation presents at the Ask an Expert Webinar: How can education support child empowerment?
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
Acetabularia Information For Class 9 .docxvaibhavrinwa19
Acetabularia acetabulum is a single-celled green alga that in its vegetative state is morphologically differentiated into a basal rhizoid and an axially elongated stalk, which bears whorls of branching hairs. The single diploid nucleus resides in the rhizoid.
2. Design Process
2015/2016 Ambient intelligence 2
http://dilbert.com/strips/comic/2002-02-20/
http://dilbert.com/strips/comic/2001-12-12/
3. Design process (in Engineering)
• The engineering design process is the formulation of
a plan to help an engineer build a product with a
specified performance goal. [Wikipedia]
• The engineering design process is the formulation of
a plan to help a team of engineers build a system
with specified performance and functionality goals.
[improved]
2015/2016 Ambient intelligence 3
4. Summary
• General design process
• Main steps of the process
– Step 1: Problem Statement
– Step 2: Requirements Elicitation
– Step 3: Requirements Identification
– Step 4: Architecture Definition
– Step 5: Component Selection
– Step 6: Design & Implementation
– Step 7: Test and Validation
• Simplified process adopted in the AmI course
2015/2016 Ambient intelligence 4
5. Deadline ahead
• Before 16/03
– Group composition
– Summary Description
• Do not wait until the
last minute
– May help forming groups
– We’ll monitor in real
time
• Discussion: 17/03
• Final deadline: 18/03
2015/2016 Ambient intelligence 5
GROUP NUMBER XX
Team Members
•Team member 1, email, GitHub username, role in the
project
•Team member 2, email, GitHub username, role in the
project
•Team member 3, email, GitHub username, role in the
project
•[Team member 4, email, GitHub username, role in the
project]
Project Acronym: XXXYYYZZZ
Project Title
this is the title
Description
5-10 lines describing the project from the users’ point of
view. Don’t mention technologies nor devices.
https://docs.google.com/document/d/1hA4I293C8lgLQD
umWmQg0-VF0SGf9qqF38TVFZEZw0U/edit?usp=sharing
8. Goals
• To select one possible approach, among the many
ones proposed, to design and realize an AmI system
• To analyze and formalize one possible flow of
activities
• To understand the activity and the output of the main
steps
• To define a scaled-down version compatible with the
time constraints we have in the AmI course
2015/2016 Ambient intelligence 8
9. What we want to achieve
• From initial idea… • …to working AmI
system
2015/2016 Ambient intelligence 9
Sensing
Reasoning
Acting
Interacting
10. Assumptions
• The approach should be technology-neutral, i.e., the
best fitting technologies will be selected during the
process, and will not be defined a-priori
• When existing solutions/devices are available and
suitable for the goal, aim at integrating them. When
no suitable existing solution exists, consider
developing/prototyping some ad-hoc device(s)
2015/2016 Ambient intelligence 10
13. Composition of each step
2015/2016 Ambient intelligence 13
Activity
(what to do)
Result
(what artifacts we
get)
Next Activity
(what to do
next)
Iteration
15. Simplified process & Deadlines
2015/2016 Ambient intelligence 15
2. Analysis
22/04
3. System
Design
12/05
0. Title &
Goal 17/03
1. Vision
02/04
4. Imple-
mentation
(Exam)
16. STEP 1: PROBLEM STATEMENT
AmI Design Process
2015/2016 Ambient intelligence 16
17. Problem Statement
• Define what problems
need to be
solved/tackled
• Identify the benefits
– For the users
– For the environment
• Create a brief summary
of what the system
does for the users
2015/2016 Ambient intelligence 17
18. Summary System Description
• ½ page – 1 page max of “vision”
• Absolutely avoid describing the technology or making
some technical choices
• Define the target environment
• Define your users
• Describe how the environment supports the users, from
the user point of view
• Try to hint at AmI features (Sensitive, Responsive,
Adaptive, Transparent, Ubiquitous, Intelligent)
• Imagine “selling” it to a non-engineer (find someone to
read it)
2015/2016 Ambient intelligence 18
19. Tips
• No technology
– But we must know it’s
feasible, somehow
• Start simple
– Few features, few users
– But full AmI features
• Pitch it
– Why users should be
happy to use it
– Tell a story…
• Google it
– Search for similar ideas /
products / articles
• Involve users
– Describe, discuss, ask,
LISTEN
– Users know better
(except when they don’t)
2015/2016 Ambient intelligence 19
20. Deliverable 1
• Before 02/04
• Set-up project web site
• Develop your «Vision»
• Integrate the «Vision»
on the website
– In the website content,
non as a separate
document
• You’ll receive feedback
on 04/04 (in LADISPE)
2015/2016 Ambient intelligence 20
21. Vision: «WakeKill»
• Each user requires their own personalized wake-up
experience. Users will never miss a wake-up call, every
morning will be a pleasing experience and they will never be
late. Your house, your devices, your calendars, will team up to
personalize the optimum wake-up call, personalized to you,
and personalized to your day’s schedule, location, and mood.
• The system will exploit different means to wake up users in the
morning. It will combine ringing, turning on the lights, the
radio, and other methods, according to the available devices
and to user preferences. It will automatically adjust time
according to the user’s agenda. When the user is not at home
(e.g., hotel) it avoids activating at-home devices, and only
users user devices. It will detect when the user actually wakes
up (or is already up).
2015/2016 Ambient intelligence 21
24. Elicitation
• Consider the needs and
the opinions of
– Users of the system
– Stakeholders for the
system
• Collect and evaluate
carefully and objectively
• If needed, adapt your
vision
2015/2016 Ambient intelligence 24
25. Elicitation
• Consider the needs and
the opinions of
– Users of the system
– Stakeholders for the
system
• Collect and evaluate
carefully and objectively
• If needed, adapt your
vision
2015/2016 Ambient intelligence 25
Due to time restrictions, this step is not
formally required in the AmI course.
In the course, just try to get as many user
inputs as possible, even in an informal and
unstructured way, and consider them in
building your vision.
It is, however, essential for successful ICT
products.
26. Roles
Users
• Persons that will be the final
targets of the system and
will interact with the system
• Or, at least, persons with
similar characteristics to the
actual final targets
• Don’t need to understand
how the system works
• Need to understand how
they will interact
Stakeholders
• Persons (or institutions)
that will have an interest in
the success of the system
• May not be users
• “Interest” may be
economic, better efficiency,
user satisfaction, higher
control or security, better
understanding, …
• May be involved in funding
the system
2015/2016 Ambient intelligence 26
27. Users know better
• Serving users should be
the cornerstone of AmI
• “User Centered Design”
(UCD) is a methodology
that includes a set of
techniques for involving
users throughout the
design process
2015/2016 Ambient intelligence 27
http://www.mprove.de/script/00/upa/_media/upaposter_85x11.pdf
28. Listening to users…
2015/2016 Ambient intelligence 28
http://dilbert.com/strip/2010-01-13
http://dilbert.com/strip/2012-05-07
29. UCD requirements
• ISO standard Human-centered design for interactive
systems (ISO 9241-210, 2010)
– The design is based upon an explicit understanding of
users, tasks and environments.
– Users are involved throughout design and development.
– The design is driven and refined by user-centered
evaluation.
– The process is iterative.
– The design addresses the whole user experience.
– The design team includes multidisciplinary skills and
perspectives.
2015/2016 Ambient intelligence 29
30. UCD tools and techniques
Conceptual tools
• Personas
– a fictional character with all the
characteristics of a “typical” user
• Scenario
– a fictional story about the "daily
life of" or a sequence of events
with personas as the main
character
• Use Case
– the interaction between an
individual and the rest of the world
as a series of simple steps for the
character to achieve his or her goal
Design techniques
• Field research
• Focus groups
• Interviews
• Design walkthroughs
• Low-fi and Hi-fi prototypes
• Mock-up evaluation
• Usability testing
2015/2016 Ambient intelligence 30
31. Result
• Increased awareness of user perception in your
proposed system
• Priority for different system features (some will be
abandoned, some will be new)
• Gather design constraints (price, size, aesthetics,
• Mediate user inputs with product strategy
• Transform “a good idea” into “a system that users
want”
2015/2016 Ambient intelligence 31
35. Formalizing requirements
• The initial vision and user
inputs must be “distilled”
into a set of requirements
• Strategic choices: what is
in, what is out
• Describes what the
system does, and the
external constraints
• Might be used as a
“specification contract”
2015/2016 Ambient intelligence 35
36. Requirements engineering
• The process of establishing the services that the
customer requires from a system and the constraints
under which it operates and is developed.
• The requirements themselves are the descriptions of
the system services and constraints that are
generated during the requirements engineering
process.
2015/2016 Ambient intelligence 36
37. What is a requirement?
• It may range from a high-level abstract statement of a
service or of a system constraint to a detailed
mathematical functional specification.
• This is unavoidable, as requirements may serve a dual
function
– May be the basis for a bid for a contract - therefore must
be open to interpretation;
– May be the basis for the contract itself - therefore must be
defined in detail;
• Both these statements may be called requirements.
2015/2016 Ambient intelligence 37
38. Types of requirement
• User requirements
– Statements in natural language plus diagrams of the
services the system provides and its operational
constraints. Written for customers.
• System requirements (a.k.a. developer requirements)
– A structured document setting out detailed descriptions of
the system’s functions, services and operational
constraints. Defines what should be implemented so may
be part of a contract between client and contractor.
2015/2016 Ambient intelligence 38
39. Example
2015/2016 Ambient intelligence 39
The software must provide a means of representing and accessing
external files edited by other tools
1.1 The user should be provided with facilities to define the type of external
files
1.2 Each external file type may have an associated tool which may be
applied to the file
1.3 Each external file type may be represented as a specific icon on the
user’s display
1.4 Facilities should be provided for the icon representing an external file
type to be defined by the user
1.5 When a user selects an icon representing an external file the effect of
that selection is to apply the tool associated with the external file type
to the file represented by the selected icon
User requirement definition
System requirements specification
40. Requirements readers
System
Requirements
Software Design
Specification
User Requirements
Client managers
System end-users
Client engineers
Contractor managers
System architects
System end-users
Client engineers
System architects
Software developers
Client engineers
System architects
Software developers
2015/2016 Ambient intelligence 40
41. Types of requirements
• Functional requirements (FR)
– Statements of services the system should provide, how the
system should react to particular inputs and how the
system should behave in particular situations.
• Non-functional requirements (NFR)
– Aka Quality requirements
– constraints on the services or functions offered by the
system such as timing constraints, constraints on the
development process, standards, etc.
• Domain requirements
– Requirements that come from the application domain of
the system and that reflect characteristics of that domain.
2015/2016 Ambient intelligence 41
42. Functional Requirements (FR)
• What the system does
• What functions it offers to its users
• Don’t care how they will be implemented (yet)
• A long list of “local” features (easy to identify a small
portion of the system that delivers that function)
2015/2016 Ambient intelligence 42
43. Examples
• FR3.1: The user must be able to activate and de-activate
the wake-up service. This decision will be applied until
the user changes it again.
• FR3.2: The user must be able to silence the wake-up
service just for the next day. Service will resume
automatically on the following day.
• FR4.4: The user must be able to set up an “ad hoc” wake-
up call, that will run only once, will not be remembered,
and will have specific settings
• FR4.4.1: The user may configure the settings of any
already defined “ad hoc” call
• FR4.4.2: The user may configure the default settings for
(to be created) “ad hoc” calls
2015/2016 Ambient intelligence 43
44. Non-functional requirements (NFR)
• These define system properties and constraints e.g.
reliability, response time and storage requirements.
Constraints are I/O device capability, system
representations, Supported devices, Usability,
Language, etc.
• Process requirements may also be specified
mandating a particular set of tools, programming
language or development method.
• Non-functional requirements may be more critical
than functional requirements. If these are not met,
the system is useless.
2015/2016 Ambient intelligence 44
45. Pervasiveness in NFR
• NFR are usually “general” and cannot be localized to
a single spot in system implementation
• Every function, in every module, in every screen, in
every device, …. must guarantee that no NFR is
broken
2015/2016 Ambient intelligence 45
47. Examples
• NFR1: The mobile interfaces must be compatible with iOS
(8.0 and later), Android (4.2 and later)
• NFR2: The system will be localized in many languages
(default: English)
• NFR18: The system should work, in reduced conditions,
even if the user mobile device is switched off or
disconnected
• NFR3: The web interfaces will be compatible with
browsers … version ….
• NFR4: The web interfaces will be “responsive”, and will
adapt to screen resolutions from 800x600 to 1920x1080
2015/2016 Ambient intelligence 47
49. Good Requirements
• Correct
– Every requirement stated is one that the software shall
meet
– Customer or users can determine if the requirement
correctly reflects their actual needs
• Traceability makes this easier
2015/2016 Ambient intelligence 49
50. Good Requirements
• Unambiguous
– Every requirement has only one interpretation
– Each characteristic of the final product must be described
using a single unique term
– Both to those who create it and to those who use it.
2015/2016 Ambient intelligence 50
51. Good Requirements
• Complete
– Include all significant requirements
• Address external requirements imposed by system specification
– Define response to all realizable inputs
• Both correct or incorrect
– Define all terms and unit of measure
2015/2016 Ambient intelligence 51
52. Good Requirements
• Internally Consistent
– No subset of requirements is in conflict
• Characteristics of real-world objects (e.g. GUI)
• Logical or temporal
• Different terms for the same object
2015/2016 Ambient intelligence 52
53. Completeness and consistency
• In principle, requirements should be both complete
and consistent.
– Complete
• They should include descriptions of all facilities required.
– Consistent
• There should be no conflicts or contradictions in the descriptions of
the system facilities.
– In practice, it is impossible to produce a document that is
both complete and consistent
2015/2016 Ambient intelligence 53
54. Good Requirements
• Ranked
– Stability in the future
– Necessity
• Essential
• Conditional
• Optional
2015/2016 Ambient intelligence 54
55. Good Requirements
• Verifiable
– there exists some finite cost-effective process with which a
person or machine can check that the software product
meets the requirement.
• Ambiguous requirements are not verifiable
2015/2016 Ambient intelligence 55
56. Good Requirements
• Modifiable
– structure and style such that any changes can be made
easily, completely, and consistently while retaining the
structure and style
• Well structured
• Non redundant
• Separate requirements
2015/2016 Ambient intelligence 56
57. Good Requirements
• Traceable
– Backward
• explicitly referencing source in earlier documents
– Forward
• unique name or reference number
2015/2016 Ambient intelligence 57
58. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
2015/2016 Ambient intelligence 58
59. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
• What is the overall scope and goal?
• Stakeholders (who cares?)
• What is in scope, what is out of scope
2015/2016 Ambient intelligence 59
60. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
2015/2016 Ambient intelligence 60
61. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
• The primary actors and their general goals
• The business use cases (operations concepts)
• The system use cases
• Collects most functional requirements
2015/2016 Ambient intelligence 61
62. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues• What technology requirements are there for this system?
• What systems will this system interface with, with what requirements?
2015/2016 Ambient intelligence 62
63. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
• Development process
• Business rules
• Performance
• Operations, security, documentation
• Use and usability
• Maintenance and portability
• Unresolved or deferred
2015/2016 Ambient intelligence 63
64. Requirements Document
1. Purpose and scope
2. The terms used / Glossary
3. The use cases
4. The technology to be used
5. Other various requirements
6. Human backup, legal, political, organizational issues
• What is the human backup to system operation?
• What legal, what political requirements are there?
• What are the human consequences of completing this system?
• What are the training requirements?
• What assumptions, dependencies are there on the human environment?
2015/2016 Ambient intelligence 64
65. Deliverable 2
• Before 22/04
• Functional Requirements
• Non Functional
Requirements
• We’ll provide a template
and an example
• Upload on the website
– Integrate, no separate
download
• You’ll receive feedback on
02/05
2015/2016 Ambient intelligence 65
66. STEP 4: ARCHITECTURE DEFINITION
AmI Design Process
2015/2016 Ambient intelligence 66
67. Defining the Architecture
• System Architecture
• Hardware Architecture
• Software Architecture
• Network Architecture
2015/2016 Ambient intelligence 67
68. System Architecture
• What are the main
system components, what
is their nature, and what
kind of information they
exchange with the
environment, the user,
and other components?
• Computational nodes
(One? Many?)
• Sensors/actuators (which
physical interactions?
Where installed? How
interconnected?)
• User interfaces (Where?
What functions?)
• Which functions are
deployed on which
nodes?
2015/2016 Ambient intelligence 68
70. Software Architecture
• Major software architectural modules
– what functions (mapped to a subset of functional
requirements)
– where are running (deployment)
– how they interact (APIs)
• May be existing components, or new SW to be
developed
• Adopted libraries and frameworks
2015/2016 Ambient intelligence 70
71. Example System Architecture
2015/2016 Ambient intelligence 71
Phone
Ambient
Sensors
Google
Calendar
Central
server: data
and
intelligence
Web
interface
Music
72. Example Hardware Architecture
• Ambient sensors
– Movement sensors in the room
– Weight/movement sensors under the bed
– Local gateway (raspberry?) for integrating sensor data
• Mobile Phone (any, Android 4+)
• Server (data storage, interaction with cloud services,
web interface generation, intelligence)
– Anywhere in the web, always-on system.
– Raspberry-PI? PC? Virtual cloud server?
• Music server (raspberry PI + audio amplifier)
2015/2016 Ambient intelligence 72
73. Example Software Architecture
• Data sensor collection software (on local gateway)
– Sends data to central server
– Some local processing for detecting situations ???
• Music server software (on local gw)
– Accept commands from central server
• App (on mobile phone)
– Settings
– Ringing
– Relaying user info (GPS, accelerometer) to central server
• Web application (on central server)
– User settings
– Analytics and statistics
• Data storage (on central server)
– Store sensor data and calendar data
• Intelligent core (on central server)
– Receive inputs, analyze data, decide what action to perform, send commands to
devices
2015/2016 Ambient intelligence 73
74. Example Network Architecture
• Local Gateway on home LAN, connected to Internet
via ADSL NAT
– Port forwarding, open tunnel or VPN for being reached BY
the central server
• Wireless sensors (e.g., Z-Wave), connected to local
gateway (acting as a mesh controller)
• Phone connected to local wi-fi or to 3G network (all
functions supported in both cases?). Connects to
central server, only
• Central server: world-accessible public IP address
2015/2016 Ambient intelligence 74
75. STEP 5: COMPONENT SELECTION
AmI Design Process
2015/2016 Ambient intelligence 75
76. Selecting components
• Identifying actual
products to populate the
chosen architecture
description
• Evaluating cost-
integration-functionality-
design tradeoffs
• Identifying needs for DIY
HW and for SW
development
• Usually iterates over the
definition of the
architecture
2015/2016 Ambient intelligence 76
77. Selecting HW components
Off-the-shelf
• Which existing OTS
components may fit the
requirements and the
design constraints (also
considering budget)
• Aim at selecting, as much as
possible, components that
share the same
communication protocol
• Includes Computational
nodes
Custom
• Which components must be
built with DIY techniques
• What kind of hardware
(electronics, I/O, …) is
needed
• What kind of computational
node is required to support
the hardware
2015/2016 Ambient intelligence 77
79. Deliverable 3
• Before 12/05
• System Architecture
• SW Components
• HW Components (OTS
& ad hoc)
• Upload on the website
– Integrate, no separate
download
• You’ll receive feedback
on 16/05
2015/2016 Ambient intelligence 79
80. STEP 6: DESIGN &
IMPLEMENTATION
AmI Design Process
2015/2016 Ambient intelligence 80
81. Implementation
• Realize the HW and SW
components defined in
the previous steps
– Implement DIY Hardware
– Install and/or configure
OTS Hardware
– Develop Software
– Integrate the SW
architecture
• Parallel activities for
different disciplines
2015/2016 Ambient intelligence 81
83. Final project review
• During class of 19/05
• Show state of
advancement
• Ask final questions
• Get feedback and
directions
• Present to external
advisors
2015/2016 Ambient intelligence 83
84. STEP 7: TEST AND VALIDATION
AmI Design Process
2015/2016 Ambient intelligence 84
85. Testing the system
• Deploy the prototype of
the system (carefully)
• Verify whether
requirements are
satisfied.
• Verify whether users and
stakeholders are satisfied.
• Test should be executed
by means of small
iterative improvements
2015/2016 Ambient intelligence 85
86. What are we testing?
(aka Verification and Validation)
• Verification is intended to
check that a product,
service, or system meets
a set of design
specifications.
• Test with respect to the
Requirements document
• «Am I building the system
right?»
• Validation is intended to
ensure a product, service,
or system result in a
product, service, or
system that meets the
operational needs of the
user
• Test with respect to Users
and Stakeholders inputs
• «Am I building the right
system?»
2015/2016 Ambient intelligence 86
87. Loops and iterations
• Every design steps should
be re-considered, if the
need arises
• “Agile” methodologies
encourage iterative
discovery of system
design
• Suggestion: loop over
small improvements.
• Aim at a minimal working
system, then add features
2015/2016 Ambient intelligence 87
89. Principles and constraints
• Propose a simplified process for the Work Groups to
be developed in the course
• No time for ‘proper’ user testing
• Need to concentrate resources on development and
testing
• Component selection constrained by available
devices
2015/2016 Ambient intelligence 89
90. Simplified process
2015/2016 Ambient intelligence 90
2. Analysis
22/04
3. System
Design
12/05
0. Title &
Goal 18/03
1. Vision
02/04
4. Imple-
mentation
(Exam)
91. Simplified process (in this course)
• 0. Title and Goal
• 1. Vision and Website
– Deliverable 1: System vision and summary description
• 2. Analysis phase
– Deliverable 2: Functional Requirements, Non Functional
Requirements
• 3. System Design
– Deliverable 3: System Architecture and Components
• 4. Design & Implementation
– Deliverable: source code (constant updates to GitHub repository)
• 5. Exam
– Deliverable: video, presentation and demo
2015/2016 Ambient intelligence 91
92. Practical issues
• All deliverable should be submitted through GitHub
– GitHub project(s) for source code
– Public project website for deliverable contents
• We provide “templates” for the required contents of
the deliverables
• Deliverables will be checked, and we will provide
feedback.
– If you have questions or doubts, you are responsible for
asking
• Intermediate deliverables will be evaluated during
the exam.
2015/2016 Ambient intelligence 92
