Amazon Elastic Beanstalk is a PaaS offering from Amazon that allows users to deploy and manage applications in the cloud. It automatically handles tasks like capacity provisioning, load balancing, scaling and application health monitoring. The document discusses the history and services behind Elastic Beanstalk like EC2 and S3. It also provides an overview of how Elastic Beanstalk works, the programming models supported, tools available and a demo of deploying a sample news application using Elastic Beanstalk.

1. Amazon Elastic Beanstalk
Eberhard Wolff
Freelance Consultant/ Trainer
Head Technology Advisory Board
adesso AG

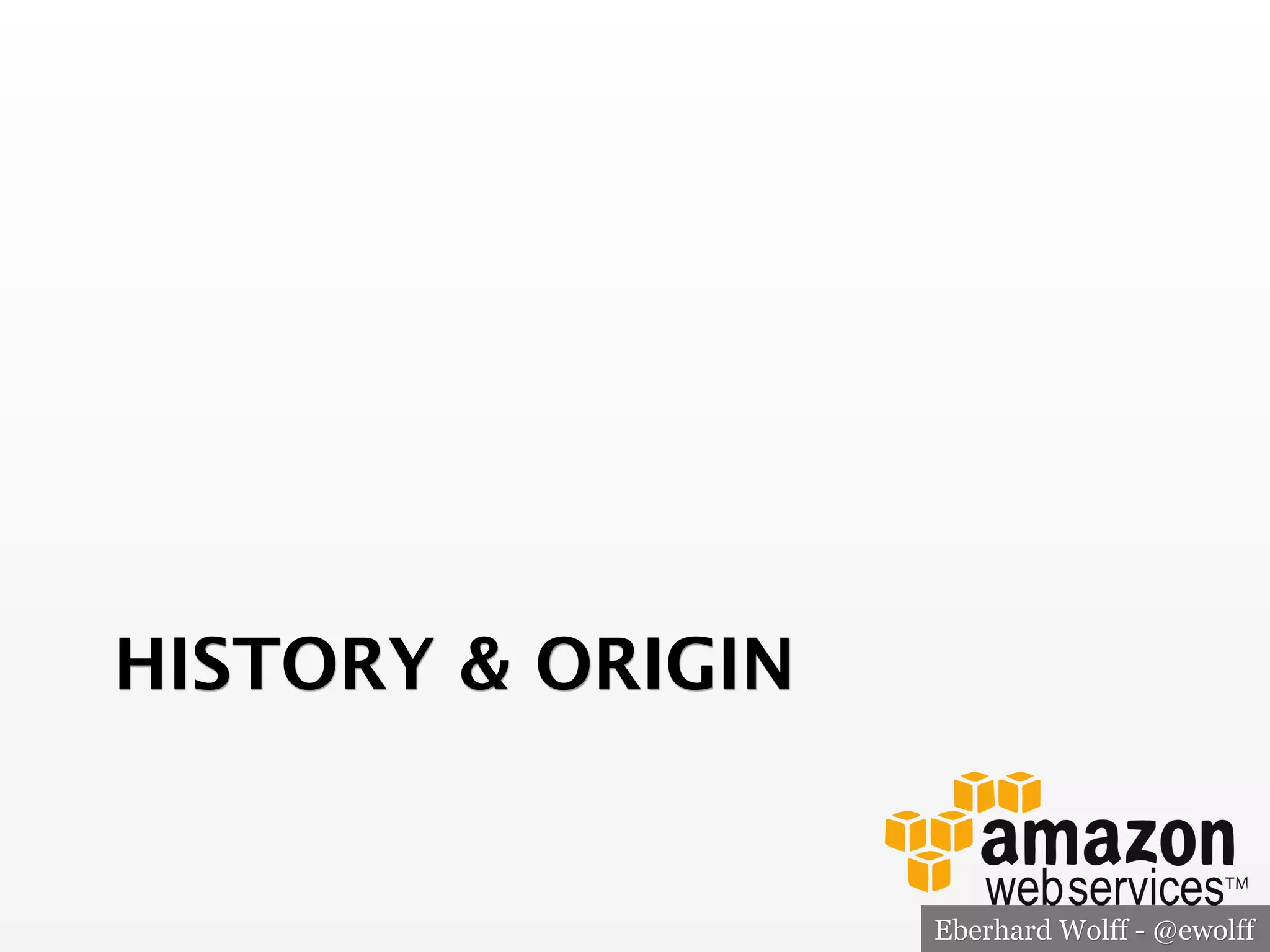

2. HISTORY & ORIGIN
Eberhard Wolff - @ewolff

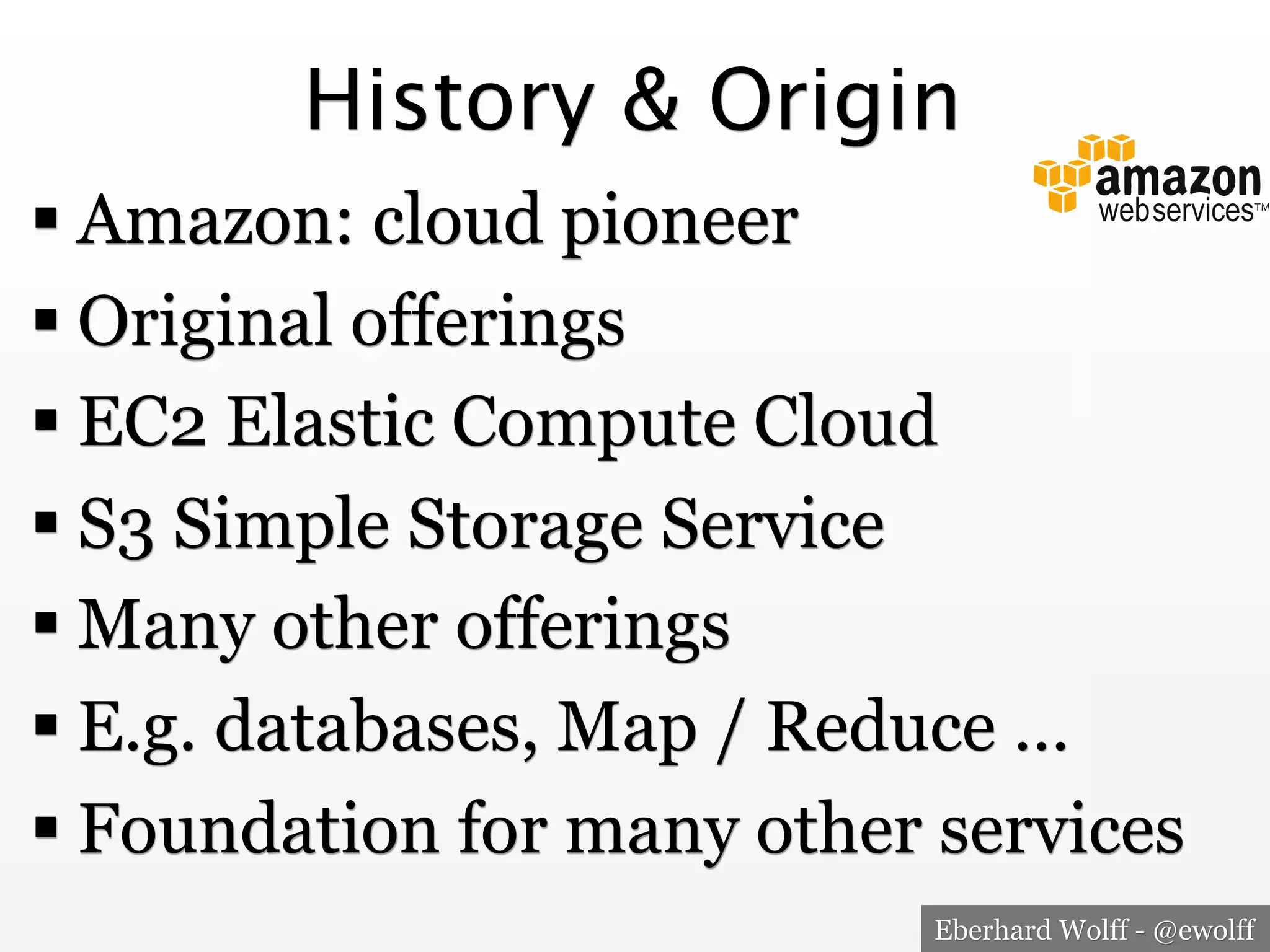

3. History & Origin
! Amazon: cloud pioneer
! Original offerings
! EC2 Elastic Compute Cloud
! S3 Simple Storage Service
! Many other offerings
! E.g. databases, Map / Reduce …
! Foundation for many other services
Eberhard Wolff - @ewolff

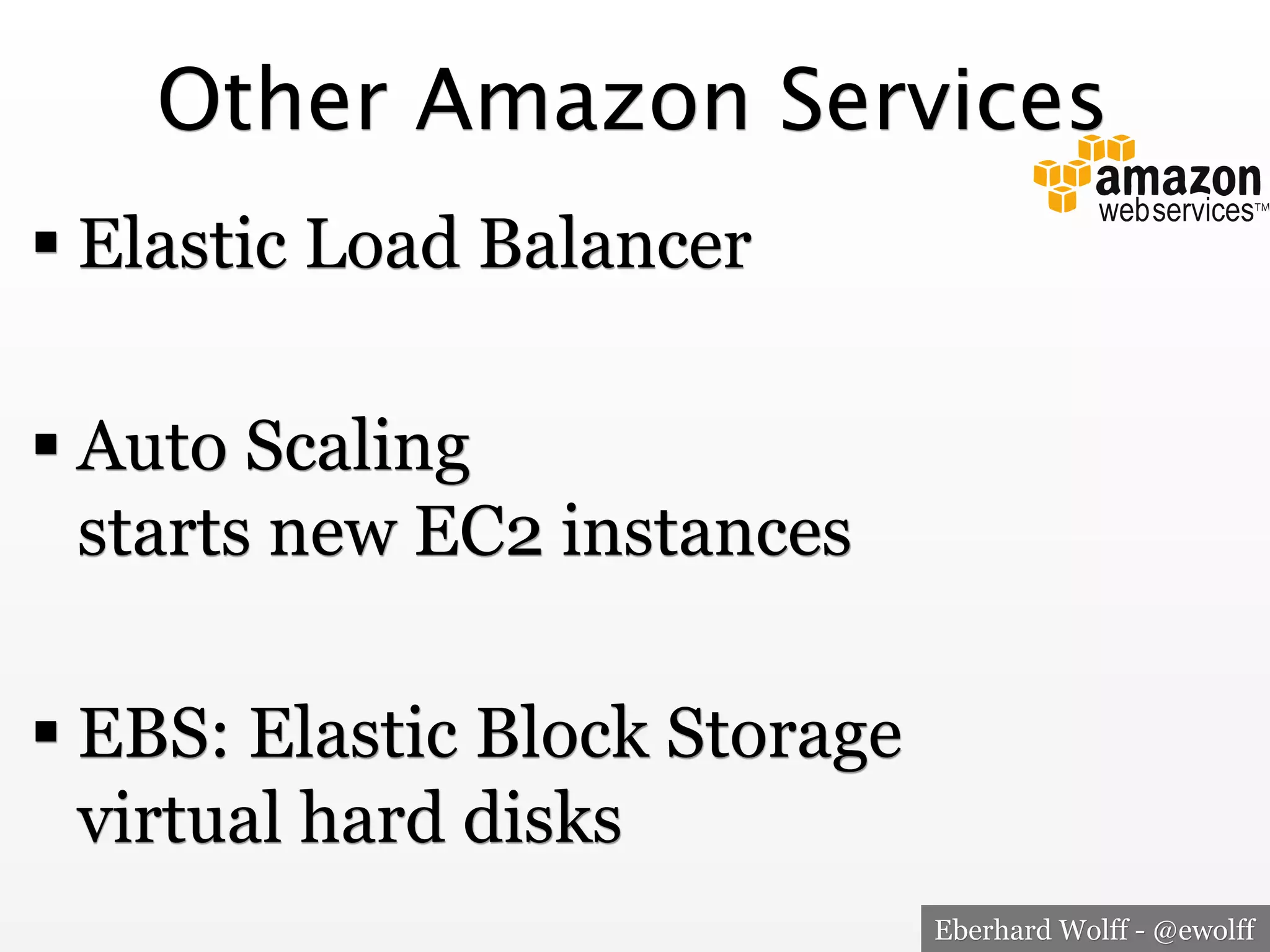

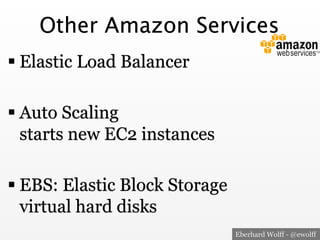

4. Other Amazon Services
! Elastic Load Balancer
! Auto Scaling
starts new EC2 instances
! EBS: Elastic Block Storage
virtual hard disks
Eberhard Wolff - @ewolff

5. Elastic Beanstalk in a
Nutshell
Eberhard Wolff - @ewolff

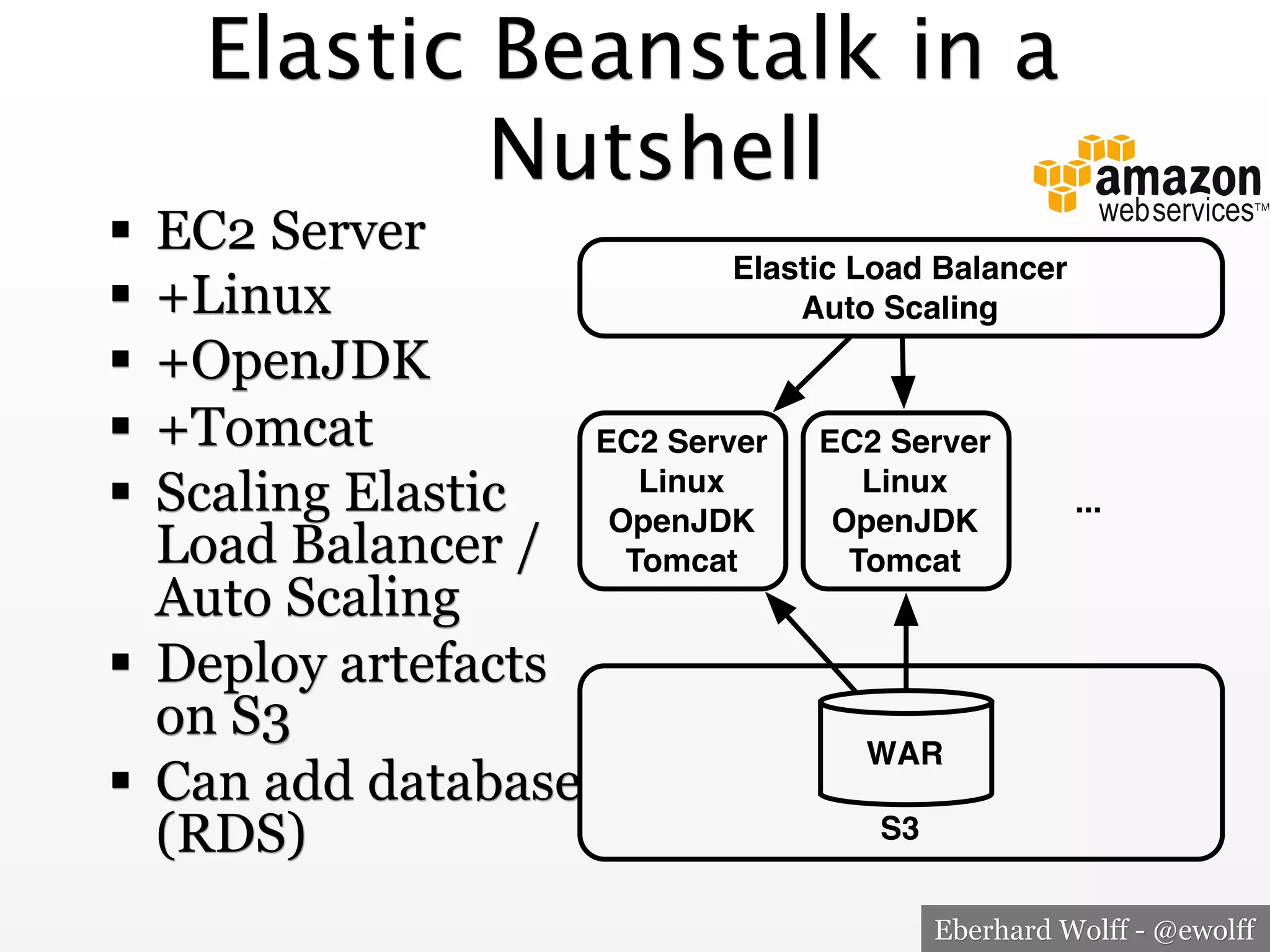

6. Elastic Beanstalk in a
Nutshell
! EC2 Server
Elastic Load Balancer
! +Linux
Auto Scaling
! +OpenJDK
! +Tomcat
EC2 Server
EC2 Server
Linux
Linux
! Scaling Elastic
...
OpenJDK
OpenJDK
Load Balancer /
Tomcat
Tomcat
Auto Scaling
! Deploy artefacts
on S3
WAR
! Can add database
S3
(RDS)
Eberhard Wolff - @ewolff

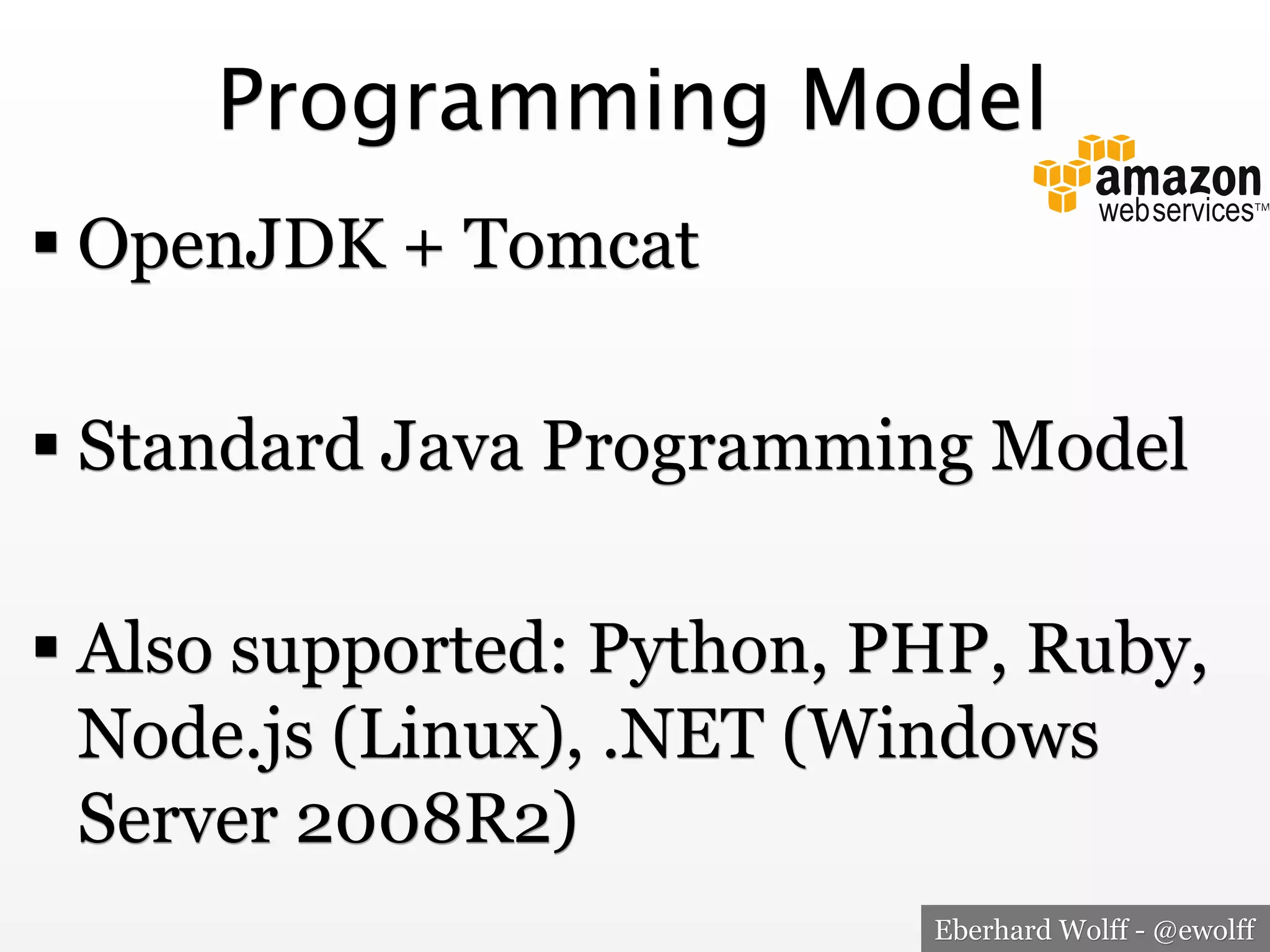

7. Programming Model
! OpenJDK + Tomcat
! Standard Java Programming Model
! Also supported: Python, PHP, Ruby,
Node.js (Linux), .NET (Windows
Server 2008R2)
Eberhard Wolff - @ewolff

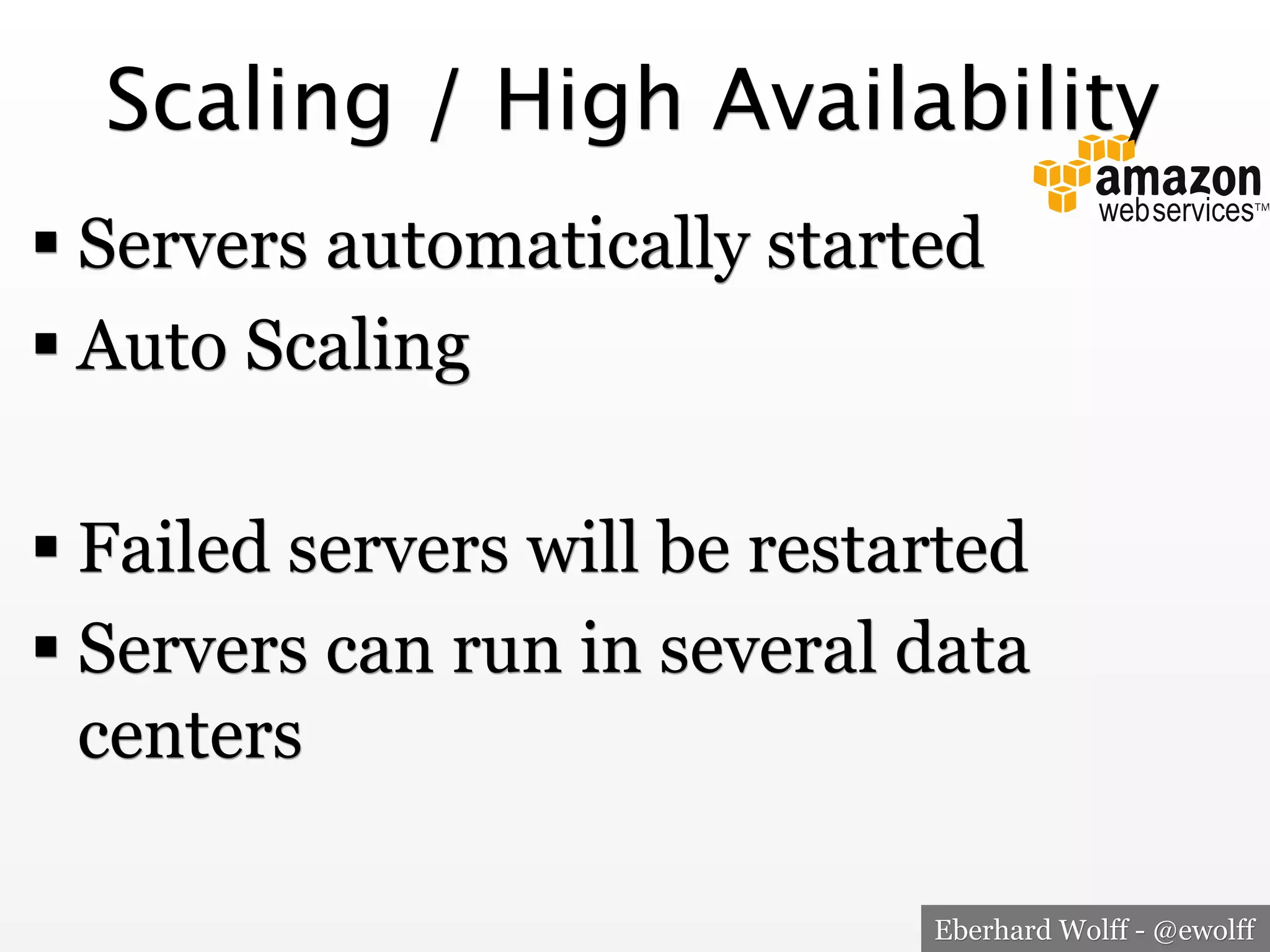

8. Scaling / High Availability
! Servers automatically started
! Auto Scaling
! Failed servers will be restarted
! Servers can run in several data
centers
Eberhard Wolff - @ewolff

9. TOOLS
Eberhard Wolff - @ewolff

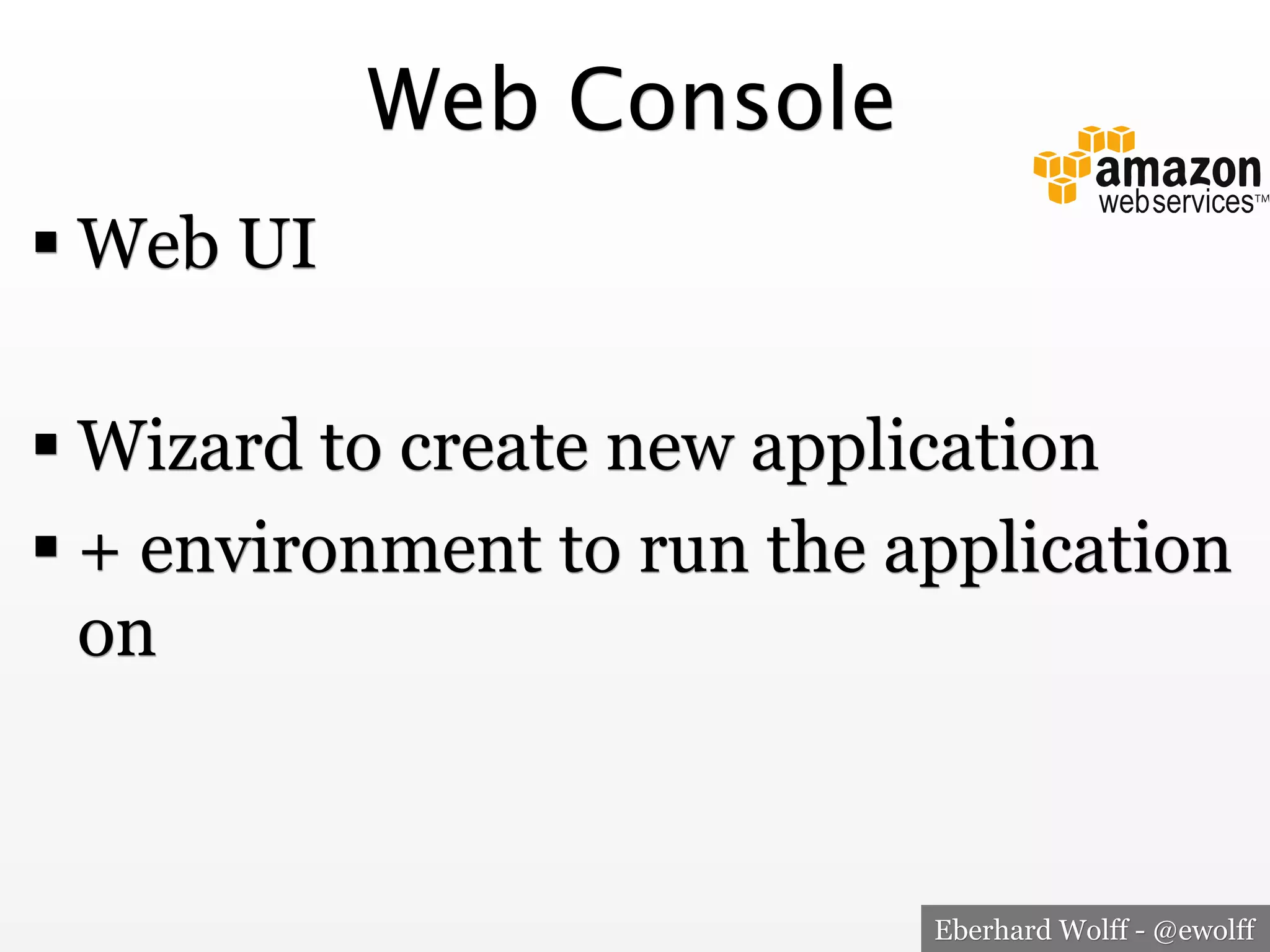

10. Web Console
! Web UI
! Wizard to create new application
! + environment to run the application
on
Eberhard Wolff - @ewolff

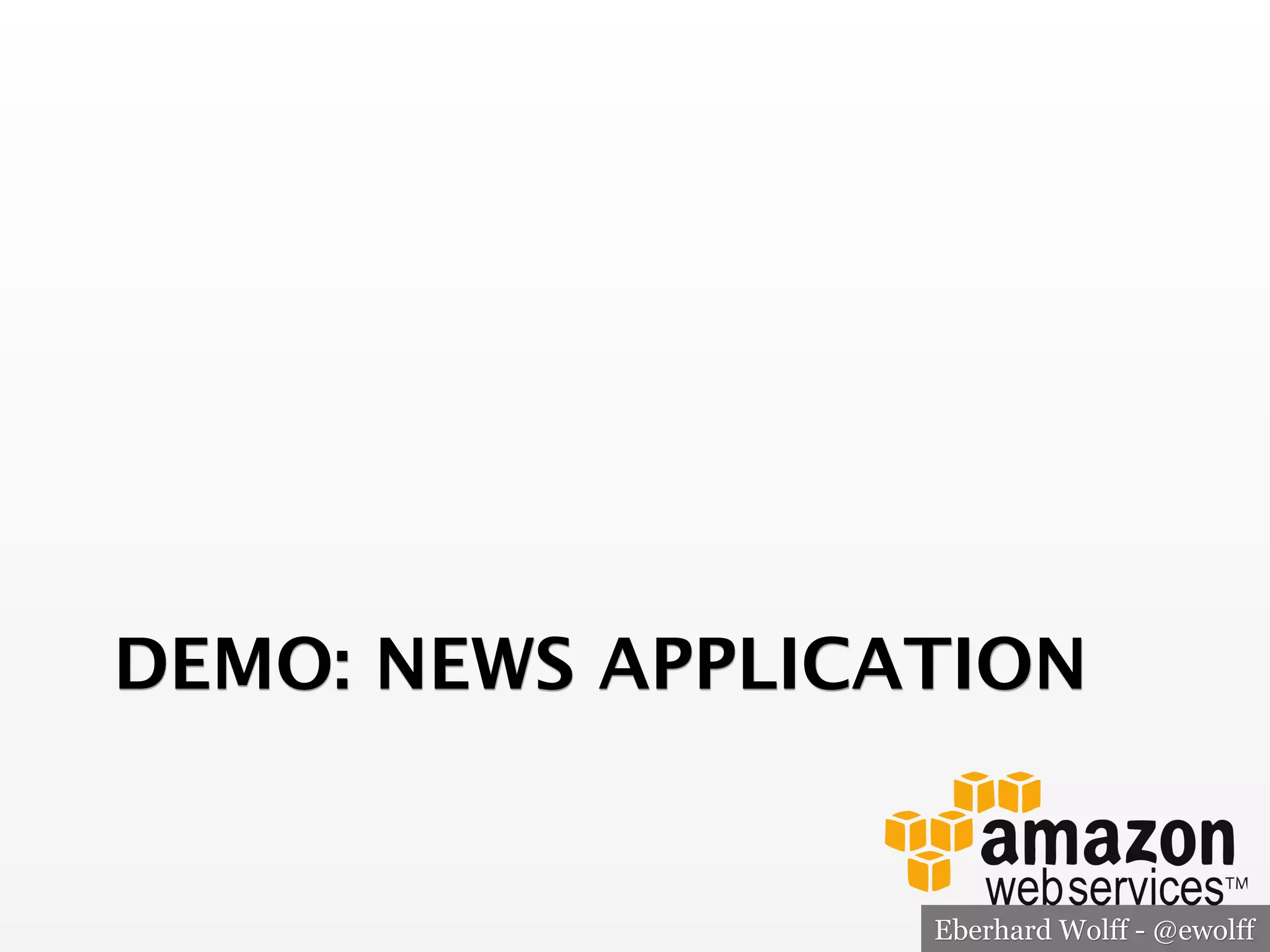

11. DEMO: NEWS APPLICATION
Eberhard Wolff - @ewolff

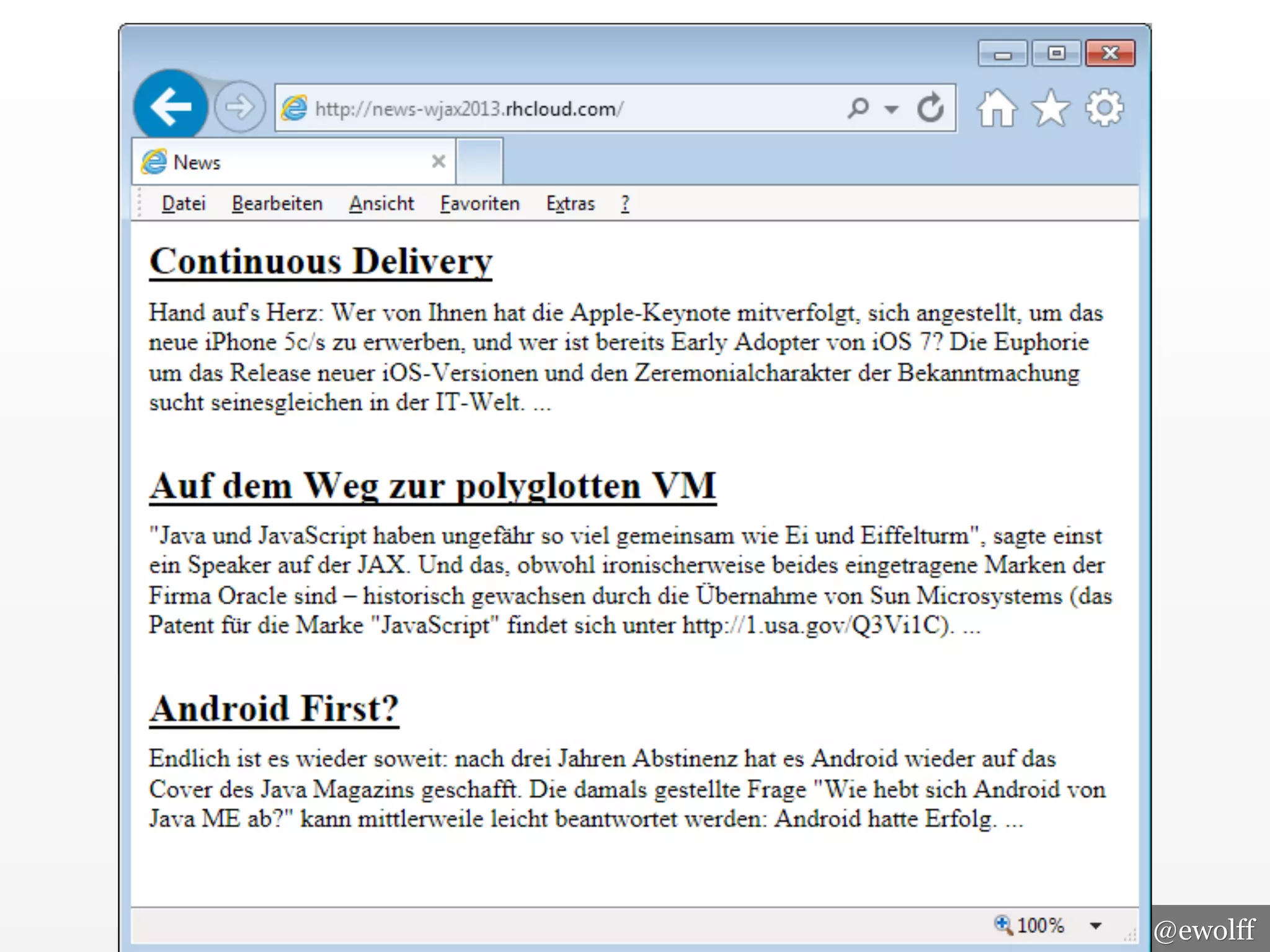

12. News Application
Eberhard Wolff - @ewolff

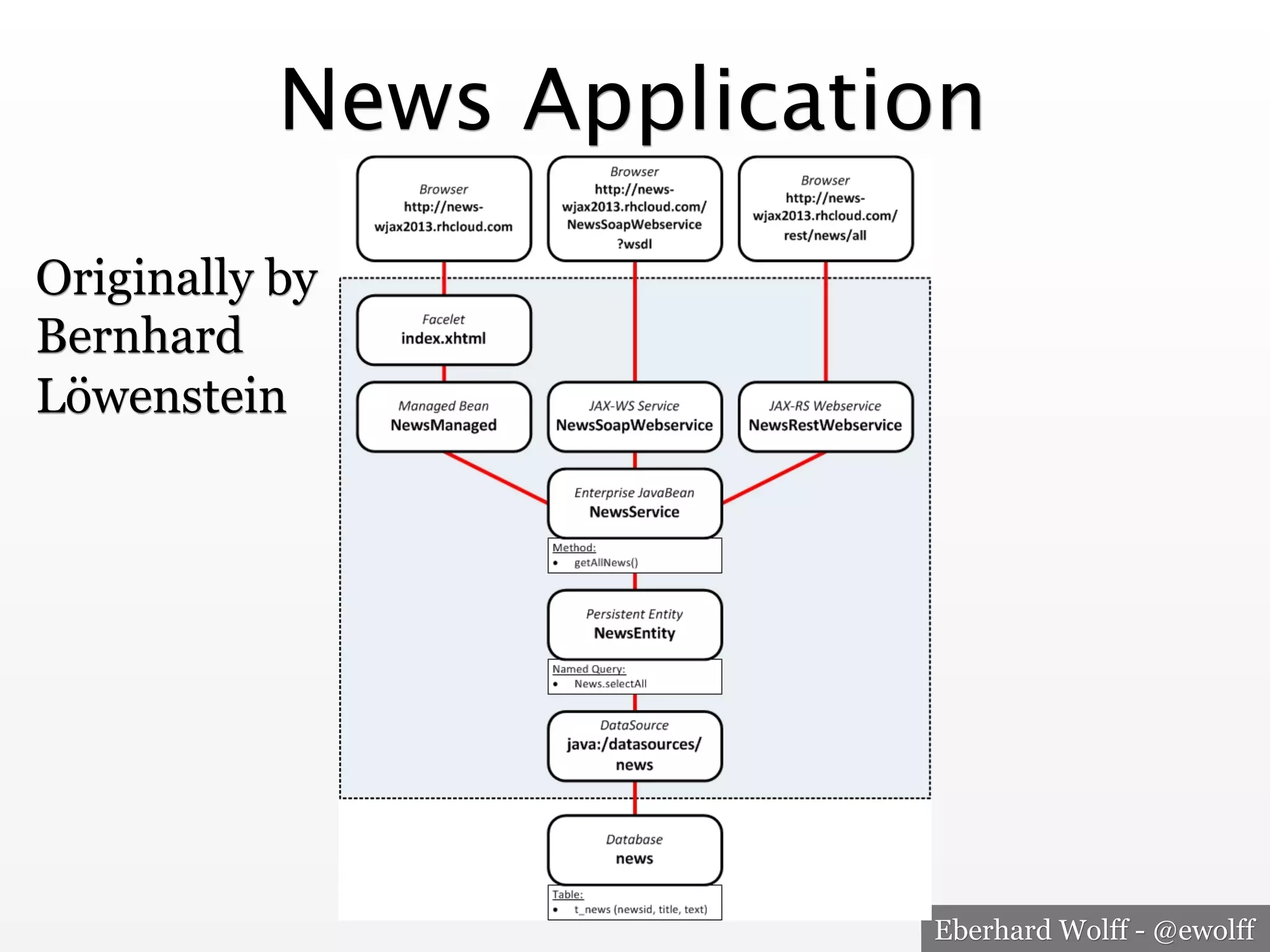

13. News Application
Originally by
Bernhard
Löwenstein
Eberhard Wolff - @ewolff

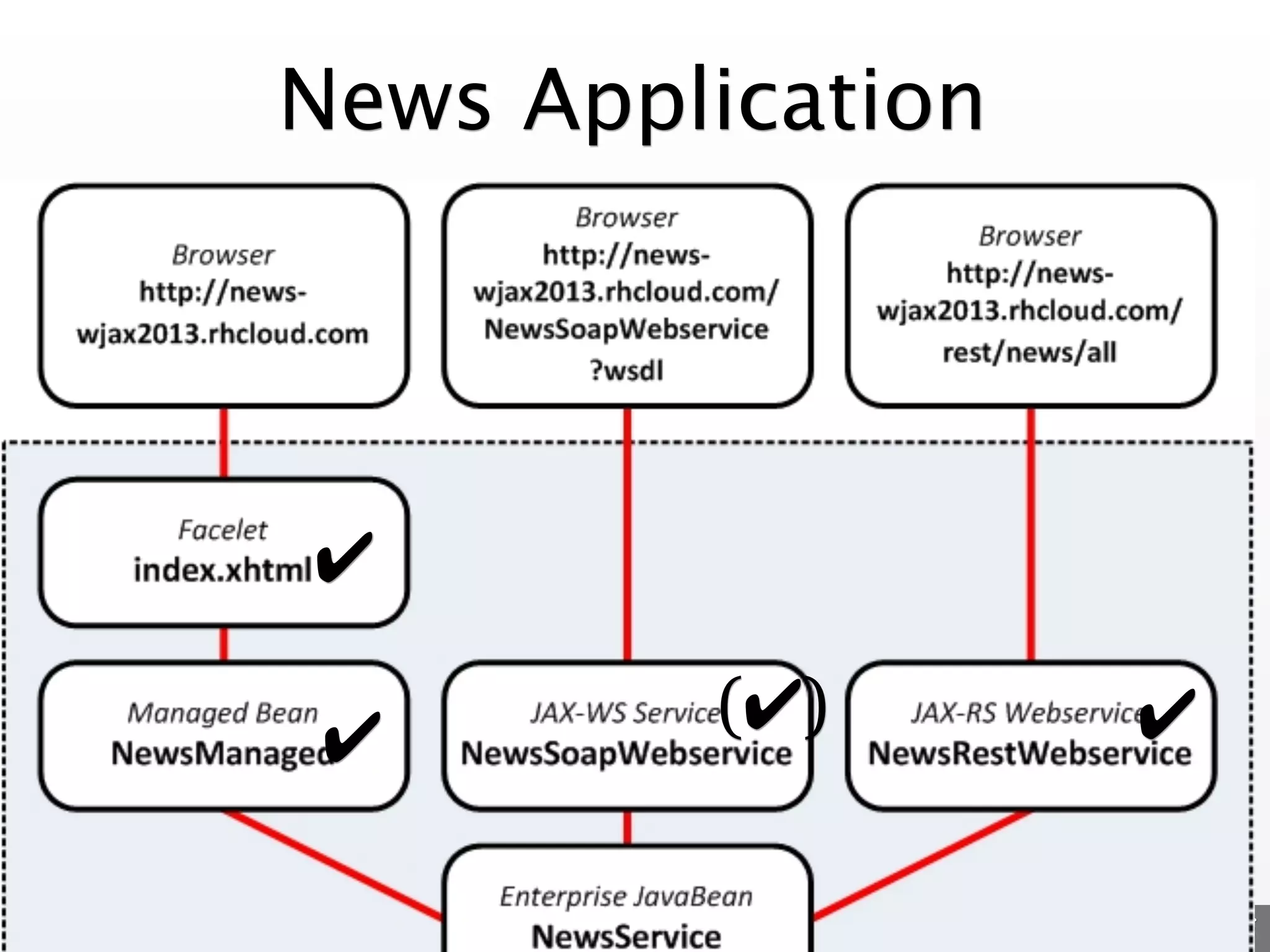

14. News Application
✔
✔
(✔)
✔
Eberhard Wolff - @ewolff

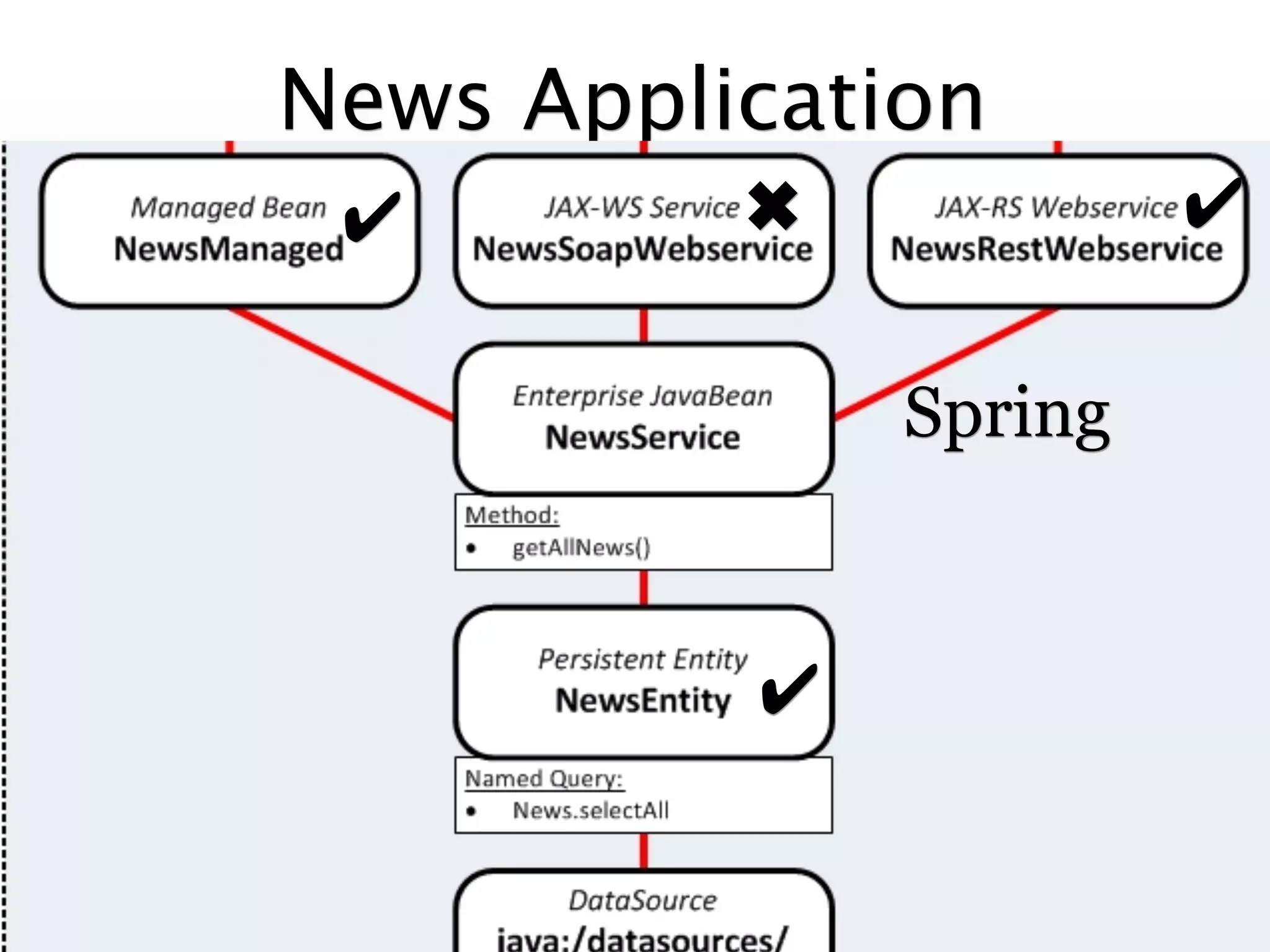

15. News Application
✔
✔
✖
Spring
✔
Eberhard Wolff - @ewolff

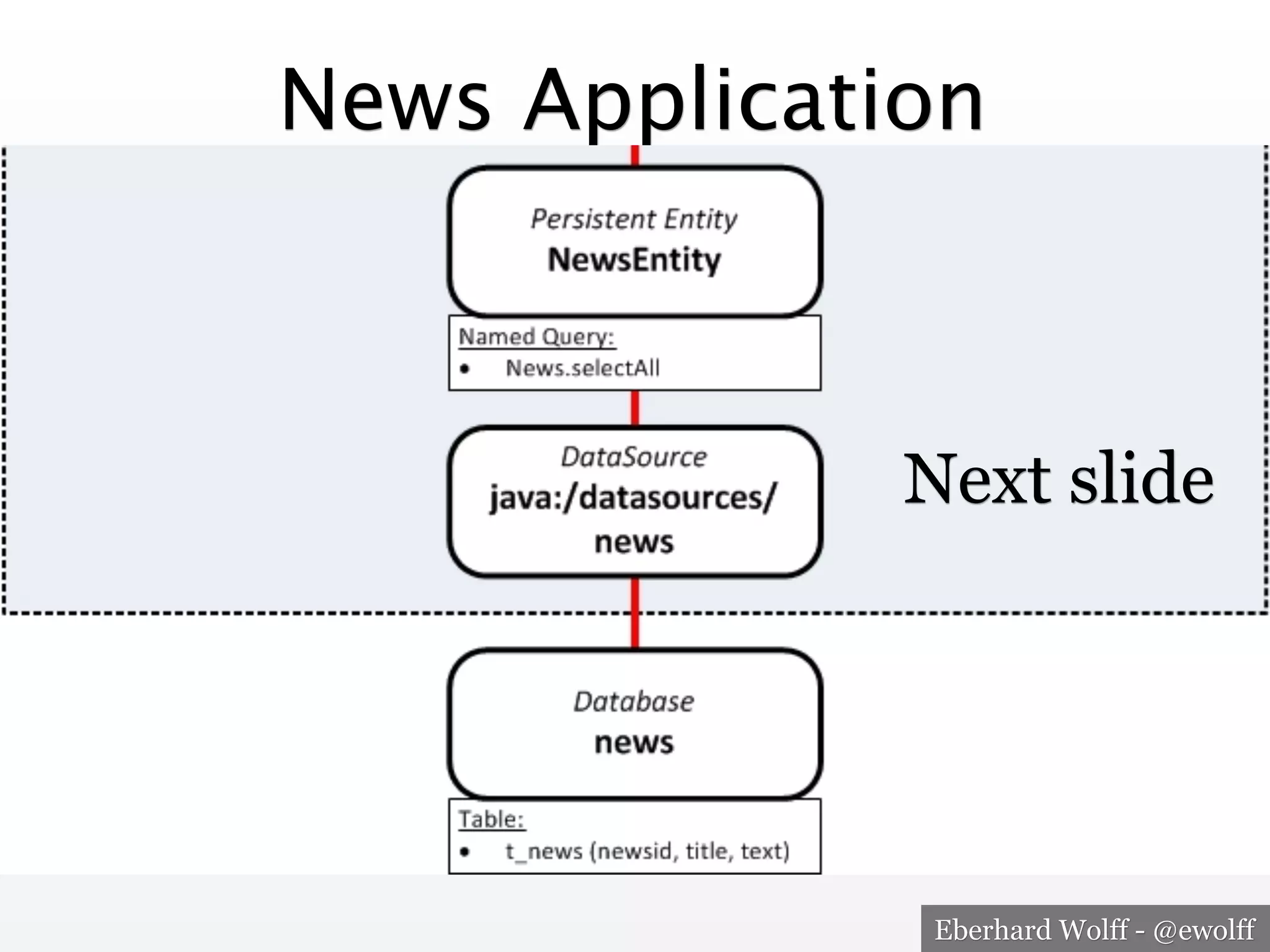

16. News Application
Next slide
Eberhard Wolff - @ewolff

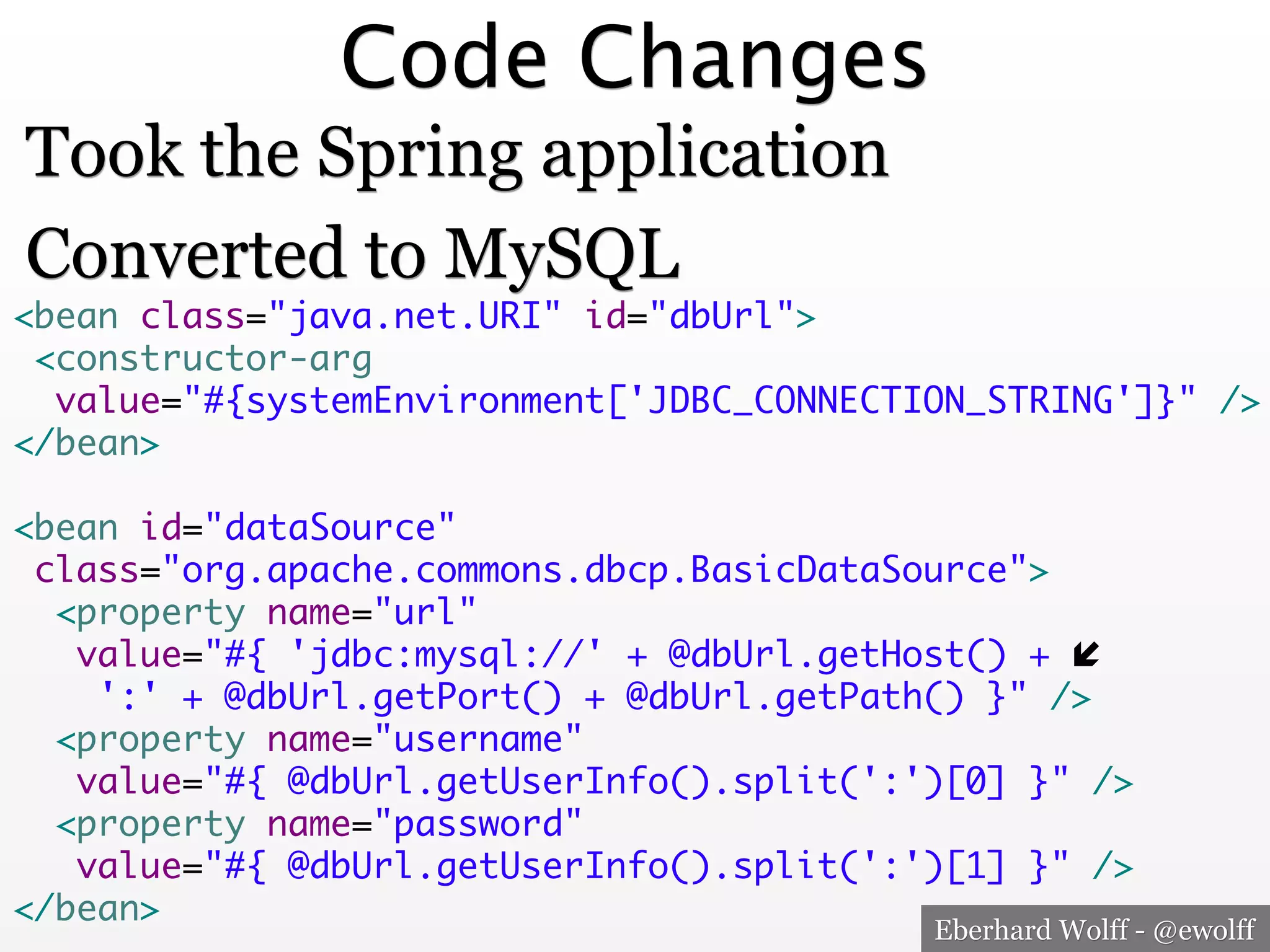

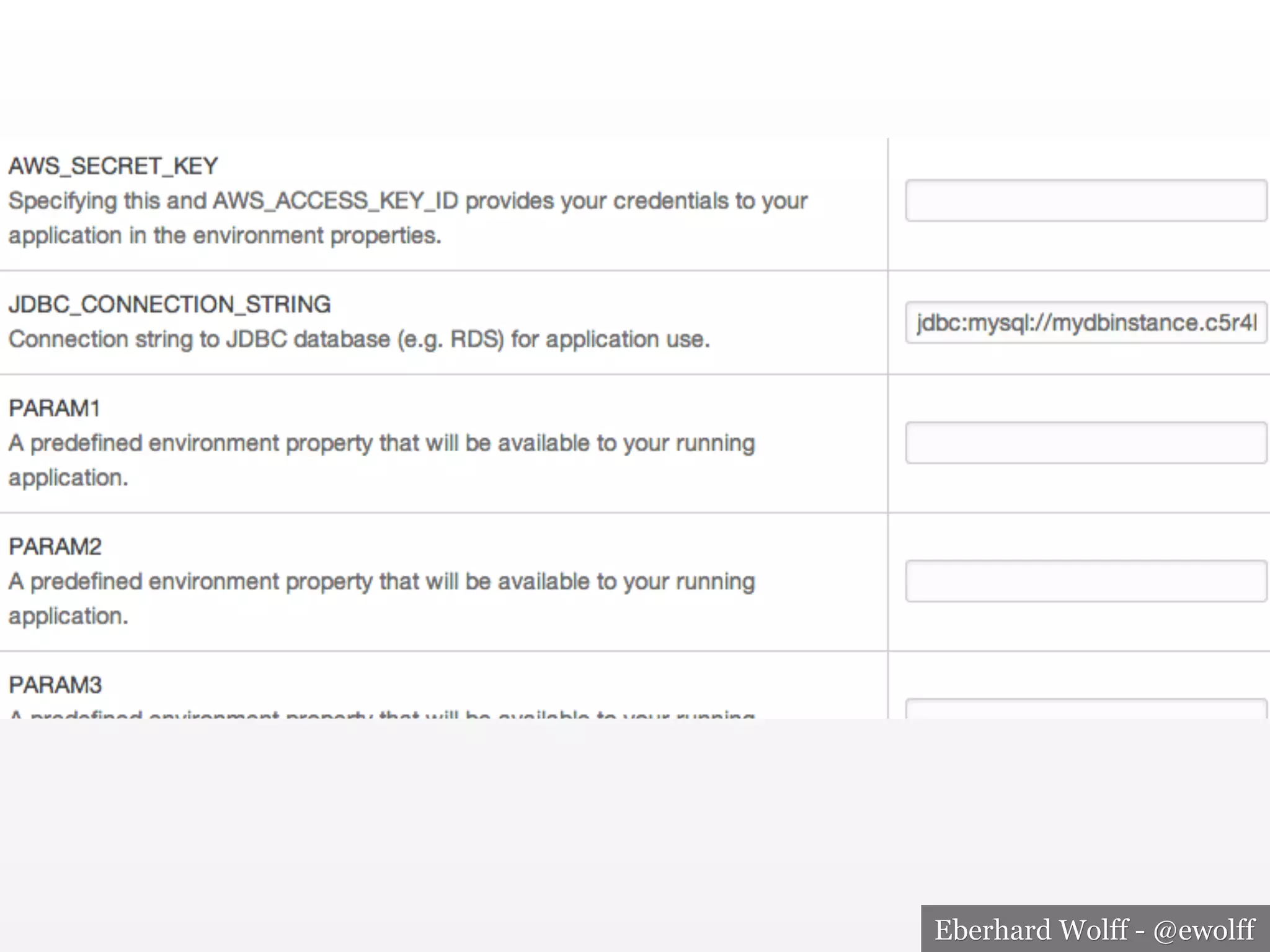

17. Code Changes
Took the Spring application
Converted to MySQL
<bean class="java.net.URI" id="dbUrl">
<constructor-arg
value="#{systemEnvironment['JDBC_CONNECTION_STRING']}" />
</bean>
<bean id="dataSource"
class="org.apache.commons.dbcp.BasicDataSource">
<property name="url"
value="#{ 'jdbc:mysql://' + @dbUrl.getHost() + "
':' + @dbUrl.getPort() + @dbUrl.getPath() }" />
<property name="username"
value="#{ @dbUrl.getUserInfo().split(':')[0] }" />
<property name="password"
value="#{ @dbUrl.getUserInfo().split(':')[1] }" />
</bean>
Eberhard Wolff - @ewolff

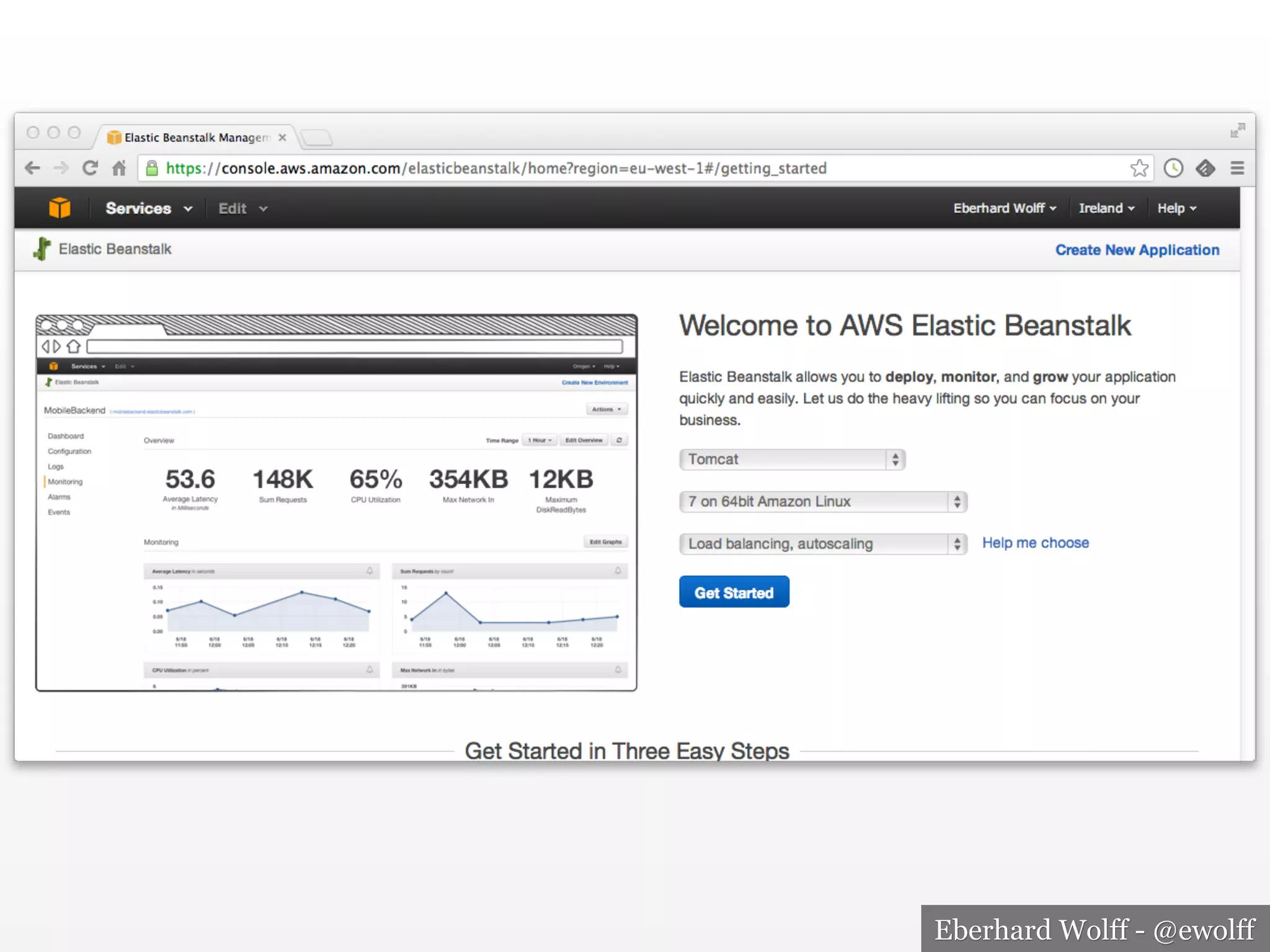

18. Eberhard Wolff - @ewolff

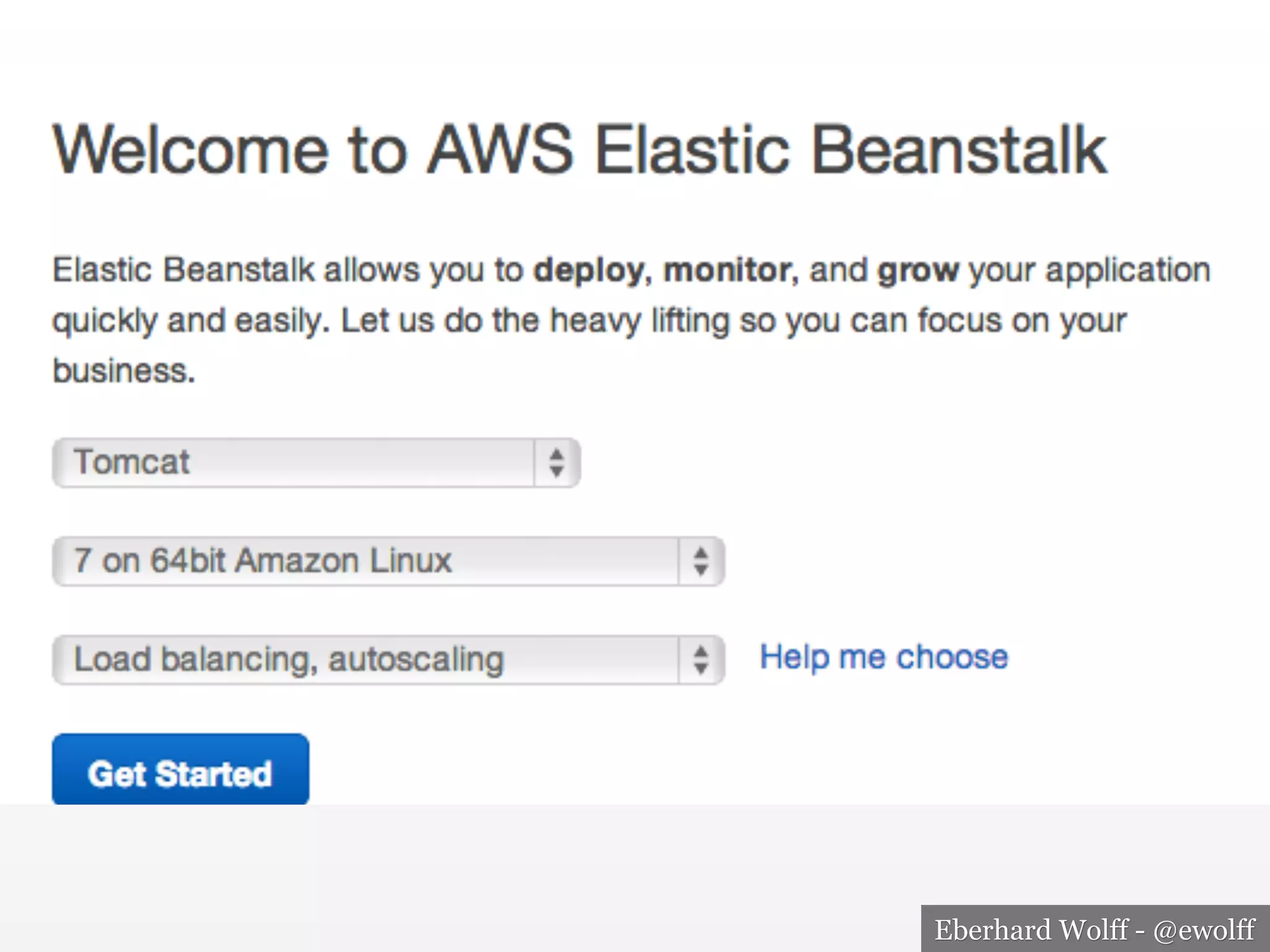

19. Eberhard Wolff - @ewolff

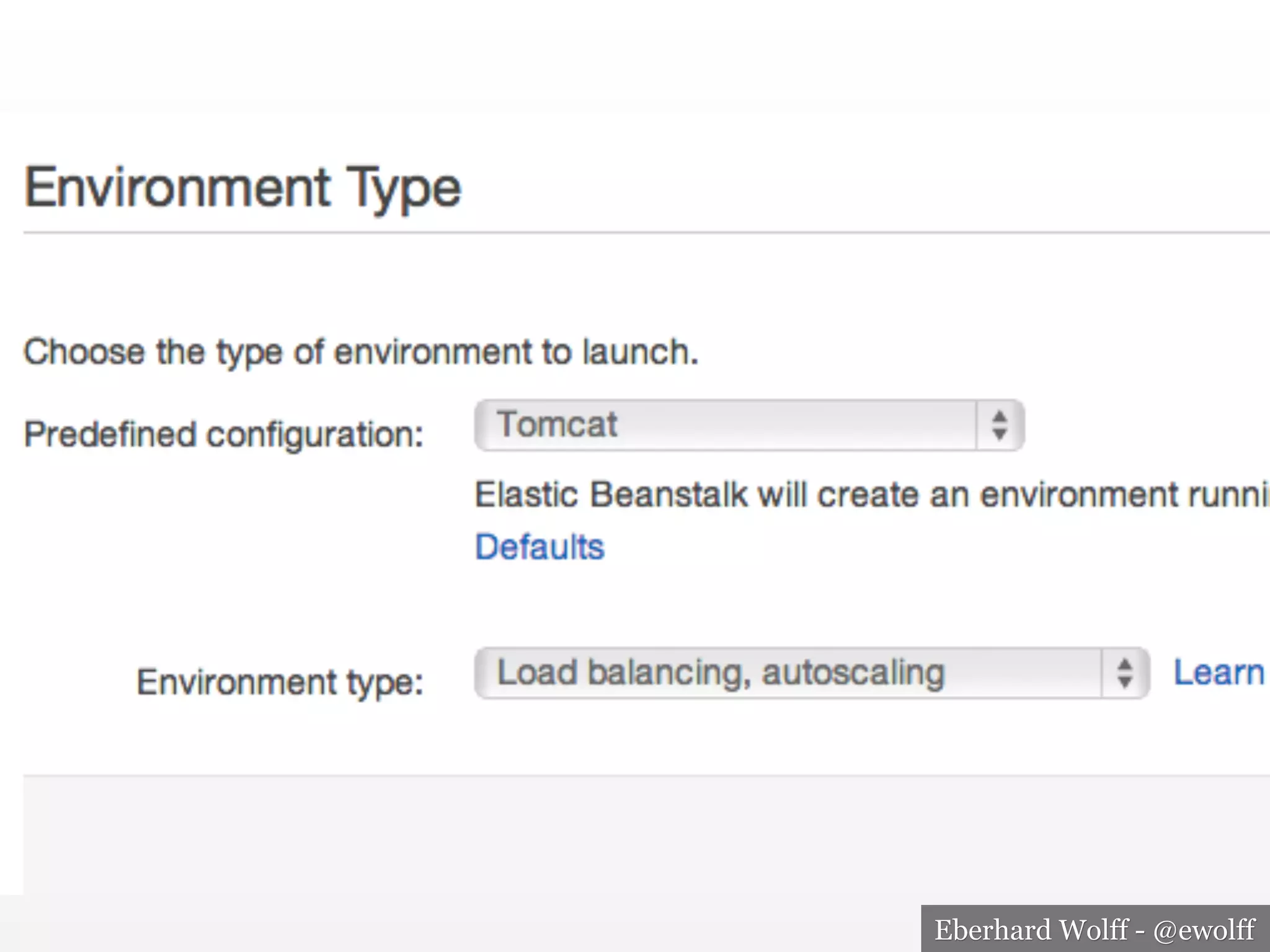

20. Eberhard Wolff - @ewolff

21. Eberhard Wolff - @ewolff

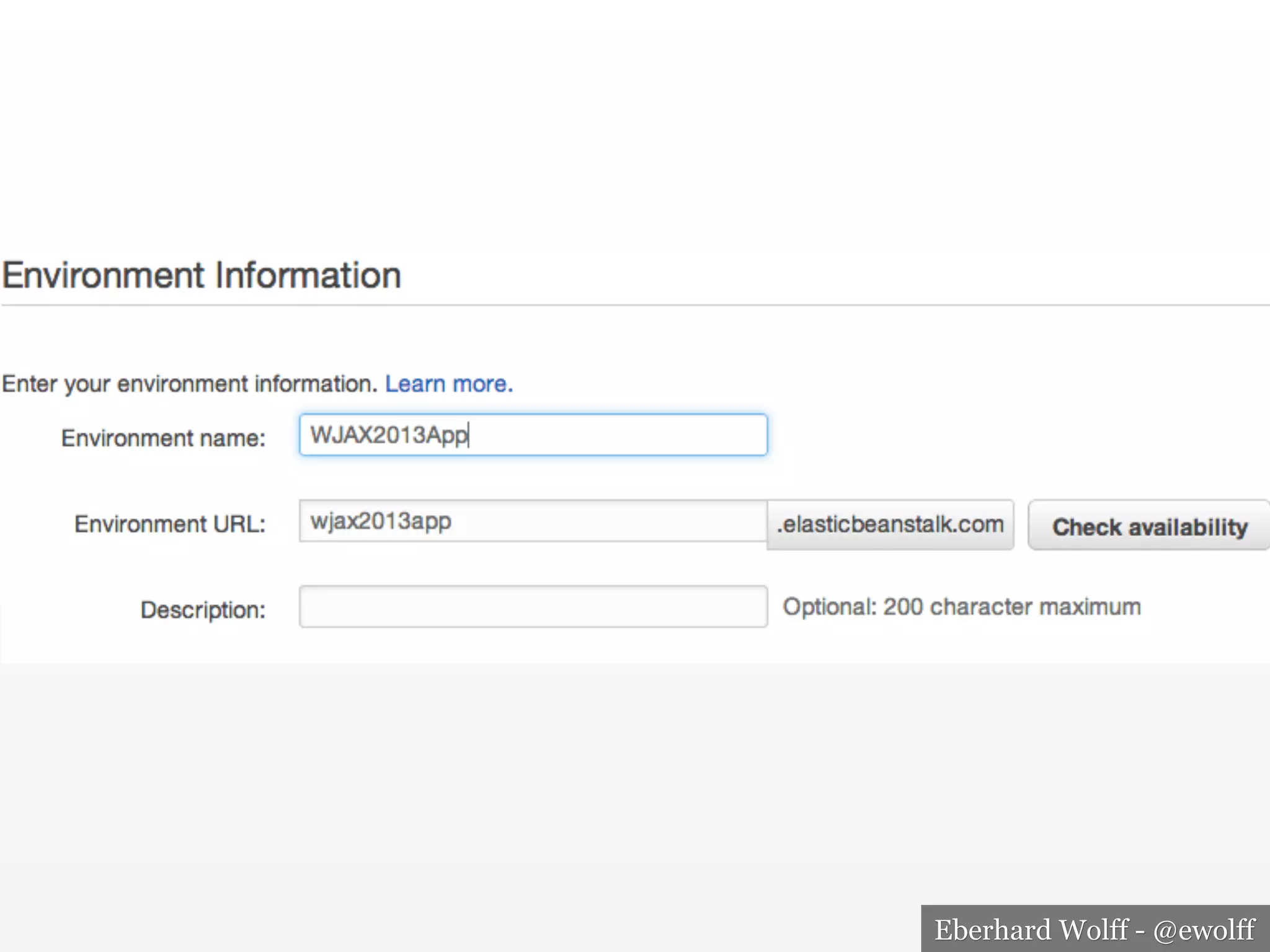

22. Eberhard Wolff - @ewolff

23. Eberhard Wolff - @ewolff

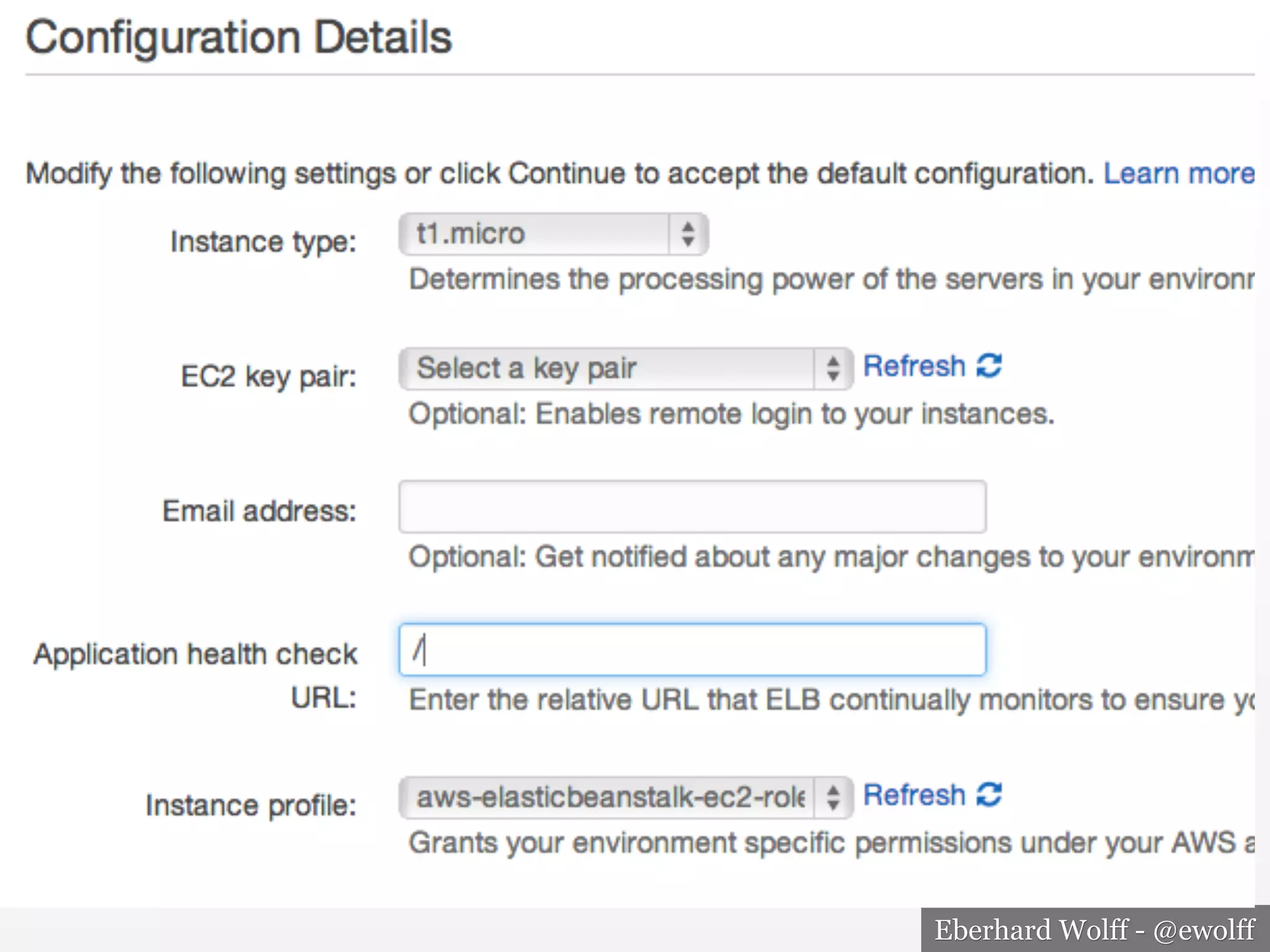

24. Eberhard Wolff - @ewolff

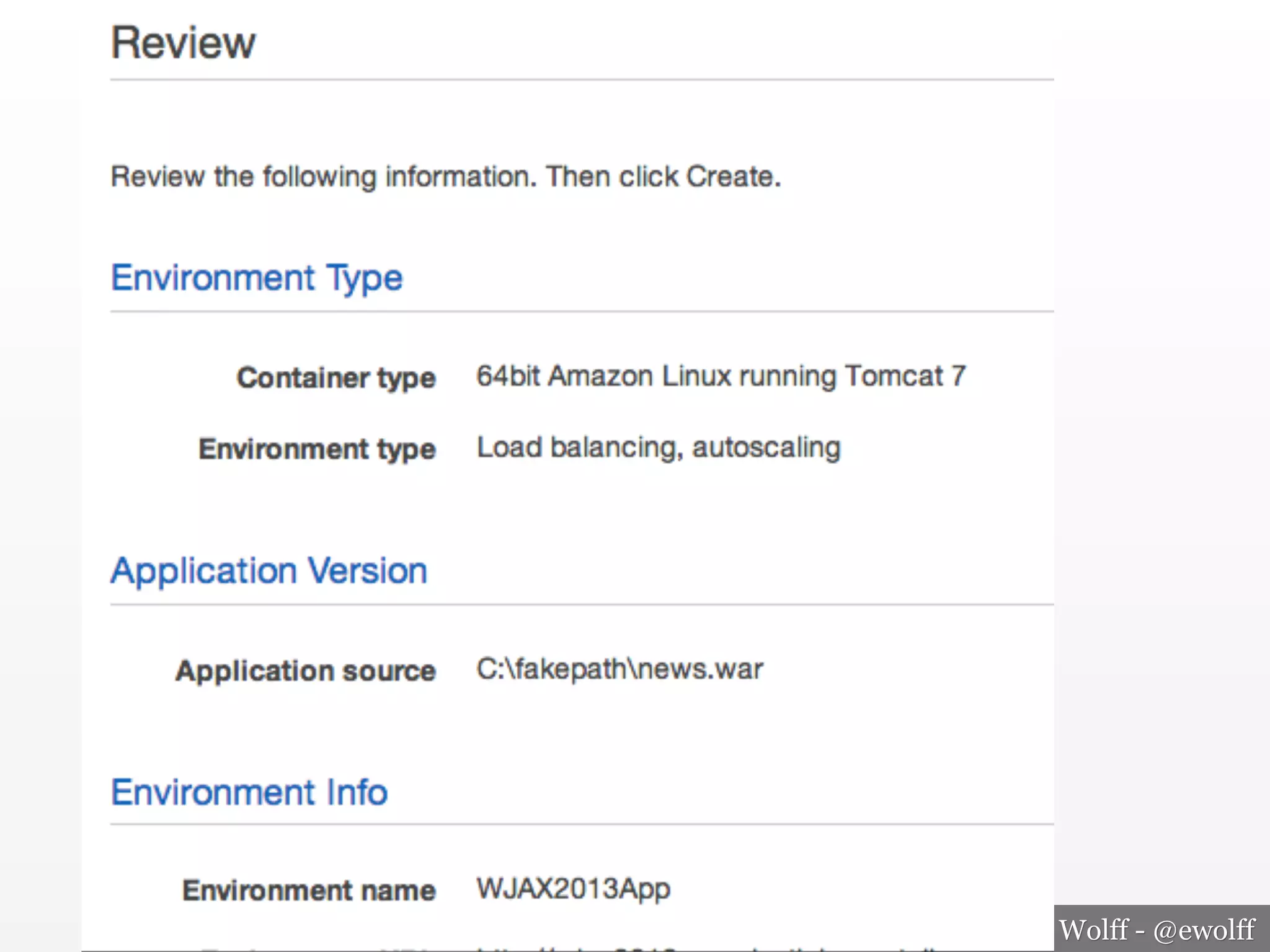

25. Eberhard Wolff - @ewolff

26. Eberhard Wolff - @ewolff

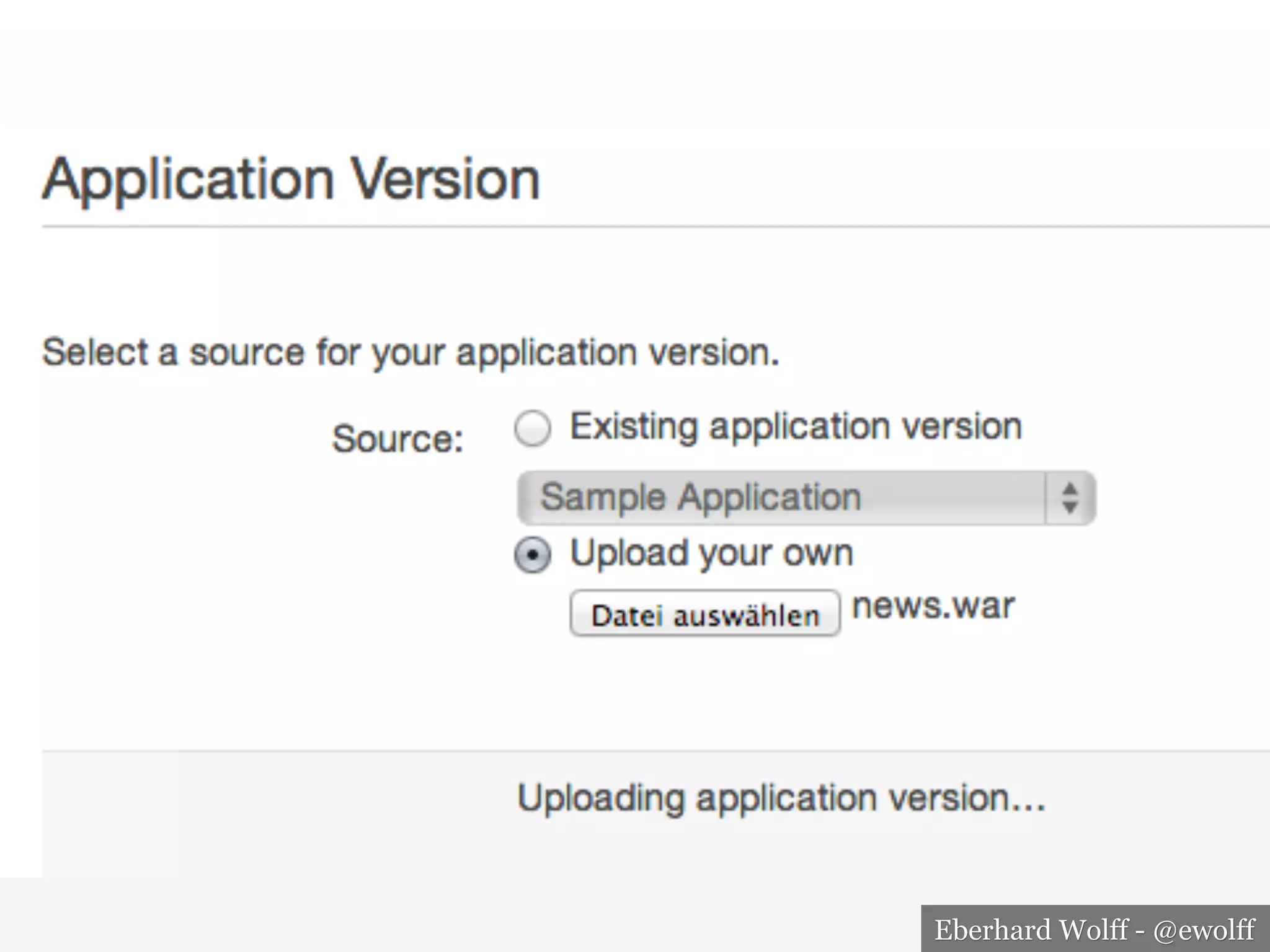

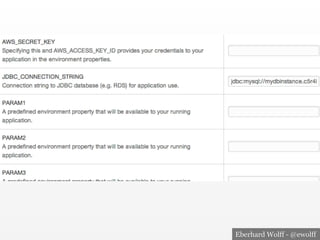

27. Eberhard Wolff - @ewolff

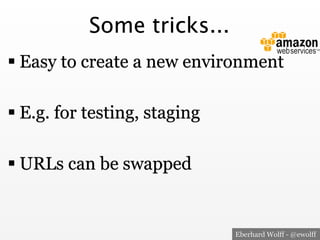

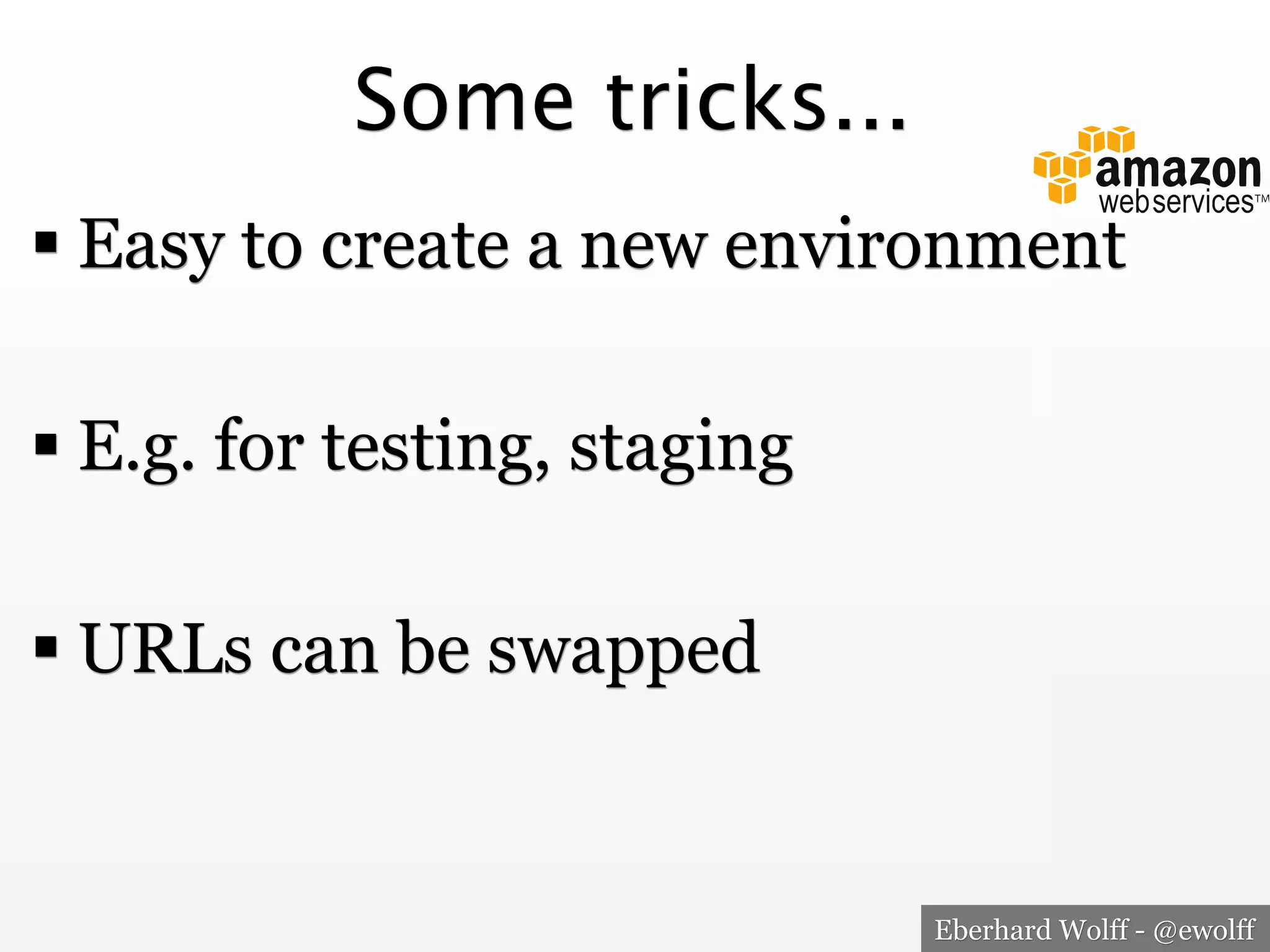

28. Some tricks...
! Easy to create a new environment
! E.g. for testing, staging
! URLs can be swapped
Eberhard Wolff - @ewolff

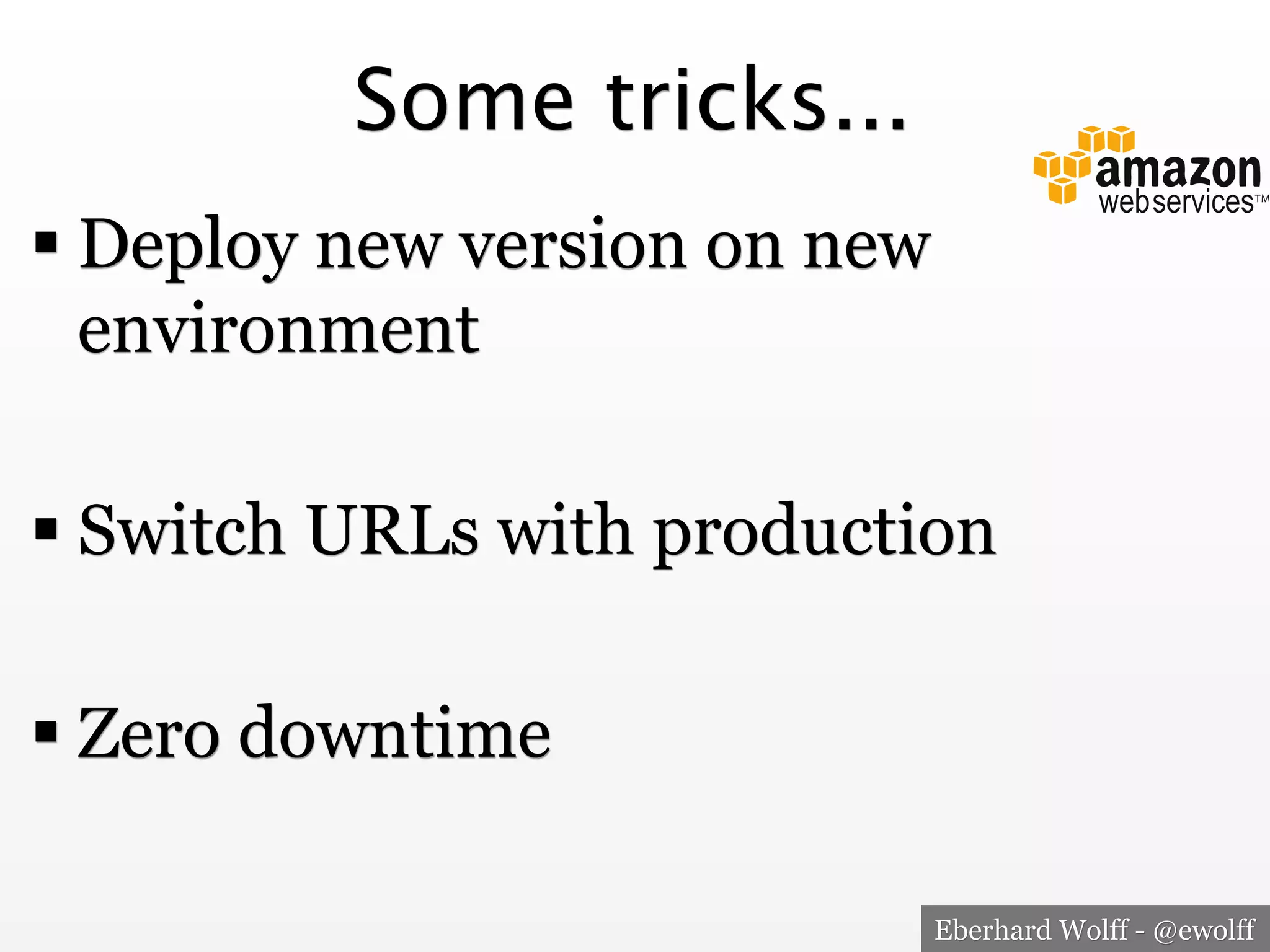

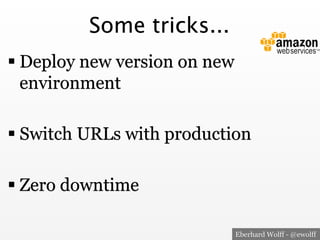

29. Some tricks...
! Deploy new version on new
environment
! Switch URLs with production
! Zero downtime
Eberhard Wolff - @ewolff

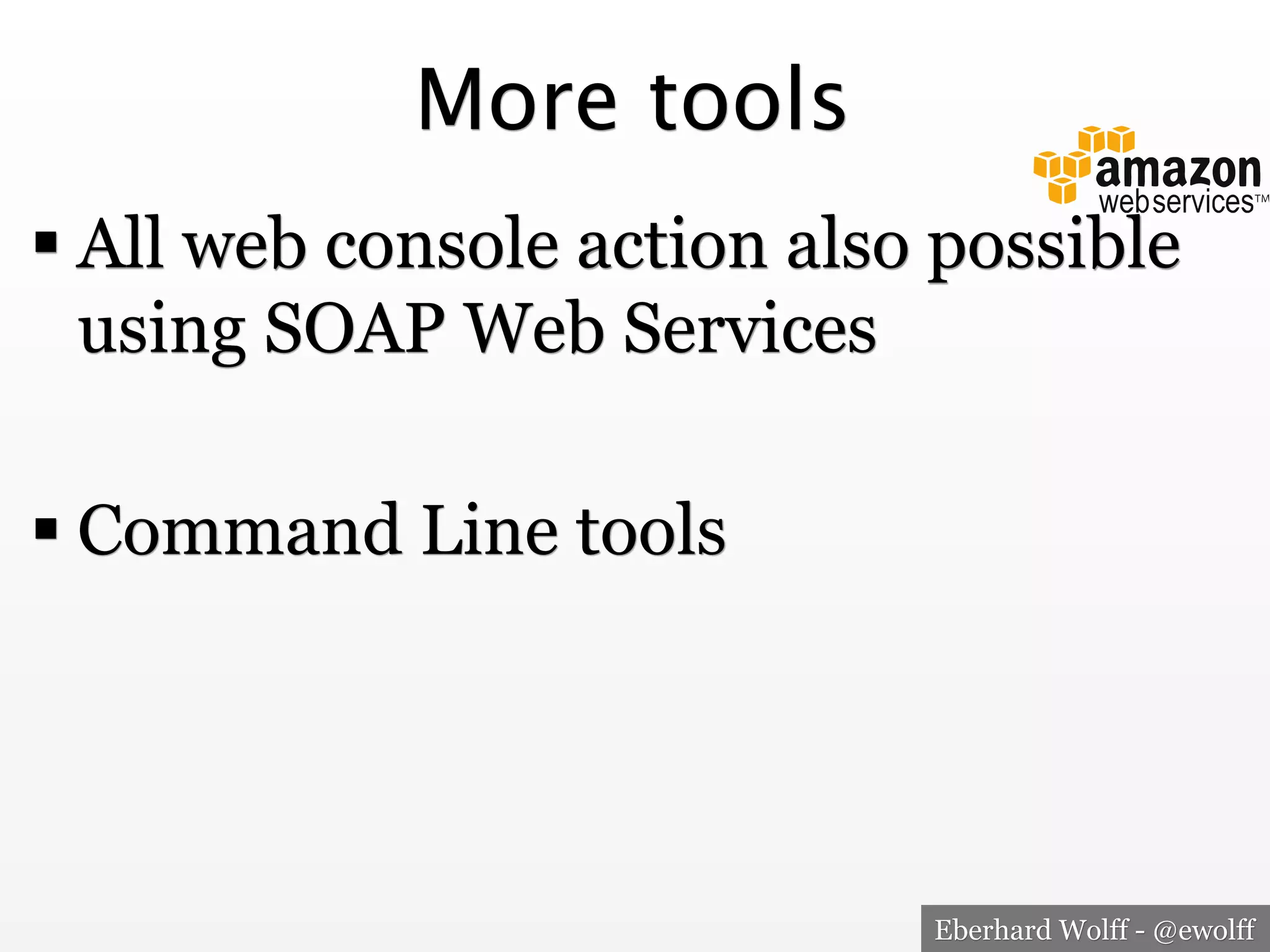

30. More tools
! All web console action also possible
using SOAP Web Services
! Command Line tools
Eberhard Wolff - @ewolff

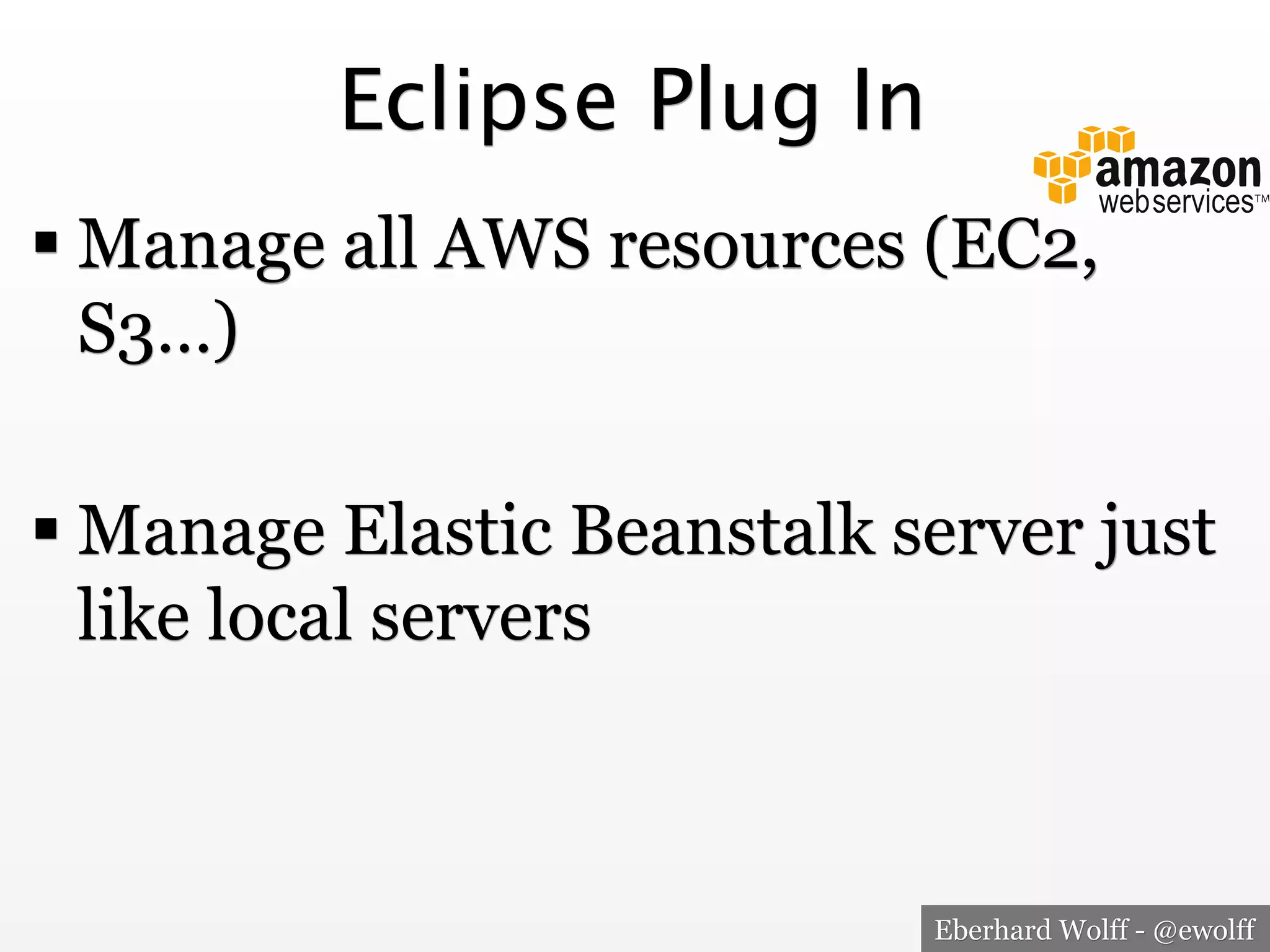

31. Eclipse Plug In
! Manage all AWS resources (EC2,
S3…)
! Manage Elastic Beanstalk server just
like local servers
Eberhard Wolff - @ewolff

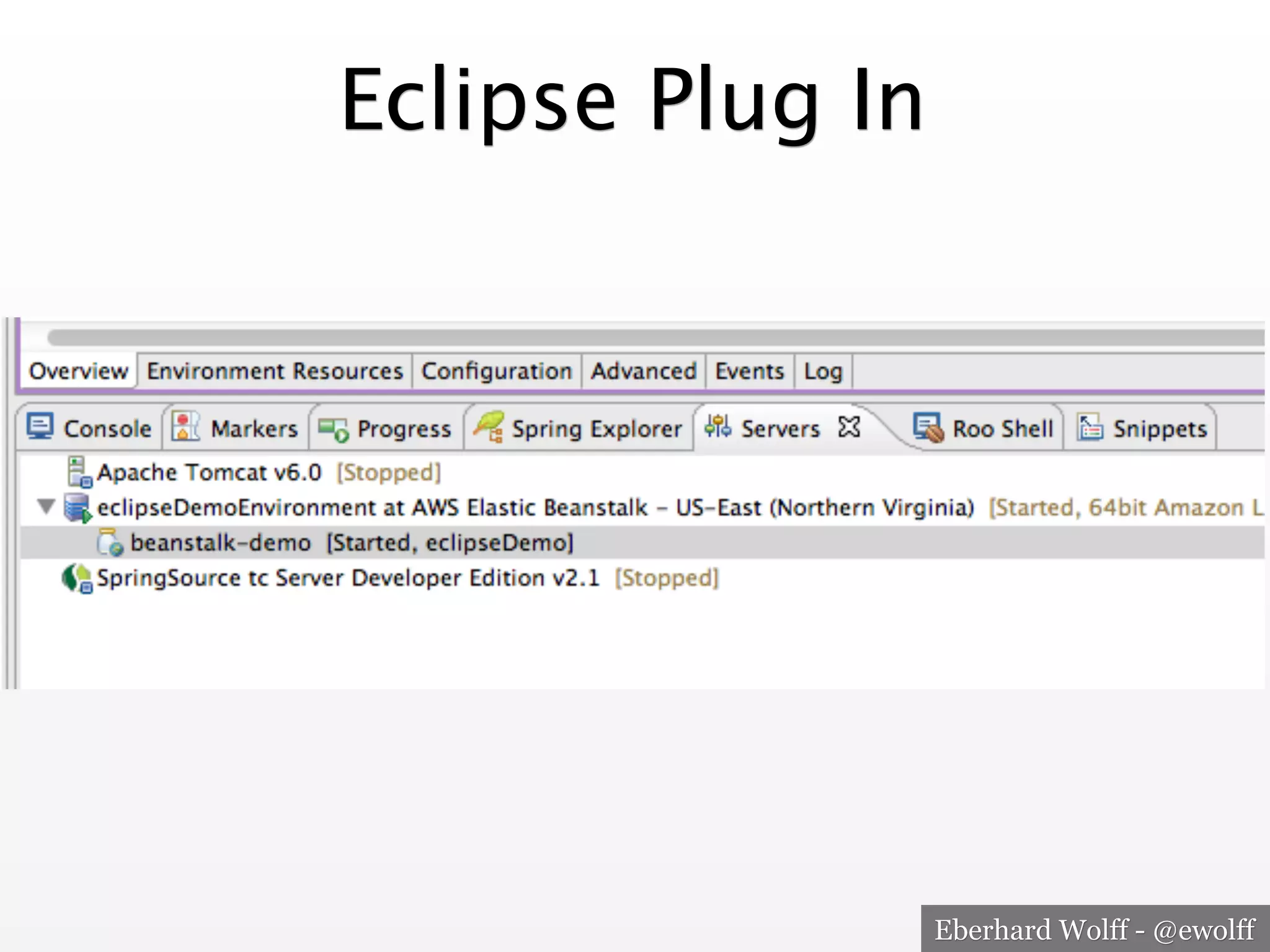

32. Eclipse Plug In
Eberhard Wolff - @ewolff

33. FLEXIBILITY
Eberhard Wolff - @ewolff

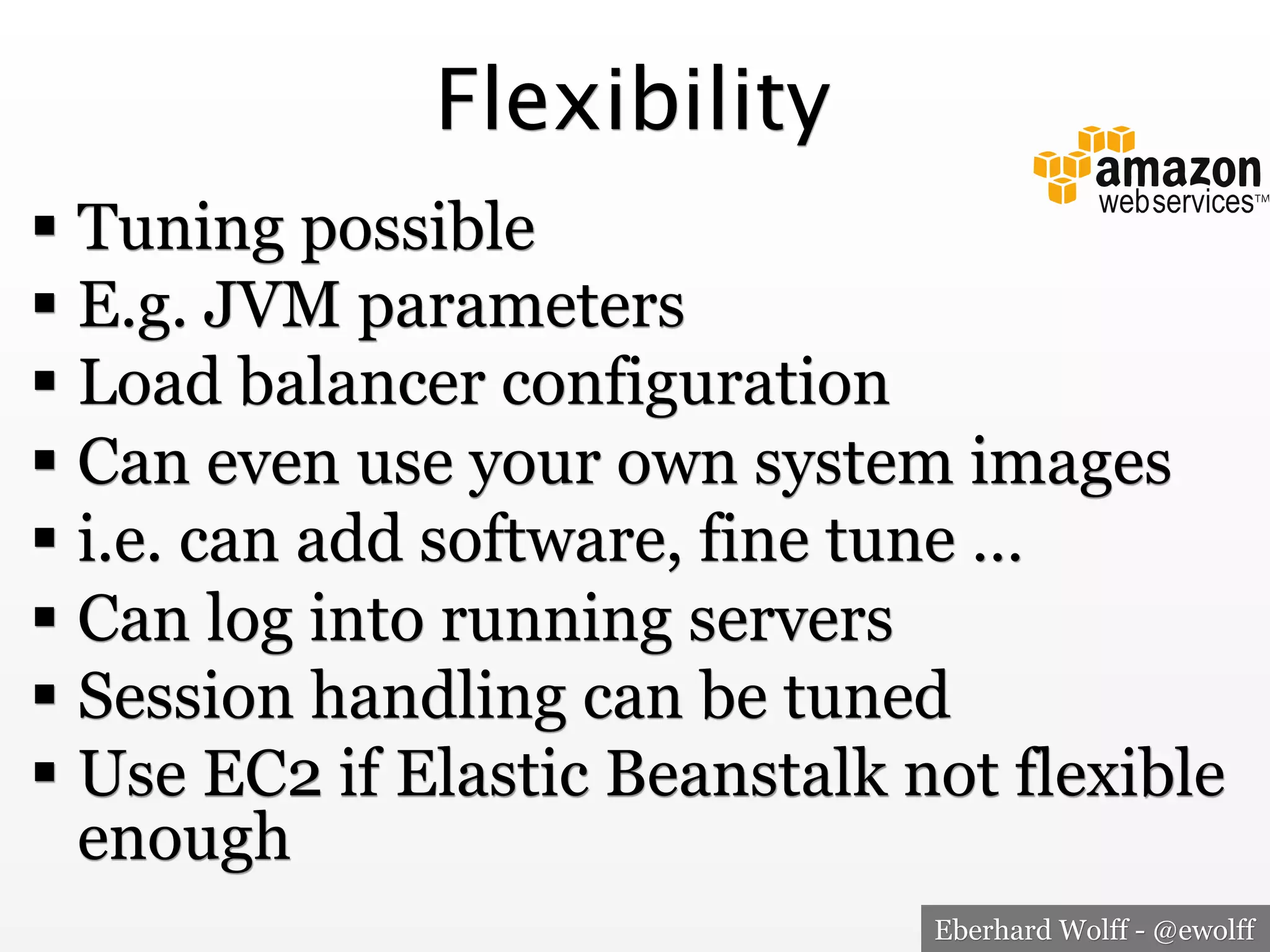

34. Flexibility
! Tuning possible
! E.g. JVM parameters
! Load balancer configuration
! Can even use your own system images
! i.e. can add software, fine tune …
! Can log into running servers
! Session handling can be tuned
! Use EC2 if Elastic Beanstalk not flexible
enough
Eberhard Wolff - @ewolff

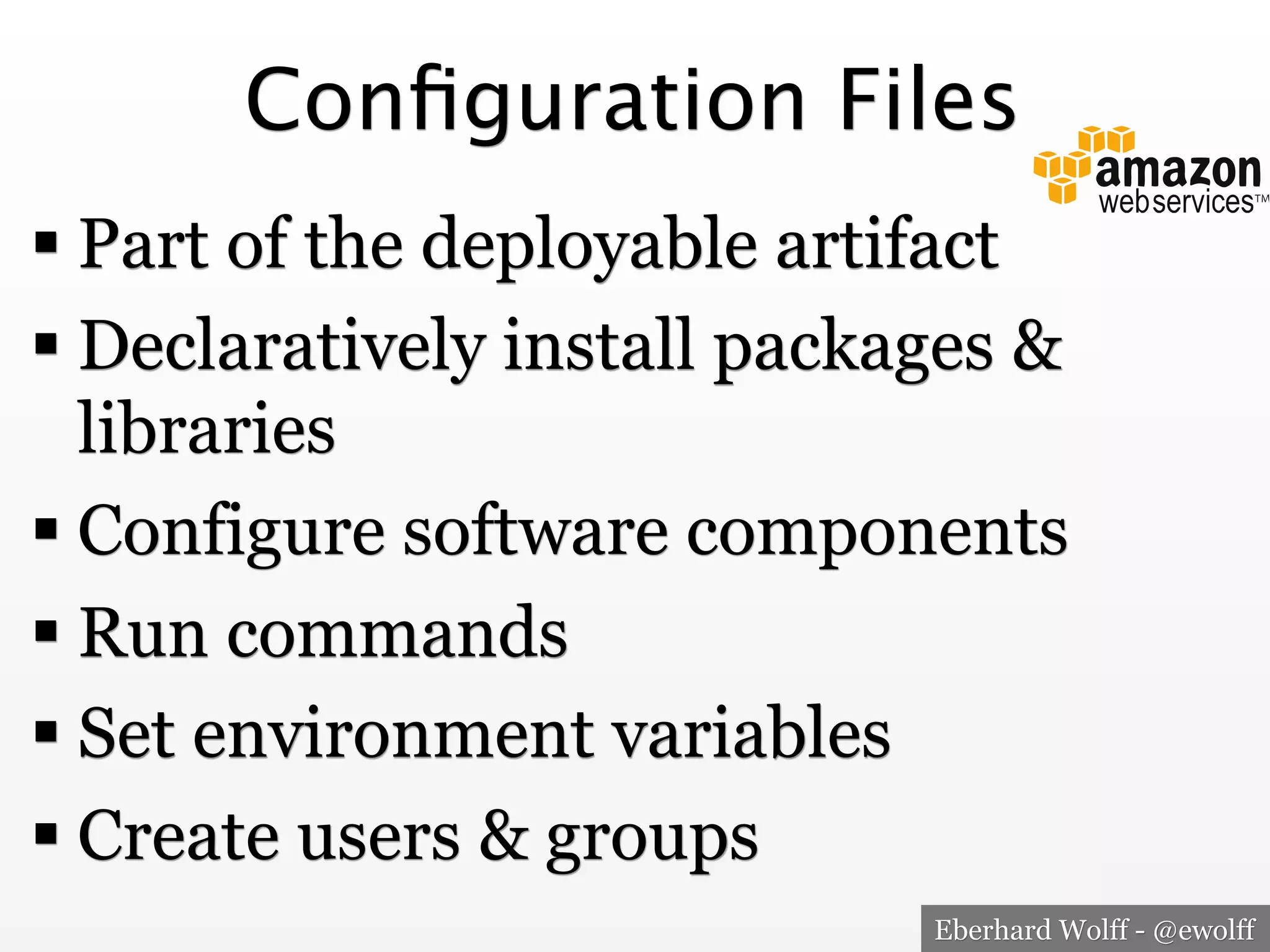

35. Configuration Files
! Part of the deployable artifact
! Declaratively install packages &
libraries
! Configure software components
! Run commands
! Set environment variables
! Create users & groups
Eberhard Wolff - @ewolff

36. PLATFORM AND OTHER
SERVICES
Eberhard Wolff - @ewolff

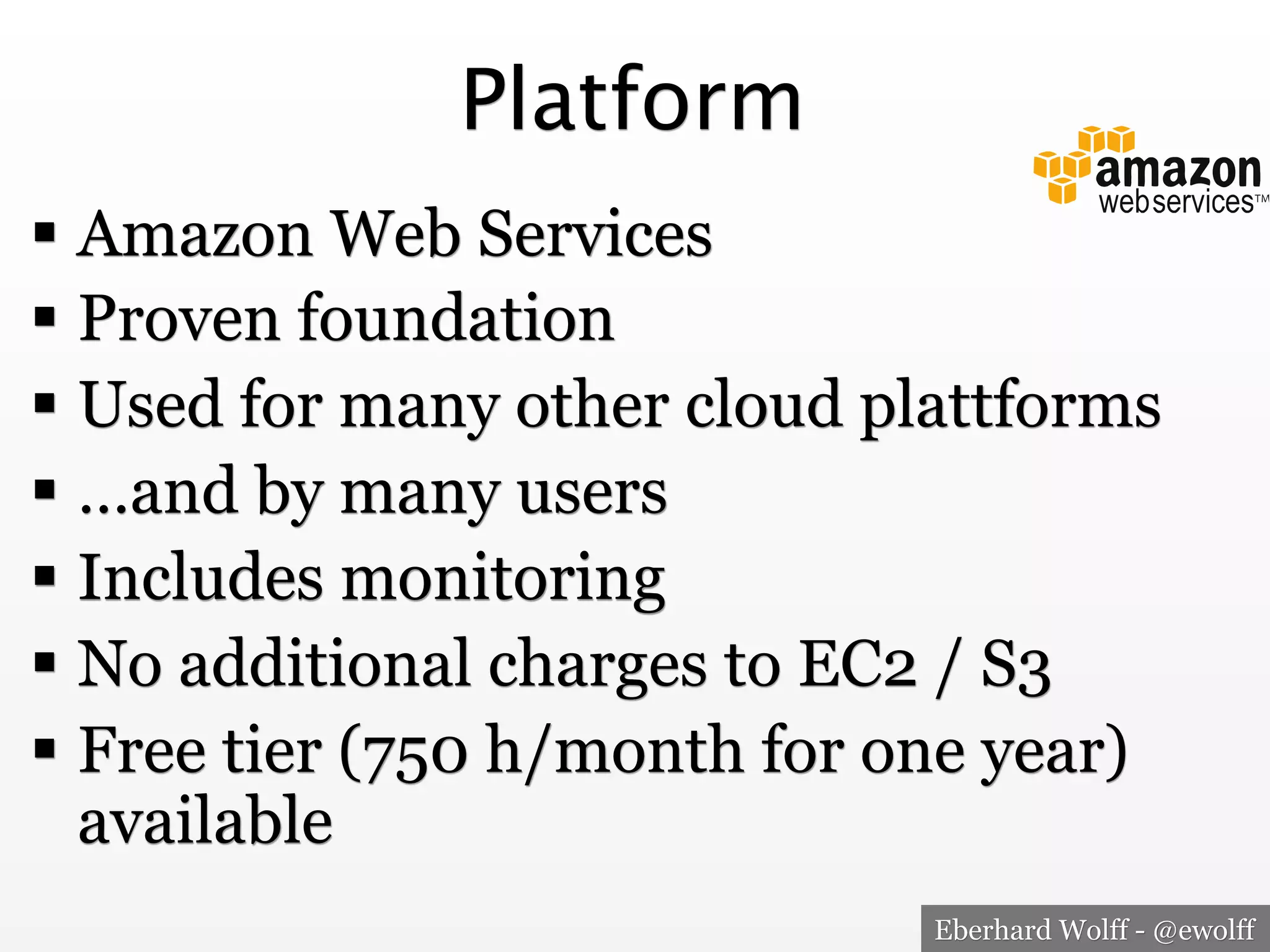

37. Platform
! Amazon Web Services
! Proven foundation
! Used for many other cloud plattforms
! …and by many users
! Includes monitoring
! No additional charges to EC2 / S3
! Free tier (750 h/month for one year)
available
Eberhard Wolff - @ewolff

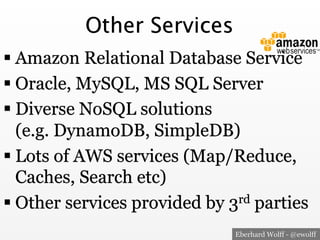

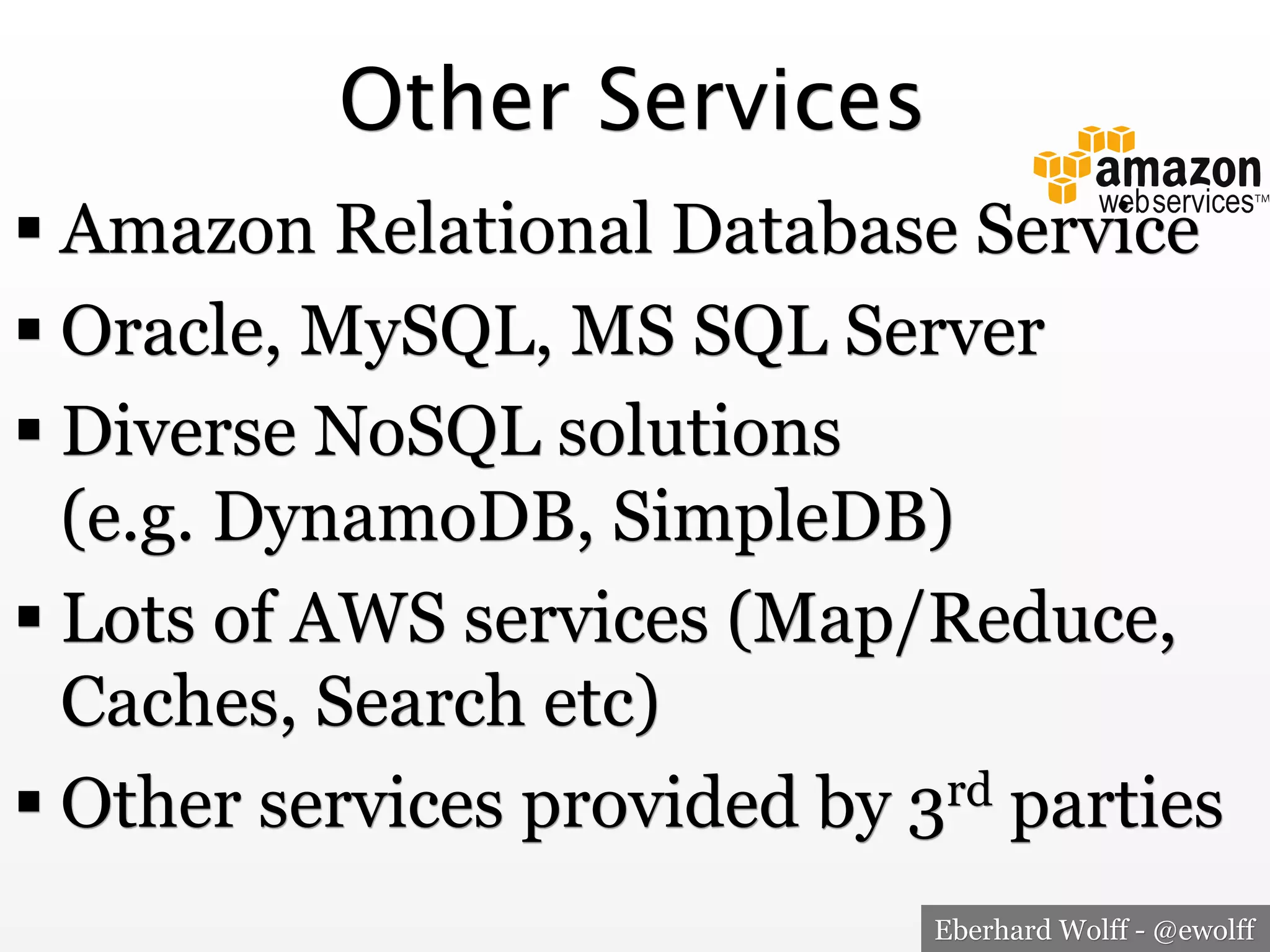

38. Other Services
! Amazon Relational Database Service
! Oracle, MySQL, MS SQL Server
! Diverse NoSQL solutions
(e.g. DynamoDB, SimpleDB)
! Lots of AWS services (Map/Reduce,
Caches, Search etc)
! Other services provided by 3rd parties
Eberhard Wolff - @ewolff

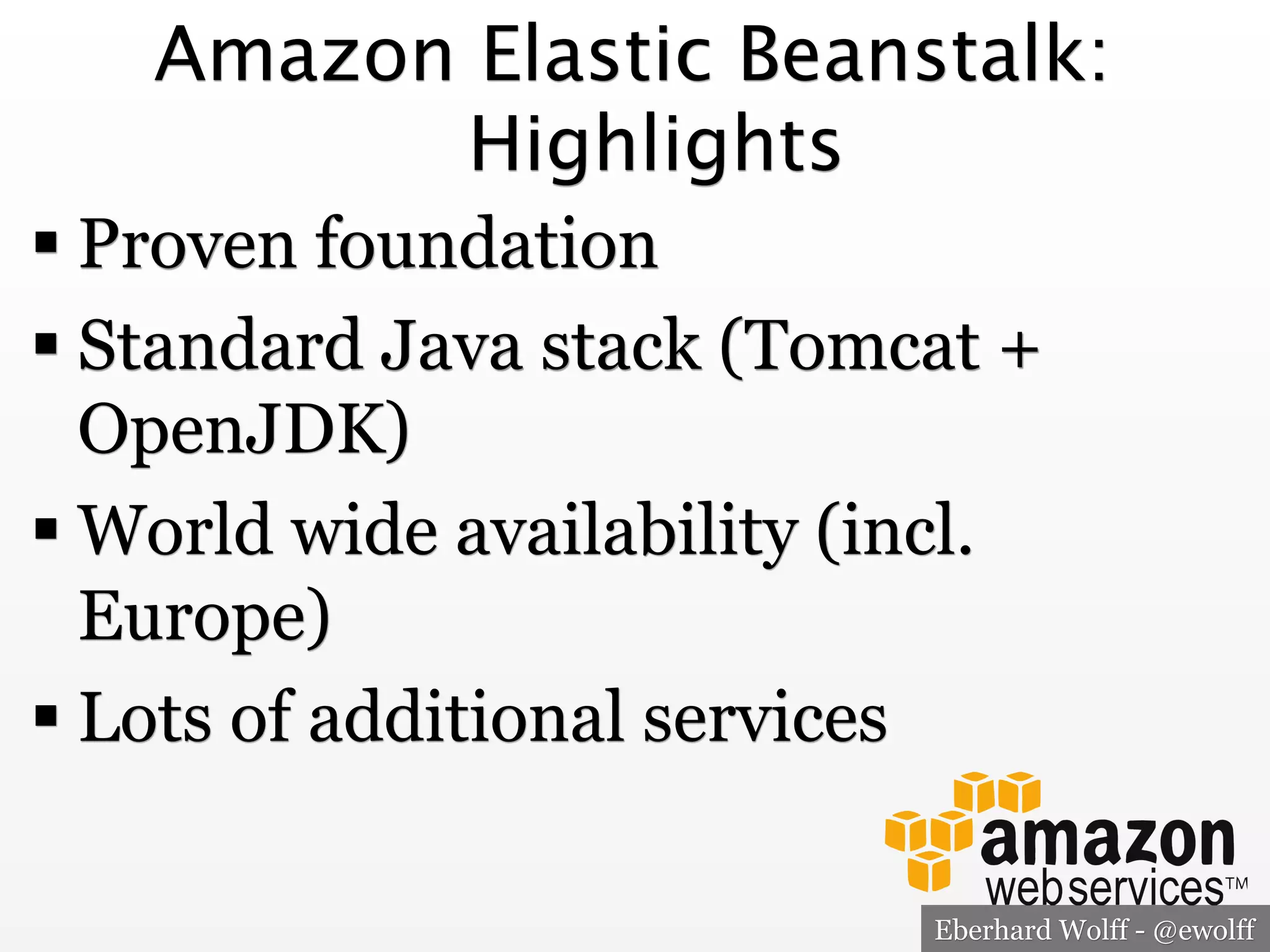

39. Amazon Elastic Beanstalk:
Highlights
! Proven foundation
! Standard Java stack (Tomcat +
OpenJDK)
! World wide availability (incl.
Europe)
! Lots of additional services
Eberhard Wolff - @ewolff
