- AWS Elastic Beanstalk is a fully managed platform that allows users to deploy and scale web applications quickly. It automates infrastructure provisioning, deployment, load balancing, auto-scaling, and health monitoring. - It supports deploying containerized and non-containerized applications. Users can deploy applications using CDK, CLI, or IDE plugins and integrate with CI/CD pipelines. - Elastic Beanstalk provides high availability and scalability out of the box. It allows users to safely rollout application updates using different deployment strategies. - It serves as a starting point for modernizing applications and adopting distributed architectures. Features like shared load balancing allow deploying applications across different compute services.

1. AWS Elastic Beanstalk
Deploy, Scale and Modernize Web Applications
1. AWS Elastic Beanstalk 101
2. Elastic Beanstalk using CDK (Github source code)
3. Gateway to Modernization: Shared ALB to ECS/EKS
🎯 BUILDING MODERN APPLICATIONS

2. q AWS Elastic Beanstalk 101
q Elastic Beanstalk using CDK
vInfrastructure Provisioning and Configuration
vDeployment, Load Balancing, Auto Scaling
vAutomate Deployment CI/CD
q Gateway to Modernization: Shared Load Balancing
Agenda

3. Challenge - Migrating a Web-App to the Cloud
🎯 How do I move my web-app
to the cloud
++ 🦾 design for high availability
++ ⚡ scale dynamically
++ 🎲 deploy application versions safely
++ ⚽ keep the OS patched
++ 😎 modernize it over time?
Web Back-ends
Web Apps & Websites
API Services

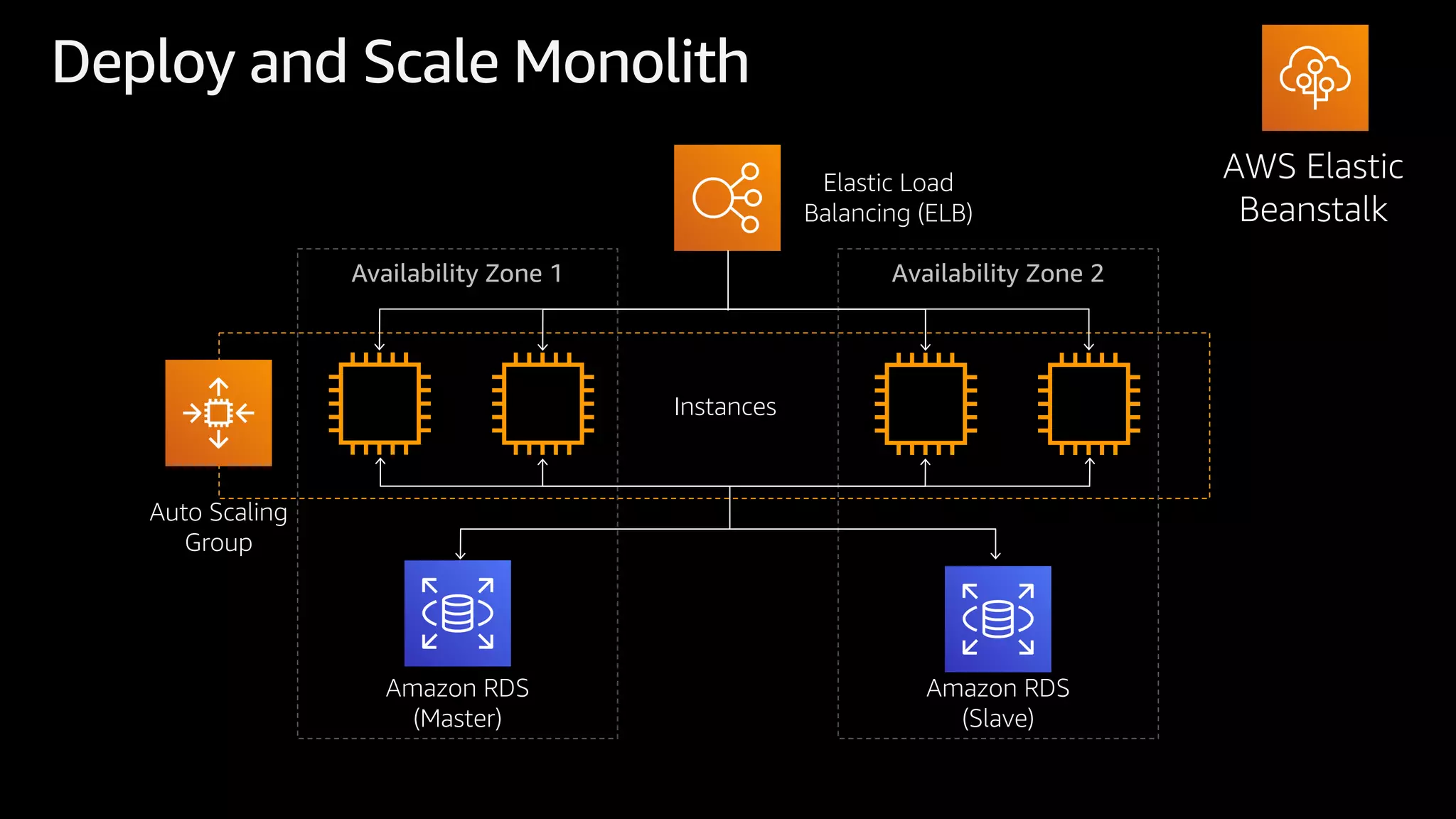

4. Deploy and Scale Monolith
AWS Elastic
Beanstalk
Availability Zone 1 Availability Zone 2
Auto Scaling
Group
Amazon RDS
(Master)
Instances
Amazon RDS
(Slave)
Elastic Load
Balancing (ELB)

5. Elastic Beanstalk
A fully Managed Service for
hosting Web Applications
Low management
overhead
Easy to get
started
Gateway to
modernization

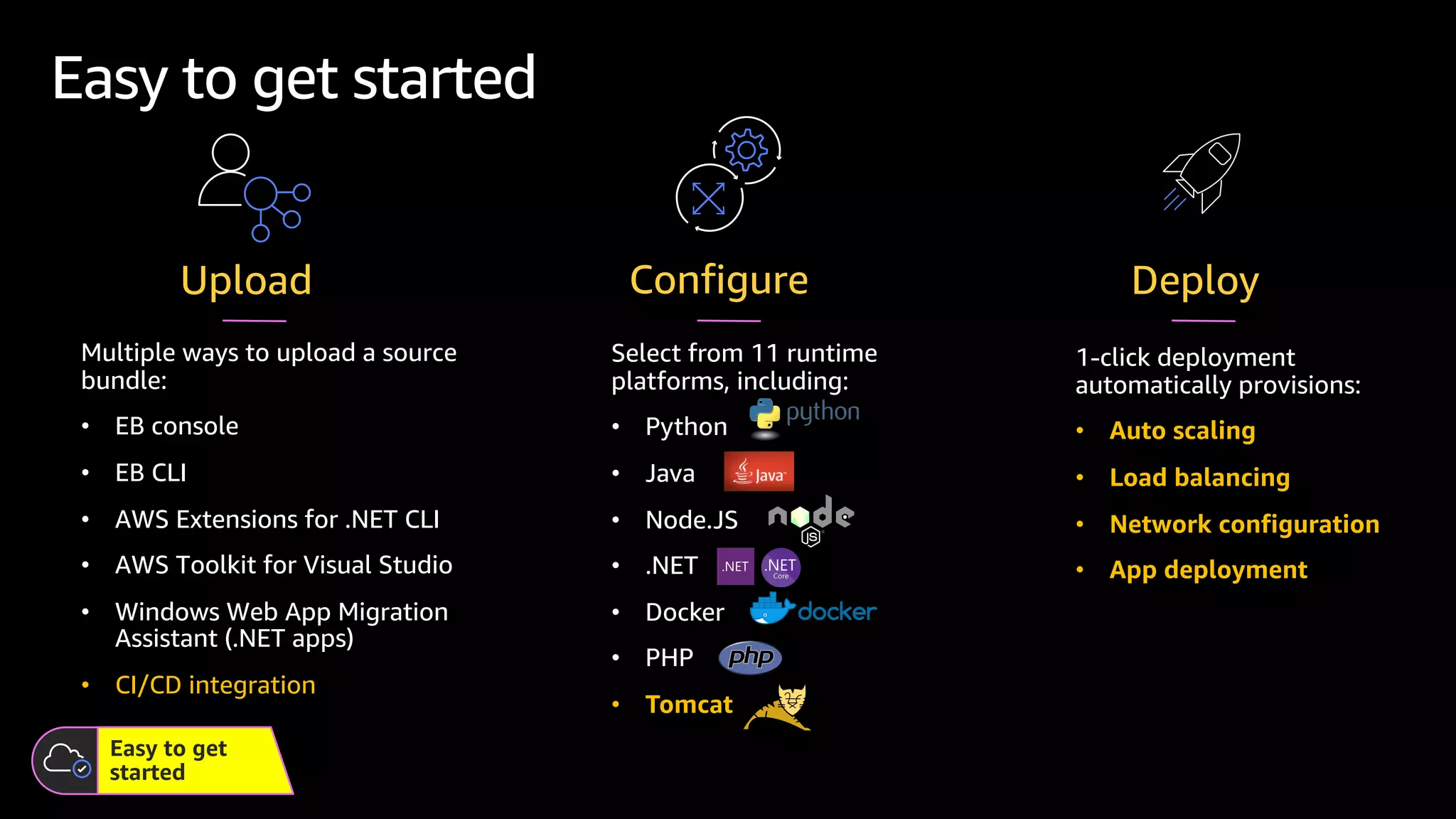

6. Multiple ways to upload a source
bundle:
• EB console
• EB CLI
• AWS Extensions for .NET CLI
• AWS Toolkit for Visual Studio
• Windows Web App Migration
Assistant (.NET apps)
• CI/CD integration
Easy to get started
Upload
Easy to get
started
1-click deployment
automatically provisions:
• Auto scaling
• Load balancing
• Network configuration
• App deployment
Deploy
Configure
Select from 11 runtime
platforms, including:
• Python
• Java
• Node.JS
• .NET
• Docker
• PHP
• Tomcat

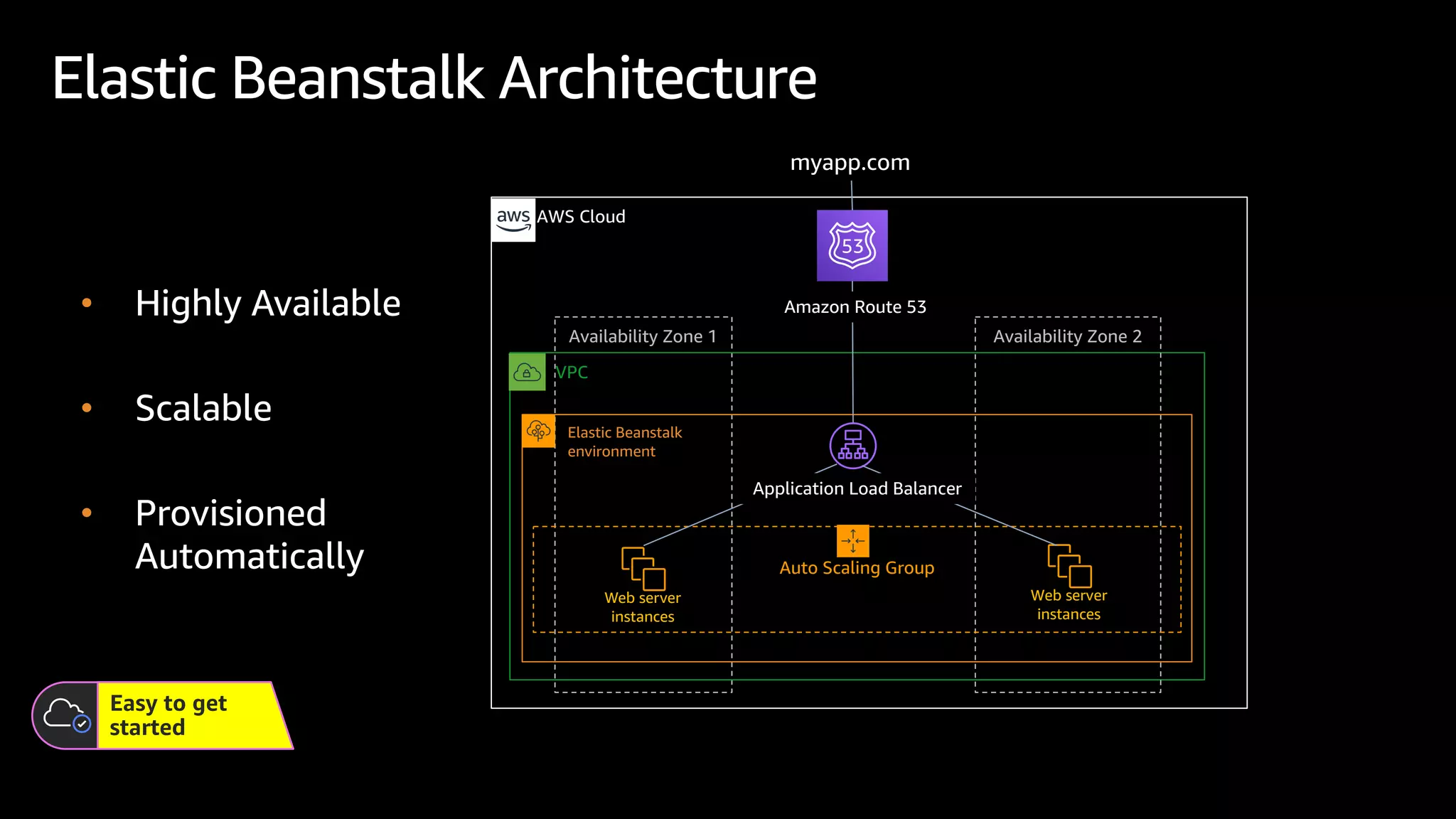

7. Availability Zone 1
Elastic Beanstalk Architecture
VPC
AWS Cloud
Availability Zone 2
Auto Scaling Group
Elastic Beanstalk
environment
Web server
instances
Web server
instances
myapp.com
Application Load Balancer
Amazon Route 53
Easy to get
started
• Highly Available
• Scalable
• Provisioned
Automatically

8. • Safely deploys app updates while
monitoring app health
• Choose from all-at-once, rolling,
traffic splitting or blue/green
deployments
• Durably stores each app version to
S3 for easy rollback
Low management
overhead
Low Management Overhead
Automated App
Deployments
• Keeps the operating system
and runtime updated with
latest patches and updates
• Monthly releases of new
platform updates
• Configurable update schedule
Automated
Platform Updates
• Summarizes app health
based on multiple inputs
• Monitors HTTP error rates
& request/response latency
• Monitors resource usage
(CPU, network, memory)
• Logs health events
• Sends notifications based
on user-defined thresholds
App Health
Monitoring

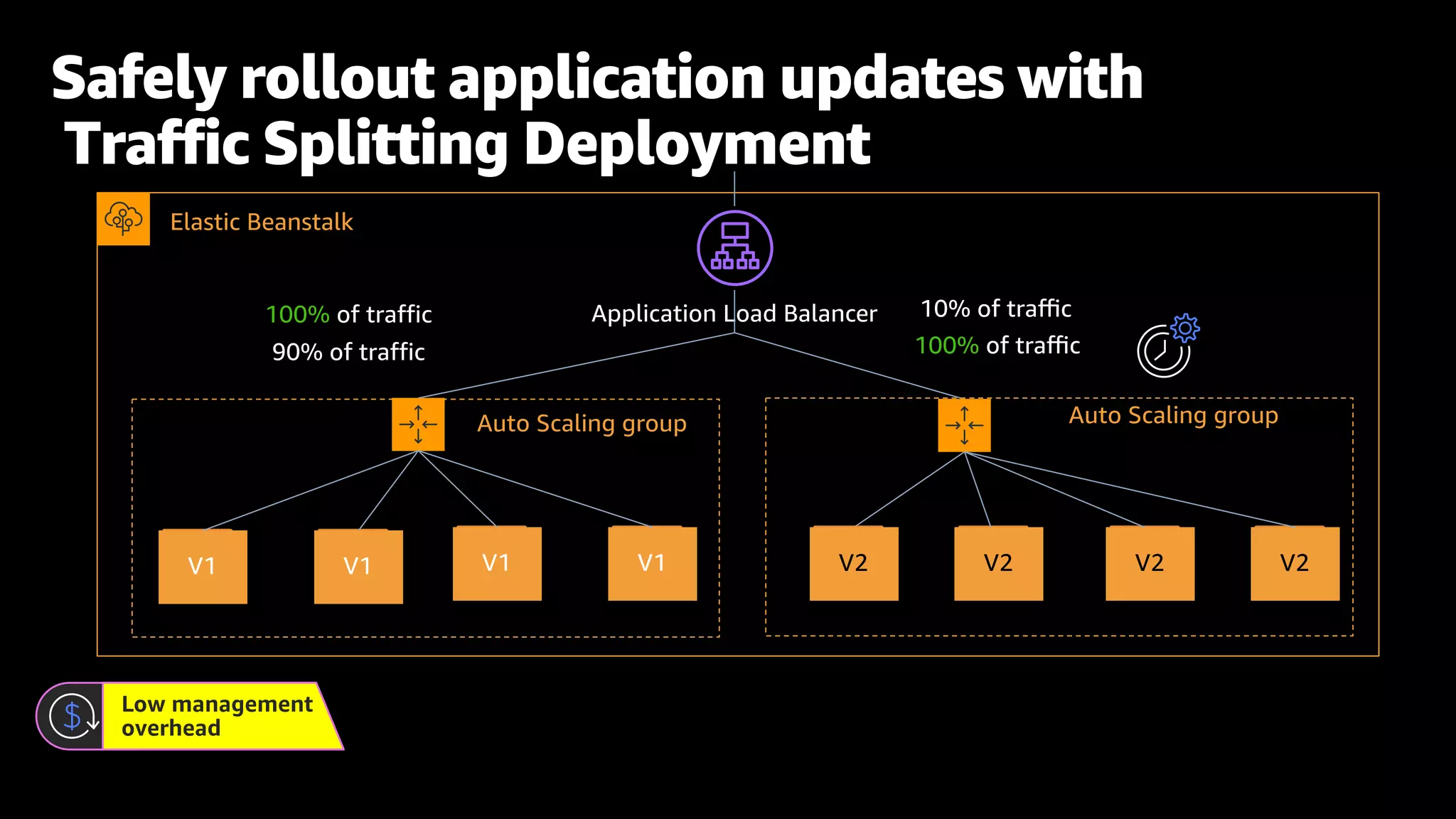

9. Elastic Beanstalk
Auto Scaling group
Application Load Balancer
V2 V2 V2
V2
Auto Scaling group
90% of traffic
10% of traffic
100% of traffic
100% of traffic
Safely rollout application updates with
Traffic Splitting Deployment
Low management
overhead

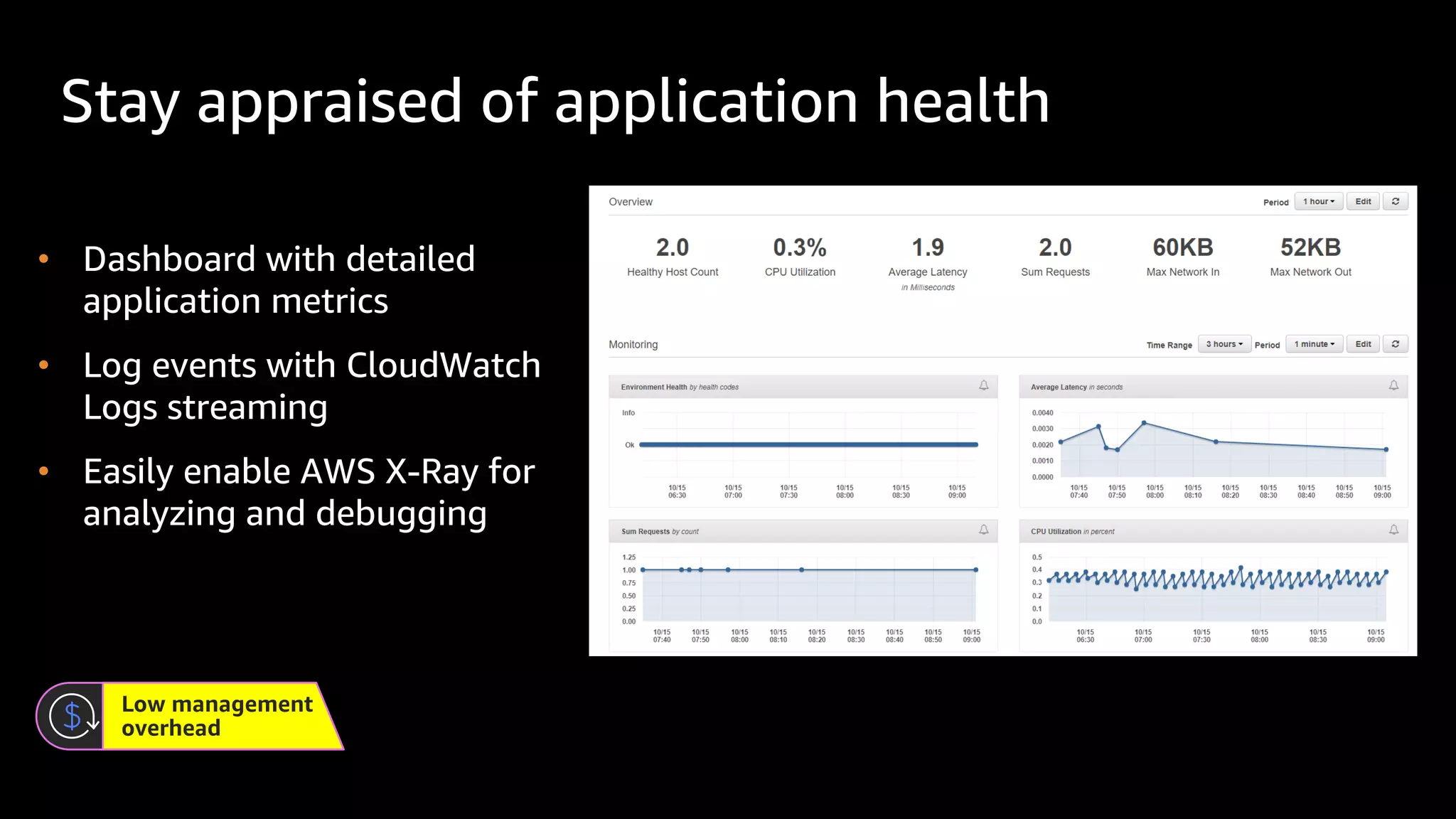

10. Stay appraised of application health
Low management
overhead
• Dashboard with detailed
application metrics
• Log events with CloudWatch
Logs streaming
• Easily enable AWS X-Ray for
analyzing and debugging

11. • Automatically deploy to Elastic
Beanstalk with each Code Commit.
• Create a CI/CD pipeline using the
CodePipeline/Elastic Beanstalk
integration.
• Integrate Elastic Beanstalk into an
existing CI/CD pipeline
Gateway to Modernization
Automate deployments
with CI/CD
Gateway to
modernization
• Containerize an app
automatically
• Gradually adopt a service-
oriented architecture
Modernize with
containerization
• Run .NET Core apps in EB
Linux environments and save
30% or more vs. Windows
• Convert apps from .NET
Framework to .NET Core to
run on Elastic
Beanstalk/Linux
Replatform from
Windows to Linux

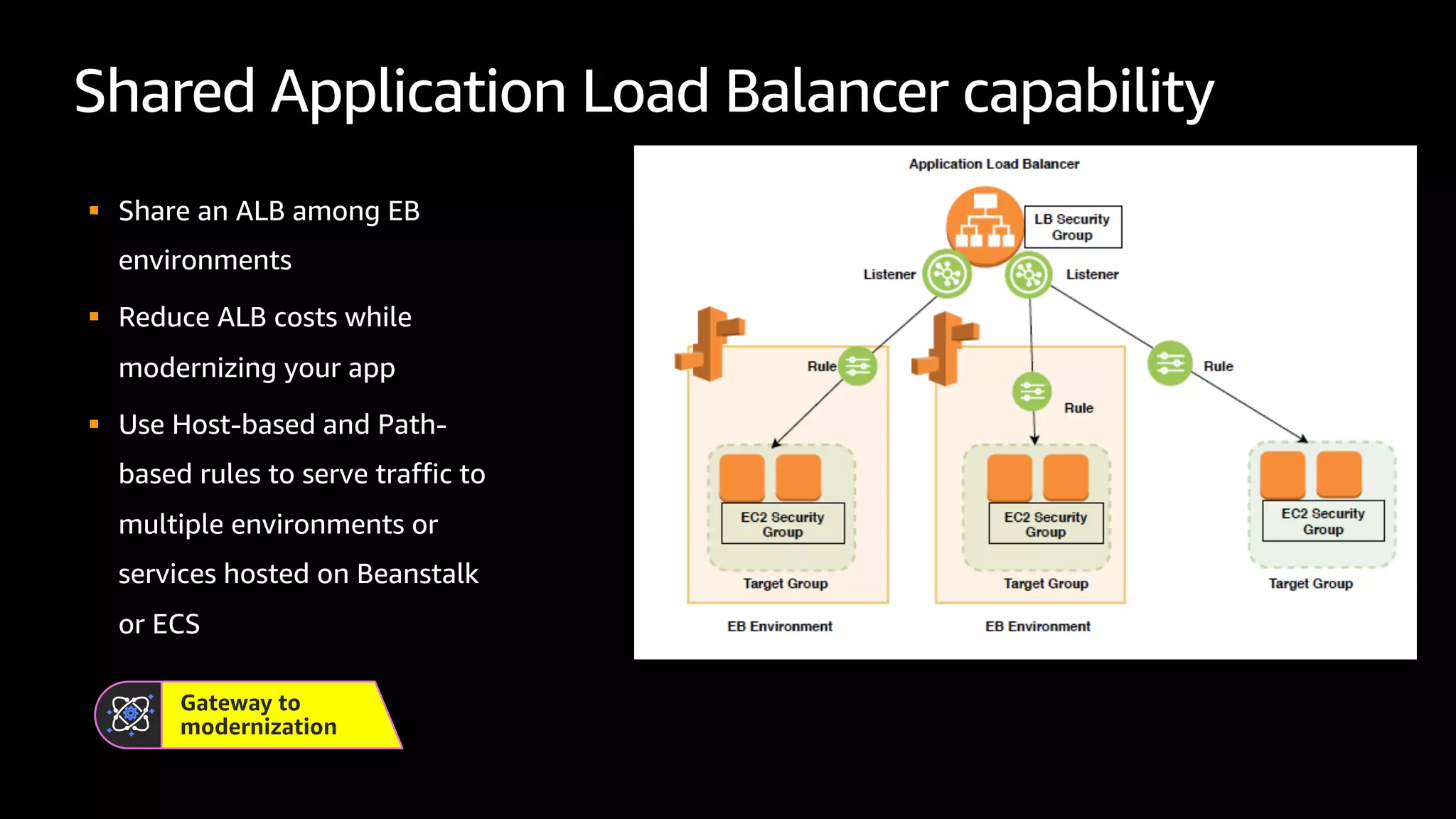

12. Shared Application Load Balancer capability
§ Share an ALB among EB
environments
§ Reduce ALB costs while
modernizing your app
§ Use Host-based and Path-
based rules to serve traffic to
multiple environments or
services hosted on Beanstalk
or ECS
Gateway to
modernization

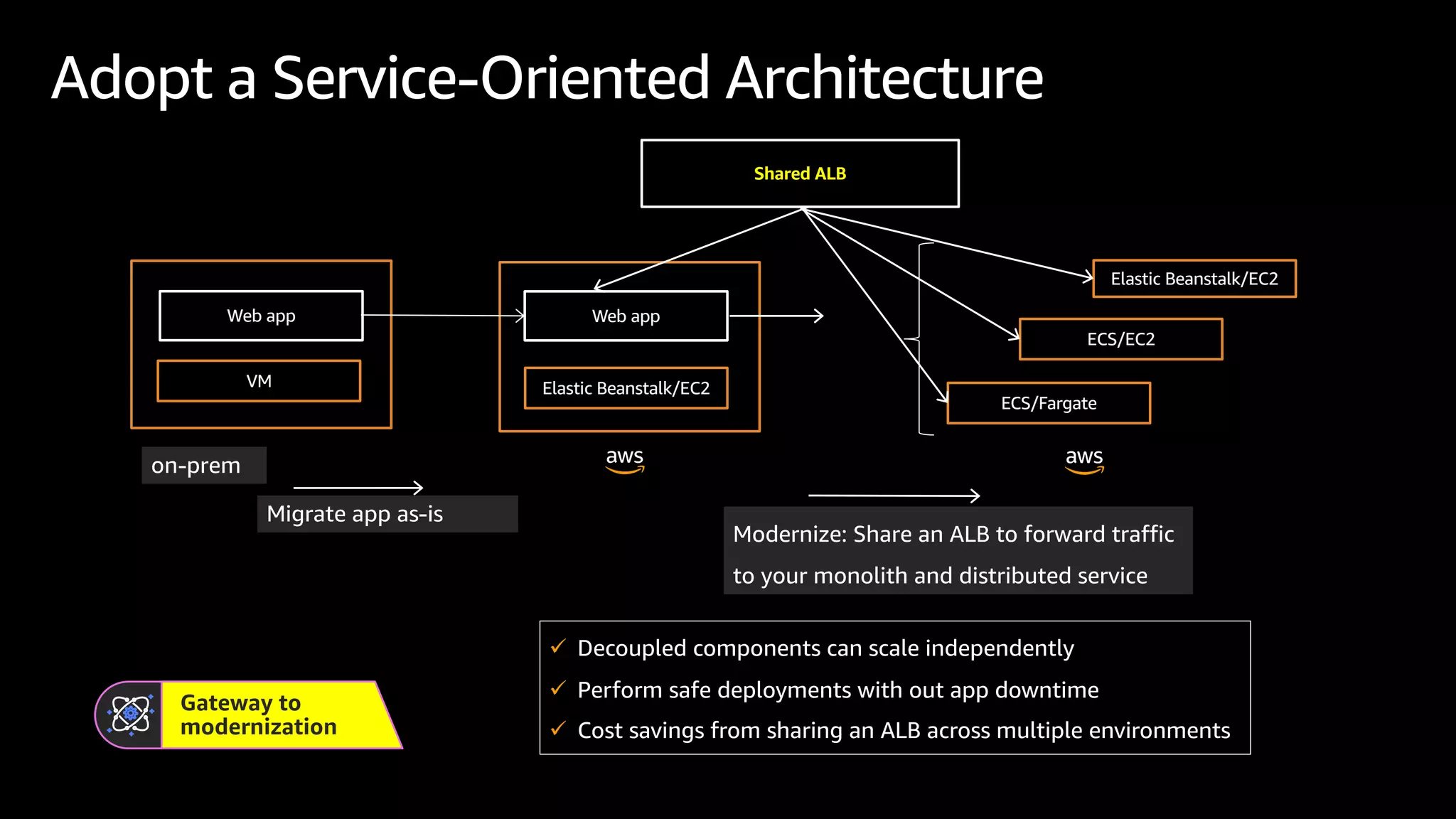

13. Adopt a Service-Oriented Architecture
Gateway to
modernization
Migrate app as-is
VM
Web app
Elastic Beanstalk/EC2
Web app
Elastic Beanstalk/EC2
Shared ALB
on-prem
ECS/EC2
ECS/Fargate
Modernize: Share an ALB to forward traffic
to your monolith and distributed service
ü Decoupled components can scale independently
ü Perform safe deployments with out app downtime
ü Cost savings from sharing an ALB across multiple environments

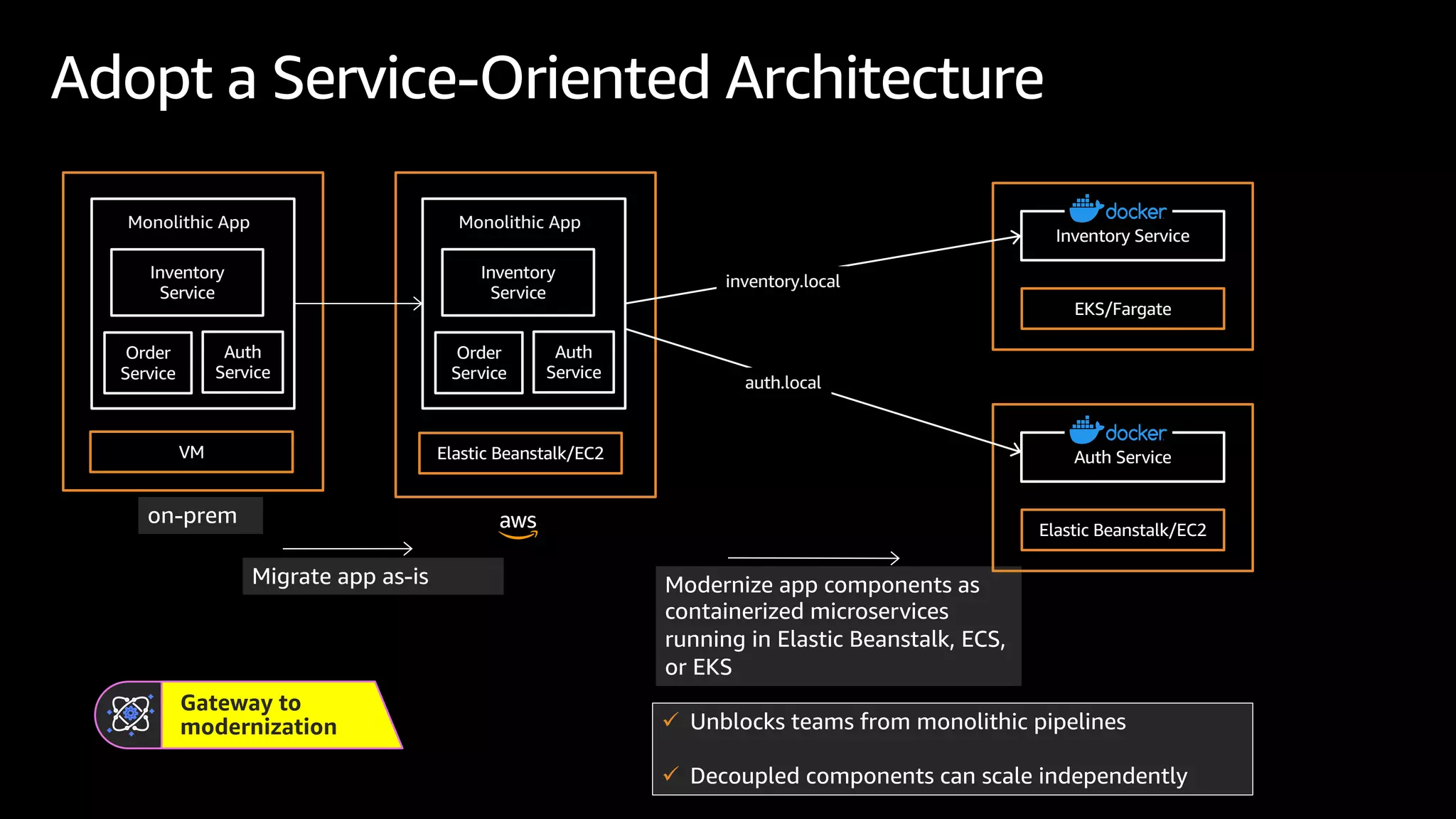

14. Adopt a Service-Oriented Architecture
Gateway to
modernization
Migrate app as-is
VM Elastic Beanstalk/EC2
on-prem
Modernize app components as
containerized microservices
running in Elastic Beanstalk, ECS,
or EKS
Monolithic App
Inventory
Service
Auth
Service
Order
Service
Monolithic App
Inventory
Service
Auth
Service
Order
Service
EKS/Fargate
Inventory Service
Elastic Beanstalk/EC2
Auth Service
inventory.local
auth.local
ü Unblocks teams from monolithic pipelines
ü Decoupled components can scale independently

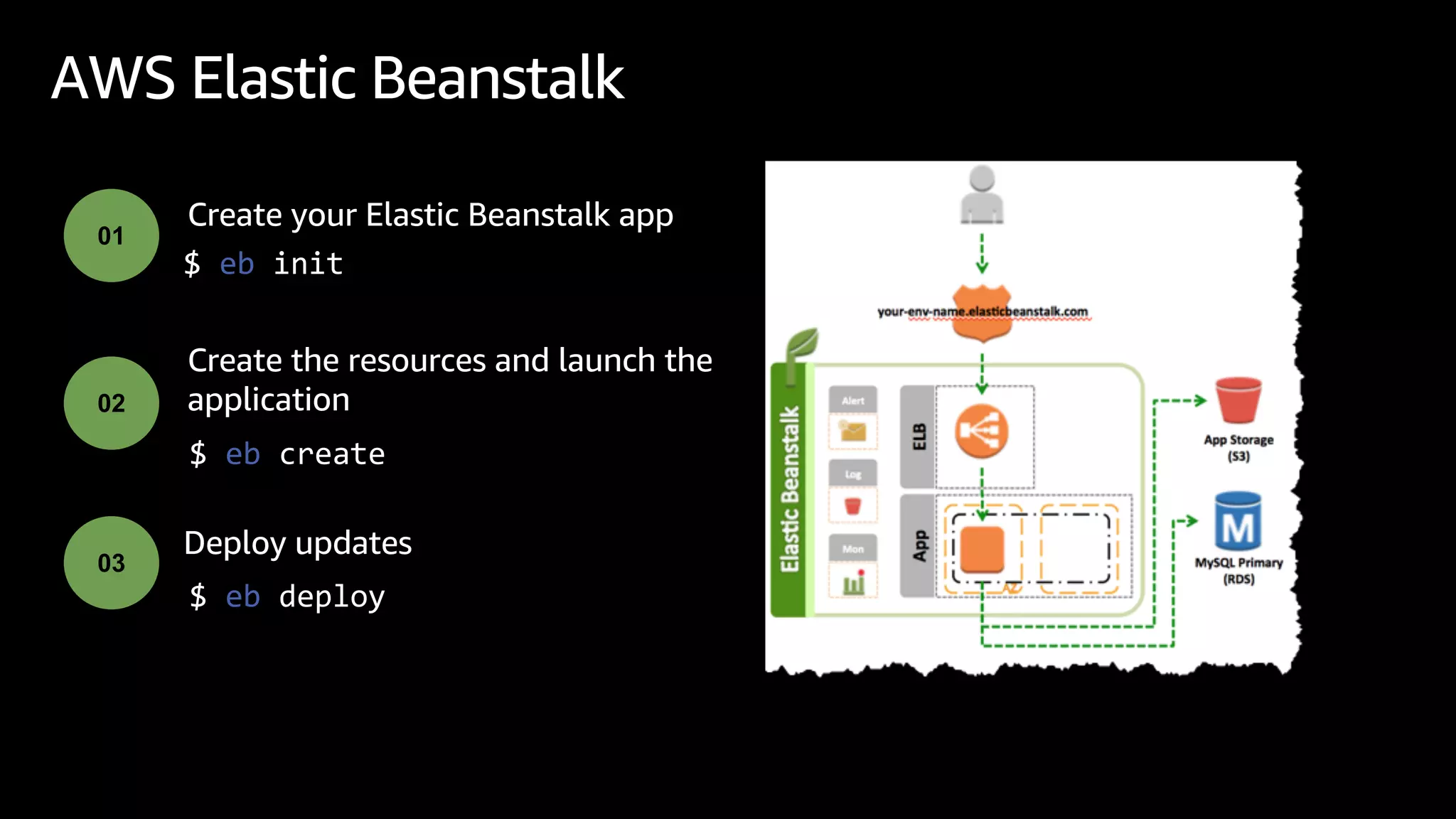

15. AWS Elastic Beanstalk
$ eb init
Create your Elastic Beanstalk app
01
02
Create the resources and launch the
application
03
$ eb create
Deploy updates
$ eb deploy

16. What is AWS Elastic Beanstalk?
Automatically handles:
Ø Infrastructure provisioning and configuration
Ø Ongoing management of infrastructure
Ø Deployment
Ø Load balancing
Ø Auto scaling
Ø Health monitoring
Ø Automated Updates
Ø Analysis and debugging
Ø Logging
There is no additional charge for Elastic Beanstalk
Provision /
Configure
Deploy
Manage /
Monitor

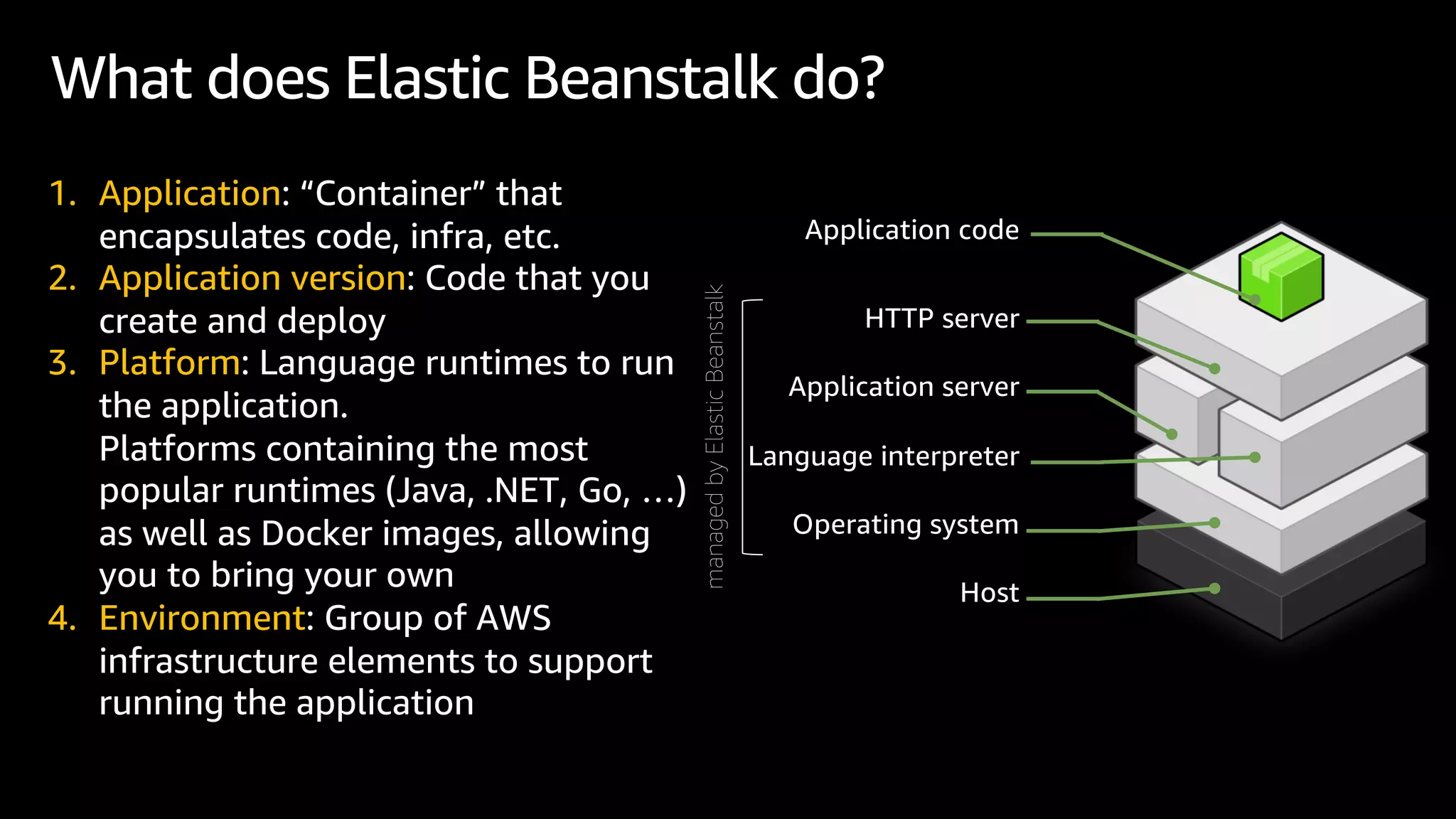

17. Application code
HTTP server
Application server
Language interpreter
Operating system
Host
1. Application: “Container” that
encapsulates code, infra, etc.
2. Application version: Code that you
create and deploy
3. Platform: Language runtimes to run
the application.
Platforms containing the most
popular runtimes (Java, .NET, Go, …)
as well as Docker images, allowing
you to bring your own
4. Environment: Group of AWS
infrastructure elements to support
running the application
What does Elastic Beanstalk do?
managed
by
Elastic
Beanstalk

18. Application versions
q Every deployment is its own unique version
q All versions stored in Amazon S3
q Allows easy rollback to a previous version
without having to back out committed code
changes
q Allows you to promote versions across
different environments within an
application
AWS Elastic Beanstalk

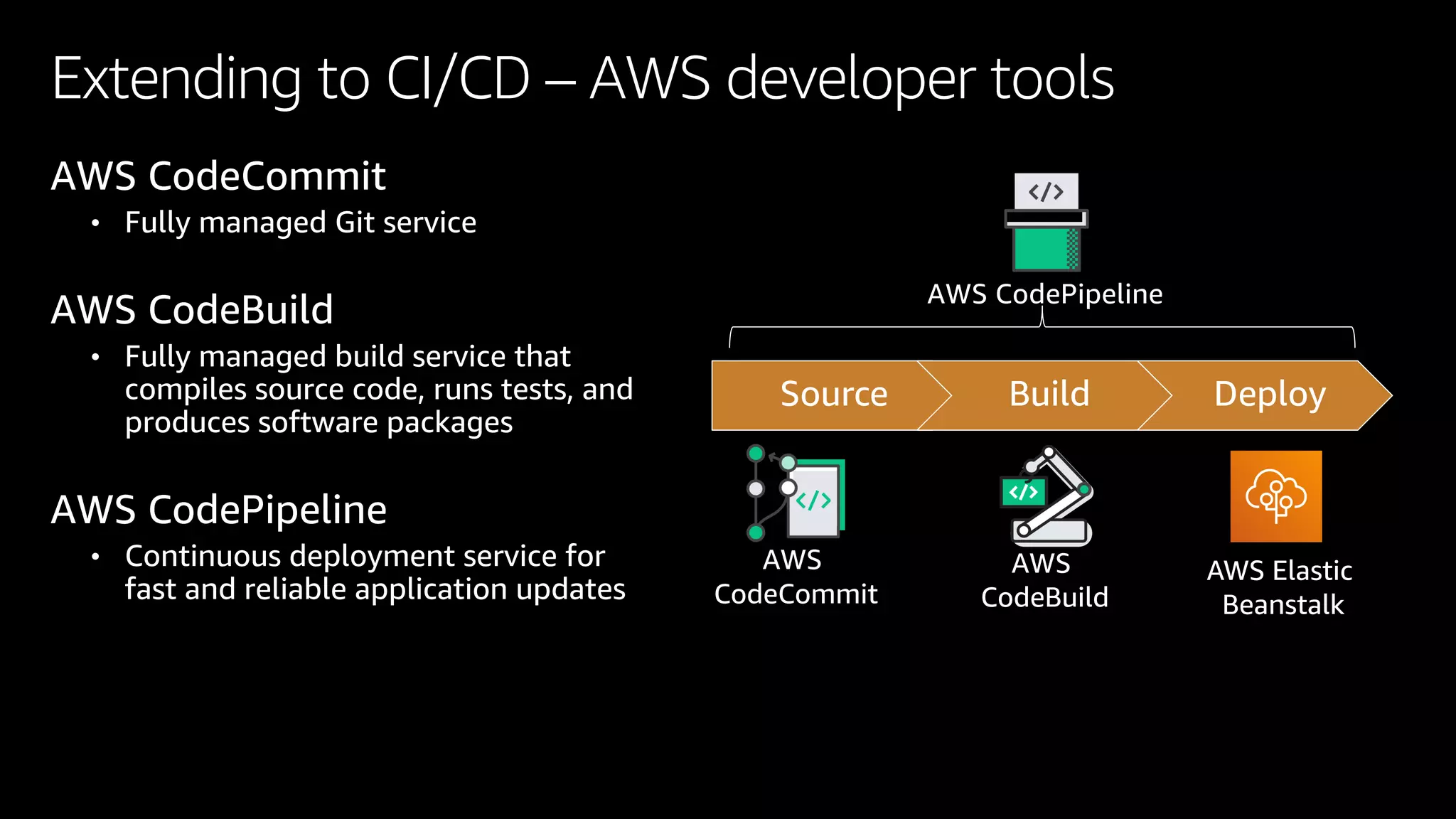

19. Extending to CI/CD – AWS developer tools
Source Build Deploy
AWS
CodeCommit
AWS
CodeBuild
AWS CodePipeline
AWS CodeCommit
• Fully managed Git service
AWS CodeBuild
• Fully managed build service that
compiles source code, runs tests, and
produces software packages
AWS CodePipeline
• Continuous deployment service for
fast and reliable application updates

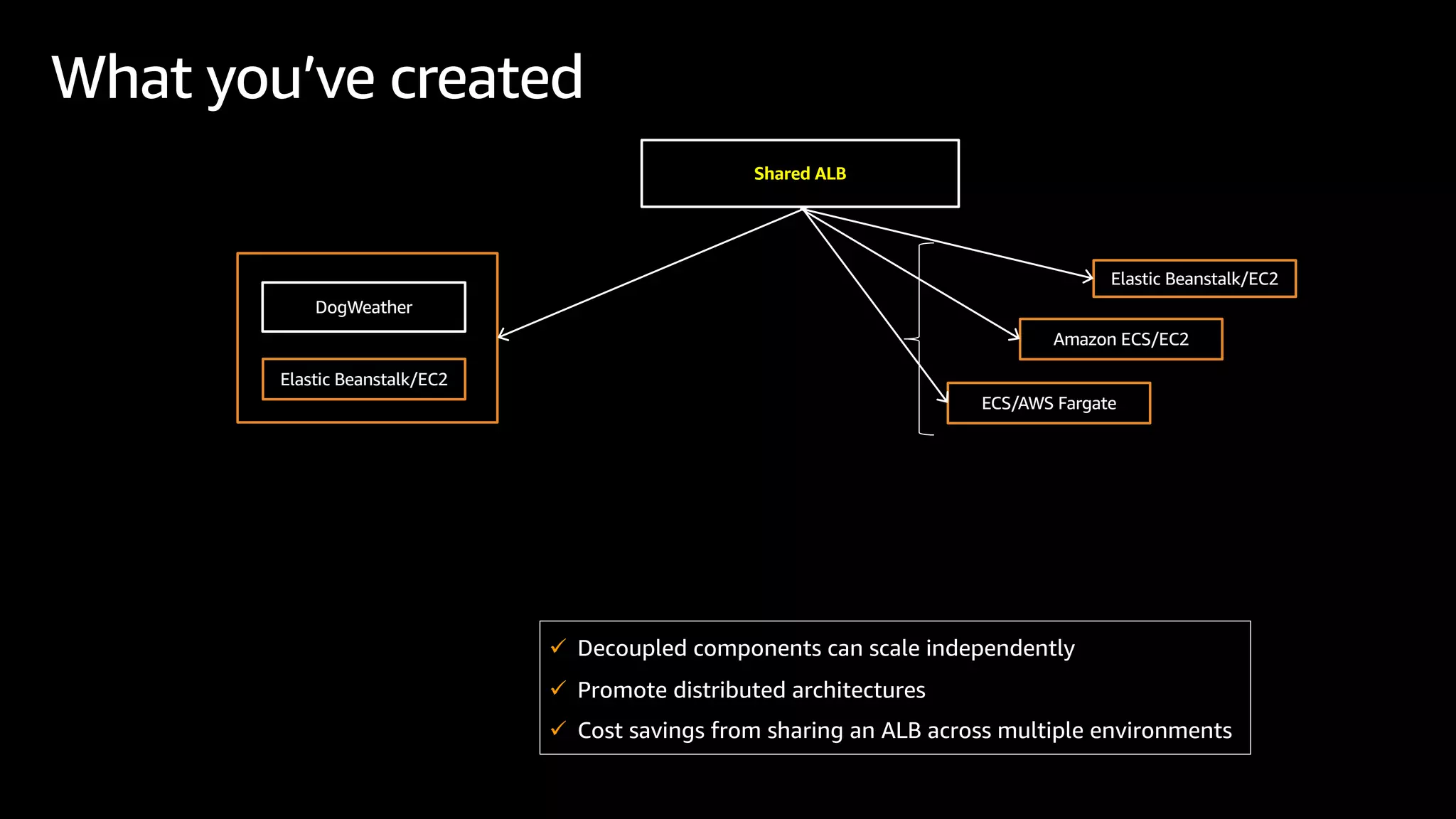

20. What you’ve created
Elastic Beanstalk/EC2
Shared ALB
Elastic Beanstalk/EC2
DogWeather
Amazon ECS/EC2
ECS/AWS Fargate
ü Decoupled components can scale independently
ü Promote distributed architectures
ü Cost savings from sharing an ALB across multiple environments

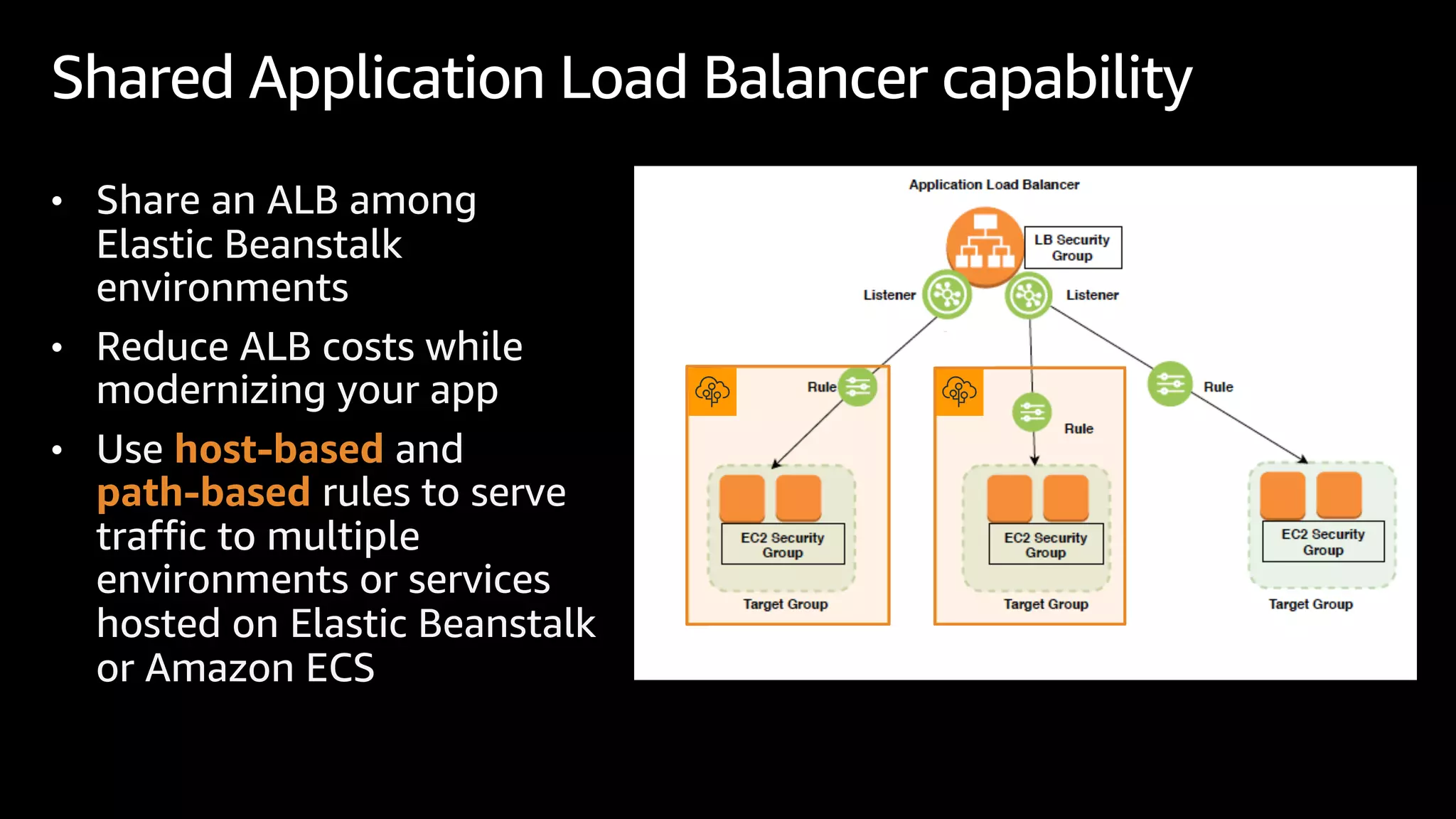

21. • Share an ALB among
Elastic Beanstalk
environments
• Reduce ALB costs while
modernizing your app
• Use host-based and
path-based rules to serve
traffic to multiple
environments or services
hosted on Elastic Beanstalk
or Amazon ECS
Shared Application Load Balancer capability

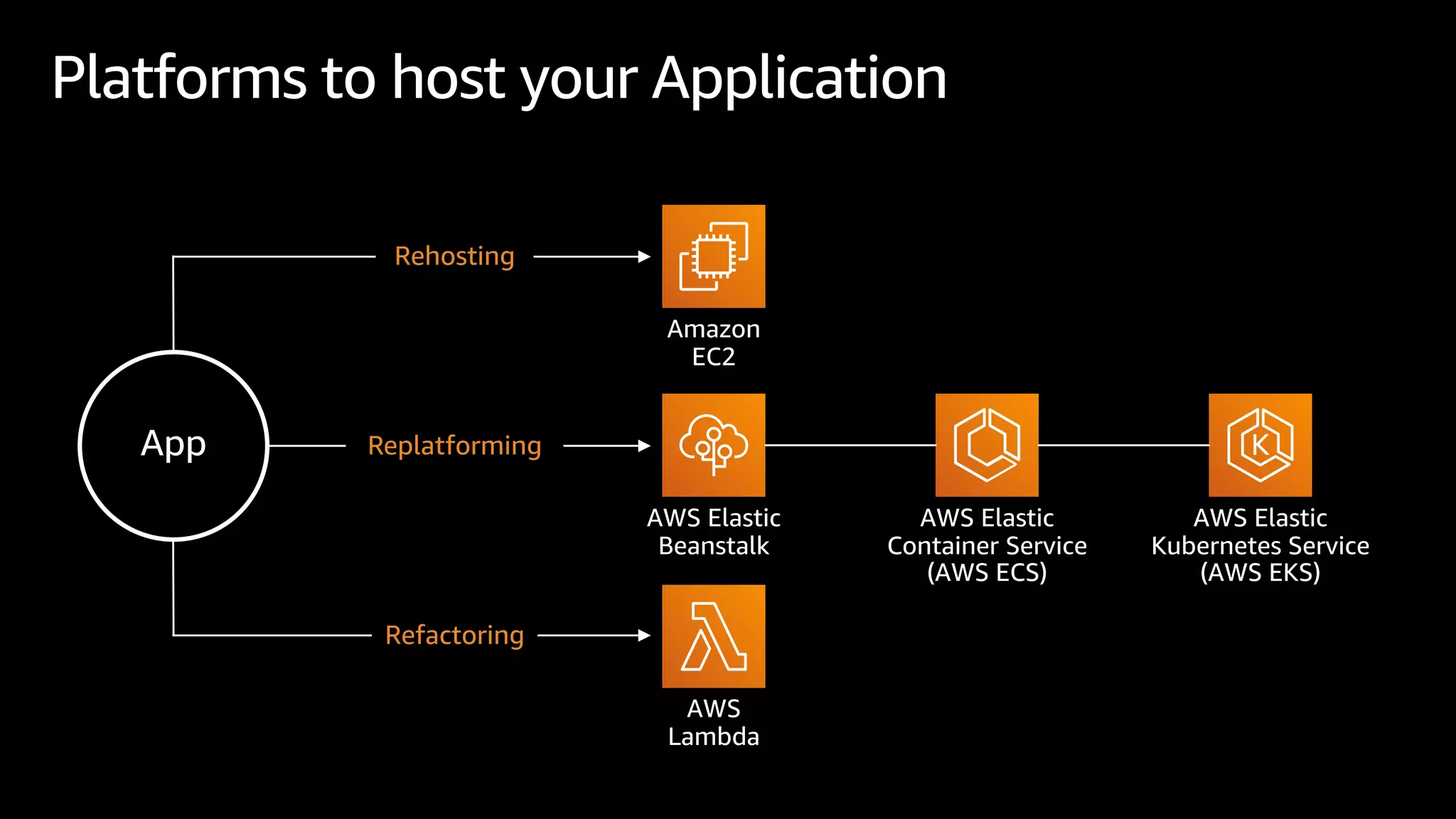

22. Platforms to host your Application
Amazon
EC2
App
Rehosting
Replatforming
Refactoring
AWS Elastic
Beanstalk
AWS
Lambda
AWS Elastic
Container Service
(AWS ECS)
AWS Elastic
Kubernetes Service
(AWS EKS)

23. q Perform lift-and-shift migration of Java, Windows .NET, Go workloads
into a managed platform with health monitoring, automated managed
updates
https://github.com/awslabs/windows-web-app-migration-assistant
q Modernize your application using multi-container Docker images on
Elastic Beanstalk
https://github.com/aws-samples/eb-docker-nginx-proxy
q Try running a Machine Learning model on Elastic Beanstalk
https://github.com/charlesmalafosse/aws-elasticbeanstalk-ml-server
Challenges

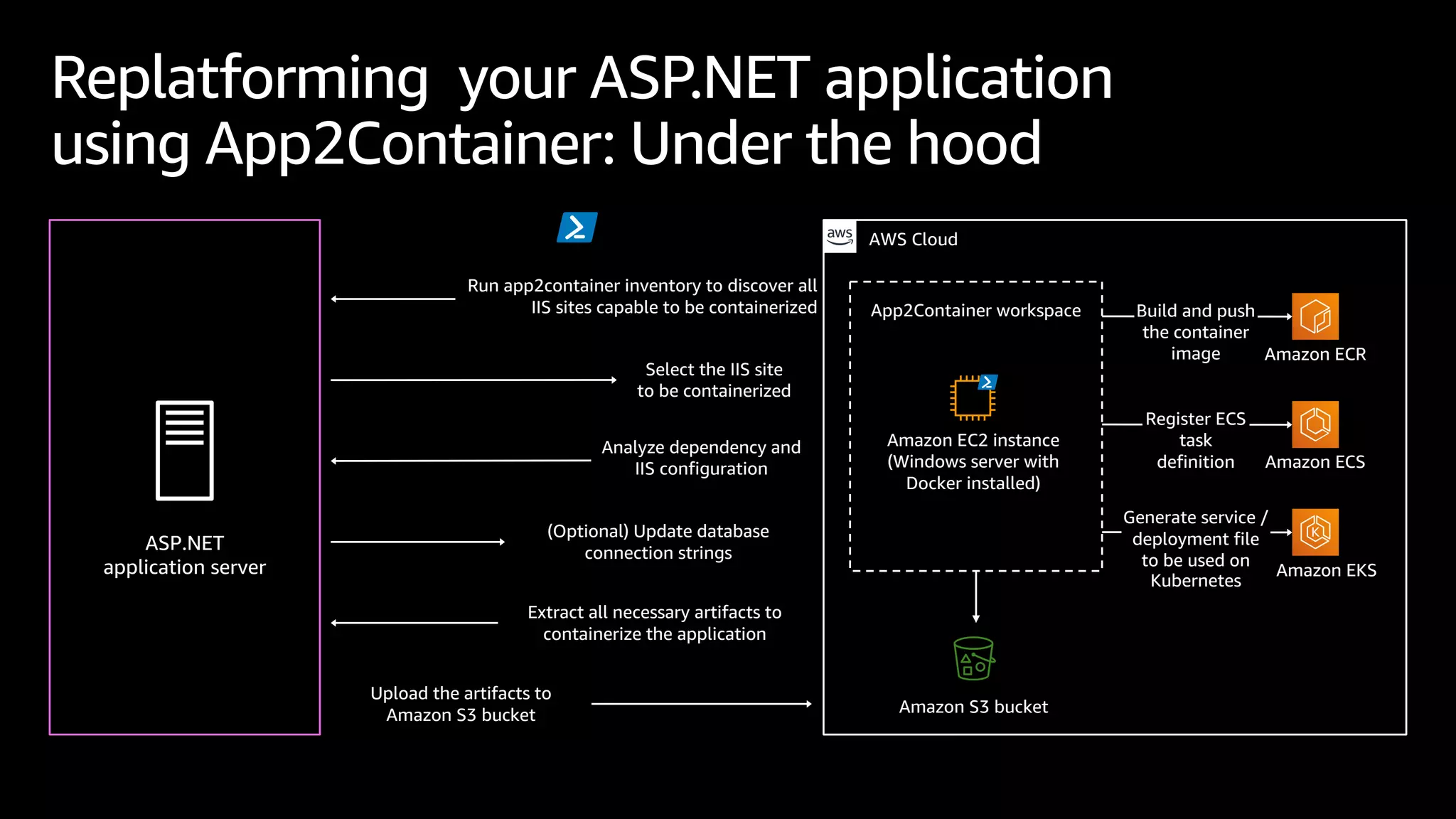

24. Replatforming your ASP.NET application
using App2Container: Under the hood
ASP.NET
application server
Upload the artifacts to
Amazon S3 bucket
Extract all necessary artifacts to
containerize the application
(Optional) Update database
connection strings
Analyze dependency and
IIS configuration
Select the IIS site
to be containerized
Run app2container inventory to discover all
IIS sites capable to be containerized Build and push
the container
image Amazon ECR
Amazon S3 bucket
AWS Cloud
App2Container workspace
Amazon EC2 instance
(Windows server with
Docker installed)
Amazon ECS
Register ECS
task
definition
Amazon EKS
Generate service /
deployment file
to be used on
Kubernetes

25. Thank you!
@nnthanh101
https://www.linkedin.com/in/nnthanh
v Facebook Group:
https://www.facebook.com/groups/modernapps/permalink/796401030955458/
v Source Code:
https://github.com/nnthanh101/modernapps/tree/main/elastic-beanstalk
