This document discusses alveolar hydatid disease, which is caused by the larval stage of the Echinococcus multilocularis tapeworm. It infects the liver and lungs primarily, causing cysts to develop. Clinical manifestations can include cough, chest pain, fever and dyspnea from intact cysts or expectoration, hemoptysis and anaphylactic shock from ruptured cysts. Diagnosis is difficult and it can be mistaken for lung cancer. Imaging findings on CT and MRI can help identify the cysts and complications like bronchobiliary fistulas.

1. Alveolar
hydatid
disease

2. Directed by
DR.Karar .A.Ali
kararbenign@gmail.com

3. •

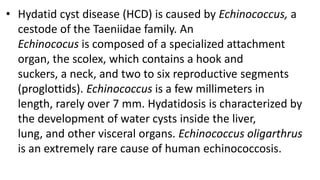

4. • Hydatid cyst disease (HCD) is caused by Echinococcus, a
cestode of the Taeniidae family. An
Echinococus is composed of a specialized attachment
organ, the scolex, which contains a hook and
suckers, a neck, and two to six reproductive segments
(proglottids). Echinococcus is a few millimeters in
length, rarely over 7 mm. Hydatidosis is characterized by
the development of water cysts inside the liver,
lung, and other visceral organs. Echinococcus oligarthrus
is an extremely rare cause of human echinococcosis.

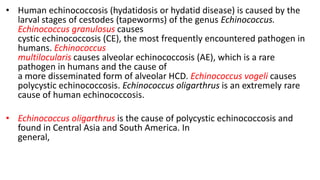

5. • Human echinococcosis (hydatidosis or hydatid disease) is caused by the
larval stages of cestodes (tapeworms) of the genus Echinococcus.
Echinococcus granulosus causes
cystic echinococcosis (CE), the most frequently encountered pathogen in
humans. Echinococcus
multilocularis causes alveolar echinococcosis (AE), which is a rare
pathogen in humans and the cause of
a more disseminated form of alveolar HCD. Echinococcus vogeli causes
polycystic echinococcosis. Echinococcus oligarthrus is an extremely rare
cause of human echinococcosis.
• Echinococcus oligarthrus is the cause of polycystic echinococcosis and
found in Central Asia and South America. In
general,

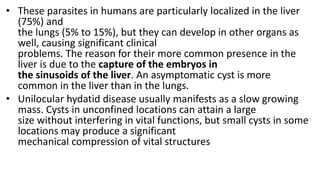

6. • These parasites in humans are particularly localized in the liver
(75%) and
the lungs (5% to 15%), but they can develop in other organs as
well, causing significant clinical
problems. The reason for their more common presence in the
liver is due to the capture of the embryos in
the sinusoids of the liver. An asymptomatic cyst is more
common in the liver than in the lungs.
• Unilocular hydatid disease usually manifests as a slow growing
mass. Cysts in unconfined locations can attain a large
size without interfering in vital functions, but small cysts in some
locations may produce a significant
mechanical compression of vital structures

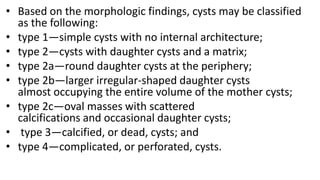

7. • Based on the morphologic findings, cysts may be classified
as the following:
• type 1—simple cysts with no internal architecture;
• type 2—cysts with daughter cysts and a matrix;
• type 2a—round daughter cysts at the periphery;
• type 2b—larger irregular-shaped daughter cysts
almost occupying the entire volume of the mother cysts;
• type 2c—oval masses with scattered
calcifications and occasional daughter cysts;
• type 3—calcified, or dead, cysts; and
• type 4—complicated, or perforated, cysts.

8. •

9. •

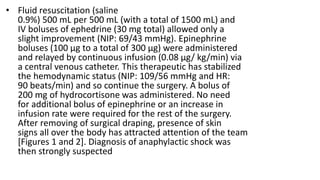

11. • Fluid resuscitation (saline
0.9%) 500 mL per 500 mL (with a total of 1500 mL) and
IV boluses of ephedrine (30 mg total) allowed only a
slight improvement (NIP: 69/43 mmHg). Epinephrine
boluses (100 μg to a total of 300 μg) were administered
and relayed by continuous infusion (0.08 μg/ kg/min) via
a central venous catheter. This therapeutic has stabilized
the hemodynamic status (NIP: 109/56 mmHg and HR:
90 beats/min) and so continue the surgery. A bolus of
200 mg of hydrocortisone was administered. No need
for additional bolus of epinephrine or an increase in
infusion rate were required for the rest of the surgery.
After removing of surgical draping, presence of skin
signs all over the body has attracted attention of the team
[Figures 1 and 2]. Diagnosis of anaphylactic shock was
then strongly suspected

12. •

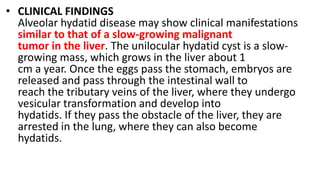

13. • CLINICAL FINDINGS
Alveolar hydatid disease may show clinical manifestations
similar to that of a slow-growing malignant
tumor in the liver. The unilocular hydatid cyst is a slow-
growing mass, which grows in the liver about 1
cm a year. Once the eggs pass the stomach, embryos are
released and pass through the intestinal wall to
reach the tributary veins of the liver, where they undergo
vesicular transformation and develop into
hydatids. If they pass the obstacle of the liver, they are
arrested in the lung, where they can also become
hydatids.

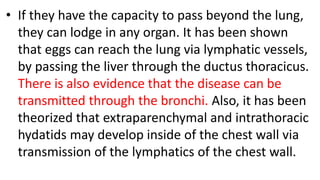

14. • If they have the capacity to pass beyond the lung,
they can lodge in any organ. It has been shown
that eggs can reach the lung via lymphatic vessels,
by passing the liver through the ductus thoracicus.
There is also evidence that the disease can be
transmitted through the bronchi. Also, it has been
theorized that extraparenchymal and intrathoracic
hydatids may develop inside of the chest wall via
transmission of the lymphatics of the chest wall.

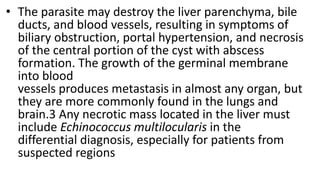

15. • The parasite may destroy the liver parenchyma, bile
ducts, and blood vessels, resulting in symptoms of
biliary obstruction, portal hypertension, and necrosis
of the central portion of the cyst with abscess
formation. The growth of the germinal membrane
into blood
vessels produces metastasis in almost any organ, but
they are more commonly found in the lungs and
brain.3 Any necrotic mass located in the liver must
include Echinococcus multilocularis in the
differential diagnosis, especially for patients from
suspected regions

16. •

17. • About 75% of infected individuals develop one or more cysts in the liver,
and the right lobe of the
liver is affected more often than the left.15 Cysts may also develop in the
lungs, kidneys, spleen, brain, and
musculoskeletal system. In most of the reported series, the lower lobes of
both lungs are affected more

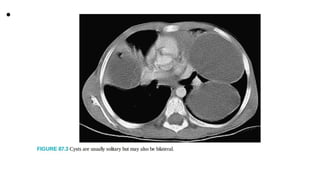

often than the upper lobes.16 Cysts are usually solitary but may also be
bilateral 19 When the
embryo is arrested at an organ, the second larval stage (metacestode)
starts. The natural course of this
stage is a progressive growth. However, some cysts are reported to
remain in a static position for years.20
Parenchymal tissue elasticity defines the growth rate of the cyst. It has
been claimed that cysts grow faster
in lungs than livers because the lung is softer and more elastic than the
liver.

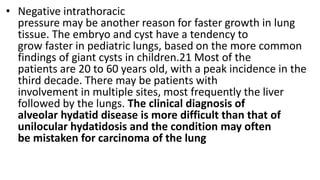

18. • Negative intrathoracic
pressure may be another reason for faster growth in lung
tissue. The embryo and cyst have a tendency to
grow faster in pediatric lungs, based on the more common
findings of giant cysts in children.21 Most of the
patients are 20 to 60 years old, with a peak incidence in the
third decade. There may be patients with
involvement in multiple sites, most frequently the liver
followed by the lungs. The clinical diagnosis of
alveolar hydatid disease is more difficult than that of
unilocular hydatidosis and the condition may often
be mistaken for carcinoma of the lung

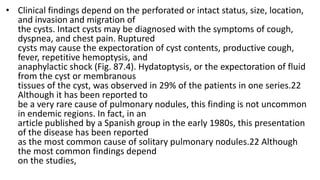

19. • Clinical findings depend on the perforated or intact status, size, location,
and invasion and migration of
the cysts. Intact cysts may be diagnosed with the symptoms of cough,
dyspnea, and chest pain. Ruptured
cysts may cause the expectoration of cyst contents, productive cough,
fever, repetitive hemoptysis, and
anaphylactic shock (Fig. 87.4). Hydatoptysis, or the expectoration of fluid
from the cyst or membranous
tissues of the cyst, was observed in 29% of the patients in one series.22
Although it has been reported to
be a very rare cause of pulmonary nodules, this finding is not uncommon
in endemic regions. In fact, in an
article published by a Spanish group in the early 1980s, this presentation
of the disease has been reported
as the most common cause of solitary pulmonary nodules.22 Although
the most common findings depend
on the studies,

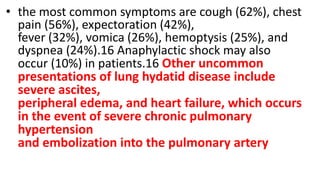

20. • the most common symptoms are cough (62%), chest
pain (56%), expectoration (42%),
fever (32%), vomica (26%), hemoptysis (25%), and
dyspnea (24%).16 Anaphylactic shock may also
occur (10%) in patients.16 Other uncommon
presentations of lung hydatid disease include
severe ascites,
peripheral edema, and heart failure, which occurs
in the event of severe chronic pulmonary
hypertension
and embolization into the pulmonary artery

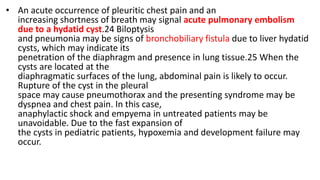

21. • An acute occurrence of pleuritic chest pain and an
increasing shortness of breath may signal acute pulmonary embolism
due to a hydatid cyst.24 Biloptysis
and pneumonia may be signs of bronchobiliary fistula due to liver hydatid
cysts, which may indicate its
penetration of the diaphragm and presence in lung tissue.25 When the
cysts are located at the
diaphragmatic surfaces of the lung, abdominal pain is likely to occur.
Rupture of the cyst in the pleural
space may cause pneumothorax and the presenting syndrome may be
dyspnea and chest pain. In this case,
anaphylactic shock and empyema in untreated patients may be
unavoidable. Due to the fast expansion of
the cysts in pediatric patients, hypoxemia and development failure may
occur.

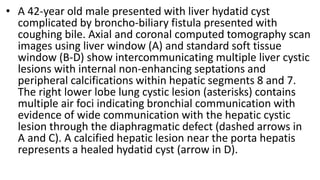

23. • A 42-year old male presented with liver hydatid cyst
complicated by broncho-biliary fistula presented with
coughing bile. Axial and coronal computed tomography scan
images using liver window (A) and standard soft tissue
window (B-D) show intercommunicating multiple liver cystic
lesions with internal non-enhancing septations and
peripheral calcifications within hepatic segments 8 and 7.
The right lower lobe lung cystic lesion (asterisks) contains
multiple air foci indicating bronchial communication with
evidence of wide communication with the hepatic cystic
lesion through the diaphragmatic defect (dashed arrows in
A and C). A calcified hepatic lesion near the porta hepatis
represents a healed hydatid cyst (arrow in D).

24. •

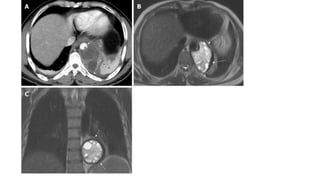

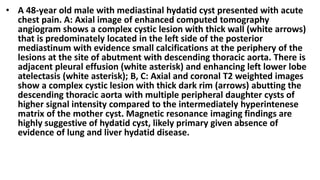

25. • A 48-year old male with mediastinal hydatid cyst presented with acute
chest pain. A: Axial image of enhanced computed tomography
angiogram shows a complex cystic lesion with thick wall (white arrows)
that is predominately located in the left side of the posterior
mediastinum with evidence small calcifications at the periphery of the
lesions at the site of abutment with descending thoracic aorta. There is
adjacent pleural effusion (white asterisk) and enhancing left lower lobe
atelectasis (white asterisk); B, C: Axial and coronal T2 weighted images
show a complex cystic lesion with thick dark rim (arrows) abutting the
descending thoracic aorta with multiple peripheral daughter cysts of
higher signal intensity compared to the intermediately hyperintenese
matrix of the mother cyst. Magnetic resonance imaging findings are
highly suggestive of hydatid cyst, likely primary given absence of
evidence of lung and liver hydatid disease.

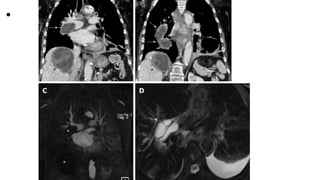

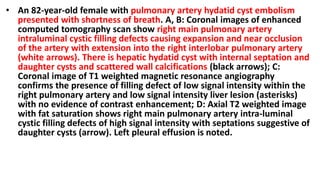

27. • An 82-year-old female with pulmonary artery hydatid cyst embolism
presented with shortness of breath. A, B: Coronal images of enhanced
computed tomography scan show right main pulmonary artery
intraluminal cystic filling defects causing expansion and near occlusion
of the artery with extension into the right interlobar pulmonary artery
(white arrows). There is hepatic hydatid cyst with internal septation and
daughter cysts and scattered wall calcifications (black arrows); C:
Coronal image of T1 weighted magnetic resonance angiography
confirms the presence of filling defect of low signal intensity within the
right pulmonary artery and low signal intensity liver lesion (asterisks)
with no evidence of contrast enhancement; D: Axial T2 weighted image
with fat saturation shows right main pulmonary artery intra-luminal
cystic filling defects of high signal intensity with septations suggestive of
daughter cysts (arrow). Left pleural effusion is noted.

28. •

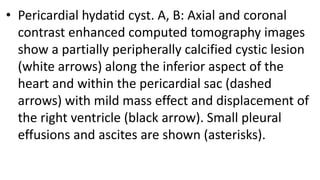

29. • Pericardial hydatid cyst. A, B: Axial and coronal
contrast enhanced computed tomography images
show a partially peripherally calcified cystic lesion
(white arrows) along the inferior aspect of the
heart and within the pericardial sac (dashed
arrows) with mild mass effect and displacement of
the right ventricle (black arrow). Small pleural
effusions and ascites are shown (asterisks).

30. •

31. •

32. •

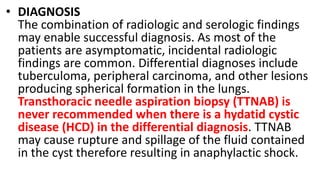

33. • DIAGNOSIS
The combination of radiologic and serologic findings
may enable successful diagnosis. As most of the
patients are asymptomatic, incidental radiologic
findings are common. Differential diagnoses include
tuberculoma, peripheral carcinoma, and other lesions
producing spherical formation in the lungs.
Transthoracic needle aspiration biopsy (TTNAB) is
never recommended when there is a hydatid cystic
disease (HCD) in the differential diagnosis. TTNAB
may cause rupture and spillage of the fluid contained
in the cyst therefore resulting in anaphylactic shock.

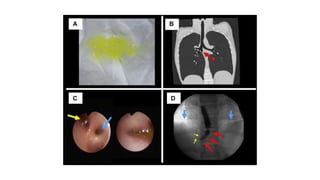

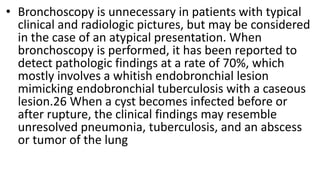

34. • Bronchoscopy is unnecessary in patients with typical
clinical and radiologic pictures, but may be considered
in the case of an atypical presentation. When
bronchoscopy is performed, it has been reported to
detect pathologic findings at a rate of 70%, which
mostly involves a whitish endobronchial lesion
mimicking endobronchial tuberculosis with a caseous
lesion.26 When a cyst becomes infected before or
after rupture, the clinical findings may resemble
unresolved pneumonia, tuberculosis, and an abscess
or tumor of the lung

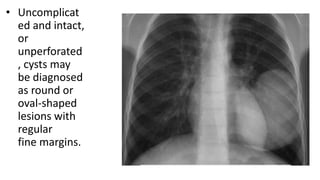

35. • Uncomplicat
ed and intact,
or
unperforated
, cysts may
be diagnosed
as round or
oval-shaped
lesions with
regular
fine margins.

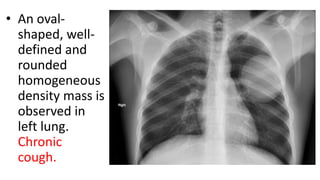

36. • An oval-
shaped, well-
defined and
rounded
homogeneous
density mass is
observed in
left lung.
Chronic
cough.

37. •

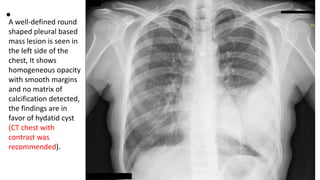

38. •A well-defined round
shaped pleural based
mass lesion is seen in
the left side of the
chest, It shows
homogeneous opacity
with smooth margins
and no matrix of
calcification detected,
the findings are in
favor of hydatid cyst
(CT chest with
contrast was
recommended).

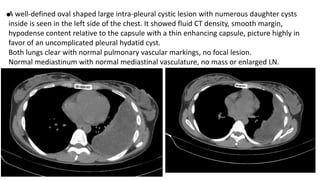

39. •A well-defined oval shaped large intra-pleural cystic lesion with numerous daughter cysts
inside is seen in the left side of the chest. It showed fluid CT density, smooth margin,
hypodense content relative to the capsule with a thin enhancing capsule, picture highly in
favor of an uncomplicated pleural hydatid cyst.
Both lungs clear with normal pulmonary vascular markings, no focal lesion.
Normal mediastinum with normal mediastinal vasculature, no mass or enlarged LN.

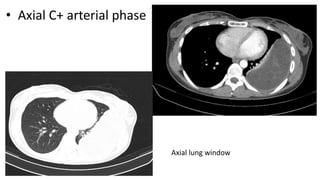

40. • Axial C+ arterial phase
Axial lung window

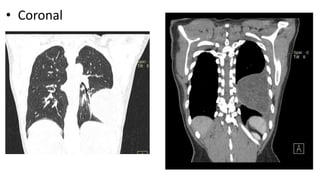

41. • Coronal

42. • The patient underwent
thoracotomy and the
findings of numerous
cystic lesions within
the pleura confirming
the diagnosis of
hydatid cysts.

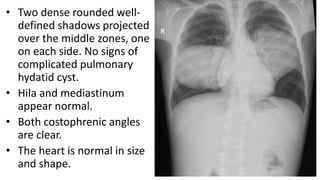

43. • Two dense rounded well-
defined shadows projected
over the middle zones, one
on each side. No signs of
complicated pulmonary
hydatid cyst.
• Hila and mediastinum
appear normal.
• Both costophrenic angles
are clear.
• The heart is normal in size
and shape.

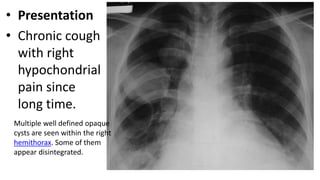

44. • Presentation
• Chronic cough
with right
hypochondrial
pain since
long time.
Multiple well defined opaque
cysts are seen within the right
hemithorax. Some of them
appear disintegrated.

45. •

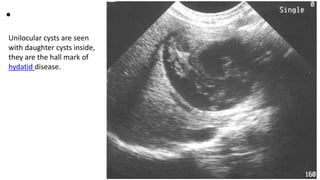

Unilocular cysts are seen
with daughter cysts inside,
they are the hall mark of
hydatid disease.

46. •

47. • Hepatic hydatid cyst
• Presentation
• Abdominal
• pain

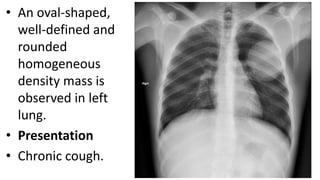

48. • An oval-shaped,
well-defined and
rounded
homogeneous
density mass is
observed in left
lung.
• Presentation
• Chronic cough.

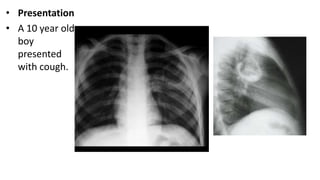

49. • Presentation
• A 10 year old
boy
presented
with cough.

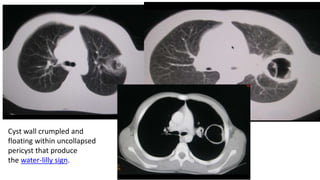

50. Cyst wall crumpled and
floating within uncollapsed
pericyst that produce
the water-lilly sign.

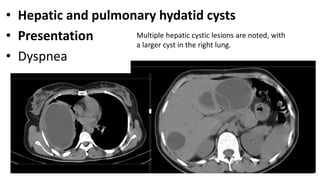

51. • Hepatic and pulmonary hydatid cysts
• Presentation
• Dyspnea
Multiple hepatic cystic lesions are noted, with
a larger cyst in the right lung.

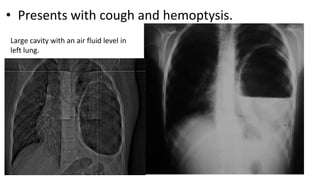

52. • Presents with cough and hemoptysis.
Large cavity with an air fluid level in
left lung.

53. •

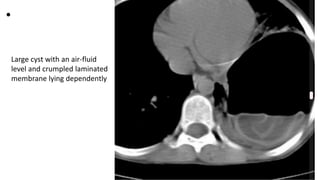

Large cyst with an air-fluid
level and crumpled laminated
membrane lying dependently

54. •

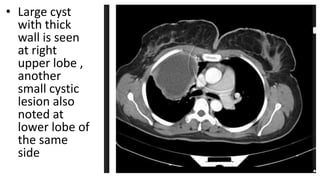

55. • Large cyst
with thick
wall is seen
at right
upper lobe ,
another
small cystic
lesion also
noted at
lower lobe of
the same
side

56. •

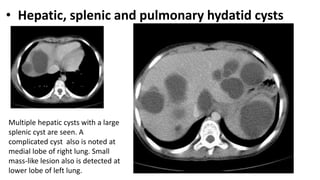

57. • Hepatic, splenic and pulmonary hydatid cysts
Multiple hepatic cysts with a large
splenic cyst are seen. A
complicated cyst also is noted at
medial lobe of right lung. Small
mass-like lesion also is detected at
lower lobe of left lung.

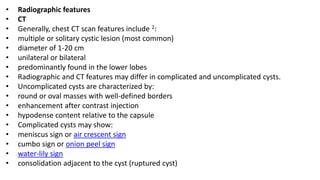

58. • Radiographic features
• CT
• Generally, chest CT scan features include 2:
• multiple or solitary cystic lesion (most common)
• diameter of 1-20 cm
• unilateral or bilateral
• predominantly found in the lower lobes
• Radiographic and CT features may differ in complicated and uncomplicated cysts.
• Uncomplicated cysts are characterized by:
• round or oval masses with well-defined borders
• enhancement after contrast injection
• hypodense content relative to the capsule
• Complicated cysts may show:
• meniscus sign or air crescent sign
• cumbo sign or onion peel sign
• water-lily sign
• consolidation adjacent to the cyst (ruptured cyst)

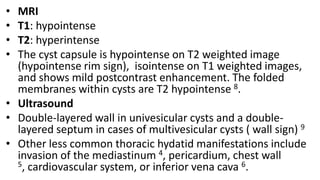

59. • MRI
• T1: hypointense
• T2: hyperintense
• The cyst capsule is hypointense on T2 weighted image
(hypointense rim sign), isointense on T1 weighted images,
and shows mild postcontrast enhancement. The folded
membranes within cysts are T2 hypointense 8.
• Ultrasound
• Double-layered wall in univesicular cysts and a double-
layered septum in cases of multivesicular cysts ( wall sign) 9
• Other less common thoracic hydatid manifestations include
invasion of the mediastinum 4, pericardium, chest wall
5, cardiovascular system, or inferior vena cava 6.

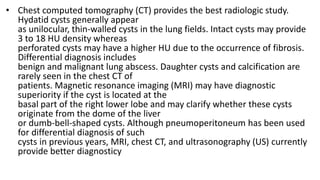

60. • Chest computed tomography (CT) provides the best radiologic study.
Hydatid cysts generally appear
as unilocular, thin-walled cysts in the lung fields. Intact cysts may provide
3 to 18 HU density whereas
perforated cysts may have a higher HU due to the occurrence of fibrosis.
Differential diagnosis includes
benign and malignant lung abscess. Daughter cysts and calcification are
rarely seen in the chest CT of
patients. Magnetic resonance imaging (MRI) may have diagnostic
superiority if the cyst is located at the
basal part of the right lower lobe and may clarify whether these cysts
originate from the dome of the liver
or dumb-bell-shaped cysts. Although pneumoperitoneum has been used
for differential diagnosis of such
cysts in previous years, MRI, chest CT, and ultrasonography (US) currently
provide better diagnosticy

61. •

62. •

63. •

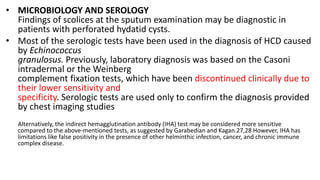

64. • MICROBIOLOGY AND SEROLOGY
Findings of scolices at the sputum examination may be diagnostic in
patients with perforated hydatid cysts.
• Most of the serologic tests have been used in the diagnosis of HCD caused
by Echinococcus
granulosus. Previously, laboratory diagnosis was based on the Casoni
intradermal or the Weinberg
complement fixation tests, which have been discontinued clinically due to
their lower sensitivity and
specificity. Serologic tests are used only to confirm the diagnosis provided
by chest imaging studies
Alternatively, the indirect hemagglutination antibody (IHA) test may be considered more sensitive
compared to the above-mentioned tests, as suggested by Garabedian and Kagan.27,28 However, IHA has
limitations like false positivity in the presence of other helminthic infection, cancer, and chronic immune
complex disease.

65. • The most sensitive test to HCD is reported to be
immunoglobulin G enzyme–linked
immunosorbent assay (ELISA) test with a sensitivity of
85.3%.26 Data show that ELISA is superior to
IHA in sensitivity for the initial screening of suspected HCD
cases.27 Laboratory tests are recommended
in either highly suspected cases or postoperative follow-up
situations. It has been reported that antibody
production increases during the first 4 to 6 weeks after
surgical intervention, followed by a decrease
during the next 12 to 18 months. 26 In patients with
recurrent HCD, the antibody levels may remain similar
to the preoperative levels.

66. •

68. •

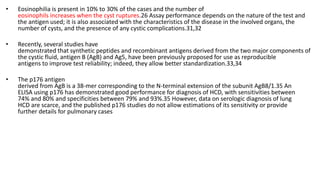

69. • Eosinophilia is present in 10% to 30% of the cases and the number of
eosinophils increases when the cyst ruptures.26 Assay performance depends on the nature of the test and
the antigen used; it is also associated with the characteristics of the disease in the involved organs, the
number of cysts, and the presence of any cystic complications.31,32
• Recently, several studies have
demonstrated that synthetic peptides and recombinant antigens derived from the two major components of
the cystic fluid, antigen B (AgB) and Ag5, have been previously proposed for use as reproducible
antigens to improve test reliability; indeed, they allow better standardization.33,34
• The p176 antigen
derived from AgB is a 38-mer corresponding to the N-terminal extension of the subunit AgB8/1.35 An
ELISA using p176 has demonstrated good performance for diagnosis of HCD, with sensitivities between
74% and 80% and specificities between 79% and 93%.35 However, data on serologic diagnosis of lung
HCD are scarce, and the published p176 studies do not allow estimations of its sensitivity or provide
further details for pulmonary cases

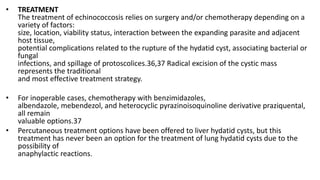

70. • TREATMENT
The treatment of echinococcosis relies on surgery and/or chemotherapy depending on a
variety of factors:
size, location, viability status, interaction between the expanding parasite and adjacent
host tissue,
potential complications related to the rupture of the hydatid cyst, associating bacterial or
fungal
infections, and spillage of protoscolices.36,37 Radical excision of the cystic mass
represents the traditional
and most effective treatment strategy.
• For inoperable cases, chemotherapy with benzimidazoles,
albendazole, mebendezol, and heterocyclic pyrazinoisoquinoline derivative praziquental,
all remain
valuable options.37
• Percutaneous treatment options have been offered to liver hydatid cysts, but this
treatment has never been an option for the treatment of lung hydatid cysts due to the
possibility of
anaphylactic reactions.

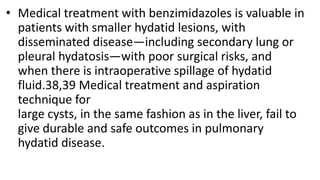

71. • Medical treatment with benzimidazoles is valuable in
patients with smaller hydatid lesions, with
disseminated disease—including secondary lung or
pleural hydatosis—with poor surgical risks, and
when there is intraoperative spillage of hydatid
fluid.38,39 Medical treatment and aspiration
technique for
large cysts, in the same fashion as in the liver, fail to
give durable and safe outcomes in pulmonary
hydatid disease.

72. •

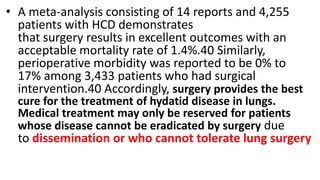

73. • A meta-analysis consisting of 14 reports and 4,255
patients with HCD demonstrates
that surgery results in excellent outcomes with an
acceptable mortality rate of 1.4%.40 Similarly,
perioperative morbidity was reported to be 0% to
17% among 3,433 patients who had surgical
intervention.40 Accordingly, surgery provides the best
cure for the treatment of hydatid disease in lungs.
Medical treatment may only be reserved for patients
whose disease cannot be eradicated by surgery due
to dissemination or who cannot tolerate lung surgery

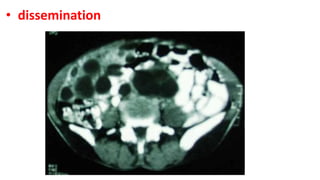

74. • dissemination

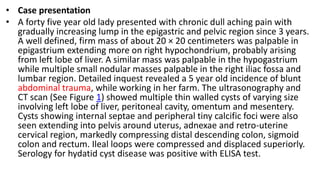

75. • Case presentation
• A forty five year old lady presented with chronic dull aching pain with
gradually increasing lump in the epigastric and pelvic region since 3 years.
A well defined, firm mass of about 20 × 20 centimeters was palpable in
epigastrium extending more on right hypochondrium, probably arising
from left lobe of liver. A similar mass was palpable in the hypogastrium
while multiple small nodular masses palpable in the right iliac fossa and
lumbar region. Detailed inquest revealed a 5 year old incidence of blunt
abdominal trauma, while working in her farm. The ultrasonography and
CT scan (See Figure 1) showed multiple thin walled cysts of varying size
involving left lobe of liver, peritoneal cavity, omentum and mesentery.
Cysts showing internal septae and peripheral tiny calcific foci were also
seen extending into pelvis around uterus, adnexae and retro-uterine
cervical region, markedly compressing distal descending colon, sigmoid
colon and rectum. Ileal loops were compressed and displaced superiorly.
Serology for hydatid cyst disease was positive with ELISA test.

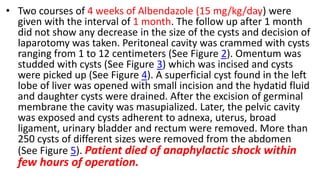

76. • Two courses of 4 weeks of Albendazole (15 mg/kg/day) were
given with the interval of 1 month. The follow up after 1 month
did not show any decrease in the size of the cysts and decision of
laparotomy was taken. Peritoneal cavity was crammed with cysts
ranging from 1 to 12 centimeters (See Figure 2). Omentum was
studded with cysts (See Figure 3) which was incised and cysts
were picked up (See Figure 4). A superficial cyst found in the left
lobe of liver was opened with small incision and the hydatid fluid
and daughter cysts were drained. After the excision of germinal
membrane the cavity was masupialized. Later, the pelvic cavity
was exposed and cysts adherent to adnexa, uterus, broad
ligament, urinary bladder and rectum were removed. More than
250 cysts of different sizes were removed from the abdomen
(See Figure 5). Patient died of anaphylactic shock within
few hours of operation.

77. •

78. •

79. •

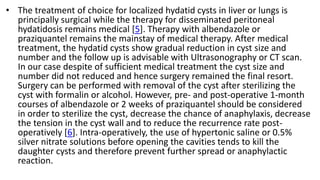

80. • The treatment of choice for localized hydatid cysts in liver or lungs is
principally surgical while the therapy for disseminated peritoneal
hydatidosis remains medical [5]. Therapy with albendazole or
praziquantel remains the mainstay of medical therapy. After medical
treatment, the hydatid cysts show gradual reduction in cyst size and
number and the follow up is advisable with Ultrasonography or CT scan.
In our case despite of sufficient medical treatment the cyst size and
number did not reduced and hence surgery remained the final resort.
Surgery can be performed with removal of the cyst after sterilizing the
cyst with formalin or alcohol. However, pre- and post-operative 1-month
courses of albendazole or 2 weeks of praziquantel should be considered
in order to sterilize the cyst, decrease the chance of anaphylaxis, decrease
the tension in the cyst wall and to reduce the recurrence rate post-
operatively [6]. Intra-operatively, the use of hypertonic saline or 0.5%
silver nitrate solutions before opening the cavities tends to kill the
daughter cysts and therefore prevent further spread or anaphylactic
reaction.

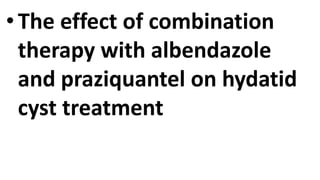

81. •The effect of combination
therapy with albendazole
and praziquantel on hydatid
cyst treatment

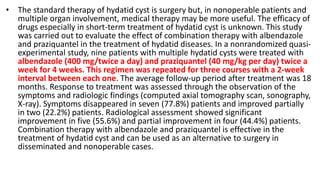

82. • The standard therapy of hydatid cyst is surgery but, in nonoperable patients and
multiple organ involvement, medical therapy may be more useful. The efficacy of
drugs especially in short-term treatment of hydatid cyst is unknown. This study
was carried out to evaluate the effect of combination therapy with albendazole
and praziquantel in the treatment of hydatid diseases. In a nonrandomized quasi-
experimental study, nine patients with multiple hydatid cysts were treated with
albendazole (400 mg/twice a day) and praziquantel (40 mg/kg per day) twice a
week for 4 weeks. This regimen was repeated for three courses with a 2-week
interval between each one. The average follow-up period after treatment was 18
months. Response to treatment was assessed through the observation of the
symptoms and radiologic findings (computed axial tomography scan, sonography,
X-ray). Symptoms disappeared in seven (77.8%) patients and improved partially
in two (22.2%) patients. Radiological assessment showed significant
improvement in five (55.6%) and partial improvement in four (44.4%) patients.
Combination therapy with albendazole and praziquantel is effective in the
treatment of hydatid cyst and can be used as an alternative to surgery in
disseminated and nonoperable cases.

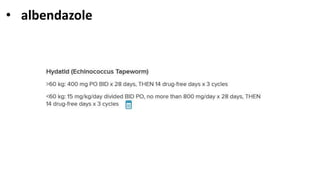

83. • albendazole

84. •Surgical
management of
pulmonary
hydatid disease

85. •

89. •

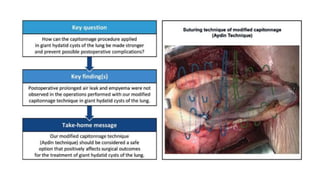

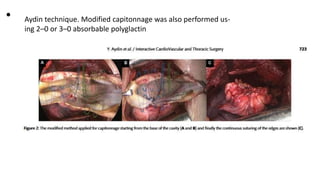

90. • Aydin technique. Modified capitonnage was also performed us-
ing 2–0 or 3–0 absorbable polyglactin

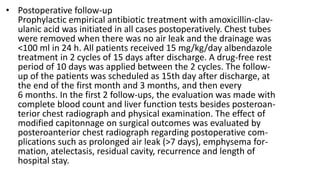

91. • Postoperative follow-up
Prophylactic empirical antibiotic treatment with amoxicillin-clav-
ulanic acid was initiated in all cases postoperatively. Chest tubes
were removed when there was no air leak and the drainage was
<100 ml in 24 h. All patients received 15 mg/kg/day albendazole
treatment in 2 cycles of 15 days after discharge. A drug-free rest
period of 10 days was applied between the 2 cycles. The follow-
up of the patients was scheduled as 15th day after discharge, at
the end of the first month and 3 months, and then every
6 months. In the first 2 follow-ups, the evaluation was made with
complete blood count and liver function tests besides posteroan-
terior chest radiograph and physical examination. The effect of
modified capitonnage on surgical outcomes was evaluated by
posteroanterior chest radiograph regarding postoperative com-
plications such as prolonged air leak (>7 days), emphysema for-
mation, atelectasis, residual cavity, recurrence and length of
hospital stay.

92. •

94. •

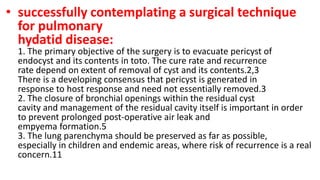

95. • successfully contemplating a surgical technique
for pulmonary
hydatid disease:
1. The primary objective of the surgery is to evacuate pericyst of
endocyst and its contents in toto. The cure rate and recurrence
rate depend on extent of removal of cyst and its contents.2,3
There is a developing consensus that pericyst is generated in
response to host response and need not essentially removed.3
2. The closure of bronchial openings within the residual cyst
cavity and management of the residual cavity itself is important in order
to prevent prolonged post-operative air leak and
empyema formation.5
3. The lung parenchyma should be preserved as far as possible,
especially in children and endemic areas, where risk of recurrence is a real
concern.11

96. • 4. In complicated cysts resection may offer low
post-operative
morbidity in contrast to conservative surgery but
case selection remains challenging

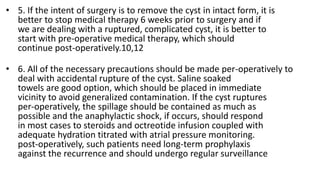

97. • 5. If the intent of surgery is to remove the cyst in intact form, it is
better to stop medical therapy 6 weeks prior to surgery and if
we are dealing with a ruptured, complicated cyst, it is better to
start with pre-operative medical therapy, which should
continue post-operatively.10,12
• 6. All of the necessary precautions should be made per-operatively to
deal with accidental rupture of the cyst. Saline soaked
towels are good option, which should be placed in immediate
vicinity to avoid generalized contamination. If the cyst ruptures
per-operatively, the spillage should be contained as much as
possible and the anaphylactic shock, if occurs, should respond
in most cases to steroids and octreotide infusion coupled with
adequate hydration titrated with atrial pressure monitoring.
post-operatively, such patients need long-term prophylaxis
against the recurrence and should undergo regular surveillance

98. •

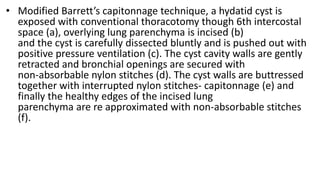

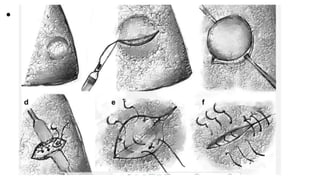

99. • Modified Barrett’s capitonnage technique, a hydatid cyst is
exposed with conventional thoracotomy though 6th intercostal
space (a), overlying lung parenchyma is incised (b)
and the cyst is carefully dissected bluntly and is pushed out with
positive pressure ventilation (c). The cyst cavity walls are gently
retracted and bronchial openings are secured with
non-absorbable nylon stitches (d). The cyst walls are buttressed
together with interrupted nylon stitches- capitonnage (e) and
finally the healthy edges of the incised lung
parenchyma are re approximated with non-absorbable stitches
(f).

100. •

101. • the steps of surgical evaluation may be based on (1) the
selection of the
order of operations based on whether the cysts are bilateral
or are located in the liver and other organs
such as the heart and brain; (2) the selection of incision
types, including thoracotomy, median sternotomy,
thoracoabdominal incisions, and video-assisted
thoracoscopic surgery; (3) the timing of the surgery in
relation to the use of medication; (4) the selection of
intraoperative approach for the excision of the cyst;
and (5) the selection of the technique for the closure of the
pericystic cavity or the selection to not make
any closure.

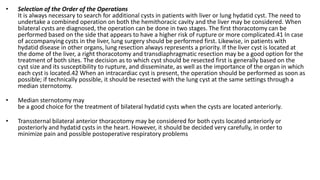

102. • Selection of the Order of the Operations
It is always necessary to search for additional cysts in patients with liver or lung hydatid cyst. The need to
undertake a combined operation on both the hemithoracic cavity and the liver may be considered. When
bilateral cysts are diagnosed, the operation can be done in two stages. The first thoracotomy can be
performed based on the side that appears to have a higher risk of rupture or more complicated.41 In case
of accompanying cysts in the liver, lung surgery should be performed first. Likewise, in patients with
hydatid disease in other organs, lung resection always represents a priority. If the liver cyst is located at
the dome of the liver, a right thoracotomy and transdiaphragmatic resection may be a good option for the
treatment of both sites. The decision as to which cyst should be resected first is generally based on the
cyst size and its susceptibility to rupture, and disseminate, as well as the importance of the organ in which
each cyst is located.42 When an intracardiac cyst is present, the operation should be performed as soon as
possible; if technically possible, it should be resected with the lung cyst at the same settings through a
median sternotomy.
• Median sternotomy may
be a good choice for the treatment of bilateral hydatid cysts when the cysts are located anteriorly.
• Transsternal bilateral anterior thoracotomy may be considered for both cysts located anteriorly or
posteriorly and hydatid cysts in the heart. However, it should be decided very carefully, in order to
minimize pain and possible postoperative respiratory problems

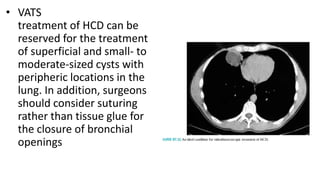

103. • VATS
treatment of HCD can be
reserved for the treatment
of superficial and small- to
moderate-sized cysts with
peripheric locations in the
lung. In addition, surgeons
should consider suturing
rather than tissue glue for
the closure of bronchial
openings

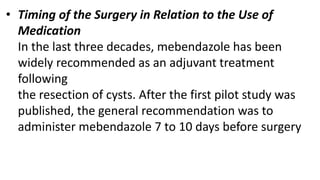

104. • Timing of the Surgery in Relation to the Use of
Medication
In the last three decades, mebendazole has been
widely recommended as an adjuvant treatment
following
the resection of cysts. After the first pilot study was
published, the general recommendation was to
administer mebendazole 7 to 10 days before surgery

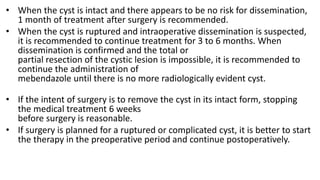

105. • When the cyst is intact and there appears to be no risk for dissemination,
1 month of treatment after surgery is recommended.
• When the cyst is ruptured and intraoperative dissemination is suspected,
it is recommended to continue treatment for 3 to 6 months. When
dissemination is confirmed and the total or
partial resection of the cystic lesion is impossible, it is recommended to
continue the administration of
mebendazole until there is no more radiologically evident cyst.
• If the intent of surgery is to remove the cyst in its intact form, stopping
the medical treatment 6 weeks
before surgery is reasonable.
• If surgery is planned for a ruptured or complicated cyst, it is better to start
the therapy in the preoperative period and continue postoperatively.

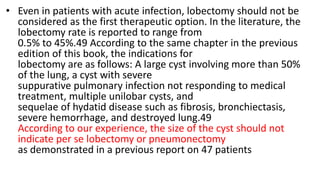

107. • Even in patients with acute infection, lobectomy should not be
considered as the first therapeutic option. In the literature, the
lobectomy rate is reported to range from
0.5% to 45%.49 According to the same chapter in the previous
edition of this book, the indications for
lobectomy are as follows: A large cyst involving more than 50%
of the lung, a cyst with severe
suppurative pulmonary infection not responding to medical
treatment, multiple unilobar cysts, and
sequelae of hydatid disease such as fibrosis, bronchiectasis,
severe hemorrhage, and destroyed lung.49
According to our experience, the size of the cyst should not
indicate per se lobectomy or pneumonectomy
as demonstrated in a previous report on 47 patients

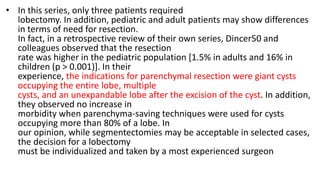

108. • In this series, only three patients required
lobectomy. In addition, pediatric and adult patients may show differences
in terms of need for resection.
In fact, in a retrospective review of their own series, Dincer50 and
colleagues observed that the resection
rate was higher in the pediatric population [1.5% in adults and 16% in
children (p > 0.001)]. In their
experience, the indications for parenchymal resection were giant cysts
occupying the entire lobe, multiple
cysts, and an unexpandable lobe after the excision of the cyst. In addition,
they observed no increase in
morbidity when parenchyma-saving techniques were used for cysts
occupying more than 80% of a lobe. In
our opinion, while segmentectomies may be acceptable in selected cases,
the decision for a lobectomy
must be individualized and taken by a most experienced surgeon

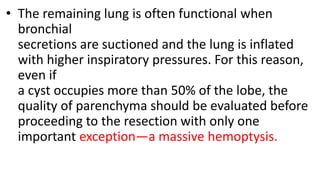

109. • The remaining lung is often functional when
bronchial
secretions are suctioned and the lung is inflated
with higher inspiratory pressures. For this reason,
even if
a cyst occupies more than 50% of the lobe, the
quality of parenchyma should be evaluated before
proceeding to the resection with only one
important exception—a massive hemoptysis.

110. •

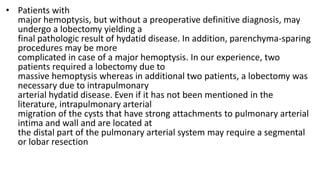

111. • Patients with
major hemoptysis, but without a preoperative definitive diagnosis, may
undergo a lobectomy yielding a
final pathologic result of hydatid disease. In addition, parenchyma-sparing
procedures may be more
complicated in case of a major hemoptysis. In our experience, two
patients required a lobectomy due to
massive hemoptysis whereas in additional two patients, a lobectomy was
necessary due to intrapulmonary
arterial hydatid disease. Even if it has not been mentioned in the
literature, intrapulmonary arterial
migration of the cysts that have strong attachments to pulmonary arterial
intima and wall and are located at
the distal part of the pulmonary arterial system may require a segmental
or lobar resection

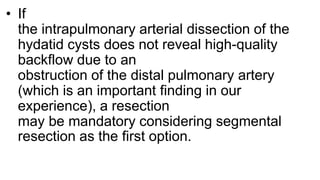

112. • If
the intrapulmonary arterial dissection of the
hydatid cysts does not reveal high-quality
backflow due to an
obstruction of the distal pulmonary artery
(which is an important finding in our
experience), a resection
may be mandatory considering segmental
resection as the first option.

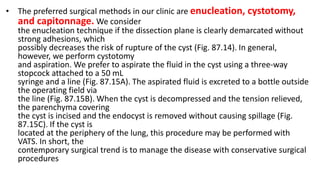

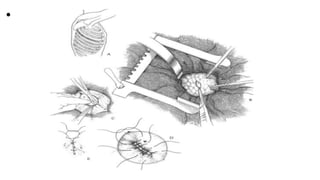

113. • The preferred surgical methods in our clinic are enucleation, cystotomy,
and capitonnage. We consider
the enucleation technique if the dissection plane is clearly demarcated without
strong adhesions, which
possibly decreases the risk of rupture of the cyst (Fig. 87.14). In general,
however, we perform cystotomy
and aspiration. We prefer to aspirate the fluid in the cyst using a three-way
stopcock attached to a 50 mL
syringe and a line (Fig. 87.15A). The aspirated fluid is excreted to a bottle outside
the operating field via
the line (Fig. 87.15B). When the cyst is decompressed and the tension relieved,
the parenchyma covering
the cyst is incised and the endocyst is removed without causing spillage (Fig.
87.15C). If the cyst is
located at the periphery of the lung, this procedure may be performed with
VATS. In short, the
contemporary surgical trend is to manage the disease with conservative surgical
procedures

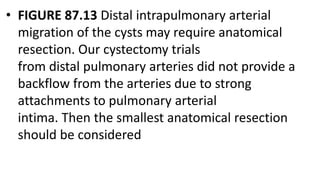

114. • FIGURE 87.13 Distal intrapulmonary arterial
migration of the cysts may require anatomical
resection. Our cystectomy trials
from distal pulmonary arteries did not provide a
backflow from the arteries due to strong
attachments to pulmonary arterial
intima. Then the smallest anatomical resection
should be considered

115. •

116. •

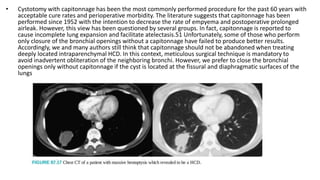

117. • Cystotomy with capitonnage has been the most commonly performed procedure for the past 60 years with
acceptable cure rates and perioperative morbidity. The literature suggests that capitonnage has been
performed since 1952 with the intention to decrease the rate of empyema and postoperative prolonged
airleak. However, this view has been questioned by several groups. In fact, capitonnage is reported to
cause incomplete lung expansion and facilitate atelectasis.51 Unfortunately, some of those who perform
only closure of the bronchial openings without a capitonnage have failed to produce better results.
Accordingly, we and many authors still think that capitonnage should not be abandoned when treating
deeply located intraparenchymal HCD. In this context, meticulous surgical technique is mandatory to
avoid inadvertent obliteration of the neighboring bronchi. However, we prefer to close the bronchial
openings only without capitonnage if the cyst is located at the fissural and diaphragmatic surfaces of the
lungs

118. •

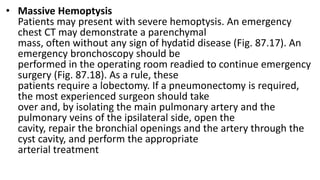

119. • Massive Hemoptysis
Patients may present with severe hemoptysis. An emergency
chest CT may demonstrate a parenchymal
mass, often without any sign of hydatid disease (Fig. 87.17). An
emergency bronchoscopy should be
performed in the operating room readied to continue emergency
surgery (Fig. 87.18). As a rule, these
patients require a lobectomy. If a pneumonectomy is required,
the most experienced surgeon should take
over and, by isolating the main pulmonary artery and the
pulmonary veins of the ipsilateral side, open the
cavity, repair the bronchial openings and the artery through the
cyst cavity, and perform the appropriate
arterial treatment

120. •

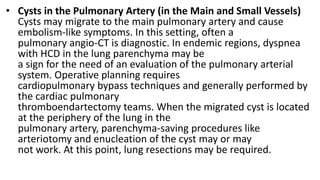

121. • Cysts in the Pulmonary Artery (in the Main and Small Vessels)
Cysts may migrate to the main pulmonary artery and cause
embolism-like symptoms. In this setting, often a
pulmonary angio-CT is diagnostic. In endemic regions, dyspnea
with HCD in the lung parenchyma may be
a sign for the need of an evaluation of the pulmonary arterial
system. Operative planning requires
cardiopulmonary bypass techniques and generally performed by
the cardiac pulmonary
thromboendartectomy teams. When the migrated cyst is located
at the periphery of the lung in the
pulmonary artery, parenchyma-saving procedures like
arteriotomy and enucleation of the cyst may or may
not work. At this point, lung resections may be required.

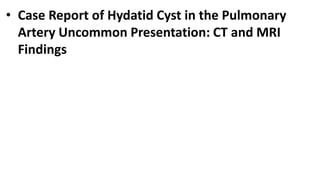

122. • Case Report of Hydatid Cyst in the Pulmonary
Artery Uncommon Presentation: CT and MRI
Findings

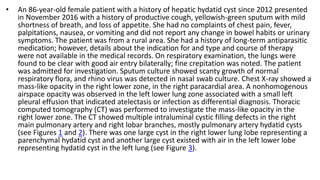

123. • An 86-year-old female patient with a history of hepatic hydatid cyst since 2012 presented
in November 2016 with a history of productive cough, yellowish-green sputum with mild
shortness of breath, and loss of appetite. She had no complaints of chest pain, fever,
palpitations, nausea, or vomiting and did not report any change in bowel habits or urinary
symptoms. The patient was from a rural area. She had a history of long-term antiparasitic
medication; however, details about the indication for and type and course of therapy
were not available in the medical records. On respiratory examination, the lungs were
found to be clear with good air entry bilaterally; fine crepitation was noted. The patient
was admitted for investigation. Sputum culture showed scanty growth of normal
respiratory flora, and rhino virus was detected in nasal swab culture. Chest X-ray showed a
mass-like opacity in the right lower zone, in the right paracardial area. A nonhomogenous
airspace opacity was observed in the left lower lung zone associated with a small left
pleural effusion that indicated atelectasis or infection as differential diagnosis. Thoracic
computed tomography (CT) was performed to investigate the mass-like opacity in the
right lower zone. The CT showed multiple intraluminal cystic filling defects in the right
main pulmonary artery and right lobar branches, mostly pulmonary artery hydatid cysts
(see Figures 1 and 2). There was one large cyst in the right lower lung lobe representing a
parenchymal hydatid cyst and another large cyst existed with air in the left lower lobe
representing hydatid cyst in the left lung (see Figure 3).

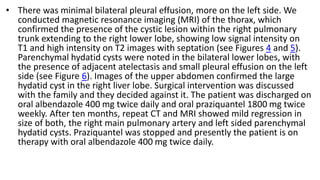

124. • There was minimal bilateral pleural effusion, more on the left side. We
conducted magnetic resonance imaging (MRI) of the thorax, which
confirmed the presence of the cystic lesion within the right pulmonary
trunk extending to the right lower lobe, showing low signal intensity on
T1 and high intensity on T2 images with septation (see Figures 4 and 5).
Parenchymal hydatid cysts were noted in the bilateral lower lobes, with
the presence of adjacent atelectasis and small pleural effusion on the left
side (see Figure 6). Images of the upper abdomen confirmed the large
hydatid cyst in the right liver lobe. Surgical intervention was discussed
with the family and they decided against it. The patient was discharged on
oral albendazole 400 mg twice daily and oral praziquantel 1800 mg twice
weekly. After ten months, repeat CT and MRI showed mild regression in
size of both, the right main pulmonary artery and left sided parenchymal
hydatid cysts. Praziquantel was stopped and presently the patient is on
therapy with oral albendazole 400 mg twice daily.

125. • (a-b) CT axial images show pulmonary artery with
multiseptate hydatid cysts (red arrows), seen in the
right main pulmonary artery and the lower lobar
branches of the right pulmonary artery, along with
other parenchymal cysts (blue arrows).

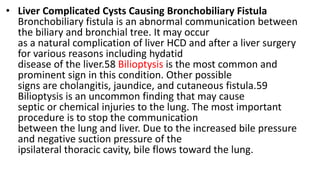

126. • Liver Complicated Cysts Causing Bronchobiliary Fistula
Bronchobiliary fistula is an abnormal communication between
the biliary and bronchial tree. It may occur
as a natural complication of liver HCD and after a liver surgery
for various reasons including hydatid
disease of the liver.58 Bilioptysis is the most common and
prominent sign in this condition. Other possible
signs are cholangitis, jaundice, and cutaneous fistula.59
Bilioptysis is an uncommon finding that may cause
septic or chemical injuries to the lung. The most important
procedure is to stop the communication
between the lung and liver. Due to the increased bile pressure
and negative suction pressure of the
ipsilateral thoracic cavity, bile flows toward the lung.

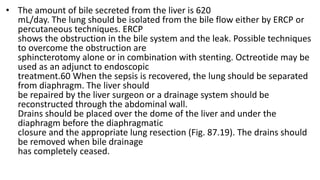

127. • The amount of bile secreted from the liver is 620
mL/day. The lung should be isolated from the bile flow either by ERCP or
percutaneous techniques. ERCP
shows the obstruction in the bile system and the leak. Possible techniques
to overcome the obstruction are
sphincterotomy alone or in combination with stenting. Octreotide may be
used as an adjunct to endoscopic
treatment.60 When the sepsis is recovered, the lung should be separated
from diaphragm. The liver should
be repaired by the liver surgeon or a drainage system should be
reconstructed through the abdominal wall.
Drains should be placed over the dome of the liver and under the
diaphragm before the diaphragmatic
closure and the appropriate lung resection (Fig. 87.19). The drains should
be removed when bile drainage
has completely ceased.
