- 1. Prepared by: MaramFoad Obaidat shomoo aljizawi Supervised by: Dr. Imad Al-Hashimi.

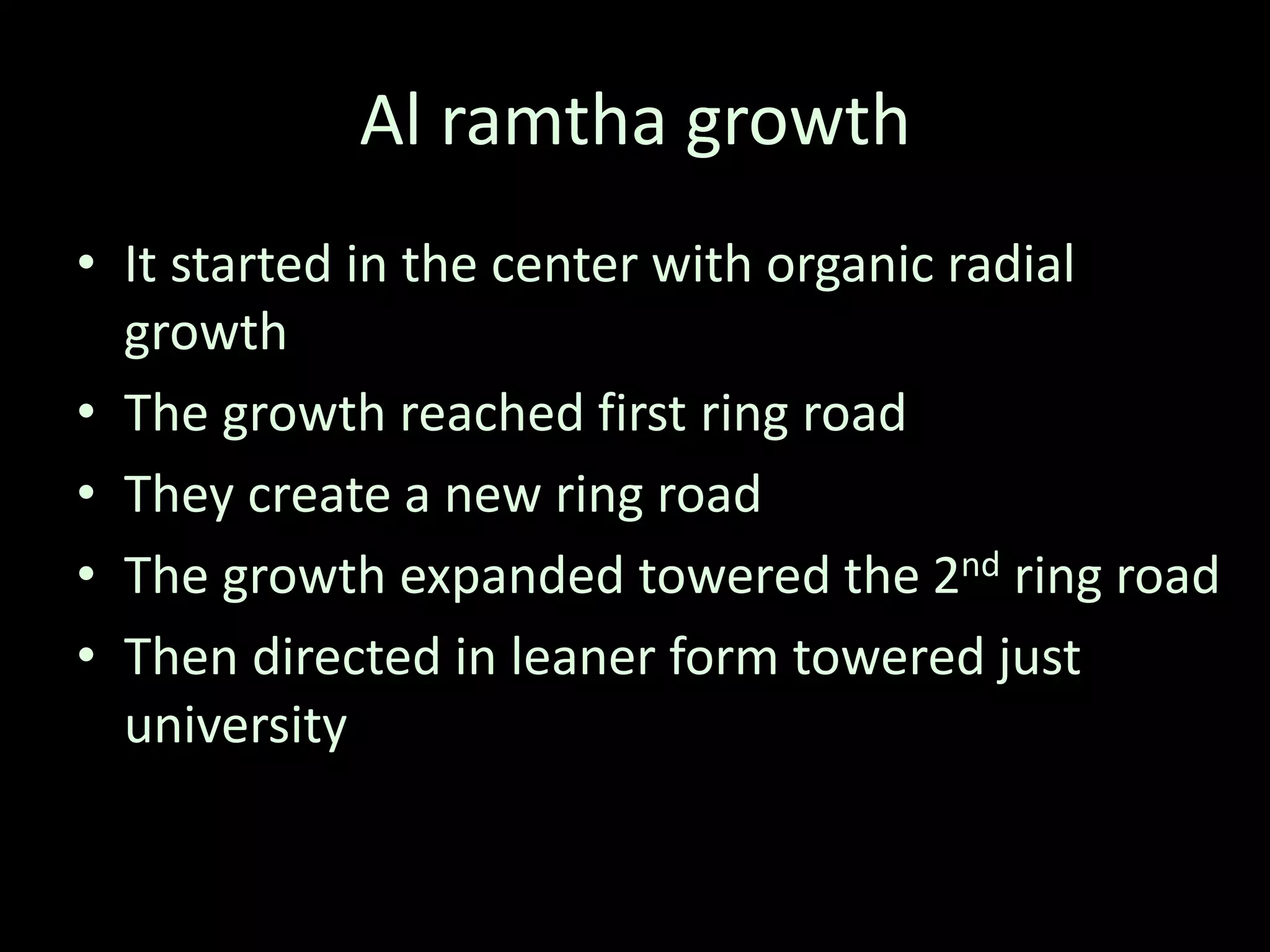

- 2. Al ramtha growth •It started in the center with organic radial growth • The growth reached first ring road • They create a new ring road • The growth expanded towered the 2nd ring road • Then directed in leaner form towered just university

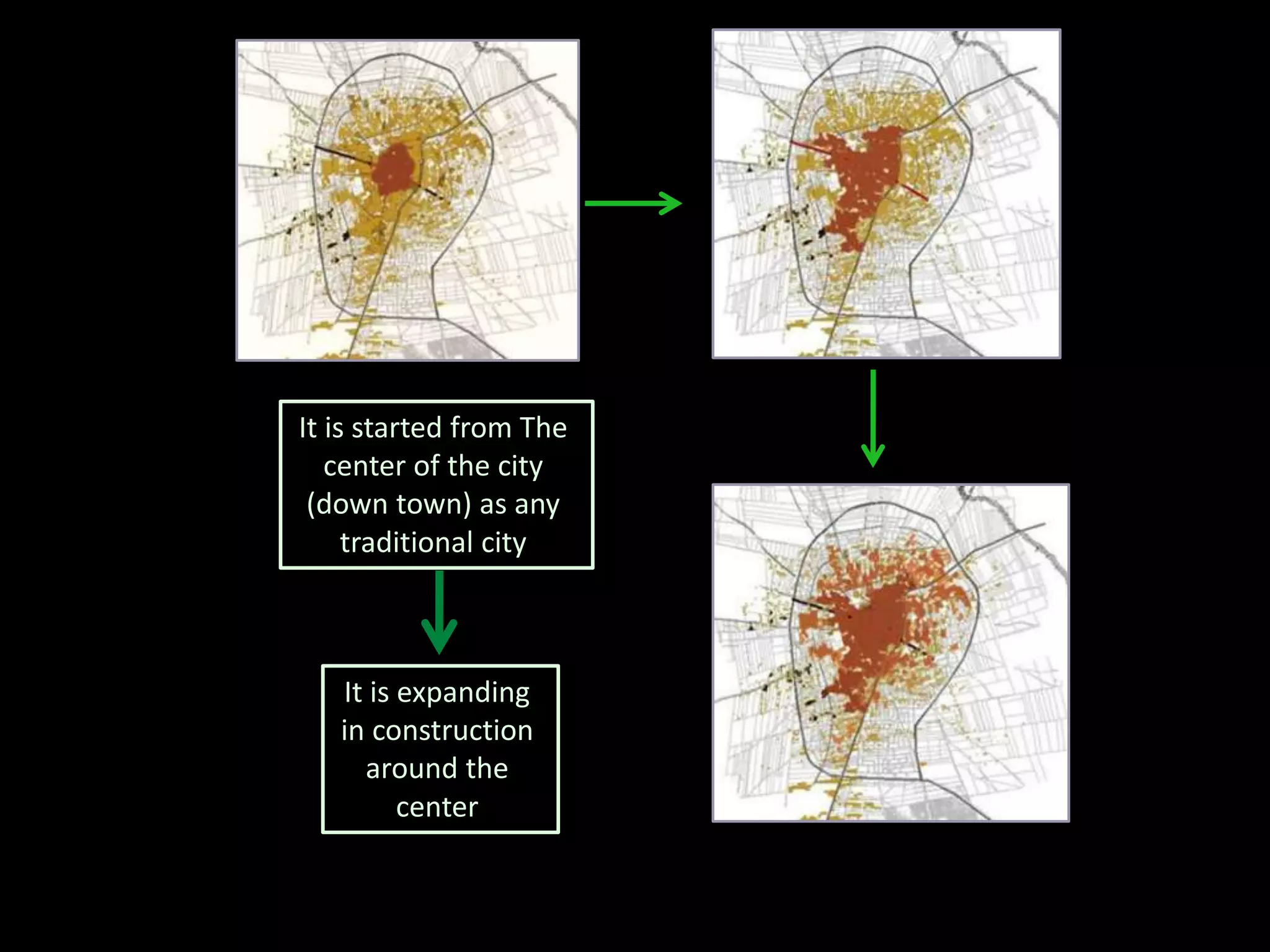

- 3. It is startedfrom The center of the city (down town) as any traditional city It is expanding in construction around the center
- 5. space syntax • Wewill use space syntax to simulate the effects of al ramtha city designs on the citizen and visitor who move around in the city.

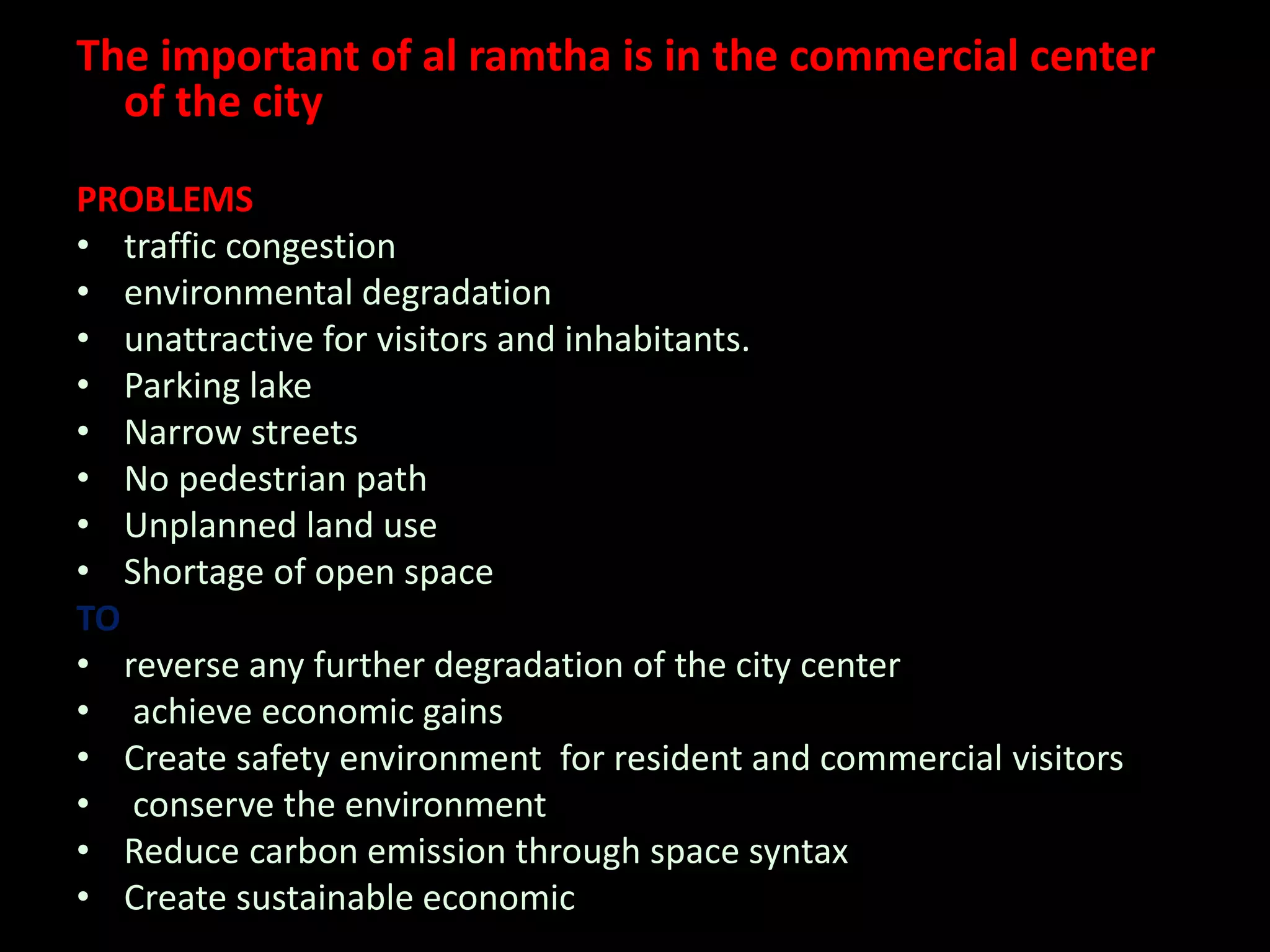

- 6. The important ofal ramtha is in the commercial center of the city PROBLEMS • traffic congestion • environmental degradation • unattractive for visitors and inhabitants. • Parking lake • Narrow streets • No pedestrian path • Unplanned land use • Shortage of open space TO • reverse any further degradation of the city center • achieve economic gains • Create safety environment for resident and commercial visitors • conserve the environment • Reduce carbon emission through space syntax • Create sustainable economic
- 7. The important ofal ramtha is in the commercial center of the city THE CHALLENGE • revitalizing ramtha city center by identifying understanding providing • solutions to problems that have emerged through its recent rapid growth. THE MAIN GOAL IS spatial layout , the social, economic and environmental performance of places. Put future development strategy urban design guidelines for revitalizing the city center .
- 8. Space Syntax researchhas made five key discoveries that demonstrate how spatial layout directly affects: - movement, such that Space Syntax models can be used as strategic traffic modeling tools for vehicle, pedestrian and cycling movement - land use, showing how land use performance is deeply influenced by spatial location - safety, allowing risk to be identified and safer places to be created - land value, demonstrating the influence of spatial networks on property economics - carbon emissions, highlighting the contribution of spatial planning and design to environmental impact.

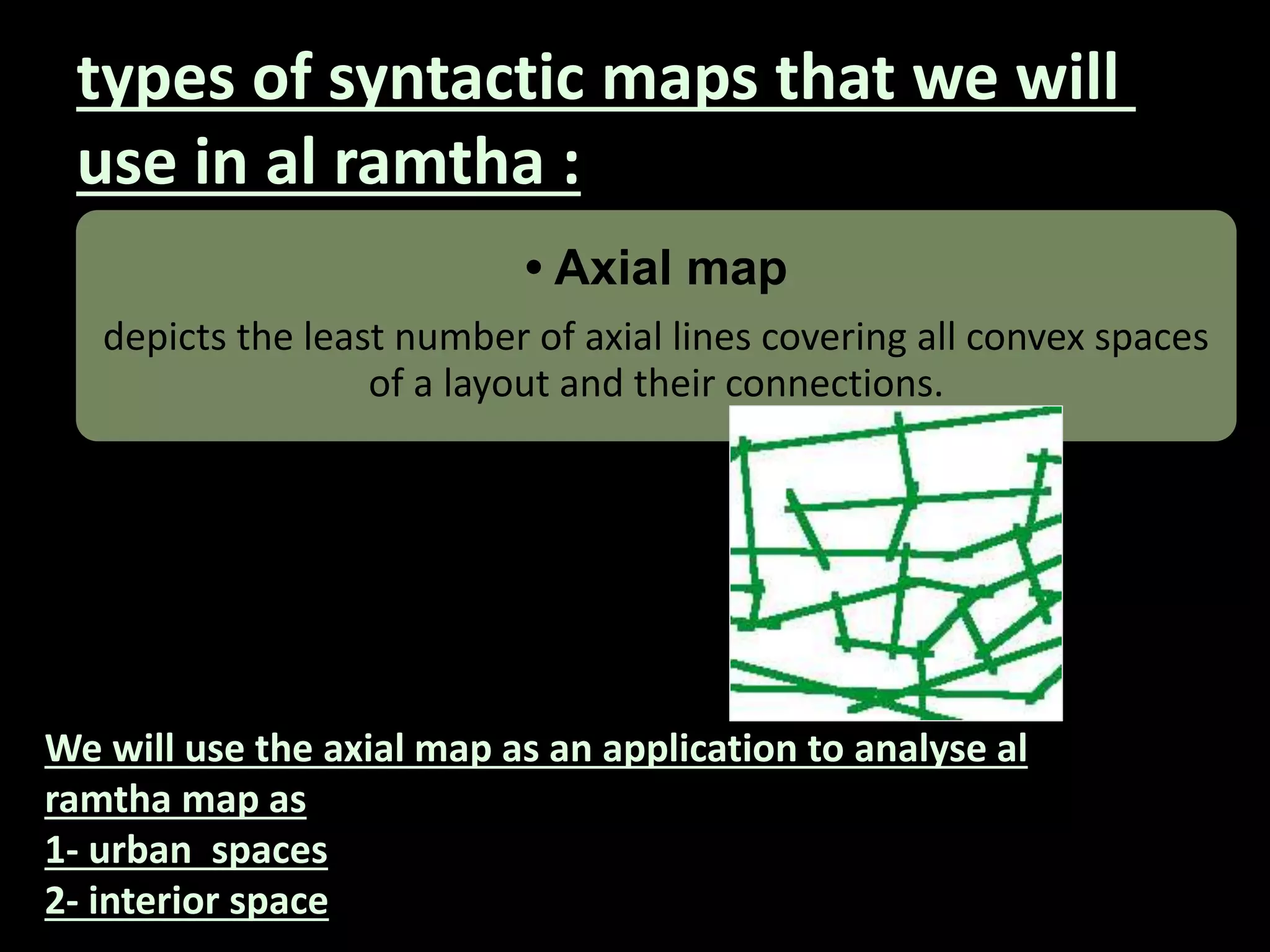

- 9. types of syntacticmaps that we will use in al ramtha : • Axial map depicts the least number of axial lines covering all convex spaces of a layout and their connections. We will use the axial map as an application to analyse al ramtha map as 1- urban spaces 2- interior space

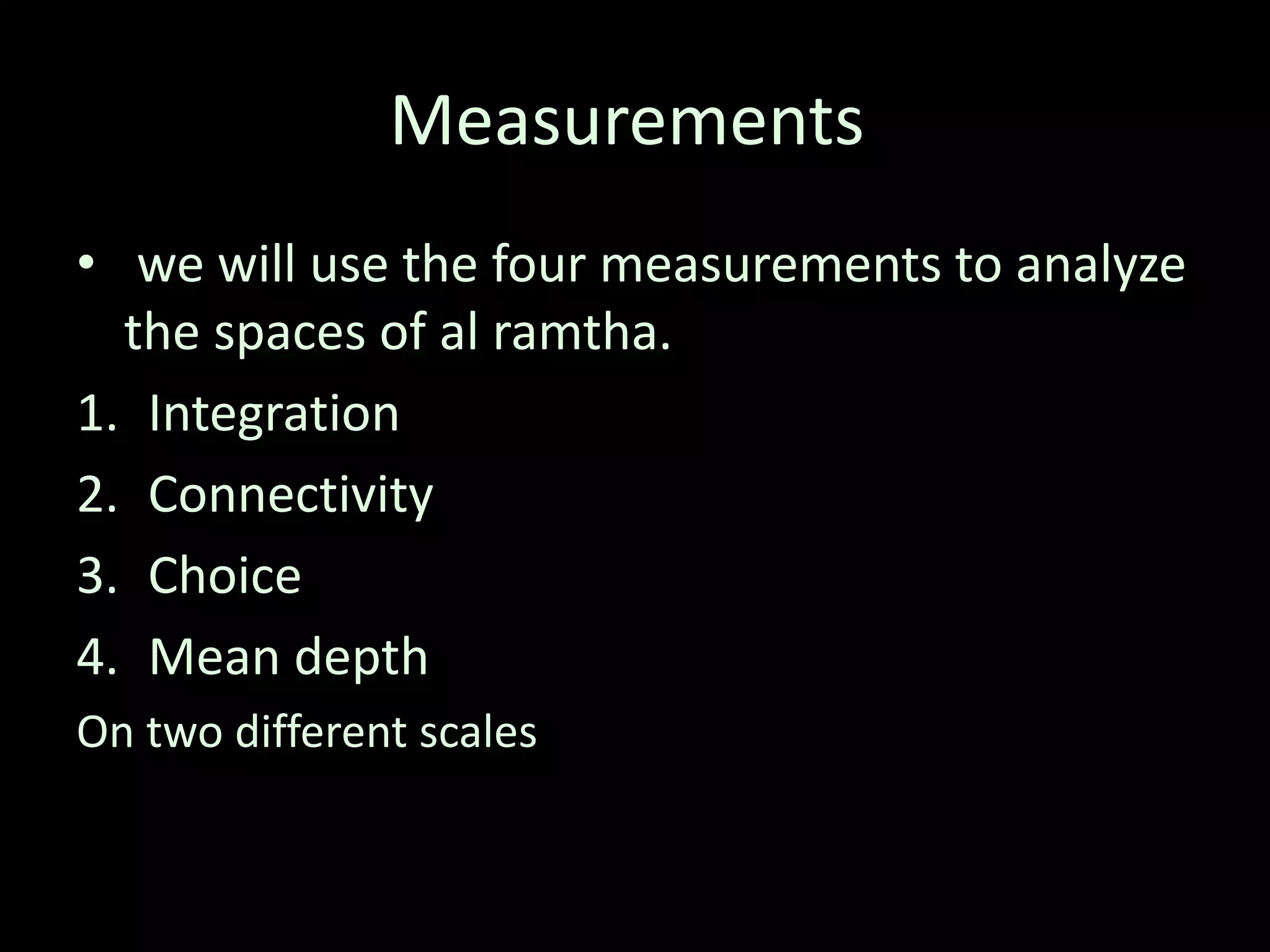

- 10. Measurements • we willuse the four measurements to analyze the spaces of al ramtha. 1. Integration 2. Connectivity 3. Choice 4. Mean depth On two different scales

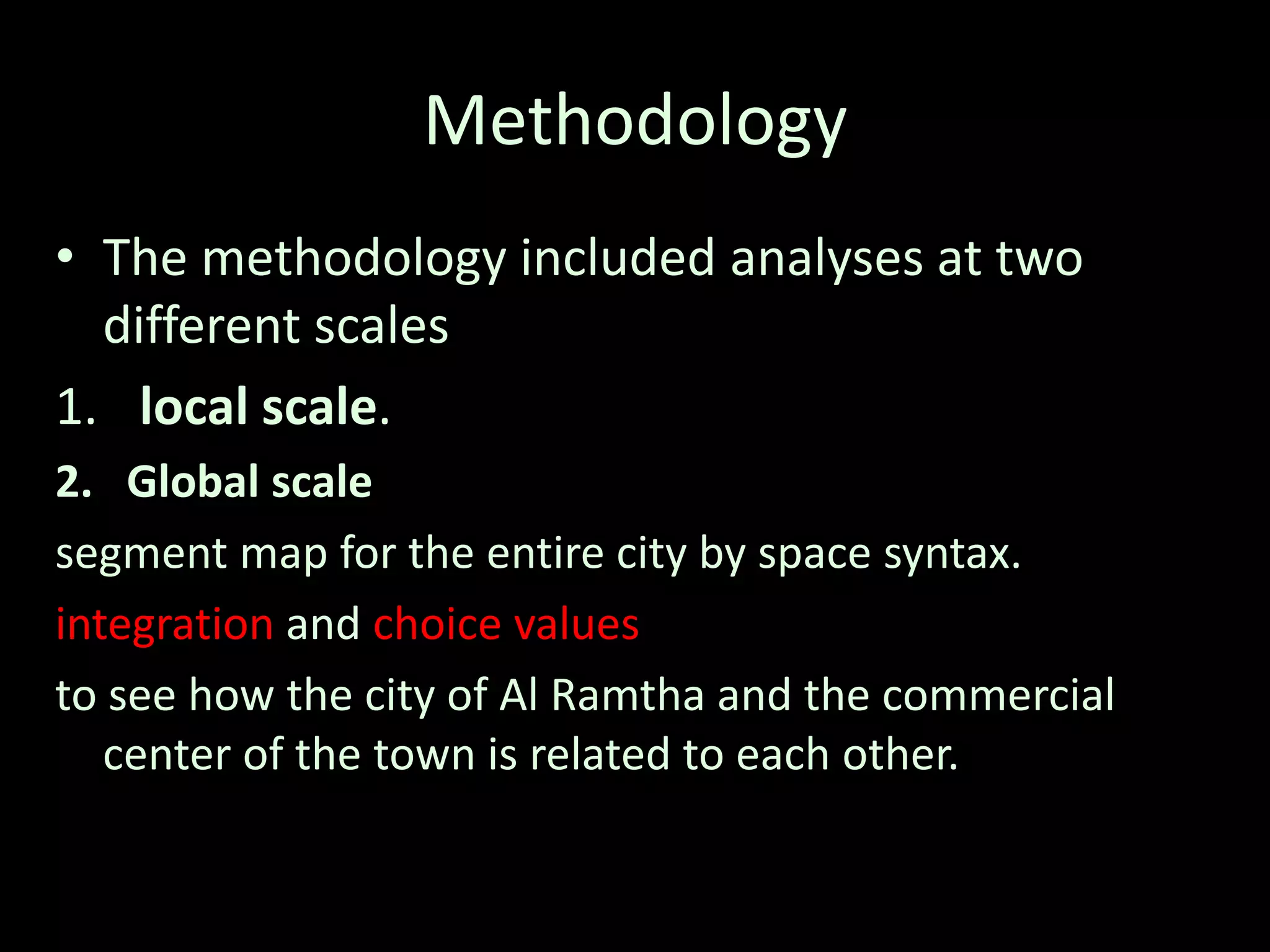

- 11. Methodology • The methodologyincluded analyses at two different scales 1. local scale. 2. Global scale segment map for the entire city by space syntax. integration and choice values to see how the city of Al Ramtha and the commercial center of the town is related to each other.

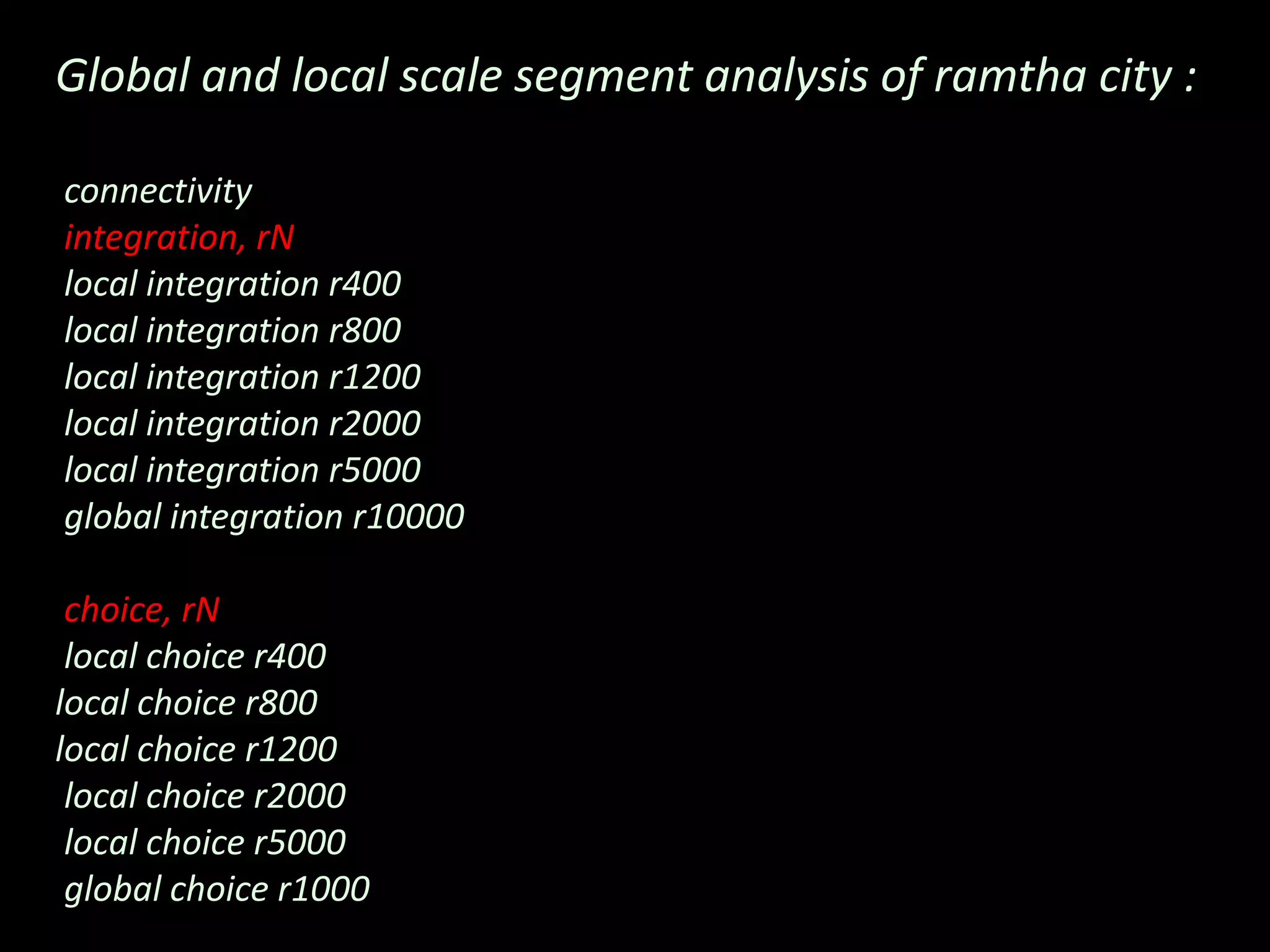

- 12. Global and localscale segment analysis of ramtha city : connectivity integration, rN local integration r400 local integration r800 local integration r1200 local integration r2000 local integration r5000 global integration r10000 choice, rN local choice r400 local choice r800 local choice r1200 local choice r2000 local choice r5000 global choice r1000
- 13. Connectivity • It isa static local measure • measures the number of immediate neighbors that are directly connected to the spaces. • It will show you how often a street is connected to another street.

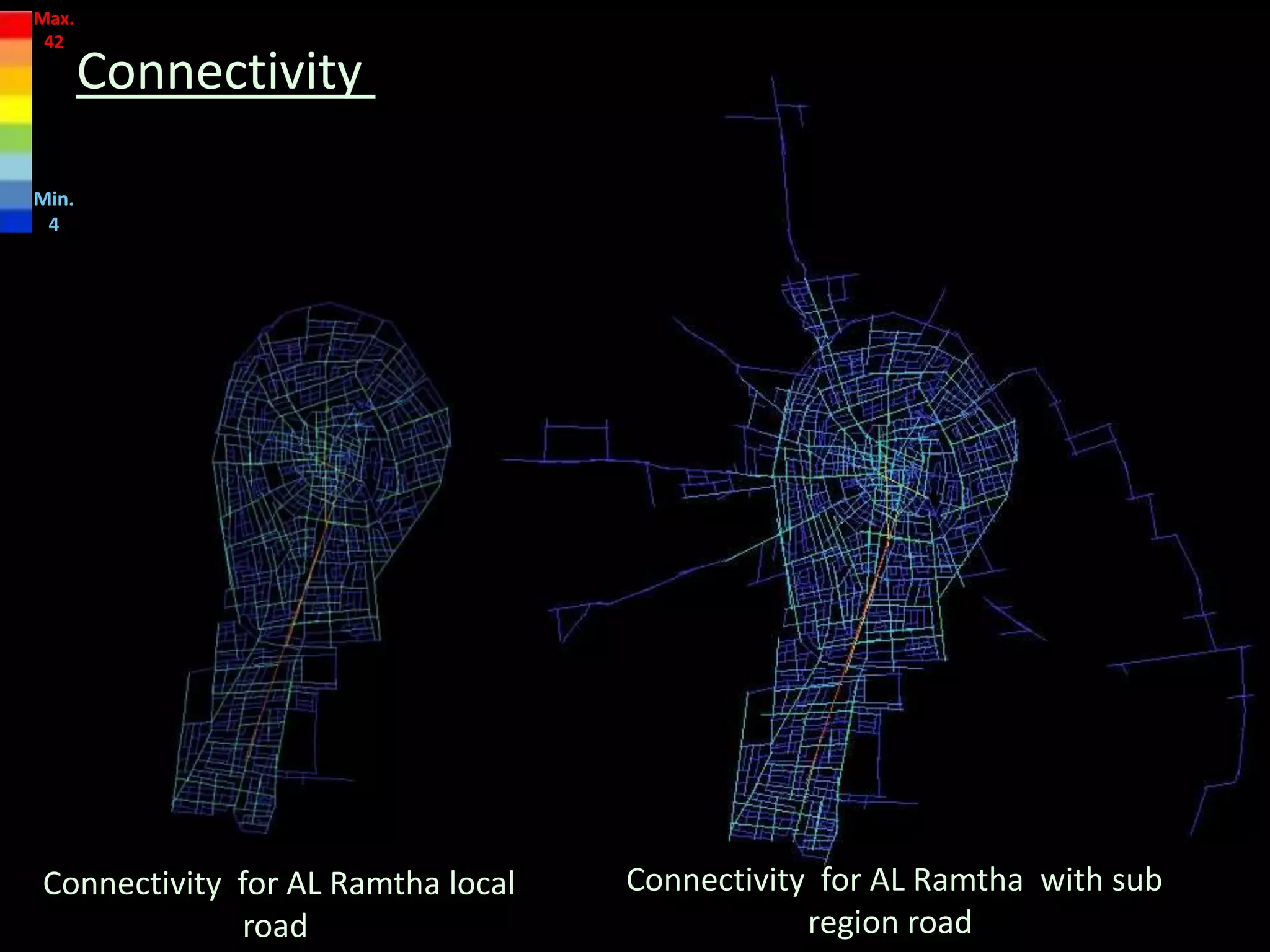

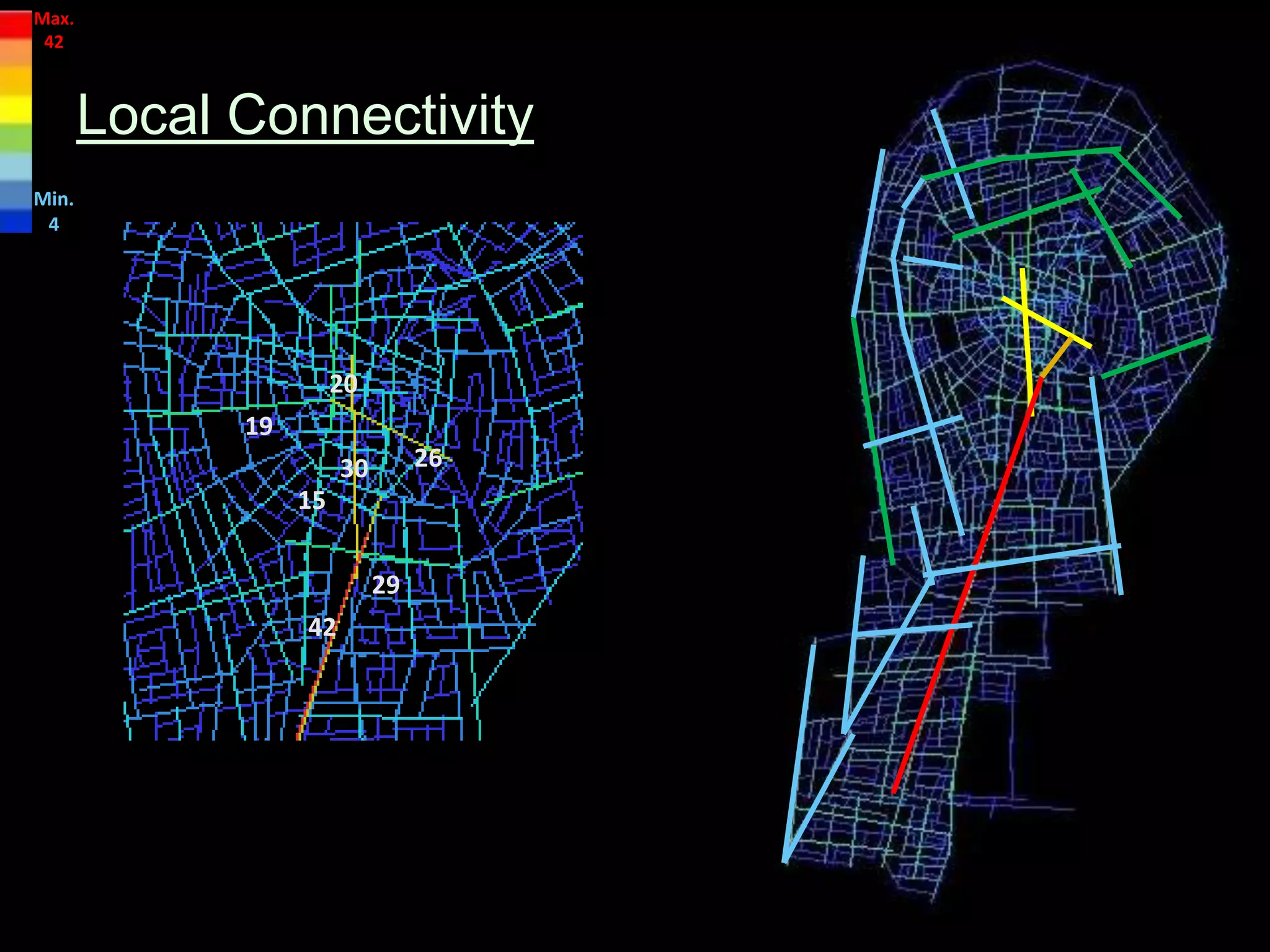

- 14. Connectivity for ALRamtha local road Connectivity for AL Ramtha with sub region road Max. 42 Min. 4 Connectivity
- 15.

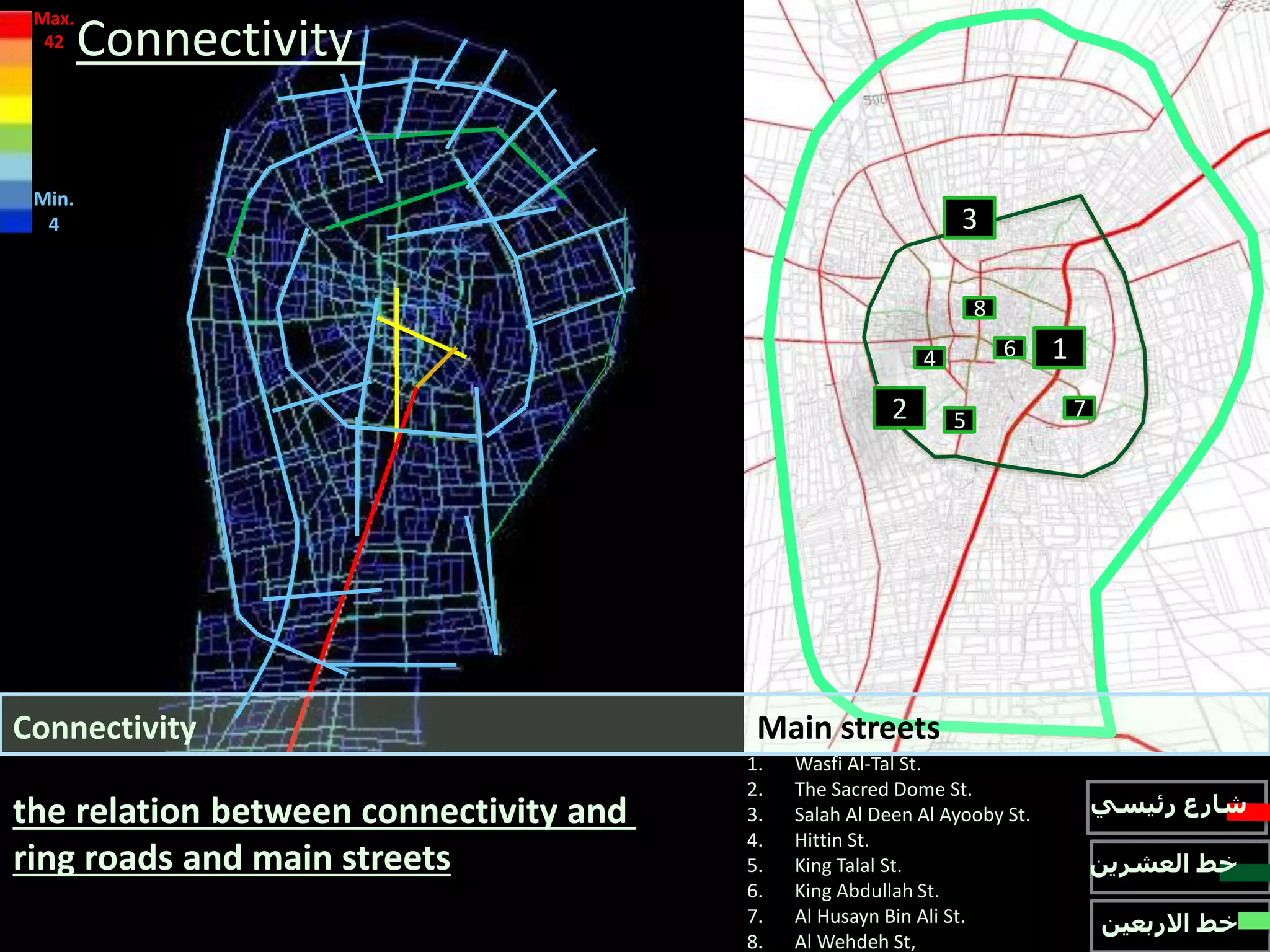

- 16. 1. Wasfi Al-TalSt. 2. The Sacred Dome St. 3. Salah Al Deen Al Ayooby St. 4. Hittin St. 5. King Talal St. 6. King Abdullah St. 7. Al Husayn Bin Ali St. 8. Al Wehdeh St, 3 2 14 5 7 6 8 االربعين خط العشرين خط رئيسي شارع Main streetsConnectivity Max. 42 Min. 4 Connectivity the relation between connectivity and ring roads and main streets
- 17. Integration • It isa static local & global measure. • It will describes the average depth of a space to all other spaces in Al Ramtha city • It will describes how easy it is to get to one segment from all other segments. • It will tell you how many times you will turn to reach your location

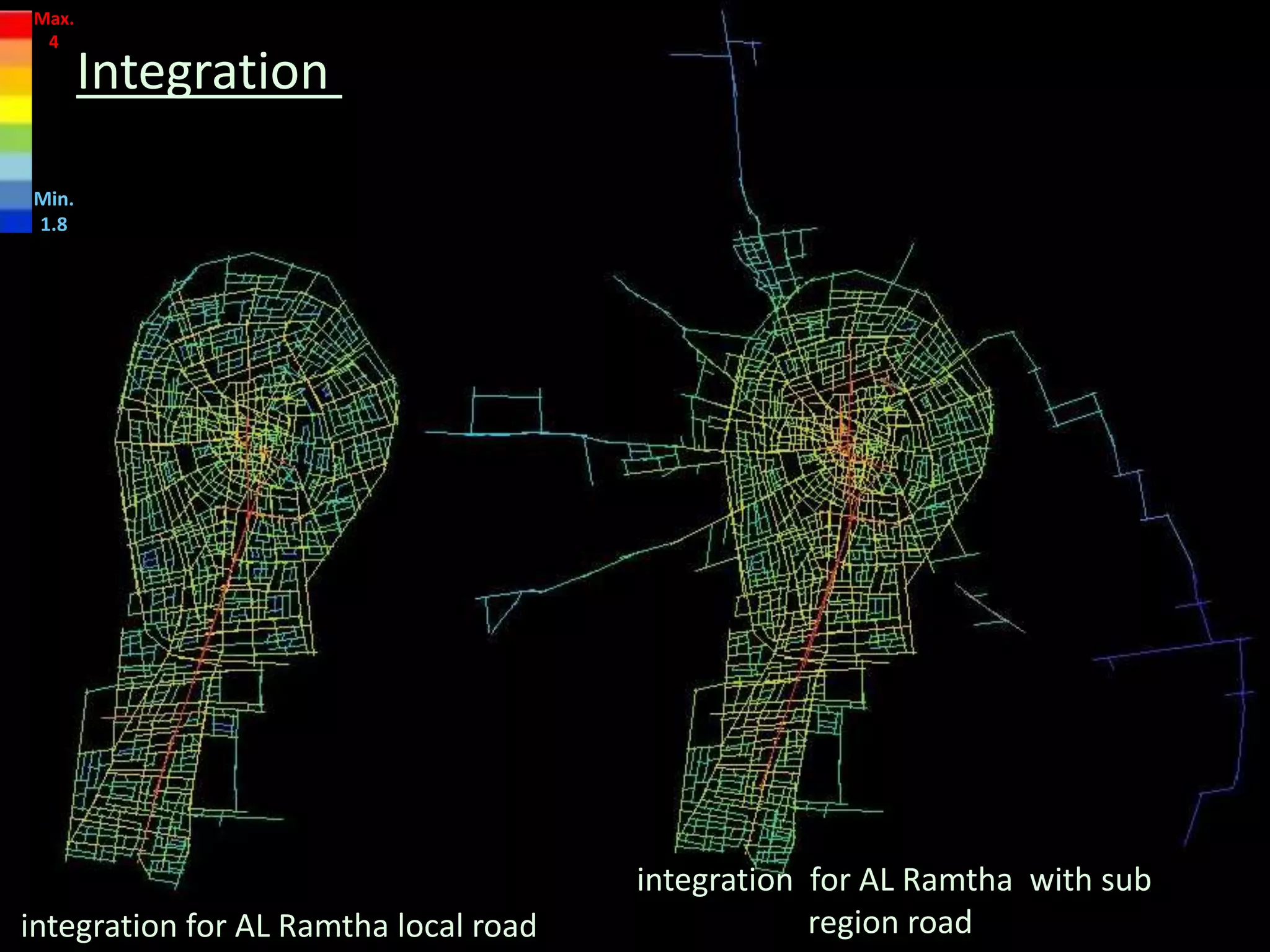

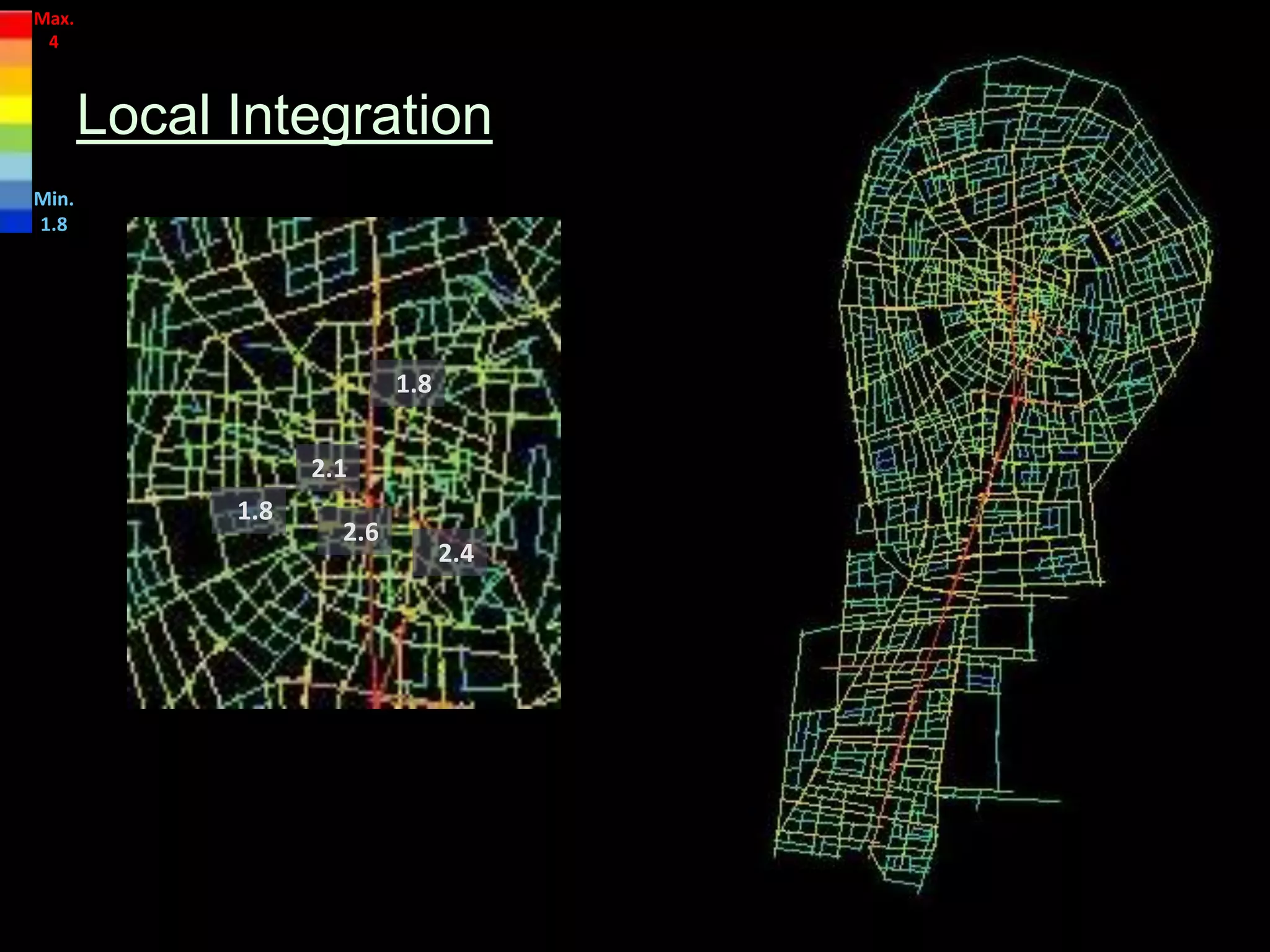

- 18. integration for ALRamtha local road integration for AL Ramtha with sub region road Max. 4 Min. 1.8 Integration
- 19.

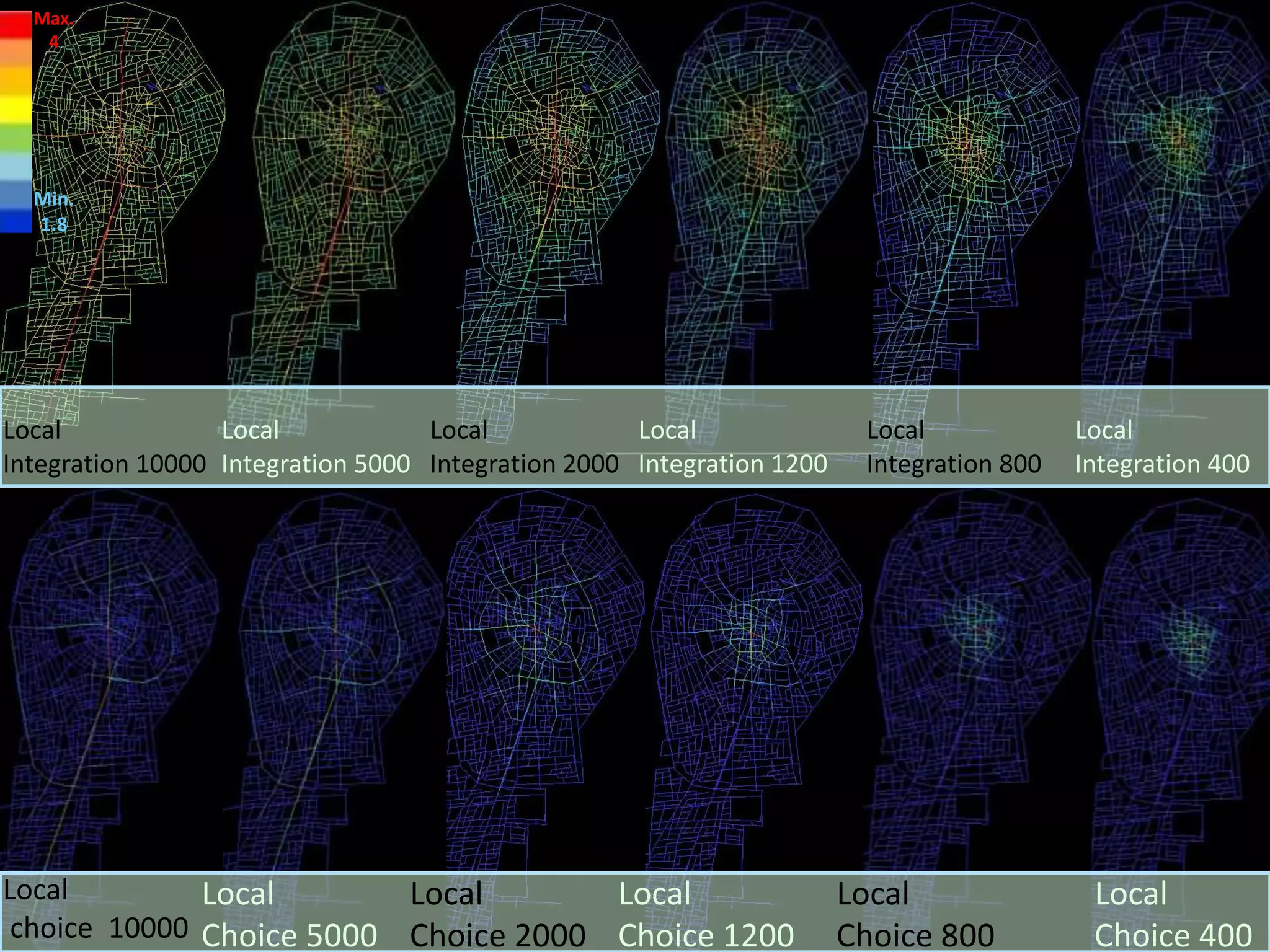

- 20. Local Choice 400 Local choice 10000 Local Choice800 Local Choice 1200 Local Choice 2000 Local Choice 5000 Local Integration 800 Local Integration 2000 Local Integration 10000 Local Integration 400 Local Integration 1200 Local Integration 5000 Max. 4 Min. 1.8

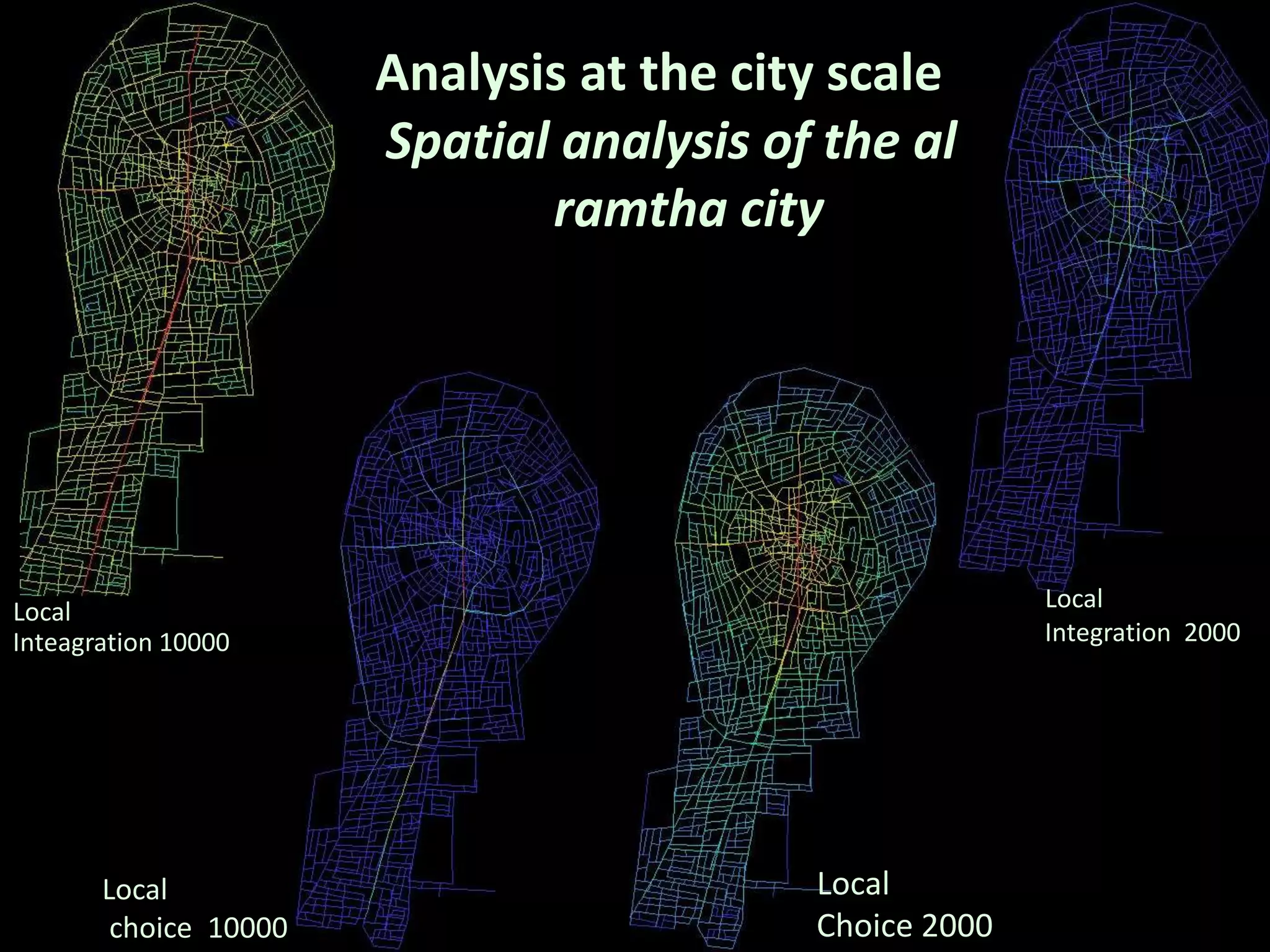

- 21. Local choice 10000 Local Integration 2000 Local Inteagration10000 Local Choice 2000 Spatial analysis of the al ramtha city Analysis at the city scale

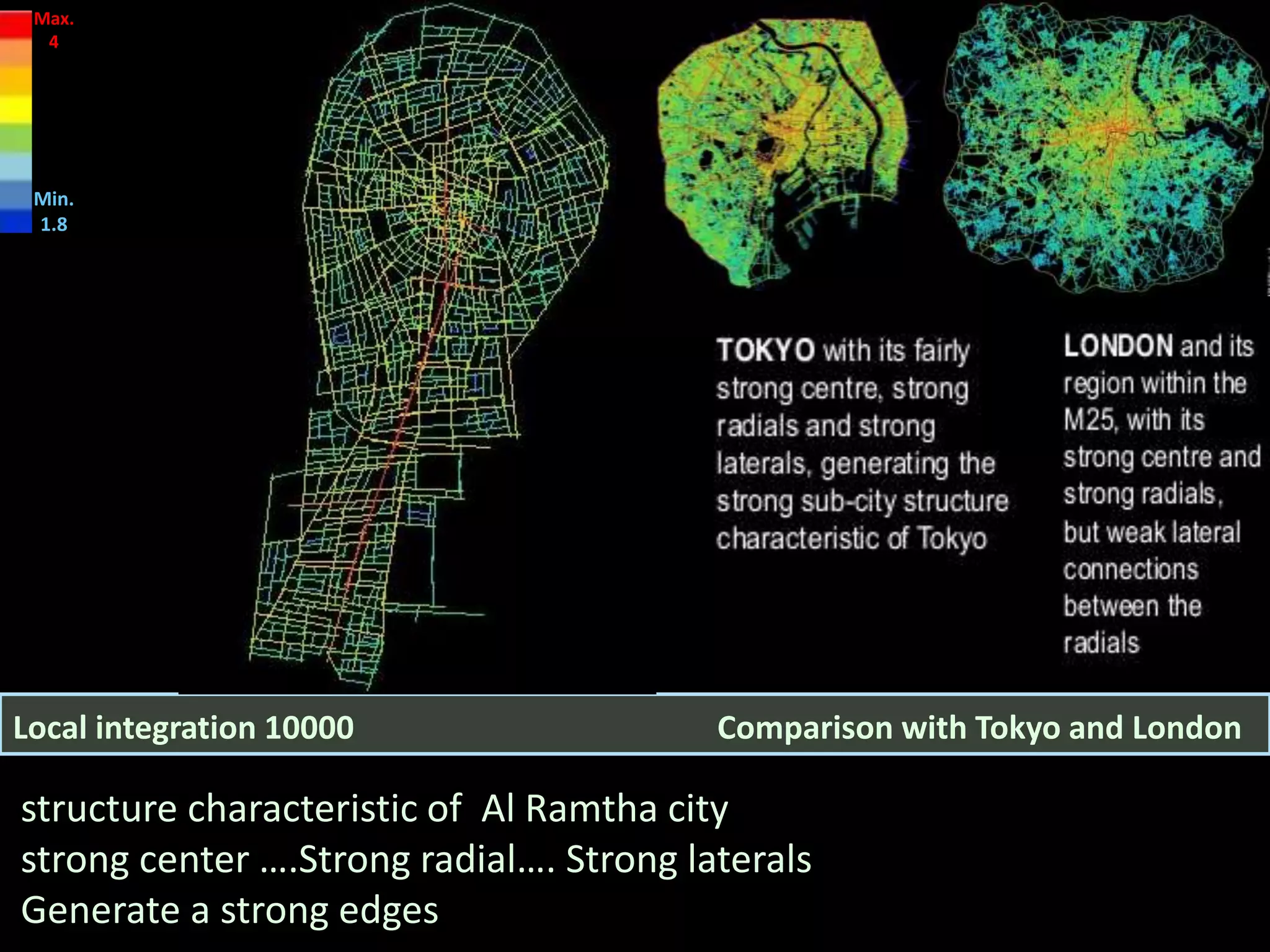

- 22. structure characteristic ofAl Ramtha city strong center ….Strong radial…. Strong laterals Generate a strong edges Comparison with Tokyo and LondonLocal integration 10000 Max. 4 Min. 1.8

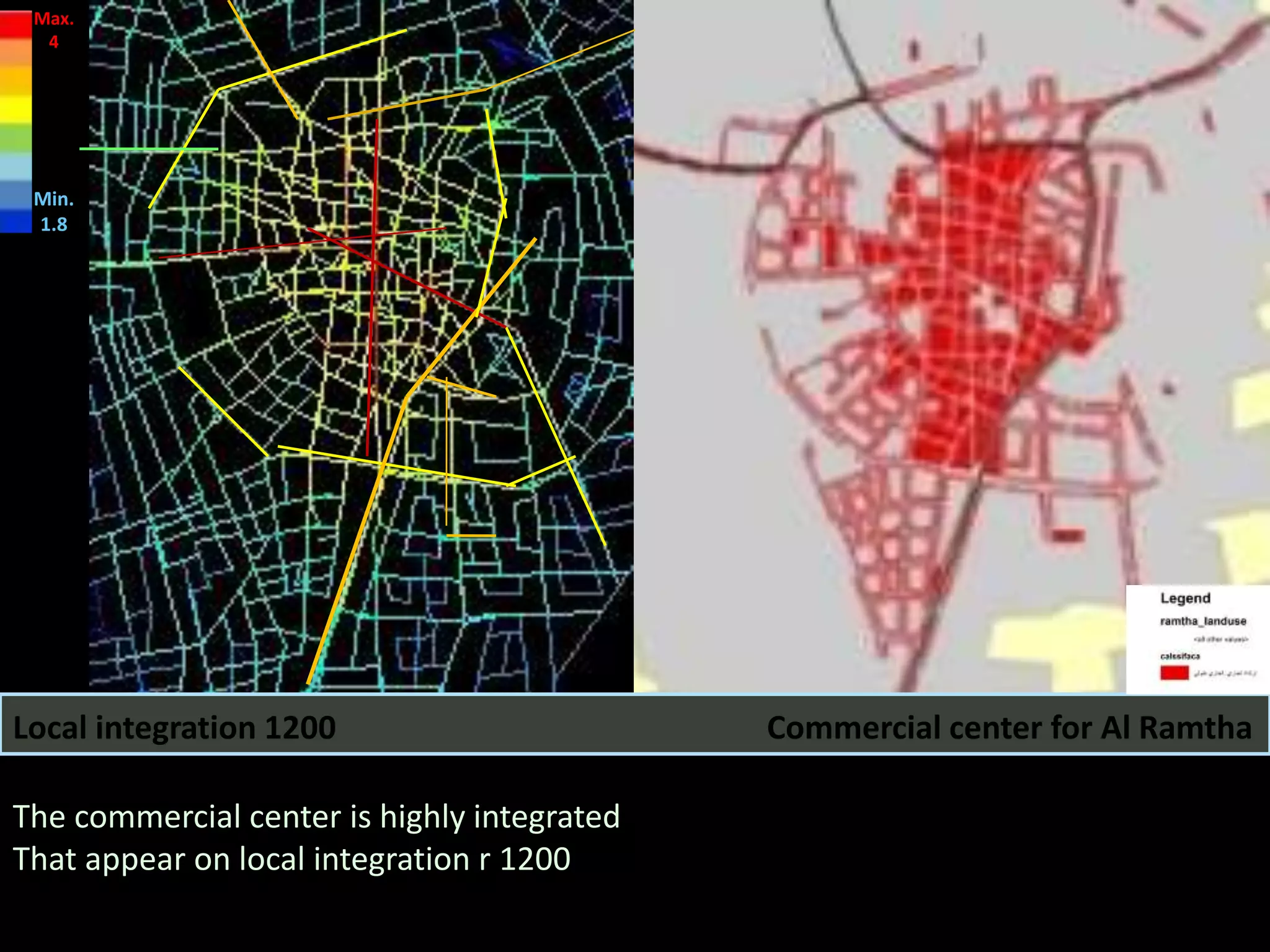

- 23. The commercial centeris highly integrated That appear on local integration r 1200 Commercial center for Al RamthaLocal integration 1200 Max. 4 Min. 1.8

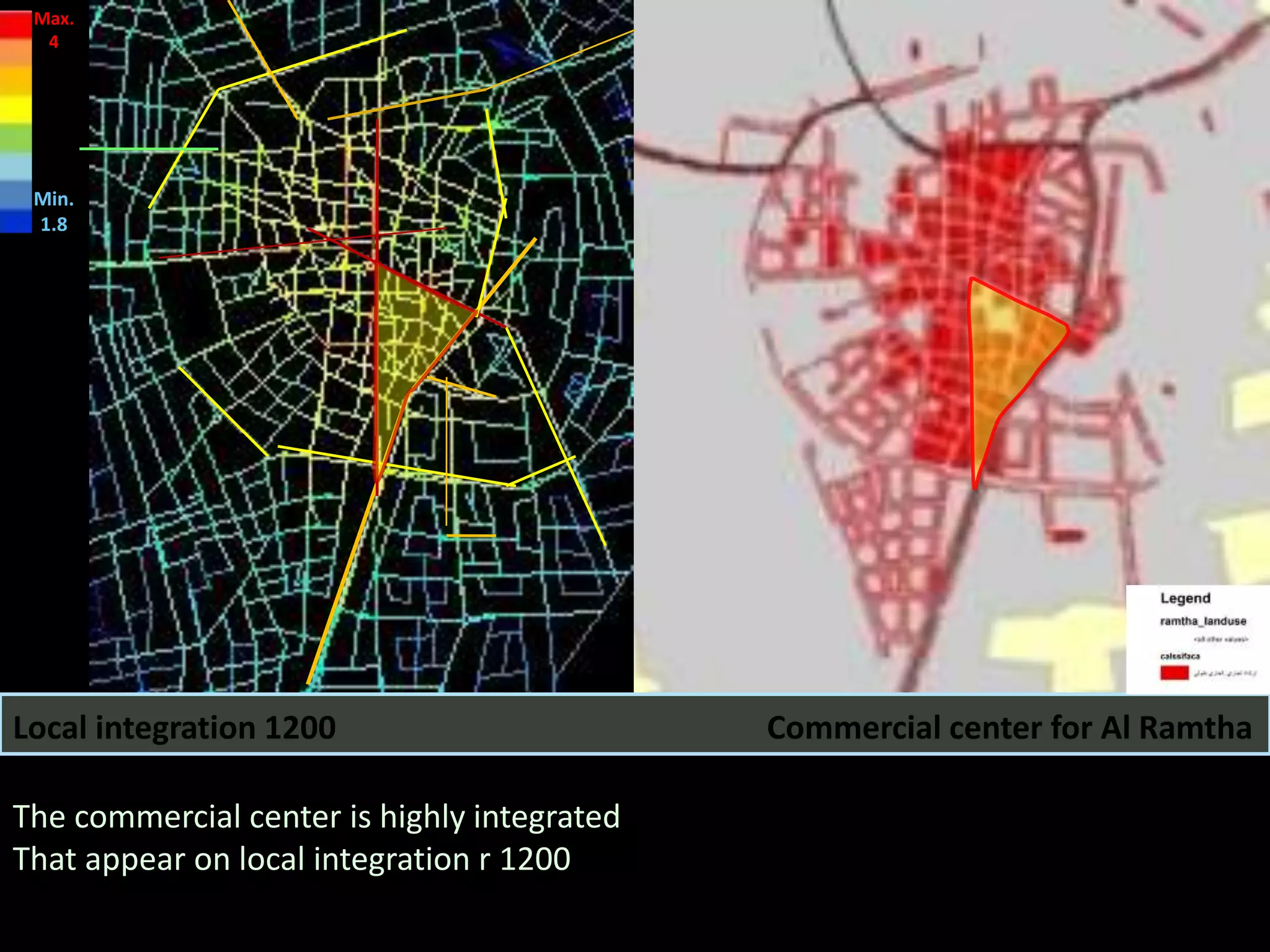

- 24. The commercial centeris highly integrated That appear on local integration r 1200 Commercial center for Al RamthaLocal integration 1200 Max. 4 Min. 1.8

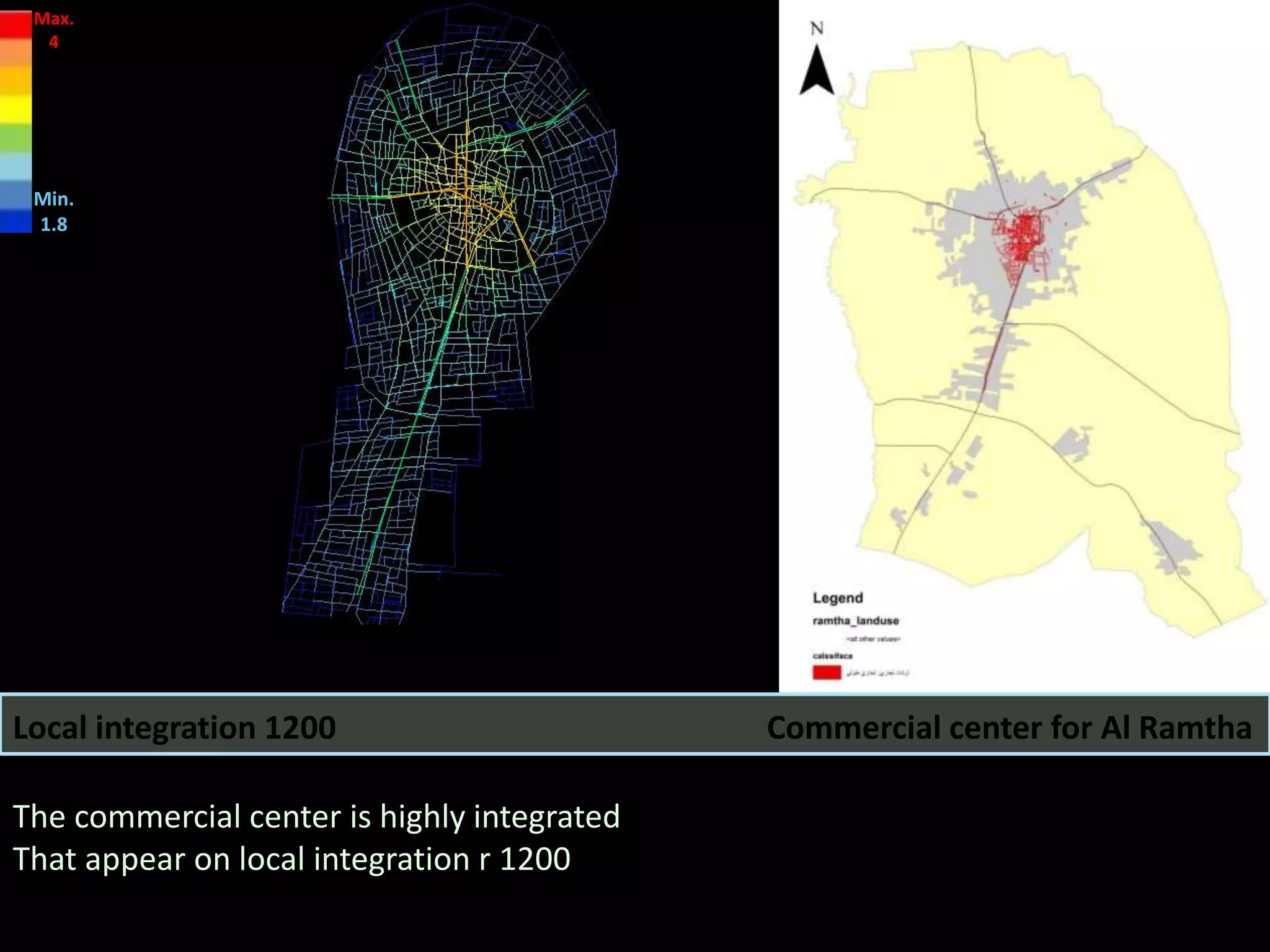

- 25. The commercial centeris highly integrated That appear on local integration r 1200 Commercial center for Al RamthaLocal integration 1200 Max. 4 Min. 1.8

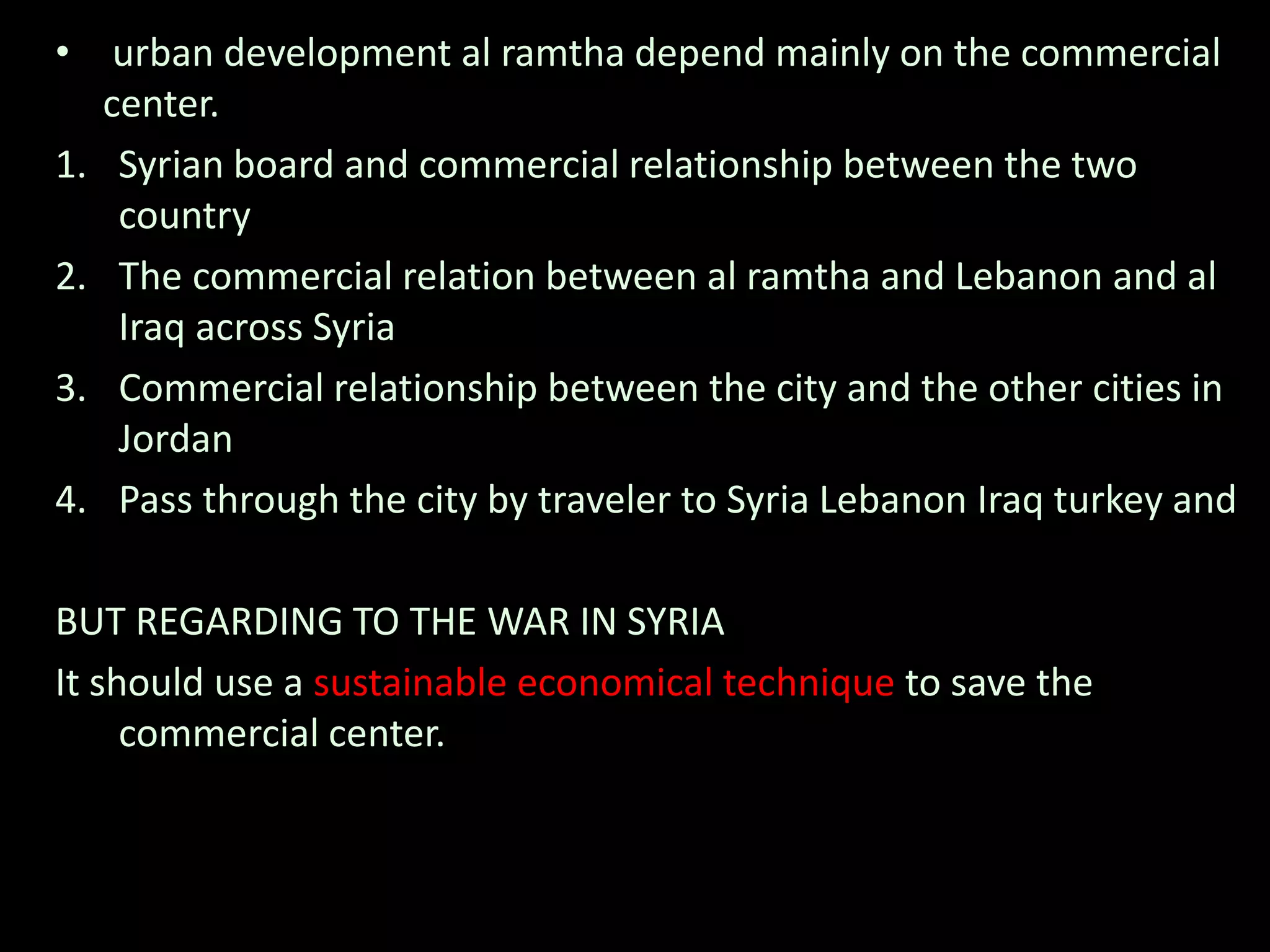

- 26. • urban developmental ramtha depend mainly on the commercial center. 1. Syrian board and commercial relationship between the two country 2. The commercial relation between al ramtha and Lebanon and al Iraq across Syria 3. Commercial relationship between the city and the other cities in Jordan 4. Pass through the city by traveler to Syria Lebanon Iraq turkey and BUT REGARDING TO THE WAR IN SYRIA It should use a sustainable economical technique to save the commercial center.
- 27.

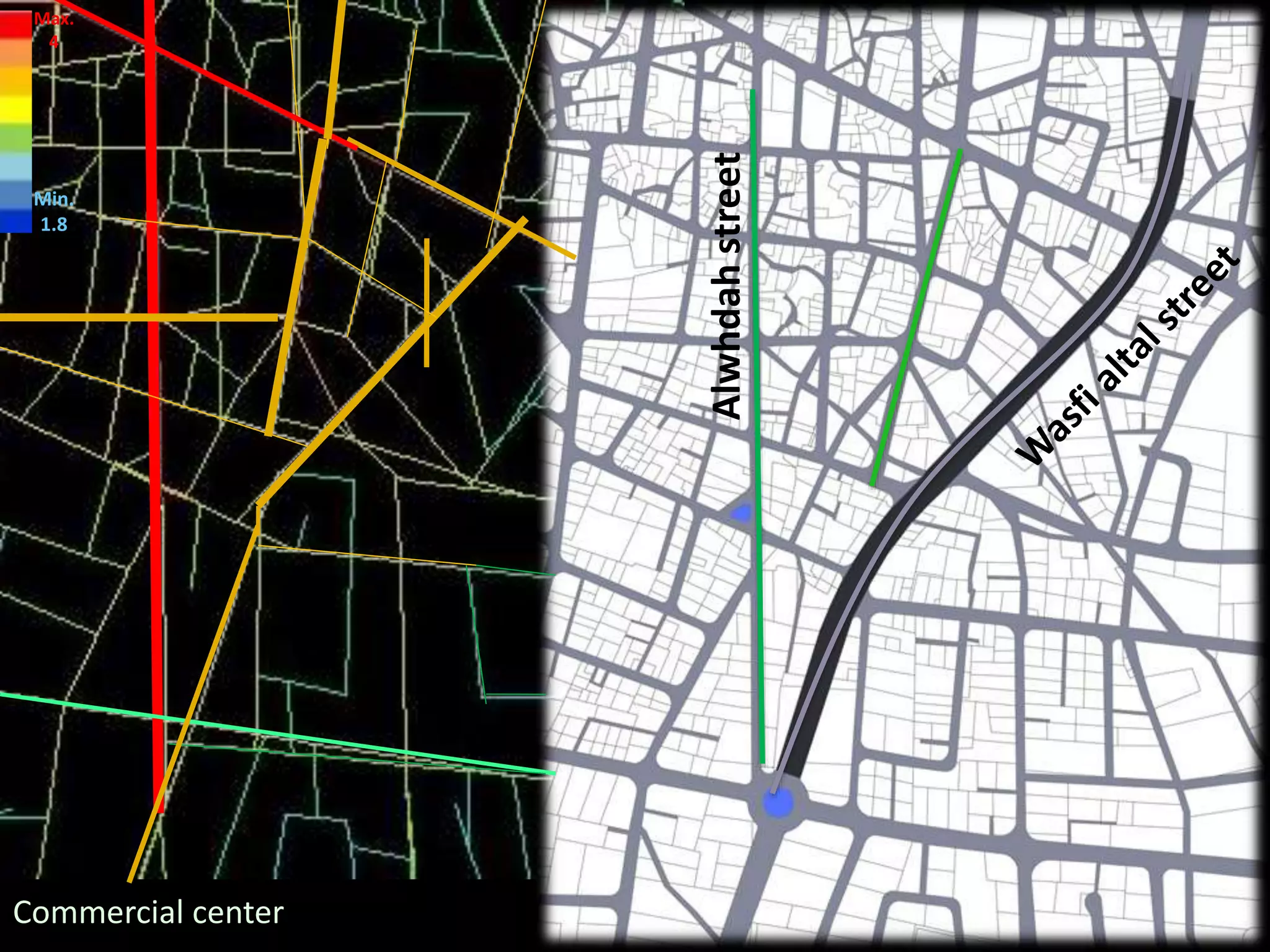

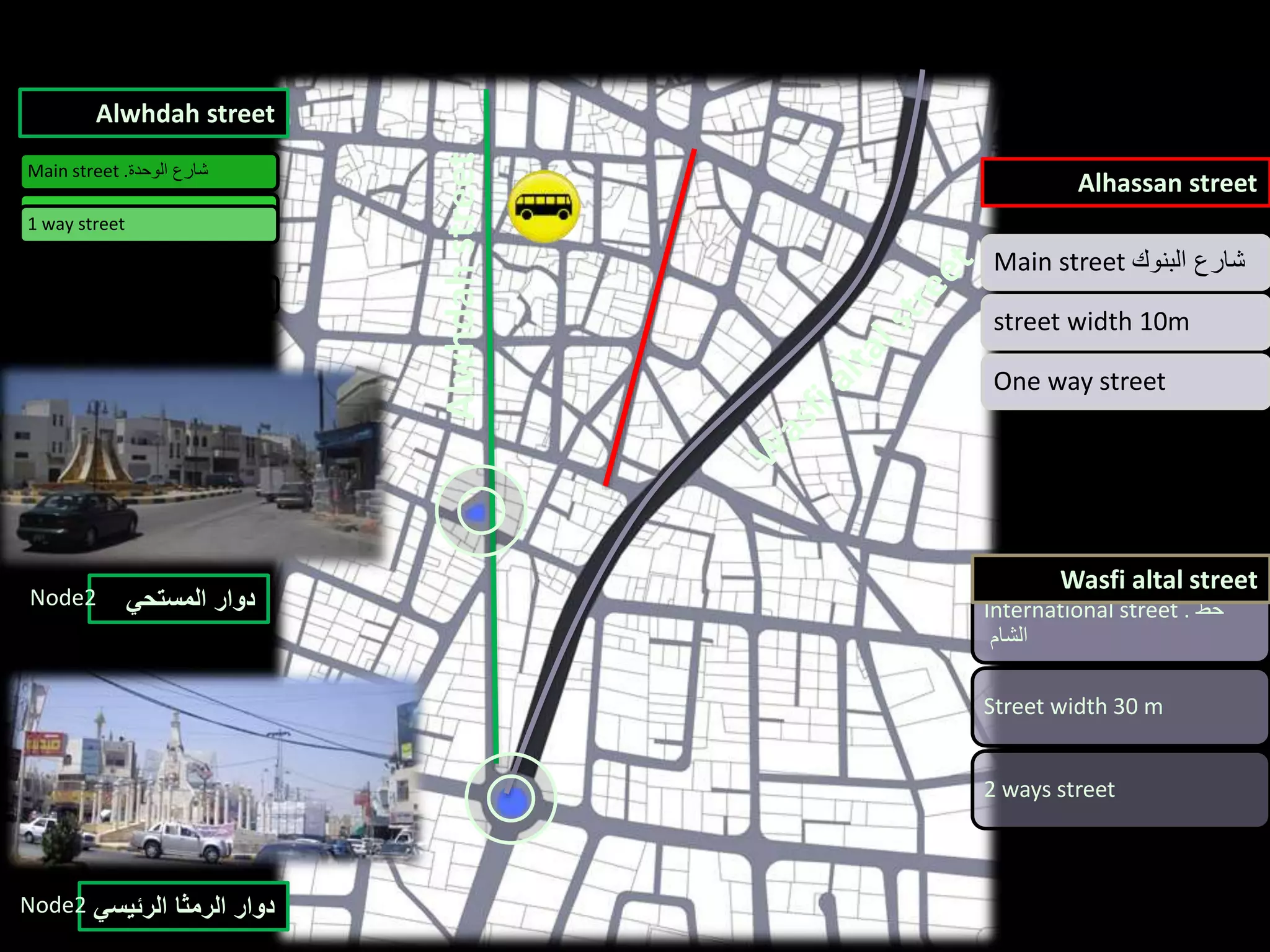

- 28. Alwhdahstreet International street .خط الشام Street width 30 m 2 ways street Wasfi altal street Alwhdah street Main street الوحدة شارع. Street width 10m 1 way street 1.3 km المستحي دوار الرئيس الرمثا دواري Alhassan street Main street البنوك شارع street width 10m One way street Node2 Node2

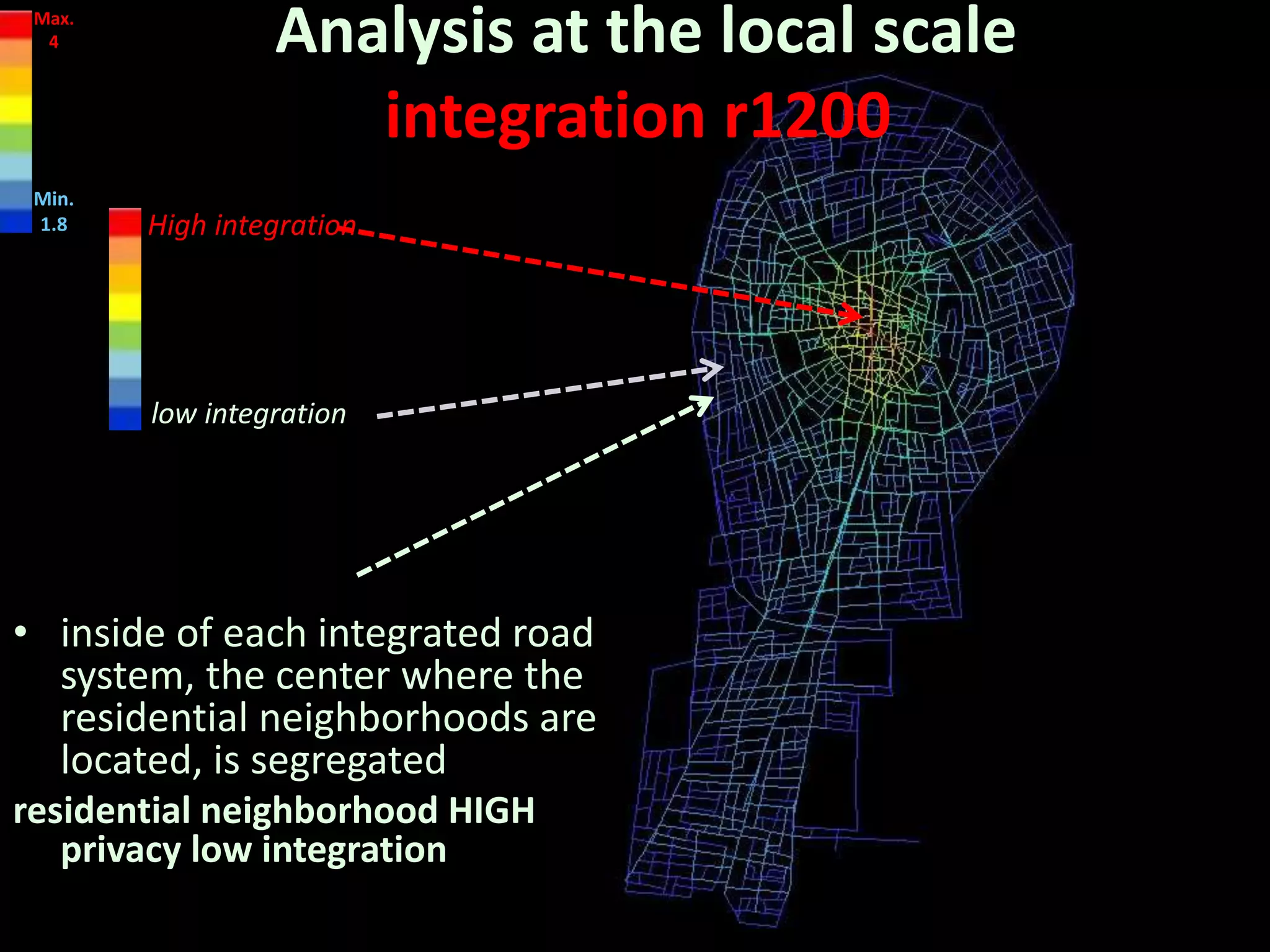

- 29. • inside ofeach integrated road system, the center where the residential neighborhoods are located, is segregated residential neighborhood HIGH privacy low integration High integration low integration Analysis at the local scale integration r1200 Max. 4 Min. 1.8

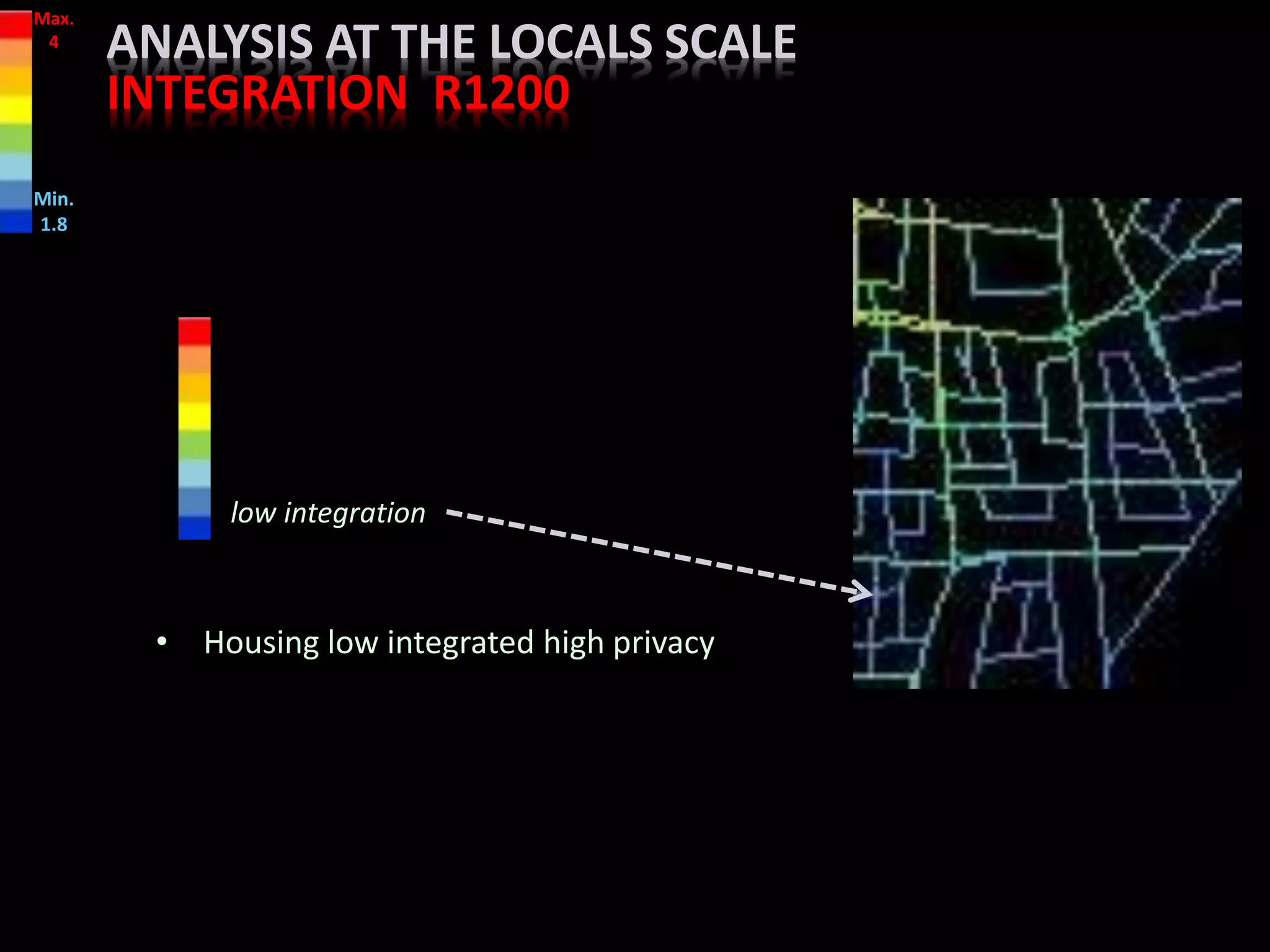

- 30. • Housing lowintegrated high privacy low integration ANALYSIS AT THE LOCALS SCALE INTEGRATION R1200 Max. 4 Min. 1.8

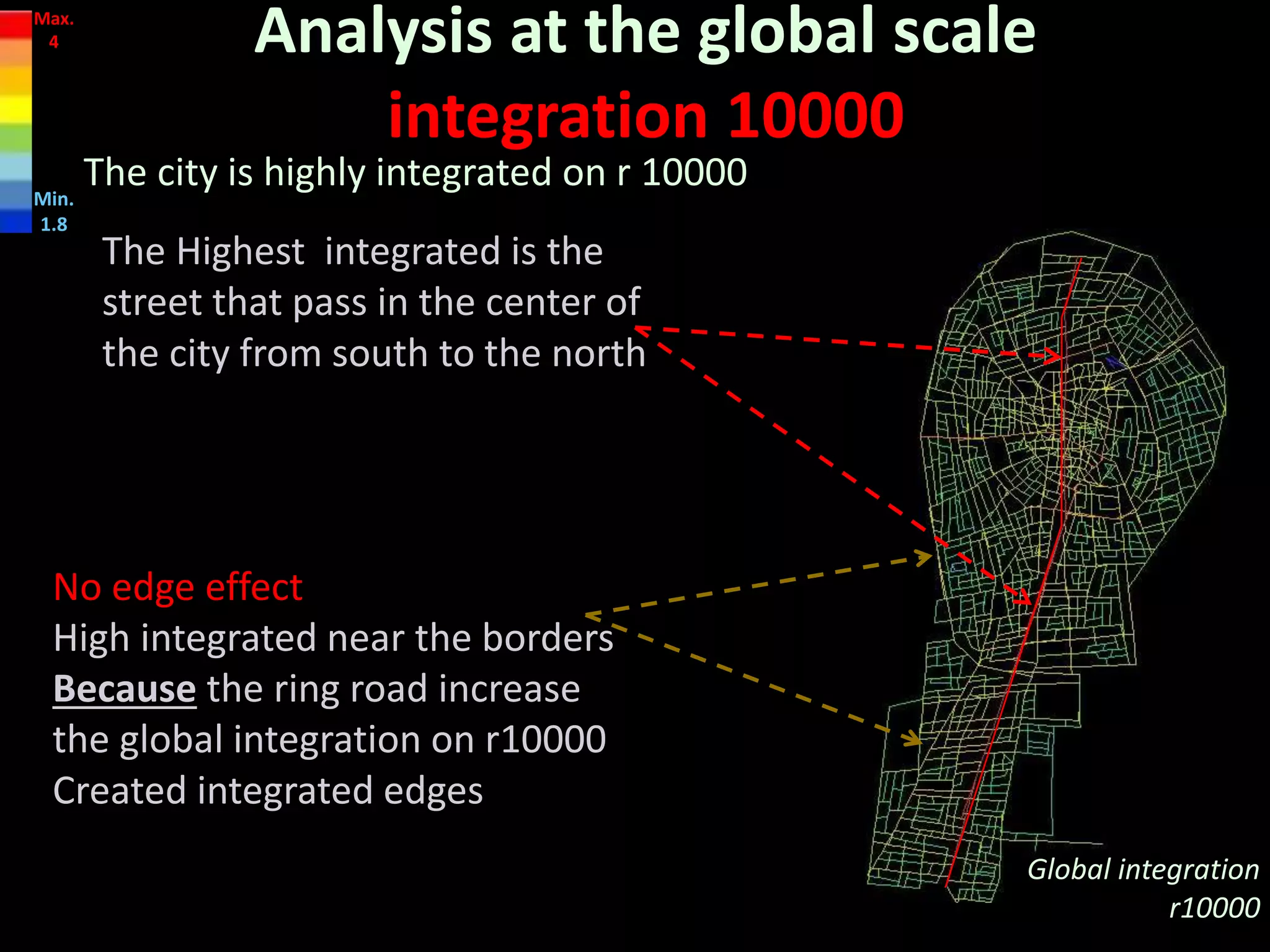

- 31. Analysis at theglobal scale integration 10000 The city is highly integrated on r 10000 Global integration r10000 No edge effect High integrated near the borders Because the ring road increase the global integration on r10000 Created integrated edges The Highest integrated is the street that pass in the center of the city from south to the north Max. 4 Min. 1.8

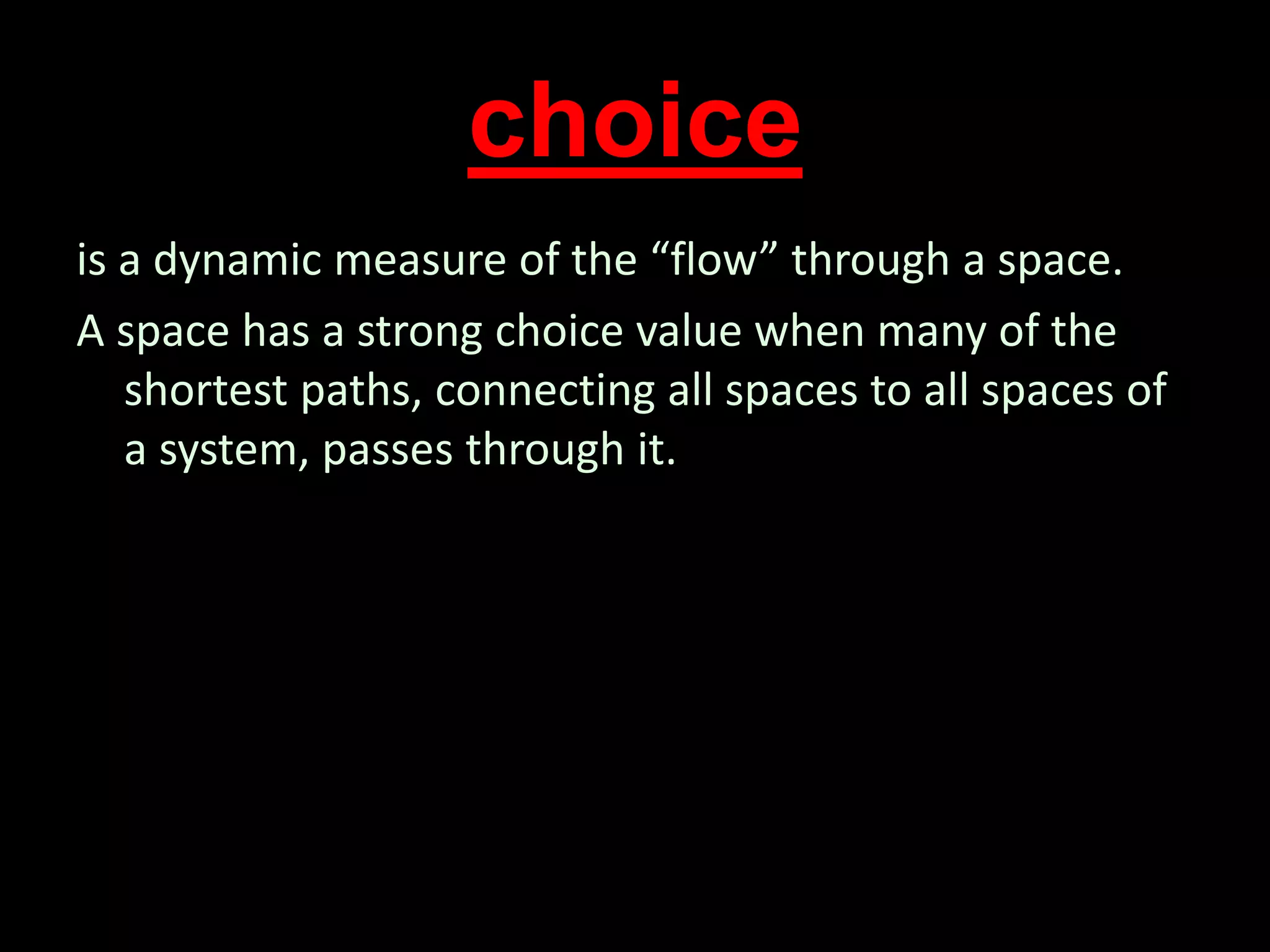

- 32. choice is a dynamicmeasure of the “flow” through a space. A space has a strong choice value when many of the shortest paths, connecting all spaces to all spaces of a system, passes through it.

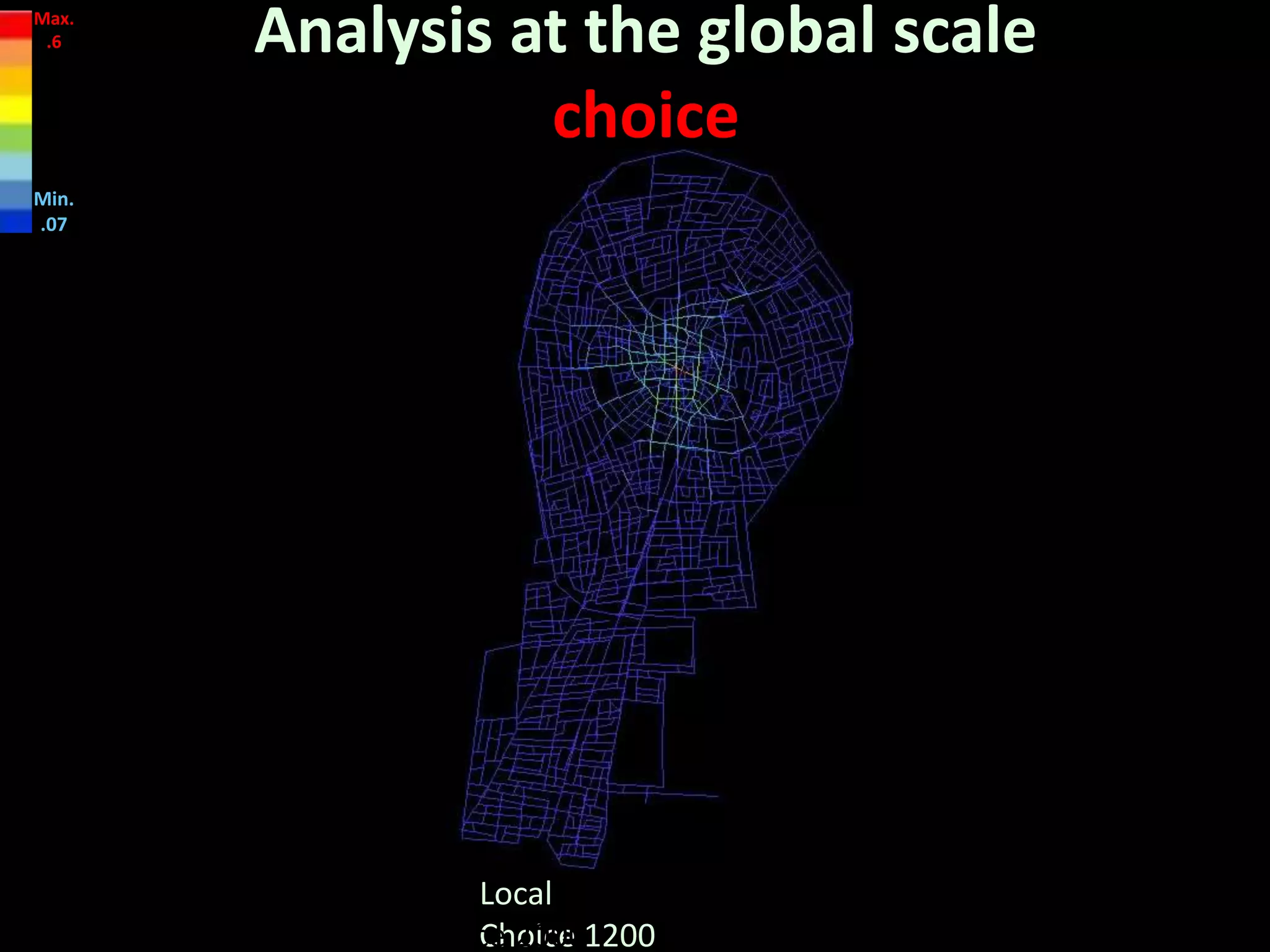

- 33. Local Choice 1200 Analysis atthe global scale choice Local Choice 2000 Max. .6 Min. .07

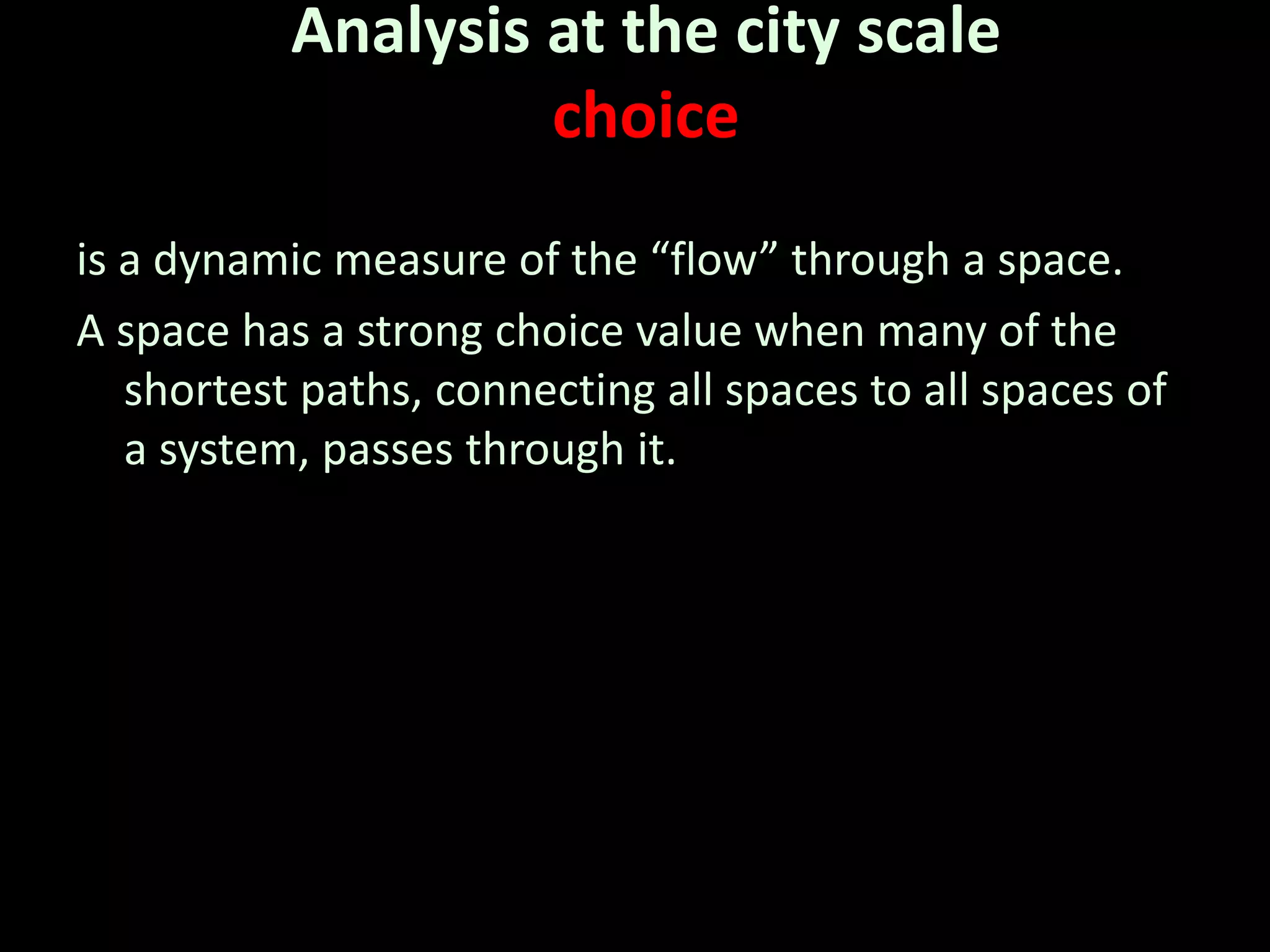

- 34. Analysis at thecity scale choice is a dynamic measure of the “flow” through a space. A space has a strong choice value when many of the shortest paths, connecting all spaces to all spaces of a system, passes through it.

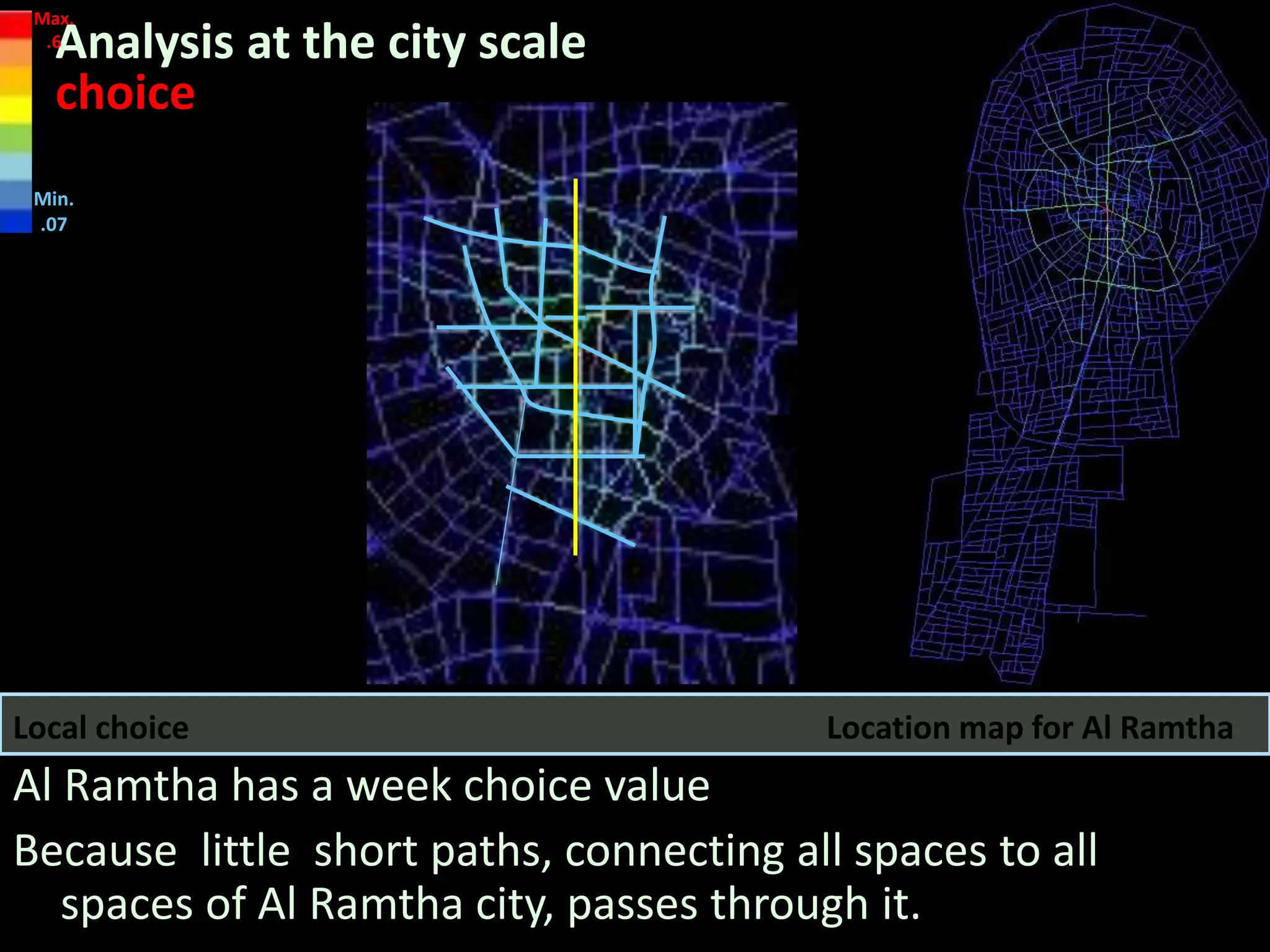

- 35. Location map forAl RamthaLocal choice Analysis at the city scale choice Al Ramtha has a week choice value Because little short paths, connecting all spaces to all spaces of Al Ramtha city, passes through it. Max. .6 Min. .07

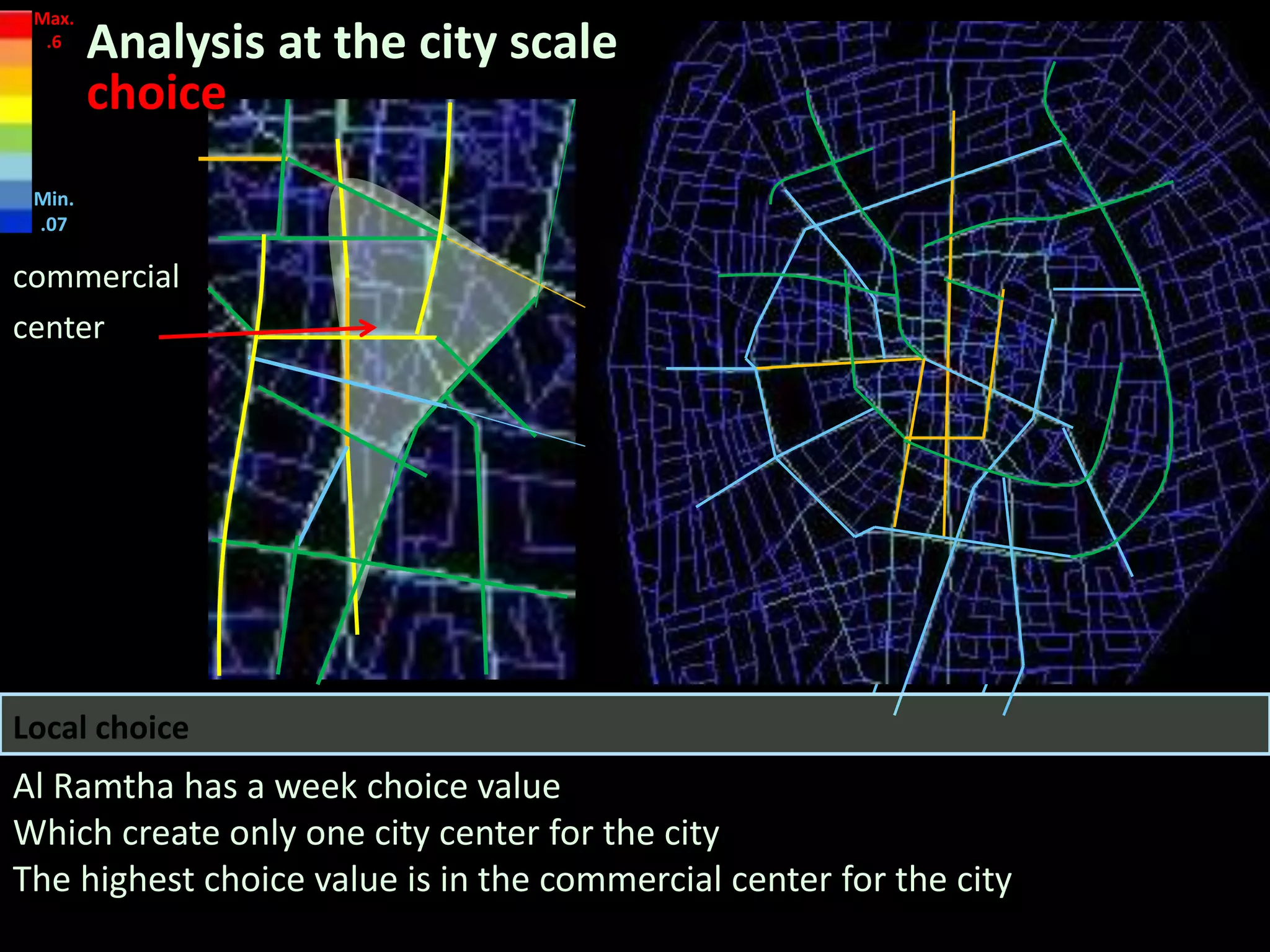

- 36. Al Ramtha hasa week choice value Which create only one city center for the city The highest choice value is in the commercial center for the city Local choice commercial center Max. .6 Min. .07 Analysis at the city scale choice

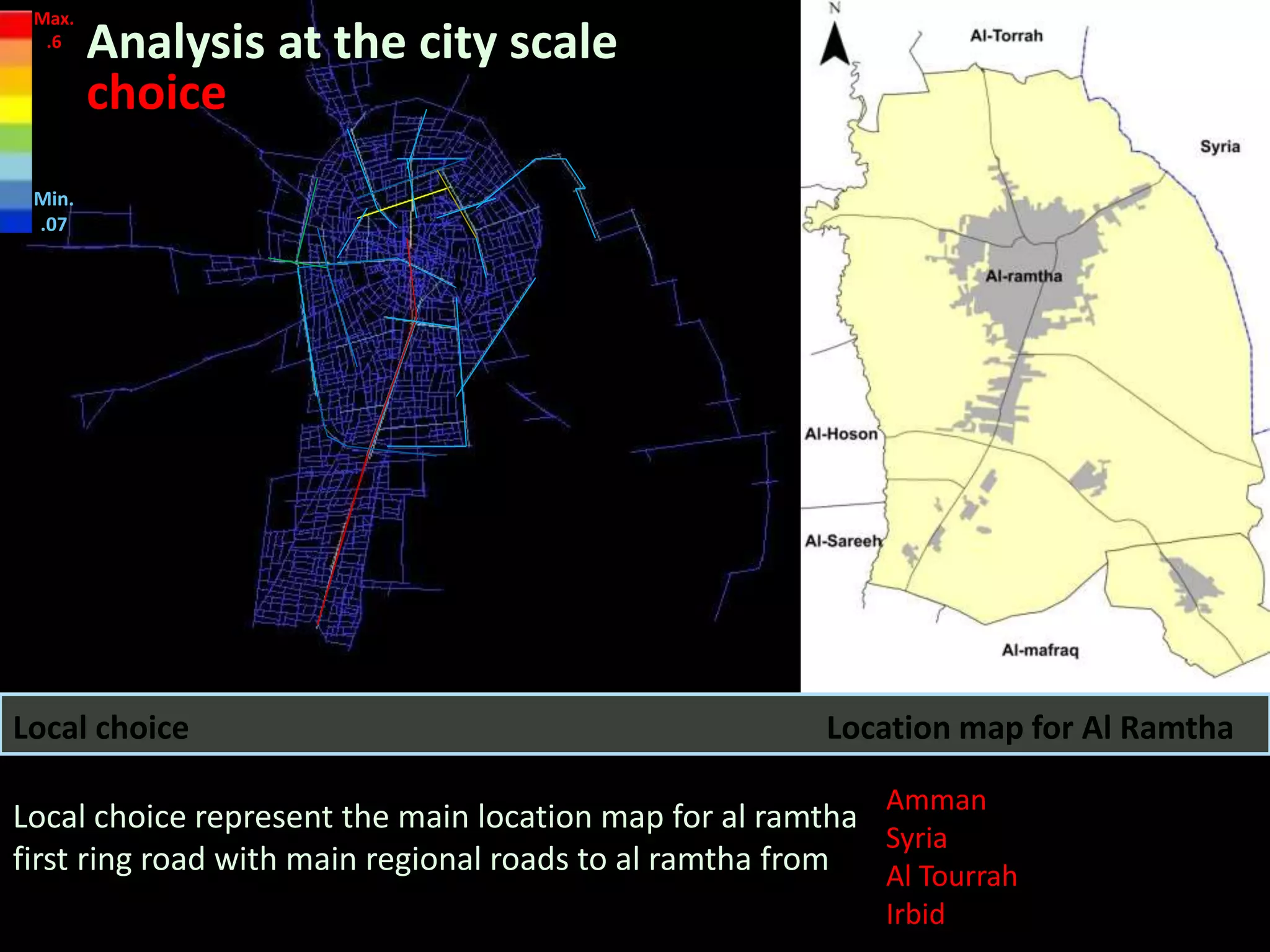

- 37. Local choice representthe main location map for al ramtha first ring road with main regional roads to al ramtha from Location map for Al RamthaLocal choice Amman Syria Al Tourrah Irbid Analysis at the city scale choice Max. .6 Min. .07

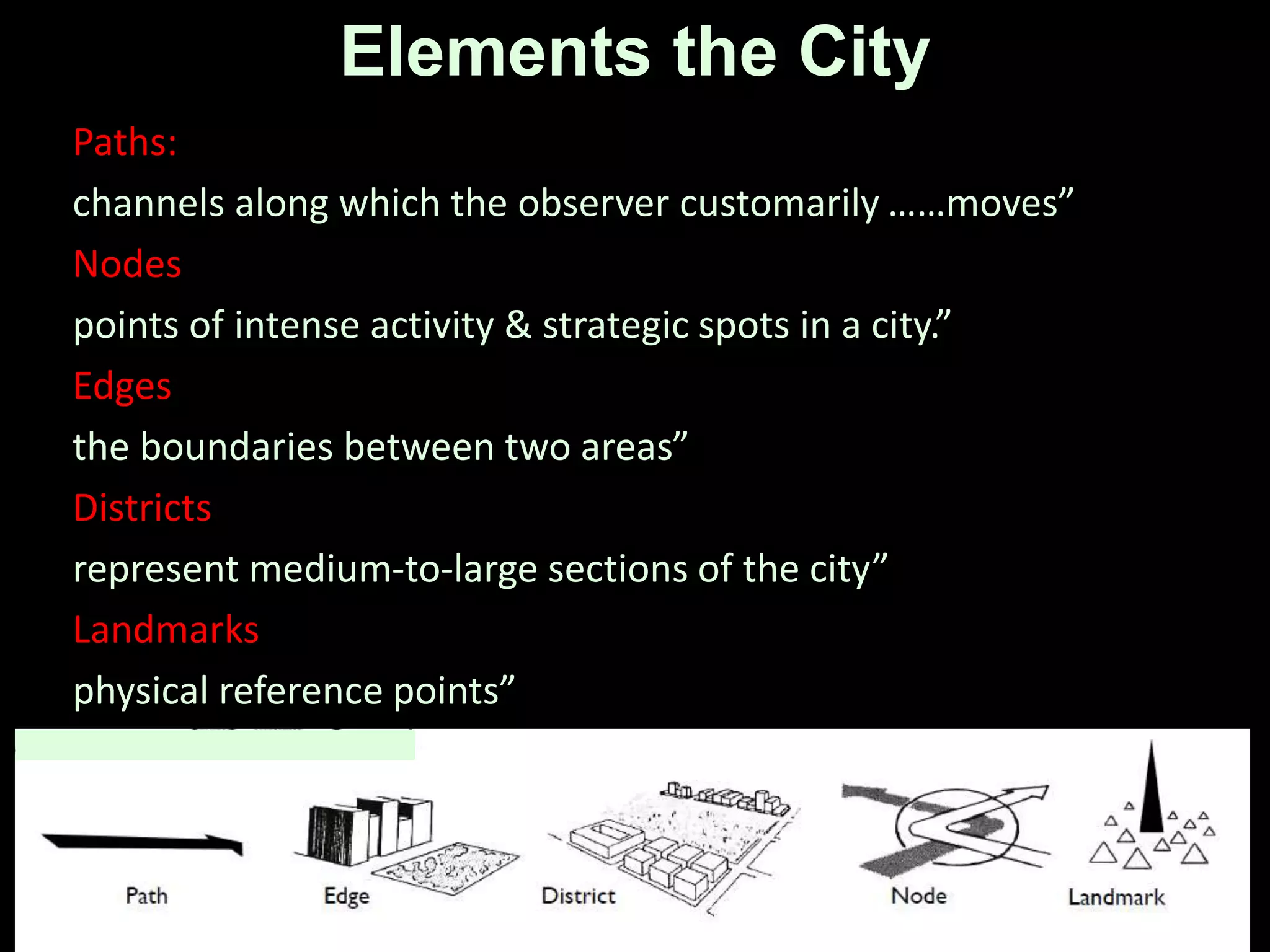

- 38. Elements the City Paths: channelsalong which the observer customarily ……moves” Nodes points of intense activity & strategic spots in a city.” Edges the boundaries between two areas” Districts represent medium-to-large sections of the city” Landmarks physical reference points”

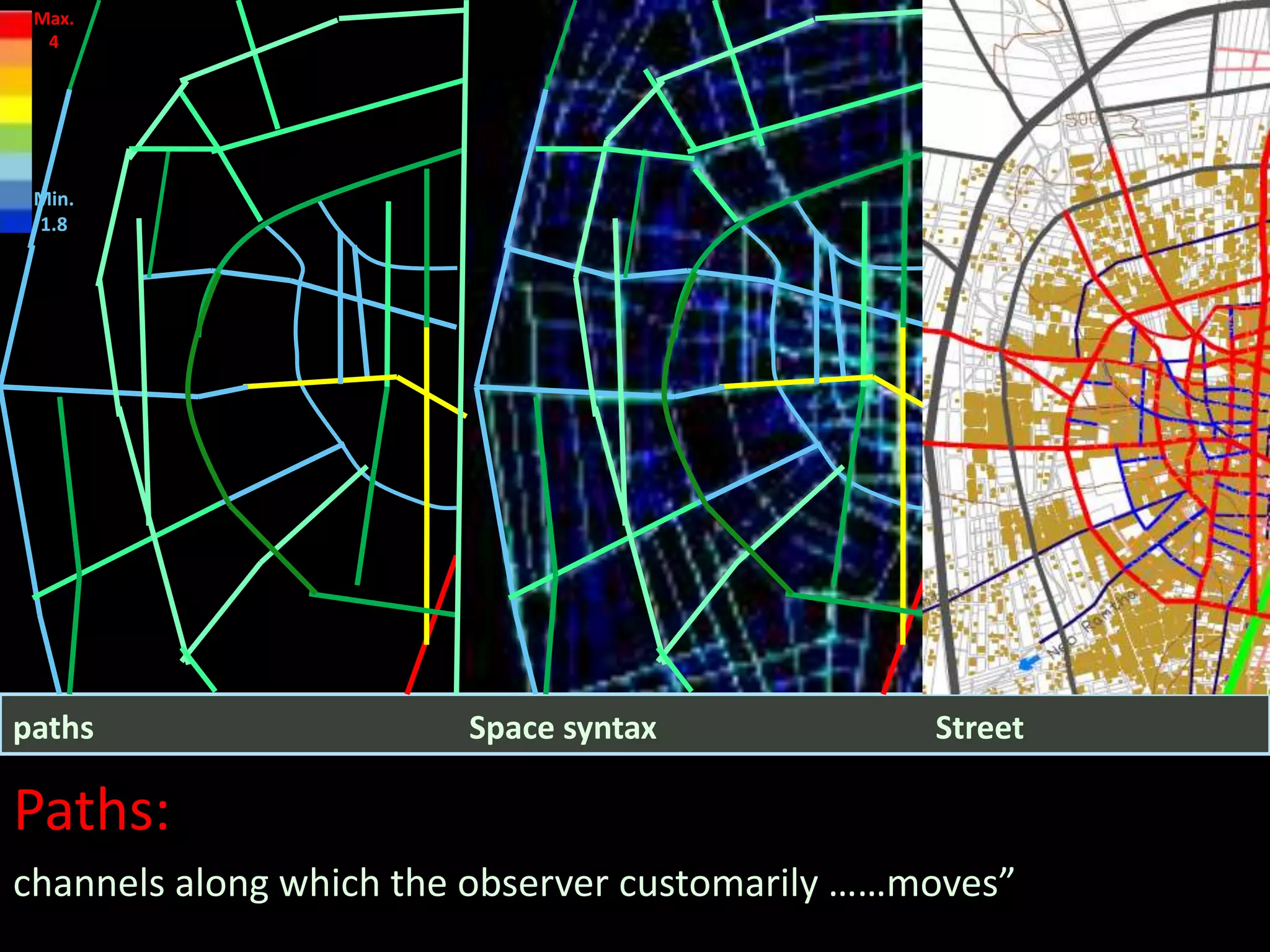

- 39. StreetSpace syntaxpaths Paths: channels alongwhich the observer customarily ……moves” Max. 4 Min. 1.8

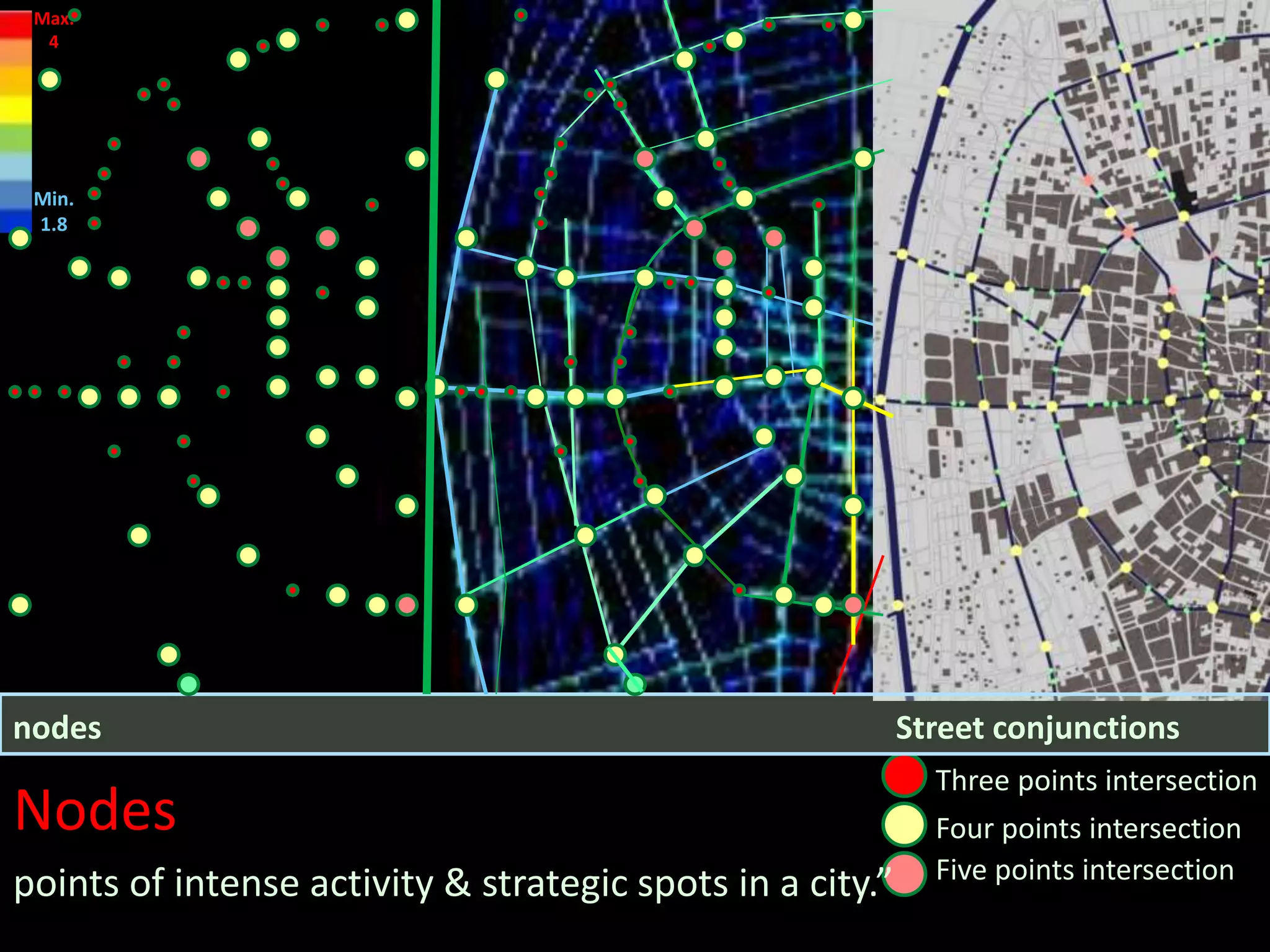

- 40. Max. 4 Min. 1.8 Three points intersection Fourpoints intersection Five points intersection Street conjunctionsnodes Nodes points of intense activity & strategic spots in a city.”

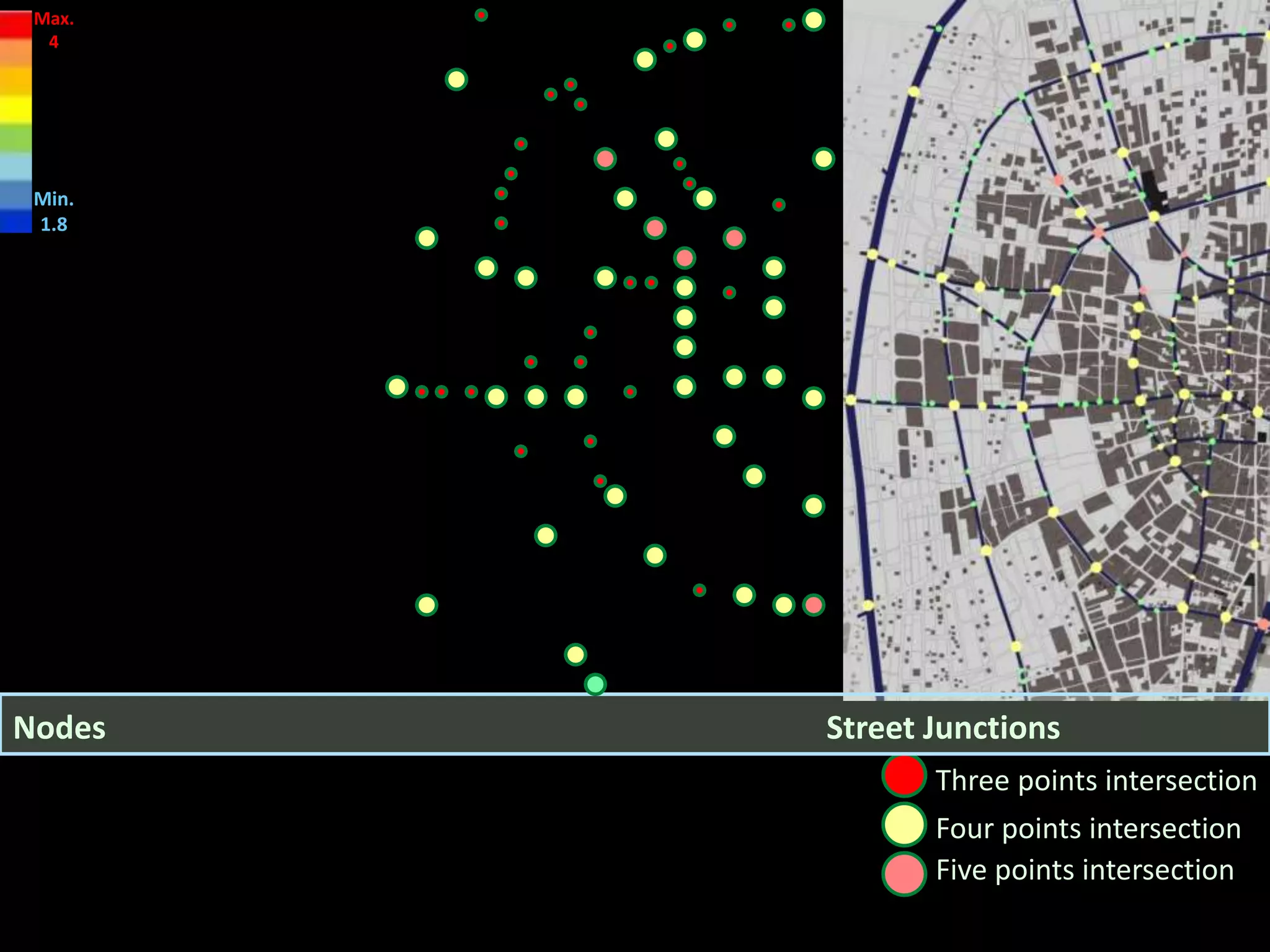

- 41. Three points intersection Fourpoints intersection Five points intersection Street JunctionsNodes Max. 4 Min. 1.8

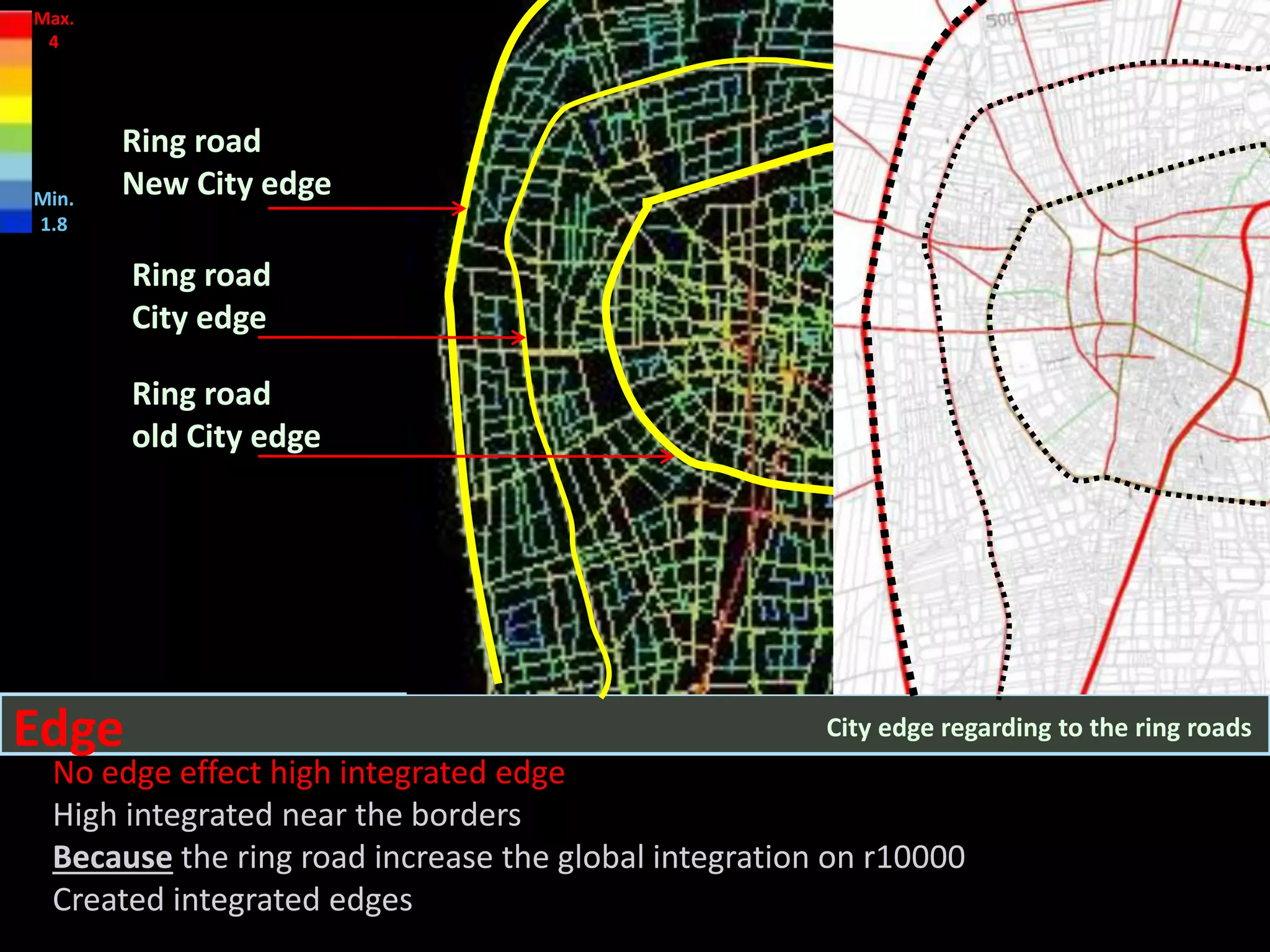

- 42. City edge regardingto the ring roadsEdge No edge effect high integrated edge High integrated near the borders Because the ring road increase the global integration on r10000 Created integrated edges Ring road New City edge Ring road old City edge Ring road City edge Max. 4 Min. 1.8

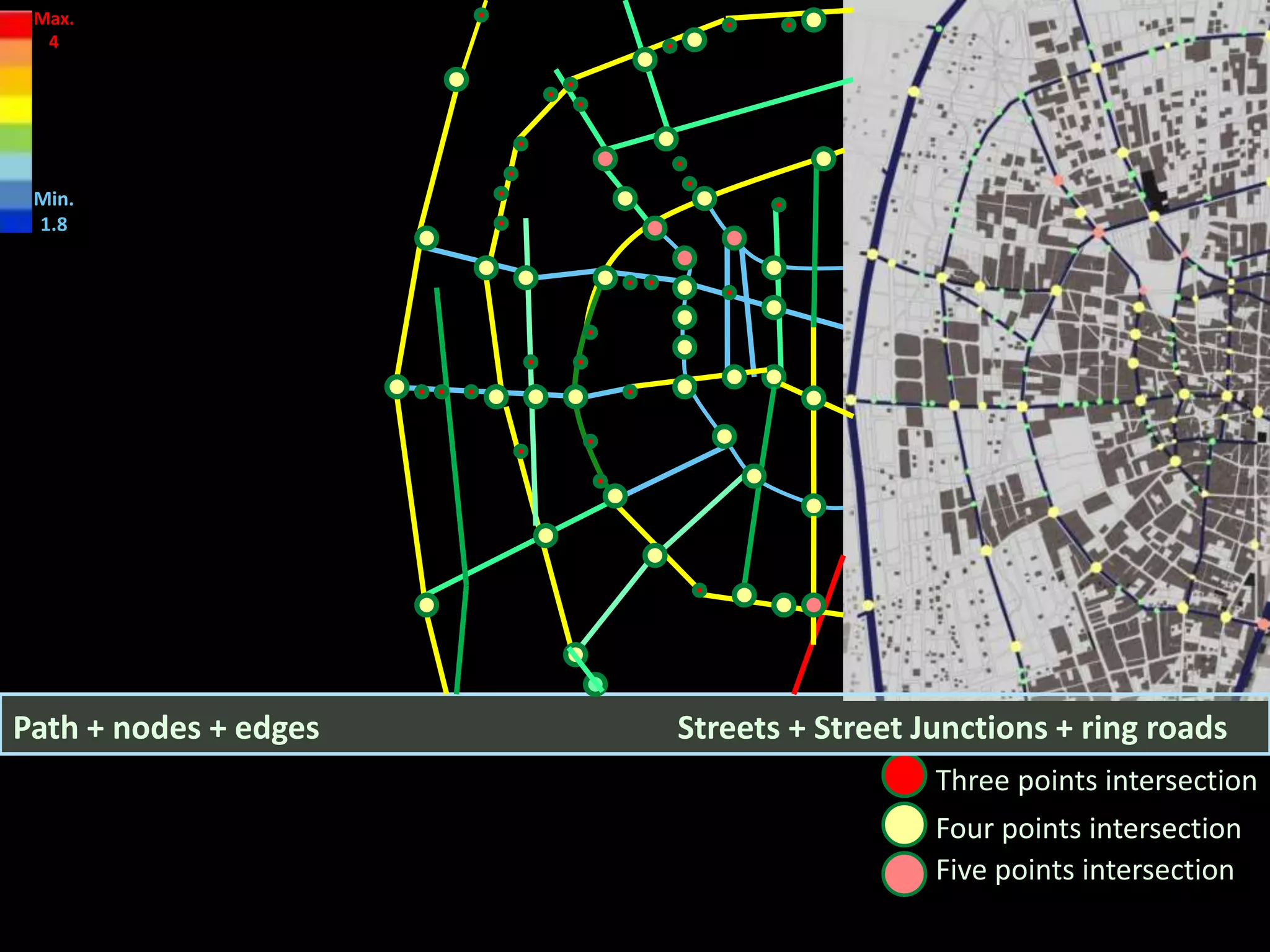

- 43. Three points intersection Fourpoints intersection Five points intersection Streets + Street Junctions + ring roadsPath + nodes + edges Max. 4 Min. 1.8

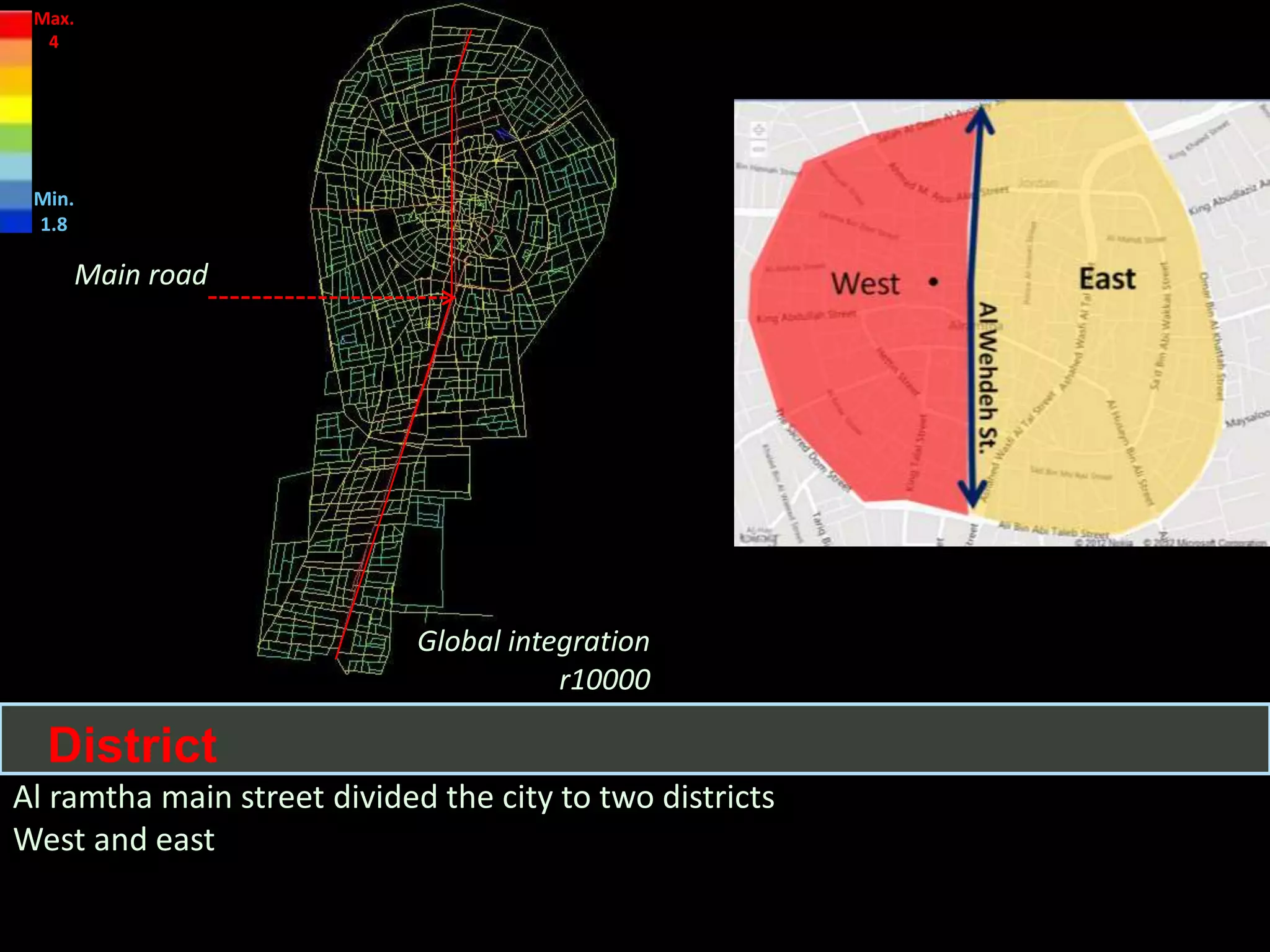

- 44. District Global integration r10000 Al ramthamain street divided the city to two districts West and east Max. 4 Min. 1.8 Main road

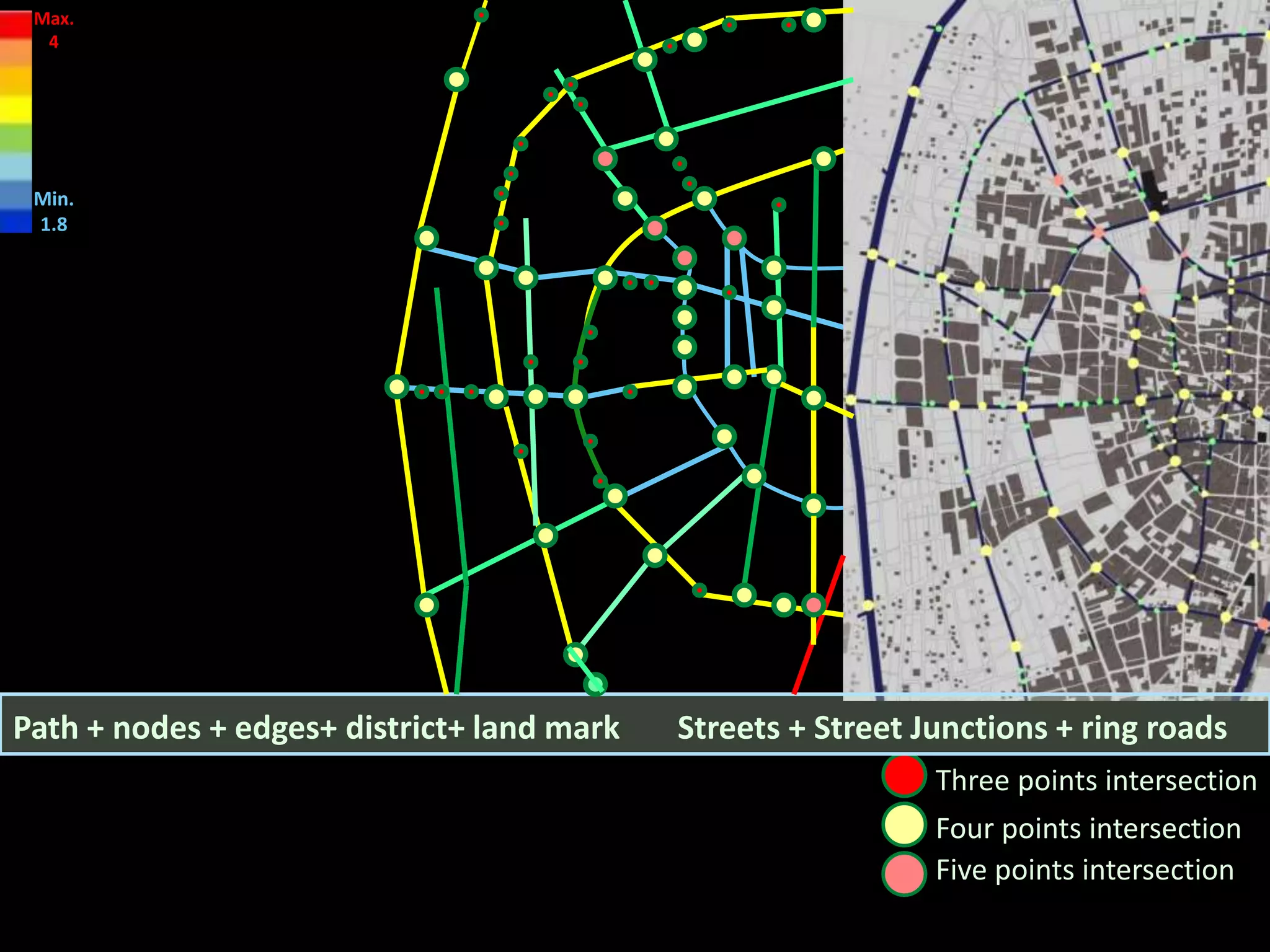

- 45. Three points intersection Fourpoints intersection Five points intersection Streets + Street Junctions + ring roadsPath + nodes + edges+ district+ land mark Max. 4 Min. 1.8
- 46. •Space syntax representthe element of the city in a clear way

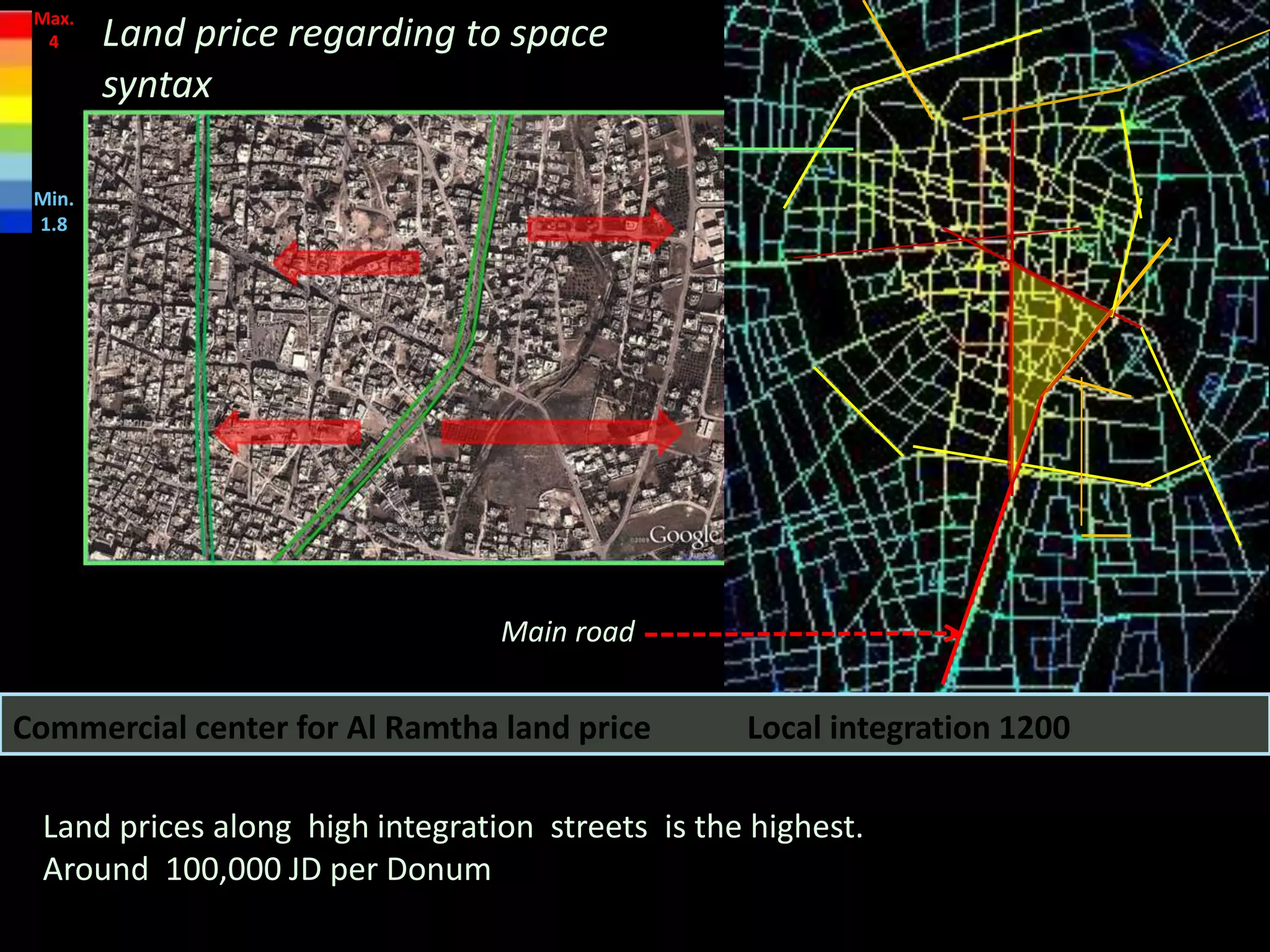

- 47. Commercial center forAl Ramtha land price Local integration 1200 Max. 4 Min. 1.8 Land prices along high integration streets is the highest. Around 100,000 JD per Donum Main road Land price regarding to space syntax
- 48. Comparison with Maramfuture expansion for al ramtha city

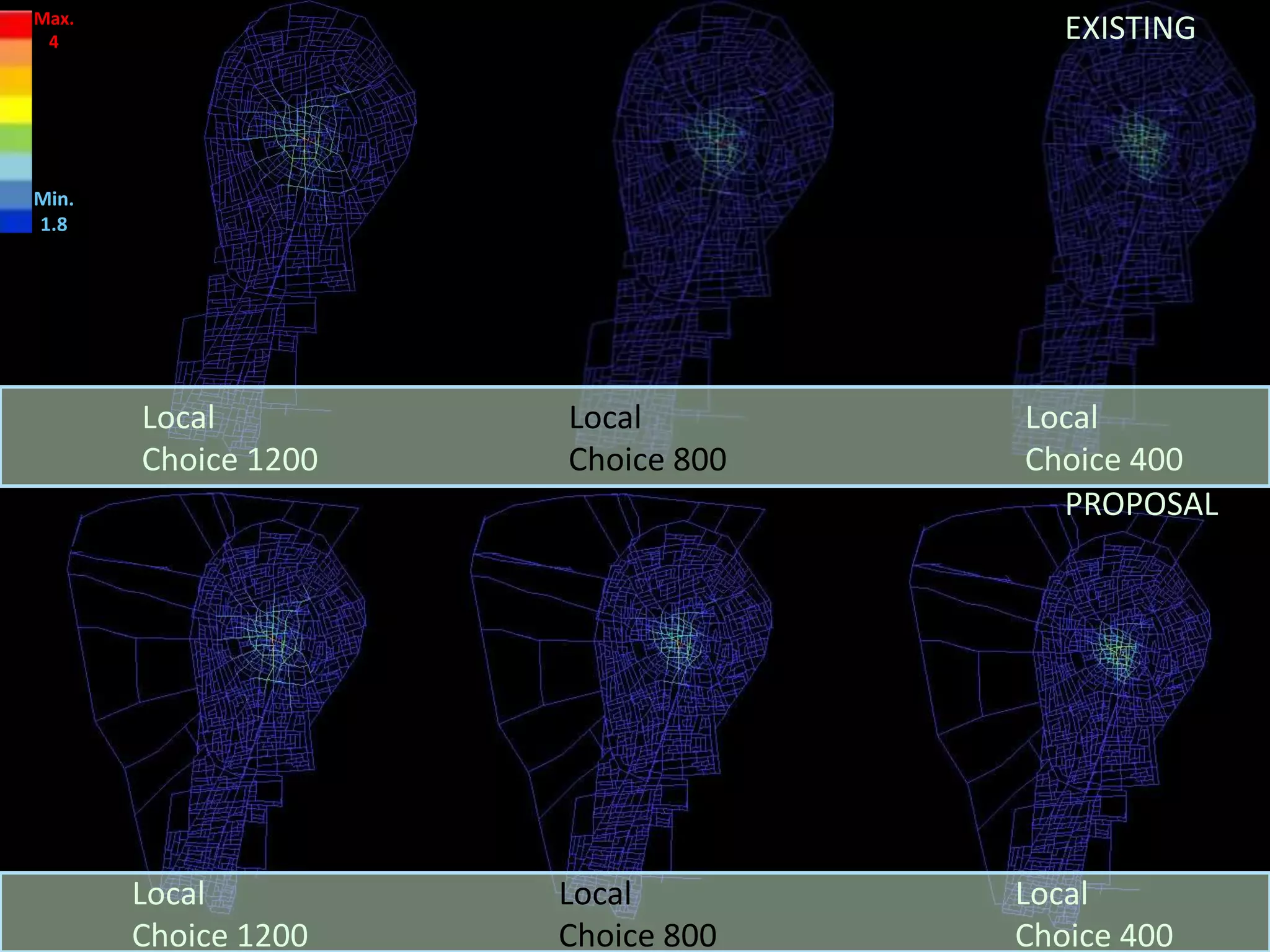

- 49. Local Choice 400 Local Choice 800 Local Choice1200 Local Choice 400 Local Choice 800 Local Choice 1200 Max. 4 Min. 1.8 EXISTING PROPOSAL

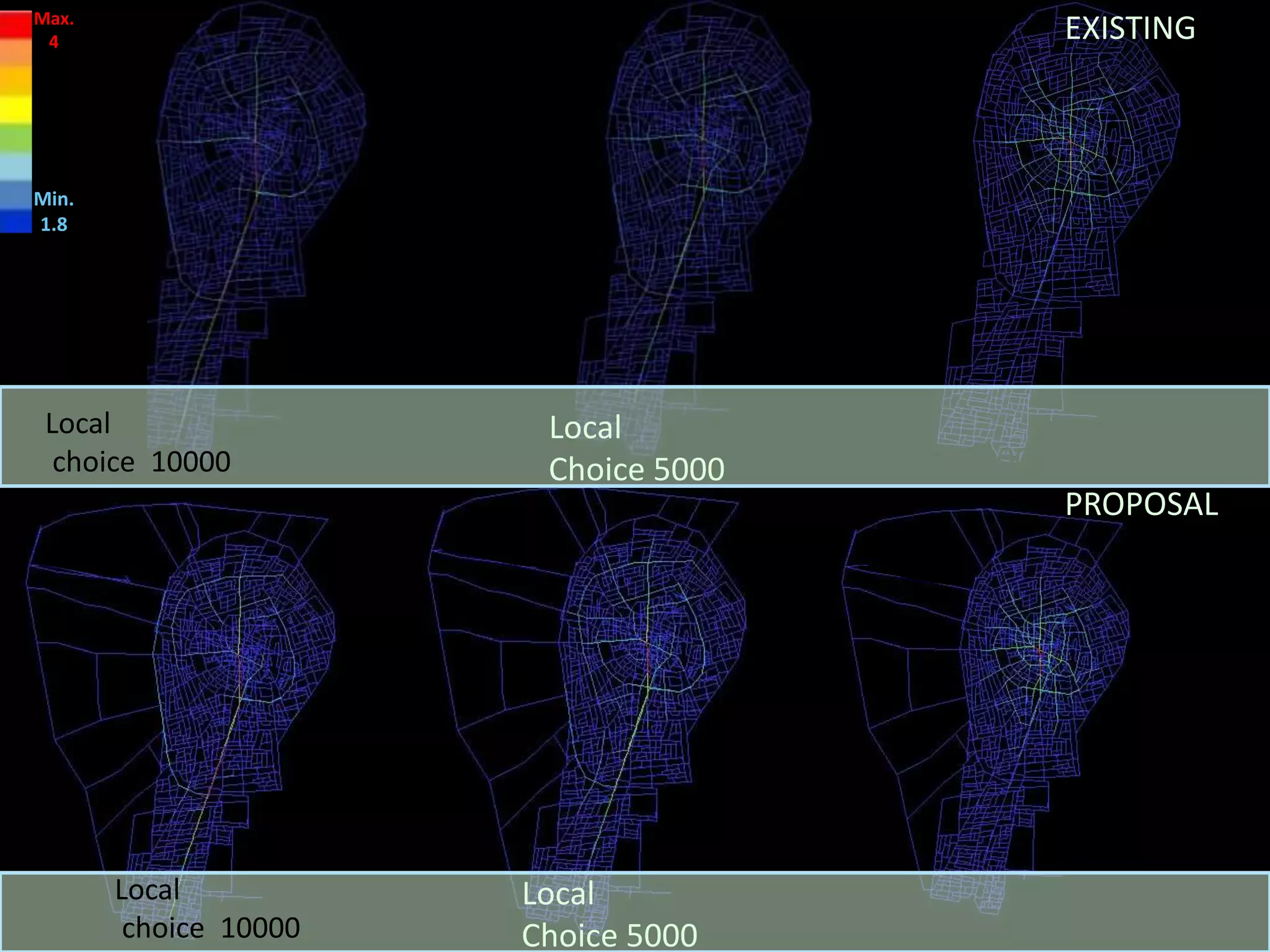

- 50. Local Choice 2000 Local Choice 2000 Local choice10000 Local Choice 5000 Local choice 10000 Local Choice 5000 EXISTING PROPOSAL Max. 4 Min. 1.8

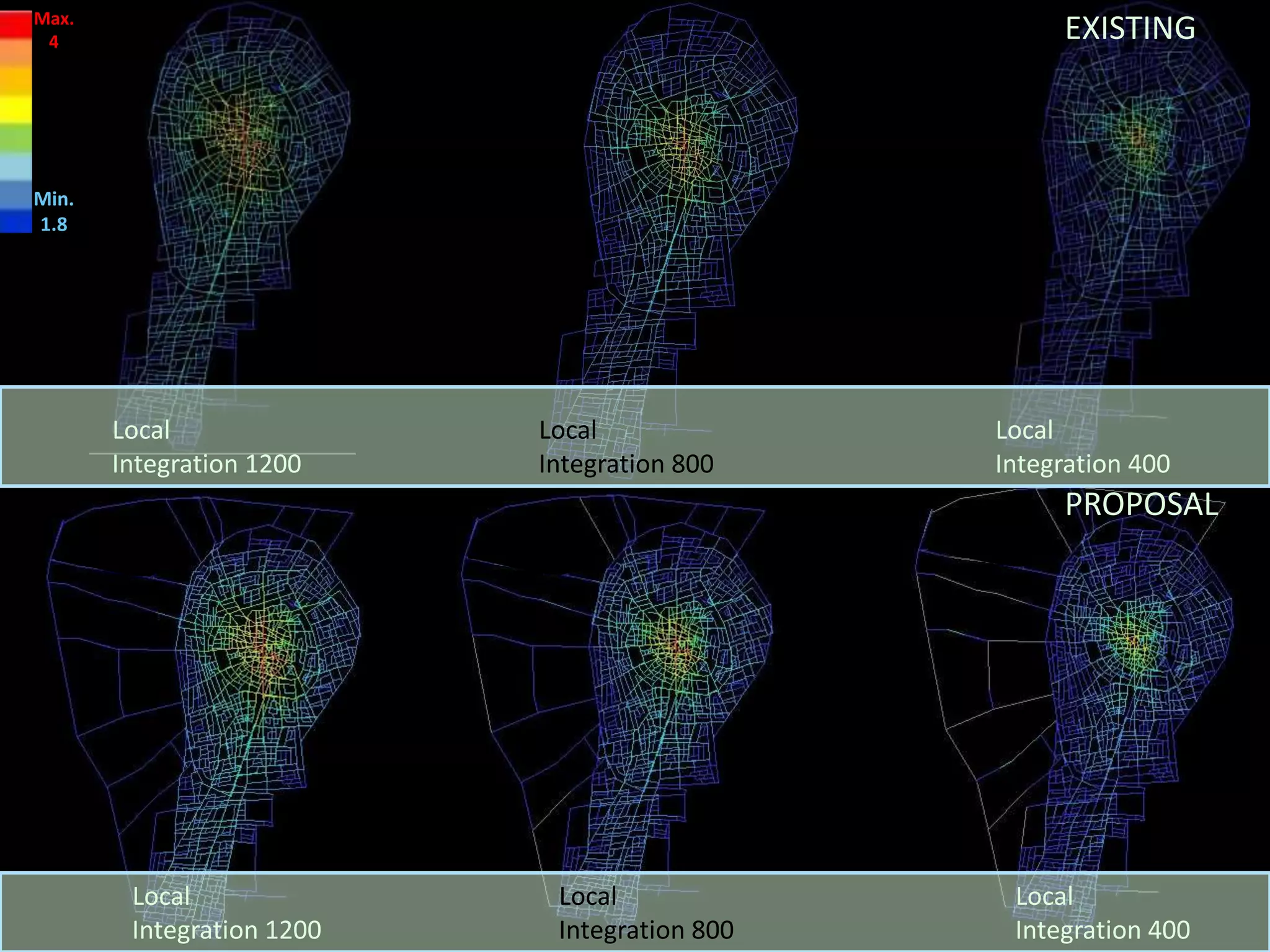

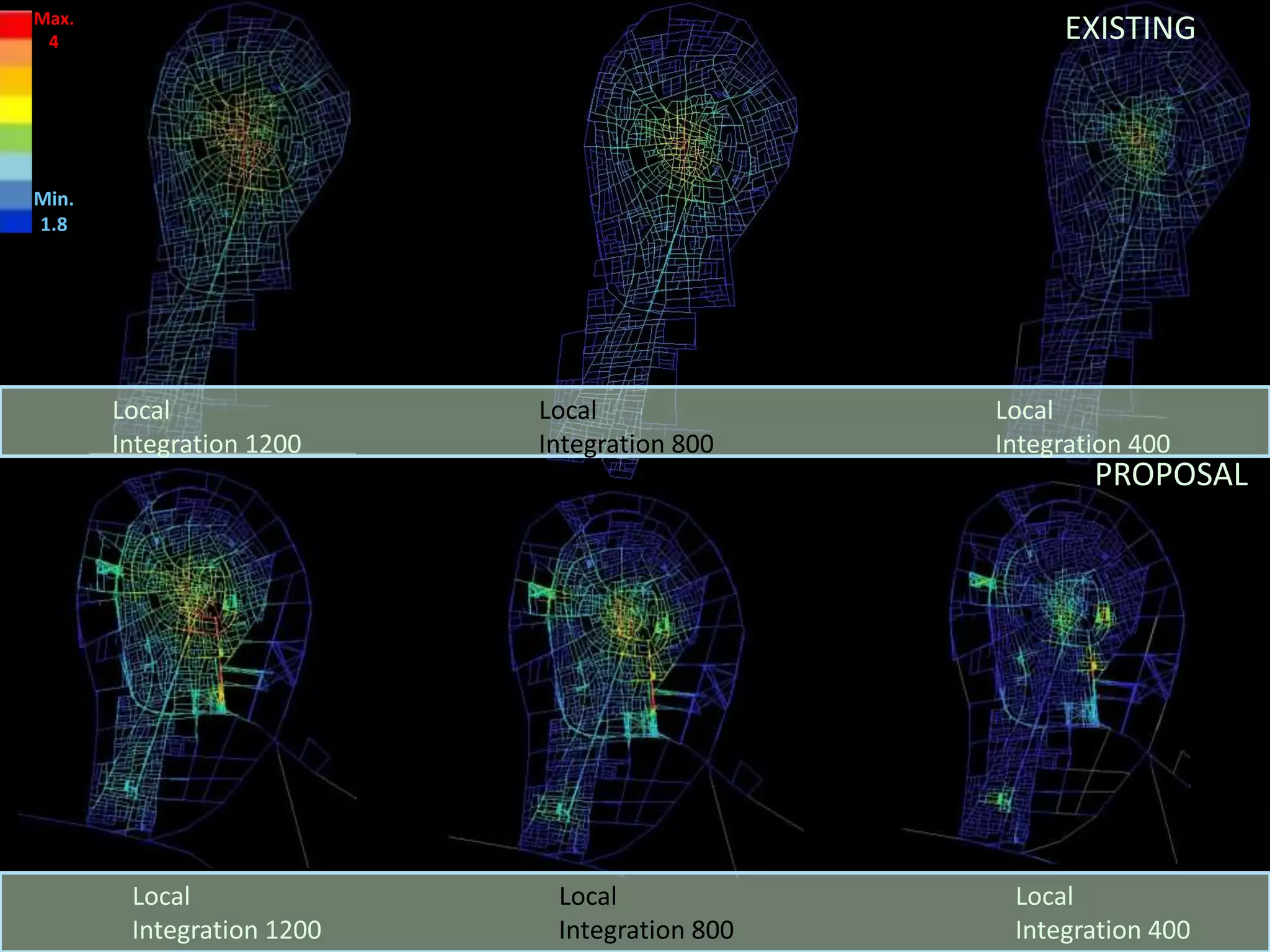

- 51. Local Integration 800 Local Integration 400 Local Integration1200 Local Integration 800 Local Integration 400 Local Integration 1200 Max. 4 Min. 1.8 EXISTING PROPOSAL

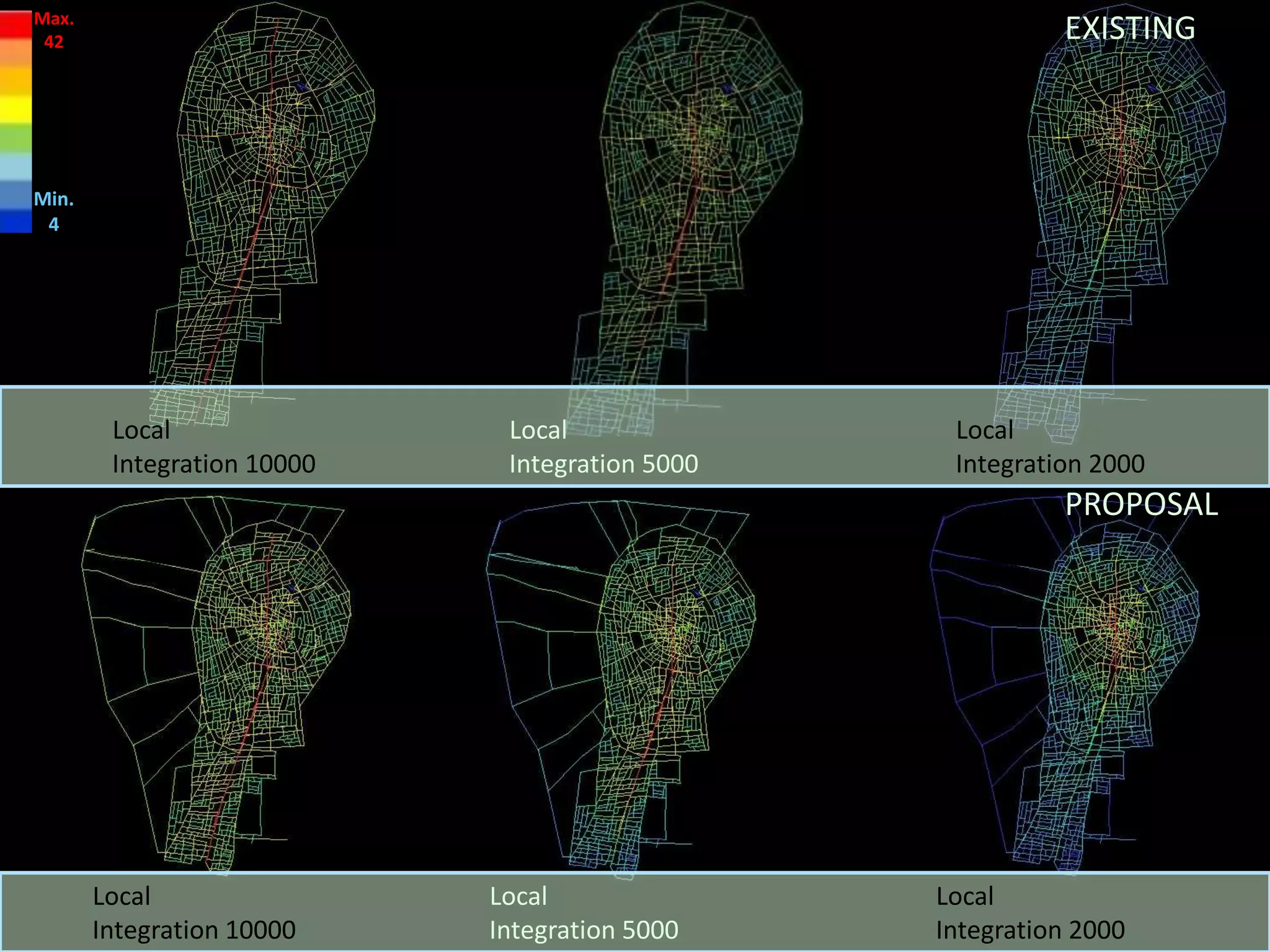

- 52. Local Integration 2000 Local Integration 10000 Local Integration5000 Max. 42 Min. 4 EXISTING PROPOSAL Local Integration 2000 Local Integration 10000 Local Integration 5000
- 53. Comparison with Shomoufuture expansion for al ramtha city
- 54. Local Integration 800 Local Integration 400 Local Integration1200 Local Integration 800 Local Integration 400 Local Integration 1200 Max. 4 Min. 1.8 EXISTING PROPOSAL

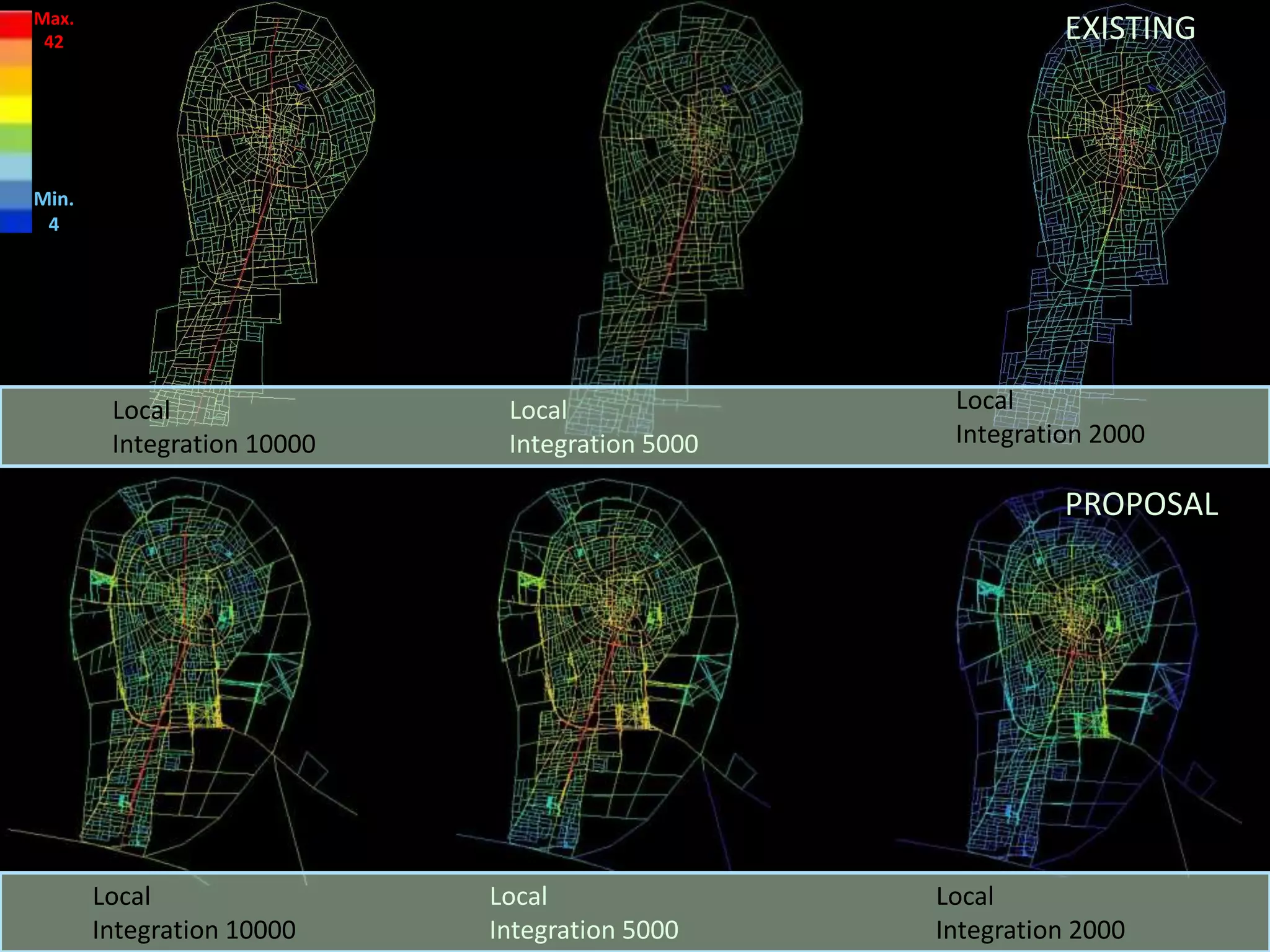

- 55. Local Integration 2000 Local Integration 10000 Local Integration5000 Max. 42 Min. 4 EXISTING PROPOSAL Local Integration 2000 Local Integration 10000 Local Integration 5000
