Asynchronous Orchestration DSL on squbs
- 1.
- 2. Agenda One-minute Introto squbs The Orchestration Use Case Describing Orchestration in a DSL Errors & Timeouts Integrations
- 3. https://github.com/paypal/squbs Standardization for Largenumber of Heterogeneous Services Hooks for Logging & Operationalization Programming Patterns Internet Scale Akka
- 4.

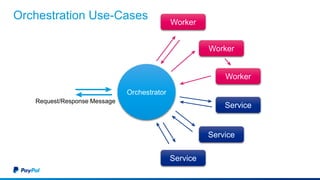

- 5. Orchestration Use-Cases • Blockingthreads while waiting for tasks • Highly inefficient use of resources • Prone to downstream failures and connection stacking Synchronous Systems • Message-oriented • Never blocking • Optimal parallelism – with Akka Asynchronous Systems Common pattern coordinating workers & services

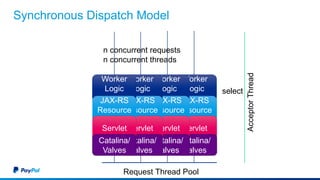

- 6. Synchronous Dispatch Model RequestThread Pool AcceptorThread select n concurrent requests n concurrent threads Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves

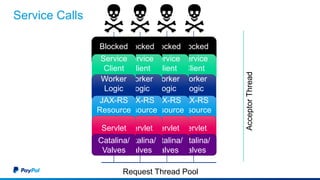

- 7. Service Calls Request ThreadPool Blocked Service Client AcceptorThread Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Service Client Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Service Client Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Service Client Worker Logic JAX-RS Resource Servlet Catalina/ Valves

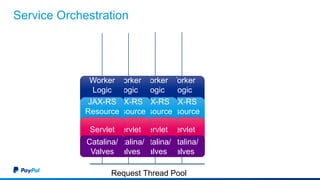

- 8. Service Orchestration Request ThreadPool Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves Worker Logic JAX-RS Resource Servlet Catalina/ Valves

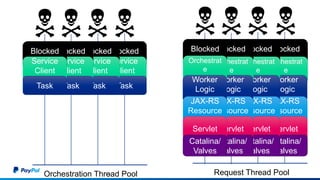

- 9. Request Thread Pool9 Blocked Orchestrat e Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Orchestrat e Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Orchestrat e Worker Logic JAX-RS Resource Servlet Catalina/ Valves Blocked Orchestrat e Worker Logic JAX-RS Resource Servlet Catalina/ Valves OrchestrationThread Pool Blocked Service Client Task Blocked Service Client Task Blocked Service Client Task Blocked Service Client Task
- 10. Problem Summary Synchronous, thread-holding Threads blockedfrom useful processing Need for orchestrator to make parallel service calls Even more orchestration threads Heavy resource usage & context switch
- 11. Akka Async, messagepassing middleware Actors hold state but not threads Low thread count, low context switch Resilience & Supervision

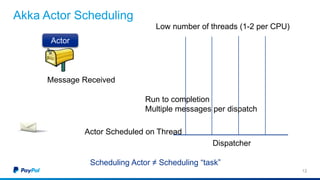

- 12. Akka Actor Scheduling 12 Dispatcher Lownumber of threads (1-2 per CPU) Actor Message Received Run to completion Multiple messages per dispatch Actor Scheduled on Thread Scheduling Actor ≠ Scheduling “task”

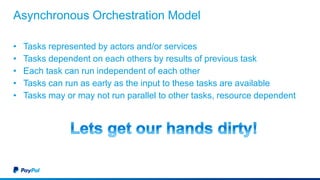

- 13. Asynchronous Orchestration Model •Tasks represented by actors and/or services • Tasks dependent on each others by results of previous task • Each task can run independent of each other • Tasks can run as early as the input to these tasks are available • Tasks may or may not run parallel to other tasks, resource dependent

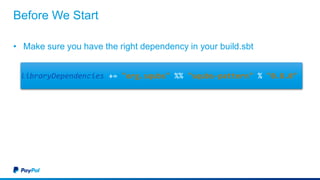

- 14. Before We Start •Make sure you have the right dependency in your build.sbt libraryDependencies += "org.squbs" %% "squbs-pattern" % "0.8.0"

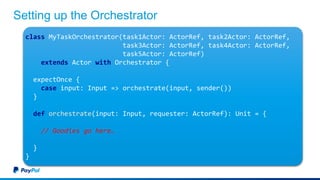

- 15. Setting up theOrchestrator class MyTaskOrchestrator(task1Actor: ActorRef, task2Actor: ActorRef, task3Actor: ActorRef, task4Actor: ActorRef, task5Actor: ActorRef) extends Actor with Orchestrator { expectOnce { case input: Input => orchestrate(input, sender()) } def orchestrate(input: Input, requester: ActorRef): Unit = { // Goodies go here… } }
- 16.

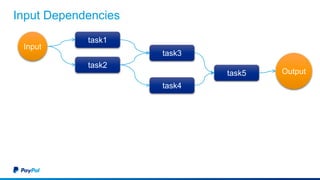

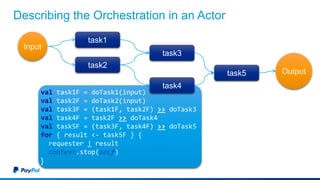

- 17. val task1F =doTask1(input) val task2F = doTask2(input) val task3F = (task1F, task2F) >> doTask3 val task4F = task2F >> doTask4 val task5F = (task3F, task4F) >> doTask5 for { result <- task5F } { requester ! result context.stop(self) } Describing the Orchestration in an Actor task1 task2 task3 task4 task5 Input Output
- 18. Orchestrator Characteristics • Single-useactor, terminates after ONE orchestration • Keeps orchestration state in Actor as OFuture • OFuture: Same API as Future, no ExecutionContext • Runs callbacks on actor message handling thread • Similar to Java 8 CompletableFuture synchronous API • Spares users and actors from potential concurrent close-overs • Future implicitly converts to OFuture in Orchestrator Actor • Resolves final result from one or more OFutures using for- comprehensions and sends back to requester

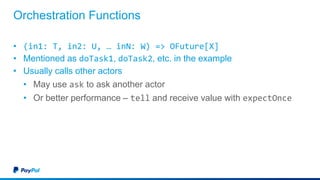

- 19. Orchestration Functions • (in1:T, in2: U, … inN: W) => OFuture[X] • Mentioned as doTask1, doTask2, etc. in the example • Usually calls other actors • May use ask to ask another actor • Or better performance – tell and receive value with expectOnce

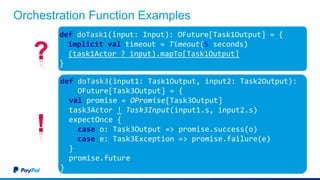

- 20. Orchestration Function Examples defdoTask1(input: Input): OFuture[Task1Output] = { implicit val timeout = Timeout(5 seconds) (task1Actor ? input).mapTo[Task1Output] } def doTask3(input1: Task1Output, input2: Task2Output): OFuture[Task3Output] = { val promise = OPromise[Task3Output] task3Actor ! Task3Input(input1.s, input2.s) expectOnce { case o: Task3Output => promise.success(o) case e: Task3Exception => promise.failure(e) } promise.future }
- 21. Be Responsive, DoTimeout … val task4F = task2F >> doTask4 val task5F = (task3F, task4F) >> doTask5 for { result <- task5F } { requester ! result context.stop(self) } import context.dispatcher context.system.scheduler.scheduleOnce(100 millis, self, Timeout) expectOnce { case Timeout => requester ! Timeout context.stop(self) }

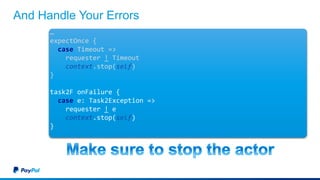

- 22. And Handle YourErrors … expectOnce { case Timeout => requester ! Timeout context.stop(self) } task2F onFailure { case e: Task2Exception => requester ! e context.stop(self) }

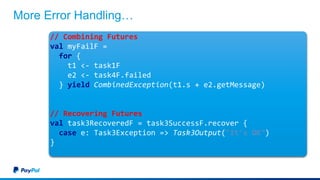

- 23. More Error Handling… //Combining Futures val myFailF = for { t1 <- task1F e2 <- task4F.failed } yield CombinedException(t1.s + e2.getMessage) // Recovering Futures val task3RecoveredF = task3SuccessF.recover { case e: Task3Exception => Task3Output("It's OK") }

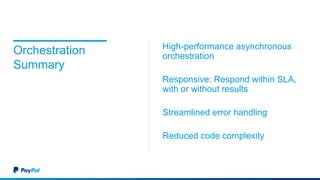

- 24. Orchestration Summary High-performance asynchronous orchestration Responsive: Respondwithin SLA, with or without results Streamlined error handling Reduced code complexity
- 25. Integrations/Usa ge Spray/Akka HTTP: onComplete +ask Akka Streams: mapAsync + ask Any actor: ask or tell As a sub-Orchestrator when Orchestrator gets complex
- 26. Bootstrap & lifecyclecontrol for http, actors, and streams Extension model for hooking into operationalization Data center aware clustering Actor registry Monitoring & console Many more patterns What’s more about it?
- 27. Q&A – FeedbackAppreciated
