1. Scaling Web Apps with Akka
Maciej Matyjas
London Scala User Group
Skills Matter
2010 July 14

2. “ Simple Scalability,
Fault-Tolerance, Concurrency &
Remoting through Actors”
akkasource.org

3. Scaling Web Apps with Akka
Characteristics Techniques
High Availability Hardware
Quick Page Loads Load Balancing
Fast Reads/Writes Caching
Partitioning
Queues/Messaging
Replication
CDN

4. Scaling Web Apps with Akka

5. Scaling Web Apps with Akka
Range of mountains in Sweden
Open Source Project
Written in Scala with Scala/Java APIs

6. Scaling Web Apps with Akka
Actors Model
Multi-Core and Cloud Infrastructure
Graceful Failure a la Erlang OTP
Transactions a la Clojure
NoSQL and Distributed Data Stores
Flexible Dispatch Strategies

7. Actors Model of Computing
Defined in 1963 by Carl Hewitt
Used by Erlang to support reliability (99.9999999% uptime)

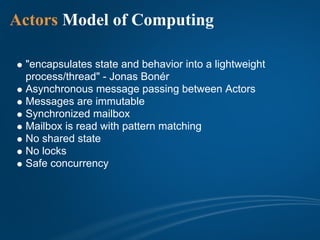

8. Actors Model of Computing
"encapsulates state and behavior into a lightweight
process/thread" - Jonas Bonér
Asynchronous message passing between Actors
Messages are immutable
Synchronized mailbox
Mailbox is read with pattern matching
No shared state
No locks
Safe concurrency

9. No shared state
+
No locks
=
Safe concurrency

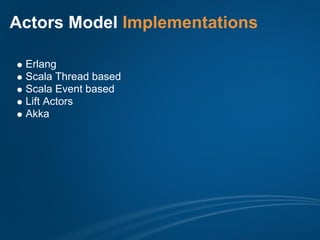

10. Actors Model Implementations
Erlang
Scala Thread based
Scala Event based
Lift Actors
Akka

11. Erlang Actors Example
-module(mypackage).
myErlangActor() ->
receive
{msgType, Msg} ->
io:format(" p n", [Msg]),
myErlangActor()
Other ->
io:format("wholy canoli, this is unmatched! n"),
myErlangActor()
end.
c(mypackage).
Pid = spawn(fun mypackage:myErlangActor/0).
Pid ! {msgType, "Erlang is for the discerning programmer"}.

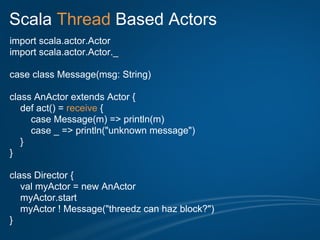

12. Scala Thread Based Actors
import scala.actor.Actor
import scala.actor.Actor._
case class Message(msg: String)
class AnActor extends Actor {
def act() = receive {
case Message(m) => println(m)
case _ => println("unknown message")
}
}
class Director {
val myActor = new AnActor
myActor.start
myActor ! Message("threedz can haz block?")
}

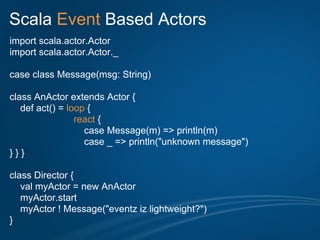

13. Scala Event Based Actors
import scala.actor.Actor
import scala.actor.Actor._
case class Message(msg: String)
class AnActor extends Actor {
def act() = loop {
react {
case Message(m) => println(m)
case _ => println("unknown message")
}}}
class Director {
val myActor = new AnActor
myActor.start
myActor ! Message("eventz iz lightweight?")
}

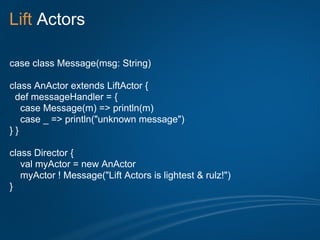

14. Lift Actors
case class Message(msg: String)
class AnActor extends LiftActor {
def messageHandler = {
case Message(m) => println(m)
case _ => println("unknown message")
}}
class Director {
val myActor = new AnActor
myActor ! Message("Lift Actors is lightest & rulz!")
}

15. Akka Actors
import se.scalablesolutions.akka.actor.Actor
case class Message(msg: String)
class AnActor extends Actor {
def receive = {
case Message(m) => println(m)
case _ => println("unknown message")
}
}
class Director {
val myActor = Actor.actorOf[AnActor]
myActor.start
myActor ! Message("akkastic!")
}

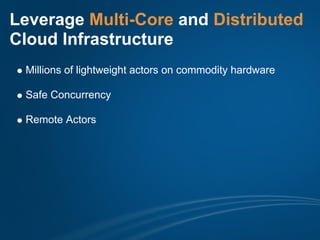

16. Leverage Multi-Core and Distributed
Cloud Infrastructure
Millions of lightweight actors on commodity hardware
Safe Concurrency
Remote Actors

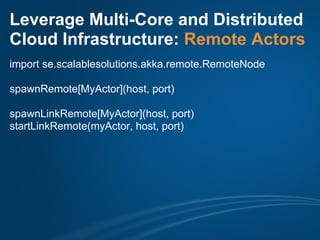

17. Leverage Multi-Core and Distributed
Cloud Infrastructure: Remote Actors
import se.scalablesolutions.akka.remote.RemoteNode
spawnRemote[MyActor](host, port)
spawnLinkRemote[MyActor](host, port)
startLinkRemote(myActor, host, port)

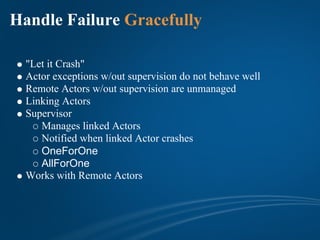

18. Handle Failure Gracefully
"Let it Crash"
Actor exceptions w/out supervision do not behave well
Remote Actors w/out supervision are unmanaged
Linking Actors
Supervisor
Manages linked Actors
Notified when linked Actor crashes
OneForOne
AllForOne
Works with Remote Actors

19. Handle Failure Gracefully: Supervisor
val supervisor = Supervisor(
SupervisorConfig(
RestartStrategy(OneForOne, 3, 1000, List(classOf[Exception])),
Supervise(
actorOf[MyActor],
LifeCycle(Permanent)) ::
Nil))
supervisor.link(actorOf[MyActor])
class MyActor extends Actor {
self.lifeCycle = Some(LifeCycle(Permanent))
override def preRestart(reason: Throwable) {
// clean things up
}
}

20. Manage Transactions
Software Transactional Memory (STM)
Thanks Clojure!
Addresses fundamental weakness of Actors Model
Hello Shared State!
Transactional but still no locks
In memory
Map, Vector, & Ref throw exceptions if modified outside
of transaction
ACI but no D
Transactors
Transactional Actors
Actors + STM
If Actor's writes clash, rollback memory and retried

21. Manage Transactions: Transactors
import se.scalablesolutions.akka.actor.Transactor
import se.scalablesolutions.akka.stm._
class MyActor extends Transactor {
def receive = {
case Increment(counter) => counter.swap(counter.get + 1)
}
}
class Director {
lazy val counter = Ref(0)
//counter.swap(7) // blows up, cannot mutate outside transaction
myActor ! Increment(counter)
}

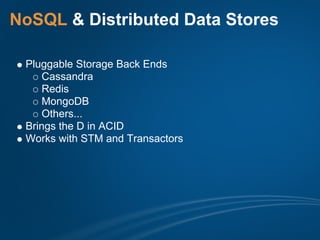

22. NoSQL & Distributed Data Stores
Pluggable Storage Back Ends
Cassandra
Redis
MongoDB
Others...
Brings the D in ACID
Works with STM and Transactors

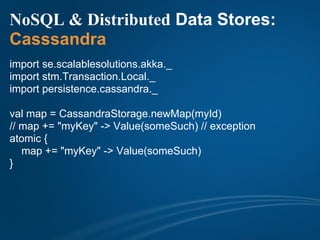

23. NoSQL & Distributed Data Stores:
Casssandra
import se.scalablesolutions.akka._
import stm.Transaction.Local._
import persistence.cassandra._
val map = CassandraStorage.newMap(myId)
// map += "myKey" -> Value(someSuch) // exception
atomic {
map += "myKey" -> Value(someSuch)
}

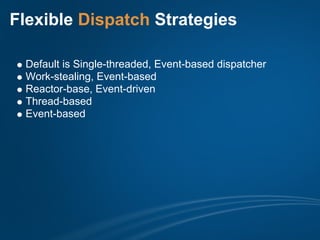

24. Flexible Dispatch Strategies
Default is Single-threaded, Event-based dispatcher
Work-stealing, Event-based
Reactor-base, Event-driven
Thread-based
Event-based

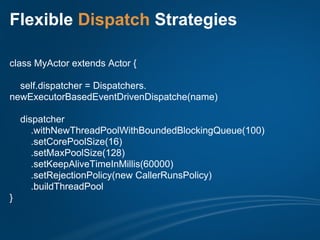

25. Flexible Dispatch Strategies
class MyActor extends Actor {
self.dispatcher = Dispatchers.
newExecutorBasedEventDrivenDispatche(name)
dispatcher
.withNewThreadPoolWithBoundedBlockingQueue(100)
.setCorePoolSize(16)
.setMaxPoolSize(128)
.setKeepAliveTimeInMillis(60000)
.setRejectionPolicy(new CallerRunsPolicy)
.buildThreadPool
}

26. Here Comes the Code
Demo Time!

27. Versions
Scala 2.8.0.RC6
Lift 2.0-scala2.8.0-SNAPSHOT
Akka 2.8.0.RC3 0.9.1
sbt 0.7.4
ensime master on github.com

28. Alternatives
Before Drinking the Kool-Aid or Flogging Your Fav Tool
Other Actor Impls More Options
scalaz JVM
FunctionalJava Fork/Join
GParallelizer ESB
Kilim Netty
ActorFoundry HawtDispatch
Actors Guild Erlang
Jetlang RabbitMQ
Actorom Hadoop
Fan Actors OpenMP
MPI

29. Questions About Akka?
http://akkasource.org
http://groups.google.com/group/akka-user
Course at Skills Matter Oct 13-14
LSUG talk on Oct 13
Ask me:
@matyjas
