Actors provide a solution to issues with traditional concurrent programming like deadlocks and livelocks by treating all work as message passing between isolated entities called actors. Actors communicate asynchronously by message passing and avoid shared state, which simplifies concurrency. Akka is a toolkit for building applications and systems using the actor model that provides features like routing, supervision, and remote deployment of actors across networks.

1. Actors, Akka, andYou
Dylan Forciea
Oseberg, Inc.

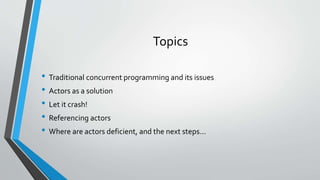

2. Topics
• Traditional concurrent programming and its issues
• Actors as a solution
• Let it crash!
• Referencing actors
• Where are actors deficient, and the next steps…

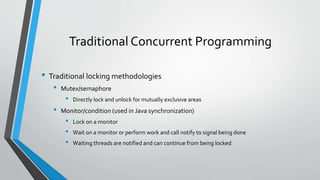

3. Traditional Concurrent Programming
• Traditional locking methodologies
• Mutex/semaphore
• Directly lock and unlock for mutually exclusive areas
• Monitor/condition (used in Java synchronization)
• Lock on a monitor
• Wait on a monitor or perform work and call notify to signal being done
• Waiting threads are notified and can continue from being locked

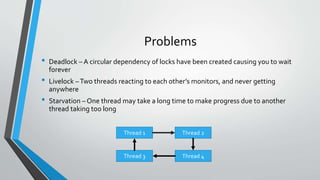

4. Problems
• Deadlock – A circular dependency of locks have been created causing you to wait
forever
• Livelock –Two threads reacting to each other’s monitors, and never getting
anywhere
• Starvation – One thread may take a long time to make progress due to another
thread taking too long
Thread 1 Thread 2
Thread 3 Thread 4

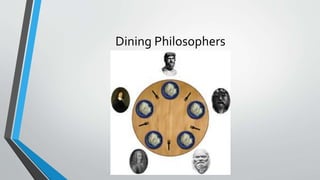

5. Dining Philosophers

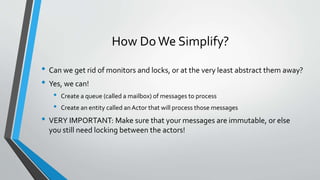

6. How DoWe Simplify?
• Can we get rid of monitors and locks, or at the very least abstract them away?
• Yes, we can!
• Create a queue (called a mailbox) of messages to process
• Create an entity called anActor that will process those messages
• VERY IMPORTANT: Make sure that your messages are immutable, or else
you still need locking between the actors!

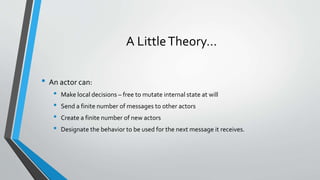

7. A LittleTheory…
• An actor can:
• Make local decisions – free to mutate internal state at will
• Send a finite number of messages to other actors
• Create a finite number of new actors
• Designate the behavior to be used for the next message it receives.

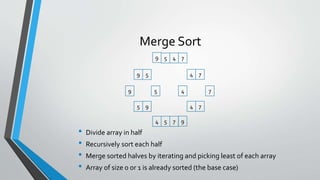

8. Merge Sort
• Divide array in half
• Recursively sort each half
• Merge sorted halves by iterating and picking least of each array
• Array of size 0 or 1 is already sorted (the base case)
59 4 7
59 4 7
9 5 4 7
5 9 4 7
4 5 7 9

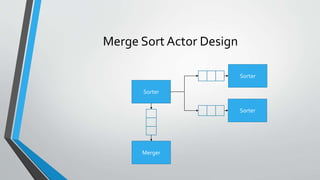

9. Merge Sort Actor Design
Merger
Sorter
Sorter
Sorter

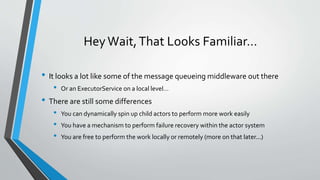

10. HeyWait,That Looks Familiar…
• It looks a lot like some of the message queueing middleware out there
• Or an ExecutorService on a local level…
• There are still some differences
• You can dynamically spin up child actors to perform more work easily
• You have a mechanism to perform failure recovery within the actor system
• You are free to perform the work locally or remotely (more on that later...)

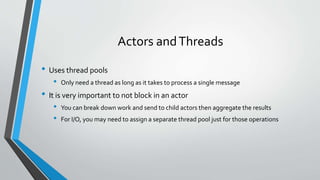

11. Actors andThreads
• Uses thread pools
• Only need a thread as long as it takes to process a single message
• It is very important to not block in an actor
• You can break down work and send to child actors then aggregate the results
• For I/O, you may need to assign a separate thread pool just for those operations

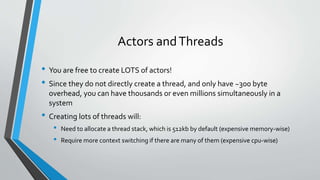

12. Actors andThreads
• You are free to create LOTS of actors!
• Since they do not directly create a thread, and only have ~300 byte
overhead, you can have thousands or even millions simultaneously in a
system
• Creating lots of threads will:
• Need to allocate a thread stack, which is 512kb by default (expensive memory-wise)
• Require more context switching if there are many of them (expensive cpu-wise)

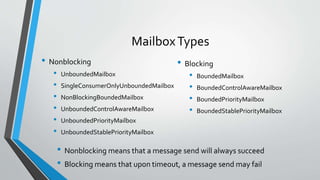

13. MailboxTypes
• Nonblocking
• UnboundedMailbox
• SingleConsumerOnlyUnboundedMailbox
• NonBlockingBoundedMailbox
• UnboundedControlAwareMailbox
• UnboundedPriorityMailbox
• UnboundedStablePriorityMailbox
• Blocking
• BoundedMailbox
• BoundedControlAwareMailbox
• BoundedPriorityMailbox
• BoundedStablePriorityMailbox
• Nonblocking means that a message send will always succeed
• Blocking means that upon timeout, a message send may fail

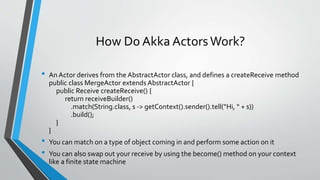

14. How Do Akka ActorsWork?
• An Actor derives from the AbstractActor class, and defines a createReceive method
public class MergeActor extends AbstractActor {
public Receive createReceive() {
return receiveBuilder()
.match(String.class, s -> getContext().sender().tell(“Hi, “ + s))
.build();
}
}
• You can match on a type of object coming in and perform some action on it
• You can also swap out your receive by using the become() method on your context
like a finite state machine

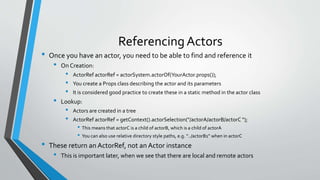

15. Referencing Actors
• Once you have an actor, you need to be able to find and reference it
• On Creation:
• ActorRef actorRef = actorSystem.actorOf(YourActor.props());
• You create a Props class describing the actor and its parameters
• It is considered good practice to create these in a static method in the actor class
• Lookup:
• Actors are created in a tree
• ActorRef actorRef = getContext().actorSelection("/actorA/actorB/actorC “);
• This means that actorC is a child of actorB, which is a child of actorA
• You can also use relative directory style paths, e.g. “../actorB1” when in actorC
• These return an ActorRef, not an Actor instance
• This is important later, when we see that there are local and remote actors

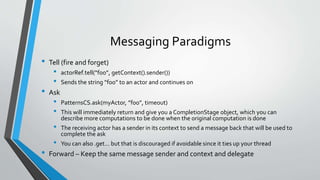

16. Messaging Paradigms
• Tell (fire and forget)
• actorRef.tell(“foo”, getContext().sender())
• Sends the string “foo” to an actor and continues on
• Ask
• PatternsCS.ask(myActor, ”foo”, timeout)
• This will immediately return and give you a CompletionStage object, which you can
describe more computations to be done when the original computation is done
• The receiving actor has a sender in its context to send a message back that will be used to
complete the ask
• You can also .get… but that is discouraged if avoidable since it ties up your thread
• Forward – Keep the same message sender and context and delegate

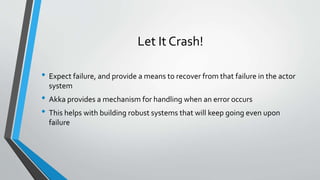

17. Let It Crash!
• Expect failure, and provide a means to recover from that failure in the actor
system
• Akka provides a mechanism for handling when an error occurs
• This helps with building robust systems that will keep going even upon
failure

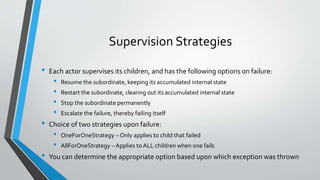

18. Supervision Strategies
• Each actor supervises its children, and has the following options on failure:
• Resume the subordinate, keeping its accumulated internal state
• Restart the subordinate, clearing out its accumulated internal state
• Stop the subordinate permanently
• Escalate the failure, thereby failing itself
• Choice of two strategies upon failure:
• OneForOneStrategy – Only applies to child that failed
• AllForOneStrategy – Applies to ALL children when one fails
• You can determine the appropriate option based upon which exception was thrown

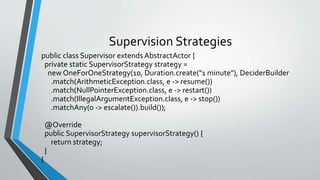

19. Supervision Strategies
public class Supervisor extends AbstractActor {
private static SupervisorStrategy strategy =
new OneForOneStrategy(10, Duration.create("1 minute"), DeciderBuilder
.match(ArithmeticException.class, e -> resume())
.match(NullPointerException.class, e -> restart())
.match(IllegalArgumentException.class, e -> stop())
.matchAny(o -> escalate()).build());
@Override
public SupervisorStrategy supervisorStrategy() {
return strategy;
}
}

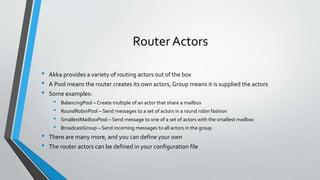

20. Router Actors
• Akka provides a variety of routing actors out of the box
• A Pool means the router creates its own actors, Group means it is supplied the actors
• Some examples:
• BalancingPool – Create multiple of an actor that share a mailbox
• RoundRobinPool – Send messages to a set of actors in a round robin fashion
• SmallestMailboxPool – Send message to one of a set of actors with the smallest mailbox
• BroadcastGroup – Send incoming messages to all actors in the group
• There are many more, and you can define your own
• The router actors can be defined in your configuration file

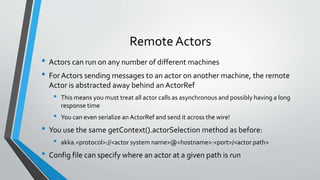

21. Remote Actors
• Actors can run on any number of different machines
• For Actors sending messages to an actor on another machine, the remote
Actor is abstracted away behind an ActorRef
• This means you must treat all actor calls as asynchronous and possibly having a long
response time
• You can even serialize an ActorRef and send it across the wire!
• You use the same getContext().actorSelection method as before:
• akka.<protocol>://<actor system name>@<hostname>:<port>/<actor path>
• Config file can specify where an actor at a given path is run

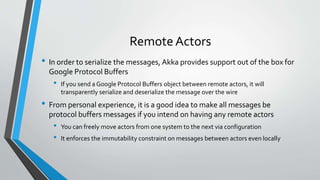

22. Remote Actors
• In order to serialize the messages, Akka provides support out of the box for
Google Protocol Buffers
• If you send a Google Protocol Buffers object between remote actors, it will
transparently serialize and deserialize the message over the wire
• From personal experience, it is a good idea to make all messages be
protocol buffers messages if you intend on having any remote actors
• You can freely move actors from one system to the next via configuration
• It enforces the immutability constraint on messages between actors even locally

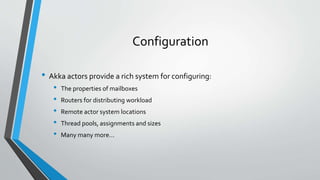

23. Configuration
• Akka actors provide a rich system for configuring:
• The properties of mailboxes
• Routers for distributing workload
• Remote actor system locations
• Thread pools, assignments and sizes
• Many many more…

24. Any problems or concerns?

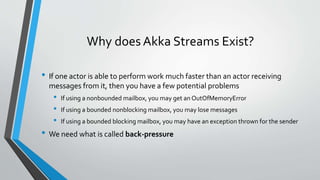

25. Why does Akka Streams Exist?
• If one actor is able to perform work much faster than an actor receiving
messages from it, then you have a few potential problems
• If using a nonbounded mailbox, you may get an OutOfMemoryError
• If using a bounded nonblocking mailbox, you may lose messages
• If using a bounded blocking mailbox, you may have an exception thrown for the sender
• We need what is called back-pressure

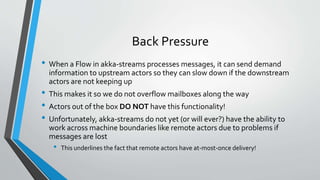

26. Back Pressure
• When a Flow in akka-streams processes messages, it can send demand
information to upstream actors so they can slow down if the downstream
actors are not keeping up
• This makes it so we do not overflow mailboxes along the way
• Actors out of the box DO NOT have this functionality!
• Unfortunately, akka-streams do not yet (or will ever?) have the ability to
work across machine boundaries like remote actors due to problems if
messages are lost
• This underlines the fact that remote actors have at-most-once delivery!

27. Any Questions?

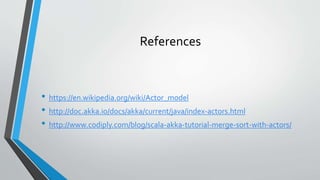

28. References
• https://en.wikipedia.org/wiki/Actor_model
• http://doc.akka.io/docs/akka/current/java/index-actors.html
• http://www.codiply.com/blog/scala-akka-tutorial-merge-sort-with-actors/
