This document provides an overview of Akka and Akka Cluster, frameworks for building distributed and fault-tolerant applications using actors. It discusses concurrency paradigms like message passing actors, Akka's implementation of the actor model, clustering with Akka Cluster, and using CRDTs for distributed shared state. It also previews demos of building a web crawler application and clustering it across nodes with Akka Cluster.

1. Developing distributed applications
with Akka and Akka Cluster

2. What is Akka?

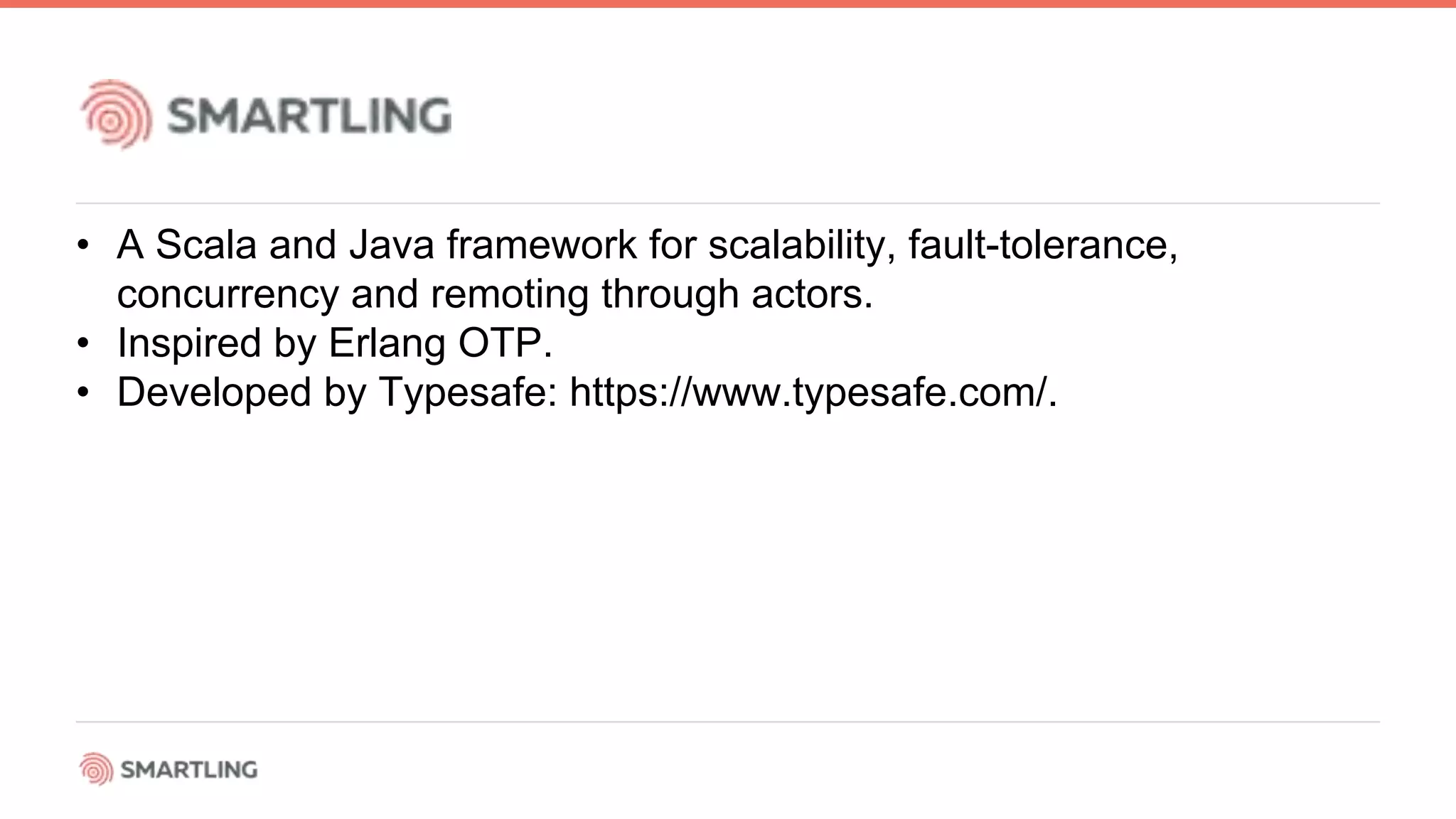

3. • A Scala and Java framework for scalability, fault-tolerance,
concurrency and remoting through actors.
• Inspired by Erlang OTP.
• Developed by Typesafe: https://www.typesafe.com/.

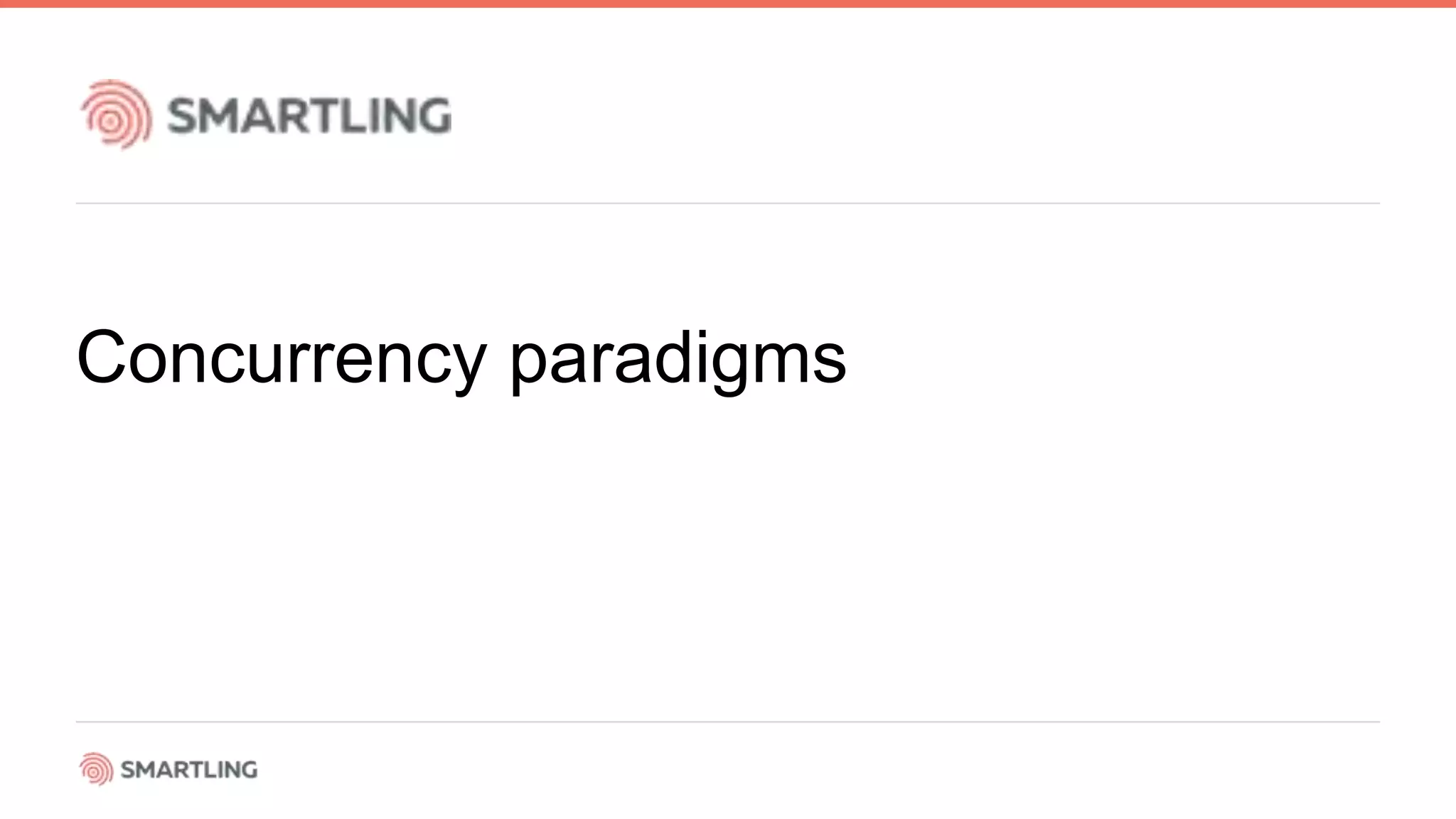

4. Concurrency paradigms

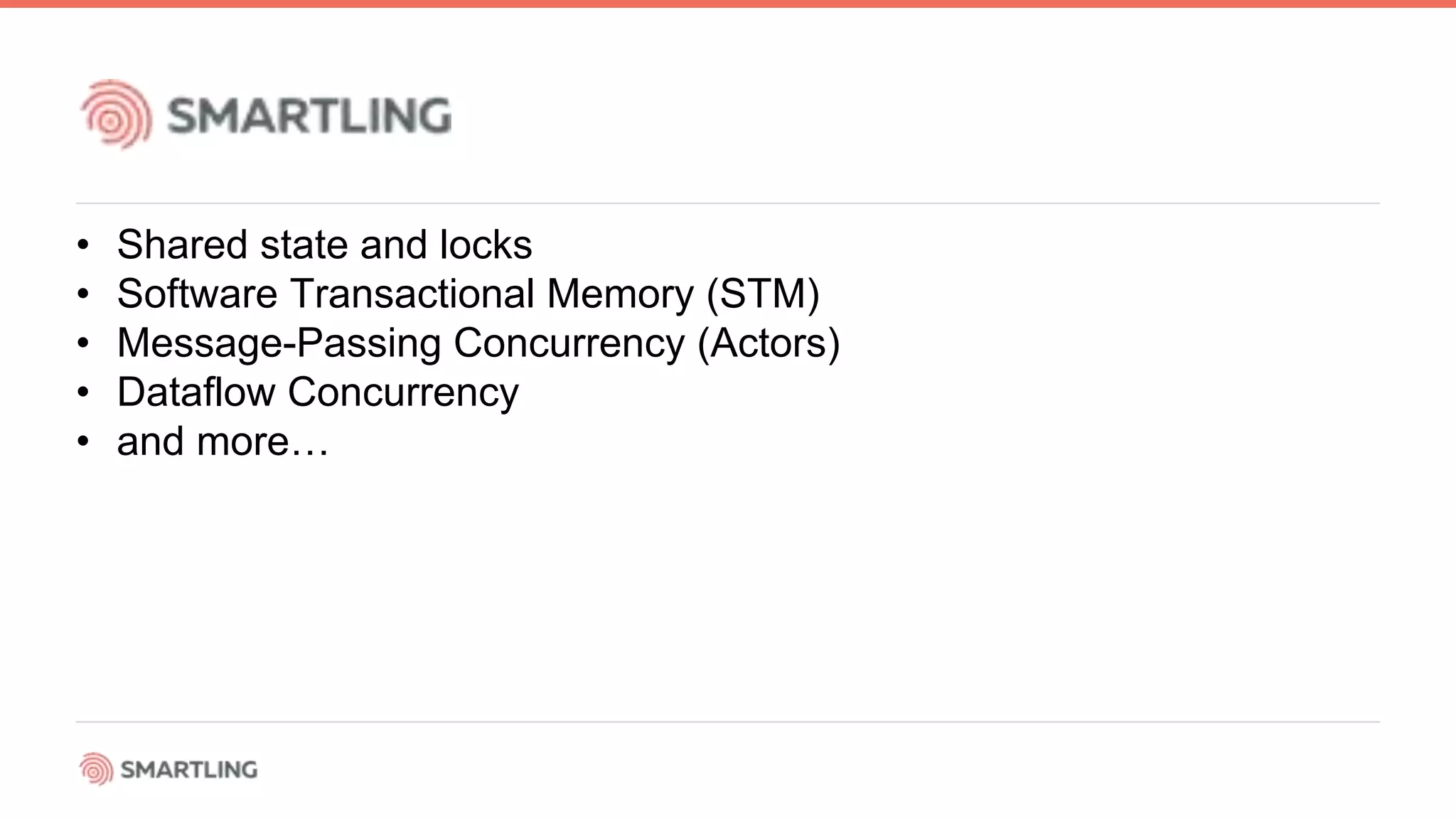

5. • Shared state and locks
• Software Transactional Memory (STM)
• Message-Passing Concurrency (Actors)
• Dataflow Concurrency
• and more…

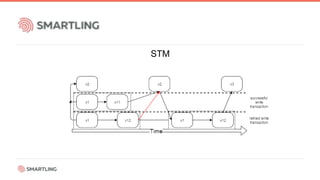

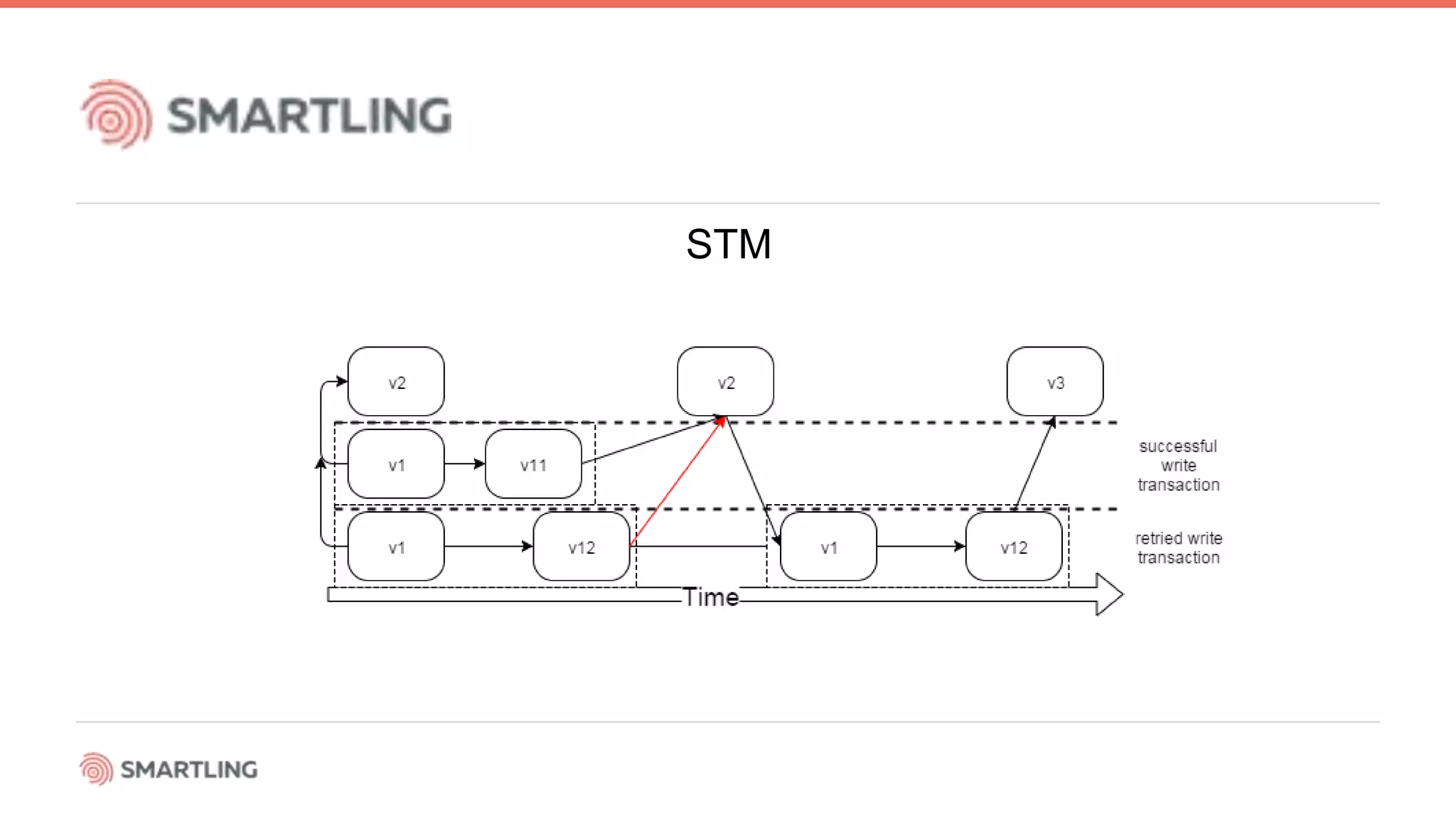

6. STM

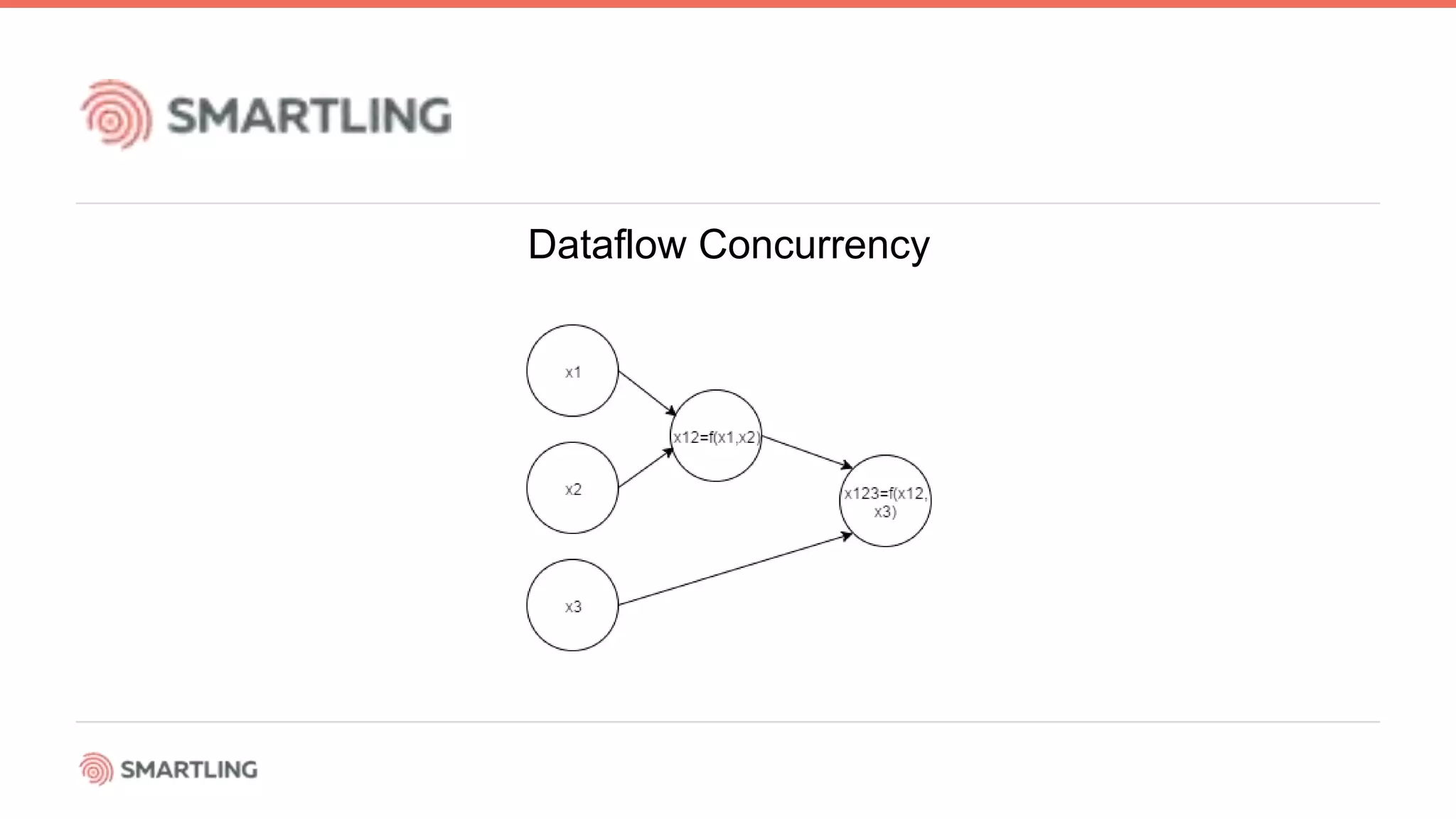

7. Dataflow Concurrency

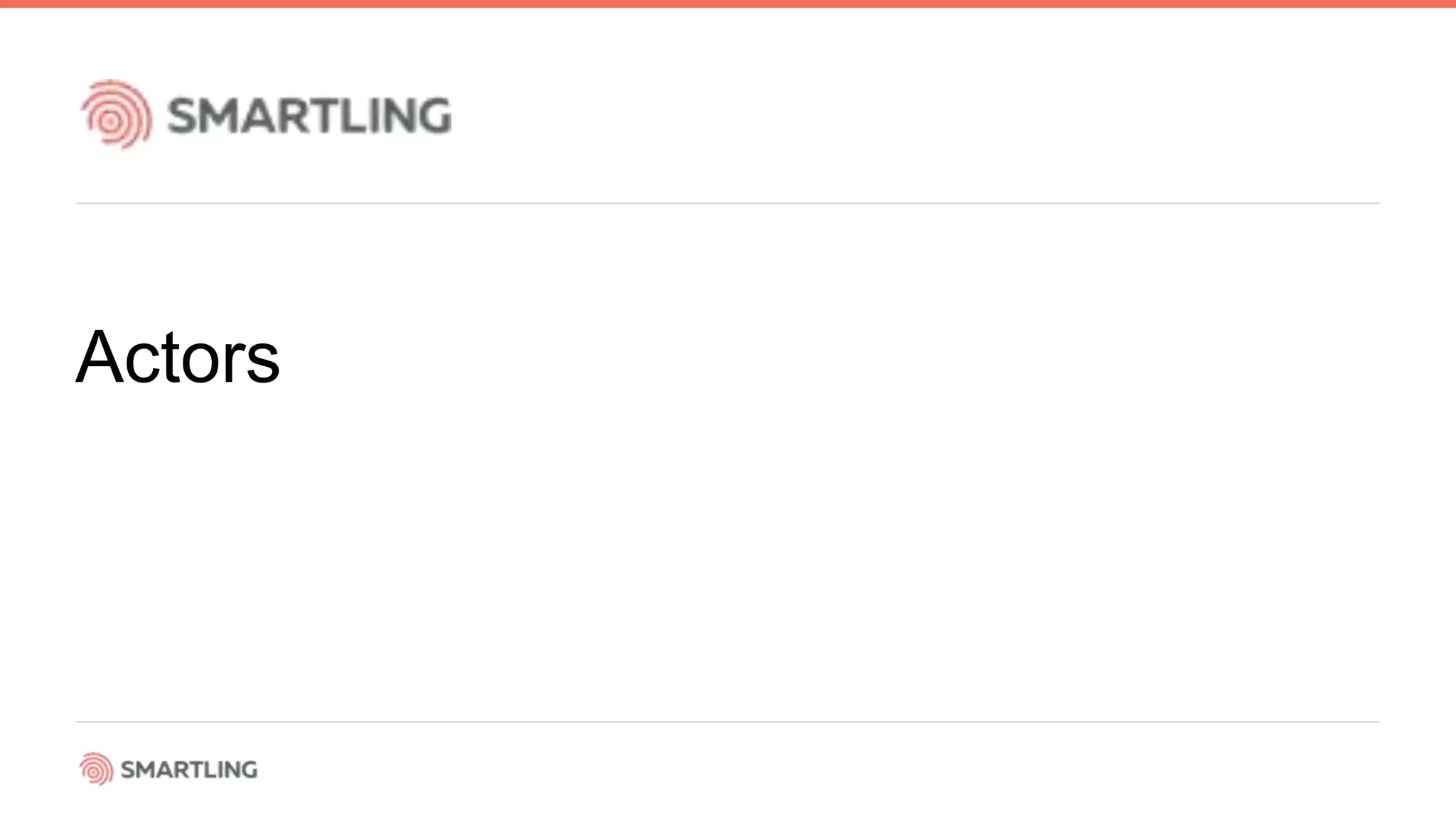

8. Actors

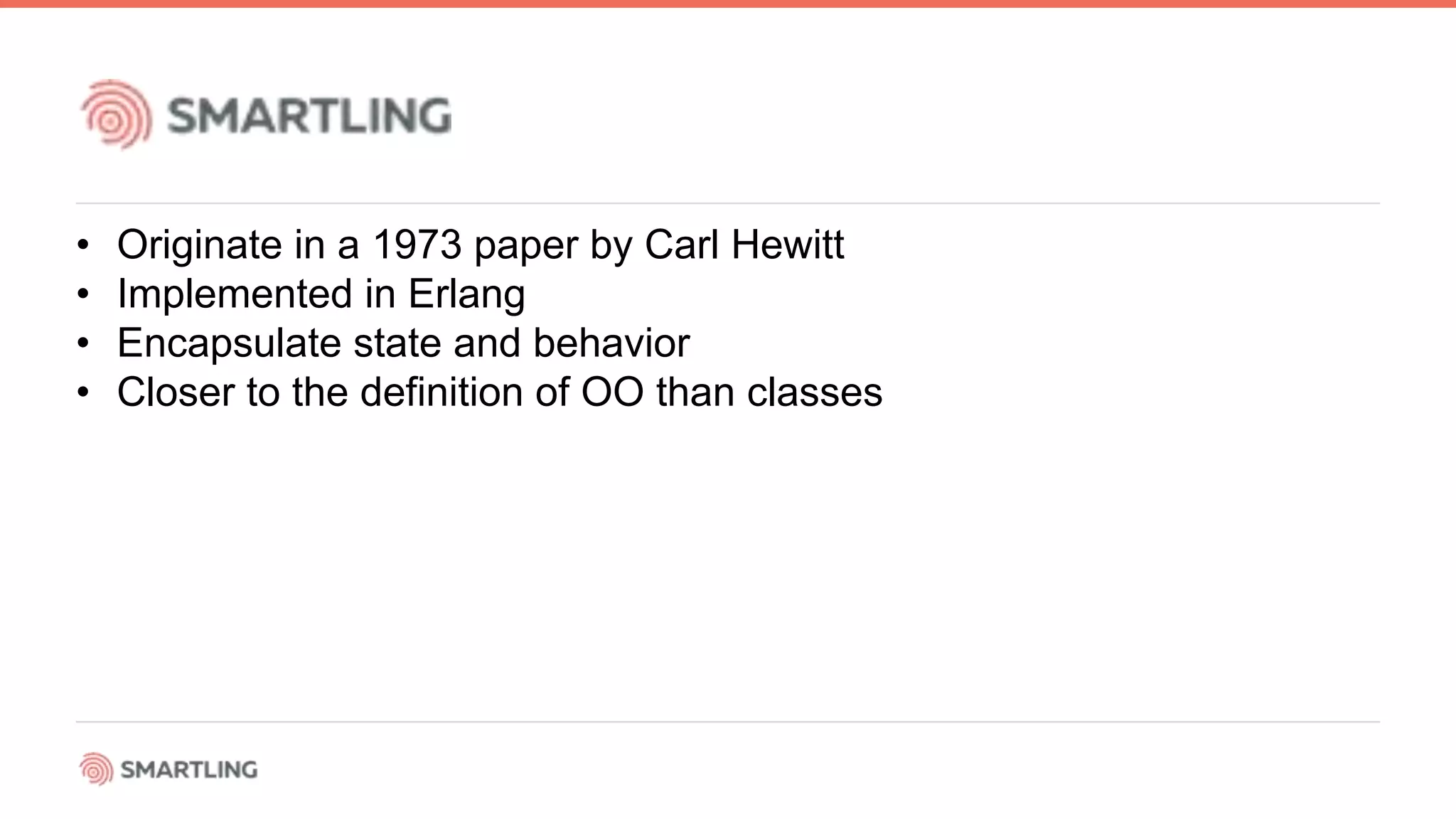

9. • Originate in a 1973 paper by Carl Hewitt
• Implemented in Erlang
• Encapsulate state and behavior
• Closer to the definition of OO than classes

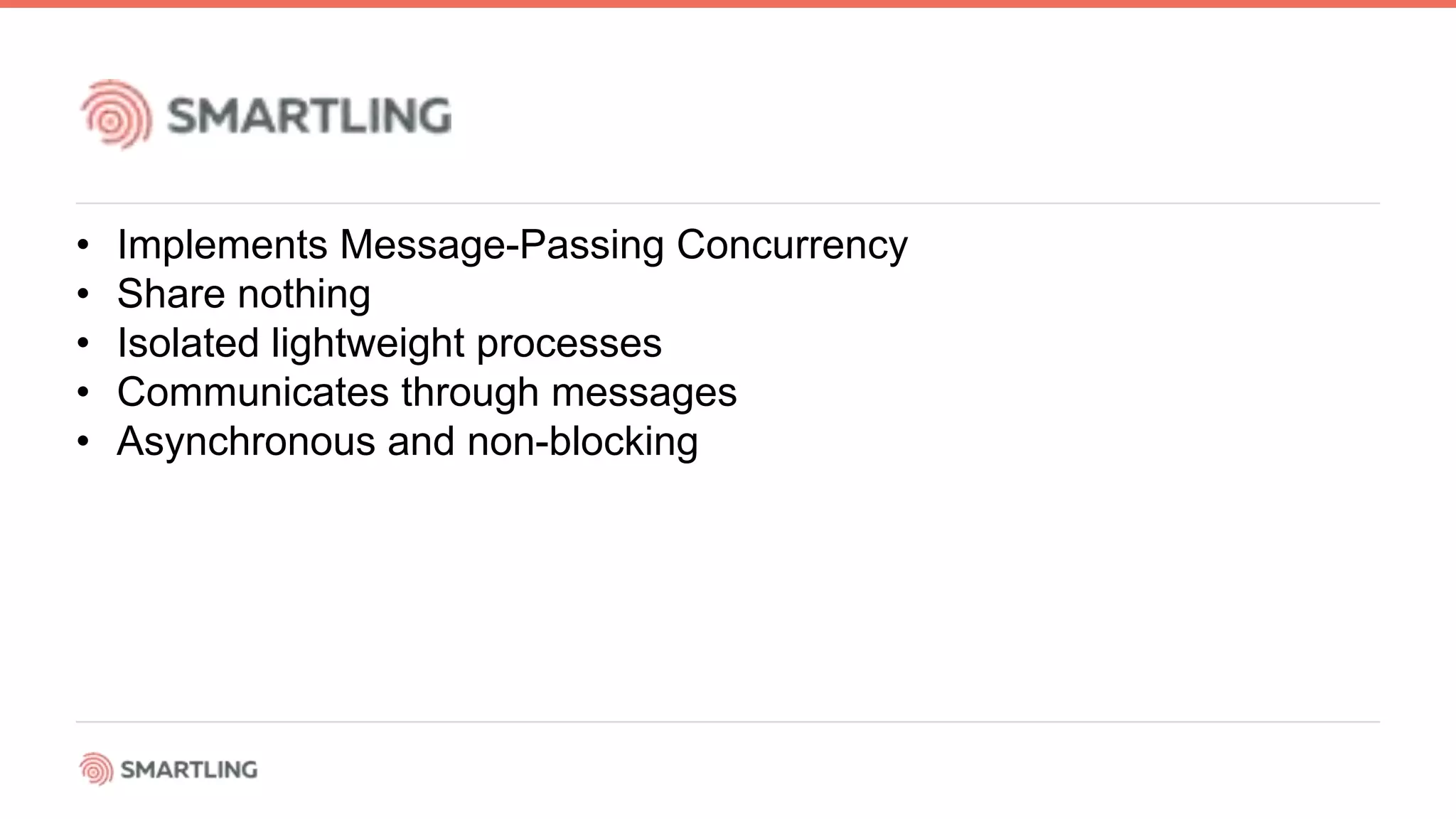

10. • Implements Message-Passing Concurrency
• Share nothing
• Isolated lightweight processes
• Communicates through messages
• Asynchronous and non-blocking

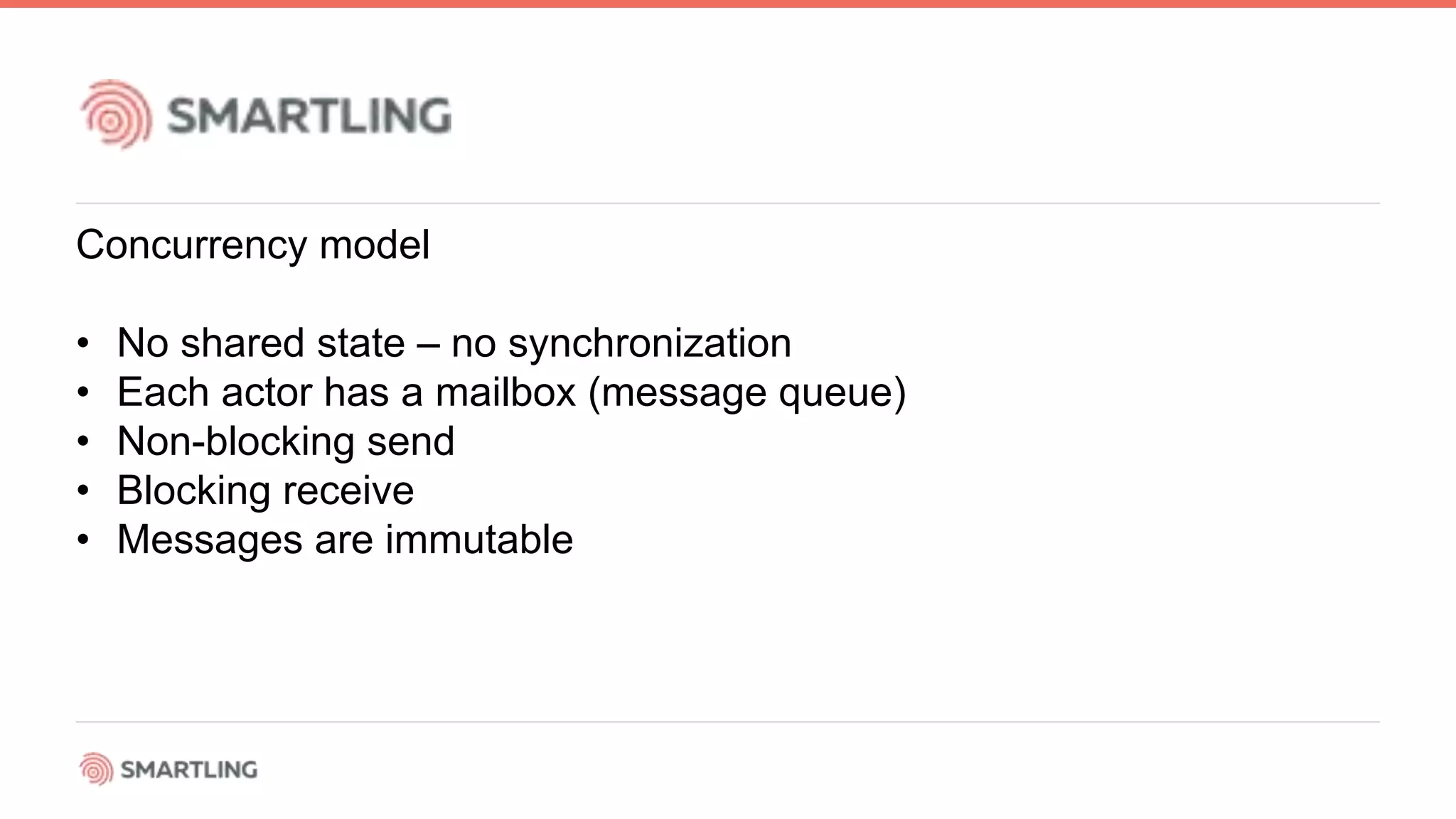

11. Concurrency model
• No shared state – no synchronization
• Each actor has a mailbox (message queue)
• Non-blocking send
• Blocking receive
• Messages are immutable

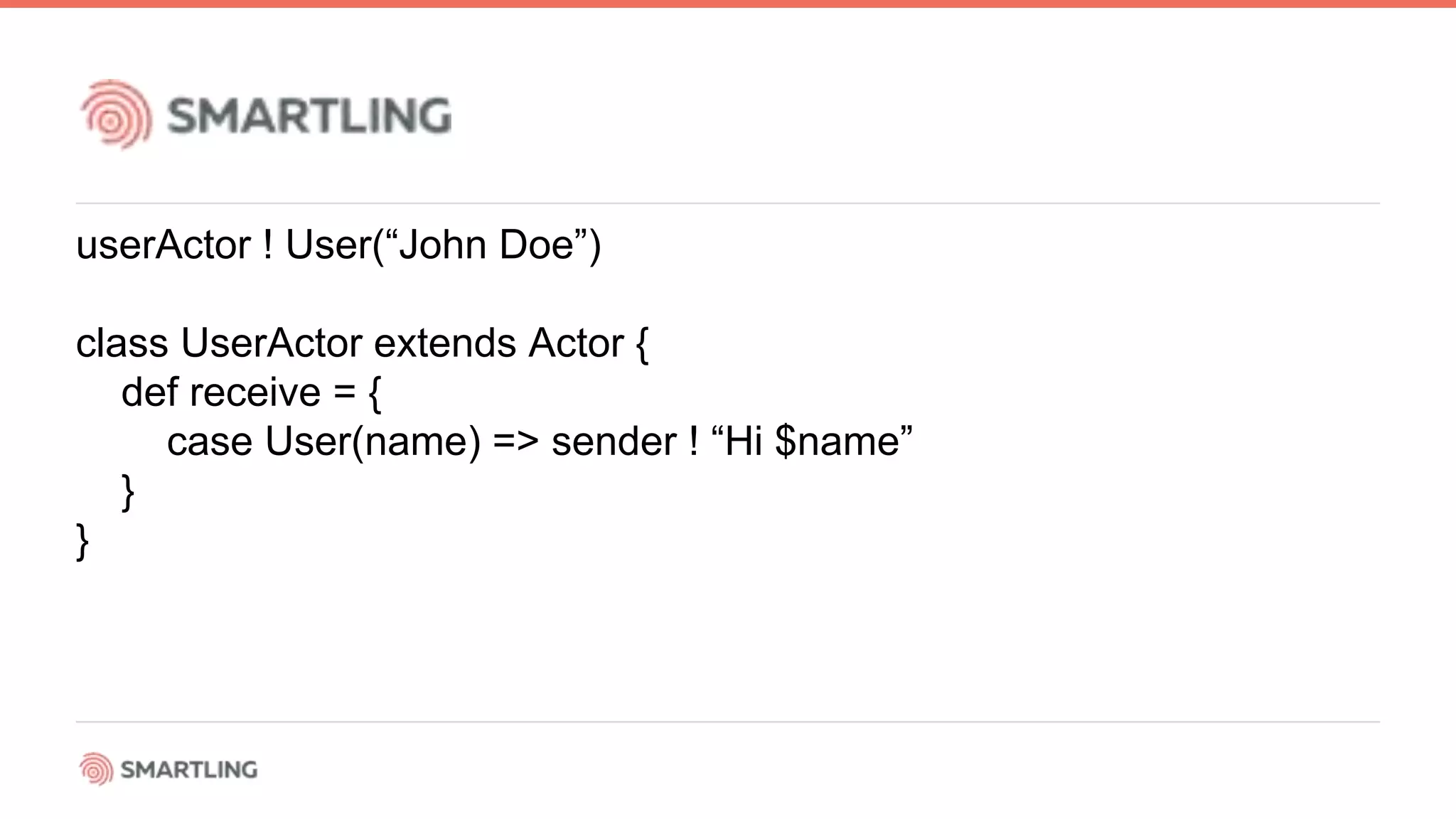

12. userActor ! User(“John Doe”)
class UserActor extends Actor {
def receive = {
case User(name) => sender ! “Hi $name”
}
}

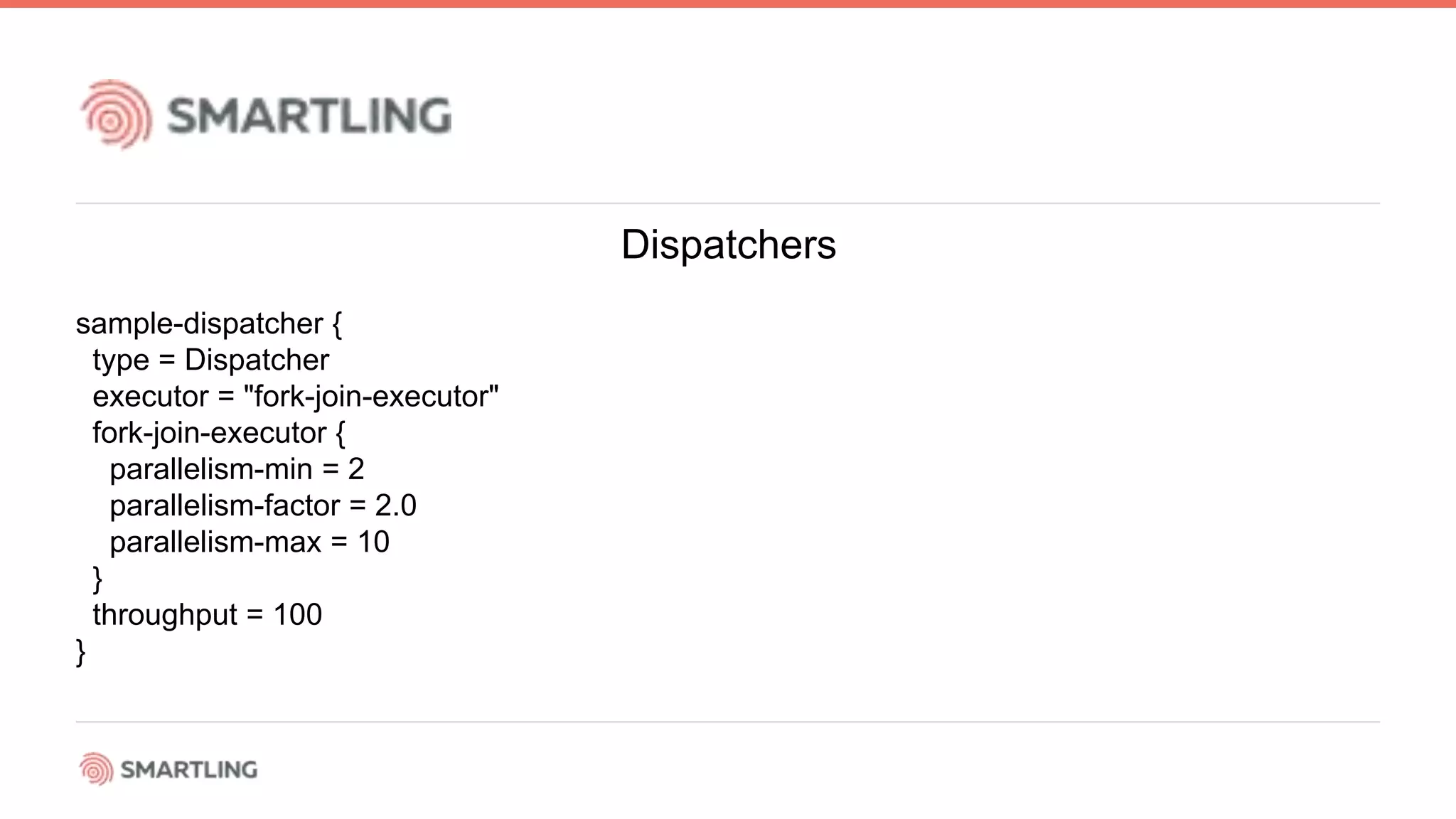

13. Dispatchers
sample-dispatcher {
type = Dispatcher
executor = "fork-join-executor"
fork-join-executor {
parallelism-min = 2
parallelism-factor = 2.0
parallelism-max = 10
}
throughput = 100
}

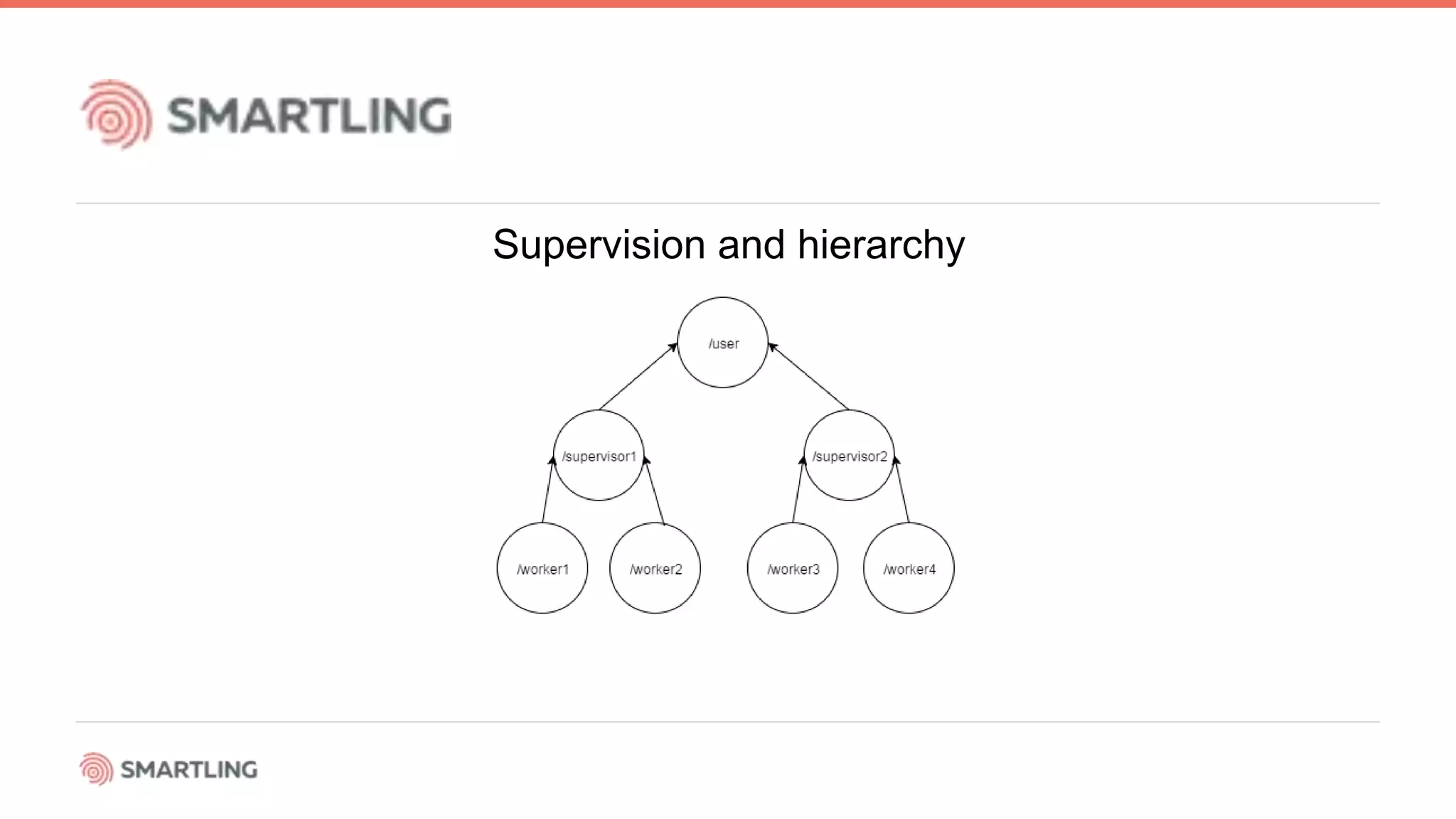

14. Supervision and hierarchy

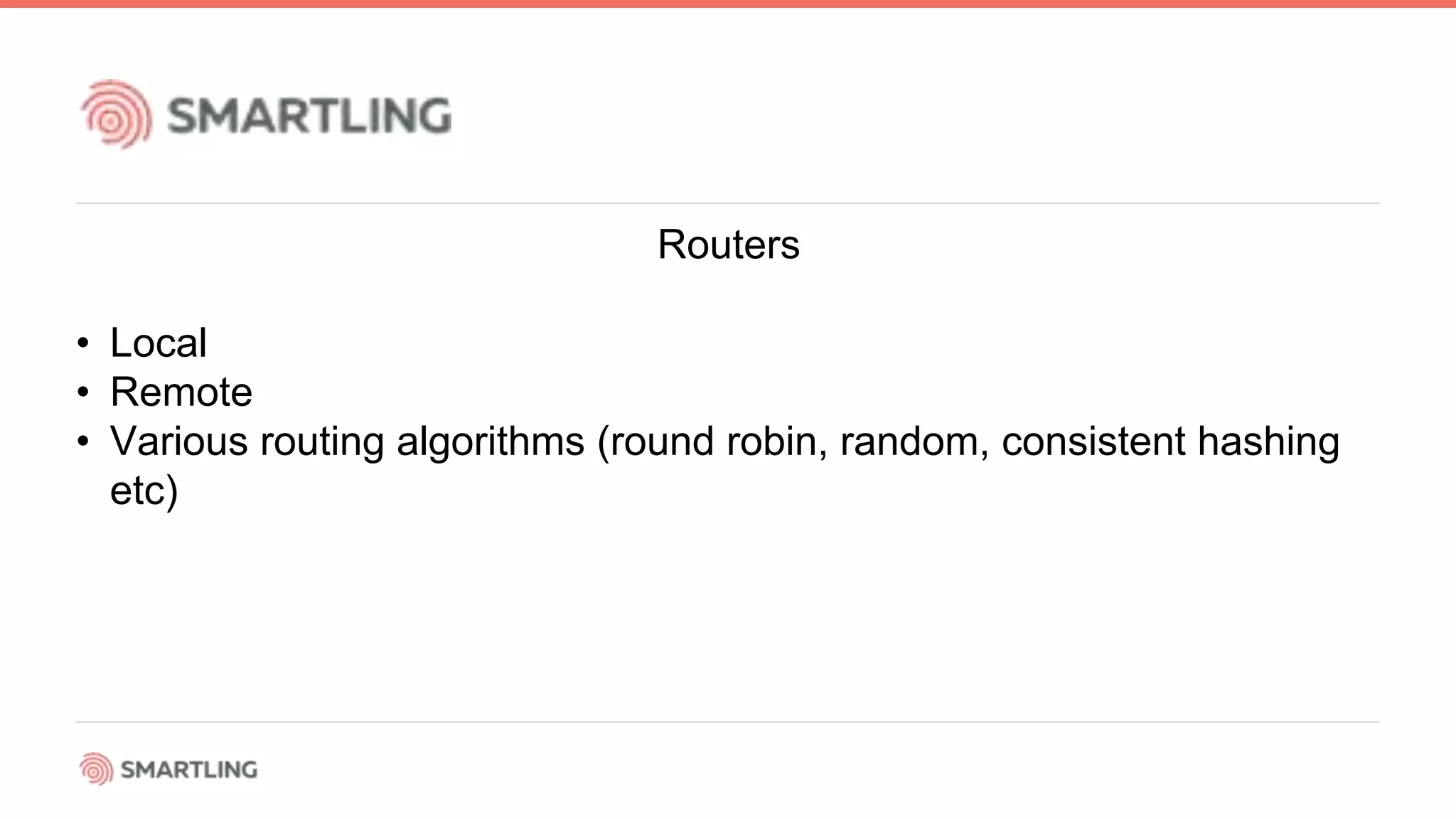

15. Routers
• Local
• Remote
• Various routing algorithms (round robin, random, consistent hashing
etc)

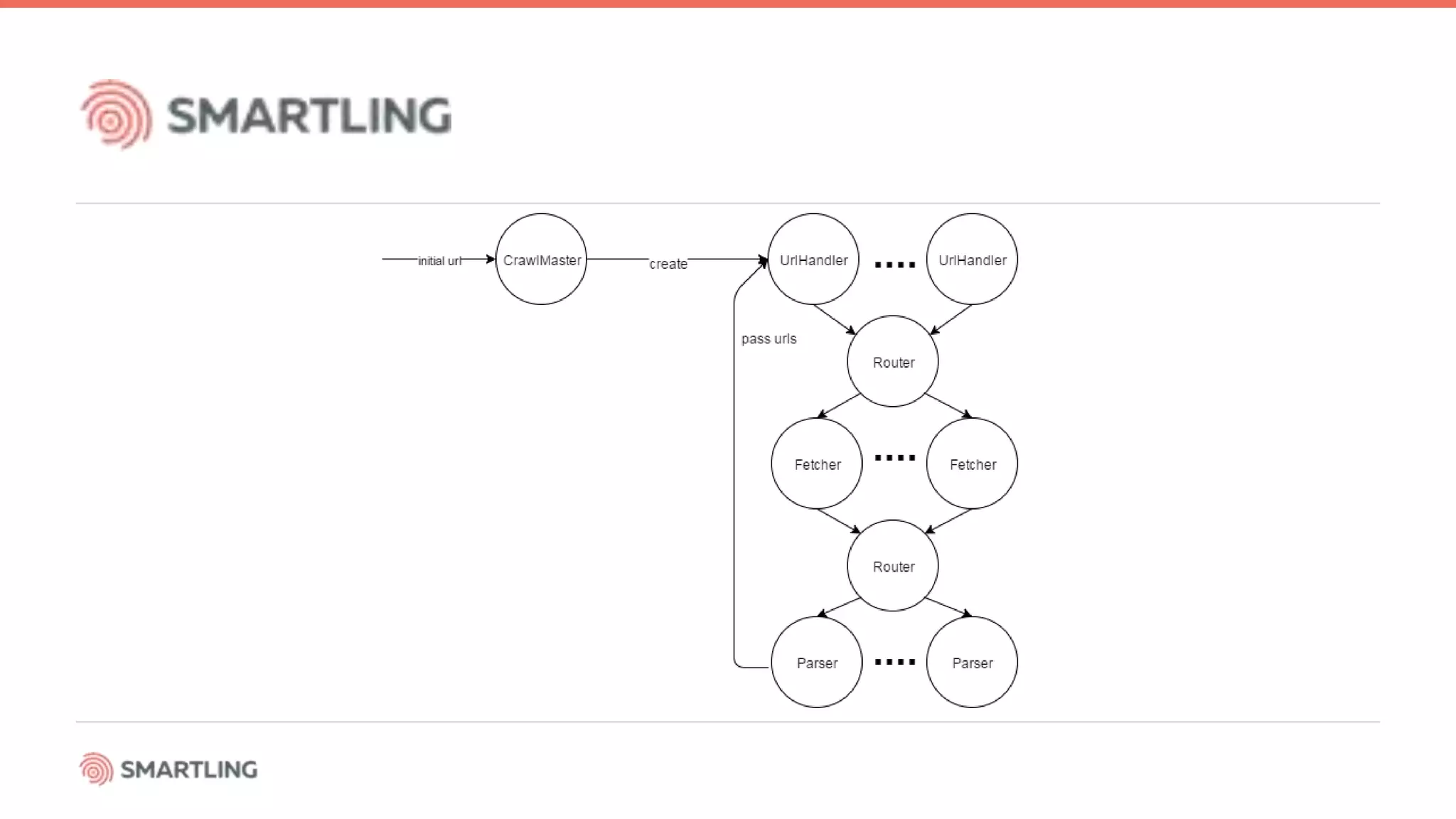

16. Let’s build a web crawler!

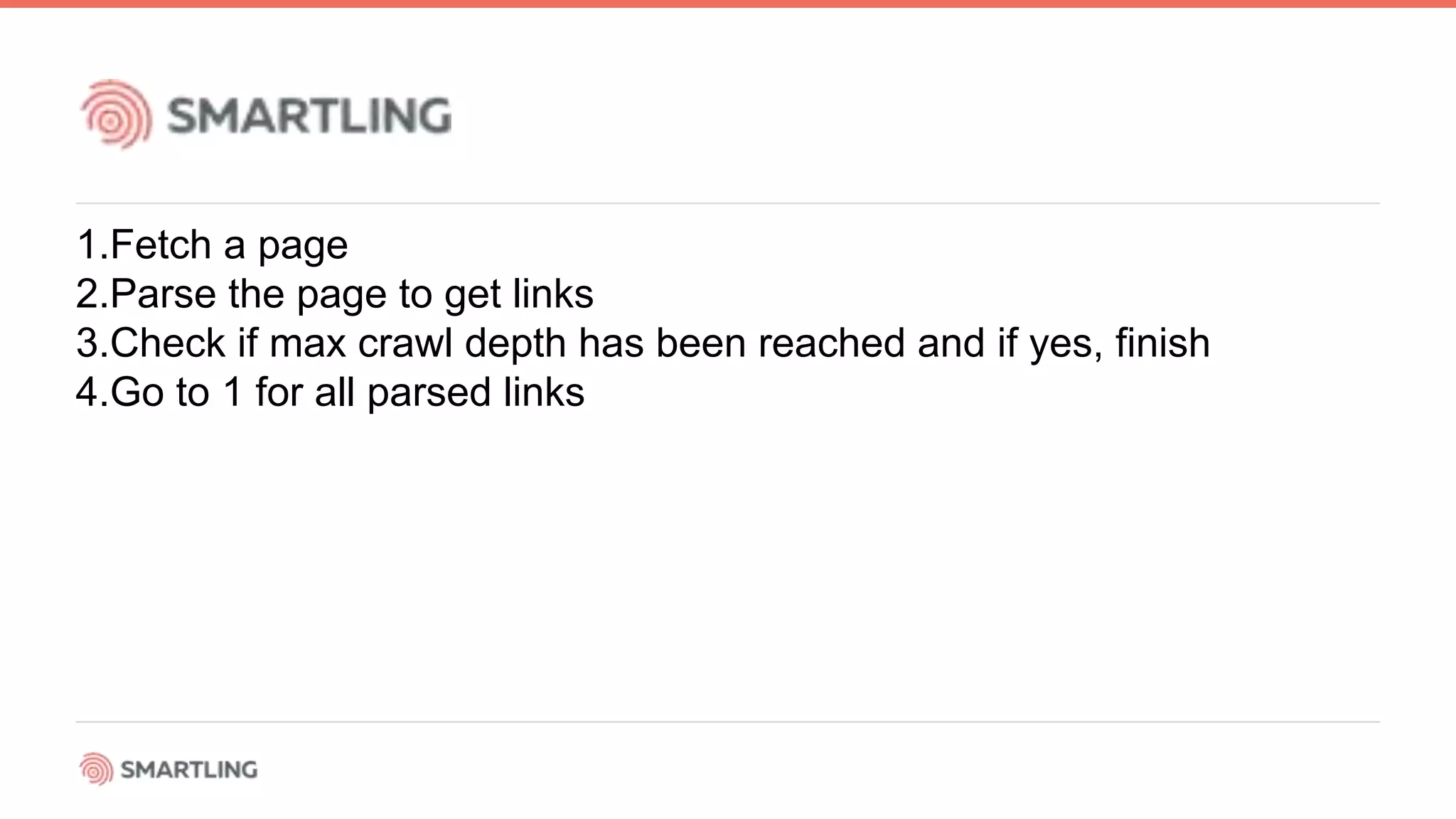

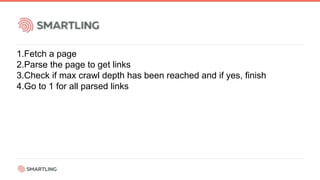

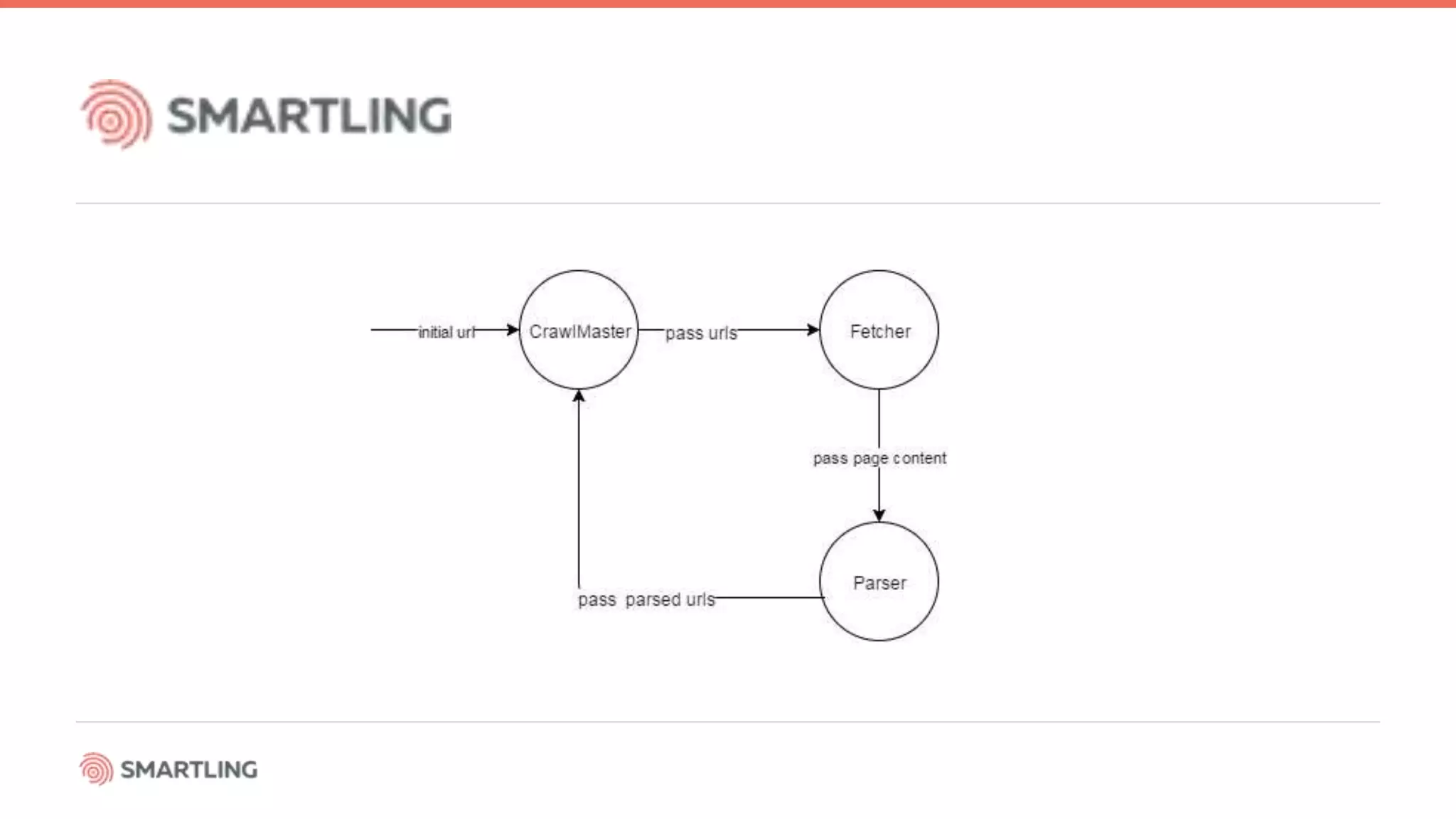

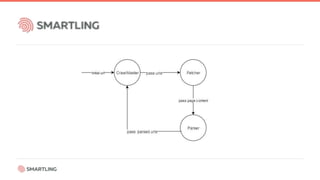

17. 1.Fetch a page
2.Parse the page to get links
3.Check if max crawl depth has been reached and if yes, finish
4.Go to 1 for all parsed links

20. Demo time

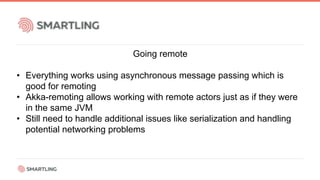

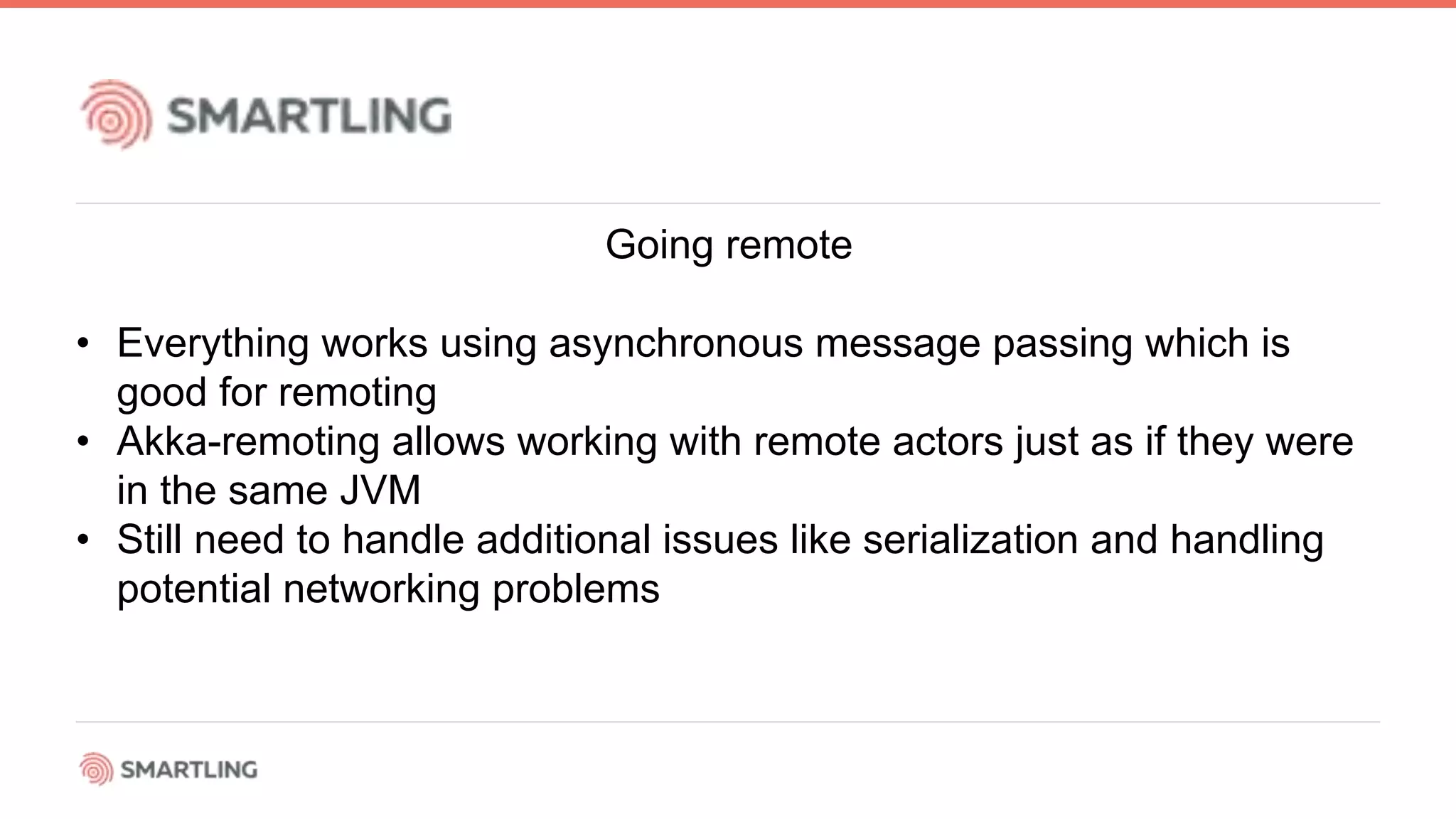

21. Going remote
• Everything works using asynchronous message passing which is
good for remoting
• Akka-remoting allows working with remote actors just as if they were
in the same JVM
• Still need to handle additional issues like serialization and handling
potential networking problems

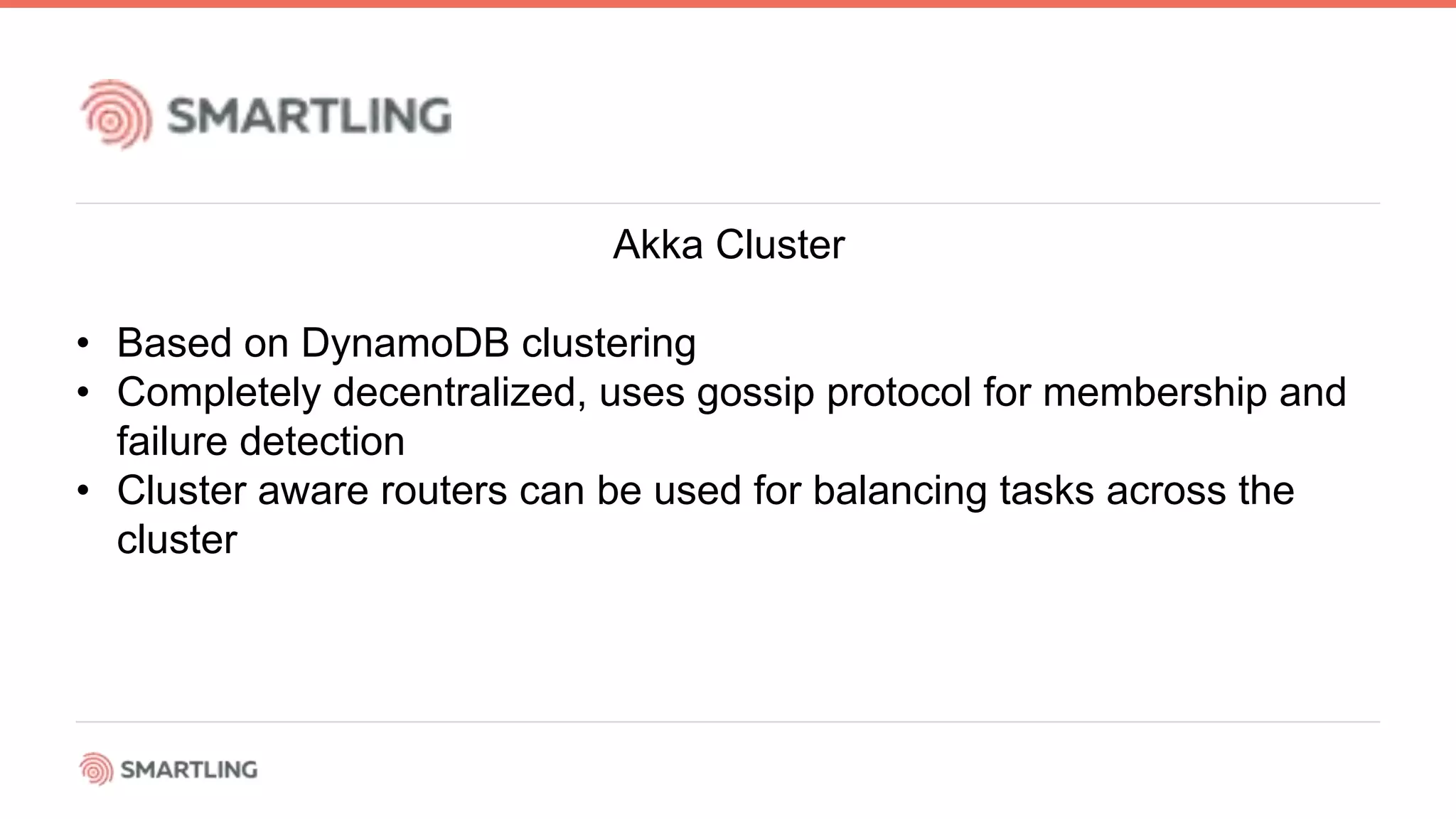

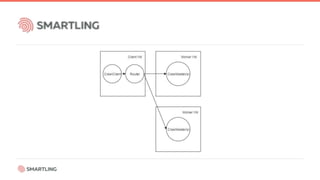

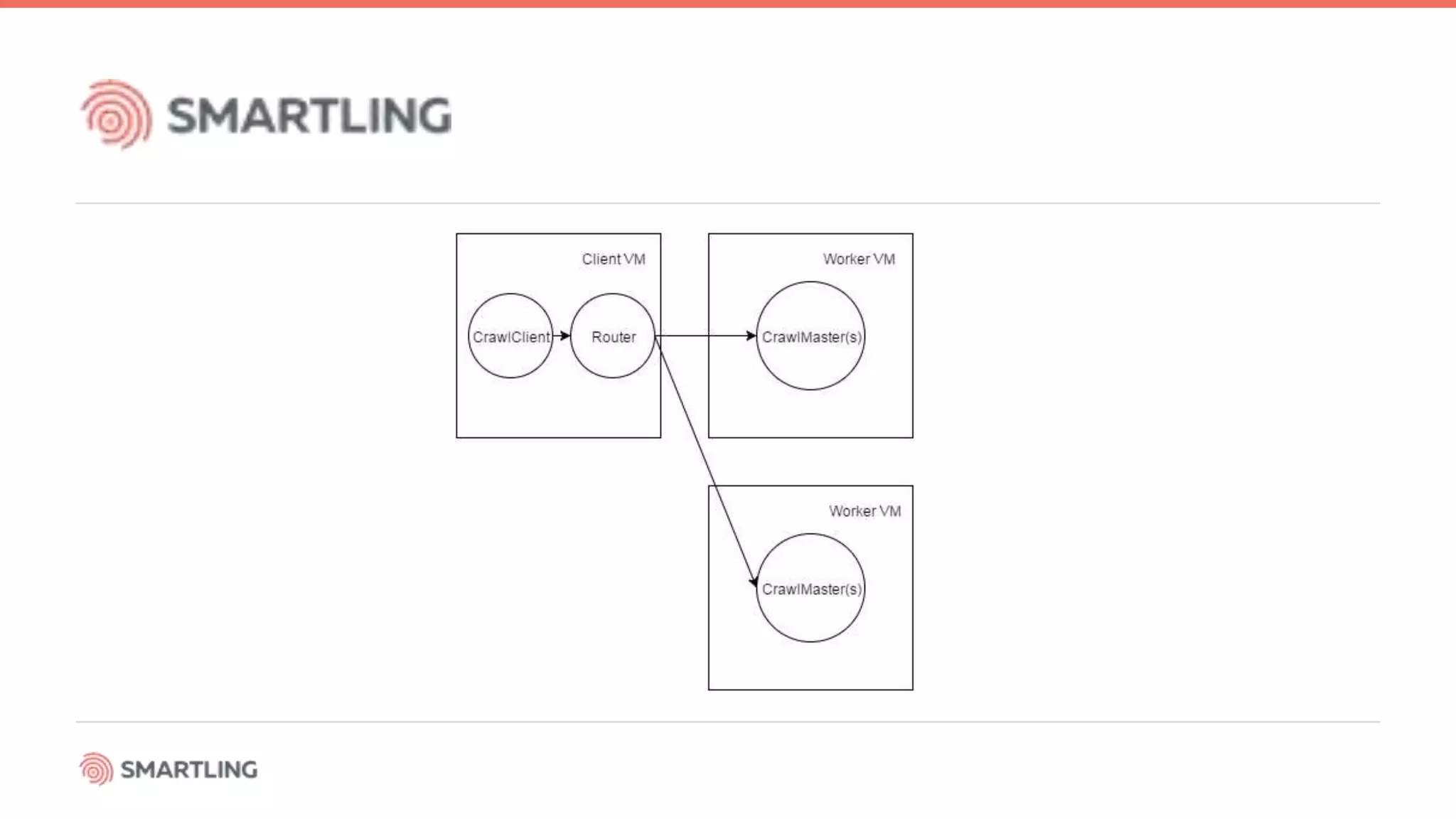

22. Akka Cluster
• Based on DynamoDB clustering
• Completely decentralized, uses gossip protocol for membership and
failure detection
• Cluster aware routers can be used for balancing tasks across the
cluster

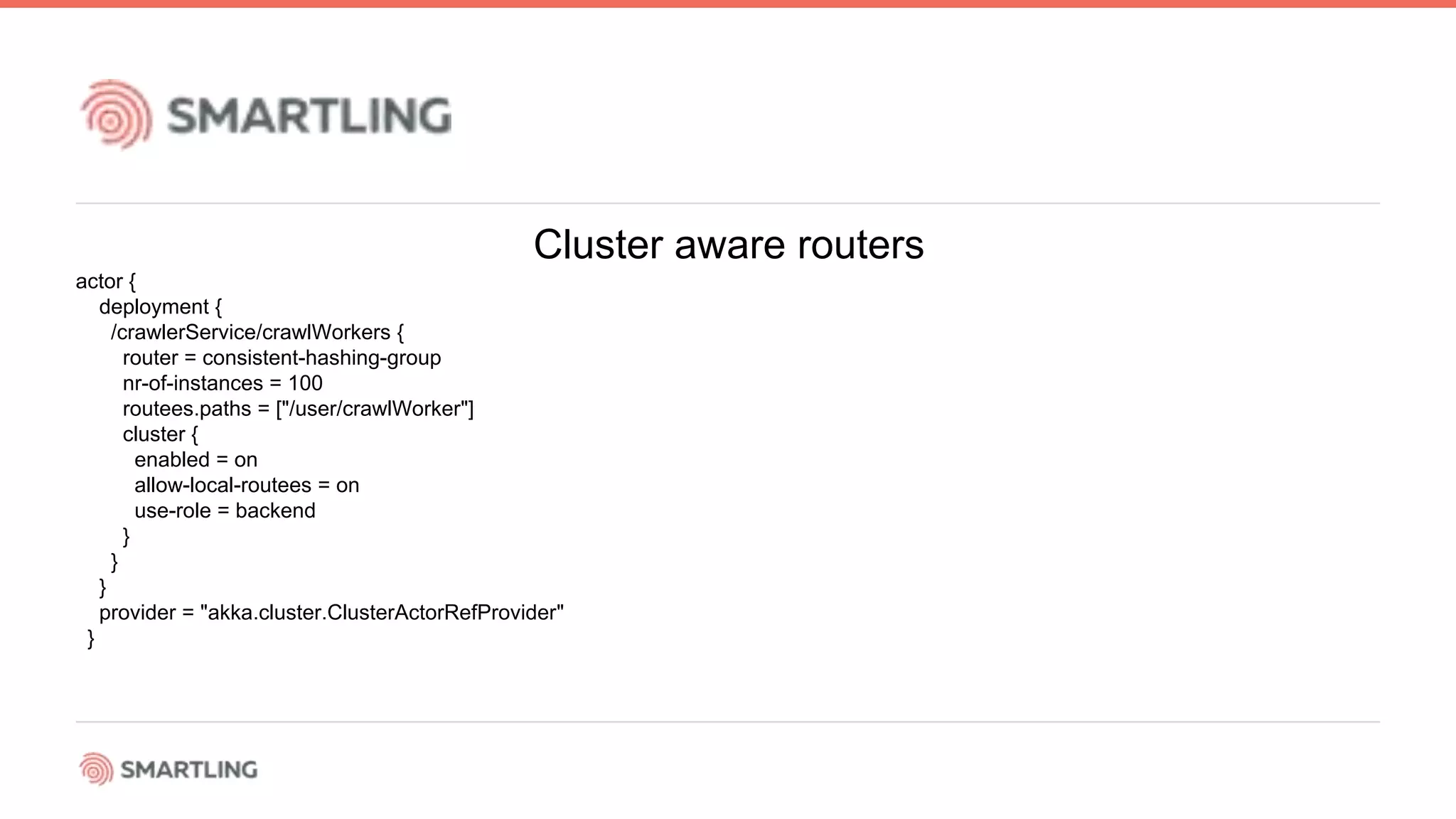

23. Cluster aware routers
actor {
deployment {
/crawlerService/crawlWorkers {
router = consistent-hashing-group
nr-of-instances = 100
routees.paths = ["/user/crawlWorker"]
cluster {
enabled = on
allow-local-routees = on
use-role = backend
}
}
}
provider = "akka.cluster.ClusterActorRefProvider"
}

25. Demo time

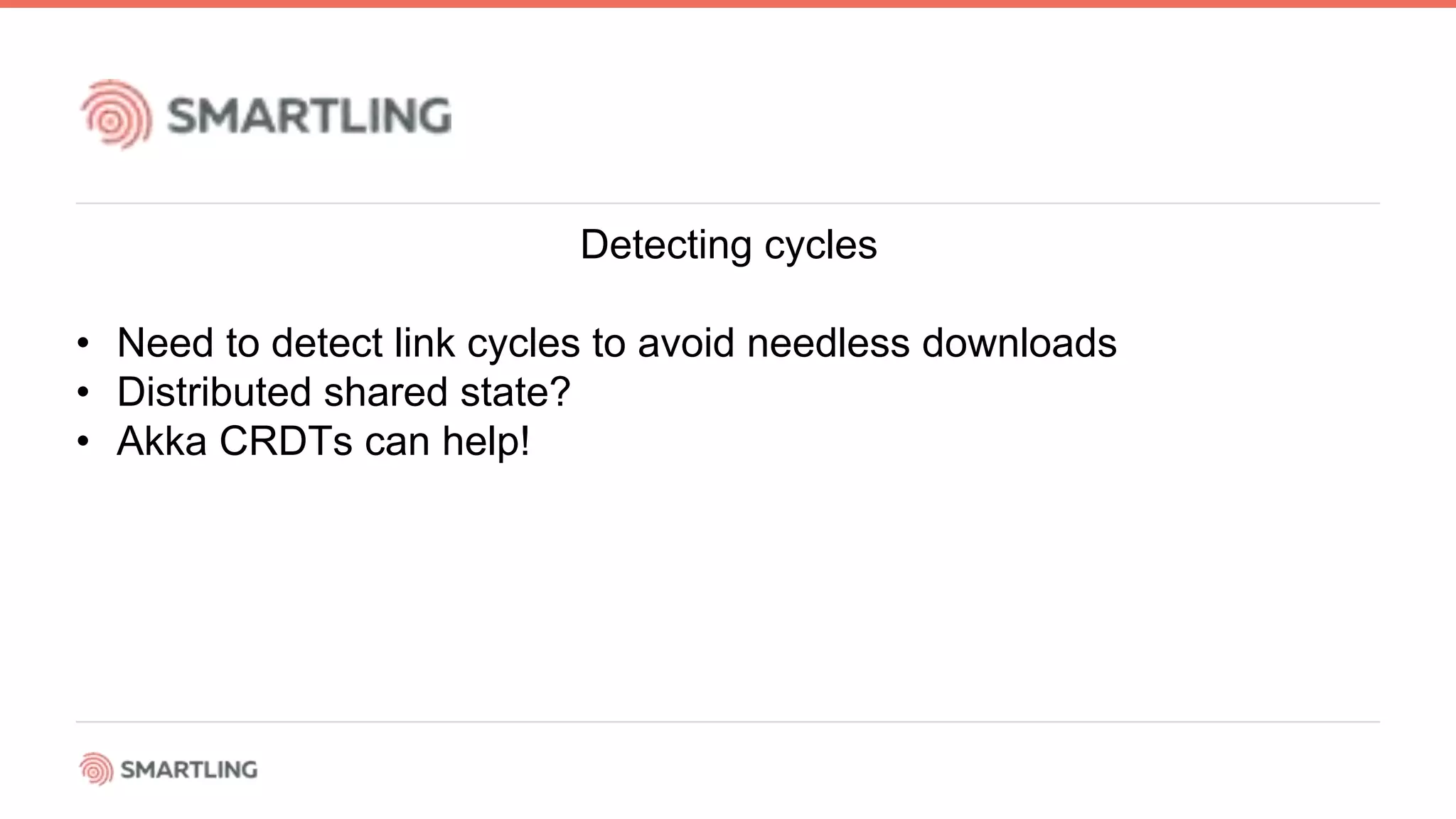

26. Detecting cycles
• Need to detect link cycles to avoid needless downloads
• Distributed shared state?
• Akka CRDTs can help!

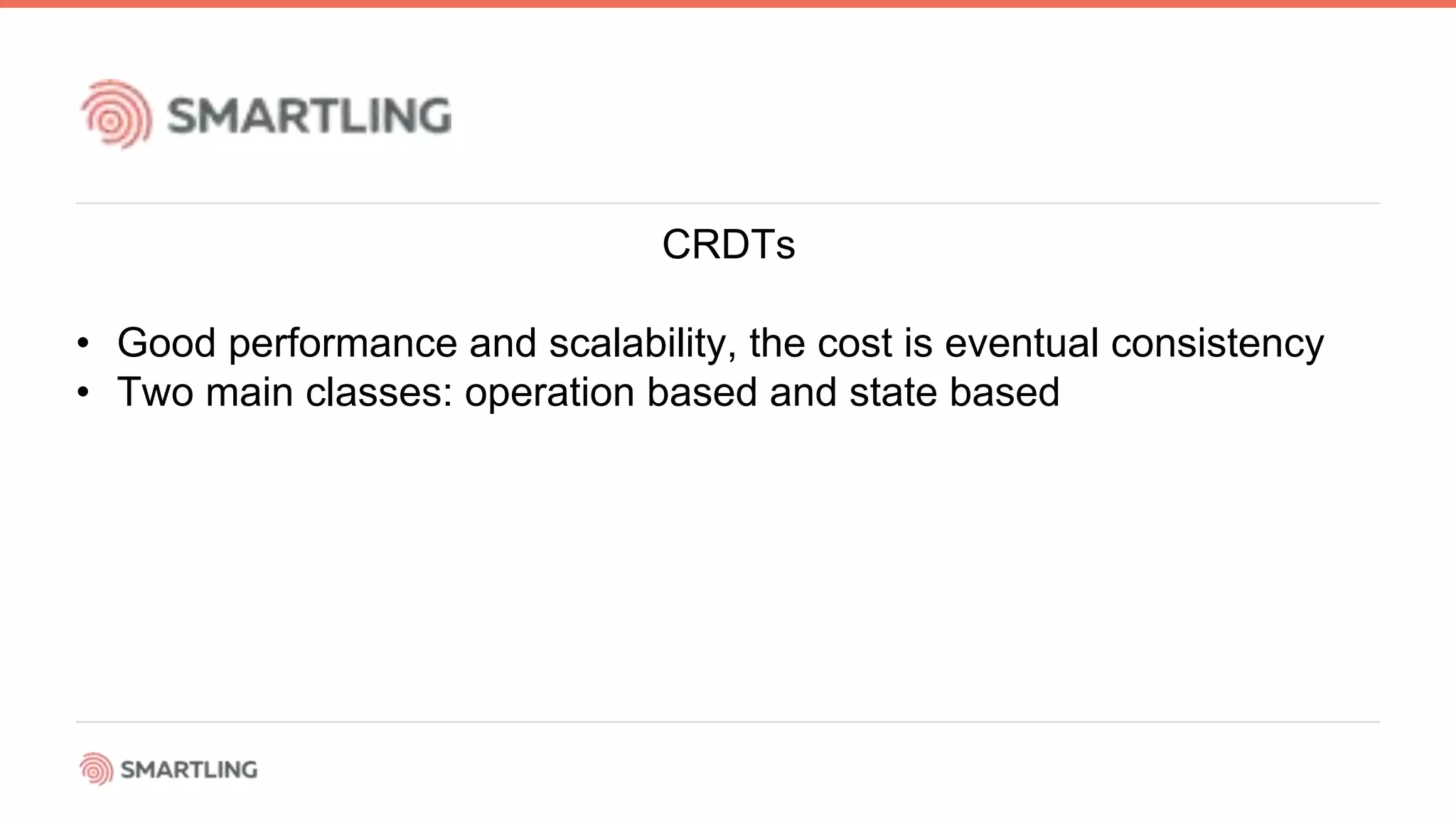

27. CRDTs
• Good performance and scalability, the cost is eventual consistency
• Two main classes: operation based and state based

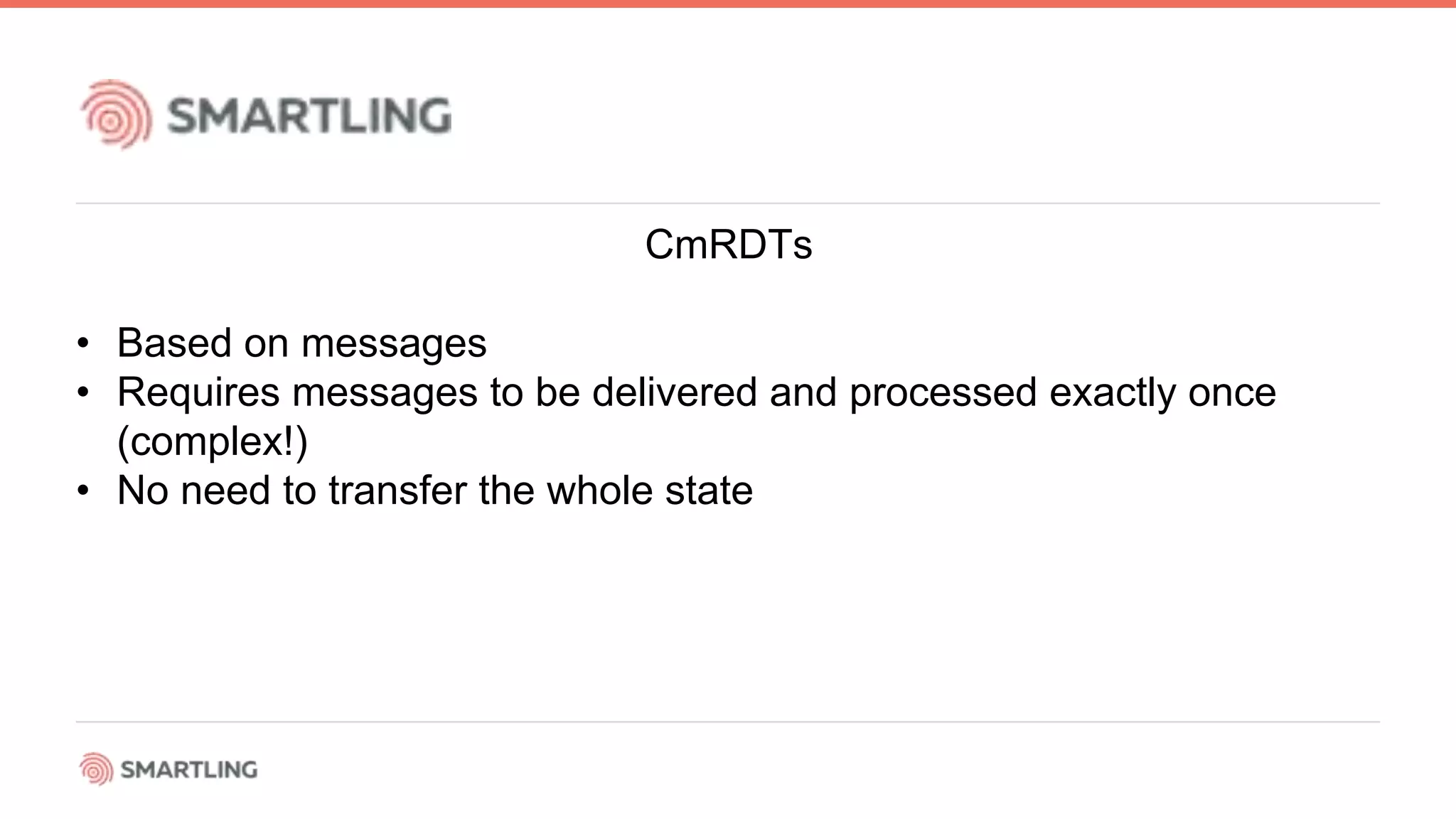

28. CmRDTs
• Based on messages
• Requires messages to be delivered and processed exactly once
(complex!)
• No need to transfer the whole state

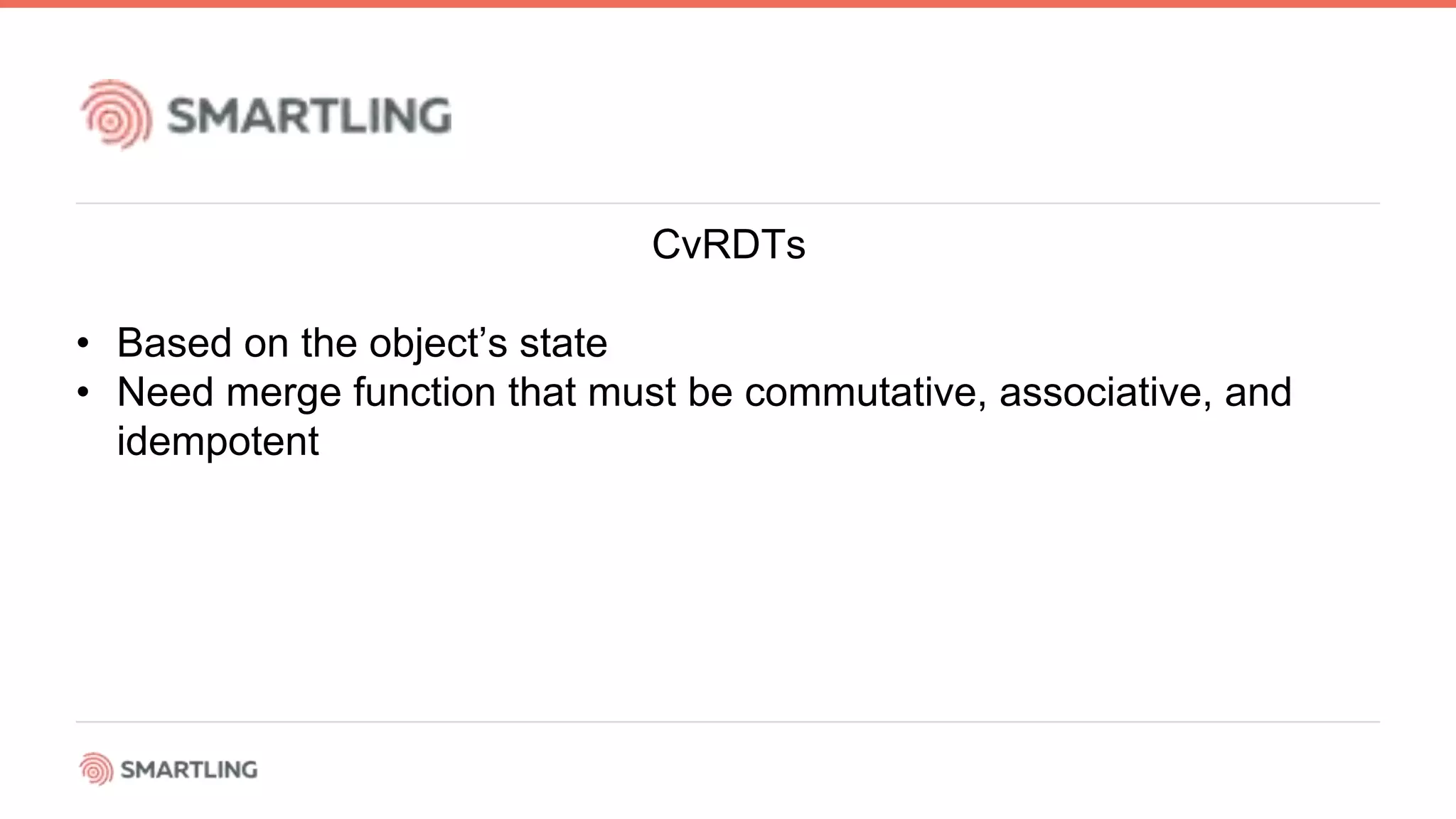

29. CvRDTs
• Based on the object’s state
• Need merge function that must be commutative, associative, and
idempotent

30. Demo time

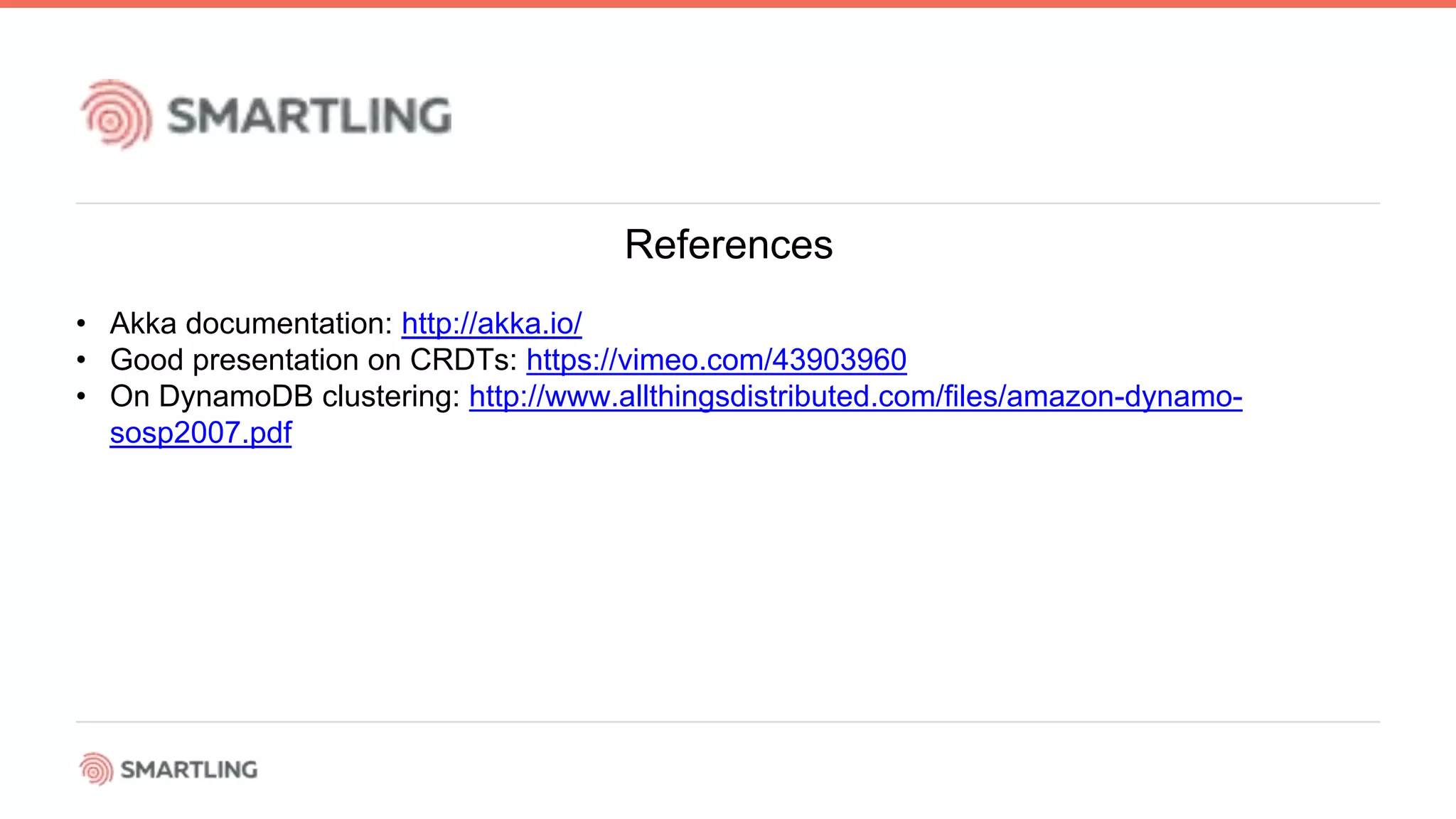

31. References
• Akka documentation: http://akka.io/
• Good presentation on CRDTs: https://vimeo.com/43903960
• On DynamoDB clustering: http://www.allthingsdistributed.com/files/amazon-dynamo-
sosp2007.pdf

32. Questions?
