Ak moment area method

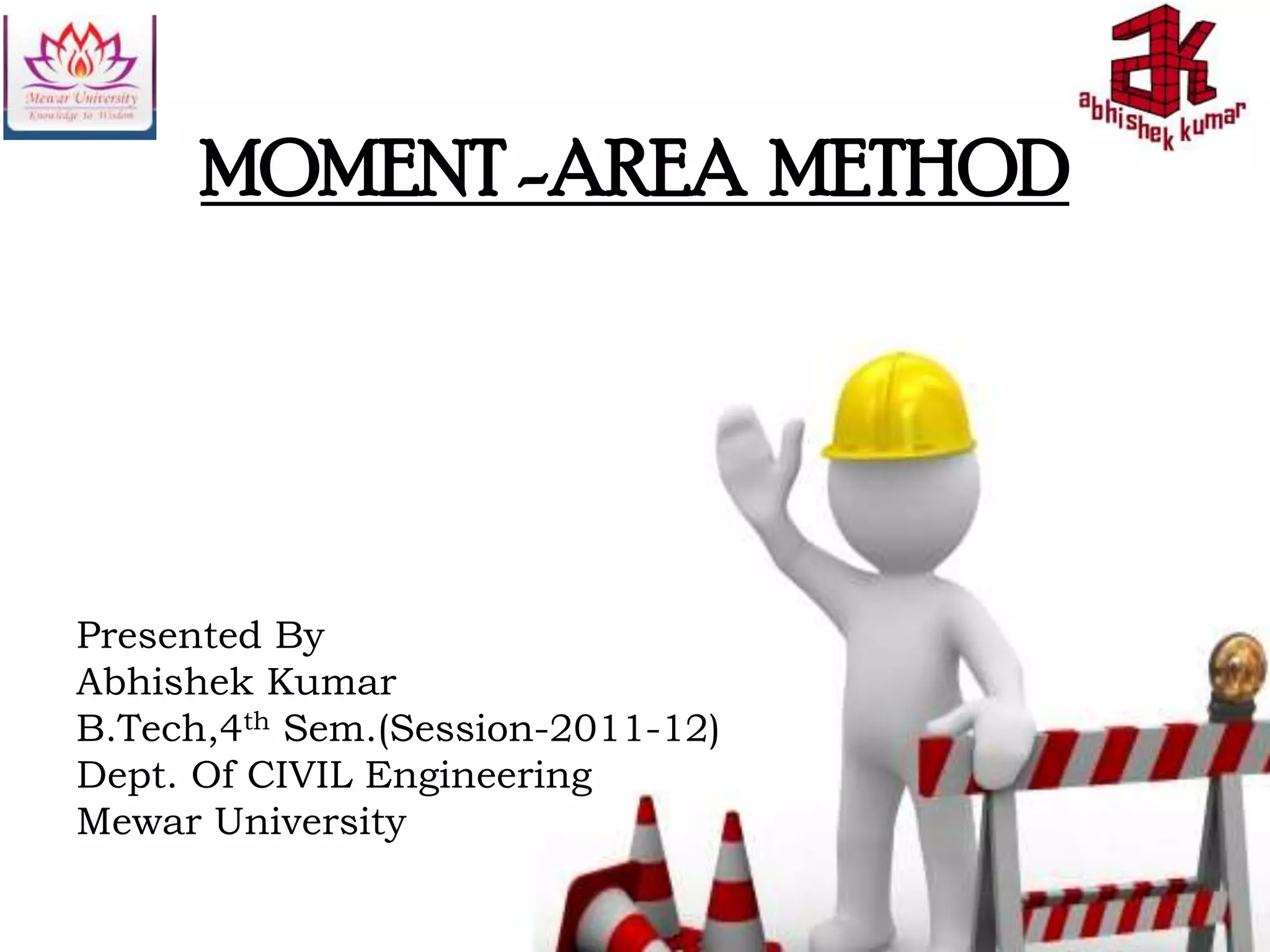

- 1. MOMENT -AREA METHOD Presented By Abhishek Kumar B.Tech,4th Sem.(Session-2011-12) Dept. Of CIVIL Engineering Mewar University
- 2. What is moment area method? This is one of the easiest methods for finding deflection and slope of a beam with the help of area of bending moment of the beam, which is loaded with some load or any moment at any point or on whole span.

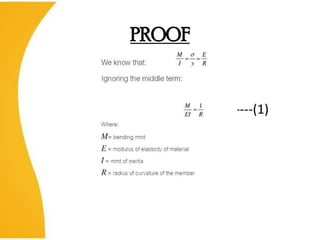

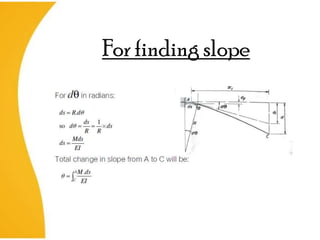

- 3. PROOF ------------(1)

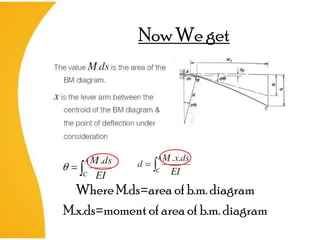

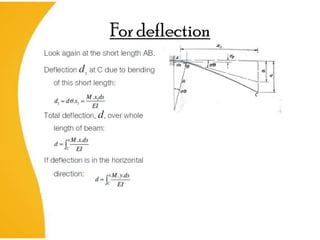

- 6. Now We get Where M.ds=area of b.m. diagram M.x.ds=moment of area of b.m. diagram

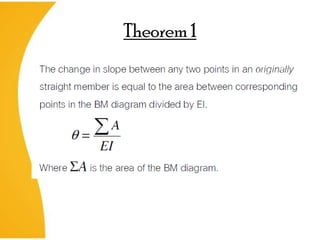

- 7. Theorem 1

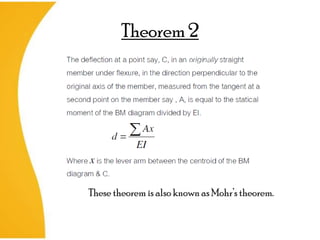

- 8. Theorem 2 These theorem is also known as Mohr’s theorem.

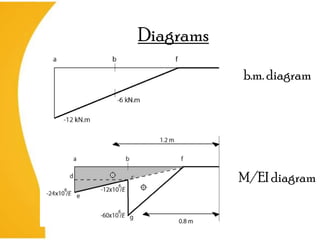

- 10. Diagrams b.m. diagram M/EI diagram

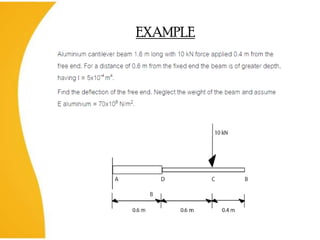

- 11. Solution

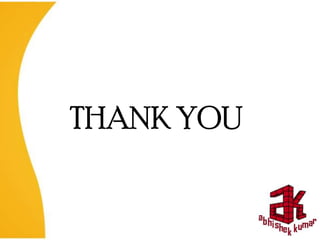

- 12. THANK YOU
