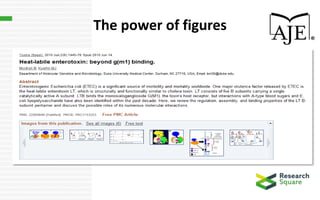

2. The power of figures

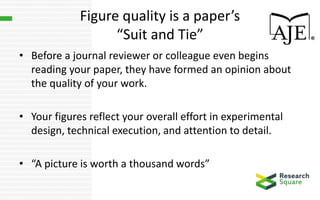

3. Figure quality is a paper’s
“Suit and Tie”
• Before a journal reviewer or colleague even begins
reading your paper, they have formed an opinion about
the quality of your work.
• Your figures reflect your overall effort in experimental
design, technical execution, and attention to detail.
• “A picture is worth a thousand words”

4. Outline
• The Starting Materials
• Assembling your figures
• Making an Impact with Color

5. Primary Data Figures: Where to start?
High-quality figures start in the lab

6. Primary Data Figures
Master your Technique
James H. Nicholson, Nikon Small World Competition

7. Pixel-based files
• Two sub-types of Pixel-based files
– Lossy
– Lossless
Dr. Jan Michels, Nikon Small World Competition

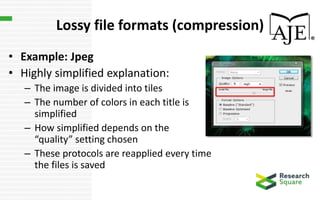

8. Lossy file formats (compression)
• Example: Jpeg
• Highly simplified explanation:
– The image is divided into tiles
– The number of colors in each title is
simplified
– How simplified depends on the
“quality” setting chosen
– These protocols are reapplied every time
the files is saved

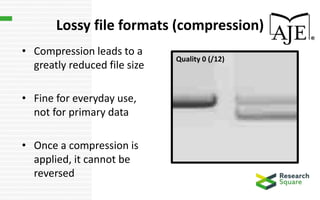

9. OriginalQuality 4(/12)
Lossy file formats (compression)
• Compression leads to a
greatly reduced file size
• Fine for everyday use,
not for primary data
• Once a compression is
applied, it cannot be
reversed
Quality 2 (/12)Quality 0 (/12)

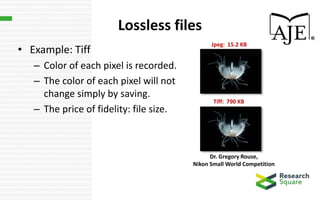

10. Lossless files
• Example: Tiff
– Color of each pixel is recorded.
– The color of each pixel will not
change simply by saving.
– The price of fidelity: file size.
Dr. Gregory Rouse,
Nikon Small World Competition
Jpeg: 15.2 KB
Tiff: 790 KB

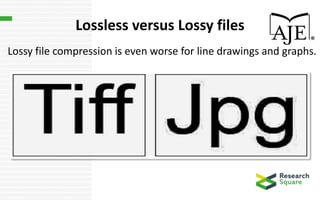

11. Lossless versus Lossy files
Lossy file compression is even worse for line drawings and graphs.

12. LZW Lossless file compression
• Efficient storage, no information loss
• Highly simplified explanation: Replaces a pixel color with
a short code throughout the whole the image

13. LZW Lossless file compression
Effective on images with a large number of colors
 85 mm wide, 300 dpi (typical
journal requirements)
 Uncompressed Tiff: 2,710 KB
 LZW Compressed Tiff: 1,550 KB
Cameron Johnson, Nikon Small World Competition

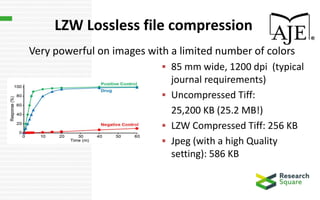

14. LZW Lossless file compression
Very powerful on images with a limited number of colors
 85 mm wide, 1200 dpi (typical
journal requirements)
 Uncompressed Tiff:
25,200 KB (25.2 MB!)
 LZW Compressed Tiff: 256 KB
 Jpeg (with a high Quality
setting): 586 KB

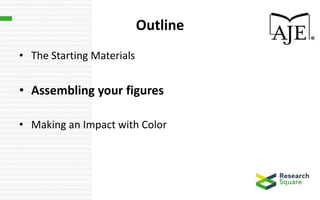

15. Outline
• The Starting Materials
• Assembling your figures
• Making an Impact with Color

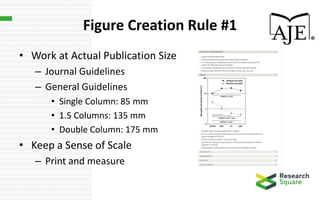

16. Figure Creation Rule #1
• Work at Actual Publication Size
– Journal Guidelines
– General Guidelines
• Single Column: 85 mm
• 1.5 Columns: 135 mm
• Double Column: 175 mm
• Keep a Sense of Scale
– Print and measure

17. Figure Creation Rule #2
• Use the Correct Size & Type of Font
– Journal Guidelines
– General Guidelines:
• 8 point Arial (with Symbol)
• Avoid Bolding and Italics
Calibri: The length of fonts vary
Times: The length of fonts vary
Myriad Pro: The length of fonts vary
Arial: The length of fonts vary
Helvetica: The length of fonts vary

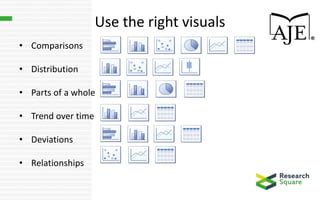

18. Use the right visuals
• Comparisons
• Distribution
• Parts of a whole
• Trend over time
• Deviations
• Relationships

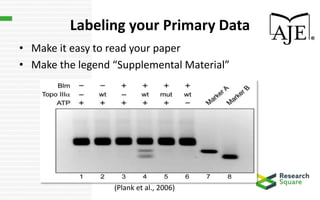

19. Labeling your Primary Data
• Make it easy to read your paper
• Make the legend “Supplemental Material”
(Plank et al., 2006)

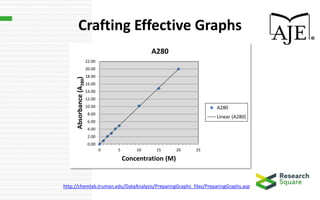

20. Crafting Effective Graphs
http://chemlab.truman.edu/DataAnalysis/PreparingGraphs_files/PreparingGraphs.asp
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
0 5 10 15 20 25
Absorbance(A280)
Concentration (M)
A280
A280
Linear (A280)

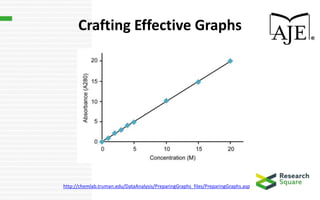

21. Crafting Effective Graphs
http://chemlab.truman.edu/DataAnalysis/PreparingGraphs_files/PreparingGraphs.asp

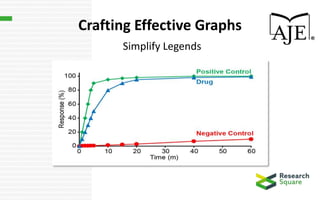

22. Crafting Effective Graphs
Simplify Legends

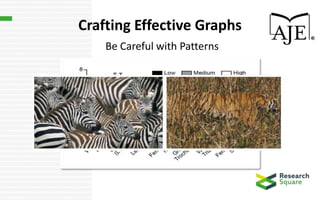

23. Crafting Effective Graphs
Be Careful with Patterns

24. Crafting Effective Graphs
Don’t Hesitate to Try Something “New”

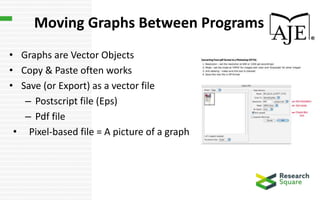

25. Moving Graphs Between Programs
• Graphs are Vector Objects
• Copy & Paste often works
• Save (or Export) as a vector file
– Postscript file (Eps)
– Pdf file
• Pixel-based file = A picture of a graph

26. Editing your figures
Purchased software Free software

27. Illustrative Diagrams
Use diagrams to reduce reviewer
(and general reader) confusion
(Cejka & Plank et al., 2004)

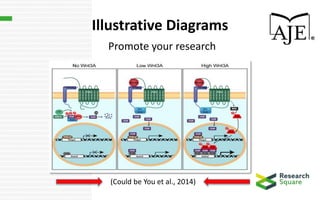

28. Illustrative Diagrams
Promote your research
(Could be You et al., 2014)

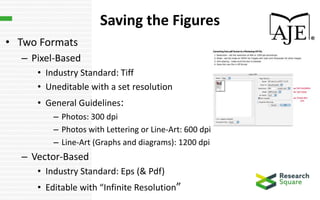

29. Saving the Figures
• Two Formats
– Pixel-Based
• Industry Standard: Tiff
• Uneditable with a set resolution
• General Guidelines:
– Photos: 300 dpi
– Photos with Lettering or Line-Art: 600 dpi
– Line-Art (Graphs and diagrams): 1200 dpi
– Vector-Based
• Industry Standard: Eps (& Pdf)
• Editable with “Infinite Resolution”

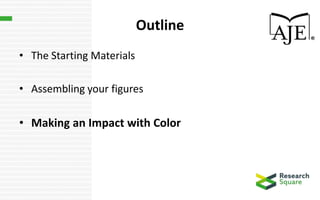

30. Outline
• The Starting Materials
• Assembling your figures
• Making an Impact with Color

31. CMYK vs. RGB color modes
• RGB is associated with electronic displays (CRT, LCD
monitors, digital cameras)
– Red, Green and Blue are used to create colors
perceived
• CMYK is used by printers
– Cyan, magenta, yellow and black are combined in
various amounts to create all colors when printing

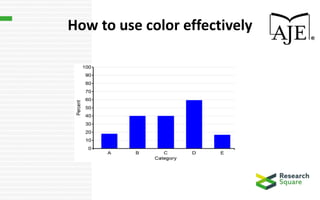

32. How to use color effectively

33. Impact of color deficiency on figures
DichromacyNormal vision

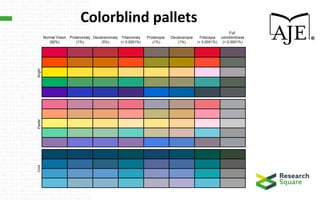

34. Colorblind pallets
BrightPastelCool
Full
colorblindness
(< 0.0001%)
Tritanomaly
(< 0.0001%)
Deuteranomaly
(5%)
Protanomaly
(1%)
Tritanopia
(< 0.0001%)
Deuteranopia
(1%)
Protanopia
(1%)
Normal Vision
(92%)

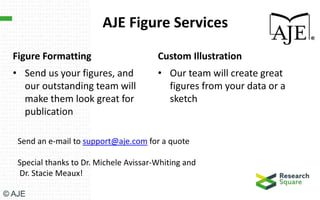

35. AJE Figure Services
