This document provides an overview of a lesson on imaging and design for online environments. The lesson will cover basic principles of graphics and layout, common image file formats used on the web like JPG and GIF, principles of image manipulation, and how to upload and share images online. By the end of the lesson, students should be able to understand graphics principles, create simple infographics, understand and use common file formats, easily edit images, and share images online. Formative assessments include having students examine a selfie on their phone by zooming in and identifying common software.

1. Imaging and Design for
Online Environment
• Basic principles of graphics and layout
• Online file formats for images
• Principles and basic techniques of image
manipulation
• Uploading, sharing, and image hosting

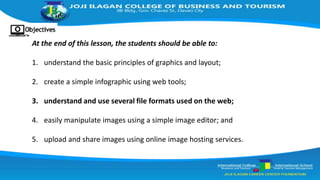

2. At the end of this lesson, the students should be able to:
1. understand the basic principles of graphics and layout;
2. create a simple infographic using web tools;
3. understand and use several file formats used on the web;
4. easily manipulate images using a simple image editor; and
5. upload and share images using online image hosting services.

3. Formative Assessment: #SELFIE ZOOM

4. Formative Assessment: #SELFIE
• If you have a smartphone with camera, grab it.
• Take a selfie.
• After taking a selfie, open the selfie in the Gallery (Android)
or Photos (iOS).
• Try to zoom in the image, going all the way. What do you
observe?

5. Lesson 2
Image File Formats

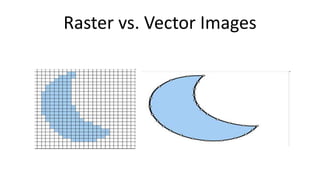

6. Raster vs. Vector Images

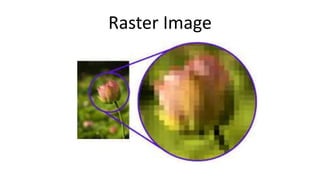

7. Raster Image

8. Raster Image

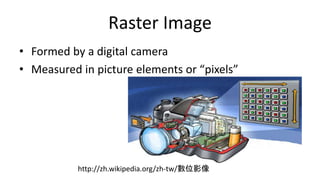

• Formed by a digital camera
• Measured in picture elements or “pixels”
http://zh.wikipedia.org/zh-tw/數位影像

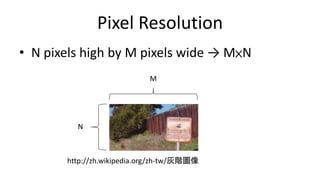

9. Pixel Resolution
• N pixels high by M pixels wide → M×N
http://zh.wikipedia.org/zh-tw/灰階圖像
M
N

10. JPG Test Image (640 x 479 pixels)

11. JPG
Used for most
digital photos
but “lossy”
(gradually
losses quality
when resized or
manipulated).

12. GIF
Best for line
drawings
and
animations.
256 colors
maximum.
No loss

13. GIF Test Image

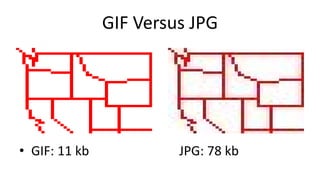

14. GIF Versus JPG
• GIF: 11 kb JPG: 78 kb

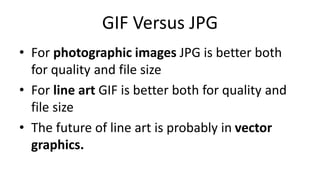

15. GIF Versus JPG
• For photographic images JPG is better both
for quality and file size
• For line art GIF is better both for quality and
file size
• The future of line art is probably in vector
graphics.

16. Other Common Raster Image Formats
• BMP – Bitmap. Every pixel stored individually
• TIF – Standard in many technical applications.
No loss
• PNG – Lossless image format
• RAW – Data as captured by digital camera,
particularly Digital Single Lens Reflex (DSLR)
camera.

17. Popular Raster Graphic Software
• Microsoft Paint
• Adobe Photoshop
• Corel PhotoPaint
• Pixlr
• GIMP – open source software similar to Adobe
Photoshop.

18. Vector Graphics

19. Node
Handle

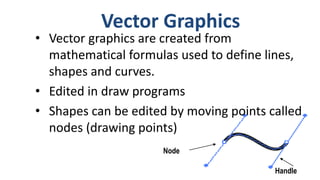

• Vector graphics are created from
mathematical formulas used to define lines,
shapes and curves.
• Edited in draw programs
• Shapes can be edited by moving points called
nodes (drawing points)
Vector Graphics

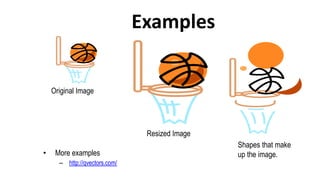

20. Examples
• More examples
– http://qvectors.com/
Original Image
Resized Image
Shapes that make
up the image.

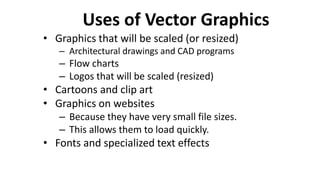

21. Uses of Vector Graphics
• Graphics that will be scaled (or resized)
– Architectural drawings and CAD programs
– Flow charts
– Logos that will be scaled (resized)
• Cartoons and clip art
• Graphics on websites
– Because they have very small file sizes.
– This allows them to load quickly.
• Fonts and specialized text effects

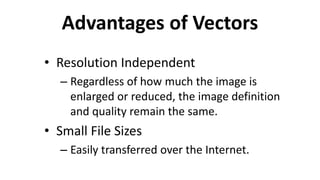

22. Advantages of Vectors
• Resolution Independent
– Regardless of how much the image is
enlarged or reduced, the image definition
and quality remain the same.
• Small File Sizes
– Easily transferred over the Internet.

23. Disadvantages of Vectors
• Lower color quality than raster images.
– They do not support as many colors.
• Not good for photographic images.

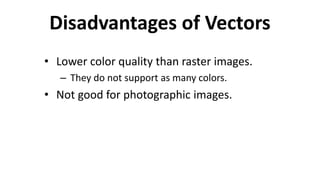

24. Disadvantages of Vectors

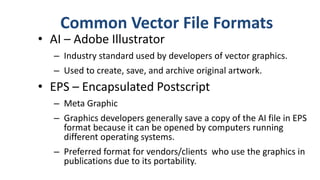

25. • AI – Adobe Illustrator
– Industry standard used by developers of vector graphics.
– Used to create, save, and archive original artwork.
• EPS – Encapsulated Postscript
– Meta Graphic
– Graphics developers generally save a copy of the AI file in EPS
format because it can be opened by computers running
different operating systems.
– Preferred format for vendors/clients who use the graphics in
publications due to its portability.
Common Vector File Formats

26. Common Vector File Formats
• SVG – Scalable Vector Graphics
– Standard format created by W3C
– Versatile, all-purpose vector format
• CDR – Corel Draw
• DXF – AutoCAD
• WMF – Windows Metafile

27. Popular Vector Graphic Software
• Adobe Illustrator
• Corel DRAW
• AutoCAD
• Inkscape – open source software similar to
Adobe Illustrator.
• Xara Xtreme

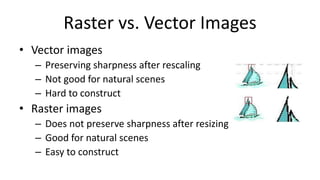

28. Raster vs. Vector Images
• Vector images
– Preserving sharpness after rescaling
– Not good for natural scenes
– Hard to construct
• Raster images
– Does not preserve sharpness after resizing
– Good for natural scenes
– Easy to construct

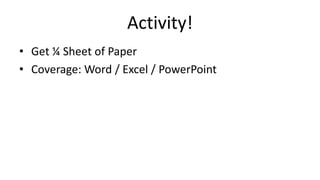

29. Activity!
• Get ¼ Sheet of Paper
• Coverage: Word / Excel / PowerPoint

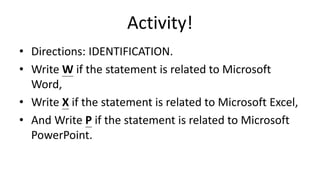

30. Activity!
• Directions: IDENTIFICATION.
• Write W if the statement is related to Microsoft
Word,
• Write X if the statement is related to Microsoft Excel,
• And Write P if the statement is related to Microsoft
PowerPoint.

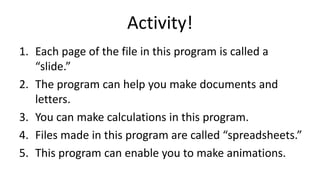

31. Activity!
1. Each page of the file in this program is called a
“slide.”
2. The program can help you make documents and
letters.
3. You can make calculations in this program.
4. Files made in this program are called “spreadsheets.”
5. This program can enable you to make animations.

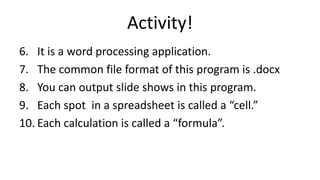

32. Activity!
6. It is a word processing application.
7. The common file format of this program is .docx
8. You can output slide shows in this program.
9. Each spot in a spreadsheet is called a “cell.”
10. Each calculation is called a “formula”.

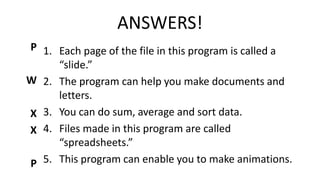

33. ANSWERS!
1. Each page of the file in this program is called a
“slide.”
2. The program can help you make documents and
letters.
3. You can do sum, average and sort data.
4. Files made in this program are called
“spreadsheets.”
5. This program can enable you to make animations.
P
W
X
X
P

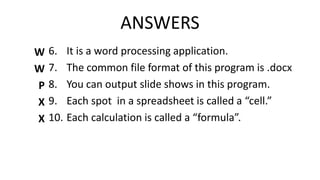

34. ANSWERS
6. It is a word processing application.
7. The common file format of this program is .docx
8. You can output slide shows in this program.
9. Each spot in a spreadsheet is called a “cell.”
10. Each calculation is called a “formula”.
W
W
P
X
X
