1. MAKSIM PANCHENKO
AMIR AYUPOV
Adding a BOLT pass
2023 EuroLLVM Developer’s Meeting

2. Agenda 1. Intro
2. BOLT pipeline and IR
3. Simple peephole rule
• Triaging crashes
4. Adding a BinaryPass
• CFG visualization

3. 01 INTRO
What’s BOLT?
• Binary Optimization and
Layout Tool
• Supports X86 and ARM
ELF programs and
shared libraries
• Part of LLVM monorepo
Cumulative speedup over bootstrapped build,
Building Clang
Ivy Bridge
Broadwell
Skylake
Icelake
Golden Cove
(Alderlake-P)
Gracemont
(Alderlake-E)
Zen1
Zen2
Zen3
0% 45%
13.1%
16.2%
19.2%
19.7%
10.6%
10.6%
11.7%
14.1%
23.5%
16.2%
17.8%
23.4%
16.5%
12.1%
10.5%
12.1%
16.6%
22.5%
PGO +BOLT
30.6%
23.9%
21.1%
22.7%
36.2%
42.6%
34.1%
29.4%
46.0%

4. What does BOLT do?
01 INTRO
• Profile-guided optimizations at whole program level
﹘Code layout optimizations
﹘Sampling (LBR) or instrumentation profile driven
﹘Supporting third-party libraries with no source, and hand-written assembly
• Other uses
﹘Whole program transformations or instrumentation (e.g. spectre mitigation)
﹘Reverse engineering
﹘Profile analysis

5. 01 INTRO
Why would you want to add a BOLT pass?
• Exploring optimization opportunities leveraging accurate profiling information:
﹘HW mechanisms: alignment for macro-fusion (Intel/AMD), atomic execution
(Intel TSX/ARM TME)
﹘OS/HW feedbacks: memory profile (Linux perf), branch mispredictions and
latency information (Intel LBR/ARM BRBE)
• Looking for binary patterns leveraging rich analysis framework:
﹘Metadata: CFI/EH information, DWARF parsing and updates
﹘Functions and instructions: call graph, register/stack slot liveness

6. 02 BOLT pipeline and IR

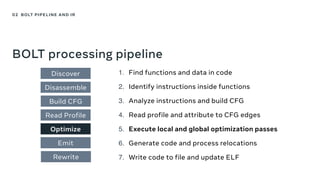

7. Discover
Disassemble
Build CFG
Read Profile
Optimize
Emit
Rewrite
1. Find functions and data in code
2. Identify instructions inside functions
3. Analyze instructions and build CFG
4. Read profile and attribute to CFG edges
5. Execute local and global optimization passes
6. Generate code and process relocations
7. Write code to file and update ELF
02 BOLT PIPELINE AND IR
BOLT processing pipeline

8. 02 BOLT PIPELINE AND IR
Module
Function Function Function
Function
Basic
Block
Basic
Block
Basic
Block
BasicBlock
Instruction Instruction Instruction
BinaryContext
Binary
Function
Binary
Function
Binary
Function
BinaryFunction
Binary
Basic
Block
Binary
Basic
Block
Binary
Basic
Block
BinaryBasicBlock
MCInst MCInst MCInst
LLVM IR BOLT IR

9. Module
Function
BasicBlock
Instruction
LLVM IR Machine IR
Machine
ModuleInfo
Machine
Function
Machine
BasicBlock
Machine
Instruction
Binary
Context
Binary
Function
Binary
BasicBlock
MCInst via
MCPlus
BOLT IR
Machine
ModuleInfo*
Machine
Function*
Selection
DAG
SDNode
SelectionDAG MC
Object
File
Symbols*
Labels*
MCInst
02 BOLT PIPELINE AND IR

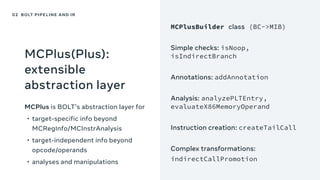

10. MCPlus(Plus):
extensible
abstraction layer
MCPlus is BOLT’s abstraction layer for
• target-specific info beyond
MCRegInfo/MCInstrAnalysis
• target-independent info beyond
opcode/operands
• analyses and manipulations
MCPlusBuilder class (BC->MIB)
Simple checks: isNoop,
isIndirectBranch
Annotations: addAnnotation
Analysis: analyzePLTEntry,
evaluateX86MemoryOperand
Instruction creation: createTailCall
Complex transformations:
indirectCallPromotion
02 BOLT PIPELINE AND IR

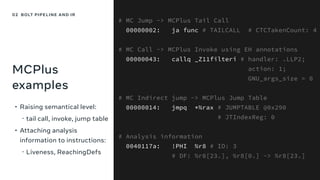

11. MCPlus
examples
• Raising semantical level:
﹘tail call, invoke, jump table
• Attaching analysis
information to instructions:
﹘Liveness, ReachingDefs
# MC Jump -> MCPlus Tail Call
00000002: ja func # TAILCALL # CTCTakenCount: 4
# MC Call -> MCPlus Invoke using EH annotations
00000043: callq _Z11filteri # handler: .LLP2;
action: 1;
GNU_args_size = 0
# MC Indirect jump -> MCPlus Jump Table
00000014: jmpq *%rax # JUMPTABLE @0x290
# JTIndexReg: 0
# Analysis information
0040117a: !PHI %r8 # ID: 3
# DF: %r8[23.], %r8[0.] -> %r8[23.]
02 BOLT PIPELINE AND IR

12. 03 Simple peephole rule

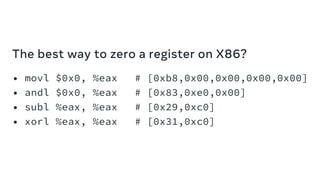

13. The best way to zero a register on X86?
• movl $0x0, %eax
• andl $0x0, %eax
• subl %eax, %eax
• xorl %eax, %eax
# [0xb8,0x00,0x00,0x00,0x00]
# [0x83,0xe0,0x00]
# [0x29,0xc0]
# [0x31,0xc0]

14. bool shortenInstruction(MCInst &Inst,
const MCSubtargetInfo &STI) const override {
...
Inst.setOpcode(NewOpcode);
// Replace `mov[lq] $0x0, %[er]ax` with `xor[lq] %[er]ax, %[er]ax`
switch (NewOpcode) {
default:
break;
case X86::MOV64ri:
case X86::MOV64ri32:
case X86::MOV32ri:
auto OpNum = MCPlus::getNumPrimeOperands(Inst) - 1;
if (Inst.getOperand(OpNum).isImm() && !Inst.getOperand(OpNum).getImm()) {
if (NewOpcode == X86::MOV32ri)
NewOpcode = X86::XOR32rr;
else
NewOpcode = X86::XOR64rr;
MCOperand Op = Inst.getOperand(0);
Inst.setOpcode(NewOpcode);
Inst.clear();
Inst.addOperand(Op);
Inst.addOperand(Op);
Inst.addOperand(Op);
}
break;
}
if (NewOpcode == OldOpcode)
return false;
Inst.setOpcode(NewOpcode);
return true;
}
03 SIMPLE PEEPHOLE RULE
Leveraging
existing
passes
shortenInstructions
pass calls
MCPlusBuilder::
shortenInstruction –
fits the bill.

15. Running tests
Open-source BOLT tests:
• Source-based tests, in-repo
• Binary tests, out-of-repo
Both leverage LLVM Lit infra
# https://github.com/rafaelauler/bolt-tests
$ llvm-lit -a tools/bolttests/X86/clang.test
-- Testing: 1 tests, 1 workers --
FAIL: bolt-tests :: X86/clang.test (1 of 1)
**** TEST 'bolt-tests :: X86/clang.test' FAILED ****
...
Stack dump:
0. Program arguments: clang.test.tmp <...>
1. <eof> parser at end of file
clang.test.tmp: error: unable to execute command:
Segmentation fault (core dumped)
--
********************
Failed Tests (1):
bolt-tests :: X86/clang.test
03 SIMPLE PEEPHOLE RULE

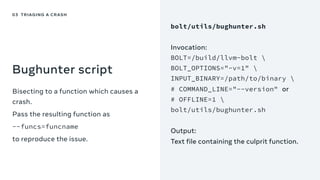

16. Bughunter script
Bisecting to a function which causes a
crash.
Pass the resulting function as
--funcs=funcname
to reproduce the issue.
03 TRIAGING A CRASH
bolt/utils/bughunter.sh
Invocation:
BOLT=/build/llvm-bolt
BOLT_OPTIONS="-v=1"
INPUT_BINARY=/path/to/binary
# COMMAND_LINE="--version" or
# OFFLINE=1
bolt/utils/bughunter.sh
Output:
Text file containing the culprit function.

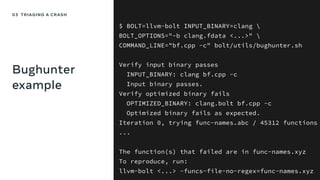

17. Bughunter
example
$ BOLT=llvm-bolt INPUT_BINARY=clang
BOLT_OPTIONS="-b clang.fdata <...>"
COMMAND_LINE="bf.cpp -c" bolt/utils/bughunter.sh
Verify input binary passes
INPUT_BINARY: clang bf.cpp -c
Input binary passes.
Verify optimized binary fails
OPTIMIZED_BINARY: clang.bolt bf.cpp -c
Optimized binary fails as expected.
Iteration 0, trying func-names.abc / 45312 functions
...
The function(s) that failed are in func-names.xyz
To reproduce, run:
llvm-bolt <...> -funcs-file-no-regex=func-names.xyz
03 TRIAGING A CRASH

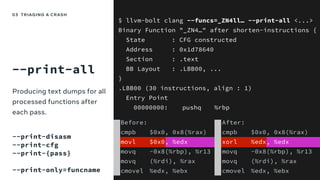

18. $ llvm-bolt clang --funcs=_ZN4ll… --print-all <...>
Binary Function "_ZN4…" after shorten-instructions {
State : CFG constructed
Address : 0x1d78640
Section : .text
BB Layout : .LBB00, ...
}
.LBB00 (30 instructions, align : 1)
Entry Point
00000000: pushq %rbp
--print-all
03 TRIAGING A CRASH
Producing text dumps for all
processed functions after
each pass.
--print-disasm
--print-cfg
--print-{pass}
--print-only=funcname
Before:
cmpb $0x0, 0x8(%rax)
movl $0x0, %edx
movq -0x8(%rbp), %r13
movq (%rdi), %rax
cmovel %edx, %ebx
After:
cmpb $0x0, 0x8(%rax)
xorl %edx, %edx
movq -0x8(%rbp), %r13
movq (%rdi), %rax
cmovel %edx, %ebx

19. $ llvm-bolt clang --funcs=_ZN4ll… --asm-dump <...>
BOLT-INFO: Dumping function assembly to _ZN4llvm….s
AsmDump
03 TRIAGING A CRASH
Producing an annotated
assembly which can be
turned into a BOLT test.
--asm-dump[=dir]
# _ZN4llvm….s
.globl _ZN4…
.type _ZN4…, %function
_ZN4…:
.cfi_startproc
.LBB00:
pushq %rbp
.cfi_def_cfa_offset 16
.cfi_offset %rbp, -16
movq %rsp, %rbp
...
# bolt/test/X86/test.s
.globl _start
.type _start, %function
_start:
.cfi_startproc
cmpb $0x0, 0x8(%rax)
movl $0x0, %edx
movq -0x8(%rbp), %r13
movq (%rdi), %rax
cmovel %edx, %ebx
.cfi_endproc
.size _start, .-_start

20. 04 Adding a pass

21. Logistics
Inherit from
BinaryFunctionPass
Add to bolt/lib/Passes/
BinaryPasses.cpp or
ZeroIdiom.cpp
/* bolt/include/bolt/Passes/ZeroIdiom.h */
class ZeroIdiom : public BinaryFunctionPass {
public:
explicit ZeroIdiom(const cl::opt<bool> &PrintPass)
: BinaryFunctionPass(PrintPass) {}
const char *getName() const override {
return "zero-idiom";
}
void runOnFunctions(BinaryContext &) override;
};
/* bolt/lib/Passes/ZeroIdiom.cpp */
ZeroIdiom::runOnFunctions(BinaryContext &BC) {
04 ADDING A PASS

22. Logistics
Append invocation to
BinaryPassManager.cpp
/* bolt/lib/Rewrite/BinaryPassManager.cpp */
static cl::opt<bool> PrintZeroIdiom(
"print-zero-idiom",
cl::desc("print functions after zero idiom pass"),
cl::cat(BoltOptCategory));
void BinaryFunctionPassManager::runAllPasses(
BinaryContext &BC) {
Manager.registerPass(
std::make_unique<ZeroIdiom>(PrintZeroIdiom));
}
04 ADDING A PASS

23. Extra
analyses
Make use of
DataflowManager
providing
LivenessAnalysis
/* bolt/lib/Passes/ZeroIdiom.cpp */
void ZeroIdiom::runOnFunction(BinaryFunction &BF,
DataflowInfoManager &Info)
{
BinaryContext &BC = BF.getBinaryContext();
LivenessAnalysis &LA = Info.getLivenessAnalysis();
for (BinaryBasicBlock &BB : BF) {
for (MCInst &Inst : BB) {
if (LA.isAlive(&Inst, BC.MIB->getFlagsReg()))
continue;
BC.MIB->replaceZeroIdiom(Inst);
}
}
}
04 ADDING A PASS

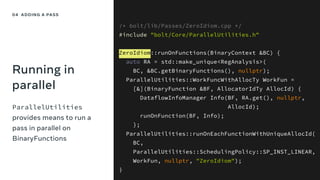

24. Running in
parallel
ParallelUtilities
provides means to run a
pass in parallel on
BinaryFunctions
/* bolt/lib/Passes/ZeroIdiom.cpp */
#include "bolt/Core/ParallelUtilities.h"
ZeroIdiom::runOnFunctions(BinaryContext &BC) {
auto RA = std::make_unique<RegAnalysis>(
BC, &BC.getBinaryFunctions(), nullptr);
ParallelUtilities::WorkFuncWithAllocTy WorkFun =
[&](BinaryFunction &BF, AllocatorIdTy AllocId) {
DataflowInfoManager Info(BF, RA.get(), nullptr,
AllocId);
runOnFunction(BF, Info);
};
ParallelUtilities::runOnEachFunctionWithUniqueAllocId(
BC,
ParallelUtilities::SchedulingPolicy::SP_INST_LINEAR,
WorkFun, nullptr, "ZeroIdiom");
}
04 ADDING A PASS

25. Success!
$ llvm-lit -a tools/bolttests/X86/clang.test
-- Testing: 1 tests, 1 workers --
PASS: bolt-tests :: X86/clang.test (1 of 1)
Command Output (stdout):
--
...
BOLT-INFO: zero-idiom replaced 465 instructions
(exec count 509) in 367 functions saving 1395 bytes
********************
Testing Time: 106.50s
Passed: 1
04 ADDING A PASS

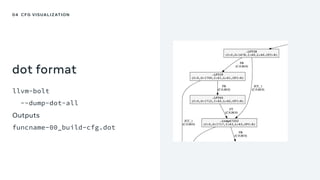

26. 04 CFG VISUALIZATION
dot format
llvm-bolt
--dump-dot-all
Outputs
funcname-00_build-cfg.dot

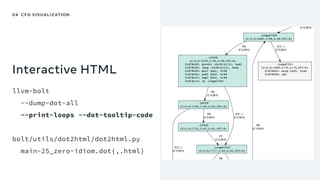

27. 04 CFG VISUALIZATION
Interactive HTML
llvm-bolt
--dump-dot-all
--print-loops --dot-tooltip-code
bolt/utils/dot2html/dot2html.py
main-25_zero-idiom.dot{,.html}
