This document provides an overview of advanced load balancing capabilities in Apache HTTP Server 2.2 using the mod_proxy module. Key points include:
- Mod_proxy allows Apache to function as a reverse proxy or load balancer for backend servers.
- New in 2.2 are improvements like large file support, graceful stop, mod_dbd integration, and better debugging.
- Load balancing is implemented through balancer providers that can be customized. Default providers balance by requests, traffic, or server busyness.

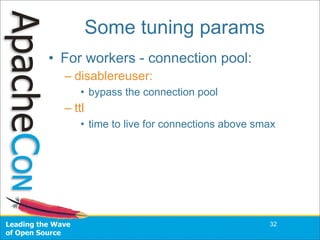

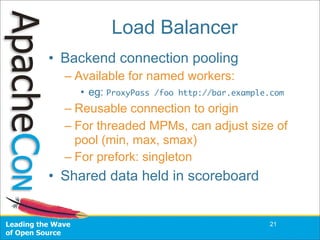

- Features like connection pooling, sticky sessions, failover clusters, and an embedded admin interface provide robust load balancing functionality.
