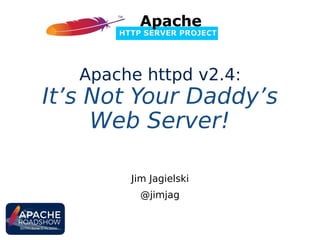

Jim Jagielski
@jimjag
Apache httpd v2.4:
It’s Not Your Daddy’s
Web Server!

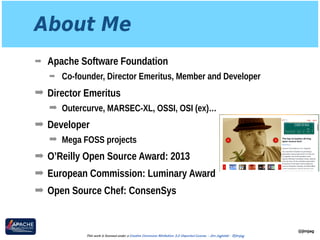

About Me
➡ Apache Software Foundation
➡ Co-founder, Director Emeritus, Member and Developer
➡ Director Emeritus
➡ Outercurve, MARSEC-XL, OSSI, OSI (ex)…
➡ Developer
➡ Mega FOSS projects
➡ O’Reilly Open Source Award: 2013
➡ European Commission: Luminary Award
➡ Open Source Chef: ConsenSys
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

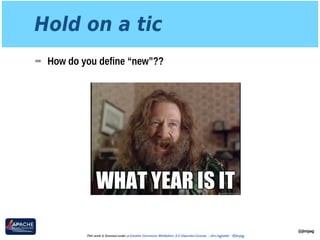

Hold on a tic
➡ How do you define “new”??
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

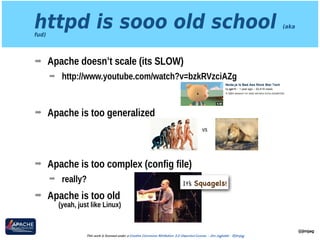

httpd is sooo old school (aka
fud)
➡ Apache doesn’t scale (its SLOW)
➡ http://www.youtube.com/watch?v=bzkRVzciAZg



➡ Apache is too generalized





➡ Apache is too complex (config file)
➡ really?
➡ Apache is too old

(yeah, just like Linux)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
vs
It’s Squagels!

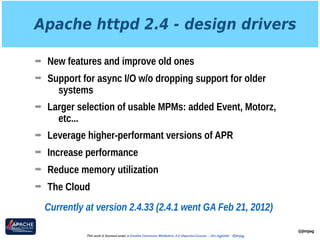

Apache httpd 2.4 - design drivers
➡ New features and improve old ones
➡ Support for async I/O w/o dropping support for older
systems
➡ Larger selection of usable MPMs: added Event, Motorz,
etc...
➡ Leverage higher-performant versions of APR
➡ Increase performance
➡ Reduce memory utilization
➡ The Cloud
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
Currently at version 2.4.33 (2.4.1 went GA Feb 21, 2012)

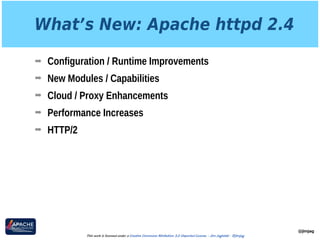

What’s New: Apache httpd 2.4
➡ Configuration / Runtime Improvements
➡ New Modules / Capabilities
➡ Cloud / Proxy Enhancements
➡ Performance Increases
➡ HTTP/2
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

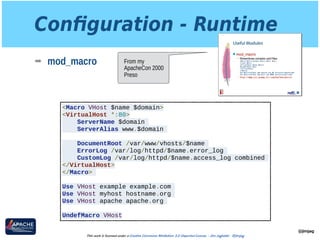

Configuration - Runtime
➡ mod_macro
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<Macro VHost $name $domain>
<VirtualHost *:80>
ServerName $domain
ServerAlias www.$domain
DocumentRoot /var/www/vhosts/$name
ErrorLog /var/log/httpd/$name.error_log
CustomLog /var/log/httpd/$name.access_log combined
</VirtualHost>
</Macro>
Use VHost example example.com
Use VHost myhost hostname.org
Use VHost apache apache.org
UndefMacro VHost
From my
ApacheCon 2000
Preso

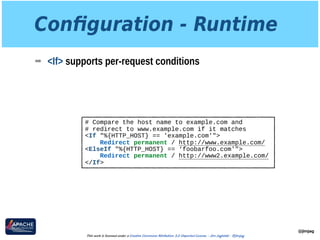

Configuration - Runtime
➡ <If> supports per-request conditions
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
# Compare the host name to example.com and
# redirect to www.example.com if it matches
<If "%{HTTP_HOST} == 'example.com'">
Redirect permanent / http://www.example.com/
<ElseIf "%{HTTP_HOST} == ‘foobarfoo.com'">
Redirect permanent / http://www2.example.com/
</If>

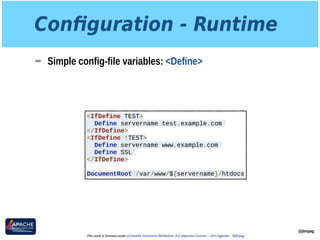

Configuration - Runtime
➡ Simple config-file variables: <Define>
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<IfDefine TEST>
Define servername test.example.com
</IfDefine>
<IfDefine !TEST>
Define servername www.example.com
Define SSL
</IfDefine>
DocumentRoot /var/www/${servername}/htdocs

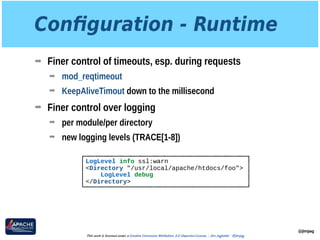

Configuration - Runtime
➡ Finer control of timeouts, esp. during requests
➡ mod_reqtimeout
➡ KeepAliveTimout down to the millisecond
➡ Finer control over logging
➡ per module/per directory
➡ new logging levels (TRACE[1-8])
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
LogLevel info ssl:warn
<Directory "/usr/local/apache/htdocs/foo">
LogLevel debug
</Directory>

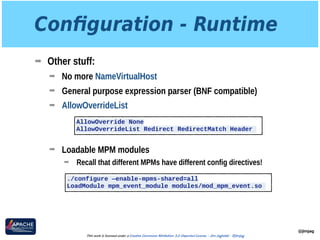

Configuration - Runtime
➡ Other stuff:
➡ No more NameVirtualHost
➡ General purpose expression parser (BNF compatible)
➡ AllowOverrideList





➡ Loadable MPM modules
➡ Recall that different MPMs have different config directives!
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
AllowOverride None
AllowOverrideList Redirect RedirectMatch Header
./configure —enable-mpms-shared=all
LoadModule mpm_event_module modules/mod_mpm_event.so

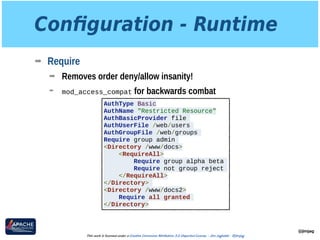

Configuration - Runtime
➡ Require
➡ Removes order deny/allow insanity!
➡ mod_access_compat for backwards combat
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
AuthType Basic
AuthName "Restricted Resource"
AuthBasicProvider file
AuthUserFile /web/users
AuthGroupFile /web/groups
Require group admin
<Directory /www/docs>
<RequireAll>
Require group alpha beta
Require not group reject
</RequireAll>
</Directory>
<Directory /www/docs2>
Require all granted
</Directory>

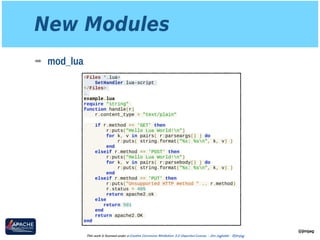

New Modules
➡ mod_lua
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<Files *.lua>
SetHandler lua-script
</Files>
…
example.lua
require "string"
function handle(r)
r.content_type = "text/plain"
if r.method == 'GET' then
r:puts("Hello Lua World!n")
for k, v in pairs( r:parseargs() ) do
r:puts( string.format("%s: %sn", k, v) )
end
elseif r.method == 'POST' then
r:puts("Hello Lua World!n")
for k, v in pairs( r:parsebody() ) do
r:puts( string.format("%s: %sn", k, v) )
end
elseif r.method == 'PUT' then
r:puts("Unsupported HTTP method " .. r.method)
r.status = 405
return apache2.ok
else
return 501
end
return apache2.OK
end

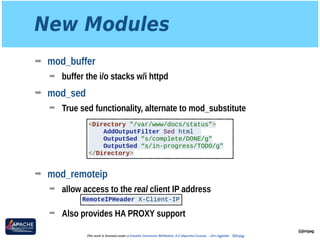

New Modules
➡ mod_buffer
➡ buffer the i/o stacks w/i httpd
➡ mod_sed
➡ True sed functionality, alternate to mod_substitute









➡ mod_remoteip
➡ allow access to the real client IP address

➡ Also provides HA PROXY support
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<Directory "/var/www/docs/status">
AddOutputFilter Sed html
OutputSed "s/complete/DONE/g"
OutputSed “s/in-progress/TODO/g"
</Directory>
RemoteIPHeader X-Client-IP

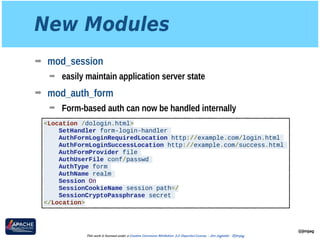

New Modules
➡ mod_session
➡ easily maintain application server state
➡ mod_auth_form
➡ Form-based auth can now be handled internally
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<Location /dologin.html>
SetHandler form-login-handler
AuthFormLoginRequiredLocation http://example.com/login.html
AuthFormLoginSuccessLocation http://example.com/success.html
AuthFormProvider file
AuthUserFile conf/passwd
AuthType form
AuthName realm
Session On
SessionCookieName session path=/
SessionCryptoPassphrase secret
</Location>

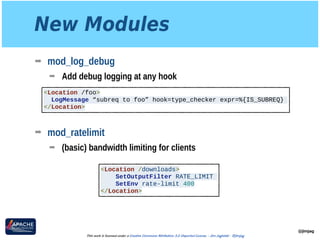

New Modules
➡ mod_log_debug
➡ Add debug logging at any hook







➡ mod_ratelimit
➡ (basic) bandwidth limiting for clients
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
<Location /foo>
LogMessage “subreq to foo” hook=type_checker expr=%{IS_SUBREQ}
</Location>
<Location /downloads>
SetOutputFilter RATE_LIMIT
SetEnv rate-limit 400
</Location>

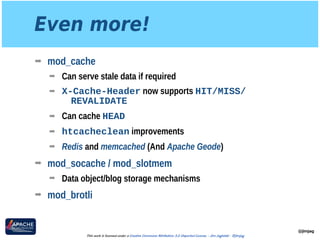

Even more!
➡ mod_cache
➡ Can serve stale data if required
➡ X-Cache-Header now supports HIT/MISS/
REVALIDATE
➡ Can cache HEAD
➡ htcacheclean improvements
➡ Redis and memcached (And Apache Geode)
➡ mod_socache / mod_slotmem
➡ Data object/blog storage mechanisms
➡ mod_brotli
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

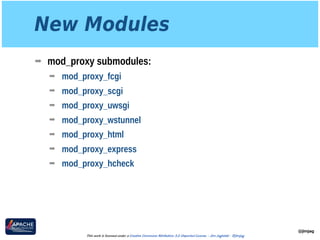

New Modules
➡ mod_proxy submodules:
➡ mod_proxy_fcgi
➡ mod_proxy_scgi
➡ mod_proxy_uwsgi
➡ mod_proxy_wstunnel
➡ mod_proxy_html
➡ mod_proxy_express
➡ mod_proxy_hcheck
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

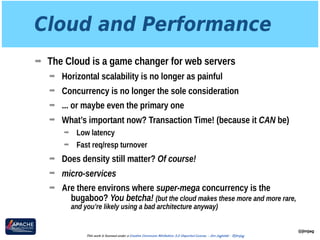

Cloud and Performance
➡ The Cloud is a game changer for web servers
➡ Horizontal scalability is no longer as painful
➡ Concurrency is no longer the sole consideration
➡ ... or maybe even the primary one
➡ What’s important now? Transaction Time! (because it CAN be)
➡ Low latency
➡ Fast req/resp turnover
➡ Does density still matter? Of course!
➡ micro-services
➡ Are there environs where super-mega concurrency is the
bugaboo? You betcha! (but the cloud makes these more and more rare,
and you’re likely using a bad architecture anyway)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

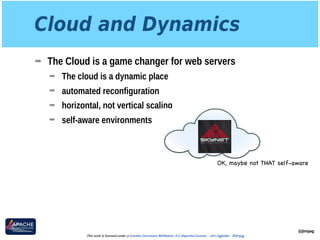

Cloud and Dynamics
➡ The Cloud is a game changer for web servers
➡ The cloud is a dynamic place
➡ automated reconfiguration
➡ horizontal, not vertical scaling
➡ self-aware environments
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
OK, maybe not THAT self-aware

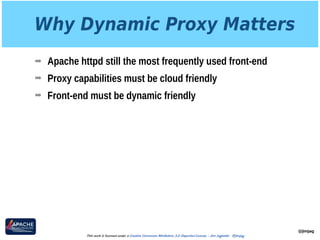

Why Dynamic Proxy Matters
➡ Apache httpd still the most frequently used front-end
➡ Proxy capabilities must be cloud friendly
➡ Front-end must be dynamic friendly
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
Apache httpd 2.4 proxy
➡ Reverse Proxy Improvements
➡ Supports FastCGI, SCGI, Websockets in balancer
➡ Additional load balancing mechanisms
➡ Runtime changing of clusters w/o restarts
➡ Support for dynamic configuration
➡ mod_proxy_express
➡ mod_fcgid and fcgistarter
➡ Support for Unix Domain Sockets
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

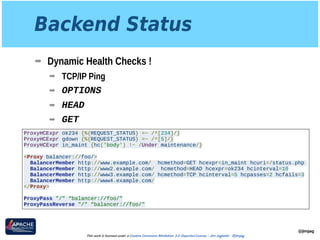

Backend Status
➡ Dynamic Health Checks !
➡ TCP/IP Ping
➡ OPTIONS
➡ HEAD
➡ GET
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
ProxyHCExpr ok234 {%{REQUEST_STATUS} =~ /^[234]/}
ProxyHCExpr gdown {%{REQUEST_STATUS} =~ /^[5]/}
ProxyHCExpr in_maint {hc('body') !~ /Under maintenance/}
<Proxy balancer://foo/>
BalancerMember http://www.example.com/ hcmethod=GET hcexpr=in_maint hcuri=/status.php
BalancerMember http://www2.example.com/ hcmethod=HEAD hcexpr=ok234 hcinterval=10
BalancerMember http://www3.example.com/ hcmethod=TCP hcinterval=5 hcpasses=2 hcfails=3
BalancerMember http://www4.example.com/
</Proxy>
ProxyPass "/" “balancer://foo/"
ProxyPassReverse "/" “balancer://foo/"

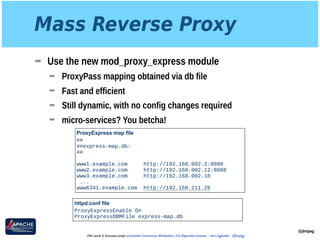

Mass Reverse Proxy
➡ Use the new mod_proxy_express module
➡ ProxyPass mapping obtained via db file
➡ Fast and efficient
➡ Still dynamic, with no config changes required
➡ micro-services? You betcha!
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
ProxyExpress map file
##

##express-map.db:

##



www1.example.com http://192.168.002.2:8080

www2.example.com http://192.168.002.12:8088

www3.example.com http://192.168.002.10
...
www6341.example.com http://192.168.211.26
httpd.conf file
ProxyExpressEnable On
ProxyExpressDBMFile express-map.db

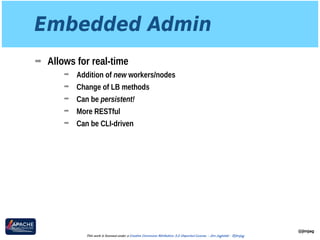

Embedded Admin
➡ Allows for real-time
➡ Addition of new workers/nodes
➡ Change of LB methods
➡ Can be persistent!
➡ More RESTful
➡ Can be CLI-driven
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

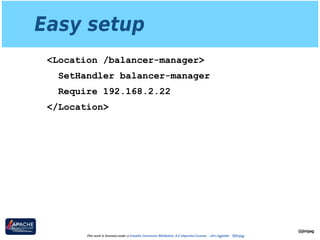

Easy setup
<Location /balancer-manager>
SetHandler balancer-manager
Require 192.168.2.22
</Location>
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag

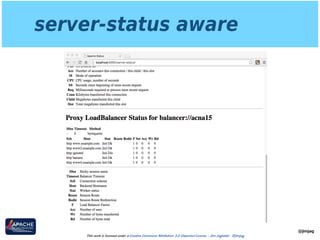

server-status aware
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag

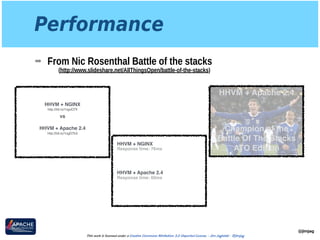

Performance
➡ From Nic Rosenthal Battle of the stacks

(http://www.slideshare.net/AllThingsOpen/battle-of-the-stacks)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
HHVM + NGINX!
!
vs!
!
HHVM + Apache 2.4!
!
http://ldr.io/1ogvD7X
http://ldr.io/1ogD7b3
Response time: 76ms
Response time: 60ms
HHVM + NGINX
HHVM + Apache 2.4
Image by Articularnos.com https://www.flickr.com/photos/articularnos/
Champion of the !
Battle Of The Stacks
ATO Edition
HHVM + Apache 2.4
Performance
➡ From Bryan Call’s 2014 ApacheCon preso

(http://www.slideshare.net/bryan_call/choosing-a-proxy-server-apachecon-2014)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
•  Squid&used&the&most&
CPU&again&
•  NGiNX&had&latency&
issues&
•  ATS&most&throughput& 0&
500&
1000&
1500&
2000&
2500&
ATS& NGiNX& Squid& Varnish& hBpd&
RPS$/$CPU$Usage$
0&
5000&
10000&
15000&
20000&
25000&
30000&
ATS& NGiNX& Squid& Varnish& hBpd&
Requests$Per$Second$
0&
5&
10&
15&
20&
25&
30&
35&
40&
ATS& NGiNX& Squid& Varnish& hBpd&
Latency$
Median&
95th&

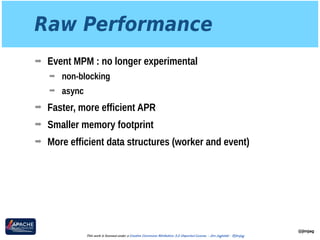

Raw Performance
➡ Event MPM : no longer experimental
➡ non-blocking
➡ async
➡ Faster, more efficient APR
➡ Smaller memory footprint
➡ More efficient data structures (worker and event)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

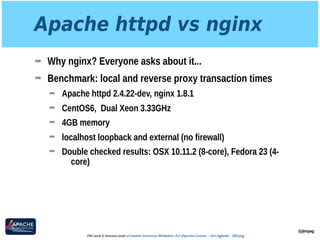

Apache httpd vs nginx
➡ Why nginx? Everyone asks about it...
➡ Benchmark: local and reverse proxy transaction times
➡ Apache httpd 2.4.22-dev, nginx 1.8.1
➡ CentOS6, Dual Xeon 3.33GHz
➡ 4GB memory
➡ localhost loopback and external (no firewall)
➡ Double checked results: OSX 10.11.2 (8-core), Fedora 23 (4-
core)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

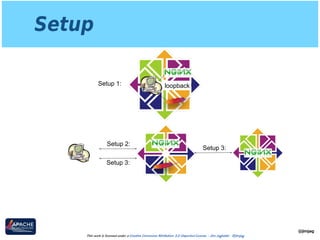

Setup
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
loopbackSetup 1:
Setup 2:
Setup 3:
Setup 3:

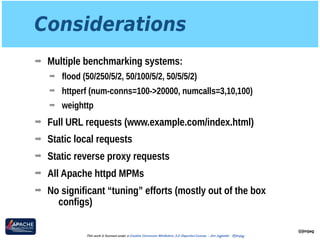

Considerations
➡ Multiple benchmarking systems:
➡ flood (50/250/5/2, 50/100/5/2, 50/5/5/2)
➡ httperf (num-conns=100->20000, numcalls=3,10,100)
➡ weighttp
➡ Full URL requests (www.example.com/index.html)
➡ Static local requests
➡ Static reverse proxy requests
➡ All Apache httpd MPMs
➡ No significant “tuning” efforts (mostly out of the box
configs)
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

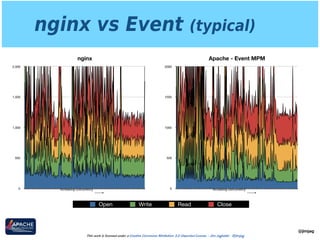

nginx vs Event (typical)
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
Apache - Event MPM
0
500
1000
1500
2000
nginx
0
500
1,000
1,500
2,000
Open Write Read Close
Increasing concurrency Increasing concurrency
Apache - Prefork MPM
0
500
1000
1500
2000

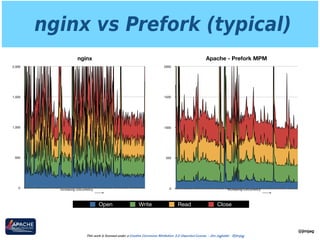

nginx vs Prefork (typical)
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
nginx
0
500
1,000
1,500
2,000
Open Write Read Close
Increasing concurrency Increasing concurrency

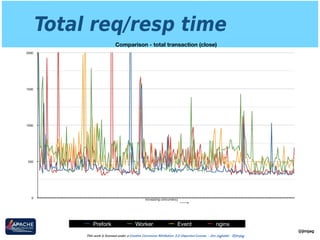

Total req/resp time
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
Comparison - total transaction (close)
0
500
1000
1500
2000
Prefork Worker Event nginx
Increasing concurrency

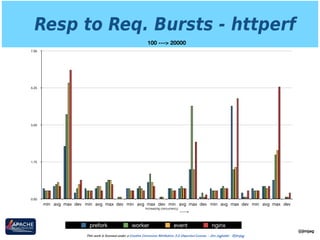

Resp to Req. Bursts - httperf
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
100 ---> 20000
0.00
1.75
3.50
5.25
7.00
min avg max dev min avg max dev min avg max dev min avg max dev min avg max dev min avg max dev
prefork worker event nginx
Increasing concurrency

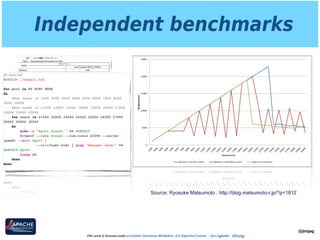

Independent benchmarks
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
Source: Ryosuke Matsumoto : http://blog.matsumoto-r.jp/?p=1812
#!/bin/sh
RESULT='./result.txt'

for port in 80 8080 8888
do
#for count in 1000 2000 3000 4000 5000 6000 7000 8000
9000 10000
#for count in 11000 12000 13000 14000 15000 16000 17000
18000 19000 20000
for count in 21000 22000 23000 24000 25000 26000 27000
28000 29000 30000
do
echo -n "$port $count " >> $RESULT
httperf --rate $count --num-conns 25000 --server
ipaddr --port $port
--uri=/test.html | grep "Request rate:" >>
$RESULT.$port
sleep 60
done
done

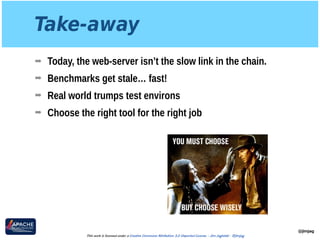

Take-away
➡ Today, the web-server isn’t the slow link in the chain.
➡ Benchmarks get stale… fast!
➡ Real world trumps test environs
➡ Choose the right tool for the right job
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
HTTP/2
➡ Implements RFC 7540
➡ Supports both h2 (HTTP/2 over TLS) and h2c (HTTP/2 over TCP[cleartext])
➡ Enterprise-ready regarding stability, performance, etc.
➡ Also supported in mod_proxy
➡ Perfect compliance
@jimjag
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

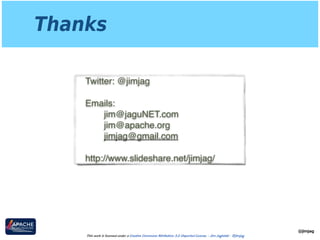

Thanks
This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
@jimjag
Twitter: @jimjag
Emails:

jim@jaguNET.com

jim@apache.org

jimjag@gmail.com
http://www.slideshare.net/jimjag/

More Related Content

What's hot

The History of The Apache Software Foundation
The History of The Apache Software FoundationThe History of The Apache Software Foundation
The History of The Apache Software FoundationJim Jagielski

JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...
JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...
JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...Peter Moskovits

HTML5 WebSocket for the Real-Time Web and the Internet of Things
HTML5 WebSocket for the Real-Time Weband the Internet of ThingsHTML5 WebSocket for the Real-Time Weband the Internet of Things
HTML5 WebSocket for the Real-Time Web and the Internet of ThingsPeter Moskovits

SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...
SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...
SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...Distilled

implement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflowimplement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflowWordPress

Pagespeed what, why, and how it works
Pagespeed   what, why, and how it worksPagespeed   what, why, and how it works
Pagespeed what, why, and how it worksIlya Grigorik

HTML5 WebSocket Introduction
HTML5 WebSocket IntroductionHTML5 WebSocket Introduction
HTML5 WebSocket IntroductionMarcelo Jabali

A web perf dashboard up & running in 90 minutes presentation
A web perf dashboard up & running in 90 minutes presentationA web perf dashboard up & running in 90 minutes presentation
A web perf dashboard up & running in 90 minutes presentationJustin Dorfman

Browser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom MenaceBrowser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom MenaceNicholas Zakas

Velocity EU 2012 - Third party scripts and you
Velocity EU 2012 - Third party scripts and youVelocity EU 2012 - Third party scripts and you
Velocity EU 2012 - Third party scripts and youPatrick Meenan

HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)
HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)
HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)Peter Lubbers

Building performance into the new yahoo homepage presentation
Building performance into the new yahoo  homepage presentationBuilding performance into the new yahoo  homepage presentation
Building performance into the new yahoo homepage presentationmasudakram

The Need for Speed - SMX Sydney 2013
The Need for Speed - SMX Sydney 2013The Need for Speed - SMX Sydney 2013
The Need for Speed - SMX Sydney 2013Bastian Grimm

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站areyouok

Metrics, metrics everywhere (but where the heck do you start?)
Metrics, metrics everywhere (but where the heck do you start?)Metrics, metrics everywhere (but where the heck do you start?)
Metrics, metrics everywhere (but where the heck do you start?)Tammy Everts

PageSpeed and SPDY
PageSpeed and SPDYPageSpeed and SPDY
PageSpeed and SPDYBlake Crosby

Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)Nicholas Zakas

Csdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer YahooCsdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer Yahooguestb1b95b


What's hot (20)

The History of The Apache Software Foundation
The History of The Apache Software FoundationThe History of The Apache Software Foundation
The History of The Apache Software Foundation

JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...
JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...
JMS, WebSocket, and the Internet of Things - Controlling Physical Devices on ...

HTML5 WebSocket for the Real-Time Web and the Internet of Things
HTML5 WebSocket for the Real-Time Weband the Internet of ThingsHTML5 WebSocket for the Real-Time Weband the Internet of Things
HTML5 WebSocket for the Real-Time Web and the Internet of Things

SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...
SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...
SearchLove San Diego 2018 | Tom Anthony | An Introduction to HTTP/2 & Service...

implement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflowimplement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflow

Pagespeed what, why, and how it works
Pagespeed   what, why, and how it worksPagespeed   what, why, and how it works
Pagespeed what, why, and how it works

HTML5 WebSocket Introduction
HTML5 WebSocket IntroductionHTML5 WebSocket Introduction
HTML5 WebSocket Introduction

A web perf dashboard up & running in 90 minutes presentation
A web perf dashboard up & running in 90 minutes presentationA web perf dashboard up & running in 90 minutes presentation
A web perf dashboard up & running in 90 minutes presentation

Browser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom MenaceBrowser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom Menace

Velocity EU 2012 - Third party scripts and you
Velocity EU 2012 - Third party scripts and youVelocity EU 2012 - Third party scripts and you
Velocity EU 2012 - Third party scripts and you

HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)
HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)
HTML5 Real Time and WebSocket Code Lab (SFHTML5, GTUGSF)

Building performance into the new yahoo homepage presentation
Building performance into the new yahoo  homepage presentationBuilding performance into the new yahoo  homepage presentation
Building performance into the new yahoo homepage presentation

HTML5
HTML5HTML5
HTML5

The Need for Speed - SMX Sydney 2013
The Need for Speed - SMX Sydney 2013The Need for Speed - SMX Sydney 2013
The Need for Speed - SMX Sydney 2013

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站

Metrics, metrics everywhere (but where the heck do you start?)
Metrics, metrics everywhere (but where the heck do you start?)Metrics, metrics everywhere (but where the heck do you start?)
Metrics, metrics everywhere (but where the heck do you start?)

PageSpeed and SPDY
PageSpeed and SPDYPageSpeed and SPDY
PageSpeed and SPDY

Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)

High-Speed HTML5
High-Speed HTML5High-Speed HTML5
High-Speed HTML5

Csdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer YahooCsdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer Yahoo


Similar to Not your daddy's web server

ApacheCon 2017: What's new in httpd 2.4
ApacheCon 2017: What's new in httpd 2.4ApacheCon 2017: What's new in httpd 2.4
ApacheCon 2017: What's new in httpd 2.4Jim Jagielski

ApacheCon 2014 - What's New in Apache httpd 2.4
ApacheCon 2014 - What's New in Apache httpd 2.4ApacheCon 2014 - What's New in Apache httpd 2.4
ApacheCon 2014 - What's New in Apache httpd 2.4Jim Jagielski

ApacheConNA 2015: What's new in Apache httpd 2.4
ApacheConNA 2015: What's new in Apache httpd 2.4ApacheConNA 2015: What's new in Apache httpd 2.4
ApacheConNA 2015: What's new in Apache httpd 2.4Jim Jagielski

Apache httpd 2.4: The Cloud Killer App
Apache httpd 2.4: The Cloud Killer AppApache httpd 2.4: The Cloud Killer App
Apache httpd 2.4: The Cloud Killer AppJim Jagielski

Apache httpd-2.4 : Watch out cloud!
Apache httpd-2.4 : Watch out cloud!Apache httpd-2.4 : Watch out cloud!
Apache httpd-2.4 : Watch out cloud!Jim Jagielski

Profiling PHP with Xdebug / Webgrind
Profiling PHP with Xdebug / WebgrindProfiling PHP with Xdebug / Webgrind
Profiling PHP with Xdebug / WebgrindSam Keen

The state of navigator.register protocolhandler
The state of navigator.register protocolhandlerThe state of navigator.register protocolhandler
The state of navigator.register protocolhandlerGyuyoung Kim

Apache httpd 2.4 Reverse Proxy
Apache httpd 2.4 Reverse ProxyApache httpd 2.4 Reverse Proxy
Apache httpd 2.4 Reverse ProxyJim Jagielski

PyCon AU 2010 - Getting Started With Apache/mod_wsgi.
PyCon AU 2010 - Getting Started With Apache/mod_wsgi.PyCon AU 2010 - Getting Started With Apache/mod_wsgi.
PyCon AU 2010 - Getting Started With Apache/mod_wsgi.Graham Dumpleton

Optimising Web Application Frontend
Optimising Web Application FrontendOptimising Web Application Frontend
Optimising Web Application Frontendtkramar

[rwdsummit2012] Adaptive Images in Responsive Web Design
[rwdsummit2012] Adaptive Images in Responsive Web Design[rwdsummit2012] Adaptive Images in Responsive Web Design
[rwdsummit2012] Adaptive Images in Responsive Web DesignChristopher Schmitt

When dynamic becomes static : the next step in web caching techniques
When dynamic becomes static : the next step in web caching techniquesWhen dynamic becomes static : the next step in web caching techniques
When dynamic becomes static : the next step in web caching techniquesWim Godden

Joomla! Performance on Steroids
Joomla! Performance on SteroidsJoomla! Performance on Steroids
Joomla! Performance on SteroidsSiteGround.com

WordPress At Scale. WordCamp Dhaka 2019
WordPress At Scale. WordCamp Dhaka 2019WordPress At Scale. WordCamp Dhaka 2019
WordPress At Scale. WordCamp Dhaka 2019Anam Ahmed

Apache, cron and proxy
Apache, cron and proxyApache, cron and proxy
Apache, cron and proxyGaurav Mishra

Git Workshop : Git On The Server
Git Workshop : Git On The ServerGit Workshop : Git On The Server
Git Workshop : Git On The ServerWildan Maulana

[html5tx] Adaptive Images in Responsive Web Design
[html5tx] Adaptive Images in Responsive Web Design[html5tx] Adaptive Images in Responsive Web Design
[html5tx] Adaptive Images in Responsive Web DesignChristopher Schmitt


Similar to Not your daddy's web server (20)

ApacheCon 2017: What's new in httpd 2.4
ApacheCon 2017: What's new in httpd 2.4ApacheCon 2017: What's new in httpd 2.4
ApacheCon 2017: What's new in httpd 2.4

Apache httpd v2.4
Apache httpd v2.4Apache httpd v2.4
Apache httpd v2.4

ApacheCon 2014 - What's New in Apache httpd 2.4
ApacheCon 2014 - What's New in Apache httpd 2.4ApacheCon 2014 - What's New in Apache httpd 2.4
ApacheCon 2014 - What's New in Apache httpd 2.4

ApacheConNA 2015: What's new in Apache httpd 2.4
ApacheConNA 2015: What's new in Apache httpd 2.4ApacheConNA 2015: What's new in Apache httpd 2.4
ApacheConNA 2015: What's new in Apache httpd 2.4

Apache httpd 2.4: The Cloud Killer App
Apache httpd 2.4: The Cloud Killer AppApache httpd 2.4: The Cloud Killer App
Apache httpd 2.4: The Cloud Killer App

Apache httpd-2.4 : Watch out cloud!
Apache httpd-2.4 : Watch out cloud!Apache httpd-2.4 : Watch out cloud!
Apache httpd-2.4 : Watch out cloud!

Profiling PHP with Xdebug / Webgrind
Profiling PHP with Xdebug / WebgrindProfiling PHP with Xdebug / Webgrind
Profiling PHP with Xdebug / Webgrind

The state of navigator.register protocolhandler
The state of navigator.register protocolhandlerThe state of navigator.register protocolhandler
The state of navigator.register protocolhandler

Intro. to Git and Github
Intro. to Git and GithubIntro. to Git and Github
Intro. to Git and Github

Apache httpd 2.4 Reverse Proxy
Apache httpd 2.4 Reverse ProxyApache httpd 2.4 Reverse Proxy
Apache httpd 2.4 Reverse Proxy

PyCon AU 2010 - Getting Started With Apache/mod_wsgi.
PyCon AU 2010 - Getting Started With Apache/mod_wsgi.PyCon AU 2010 - Getting Started With Apache/mod_wsgi.
PyCon AU 2010 - Getting Started With Apache/mod_wsgi.

Speed Loading
Speed LoadingSpeed Loading
Speed Loading

Optimising Web Application Frontend
Optimising Web Application FrontendOptimising Web Application Frontend
Optimising Web Application Frontend

[rwdsummit2012] Adaptive Images in Responsive Web Design
[rwdsummit2012] Adaptive Images in Responsive Web Design[rwdsummit2012] Adaptive Images in Responsive Web Design
[rwdsummit2012] Adaptive Images in Responsive Web Design

When dynamic becomes static : the next step in web caching techniques
When dynamic becomes static : the next step in web caching techniquesWhen dynamic becomes static : the next step in web caching techniques
When dynamic becomes static : the next step in web caching techniques

Joomla! Performance on Steroids
Joomla! Performance on SteroidsJoomla! Performance on Steroids
Joomla! Performance on Steroids

WordPress At Scale. WordCamp Dhaka 2019
WordPress At Scale. WordCamp Dhaka 2019WordPress At Scale. WordCamp Dhaka 2019
WordPress At Scale. WordCamp Dhaka 2019

Apache, cron and proxy
Apache, cron and proxyApache, cron and proxy
Apache, cron and proxy

Git Workshop : Git On The Server
Git Workshop : Git On The ServerGit Workshop : Git On The Server
Git Workshop : Git On The Server

[html5tx] Adaptive Images in Responsive Web Design
[html5tx] Adaptive Images in Responsive Web Design[html5tx] Adaptive Images in Responsive Web Design
[html5tx] Adaptive Images in Responsive Web Design


More from Jim Jagielski

OSPOS: AllThingsOpen 2023
OSPOS: AllThingsOpen 2023OSPOS: AllThingsOpen 2023
OSPOS: AllThingsOpen 2023Jim Jagielski

Open Source Licenses and IP Overview
Open Source Licenses and IP OverviewOpen Source Licenses and IP Overview
Open Source Licenses and IP OverviewJim Jagielski

Starting an Open Source Program Office
Starting an Open Source Program OfficeStarting an Open Source Program Office
Starting an Open Source Program OfficeJim Jagielski

InnerSource 101 for FinTech and FinServ
InnerSource 101 for FinTech and FinServInnerSource 101 for FinTech and FinServ
InnerSource 101 for FinTech and FinServJim Jagielski

All Things Open 2017: Open Source Licensing
All Things Open 2017: Open Source LicensingAll Things Open 2017: Open Source Licensing
All Things Open 2017: Open Source LicensingJim Jagielski

All Things Open 2017: The Apache Software Foundation 101
All Things Open 2017: The Apache Software Foundation 101All Things Open 2017: The Apache Software Foundation 101
All Things Open 2017: The Apache Software Foundation 101Jim Jagielski

All Things Open 2017: Foundations of Inner Source
All Things Open 2017: Foundations of Inner SourceAll Things Open 2017: Foundations of Inner Source
All Things Open 2017: Foundations of Inner SourceJim Jagielski

ApacheCon 2017: InnerSource and The Apache Way
ApacheCon 2017: InnerSource and The Apache WayApacheCon 2017: InnerSource and The Apache Way
ApacheCon 2017: InnerSource and The Apache WayJim Jagielski

Open Source Licensing 101
Open Source Licensing 101Open Source Licensing 101
Open Source Licensing 101Jim Jagielski

InnerSource 101 and The Apache Way
InnerSource 101 and The Apache WayInnerSource 101 and The Apache Way
InnerSource 101 and The Apache WayJim Jagielski

Open source101 licenses
Open source101 licensesOpen source101 licenses
Open source101 licensesJim Jagielski

Keynote from the Open Source 101 Conference
Keynote from the Open Source 101 ConferenceKeynote from the Open Source 101 Conference
Keynote from the Open Source 101 ConferenceJim Jagielski

InnerSource: Enterprise Lessons from Open Source
InnerSource: Enterprise Lessons from Open SourceInnerSource: Enterprise Lessons from Open Source
InnerSource: Enterprise Lessons from Open SourceJim Jagielski

ApacheCon EU 2016 State of the Feather
ApacheCon EU 2016 State of the FeatherApacheCon EU 2016 State of the Feather
ApacheCon EU 2016 State of the FeatherJim Jagielski

Open Source Licensing and Governance
Open Source Licensing and GovernanceOpen Source Licensing and Governance
Open Source Licensing and GovernanceJim Jagielski

Inner Source: Enterprise Lessons from the Open Source Community.
Inner Source: Enterprise Lessons from the Open Source Community.Inner Source: Enterprise Lessons from the Open Source Community.
Inner Source: Enterprise Lessons from the Open Source Community.Jim Jagielski

The Apache Way: Why we do what we do
The Apache Way: Why we do what we doThe Apache Way: Why we do what we do
The Apache Way: Why we do what we doJim Jagielski

Why Community Matters
Why Community MattersWhy Community Matters
Why Community MattersJim Jagielski

Inner Source 101 - GWO2016
Inner Source 101 - GWO2016Inner Source 101 - GWO2016
Inner Source 101 - GWO2016Jim Jagielski


More from Jim Jagielski (20)

OSPOS: AllThingsOpen 2023
OSPOS: AllThingsOpen 2023OSPOS: AllThingsOpen 2023
OSPOS: AllThingsOpen 2023

Open Source Licenses and IP Overview
Open Source Licenses and IP OverviewOpen Source Licenses and IP Overview
Open Source Licenses and IP Overview

The Apache Way
The Apache WayThe Apache Way
The Apache Way

Starting an Open Source Program Office
Starting an Open Source Program OfficeStarting an Open Source Program Office
Starting an Open Source Program Office

InnerSource 101 for FinTech and FinServ
InnerSource 101 for FinTech and FinServInnerSource 101 for FinTech and FinServ
InnerSource 101 for FinTech and FinServ

All Things Open 2017: Open Source Licensing
All Things Open 2017: Open Source LicensingAll Things Open 2017: Open Source Licensing
All Things Open 2017: Open Source Licensing

All Things Open 2017: The Apache Software Foundation 101
All Things Open 2017: The Apache Software Foundation 101All Things Open 2017: The Apache Software Foundation 101
All Things Open 2017: The Apache Software Foundation 101

All Things Open 2017: Foundations of Inner Source
All Things Open 2017: Foundations of Inner SourceAll Things Open 2017: Foundations of Inner Source
All Things Open 2017: Foundations of Inner Source

ApacheCon 2017: InnerSource and The Apache Way
ApacheCon 2017: InnerSource and The Apache WayApacheCon 2017: InnerSource and The Apache Way
ApacheCon 2017: InnerSource and The Apache Way

Open Source Licensing 101
Open Source Licensing 101Open Source Licensing 101
Open Source Licensing 101

InnerSource 101 and The Apache Way
InnerSource 101 and The Apache WayInnerSource 101 and The Apache Way
InnerSource 101 and The Apache Way

Open source101 licenses
Open source101 licensesOpen source101 licenses
Open source101 licenses

Keynote from the Open Source 101 Conference
Keynote from the Open Source 101 ConferenceKeynote from the Open Source 101 Conference
Keynote from the Open Source 101 Conference

InnerSource: Enterprise Lessons from Open Source
InnerSource: Enterprise Lessons from Open SourceInnerSource: Enterprise Lessons from Open Source
InnerSource: Enterprise Lessons from Open Source

ApacheCon EU 2016 State of the Feather
ApacheCon EU 2016 State of the FeatherApacheCon EU 2016 State of the Feather
ApacheCon EU 2016 State of the Feather

Open Source Licensing and Governance
Open Source Licensing and GovernanceOpen Source Licensing and Governance
Open Source Licensing and Governance

Inner Source: Enterprise Lessons from the Open Source Community.
Inner Source: Enterprise Lessons from the Open Source Community.Inner Source: Enterprise Lessons from the Open Source Community.
Inner Source: Enterprise Lessons from the Open Source Community.

The Apache Way: Why we do what we do
The Apache Way: Why we do what we doThe Apache Way: Why we do what we do
The Apache Way: Why we do what we do

Why Community Matters
Why Community MattersWhy Community Matters
Why Community Matters

Inner Source 101 - GWO2016
Inner Source 101 - GWO2016Inner Source 101 - GWO2016
Inner Source 101 - GWO2016


Recently uploaded

Connecting the Dots for Information Discovery.pdf
Connecting the Dots for Information Discovery.pdfConnecting the Dots for Information Discovery.pdf
Connecting the Dots for Information Discovery.pdfNeo4j

Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024Hiroshi SHIBATA

Bridging Between CAD & GIS: 6 Ways to Automate Your Data Integration
Bridging Between CAD & GIS:  6 Ways to Automate Your Data IntegrationBridging Between CAD & GIS:  6 Ways to Automate Your Data Integration
Bridging Between CAD & GIS: 6 Ways to Automate Your Data Integrationmarketing932765

All These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFAll These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFMichael Gough

WomenInAutomation2024: AI and Automation for eveyone
WomenInAutomation2024: AI and Automation for eveyoneWomenInAutomation2024: AI and Automation for eveyone
WomenInAutomation2024: AI and Automation for eveyoneUiPathCommunity

Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Mark Simos

Landscape Catalogue 2024 Australia-1.pdf
Landscape Catalogue 2024 Australia-1.pdfLandscape Catalogue 2024 Australia-1.pdf
Landscape Catalogue 2024 Australia-1.pdfAarwolf Industries LLC

Dublin_mulesoft_meetup_API_specifications.pptx
Dublin_mulesoft_meetup_API_specifications.pptxDublin_mulesoft_meetup_API_specifications.pptx
Dublin_mulesoft_meetup_API_specifications.pptxKunal Gupta

Top 10 Hubspot Development Companies in 2024
Top 10 Hubspot Development Companies in 2024Top 10 Hubspot Development Companies in 2024
Top 10 Hubspot Development Companies in 2024TopCSSGallery

HCI Lesson 1 - Introduction to Human-Computer Interaction.pdf
HCI Lesson 1 - Introduction to Human-Computer Interaction.pdfHCI Lesson 1 - Introduction to Human-Computer Interaction.pdf
HCI Lesson 1 - Introduction to Human-Computer Interaction.pdfROWELL MARQUINA

React JS; all concepts. Contains React Features, JSX, functional & Class comp...
React JS; all concepts. Contains React Features, JSX, functional & Class comp...React JS; all concepts. Contains React Features, JSX, functional & Class comp...
React JS; all concepts. Contains React Features, JSX, functional & Class comp...Karmanjay Verma

Emixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentEmixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentPim van der Noll

Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Mark Goldstein

2024 April Patch Tuesday
2024 April Patch Tuesday2024 April Patch Tuesday
2024 April Patch TuesdayIvanti

Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...
Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...
Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...Jeffrey Haguewood

Software Security in the Real World w/Kelsey Hightower
Software Security in the Real World w/Kelsey HightowerSoftware Security in the Real World w/Kelsey Hightower
Software Security in the Real World w/Kelsey HightowerAnchore

Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...
Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...
Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...BookNet Canada

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Farhan Tariq

Laying the Data Foundations for Artificial Intelligence!
Laying the Data Foundations for Artificial Intelligence!Laying the Data Foundations for Artificial Intelligence!
Laying the Data Foundations for Artificial Intelligence!Memoori

QMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfQMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfROWELL MARQUINA


Recently uploaded (20)

Connecting the Dots for Information Discovery.pdf
Connecting the Dots for Information Discovery.pdfConnecting the Dots for Information Discovery.pdf
Connecting the Dots for Information Discovery.pdf

Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024

Bridging Between CAD & GIS: 6 Ways to Automate Your Data Integration
Bridging Between CAD & GIS:  6 Ways to Automate Your Data IntegrationBridging Between CAD & GIS:  6 Ways to Automate Your Data Integration
Bridging Between CAD & GIS: 6 Ways to Automate Your Data Integration

All These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFAll These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDF

WomenInAutomation2024: AI and Automation for eveyone
WomenInAutomation2024: AI and Automation for eveyoneWomenInAutomation2024: AI and Automation for eveyone
WomenInAutomation2024: AI and Automation for eveyone

Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)

Landscape Catalogue 2024 Australia-1.pdf
Landscape Catalogue 2024 Australia-1.pdfLandscape Catalogue 2024 Australia-1.pdf
Landscape Catalogue 2024 Australia-1.pdf

Dublin_mulesoft_meetup_API_specifications.pptx
Dublin_mulesoft_meetup_API_specifications.pptxDublin_mulesoft_meetup_API_specifications.pptx
Dublin_mulesoft_meetup_API_specifications.pptx

Top 10 Hubspot Development Companies in 2024
Top 10 Hubspot Development Companies in 2024Top 10 Hubspot Development Companies in 2024
Top 10 Hubspot Development Companies in 2024

HCI Lesson 1 - Introduction to Human-Computer Interaction.pdf
HCI Lesson 1 - Introduction to Human-Computer Interaction.pdfHCI Lesson 1 - Introduction to Human-Computer Interaction.pdf
HCI Lesson 1 - Introduction to Human-Computer Interaction.pdf

React JS; all concepts. Contains React Features, JSX, functional & Class comp...
React JS; all concepts. Contains React Features, JSX, functional & Class comp...React JS; all concepts. Contains React Features, JSX, functional & Class comp...
React JS; all concepts. Contains React Features, JSX, functional & Class comp...

Emixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentEmixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native development

Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24

2024 April Patch Tuesday
2024 April Patch Tuesday2024 April Patch Tuesday
2024 April Patch Tuesday

Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...
Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...
Email Marketing Automation for Bonterra Impact Management (fka Social Solutio...

Software Security in the Real World w/Kelsey Hightower
Software Security in the Real World w/Kelsey HightowerSoftware Security in the Real World w/Kelsey Hightower
Software Security in the Real World w/Kelsey Hightower

Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...
Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...
Transcript: New from BookNet Canada for 2024: BNC SalesData and LibraryData -...

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...

Laying the Data Foundations for Artificial Intelligence!
Laying the Data Foundations for Artificial Intelligence!Laying the Data Foundations for Artificial Intelligence!
Laying the Data Foundations for Artificial Intelligence!

QMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfQMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdf


Not your daddy's web server

  • 1. Jim Jagielski @jimjag Apache httpd v2.4: It’s Not Your Daddy’s Web Server!
  • 2. About Me ➡ Apache Software Foundation ➡ Co-founder, Director Emeritus, Member and Developer ➡ Director Emeritus ➡ Outercurve, MARSEC-XL, OSSI, OSI (ex)… ➡ Developer ➡ Mega FOSS projects ➡ O’Reilly Open Source Award: 2013 ➡ European Commission: Luminary Award ➡ Open Source Chef: ConsenSys @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 3. Hold on a tic ➡ How do you define “new”?? @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 4. httpd is sooo old school (aka fud) ➡ Apache doesn’t scale (its SLOW) ➡ http://www.youtube.com/watch?v=bzkRVzciAZg

 ➡ Apache is too generalized


 ➡ Apache is too complex (config file) ➡ really? ➡ Apache is too old
 (yeah, just like Linux) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag vs It’s Squagels!
  • 5. Apache httpd 2.4 - design drivers ➡ New features and improve old ones ➡ Support for async I/O w/o dropping support for older systems ➡ Larger selection of usable MPMs: added Event, Motorz, etc... ➡ Leverage higher-performant versions of APR ➡ Increase performance ➡ Reduce memory utilization ➡ The Cloud @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag Currently at version 2.4.33 (2.4.1 went GA Feb 21, 2012)
  • 6. What’s New: Apache httpd 2.4 ➡ Configuration / Runtime Improvements ➡ New Modules / Capabilities ➡ Cloud / Proxy Enhancements ➡ Performance Increases ➡ HTTP/2 @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 7. Configuration - Runtime ➡ mod_macro @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <Macro VHost $name $domain> <VirtualHost *:80> ServerName $domain ServerAlias www.$domain DocumentRoot /var/www/vhosts/$name ErrorLog /var/log/httpd/$name.error_log CustomLog /var/log/httpd/$name.access_log combined </VirtualHost> </Macro> Use VHost example example.com Use VHost myhost hostname.org Use VHost apache apache.org UndefMacro VHost From my ApacheCon 2000 Preso
  • 8. Configuration - Runtime ➡ <If> supports per-request conditions @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag # Compare the host name to example.com and # redirect to www.example.com if it matches <If "%{HTTP_HOST} == 'example.com'"> Redirect permanent / http://www.example.com/ <ElseIf "%{HTTP_HOST} == ‘foobarfoo.com'"> Redirect permanent / http://www2.example.com/ </If>
  • 9. Configuration - Runtime ➡ Simple config-file variables: <Define> @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <IfDefine TEST> Define servername test.example.com </IfDefine> <IfDefine !TEST> Define servername www.example.com Define SSL </IfDefine> DocumentRoot /var/www/${servername}/htdocs
  • 10. Configuration - Runtime ➡ Finer control of timeouts, esp. during requests ➡ mod_reqtimeout ➡ KeepAliveTimout down to the millisecond ➡ Finer control over logging ➡ per module/per directory ➡ new logging levels (TRACE[1-8]) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag LogLevel info ssl:warn <Directory "/usr/local/apache/htdocs/foo"> LogLevel debug </Directory>
  • 11. Configuration - Runtime ➡ Other stuff: ➡ No more NameVirtualHost ➡ General purpose expression parser (BNF compatible) ➡ AllowOverrideList


 ➡ Loadable MPM modules ➡ Recall that different MPMs have different config directives! @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag AllowOverride None AllowOverrideList Redirect RedirectMatch Header ./configure —enable-mpms-shared=all LoadModule mpm_event_module modules/mod_mpm_event.so
  • 12. Configuration - Runtime ➡ Require ➡ Removes order deny/allow insanity! ➡ mod_access_compat for backwards combat @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag AuthType Basic AuthName "Restricted Resource" AuthBasicProvider file AuthUserFile /web/users AuthGroupFile /web/groups Require group admin <Directory /www/docs> <RequireAll> Require group alpha beta Require not group reject </RequireAll> </Directory> <Directory /www/docs2> Require all granted </Directory>
  • 13. New Modules ➡ mod_lua @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <Files *.lua> SetHandler lua-script </Files> … example.lua require "string" function handle(r) r.content_type = "text/plain" if r.method == 'GET' then r:puts("Hello Lua World!n") for k, v in pairs( r:parseargs() ) do r:puts( string.format("%s: %sn", k, v) ) end elseif r.method == 'POST' then r:puts("Hello Lua World!n") for k, v in pairs( r:parsebody() ) do r:puts( string.format("%s: %sn", k, v) ) end elseif r.method == 'PUT' then r:puts("Unsupported HTTP method " .. r.method) r.status = 405 return apache2.ok else return 501 end return apache2.OK end
  • 14. New Modules ➡ mod_buffer ➡ buffer the i/o stacks w/i httpd ➡ mod_sed ➡ True sed functionality, alternate to mod_substitute




 ➡ mod_remoteip ➡ allow access to the real client IP address
 ➡ Also provides HA PROXY support @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <Directory "/var/www/docs/status"> AddOutputFilter Sed html OutputSed "s/complete/DONE/g" OutputSed “s/in-progress/TODO/g" </Directory> RemoteIPHeader X-Client-IP
  • 15. New Modules ➡ mod_session ➡ easily maintain application server state ➡ mod_auth_form ➡ Form-based auth can now be handled internally @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <Location /dologin.html> SetHandler form-login-handler AuthFormLoginRequiredLocation http://example.com/login.html AuthFormLoginSuccessLocation http://example.com/success.html AuthFormProvider file AuthUserFile conf/passwd AuthType form AuthName realm Session On SessionCookieName session path=/ SessionCryptoPassphrase secret </Location>
  • 16. New Modules ➡ mod_log_debug ➡ Add debug logging at any hook



 ➡ mod_ratelimit ➡ (basic) bandwidth limiting for clients @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag <Location /foo> LogMessage “subreq to foo” hook=type_checker expr=%{IS_SUBREQ} </Location> <Location /downloads> SetOutputFilter RATE_LIMIT SetEnv rate-limit 400 </Location>
  • 17. Even more! ➡ mod_cache ➡ Can serve stale data if required ➡ X-Cache-Header now supports HIT/MISS/ REVALIDATE ➡ Can cache HEAD ➡ htcacheclean improvements ➡ Redis and memcached (And Apache Geode) ➡ mod_socache / mod_slotmem ➡ Data object/blog storage mechanisms ➡ mod_brotli @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 18. New Modules ➡ mod_proxy submodules: ➡ mod_proxy_fcgi ➡ mod_proxy_scgi ➡ mod_proxy_uwsgi ➡ mod_proxy_wstunnel ➡ mod_proxy_html ➡ mod_proxy_express ➡ mod_proxy_hcheck @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 19. Cloud and Performance ➡ The Cloud is a game changer for web servers ➡ Horizontal scalability is no longer as painful ➡ Concurrency is no longer the sole consideration ➡ ... or maybe even the primary one ➡ What’s important now? Transaction Time! (because it CAN be) ➡ Low latency ➡ Fast req/resp turnover ➡ Does density still matter? Of course! ➡ micro-services ➡ Are there environs where super-mega concurrency is the bugaboo? You betcha! (but the cloud makes these more and more rare, and you’re likely using a bad architecture anyway) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 20. Cloud and Dynamics ➡ The Cloud is a game changer for web servers ➡ The cloud is a dynamic place ➡ automated reconfiguration ➡ horizontal, not vertical scaling ➡ self-aware environments @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag OK, maybe not THAT self-aware
  • 21. Why Dynamic Proxy Matters ➡ Apache httpd still the most frequently used front-end ➡ Proxy capabilities must be cloud friendly ➡ Front-end must be dynamic friendly @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 22. Apache httpd 2.4 proxy ➡ Reverse Proxy Improvements ➡ Supports FastCGI, SCGI, Websockets in balancer ➡ Additional load balancing mechanisms ➡ Runtime changing of clusters w/o restarts ➡ Support for dynamic configuration ➡ mod_proxy_express ➡ mod_fcgid and fcgistarter ➡ Support for Unix Domain Sockets @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 23. Backend Status ➡ Dynamic Health Checks ! ➡ TCP/IP Ping ➡ OPTIONS ➡ HEAD ➡ GET @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag ProxyHCExpr ok234 {%{REQUEST_STATUS} =~ /^[234]/} ProxyHCExpr gdown {%{REQUEST_STATUS} =~ /^[5]/} ProxyHCExpr in_maint {hc('body') !~ /Under maintenance/} <Proxy balancer://foo/> BalancerMember http://www.example.com/ hcmethod=GET hcexpr=in_maint hcuri=/status.php BalancerMember http://www2.example.com/ hcmethod=HEAD hcexpr=ok234 hcinterval=10 BalancerMember http://www3.example.com/ hcmethod=TCP hcinterval=5 hcpasses=2 hcfails=3 BalancerMember http://www4.example.com/ </Proxy> ProxyPass "/" “balancer://foo/" ProxyPassReverse "/" “balancer://foo/"
  • 24. Mass Reverse Proxy ➡ Use the new mod_proxy_express module ➡ ProxyPass mapping obtained via db file ➡ Fast and efficient ➡ Still dynamic, with no config changes required ➡ micro-services? You betcha! @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag ProxyExpress map file ##
 ##express-map.db:
 ##

 www1.example.com http://192.168.002.2:8080
 www2.example.com http://192.168.002.12:8088
 www3.example.com http://192.168.002.10 ... www6341.example.com http://192.168.211.26 httpd.conf file ProxyExpressEnable On ProxyExpressDBMFile express-map.db
  • 25. Embedded Admin ➡ Allows for real-time ➡ Addition of new workers/nodes ➡ Change of LB methods ➡ Can be persistent! ➡ More RESTful ➡ Can be CLI-driven @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 26. Easy setup <Location /balancer-manager> SetHandler balancer-manager Require 192.168.2.22 </Location> @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag

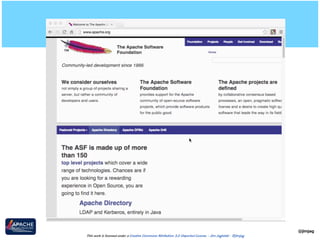

  • 27. This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag
  • 28. server-status aware This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag
  • 29. Performance ➡ From Nic Rosenthal Battle of the stacks
 (http://www.slideshare.net/AllThingsOpen/battle-of-the-stacks) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag HHVM + NGINX! ! vs! ! HHVM + Apache 2.4! ! http://ldr.io/1ogvD7X http://ldr.io/1ogD7b3 Response time: 76ms Response time: 60ms HHVM + NGINX HHVM + Apache 2.4 Image by Articularnos.com https://www.flickr.com/photos/articularnos/ Champion of the ! Battle Of The Stacks ATO Edition HHVM + Apache 2.4
  • 30. Performance ➡ From Bryan Call’s 2014 ApacheCon preso
 (http://www.slideshare.net/bryan_call/choosing-a-proxy-server-apachecon-2014) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag •  Squid&used&the&most& CPU&again& •  NGiNX&had&latency& issues& •  ATS&most&throughput& 0& 500& 1000& 1500& 2000& 2500& ATS& NGiNX& Squid& Varnish& hBpd& RPS$/$CPU$Usage$ 0& 5000& 10000& 15000& 20000& 25000& 30000& ATS& NGiNX& Squid& Varnish& hBpd& Requests$Per$Second$ 0& 5& 10& 15& 20& 25& 30& 35& 40& ATS& NGiNX& Squid& Varnish& hBpd& Latency$ Median& 95th&
  • 31. Raw Performance ➡ Event MPM : no longer experimental ➡ non-blocking ➡ async ➡ Faster, more efficient APR ➡ Smaller memory footprint ➡ More efficient data structures (worker and event) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 32. Apache httpd vs nginx ➡ Why nginx? Everyone asks about it... ➡ Benchmark: local and reverse proxy transaction times ➡ Apache httpd 2.4.22-dev, nginx 1.8.1 ➡ CentOS6, Dual Xeon 3.33GHz ➡ 4GB memory ➡ localhost loopback and external (no firewall) ➡ Double checked results: OSX 10.11.2 (8-core), Fedora 23 (4- core) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 33. Setup This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag loopbackSetup 1: Setup 2: Setup 3: Setup 3:
  • 34. Considerations ➡ Multiple benchmarking systems: ➡ flood (50/250/5/2, 50/100/5/2, 50/5/5/2) ➡ httperf (num-conns=100->20000, numcalls=3,10,100) ➡ weighttp ➡ Full URL requests (www.example.com/index.html) ➡ Static local requests ➡ Static reverse proxy requests ➡ All Apache httpd MPMs ➡ No significant “tuning” efforts (mostly out of the box configs) @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 35. nginx vs Event (typical) This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag Apache - Event MPM 0 500 1000 1500 2000 nginx 0 500 1,000 1,500 2,000 Open Write Read Close Increasing concurrency Increasing concurrency
  • 36. Apache - Prefork MPM 0 500 1000 1500 2000 nginx vs Prefork (typical) This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag nginx 0 500 1,000 1,500 2,000 Open Write Read Close Increasing concurrency Increasing concurrency
  • 37. Total req/resp time This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag Comparison - total transaction (close) 0 500 1000 1500 2000 Prefork Worker Event nginx Increasing concurrency
  • 38. Resp to Req. Bursts - httperf This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag 100 ---> 20000 0.00 1.75 3.50 5.25 7.00 min avg max dev min avg max dev min avg max dev min avg max dev min avg max dev min avg max dev prefork worker event nginx Increasing concurrency
  • 39. Independent benchmarks This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag Source: Ryosuke Matsumoto : http://blog.matsumoto-r.jp/?p=1812 #!/bin/sh RESULT='./result.txt'   for port in 80 8080 8888 do #for count in 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 #for count in 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 for count in 21000 22000 23000 24000 25000 26000 27000 28000 29000 30000 do echo -n "$port $count " >> $RESULT httperf --rate $count --num-conns 25000 --server ipaddr --port $port --uri=/test.html | grep "Request rate:" >> $RESULT.$port sleep 60 done done
  • 40. Take-away ➡ Today, the web-server isn’t the slow link in the chain. ➡ Benchmarks get stale… fast! ➡ Real world trumps test environs ➡ Choose the right tool for the right job @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 41. HTTP/2 ➡ Implements RFC 7540 ➡ Supports both h2 (HTTP/2 over TLS) and h2c (HTTP/2 over TCP[cleartext]) ➡ Enterprise-ready regarding stability, performance, etc. ➡ Also supported in mod_proxy ➡ Perfect compliance @jimjag This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag
  • 42. Thanks This work is licensed under a Creative Commons Attribution 3.0 Unported License. - Jim Jagielski - @jimjag @jimjag Twitter: @jimjag Emails:
 jim@jaguNET.com
 jim@apache.org
 jimjag@gmail.com http://www.slideshare.net/jimjag/
