Now that you have your apps running on K8s, wondering how to get the response time that you need ? Tuning a polyglot set of microservices to get the performance that you need can be challenging in Kubernetes. The key to overcoming this is observability. Luckily there are a number of tools such as Prometheus that can provide all the metrics you need, but here is the catch, there is so much of data and metrics that is difficult make sense of it all. This is where Hyperparameter tuning can come to the rescue to help build the right models.
This talk covers best practices that will help attendees
1. To understand and avoid common performance related problems.
2. Discuss observability tools and how they can help identify perf issues.
3. Look closer into Kruize Autotune which is a Open Source Autonomous Performance Tuning Tool for Kubernetes and where it can help.

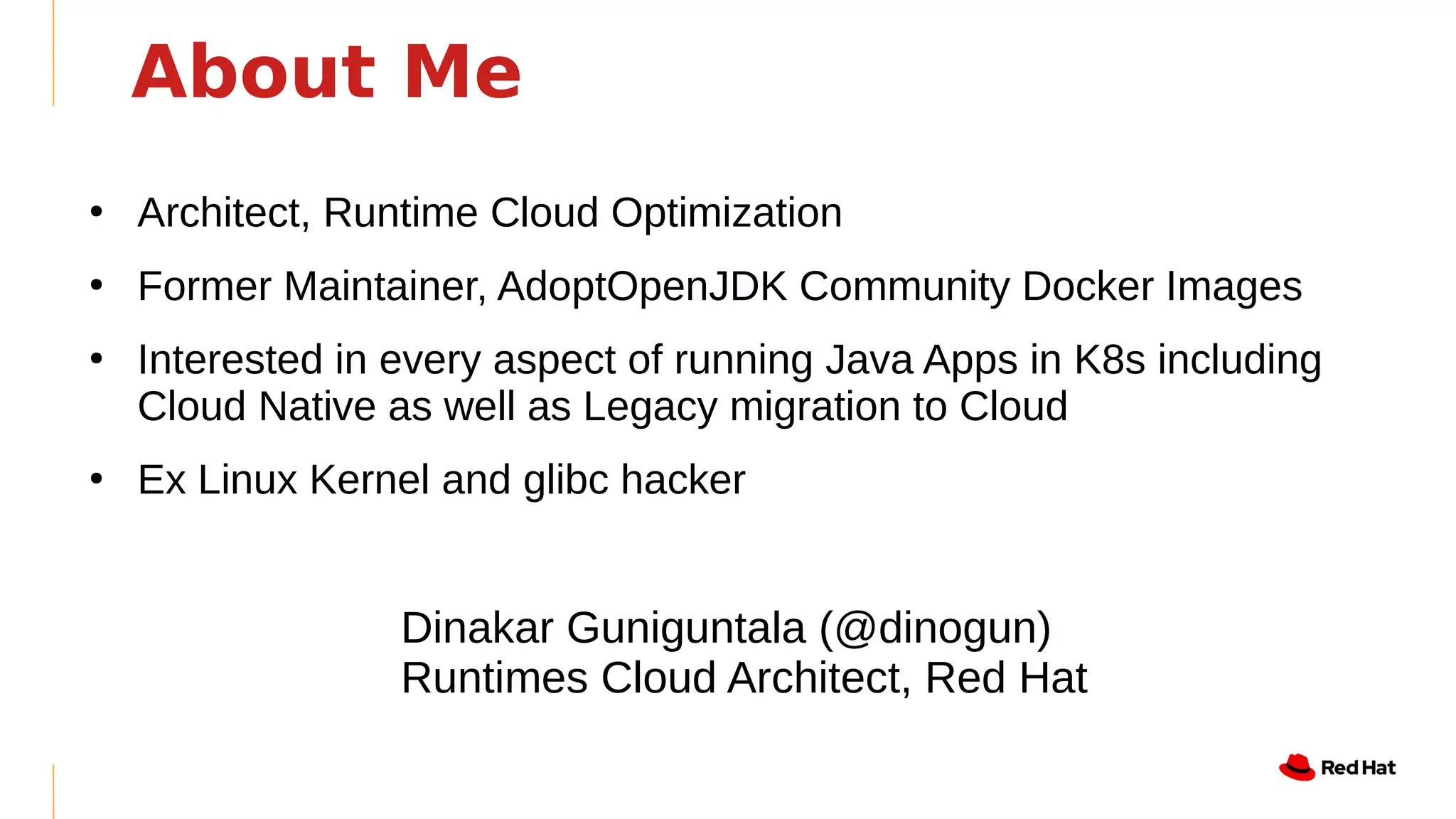

2. About Me
●
Architect, Runtime Cloud Optimization
●
Former Maintainer, AdoptOpenJDK Community Docker Images
●
Interested in every aspect of running Java Apps in K8s including
Cloud Native as well as Legacy migration to Cloud
●
Ex Linux Kernel and glibc hacker
Dinakar Guniguntala (@dinogun)
Runtimes Cloud Architect, Red Hat
3. Kubernetes is a portable,
extensible, open-source
platform for managing
containerized workloads
and services, that facilitates
both declarative configuration
… blah blah blah
Kitna Deti Hai ?*
Any questions ?
* What's the mileage ?
7. What is the granularity of observation ?
●
Trade-off between accurate info and overhead
Additional Operational Info
●
Quarkus Micrometer
●
Spring Actuator
●
Liberty MicroProfile
●
Node.js prom-client
Observability
8. BIOS
●
CPU Power and Performance Policy: <Performance>
OS / Hypervisor
●
CPU Scaling governor: <Performance>
$ cat
/sys/devices/system/cpu/cpu0/cpufreq/scaling_available_governors
performance powersave
$ cat /sys/devices/system/cpu/cpu0/cpufreq/scaling_governor
Performance
Hyperthreading
●
Do not count hyperthreading while capacity planning
Don’t Forget The Hardware
10. Node Affinity
●
Helps to match workloads to right resources
Pod Affinity
●
Helps to schedule related pods together
Node and Pod Affinities
spec:
affinity:
podAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: security
operator: In
values:
- S1
topologyKey: topology.kubernetes.io/zone
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchExpressions:
- key: security
operator: In
values:
- S2
topologyKey: topology.kubernetes.io/zone
11. CPU Request / Limit Memory Request / Limit
SRE
Lower My Response Time!
Node Affinity Pod Affinity
12. K8s QoS
classes
Guaranteed
Burstable
BestEffort
Right Size
apiVersion: apps/v1
kind: Deployment
metadata:
name: acmeair
labels:
app: acmeair-app
spec:
replicas: 1
selector:
matchLabels:
app: acmeair-deployment
template:
metadata:
labels:
name: acmeair-deployment
app: acmeair-deployment
app.kubernetes.io/name: "acmeair-mono"
version: v1
spec:
volumes:
- name: test-volume
hostPath:
path: "/root/icp/jLogs"
type: ""
containers:
- name: acmeair-libertyapp
image: dinogun/acmeair-monolithic
imagePullPolicy: Always
ports:
- containerPort: 8080
resources:
requests:
memory: 500M
cpu: 2
limits:
memory: 1024M
cpu: 3
volumeMounts:
- name: "test-volume"
mountPath: "/opt/jLogs"
Ensure LimitRange does not
get in the way of your
deployment !
apiVersion: v1
kind: LimitRange
metadata:
name: limit-range
spec:
limits:
- default:
cpu: 1
memory: 512Mi
defaultRequest:
cpu: 0.5
memory: 256Mi
type: Container
Requests → Should cover the observed peaks
Limits → Handle any spikes !
13. CPU Request / Limit Memory Request / Limit
SRE
Java Heap Size / Ratio
Lower My Response Time!
Node Affinity Pod Affinity
14. Container Aware JVM
Use -XX:MaxRAMPercentage and
-XX:InitialRAMPercentage
instead of -Xmx and -Xms.
Heap = 2.4G
Container Mem = 3G
Container Mem = 2G Container Mem = 4G
-Xmx = 2G -Xmx = 2G -Xmx = 2G
Comparing a fixed heap size with a “MaxRAMPercentage” setting
Here “-XX:MaxRAMPercentage=80”
Don’t Hardcode the Java Heap!
Heap = 1.6G Heap = 3.2G
Beware of Default Hotspot
Settings
If container “mem < 1G”,
assumed as “client-class”
machine by the JVM and
the default is “serial GC” !
15. CPU Request / Limit Memory Request / Limit
SRE
Java Heap Size / Ratio
Lower My Response Time!
Node Affinity Pod Affinity
VPA HPA CA
16. It’s All About the Scaling
apiVersion: autoscaling/v2beta2
kind: HorizontalPodAutoscaler
metadata:
name: php-apache
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: php-apache
minReplicas: 1
maxReplicas: 10
metrics:
- type: Resource
resource:
name: cpu
target:
type: Utilization
averageUtilization: 50
- type: Pods
pods:
metric:
name: packets-per-second
target:
type: AverageValue
averageValue: 1k
- type: Object
object:
metric:
name: requests-per-second
describedObject:
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
name: main-route
target:
type: Value
value: 10k
Set HPA with app specific metrics
- type: External
external:
metric:
name: concurrent_connections
selector: "connection=current"
target:
type: Value
Value: 1200
apiVersion: policy/v1beta1
kind: PodDisruptionBudget
metadata:
name: zk-pdb
spec:
maxUnavailable: 1
selector:
matchLabels:
app: zookeeper
Use PodDisruptionBudget with CA
to ensure no service disruption
20. So what do we need here ?
●
Multiple stake holders to express requirements as an
“Objective Function”
●
Autonomously detect all the right options that tries to
match the “Objective Function”
●
Try options intelligently and provide a recommendation
27. Summary: Better perf at a cost of higher hardware config
For full results please see
https://github.com/kruize/autotune-results/tree/main/techempower/experiment-4
Autotune vs Default Config – Take 1
[ Obj Fn = Minimal Response Time ]
60% better response time 19% better throughput
29. Summary: Better perf but slightly higher tail latencies
For full results please see
https://github.com/kruize/autotune-results/tree/main/techempower/experiment-6
Autotune vs Default Config – Take 2
[ Obj Fn = Minimal Response Time + Fixed Resources (4C, 4GB) ]
64% better response time 6% better throughput
30. 1.91 ms
Default
5.01 ms
Autotune vs Default Config – Take 3
[ Obj Fn = Minimal Response Time + Fixed Resources (4C, 4GB) + Low Tail Latency ]
31. Best perf taking into account all requirements !
For full results please see
https://github.com/kruize/autotune-results/tree/main/techempower/experiment-7
Autotune vs Default Config – Take 3
[ Obj Fn = Minimal Response Time + Fixed Resources (4C, 4GB) + Low Tail Latency ]
62% better response time 7% better throughput
32. Cost for handling 1 million transactions / sec
For full results please see
https://github.com/kruize/autotune-results/tree/main/techempower/experiment-7
Autotune vs Default Config – Take 3 - COST
[ Obj Fn = Minimal Response Time + Fixed Resources (4C, 4GB) + Low Tail Latency ]
8% cost reduction
34. Autotune Roadmap
●
Autotune MVP expected 1H 2022
●
Currently single service only
●
For Dev / QA environments
●
Different load conditions = multiple
recommended configs
●
HPA recommendation
35. Summary
●
Observability is Key
●
Do not forget to tune the hardware
●
Set Node and Pod Affinities
●
Ensure requests and limits are set for all app pods and right sized
●
Do not hardcode the Java heap
●
Use app specific scaling metrics
●
Ensure no disruption with PDB
●
Check out Autotune for autonomous tuning and stay tuned(!) for
updates.
