Utilizing Amazon S3 and EC2 in Rails
- 1. Utilizing Am azo n S3 and EC2 in Rails Jonathan Weiss, Peritor Wissensmanagement GmbH RailsConf Europe Berlin, 2007
- 2. Starting Po int One machine: • Apache QuickTimeﾪ and a • Ruby / Rails TIFF (LZW) decompressor are needed to see this picture. • MySQL 2

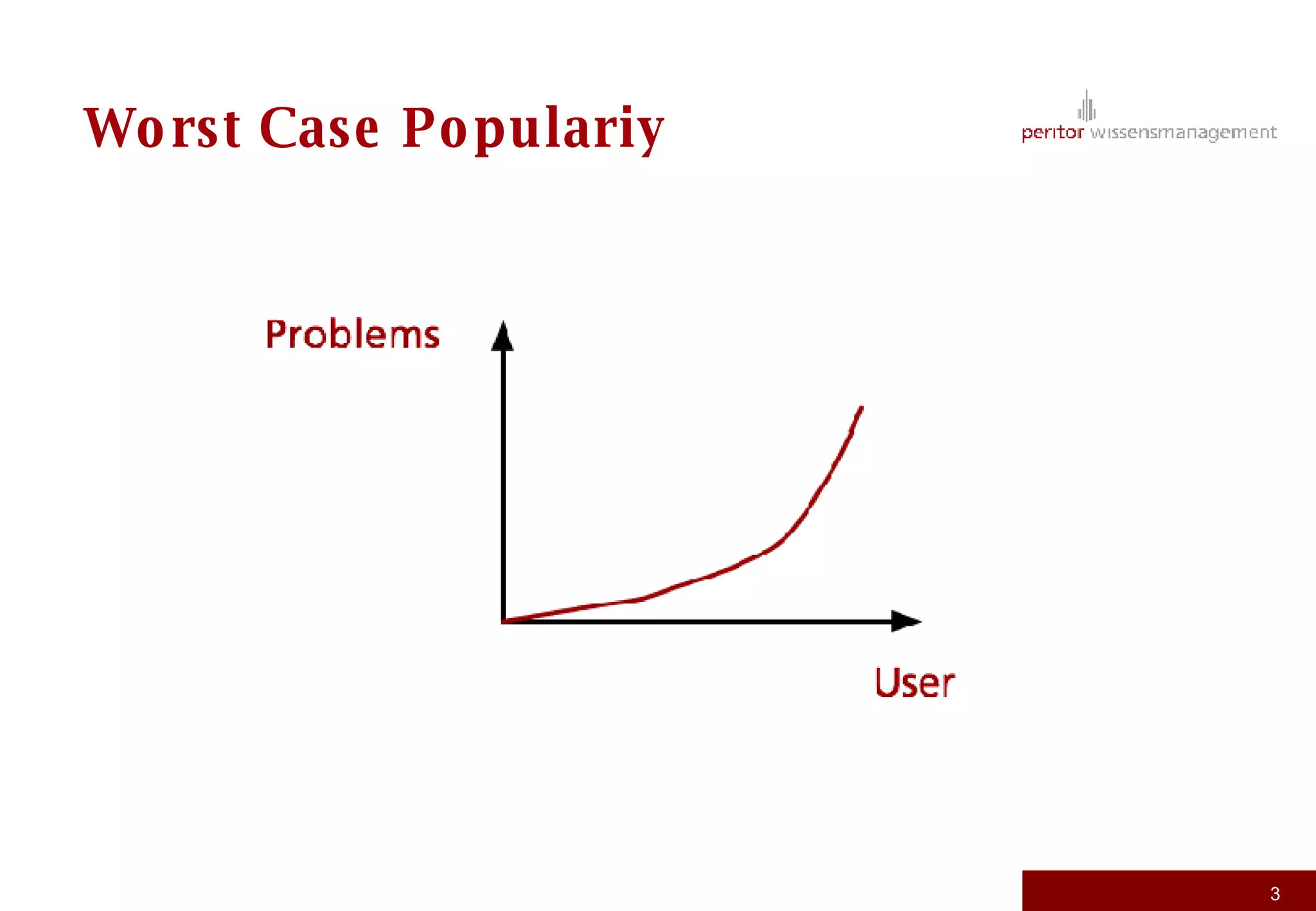

- 3. Wo rst Case Po pulariy 3
- 4. A Difficult Path QuickTimeﾪ and a TIFF (LZW) decompressor are needed to see this picture. 4
- 5. Pro ble m : Backup • High availability • Redundancy • Very big data sets 5

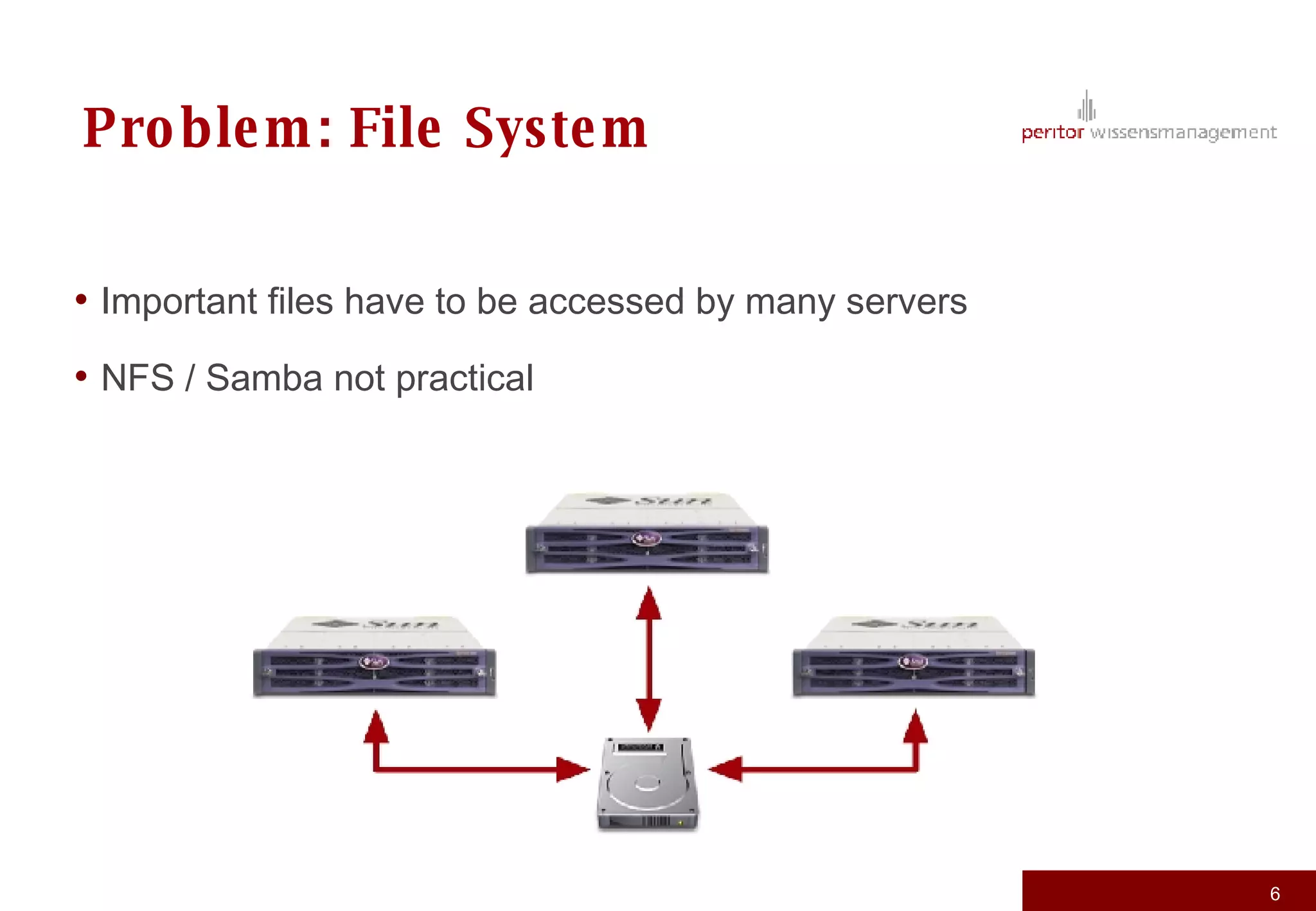

- 6. Pro ble m : File Syste m • Important files have to be accessed by many servers • NFS / Samba not practical 6

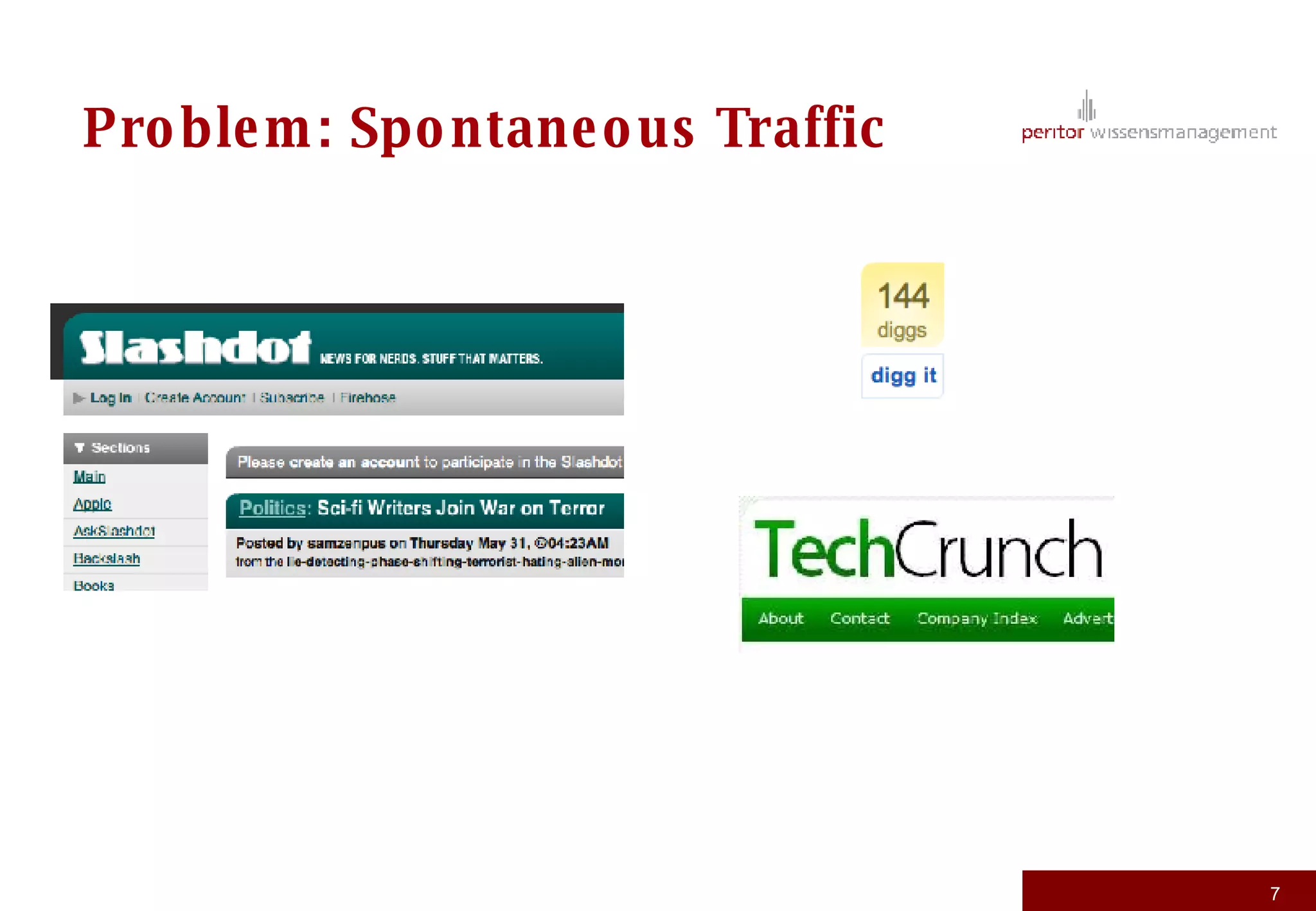

- 7. Pro ble m : Spo ntane o us Traffic 7

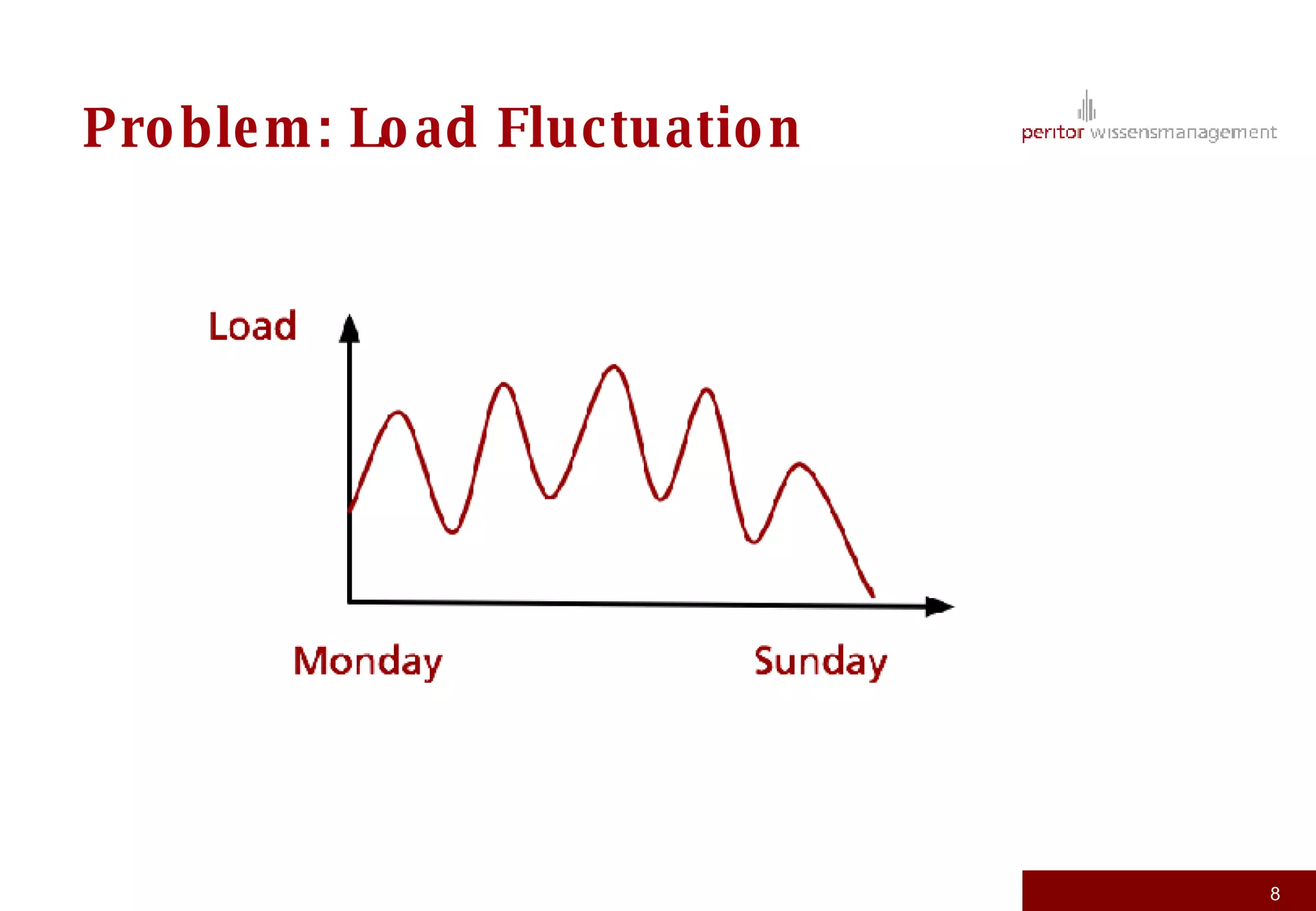

- 8. Pro ble m : Lo ad Fluctuatio n 8
- 9. Do n‘t re inve nt the w he e l! 9
- 10. Am azo n We b Se rvice s Simple Storage Service - S3 Elastic Compute Cloud - EC2 E-Commerce S.. Redundant Data Store Virtual server per hour ……. $0,15 per GB data per month $0,10 per CPU hour $0,10 - $0,20 per GB traffic $0,10 - $0,20 per GB traffic 10
- 11. S3 - Sim ple Sto rage Se rvice • Redundant storage - as much as you like • max. 5 GB per object • Organized in „Buckets“ • Web Service API for uploads • Downloads via • Web Service • HTTP / HTTPS • BitTorrent 11
- 12. S3 - Bucke ts S3 • Unique over all S3 • Contains many MyBucket_name www.peritor.com key-value-metadata tupel foto_5.jpg site/screen.css • Cannot contain other buckets! backups/januar.zip site/script.js • Key can contain „/“ fotos/2007/001.png FreeBSD-6.2.iso 12
- 13. S3 w ith AWS::S3 Upload Download 13
- 14. EC2 - Elastic Co m pute Clo ud • Based on XEN virtualization • On demand virtual servers - controlled with Web Service API • 1,7 GHz • 1,75 GB RAM • 160 GB local file system (not persistent!) • Use your favorite Linux distro (Linux 2.6.16), Amazon Machine Images (AMI) are stored on S3 • ACLs for hosts/ports access control 14
- 15. EC2 To o ls List availabe images Start a new instance Login with SSH Shutdown instance 15
- 16. am azo n-e c2 ge m Setup Usage 16
- 17. And no w ? Ho w do e s this so lve m y pro ble m s? 17
- 18. S3 - Backup • s3sync.rb • S3Browser • Brackup • Firefox S3 Organizer extension • Jungle Disk •… • S3 FUSE • s3DAV • Duplicity 18
- 19. s3sync.rb Backup Restore 19
- 20. S3 Asse t Ho st 20
- 21. S3 Asse t Ho st Setup DNS Rails configuration 21
- 22. S3 Asse t Ho st welcome.rhtml template Output 22
- 23. S3 - Authe nticate d Use r Data 23
- 24. attachm e nt_fu Rails plugin Setup 24
- 25. attachm e nt_fu Rails plugin Upload Download 25
- 26. O n-De m and Co m puting w ith EC2 Time based, e.g. with cron 26
- 27. O n-De m and Co m puting w ith EC2 Load based, e.g. with Monit 27
- 28. O n-De m and Co m puting w ith EC2 28

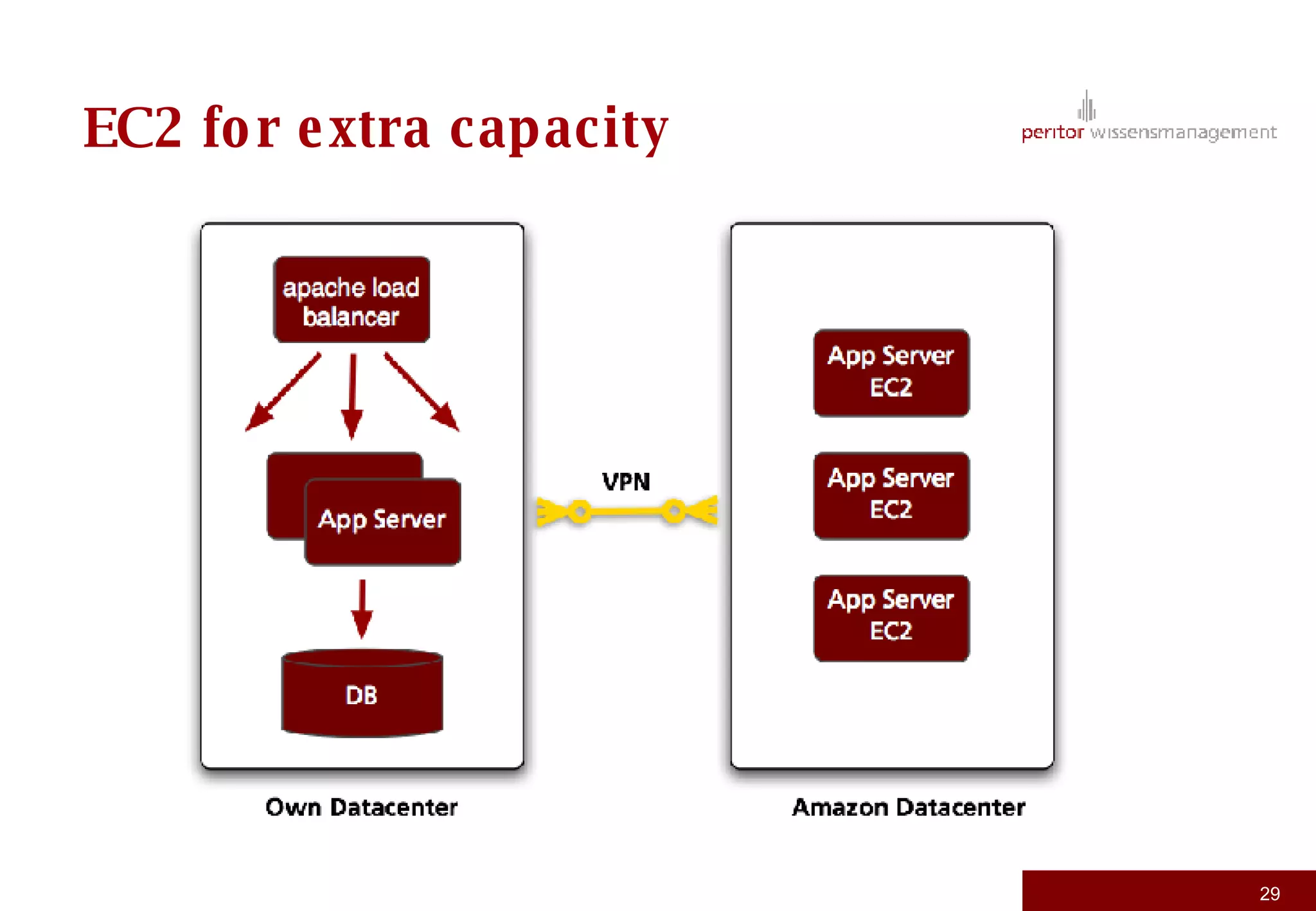

- 29. EC2 fo r e xtra capacity 29
- 30. Lo ad Balance r / Pro xy Example mod_proxy_blancer: • Talks to multiple backend servers (Mongrel) • Central Proxy/Load-Balancer configuration that has knowledge about nodes • Typically proxy restart on config change 30
- 31. Sw iftiply Swiftiply Proxy: • Multiple backend clients have a persistent connection to the backend port • Proxy listens on cluster port for requests and forwards them No re-configuration 31

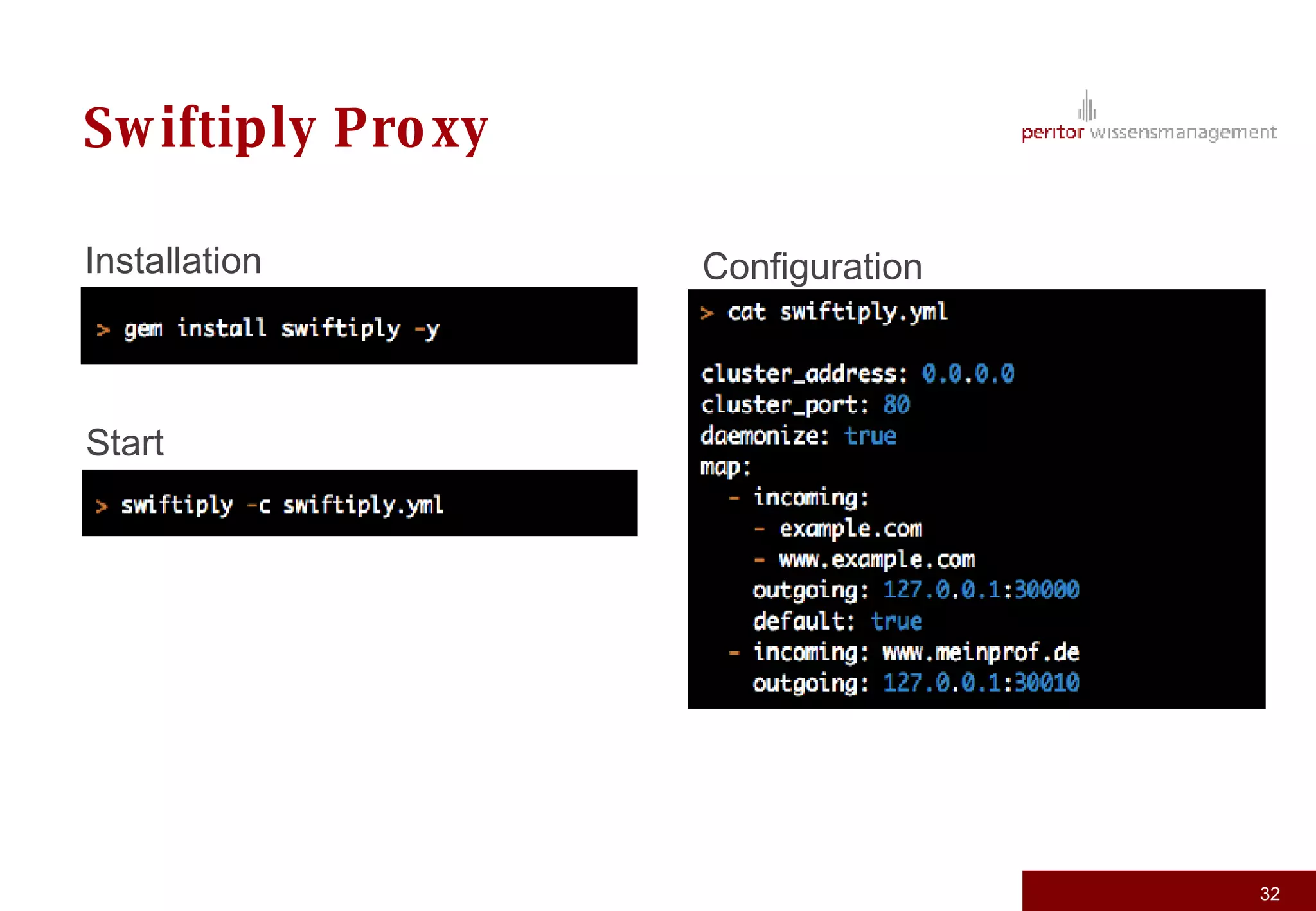

- 32. Sw iftiply Pro xy Installation Configuration Start 32

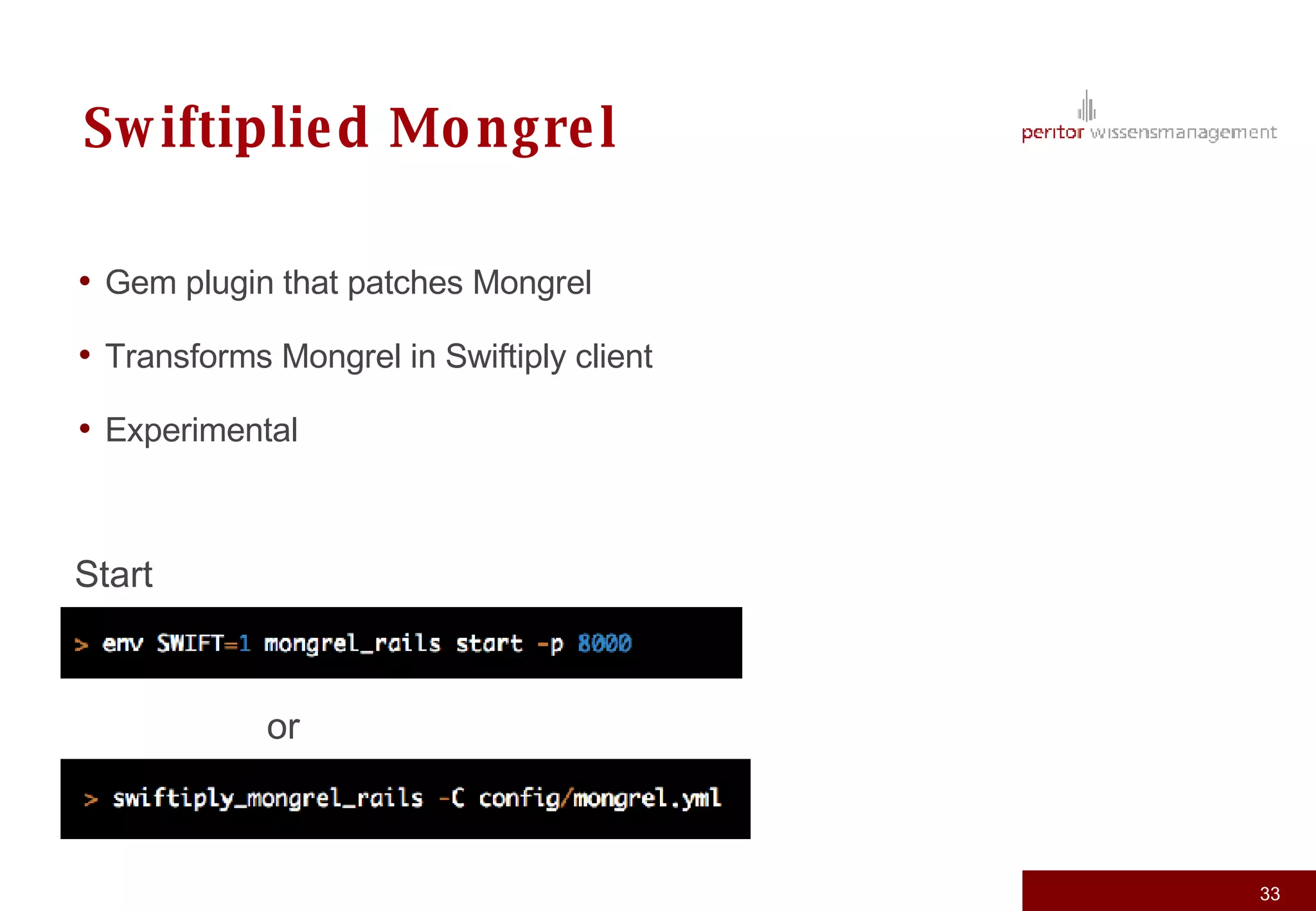

- 33. Sw iftiplie d Mo ngre l • Gem plugin that patches Mongrel • Transforms Mongrel in Swiftiply client • Experimental Start or 33
- 34. EC2 o n De m and be fo re Sw iftiply 34
- 35. EC2 o n De m and w ith Sw iftiply 35

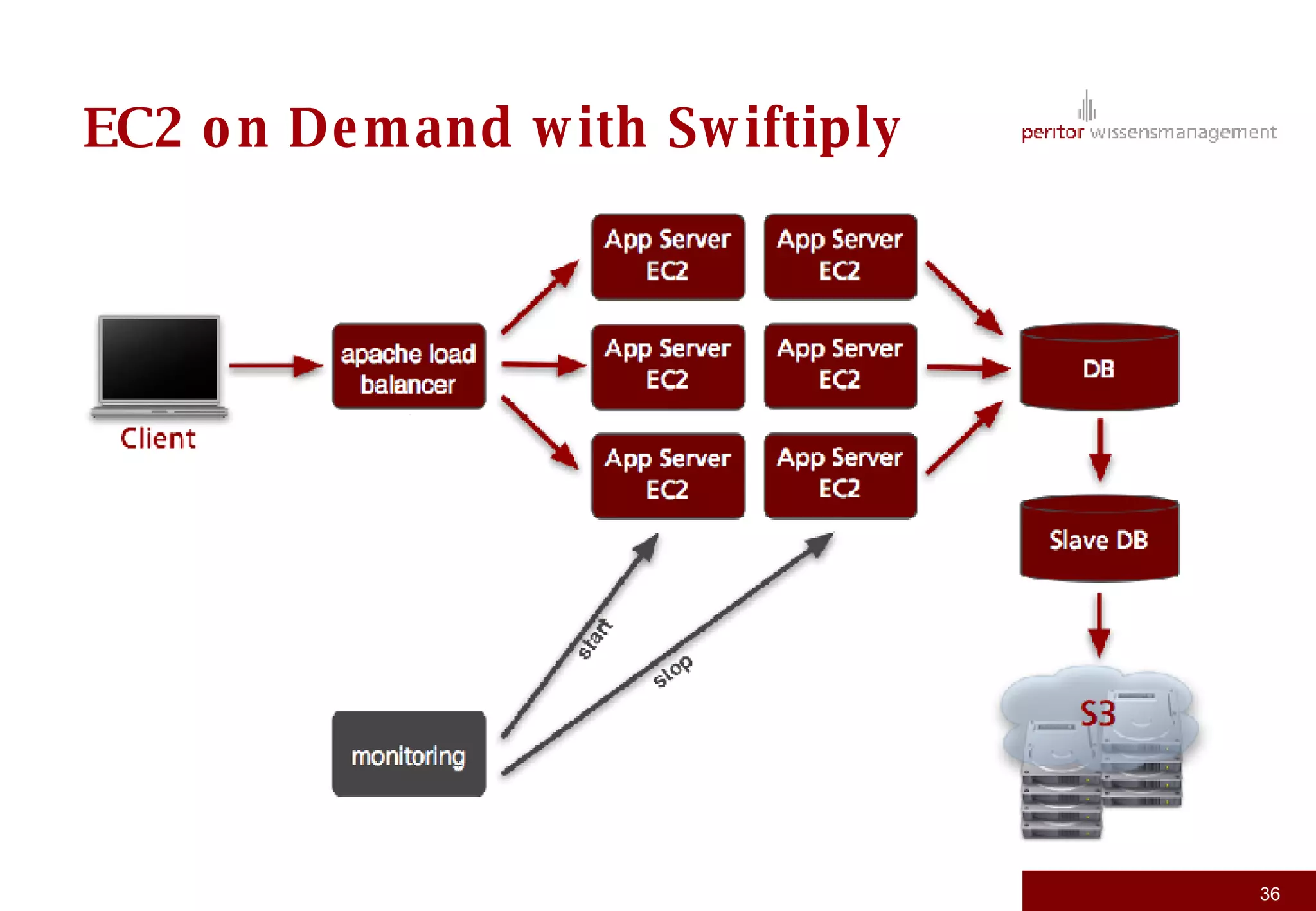

- 36. EC2 o n De m and w ith Sw iftiply 36
- 37. Re sso urce s • Amazon Web Services http://aws.amazon.com • Swiftiply http://swiftiply.swiftcore.org • Attachment_fu http://svn.techno-weenie.net/projects/plugins/attachment_fu/ • Elastic Rails http://www.elasticrails.com • Capazon http://capazon.rubyforge.org • RightScale http://www.rightscale.com 37
- 38. Peritor Wissensmanagement GmbH Lenbachstraße 2 12157 Berlin Telefon: +49 (0)30 69 40 11 94 Internet: www.peritor.com Telefax: +49 (0)30 69 40 11 95 Email: info@peritor.com Peritor Wissensmanagement GmbH - All Rights Reserved 38
