ACRN provides features to optimize real-time virtual machines (RTVM) such as CPU and cache partitioning and device passthrough. Tuning steps for RTVM include BIOS settings, configuring a Preempt-RT Linux kernel, and using tools to profile hypervisor exits and performance monitor unit data. Resource partitioning isolates the RTVM to reduce interference from other VMs. Profiling helps identify optimization opportunities and root causes of issues.

1. Photo
ACRN Real Time Management and
Performance Optimization
Minggui Cao (minggui.cao@intel.com)
ACRN vMeet-Up Europe 2021

2. Agenda
• Challenges in RTVM (Real Time VM) in ACRN
• ACRN RT main features supported:
• CPU partition / LAPIC / PCI Device passthrough
• CAT configuration
• RT profiling/tuning on ACRN
• Tuning steps for RTVM
• BIOS setting for RT
• Configurations of RTVM example: Preempt-RT Linux
• VMEXIT data profiling
• PMU data sampling example: cyclictest
• Summary

3. Challenges in RTVM
• Resource contention
o CPU in other VMs
o GPU
o DMA/MMIO operation on Device
• Cost in virtualization
o device virtualization
o VM Exit:
▪ CPUID，specific MSR，Port IO...
• Longer path to optimize RT
o BIOS -> Hypervisor -> Guest OS -> RT task
Hardware( CPU/Device ...)
Linux
Service OS
RT work on ACRN targets:
1. Reduce the impact of virtualization on real time performance
2. Reduce other VM’s interference to RTVM.

4. ACRN RTVM - CPU partition / LAPIC passthrough
ACRN Hypervisor
RTVM
PCI Device Driver
MSI-X
table
CFG
space
PBA
space
BAR
space
INTx
IRQ
PCI device
direct
interrupt delivery
trap & emulation
pointer MSI MSI-X
LAPIC
MSI
IRQ
INTx
pass-thru
• RTVM CPU partition
• LAPIC PT: Avoid VM-Exit caused by interrupt
• Devices Passthrough
• Some limitations to RTVM:
• Just x2APIC adopted in RTVM (for MSR access)
• PCI devices passthrough
o Just MSI supported, INTx not supported
o After device passthrough configured，guest OS shall avoid to
access configure space and MSI-X table.

5. ACRN RTVM – Cache partition based on CAT
CAT Waymask0
CAT
PQR_ASSOC
CAT
PQR_ASSOC
CAT Waymask
CAT Waymask0
CAT QOS_MASK0 (COS0)
CAT
PQR_ASSOC
CAT
PQR_ASSOC
CPU0 CPU1 CPU2 CPU3
global
LLC shared LLC RT partition
GPU
GT CLOS
Setting
GT part
• CAT: Cache Allocation Technology
• CPU LLC Cache partition:
o Some cache ways isolated for RTVM cores
o The rest of cache ways shared by other cores.
• GPU LLC
o GPU LLC allocated in the shared LLC
• Avoid other VM to invalidate whole Cache
o “WBINVD” will be trapped into ACRN, and emulated.

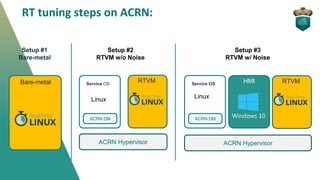

6. ACRN Hypervisor
HMI
Setup #3
RTVM w/ Noise
ACRN Hypervisor
SOS
ACRN DM
Service OS
RTVM
Setup #2
RTVM w/o Noise
Setup #1
Bare-metal
Bare-metal
ACRN DM
Service OS RTVM
RT tuning steps on ACRN:
Linux Linux

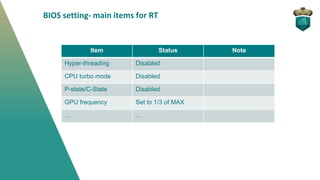

7. BIOS setting- main items for RT
Item Status Note
Hyper-threading Disabled
CPU turbo mode Disabled
P-state/C-State Disabled
GPU frequency Set to 1/3 of MAX
… …

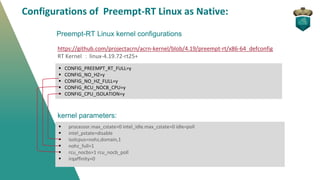

8. Preempt-RT Linux kernel configurations
https://github.com/projectacrn/acrn-kernel/blob/4.19/preempt-rt/x86-64_defconfig
RT Kernel ：linux-4.19.72-rt25+
▪ CONFIG_PREEMPT_RT_FULL=y
▪ CONFIG_NO_HZ=y
▪ CONFIG_NO_HZ_FULL=y
▪ CONFIG_RCU_NOCB_CPU=y
▪ CONFIG_CPU_ISOLATION=y
kernel parameters:
▪ processor.max_cstate=0 intel_idle.max_cstate=0 idle=poll
▪ intel_pstate=disable
▪ isolcpus=nohz,domain,1
▪ nohz_full=1
▪ rcu_nocbs=1 rcu_nocb_poll
▪ irqaffinity=0
Configurations of Preempt-RT Linux as Native:

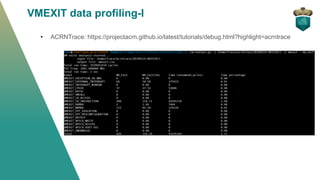

9. VMEXIT data profiling-I
• ACRNTrace: https://projectacrn.github.io/latest/tutorials/debug.html?highlight=acrntrace

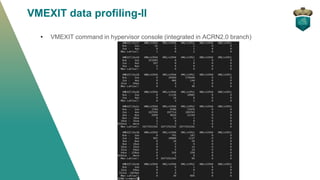

10. VMEXIT data profiling-II
• VMEXIT command in hypervisor console (integrated in ACRN2.0 branch)

11. PMU data sampling example: Cyclictest
• Cyclictest accurately and repeatedly measures the difference between a thread's
intended wake-up time and the time at which it actually wakes up in order to provide
statistics about the system's latencies. It can measure latencies in real-time systems
caused by the hardware, the firmware, and the operating system.
nanosleep nanosleep returns
Latency
...
Timeline
Expected returns
1ms to set
Actual total time

12. Cyclictest test settting:
• RTVM 2 CPU core isolated:
o House keeping core: core 0
o RT core: core 1
• RT Linux setting:
o Bind all IRQ to Core 0 except local timer
o Bind all RCU task to Core 0
o Set all tasks (non-RT tasks) SCHED_OTHER and
priority 0
## example CMD to run cyclictest
cyclictest -a 1 -p 80 -m -N -D 24h -q -H 30000 --histfile=test.log
numbers
latency
An example for profiling data chart:

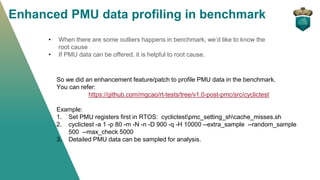

13. Enhanced PMU data profiling in benchmark
• When there are some outliers happens in benchmark, we’d like to know the
root cause
• If PMU data can be offered, it is helpful to root cause.
So we did an enhancement feature/patch to profile PMU data in the benchmark.
You can refer:
https://github.com/mgcao/rt-tests/tree/v1.0-post-pmc/src/cyclictest
Example:
1. Set PMU registers first in RTOS: cyclictestpmc_setting_shcache_misses.sh
2. cyclictest -a 1 -p 80 -m -N -n -D 900 -q -H 10000 --extra_sample --random_sample
500 --max_check 5000
3. Detailed PMU data can be sampled for analysis.

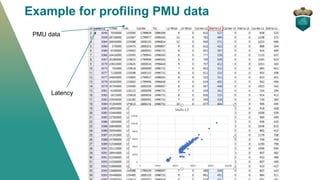

14. Example for profiling PMU data
PMU data
Latency

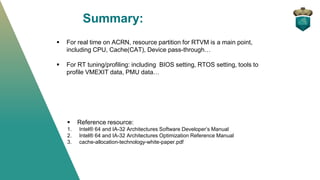

15. Summary:
▪ For real time on ACRN, resource partition for RTVM is a main point,
including CPU, Cache(CAT), Device pass-through…
▪ For RT tuning/profiling: including BIOS setting, RTOS setting, tools to
profile VMEXIT data, PMU data…
▪ Reference resource:
1. Intel® 64 and IA-32 Architectures Software Developer’s Manual
2. Intel® 64 and IA-32 Architectures Optimization Reference Manual
3. cache-allocation-technology-white-paper.pdf

16. Call for Participation
https://projectacrn.github.io/index.html
Joining ACRN Community Today!!!
