1. Accessibility for
Design & Content
With Marli and James

2. Marli Mesibov
VP, Content Strategy
James Christie
Director, UX Design

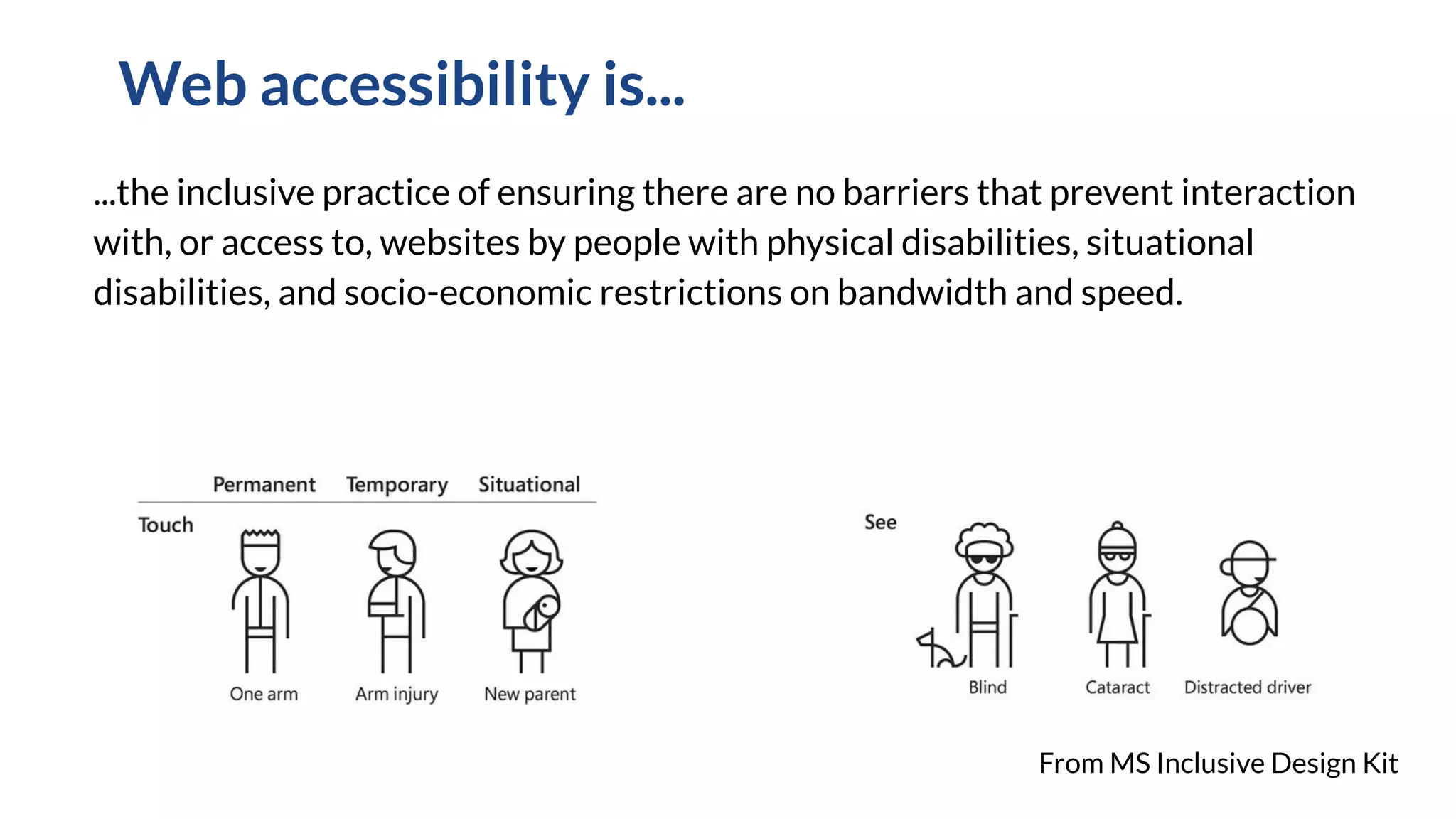

3. ...the inclusive practice of ensuring there are no barriers that prevent interaction
with, or access to, websites by people with physical disabilities, situational
disabilities, and socio-economic restrictions on bandwidth and speed.
Web accessibility is...
From MS Inclusive Design Kit

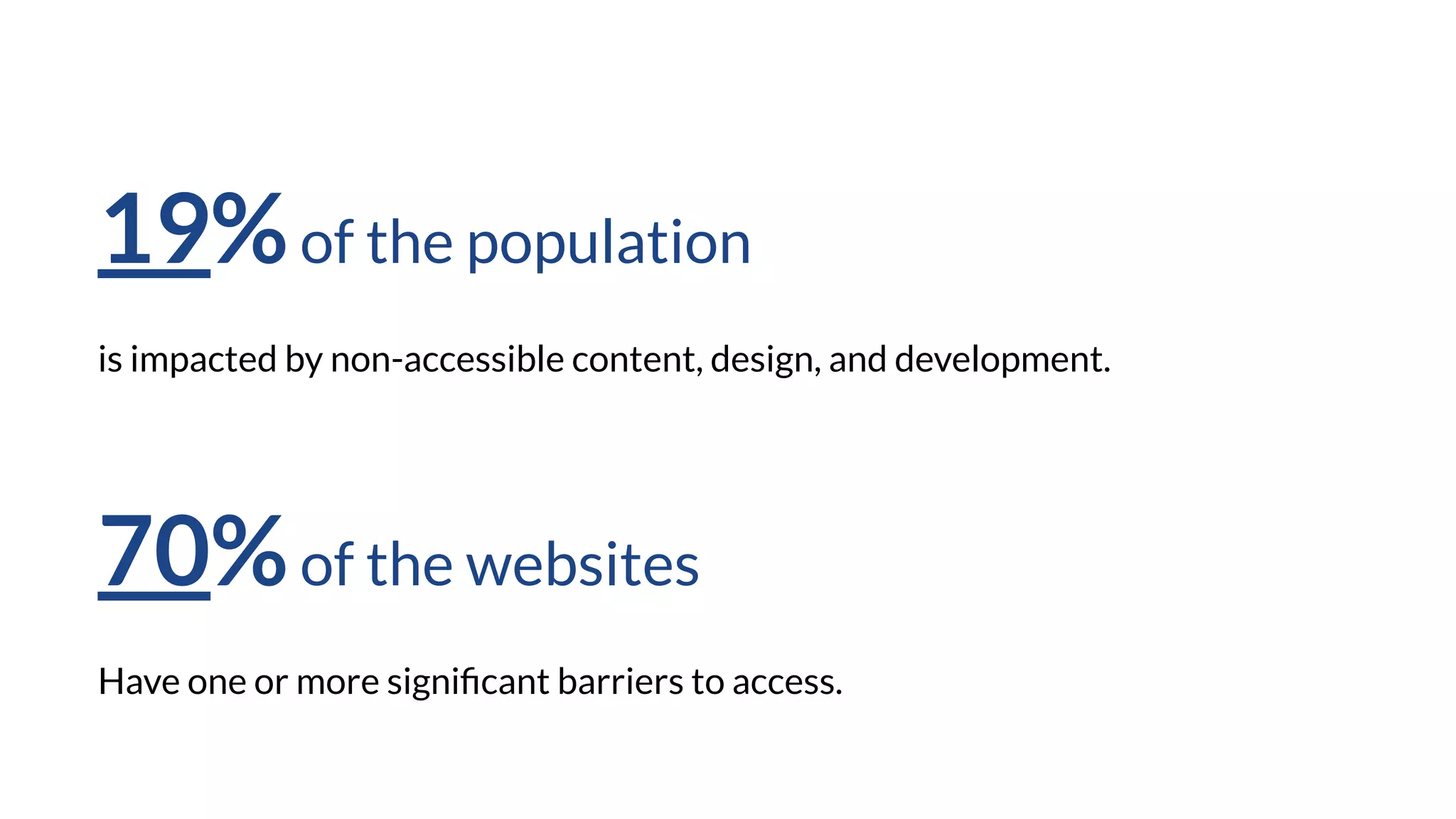

4. 19%of the population
is impacted by non-accessible content, design, and development.
70%of the websites
Have one or more significant barriers to access.

5. “Remember, we’re all
just temporarily abled.”
- Facundo Corradini, Accessibility for
Vestibular Disorders
Source: https://alistapart.com/article/accessibility-for-vestibular/

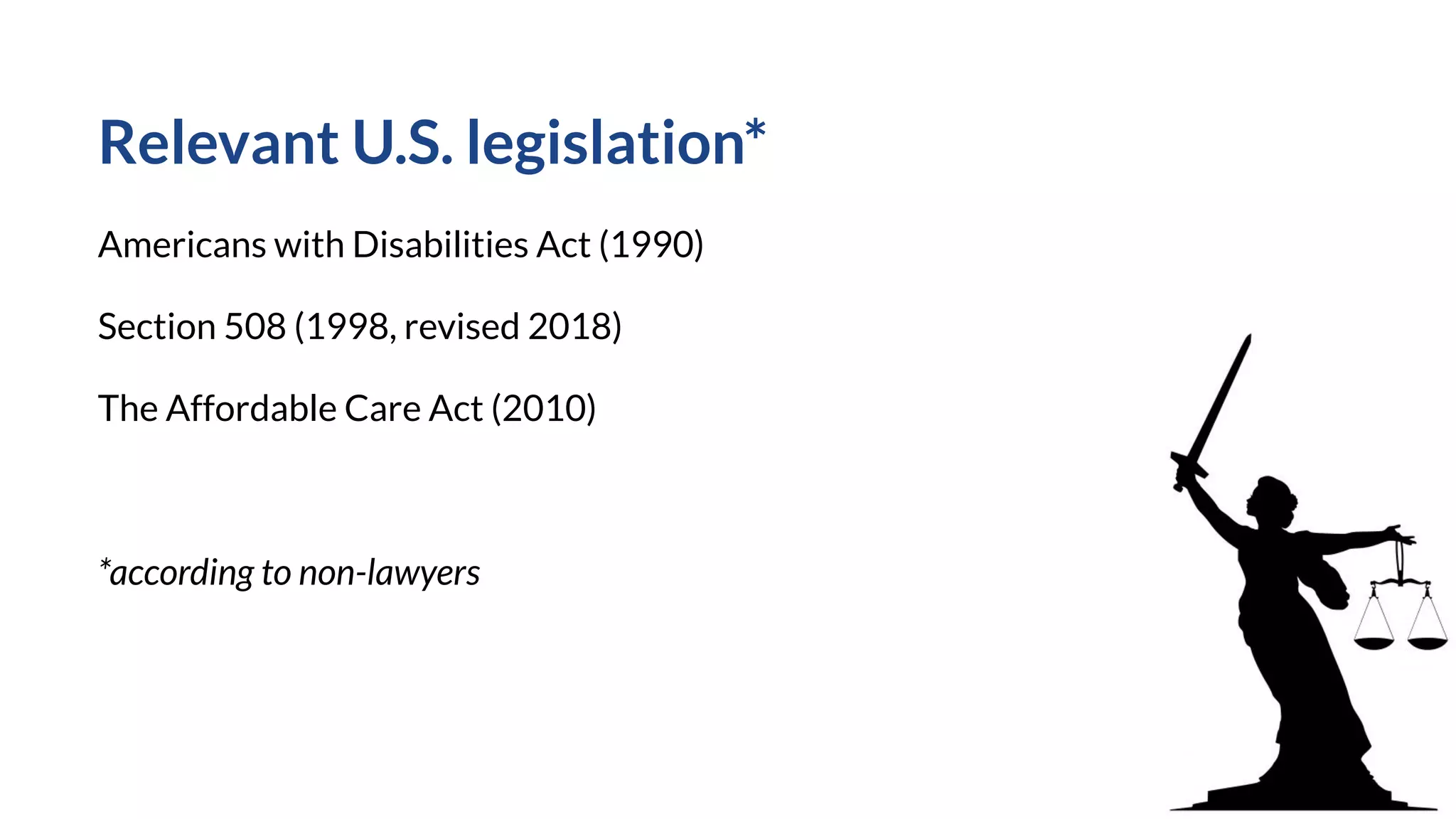

6. Relevant U.S. legislation*
Americans with Disabilities Act (1990)
Section 508 (1998, revised 2018)
The Affordable Care Act (2010)
*according to non-lawyers

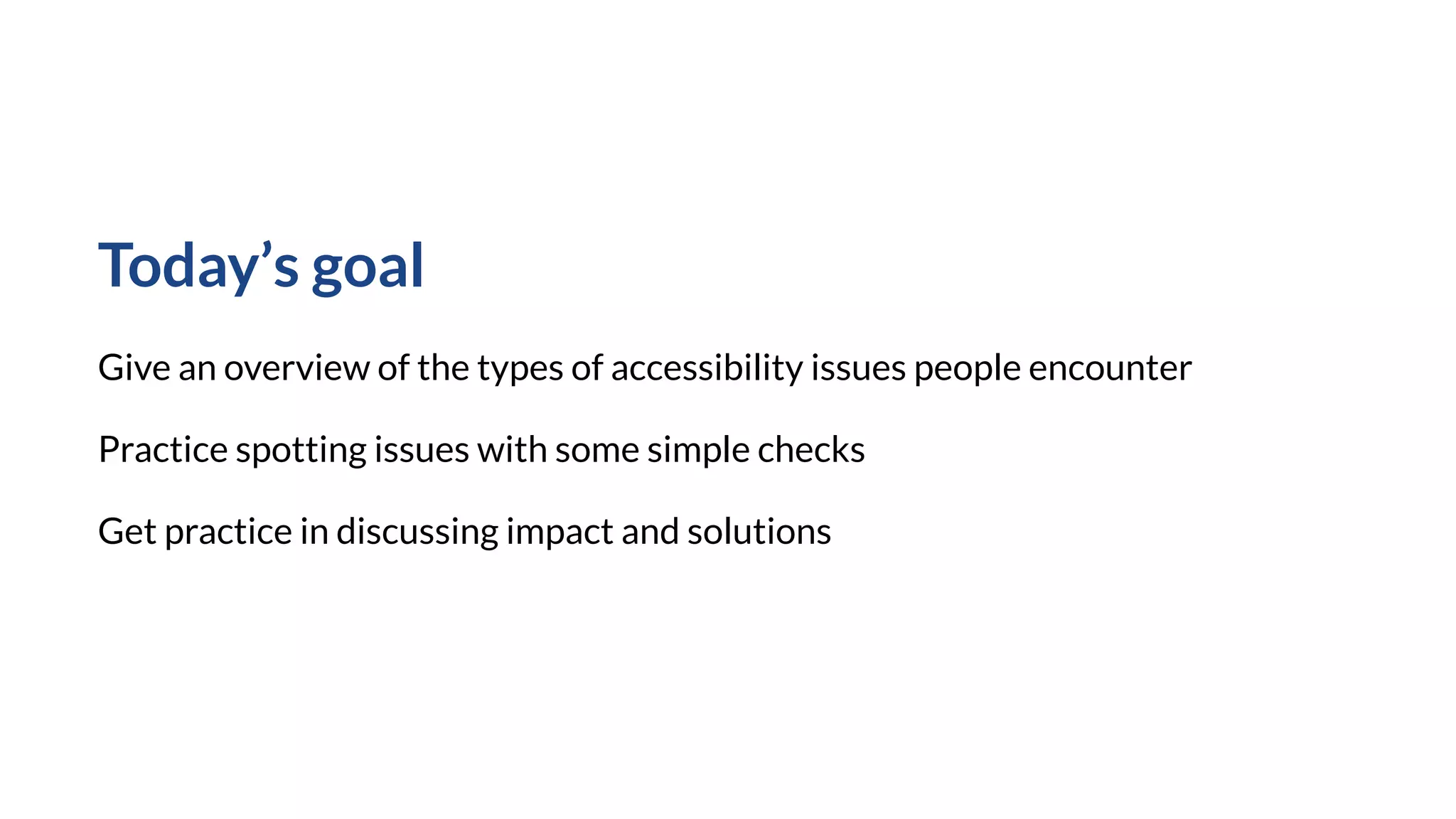

7. Today’s goal
Give an overview of the types of accessibility issues people encounter
Practice spotting issues with some simple checks
Get practice in discussing impact and solutions

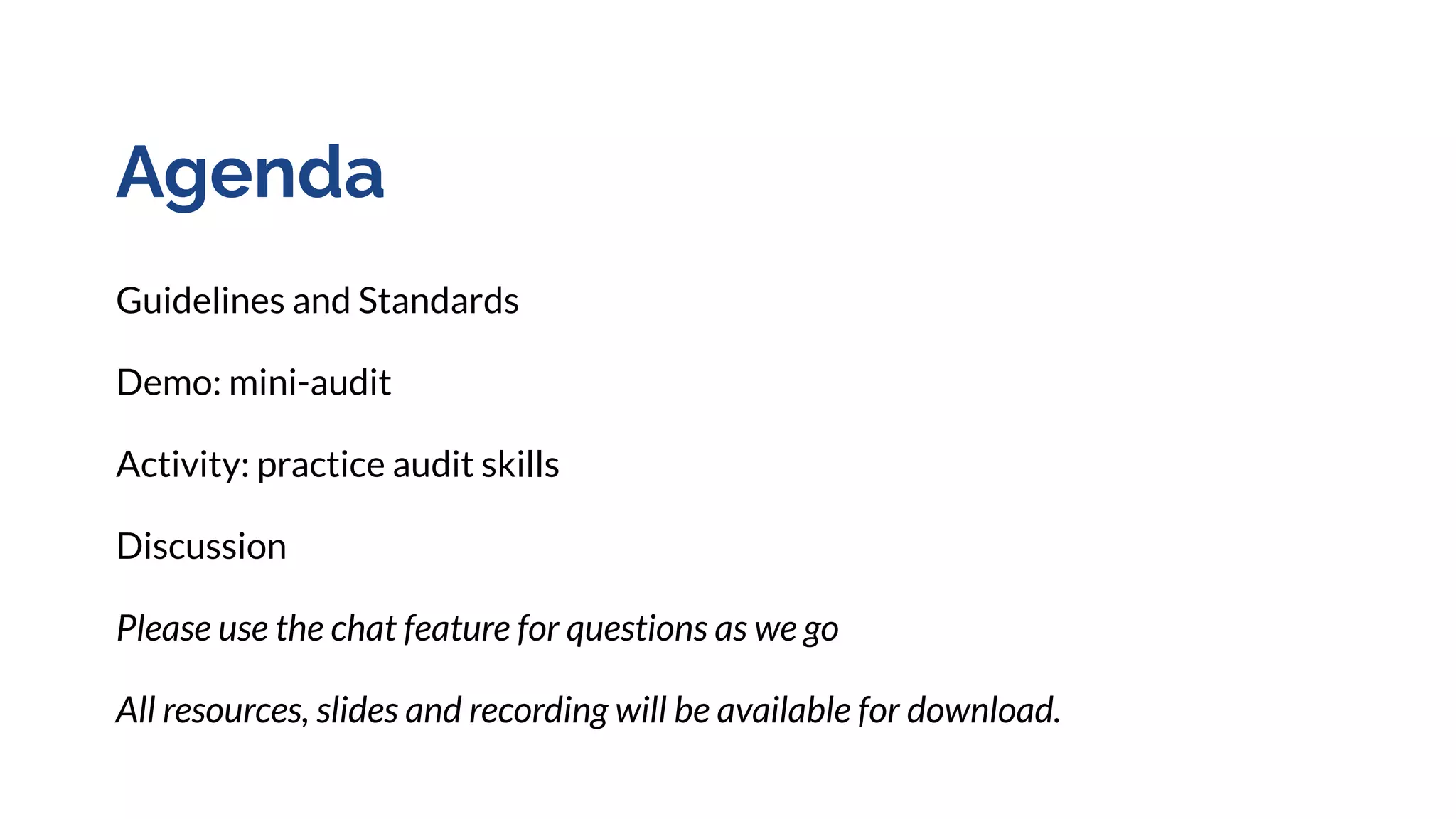

8. Agenda
Guidelines and Standards
Demo: mini-audit
Activity: practice audit skills
Discussion
Please use the chat feature for questions as we go
All resources, slides and recording will be available for download.

9. Accessibility guidelines

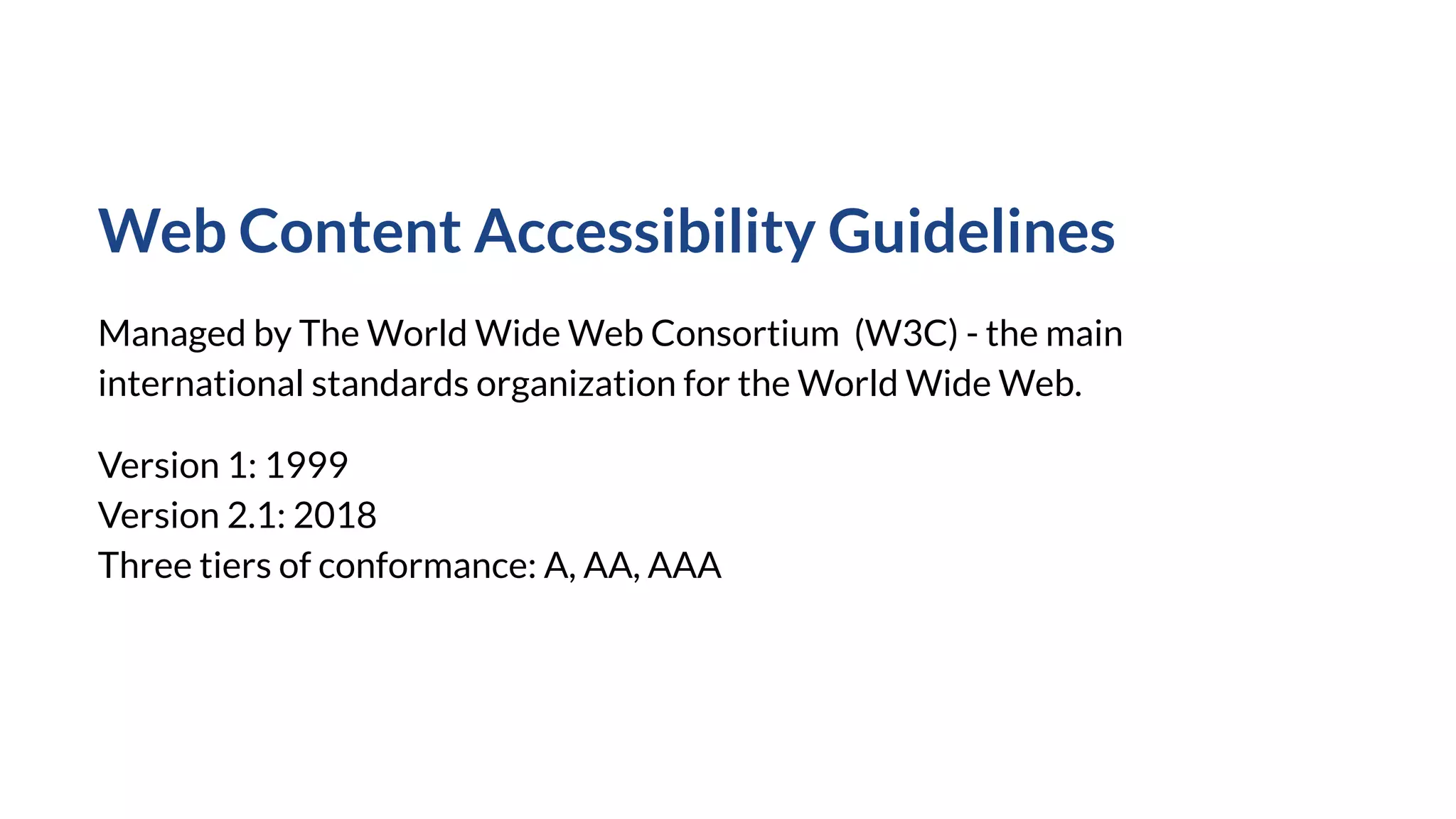

10. Web Content Accessibility Guidelines
Managed by The World Wide Web Consortium (W3C) - the main
international standards organization for the World Wide Web.
Version 1: 1999
Version 2.1: 2018
Three tiers of conformance: A, AA, AAA

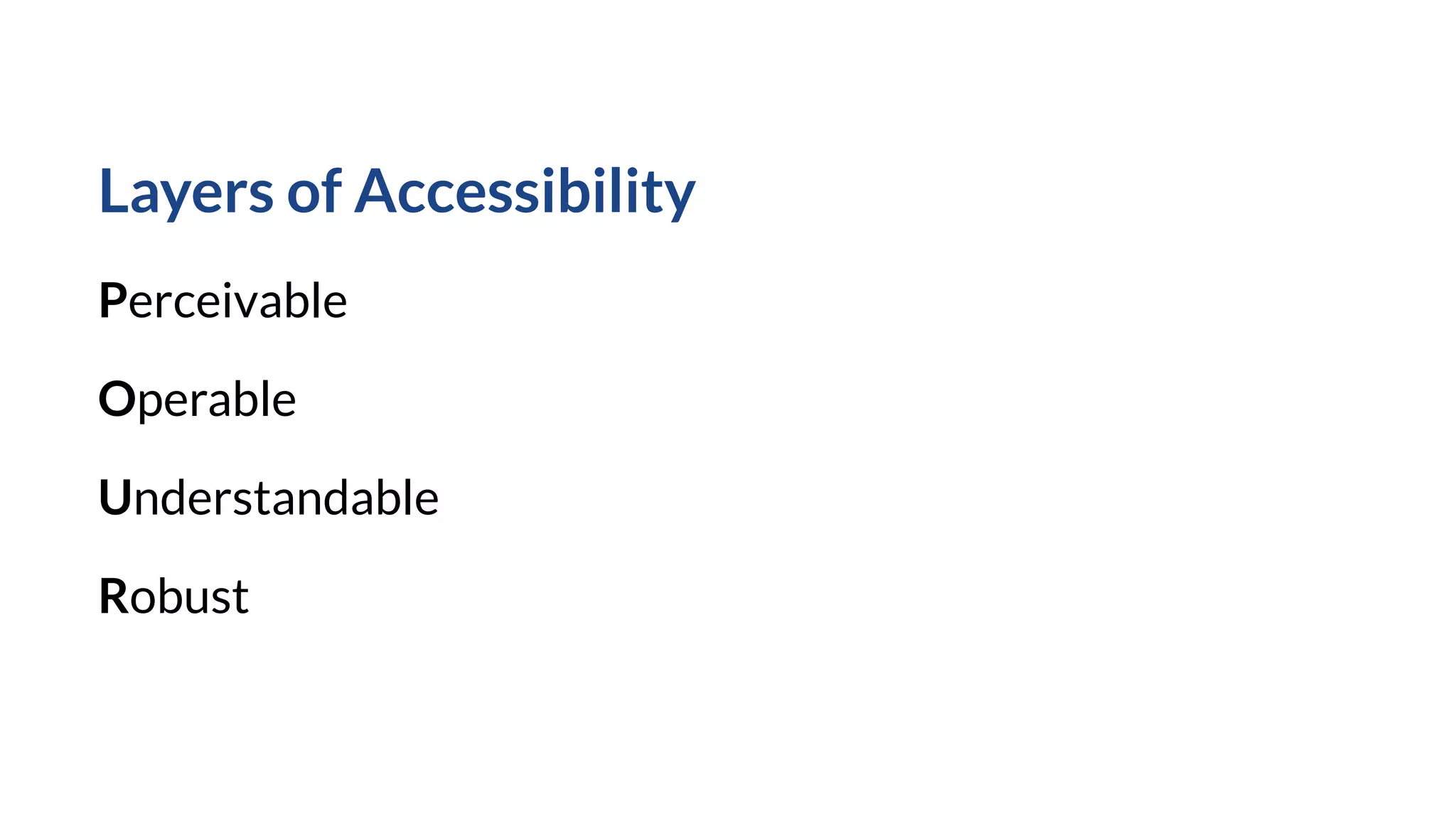

11. Layers of Accessibility
Perceivable
Operable
Understandable
Robust

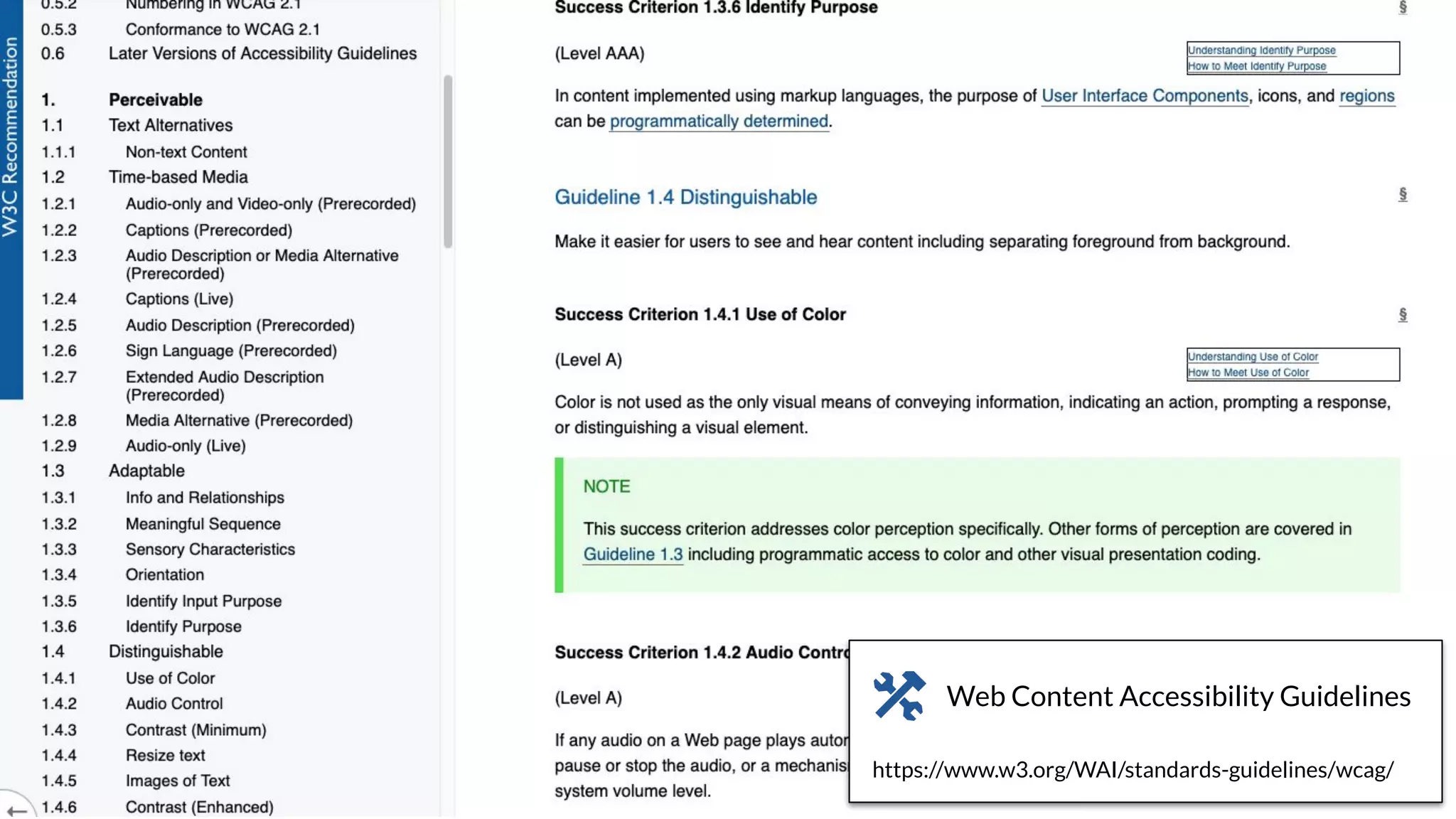

12. https://www.w3.org/WAI/standards-guidelines/wcag/
Web Content Accessibility Guidelines

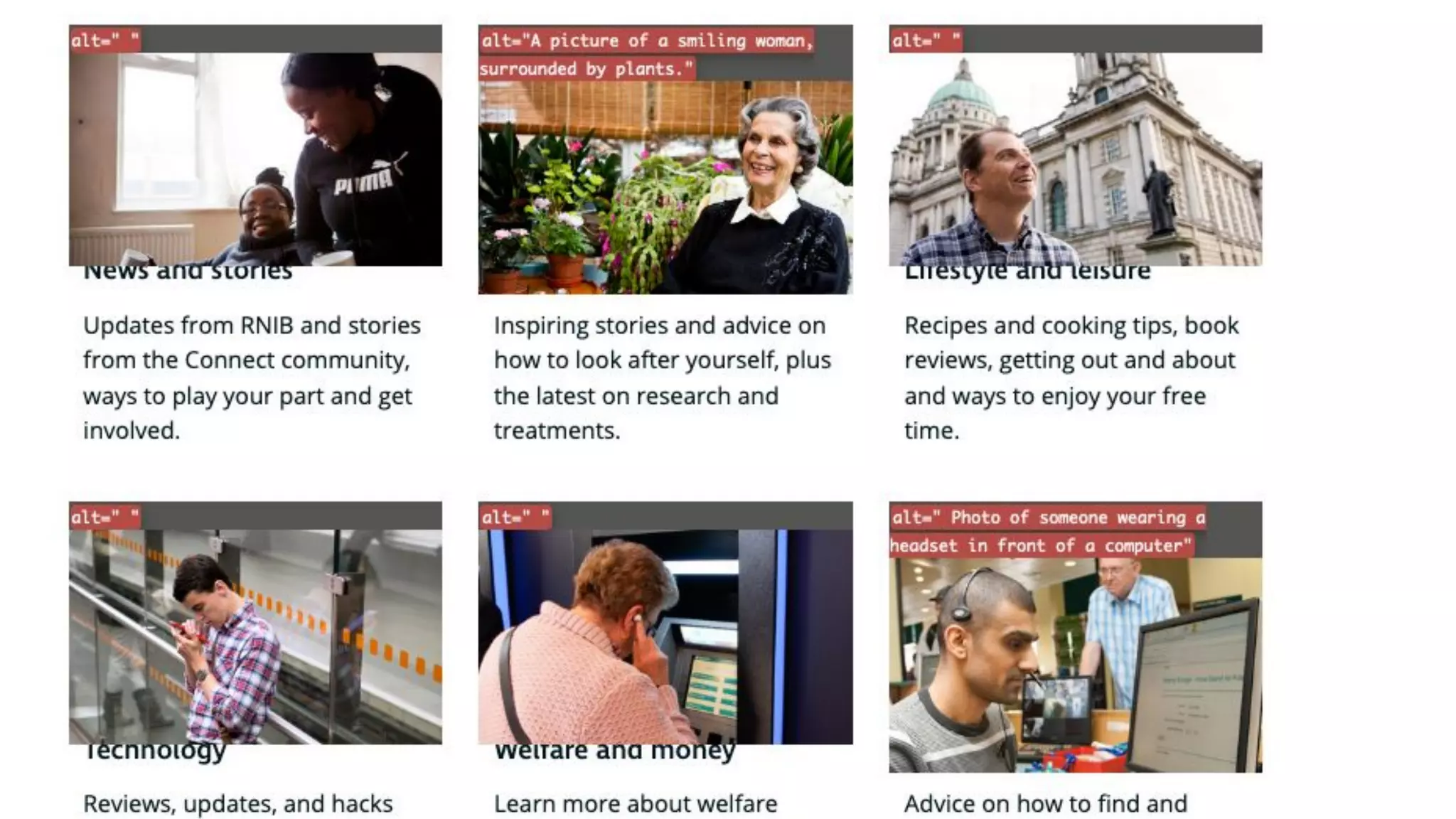

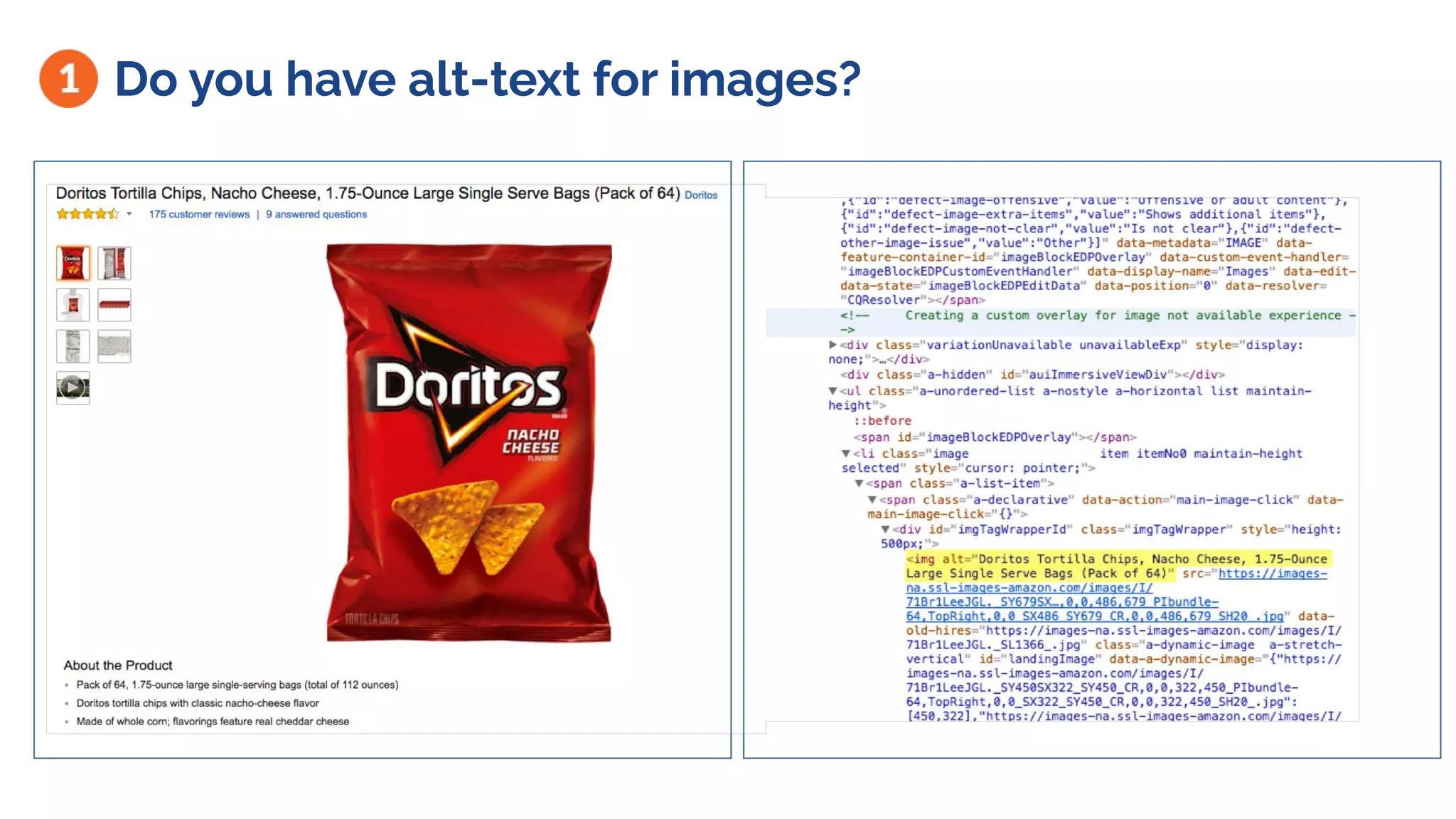

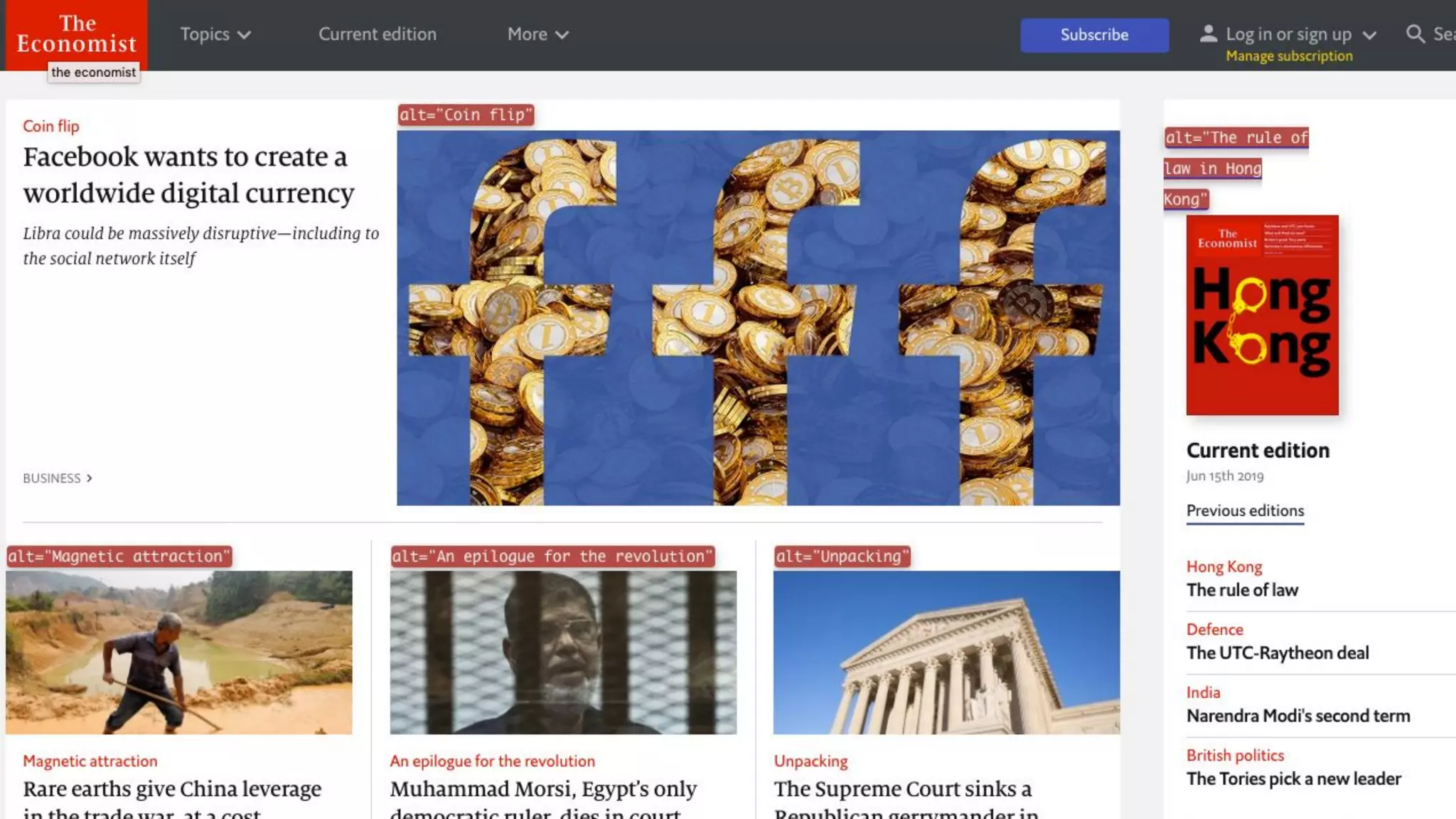

13. Do you have alt-text for images?

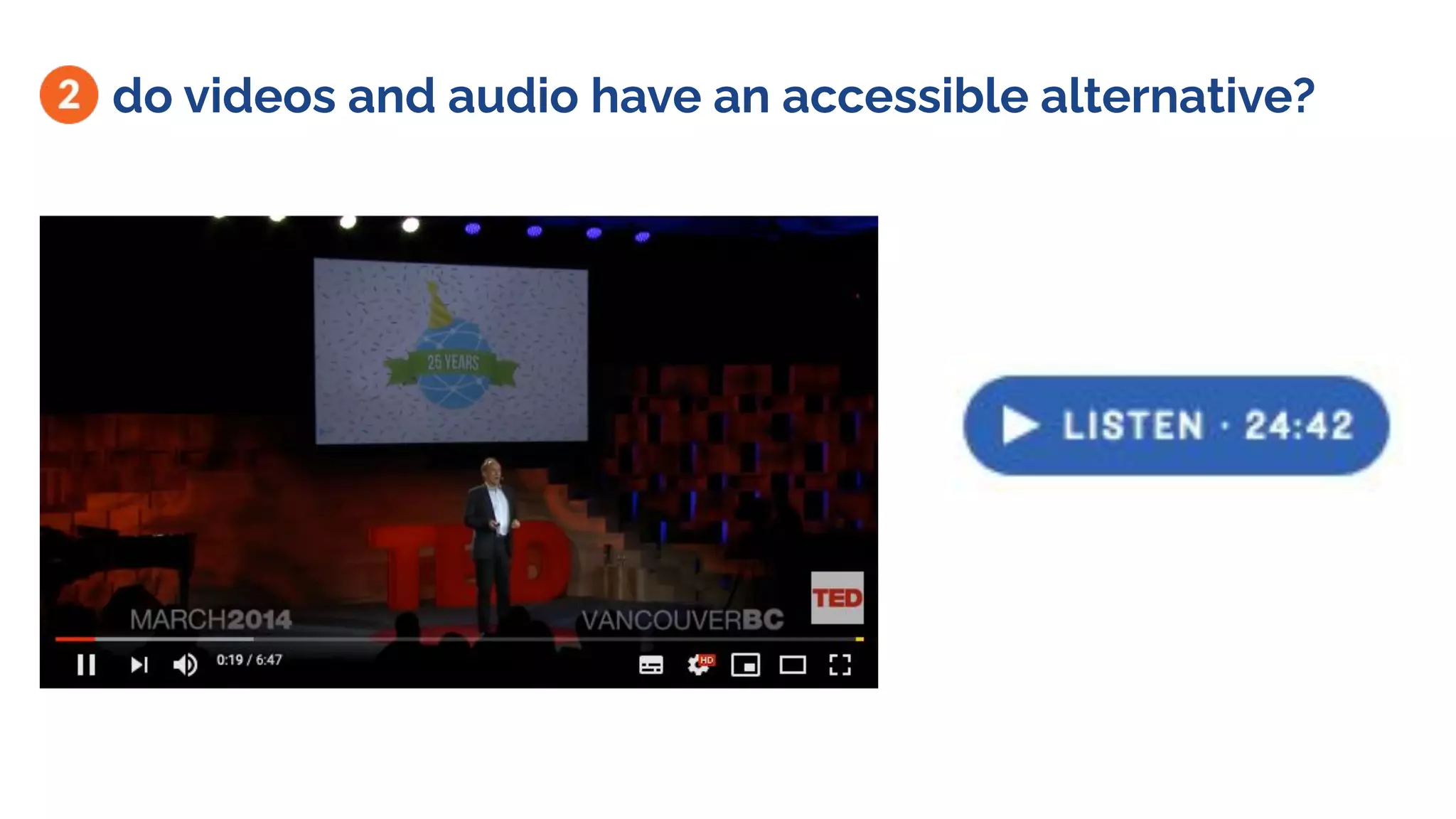

16. do videos and audio have an accessible alternative?

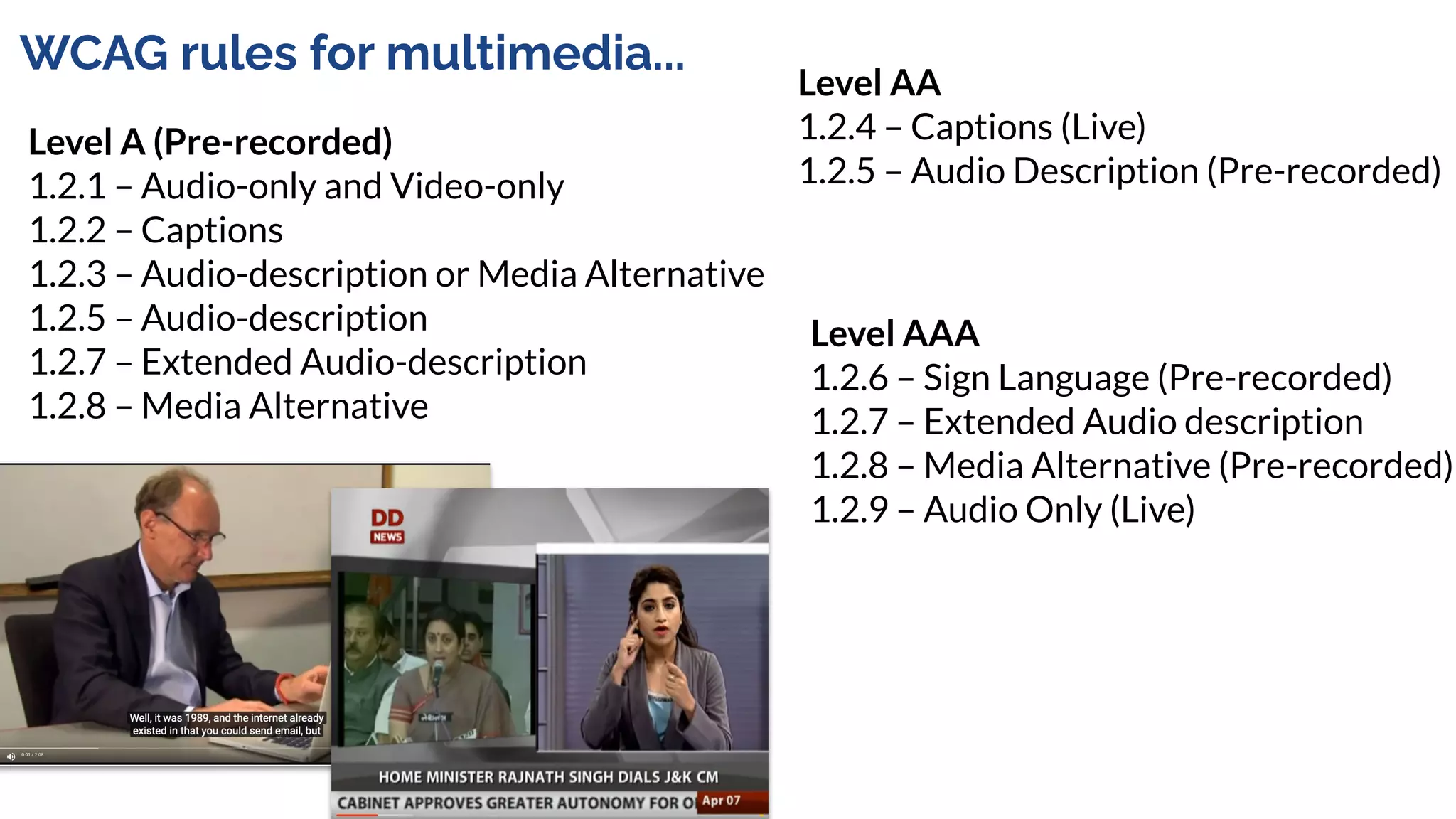

17. WCAG rules for multimedia...
Level A (Pre-recorded)
1.2.1 – Audio-only and Video-only
1.2.2 – Captions
1.2.3 – Audio-description or Media Alternative
1.2.5 – Audio-description
1.2.7 – Extended Audio-description
1.2.8 – Media Alternative
Level AA
1.2.4 – Captions (Live)
1.2.5 – Audio Description (Pre-recorded)
Level AAA
1.2.6 – Sign Language (Pre-recorded)
1.2.7 – Extended Audio description
1.2.8 – Media Alternative (Pre-recorded)
1.2.9 – Audio Only (Live)

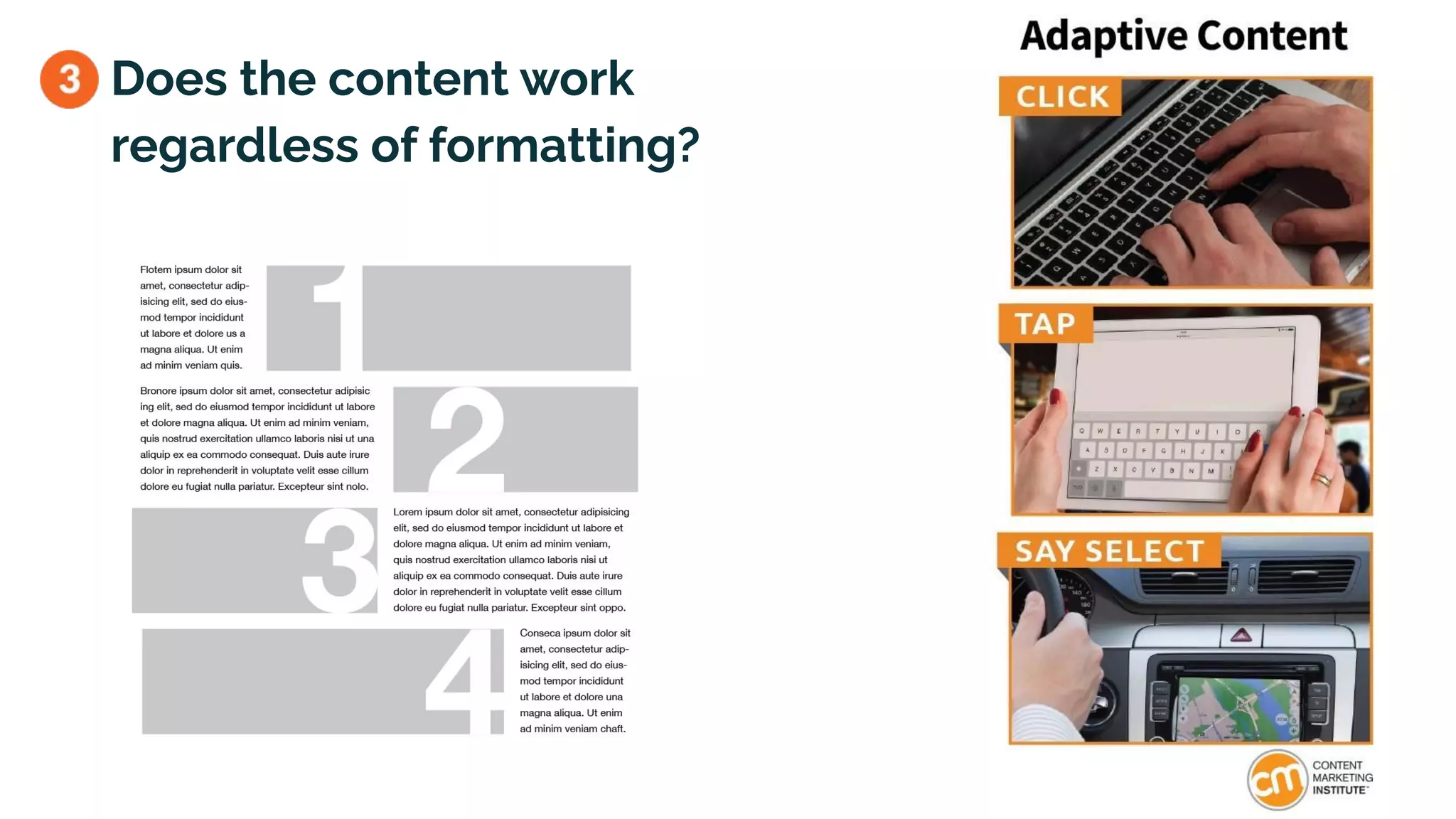

18. Does the content work
regardless of formatting?

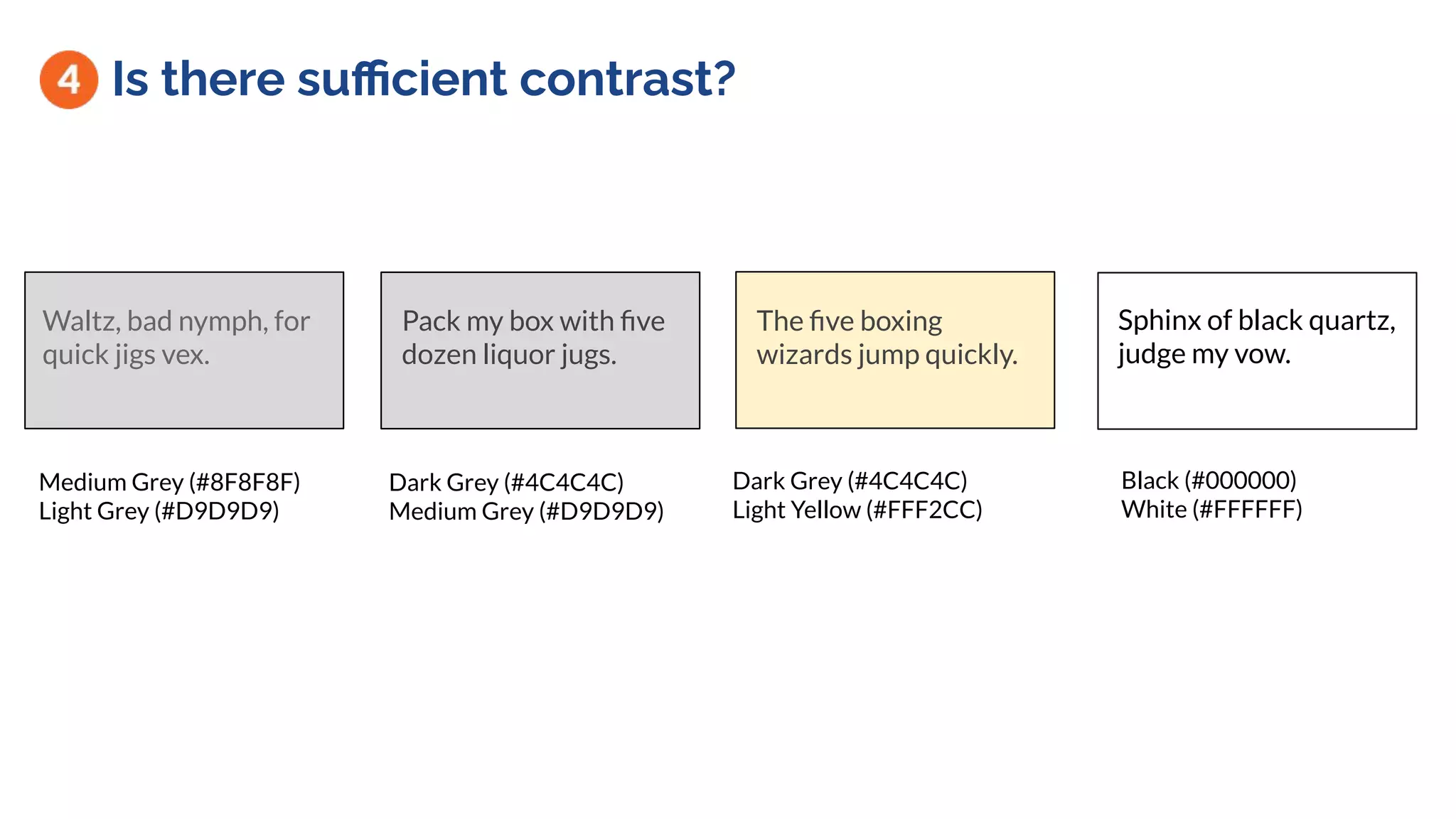

19. Is there sufficient contrast?
Sphinx of black quartz,
judge my vow.
Waltz, bad nymph, for
quick jigs vex.
Pack my box with five
dozen liquor jugs.
Black (#000000)
White (#FFFFFF)
Dark Grey (#4C4C4C)
Medium Grey (#D9D9D9)
Medium Grey (#8F8F8F)
Light Grey (#D9D9D9)
The five boxing
wizards jump quickly.
Dark Grey (#4C4C4C)
Light Yellow (#FFF2CC)

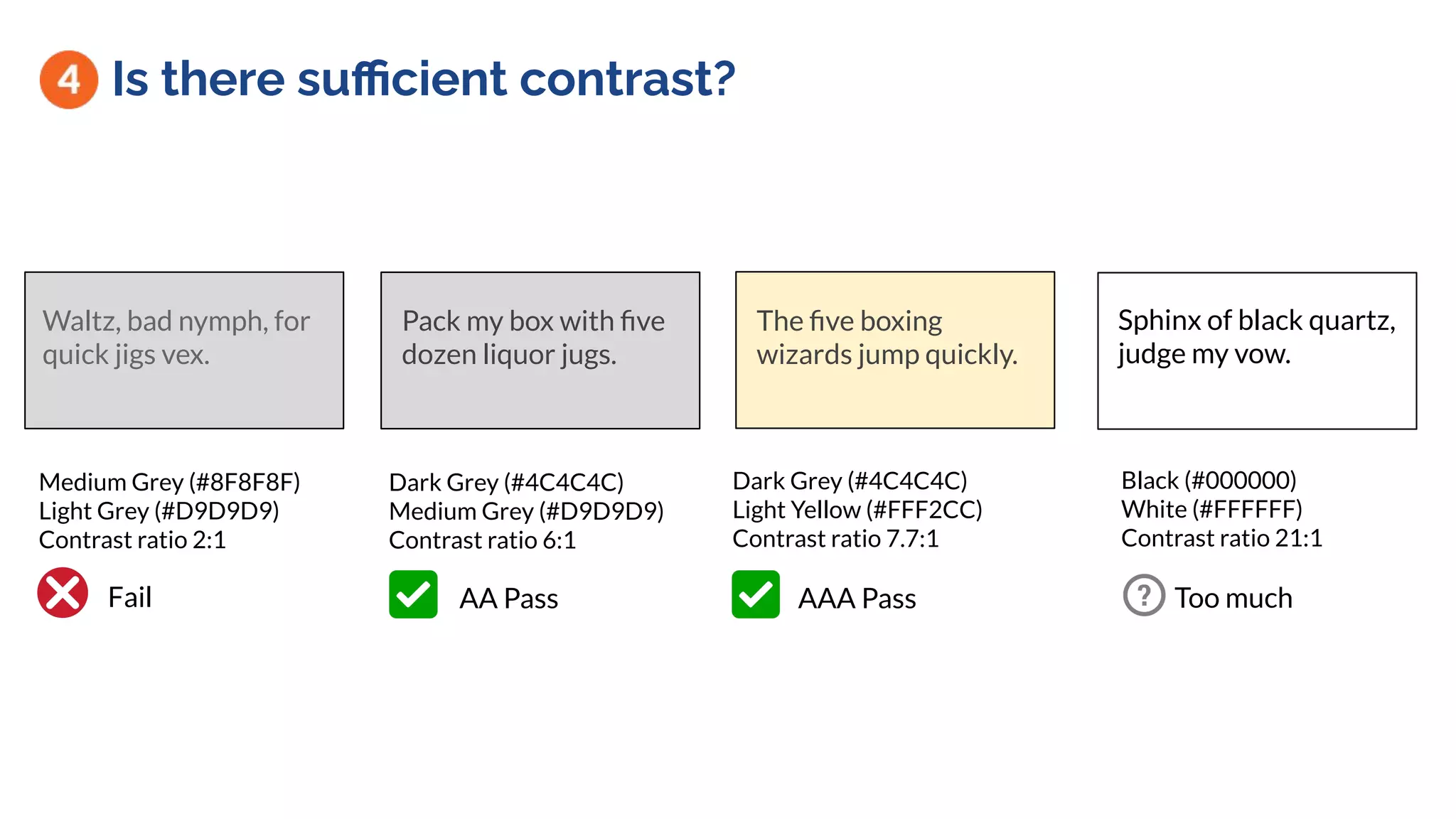

20. Is there sufficient contrast?
Sphinx of black quartz,
judge my vow.
Waltz, bad nymph, for
quick jigs vex.
Pack my box with five
dozen liquor jugs.
Black (#000000)
White (#FFFFFF)
Contrast ratio 21:1
Dark Grey (#4C4C4C)
Medium Grey (#D9D9D9)
Contrast ratio 6:1
Medium Grey (#8F8F8F)
Light Grey (#D9D9D9)
Contrast ratio 2:1
The five boxing
wizards jump quickly.
Dark Grey (#4C4C4C)
Light Yellow (#FFF2CC)
Contrast ratio 7.7:1
AA Pass AAA Pass Too muchFail

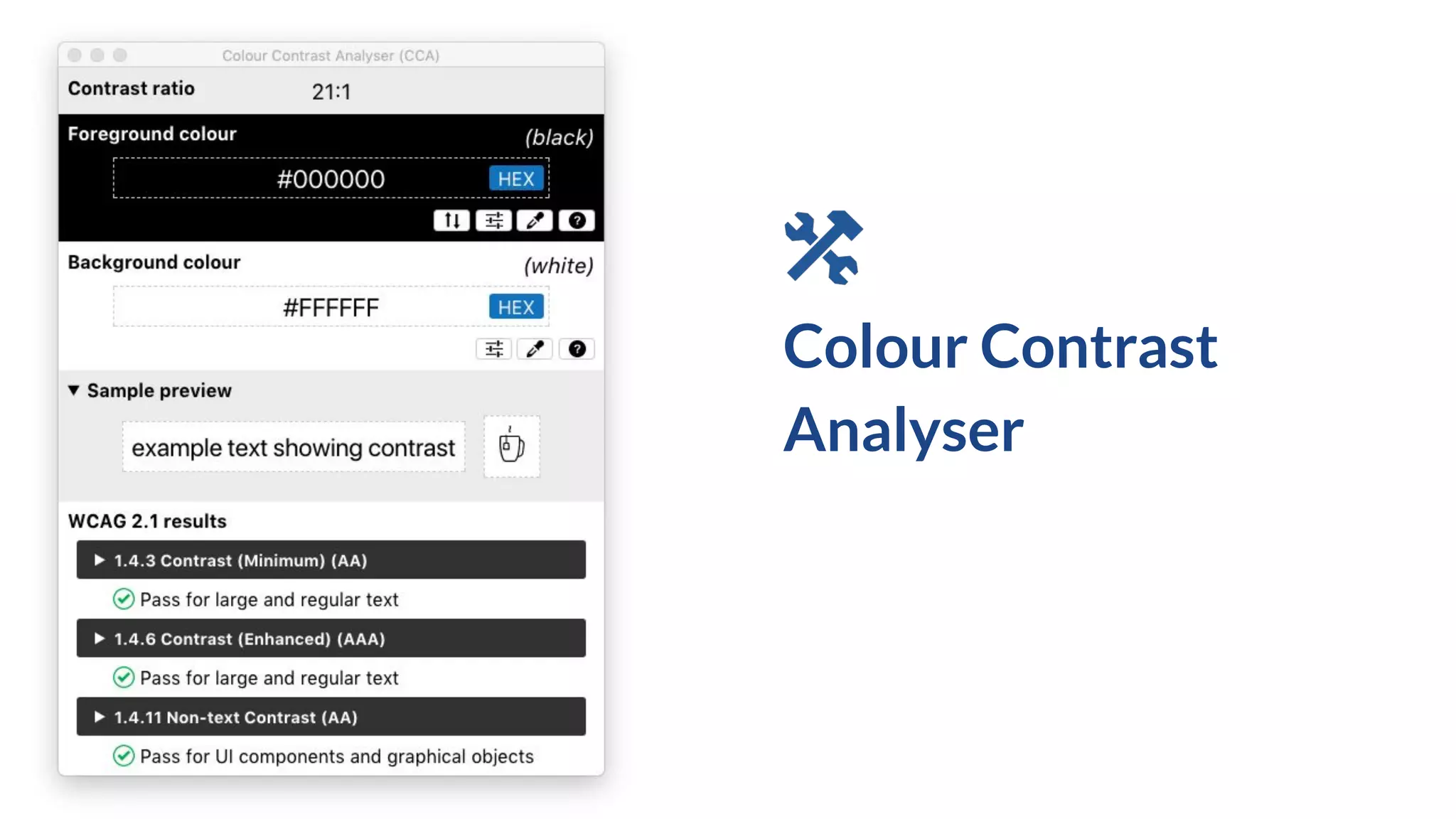

21. Colour Contrast
Analyser

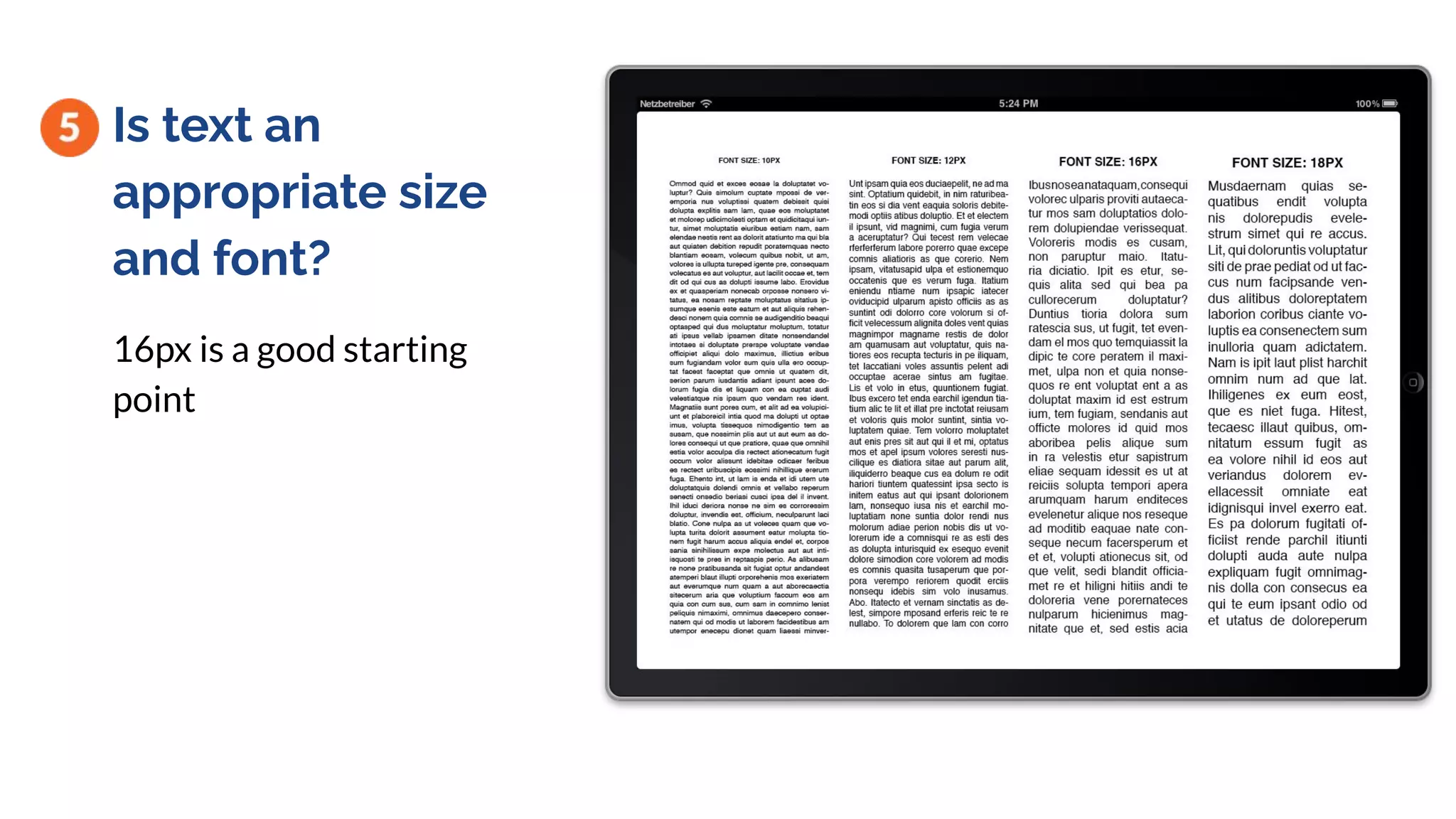

22. Is text an
appropriate size
and font?
16px is a good starting
point

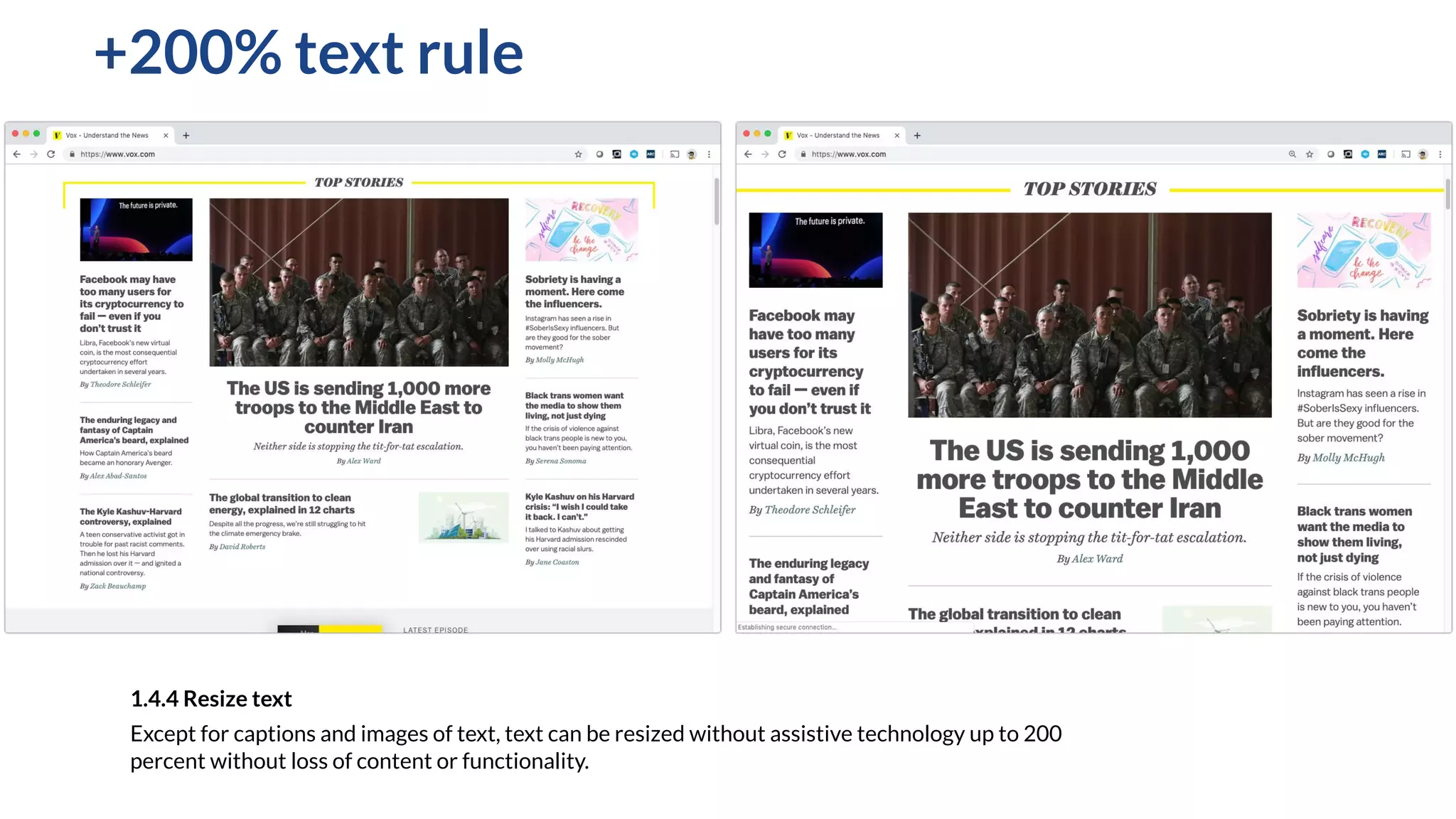

23. +200% text rule
1.4.4 Resize text
Except for captions and images of text, text can be resized without assistive technology up to 200
percent without loss of content or functionality.

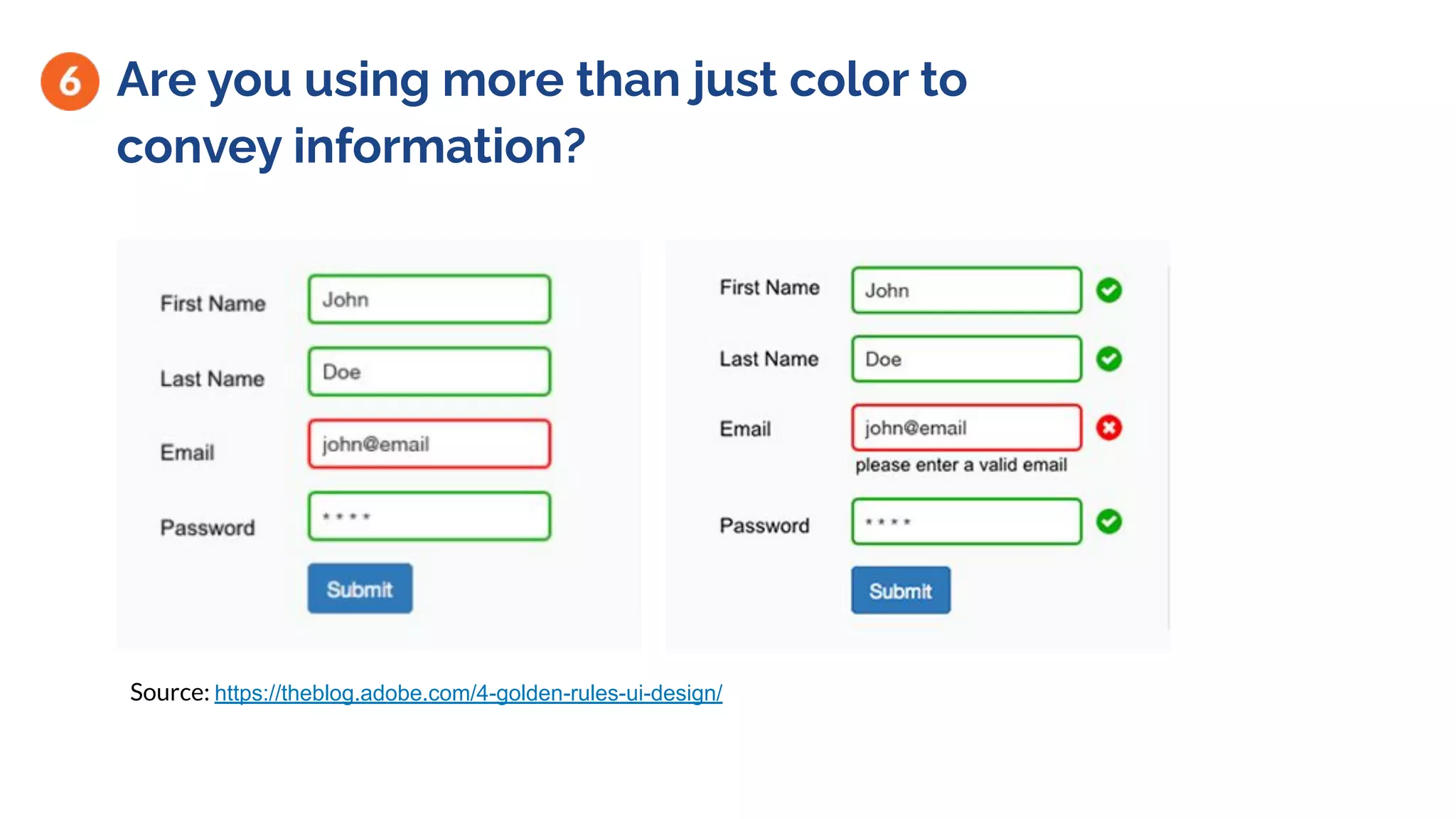

24. Are you using more than just color to
convey information?
Source: https://theblog.adobe.com/4-golden-rules-ui-design/

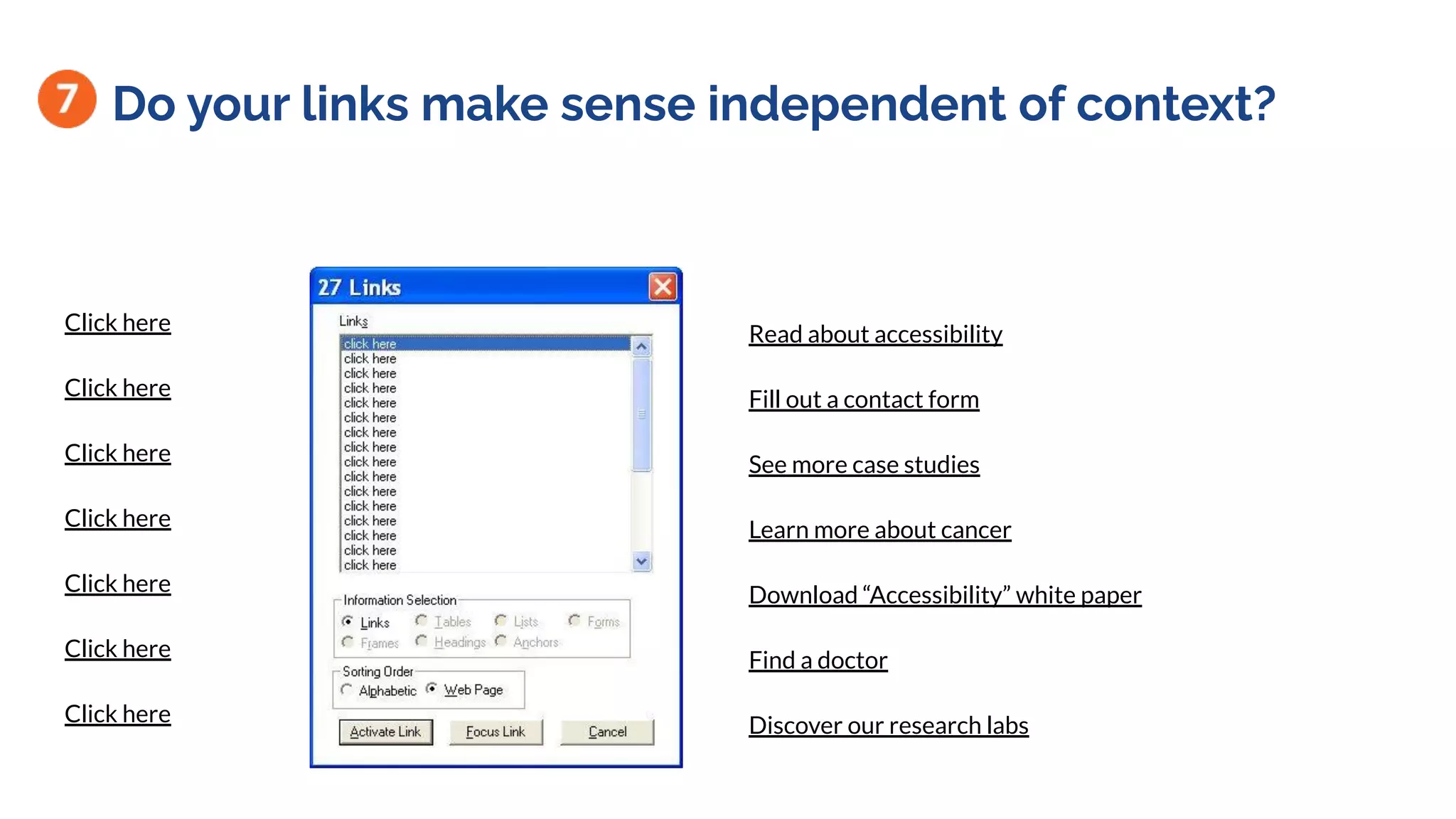

25. Do your links make sense independent of context?
Click here
Click here
Click here
Click here
Click here
Click here
Click here
Read about accessibility
Fill out a contact form
See more case studies
Learn more about cancer
Download “Accessibility” white paper
Find a doctor
Discover our research labs

26. What’s the readability level? Readable.io

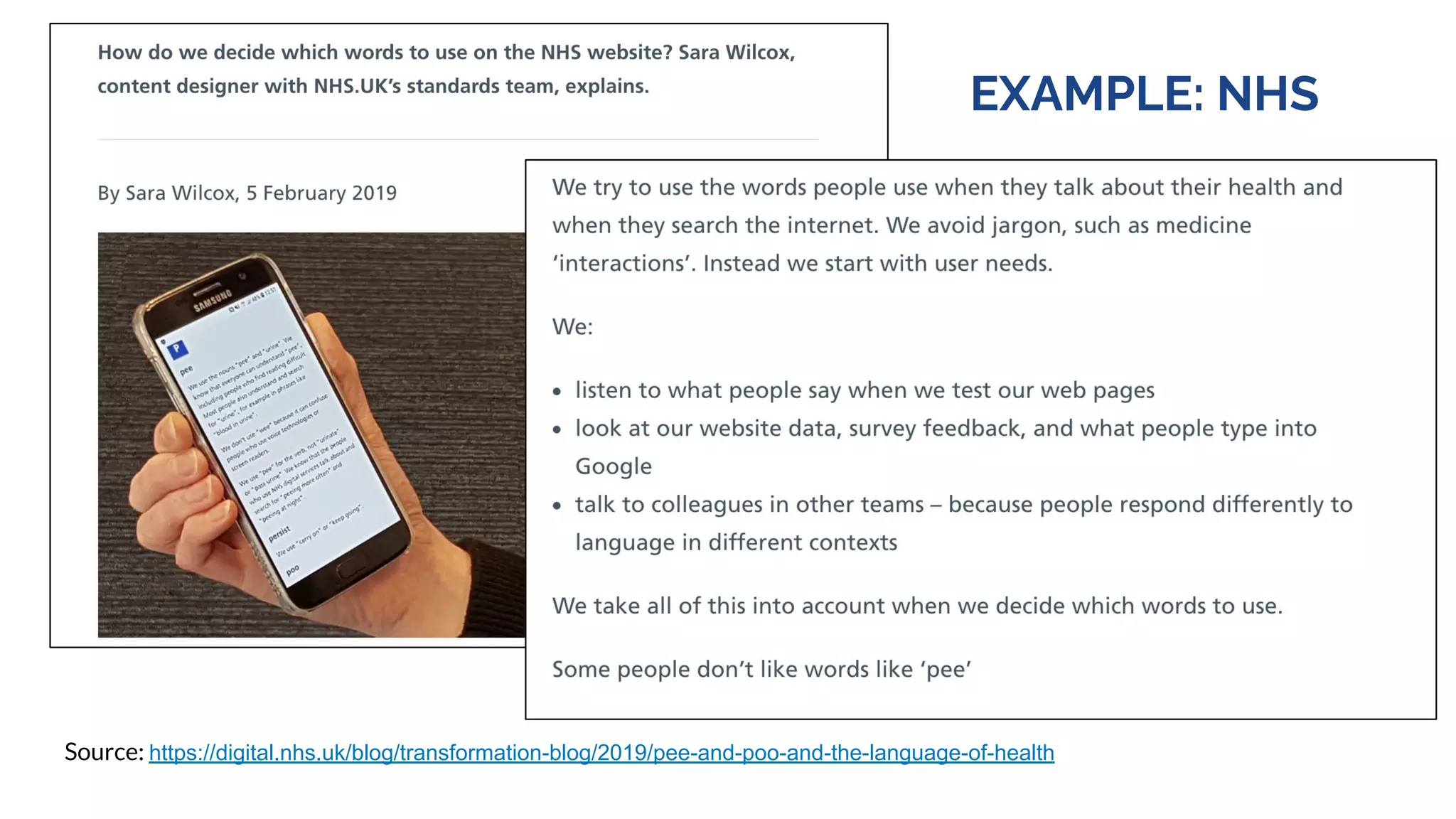

27. EXAMPLE: NHS
Source: https://digital.nhs.uk/blog/transformation-blog/2019/pee-and-poo-and-the-language-of-health

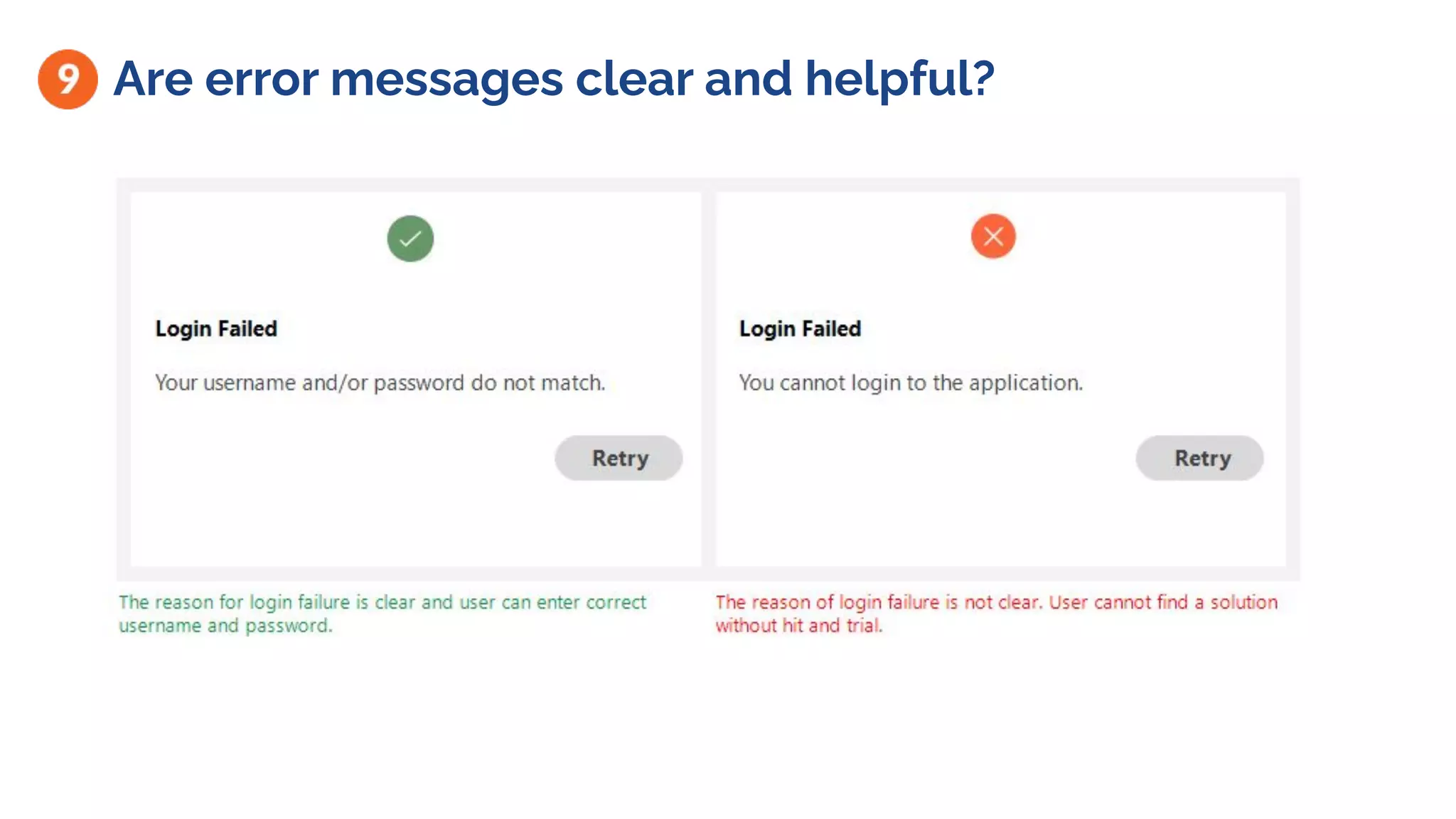

28. Are error messages clear and helpful?

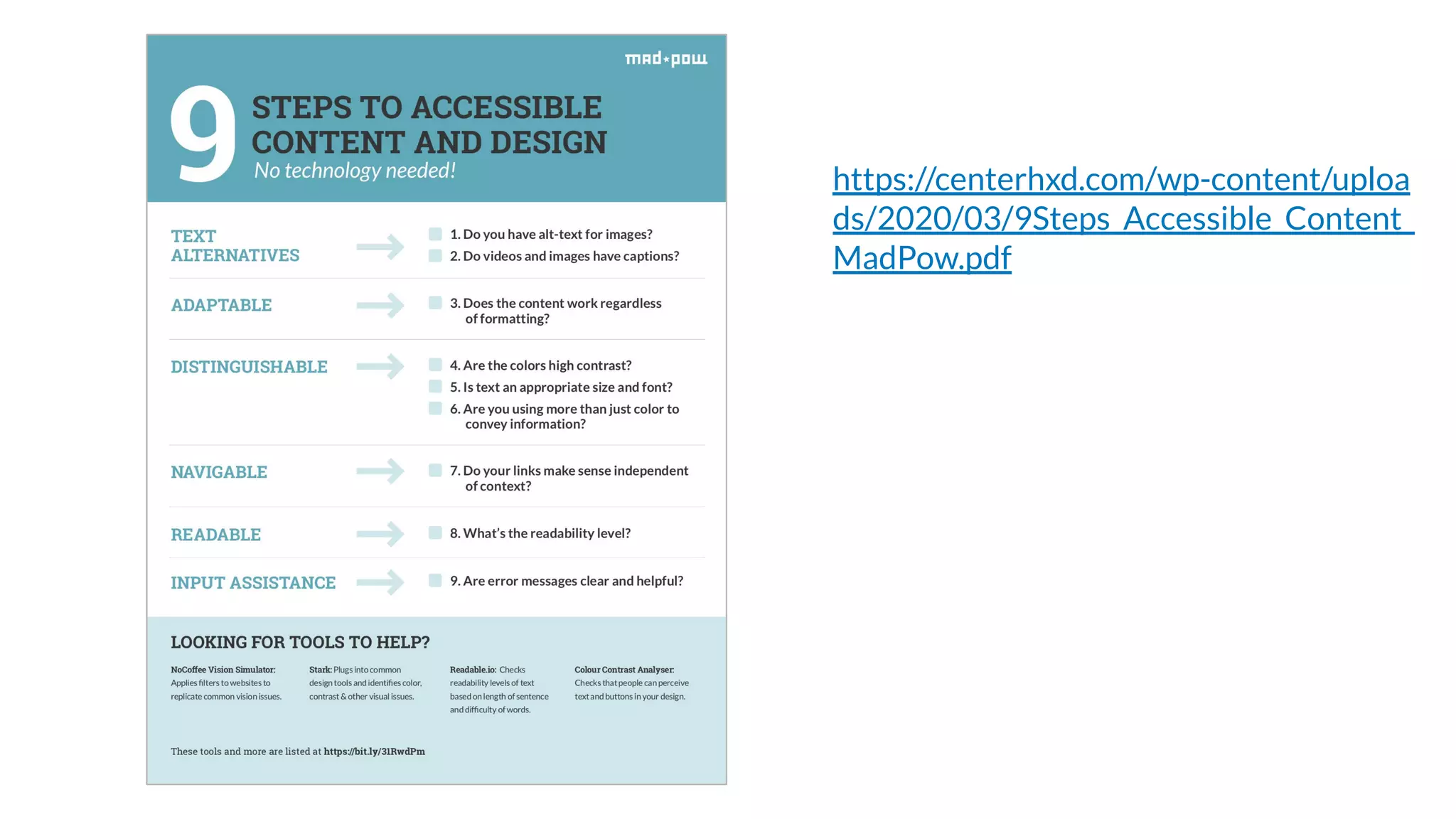

29. https://centerhxd.com/wp-content/uploa
ds/2020/03/9Steps_Accessible_Content_
MadPow.pdf

30. Demo: Mini audit

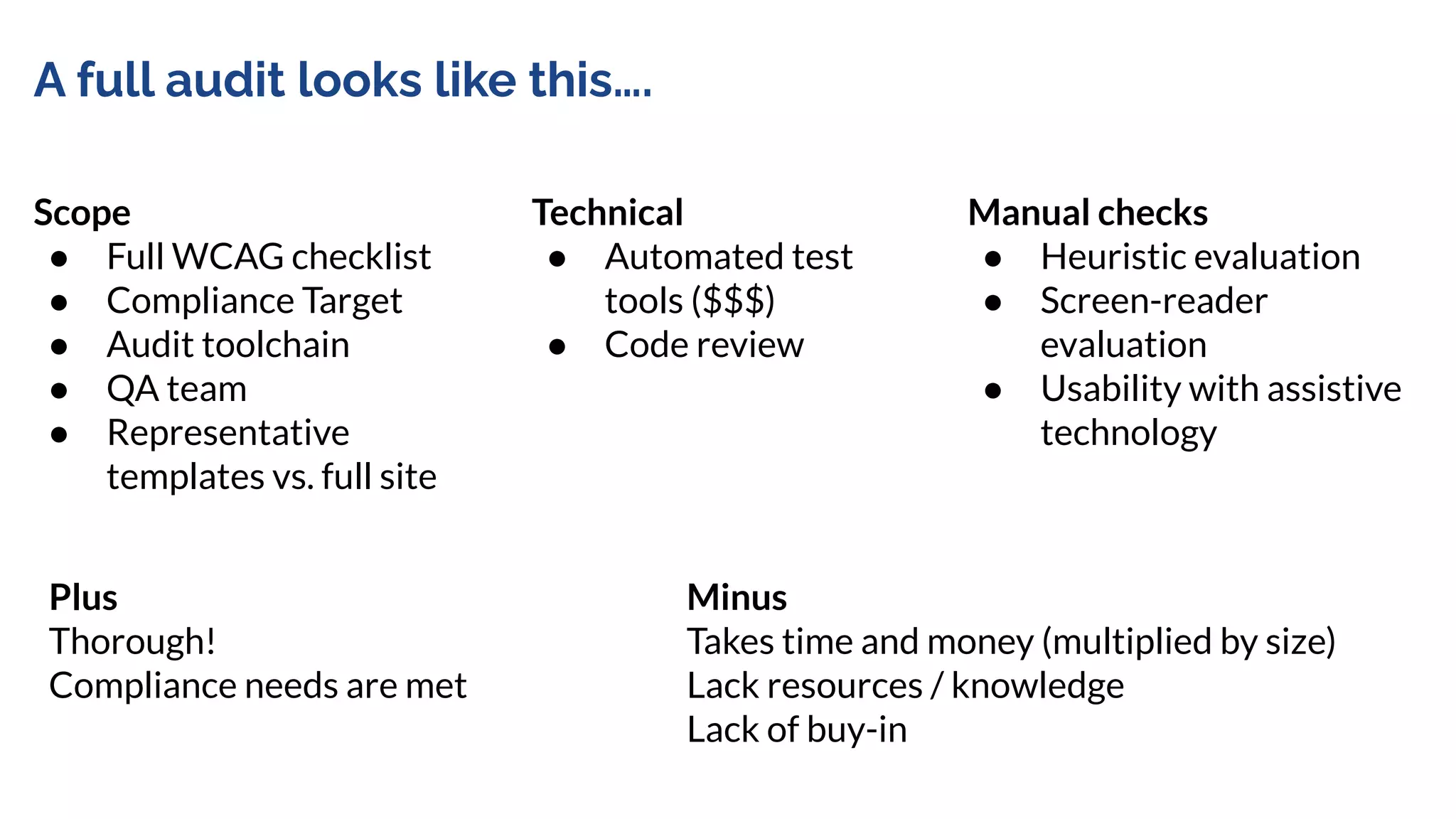

31. A full audit looks like this….
Scope
● Full WCAG checklist
● Compliance Target
● Audit toolchain
● QA team
● Representative
templates vs. full site
Manual checks
● Heuristic evaluation
● Screen-reader
evaluation
● Usability with assistive
technology
Technical
● Automated test
tools ($$$)
● Code review
Plus
Thorough!
Compliance needs are met
Minus
Takes time and money (multiplied by size)
Lack resources / knowledge
Lack of buy-in

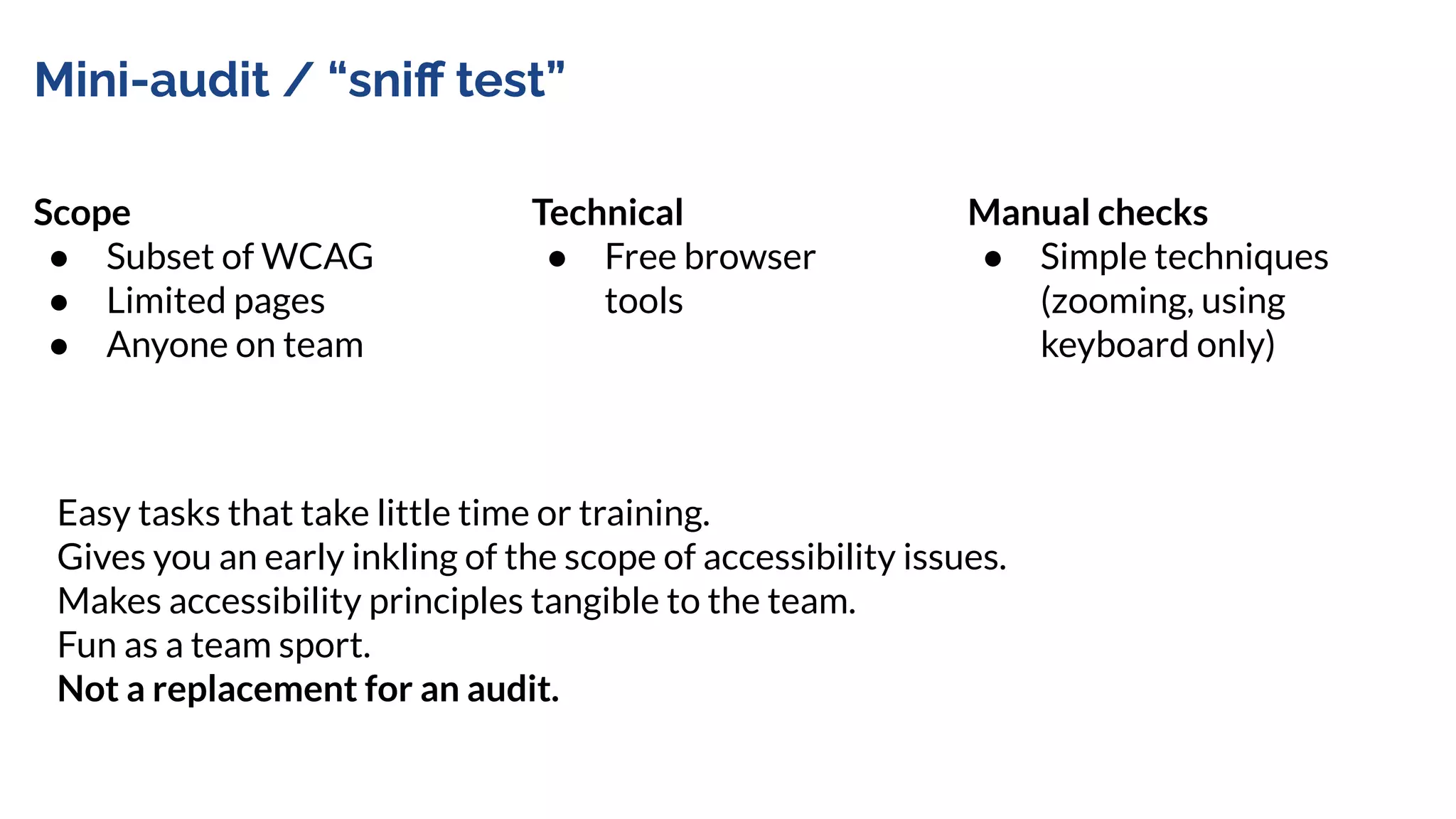

32. Mini-audit / “sniff test”
Scope
● Subset of WCAG
● Limited pages
● Anyone on team
Manual checks
● Simple techniques
(zooming, using
keyboard only)
Technical
● Free browser
tools
Easy tasks that take little time or training.
Gives you an early inkling of the scope of accessibility issues.
Makes accessibility principles tangible to the team.
Fun as a team sport.
Not a replacement for an audit.

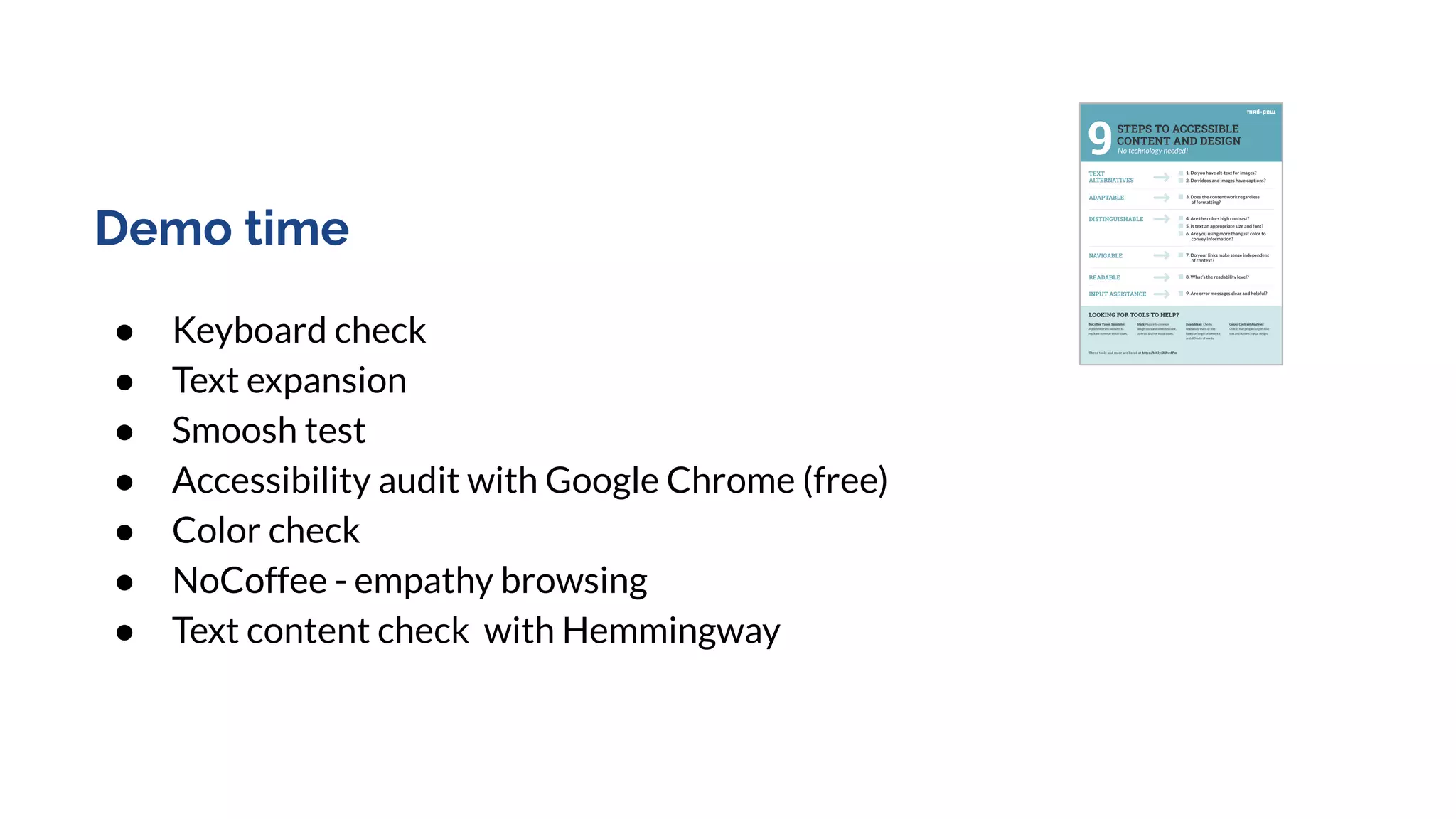

33. Demo time
● Keyboard check
● Text expansion
● Smoosh test
● Accessibility audit with Google Chrome (free)
● Color check
● NoCoffee - empathy browsing
● Text content check with Hemmingway

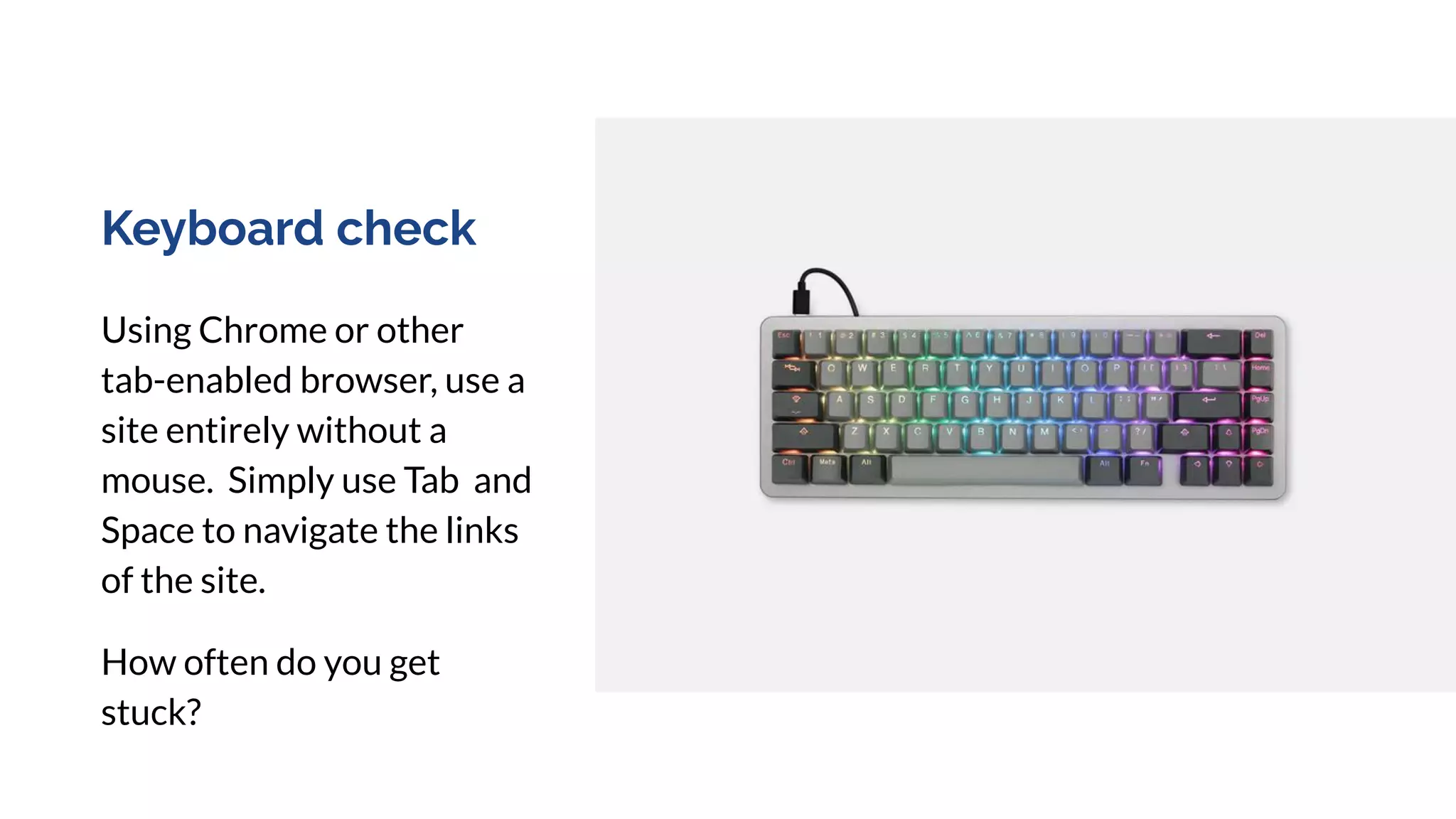

34. Keyboard check
Using Chrome or other
tab-enabled browser, use a
site entirely without a
mouse. Simply use Tab and
Space to navigate the links
of the site.
How often do you get
stuck?

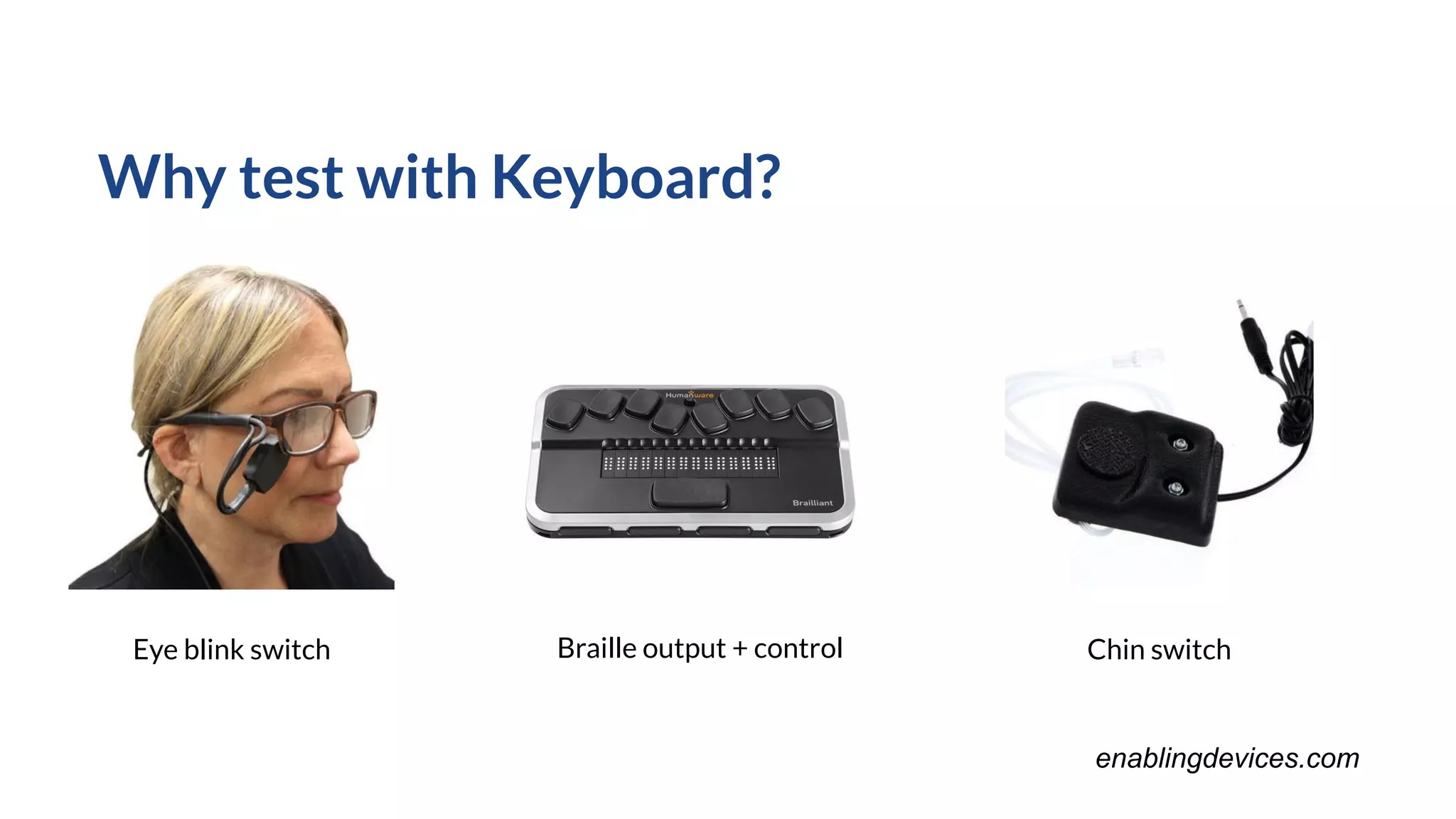

35. Why test with Keyboard?
Eye blink switch Chin switchBraille output + control
enablingdevices.com

36. Activity: Site Review

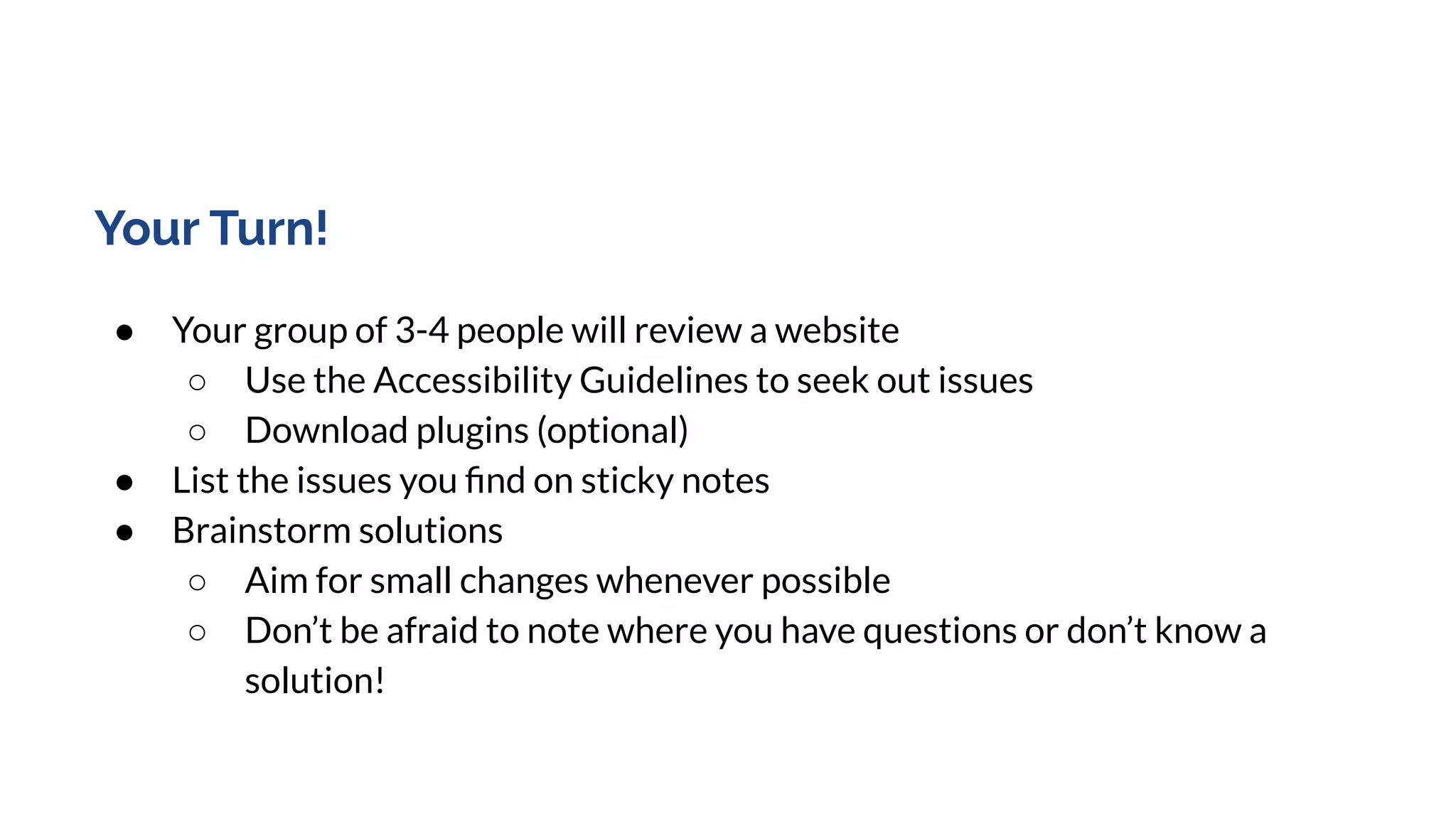

37. Your Turn!
● Your group of 3-4 people will review a website
○ Use the Accessibility Guidelines to seek out issues
○ Download plugins (optional)
● List the issues you find on sticky notes
● Brainstorm solutions
○ Aim for small changes whenever possible
○ Don’t be afraid to note where you have questions or don’t know a
solution!

38. Regroup

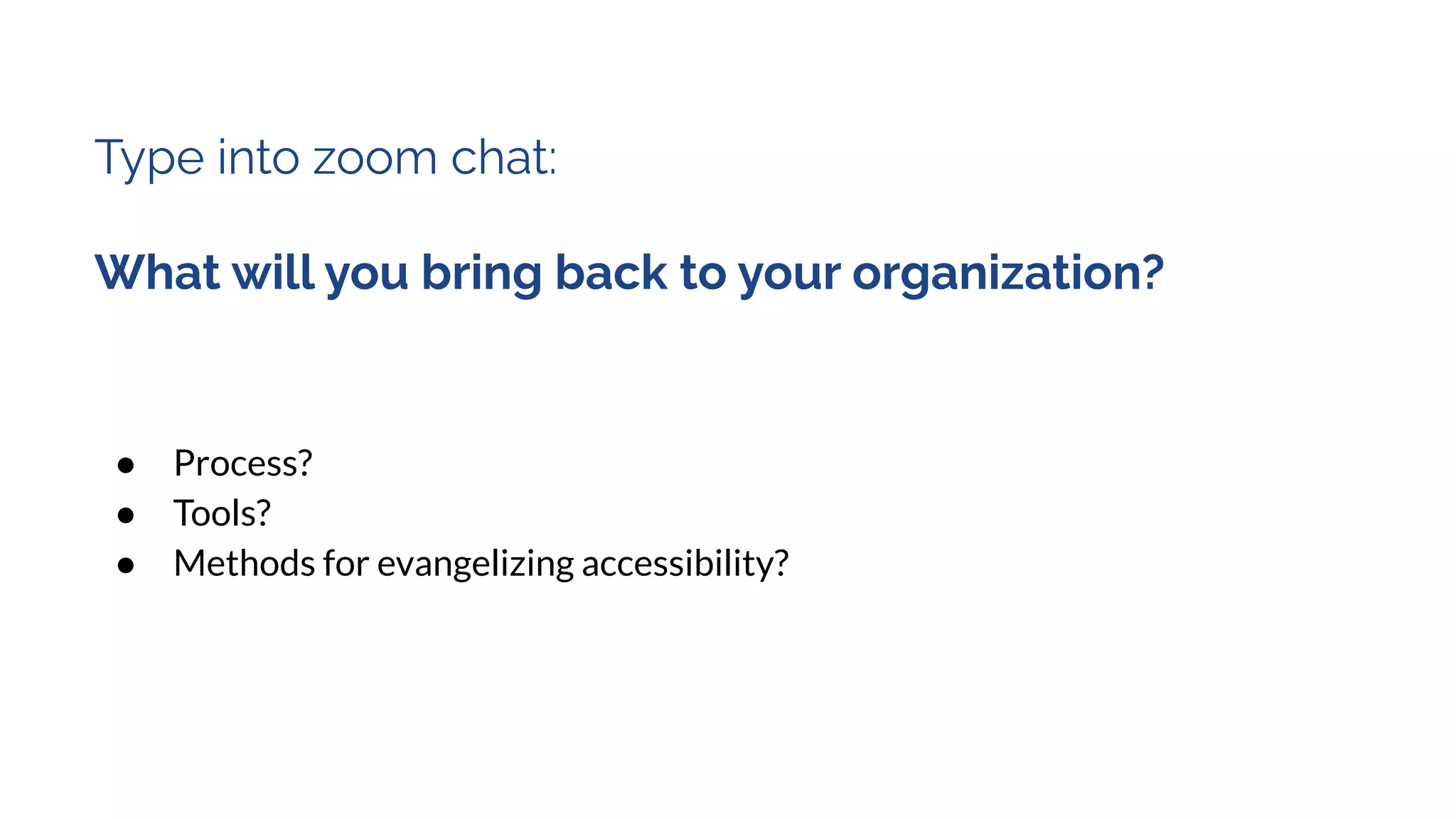

39. Type into zoom chat:
What will you bring back to your organization?
● Process?
● Tools?
● Methods for evangelizing accessibility?

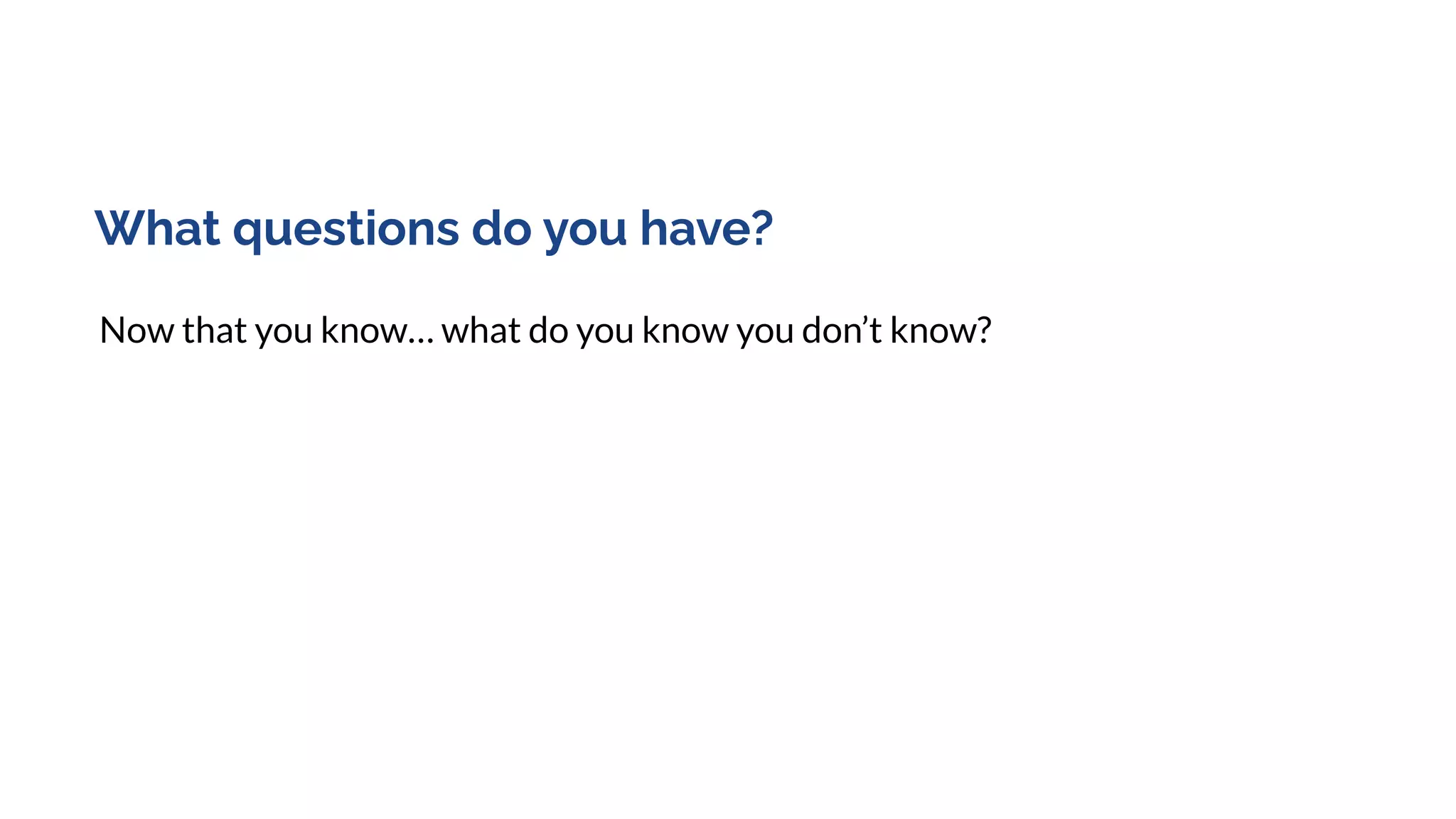

40. What questions do you have?
Now that you know… what do you know you don’t know?

41. Conclusion

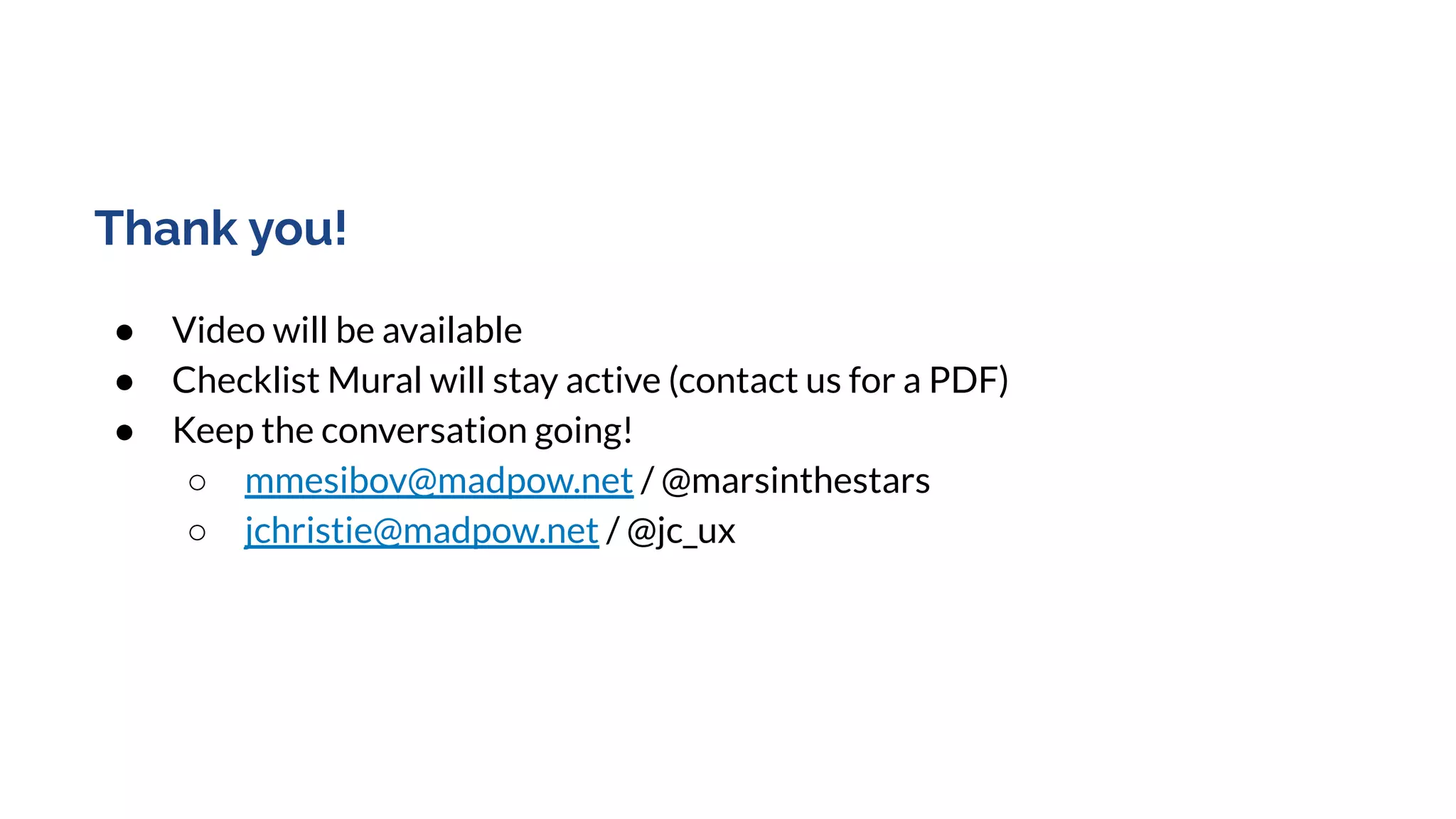

42. Thank you!
● Video will be available
● Checklist Mural will stay active (contact us for a PDF)
● Keep the conversation going!
○ mmesibov@madpow.net / @marsinthestars
○ jchristie@madpow.net / @jc_ux

43. Thank You!

44. Example accessible design
project

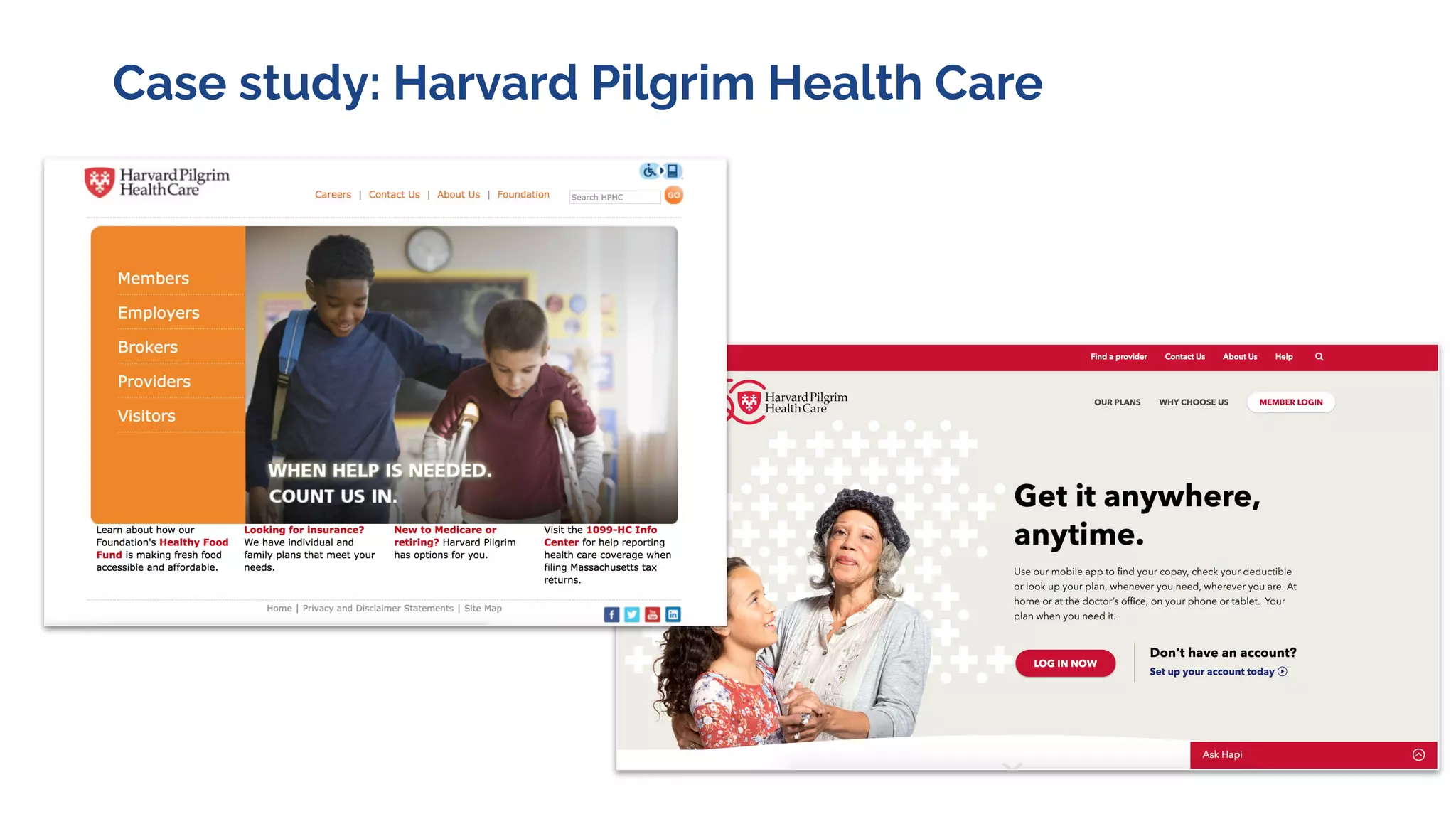

45. Case study: Harvard Pilgrim Health Care

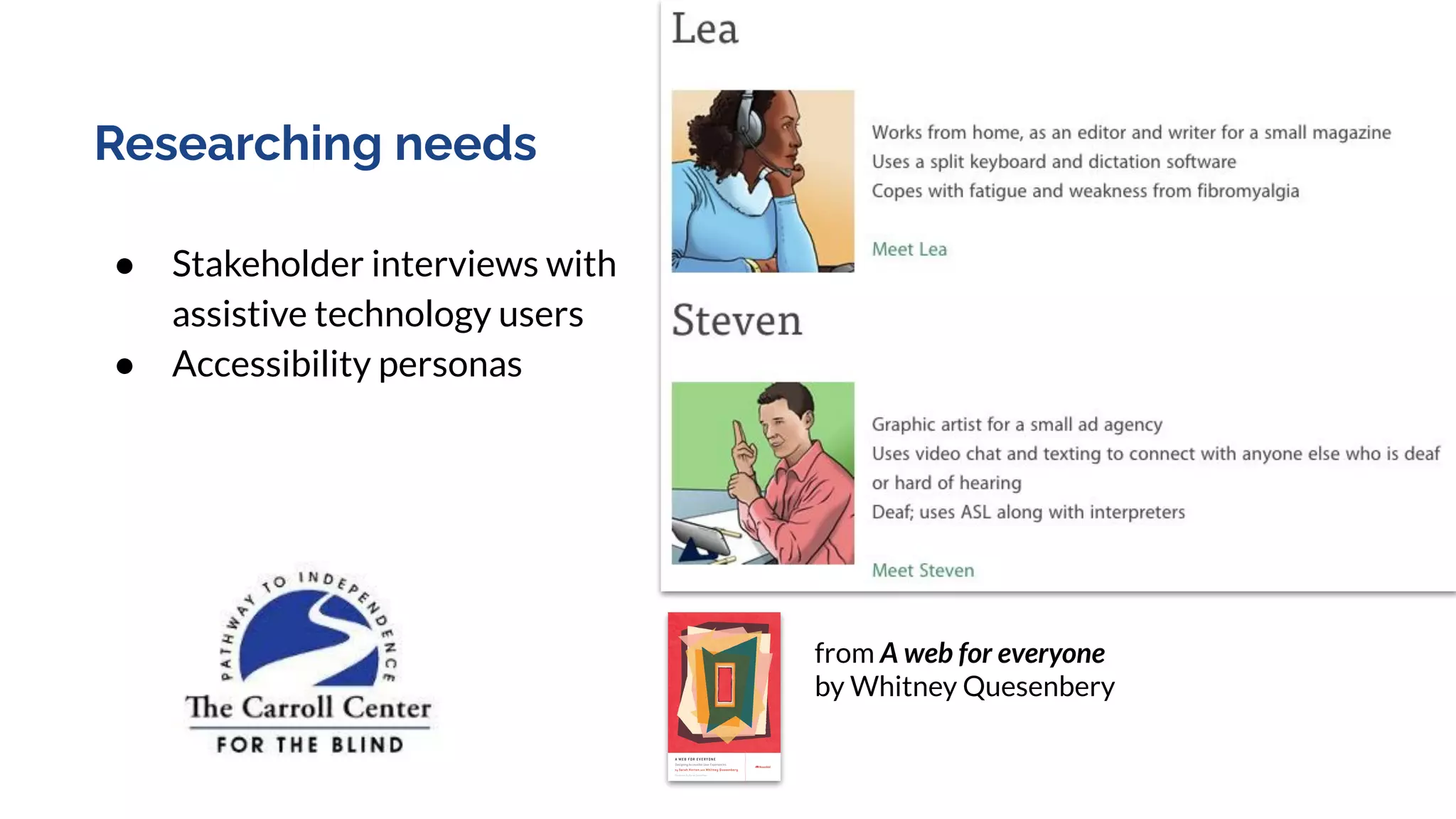

46. Researching needs
● Stakeholder interviews with
assistive technology users
● Accessibility personas
from A web for everyone
by Whitney Quesenbery

47. Advanced needfinding
● Participatory design workshop
for inclusivity
● Great way to incorporate
hitherto overlooked needs into
the design process

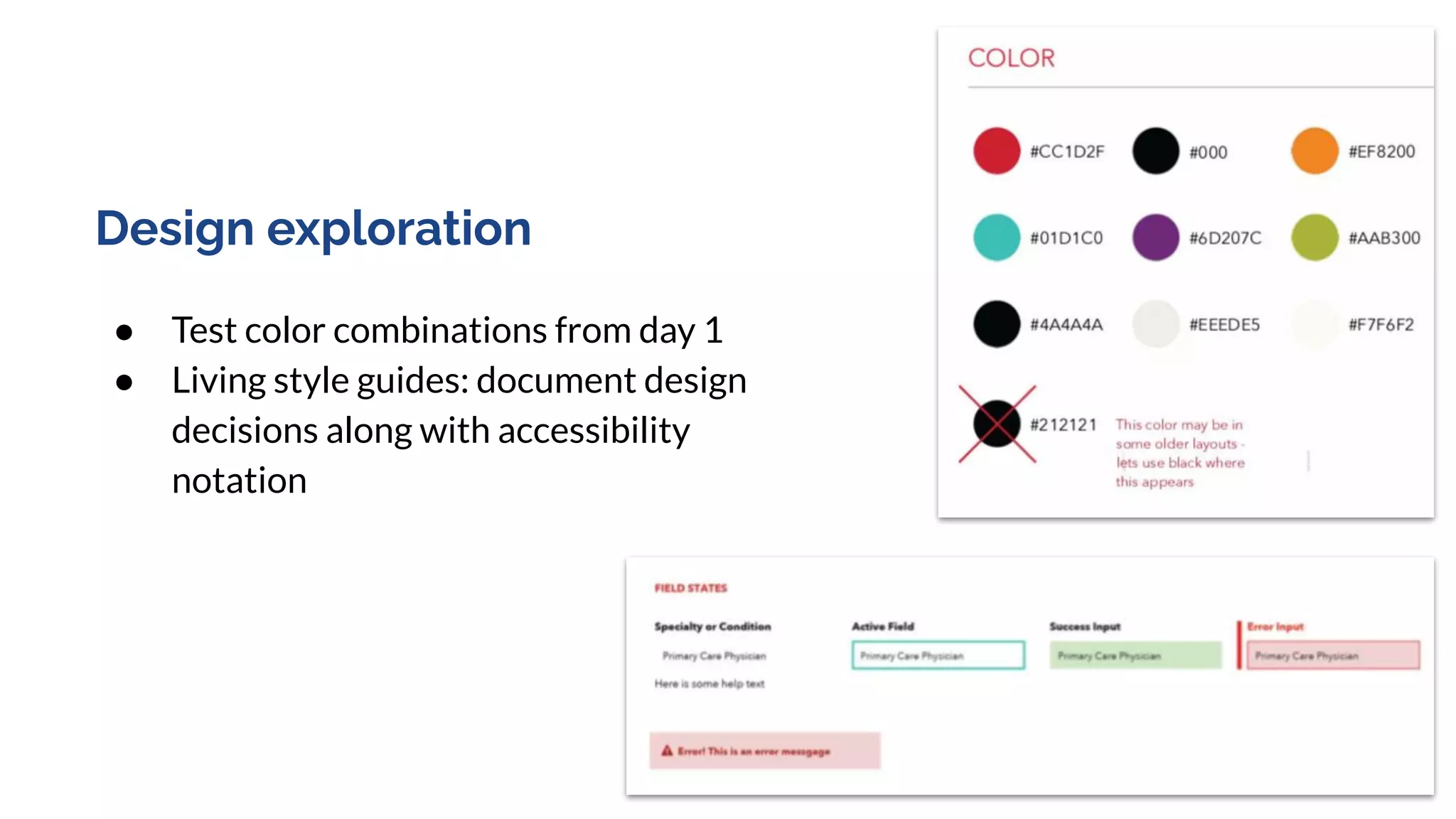

48. Design exploration
● Test color combinations from day 1
● Living style guides: document design
decisions along with accessibility
notation

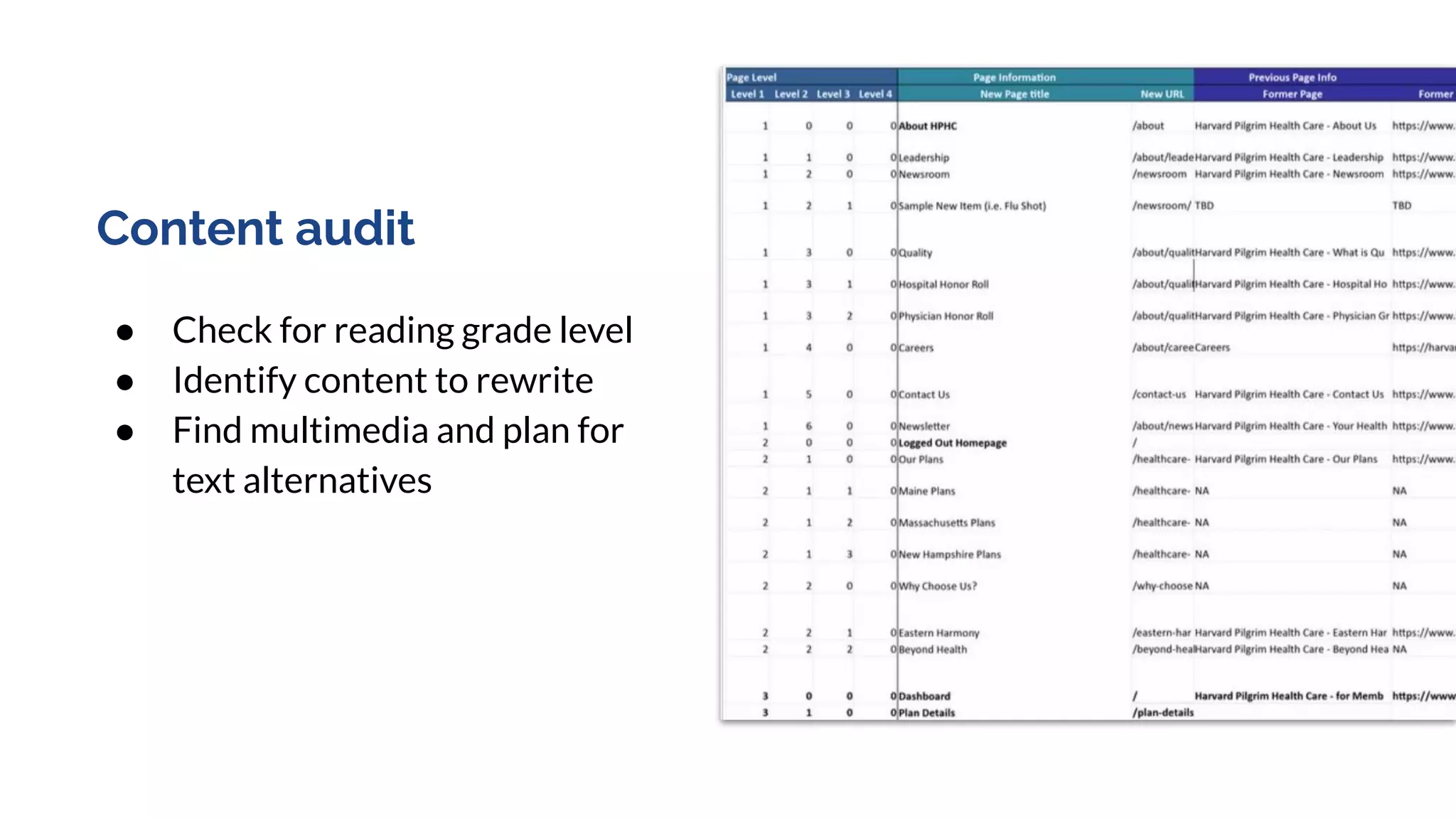

49. Content audit
● Check for reading grade level
● Identify content to rewrite
● Find multimedia and plan for
text alternatives

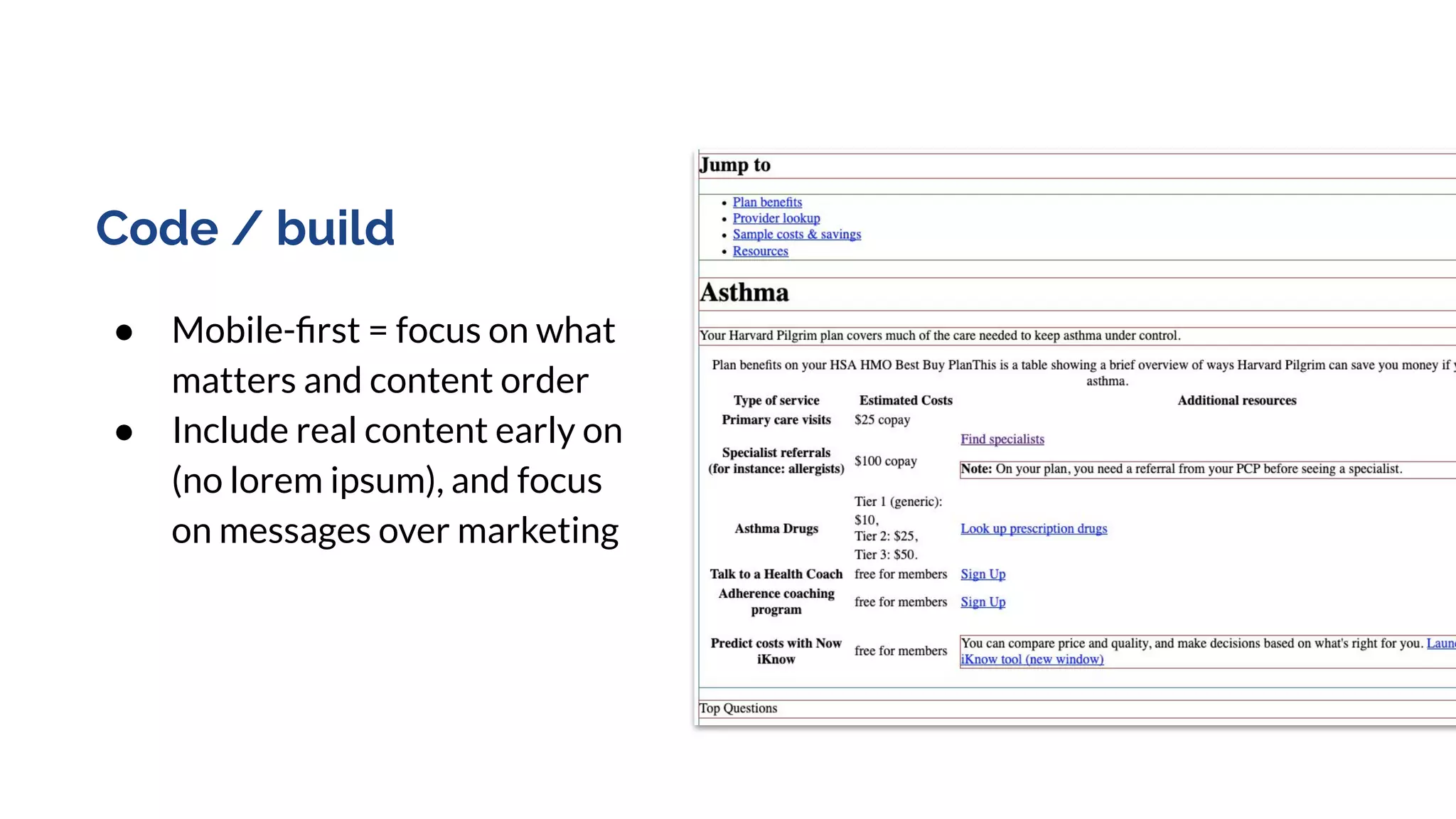

50. Code / build
● Mobile-first = focus on what
matters and content order
● Include real content early on
(no lorem ipsum), and focus
on messages over marketing

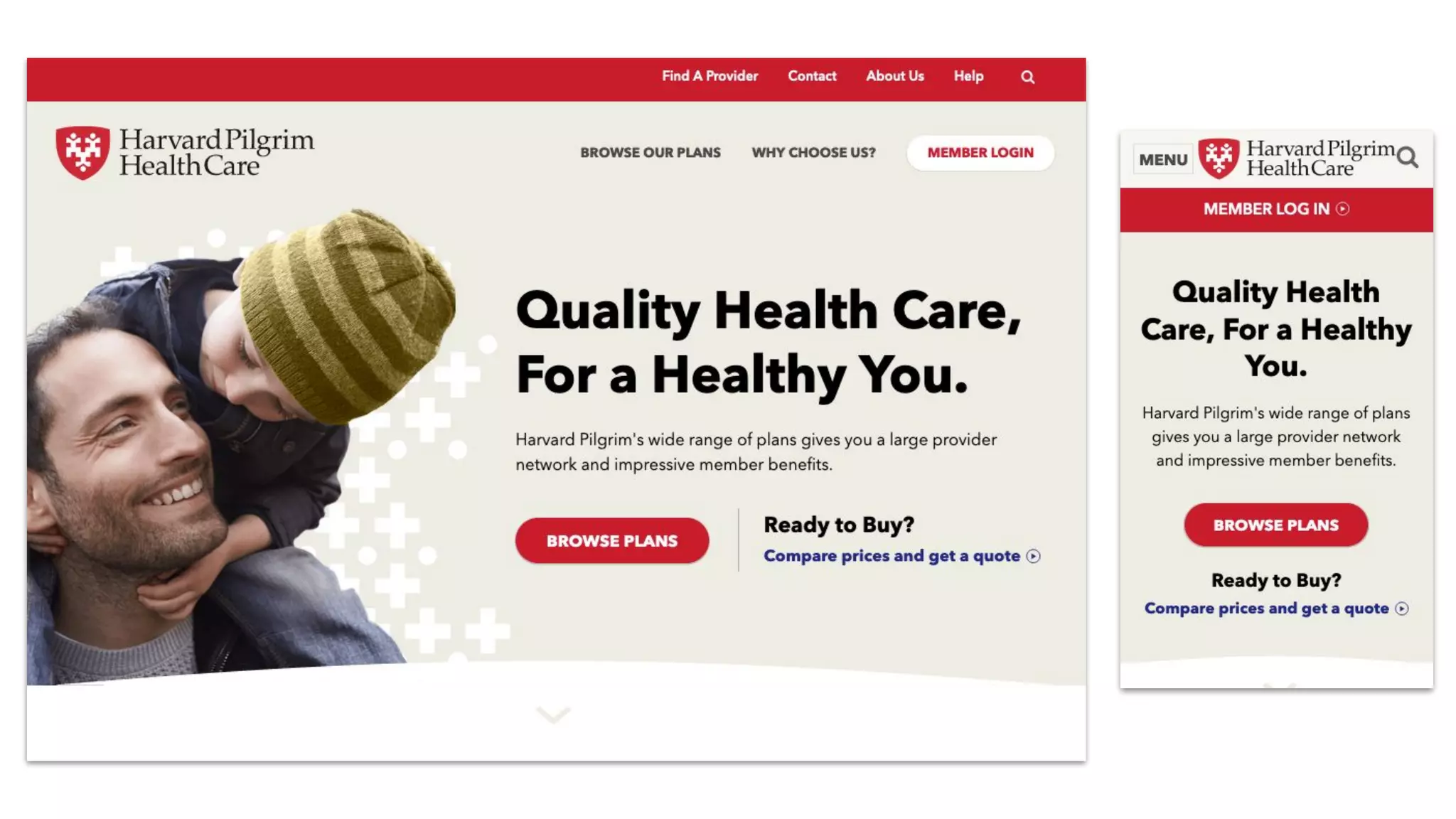

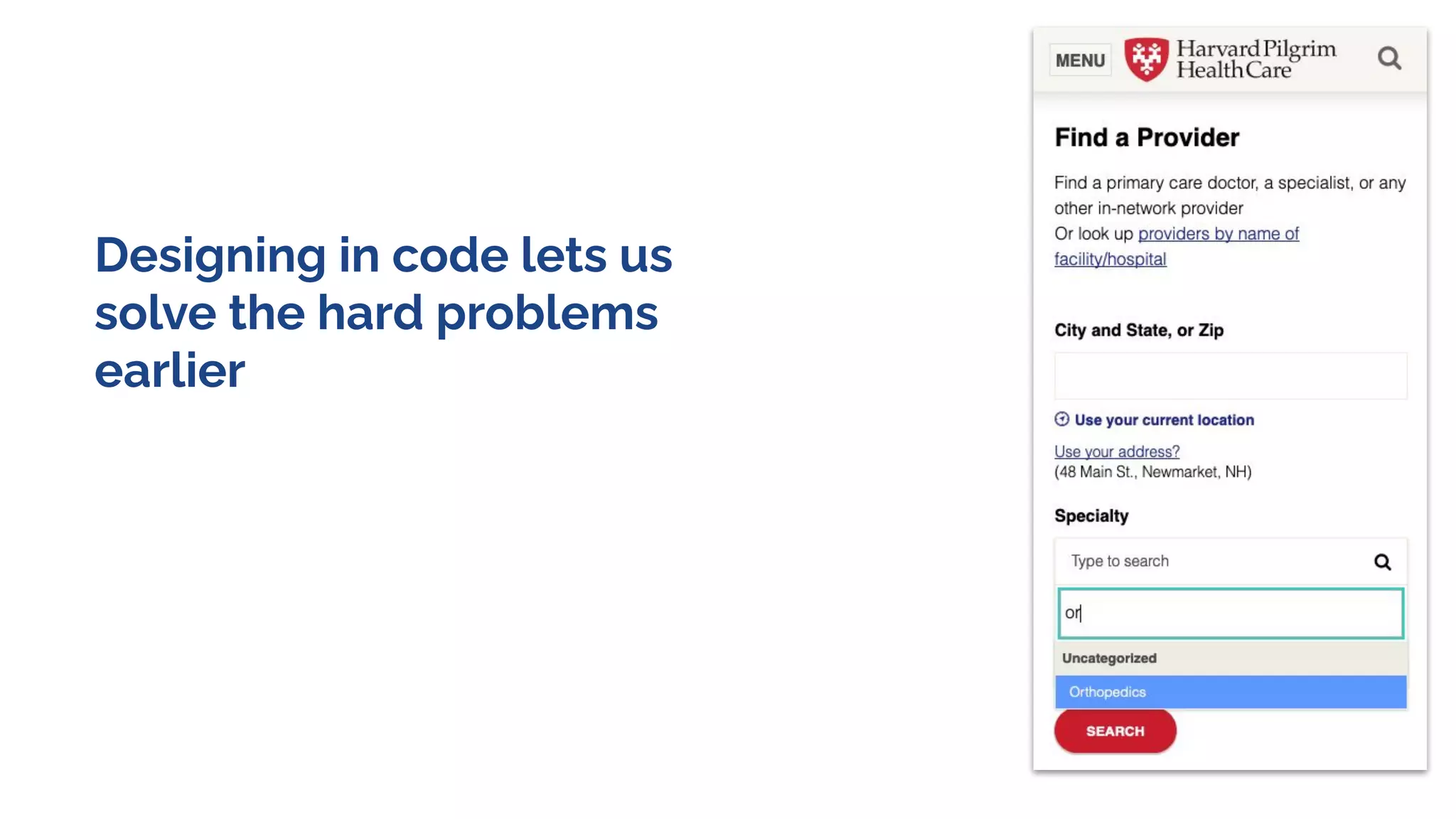

51. Designing in code lets us
solve the hard problems
earlier

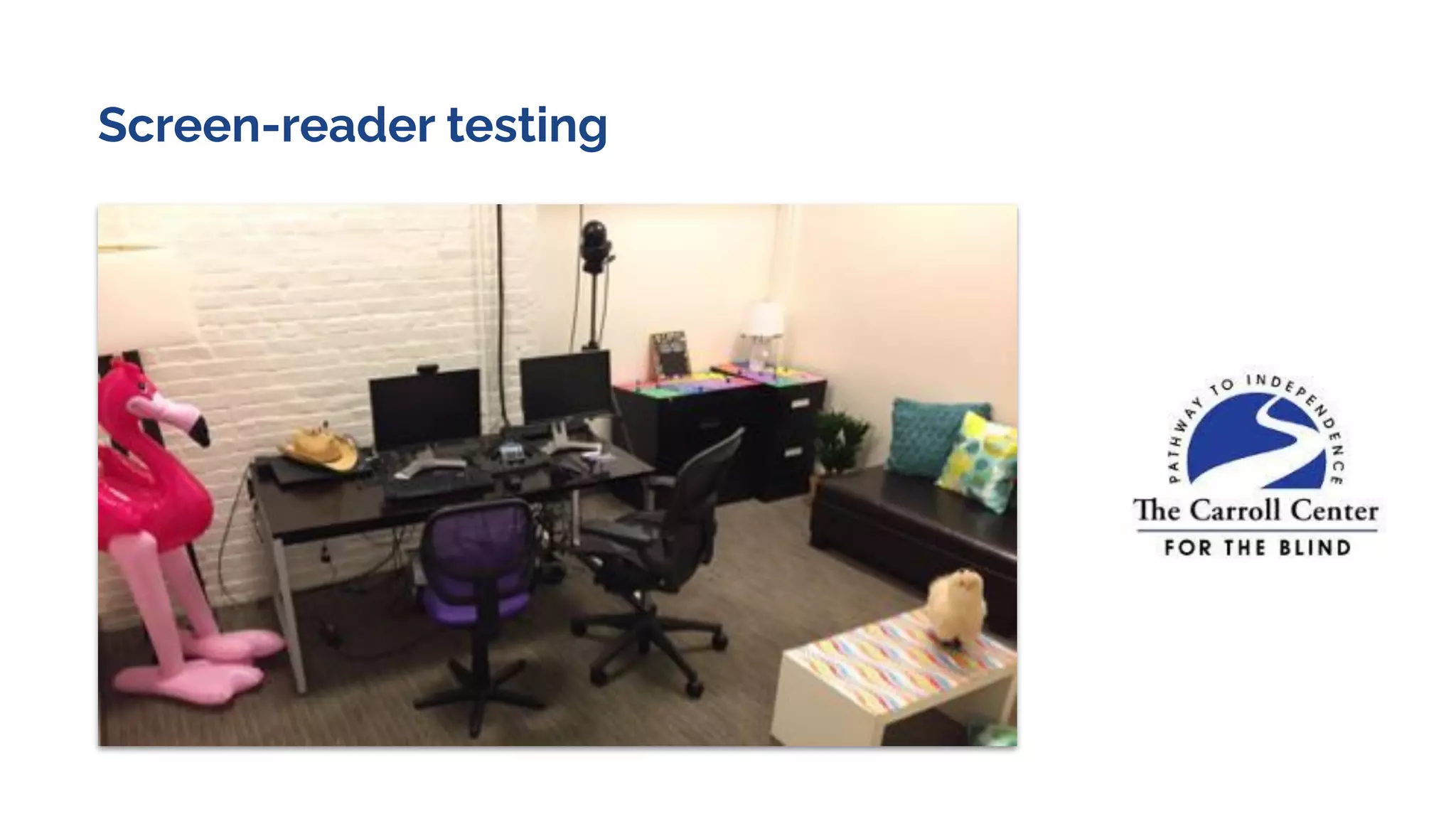

53. Screen-reader testing
