Abstract Simulation Scenario Generation for Autonomous Vehicle Verification
1. Abstract Simulation Scenario Generation
for Autonomous Vehicle Verification
Christopher Medrano-Berumen
and Dr. Mustafa Ilhan Akbas
Department of Computer Science
Advanced Mobility Institute
Florida Polytechnic University

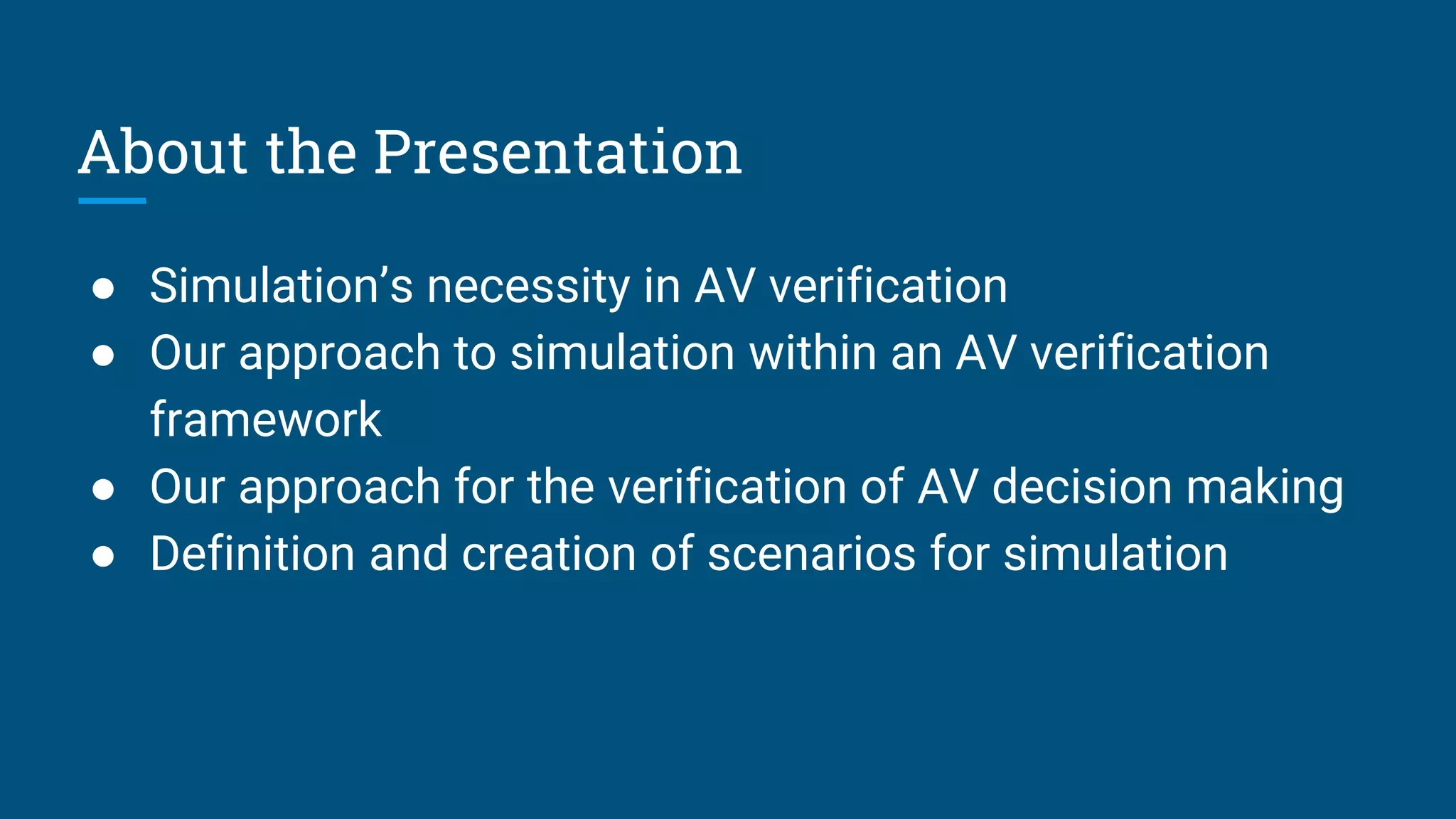

2. About the Presentation
● Simulation’s necessity in AV verification
● Our approach to simulation within an AV verification
framework
● Our approach for the verification of AV decision making
● Definition and creation of scenarios for simulation
3. Introduction
● Proving autonomous vehicle safety will be essential for
public adoption
● Current methods of testing such as ‘shadow driving’ are
too costly and slow
● Autonomous vehicles deal with a complex operational
domain which needs to be perfectly simulated
4. Contributions
1. Defined a semantic language to create scenes
2. Developed a method to compose roadways
3. Defined a method to stitch road segments
4. Developed a self-verification method for road networks
7. Separation of Concerns
● Breaks down the autonomous vehicle into more easily
verifiable components
○ Perception
○ Object Recognition
○ Decision Making
● Verification of subsystems resembling that of hardware
verification
8. Decision Making
● Given an understanding of its surroundings, where the
autonomous vehicle decides its next action
● Verification will require defining what constitutes a good
decision
○ Vehicle follows local driving rules and traditional social rules
■ E.g. someone waving their hand at you to let you go ahead
● Need to appropriately prioritize rules versus safety
9. Decision Making (cont.)
● Newtonian Physics provide a
foundation for representing elements
● Assertions define the desired behavior
of the autonomous vehicle
● Design describes the properties of the
actual scenario
● Inputs & constraints describe what
was used to initialize the scenario
10. Simulation
● Simulation allows the brain of an autonomous vehicle to
be put in virtually any scenario
● Can run tests without safety risk of real-world testing
● Tests can be run in parallel around the clock
12. Choosing a Simulator
● Simulators span a wide-range of methods focusing on
different aspects of autonomous vehicles
○ I.e. machine learning, vehicle dynamics, etc.
● MATLAB provides a full-toolchain, Advanced Driving
Assistance System Toolbox
○ Integrates with the Simulink software, allowing modeling of different
components & vehicle in the loop
○ Does not simulate details outside of what is necessary for Newtonian
physics representation of objects
13. Matrix-based Semantic Language
● Breaks down road/scenario properties into generatable
features using matrices with numeric values
● Matrices passed into scenario generator that feeds the
appropriate information into the simulation environment
14. Semantic Language (cont.)
● Road matrix defines road layout
○ Each row represents a piece of the road and its properties
● Actor matrix defines other actors in scenario
○ Includes other vehicles, pedestrians, and other objects interacting with
AV
15. Road Piece Generation
● Road layout is broken down into common pieces
● Attributes of each type of piece is parametrized into
randomizable features
● Attributes get shared between pieces to limit input
● Currently, the multi-lane road and the 4-way intersection
are implemented
16. Geometric Primitives
● A road follows 3 types of
lines:
○ Line
○ Arc
○ Clothoid
■ Changes curvature at constant
rate, used for smooth turning
● Permutations in sets of 3 make
up all common forms of single
roads
17. Multi-lane Road Piece
● Constructed as a building block for
other roads
● Puts together a road from primitives
w/ all parameters in mind
○ Lanes
○ Length
○ Starting and ending Curvatures
○ Directions
○ Lane markers
18. Intersections
● Four-way Intersections
● Each road has individual properties
○ Lanes
○ Direction
● Turning lanes are determined by number
of available lanes in each direction
● Laid out according to all four widths
19. Stitching Roads Together
● Roads are stitched together by lining up tangent lines
○ Pieces are rotated and shifted to line up end/start points
○ Same is done for geometric pieces of multilane road
● Intermediary piece is created between pieces w/ different
lane numbers to account for changing road sizes
● Makes for continuous road that the ego vehicle can move
through
20. Road Validation
● A check is done on each
piece to check legality
● Not placing illegal road
pieces ensures the
scenario is not invalid
● Current check involves
not allowing separate
roads to intersect
21. Conclusion
● AV verification is critical and necessary
● We propose a semantic language to define scenarios
● Our simulation methodology composes all road
geometries based on road pieces/primitives, stitches
them together, and validates results
● Future work includes:
○ Definition of more road types and their properties
○ Integration with HiL simulation
○ Exporting scenarios to more common formats
