1. A Tour of (Advanced)
Akka Features in 40
Minutes
Johan Janssen, Info Support
@johanjanssen42

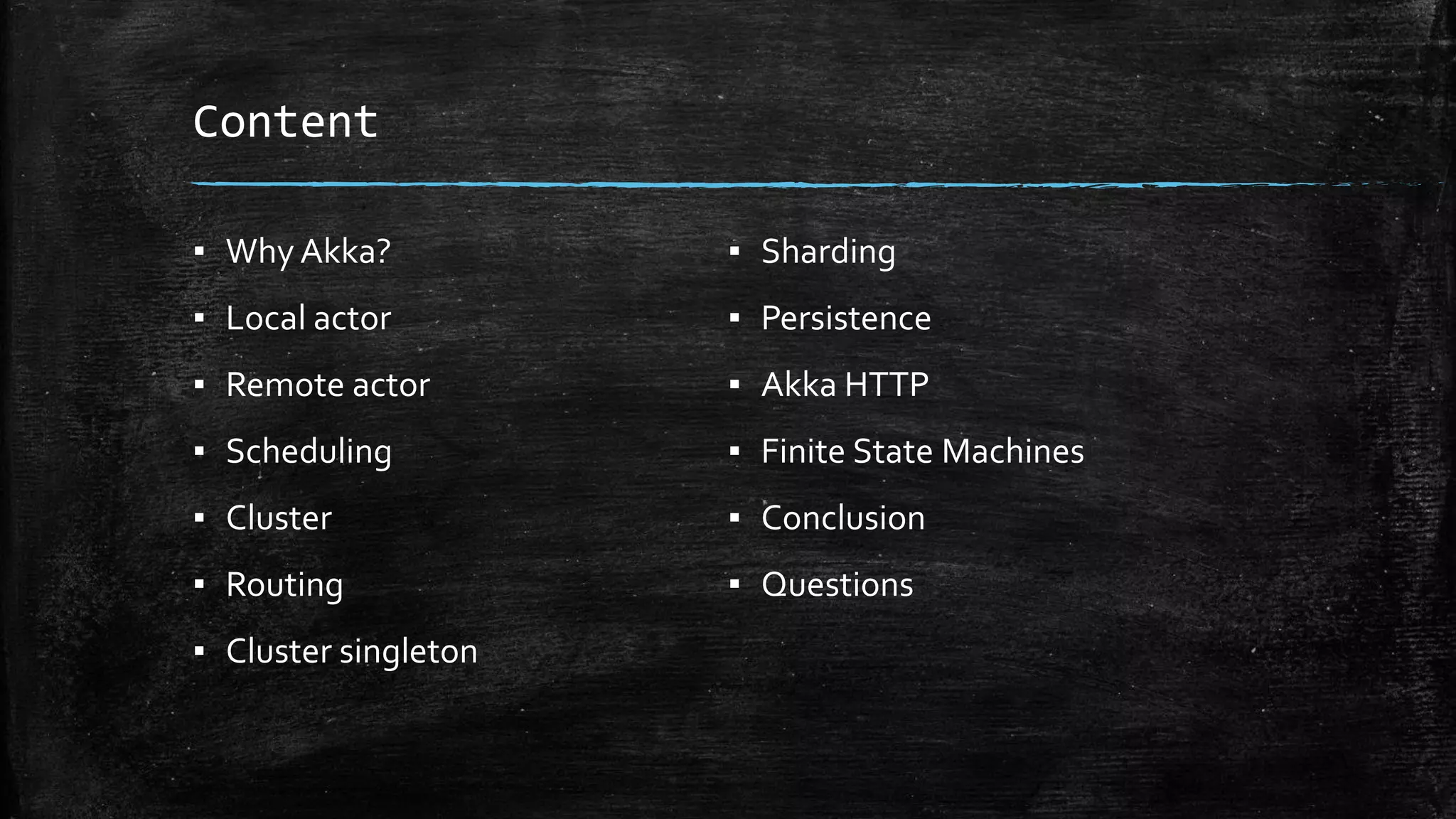

2. Content
▪ Why Akka?
▪ Local actor
▪ Remote actor
▪ Scheduling
▪ Cluster
▪ Routing
▪ Cluster singleton
▪ Sharding
▪ Persistence
▪ Akka HTTP
▪ Finite State Machines
▪ Conclusion
▪ Questions

3. Why Akka?

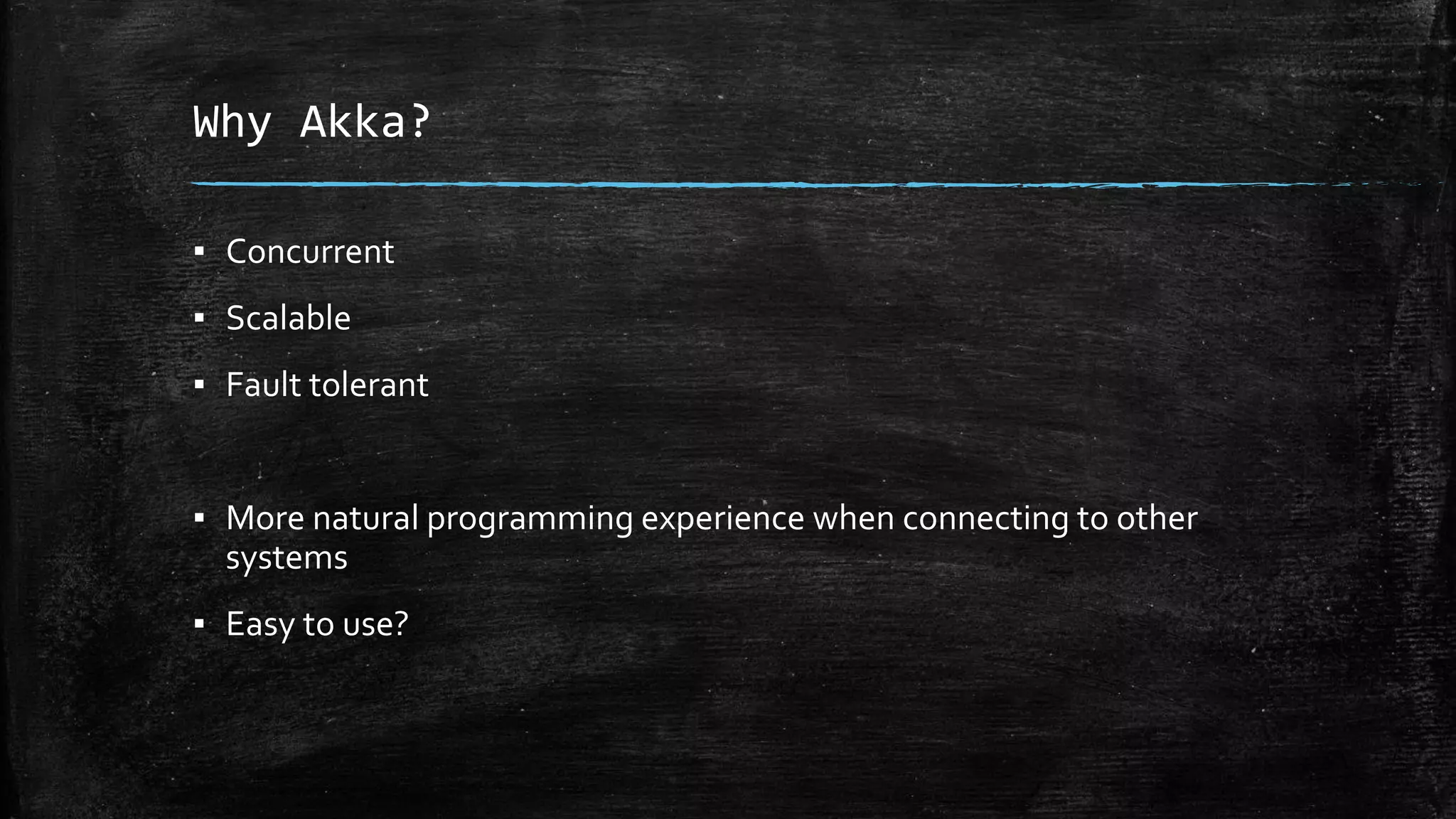

4. Why Akka?
▪ Concurrent
▪ Scalable
▪ Fault tolerant
▪ More natural programming experience when connecting to other
systems
▪ Easy to use?

6. Local actor

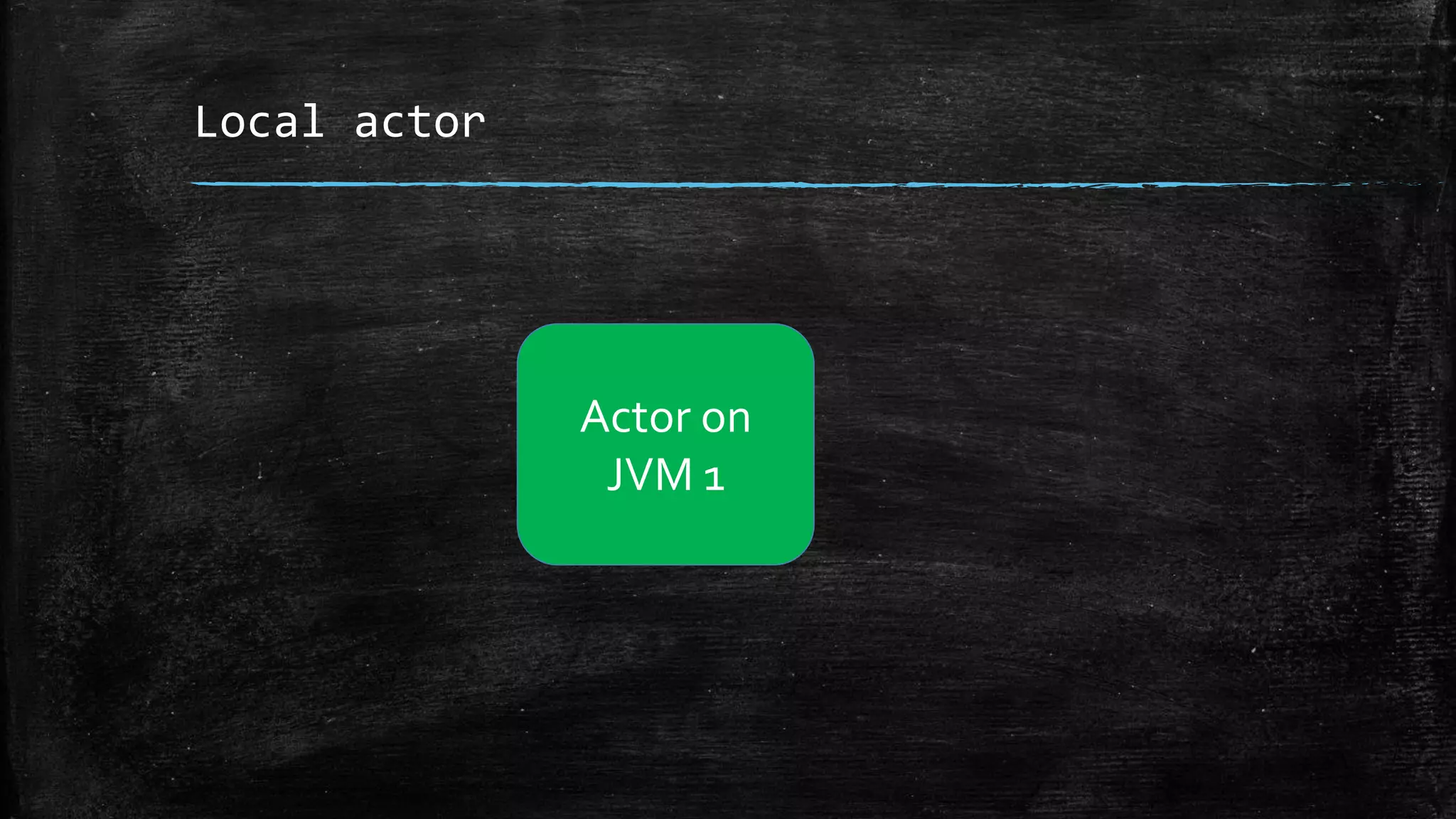

7. Local actor
Actor on
JVM 1

8. Local actor
Coordinator Actor
Hello
conference

9. Local actor
Coordinator Actor
println("Hello conference")

10. class Worker extends Actor {
def receive = {
case x =>
println(x)
}
}
val system = ActorSystem("ExampleActorSystem")
val workerActorRef = system.actorOf(Props[Worker])
workerActorRef ! "Hello conference"
Scala

11. Remote actor

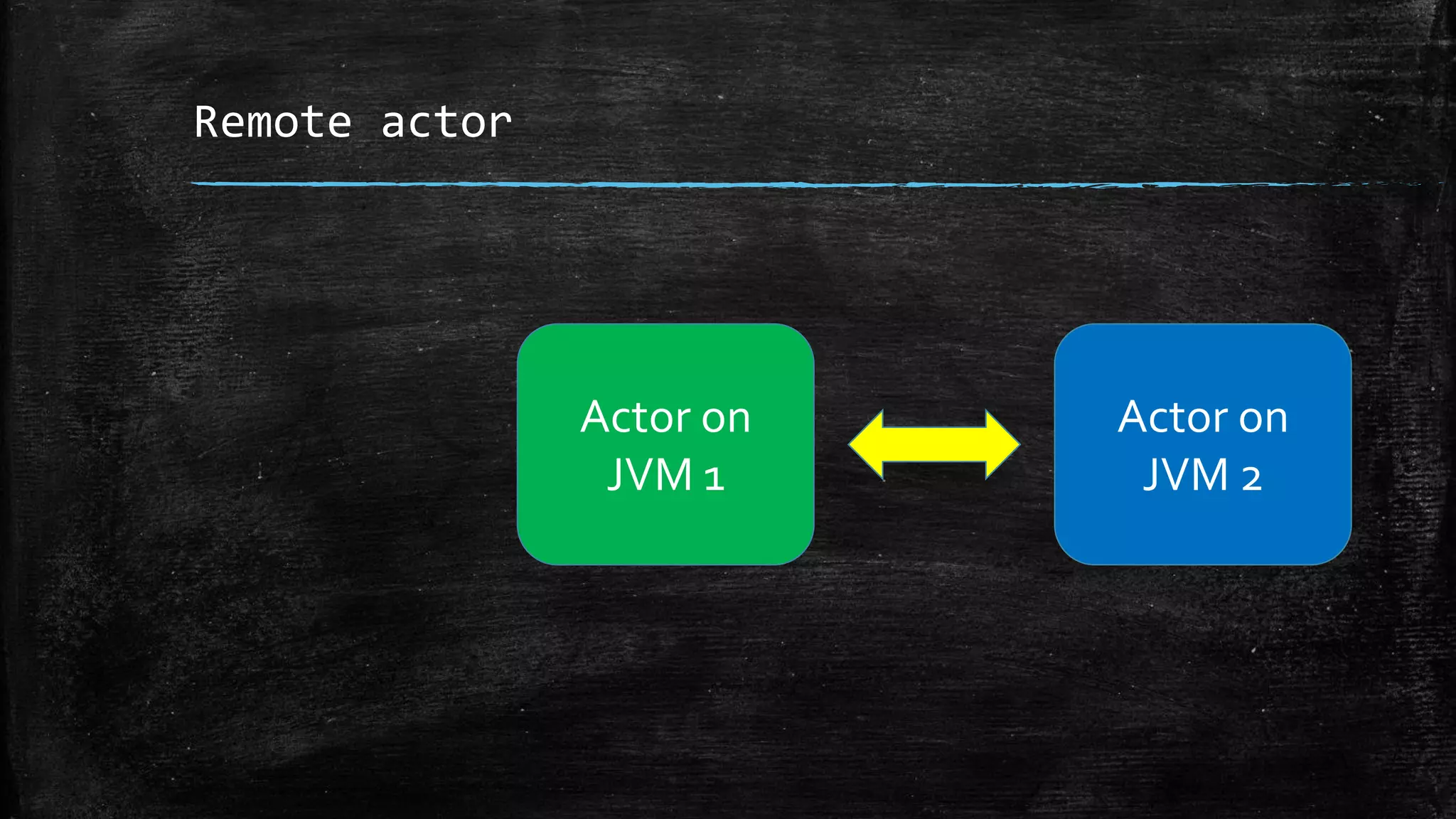

12. Remote actor
Actor on
JVM 1
Actor on
JVM 2

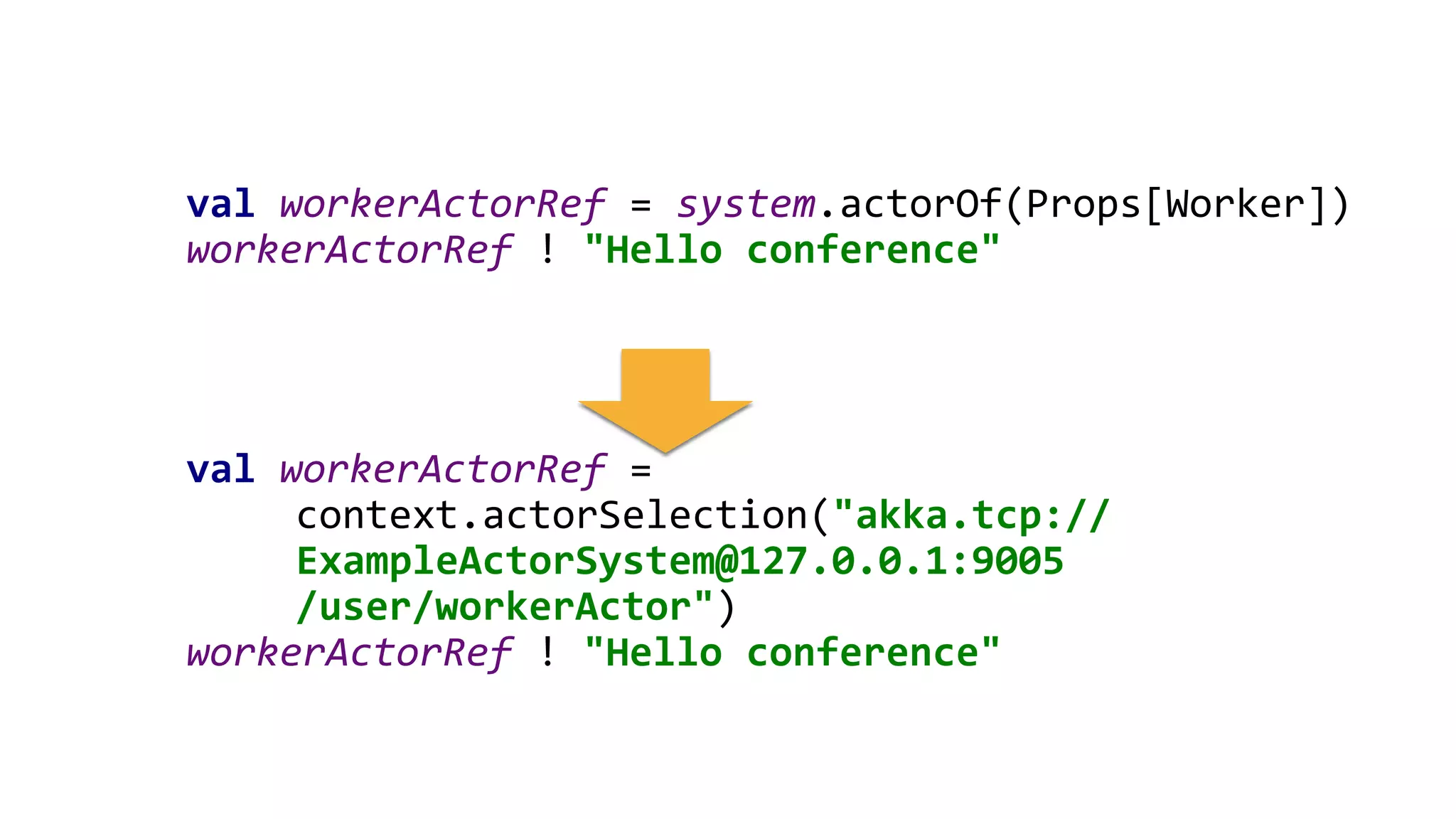

13. val workerActorRef = system.actorOf(Props[Worker])
workerActorRef ! "Hello conference"
val workerActorRef =
context.actorSelection("akka.tcp://
ExampleActorSystem@127.0.0.1:9005
/user/workerActor")
workerActorRef ! "Hello conference"

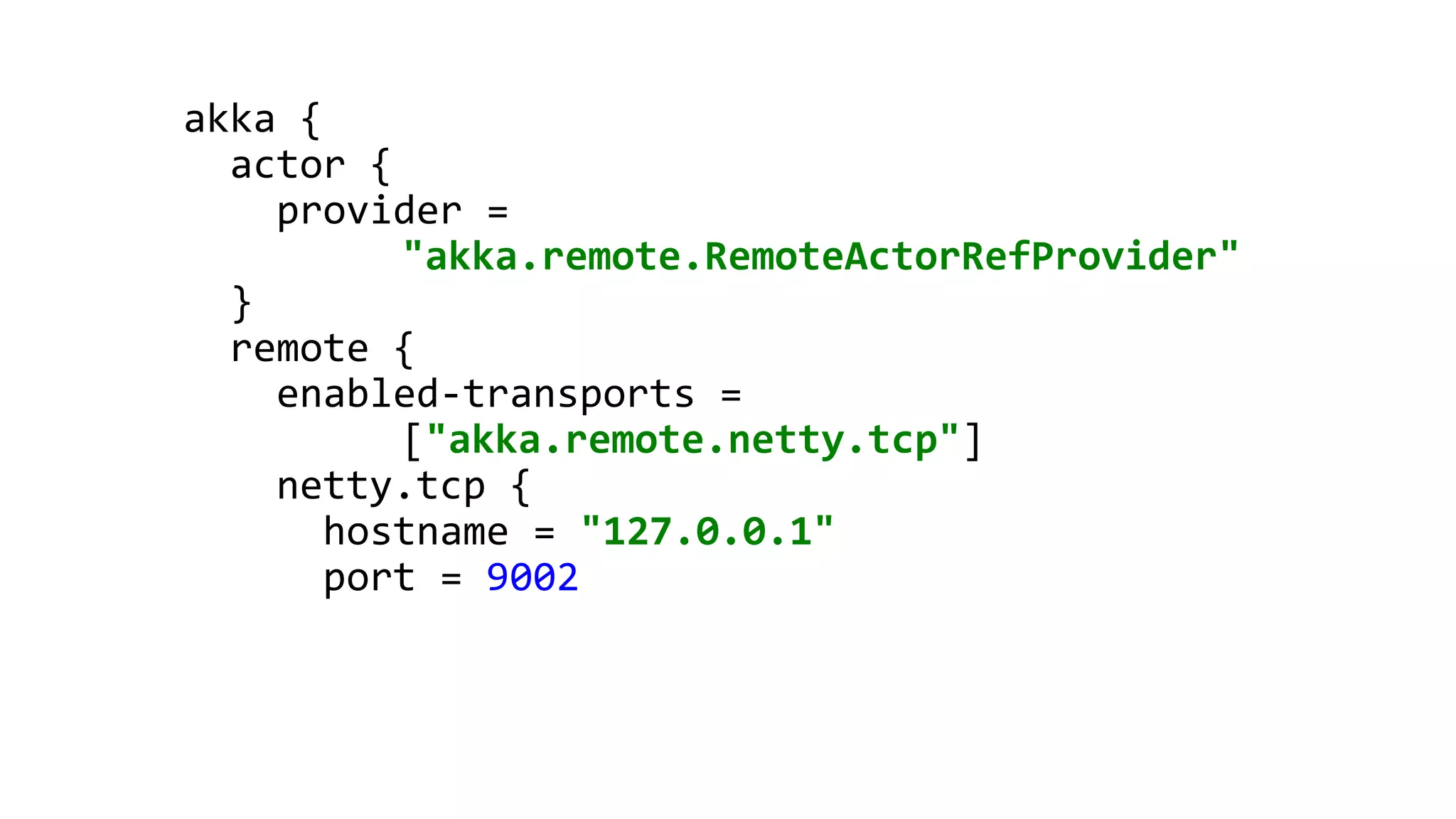

14. akka {
actor {
provider =
"akka.remote.RemoteActorRefProvider"
}
remote {
enabled-transports =
["akka.remote.netty.tcp"]
netty.tcp {
hostname = "127.0.0.1"
port = 9002

15. Remote actor
Coordinator
actor
Worker
actor
StartMessage
Hello
conference

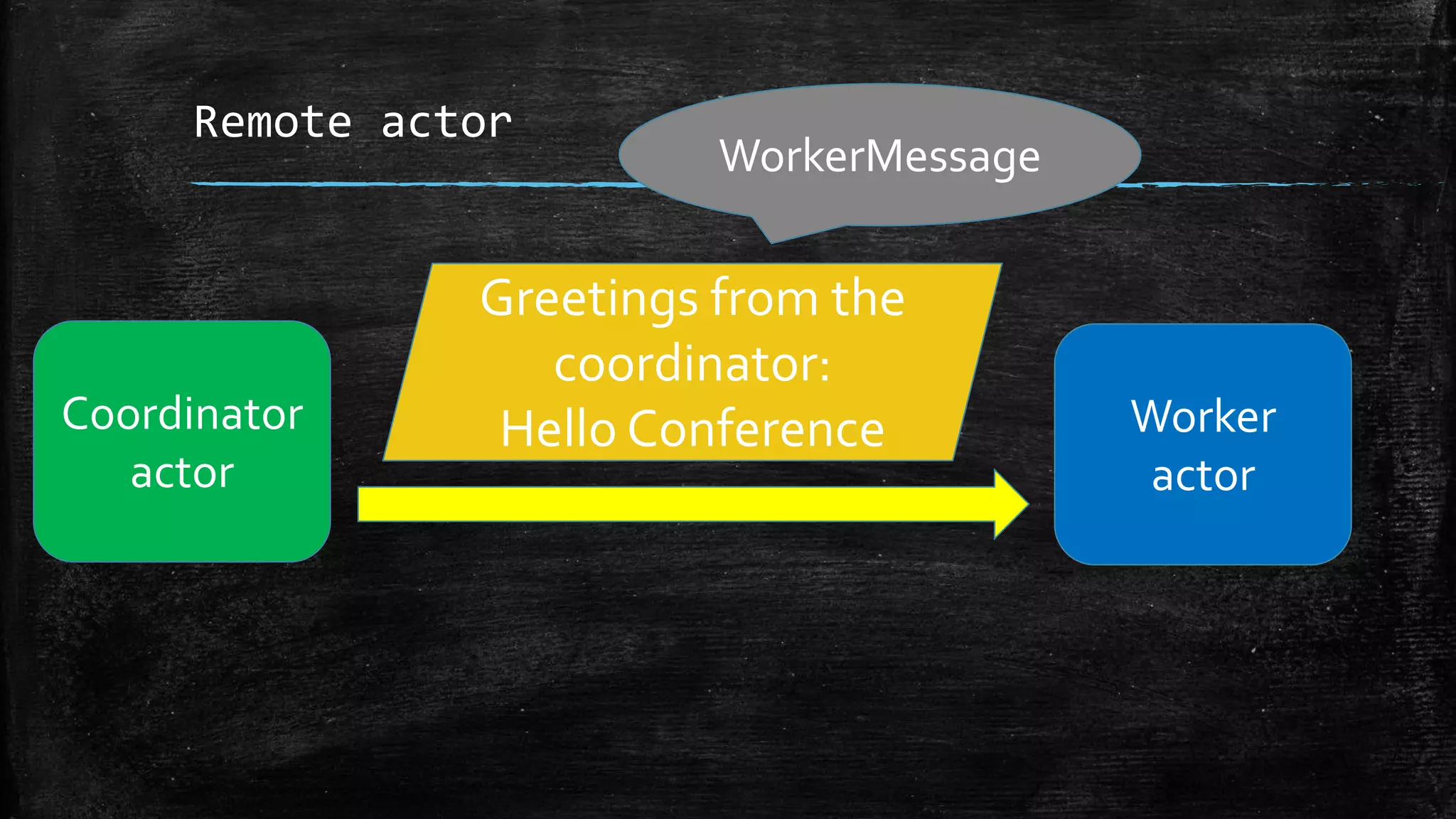

16. Remote actor
Coordinator
actor
Worker
actor
WorkerMessage
Greetings from the
coordinator:
Hello Conference

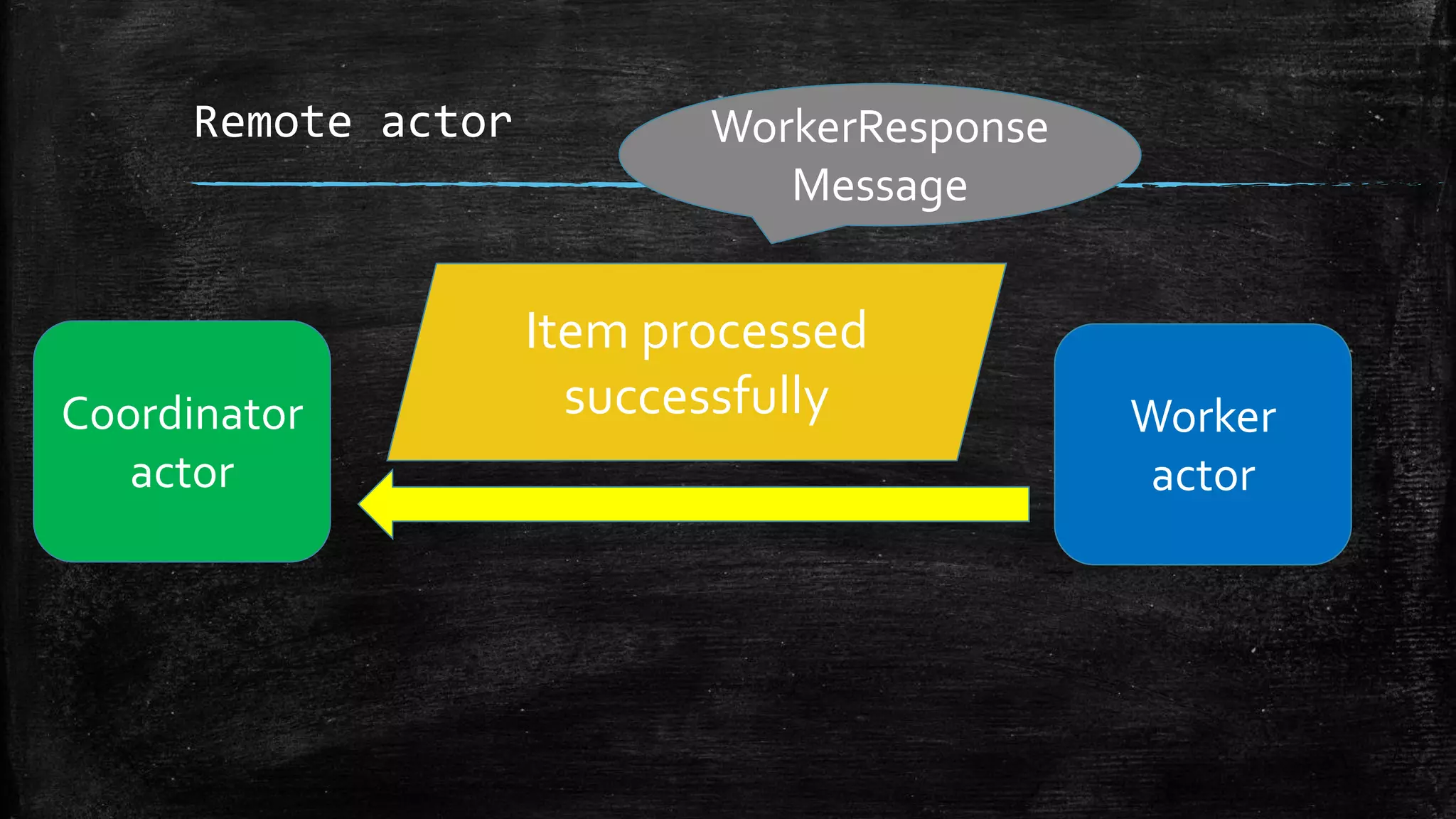

17. Remote actor
Coordinator
actor
Worker
actor
WorkerResponse
Message
Item processed
successfully

18. Scheduling

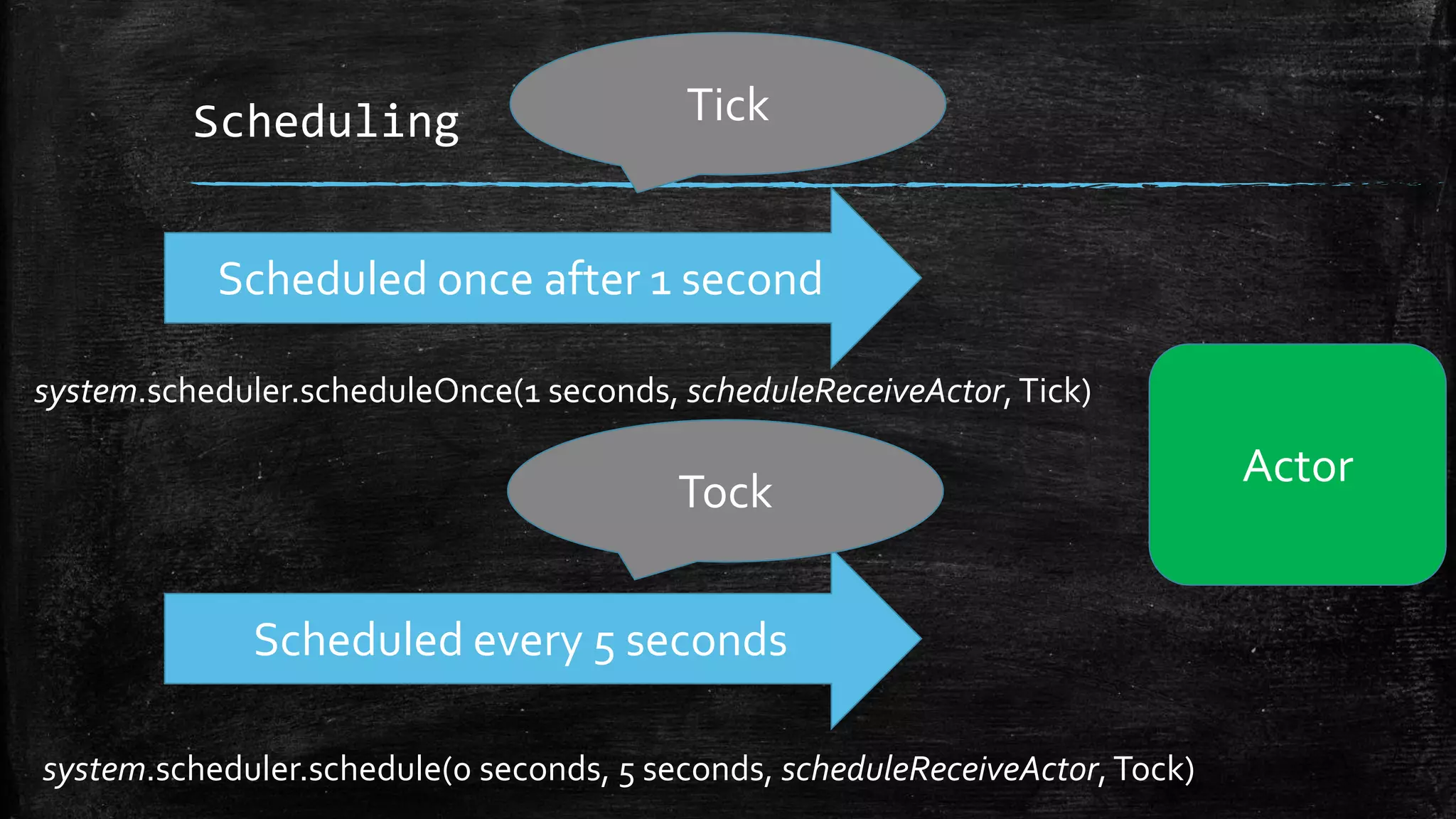

19. Scheduling
Actor
Scheduled once after 1 second
Tick
Scheduled every 5 seconds
Tock
system.scheduler.scheduleOnce(1 seconds, scheduleReceiveActor, Tick)
system.scheduler.schedule(0 seconds, 5 seconds, scheduleReceiveActor, Tock)

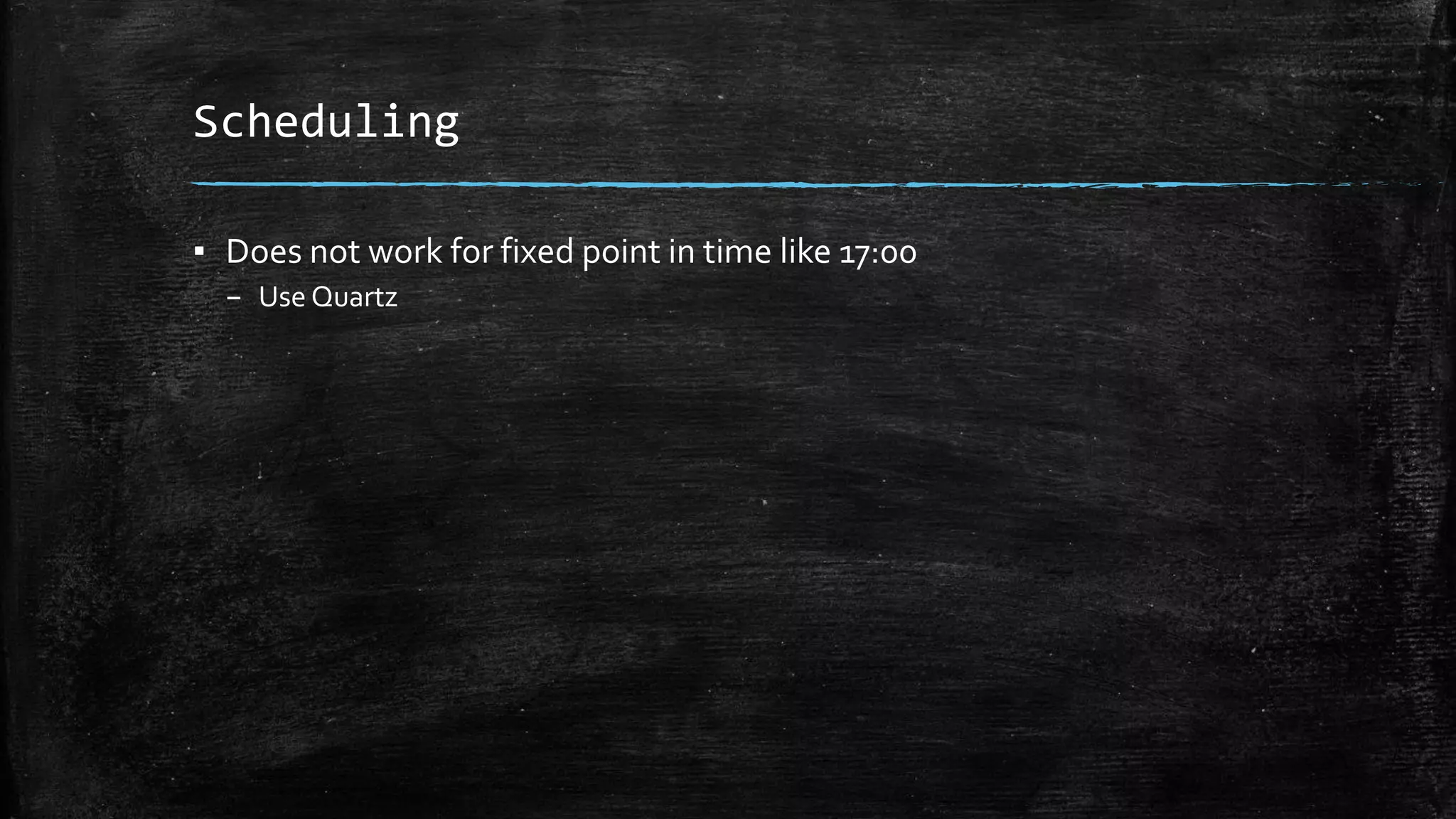

20. Scheduling
▪ Does not work for fixed point in time like 17:00
– Use Quartz

21. Cluster

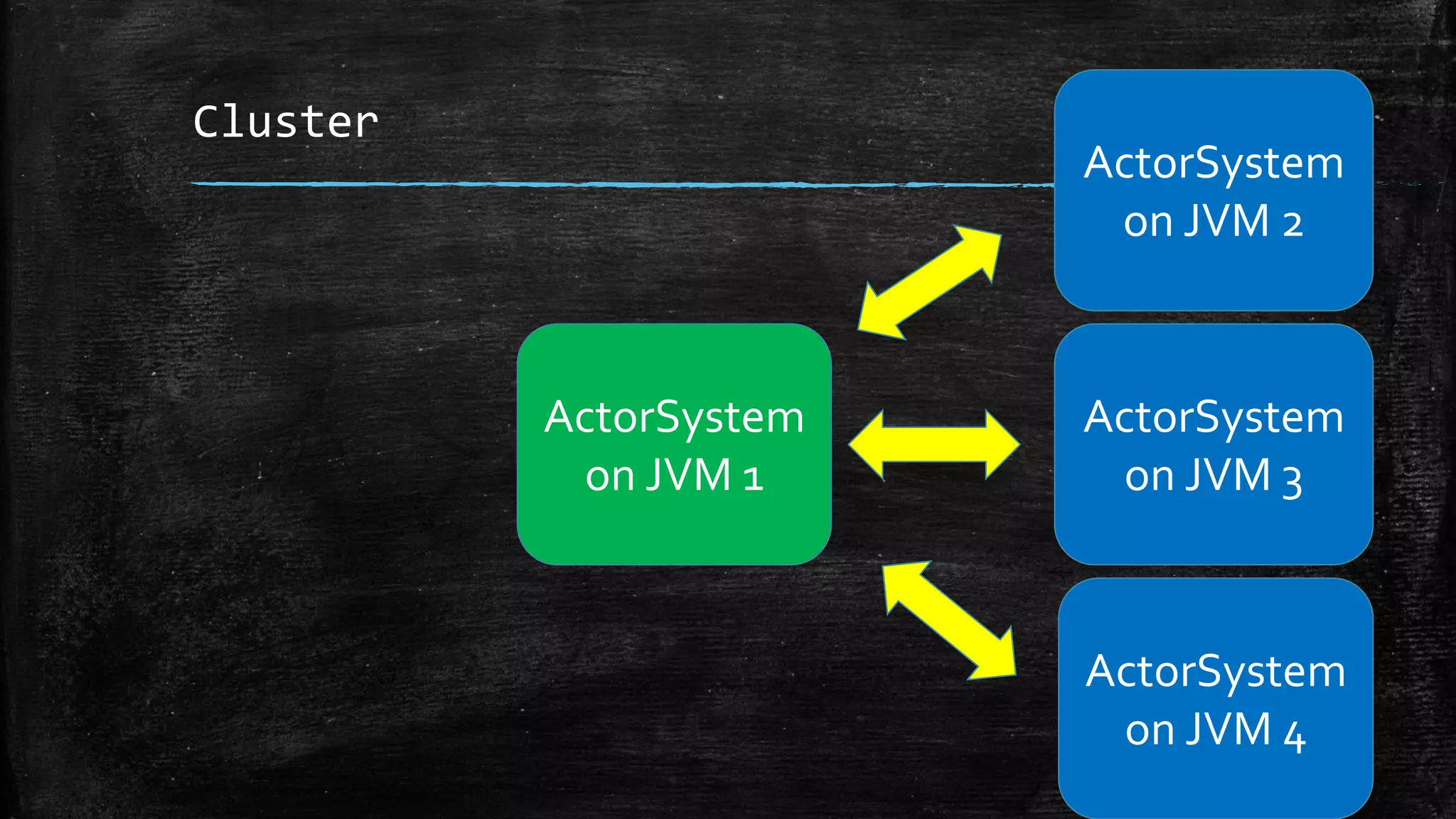

22. Cluster
ActorSystem
on JVM 1
ActorSystem
on JVM 3
ActorSystem
on JVM 2
ActorSystem
on JVM 4

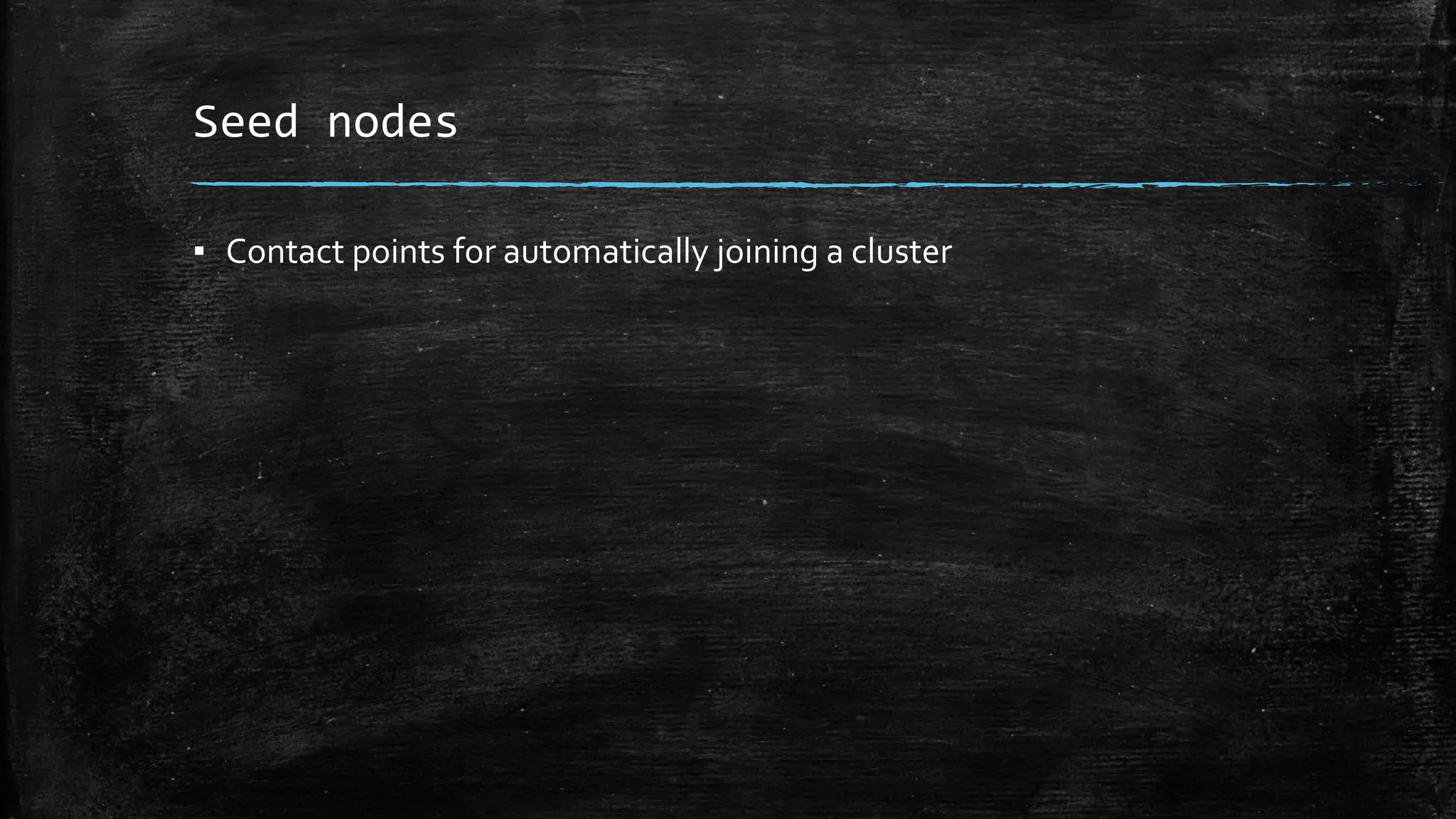

23. Seed nodes
▪ Contact points for automatically joining a cluster

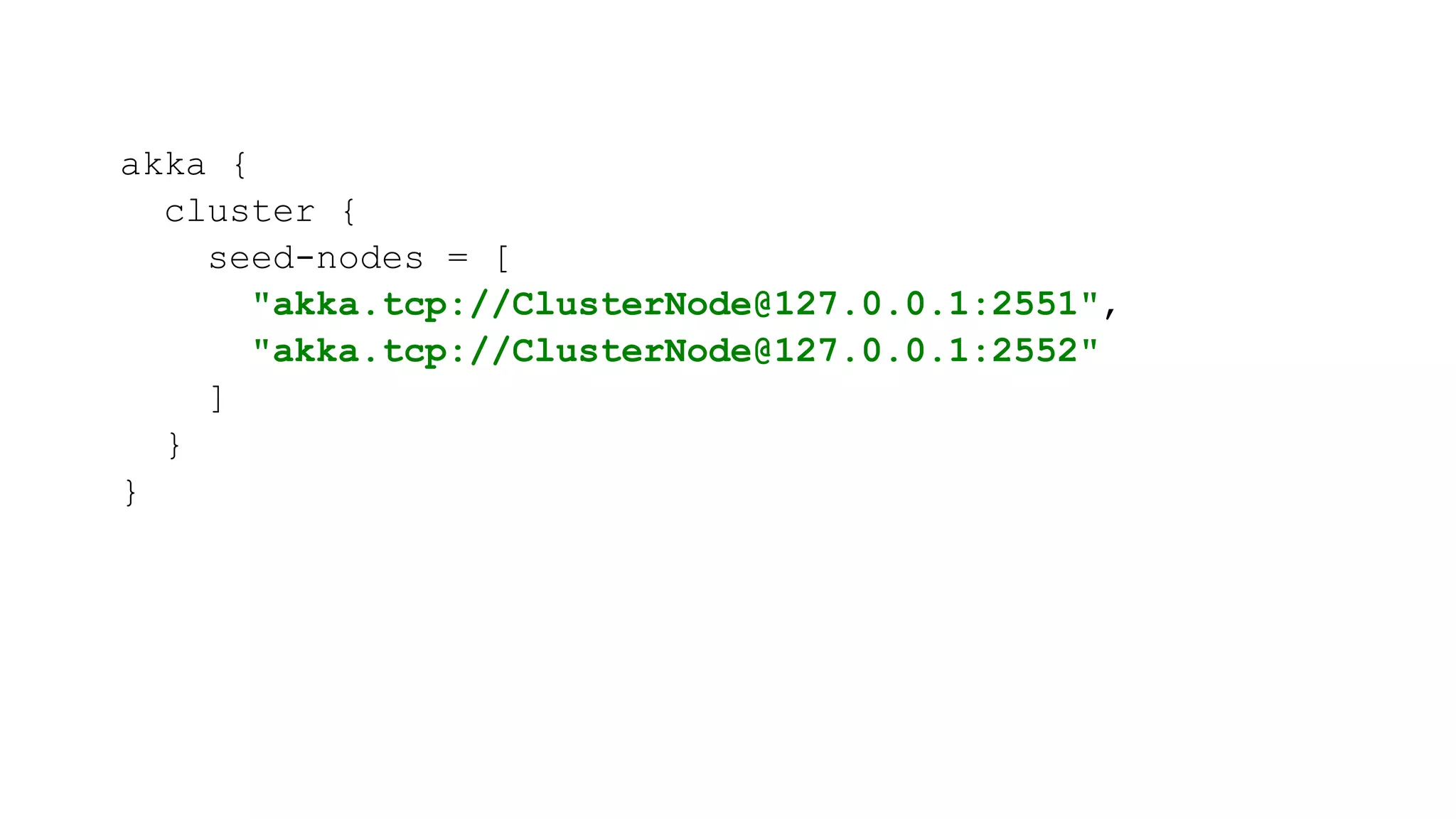

24. akka {
cluster {
seed-nodes = [
"akka.tcp://ClusterNode@127.0.0.1:2551",
"akka.tcp://ClusterNode@127.0.0.1:2552"
]
}
}

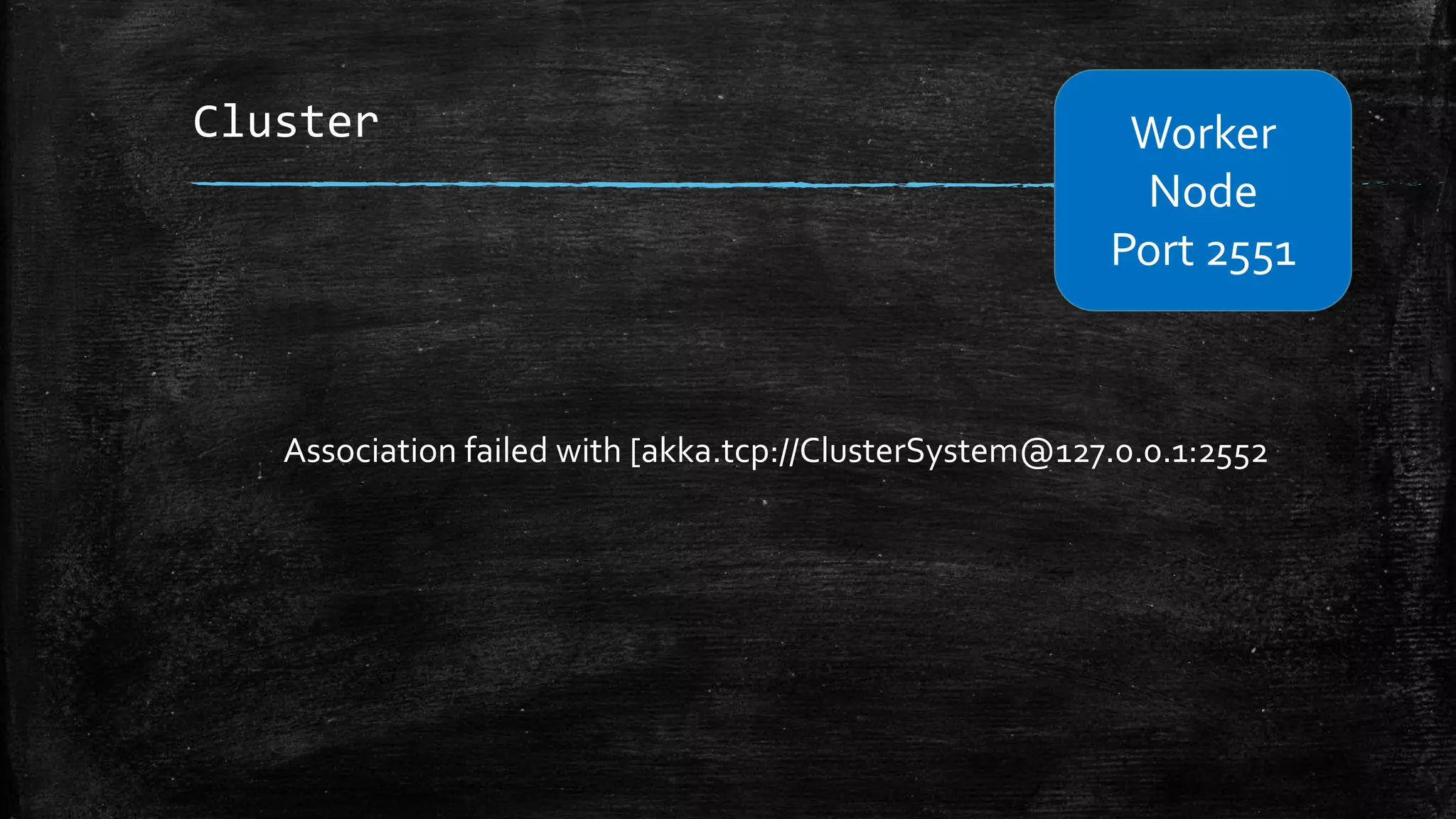

25. Cluster Worker
Node
Port 2551
Association failed with [akka.tcp://ClusterSystem@127.0.0.1:2552

26. Cluster Worker
Node
Port 2551
Worker
Node
Port 2552
Member Up with IP: 127.0.0.1 and port: 2551
Member Up with IP: 127.0.0.1 and port: 2552
Member Up with IP: 127.0.0.1 and port: 2551
Member Up with IP: 127.0.0.1 and port: 2552

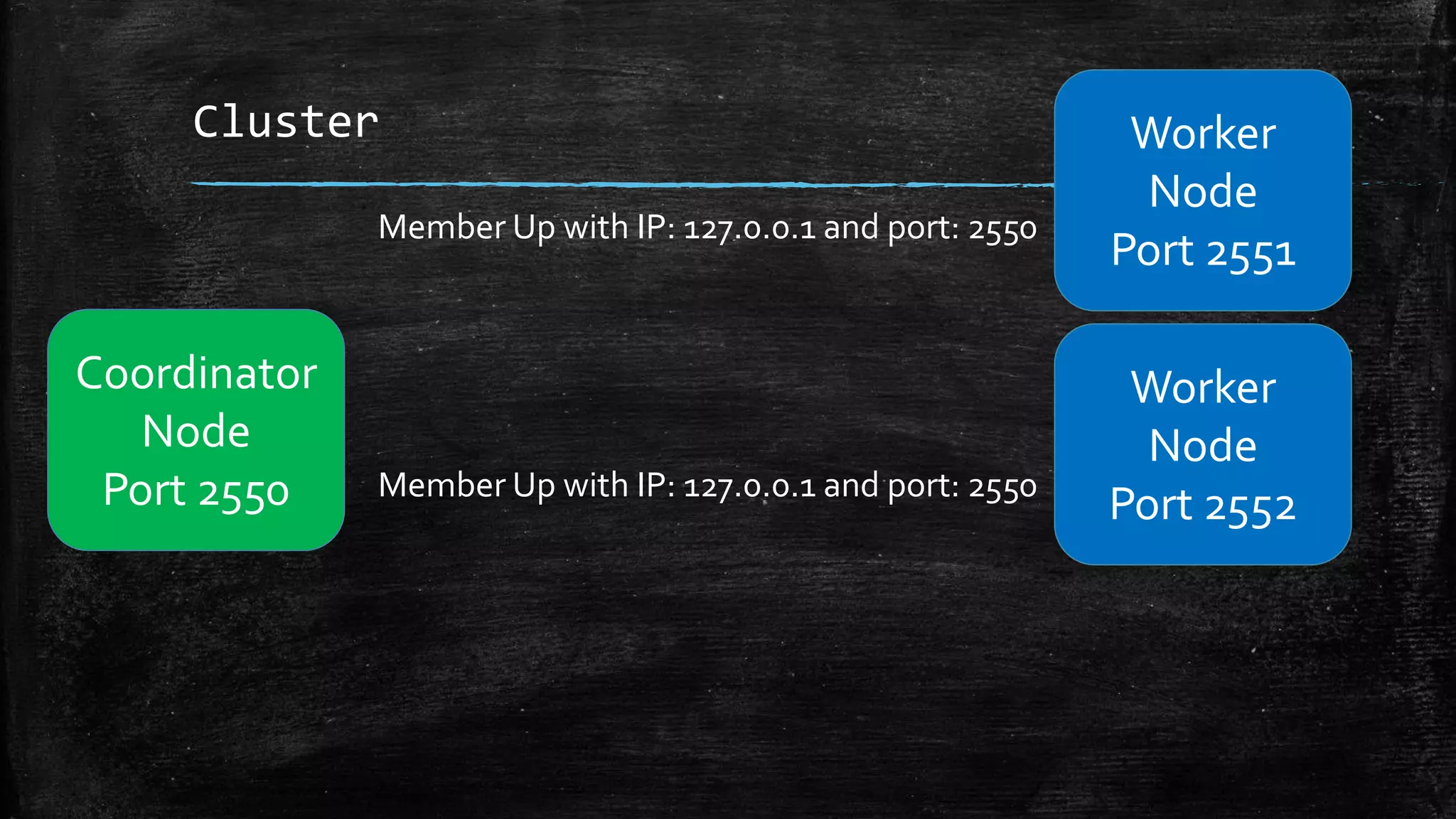

27. Cluster Worker
Node
Port 2551
Worker
Node
Port 2552
Member Up with IP: 127.0.0.1 and port: 2550
Member Up with IP: 127.0.0.1 and port: 2550
Coordinator
Node
Port 2550

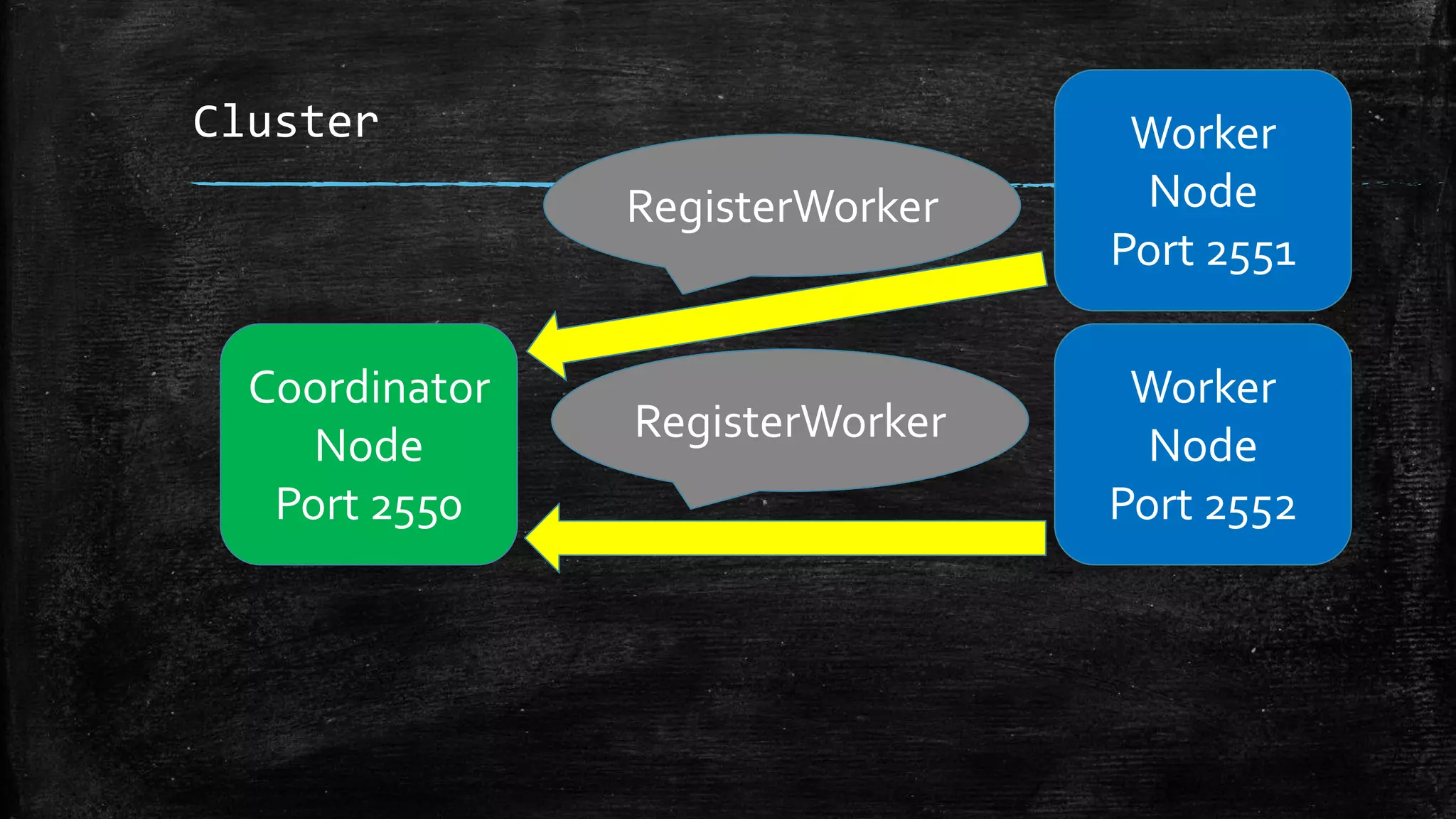

28. Cluster Worker
Node
Port 2551
Worker
Node
Port 2552
Coordinator
Node
Port 2550
RegisterWorker
RegisterWorker

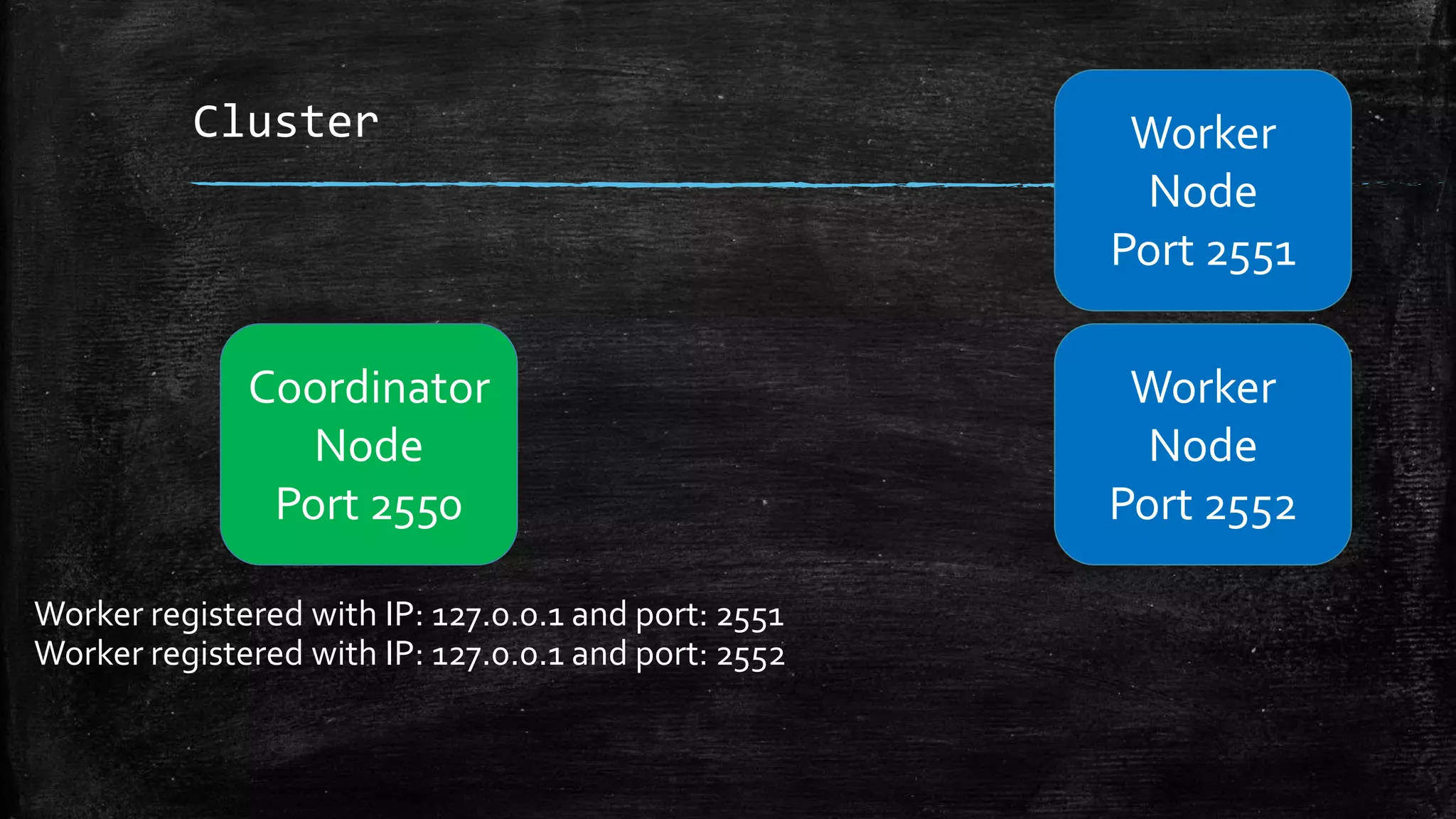

29. Cluster Worker
Node
Port 2551
Worker
Node
Port 2552
Coordinator
Node
Port 2550
Worker registered with IP: 127.0.0.1 and port: 2551
Worker registered with IP: 127.0.0.1 and port: 2552

30. Routing

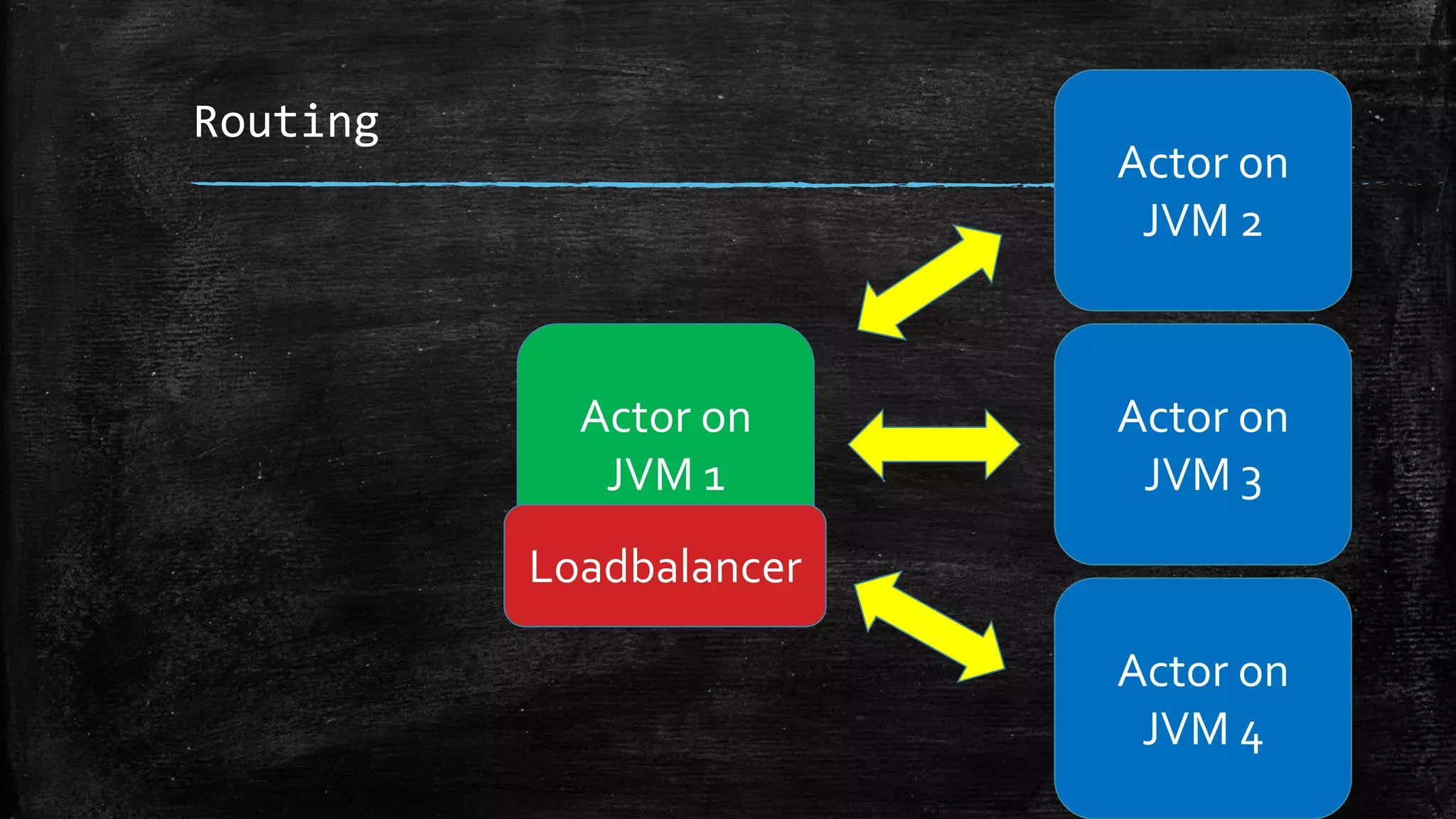

31. Routing
Actor on
JVM 1
Actor on
JVM 3
Actor on
JVM 4
Actor on
JVM 2
Loadbalancer

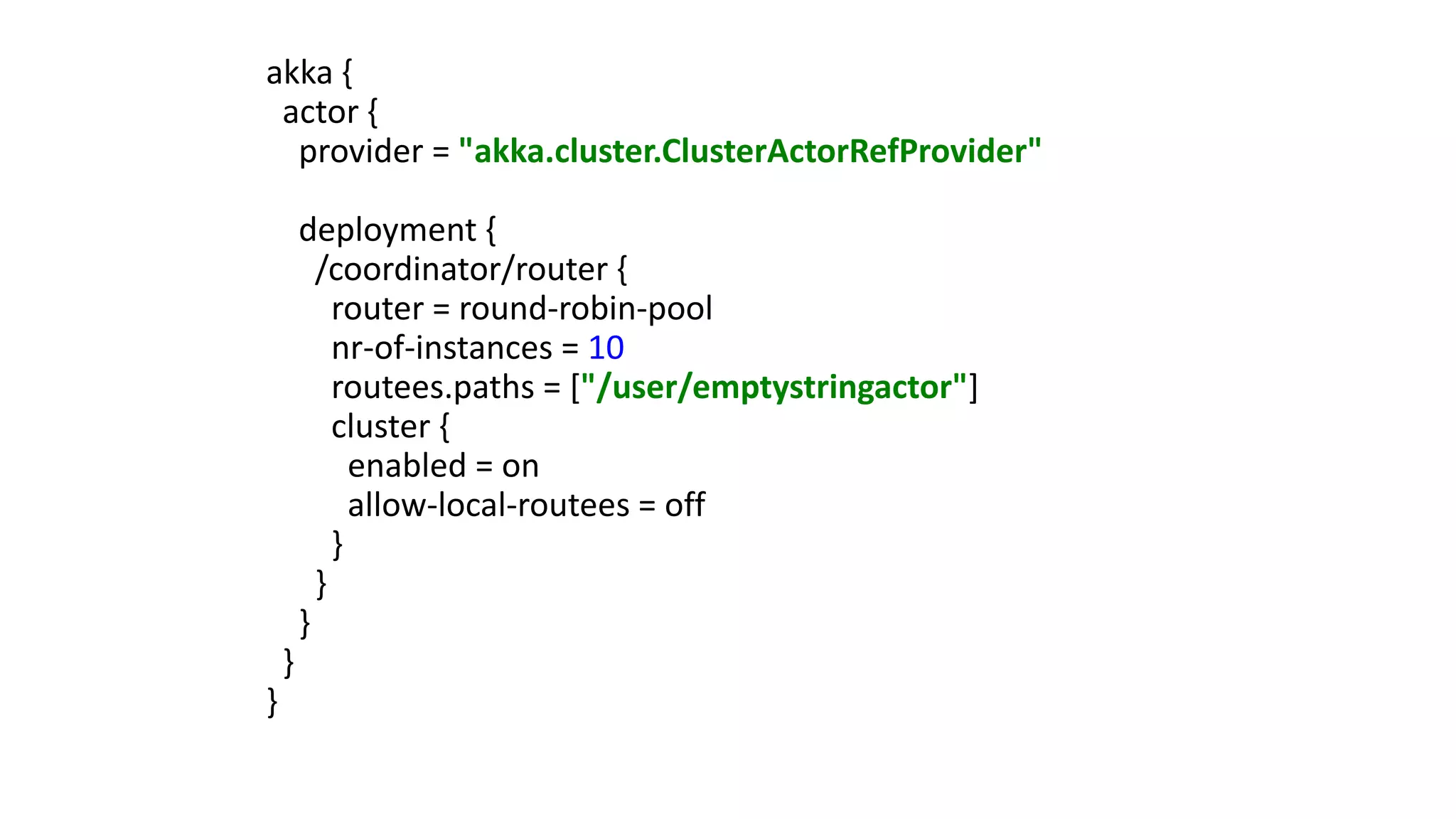

32. akka {
actor {
provider = "akka.cluster.ClusterActorRefProvider"
deployment {
/coordinator/router {
router = round-robin-pool
nr-of-instances = 10
routees.paths = ["/user/emptystringactor"]
cluster {
enabled = on
allow-local-routees = off
}
}
}
}
}

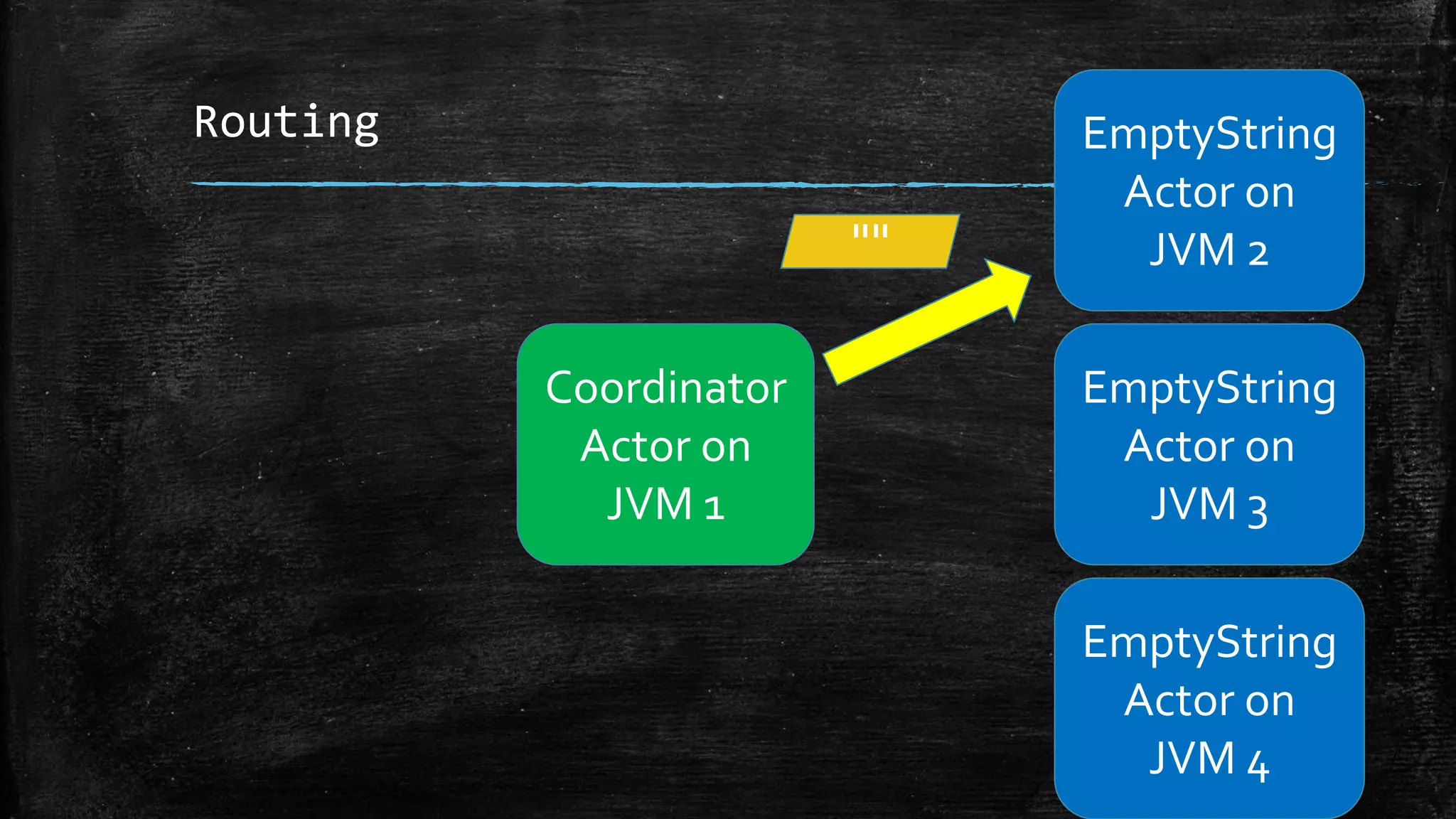

33. Routing
Coordinator
Actor on
JVM 1
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""

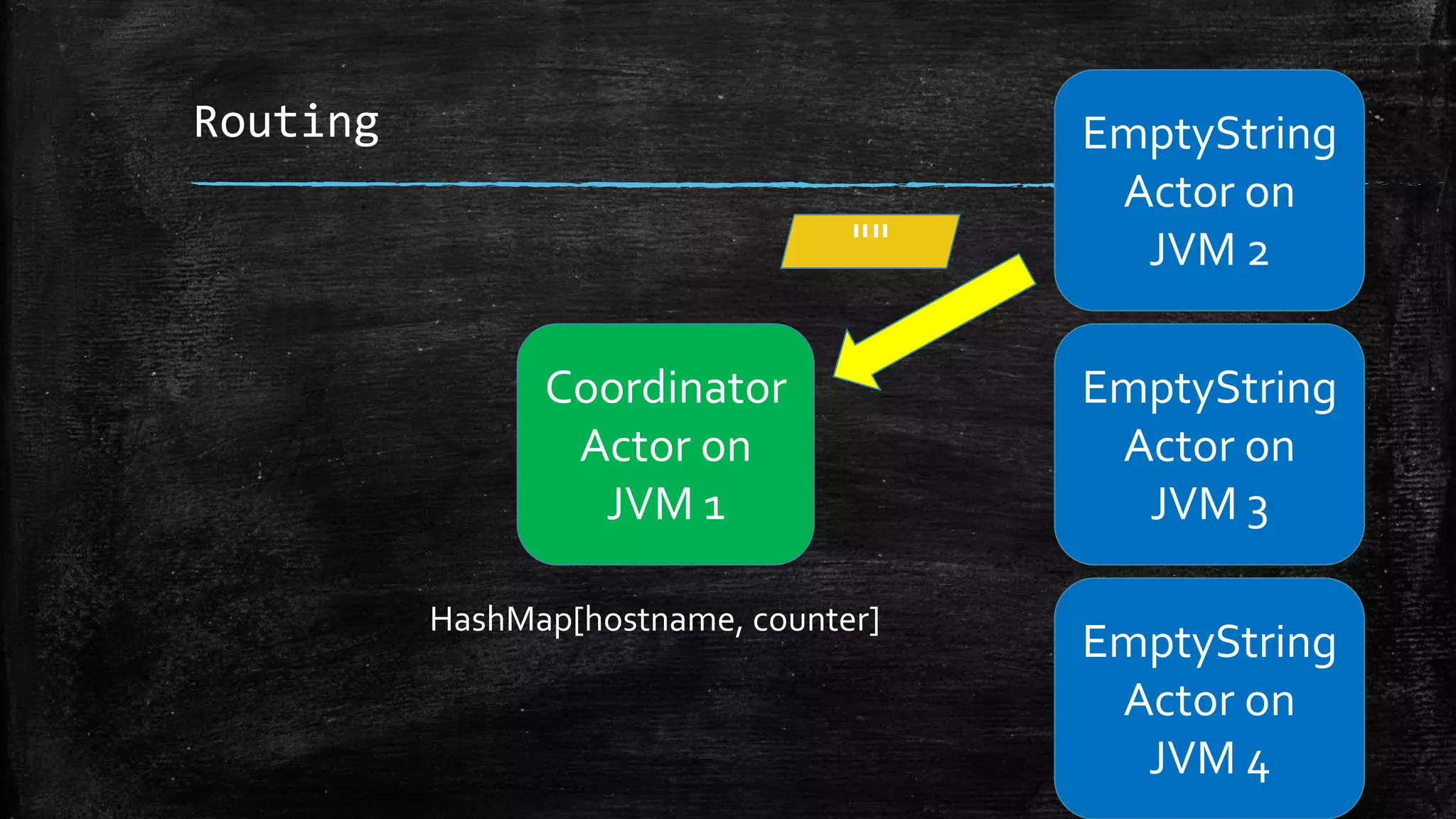

34. Routing
Coordinator
Actor on
JVM 1
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""
HashMap[hostname, counter]

35. Routing
Coordinator
Actor on
JVM 1
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2
""

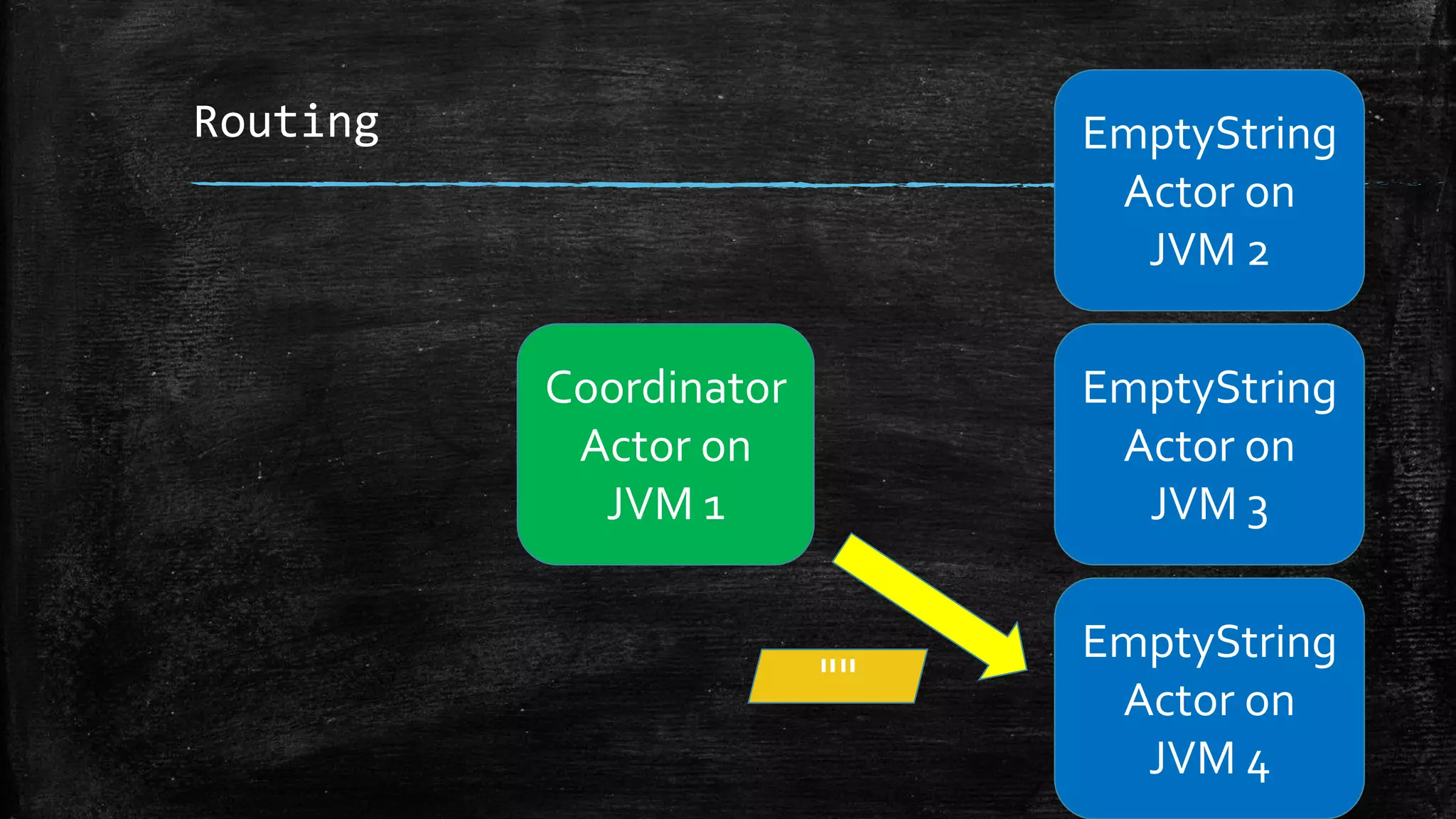

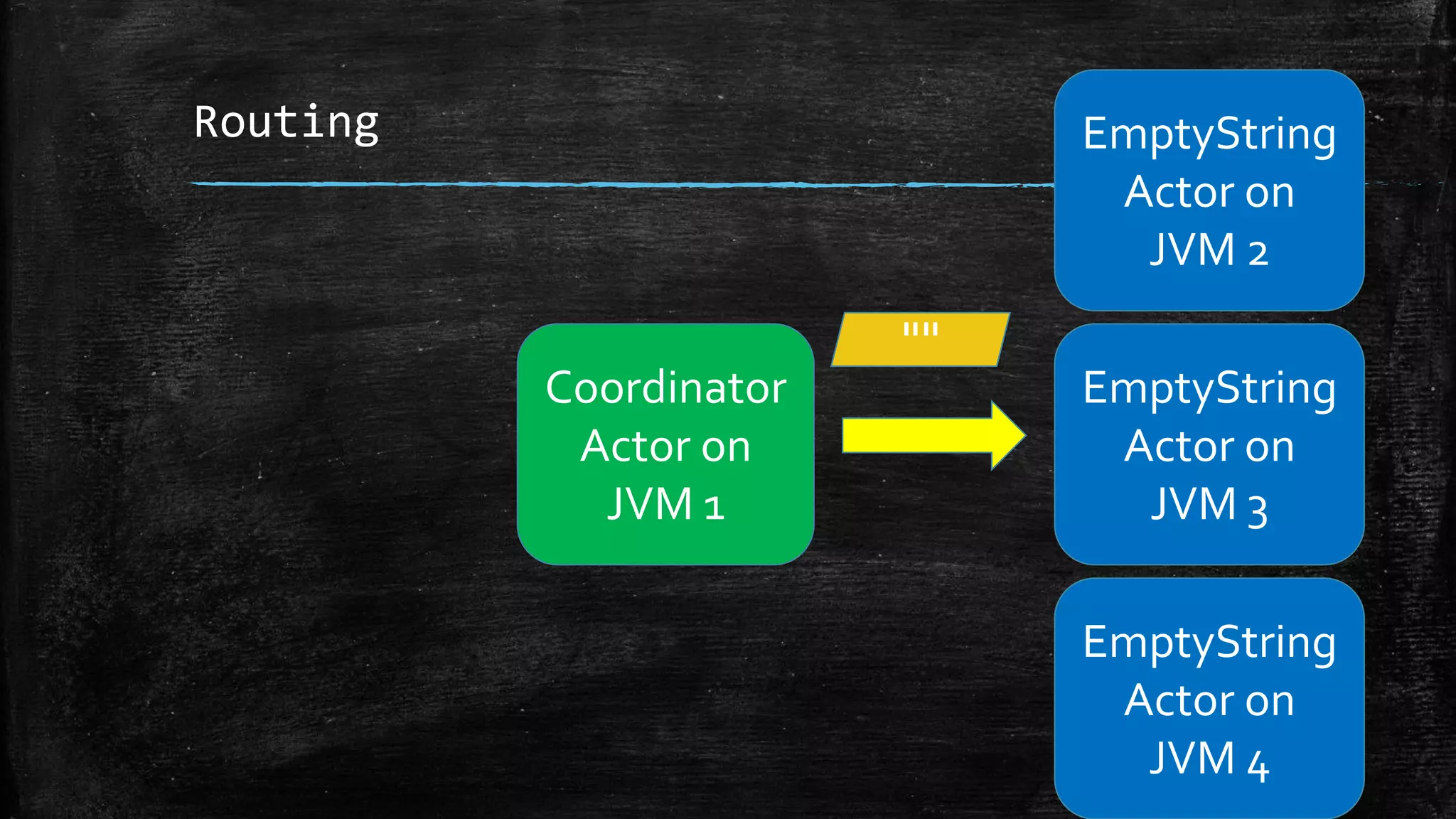

36. Routing
Coordinator
Actor on
JVM 1
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2
""

37. Cluster singleton

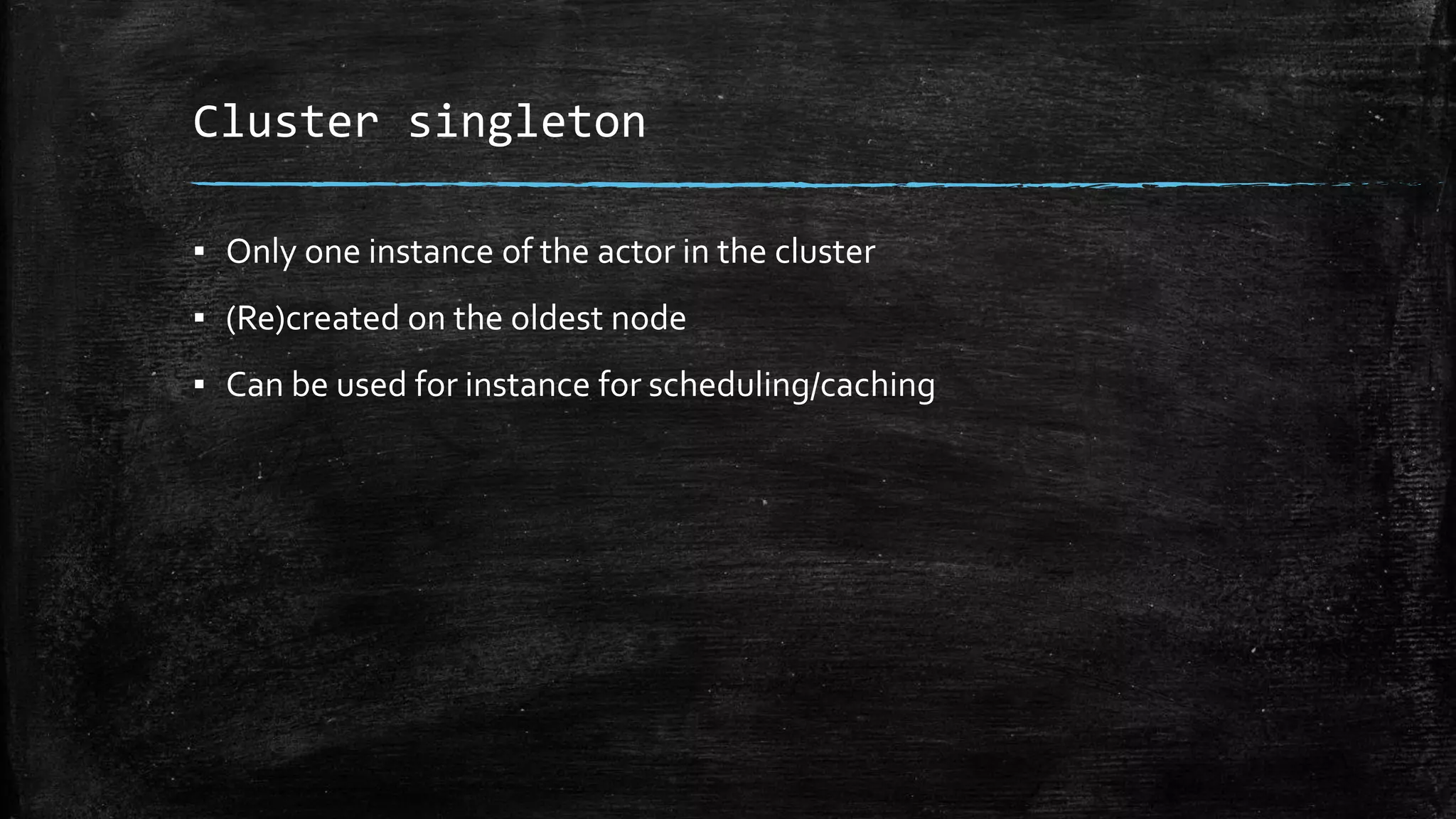

38. Cluster singleton
▪ Only one instance of the actor in the cluster
▪ (Re)created on the oldest node
▪ Can be used for instance for scheduling/caching

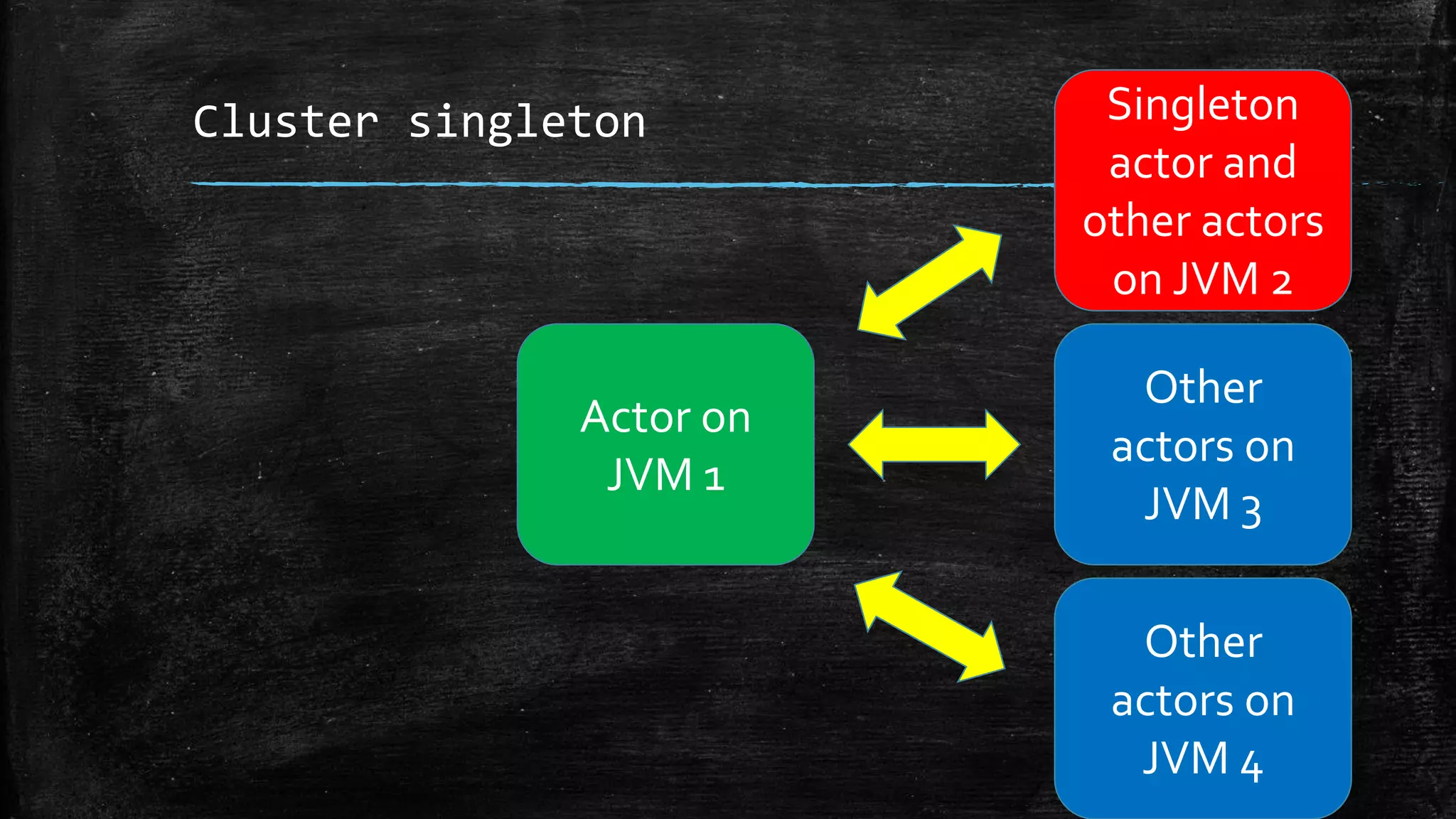

39. Cluster singleton
Actor on
JVM 1
Other
actors on
JVM 3
Other
actors on
JVM 4
Singleton
actor and
other actors
on JVM 2

40. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""

41. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""
HashMap[hostname, counter]

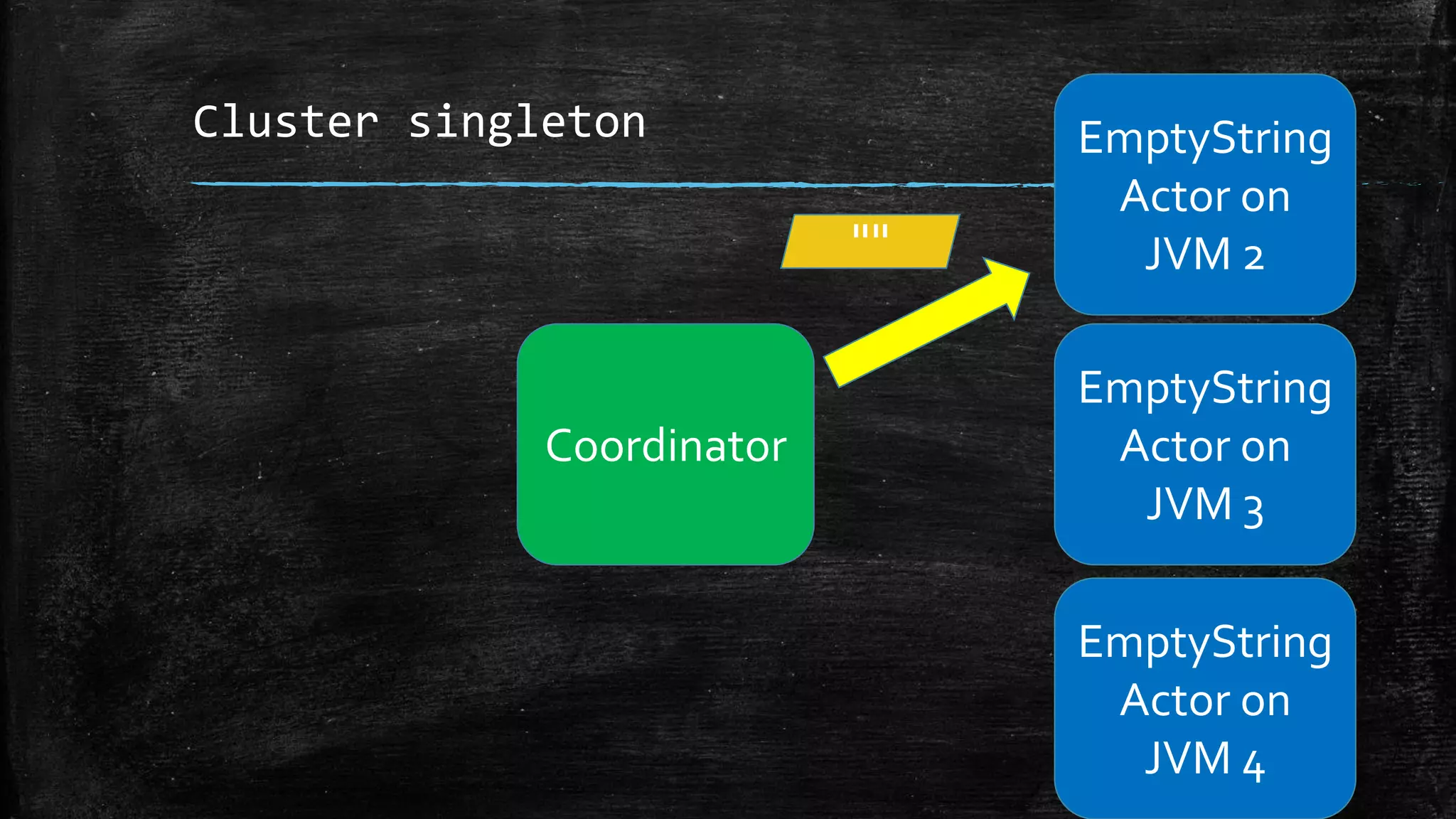

42. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""

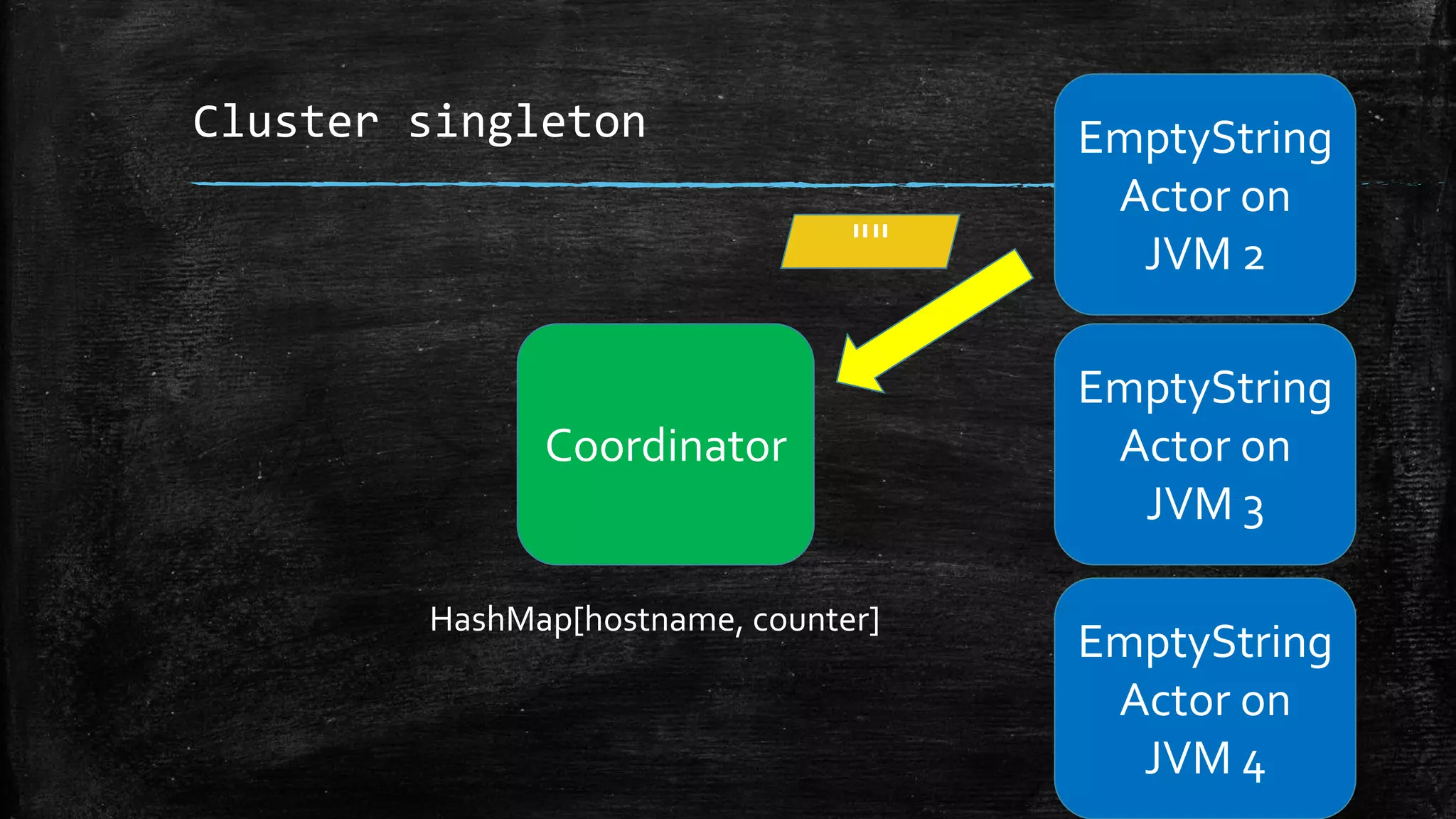

43. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2""
HashMap[hostname, counter]

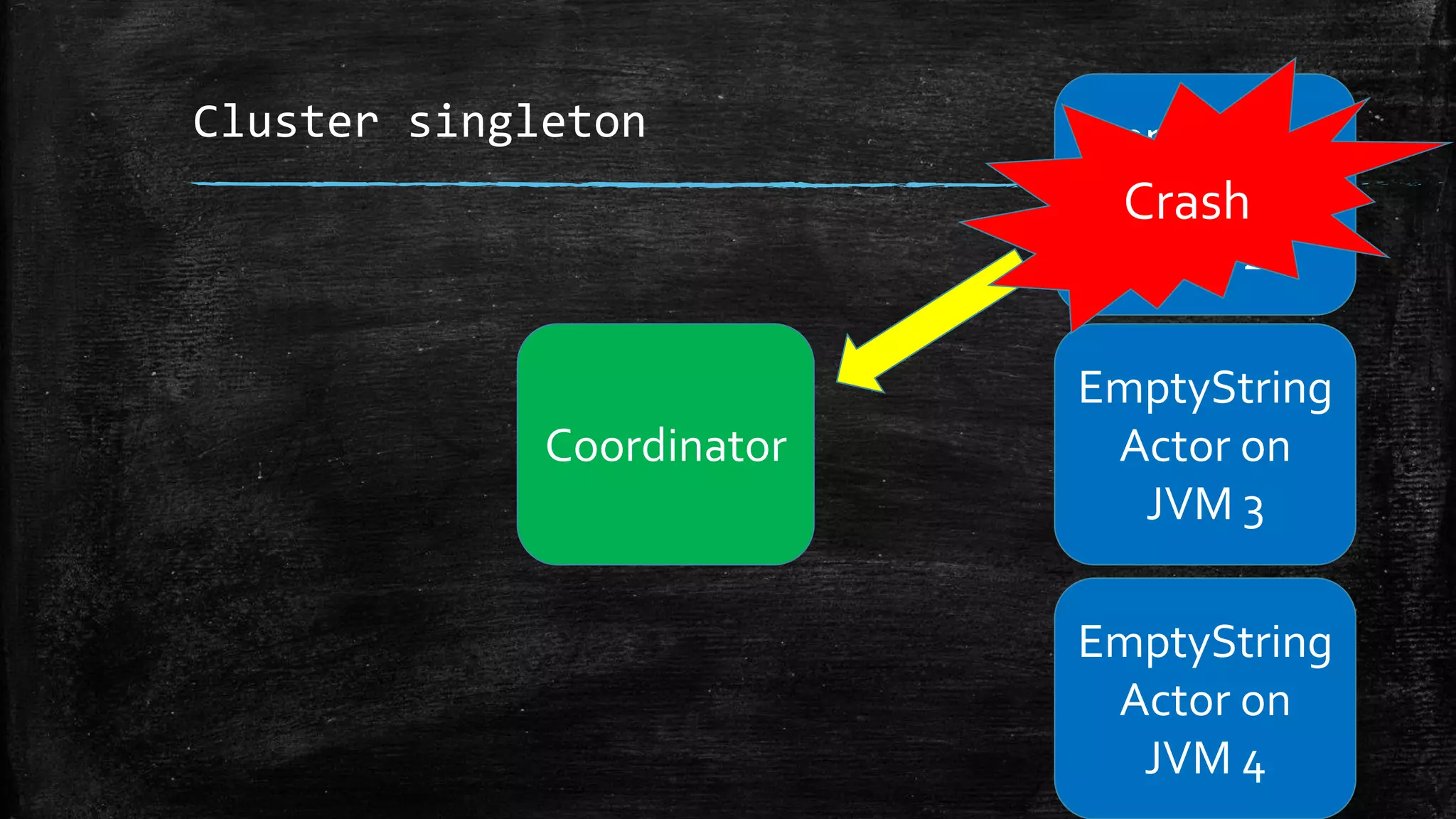

44. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
EmptyString
Actor on
JVM 2
Crash

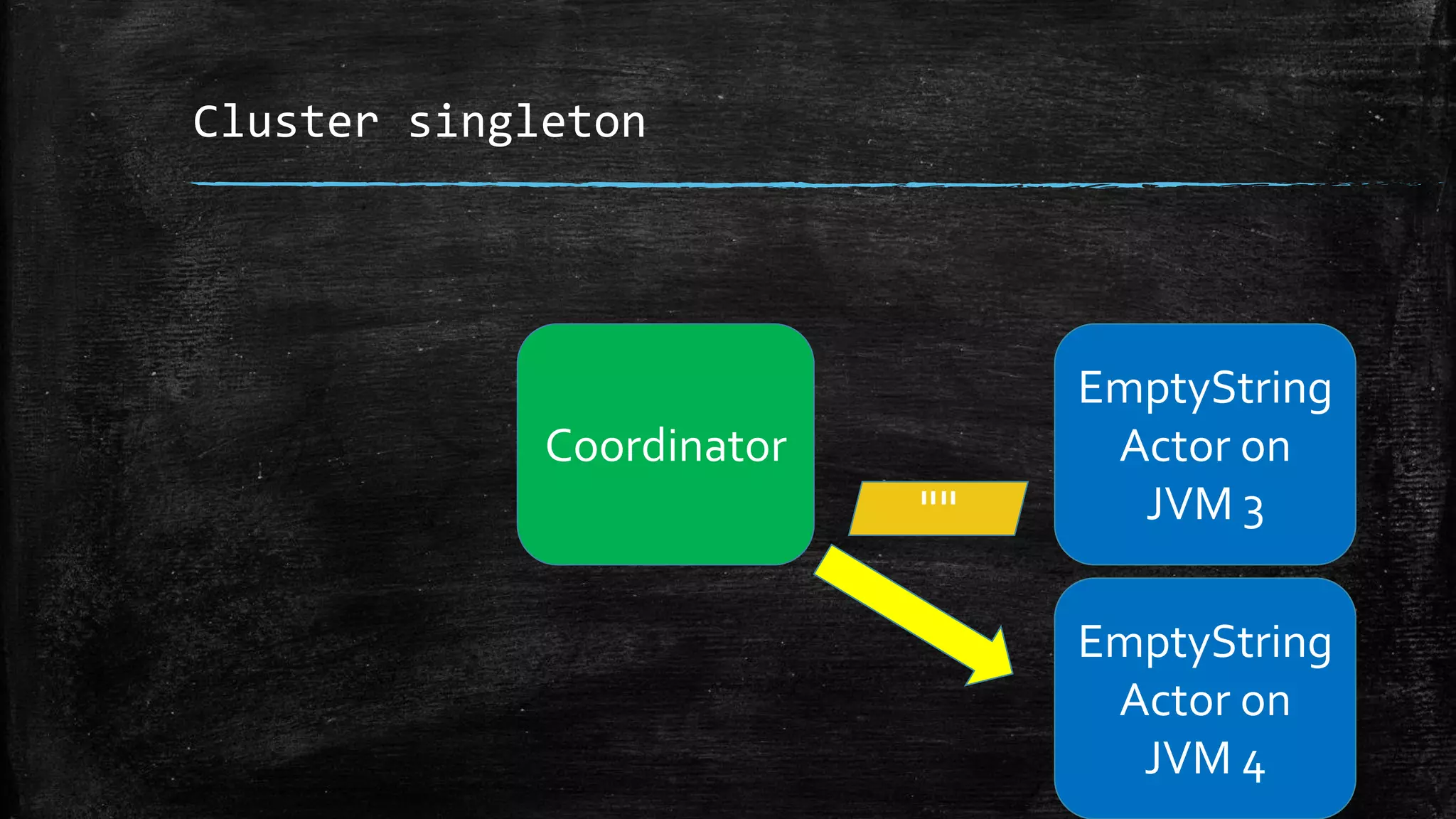

45. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
""

46. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
""
HashMap[hostname, counter]

47. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
""

48. Cluster singleton
Coordinator
EmptyString
Actor on
JVM 3
EmptyString
Actor on
JVM 4
""
HashMap[hostname, counter]

49. Sharding

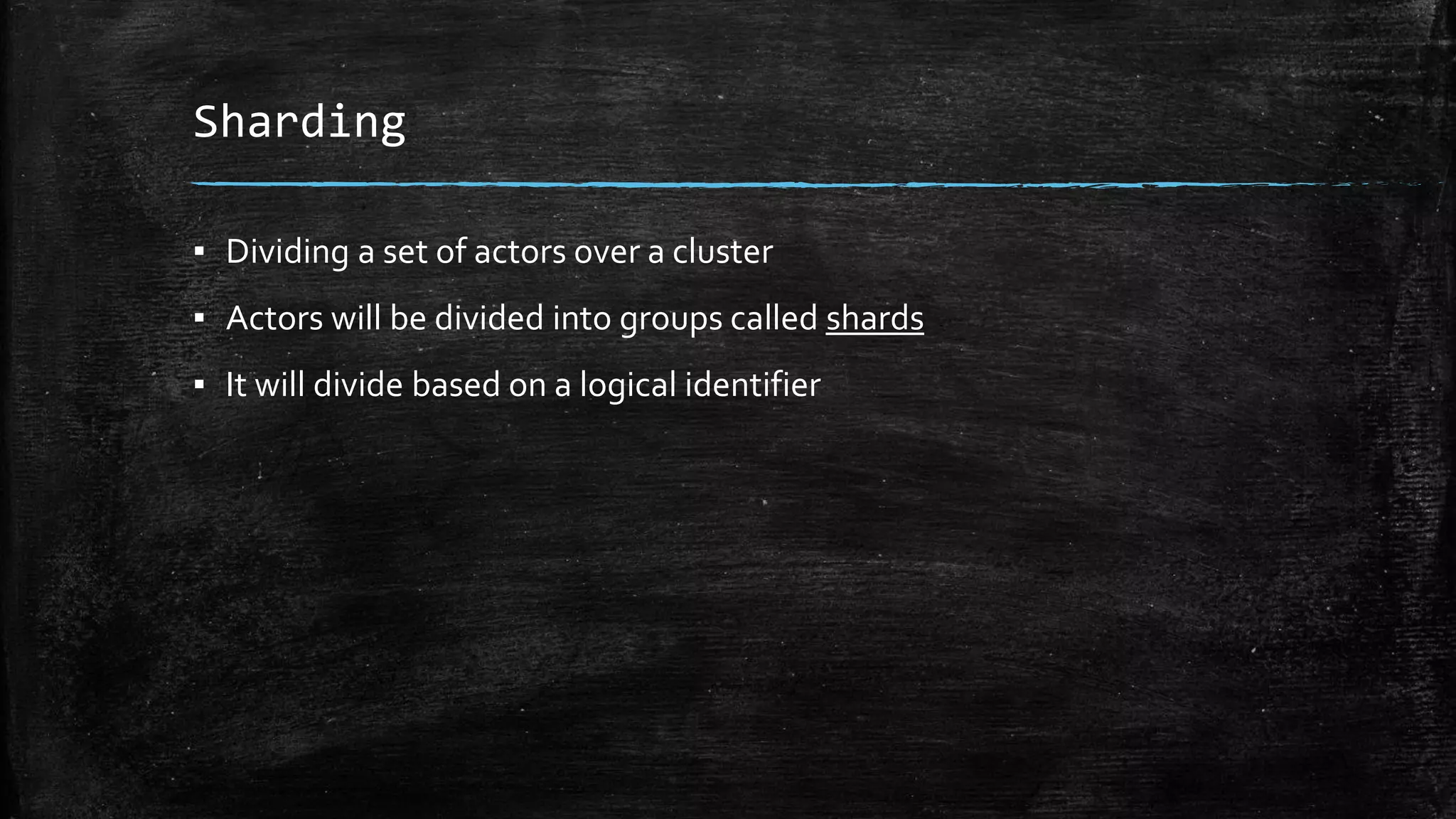

50. Sharding
▪ Dividing a set of actors over a cluster
▪ Actors will be divided into groups called shards
▪ It will divide based on a logical identifier

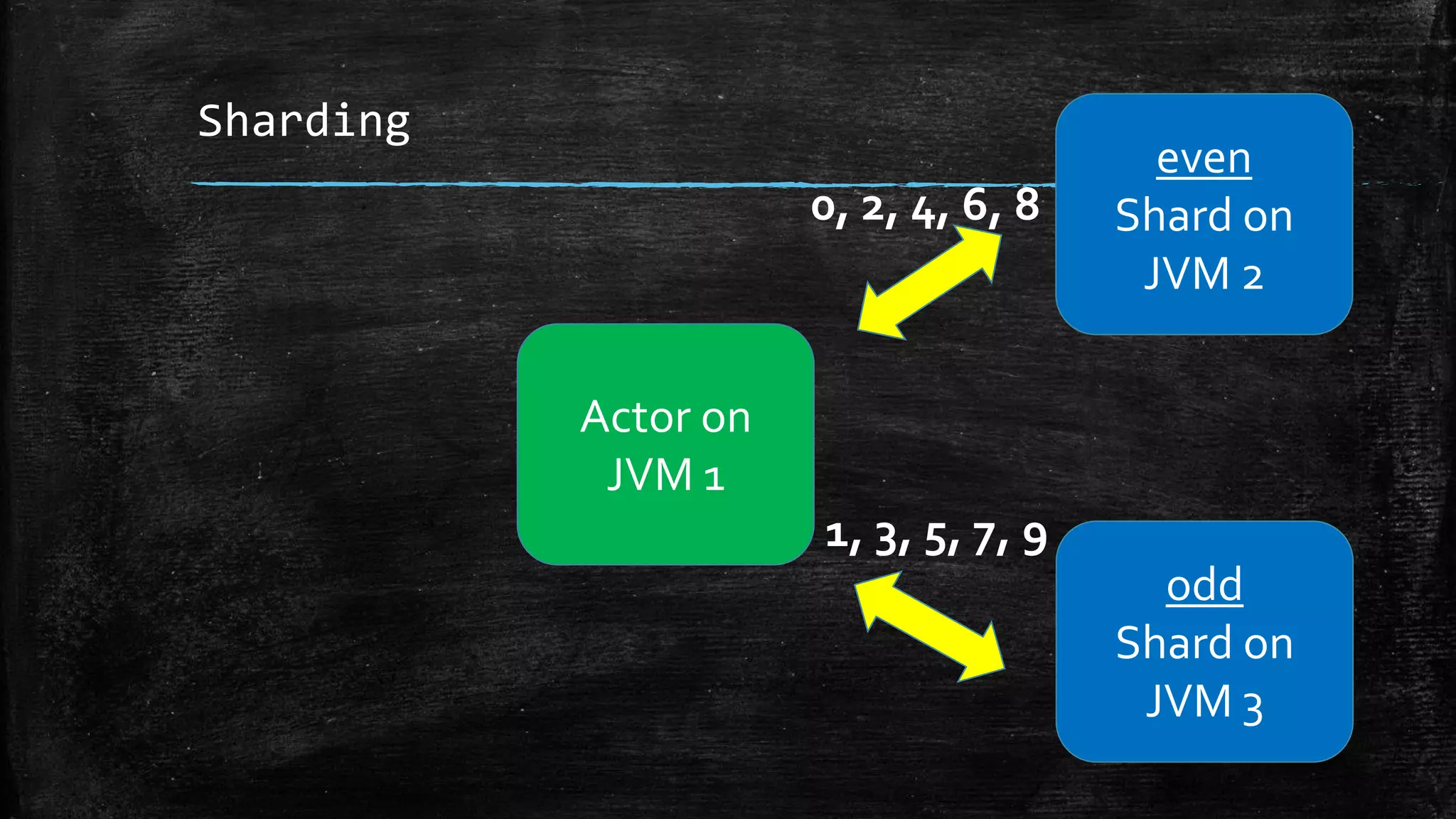

51. Sharding
Actor on
JVM 1
odd
Shard on
JVM 3
even
Shard on
JVM 2
0, 2, 4, 6, 8
1, 3, 5, 7, 9

52. Persistence

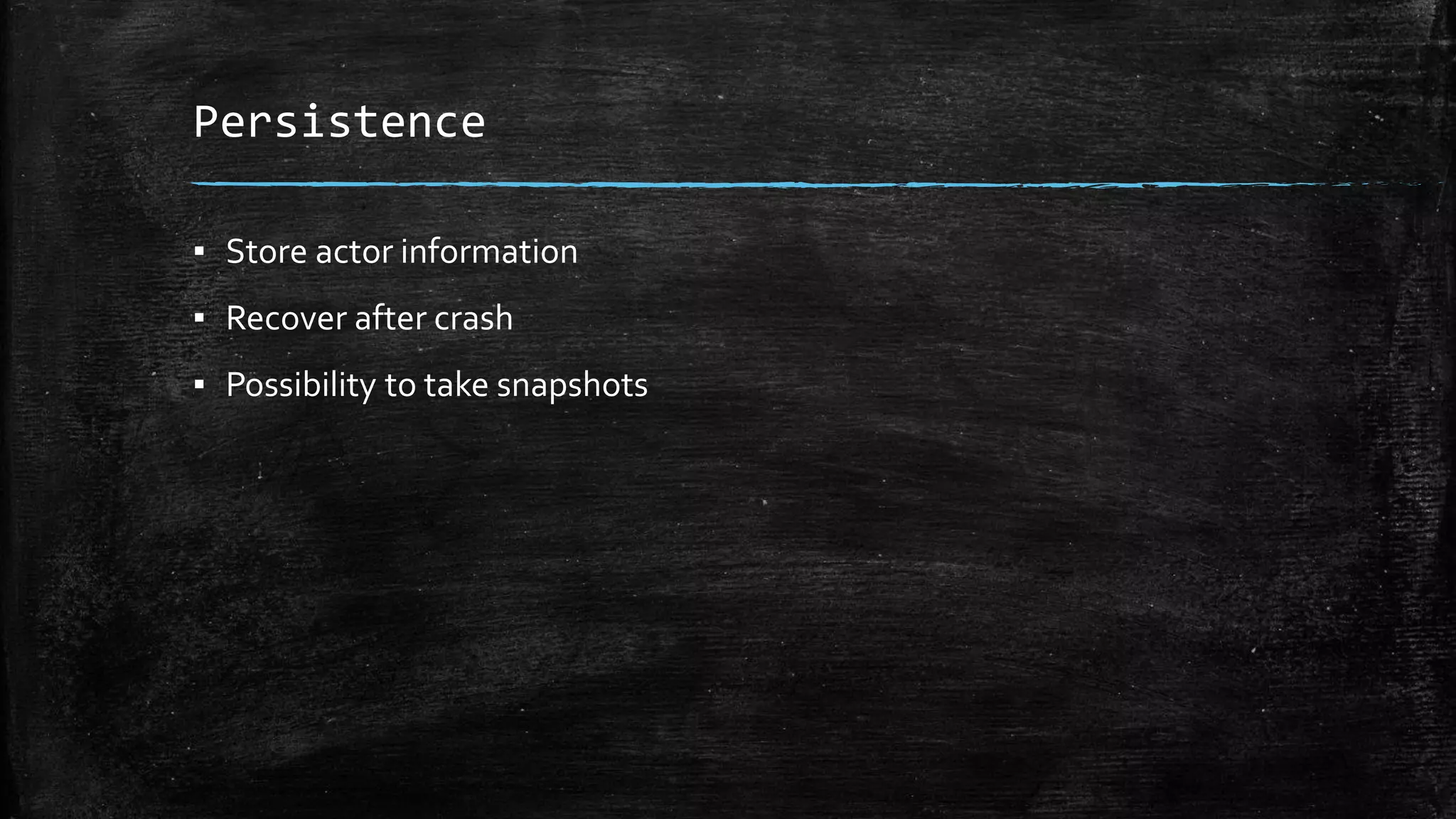

53. Persistence
▪ Store actor information
▪ Recover after crash
▪ Possibility to take snapshots

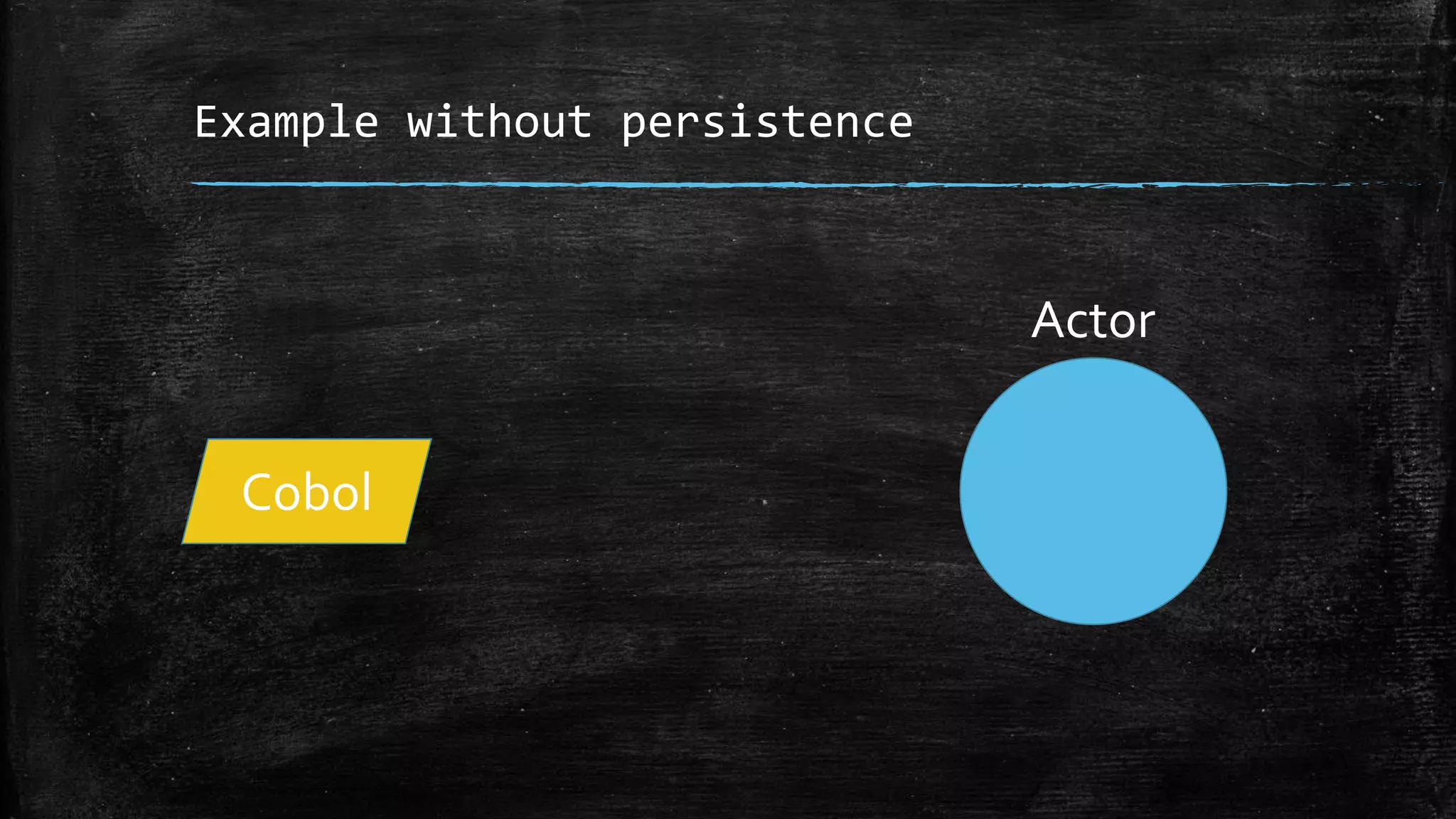

54. Example without persistence
Actor
Cobol

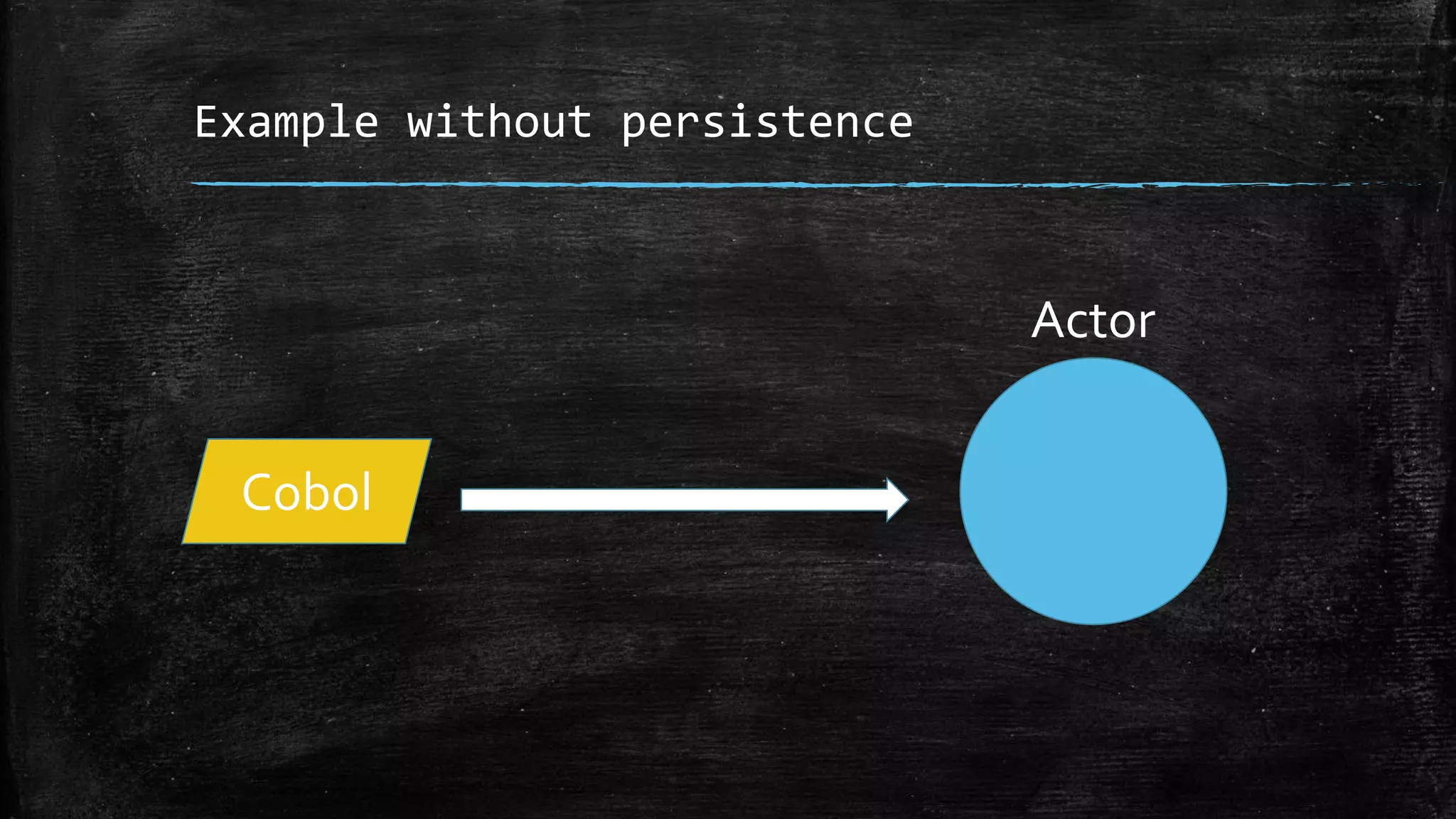

55. Example without persistence
Actor
Cobol

56. Example without persistence
Cobol
Actor

57. Example without persistence
Actor
Java Cobol

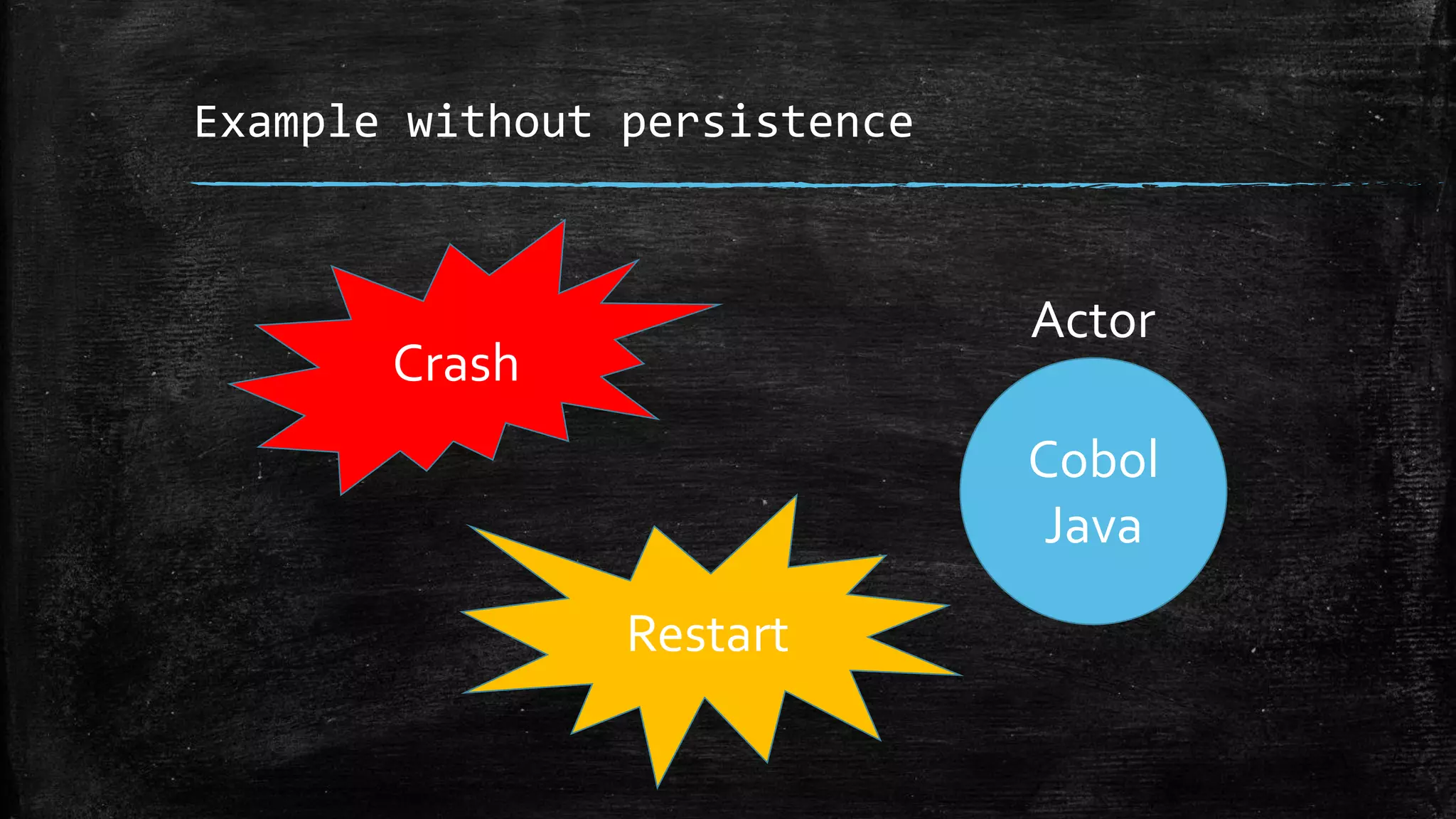

58. Example without persistence
Cobol
Java
Actor
Crash
Restart

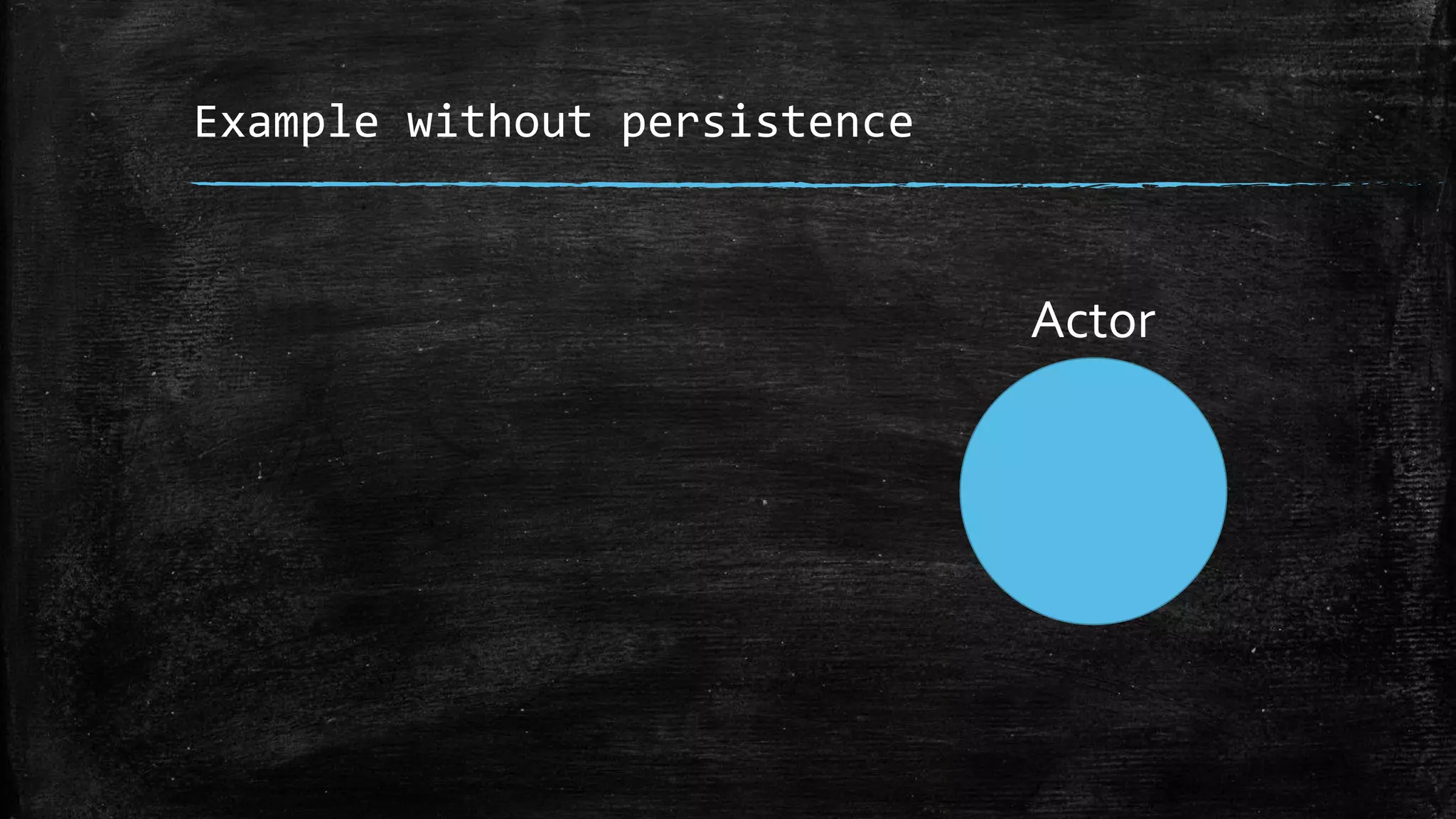

59. Example without persistence
Actor

60. Example without persistence
Actor
Scala

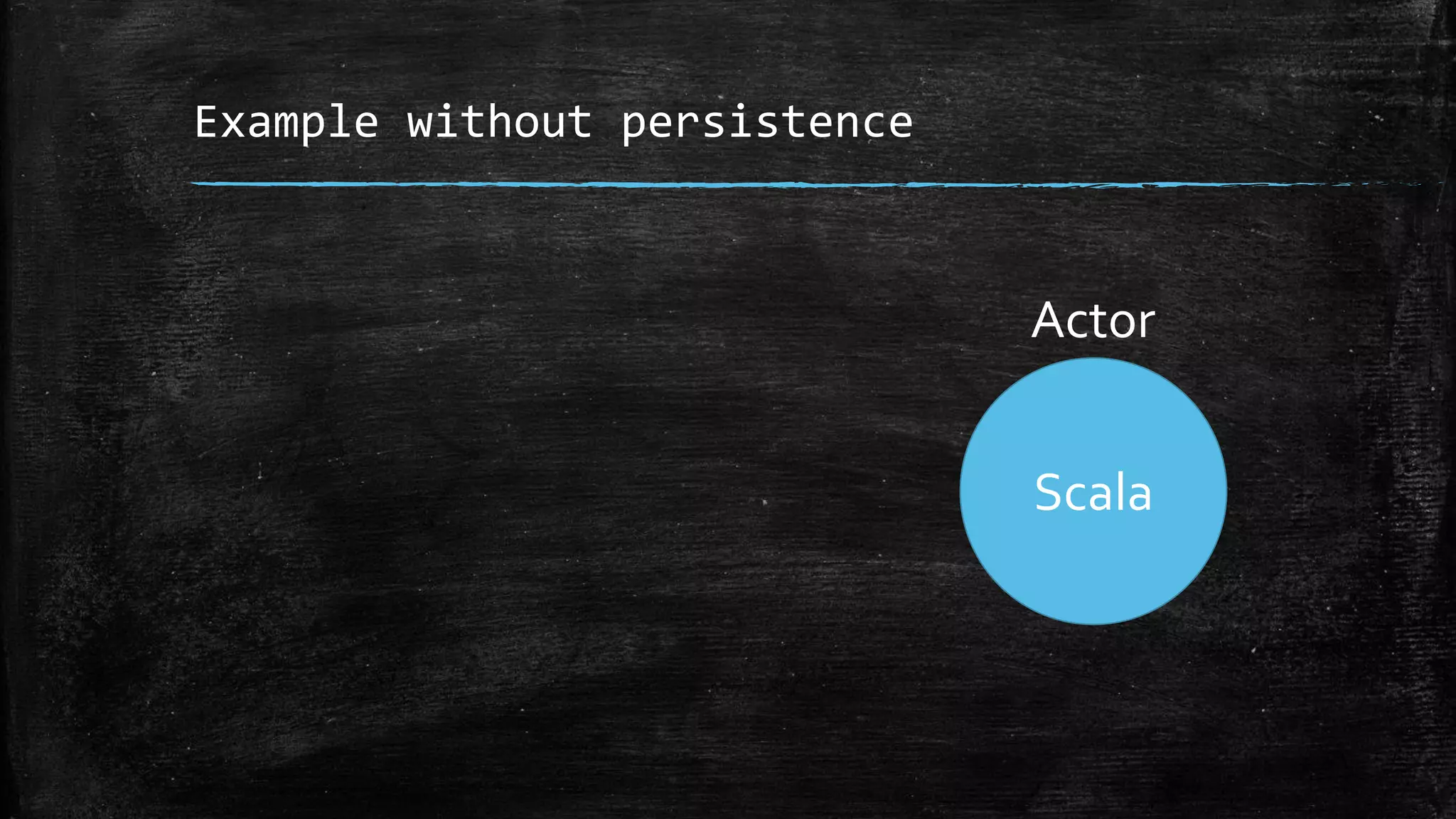

61. Example without persistence
Scala
Actor

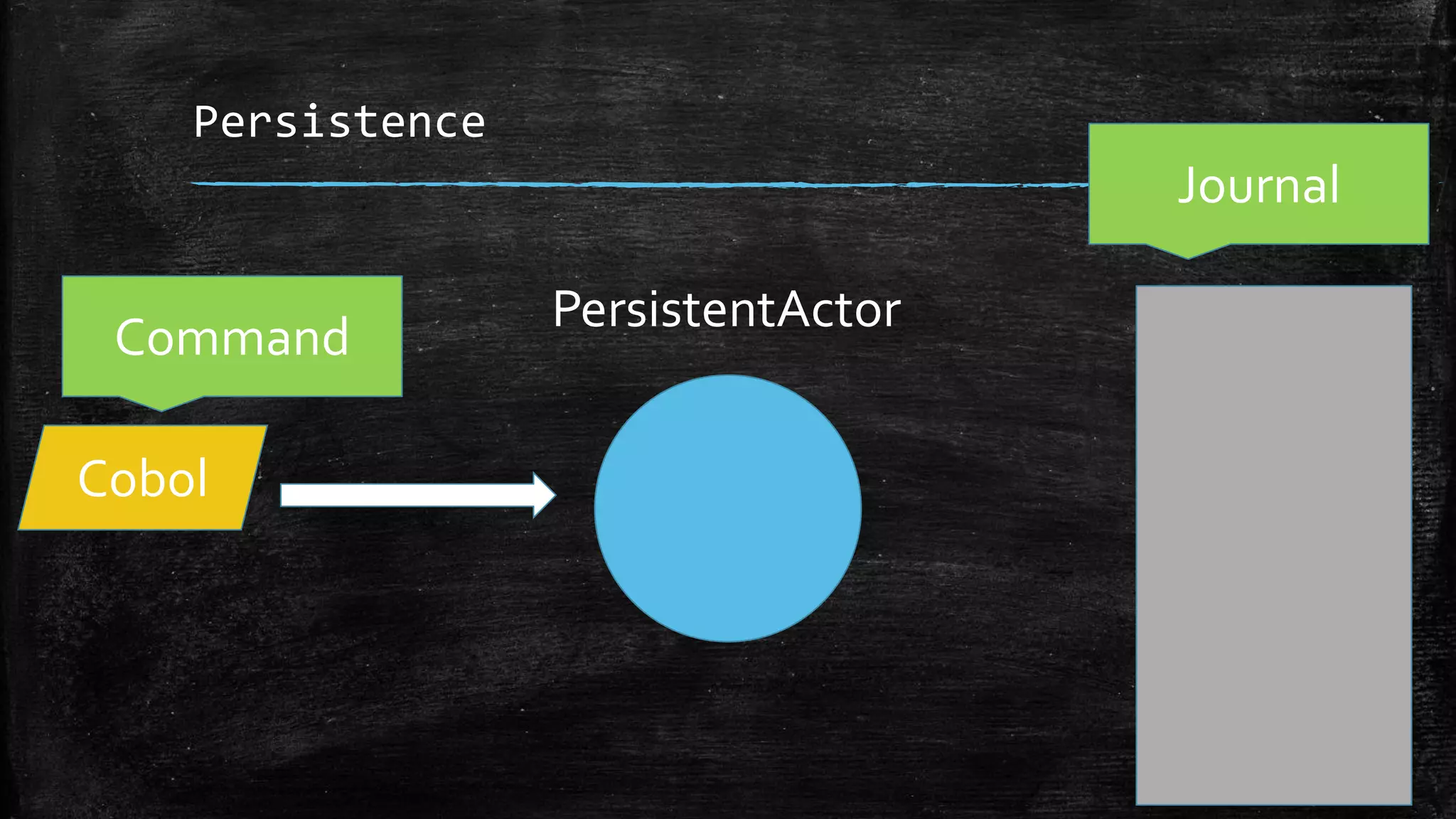

62. Persistence
PersistentActor
Cobol
Command
Journal

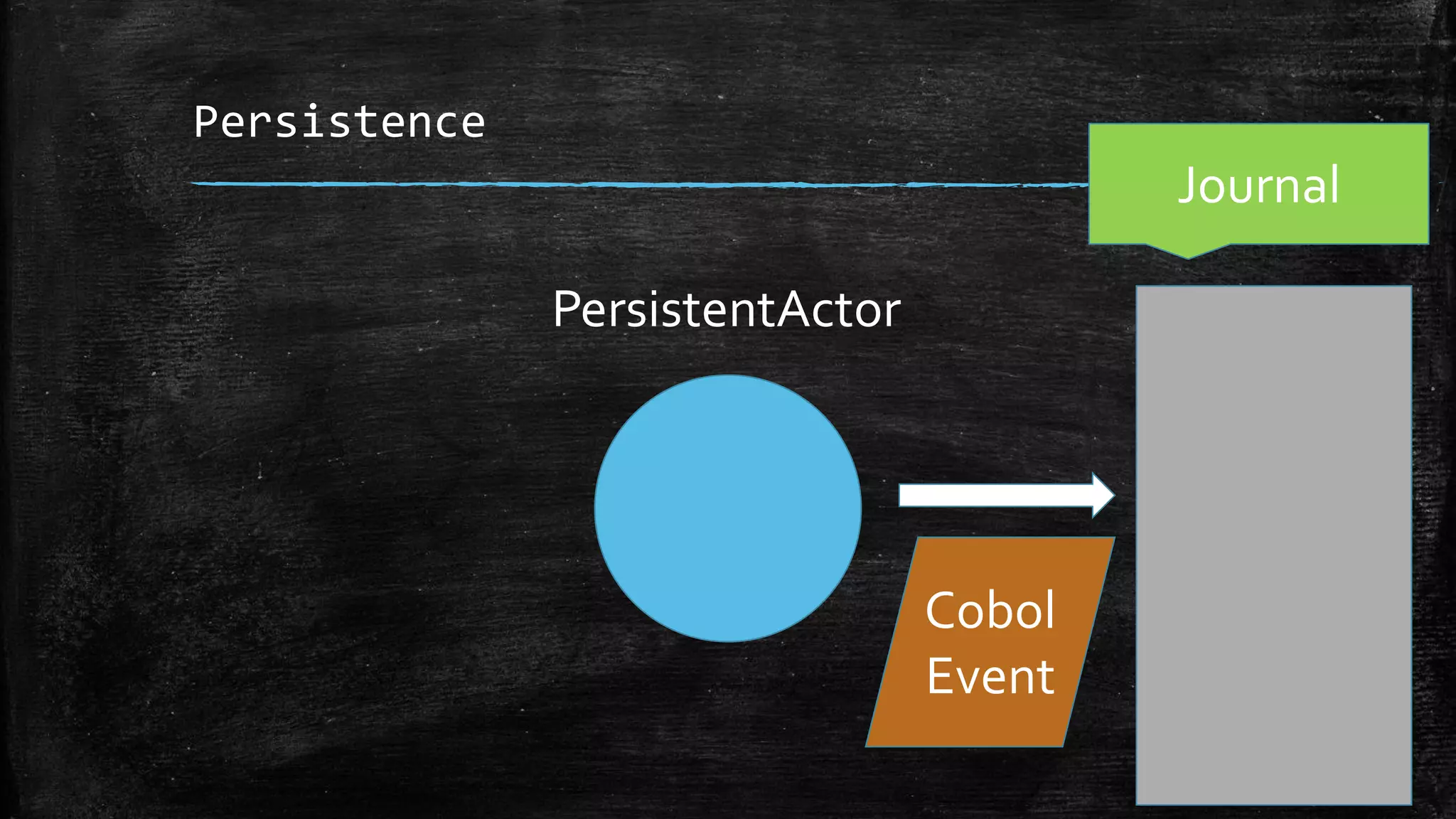

63. Persistence
Journal
Cobol
Event
PersistentActor

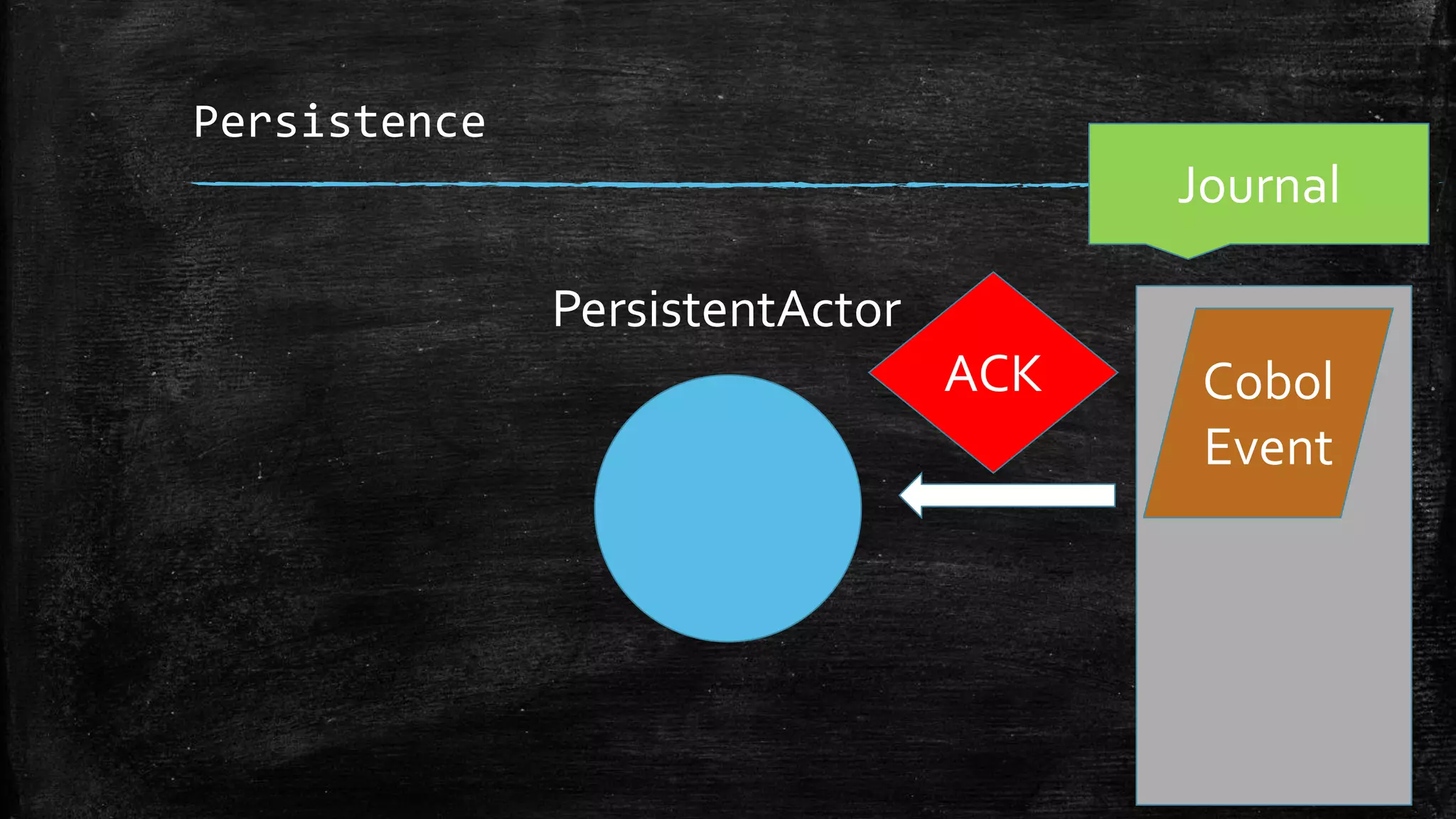

64. Persistence
Journal
ACK
PersistentActor
Cobol
Event

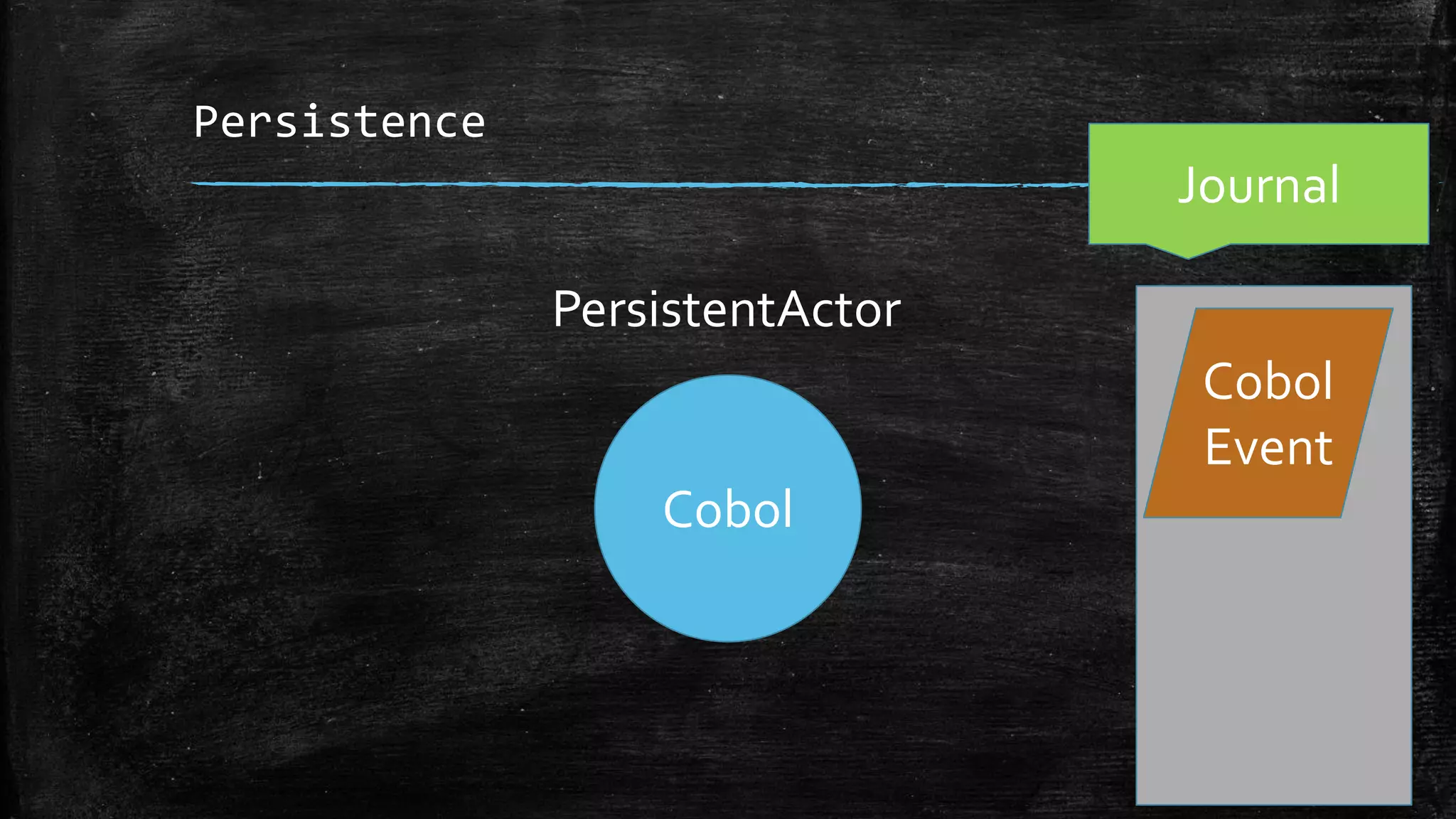

65. Persistence
Cobol
Journal
Cobol
Event
PersistentActor

66. Persistence
Cobol
Journal
Cobol
Event
PersistentActor
Java
Event

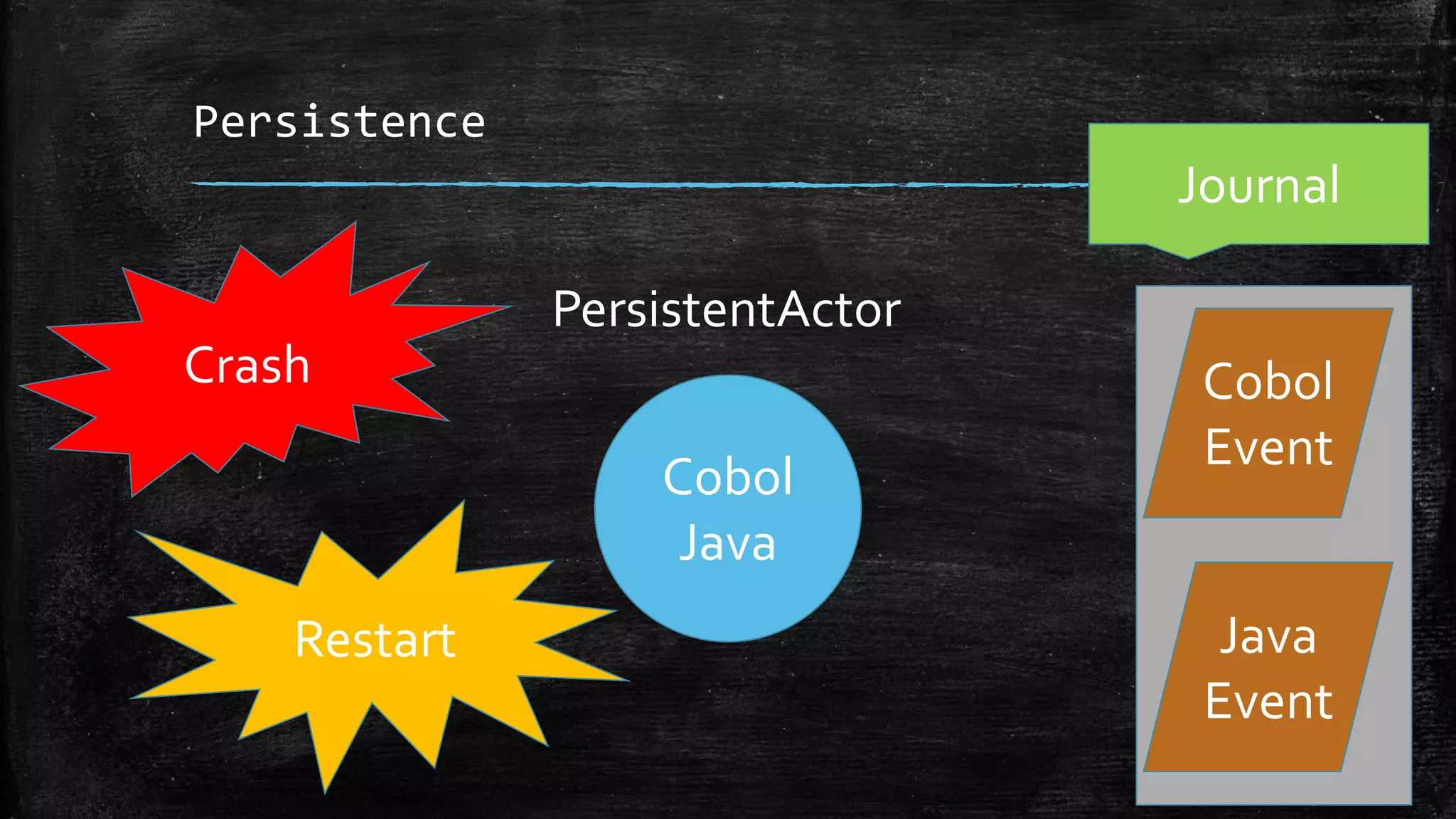

67. Persistence
Cobol
Java
Journal
Cobol
Event
PersistentActor
Crash
Restart Java
Event

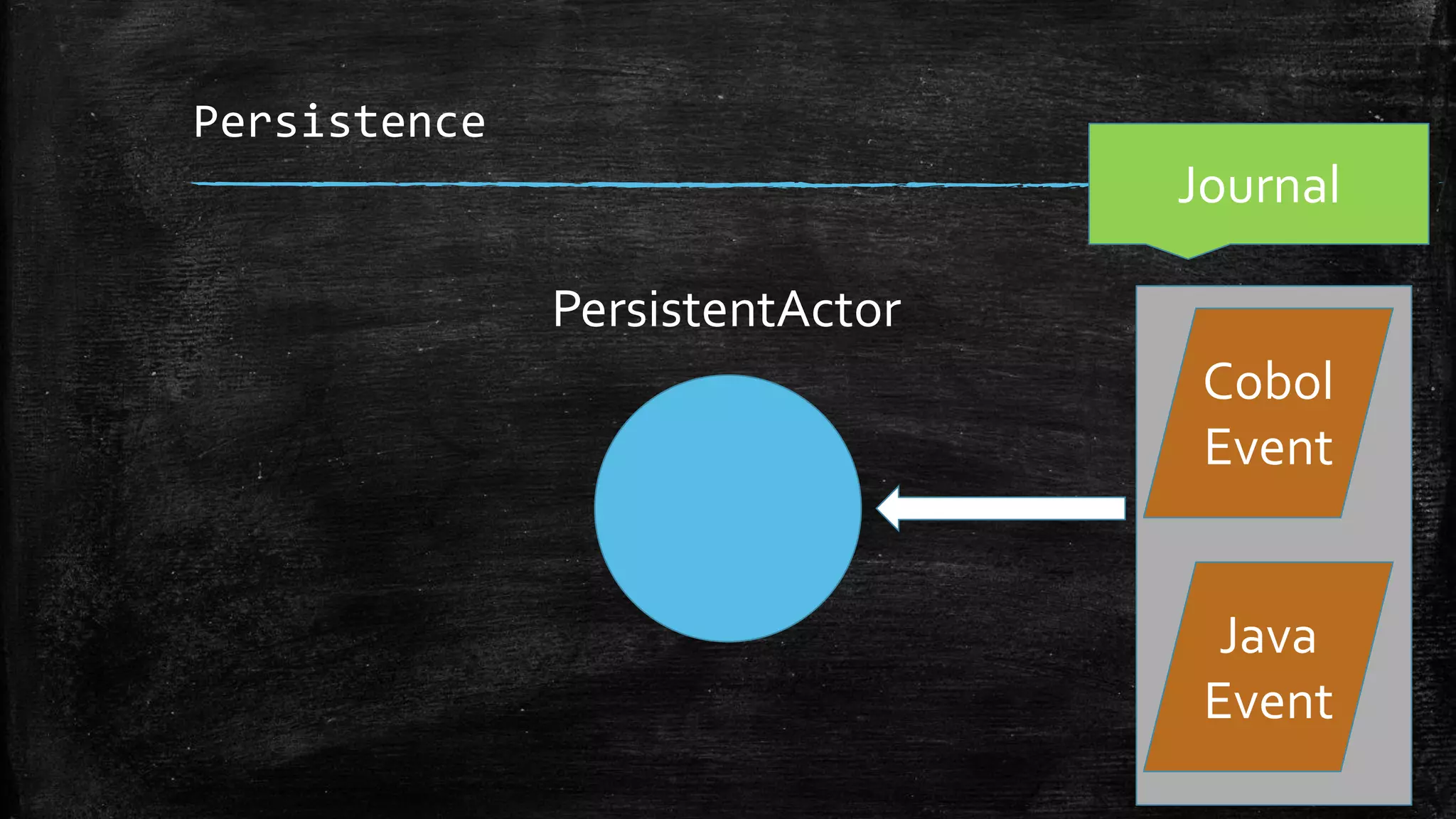

68. Persistence
Journal
Cobol
Event
PersistentActor
Java
Event

69. Persistence
Cobol
Java
Journal
Cobol
Event
PersistentActor
Java
Event
Scala

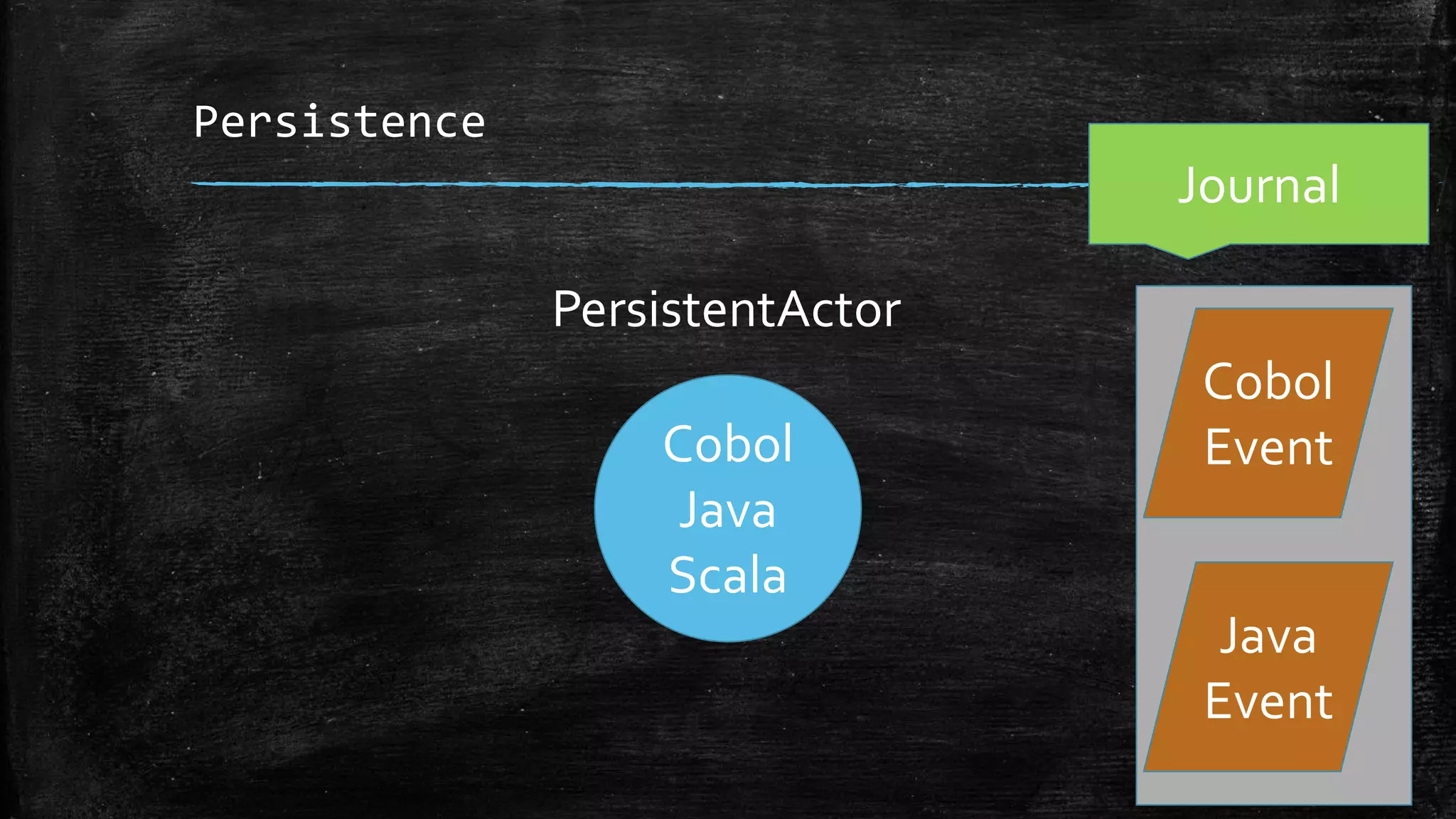

70. Persistence
Cobol
Java
Scala
Journal
Cobol
Event
PersistentActor
Java
Event

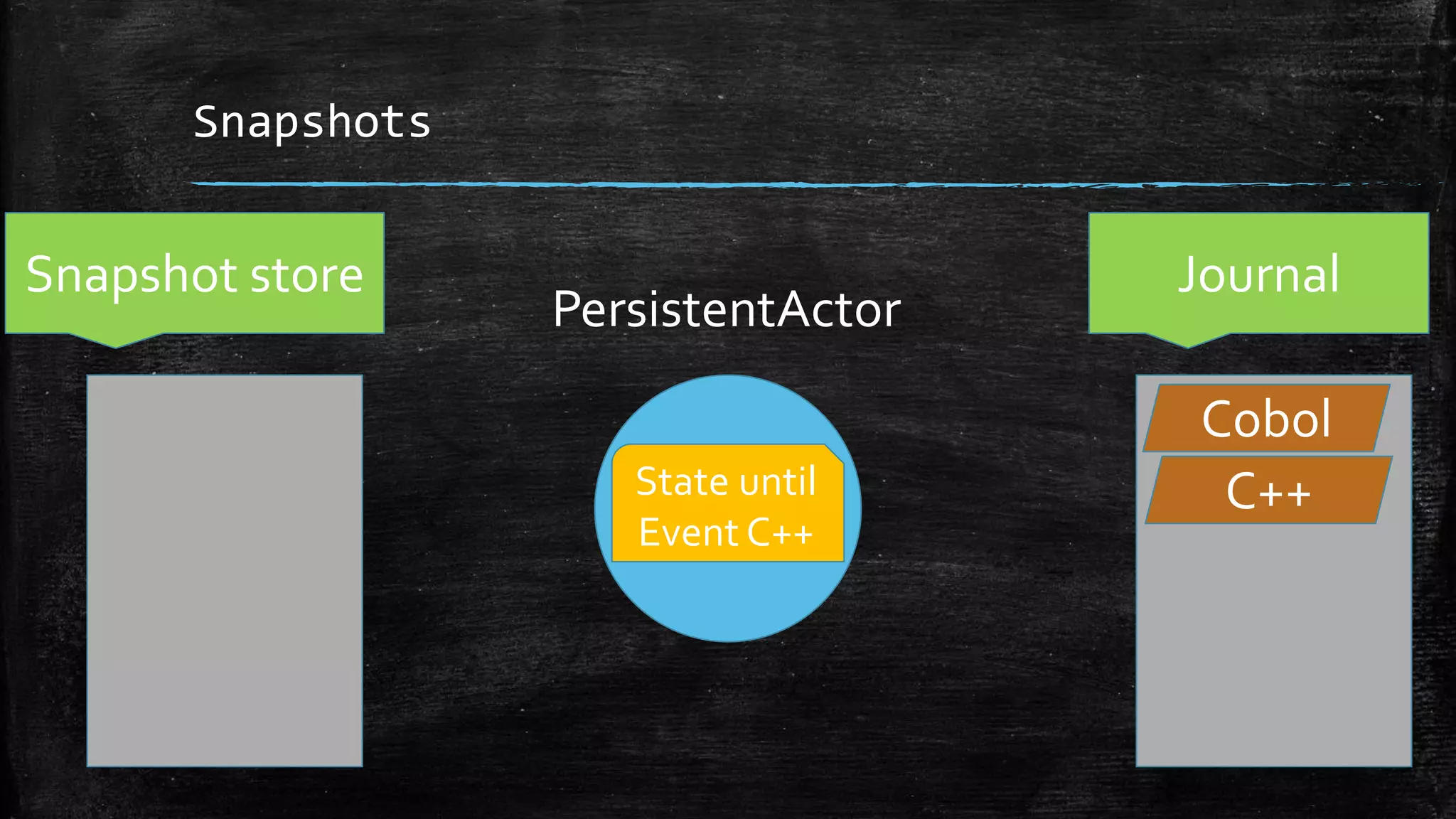

71. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++
C++
Cobol

72. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++
C++
Cobol

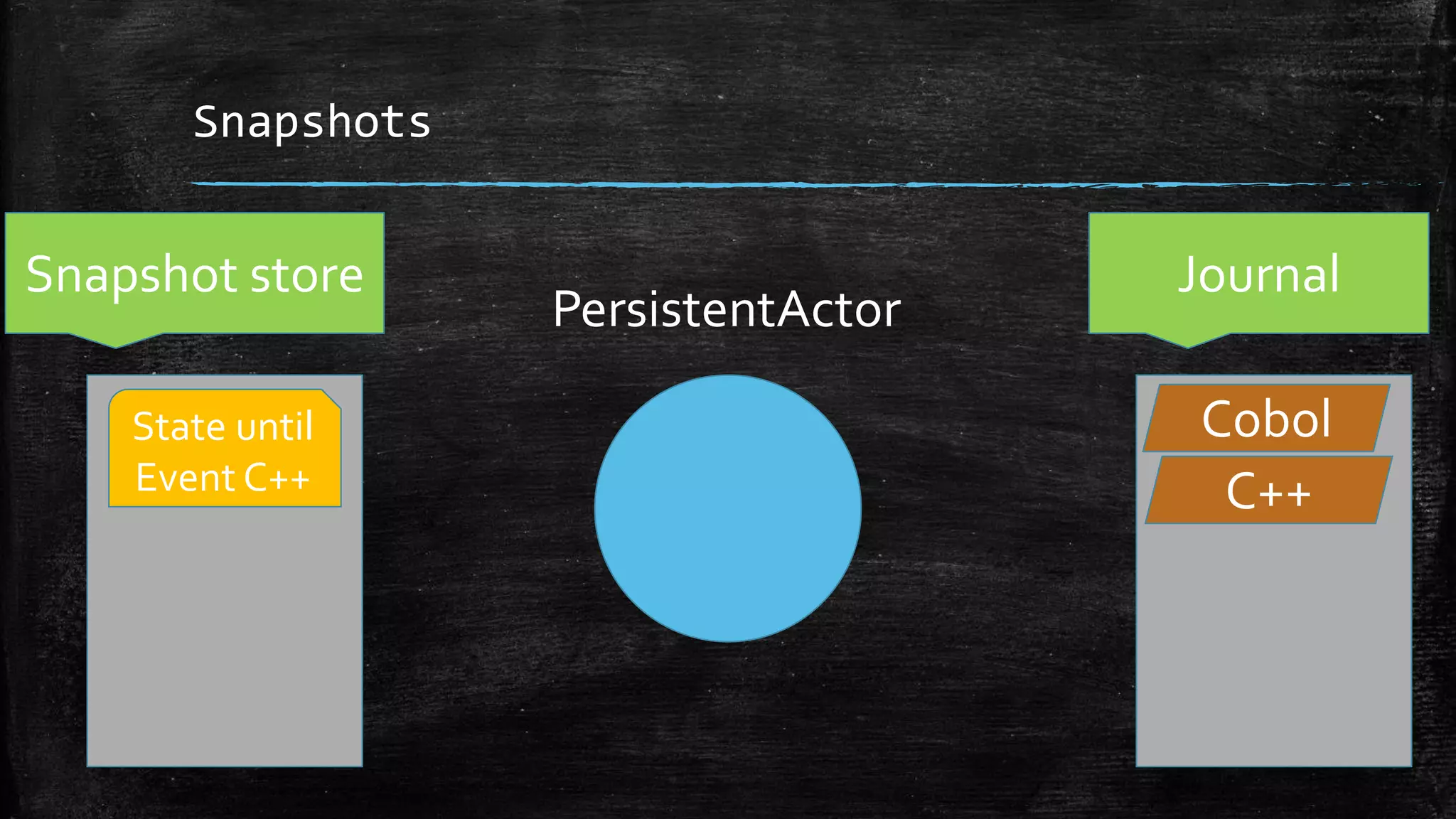

73. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++ C++
Cobol

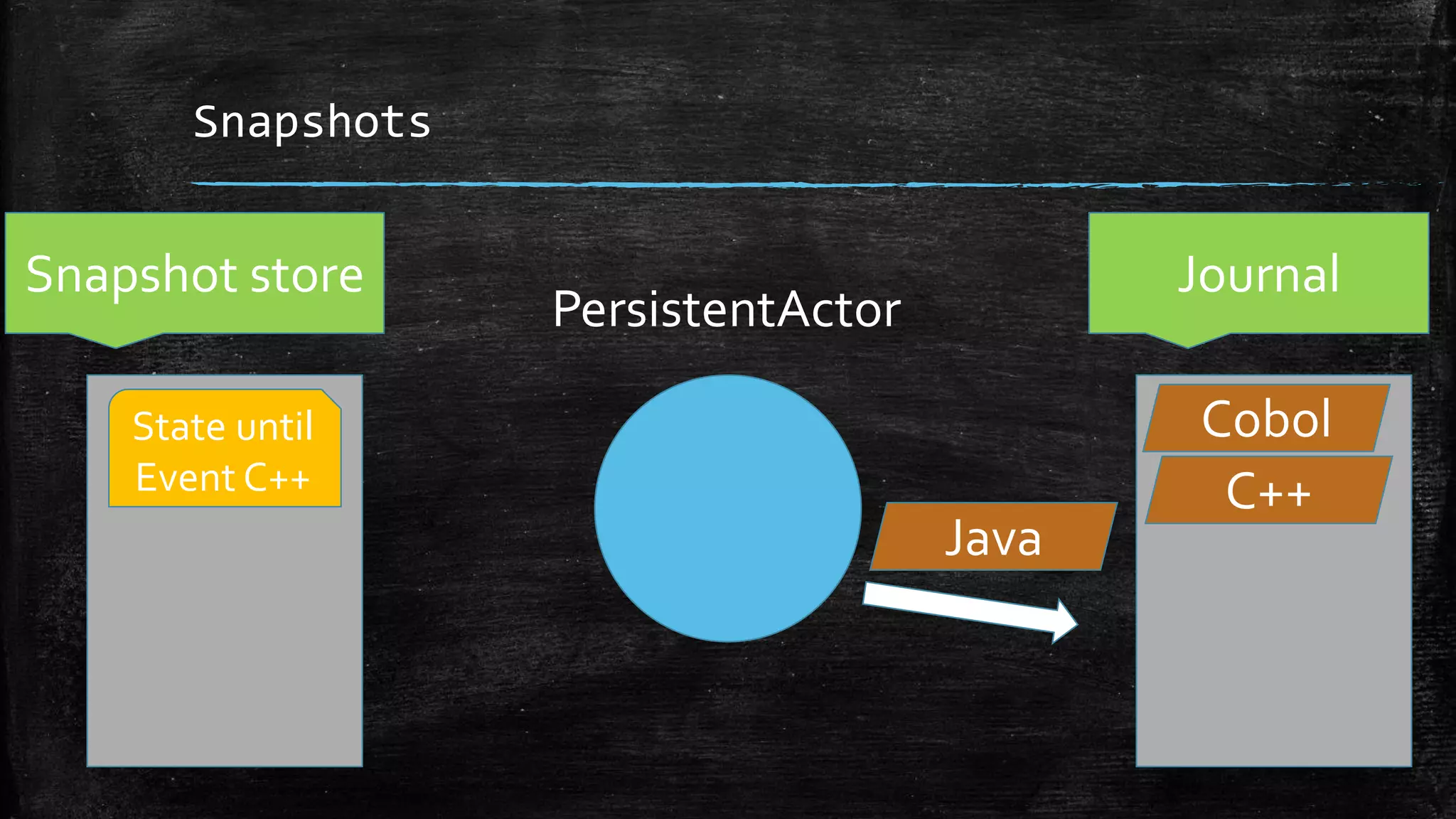

74. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++
Java
C++
Cobol

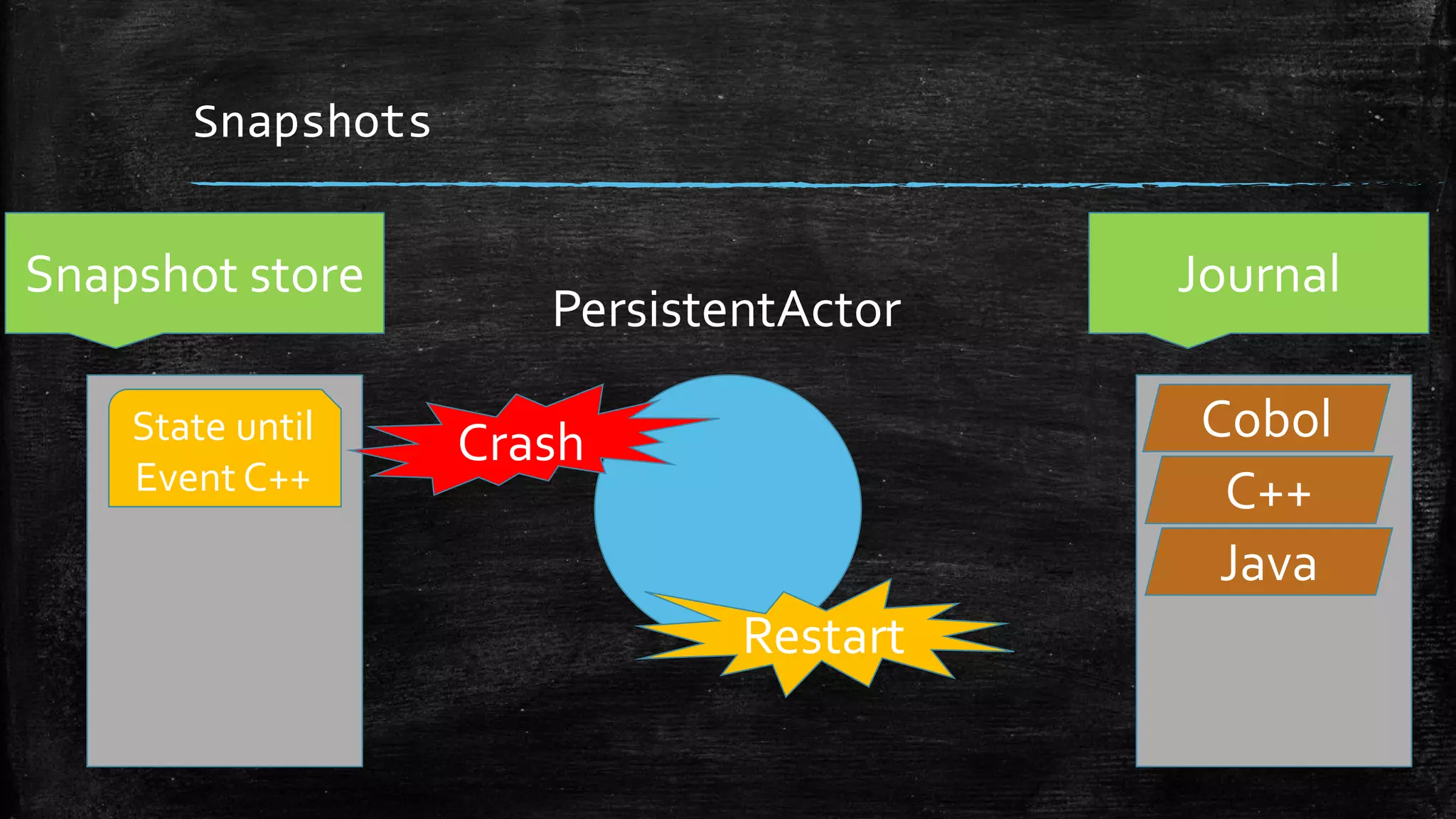

75. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++
Crash
Restart
C++
Cobol
Java

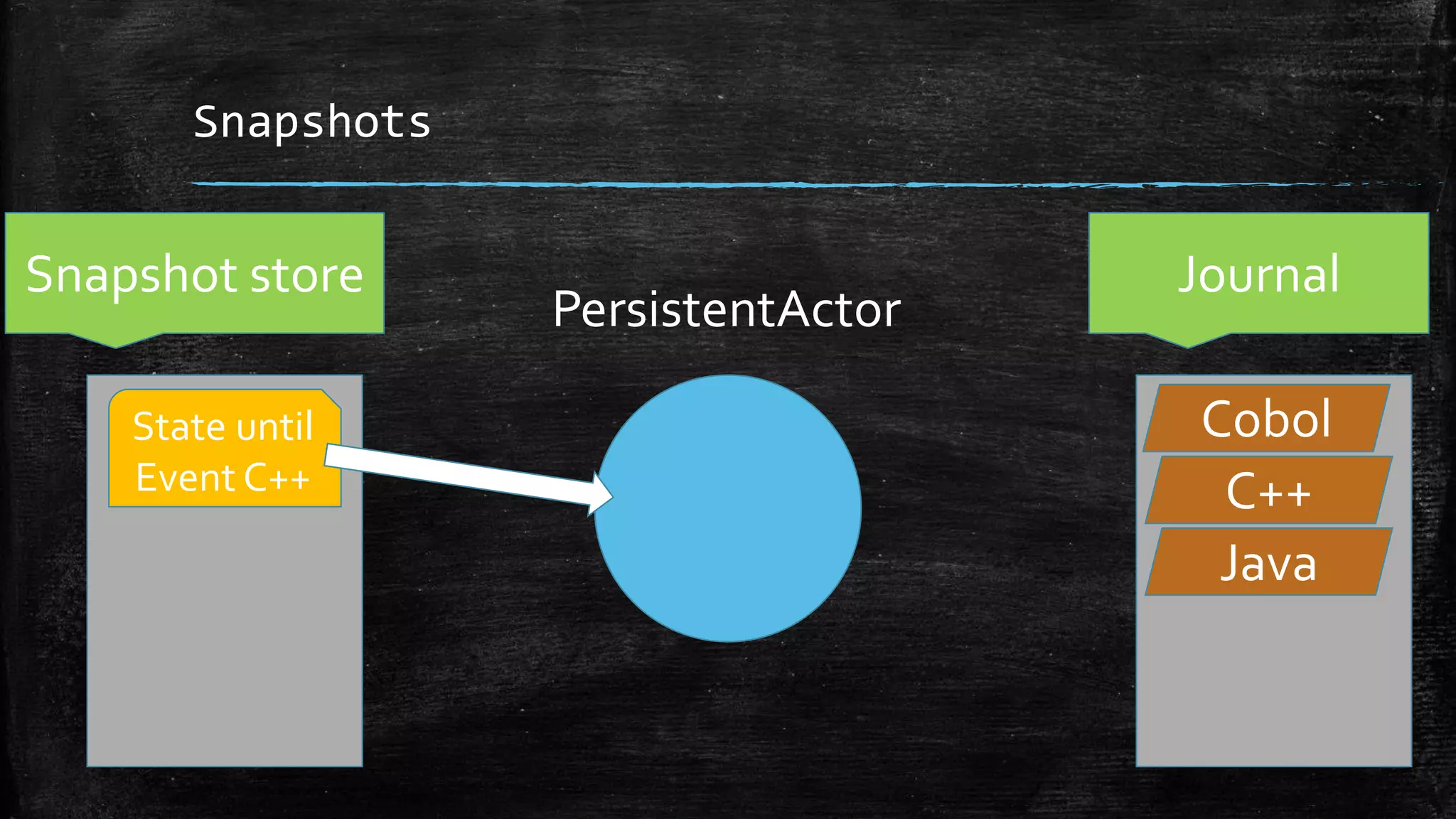

76. Snapshots
Journal
PersistentActor
Snapshot store
State until
Event C++ C++
Cobol
Java

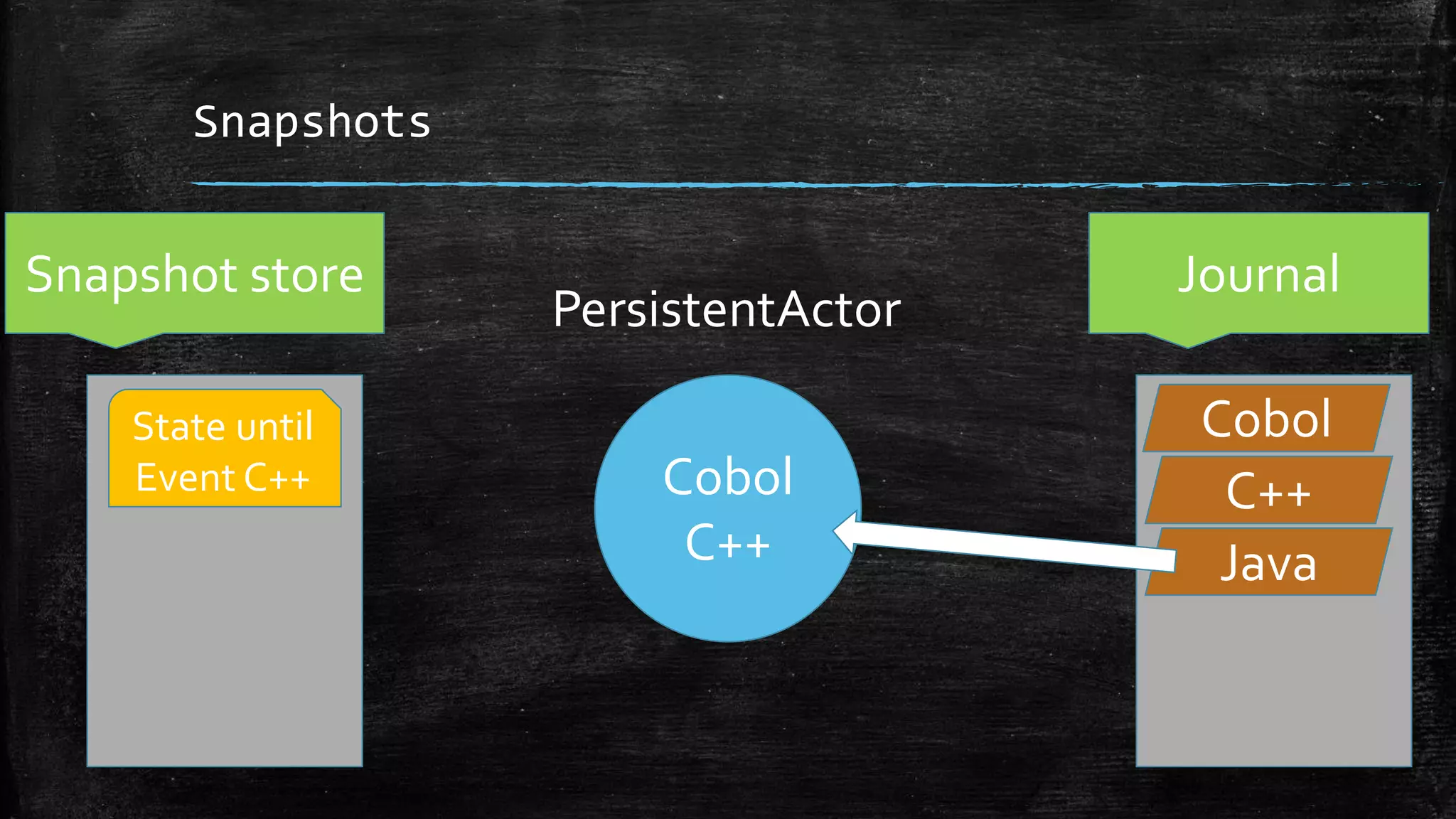

77. Snapshots
Cobol
C++
Journal
PersistentActor
Snapshot store
State until
Event C++ C++
Cobol
Java

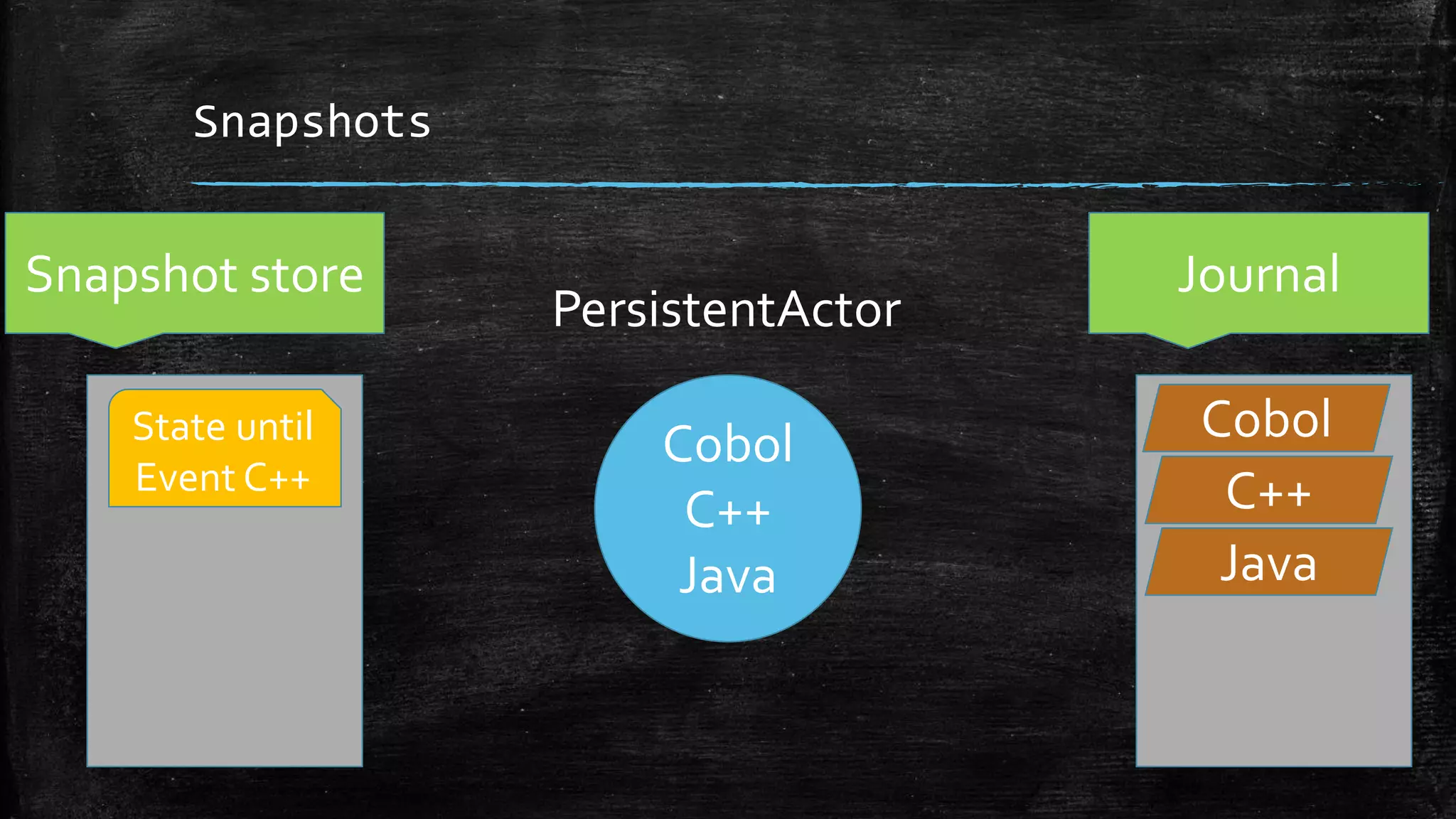

78. Snapshots
Cobol
C++
Java
Journal
PersistentActor
Snapshot store
State until
Event C++ C++
Cobol
Java

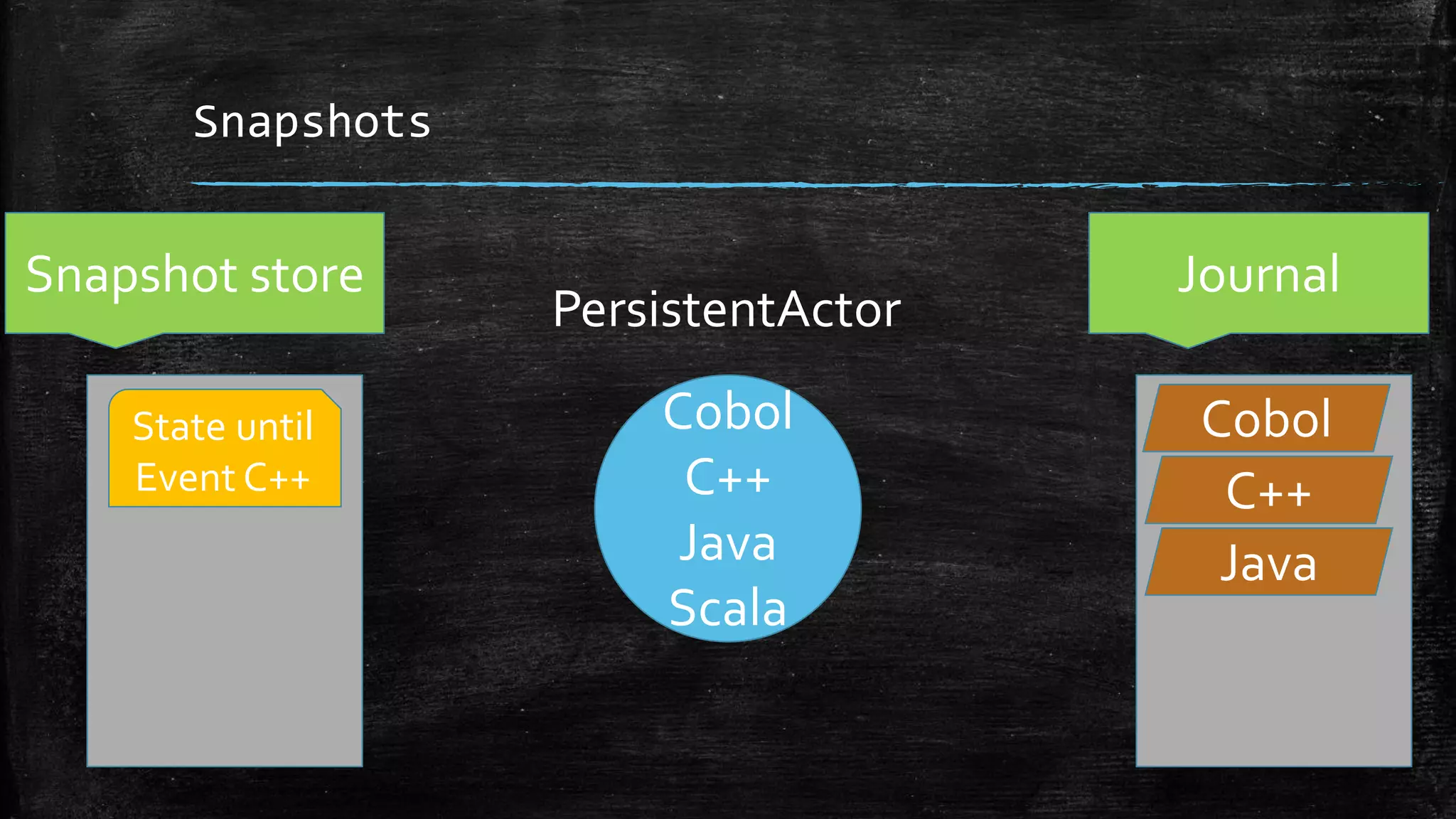

79. Snapshots
Cobol
C++
Java
Scala
Journal
PersistentActor
Snapshot store
State until
Event C++ C++
Cobol
Java

80. Akka HTTP

81. Akka HTTP
Actor on
JVM 1
Actor on
JVM 2

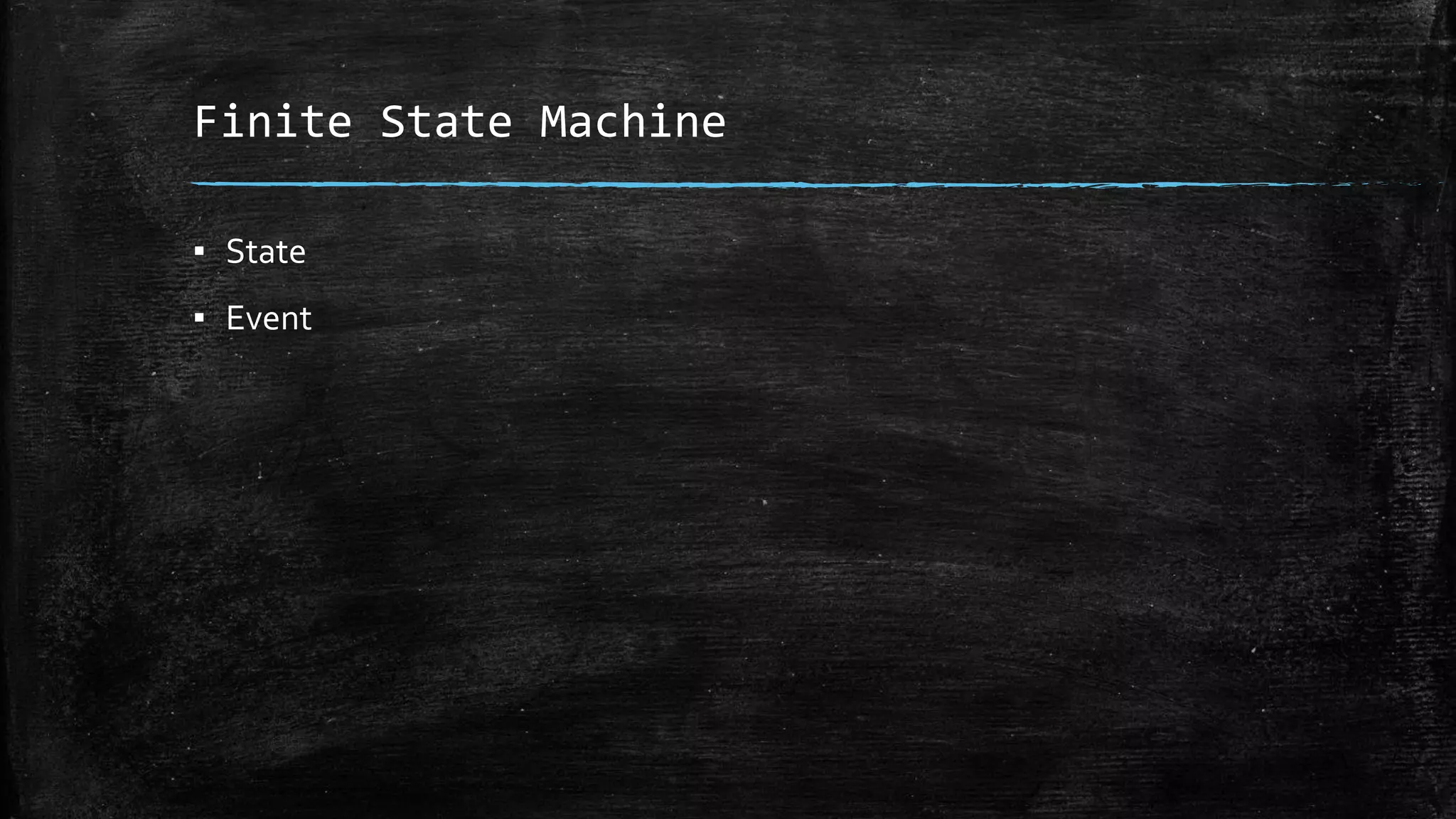

82. Finite State Machine

83. Finite State Machine
▪ State
▪ Event

84. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Progress, iteration
Progress, iteration
Progress, iteration
NoProgress
Progress, 2

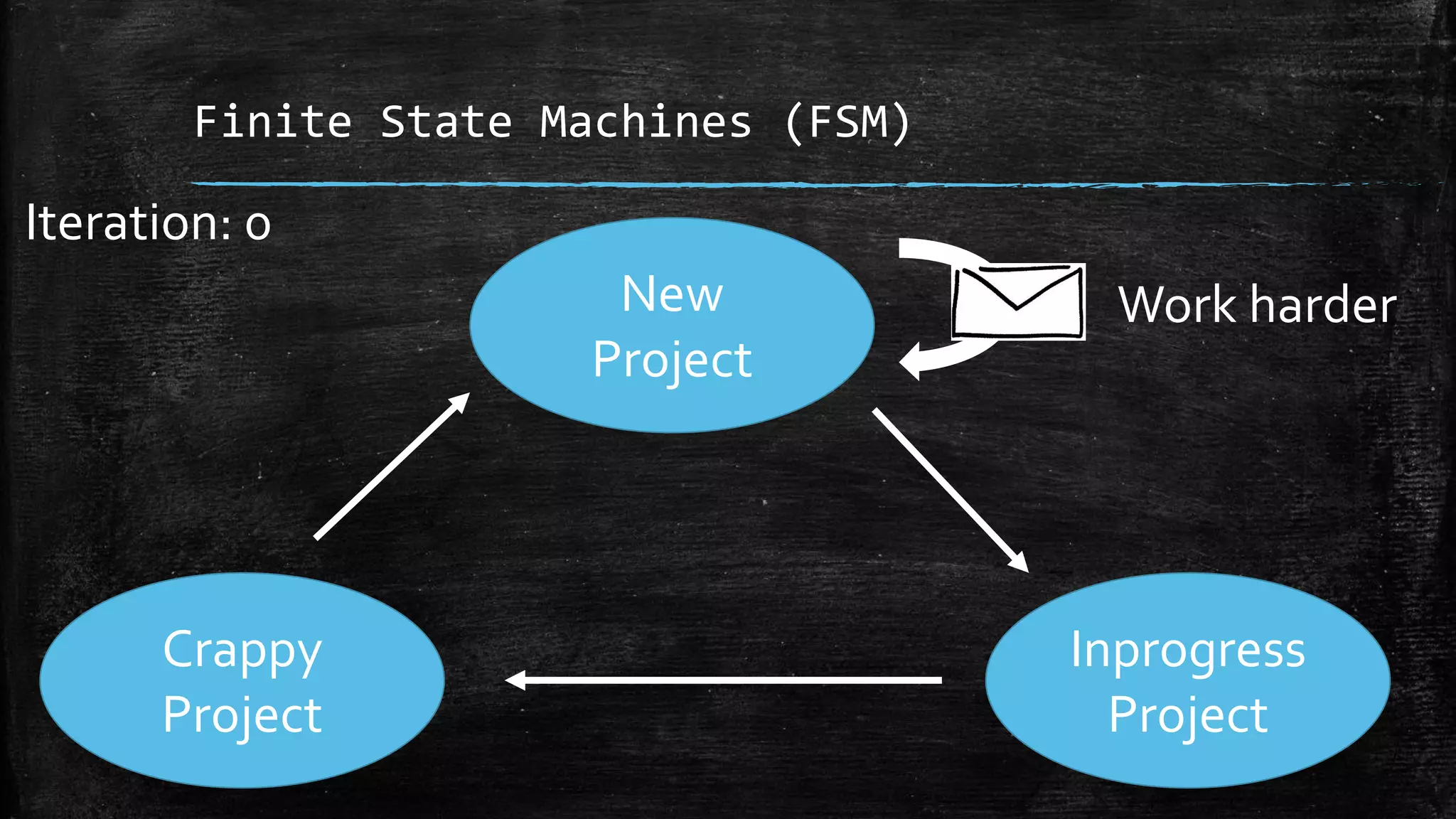

85. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Work harder
Iteration: 0

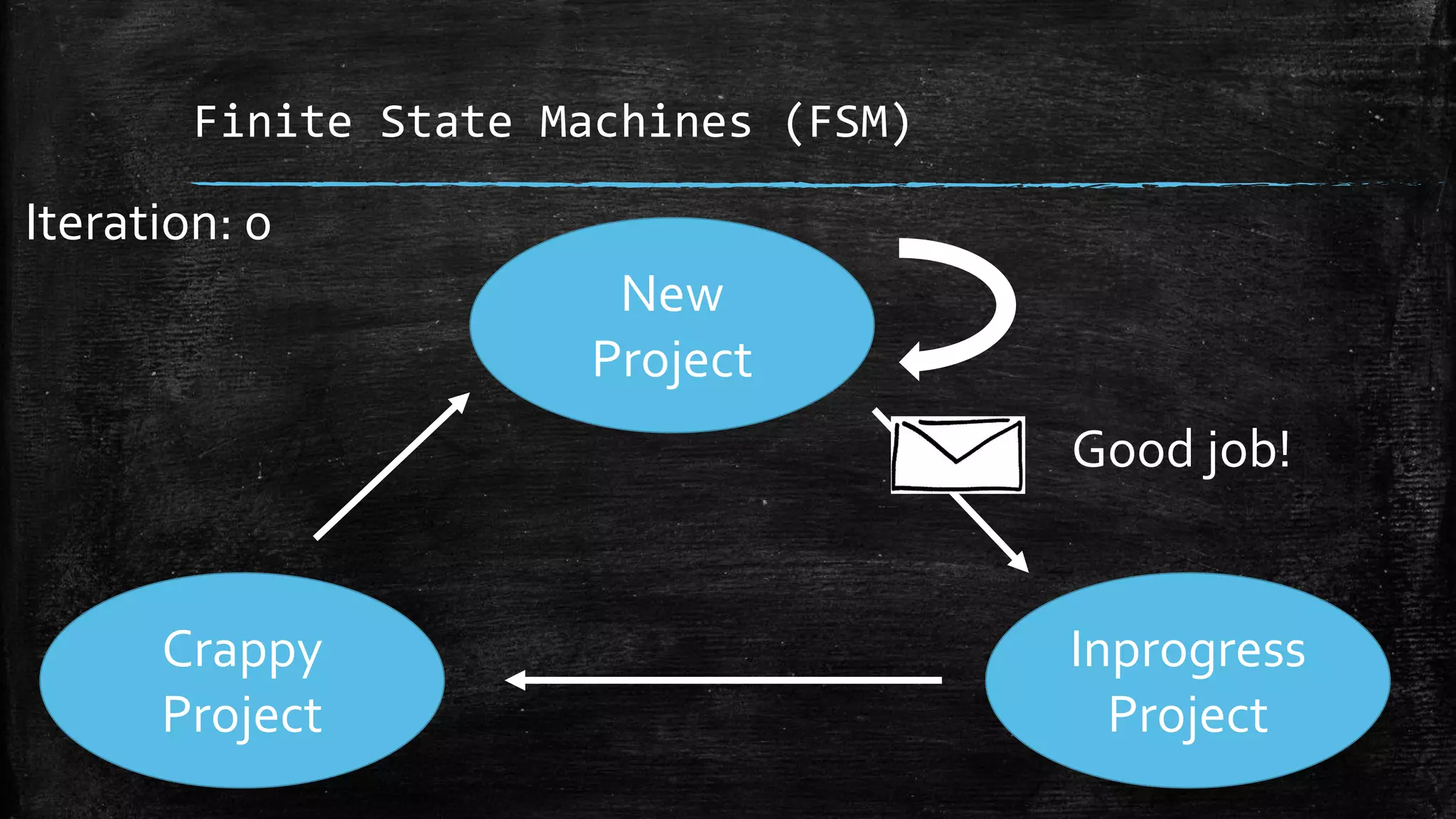

86. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Good job!
Iteration: 0

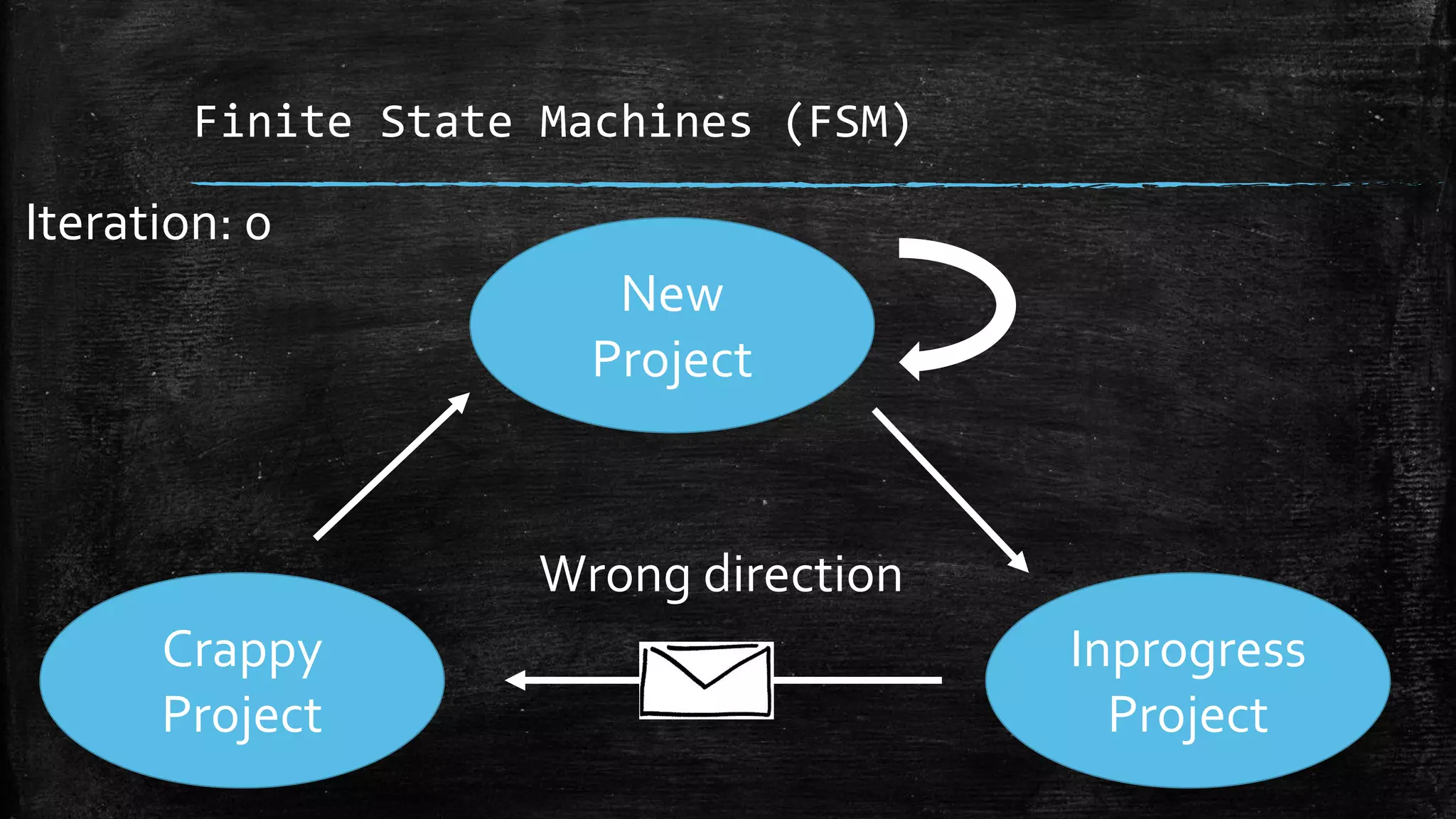

87. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Wrong direction
Iteration: 0

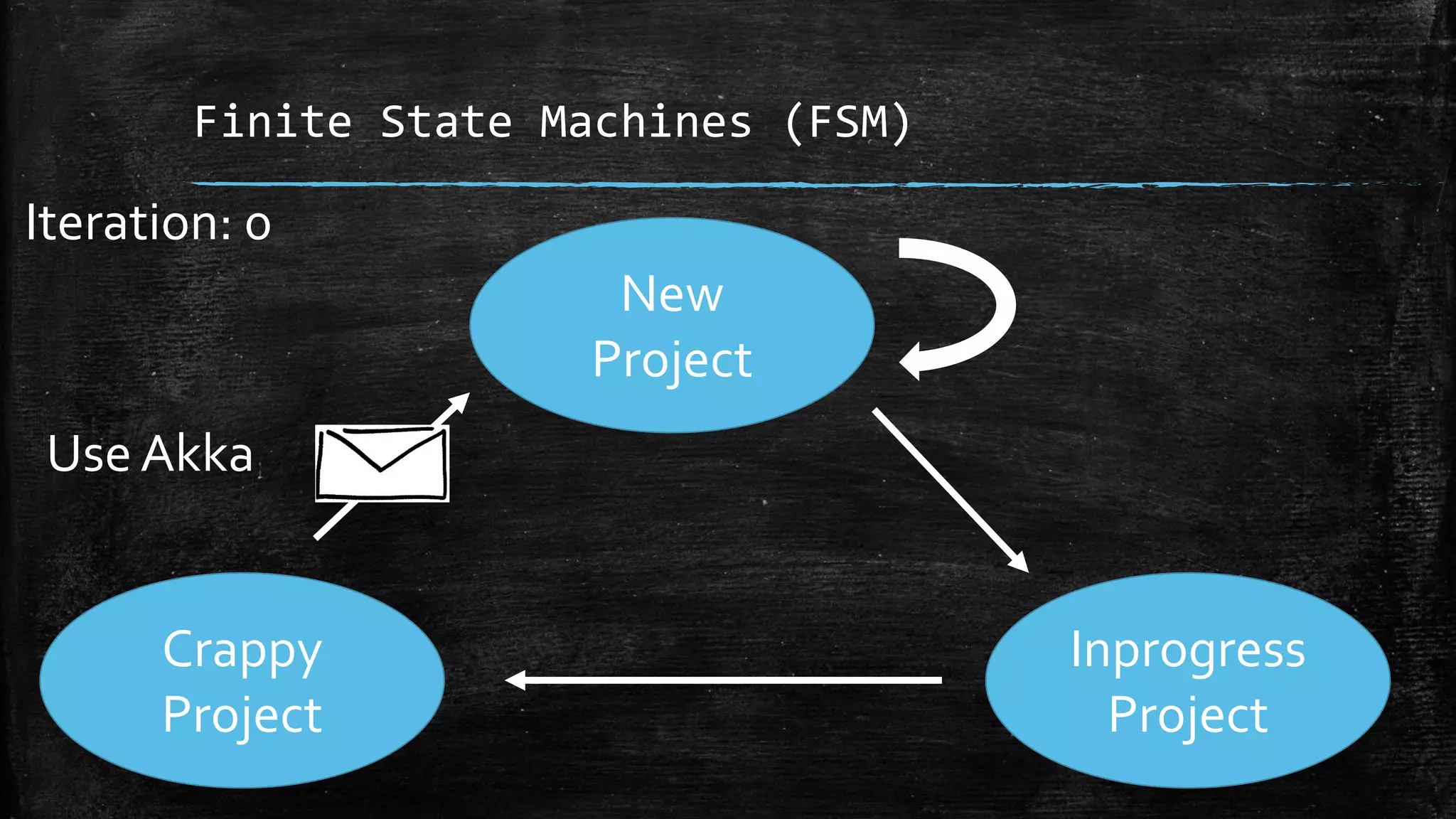

88. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Use Akka
Iteration: 0

89. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Good job!
Iteration: 1

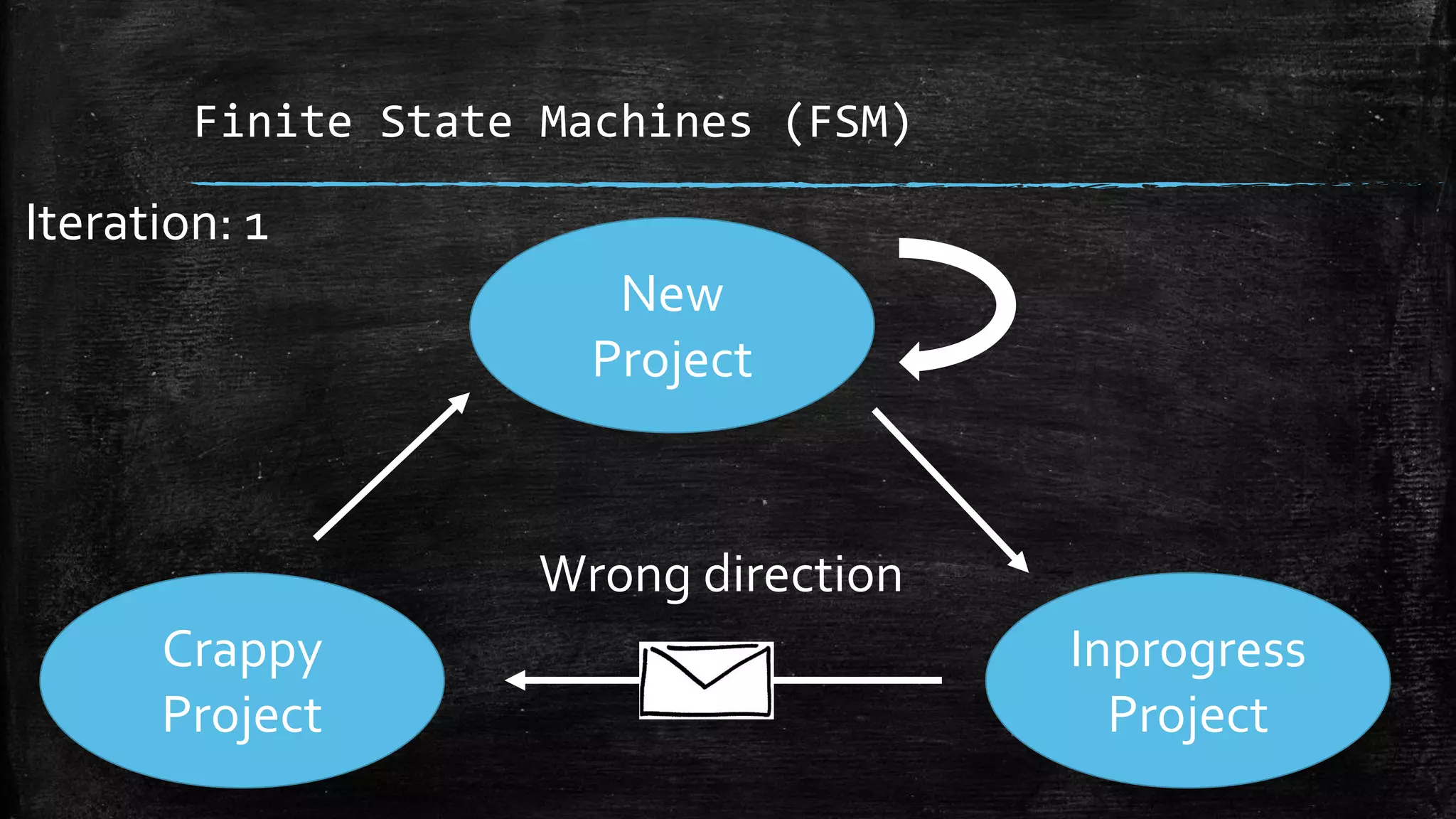

90. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Wrong direction
Iteration: 1

91. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project
Use Akka
Iteration: 1

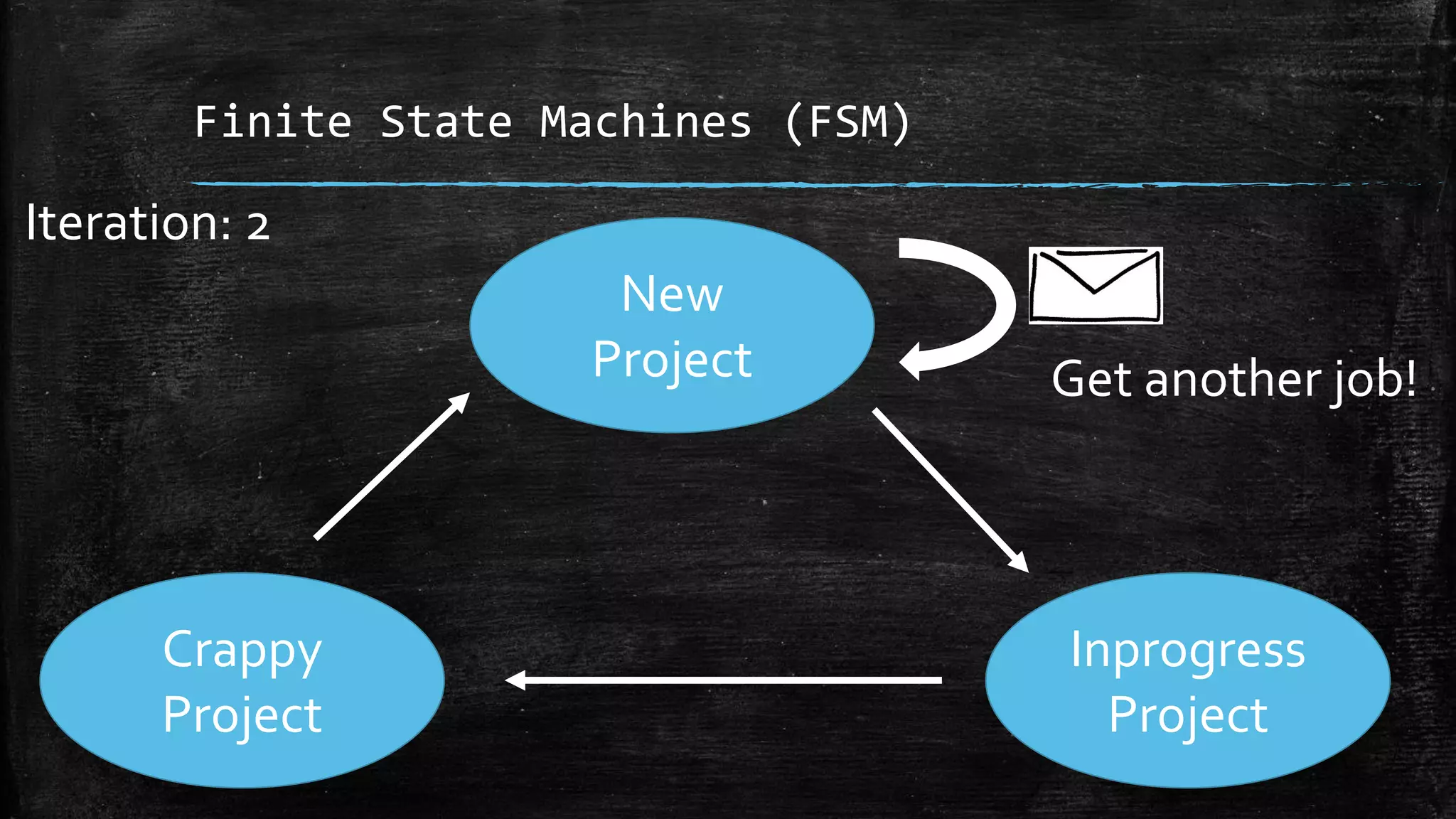

92. Finite State Machines (FSM)
Inprogress
Project
Crappy
Project
New
Project Get another job!
Iteration: 2

93. Conclusion

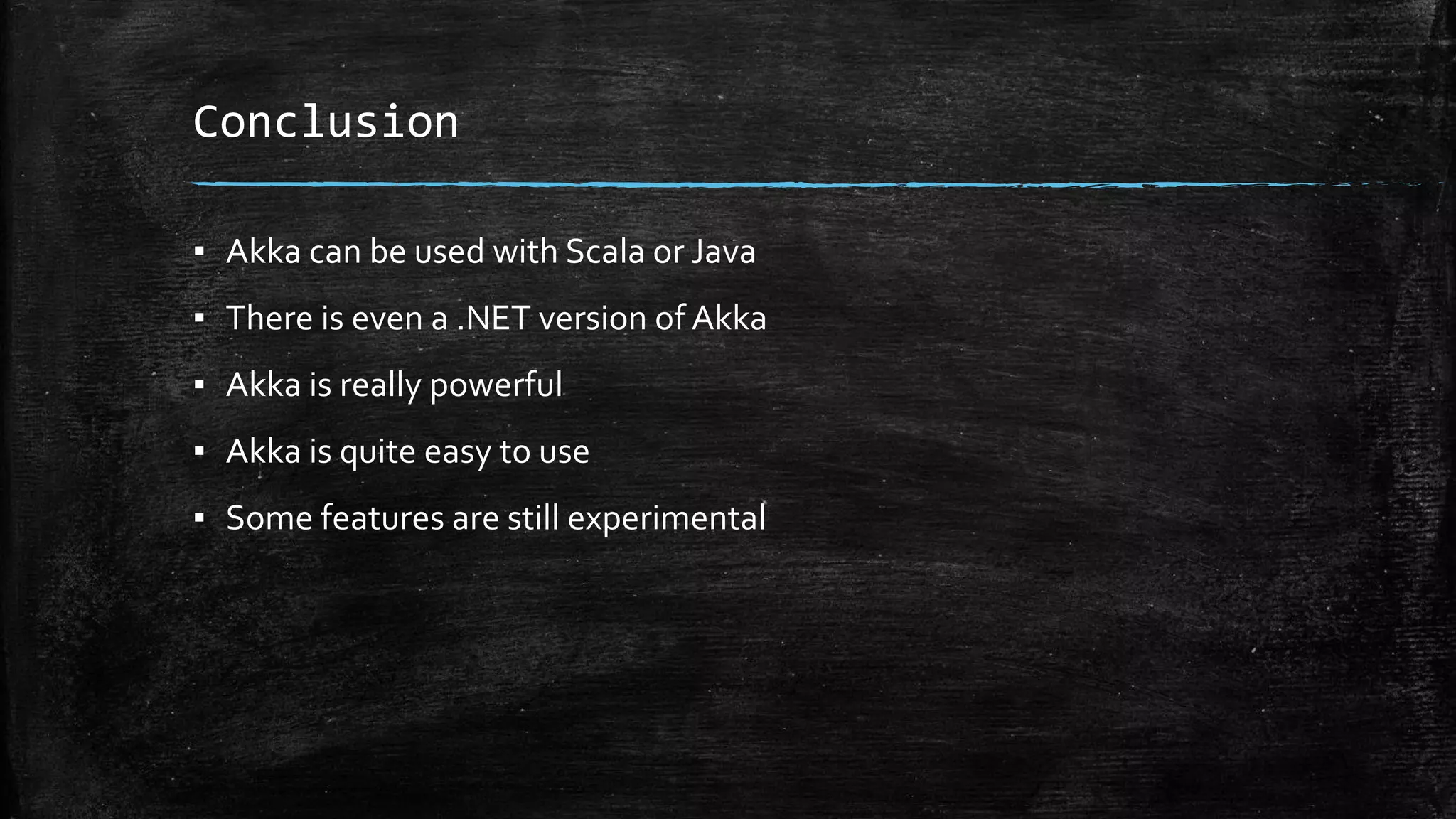

94. Conclusion
▪ Akka can be used with Scala or Java
▪ There is even a .NET version of Akka
▪ Akka is really powerful
▪ Akka is quite easy to use
▪ Some features are still experimental

95. Questions
Johan Janssen @johanjanssen42
GitHub: https://github.com/johanjanssen/Akka-examples
