Real world Scala hAkking NLJUG JFall 2011
The document provides an overview of using Scala and Akka for building distributed sensor networks. Some key points: - The speaker uses Scala and Akka at their company for building distributed systems to manage traffic and sensor networks. - Akka actors are used to build distributed and fault-tolerant systems. Camel is used for integration between actors. Remote actors allow building systems that span multiple machines. - Examples of systems built include a border control sensor network and distributed traffic management systems. Scala and Akka provide benefits like less code, fault tolerance, and ability to interoperate with existing Java systems. - Topics covered include using Akka actors, remote actors, Camel integration,
More Related Content
Similar to Real world Scala hAkking NLJUG JFall 2011
![[PDF Download] Akka in Action 1st Edition Raymond Roestenburg fulll chapter](https://cdn.slidesharecdn.com/ss_thumbnails/10639-240805124441-3617891d-thumbnail.jpg?width=640&height=640&fit=bounds)
Real world Scala hAkking NLJUG JFall 2011
- 1. Real World ScalahAkking Raymond Roestenburg

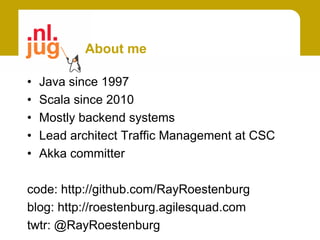

- 2. About me • Java since 1997 • Scala since 2010 • Mostly backend systems • Lead architect Traffic Management at CSC • Akka committer code: http://github.com/RayRoestenburg blog: http://roestenburg.agilesquad.com twtr: @RayRoestenburg

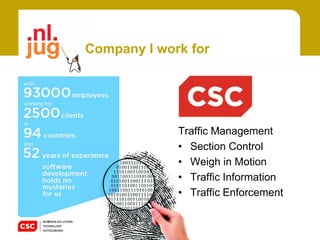

- 3. Company I workfor Traffic Management • Section Control • Weigh in Motion • Traffic Information • Traffic Enforcement

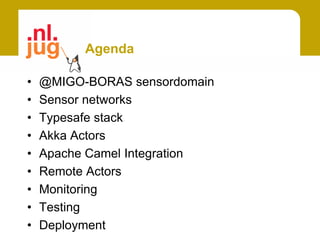

- 4. Agenda • @MIGO-BORAS sensordomain • Sensor networks • Typesafe stack • Akka Actors • Apache Camel Integration • Remote Actors • Monitoring • Testing • Deployment

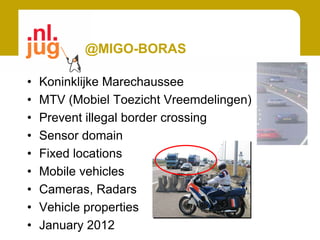

- 5. @MIGO-BORAS • Koninklijke Marechaussee • MTV (Mobiel Toezicht Vreemdelingen) • Prevent illegal border crossing • Sensor domain • Fixed locations • Mobile vehicles • Cameras, Radars • Vehicle properties • January 2012
- 6. Sensor networks • Usablefor many applications in our field • Distributed along highways and provincial roads • Traffic Enforcement • Traffic Information • Other applications • Roadside systems • Range of sensor types – Camera’s, Infrared, Laser, Piezoelectric, Loops, Mobile units, … • Remotely Configure & Control

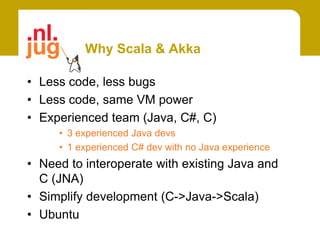

- 7. Why Scala &Akka • Less code, less bugs • Less code, same VM power • Experienced team (Java, C#, C) • 3 experienced Java devs • 1 experienced C# dev with no Java experience • Need to interoperate with existing Java and C (JNA) • Simplify development (C->Java->Scala) • Ubuntu

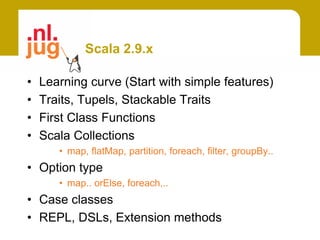

- 8. Scala 2.9.x • Learning curve (Start with simple features) • Traits, Tupels, Stackable Traits • First Class Functions • Scala Collections • map, flatMap, partition, foreach, filter, groupBy.. • Option type • map.. orElse, foreach,.. • Case classes • REPL, DSLs, Extension methods

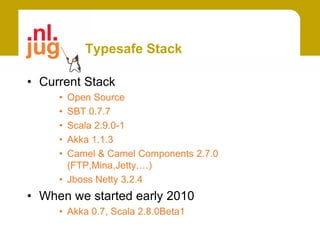

- 9. Typesafe Stack • CurrentStack • Open Source • SBT 0.7.7 • Scala 2.9.0-1 • Akka 1.1.3 • Camel & Camel Components 2.7.0 (FTP,Mina,Jetty,…) • Jboss Netty 3.2.4 • When we started early 2010 • Akka 0.7, Scala 2.8.0Beta1

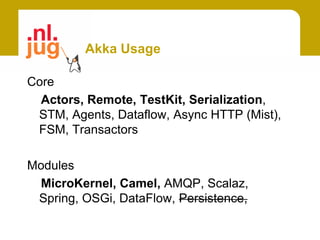

- 10. Akka Usage Core Actors, Remote, TestKit, Serialization, STM, Agents, Dataflow, Async HTTP (Mist), FSM, Transactors Modules MicroKernel, Camel, AMQP, Scalaz, Spring, OSGi, DataFlow, Persistence,

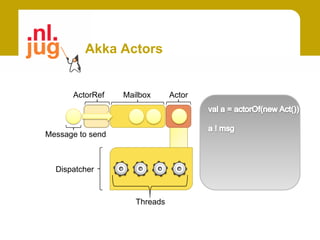

- 11. Akka Actors ActorRef Mailbox Actor Message to send Dispatcher Threads

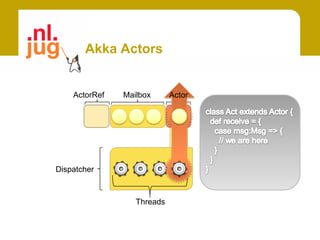

- 12. Akka Actors ActorRef Mailbox Actor Dispatcher Threads
- 13. Akka Actors ActorRef Mailbox Actor Dispatcher Threads

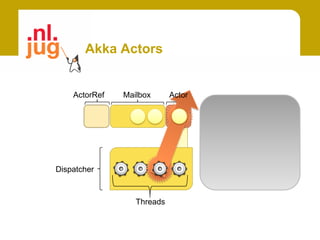

- 14. Akka Actors ActorRef Mailbox Actor Dispatcher Threads

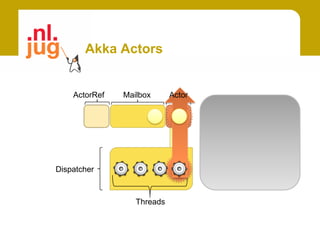

- 15. Akka Actors ActorRef Mailbox Actor Dispatcher Threads

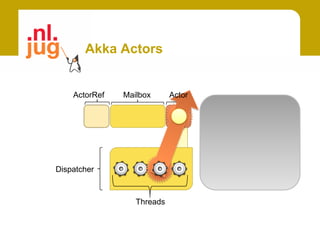

- 16. Akka Actors ActorRef Mailbox Actor Dispatcher Threads

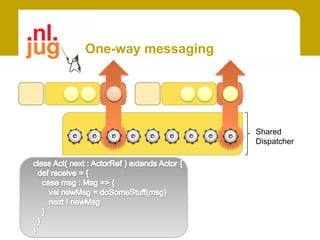

- 17. One-way messaging Shared Dispatcher
- 18.
- 19.

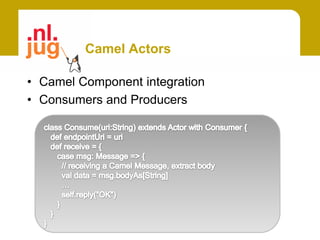

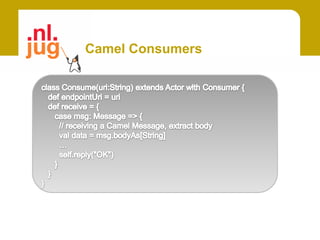

- 20. Camel Actors • CamelComponent integration • Consumers and Producers
- 21.
- 22.

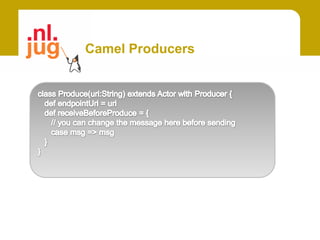

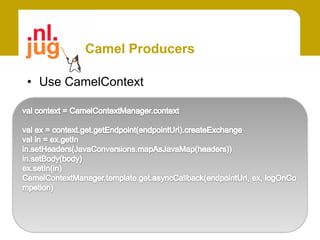

- 23. Camel Producers • UseCamelContext

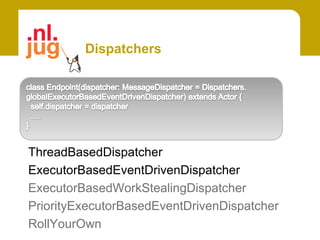

- 24.

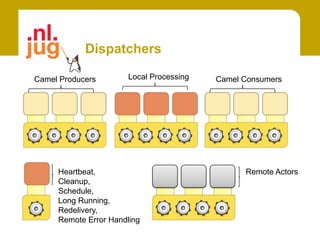

- 25. Dispatchers Camel Producers Local Processing Camel Consumers Heartbeat, Remote Actors Cleanup, Schedule, Long Running, Redelivery, Remote Error Handling

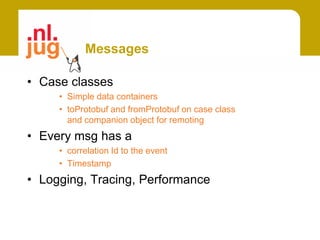

- 26. Messages • Case classes • Simple data containers • toProtobuf and fromProtobuf on case class and companion object for remoting • Every msg has a • correlation Id to the event • Timestamp • Logging, Tracing, Performance

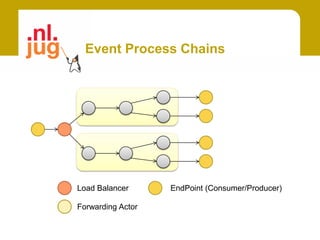

- 27. Event Process Chains LoadBalancer EndPoint (Consumer/Producer) Forwarding Actor

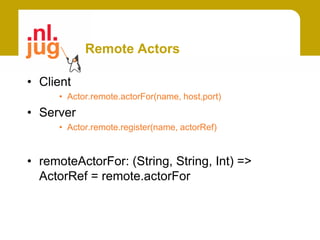

- 28. Remote Actors • Client • Actor.remote.actorFor(name, host,port) • Server • Actor.remote.register(name, actorRef) • remoteActorFor: (String, String, Int) => ActorRef = remote.actorFor

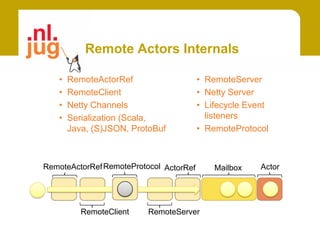

- 29. Remote Actors Internals • RemoteActorRef • RemoteServer • RemoteClient • Netty Server • Netty Channels • Lifecycle Event • Serialization (Scala, listeners Java, (S)JSON, ProtoBuf • RemoteProtocol RemoteActorRef RemoteProtocol ActorRef Mailbox Actor RemoteClient RemoteServer

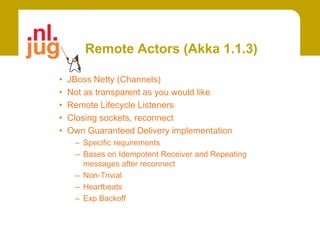

- 30. Remote Actors (Akka1.1.3) • JBoss Netty (Channels) • Not as transparent as you would like • Remote Lifecycle Listeners • Closing sockets, reconnect • Own Guaranteed Delivery implementation – Specific requirements – Bases on Idempotent Receiver and Repeating messages after reconnect – Non-Trivial – Heartbeats – Exp Backoff

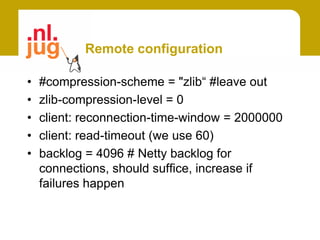

- 31. Remote configuration • #compression-scheme = "zlib“ #leave out • zlib-compression-level = 0 • client: reconnection-time-window = 2000000 • client: read-timeout (we use 60) • backlog = 4096 # Netty backlog for connections, should suffice, increase if failures happen

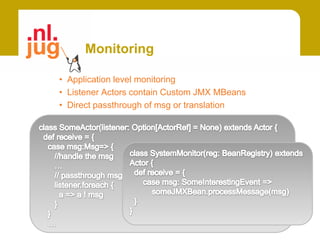

- 32. Monitoring • Application levelmonitoring • Listener Actors contain Custom JMX MBeans • Direct passthrough of msg or translation
- 33.
- 34. Testing one-way ActorOutput

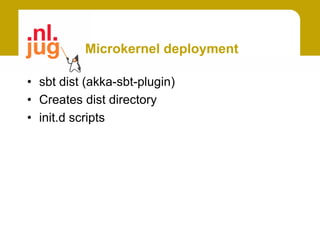

- 35. Microkernel deployment • sbtdist (akka-sbt-plugin) • Creates dist directory • init.d scripts
- 36.
Editor's Notes
- #13 ActorRef is an immutable reference which exclusively gives access to the Actor.Actors run on Dispatchers. A Dispatcher runs a mailbox to process messages.Amount of messages per mailbox run is configurable. (actor.throughput, default 5)

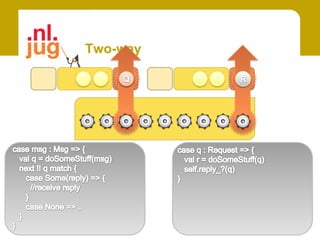

- #18 One way messaging between two ActorsActors can process messages in parallel
- #19 One way messaging between two ActorsActors can process messages in parallel

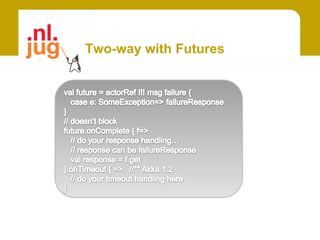

- #20 !!! Is preferred over !!Futuresalso run onDispatchers.FutureTimeoutException happens onfuture.get. IfonlyonComplete and failure are registered, yougetnoFutureTimeoutException
