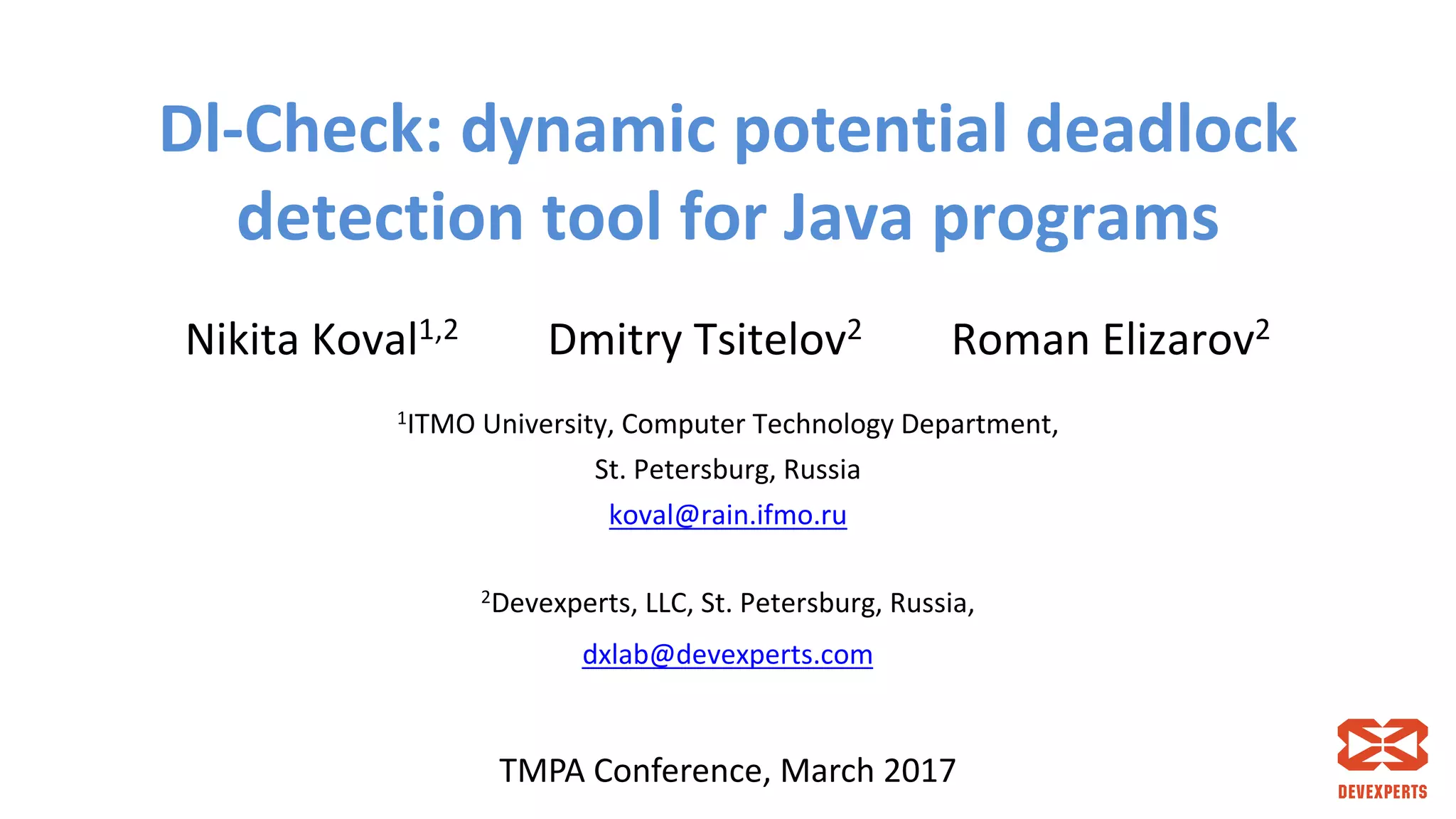

1. Dl-Check: dynamic potential deadlock
detection tool for Java programs
Nikita Koval1,2 Dmitry Tsitelov2 Roman Elizarov2
1ITMO University, Computer Technology Department,
St. Petersburg, Russia
koval@rain.ifmo.ru
2Devexperts, LLC, St. Petersburg, Russia,
dxlab@devexperts.com
TMPA Conference, March 2017

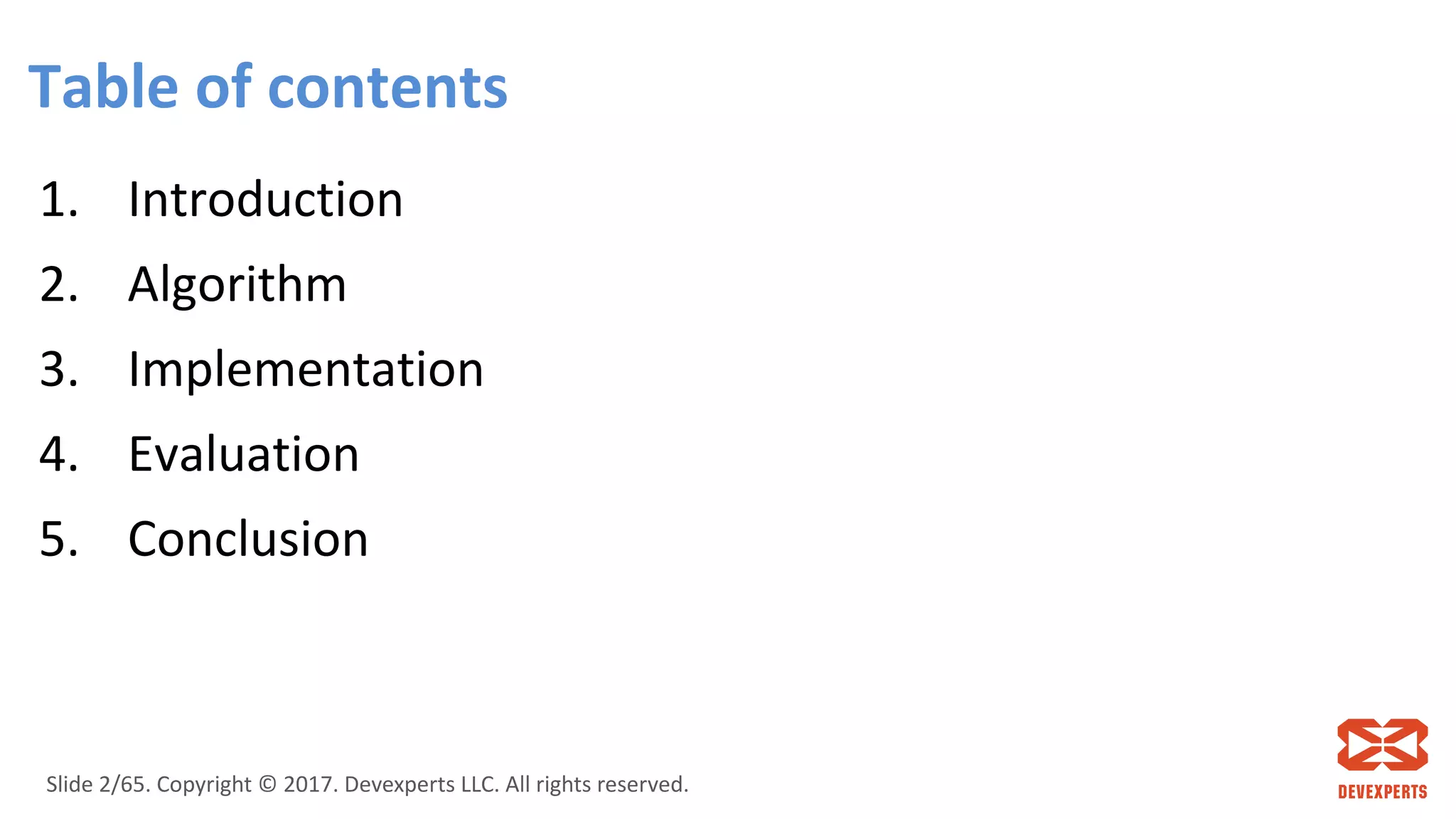

2. Table of contents
1. Introduction
2. Algorithm
3. Implementation
4. Evaluation
5. Conclusion
Slide 2/65. Copyright © 2017. Devexperts LLC. All rights reserved.

3. INTRODUCTION

4. Multithreaded programming problems
• Data race
• Starvation
• Livelock
• Deadlock
- Communication deadlock
- Resource deadlock
Slide 4/65. Copyright © 2017. Devexperts LLC. All rights reserved.

5. Resource deadlock
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
transfer(a, b, …):
1 a.lock()
4 b.lock()
transfer(b, a, …):
2 b.lock()
3 a.lock()
DEADLOCK!
Slide 5/65. Copyright © 2017. Devexperts LLC. All rights reserved.

6. Analysis approaches
• Static analysis
- Can guarantee deadlock-freedom
- Many false positives
• Model checking
- Can guarantee deadlock-freedom
- Requires a lot of computational resources
• Dynamic analysis
- Depends on the execution
- Produces few false positives
- Applicable for large programs
Slide 6/65. Copyright © 2017. Devexperts LLC. All rights reserved.

7. Dynamic analysis
• Collecting execution traces
- Analyzes collected traces off-line
- e.g. JCarder, MulticoreSDK
• Detecting immediately when a potential deadlock happens
- Has all context information, such as stack traces
- e.g. VisualThreads
Slide 7/65. Copyright © 2017. Devexperts LLC. All rights reserved.

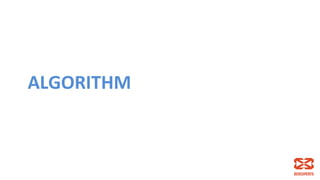

8. ALGORITHM

9. “Acquired before” relation
• Lock 𝒖 is acquired before lock 𝒗 (𝒖 → 𝒗) if at some point
lock 𝒗 is acquired under lock 𝒖 in the same thread
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 c.lock()
4 d.lock()
𝑎 → 𝑏
𝑎 → 𝑐
𝑎 → 𝑑
𝑏 → 𝑐
𝑏 → 𝑑
𝑐 → 𝑑
Slide 9/65. Copyright © 2017. Devexperts LLC. All rights reserved.

10. Lock hierarchy
• Lock hierarchy is a partial order on locks, where
𝑢 → 𝑣 ⇒ 𝑜𝑟𝑑 𝑢 < 𝑜𝑟𝑑 𝑣
𝑜𝑟𝑑 𝑎 < 𝑜𝑟𝑑 𝑏
𝑜𝑟𝑑 𝑎 < 𝑜𝑟𝑑 𝑐
𝑜𝑟𝑑 𝑎 < 𝑜𝑟𝑑 𝑑
𝑜𝑟𝑑 𝑏 < 𝑜𝑟𝑑 𝑐
𝑜𝑟𝑑 𝑏 < 𝑜𝑟𝑑 𝑑
𝑜𝑟𝑑 𝑐 < 𝑜𝑟𝑑(𝑑)
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 c.lock()
4 d.lock()
Slide 10/65. Copyright © 2017. Devexperts LLC. All rights reserved.

11. Potential deadlock
• Lock hierarchy is a primary method to avoid deadlocks
• Potential deadlock is a lock hierarchy violation
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 b.lock()
4 a.lock()
𝑎 → 𝑏
𝑏 → 𝑎
𝑜𝑟𝑑 𝑎 < 𝑜𝑟𝑑 𝑏
𝑜𝑟𝑑 𝑏 < 𝑜𝑟𝑑(𝑎)
Slide 11/65. Copyright © 2017. Devexperts LLC. All rights reserved.

12. Lock-order graph (1)
• Every vertex is associated with a lock
• Edge 𝒖, 𝒗 means that 𝒖 → 𝒗
• Cycles refer to potential deadlocks
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 unlock(a, b)
4 b.lock()
5 a.lock()
6 unlock(a, b)
Slide 12/65. Copyright © 2017. Devexperts LLC. All rights reserved.

13. Lock-order graph (2)
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 unlock(a, b)
4 b.lock()
5 a.lock()
6 unlock(a, b)
• Every vertex is associated with a lock
• Edge 𝒖, 𝒗 means that 𝒖 → 𝒗
• Cycles refer to potential deadlocks
Slide 13/65. Copyright © 2017. Devexperts LLC. All rights reserved.

14. Lock-order graph (3)
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 unlock(a, b)
4 b.lock()
5 a.lock()
6 unlock(a, b)
• Every vertex is associated with a lock
• Edge 𝒖, 𝒗 means that 𝒖 → 𝒗
• Cycles refer to potential deadlocks
Slide 14/65. Copyright © 2017. Devexperts LLC. All rights reserved.

15. Lock-order graph (4)
Thread 1 Thread 2
1 a.lock()
2 b.lock()
3 unlock(a, b)
4 b.lock()
5 a.lock()
6 unlock(a, b)
• Every vertex is associated with a lock
• Edge 𝒖, 𝒗 means that 𝒖 → 𝒗
• Cycles refer to potential deadlocks
Slide 15/65. Copyright © 2017. Devexperts LLC. All rights reserved.

16. Minimization principle: problem
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 16/65. Copyright © 2017. Devexperts LLC. All rights reserved.

17. Minimization principle: problem (1)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 17/65. Copyright © 2017. Devexperts LLC. All rights reserved.

18. Minimization principle: problem (2)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 18/65. Copyright © 2017. Devexperts LLC. All rights reserved.

19. Minimization principle: problem (3)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 19/65. Copyright © 2017. Devexperts LLC. All rights reserved.

20. Minimization principle: problem (4)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 20/65. Copyright © 2017. Devexperts LLC. All rights reserved.

21. Minimization principle: problem (5)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 21/65. Copyright © 2017. Devexperts LLC. All rights reserved.

22. Minimization principle: problem (6)
• Two cycles may refer to the same potential deadlock
Thread 1 Thread 2
1 a.lock()
2 c.lock()
3 b.lock()
4 unlock(a,b,c)
5 b.lock()
6 a.lock()
7 unlock(a,b)
Slide 22/65. Copyright © 2017. Devexperts LLC. All rights reserved.

23. Minimization principle: rule
• The shorter cycle is more useful
• Only one shortest cycle is to be produced
Slide 23/65. Copyright © 2017. Devexperts LLC. All rights reserved.

24. Algorithm layout
• Capture lock acquire and release operations
• After lock acquisition:
- Add lock to the multiset of locks held by the current thread
- Add new edges to the lock-order graph
- Report new cycles
• Before lock release:
- Remove lock from the multiset of held locks
Slide 24/65. Copyright © 2017. Devexperts LLC. All rights reserved.

25. Lock acquisition and release capturing
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Thread #1Thread #2Slide 25/65. Copyright © 2017. Devexperts LLC. All rights reserved.

26. Lock acquisition and release capturing (1)
Thread #1Thread #2
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 26/65. Copyright © 2017. Devexperts LLC. All rights reserved.

27. Lock acquisition and release capturing (2)
Thread #1Thread #2
b
a
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 27/65. Copyright © 2017. Devexperts LLC. All rights reserved.

28. Lock acquisition and release capturing (3)
Thread #1Thread #2
b
a
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 28/65. Copyright © 2017. Devexperts LLC. All rights reserved.

29. Lock acquisition and release capturing (4)
Thread #1Thread #2
b
a
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 29/65. Copyright © 2017. Devexperts LLC. All rights reserved.

30. Lock acquisition and release capturing (5)
Thread #1Thread #2
b
a
c
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 30/65. Copyright © 2017. Devexperts LLC. All rights reserved.

31. Lock acquisition and release capturing (6)
Thread #1Thread #2
a
c
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 31/65. Copyright © 2017. Devexperts LLC. All rights reserved.

32. Lock acquisition and release capturing (7)
Thread #1Thread #2
a
c
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 32/65. Copyright © 2017. Devexperts LLC. All rights reserved.

33. Lock acquisition and release capturing (8)
Thread #1Thread #2
a
c
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 33/65. Copyright © 2017. Devexperts LLC. All rights reserved.

34. Lock acquisition and release capturing (9)
Thread #2Thread #1
c
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 34/65. Copyright © 2017. Devexperts LLC. All rights reserved.

35. Lock acquisition and release capturing (10)
Thread #1Thread #2
b
Thread 1 Thread 2
4 a.lock()
5 c.lock()
7 b.lock()
8 a.unlock()
9 c.unlock()
10 b.unlock()
1 b.lock()
2 a.lock()
3 a.unlock()
6 b.unlock()
Slide 35/65. Copyright © 2017. Devexperts LLC. All rights reserved.

36. Multiset of held locks
• Common lock usage patterns
synchronized(o) {
// Do something
}
synchronized void f() {
// Do something
}
l.lock()
try {
// Do something
} finally {
l.unlock()
}
• Locks are acquired and released in LIFO (stack) order
Slide 36/65. Copyright © 2017. Devexperts LLC. All rights reserved.

37. Multiset of held locks
• Stack with possibility of removing from the middle
• Commonly works in 𝑂 1
• Works in 𝑂(𝐵) at worst
- 𝐵 – number of locks acquired by the current thread
Slide 37/65. Copyright © 2017. Devexperts LLC. All rights reserved.

38. Topological order
• Incremental topological order maintenance
- MNR algorithm suggested by Marchetti-Spaccamela et al.
• The acyclic part of the lock-order graph is to be kept
• Adding (𝑢, 𝑣) leads to topological order violation ⇒ the
shortest path 𝑣 ↝ 𝑢 relates to the cycle
Slide 38/65. Copyright © 2017. Devexperts LLC. All rights reserved.

39. New nodes processing
• Typical pattern in the lock-order graph
x
a
bc
d
e
f g
h
• One long-lived lock at the center and many hundreds of
short-lived locks around it
Slide 39/65. Copyright © 2017. Devexperts LLC. All rights reserved.

40. New nodes processing
• Lock-free buffer for new nodes
• Initialize topological order value
- if buffer is full
- when outgoing edge should be added
New lock nodes buffer
Lock-order graph
Slide 40/65. Copyright © 2017. Devexperts LLC. All rights reserved.

41. Complexity
• On lock acquire
- If acquisition does not produce new cycles
• Typical case
• 𝑂(𝐵 + |𝑉| + |𝐸|)
- New cycle detected
• 𝑂 𝐵 ⋅ 𝑉 + 𝐸
• On lock release
- Removes the lock from the lock multiset
• 𝑂 1 typically
• 𝑂 𝐵 at worst
Slide 41/65. Copyright © 2017. Devexperts LLC. All rights reserved.

42. Limitations: cycle minimization
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(a, c, …)
2 transfer(c, b, …)
3 transfer(b, a, …)
4 transfer(a, b, …)
Slide 42/65. Copyright © 2017. Devexperts LLC. All rights reserved.

43. Limitations: cycle minimization (1)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(a, c, …)
2 transfer(c, b, …)
3 transfer(b, a, …)
4 transfer(a, b, …)
Slide 43/65. Copyright © 2017. Devexperts LLC. All rights reserved.

44. Limitations: cycle minimization (2)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(a, c, …)
2 transfer(c, b, …)
3 transfer(b, a, …)
4 transfer(a, b, …)
Slide 44/65. Copyright © 2017. Devexperts LLC. All rights reserved.

45. Limitations: cycle minimization (3)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(a, c, …)
2 transfer(c, b, …)
3 transfer(b, a, …)
4 transfer(a, b, …)
Slide 45/65. Copyright © 2017. Devexperts LLC. All rights reserved.

46. Limitations: cycle minimization (4)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(a, c, …)
2 transfer(c, b, …)
3 transfer(b, a, …)
4 transfer(a, b, …)
Slide 46/65. Copyright © 2017. Devexperts LLC. All rights reserved.

47. Limitation: cycle minimization (3)
• Edge (𝑣, 𝑢) has formed a cycle
• Minimize cycle 𝑢, … , 𝑣 ⇔ minimize path 𝑢 ↝ 𝑣
- Can be achieved via BFS
• Usually cycle length is 2 or 3
• Current implementation skips this part
Slide 47/65. Copyright © 2017. Devexperts LLC. All rights reserved.

48. Limitations: independent cycles
• Logically independent cycles:
- 𝑎, 𝑐, 𝑏
- 𝑎, 𝑏
• Independent cycle is ignored due to minimization principle
• One useful cycle is better J
Slide 48/65. Copyright © 2017. Devexperts LLC. All rights reserved.

49. Limitations: single threaded and guarded cycles
• Single threaded cycle
Lock a, b
1 a.lock()
2 b.lock()
3 unlock(a, b)
4 b.lock()
5 a.lock()
6 unlock(a, b)
Slide 49/65. Copyright © 2017. Devexperts LLC. All rights reserved.

50. Limitations: single threaded and guarded cycles
• Guarded cycle
Thread 1 Thread 2
1 g.lock()
2 a.lock()
3 b.lock()
4 unlock(a, b)
5 g.unlock()
6 g.lock()
7 b.lock()
8 a.lock()
9 unlock(a, b)
10 g.unlock()
Slide 50/65. Copyright © 2017. Devexperts LLC. All rights reserved.

51. Limitations: single threaded and guarded cycles
• They are still lock hierarchy violation
• Such potential deadlock may become possible after code
refactoring
Slide 51/65. Copyright © 2017. Devexperts LLC. All rights reserved.

52. IMPLEMENTATION

53. Dl-Check
• Implemented as java agent
- java -javaagent:dlcheck.jar -jar your_app.jar
- Can be used with Junit: -Ddlcheck.fail=true
• Inserts analysis code into classes at run-time
Slide 53/65. Copyright © 2017. Devexperts LLC. All rights reserved.

54. Dl-Check output example
==========================
!!! Potential deadlock !!!
==========================
### Cycle in lock graph: ###
Lock ReentrantLock@75915908 was acquired at:
com/intellij/ide/util/treeView/AbstractTreeUi.acquireLock(AbstractTreeUi.java:2464)
com/intellij/ide/util/treeView/AbstractTreeUi.attemptLock(AbstractTreeUi.java:2460)
Lock ProjectViewTreeUpdater@46e87eab was acquired at:
com/intellij/ide/util/treeView/AbstractTreeUpdater.reset(AbstractTreeUpdater.java:415)
com/intellij/ide/util/treeView/AbstractTreeUpdater.getUpdateCount(AbstractTreeUpdater.java:344)
com/intellij/ide/util/treeView/AbstractTreeUpdater.performUpdate(AbstractTreeUpdater.java:242)
com/intellij/ide/util/treeView/AbstractTreeUpdater.isEnqueuedToUpdate(AbstractTreeUpdater.java:380)
com/intellij/ide/util/treeView/AbstractTreeUpdater.cancelAllRequests(AbstractTreeUpdater.java:326)
### Current lock stack: ###
Lock Object@5cbe2bca was acquired at:
com/intellij/openapi/application/impl/LaterInvocator$FlushQueue.a(LaterInvocator.java:320)
Lock ReentrantLock@75915908 was acquired at:
com/intellij/ide/util/treeView/AbstractTreeUi.acquireLock(AbstractTreeUi.java:2464)
com/intellij/ide/util/treeView/AbstractTreeUi.attemptLock(AbstractTreeUi.java:2460)
### Current stacktrace: ###
com.intellij.ide.util.treeView.AbstractTreeUpdater.cancelAllRequests(AbstractTreeUpdater.java:326)
com.intellij.ide.util.treeView.AbstractTreeUi.releaseNow(AbstractTreeUi.java:457)
com.intellij.ide.util.treeView.AbstractTreeUi.access$1400(AbstractTreeUi.java:66)
com.intellij.ide.util.treeView.AbstractTreeUi$12.perform(AbstractTreeUi.java:438)
...
Slide 54/65. Copyright © 2017. Devexperts LLC. All rights reserved.

55. Byte-code instrumentation
• Captures lock acquire and release operations:
- After MONITORENTER and before MONITOREXIT instructions
- At the beginning and the end of synchronized method
- java.util.concurrent.locks.Lock
• After lock method
• After successful tryLock method invocation
• Before unlock method
Slide 55/65. Copyright © 2017. Devexperts LLC. All rights reserved.

56. Scalability
• MNR algorithm is NOT concurrent
• Read-write lock
- Read lock for read-only operations and current node modification
- Write lock for topological order modification
- SWMR (single-writer multi-reader) data structures
Slide 56/65. Copyright © 2017. Devexperts LLC. All rights reserved.

57. Memory management
• Java has a Garbage Collector
• Old lock instances and nodes should be collected by GC
• WeakReference is used for internal data structures
Slide 57/65. Copyright © 2017. Devexperts LLC. All rights reserved.

58. EVALUATION

59. Benchmarks
• SpecJVM2008: Apache Derby (4 and 40 threads)
• DaCapo: Apache Lucene
• DaCapo: Banking application
• Fine-Grained (10 threads, 100 and 10’000 locks)
- Like transfer(from, to, amount) from examples
• …
Slide 59/65. Copyright © 2017. Devexperts LLC. All rights reserved.

60. Memory usage impact
1
1,07 1,06
1
1,61
1,34
0,61
1,22
1 1
0,74
1,12
1,35
1
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
1,8
2
Derby 1 Derby 2 Lucene Bank FG 1 FG 2
INCREASE FACTOR
Dl-Check Jcarder MulticoreSDK
Slide 60/65. Copyright © 2017. Devexperts LLC. All rights reserved.

61. Performance impact
1,53
1,76
1,03
2,6
4,29
18,05
9,7
128,2
1,25
2,6
7,3
120,71
40,33
3,25
1
2
4
8
16
32
64
128
Derby 1 Derby 2 Lucene Bank FG 1 FG 2
SLOWDOWN FACTOR
Dl-Check Jcarder MulticoreSDK
Slide 61/65. Copyright © 2017. Devexperts LLC. All rights reserved.

62. CONCLUSION

63. Summary
• Algorithm to detect potential deadlocks at run-time
• Dl-Check tool has been implemented
• https://github.com/Devexperts/dlcheck
• Future work:
- Lock grouping feature
- Contracts to describe lock acquisition rules
Slide 63/65. Copyright © 2017. Devexperts LLC. All rights reserved.

64. Thank you for your attention!
Slide 64/65. Copyright © 2017. Devexperts LLC. All rights reserved.

65. Dl-Check: dynamic potential deadlock
detection tool for Java programs
Nikita Koval1,2 Dmitry Tsitelov2 Roman Elizarov2
1ITMO University, Computer Technology Department,
St. Petersburg, Russia
koval@rain.ifmo.ru
2Devexperts, LLC, St. Petersburg, Russia,
dxlab@devexperts.com
TMPA Conference, March 2017

66. Topological order: extra
• Can be maintained in a single iteration in case no cycles are formed
• Already acquired locks are ordered already
• Edge from the rightest node should be used
Slide 66/65. Copyright © 2017. Devexperts LLC. All rights reserved.
...
1 a.lock()
2 b.lock()
3 c.lock()
...
Topological order

67. Topological order: example (0)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Slide 67/65. Copyright © 2017. Devexperts LLC. All rights reserved.

68. Topological order: example (1)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Affected region
Slide 68/65. Copyright © 2017. Devexperts LLC. All rights reserved.

69. Topological order: example (2)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Affected region
Slide 69/65. Copyright © 2017. Devexperts LLC. All rights reserved.

70. Topological order: example (3)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Affected region
Slide 70/65. Copyright © 2017. Devexperts LLC. All rights reserved.

71. Topological order: example (4)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Affected region
Slide 71/65. Copyright © 2017. Devexperts LLC. All rights reserved.

72. Topological order: example (4)
void transfer(Account from,
Account to,
int amount) {
from.lock()
to.lock()
// Do transfer
unlock(from, to)
}
1 transfer(d, b)
2 transfer(d, c)
3 transfer(c, d)
4 transfer(e, a)
5 transfer(b, a)
Affected region
Slide 72/65. Copyright © 2017. Devexperts LLC. All rights reserved.
