2. Test Driven Development with
Java EE 7, Arquillian and
Enterprise Containers
Peter Pilgrim
Java Champion, Software Developer
Independent Contractor
@peter_pilgrim

3. Biography
■ Completed Java Sybase course in 1998
■ Working as an Independent
Contractor
■ Founded JAVAWUG 2004-2010
■ Blue-chip business and Banking: IT,
Deutsche, Credit Suisse, UBS, Lloyds
Banking
3

4. The Java EE 7 Developer User Guide
Written by Peter Pilgrim
Late Summer 2013

5. Agile Software Development?

6. Why do we test?

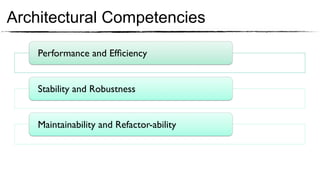

7. Architectural Competencies
Performance and Efficiency
Stability and Robustness
Maintainability and Refactor-ability

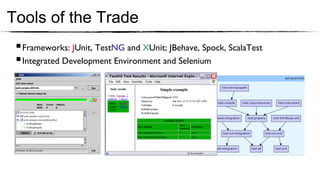

8. Tools of the Trade
§ Frameworks: JUnit, TestNG and XUnit; JBehave, Spock, ScalaTest
§ Integrated Development Environment and Selenium

9. How do we test?

10. The Test Driven Cycle
Write A
Failing Test
Ensure All Make The
Tests Pass
Test Pass
Refactor the Refactor the
Main Code
Test
"Oh, East is East, and West is West, and never the twain shall meet.”, Rudyard Kipling, 1892

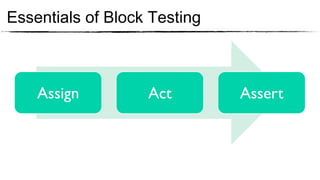

11. Essentials of Block Testing
Assign
Act
Assert

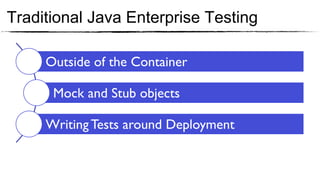

12. Traditional Java Enterprise Testing
Outside of the Container
Mock and Stub objects
Writing Tests around Deployment

13. Java EE 7

14. Java EE 7 Framework Updates
Interface Boundary Management and Web and HTML
Endpoints
Storage
Service Endpoints
JAX RS 2.0
EJB 3.2
Servlet 3.1
WebSocket 1.0
JMS 2.0
CDI 1.1
JSF 2.2
Bean Validation 1.1
JPA 2.1
JSON 1.0

15. Time to Change JavaEE Testing

16. Open Source Integration Testing
Peter Muir, David Blewin and Aslak Knutsen and from Red Hat JBoss.

17. Arquillian Test Framework
Portable In-Container Integration Testing
Deployment of Unit Test and Dependencies together
Extension of Existing Test Framework Support

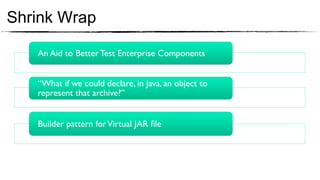

18. Shrink Wrap
An Aid to Better Test Enterprise Components
“What if we could declare, in Java, an object to
represent that archive?”
Builder pattern for Virtual JAR file

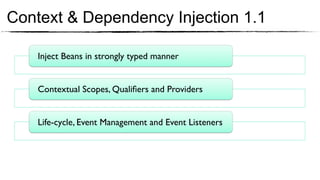

19. Context & Dependency Injection 1.1
Inject Beans in strongly typed manner
Contextual Scopes, Qualifiers and Providers
Life-cycle, Event Management and Event Listeners

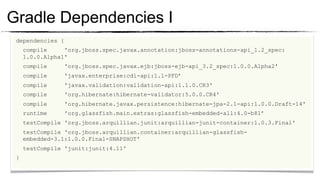

20. Gradle Dependencies I
dependencies {
compile 'org.jboss.spec.javax.annotation:jboss-annotations-api_1.2_spec:
1.0.0.Alpha1'
compile 'org.jboss.spec.javax.ejb:jboss-ejb-api_3.2_spec:1.0.0.Alpha2'
compile 'javax.enterprise:cdi-api:1.1-PFD’
compile 'javax.validation:validation-api:1.1.0.CR3'
compile 'org.hibernate:hibernate-validator:5.0.0.CR4'
compile 'org.hibernate.javax.persistence:hibernate-jpa-2.1-api:1.0.0.Draft-14'
runtime 'org.glassfish.main.extras:glassfish-embedded-all:4.0-b81’
testCompile 'org.jboss.arquillian.junit:arquillian-junit-container:1.0.3.Final'
testCompile 'org.jboss.arquillian.container:arquillian-glassfish-
embedded-3.1:1.0.0.Final-SNAPSHOT'
testCompile 'junit:junit:4.11'
}

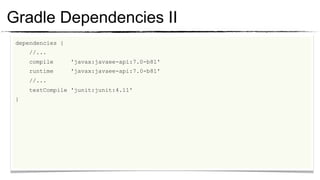

21. Gradle Dependencies II
dependencies {
//...
compile 'javax:javaee-api:7.0-b81'
runtime 'javax:javaee-api:7.0-b81'
//...
testCompile 'junit:junit:4.11'
}

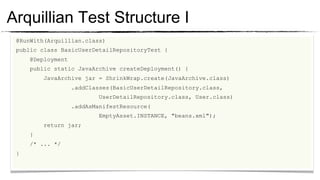

22. Arquillian Test Structure I
@RunWith(Arquillian.class)
public class BasicUserDetailRepositoryTest {
@Deployment
public static JavaArchive createDeployment() {
JavaArchive jar = ShrinkWrap.create(JavaArchive.class)
.addClasses(BasicUserDetailRepository.class,
UserDetailRepository.class, User.class)
.addAsManifestResource(
EmptyAsset.INSTANCE, "beans.xml");
return jar;
}
/* ... */
}

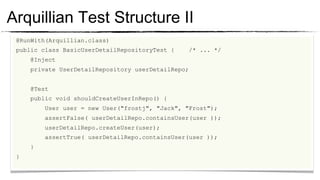

23. Arquillian Test Structure II
@RunWith(Arquillian.class)
public class BasicUserDetailRepositoryTest { /* ... */
@Inject
private UserDetailRepository userDetailRepo;
@Test
public void shouldCreateUserInRepo() {
User user = new User("frostj", "Jack", "Frost");
assertFalse( userDetailRepo.containsUser(user ));
userDetailRepo.createUser(user);
assertTrue( userDetailRepo.containsUser(user ));
}
}

24. Demo: Arquillian
Context Dependency & Injection

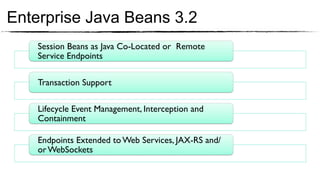

25. Enterprise Java Beans 3.2
Session Beans as Java Co-Located or Remote
Service Endpoints
Transaction Support
Lifecycle Event Management, Interception and
Containment
Endpoints Extended to Web Services, JAX-RS and/
or WebSockets

26. Demo: Arquillian
Enterprise Java Beans

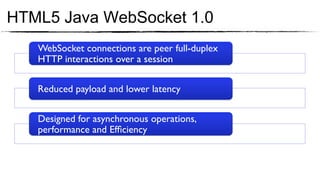

27. HTML5 Java WebSocket 1.0
WebSocket connections are peer full-duplex
HTTP interactions over a session
Reduced payload and lower latency
Designed for asynchronous operations,
performance and Efficiency

28. Demo: Arquillian
Java WebSocket API 1.0

29. Embeddable Containers
So-called “Container-less” Web Application
Deliver an Container Embedded in Application
You Have Control: Size, Framework and
Libraries

30. GlassFish Embedded Initialization
public class AbstractEmbeddedRunner {
private int port;
private GlassFish glassfish;
public AbstractEmbeddedRunner init() throws Exception{
BootstrapProperties bootstrapProperties = new BootstrapProperties();
GlassFishRuntime glassfishRuntime =
GlassFishRuntime.bootstrap(bootstrapProperties);
GlassFishProperties glassfishProperties = new GlassFishProperties();
glassfishProperties.setPort("http-listener", port);
// glassfishProperties.setPort("https-listener", port+1);
glassfish = glassfishRuntime.newGlassFish(glassfishProperties);
return this; } /* ... */
}

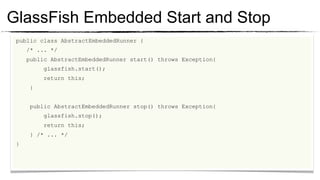

31. GlassFish Embedded Start and Stop
public class AbstractEmbeddedRunner {
/* ... */
public AbstractEmbeddedRunner start() throws Exception{
glassfish.start();
return this;
}
public AbstractEmbeddedRunner stop() throws Exception{
glassfish.stop();
return this;
} /* ... */
}

32. GlassFish Embedded Deploy WAR
public class AbstractEmbeddedRunner {
/* ... */
public AbstractEmbeddedRunner deploy( String args[]) throws Exception{
Deployer deployer = glassfish.getDeployer();
for (String s: args) {
String application = deployer.deploy(new File(s));
System.out.printf("deploying "+application);
}
return this;
}
/* ... */
}

33. Demo: GlassFish Embedded
GlassFish 4.0 Embedded Server

34. Heavyweight vs. Lightweight
How on earth do you weigh
a Java container of any type?

35. Developer Summary

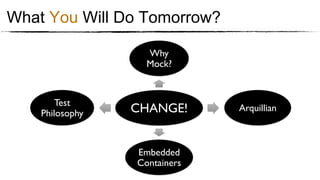

36. What You Will Do Tomorrow?
Why
Mock?
Test
Philosophy
CHANGE!
Arquillian
Embedded
Containers

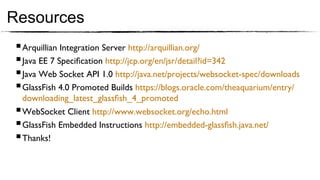

37. Resources
§ Arquillian Integration Server http://arquillian.org/
§ Java EE 7 Specification http://jcp.org/en/jsr/detail?id=342
§ Java Web Socket API 1.0 http://java.net/projects/websocket-spec/downloads
§ GlassFish 4.0 Promoted Builds https://blogs.oracle.com/theaquarium/entry/
downloading_latest_glassfish_4_promoted
§ WebSocket Client http://www.websocket.org/echo.html
§ GlassFish Embedded Instructions http://embedded-glassfish.java.net/
§ Thanks!

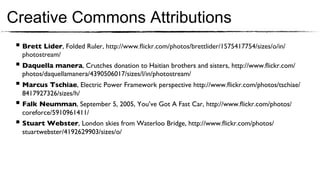

38. Creative Commons Attributions
