Design patterns play a key role in software development process. The interest in extracting design pattern instances from object-oriented software has increased tremendously in the last two decades. Design patterns enhance program understanding, help to document the systems and capture design trade-offs.
This paper provides the current state of the art in design patterns detection. The selected approaches cover the whole spectrum of the research in design patterns detection. We noticed diverse accuracy values extracted by different detection approaches. The lessons learned are listed at the end of this paper, which can be used for future research directions and guidelines in the area of design patterns detection.
This document summarizes a technical report on an empirical study of design pattern evolution in 39 open source Java projects. The study analyzed a total of 428 software releases from the projects to identify 10 common design patterns. A total of 27,855 instances of the patterns were found. The data collected includes the number of each pattern identified in each project release. This dataset will be further analyzed to understand how design patterns evolve over the lifetime of a software system.
130321 zephyrin soh - on the effect of exploration strategies on maintenanc...Ptidej Team
RQ2
RQ3
RQ4
Conclusion and
Future Work
Conclusion
Threats to Validity and
Future Work
9 / 30
This document presents an empirical study that investigates developers' program exploration strategies. The goal is to understand how developers navigate through a program's entities in order to help them more efficiently. The study analyzes developers' interaction histories to identify common exploration strategies and examines relationships between strategies and other factors like task type and expertise level. The results could help evaluate developer performance, improve comprehension models, and guide less experienced developers.
A Pattern Mining Approach for Identifying Identical Design Structures in Obje...ijtsrd
Object-oriented design patterns are frequently used in real-world applications. Detection of design patterns is essential for comprehension of the intent and design of a software project. This paper presents a graph-mining approach for detecting design patterns. Our approach is based on searching input design patterns in the space of model graph of the source code by isomorphic sub-graph search method. We developed a tool called DesPaD to apply our pattern detection approach in an automated-way. We successfully detected 23 GoF design patterns in the demo source code of the Applied Java Patterns book and also obtained encouraging results out of our experiments that we conducted on JUnit 3.8, JUnit 4.1 and Java AWT open source projects. Vijayalakshmi MM"A Pattern Mining Approach for Identifying Identical Design Structures in Object Oriented Design Model" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-2 | Issue-1 , December 2017, URL: http://www.ijtsrd.com/papers/ijtsrd7177.pdf http://www.ijtsrd.com/computer-science/other/7177/a-pattern-mining-approach-for-identifying-identical-design-structures-in-object-oriented-design-model/vijayalakshmi-mm
This document summarizes a literature review on software architectures that support human-computer interaction (HCI) analysis. It outlines the introduction, research questions, methodology, results, analysis, and conclusions. The research questions examine the current state of software architectures for HCI analysis, trends in supporting this through software engineering, and applications to eLearning. The methodology describes searches of databases to identify relevant papers. Sixteen key papers were found covering a range of HCI contexts and aspects of software design. While some papers addressed communication between architecture components and HCI measurement, standards were often lacking. Limited work was found specifically applying such architectures to eLearning through analyzing student interaction with online content.
Qualitative data analysis in design researchEva Durall
The document summarizes a qualitative research study analyzing data from user tests of the Feeler prototype, a self-monitoring device. It describes the research methodology, including contextual inquiry, participatory design workshops, and tests with 6 graduate student participants. Thematic analysis of think-aloud and interview audio identified patterns in content. A coding scheme with categories like reflection and non-reflection was developed from theory and used to analyze the data. Challenges in coding like biases and fatigue are discussed. Results provide insight into how interactive technology can support different levels of reflection.
130411 francis palma - detection of process antipatterns -- a bpel perspectivePtidej Team
The document describes an approach for detecting process antipatterns in BPEL processes. It begins by discussing the motivation for detecting antipatterns, which are poor design decisions that can negatively impact quality of service. It then reviews related work on modeling antipatterns, detecting them in BPMN models, and defining patterns in BPEL. The identified gaps are that antipatterns have not been considered for BPEL processes and quality aspects were not included. The proposed approach involves specifying antipatterns as rules, transforming BPEL processes into a generic model, and then detecting antipatterns by applying the rules. A small experiment is described to detect two antipatterns in three sample BPEL processes.
This document summarizes a technical report on an empirical study of design pattern evolution in 39 open source Java projects. The study analyzed a total of 428 software releases from the projects to identify 10 common design patterns. A total of 27,855 instances of the patterns were found. The data collected includes the number of each pattern identified in each project release. This dataset will be further analyzed to understand how design patterns evolve over the lifetime of a software system.
130321 zephyrin soh - on the effect of exploration strategies on maintenanc...Ptidej Team
RQ2
RQ3
RQ4
Conclusion and
Future Work
Conclusion
Threats to Validity and
Future Work
9 / 30
This document presents an empirical study that investigates developers' program exploration strategies. The goal is to understand how developers navigate through a program's entities in order to help them more efficiently. The study analyzes developers' interaction histories to identify common exploration strategies and examines relationships between strategies and other factors like task type and expertise level. The results could help evaluate developer performance, improve comprehension models, and guide less experienced developers.
A Pattern Mining Approach for Identifying Identical Design Structures in Obje...ijtsrd
Object-oriented design patterns are frequently used in real-world applications. Detection of design patterns is essential for comprehension of the intent and design of a software project. This paper presents a graph-mining approach for detecting design patterns. Our approach is based on searching input design patterns in the space of model graph of the source code by isomorphic sub-graph search method. We developed a tool called DesPaD to apply our pattern detection approach in an automated-way. We successfully detected 23 GoF design patterns in the demo source code of the Applied Java Patterns book and also obtained encouraging results out of our experiments that we conducted on JUnit 3.8, JUnit 4.1 and Java AWT open source projects. Vijayalakshmi MM"A Pattern Mining Approach for Identifying Identical Design Structures in Object Oriented Design Model" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-2 | Issue-1 , December 2017, URL: http://www.ijtsrd.com/papers/ijtsrd7177.pdf http://www.ijtsrd.com/computer-science/other/7177/a-pattern-mining-approach-for-identifying-identical-design-structures-in-object-oriented-design-model/vijayalakshmi-mm
This document summarizes a literature review on software architectures that support human-computer interaction (HCI) analysis. It outlines the introduction, research questions, methodology, results, analysis, and conclusions. The research questions examine the current state of software architectures for HCI analysis, trends in supporting this through software engineering, and applications to eLearning. The methodology describes searches of databases to identify relevant papers. Sixteen key papers were found covering a range of HCI contexts and aspects of software design. While some papers addressed communication between architecture components and HCI measurement, standards were often lacking. Limited work was found specifically applying such architectures to eLearning through analyzing student interaction with online content.
Qualitative data analysis in design researchEva Durall
The document summarizes a qualitative research study analyzing data from user tests of the Feeler prototype, a self-monitoring device. It describes the research methodology, including contextual inquiry, participatory design workshops, and tests with 6 graduate student participants. Thematic analysis of think-aloud and interview audio identified patterns in content. A coding scheme with categories like reflection and non-reflection was developed from theory and used to analyze the data. Challenges in coding like biases and fatigue are discussed. Results provide insight into how interactive technology can support different levels of reflection.
130411 francis palma - detection of process antipatterns -- a bpel perspectivePtidej Team
The document describes an approach for detecting process antipatterns in BPEL processes. It begins by discussing the motivation for detecting antipatterns, which are poor design decisions that can negatively impact quality of service. It then reviews related work on modeling antipatterns, detecting them in BPMN models, and defining patterns in BPEL. The identified gaps are that antipatterns have not been considered for BPEL processes and quality aspects were not included. The proposed approach involves specifying antipatterns as rules, transforming BPEL processes into a generic model, and then detecting antipatterns by applying the rules. A small experiment is described to detect two antipatterns in three sample BPEL processes.
Validation and Verification of SYSML Activity Diagrams Using HOARE Logic ijseajournal
SysML diagrams are significant medium using for supporting software lifecycle management. The existing TBFV method is designed for error detection with full automation efficiency, only for code. For verifying the correctness of SysML diagram, we applying TBFV method into SysML diagram. In this paper, we
propose a novel technique that makes use of Hoare Logic and testing to verify whether the SysML diagrams meet the requirement, called TBFV-M. This research can improve the correctness of SysML diagram, which is likely to significantly affect the reliability of the implementation. A case study is conducted to show its feasibility and used to illustrate how the proposed method is applied; and discussion on potential
challenges to TBFV-M is also presented.
A NOVEL APPROACH TO ERROR DETECTION AND CORRECTION OF C PROGRAMS USING MACHIN...IJCI JOURNAL
There has always been a struggle for programmers to identify the errors while executing a program- be it
syntactical or logical error. This struggle has led to a research in identification of syntactical and logical
errors. This paper makes an attempt to survey those research works which can be used to identify errors as
well as proposes a new model based on machine learning and data mining which can detect logical and
syntactical errors by correcting them or providing suggestions. The proposed work is based on use of
hashtags to identify each correct program uniquely and this in turn can be compared with the logically
incorrect program in order to identify errors.
Instance Space Analysis for Search Based Software EngineeringAldeida Aleti
Search-Based Software Engineering is now a mature area with numerous techniques developed to tackle some of the most challenging software engineering problems, from requirements to design, testing, fault localisation, and automated program repair. SBSE techniques have shown promising results, giving us hope that one day it will be possible for the tedious and labour intensive parts of software development to be completely automated, or at least semi-automated. In this talk, I will focus on the problem of objective performance evaluation of SBSE techniques. To this end, I will introduce Instance Space Analysis (ISA), which is an approach to identify features of SBSE problems that explain why a particular instance is difficult for an SBSE technique. ISA can be used to examine the diversity and quality of the benchmark datasets used by most researchers, and analyse the strengths and weaknesses of existing SBSE techniques. The instance space is constructed to reveal areas of hard and easy problems, and enables the strengths and weaknesses of the different SBSE techniques to be identified. I will present on how ISA enabled us to identify the strengths and weaknesses of SBSE techniques in two areas: Search-Based Software Testing and Automated Program Repair. Finally, I will end my talk with future directions of the objective assessment of SBSE techniques.
Systematic Literature Reviews and Systematic Mapping Studiesalessio_ferrari
Lecture slides on Systematic Literature Reviews and Systematic Mapping Studies in software engineering. It describes the different steps, discusses differences between the two methods, and gives guidelines on how to conduct these types of study.
The document describes a study that aimed to understand how developers spend their effort during maintenance activities. The researchers analyzed change history and interaction data from open source projects to match developers' effort to the complexity of code changes. They found that developers do not necessarily spend more effort on tasks requiring more complex changes. Additional factors like the number of files changed, bug severity, and developers' experience also affected the effort spent.
This document describes a case study research approach for evaluating a requirements defect detection tool in a software engineering company. The following key points are discussed:
1. The study will evaluate the accuracy, usability, and areas for improvement of the tool using both quantitative and qualitative data collection methods.
2. Context details about the subject company and study participants are important to characterize. Quantitative data such as precision/recall scores and usability questionnaires will be collected. Qualitative data such as sources of inaccuracies and improvement feedback will be analyzed.
3. Validity will be addressed through triangulation of multiple data sources and manual classification of defects. The research questions aim to evaluate the tool's accuracy, sources of errors, us
Using Developer Information as a Prediction FactorTim Menzies
The document discusses using developer information to improve fault prediction in software systems. It analyzes data from multiple releases of four different software systems totaling over 20 years of data. Adding variables related to the number of developers who modified a file and whether developers were new improves predictions slightly, but factors like file size and whether a file was new or changed are much more important predictors of faults. The best models using these factors identified the top 20% of files that contained over 80% of the faults on average.
Evolutionary Search Techniques with Strong Heuristics for Multi-Objective Fea...Abdel Salam Sayyad
This document summarizes Abdel Salam Sayyad's doctoral defense that addressed using evolutionary search techniques with strong heuristics for multi-objective feature selection in software product lines. The defense outlined modeling feature models, analyzing them automatically, formulating the multi-objective feature selection problem, and using multi-objective evolutionary algorithms. Results demonstrated scalability by increasing objectives, tuning parameters, and using heuristics like "PUSH" and "PULL" as well as population seeding. The defense concluded by discussing future work.
The document summarizes a study that compared the performance of various machine learning classification techniques for predicting steel plate defects. The study tested techniques including linear discriminant analysis, logistic regression, random forests, decision trees, bagging, support vector machines, and neural networks on a steel plate defect dataset. It found that the C5.0 decision tree technique achieved the lowest misclassification rate of 19.4% and highest area under the ROC curve, making it the best performing model for this classification problem. The objective of accurately predicting steel plate defects from historical data using machine learning was therefore achieved through comparison of different modeling techniques.
Multivocal literature reviews in software engineering: preliminary findings f...Wylliams Santos
Presentation of the published paper in the conference proceedings: 13th International Symposium on Empirical Software Engineering and Measurement (ESEM) - Empirical Software Engineering International Week (ESEIW) #ESEIW2019 #ESEM2019 #SoftwareEngineering #EBSE #REACT #SoftwareEngineering
Software Defect Trend Forecasting In Open Source Projects using A Univariate ...CSCJournals
Our objective in this research is to provide a framework that will allow project managers, business owners, and developers an effective way to forecast the trend in software defects within a software project in real-time. By providing these stakeholders with a mechanism for forecasting defects, they can then provide the necessary resources at the right time in order to remove these defects before they become too much ultimately leading to software failure. In our research, we will not only show general trends in several open-source projects but also show trends in daily, monthly, and yearly activity. Our research shows that we can use this forecasting method up to 6 months out with only an MSE of 0.019. In this paper, we present our technique and methodologies for developing the inputs for the proposed model and the results of testing on seven open source projects. Further, we discuss the prediction models, the performance, and the implementation using the FBProphet framework and the ARIMA model.
The document describes a study on program exploration conducted by Z ́phyrin Soh et al. It introduces program exploration and how developers' navigation between program entities can be represented as exploration graphs. It then presents two extreme exploration strategies: referenced exploration, where developers revisit a set of referenced entities, and unreferenced exploration. A user study is conducted to investigate which strategy developers follow during maintenance tasks. Developer exploration histories from four Eclipse projects are collected and randomly sampled to build an oracle to classify instances as referenced or unreferenced exploration. The goal is to understand how differences in exploration strategies may affect maintenance tasks.
Comprehensive Testing Tool for Automatic Test Suite Generation, Prioritizatio...CSCJournals
Testing has been an essential part of software development life cycle. Automatic test case and test data generation has attracted many researchers in the recent past. Test suite generation is the concept given importance which considers multiple objectives in mind and ensures core coverage. The test cases thus generated can have dependencies such as open dependencies and closed dependencies. When there are dependencies, it is obvious that the order of execution of test cases can have impact on the percentage of flaws detected in the software under test. Therefore test case prioritization is another important research area that complements automatic test suite generation in objects oriented systems. Prior researches on test case prioritization focused on dependency structures. However, in this paper, we automate the extraction of dependency structures. We proposed a methodology that takes care of automatic test suite generation and test case prioritization for effective testing of object oriented software. We built a tool to demonstrate the proof of concept. The empirical study with 20 case studies revealed that the proposed tool and underlying methods can have significant impact on the software industry and associated clientele.
This document summarizes a project report that evaluated the randomness of numbers generated by Random.org, a public true random number service. The project conducted a literature review on random number generators and statistical tests for randomness. It proposed a suite of statistical tests to apply daily to Random.org numbers and compared Random.org to other commonly used random number generators. While the tests found Random.org numbers to be completely random, the report noted some open issues for further consideration, such as improving the power and independence of statistical tests.
The document describes an automated process for bug triage that uses text classification and data reduction techniques. It proposes using Naive Bayes classifiers to predict the appropriate developers to assign bugs to by applying stopword removal, stemming, keyword selection, and instance selection on bug reports. This reduces the data size and improves quality. It predicts developers based on their history and profiles while tracking bug status. The goal is to more efficiently handle software bugs compared to traditional manual triage processes.
Qualitative Studies in Software Engineering - Interviews, Observation, Ground...alessio_ferrari
This
Lecture about qualitative data collection methods and qualitative data analysis in software engineering. Topics covered are:
1. Sampling
2. Interviews
3. Observation and Participant Observation
4. Archival Data Collection
5. Grounded theory, Coding, Thematic Analysis
6. Threats to validity in qualitative studies
Find the videos at: https://www.youtube.com/playlist?list=PLSKM4VZcJjV-P3fFJYMu2OhlTjEr9Bjl0
Controlled experiments, Hypothesis Testing, Test Selection, Threats to Validityalessio_ferrari
Complete lecture on controlled experiments in software engineering. It explains practical guidelines on conducting controlled experiments and describes the concepts of dependent, independent, and control variables, significance, and p-value. It also explains how to select the appropriate statistic test for a hypothesis, and gives example of data for different typical tests.
Finally, it discusses threats to validity in controlled experiments and gives indications for reporting.
Find the video lectures here: https://www.youtube.com/playlist?list=PLSKM4VZcJjV-P3fFJYMu2OhlTjEr9Bjl0
Maturing software engineering knowledge through classificationsimmortalchhetri
The document provides an overview of research conducted on classifying unit testing techniques. It discusses previous work on testing technique classifications and identifies their limitations. The research aims to develop a new classification scheme using operational and historical criteria. 30 classification criteria are identified and used to analyze 13 testing techniques. The results show the new classification improves efficiency and usability when selecting techniques compared to previous schemes. Knowledge gaps in existing techniques are also examined.
Topic: Critical review of an ERP post-implementation Article (Grade Mark: Distinction of 79%)
Module: Research Principles and Practices
Sheffield Hallam University
A Review Of Code Reviewer Recommendation Studies Challenges And Future Direc...Sheila Sinclair
This document summarizes a systematic literature review of 29 studies on code reviewer recommendation published between 2009 and 2020. The review aims to categorize the methods, datasets, evaluation approaches, reproducibility, validity threats, and future directions discussed in the studies. Most studies used heuristic or machine learning approaches, evaluated models on open source projects, and discussed refining models and additional experiments as future work. Common challenges included ensuring reproducibility and dealing with threats to model generalizability and dataset integrity.
1) The document discusses various ways that artificial intelligence can be applied to different phases of the software engineering lifecycle, including requirements specification, design, coding, testing, and estimation.
2) It provides examples of using techniques like natural language processing to clarify requirements, knowledge graphs to manage requirements information, and computational intelligence for requirements prioritization.
3) For design, the document discusses using intelligent agents to recommend patterns and designs to satisfy quality attributes from requirements and assist with assigning responsibilities to components.
Validation and Verification of SYSML Activity Diagrams Using HOARE Logic ijseajournal
SysML diagrams are significant medium using for supporting software lifecycle management. The existing TBFV method is designed for error detection with full automation efficiency, only for code. For verifying the correctness of SysML diagram, we applying TBFV method into SysML diagram. In this paper, we
propose a novel technique that makes use of Hoare Logic and testing to verify whether the SysML diagrams meet the requirement, called TBFV-M. This research can improve the correctness of SysML diagram, which is likely to significantly affect the reliability of the implementation. A case study is conducted to show its feasibility and used to illustrate how the proposed method is applied; and discussion on potential
challenges to TBFV-M is also presented.
A NOVEL APPROACH TO ERROR DETECTION AND CORRECTION OF C PROGRAMS USING MACHIN...IJCI JOURNAL
There has always been a struggle for programmers to identify the errors while executing a program- be it
syntactical or logical error. This struggle has led to a research in identification of syntactical and logical
errors. This paper makes an attempt to survey those research works which can be used to identify errors as
well as proposes a new model based on machine learning and data mining which can detect logical and
syntactical errors by correcting them or providing suggestions. The proposed work is based on use of
hashtags to identify each correct program uniquely and this in turn can be compared with the logically
incorrect program in order to identify errors.
Instance Space Analysis for Search Based Software EngineeringAldeida Aleti
Search-Based Software Engineering is now a mature area with numerous techniques developed to tackle some of the most challenging software engineering problems, from requirements to design, testing, fault localisation, and automated program repair. SBSE techniques have shown promising results, giving us hope that one day it will be possible for the tedious and labour intensive parts of software development to be completely automated, or at least semi-automated. In this talk, I will focus on the problem of objective performance evaluation of SBSE techniques. To this end, I will introduce Instance Space Analysis (ISA), which is an approach to identify features of SBSE problems that explain why a particular instance is difficult for an SBSE technique. ISA can be used to examine the diversity and quality of the benchmark datasets used by most researchers, and analyse the strengths and weaknesses of existing SBSE techniques. The instance space is constructed to reveal areas of hard and easy problems, and enables the strengths and weaknesses of the different SBSE techniques to be identified. I will present on how ISA enabled us to identify the strengths and weaknesses of SBSE techniques in two areas: Search-Based Software Testing and Automated Program Repair. Finally, I will end my talk with future directions of the objective assessment of SBSE techniques.
Systematic Literature Reviews and Systematic Mapping Studiesalessio_ferrari
Lecture slides on Systematic Literature Reviews and Systematic Mapping Studies in software engineering. It describes the different steps, discusses differences between the two methods, and gives guidelines on how to conduct these types of study.
The document describes a study that aimed to understand how developers spend their effort during maintenance activities. The researchers analyzed change history and interaction data from open source projects to match developers' effort to the complexity of code changes. They found that developers do not necessarily spend more effort on tasks requiring more complex changes. Additional factors like the number of files changed, bug severity, and developers' experience also affected the effort spent.
This document describes a case study research approach for evaluating a requirements defect detection tool in a software engineering company. The following key points are discussed:
1. The study will evaluate the accuracy, usability, and areas for improvement of the tool using both quantitative and qualitative data collection methods.
2. Context details about the subject company and study participants are important to characterize. Quantitative data such as precision/recall scores and usability questionnaires will be collected. Qualitative data such as sources of inaccuracies and improvement feedback will be analyzed.
3. Validity will be addressed through triangulation of multiple data sources and manual classification of defects. The research questions aim to evaluate the tool's accuracy, sources of errors, us
Using Developer Information as a Prediction FactorTim Menzies
The document discusses using developer information to improve fault prediction in software systems. It analyzes data from multiple releases of four different software systems totaling over 20 years of data. Adding variables related to the number of developers who modified a file and whether developers were new improves predictions slightly, but factors like file size and whether a file was new or changed are much more important predictors of faults. The best models using these factors identified the top 20% of files that contained over 80% of the faults on average.
Evolutionary Search Techniques with Strong Heuristics for Multi-Objective Fea...Abdel Salam Sayyad
This document summarizes Abdel Salam Sayyad's doctoral defense that addressed using evolutionary search techniques with strong heuristics for multi-objective feature selection in software product lines. The defense outlined modeling feature models, analyzing them automatically, formulating the multi-objective feature selection problem, and using multi-objective evolutionary algorithms. Results demonstrated scalability by increasing objectives, tuning parameters, and using heuristics like "PUSH" and "PULL" as well as population seeding. The defense concluded by discussing future work.
The document summarizes a study that compared the performance of various machine learning classification techniques for predicting steel plate defects. The study tested techniques including linear discriminant analysis, logistic regression, random forests, decision trees, bagging, support vector machines, and neural networks on a steel plate defect dataset. It found that the C5.0 decision tree technique achieved the lowest misclassification rate of 19.4% and highest area under the ROC curve, making it the best performing model for this classification problem. The objective of accurately predicting steel plate defects from historical data using machine learning was therefore achieved through comparison of different modeling techniques.
Multivocal literature reviews in software engineering: preliminary findings f...Wylliams Santos
Presentation of the published paper in the conference proceedings: 13th International Symposium on Empirical Software Engineering and Measurement (ESEM) - Empirical Software Engineering International Week (ESEIW) #ESEIW2019 #ESEM2019 #SoftwareEngineering #EBSE #REACT #SoftwareEngineering
Software Defect Trend Forecasting In Open Source Projects using A Univariate ...CSCJournals
Our objective in this research is to provide a framework that will allow project managers, business owners, and developers an effective way to forecast the trend in software defects within a software project in real-time. By providing these stakeholders with a mechanism for forecasting defects, they can then provide the necessary resources at the right time in order to remove these defects before they become too much ultimately leading to software failure. In our research, we will not only show general trends in several open-source projects but also show trends in daily, monthly, and yearly activity. Our research shows that we can use this forecasting method up to 6 months out with only an MSE of 0.019. In this paper, we present our technique and methodologies for developing the inputs for the proposed model and the results of testing on seven open source projects. Further, we discuss the prediction models, the performance, and the implementation using the FBProphet framework and the ARIMA model.
The document describes a study on program exploration conducted by Z ́phyrin Soh et al. It introduces program exploration and how developers' navigation between program entities can be represented as exploration graphs. It then presents two extreme exploration strategies: referenced exploration, where developers revisit a set of referenced entities, and unreferenced exploration. A user study is conducted to investigate which strategy developers follow during maintenance tasks. Developer exploration histories from four Eclipse projects are collected and randomly sampled to build an oracle to classify instances as referenced or unreferenced exploration. The goal is to understand how differences in exploration strategies may affect maintenance tasks.
Comprehensive Testing Tool for Automatic Test Suite Generation, Prioritizatio...CSCJournals
Testing has been an essential part of software development life cycle. Automatic test case and test data generation has attracted many researchers in the recent past. Test suite generation is the concept given importance which considers multiple objectives in mind and ensures core coverage. The test cases thus generated can have dependencies such as open dependencies and closed dependencies. When there are dependencies, it is obvious that the order of execution of test cases can have impact on the percentage of flaws detected in the software under test. Therefore test case prioritization is another important research area that complements automatic test suite generation in objects oriented systems. Prior researches on test case prioritization focused on dependency structures. However, in this paper, we automate the extraction of dependency structures. We proposed a methodology that takes care of automatic test suite generation and test case prioritization for effective testing of object oriented software. We built a tool to demonstrate the proof of concept. The empirical study with 20 case studies revealed that the proposed tool and underlying methods can have significant impact on the software industry and associated clientele.
This document summarizes a project report that evaluated the randomness of numbers generated by Random.org, a public true random number service. The project conducted a literature review on random number generators and statistical tests for randomness. It proposed a suite of statistical tests to apply daily to Random.org numbers and compared Random.org to other commonly used random number generators. While the tests found Random.org numbers to be completely random, the report noted some open issues for further consideration, such as improving the power and independence of statistical tests.
The document describes an automated process for bug triage that uses text classification and data reduction techniques. It proposes using Naive Bayes classifiers to predict the appropriate developers to assign bugs to by applying stopword removal, stemming, keyword selection, and instance selection on bug reports. This reduces the data size and improves quality. It predicts developers based on their history and profiles while tracking bug status. The goal is to more efficiently handle software bugs compared to traditional manual triage processes.
Qualitative Studies in Software Engineering - Interviews, Observation, Ground...alessio_ferrari
This
Lecture about qualitative data collection methods and qualitative data analysis in software engineering. Topics covered are:
1. Sampling
2. Interviews
3. Observation and Participant Observation
4. Archival Data Collection
5. Grounded theory, Coding, Thematic Analysis
6. Threats to validity in qualitative studies
Find the videos at: https://www.youtube.com/playlist?list=PLSKM4VZcJjV-P3fFJYMu2OhlTjEr9Bjl0
Controlled experiments, Hypothesis Testing, Test Selection, Threats to Validityalessio_ferrari
Complete lecture on controlled experiments in software engineering. It explains practical guidelines on conducting controlled experiments and describes the concepts of dependent, independent, and control variables, significance, and p-value. It also explains how to select the appropriate statistic test for a hypothesis, and gives example of data for different typical tests.
Finally, it discusses threats to validity in controlled experiments and gives indications for reporting.
Find the video lectures here: https://www.youtube.com/playlist?list=PLSKM4VZcJjV-P3fFJYMu2OhlTjEr9Bjl0
Maturing software engineering knowledge through classificationsimmortalchhetri
The document provides an overview of research conducted on classifying unit testing techniques. It discusses previous work on testing technique classifications and identifies their limitations. The research aims to develop a new classification scheme using operational and historical criteria. 30 classification criteria are identified and used to analyze 13 testing techniques. The results show the new classification improves efficiency and usability when selecting techniques compared to previous schemes. Knowledge gaps in existing techniques are also examined.
Topic: Critical review of an ERP post-implementation Article (Grade Mark: Distinction of 79%)
Module: Research Principles and Practices
Sheffield Hallam University
A Review Of Code Reviewer Recommendation Studies Challenges And Future Direc...Sheila Sinclair
This document summarizes a systematic literature review of 29 studies on code reviewer recommendation published between 2009 and 2020. The review aims to categorize the methods, datasets, evaluation approaches, reproducibility, validity threats, and future directions discussed in the studies. Most studies used heuristic or machine learning approaches, evaluated models on open source projects, and discussed refining models and additional experiments as future work. Common challenges included ensuring reproducibility and dealing with threats to model generalizability and dataset integrity.
1) The document discusses various ways that artificial intelligence can be applied to different phases of the software engineering lifecycle, including requirements specification, design, coding, testing, and estimation.
2) It provides examples of using techniques like natural language processing to clarify requirements, knowledge graphs to manage requirements information, and computational intelligence for requirements prioritization.
3) For design, the document discusses using intelligent agents to recommend patterns and designs to satisfy quality attributes from requirements and assist with assigning responsibilities to components.
A Systematic Mapping Study on Analysis of Code Repositories.pdfAlicia Edwards
This document presents a systematic mapping study that analyzed 236 documents on code repository analysis published between 2012 and 2019. The study identified the main types of information used as inputs for code repository analysis (commit data and source code) and the most common analysis methods and techniques used (empirical/experimental and automatic). The study aims to help developers better understand how to analyze code repositories to improve software maintenance and evolution.
A DATA EXTRACTION ALGORITHM FROM OPEN SOURCE SOFTWARE PROJECT REPOSITORIES FO...ijseajournal
This document presents an algorithm to extract data from open source software project repositories on GitHub for building duration estimation models. The algorithm extracts data on contributors, commits, lines of code added and removed, and active days for each contributor within a release period. This data is then used to build linear regression models to estimate project duration based on the number of commits by contributor type (full-time, part-time, occasional). The algorithm is tested on data extracted from 21 releases of the WordPress project hosted on GitHub.
A DATA EXTRACTION ALGORITHM FROM OPEN SOURCE SOFTWARE PROJECT REPOSITORIES FO...ijseajournal
Software project estimation is important for allocating resources and planning a reasonable work
schedule. Estimation models are typically built using data from completed projects. While organizations
have their historical data repositories, it is difficult to obtain their collaboration due to privacy and
competitive concerns. To overcome the issue of public access to private data repositories this study
proposes an algorithm to extract sufficient data from the GitHub repository for building duration
estimation models. More specifically, this study extracts and analyses historical data on WordPress
projects to estimate OSS project duration using commits as an independent variable as well as an
improved classification of contributors based on the number of active days for each contributor within a
release period. The results indicate that duration estimation models using data from OSS repositories
perform well and partially solves the problem of lack of data encountered in empirical research in software
engineering
This document proposes an integrated framework for IDEF method-based simulation model design and development. The framework uses IDEF0 for functional modeling, IDEF3 for process modeling, and IDEF1X for data modeling. A common data model is constructed from these IDEF models and then multiple simulation models are automatically generated from the data model using a database-driven approach. The framework aims to improve knowledge reuse, communication, and model maintainability. It is evaluated using a semiconductor fabrication case study. The case study shows the framework can help improve simulation project processes by leveraging descriptive IDEF models and a relational database.
Application of Genetic Algorithm in Software Engineering: A ReviewIRJESJOURNAL
Abstract. The software engineering is comparatively new and regularly changing field. The big challenge of meeting strict project schedules with high quality software requires that the field of software engineering be automated to large extent and human resource intervention be minimized to optimum level. To achieve this goal the researcher have explored the potential of machine learning approaches as they are adaptable, have learning ability. In this paper, we take a look at how genetic algorithm (GA) can be used to build tool for software development and maintenance tasks.
ITERATIVE AND INCREMENTAL DEVELOPMENT ANALYSIS STUDY OF VOCATIONAL CAREER INF...ijseajournal
Software development process presents various types of models with their corresponding phases required to be accordingly followed in delivery of quality products and projects. Despite the various expertise and skills of systems analysts, designers, and programmers, systems failure is inevitable when a suitable development process model is not followed. This paper focuses on the Iterative and Incremental Development (IID)model and justified its role in the analysis and design software systems. The paper adopted the qualitative research approach that justified and harnessed the relevance of IID in the context of systems analysis and design using the Vocational
Career Information System (VCIS) as a case study. The paper viewed the IID as a change-driven software development process model. The results showed some system specification, functional specification of system and design specifications that can be used in implementing the VCIS using the IID model. Thus, the paper concluded that in systems analysis and design, it is imperative to consider a suitable development process that reflects the engineering mind-set, with heavy emphasis on good analysis and design for quality assurance.
Reverse Engineering for Documenting Software Architectures, a Literature ReviewEditor IJCATR
Recently, much research in software engineering focused on reverse engineering of software systems which has become one
of the major engineering trends for software evolution. The objective of this survey paper is to provide a literature review on the
existing reverse engineering methodologies and approaches for documenting the architecture of software systems. The survey process
was based on selecting the most common approaches that form the current state of the art in documenting software architectures. We
discuss the limitations of these approaches and highlight the main directions for future research and describe specific open issues for
research.
LEAN THINKING IN SOFTWARE ENGINEERING: A SYSTEMATIC REVIEWijseajournal
The field of Software Engineering has suffered considerable transformation in the last decades due to the influence of the philosophy of Lean Thinking. The purpose of this systematic review is to identify practices and approaches proposed by researchers in this area in the last 5 years, who have worked under the influence of this thinking. The search strategy brought together 549 studies, 80 of which were classified as
relevant for synthesis in this review. Seventeen tools of Lean Thinking adapted to Software Engineering were catalogued, as well as 35 practices created for the development of software that has been influenced by this philosophy. The study rovides a roadmap of results with the current state of the art and the identification of gaps pointing to opportunities for further esearch.
Searching Repositories of Web Application ModelsMarco Brambilla
Project repositories are a central asset in software development, as they preserve the technical knowledge gathered in past development activities. However, locating relevant information in a vast project repository is problematic, because it requires manually tagging projects with accurate metadata, an activity which is time consuming and prone to errors and omissions. This paper investigates the use of classical Information Retrieval techniques for easing the discovery of useful information from past projects. Differently from approaches based on textual search over the source code of applications or on querying structured metadata, we propose to index and search the models of applications, which are available in companies applying Model-Driven Engineering practices. We contrast alternative index structures and result presentations, and evaluate a prototype implementation on real-world experimental data.
20CB304 - SE - UNIT V - Digital Notes.pptxJayaramB11
This document provides an overview of the course 20CB304 Software Engineering. It includes the course objectives, prerequisites, syllabus breakdown, and course outcomes.
The syllabus is divided into 5 units that cover topics like software project management, requirements analysis and design, software testing, and object-oriented analysis, design and construction.
The document also lists the course outcomes and maps them to programme outcomes to show how the course helps achieve the learning objectives. It provides examples of key concepts taught like the principles of object-oriented programming, analysis, design and different types of abstractions.
A Model To Compare The Degree Of Refactoring Opportunities Of Three Projects ...acijjournal
Refactoring is applied to the software artifacts so as to improve its internal structure, while preserving its
external behavior. Refactoring is an uncertain process and it is difficult to give some units for
measurement. The amount to refactoring that can be applied to the source-code depends upon the skills of
the developer. In this research, we have perceived refactoring as a quantified object on an ordinal scale of
measurement. We have a proposed a model for determining the degree of refactoring opportunities in the
given source-code. The model is applied on the three projects collected from a company. UML diagrams
are drawn for each project. The values for source-code metrics, that are useful in determining the quality of
code, are calculated for each UML of the projects. Based on the nominal values of metrics, each relevant
UML is represented on an ordinal scale. A machine learning tool, weka, is used to analyze the dataset,
imported in the form of arff file, produced by the three projects
A MODEL TO COMPARE THE DEGREE OF REFACTORING OPPORTUNITIES OF THREE PROJECTS ...acijjournal
This document presents a model for quantifying and comparing the degree of refactoring opportunities in three software projects. The model involves drawing UML diagrams for the projects, calculating source code metrics for each UML diagram, representing the diagrams on an ordinal scale based on the metrics, and using a machine learning tool (Weka) to analyze the resulting dataset. The tool uses a Naive Bayesian classifier to generate a confusion matrix for each project, allowing evaluation of the model's performance at classifying refactoring opportunities as low, medium, or high. The model is applied to three projects from a company to test its ability to measure and compare refactoring opportunities in code.
Christopher N. Bull History-Sensitive Detection of Design Flaws B ...butest
This document is a dissertation submitted by Christopher N. Bull for the degree of Bachelor of Computer Science with Software Engineering. The dissertation presents Jistory, a tool that implements a history-sensitive strategy for automatically detecting the design flaw of god classes in software systems. The document includes chapters on background research, a feasibility study of detection strategies, the design and implementation of Jistory, testing and evaluation of Jistory, and conclusions. The aim of the project is to evaluate whether history-sensitive detection strategies can improve the detection of design flaws compared to conventional strategies and whether such strategies can be automated to provide accurate results.
Agent-oriented software engineering is a promising new approach
to software engineering that uses the notion of an agent as the
primary entity of abstraction. The development of methodologies
for agent-oriented software engineering is an area that is currently
receiving much attention, there have been several agent-oriented
methodologies proposed recently and survey papers are starting to
appear. However the authors feel that there is still much work
necessary in this area; current methodologies can be improved
upon. This paper presents a new methodology, the Styx Agent
Methodology, which guides the development of collaborative
agent systems from the analysis phase through to system
implementation and maintenance. A distinguishing feature of
Styx is that it covers a wider range of software development lifecycle
activities than do other recently proposed agent-oriented
methodologies. The key areas covered by this methodology are
the specification of communication concepts, inter-agent
communication and each agent's behaviour activation—but it
does not address the development of application-specific parts of
a sys-tem. It will be supported by a software tool which is
currently in development.
Object Oriented Approach for Software DevelopmentRishabh Soni
This document provides an overview of object-oriented design methodologies. It discusses key object-oriented concepts like abstraction, encapsulation, and polymorphism. It also describes the three main models used in object-oriented analysis: the object model, dynamic model, and functional model. Finally, it outlines the typical stages of the object-oriented development life cycle, including system conception, analysis, system design, class design, and implementation.
GENERIC CODE CLONING METHOD FOR DETECTION OF CLONE CODE IN SOFTWARE DEVELOPMENT IAEME Publication
The major part of risk the development of software orprograms is existence ofduplicate code that can affect the software maintainability. The main aim of Clone
identification technique is to search and detect the parts of the software code which is
identical. In the passed there are various techniques that are used to identify andreflect the code identity and code fragments.Code cloning reduces the time and effort of the softwaredeveloper but it alsodecreases the quality of the software like readability, changeability and increasesmaintainability. So, code clone has to be detected to reducethe cost of maintenance tosome extent. In this paper, a new Generic technique is purposed to detect code clone
from various input source codes (from web, disk and etc.,) by segmenting the code intonumber of sub-programs or modules or functions. I propose a technique that candetect 1-type,2type, 3-type and 4-type clones efficiently.
This document analyzes and compares maintainability metrics for aspect-oriented software (AOS) and object-oriented software (OOS) using five projects. It discusses metrics like number of children, depth of inheritance tree, lack of cohesion of methods, weighted methods per class, and lines of code. The results show that for most metrics like NOC, DIT, LCOM, and WMC, the mean values are higher for OOS compared to AOS, indicating that AOS is generally more maintainable based on these metrics. LOC is also lower on average for AOS. The study concludes that an AOP version is more maintainable than an OOP version according to the chosen metrics.
Similar to A Survey on Design Pattern Detection Approaches (20)
A Visual Guide to 1 Samuel | A Tale of Two HeartsSteve Thomason
These slides walk through the story of 1 Samuel. Samuel is the last judge of Israel. The people reject God and want a king. Saul is anointed as the first king, but he is not a good king. David, the shepherd boy is anointed and Saul is envious of him. David shows honor while Saul continues to self destruct.
Gender and Mental Health - Counselling and Family Therapy Applications and In...PsychoTech Services
A proprietary approach developed by bringing together the best of learning theories from Psychology, design principles from the world of visualization, and pedagogical methods from over a decade of training experience, that enables you to: Learn better, faster!
220711130083 SUBHASHREE RAKSHIT Internet resources for social science
A Survey on Design Pattern Detection Approaches
1. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 41

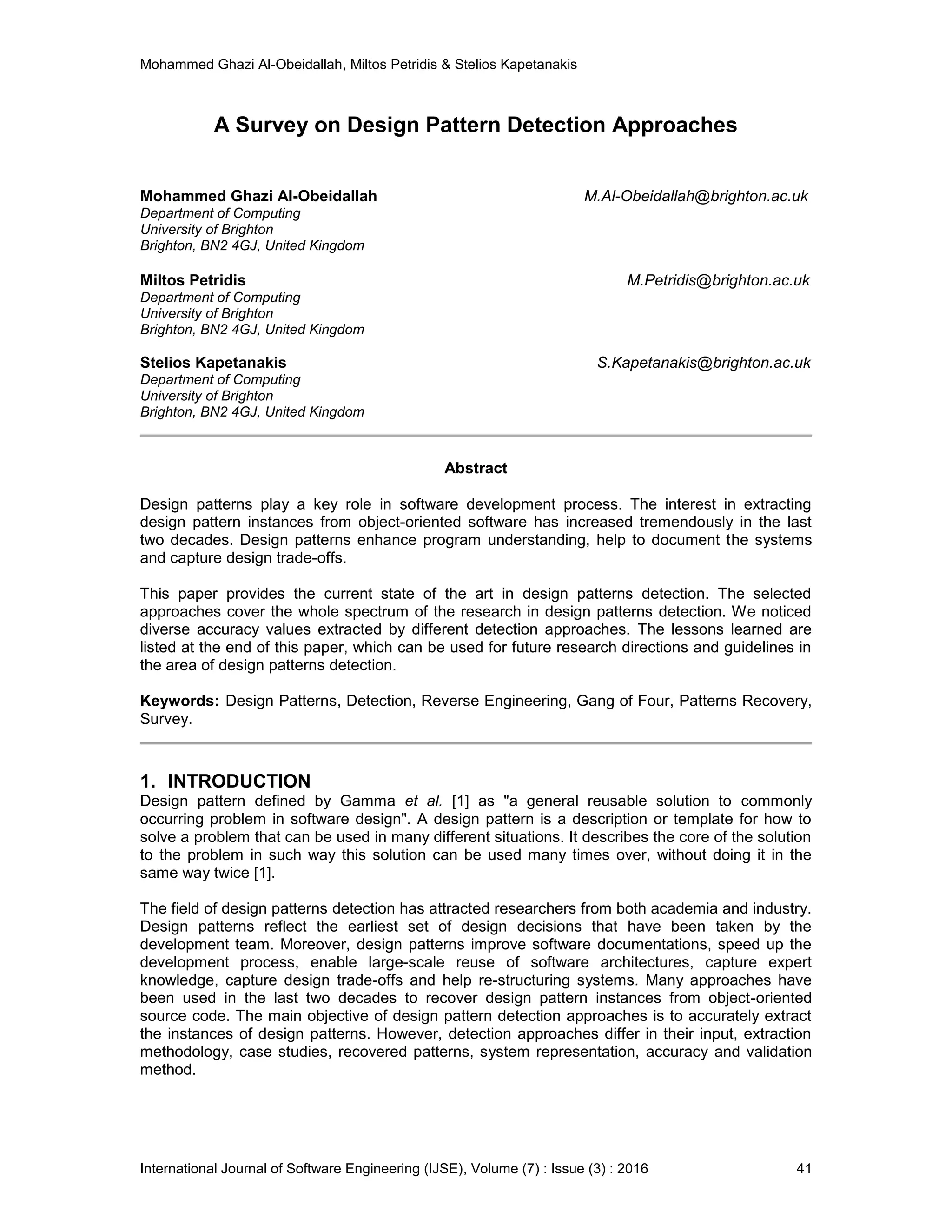

A Survey on Design Pattern Detection Approaches
Mohammed Ghazi Al-Obeidallah M.Al-Obeidallah@brighton.ac.uk
Department of Computing
University of Brighton
Brighton, BN2 4GJ, United Kingdom
Miltos Petridis M.Petridis@brighton.ac.uk
Department of Computing
University of Brighton
Brighton, BN2 4GJ, United Kingdom
Stelios Kapetanakis S.Kapetanakis@brighton.ac.uk
Department of Computing
University of Brighton
Brighton, BN2 4GJ, United Kingdom
Abstract
Design patterns play a key role in software development process. The interest in extracting
design pattern instances from object-oriented software has increased tremendously in the last
two decades. Design patterns enhance program understanding, help to document the systems
and capture design trade-offs.
This paper provides the current state of the art in design patterns detection. The selected
approaches cover the whole spectrum of the research in design patterns detection. We noticed
diverse accuracy values extracted by different detection approaches. The lessons learned are
listed at the end of this paper, which can be used for future research directions and guidelines in
the area of design patterns detection.
Keywords: Design Patterns, Detection, Reverse Engineering, Gang of Four, Patterns Recovery,
Survey.
1. INTRODUCTION
Design pattern defined by Gamma et al. [1] as "a general reusable solution to commonly
occurring problem in software design". A design pattern is a description or template for how to
solve a problem that can be used in many different situations. It describes the core of the solution
to the problem in such way this solution can be used many times over, without doing it in the
same way twice [1].
The field of design patterns detection has attracted researchers from both academia and industry.
Design patterns reflect the earliest set of design decisions that have been taken by the
development team. Moreover, design patterns improve software documentations, speed up the
development process, enable large-scale reuse of software architectures, capture expert
knowledge, capture design trade-offs and help re-structuring systems. Many approaches have
been used in the last two decades to recover design pattern instances from object-oriented
source code. The main objective of design pattern detection approaches is to accurately extract
the instances of design patterns. However, detection approaches differ in their input, extraction
methodology, case studies, recovered patterns, system representation, accuracy and validation
method.

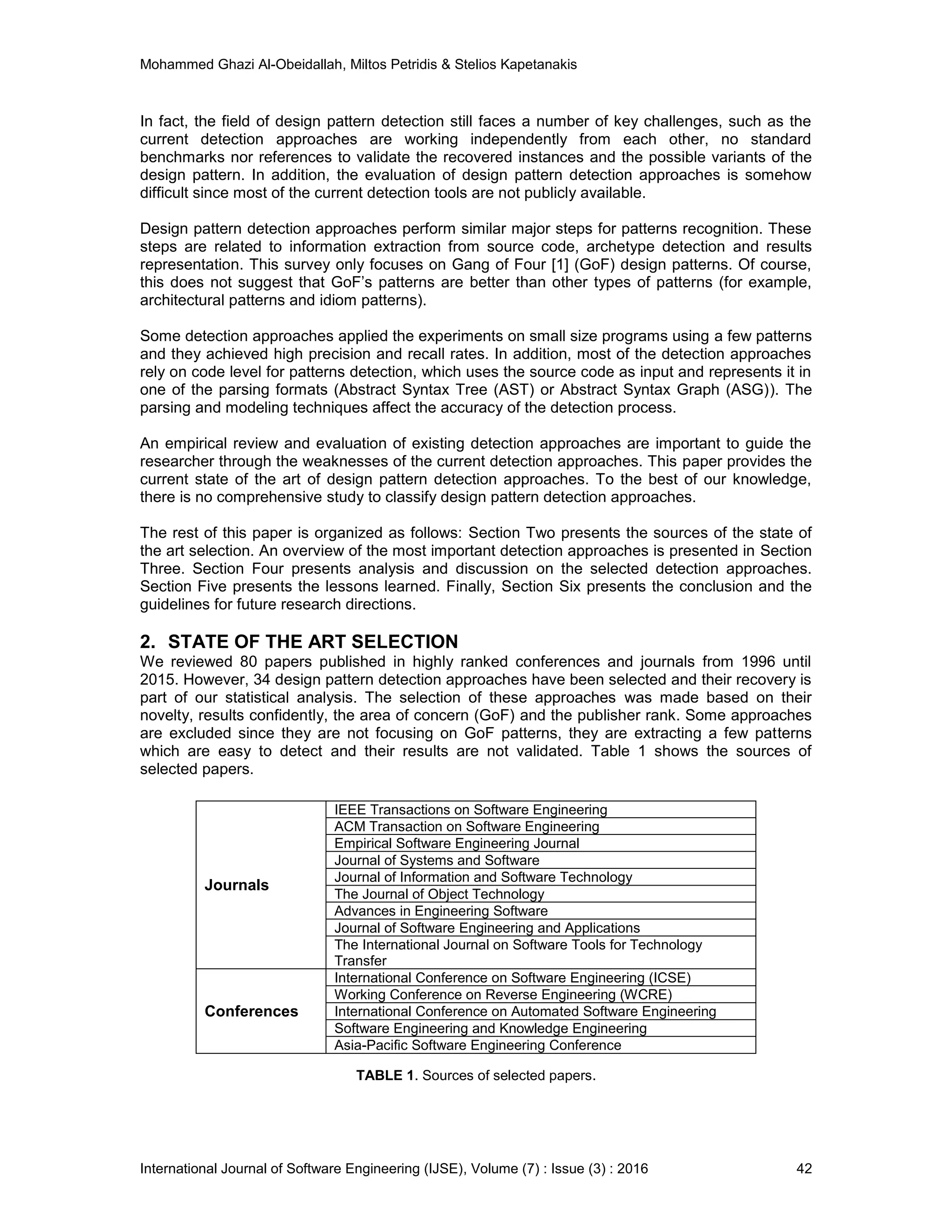

2. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 42
In fact, the field of design pattern detection still faces a number of key challenges, such as the
current detection approaches are working independently from each other, no standard
benchmarks nor references to validate the recovered instances and the possible variants of the
design pattern. In addition, the evaluation of design pattern detection approaches is somehow
difficult since most of the current detection tools are not publicly available.
Design pattern detection approaches perform similar major steps for patterns recognition. These
steps are related to information extraction from source code, archetype detection and results
representation. This survey only focuses on Gang of Four [1] (GoF) design patterns. Of course,
this does not suggest that GoF’s patterns are better than other types of patterns (for example,
architectural patterns and idiom patterns).
Some detection approaches applied the experiments on small size programs using a few patterns
and they achieved high precision and recall rates. In addition, most of the detection approaches
rely on code level for patterns detection, which uses the source code as input and represents it in
one of the parsing formats (Abstract Syntax Tree (AST) or Abstract Syntax Graph (ASG)). The
parsing and modeling techniques affect the accuracy of the detection process.
An empirical review and evaluation of existing detection approaches are important to guide the
researcher through the weaknesses of the current detection approaches. This paper provides the
current state of the art of design pattern detection approaches. To the best of our knowledge,
there is no comprehensive study to classify design pattern detection approaches.
The rest of this paper is organized as follows: Section Two presents the sources of the state of
the art selection. An overview of the most important detection approaches is presented in Section
Three. Section Four presents analysis and discussion on the selected detection approaches.
Section Five presents the lessons learned. Finally, Section Six presents the conclusion and the
guidelines for future research directions.
2. STATE OF THE ART SELECTION
We reviewed 80 papers published in highly ranked conferences and journals from 1996 until
2015. However, 34 design pattern detection approaches have been selected and their recovery is
part of our statistical analysis. The selection of these approaches was made based on their
novelty, results confidently, the area of concern (GoF) and the publisher rank. Some approaches
are excluded since they are not focusing on GoF patterns, they are extracting a few patterns
which are easy to detect and their results are not validated. Table 1 shows the sources of
selected papers.
TABLE 1. Sources of selected papers.
Journals
IEEE Transactions on Software Engineering
ACM Transaction on Software Engineering
Empirical Software Engineering Journal
Journal of Systems and Software
Journal of Information and Software Technology
The Journal of Object Technology
Advances in Engineering Software
Journal of Software Engineering and Applications
The International Journal on Software Tools for Technology
Transfer
Conferences
International Conference on Software Engineering (ICSE)
Working Conference on Reverse Engineering (WCRE)
International Conference on Automated Software Engineering
Software Engineering and Knowledge Engineering
Asia-Pacific Software Engineering Conference
3. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 43

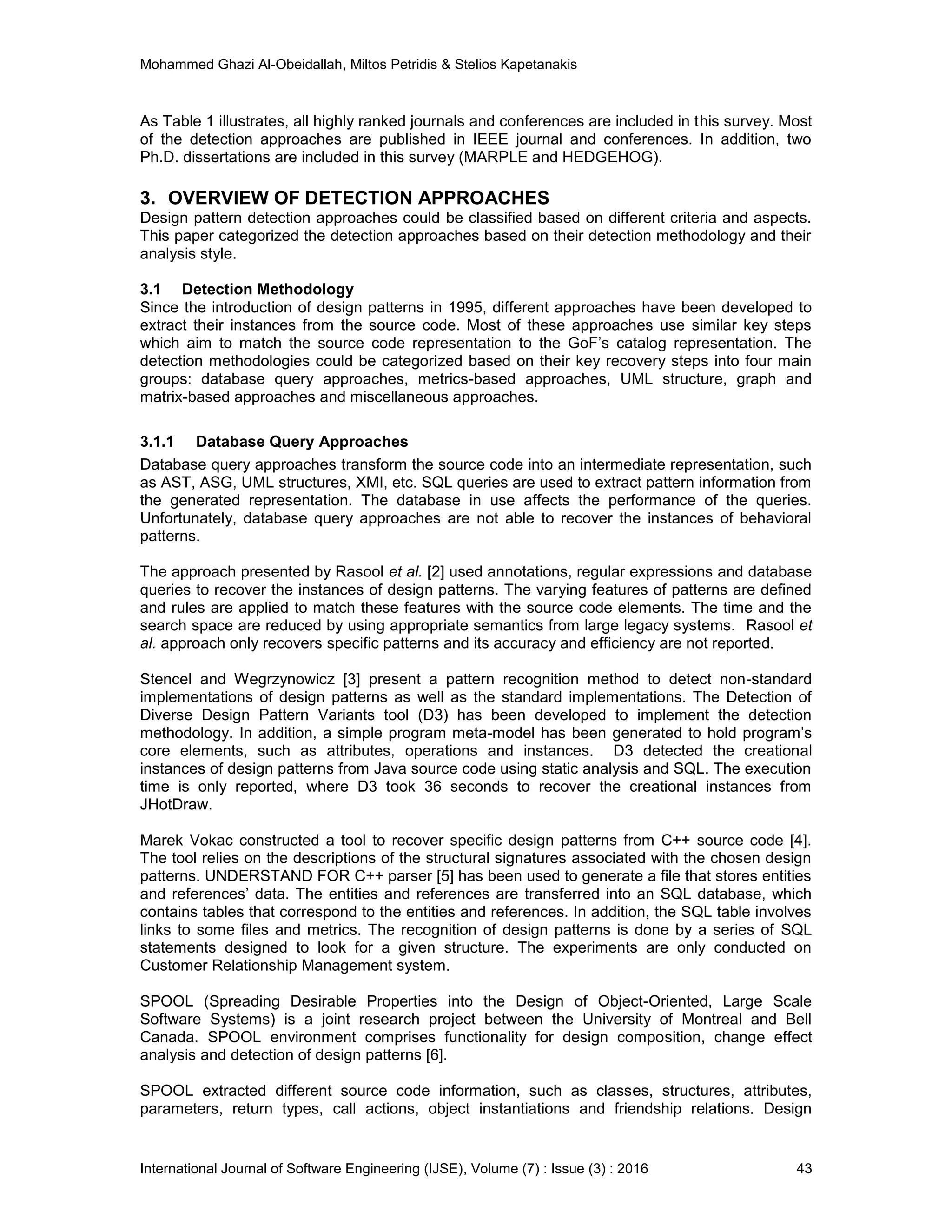

As Table 1 illustrates, all highly ranked journals and conferences are included in this survey. Most
of the detection approaches are published in IEEE journal and conferences. In addition, two
Ph.D. dissertations are included in this survey (MARPLE and HEDGEHOG).
3. OVERVIEW OF DETECTION APPROACHES
Design pattern detection approaches could be classified based on different criteria and aspects.
This paper categorized the detection approaches based on their detection methodology and their
analysis style.
3.1 Detection Methodology
Since the introduction of design patterns in 1995, different approaches have been developed to
extract their instances from the source code. Most of these approaches use similar key steps
which aim to match the source code representation to the GoF’s catalog representation. The
detection methodologies could be categorized based on their key recovery steps into four main
groups: database query approaches, metrics-based approaches, UML structure, graph and
matrix-based approaches and miscellaneous approaches.
3.1.1 Database Query Approaches
Database query approaches transform the source code into an intermediate representation, such
as AST, ASG, UML structures, XMI, etc. SQL queries are used to extract pattern information from
the generated representation. The database in use affects the performance of the queries.
Unfortunately, database query approaches are not able to recover the instances of behavioral
patterns.
The approach presented by Rasool et al. [2] used annotations, regular expressions and database
queries to recover the instances of design patterns. The varying features of patterns are defined
and rules are applied to match these features with the source code elements. The time and the
search space are reduced by using appropriate semantics from large legacy systems. Rasool et
al. approach only recovers specific patterns and its accuracy and efficiency are not reported.
Stencel and Wegrzynowicz [3] present a pattern recognition method to detect non-standard
implementations of design patterns as well as the standard implementations. The Detection of
Diverse Design Pattern Variants tool (D3) has been developed to implement the detection
methodology. In addition, a simple program meta-model has been generated to hold program’s
core elements, such as attributes, operations and instances. D3 detected the creational
instances of design patterns from Java source code using static analysis and SQL. The execution
time is only reported, where D3 took 36 seconds to recover the creational instances from
JHotDraw.
Marek Vokac constructed a tool to recover specific design patterns from C++ source code [4].
The tool relies on the descriptions of the structural signatures associated with the chosen design
patterns. UNDERSTAND FOR C++ parser [5] has been used to generate a file that stores entities
and references’ data. The entities and references are transferred into an SQL database, which
contains tables that correspond to the entities and references. In addition, the SQL table involves
links to some files and metrics. The recognition of design patterns is done by a series of SQL
statements designed to look for a given structure. The experiments are only conducted on
Customer Relationship Management system.
SPOOL (Spreading Desirable Properties into the Design of Object-Oriented, Large Scale
Software Systems) is a joint research project between the University of Montreal and Bell
Canada. SPOOL environment comprises functionality for design composition, change effect
analysis and detection of design patterns [6].
SPOOL extracted different source code information, such as classes, structures, attributes,
parameters, return types, call actions, object instantiations and friendship relations. Design
4. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 44

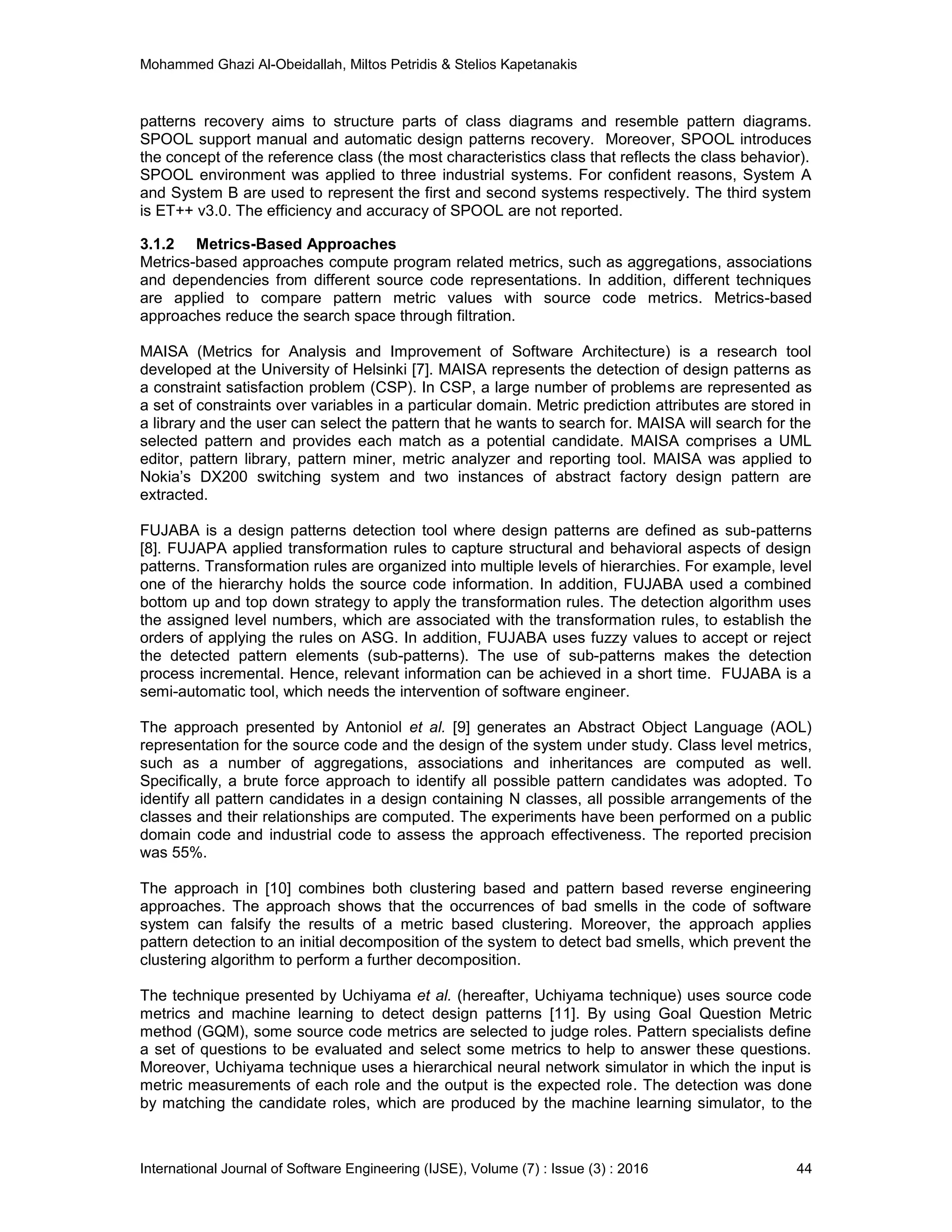

patterns recovery aims to structure parts of class diagrams and resemble pattern diagrams.
SPOOL support manual and automatic design patterns recovery. Moreover, SPOOL introduces
the concept of the reference class (the most characteristics class that reflects the class behavior).
SPOOL environment was applied to three industrial systems. For confident reasons, System A
and System B are used to represent the first and second systems respectively. The third system
is ET++ v3.0. The efficiency and accuracy of SPOOL are not reported.
3.1.2 Metrics-Based Approaches
Metrics-based approaches compute program related metrics, such as aggregations, associations
and dependencies from different source code representations. In addition, different techniques
are applied to compare pattern metric values with source code metrics. Metrics-based
approaches reduce the search space through filtration.
MAISA (Metrics for Analysis and Improvement of Software Architecture) is a research tool
developed at the University of Helsinki [7]. MAISA represents the detection of design patterns as
a constraint satisfaction problem (CSP). In CSP, a large number of problems are represented as
a set of constraints over variables in a particular domain. Metric prediction attributes are stored in
a library and the user can select the pattern that he wants to search for. MAISA will search for the
selected pattern and provides each match as a potential candidate. MAISA comprises a UML
editor, pattern library, pattern miner, metric analyzer and reporting tool. MAISA was applied to
Nokia’s DX200 switching system and two instances of abstract factory design pattern are
extracted.
FUJABA is a design patterns detection tool where design patterns are defined as sub-patterns
[8]. FUJAPA applied transformation rules to capture structural and behavioral aspects of design
patterns. Transformation rules are organized into multiple levels of hierarchies. For example, level
one of the hierarchy holds the source code information. In addition, FUJABA used a combined
bottom up and top down strategy to apply the transformation rules. The detection algorithm uses
the assigned level numbers, which are associated with the transformation rules, to establish the
orders of applying the rules on ASG. In addition, FUJABA uses fuzzy values to accept or reject
the detected pattern elements (sub-patterns). The use of sub-patterns makes the detection
process incremental. Hence, relevant information can be achieved in a short time. FUJABA is a
semi-automatic tool, which needs the intervention of software engineer.
The approach presented by Antoniol et al. [9] generates an Abstract Object Language (AOL)
representation for the source code and the design of the system under study. Class level metrics,
such as a number of aggregations, associations and inheritances are computed as well.
Specifically, a brute force approach to identify all possible pattern candidates was adopted. To
identify all pattern candidates in a design containing N classes, all possible arrangements of the
classes and their relationships are computed. The experiments have been performed on a public
domain code and industrial code to assess the approach effectiveness. The reported precision
was 55%.
The approach in [10] combines both clustering based and pattern based reverse engineering
approaches. The approach shows that the occurrences of bad smells in the code of software
system can falsify the results of a metric based clustering. Moreover, the approach applies
pattern detection to an initial decomposition of the system to detect bad smells, which prevent the
clustering algorithm to perform a further decomposition.
The technique presented by Uchiyama et al. (hereafter, Uchiyama technique) uses source code
metrics and machine learning to detect design patterns [11]. By using Goal Question Metric
method (GQM), some source code metrics are selected to judge roles. Pattern specialists define
a set of questions to be evaluated and select some metrics to help to answer these questions.
Moreover, Uchiyama technique uses a hierarchical neural network simulator in which the input is
metric measurements of each role and the output is the expected role. The detection was done
by matching the candidate roles, which are produced by the machine learning simulator, to the
5. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 45
pattern structure definitions. Searching is looking for all possible combinations of candidate roles
that are in agreement with pattern structures. Uchiyama technique extracted inheritance, interface
implementation and aggregation relationships. The reported precision and recall rates were 63%
and 76% respectively.

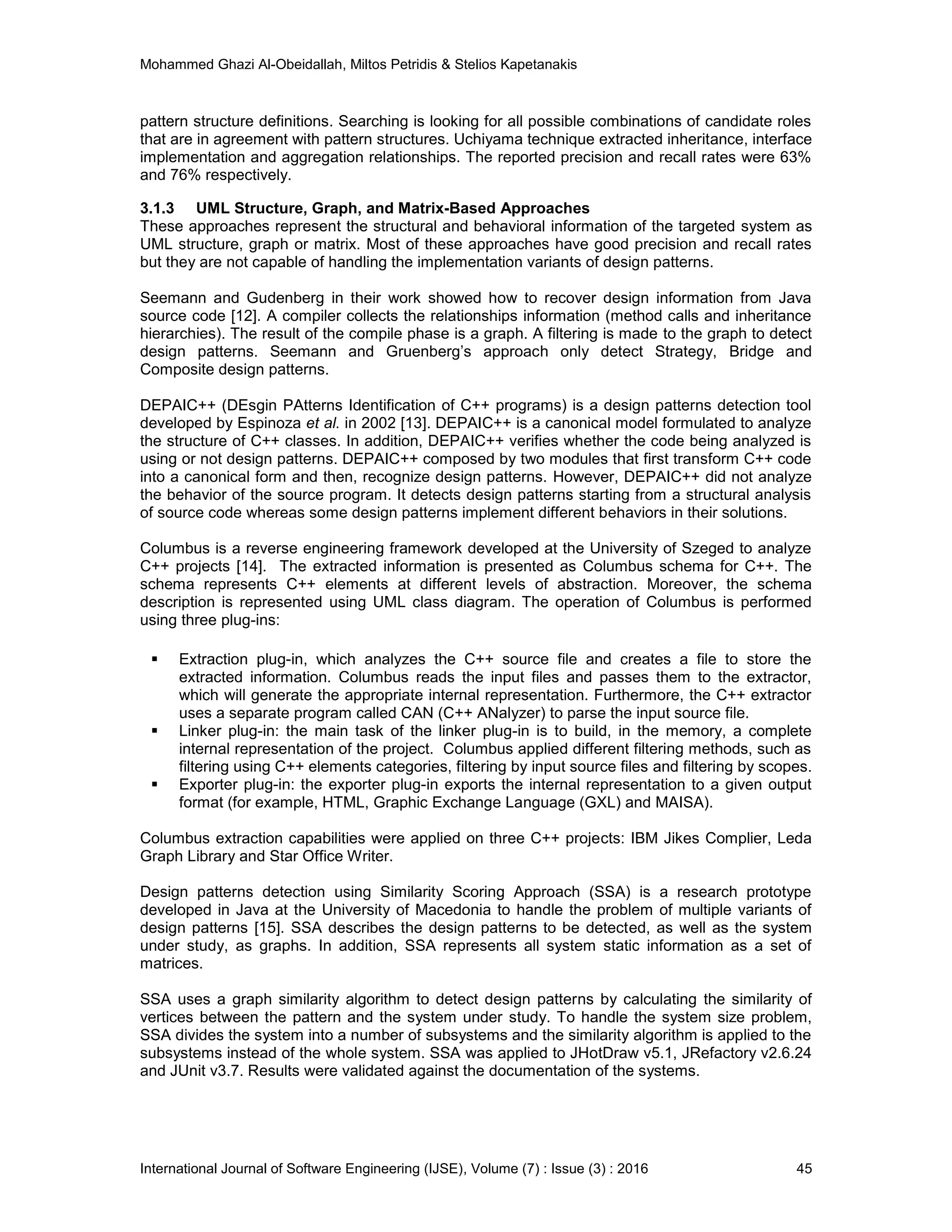

3.1.3 UML Structure, Graph, and Matrix-Based Approaches
These approaches represent the structural and behavioral information of the targeted system as
UML structure, graph or matrix. Most of these approaches have good precision and recall rates
but they are not capable of handling the implementation variants of design patterns.
Seemann and Gudenberg in their work showed how to recover design information from Java
source code [12]. A compiler collects the relationships information (method calls and inheritance
hierarchies). The result of the compile phase is a graph. A filtering is made to the graph to detect
design patterns. Seemann and Gruenberg’s approach only detect Strategy, Bridge and
Composite design patterns.
DEPAIC++ (DEsgin PAtterns Identification of C++ programs) is a design patterns detection tool
developed by Espinoza et al. in 2002 [13]. DEPAIC++ is a canonical model formulated to analyze
the structure of C++ classes. In addition, DEPAIC++ verifies whether the code being analyzed is
using or not design patterns. DEPAIC++ composed by two modules that first transform C++ code
into a canonical form and then, recognize design patterns. However, DEPAIC++ did not analyze
the behavior of the source program. It detects design patterns starting from a structural analysis
of source code whereas some design patterns implement different behaviors in their solutions.
Columbus is a reverse engineering framework developed at the University of Szeged to analyze
C++ projects [14]. The extracted information is presented as Columbus schema for C++. The
schema represents C++ elements at different levels of abstraction. Moreover, the schema
description is represented using UML class diagram. The operation of Columbus is performed
using three plug-ins:
Extraction plug-in, which analyzes the C++ source file and creates a file to store the
extracted information. Columbus reads the input files and passes them to the extractor,
which will generate the appropriate internal representation. Furthermore, the C++ extractor
uses a separate program called CAN (C++ ANalyzer) to parse the input source file.
Linker plug-in: the main task of the linker plug-in is to build, in the memory, a complete
internal representation of the project. Columbus applied different filtering methods, such as
filtering using C++ elements categories, filtering by input source files and filtering by scopes.
Exporter plug-in: the exporter plug-in exports the internal representation to a given output
format (for example, HTML, Graphic Exchange Language (GXL) and MAISA).
Columbus extraction capabilities were applied on three C++ projects: IBM Jikes Complier, Leda
Graph Library and Star Office Writer.
Design patterns detection using Similarity Scoring Approach (SSA) is a research prototype
developed in Java at the University of Macedonia to handle the problem of multiple variants of
design patterns [15]. SSA describes the design patterns to be detected, as well as the system
under study, as graphs. In addition, SSA represents all system static information as a set of
matrices.
SSA uses a graph similarity algorithm to detect design patterns by calculating the similarity of
vertices between the pattern and the system under study. To handle the system size problem,
SSA divides the system into a number of subsystems and the similarity algorithm is applied to the
subsystems instead of the whole system. SSA was applied to JHotDraw v5.1, JRefactory v2.6.24
and JUnit v3.7. Results were validated against the documentation of the systems.
6. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 46

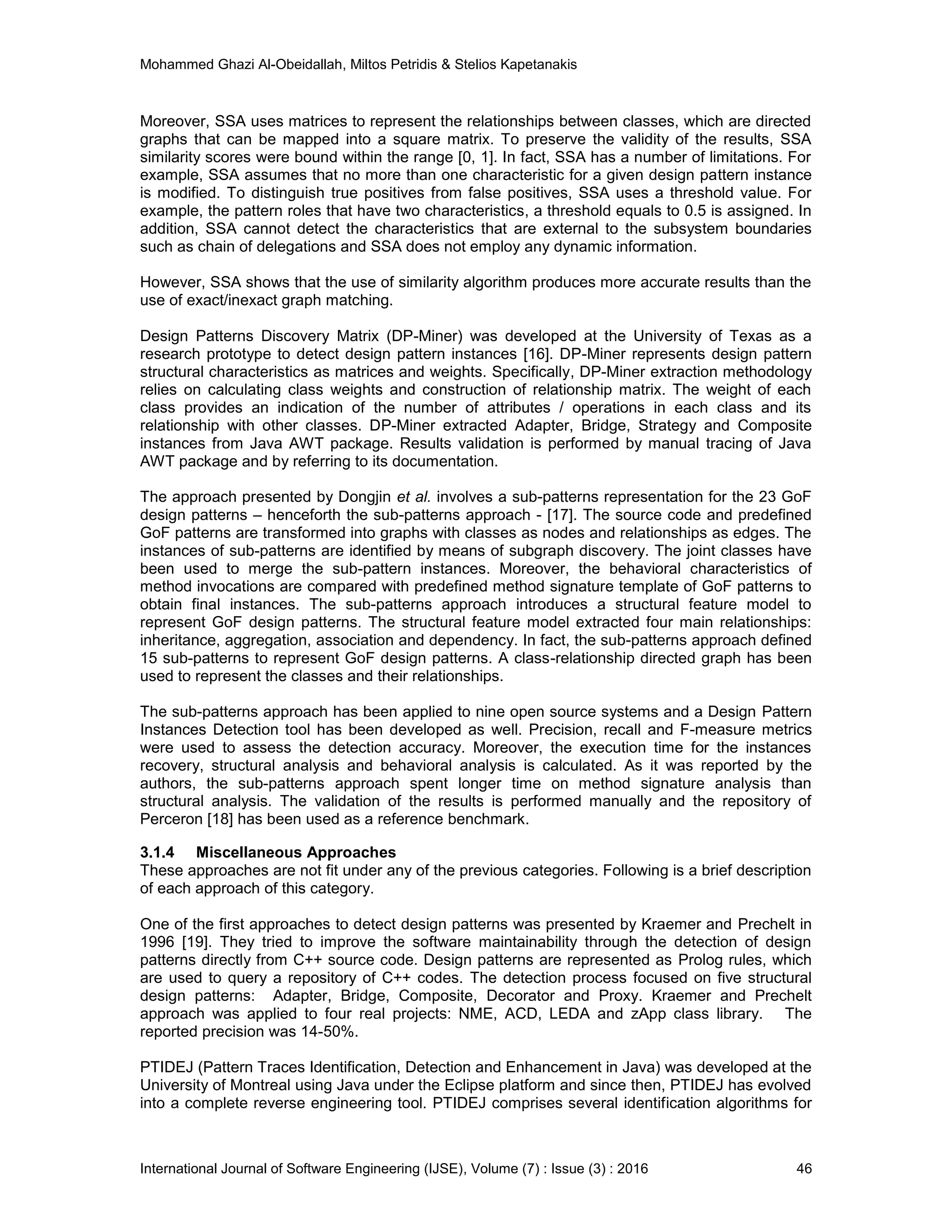

Moreover, SSA uses matrices to represent the relationships between classes, which are directed
graphs that can be mapped into a square matrix. To preserve the validity of the results, SSA
similarity scores were bound within the range [0, 1]. In fact, SSA has a number of limitations. For
example, SSA assumes that no more than one characteristic for a given design pattern instance
is modified. To distinguish true positives from false positives, SSA uses a threshold value. For
example, the pattern roles that have two characteristics, a threshold equals to 0.5 is assigned. In
addition, SSA cannot detect the characteristics that are external to the subsystem boundaries
such as chain of delegations and SSA does not employ any dynamic information.
However, SSA shows that the use of similarity algorithm produces more accurate results than the
use of exact/inexact graph matching.
Design Patterns Discovery Matrix (DP-Miner) was developed at the University of Texas as a
research prototype to detect design pattern instances [16]. DP-Miner represents design pattern
structural characteristics as matrices and weights. Specifically, DP-Miner extraction methodology
relies on calculating class weights and construction of relationship matrix. The weight of each
class provides an indication of the number of attributes / operations in each class and its
relationship with other classes. DP-Miner extracted Adapter, Bridge, Strategy and Composite
instances from Java AWT package. Results validation is performed by manual tracing of Java
AWT package and by referring to its documentation.
The approach presented by Dongjin et al. involves a sub-patterns representation for the 23 GoF
design patterns – henceforth the sub-patterns approach - [17]. The source code and predefined
GoF patterns are transformed into graphs with classes as nodes and relationships as edges. The
instances of sub-patterns are identified by means of subgraph discovery. The joint classes have
been used to merge the sub-pattern instances. Moreover, the behavioral characteristics of
method invocations are compared with predefined method signature template of GoF patterns to
obtain final instances. The sub-patterns approach introduces a structural feature model to
represent GoF design patterns. The structural feature model extracted four main relationships:
inheritance, aggregation, association and dependency. In fact, the sub-patterns approach defined
15 sub-patterns to represent GoF design patterns. A class-relationship directed graph has been
used to represent the classes and their relationships.
The sub-patterns approach has been applied to nine open source systems and a Design Pattern
Instances Detection tool has been developed as well. Precision, recall and F-measure metrics
were used to assess the detection accuracy. Moreover, the execution time for the instances
recovery, structural analysis and behavioral analysis is calculated. As it was reported by the
authors, the sub-patterns approach spent longer time on method signature analysis than
structural analysis. The validation of the results is performed manually and the repository of
Perceron [18] has been used as a reference benchmark.
3.1.4 Miscellaneous Approaches
These approaches are not fit under any of the previous categories. Following is a brief description
of each approach of this category.
One of the first approaches to detect design patterns was presented by Kraemer and Prechelt in
1996 [19]. They tried to improve the software maintainability through the detection of design
patterns directly from C++ source code. Design patterns are represented as Prolog rules, which
are used to query a repository of C++ codes. The detection process focused on five structural
design patterns: Adapter, Bridge, Composite, Decorator and Proxy. Kraemer and Prechelt
approach was applied to four real projects: NME, ACD, LEDA and zApp class library. The
reported precision was 14-50%.
PTIDEJ (Pattern Traces Identification, Detection and Enhancement in Java) was developed at the
University of Montreal using Java under the Eclipse platform and since then, PTIDEJ has evolved
into a complete reverse engineering tool. PTIDEJ comprises several identification algorithms for
7. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 47

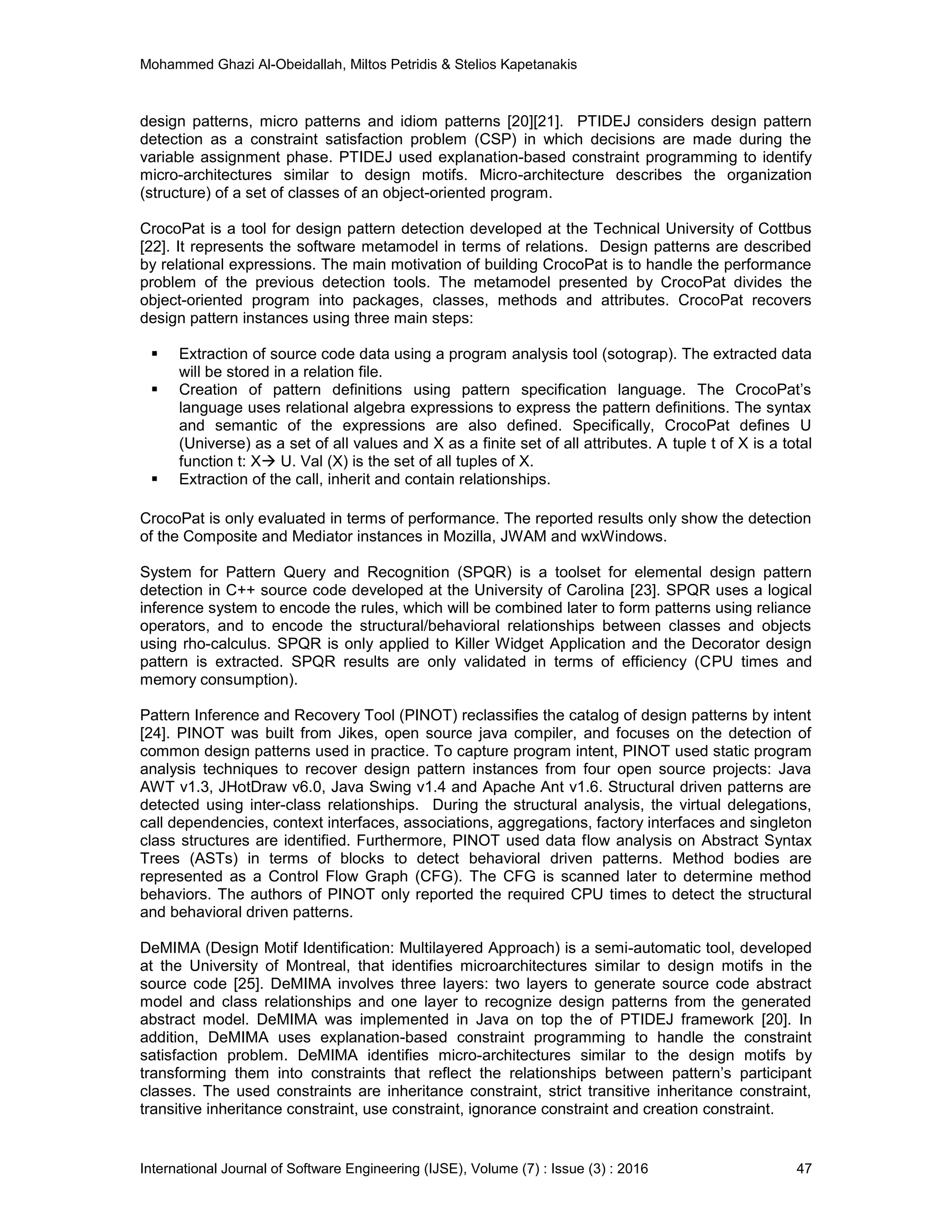

design patterns, micro patterns and idiom patterns [20][21]. PTIDEJ considers design pattern
detection as a constraint satisfaction problem (CSP) in which decisions are made during the
variable assignment phase. PTIDEJ used explanation-based constraint programming to identify
micro-architectures similar to design motifs. Micro-architecture describes the organization
(structure) of a set of classes of an object-oriented program.
CrocoPat is a tool for design pattern detection developed at the Technical University of Cottbus
[22]. It represents the software metamodel in terms of relations. Design patterns are described
by relational expressions. The main motivation of building CrocoPat is to handle the performance
problem of the previous detection tools. The metamodel presented by CrocoPat divides the
object-oriented program into packages, classes, methods and attributes. CrocoPat recovers
design pattern instances using three main steps:
Extraction of source code data using a program analysis tool (sotograp). The extracted data
will be stored in a relation file.
Creation of pattern definitions using pattern specification language. The CrocoPat’s
language uses relational algebra expressions to express the pattern definitions. The syntax
and semantic of the expressions are also defined. Specifically, CrocoPat defines U
(Universe) as a set of all values and X as a finite set of all attributes. A tuple t of X is a total
function t: X U. Val (X) is the set of all tuples of X.
Extraction of the call, inherit and contain relationships.
CrocoPat is only evaluated in terms of performance. The reported results only show the detection
of the Composite and Mediator instances in Mozilla, JWAM and wxWindows.
System for Pattern Query and Recognition (SPQR) is a toolset for elemental design pattern
detection in C++ source code developed at the University of Carolina [23]. SPQR uses a logical
inference system to encode the rules, which will be combined later to form patterns using reliance
operators, and to encode the structural/behavioral relationships between classes and objects
using rho-calculus. SPQR is only applied to Killer Widget Application and the Decorator design
pattern is extracted. SPQR results are only validated in terms of efficiency (CPU times and
memory consumption).
Pattern Inference and Recovery Tool (PINOT) reclassifies the catalog of design patterns by intent
[24]. PINOT was built from Jikes, open source java compiler, and focuses on the detection of
common design patterns used in practice. To capture program intent, PINOT used static program
analysis techniques to recover design pattern instances from four open source projects: Java
AWT v1.3, JHotDraw v6.0, Java Swing v1.4 and Apache Ant v1.6. Structural driven patterns are
detected using inter-class relationships. During the structural analysis, the virtual delegations,
call dependencies, context interfaces, associations, aggregations, factory interfaces and singleton
class structures are identified. Furthermore, PINOT used data flow analysis on Abstract Syntax
Trees (ASTs) in terms of blocks to detect behavioral driven patterns. Method bodies are
represented as a Control Flow Graph (CFG). The CFG is scanned later to determine method
behaviors. The authors of PINOT only reported the required CPU times to detect the structural
and behavioral driven patterns.
DeMIMA (Design Motif Identification: Multilayered Approach) is a semi-automatic tool, developed
at the University of Montreal, that identifies microarchitectures similar to design motifs in the
source code [25]. DeMIMA involves three layers: two layers to generate source code abstract
model and class relationships and one layer to recognize design patterns from the generated
abstract model. DeMIMA was implemented in Java on top the of PTIDEJ framework [20]. In
addition, DeMIMA uses explanation-based constraint programming to handle the constraint
satisfaction problem. DeMIMA identifies micro-architectures similar to the design motifs by
transforming them into constraints that reflect the relationships between pattern’s participant
classes. The used constraints are inheritance constraint, strict transitive inheritance constraint,
transitive inheritance constraint, use constraint, ignorance constraint and creation constraint.
8. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 48

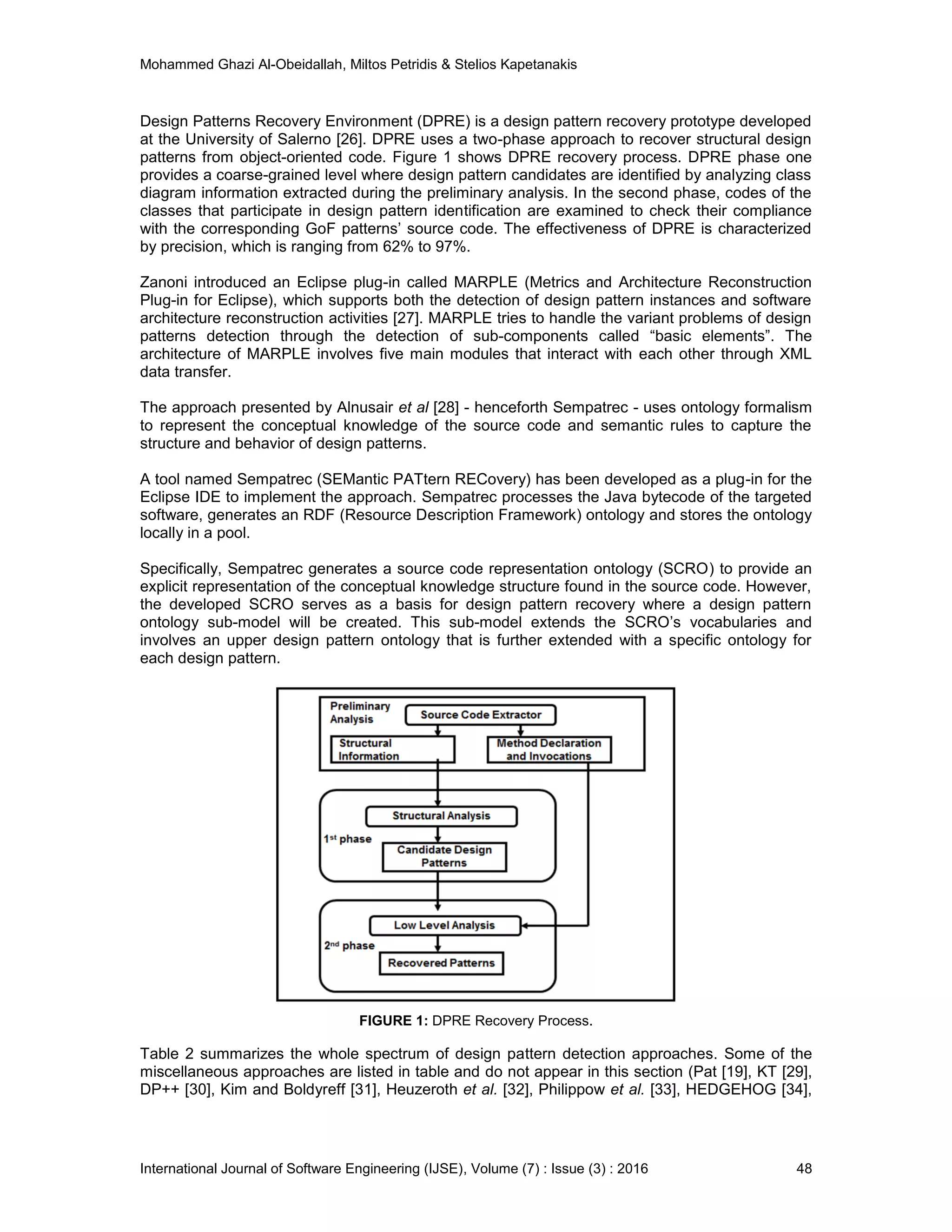

Design Patterns Recovery Environment (DPRE) is a design pattern recovery prototype developed
at the University of Salerno [26]. DPRE uses a two-phase approach to recover structural design
patterns from object-oriented code. Figure 1 shows DPRE recovery process. DPRE phase one
provides a coarse-grained level where design pattern candidates are identified by analyzing class
diagram information extracted during the preliminary analysis. In the second phase, codes of the
classes that participate in design pattern identification are examined to check their compliance
with the corresponding GoF patterns’ source code. The effectiveness of DPRE is characterized
by precision, which is ranging from 62% to 97%.
Zanoni introduced an Eclipse plug-in called MARPLE (Metrics and Architecture Reconstruction
Plug-in for Eclipse), which supports both the detection of design pattern instances and software
architecture reconstruction activities [27]. MARPLE tries to handle the variant problems of design
patterns detection through the detection of sub-components called “basic elements”. The
architecture of MARPLE involves five main modules that interact with each other through XML
data transfer.
The approach presented by Alnusair et al [28] - henceforth Sempatrec - uses ontology formalism
to represent the conceptual knowledge of the source code and semantic rules to capture the
structure and behavior of design patterns.
A tool named Sempatrec (SEMantic PATtern RECovery) has been developed as a plug-in for the
Eclipse IDE to implement the approach. Sempatrec processes the Java bytecode of the targeted
software, generates an RDF (Resource Description Framework) ontology and stores the ontology
locally in a pool.
Specifically, Sempatrec generates a source code representation ontology (SCRO) to provide an
explicit representation of the conceptual knowledge structure found in the source code. However,
the developed SCRO serves as a basis for design pattern recovery where a design pattern
ontology sub-model will be created. This sub-model extends the SCRO’s vocabularies and
involves an upper design pattern ontology that is further extended with a specific ontology for
each design pattern.
FIGURE 1: DPRE Recovery Process.
Table 2 summarizes the whole spectrum of design pattern detection approaches. Some of the
miscellaneous approaches are listed in table and do not appear in this section (Pat [19], KT [29],
DP++ [30], Kim and Boldyreff [31], Heuzeroth et al. [32], Philippow et al. [33], HEDGEHOG [34],
9. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 49
and Kaczor et al. [35]). However, ALL table approaches are involved in the statistical analysis of
this survey.

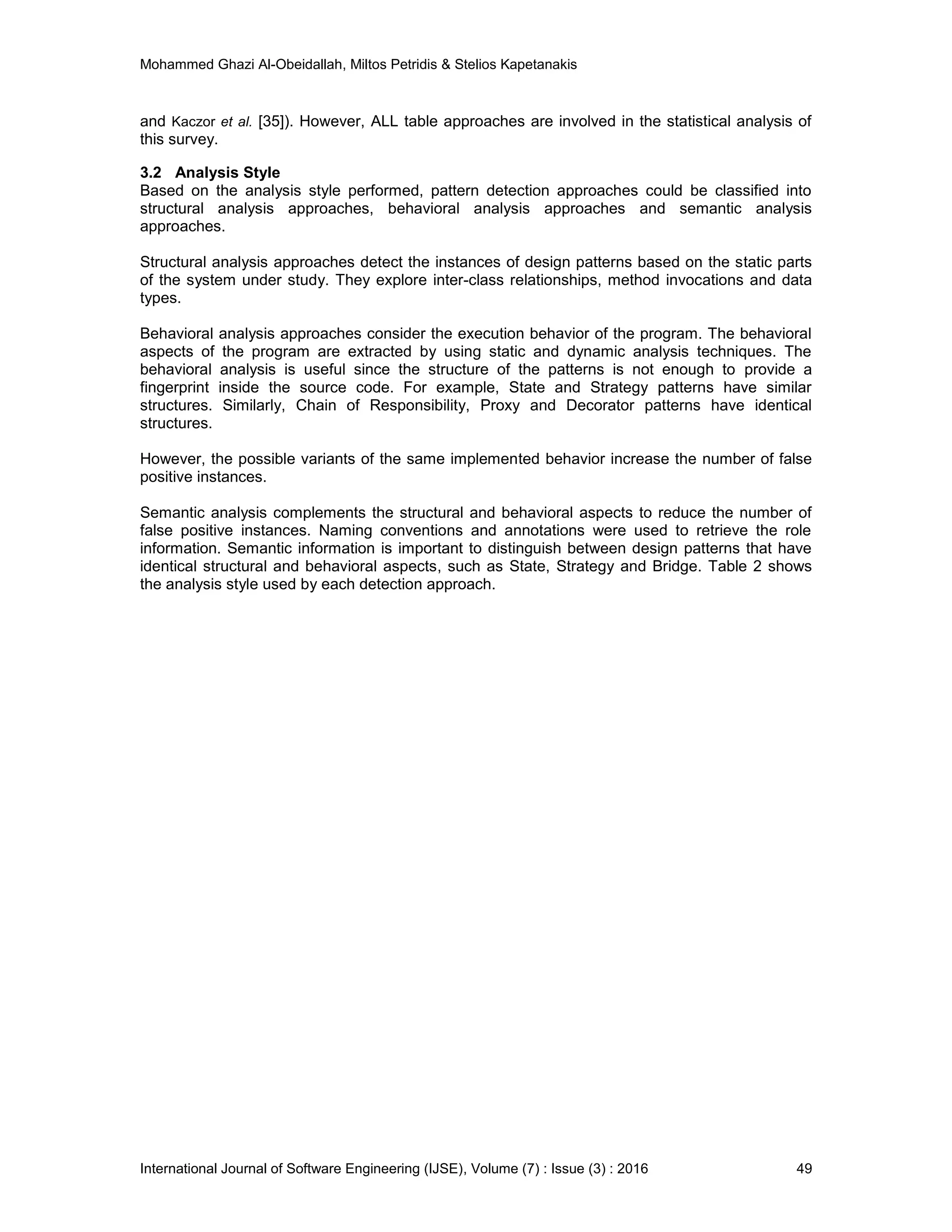

3.2 Analysis Style
Based on the analysis style performed, pattern detection approaches could be classified into
structural analysis approaches, behavioral analysis approaches and semantic analysis
approaches.
Structural analysis approaches detect the instances of design patterns based on the static parts
of the system under study. They explore inter-class relationships, method invocations and data
types.
Behavioral analysis approaches consider the execution behavior of the program. The behavioral
aspects of the program are extracted by using static and dynamic analysis techniques. The
behavioral analysis is useful since the structure of the patterns is not enough to provide a
fingerprint inside the source code. For example, State and Strategy patterns have similar
structures. Similarly, Chain of Responsibility, Proxy and Decorator patterns have identical
structures.
However, the possible variants of the same implemented behavior increase the number of false
positive instances.
Semantic analysis complements the structural and behavioral aspects to reduce the number of
false positive instances. Naming conventions and annotations were used to retrieve the role
information. Semantic information is important to distinguish between design patterns that have
identical structural and behavioral aspects, such as State, Strategy and Bridge. Table 2 shows
the analysis style used by each detection approach.
10. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 50
TABLE 2: Summary of detection approaches based on their detection methodology and analysis style.
4. ANALYSIS AND DISCUSSION
Design patterns are flexible design templates that may have several implementations. However,
design patterns are described informally, which may cause misunderstanding. New approaches
Detection
Methodology Tool/ Author Year
Analysis
Style R
Database Query
Approaches
Rasool et al. 2010 ST, SE [2]
D3 2008 ST, BE [3]
Marek Vokac 2006 ST [4]
SPOOL 1999 ST [6]
Metrics-Based
Approaches
MAISA 2000 ST [7]
FUJAPA 2002 ST,BE [8]
Antoniol et al. 1998 ST,BE [9]
Detten and Becker 2011 ST [10]
Uchiyama et al. 2014 ST,BE [11]
UML Structure, Graph
and Matrix Based
Approaches
Seemann and Gudenberg 1998 ST,SE [12]
DEPAIC++ 2002 ST [13]
Columbus 2002 ST [14]
SSA 2006 ST [15]
DP-Miner 2007 ST,BE,SE [16]
Dongjin et al. 2015 ST,BE [17]
Miscellaneous
Approaches
Pat 1996 ST [19]
PTIDEJ
2001
2004
ST [20][21]
CrocoPat 2003 ST [22]
SPQR 2003 ST [23]
PINOT 2006 ST,BE [24]
DeMIMA 2008 ST [25]
DPRE 2009 ST [26]
MARPLE 2012 ST,BE [27]
Sempatrec 2014 ST,SE [28]
KT 1996 ST [29]
DP++ 1998 ST [30]
Kim and Boldyreff 2000 ST [31]
Heuzeroth et al. 2003 ST,BE [32]
Philippow et al. 2005 ST [33]
HEDGEHOG 2005 ST,BE,SE [34]
Kaczor et al. 2006 ST [35]
Note: ST: Structural Analysis BE: Behavioral Analysis
SE: Semantic Analysis R: Reference
11. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 51

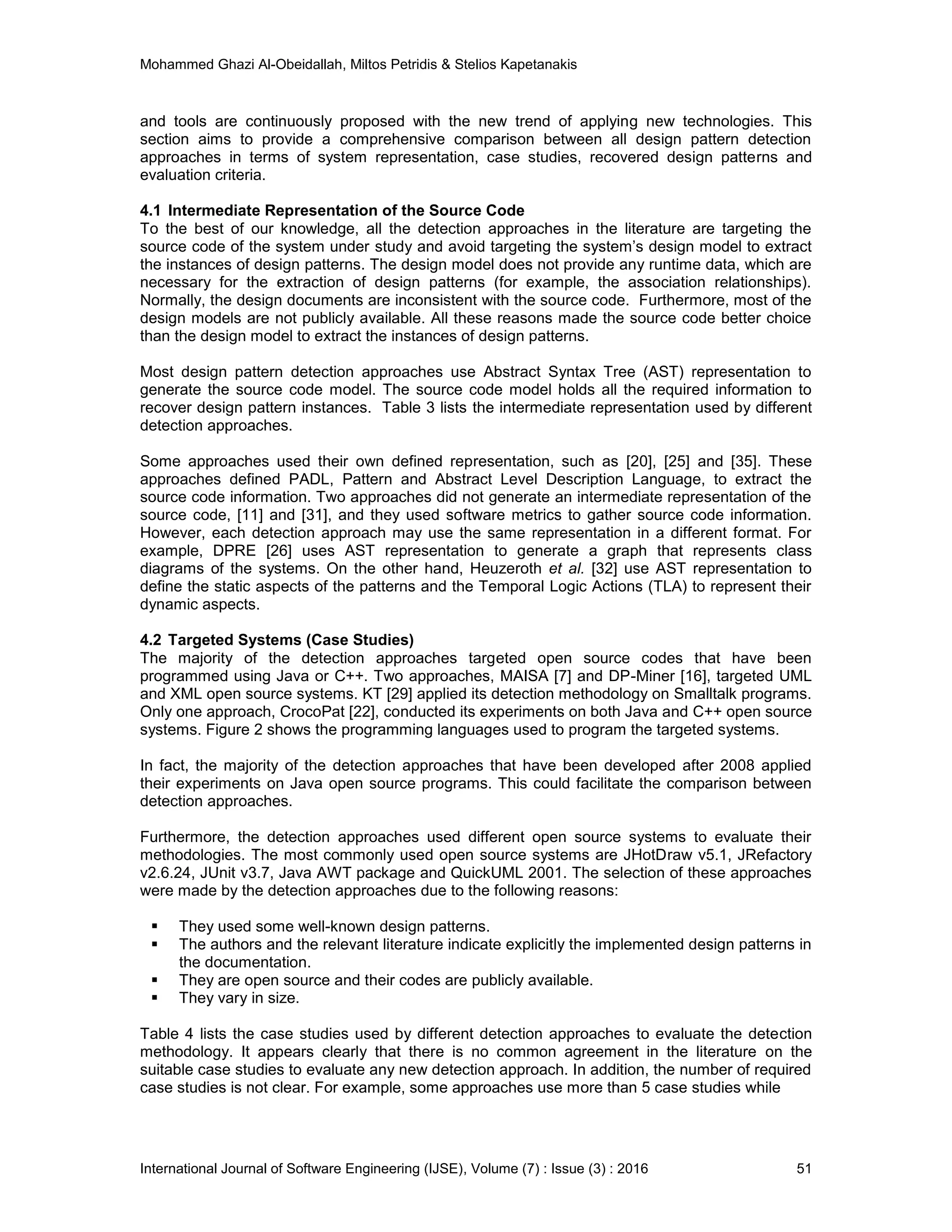

and tools are continuously proposed with the new trend of applying new technologies. This
section aims to provide a comprehensive comparison between all design pattern detection
approaches in terms of system representation, case studies, recovered design patterns and
evaluation criteria.
4.1 Intermediate Representation of the Source Code
To the best of our knowledge, all the detection approaches in the literature are targeting the
source code of the system under study and avoid targeting the system’s design model to extract
the instances of design patterns. The design model does not provide any runtime data, which are
necessary for the extraction of design patterns (for example, the association relationships).
Normally, the design documents are inconsistent with the source code. Furthermore, most of the
design models are not publicly available. All these reasons made the source code better choice
than the design model to extract the instances of design patterns.
Most design pattern detection approaches use Abstract Syntax Tree (AST) representation to
generate the source code model. The source code model holds all the required information to
recover design pattern instances. Table 3 lists the intermediate representation used by different
detection approaches.
Some approaches used their own defined representation, such as [20], [25] and [35]. These
approaches defined PADL, Pattern and Abstract Level Description Language, to extract the
source code information. Two approaches did not generate an intermediate representation of the
source code, [11] and [31], and they used software metrics to gather source code information.
However, each detection approach may use the same representation in a different format. For
example, DPRE [26] uses AST representation to generate a graph that represents class
diagrams of the systems. On the other hand, Heuzeroth et al. [32] use AST representation to
define the static aspects of the patterns and the Temporal Logic Actions (TLA) to represent their
dynamic aspects.
4.2 Targeted Systems (Case Studies)
The majority of the detection approaches targeted open source codes that have been
programmed using Java or C++. Two approaches, MAISA [7] and DP-Miner [16], targeted UML
and XML open source systems. KT [29] applied its detection methodology on Smalltalk programs.
Only one approach, CrocoPat [22], conducted its experiments on both Java and C++ open source
systems. Figure 2 shows the programming languages used to program the targeted systems.
In fact, the majority of the detection approaches that have been developed after 2008 applied
their experiments on Java open source programs. This could facilitate the comparison between
detection approaches.
Furthermore, the detection approaches used different open source systems to evaluate their
methodologies. The most commonly used open source systems are JHotDraw v5.1, JRefactory
v2.6.24, JUnit v3.7, Java AWT package and QuickUML 2001. The selection of these approaches
were made by the detection approaches due to the following reasons:
They used some well-known design patterns.
The authors and the relevant literature indicate explicitly the implemented design patterns in
the documentation.
They are open source and their codes are publicly available.
They vary in size.

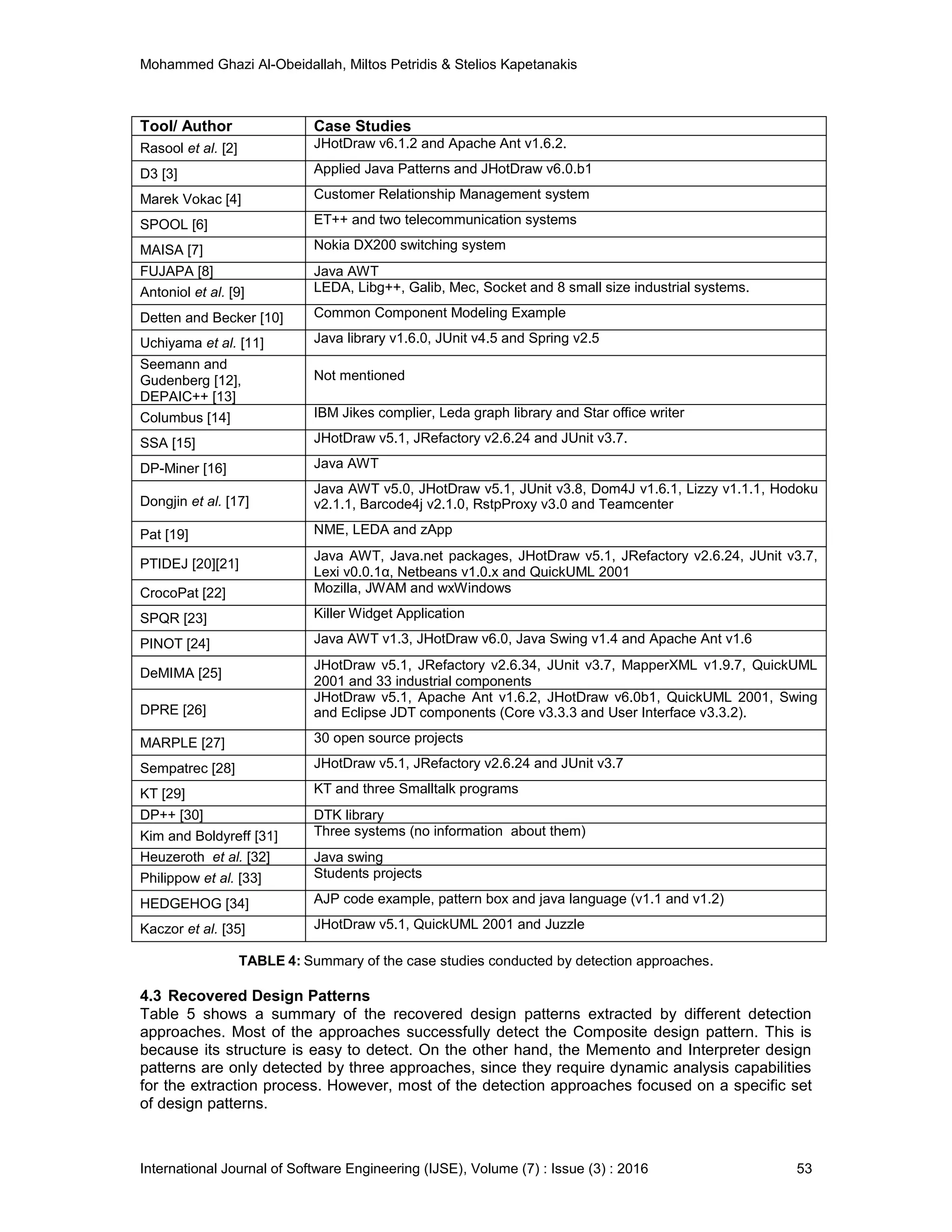

Table 4 lists the case studies used by different detection approaches to evaluate the detection
methodology. It appears clearly that there is no common agreement in the literature on the
suitable case studies to evaluate any new detection approach. In addition, the number of required
case studies is not clear. For example, some approaches use more than 5 case studies while
12. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 52
other approaches only use two case studies. DeMIMA [25] applied its methodology to 33
industrial components, but there is no information about them.

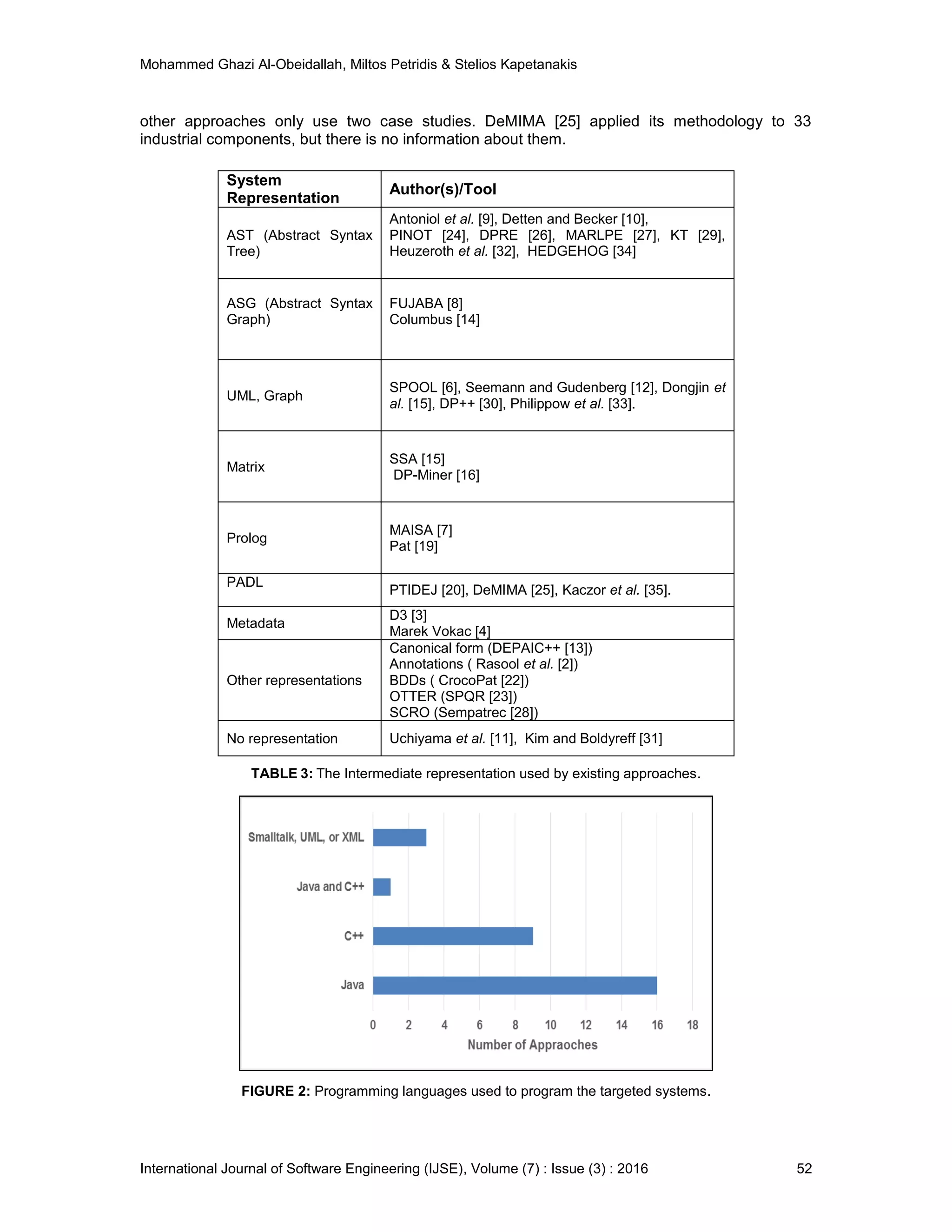

TABLE 3: The Intermediate representation used by existing approaches.
FIGURE 2: Programming languages used to program the targeted systems.
System
Representation
Author(s)/Tool
AST (Abstract Syntax
Tree)
Antoniol et al. [9], Detten and Becker [10],
PINOT [24], DPRE [26], MARLPE [27], KT [29],
Heuzeroth et al. [32], HEDGEHOG [34]
ASG (Abstract Syntax
Graph)
FUJABA [8]
Columbus [14]
UML, Graph
SPOOL [6], Seemann and Gudenberg [12], Dongjin et
al. [15], DP++ [30], Philippow et al. [33].
Matrix
SSA [15]
DP-Miner [16]
Prolog
MAISA [7]
Pat [19]
PADL
PTIDEJ [20], DeMIMA [25], Kaczor et al. [35].
Metadata
D3 [3]
Marek Vokac [4]
Other representations
Canonical form (DEPAIC++ [13])
Annotations ( Rasool et al. [2])
BDDs ( CrocoPat [22])
OTTER (SPQR [23])
SCRO (Sempatrec [28])
No representation Uchiyama et al. [11], Kim and Boldyreff [31]
13. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 53
TABLE 4: Summary of the case studies conducted by detection approaches.
4.3 Recovered Design Patterns

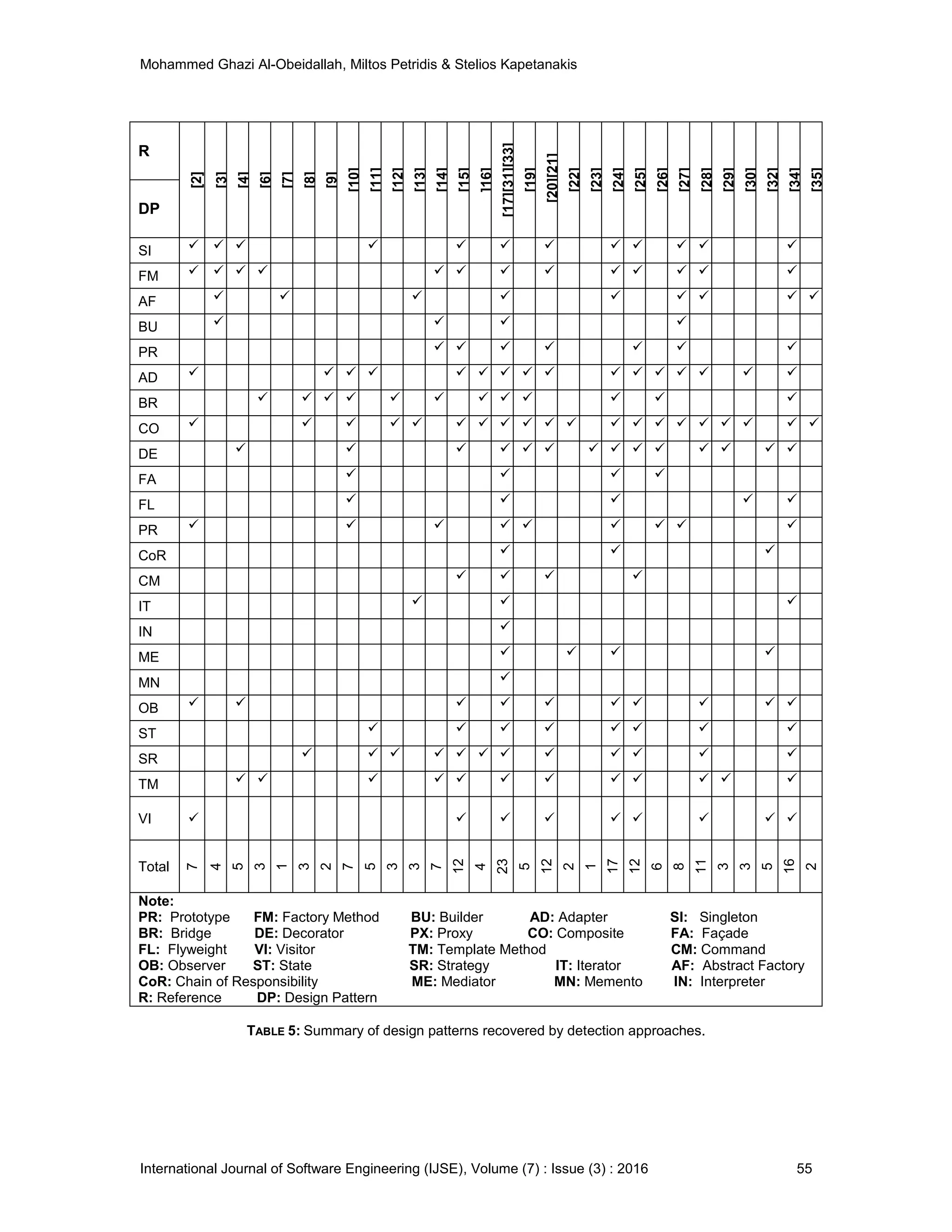

Table 5 shows a summary of the recovered design patterns extracted by different detection
approaches. Most of the approaches successfully detect the Composite design pattern. This is
because its structure is easy to detect. On the other hand, the Memento and Interpreter design
patterns are only detected by three approaches, since they require dynamic analysis capabilities
for the extraction process. However, most of the detection approaches focused on a specific set
of design patterns.
Tool/ Author Case Studies
Rasool et al. [2] JHotDraw v6.1.2 and Apache Ant v1.6.2.
D3 [3] Applied Java Patterns and JHotDraw v6.0.b1
Marek Vokac [4] Customer Relationship Management system
SPOOL [6] ET++ and two telecommunication systems
MAISA [7] Nokia DX200 switching system
FUJAPA [8] Java AWT
Antoniol et al. [9] LEDA, Libg++, Galib, Mec, Socket and 8 small size industrial systems.
Detten and Becker [10] Common Component Modeling Example
Uchiyama et al. [11] Java library v1.6.0, JUnit v4.5 and Spring v2.5
Seemann and
Gudenberg [12],
DEPAIC++ [13]
Not mentioned
Columbus [14] IBM Jikes complier, Leda graph library and Star office writer
SSA [15] JHotDraw v5.1, JRefactory v2.6.24 and JUnit v3.7.
DP-Miner [16] Java AWT
Dongjin et al. [17]
Java AWT v5.0, JHotDraw v5.1, JUnit v3.8, Dom4J v1.6.1, Lizzy v1.1.1, Hodoku
v2.1.1, Barcode4j v2.1.0, RstpProxy v3.0 and Teamcenter
Pat [19] NME, LEDA and zApp
PTIDEJ [20][21]
Java AWT, Java.net packages, JHotDraw v5.1, JRefactory v2.6.24, JUnit v3.7,
Lexi v0.0.1α, Netbeans v1.0.x and QuickUML 2001
CrocoPat [22] Mozilla, JWAM and wxWindows
SPQR [23] Killer Widget Application
PINOT [24] Java AWT v1.3, JHotDraw v6.0, Java Swing v1.4 and Apache Ant v1.6
DeMIMA [25]
JHotDraw v5.1, JRefactory v2.6.34, JUnit v3.7, MapperXML v1.9.7, QuickUML
2001 and 33 industrial components
DPRE [26]
JHotDraw v5.1, Apache Ant v1.6.2, JHotDraw v6.0b1, QuickUML 2001, Swing
and Eclipse JDT components (Core v3.3.3 and User Interface v3.3.2).
MARPLE [27] 30 open source projects
Sempatrec [28] JHotDraw v5.1, JRefactory v2.6.24 and JUnit v3.7
KT [29] KT and three Smalltalk programs
DP++ [30] DTK library
Kim and Boldyreff [31] Three systems (no information about them)
Heuzeroth et al. [32] Java swing
Philippow et al. [33] Students projects
HEDGEHOG [34] AJP code example, pattern box and java language (v1.1 and v1.2)
Kaczor et al. [35] JHotDraw v5.1, QuickUML 2001 and Juzzle
14. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 54

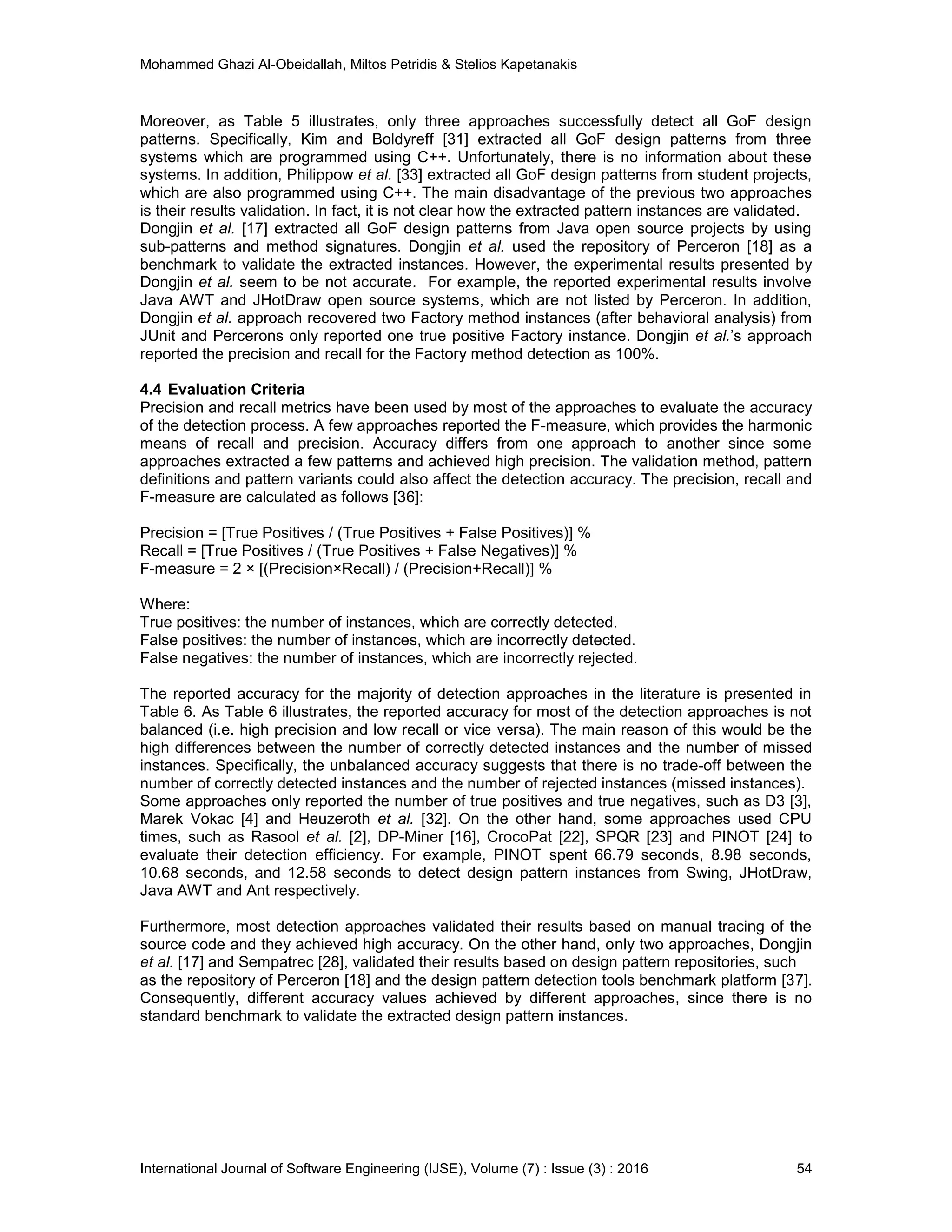

Moreover, as Table 5 illustrates, only three approaches successfully detect all GoF design
patterns. Specifically, Kim and Boldyreff [31] extracted all GoF design patterns from three
systems which are programmed using C++. Unfortunately, there is no information about these
systems. In addition, Philippow et al. [33] extracted all GoF design patterns from student projects,
which are also programmed using C++. The main disadvantage of the previous two approaches
is their results validation. In fact, it is not clear how the extracted pattern instances are validated.
Dongjin et al. [17] extracted all GoF design patterns from Java open source projects by using
sub-patterns and method signatures. Dongjin et al. used the repository of Perceron [18] as a
benchmark to validate the extracted instances. However, the experimental results presented by
Dongjin et al. seem to be not accurate. For example, the reported experimental results involve
Java AWT and JHotDraw open source systems, which are not listed by Perceron. In addition,
Dongjin et al. approach recovered two Factory method instances (after behavioral analysis) from
JUnit and Percerons only reported one true positive Factory instance. Dongjin et al.’s approach
reported the precision and recall for the Factory method detection as 100%.
4.4 Evaluation Criteria
Precision and recall metrics have been used by most of the approaches to evaluate the accuracy
of the detection process. A few approaches reported the F-measure, which provides the harmonic
means of recall and precision. Accuracy differs from one approach to another since some
approaches extracted a few patterns and achieved high precision. The validation method, pattern
definitions and pattern variants could also affect the detection accuracy. The precision, recall and
F-measure are calculated as follows [36]:
Precision = [True Positives / (True Positives + False Positives)] %
Recall = [True Positives / (True Positives + False Negatives)] %
F-measure = 2 × [(Precision×Recall) / (Precision+Recall)] %
Where:
True positives: the number of instances, which are correctly detected.
False positives: the number of instances, which are incorrectly detected.
False negatives: the number of instances, which are incorrectly rejected.
The reported accuracy for the majority of detection approaches in the literature is presented in
Table 6. As Table 6 illustrates, the reported accuracy for most of the detection approaches is not
balanced (i.e. high precision and low recall or vice versa). The main reason of this would be the
high differences between the number of correctly detected instances and the number of missed
instances. Specifically, the unbalanced accuracy suggests that there is no trade-off between the
number of correctly detected instances and the number of rejected instances (missed instances).
Some approaches only reported the number of true positives and true negatives, such as D3 [3],
Marek Vokac [4] and Heuzeroth et al. [32]. On the other hand, some approaches used CPU
times, such as Rasool et al. [2], DP-Miner [16], CrocoPat [22], SPQR [23] and PINOT [24] to
evaluate their detection efficiency. For example, PINOT spent 66.79 seconds, 8.98 seconds,
10.68 seconds, and 12.58 seconds to detect design pattern instances from Swing, JHotDraw,
Java AWT and Ant respectively.
Furthermore, most detection approaches validated their results based on manual tracing of the
source code and they achieved high accuracy. On the other hand, only two approaches, Dongjin
et al. [17] and Sempatrec [28], validated their results based on design pattern repositories, such
as the repository of Perceron [18] and the design pattern detection tools benchmark platform [37].
Consequently, different accuracy values achieved by different approaches, since there is no
standard benchmark to validate the extracted design pattern instances.
16. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 56

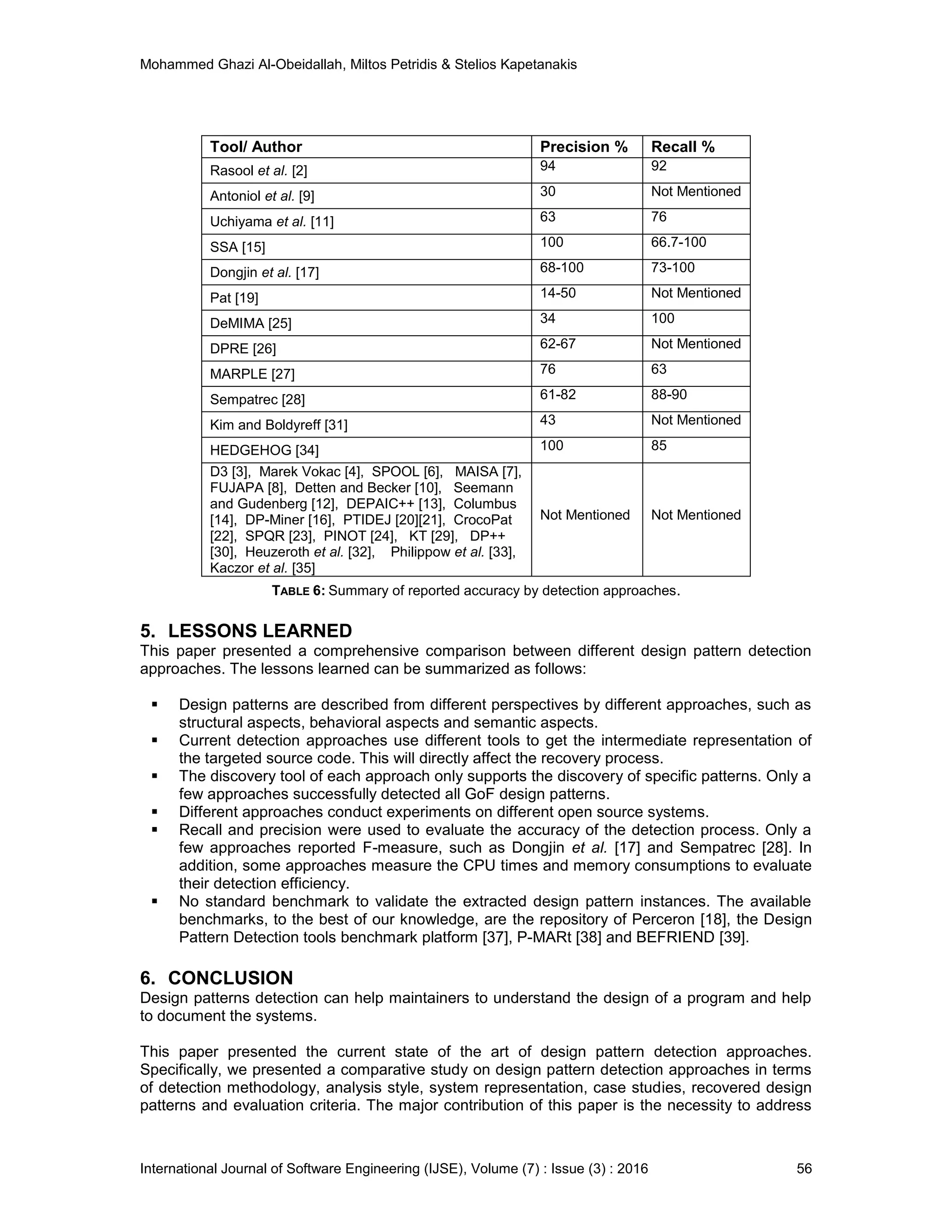

TABLE 6: Summary of reported accuracy by detection approaches.
5. LESSONS LEARNED
This paper presented a comprehensive comparison between different design pattern detection
approaches. The lessons learned can be summarized as follows:
Design patterns are described from different perspectives by different approaches, such as
structural aspects, behavioral aspects and semantic aspects.
Current detection approaches use different tools to get the intermediate representation of
the targeted source code. This will directly affect the recovery process.
The discovery tool of each approach only supports the discovery of specific patterns. Only a
few approaches successfully detected all GoF design patterns.
Different approaches conduct experiments on different open source systems.
Recall and precision were used to evaluate the accuracy of the detection process. Only a
few approaches reported F-measure, such as Dongjin et al. [17] and Sempatrec [28]. In
addition, some approaches measure the CPU times and memory consumptions to evaluate
their detection efficiency.
No standard benchmark to validate the extracted design pattern instances. The available
benchmarks, to the best of our knowledge, are the repository of Perceron [18], the Design
Pattern Detection tools benchmark platform [37], P-MARt [38] and BEFRIEND [39].
6. CONCLUSION
Design patterns detection can help maintainers to understand the design of a program and help
to document the systems.
This paper presented the current state of the art of design pattern detection approaches.
Specifically, we presented a comparative study on design pattern detection approaches in terms
of detection methodology, analysis style, system representation, case studies, recovered design
patterns and evaluation criteria. The major contribution of this paper is the necessity to address
Tool/ Author Precision % Recall %
Rasool et al. [2] 94 92
Antoniol et al. [9] 30 Not Mentioned
Uchiyama et al. [11] 63 76
SSA [15] 100 66.7-100
Dongjin et al. [17] 68-100 73-100
Pat [19] 14-50 Not Mentioned
DeMIMA [25] 34 100
DPRE [26] 62-67 Not Mentioned
MARPLE [27] 76 63
Sempatrec [28] 61-82 88-90
Kim and Boldyreff [31] 43 Not Mentioned
HEDGEHOG [34] 100 85
D3 [3], Marek Vokac [4], SPOOL [6], MAISA [7],
FUJAPA [8], Detten and Becker [10], Seemann
and Gudenberg [12], DEPAIC++ [13], Columbus
[14], DP-Miner [16], PTIDEJ [20][21], CrocoPat
[22], SPQR [23], PINOT [24], KT [29], DP++
[30], Heuzeroth et al. [32], Philippow et al. [33],
Kaczor et al. [35]
Not Mentioned Not Mentioned
17. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 57

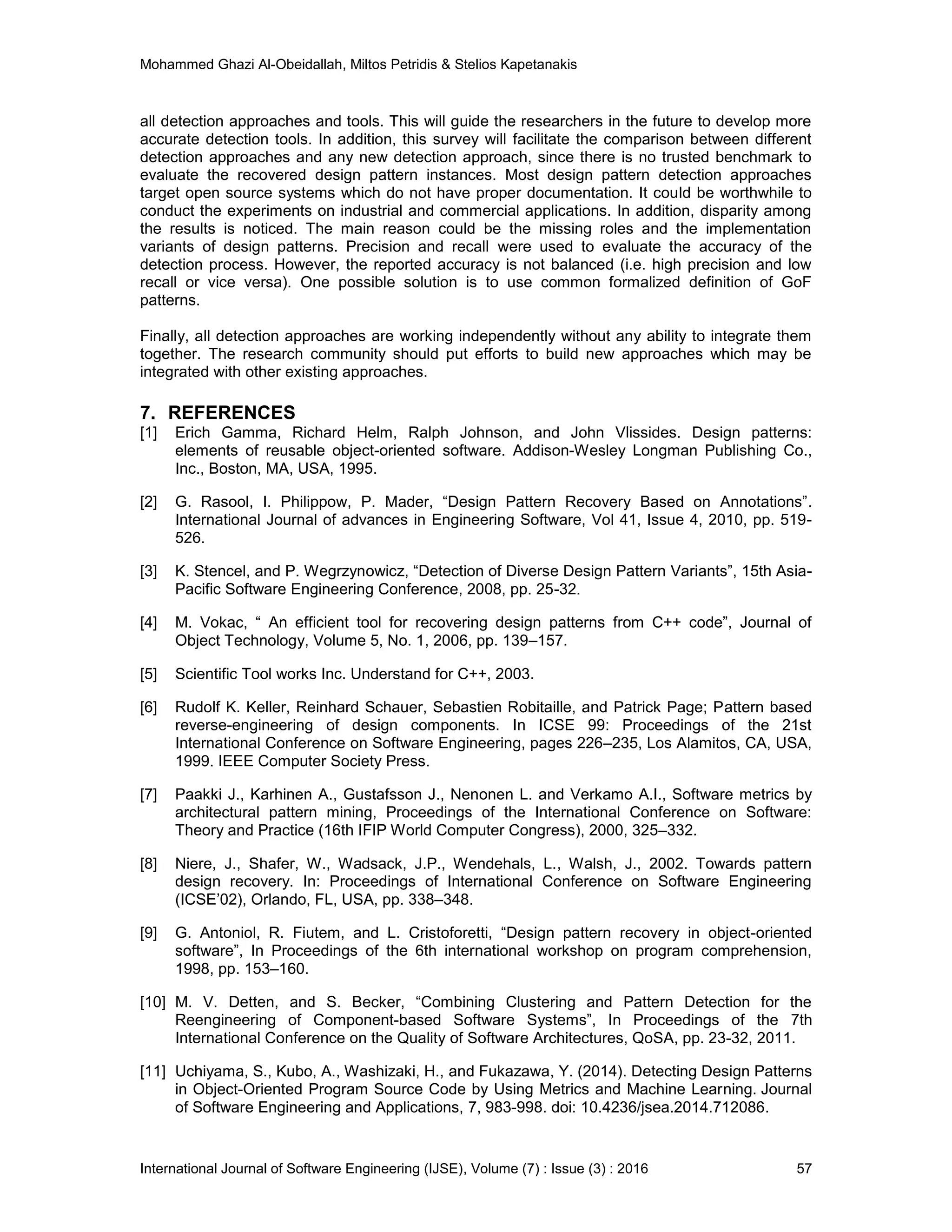

all detection approaches and tools. This will guide the researchers in the future to develop more
accurate detection tools. In addition, this survey will facilitate the comparison between different
detection approaches and any new detection approach, since there is no trusted benchmark to
evaluate the recovered design pattern instances. Most design pattern detection approaches
target open source systems which do not have proper documentation. It could be worthwhile to
conduct the experiments on industrial and commercial applications. In addition, disparity among
the results is noticed. The main reason could be the missing roles and the implementation
variants of design patterns. Precision and recall were used to evaluate the accuracy of the
detection process. However, the reported accuracy is not balanced (i.e. high precision and low
recall or vice versa). One possible solution is to use common formalized definition of GoF
patterns.
Finally, all detection approaches are working independently without any ability to integrate them
together. The research community should put efforts to build new approaches which may be
integrated with other existing approaches.
7. REFERENCES
[1] Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides. Design patterns:
elements of reusable object-oriented software. Addison-Wesley Longman Publishing Co.,
Inc., Boston, MA, USA, 1995.
[2] G. Rasool, I. Philippow, P. Mader, “Design Pattern Recovery Based on Annotations”.
International Journal of advances in Engineering Software, Vol 41, Issue 4, 2010, pp. 519-
526.
[3] K. Stencel, and P. Wegrzynowicz, “Detection of Diverse Design Pattern Variants”, 15th Asia-
Pacific Software Engineering Conference, 2008, pp. 25-32.
[4] M. Vokac, “ An efficient tool for recovering design patterns from C++ code”, Journal of
Object Technology, Volume 5, No. 1, 2006, pp. 139–157.
[5] Scientific Tool works Inc. Understand for C++, 2003.
[6] Rudolf K. Keller, Reinhard Schauer, Sebastien Robitaille, and Patrick Page; Pattern based
reverse-engineering of design components. In ICSE 99: Proceedings of the 21st
International Conference on Software Engineering, pages 226–235, Los Alamitos, CA, USA,
1999. IEEE Computer Society Press.
[7] Paakki J., Karhinen A., Gustafsson J., Nenonen L. and Verkamo A.I., Software metrics by
architectural pattern mining, Proceedings of the International Conference on Software:
Theory and Practice (16th IFIP World Computer Congress), 2000, 325–332.
[8] Niere, J., Shafer, W., Wadsack, J.P., Wendehals, L., Walsh, J., 2002. Towards pattern
design recovery. In: Proceedings of International Conference on Software Engineering
(ICSE’02), Orlando, FL, USA, pp. 338–348.
[9] G. Antoniol, R. Fiutem, and L. Cristoforetti, “Design pattern recovery in object-oriented
software”, In Proceedings of the 6th international workshop on program comprehension,
1998, pp. 153–160.
[10] M. V. Detten, and S. Becker, “Combining Clustering and Pattern Detection for the
Reengineering of Component-based Software Systems”, In Proceedings of the 7th
International Conference on the Quality of Software Architectures, QoSA, pp. 23-32, 2011.
[11] Uchiyama, S., Kubo, A., Washizaki, H., and Fukazawa, Y. (2014). Detecting Design Patterns
in Object-Oriented Program Source Code by Using Metrics and Machine Learning. Journal
of Software Engineering and Applications, 7, 983-998. doi: 10.4236/jsea.2014.712086.

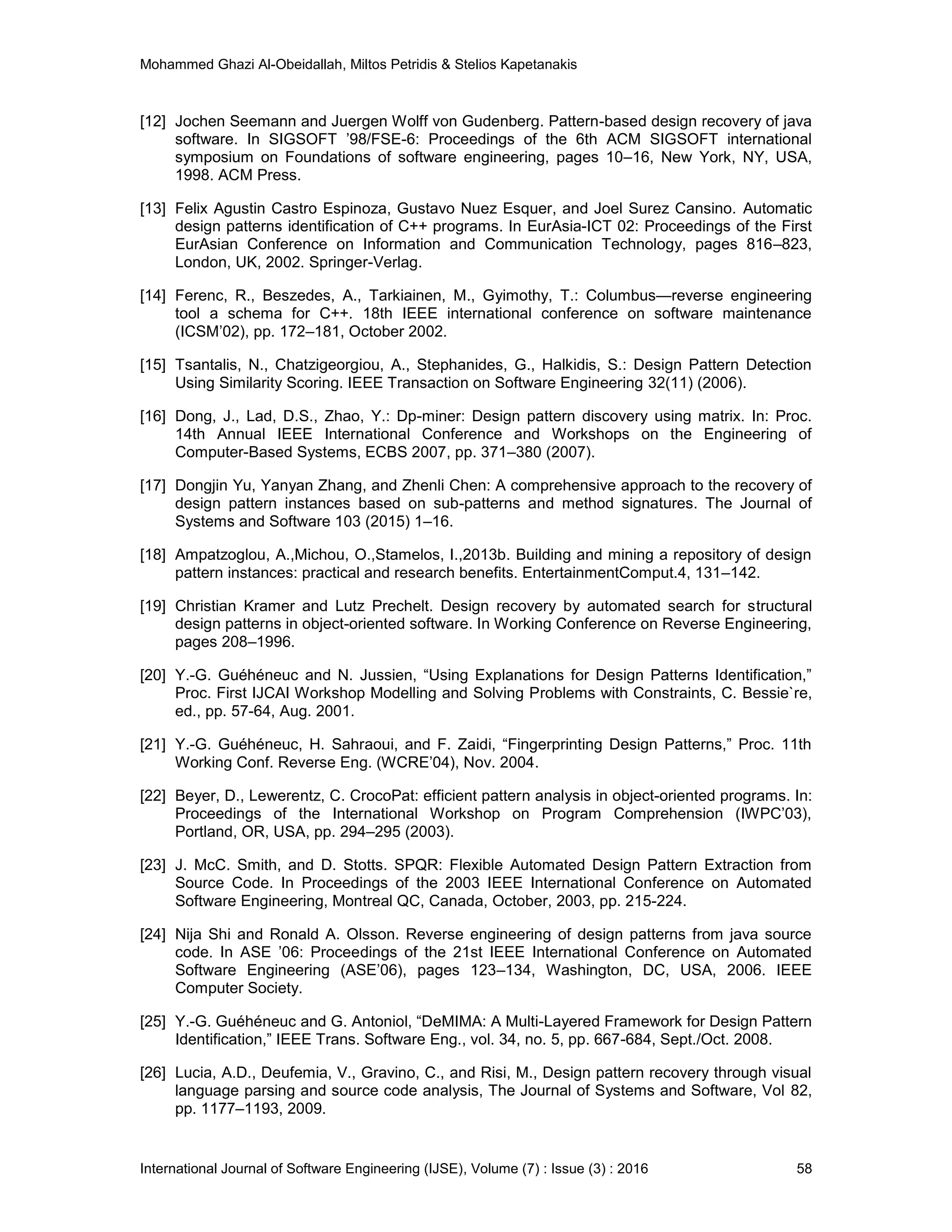

18. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 58
[12] Jochen Seemann and Juergen Wolff von Gudenberg. Pattern-based design recovery of java
software. In SIGSOFT ’98/FSE-6: Proceedings of the 6th ACM SIGSOFT international
symposium on Foundations of software engineering, pages 10–16, New York, NY, USA,
1998. ACM Press.
[13] Felix Agustin Castro Espinoza, Gustavo Nuez Esquer, and Joel Surez Cansino. Automatic
design patterns identification of C++ programs. In EurAsia-ICT 02: Proceedings of the First
EurAsian Conference on Information and Communication Technology, pages 816–823,
London, UK, 2002. Springer-Verlag.
[14] Ferenc, R., Beszedes, A., Tarkiainen, M., Gyimothy, T.: Columbus—reverse engineering
tool a schema for C++. 18th IEEE international conference on software maintenance
(ICSM’02), pp. 172–181, October 2002.
[15] Tsantalis, N., Chatzigeorgiou, A., Stephanides, G., Halkidis, S.: Design Pattern Detection
Using Similarity Scoring. IEEE Transaction on Software Engineering 32(11) (2006).
[16] Dong, J., Lad, D.S., Zhao, Y.: Dp-miner: Design pattern discovery using matrix. In: Proc.
14th Annual IEEE International Conference and Workshops on the Engineering of
Computer-Based Systems, ECBS 2007, pp. 371–380 (2007).
[17] Dongjin Yu, Yanyan Zhang, and Zhenli Chen: A comprehensive approach to the recovery of
design pattern instances based on sub-patterns and method signatures. The Journal of
Systems and Software 103 (2015) 1–16.
[18] Ampatzoglou, A.,Michou, O.,Stamelos, I.,2013b. Building and mining a repository of design
pattern instances: practical and research benefits. EntertainmentComput.4, 131–142.
[19] Christian Kramer and Lutz Prechelt. Design recovery by automated search for structural
design patterns in object-oriented software. In Working Conference on Reverse Engineering,
pages 208–1996.
[20] Y.-G. Guéhéneuc and N. Jussien, “Using Explanations for Design Patterns Identification,”
Proc. First IJCAI Workshop Modelling and Solving Problems with Constraints, C. Bessie`re,
ed., pp. 57-64, Aug. 2001.
[21] Y.-G. Guéhéneuc, H. Sahraoui, and F. Zaidi, “Fingerprinting Design Patterns,” Proc. 11th
Working Conf. Reverse Eng. (WCRE’04), Nov. 2004.
[22] Beyer, D., Lewerentz, C. CrocoPat: efficient pattern analysis in object-oriented programs. In:
Proceedings of the International Workshop on Program Comprehension (IWPC’03),
Portland, OR, USA, pp. 294–295 (2003).
[23] J. McC. Smith, and D. Stotts. SPQR: Flexible Automated Design Pattern Extraction from
Source Code. In Proceedings of the 2003 IEEE International Conference on Automated
Software Engineering, Montreal QC, Canada, October, 2003, pp. 215-224.
[24] Nija Shi and Ronald A. Olsson. Reverse engineering of design patterns from java source
code. In ASE ’06: Proceedings of the 21st IEEE International Conference on Automated
Software Engineering (ASE’06), pages 123–134, Washington, DC, USA, 2006. IEEE
Computer Society.
[25] Y.-G. Guéhéneuc and G. Antoniol, “DeMIMA: A Multi-Layered Framework for Design Pattern
Identification,” IEEE Trans. Software Eng., vol. 34, no. 5, pp. 667-684, Sept./Oct. 2008.
[26] Lucia, A.D., Deufemia, V., Gravino, C., and Risi, M., Design pattern recovery through visual
language parsing and source code analysis, The Journal of Systems and Software, Vol 82,
pp. 1177–1193, 2009.

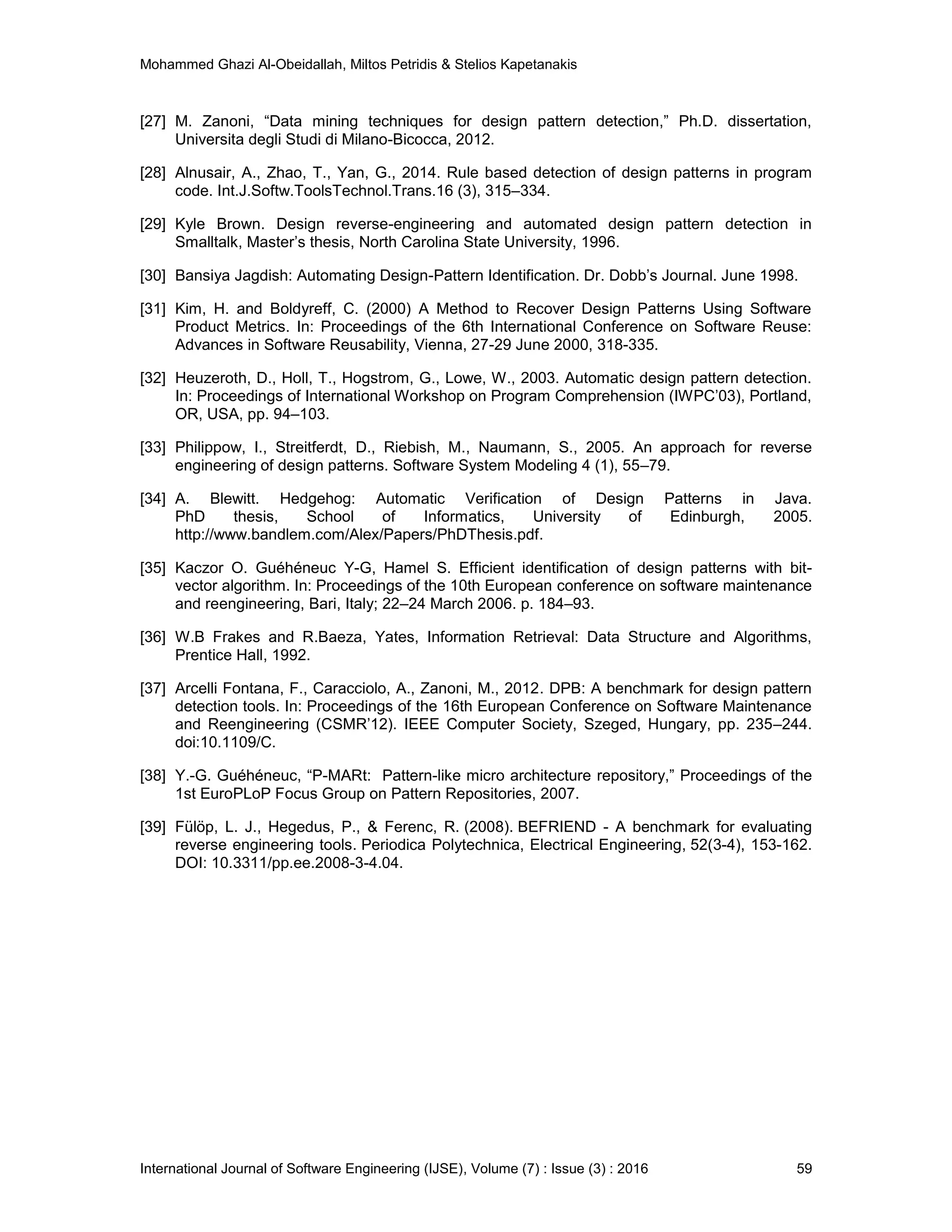

19. Mohammed Ghazi Al-Obeidallah, Miltos Petridis & Stelios Kapetanakis
International Journal of Software Engineering (IJSE), Volume (7) : Issue (3) : 2016 59
[27] M. Zanoni, “Data mining techniques for design pattern detection,” Ph.D. dissertation,
Universita degli Studi di Milano-Bicocca, 2012.
[28] Alnusair, A., Zhao, T., Yan, G., 2014. Rule based detection of design patterns in program
code. Int.J.Softw.ToolsTechnol.Trans.16 (3), 315–334.
[29] Kyle Brown. Design reverse-engineering and automated design pattern detection in
Smalltalk, Master’s thesis, North Carolina State University, 1996.
[30] Bansiya Jagdish: Automating Design-Pattern Identification. Dr. Dobb’s Journal. June 1998.
[31] Kim, H. and Boldyreff, C. (2000) A Method to Recover Design Patterns Using Software
Product Metrics. In: Proceedings of the 6th International Conference on Software Reuse:
Advances in Software Reusability, Vienna, 27-29 June 2000, 318-335.
[32] Heuzeroth, D., Holl, T., Hogstrom, G., Lowe, W., 2003. Automatic design pattern detection.
In: Proceedings of International Workshop on Program Comprehension (IWPC’03), Portland,
OR, USA, pp. 94–103.
[33] Philippow, I., Streitferdt, D., Riebish, M., Naumann, S., 2005. An approach for reverse
engineering of design patterns. Software System Modeling 4 (1), 55–79.
[34] A. Blewitt. Hedgehog: Automatic Verification of Design Patterns in Java.
PhD thesis, School of Informatics, University of Edinburgh, 2005.
http://www.bandlem.com/Alex/Papers/PhDThesis.pdf.
[35] Kaczor O. Guéhéneuc Y-G, Hamel S. Efficient identification of design patterns with bit-
vector algorithm. In: Proceedings of the 10th European conference on software maintenance
and reengineering, Bari, Italy; 22–24 March 2006. p. 184–93.
[36] W.B Frakes and R.Baeza, Yates, Information Retrieval: Data Structure and Algorithms,
Prentice Hall, 1992.
[37] Arcelli Fontana, F., Caracciolo, A., Zanoni, M., 2012. DPB: A benchmark for design pattern
detection tools. In: Proceedings of the 16th European Conference on Software Maintenance
and Reengineering (CSMR’12). IEEE Computer Society, Szeged, Hungary, pp. 235–244.
doi:10.1109/C.
[38] Y.-G. Guéhéneuc, “P-MARt: Pattern-like micro architecture repository,” Proceedings of the
1st EuroPLoP Focus Group on Pattern Repositories, 2007.
[39] Fülöp, L. J., Hegedus, P., & Ferenc, R. (2008). BEFRIEND - A benchmark for evaluating
reverse engineering tools. Periodica Polytechnica, Electrical Engineering, 52(3-4), 153-162.
DOI: 10.3311/pp.ee.2008-3-4.04.
