- 1. Sponsors Meeting 2014 Areview of time‐frequency methods with application to body-wave separation Roberto Henry Herrera, Jean-Baptiste Tary and Mirko van der Baan* University of Alberta, Canada Microseismic Industry Consortium

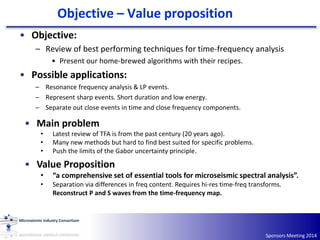

- 2. Objective – Valueproposition Sponsors Meeting 2014 • Objective: – Review of best performing techniques for time-frequency analysis • Present our home-brewed algorithms with their recipes. • Possible applications: – Resonance frequency analysis & LP events. – Represent sharp events. Short duration and low energy. – Separate out close events in time and close frequency components. • Main problem • Latest review of TFA is from the past century (20 years ago). • Many new methods but hard to find best suited for specific problems. • Push the limits of the Gabor uncertainty principle. • Value Proposition • “a comprehensive set of essential tools for microseismic spectral analysis”. • Separation via differences in freq content. Requires hi-res time-freq transforms. Reconstruct P and S waves from the time-frequency map.

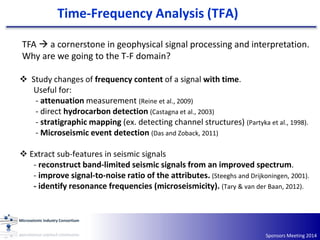

- 3. Sponsors Meeting 2014 TFA a cornerstone in geophysical signal processing and interpretation. Why are we going to the T-F domain? Study changes of frequency content of a signal with time. Useful for: - attenuation measurement (Reine et al., 2009) - direct hydrocarbon detection (Castagna et al., 2003) - stratigraphic mapping (ex. detecting channel structures) (Partyka et al., 1998). - Microseismic event detection (Das and Zoback, 2011) Extract sub-features in seismic signals - reconstruct band‐limited seismic signals from an improved spectrum. - improve signal-to-noise ratio of the attributes. (Steeghs and Drijkoningen, 2001). - identify resonance frequencies (microseismicity). (Tary & van der Baan, 2012). Time-Frequency Analysis (TFA)
- 4. Sponsors Meeting 2014 Motivation:The last 10-15 years have seen the development of many new high-resolution decompositions Fourier and Wavelet Transforms. The “workhorses” of spectral analysis Methods 1. Short-time Fourier Transform (STFT) 2. Continuous Wavelet Transform (CWT) 3. Stockwell Transform (ST) 4. Matching Pursuit (MP) 5. Synchrosqueezing Transform (SST) 6. Short-time Autoregressive (ST-AR) 7. Kalman Smoother (KS) 8. Empirical mode decomposition (EMD) Benchmark signals 1. A Toy Example – Synthetic signal. 2. A laughing voice. 3. A volcano tectonic event – Gliding tremor. (Redoubt Volcano on March 31, 2009). 4. A microseismic event. (Rolla HyFrac. 2011) 5. And a global earthquake signal (Tohoku 2011, Mw9) “A comprehensive set of essential tools for microseismic spectral analysis” The review: Chapter 2: Spectral estimation – What’s new? What’s next?

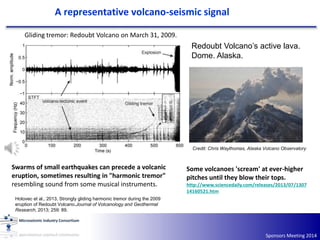

- 5. Sponsors Meeting 2014 Arepresentative volcano-seismic signal Gliding tremor: Redoubt Volcano on March 31, 2009. Some volcanoes 'scream' at ever-higher pitches until they blow their tops. http://www.sciencedaily.com/releases/2013/07/1307 14160521.htm Hotovec et al., 2013, Strongly gliding harmonic tremor during the 2009 eruption of Redoubt Volcano.Journal of Volcanology and Geothermal Research, 2013; 259: 89. Redoubt Volcano’s active lava. Dome. Alaska. Credit: Chris Waythomas, Alaska Volcano Observatory Swarms of small earthquakes can precede a volcanic eruption, sometimes resulting in "harmonic tremor" resembling sound from some musical instruments.

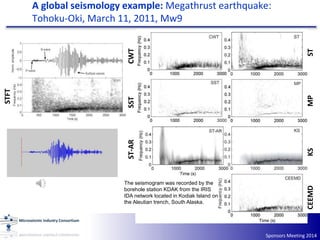

- 6. Sponsors Meeting 2014 Aglobal seismology example: Megathrust earthquake: Tohoku-Oki, March 11, 2011, Mw9 STFT SSTCWT MPST ST-AR KSCEEMD The seismogram was recorded by the borehole station KDAK from the IRIS IDA network located in Kodiak Island on the Aleutian trench, South Alaska.

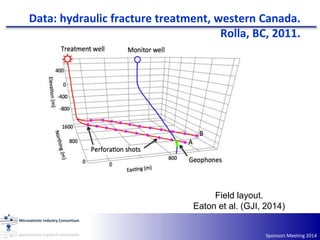

- 7. Sponsors Meeting 2014 Data:hydraulic fracture treatment, western Canada. Rolla, BC, 2011. Field layout. Eaton et al. (GJI, 2014)

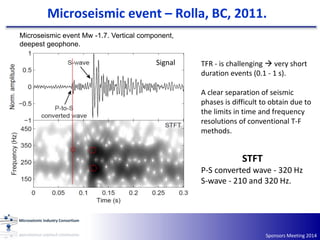

- 8. Sponsors Meeting 2014 Microseismicevent – Rolla, BC, 2011. STFT P-S converted wave - 320 Hz S-wave - 210 and 320 Hz. Signal TFR - is challenging very short duration events (0.1 - 1 s). A clear separation of seismic phases is difficult to obtain due to the limits in time and frequency resolutions of conventional T-F methods. Microseismic event Mw -1.7. Vertical component, deepest geophone.

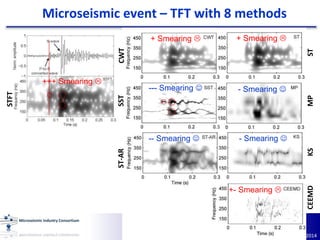

- 9. Sponsors Meeting 2014 Microseismicevent – TFT with 8 methods +++ Smearing + Smearing + Smearing STFT SSTCWT MPST ST-AR KSCEEMD --- Smearing -- Smearing - Smearing - Smearing +- Smearing

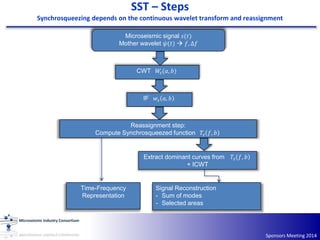

- 10. SST – Steps Synchrosqueezingdepends on the continuous wavelet transform and reassignment Sponsors Meeting 2014 Microseismic signal 𝑠(𝑡) Mother wavelet 𝜓(𝑡) 𝑓, Δ𝑓 CWT 𝑊𝑠(𝑎, 𝑏) IF 𝑤𝑠 𝑎, 𝑏 Reassignment step: Compute Synchrosqueezed function 𝑇𝑠 𝑓, 𝑏 Extract dominant curves from 𝑇𝑠 𝑓, 𝑏 + ICWT Time-Frequency Representation Signal Reconstruction - Sum of modes - Selected areas

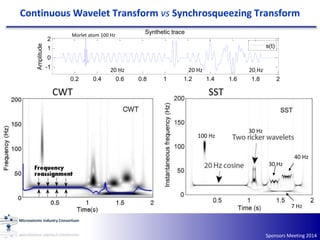

- 11. Continuous Wavelet Transformvs Synchrosqueezing Transform Sponsors Meeting 2014 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 -1 0 1 2Amplitude Synthetic trace s(t) CWT SST 100 Hz 30 Hz 7 Hz 30 Hz 40 Hz 20 Hz 20 Hz 20 Hz Morlet atom 100 Hz

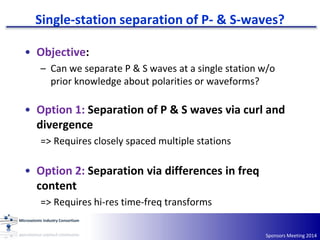

- 12. Single-station separation ofP- & S-waves? Sponsors Meeting 2014 • Objective: – Can we separate P & S waves at a single station w/o prior knowledge about polarities or waveforms? • Option 1: Separation of P & S waves via curl and divergence => Requires closely spaced multiple stations • Option 2: Separation via differences in freq content => Requires hi-res time-freq transforms

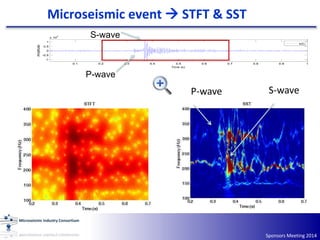

- 13. Microseismic event STFT & SST 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 -1 -0.5 0 0.5 1 x 10 4 Amplitude Time (s) s(t) S-wave P-wave P-wave S-wave Sponsors Meeting 2014

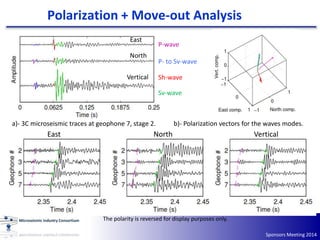

- 14. Sponsors Meeting 2014 Polarization+ Move-out Analysis East North Vertical P-wave Sh-wave Sv-wave P- to Sv-wave a)- 3C microseismic traces at geophone 7, stage 2. b)- Polarization vectors for the waves modes. The polarity is reversed for display purposes only. East North Vertical

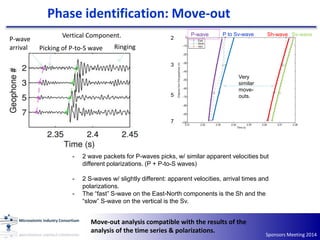

- 15. Sponsors Meeting 2014 Phaseidentification: Move-out Vertical Component. Ringing P-wave arrival Picking of P-to-S wave P-wave Sh-wave Sv-waveP to Sv-wave 2 3 5 7 Very similar move- outs. - 2 wave packets for P-waves picks, w/ similar apparent velocities but different polarizations. (P + P-to-S waves) - 2 S-waves w/ slightly different: apparent velocities, arrival times and polarizations. - The “fast” S-wave on the East-North components is the Sh and the “slow” S-wave on the vertical is the Sv. Move-out analysis compatible with the results of the analysis of the time series & polarizations.

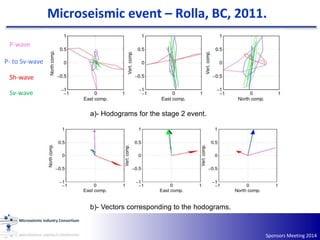

- 16. Sponsors Meeting 2014 Microseismicevent – Rolla, BC, 2011. a)- Hodograms for the stage 2 event. b)- Vectors corresponding to the hodograms. P-wave Sh-wave Sv-wave P- to Sv-wave

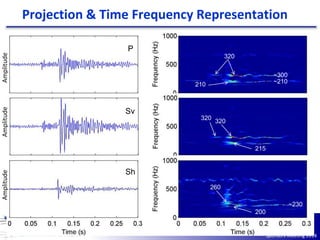

- 17. Sponsors Meeting 2014 Projection& Time Frequency Representation 320 210 ~210 ~300 215 320 320 200 260 ~230 P Sv Sh AmplitudeAmplitudeAmplitude
- 18.
- 19. Sponsors Meeting 2014 P-waveS-wave 0.325 0.33 0.335 0.34 0.345 0.35 200 250 300 350 Frequency(Hz) 0.325 0.33 0.335 0.34 0.345 0.35 -2000 0 2000 Amplitude Time(s) s(t) sr (t) 0.36 0.365 0.37 0.375 0.38 0.385 0.39 200 250 300 350 Frequency(Hz) 0.36 0.365 0.37 0.375 0.38 0.385 0.39 -1 0 1 x 10 4 Amplitude Time(s) s(t) sr (t) Signal extraction from time-freq map

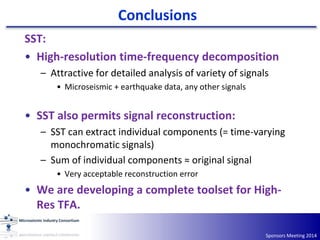

- 20. Conclusions Sponsors Meeting 2014 SST: •High-resolution time-frequency decomposition – Attractive for detailed analysis of variety of signals • Microseismic + earthquake data, any other signals • SST also permits signal reconstruction: – SST can extract individual components (= time-varying monochromatic signals) – Sum of individual components ≈ original signal • Very acceptable reconstruction error • We are developing a complete toolset for High- Res TFA.
- 21. Acknowledgments Sponsors Meeting 2014 •Sponsors of the Microseismic Industry Consortium for financial support • David Eaton: – For providing microseismic data • Sergey Fomel: – For many encouraging discussions on SST and P/S wave separation • Melanie Grob and Shawn Maxwell: – For their interesting suggestions that helped to improve the interpretation of our results.
- 22. Conclusions Sponsors Meeting 2014 SST: •High-resolution time-frequency decomposition – Attractive for detailed analysis of variety of signals • Microseismic + earthquake data, any other signals • SST also permits signal reconstruction: – SST can extract individual components (= time-varying monochromatic signals) – Sum of individual components ≈ original signal • Very acceptable reconstruction error • We are developing a complete toolset for High- Res TFA.

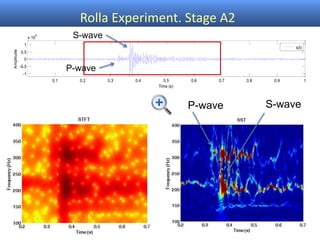

- 23. Rolla Experiment. StageA2 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 -1 -0.5 0 0.5 1 x 10 4 Amplitude Time (s) s(t) S-wave P-wave P-wave S-wave

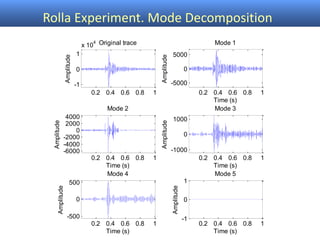

- 24. Rolla Experiment. ModeDecomposition 0.2 0.4 0.6 0.8 1 -1 0 1 x 10 4 Original trace Amplitude 0.2 0.4 0.6 0.8 1 -5000 0 5000 Mode 1 Amplitude Time (s) 0.2 0.4 0.6 0.8 1 -6000 -4000 -2000 0 2000 4000 Mode 2 Amplitude Time (s) 0.2 0.4 0.6 0.8 1 -1000 0 1000 Mode 3 Amplitude Time (s) 0.2 0.4 0.6 0.8 1 -500 0 500 Mode 4 Amplitude Time (s) 0.2 0.4 0.6 0.8 1 -1 0 1 Mode 5Amplitude Time (s)

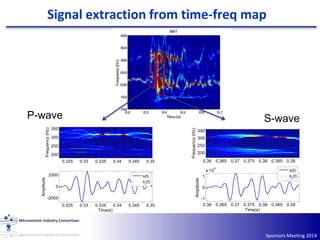

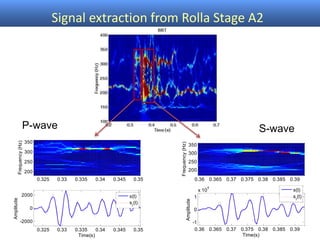

- 25. Signal extraction fromRolla Stage A2 P-wave S-wave 0.325 0.33 0.335 0.34 0.345 0.35 200 250 300 350 Frequency(Hz) 0.325 0.33 0.335 0.34 0.345 0.35 -2000 0 2000 Amplitude Time(s) s(t) sr (t) 0.36 0.365 0.37 0.375 0.38 0.385 0.39 200 250 300 350 Frequency(Hz) 0.36 0.365 0.37 0.375 0.38 0.385 0.39 -1 0 1 x 10 4Amplitude Time(s) s(t) sr (t)

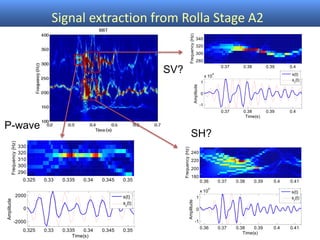

- 26. P-wave SH? 0.325 0.33 0.3350.34 0.345 0.35 290 300 310 320 330 Frequency(Hz) 0.325 0.33 0.335 0.34 0.345 0.35 -2000 0 2000 Amplitude Time(s) s(t) sr (t) 0.36 0.37 0.38 0.39 0.4 0.41 180 200 220 240 Frequency(Hz) 0.36 0.37 0.38 0.39 0.4 0.41 -1 0 1 x 10 4 Amplitude Time(s) s(t) sr (t) 0.37 0.38 0.39 0.4 280 300 320 340 Frequency(Hz) 0.37 0.38 0.39 0.4 -1 0 1 x 10 4 Amplitude Time(s) s(t) sr (t) SV? Signal extraction from Rolla Stage A2

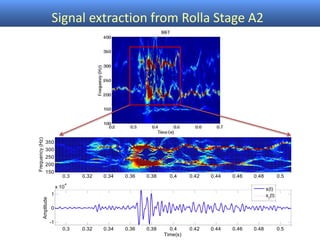

- 27. 0.3 0.32 0.340.36 0.38 0.4 0.42 0.44 0.46 0.48 0.5 150 200 250 300 350 Frequency(Hz) 0.3 0.32 0.34 0.36 0.38 0.4 0.42 0.44 0.46 0.48 0.5 -1 0 1 x 10 4 Amplitude Time(s) s(t) sr (t) Signal extraction from Rolla Stage A2
- 28. Rolla Experiment. WellA Stage 3 Fig 11. Eaton et. al., 2014 0 0.5 1 1.5 -2 0 2 x 10 -7 Amplitude Time(s) s(t) S-wave P-wave P S Time-Frequency Rep. by SST Scattered waves?

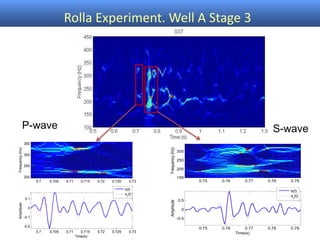

- 29. Rolla Experiment. WellA Stage 3 0.7 0.705 0.71 0.715 0.72 0.725 0.73 200 250 300 350 Frequency(Hz) 0.7 0.705 0.71 0.715 0.72 0.725 0.73 -0.2 -0.1 0 0.1 Amplitude Time(s) s(t) s r (t) P-wave 0.75 0.76 0.77 0.78 0.79 150 200 250 300 Frequency(Hz) 0.75 0.76 0.77 0.78 0.79 -0.5 0 0.5 Amplitude Time(s) s(t) sr (t) S-wave
- 30. Rolla Experiment. StageA3 East North Vert. P-wave Sh-wave Sv-wave Vectors corresponding to the hodograms The three phases P, Sv, and Sh are approximately mutually perpendicular.

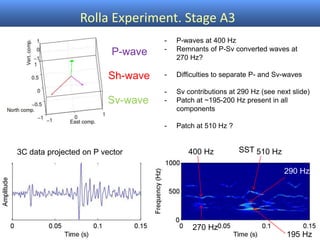

- 31. Rolla Experiment. StageA3 P-wave Sh-wave Sv-wave 3C data projected on P vector SST 510 Hz400 Hz 270 Hz 290 Hz 195 Hz - P-waves at 400 Hz - Remnants of P-Sv converted waves at 270 Hz? - Difficulties to separate P- and Sv-waves - Sv contributions at 290 Hz (see next slide) - Patch at ~195-200 Hz present in all components - Patch at 510 Hz ?

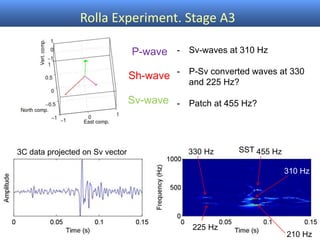

- 32. Rolla Experiment. StageA3 P-wave Sh-wave Sv-wave 3C data projected on Sv vector SST 455 Hz330 Hz 225 Hz 310 Hz 210 Hz - Sv-waves at 310 Hz - P-Sv converted waves at 330 and 225 Hz? - Patch at 455 Hz?

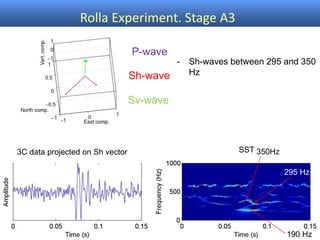

- 33. Rolla Experiment. StageA3 P-wave Sh-wave Sv-wave 3C data projected on Sh vector SST 350Hz 295 Hz 190 Hz - Sh-waves between 295 and 350 Hz

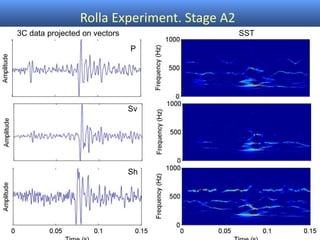

- 34. Rolla Experiment. StageA2 3C data projected on vectors SST P Sv Sh

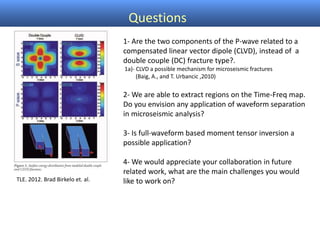

- 35. Questions TLE. 2012. BradBirkelo et. al. 1- Are the two components of the P-wave related to a compensated linear vector dipole (CLVD), instead of a double couple (DC) fracture type?. 1a)- CLVD a possible mechanism for microseismic fractures (Baig, A., and T. Urbancic ,2010) 2- We are able to extract regions on the Time-Freq map. Do you envision any application of waveform separation in microseismic analysis? 3- Is full-waveform based moment tensor inversion a possible application? 4- We would appreciate your collaboration in future related work, what are the main challenges you would like to work on?

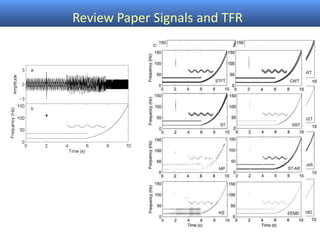

- 36. Review Paper Signalsand TFR

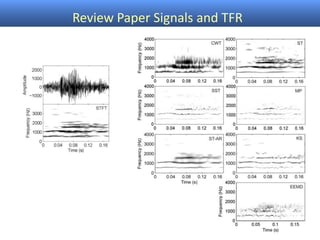

- 37. Review Paper Signalsand TFR
