1. WELCOME
We are representing the
MECHANICAL (CAD),2nd
Year, with the topic Boiler.
Presented
By : -
1. Kishan
Maurya
2. Ashutosh Shukla
3. Dhananjay

2. BOILERBOILER
MechanicalMechanical 22
IntroductionIntroduction
Classification of boilersClassification of boilers
Boiler Mountings & AccessoriesBoiler Mountings & Accessories
Advantage of boilersAdvantage of boilers
Disadvantage of boilersDisadvantage of boilers
ConclusionConclusion

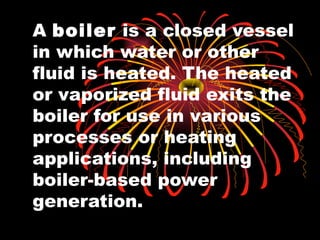

3. A boiler is a closed vessel
in which water or other
fluid is heated. The heated
or vaporized fluid exits the
boiler for use in various
processes or heating
applications, including
boiler-based power
generation.

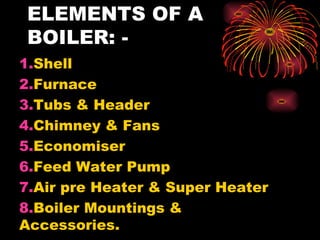

4. ELEMENTS OF A
BOILER: -
1.Shell
2.Furnace
3.Tubs & Header
4.Chimney & Fans
5.Economiser
6.Feed Water Pump
7.Air pre Heater & Super Heater
8.Boiler Mountings &
Accessories.

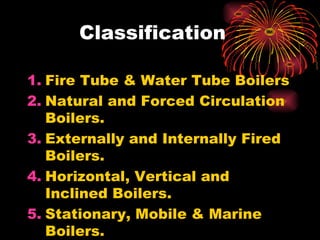

5. Classification
1. Fire Tube & Water Tube Boilers
2. Natural and Forced Circulation
Boilers.
3. Externally and Internally Fired
Boilers.
4. Horizontal, Vertical and
Inclined Boilers.
5. Stationary, Mobile & Marine
Boilers.

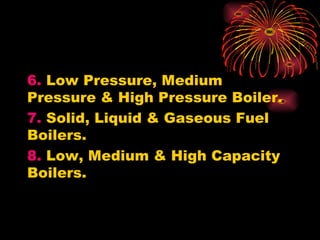

6. 6. Low Pressure, Medium
Pressure & High Pressure Boiler.
7. Solid, Liquid & Gaseous Fuel
Boilers.
8. Low, Medium & High Capacity
Boilers.

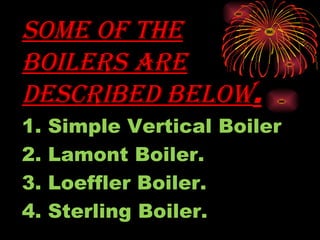

7. SOME OF THESOME OF THE
BOILERS AREBOILERS ARE
DESCRIBED BELOWDESCRIBED BELOW.

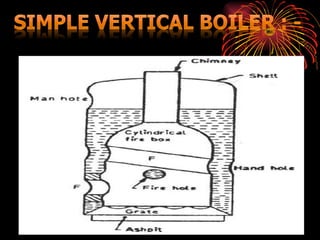

1. Simple Vertical Boiler
2. Lamont Boiler.

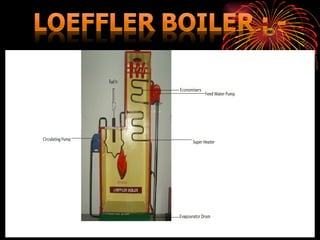

3. Loeffler Boiler.
4. Sterling Boiler.

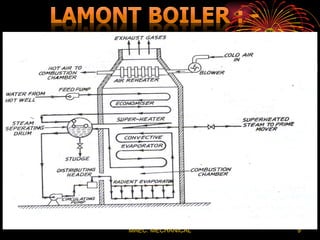

9. MAEC. MECHANICAL 9

11. MAEC. MECHANICAL 11

12. MAEC. MECHANICAL 12

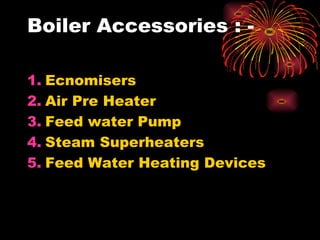

15. Boiler Accessories : -

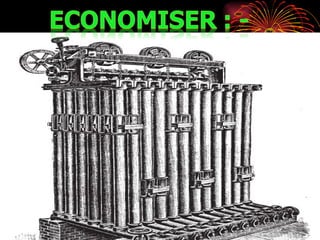

1. Ecnomisers
2. Air Pre Heater
3. Feed water Pump
4. Steam Superheaters
5. Feed Water Heating Devices

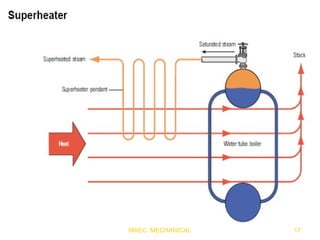

17. MAEC. MECHANICAL 17

18. MAEC. MECHANICAL 18

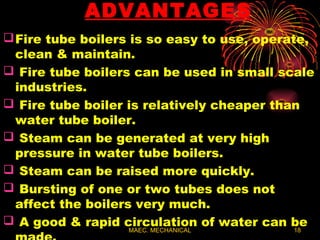

ADVANTAGES
Fire tube boilers is so easy to use, operate,
clean & maintain.
 Fire tube boilers can be used in small scale
industries.
 Fire tube boiler is relatively cheaper than
water tube boiler.
 Steam can be generated at very high
pressure in water tube boilers.
 Steam can be raised more quickly.
 Bursting of one or two tubes does not
affect the boilers very much.
 A good & rapid circulation of water can be

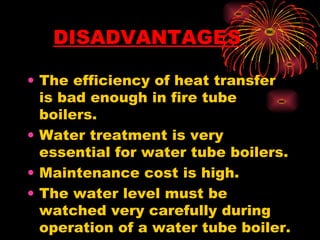

19. • The efficiency of heat transfer
is bad enough in fire tube
boilers.
• Water treatment is very
essential for water tube boilers.
• Maintenance cost is high.
• The water level must be
watched very carefully during
operation of a water tube boiler.
DISADVANTAGES

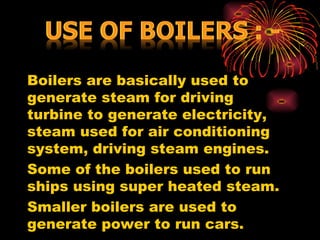

20. Boilers are basically used to
generate steam for driving
turbine to generate electricity,
steam used for air conditioning
system, driving steam engines.
Some of the boilers used to run
ships using super heated steam.
Smaller boilers are used to
generate power to run cars.

21. Conclusion : -
In this time Boiler is a only way to get
cheap working substance to produce
the energy. Some time It’s become very
useful for many purpose of work.
