The document discusses a new code model for software quality that encompasses both internal and external aspects, emphasizing continuous inspection as a critical part of the software development life cycle. It outlines how to define the context and range of source repositories, along with the creation of a comprehensive rule set for various programming languages. Additionally, it addresses components of the code model, including design, architecture compliance, and crucial processes like continuous integration and inspection.

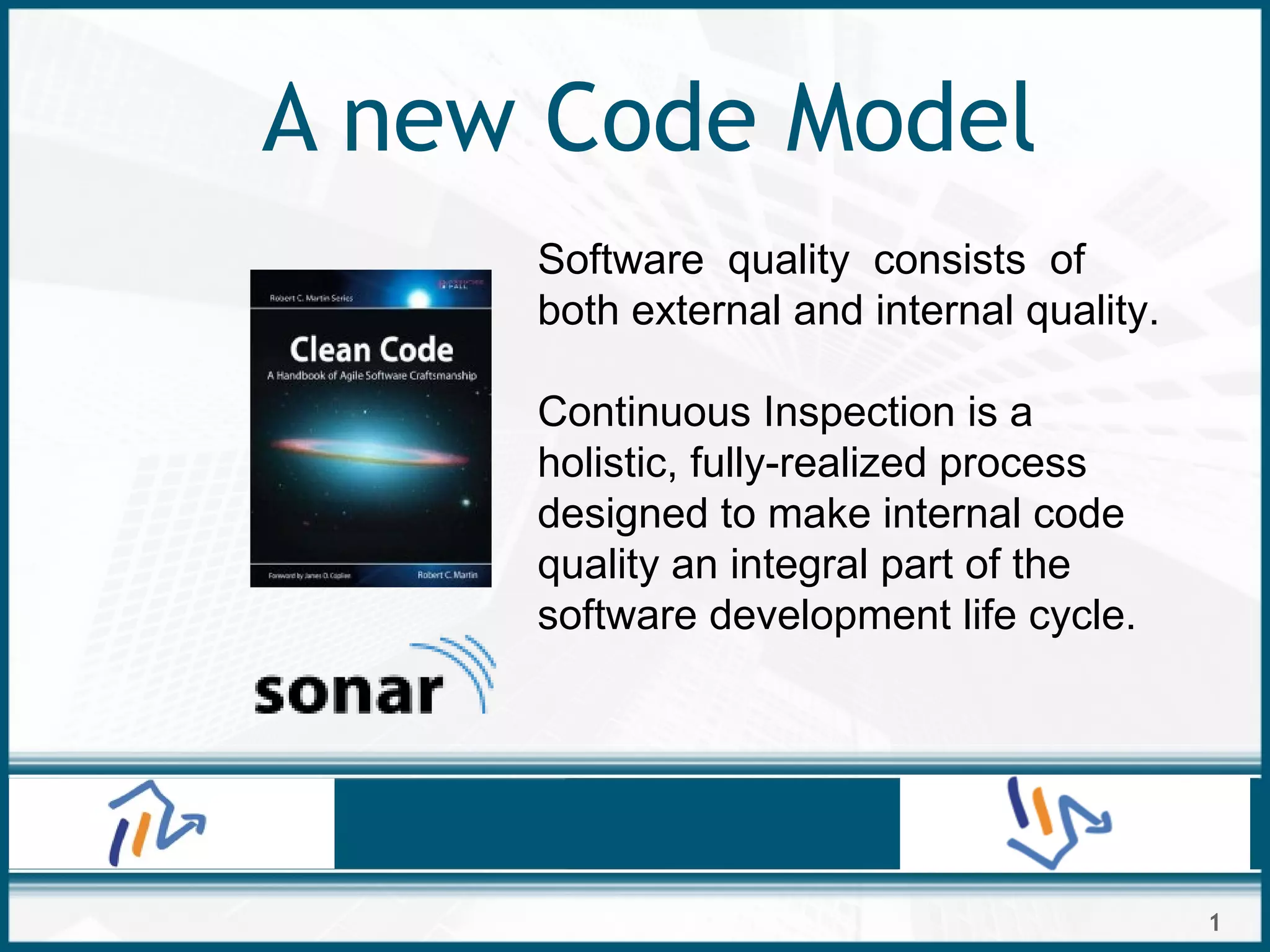

1. 1
A new Code Model
Software quality consists of
both external and internal quality.
Continuous Inspection is a
holistic, fully-realized process
designed to make internal code
quality an integral part of the
software development life cycle.

2. 2
Define a
Context, Range
and Scope of
the Source
Repository
max@kleiner.ch

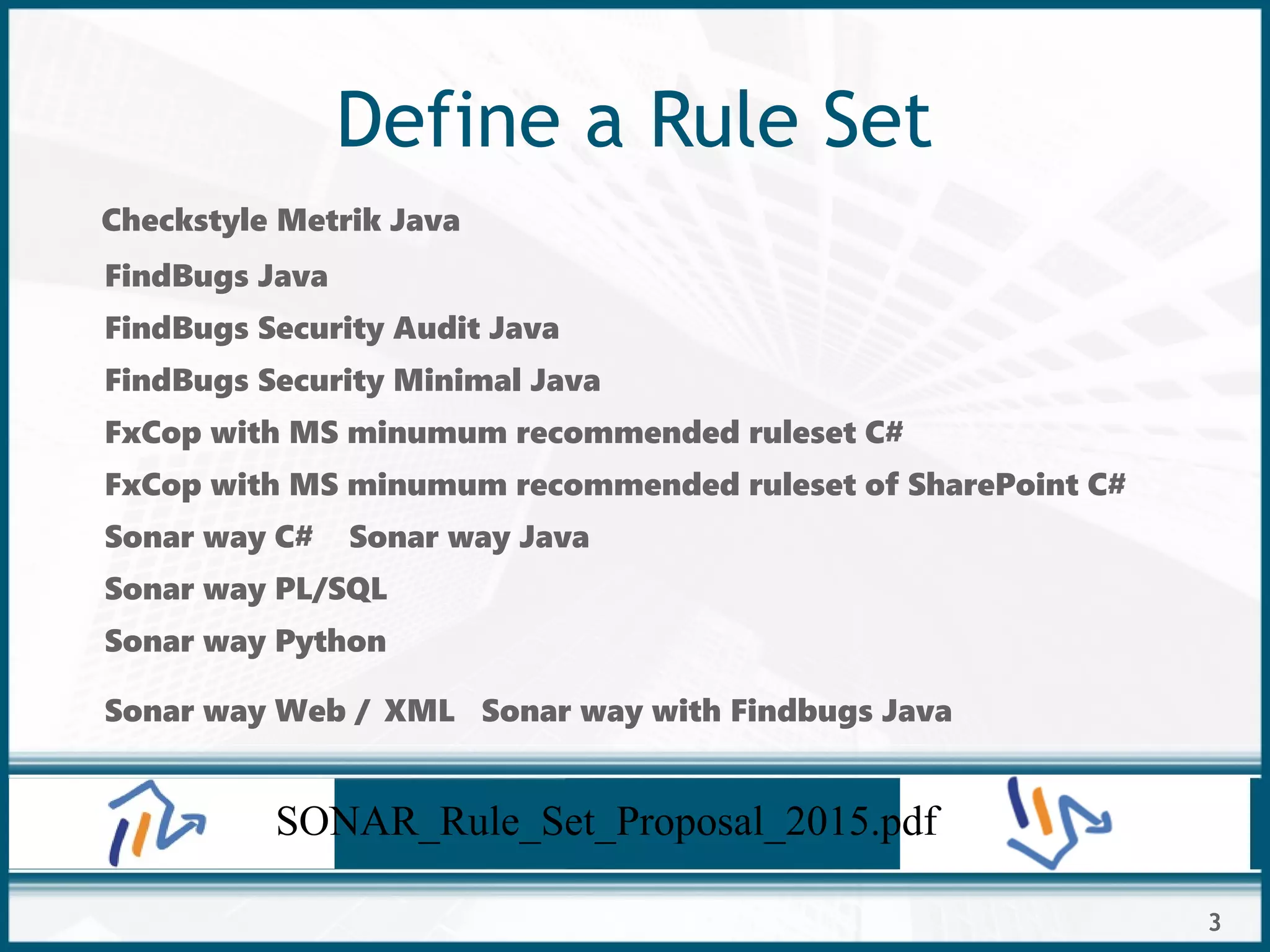

3. 3
Define a Rule Set
Checkstyle Metrik Java
FindBugs Java
FindBugs Security Audit Java
FindBugs Security Minimal Java
FxCop with MS minumum recommended ruleset C#
FxCop with MS minumum recommended ruleset of SharePoint C#
Sonar way C# Sonar way Java
Sonar way PL/SQL
Sonar way Python
Sonar way Web / XML Sonar way with Findbugs Java
SONAR_Rule_Set_Proposal_2015.pdf

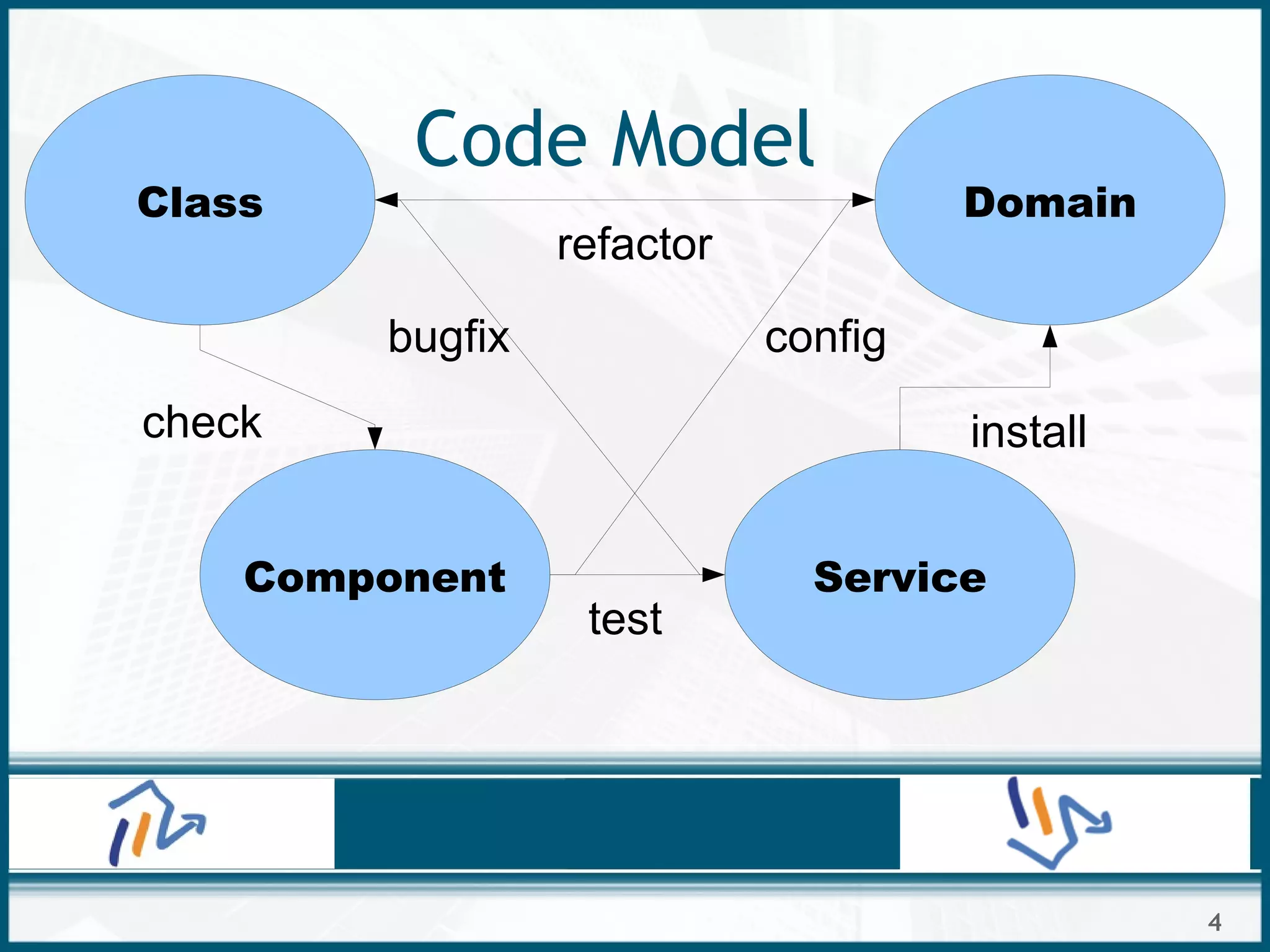

4. 4
Code Model
Class Domain
Component Service
refactor
test
check install
bugfix config

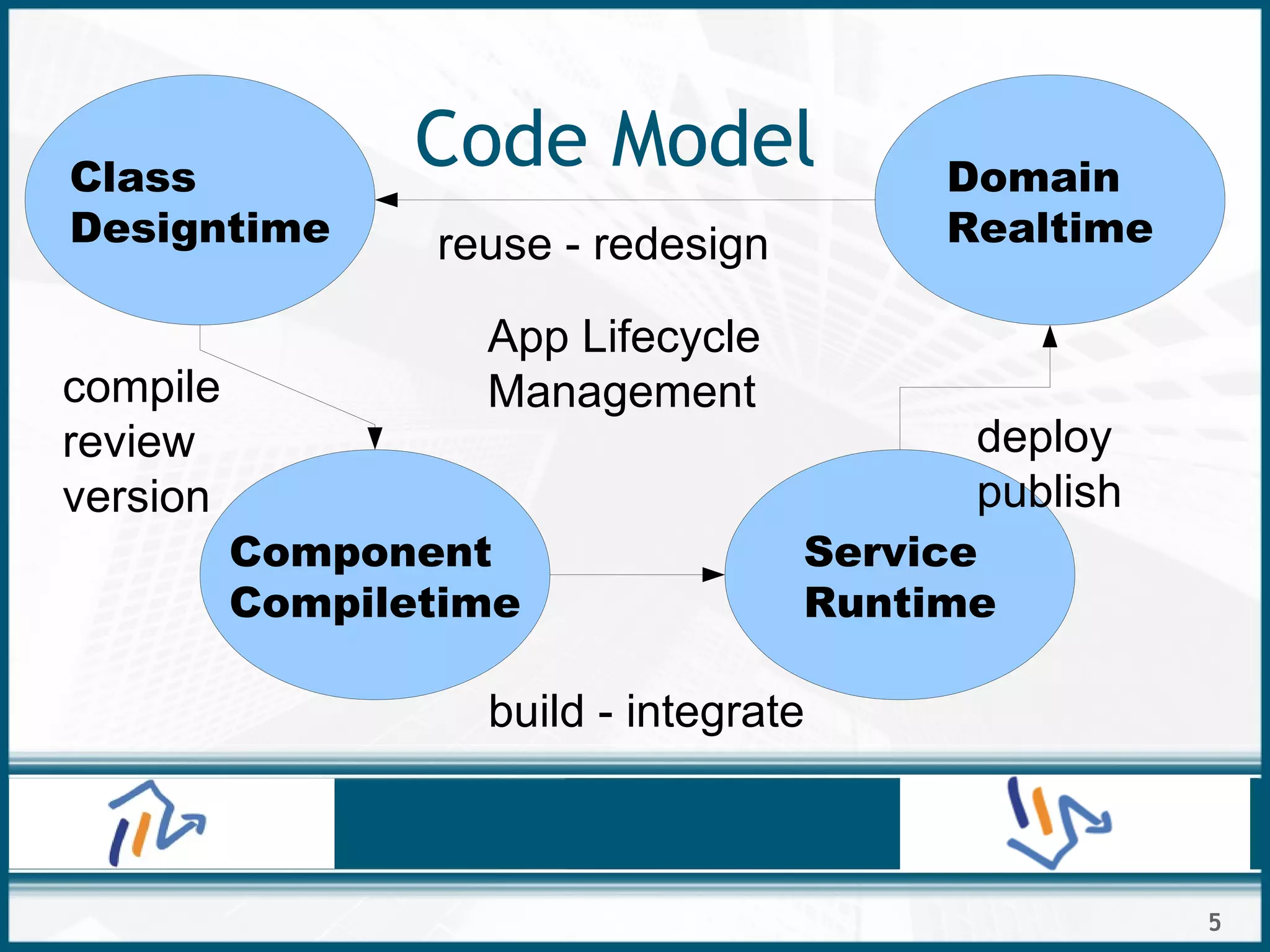

5. 5
Code ModelClass
Designtime
Domain
Realtime
Component
Compiletime
Service
Runtime
reuse - redesign
build - integrate
compile
review
version
deploy
publish
App Lifecycle
Management

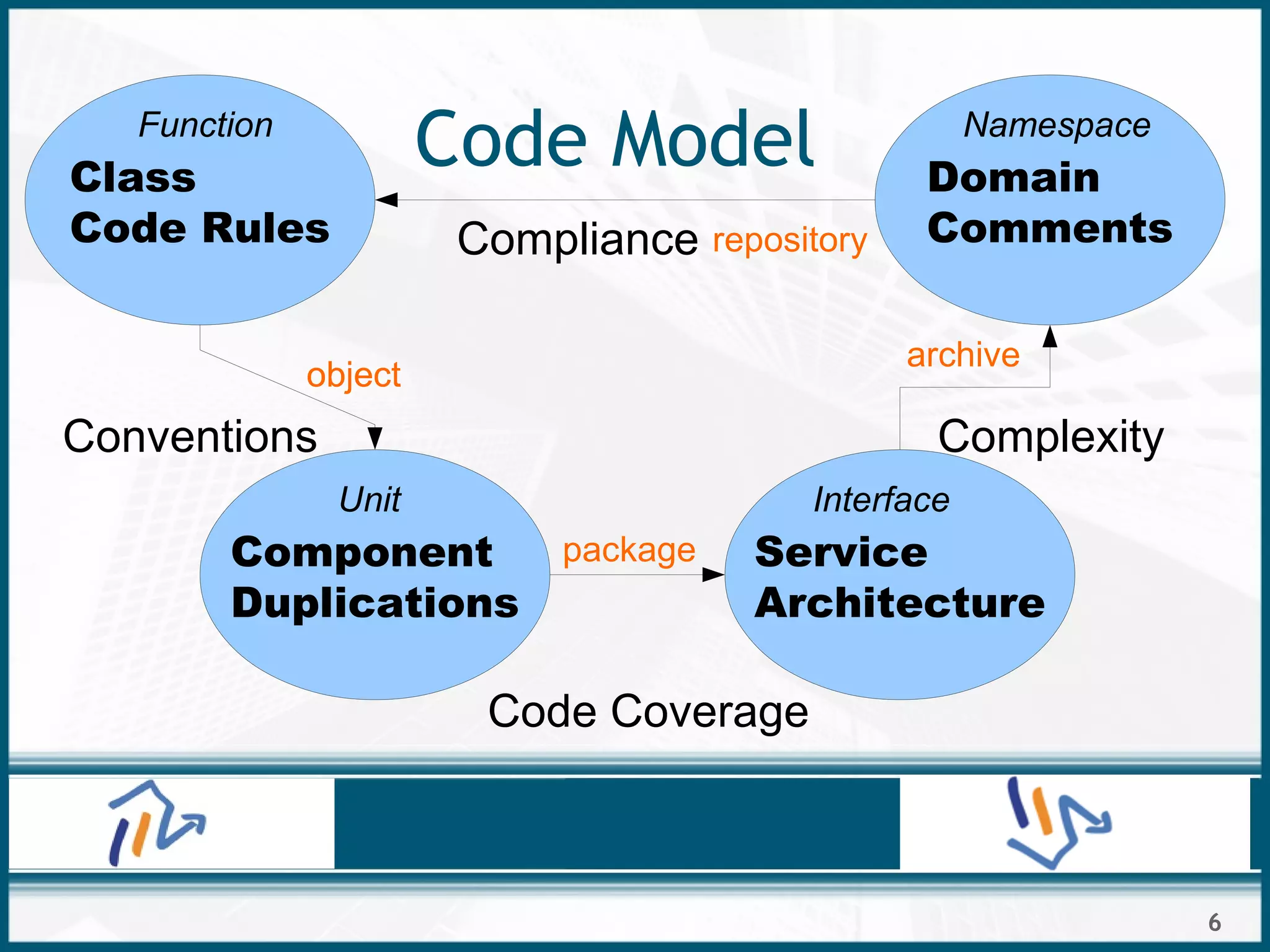

6. 6
Code ModelClass
Code Rules
Domain
Comments
Component
Duplications
Service
Architecture
Compliance
Code Coverage
Conventions Complexity
Function Namespace
Unit Interface
objectobjectobject
repository
archive
package

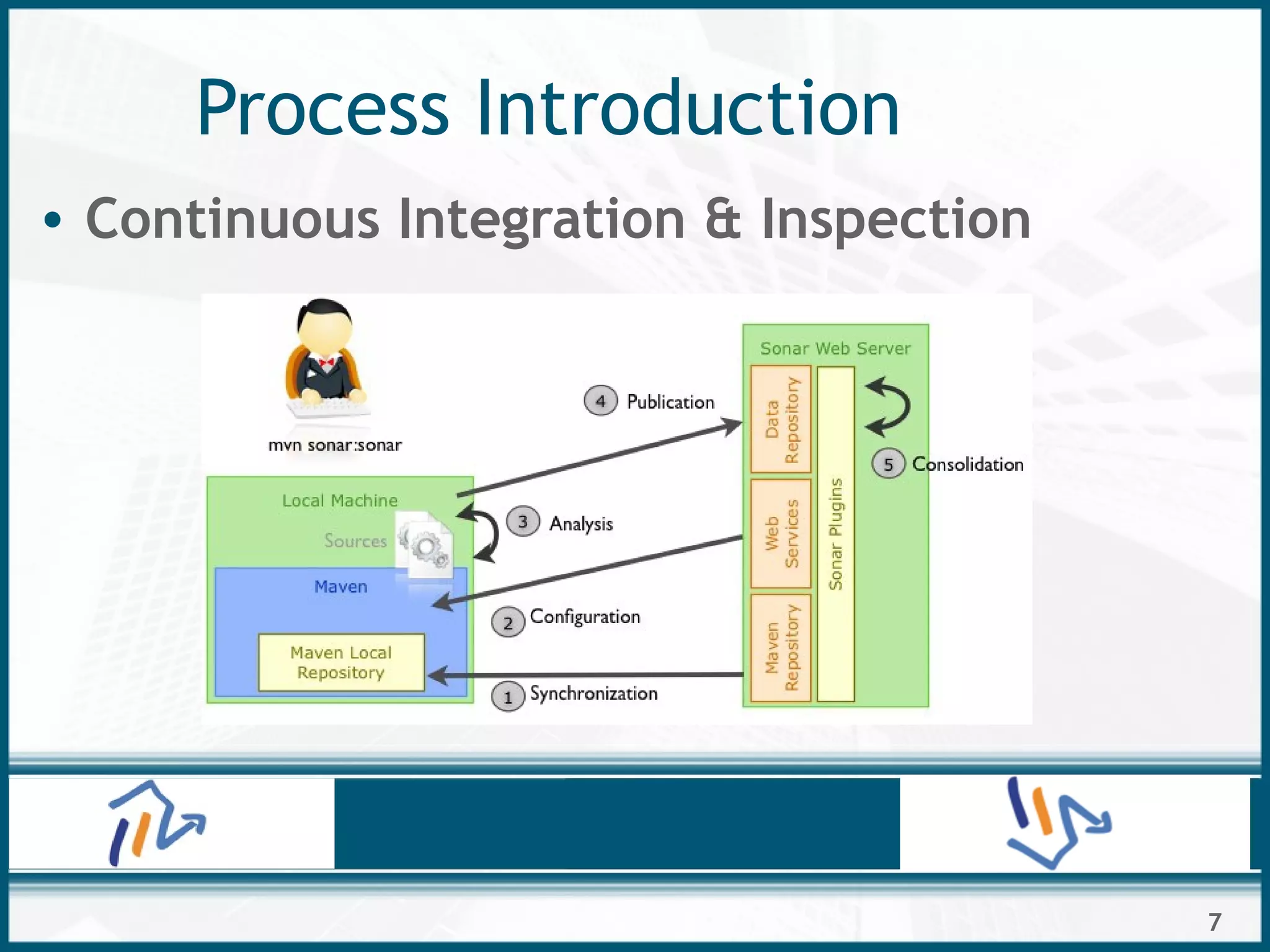

7. 7
Process Introduction
• Continuous Integration & Inspection

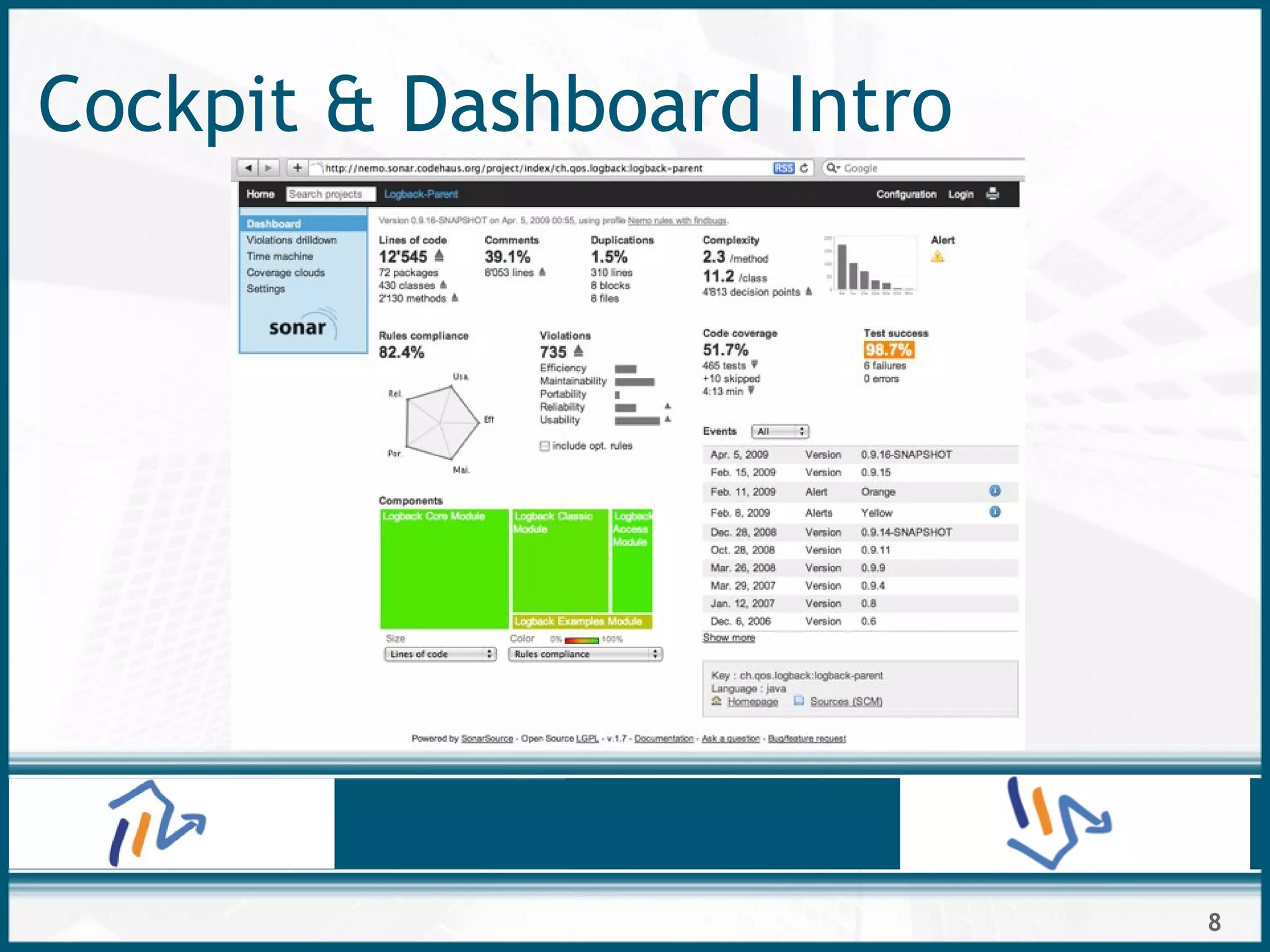

8. 8
Cockpit & Dashboard Intro
