This document discusses using native code in Android applications. It covers compiling C/C++ code into native shared libraries (.so files) using the Android NDK, mapping native functions to Java using the Java Native Interface (JNI), and some performance and security considerations for using native code. Specifically, it addresses loading native libraries from Java, calling Java methods from native code, and accessing Java strings from native code using JNI functions.

1. Native code in Android
applications

2. My projects using NDK

3. Yumm
Low memory overhead for image decoding

4. Hudriks Math
cocos2d-x; cross-platform: iOS and Android

5. Secure Video Player
Critical DRM code; cross-platform code (iOS/Android/Linux/OS X/Windows);
high-performance

6. Overview

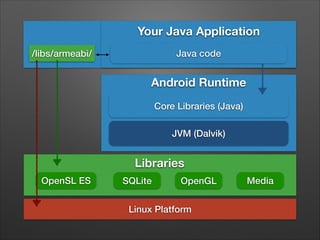

7. Your Java Application
Java code
/libs/armeabi/
Android Runtime
Core Libraries (Java)
JVM (Dalvik)
Libraries
OpenSL ES
SQLite
OpenGL
Linux Platform
Media

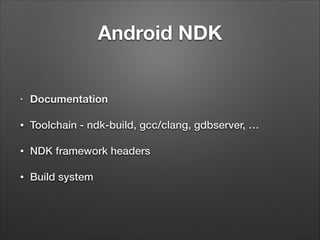

8. Android NDK
•
Documentation
•
Toolchain - ndk-build, gcc/clang, gdbserver, …
•
NDK framework headers
•
Build system

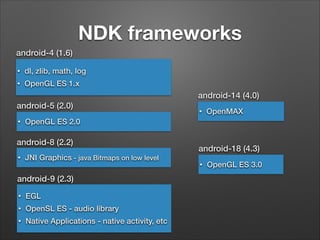

9. NDK frameworks
android-4 (1.6)
•
dl, zlib, math, log
•
OpenGL ES 1.x
android-14 (4.0)
android-5 (2.0)
•
OpenMAX
OpenGL ES 2.0
android-8 (2.2)
•
•
JNI Graphics - java Bitmaps on low level
android-9 (2.3)
•
EGL
•
OpenSL ES - audio library
•
Native Applications - native activity, etc
android-18 (4.3)
•
OpenGL ES 3.0

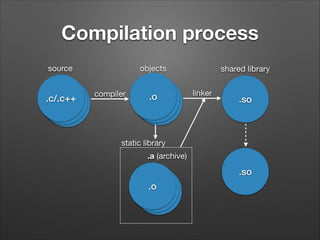

10. Compilation process
source
.c/.c++
.o
.o
objects
compiler
.o
.o
.o
shared library
linker
.so
static library
.a (archive)
.so
.o
.o
.o

11. Application structure
•
jni/ (source code)
•
Android.mk
•
[Application.mk]
•
module1/
•
•
Android.mk
libs/armeabi/libnative.so - compiled shared library

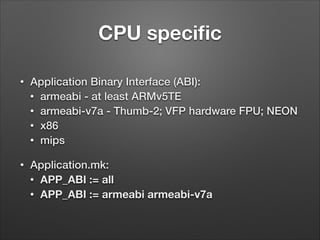

12. CPU specific
•
Application Binary Interface (ABI):
• armeabi - at least ARMv5TE
• armeabi-v7a - Thumb-2; VFP hardware FPU; NEON
• x86
• mips
•
Application.mk:
• APP_ABI := all
• APP_ABI := armeabi armeabi-v7a

13. Java Native Interface

14. JNI in C and C++
#include <jni.h>
C
struct JNINativeInterface {
jclass
(*FindClass)(JNIEnv*, const char*);
}
typedef const struct JNINativeInterface* JNIEnv;
!
JNIEnv* env;
(*env)->FindClass(env, “classname”);

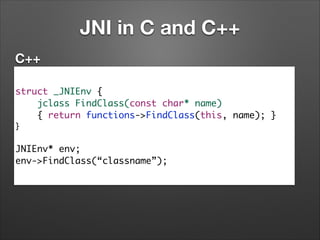

15. JNI in C and C++
C++
struct _JNIEnv {
jclass FindClass(const char* name)
{ return functions->FindClass(this, name); }
}
!
JNIEnv* env;
env->FindClass(“classname”);

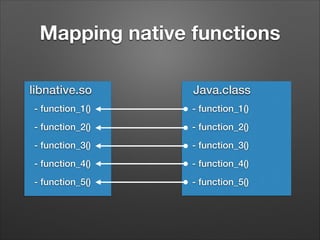

16. Mapping native functions
libnative.so
Java.class
- function_1()
- function_1()
- function_2()
- function_2()
- function_3()
- function_3()
- function_4()
- function_4()
- function_5()
- function_5()

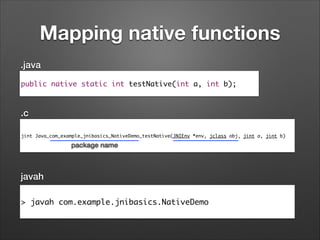

17. Mapping native functions
.java
public native static int testNative(int a, int b);
.c
jint Java_com_example_jnibasics_NativeDemo_testNative(JNIEnv *env, jclass obj, jint a, jint b)
package name
javah
> javah com.example.jnibasics.NativeDemo

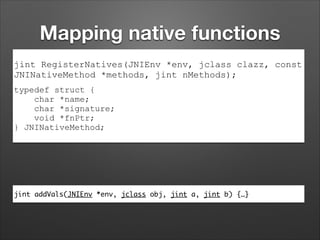

18. Mapping native functions
jint RegisterNatives(JNIEnv *env, jclass clazz, const
JNINativeMethod *methods, jint nMethods);
typedef struct {
char *name;
char *signature;
void *fnPtr;
} JNINativeMethod;
jint addVals(JNIEnv *env, jclass obj, jint a, jint b) {…}

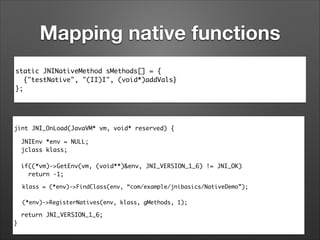

19. Mapping native functions
static JNINativeMethod sMethods[] = {
{"testNative", "(II)I", (void*)addVals}
};
jint JNI_OnLoad(JavaVM* vm, void* reserved) {
JNIEnv *env = NULL;
jclass klass;
if((*vm)->GetEnv(vm, (void**)&env, JNI_VERSION_1_6) != JNI_OK)
return -1;
!
klass = (*env)->FindClass(env, “com/example/jnibasics/NativeDemo”);
(*env)->RegisterNatives(env, klass, gMethods, 1);
!
return JNI_VERSION_1_6;
}

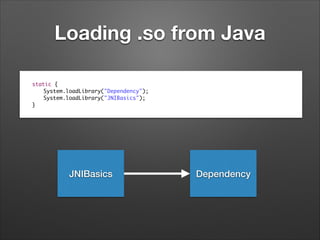

20. Loading .so from Java
static {
static {
System.loadLibrary("Dependency");
System.loadLibrary("JNIBasics");
System.loadLibrary("JNIBasics");
}
}
JNIBasics
Dependency

21. Demo

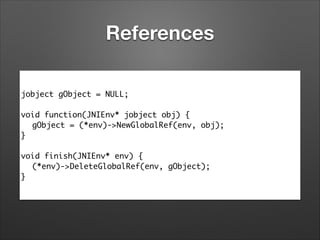

22. References
jobject gObject = NULL;
!
void function(JNIEnv* jobject obj) {
gObject = (*env)->NewGlobalRef(env, obj);
}
!
void finish(JNIEnv* env) {
(*env)->DeleteGlobalRef(env, gObject);
}

23. Calling Java methods from
native
jclass clz = (*env)->FindClass(env, “com/example/jnibasics/NativeDemo");
!
jmethodID method = (*env)->GetMethodID(env, clz,
"methodName", “(II)Ljava/lang/String;");
!
jstring result = (*env)->CallObjectMethod(env, obj, method, 5, 6);

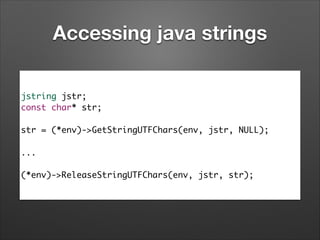

24. Accessing java strings
jstring jstr;
const char* str;
!
str = (*env)->GetStringUTFChars(env, jstr, NULL);
!
...
!
(*env)->ReleaseStringUTFChars(env, jstr, str);

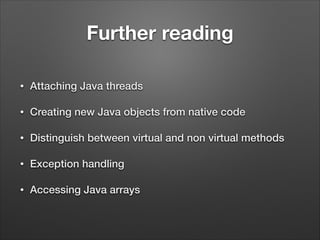

25. Further reading
•
Attaching Java threads
•
Creating new Java objects from native code
•
Distinguish between virtual and non virtual methods
•
Exception handling
•
Accessing Java arrays

26. Using native code

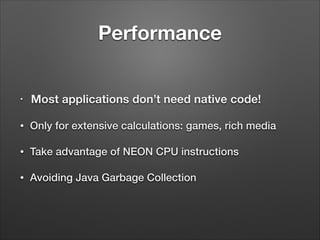

27. Performance
•
Most applications don’t need native code!
•
Only for extensive calculations: games, rich media
•
Take advantage of NEON CPU instructions
•
Avoiding Java Garbage Collection

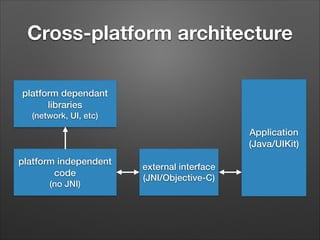

28. Cross-platform architecture
platform dependant
libraries
(network, UI, etc)
Application
(Java/UIKit)
platform independent
code
(no JNI)
external interface
(JNI/Objective-C)

29. Cross-platform examples
VLC

30. Security

31. 1.
2.
3.
4.
Register as a developer (£60 per year)
Add device UUID to dev account
Generate Provisioning Profile
Sign APK with developer’s certificate
!
or Submit to Apple Store
or Jailbreak device
Binary is encrypted
Decryption is on OS level
Self-signed APK
or not-signed at all
Decompiled Objective C:
Decompiled Java:
class structures
assembly code
readable code

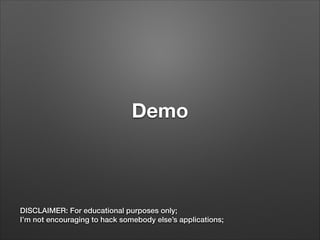

32. Demo
DISCLAIMER: For educational purposes only;
I’m not encouraging to hack somebody else’s applications;

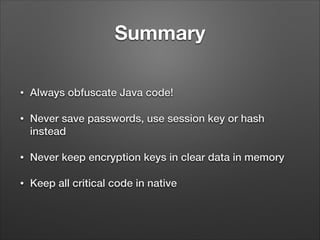

33. Summary
•
Always obfuscate Java code!
•
Never save passwords, use session key or hash
instead
•
Never keep encryption keys in clear data in memory
•
Keep all critical code in native

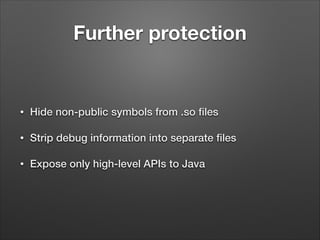

34. Further protection
•
Hide non-public symbols from .so files
•
Strip debug information into separate files
•
Expose only high-level APIs to Java

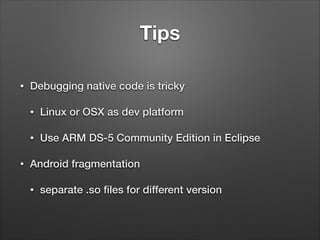

35. Tips
•
Debugging native code is tricky
•
•
•
Linux or OSX as dev platform
Use ARM DS-5 Community Edition in Eclipse
Android fragmentation
•
separate .so files for different version

36. Questions?
Dmitry Matyukhin
dmitry@fancygames.net
