Code Review Checklist
How far is a code review going?
“Metrics measure the design of code after it
has been written, a Review proofs it and
Refactoring improves code.”
2
The Problem is
• That the problem of source code smells is
additive (new bugs arise but the old ones stay)
• Das kann bei uns nicht passieren! – wieso ist
das denn passiert?
• Management is arrogance and developers are
too proud to admit mistakes
• Programmers don't die, they just GOSUB
without RETURN.
3
Improve the Situation Agenda
• Check your Documents with UML API?
• A Docu Structure to the 5 Top Level Metrics
• Back to Source Code Bugs & Smells
• Improve your Code (Metric Based Refactoring)
• Optimisation and Tools
4

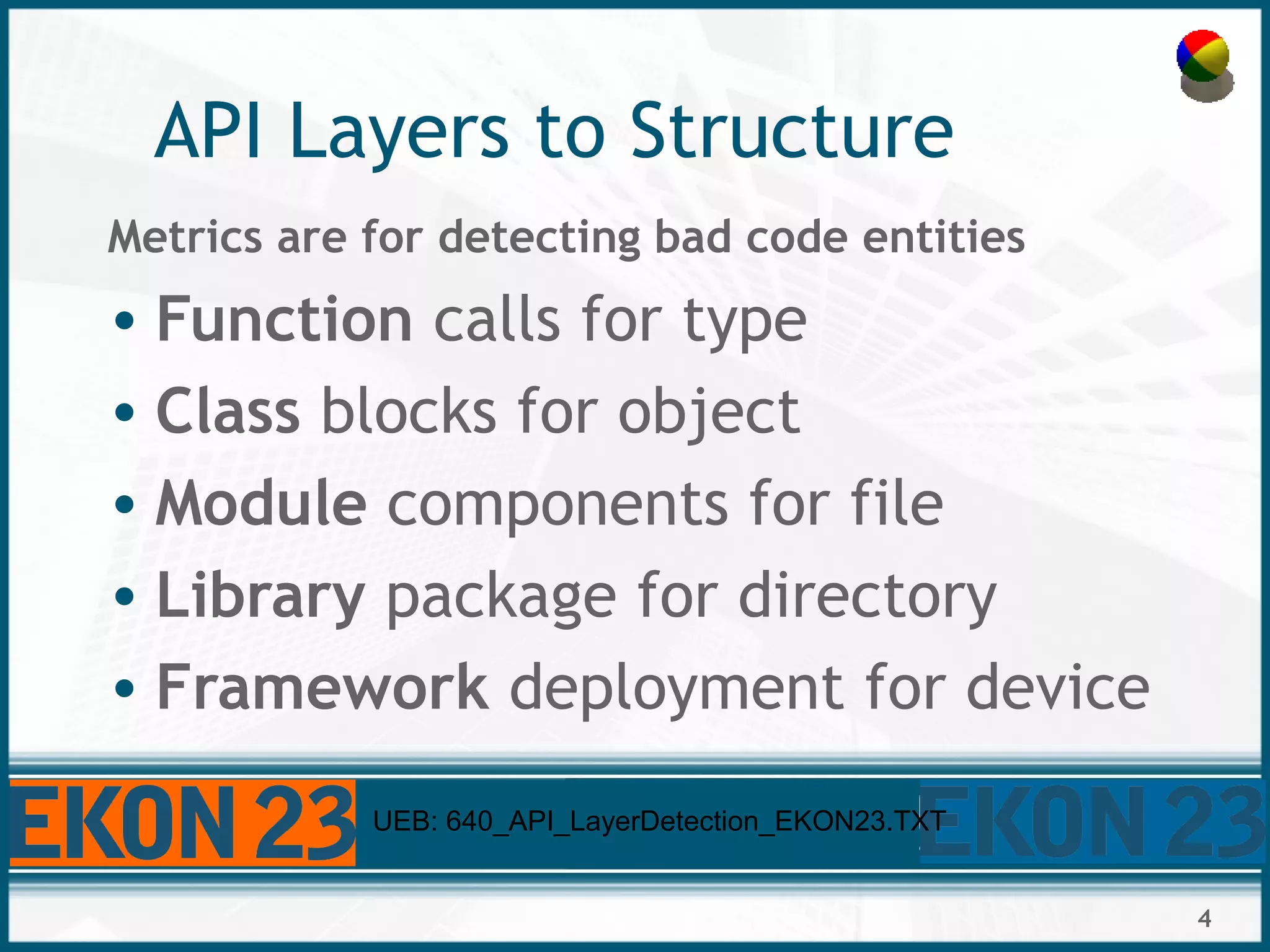

API Layers to Structure
Metrics are for detecting bad code entities
• Function calls for type
• Class blocks for object
• Module components for file
• Library package for directory
• Framework deployment for device
UEB: 640_API_LayerDetection_EKON23.TXT
5

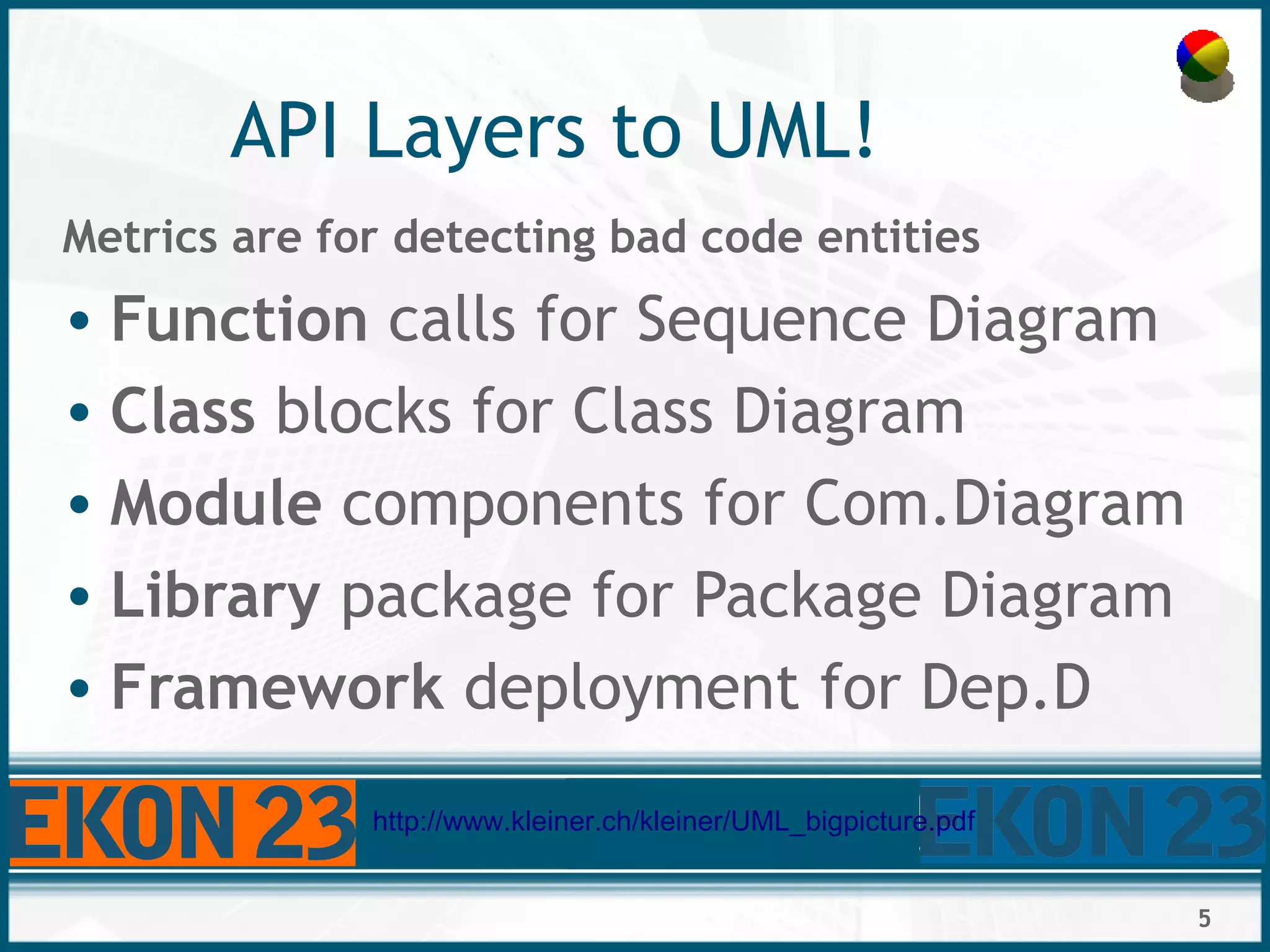

API Layers to UML!
Metrics are for detecting bad code entities
• Function calls for Sequence Diagram
• Class blocks for Class Diagram
• Module components for Com.Diagram
• Library package for Package Diagram
• Framework deployment for Dep.D
http://www.kleiner.ch/kleiner/UML_bigpicture.pdf
6

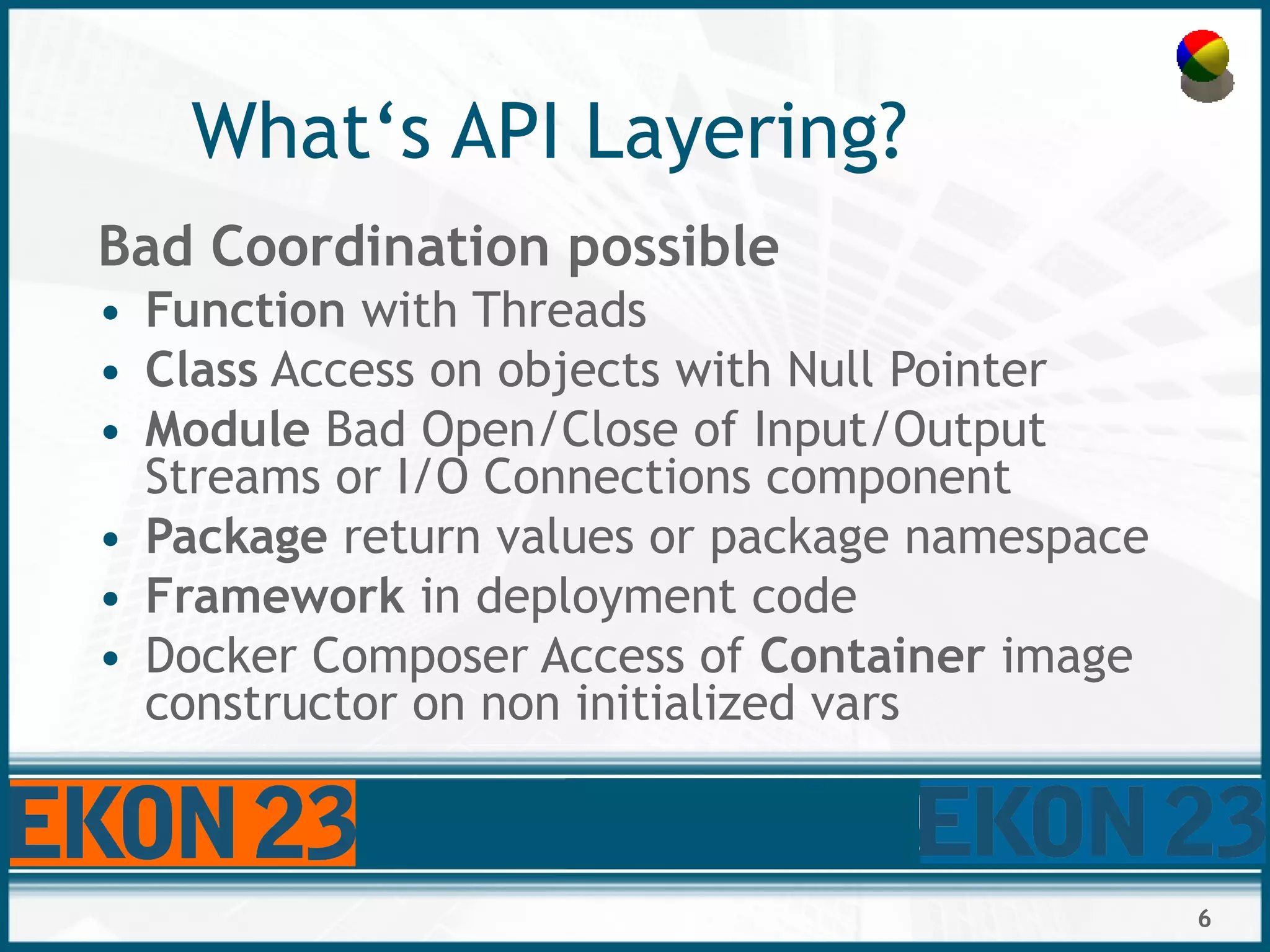

What‘s API Layering?
Bad Coordination possible
• Function with Threads
• Class Access on objects with Null Pointer
• Module Bad Open/Close of Input/Output
Streams or I/O Connections component
• Package return values or package namespace
• Framework in deployment code
• Docker Composer Access of Container image
constructor on non initialized vars
7
Metrics deal with
Bad Structure (how cohesion & coupling)
• General Code Size (in module)
• Cohesion (in classes and inheritance)
• Complexity
• Coupling (between classes or units)
• Cyclic Dependency, Declare+Definition, ACD-Metric
• Interfaces or Packages (design & runtime)
• Static, Public, Private (inheritance or delegate)
UEB: 10_pas_oodesign_solution.txt
8

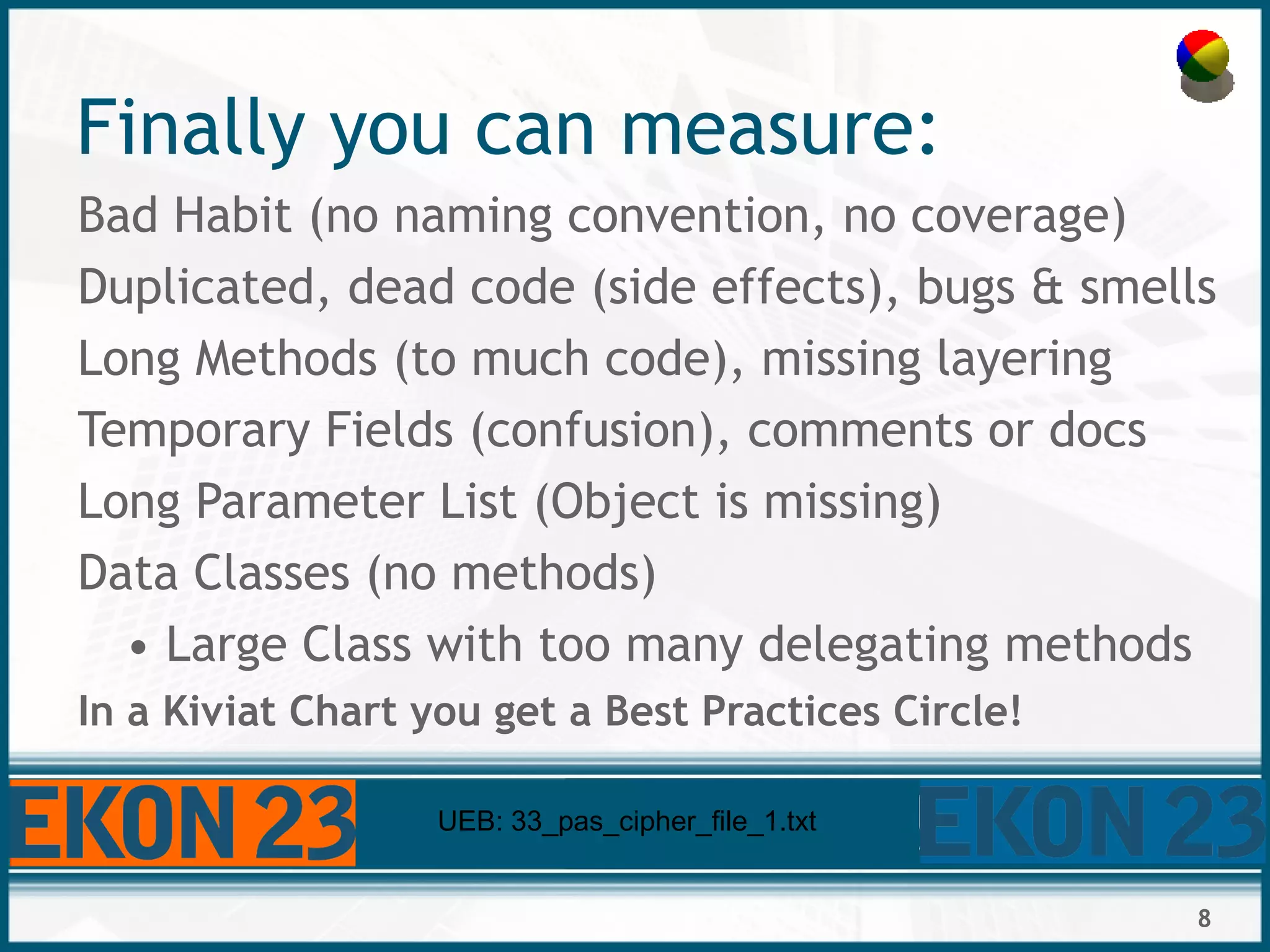

Finally you can measure:
Bad Habit (no naming convention, no coverage)
Duplicated, dead code (side effects), bugs & smells
Long Methods (to much code), missing layering
Temporary Fields (confusion), comments or docs
Long Parameter List (Object is missing)
Data Classes (no methods)
• Large Class with too many delegating methods
In a Kiviat Chart you get a Best Practices Circle!
UEB: 33_pas_cipher_file_1.txt
9

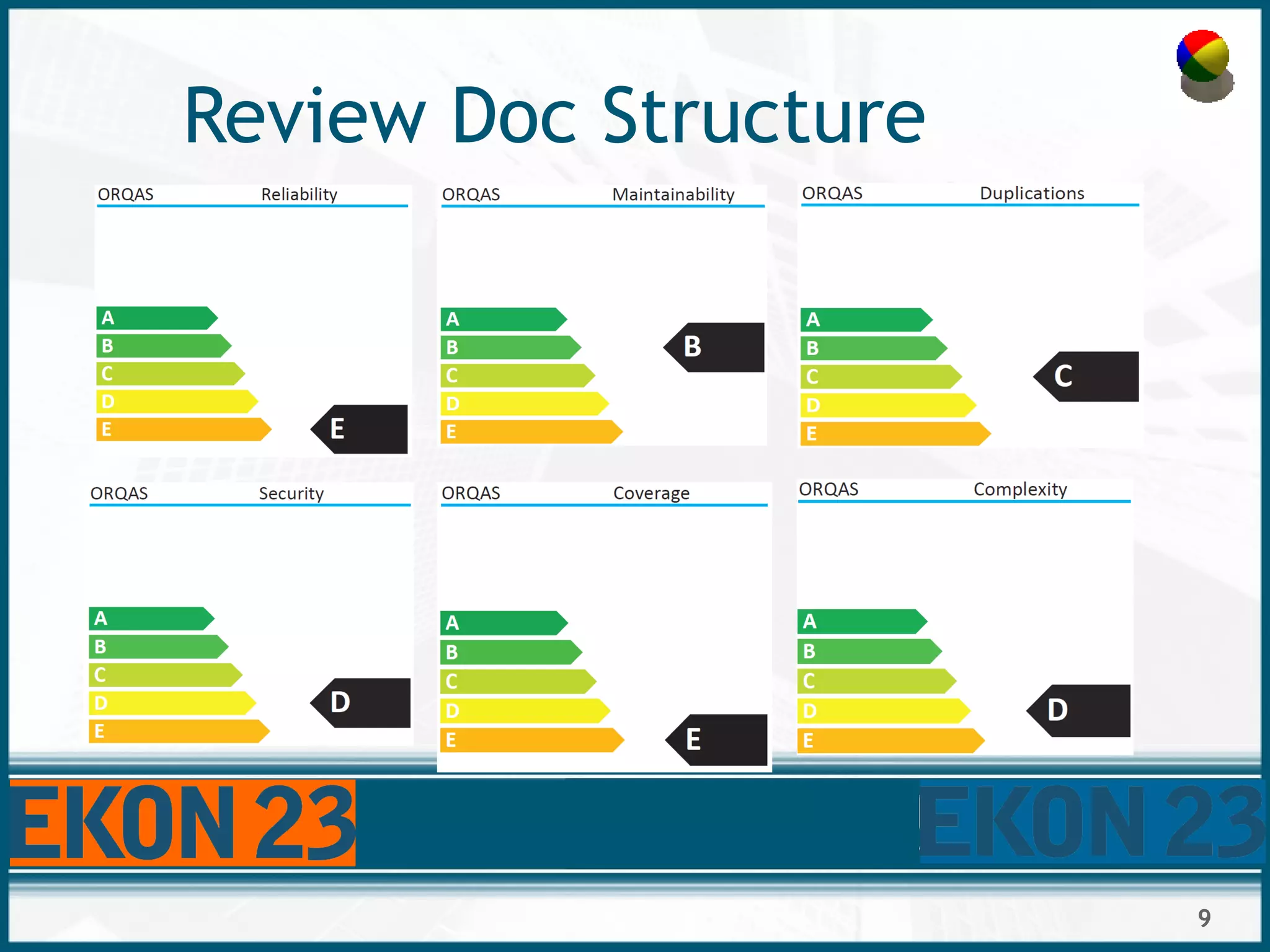

Review Doc Structure
10

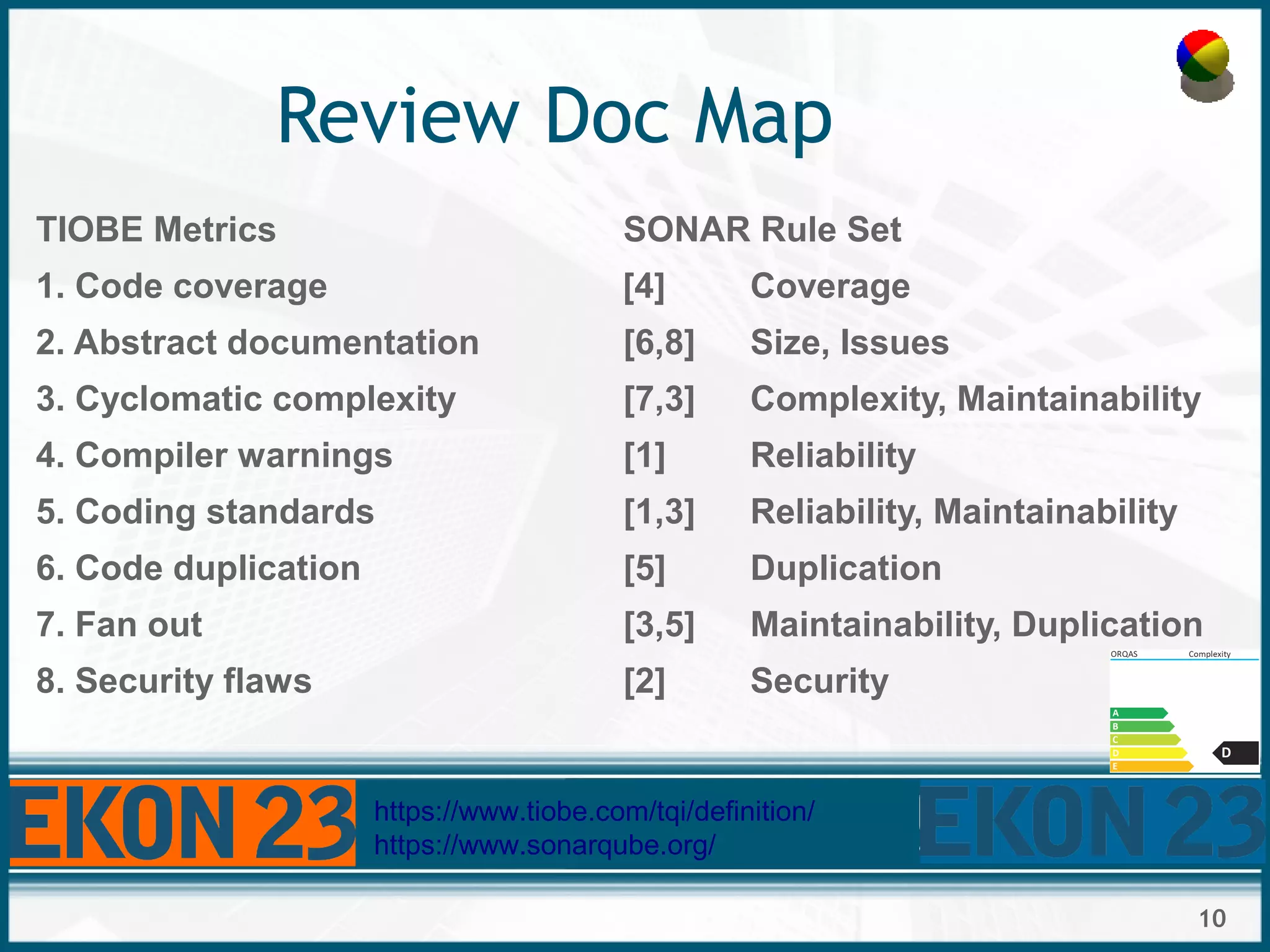

Review Doc Map
TIOBE Metrics SONAR Rule Set
1. Code coverage [4] Coverage
2. Abstract documentation [6,8] Size, Issues
3. Cyclomatic complexity [7,3] Complexity, Maintainability
4. Compiler warnings [1] Reliability
5. Coding standards [1,3] Reliability, Maintainability
6. Code duplication [5] Duplication
7. Fan out [3,5] Maintainability, Duplication
8. Security flaws [2] Security
https://www.tiobe.com/tqi/definition/
https://www.sonarqube.org/
11

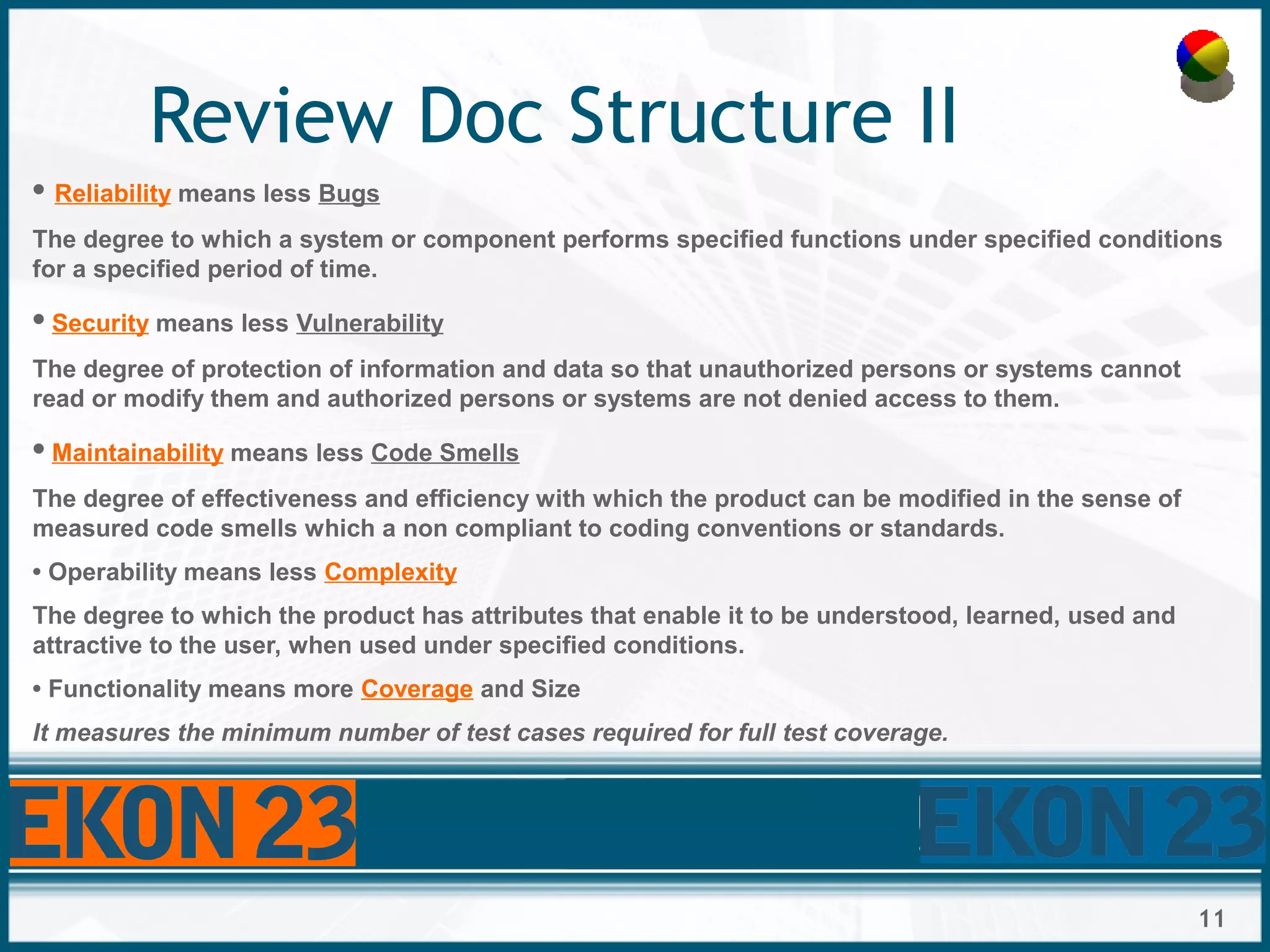

Review Doc Structure II
• Reliability means less Bugs
The degree to which a system or component performs specified functions under specified conditions
for a specified period of time.
• Security means less Vulnerability
The degree of protection of information and data so that unauthorized persons or systems cannot
read or modify them and authorized persons or systems are not denied access to them.
• Maintainability means less Code Smells
The degree of effectiveness and efficiency with which the product can be modified in the sense of
measured code smells which a non compliant to coding conventions or standards.
• Operability means less Complexity
The degree to which the product has attributes that enable it to be understood, learned, used and
attractive to the user, when used under specified conditions.
• Functionality means more Coverage and Size
It measures the minimum number of test cases required for full test coverage.
12

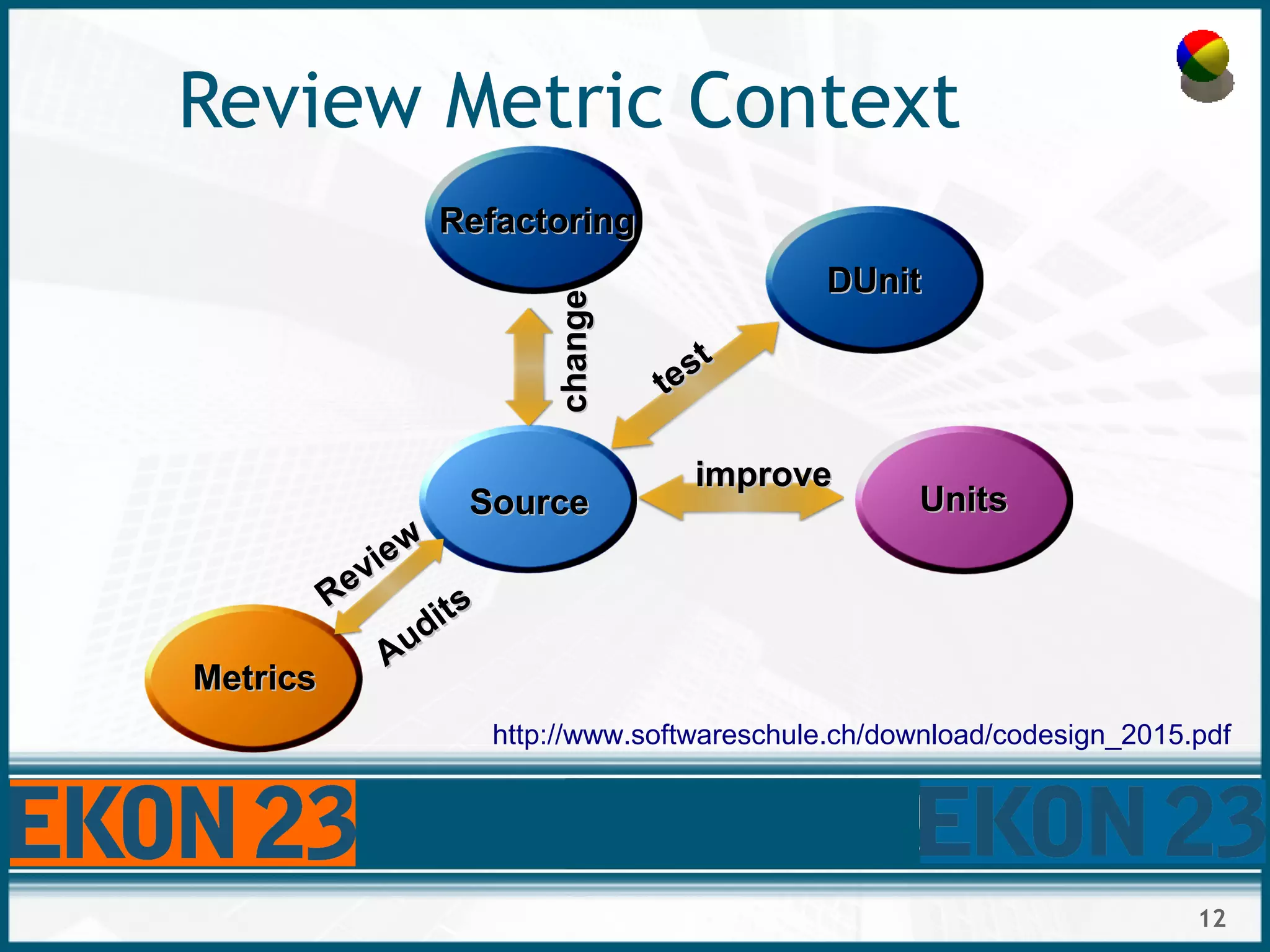

Review Metric Context
SourceSource
improveimprove
MetricsMetrics
DUnitDUnit
test
test
RefactoringRefactoring
changechange
UnitsUnits
Review
Review
Audits
Audits
http://www.softwareschule.ch/download/codesign_2015.pdf
13

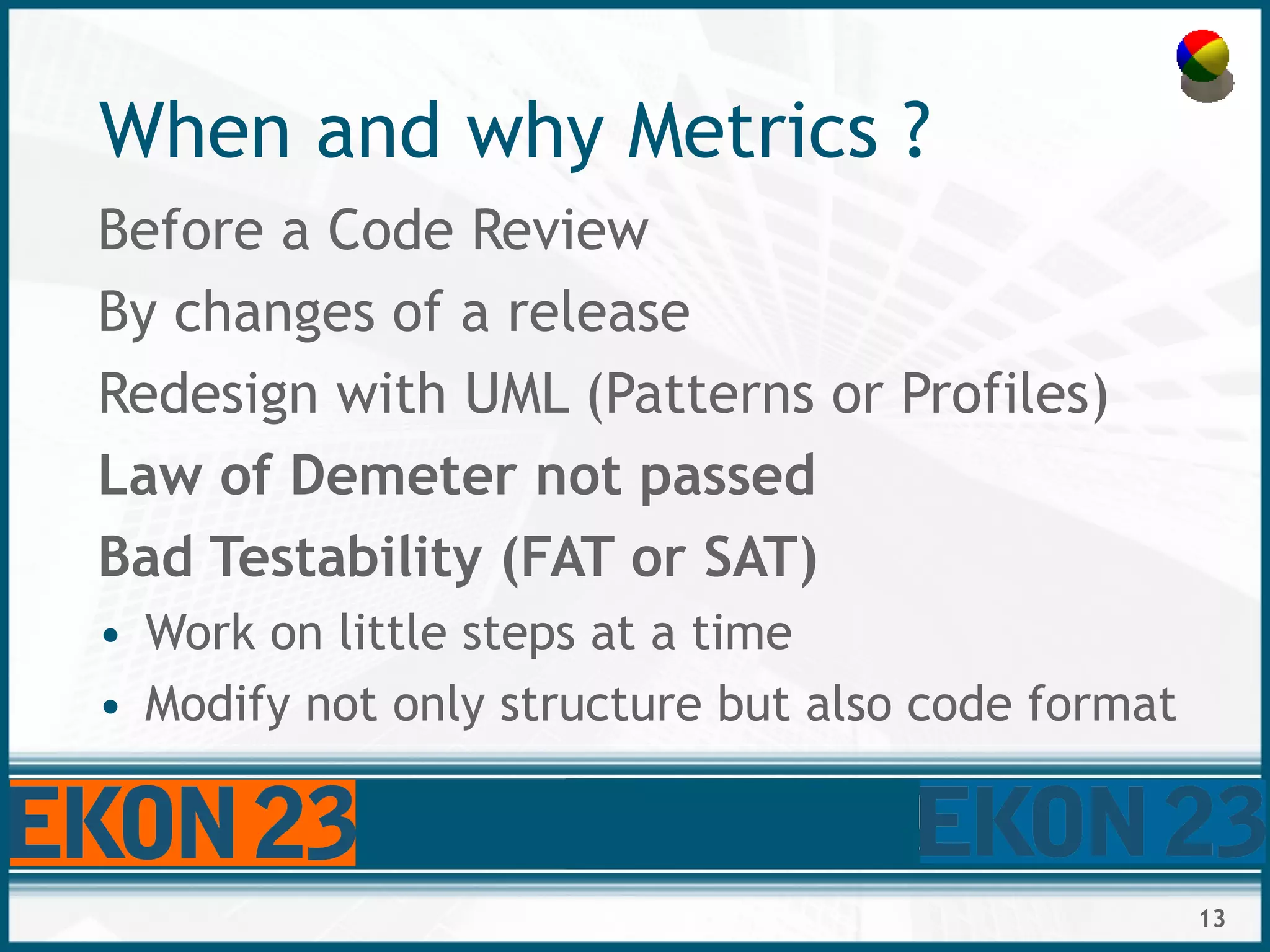

When and why Metrics ?
Before a Code Review
By changes of a release
Redesign with UML (Patterns or Profiles)
Law of Demeter not passed
Bad Testability (FAT or SAT)
• Work on little steps at a time
• Modify not only structure but also code format
14

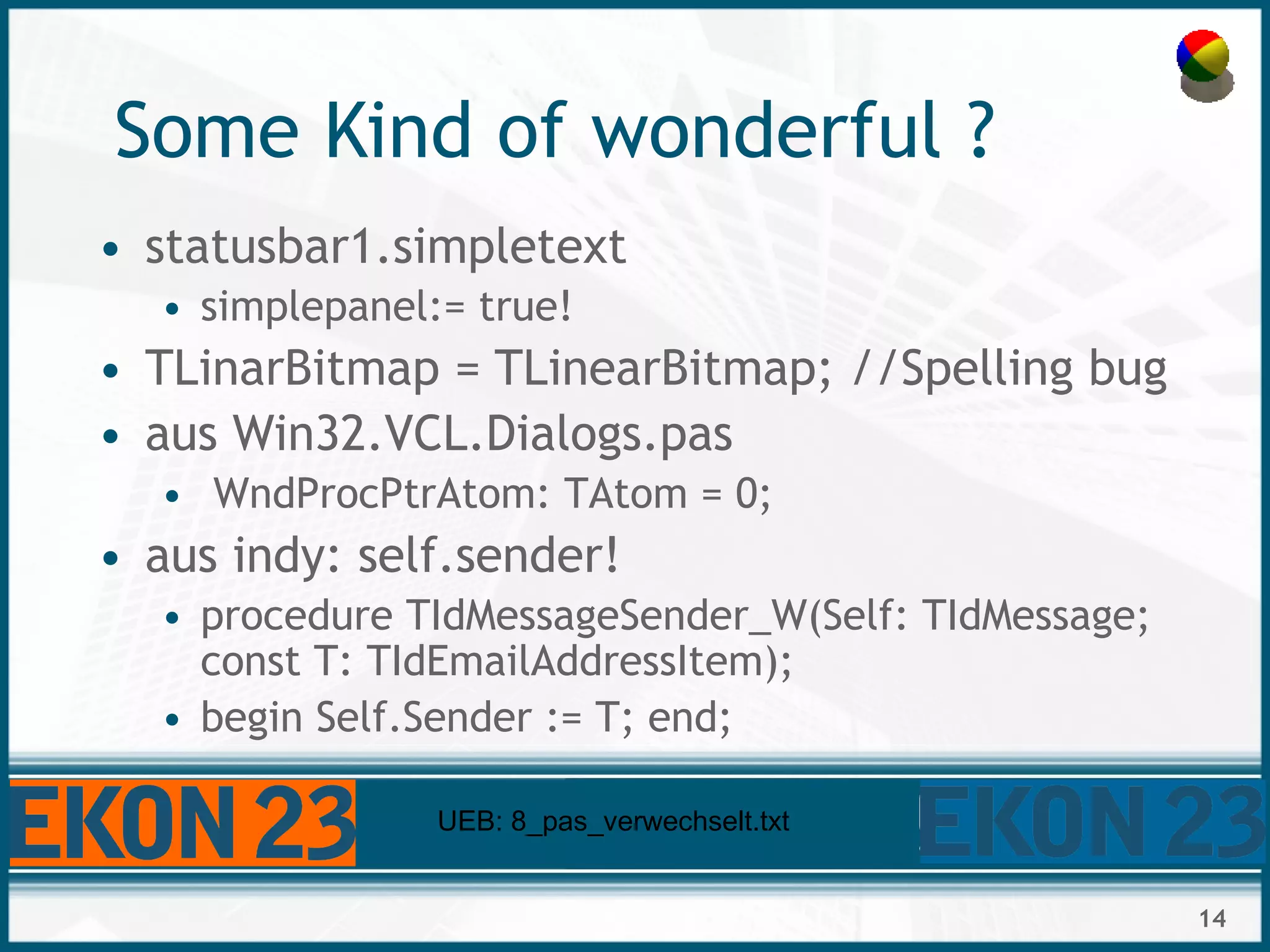

Some Kind of wonderful ?
• statusbar1.simpletext
• simplepanel:= true!
• TLinarBitmap = TLinearBitmap; //Spelling bug
• aus Win32.VCL.Dialogs.pas
• WndProcPtrAtom: TAtom = 0;
• aus indy: self.sender!
• procedure TIdMessageSender_W(Self: TIdMessage;
const T: TIdEmailAddressItem);
• begin Self.Sender := T; end;
UEB: 8_pas_verwechselt.txt
15

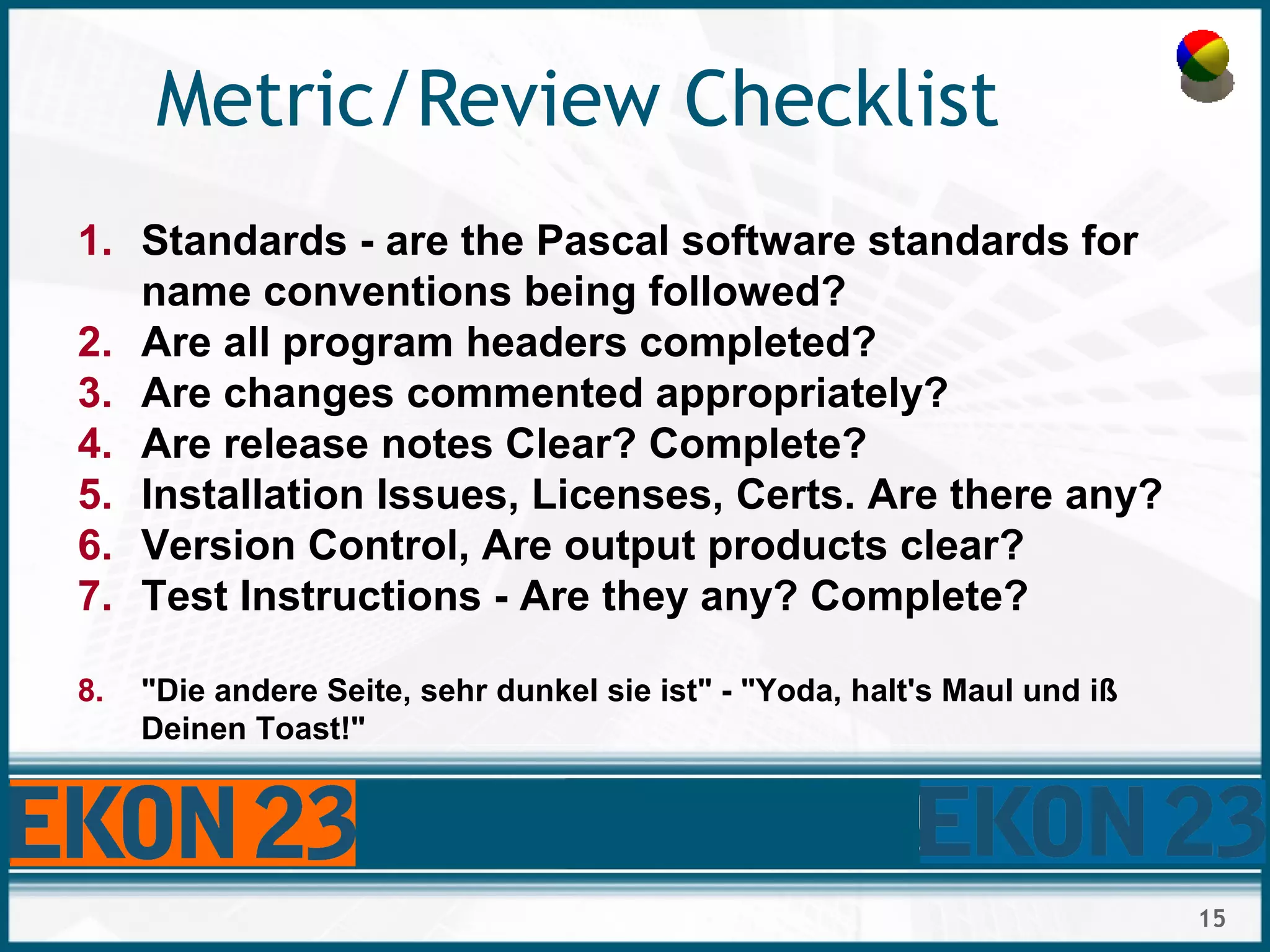

Metric/Review Checklist
1. Standards - are the Pascal software standards for
name conventions being followed?
2. Are all program headers completed?
3. Are changes commented appropriately?
4. Are release notes Clear? Complete?
5. Installation Issues, Licenses, Certs. Are there any?
6. Version Control, Are output products clear?
7. Test Instructions - Are they any? Complete?
8. "Die andere Seite, sehr dunkel sie ist" - "Yoda, halt's Maul und iß
Deinen Toast!"
16

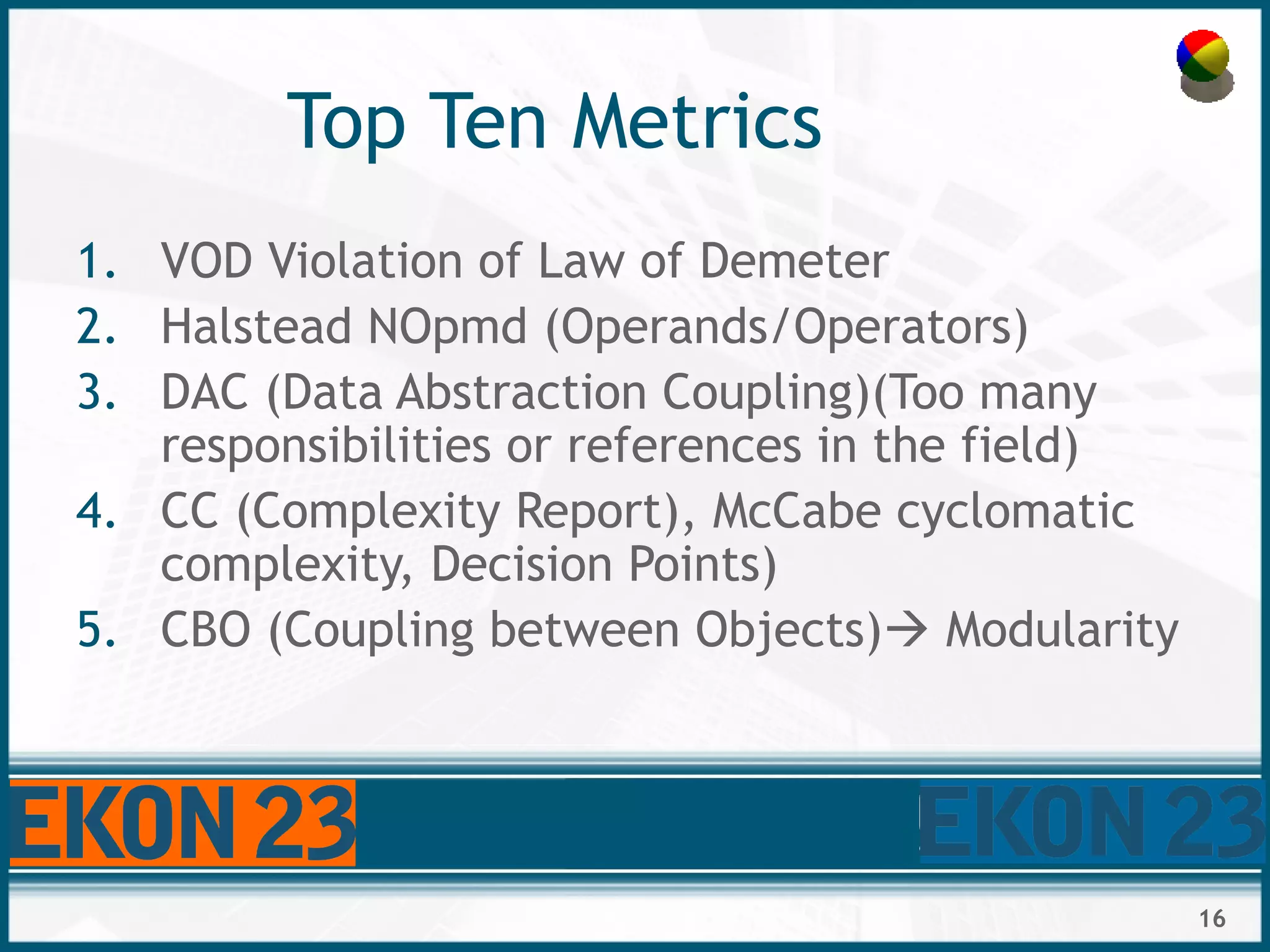

Top Ten Metrics
1. VOD Violation of Law of Demeter
2. Halstead NOpmd (Operands/Operators)
3. DAC (Data Abstraction Coupling)(Too many
responsibilities or references in the field)
4. CC (Complexity Report), McCabe cyclomatic
complexity, Decision Points)
5. CBO (Coupling between Objects) Modularity
17

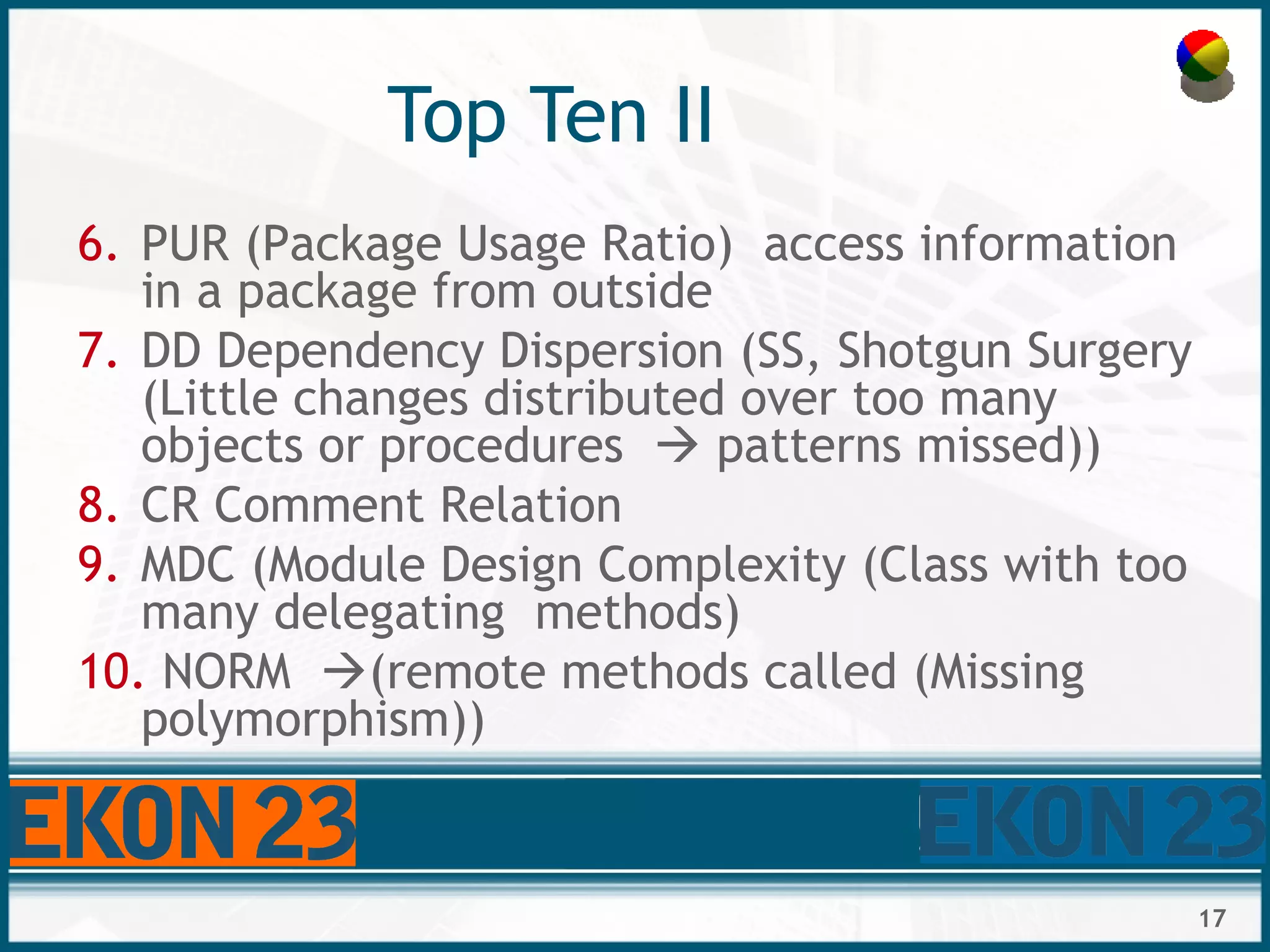

Top Ten II
6. PUR (Package Usage Ratio) access information
in a package from outside
7. DD Dependency Dispersion (SS, Shotgun Surgery
(Little changes distributed over too many
objects or procedures  patterns missed))
8. CR Comment Relation
9. MDC (Module Design Complexity (Class with too
many delegating methods)
10. NORM (remote methods called (Missing
polymorphism))
18

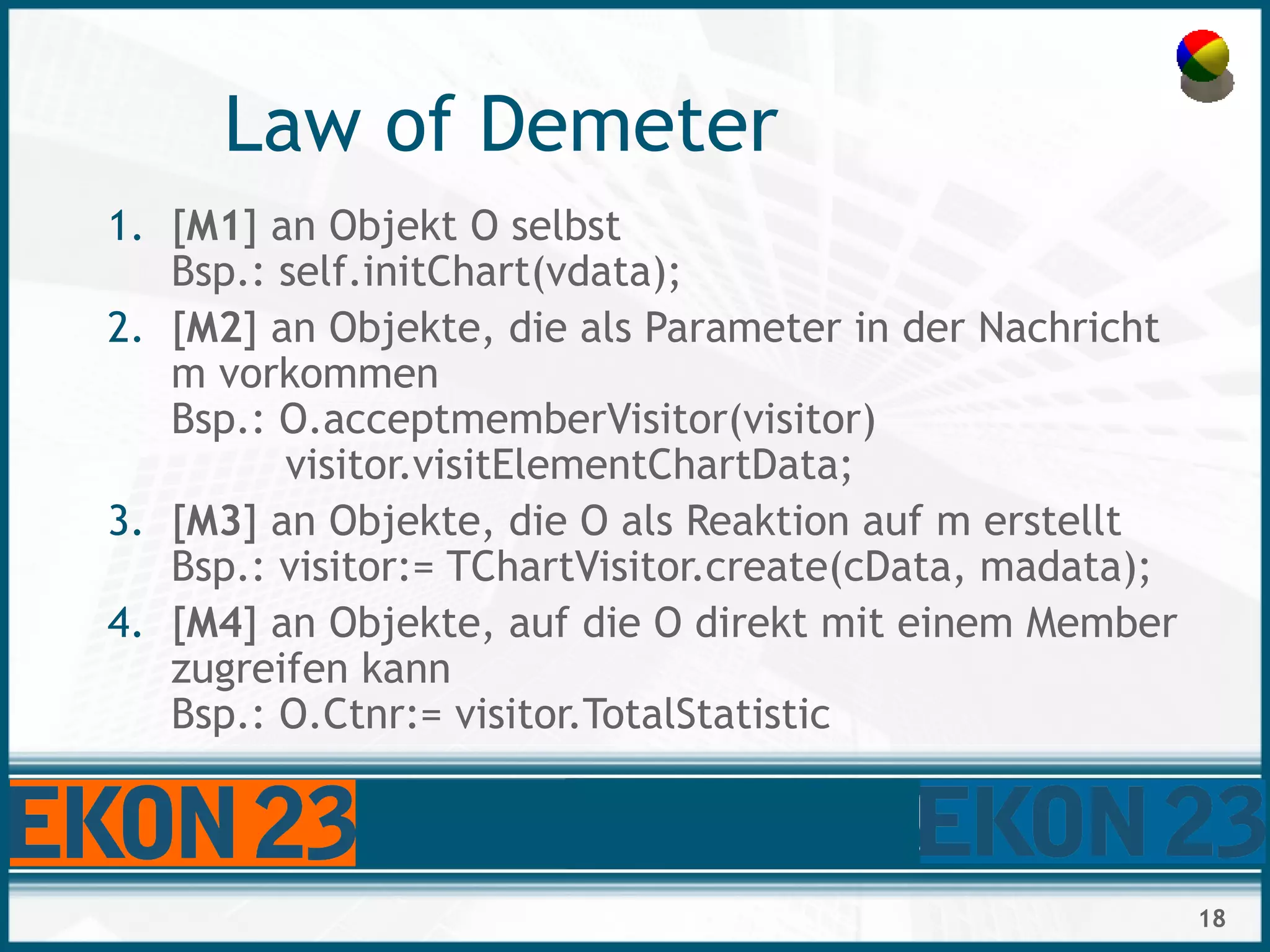

Law of Demeter
1. [M1] an Objekt O selbst
Bsp.: self.initChart(vdata);
2. [M2] an Objekte, die als Parameter in der Nachricht
m vorkommen
Bsp.: O.acceptmemberVisitor(visitor)
visitor.visitElementChartData;
3. [M3] an Objekte, die O als Reaktion auf m erstellt
Bsp.: visitor:= TChartVisitor.create(cData, madata);
4. [M4] an Objekte, auf die O direkt mit einem Member
zugreifen kann
Bsp.: O.Ctnr:= visitor.TotalStatistic
19

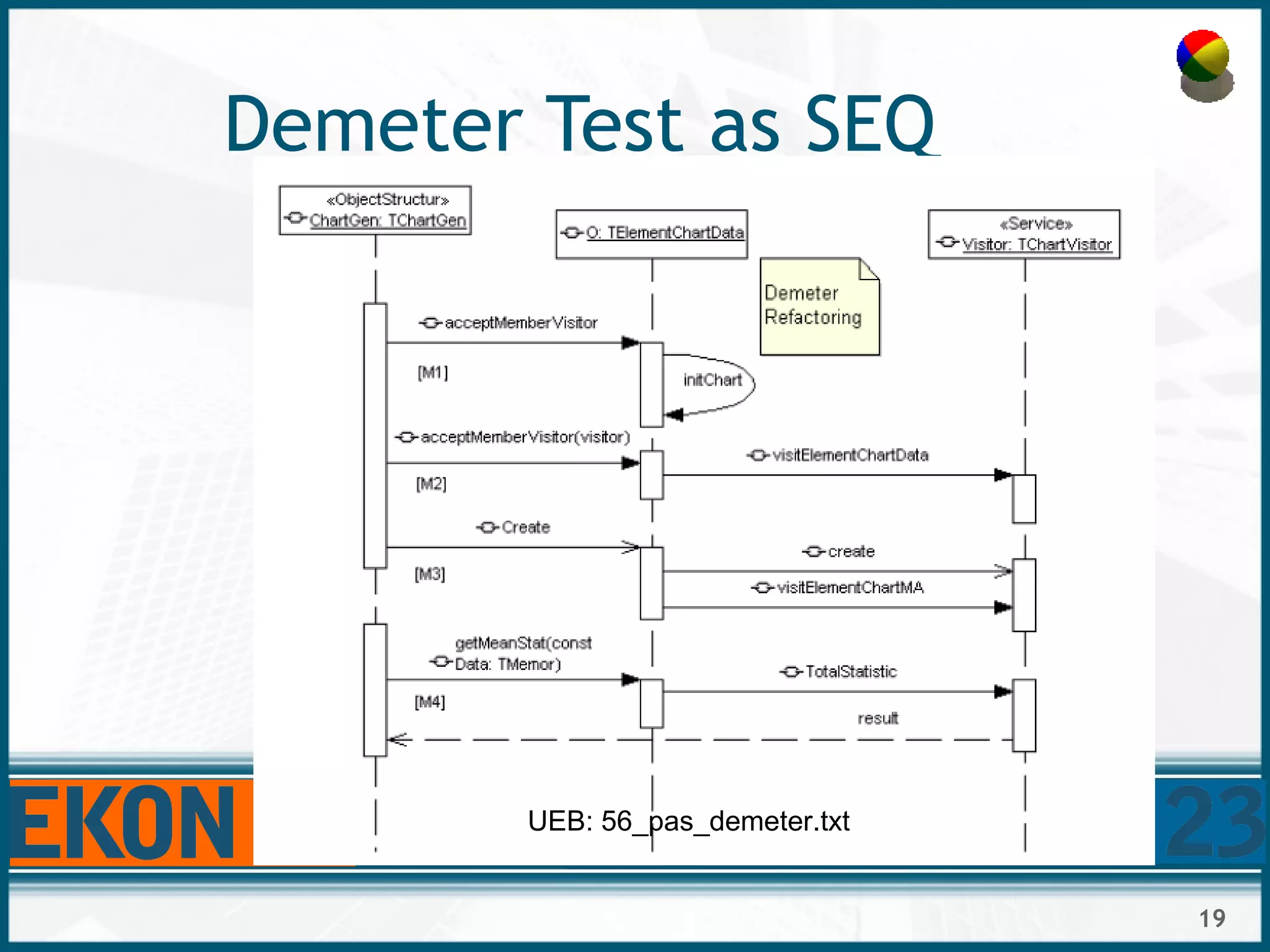

Demeter Test as SEQ
UEB: 56_pas_demeter.txt
20

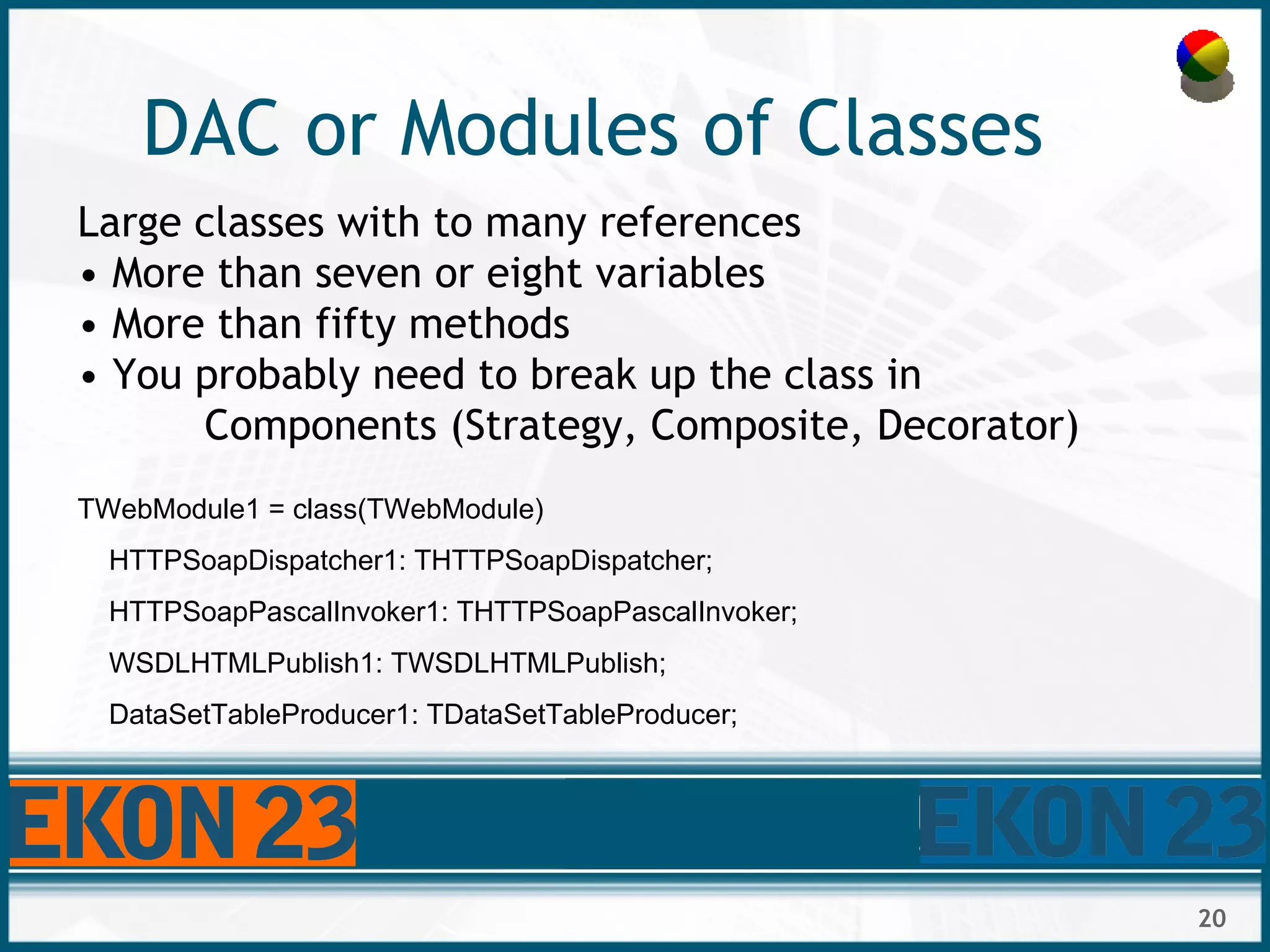

DAC or Modules of Classes
Large classes with to many references
• More than seven or eight variables
• More than fifty methods
• You probably need to break up the class in
Components (Strategy, Composite, Decorator)
TWebModule1 = class(TWebModule)
HTTPSoapDispatcher1: THTTPSoapDispatcher;
HTTPSoapPascalInvoker1: THTTPSoapPascalInvoker;
WSDLHTMLPublish1: TWSDLHTMLPublish;
DataSetTableProducer1: TDataSetTableProducer;
21

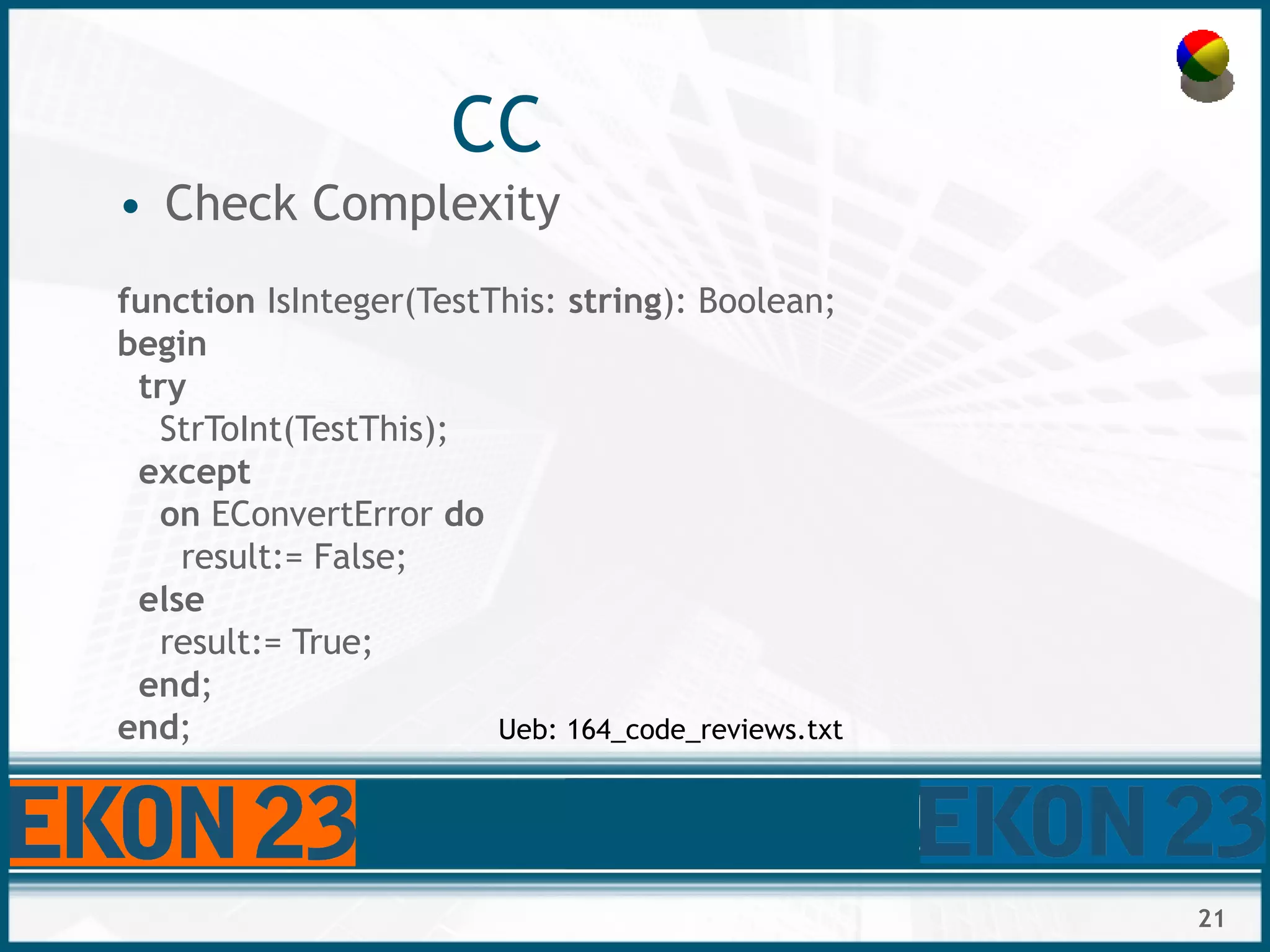

CC
• Check Complexity
function IsInteger(TestThis: string): Boolean;
begin
try
StrToInt(TestThis);
except
on EConvertError do
result:= False;
else
result:= True;
end;
end; Ueb: 164_code_reviews.txt
22

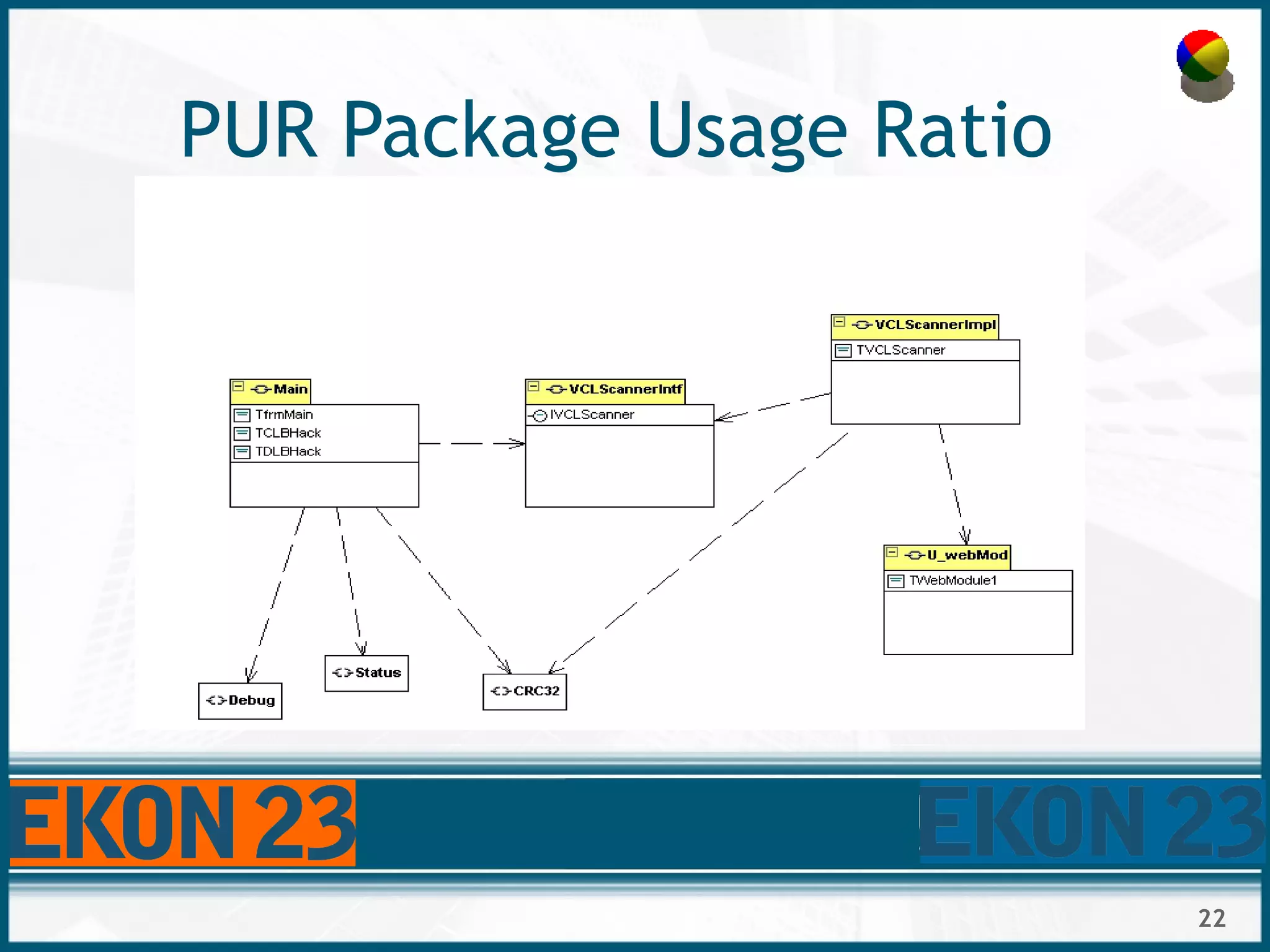

PUR Package Usage Ratio
23

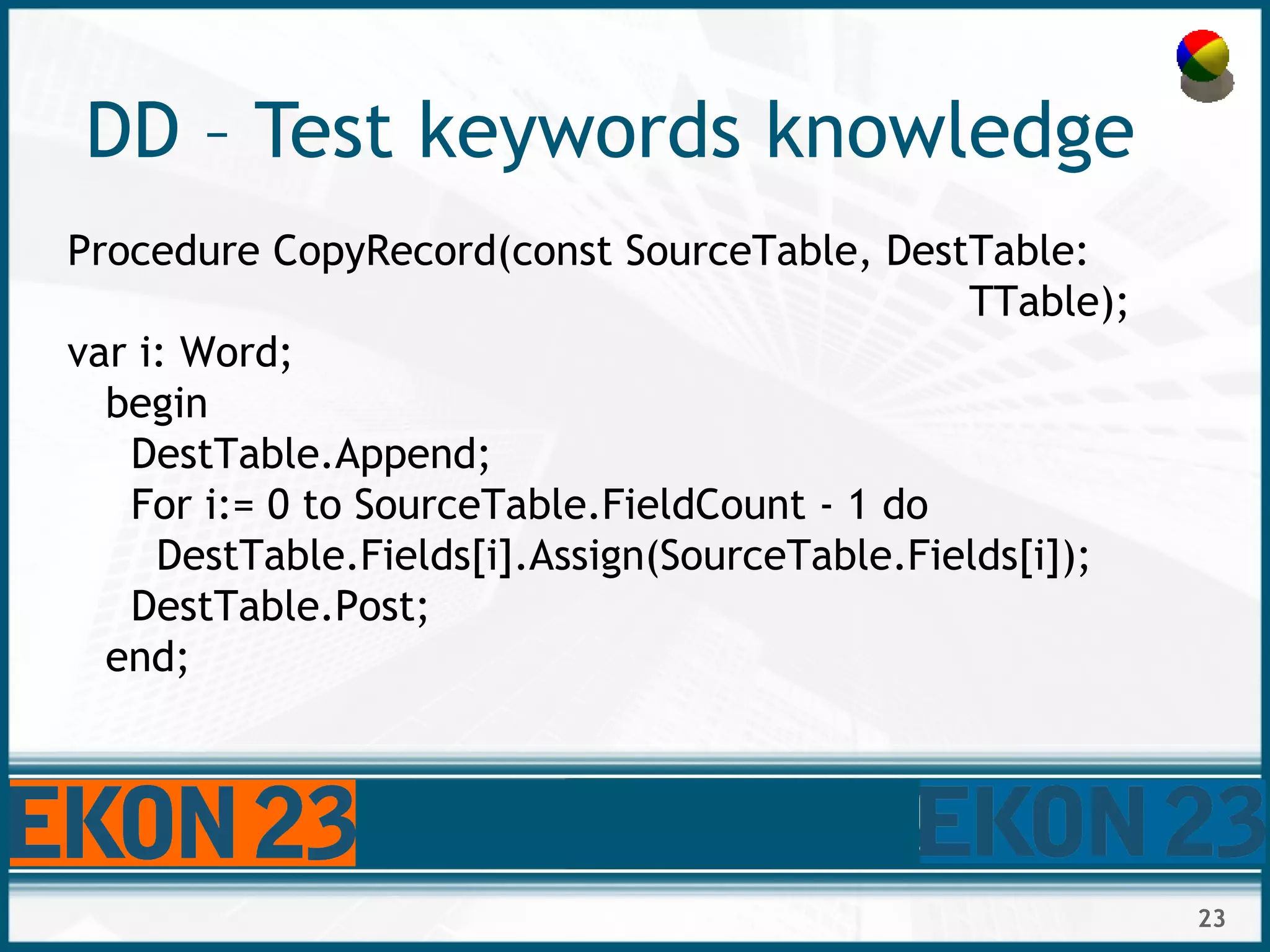

DD – Test keywords knowledge
Procedure CopyRecord(const SourceTable, DestTable:
TTable);
var i: Word;
begin
DestTable.Append;
For i:= 0 to SourceTable.FieldCount - 1 do
DestTable.Fields[i].Assign(SourceTable.Fields[i]);
DestTable.Post;
end;
24

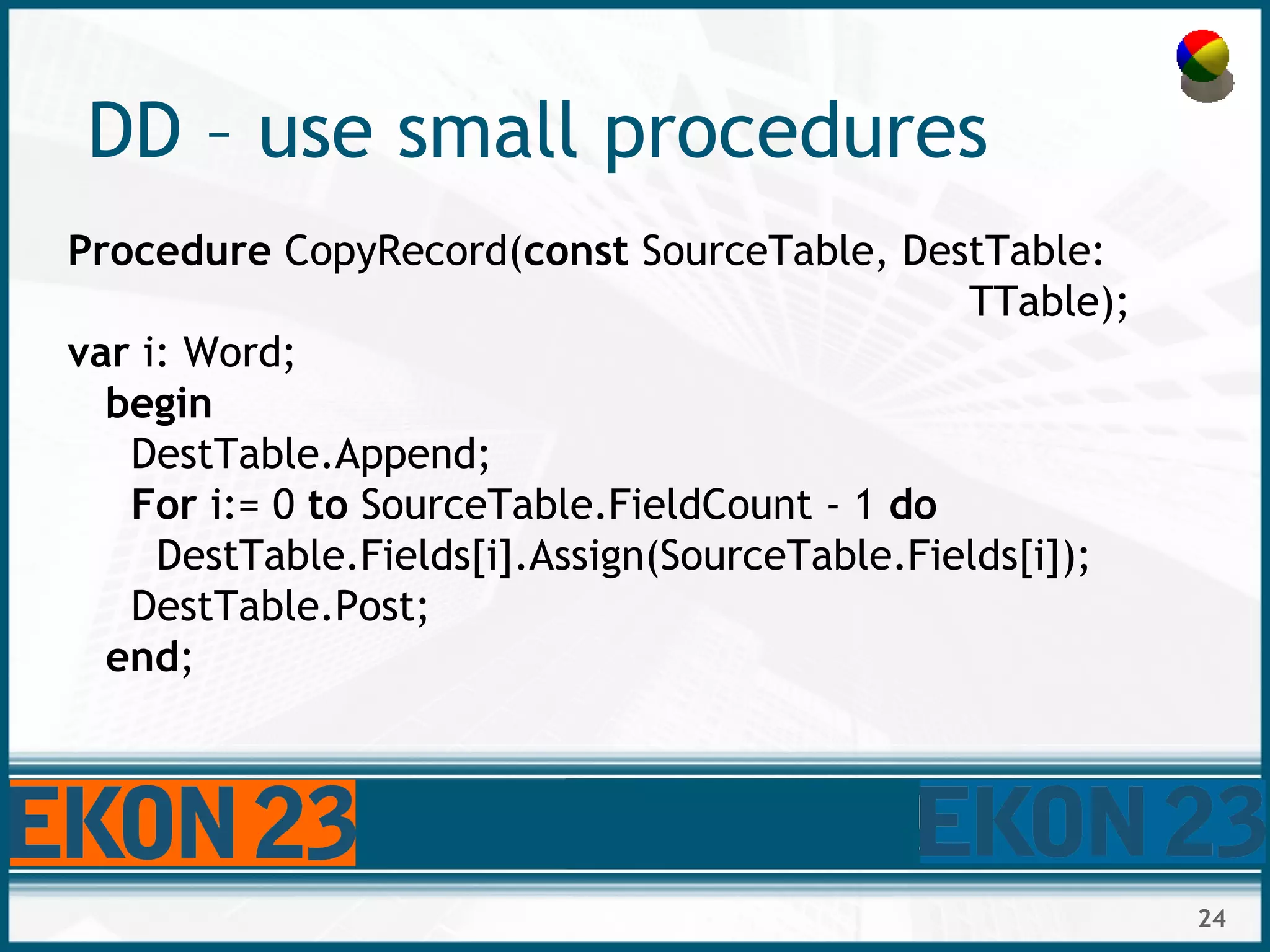

DD – use small procedures
Procedure CopyRecord(const SourceTable, DestTable:
TTable);
var i: Word;
begin
DestTable.Append;
For i:= 0 to SourceTable.FieldCount - 1 do
DestTable.Fields[i].Assign(SourceTable.Fields[i]);
DestTable.Post;
end;
25

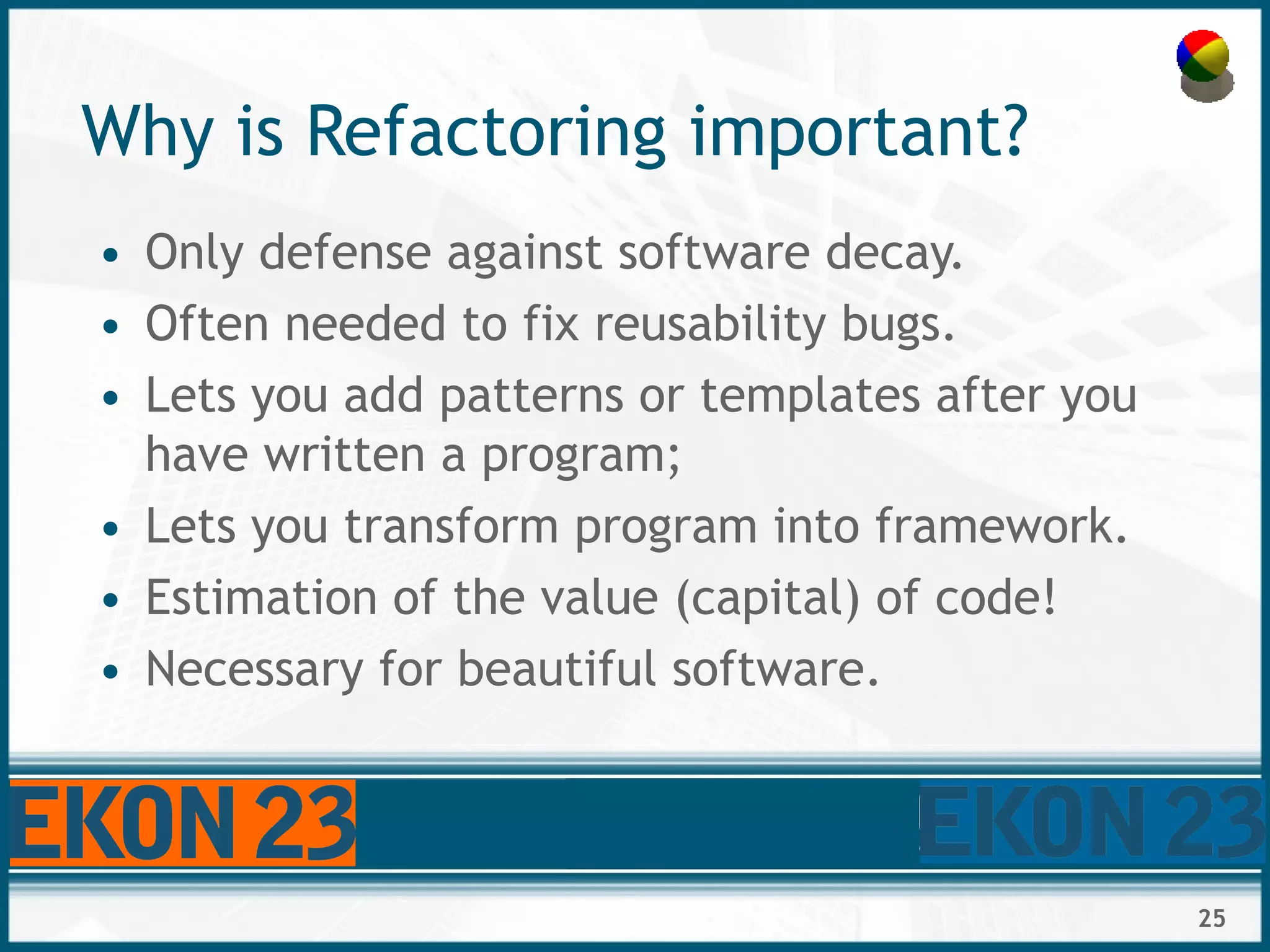

Why is Refactoring important?
• Only defense against software decay.
• Often needed to fix reusability bugs.
• Lets you add patterns or templates after you
have written a program;
• Lets you transform program into framework.
• Estimation of the value (capital) of code!
• Necessary for beautiful software.
26

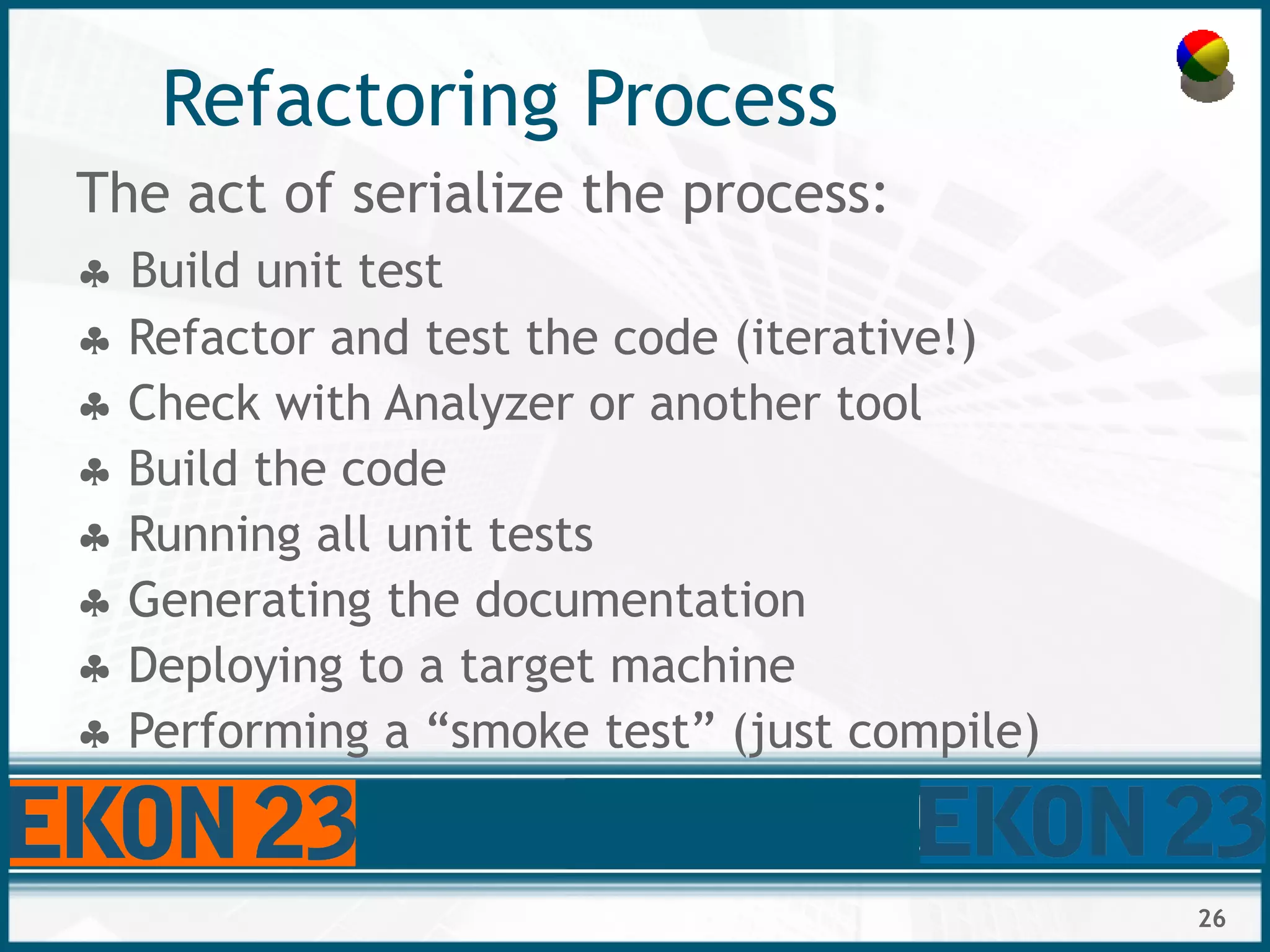

Refactoring Process
The act of serialize the process:
 Build unit test
 Refactor and test the code (iterative!)
 Check with Analyzer or another tool
 Build the code
 Running all unit tests
 Generating the documentation
 Deploying to a target machine
 Performing a “smoke test” (just compile)
27
Let‘s practice
• 1
• 11
• 21
• 1211
• 111221
• 312211
• ??? Try to find the next pattern, look for
a rule or logic behind !
28

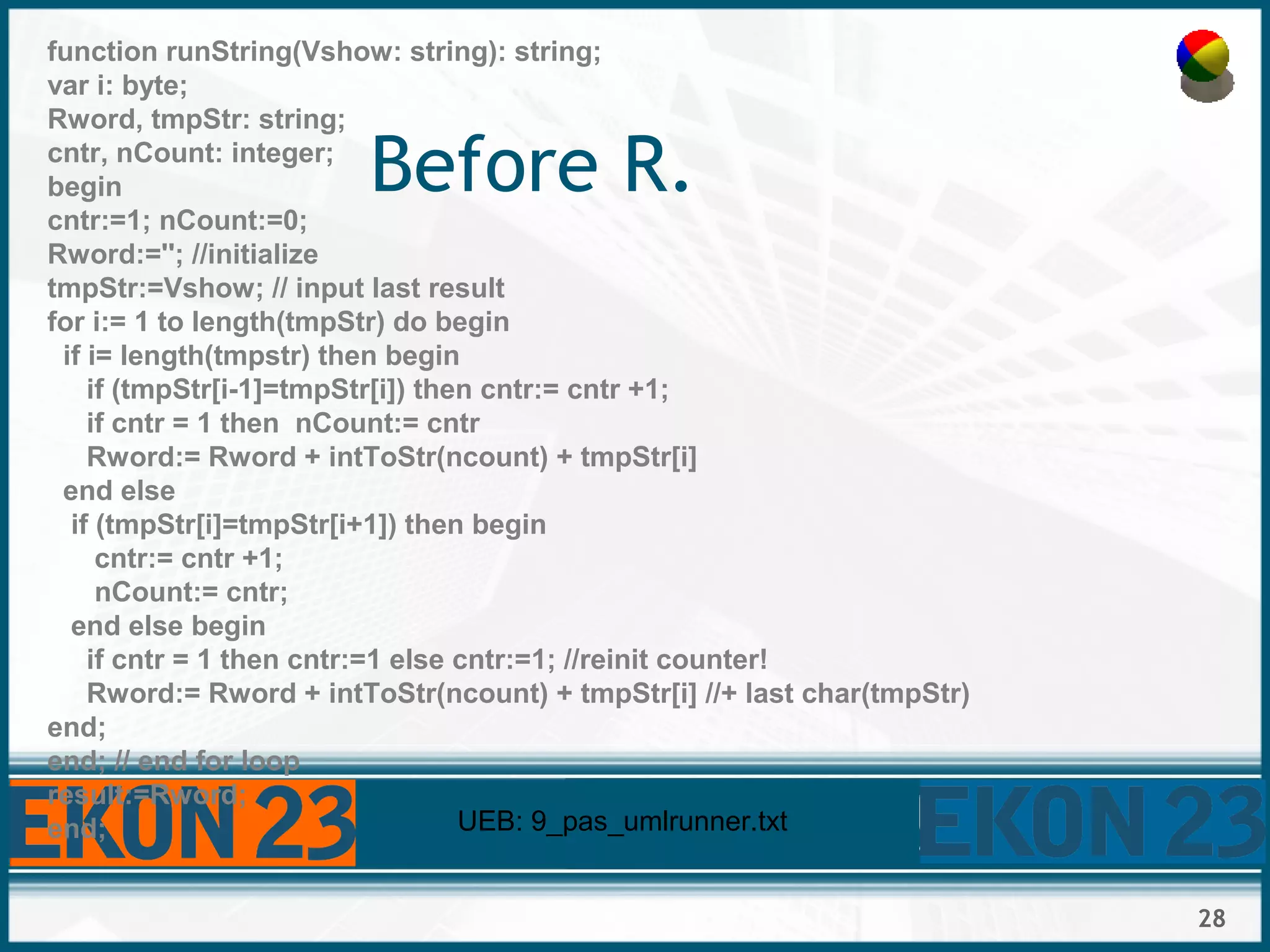

Before R.
function runString(Vshow: string): string;
var i: byte;
Rword, tmpStr: string;
cntr, nCount: integer;
begin
cntr:=1; nCount:=0;
Rword:=''; //initialize
tmpStr:=Vshow; // input last result
for i:= 1 to length(tmpStr) do begin
if i= length(tmpstr) then begin
if (tmpStr[i-1]=tmpStr[i]) then cntr:= cntr +1;
if cntr = 1 then nCount:= cntr
Rword:= Rword + intToStr(ncount) + tmpStr[i]
end else
if (tmpStr[i]=tmpStr[i+1]) then begin
cntr:= cntr +1;
nCount:= cntr;
end else begin
if cntr = 1 then cntr:=1 else cntr:=1; //reinit counter!
Rword:= Rword + intToStr(ncount) + tmpStr[i] //+ last char(tmpStr)
end;
end; // end for loop
result:=Rword;
end; UEB: 9_pas_umlrunner.txt
29
After R.
function charCounter(instr: string): string;
var i, cntr: integer; Rword: string;
begin
cntr:= 1;
Rword:=' ';
for i:= 1 to length(instr) do begin
//last number in line
if i= length(instr) then
concatChars()
else
if (instr[i]=instr[i+1]) then cntr:= cntr +1
else begin
concatChars()
//reinit counter!
cntr:= 1;
end;
end; //for
result:= Rword;
end;
UEB: 12_pas_umlrunner_solution.txt
30
Refactoring Methods
Einheit Refactoring Funktion Beschreibung
Package Rename Package Rename of Packages
Class Move Method Remove of Methods
Class Extract Superclass Aus Methoden, Eigenschaften eine
Oberklasse erzeugen und verwenden
Class Introduce Parameter Replace of Expression w. Methodparameter
Class Extract Method Heraustrennen einer Codepassage
Interface Extract Interface Aus Methoden ein Interface erzeugen
Interface Use Interface Erzeuge Referenzen auf Klasse
Component Replace Inheritance
with Delegation
Ersetze vererbte Methoden durch Delegation
in innere Klasse
Class Encapsulate Fields Getter- and Setter capsulate
Model Safe Delete Delete a Class with References
31
Metric based Refactoring
:ExtractMethod(EM)-MoveMethod(MM)-DataObject(DO)-ExtractClass(EC)
EM MM DO EC
• Normalized Cohesion W B B B
• Non-normalized Cohesion W B B B
• General Coupling E B N S
• Export Coupling E B E E
• Aggregated import coupling B W W W
• Best, Worst, Expected, Suboptimal
32

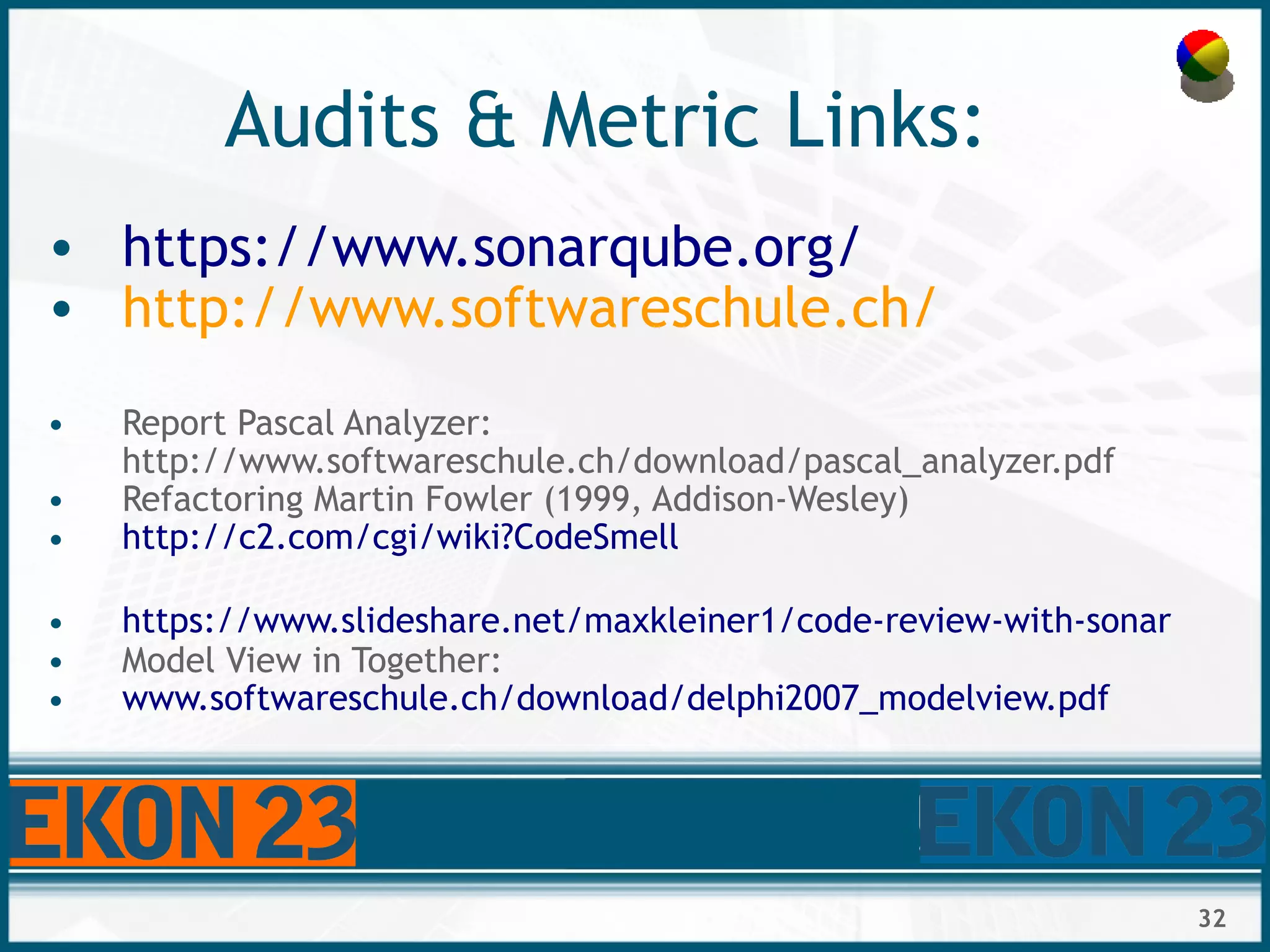

Audits & Metric Links:
• https://www.sonarqube.org/
• http://www.softwareschule.ch/
• Report Pascal Analyzer:
http://www.softwareschule.ch/download/pascal_analyzer.pdf
• Refactoring Martin Fowler (1999, Addison-Wesley)
• http://c2.com/cgi/wiki?CodeSmell
• https://www.slideshare.net/maxkleiner1/code-review-with-sonar
• Model View in Together:
• www.softwareschule.ch/download/delphi2007_modelview.pdf
33
Q&A
max@kleiner.com
www.softwareschule.ch

More Related Content

What's hot

advanced java ppt
advanced java pptadvanced java ppt
advanced java ppt
PreetiDixit22

03 Java Language And OOP Part III
03 Java Language And OOP Part III03 Java Language And OOP Part III
03 Java Language And OOP Part III
Hari Christian

04 Java Language And OOP Part IV
04 Java Language And OOP Part IV04 Java Language And OOP Part IV
04 Java Language And OOP Part IV
Hari Christian

Mathemetics module
Mathemetics moduleMathemetics module
Mathemetics module
manikanta361

Java 101
Java 101Java 101
Java 101
Manuela Grindei

Java concurrency
Java concurrencyJava concurrency
Java concurrency
Hithem Ahmed

Java 102
Java 102Java 102
Java 102
Manuela Grindei

Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, TuningJava 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Carol McDonald

01 Java Language And OOP Part I LAB
01 Java Language And OOP Part I LAB01 Java Language And OOP Part I LAB
01 Java Language And OOP Part I LAB
Hari Christian

Java Concurrency
Java ConcurrencyJava Concurrency
Java Concurrency
Carol McDonald

Core Java Concepts
Core Java ConceptsCore Java Concepts
Core Java Concepts
mdfkhan625

Synchronization.37
Synchronization.37Synchronization.37
Synchronization.37
myrajendra

Inheritance
InheritanceInheritance
Inheritance
Mavoori Soshmitha

Java 103
Java 103Java 103
Java 103
Manuela Grindei

The Ring programming language version 1.5.4 book - Part 180 of 185
The Ring programming language version 1.5.4 book - Part 180 of 185The Ring programming language version 1.5.4 book - Part 180 of 185
The Ring programming language version 1.5.4 book - Part 180 of 185
Mahmoud Samir Fayed

Threads in Java
Threads in JavaThreads in Java
Threads in Java
Gaurav Aggarwal

Presentation 4th
Presentation 4thPresentation 4th
Presentation 4th
Connex

Java session13
Java session13Java session13
Java session13
Niit Care

Java Tutorials
Java Tutorials Java Tutorials
Java Tutorials
Woxa Technologies

Java tutorial for Beginners and Entry Level
Java tutorial for Beginners and Entry LevelJava tutorial for Beginners and Entry Level
Java tutorial for Beginners and Entry Level
Ramrao Desai


What's hot (20)

advanced java ppt
advanced java pptadvanced java ppt
advanced java ppt

03 Java Language And OOP Part III
03 Java Language And OOP Part III03 Java Language And OOP Part III
03 Java Language And OOP Part III

04 Java Language And OOP Part IV
04 Java Language And OOP Part IV04 Java Language And OOP Part IV
04 Java Language And OOP Part IV

Mathemetics module
Mathemetics moduleMathemetics module
Mathemetics module

Java 101
Java 101Java 101
Java 101

Java concurrency
Java concurrencyJava concurrency
Java concurrency

Java 102
Java 102Java 102
Java 102

Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, TuningJava 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, Tuning

01 Java Language And OOP Part I LAB
01 Java Language And OOP Part I LAB01 Java Language And OOP Part I LAB
01 Java Language And OOP Part I LAB

Java Concurrency
Java ConcurrencyJava Concurrency
Java Concurrency

Core Java Concepts
Core Java ConceptsCore Java Concepts
Core Java Concepts

Synchronization.37
Synchronization.37Synchronization.37
Synchronization.37

Inheritance
InheritanceInheritance
Inheritance

Java 103
Java 103Java 103
Java 103

The Ring programming language version 1.5.4 book - Part 180 of 185
The Ring programming language version 1.5.4 book - Part 180 of 185The Ring programming language version 1.5.4 book - Part 180 of 185
The Ring programming language version 1.5.4 book - Part 180 of 185

Threads in Java
Threads in JavaThreads in Java
Threads in Java

Presentation 4th
Presentation 4thPresentation 4th
Presentation 4th

Java session13
Java session13Java session13
Java session13

Java Tutorials
Java Tutorials Java Tutorials
Java Tutorials

Java tutorial for Beginners and Entry Level
Java tutorial for Beginners and Entry LevelJava tutorial for Beginners and Entry Level
Java tutorial for Beginners and Entry Level


Similar to EKON 23 Code_review_checklist

Metrics ekon 14_2_kleiner
Metrics ekon 14_2_kleinerMetrics ekon 14_2_kleiner
Metrics ekon 14_2_kleiner
Max Kleiner

What’s eating python performance
What’s eating python performanceWhat’s eating python performance
What’s eating python performance
Piotr Przymus

Dev buchan 30 proven tips
Dev buchan 30 proven tipsDev buchan 30 proven tips
Dev buchan 30 proven tips
Bill Buchan

CodeChecker Overview Nov 2019
CodeChecker Overview Nov 2019CodeChecker Overview Nov 2019
CodeChecker Overview Nov 2019
Olivera Milenkovic

maXbox Starter 43 Work with Code Metrics ISO Standard
maXbox Starter 43 Work with Code Metrics ISO StandardmaXbox Starter 43 Work with Code Metrics ISO Standard
maXbox Starter 43 Work with Code Metrics ISO Standard
Max Kleiner

Tango with django
Tango with djangoTango with django
Tango with django
Rajan Kumar Upadhyay

Automated product categorization
Automated product categorizationAutomated product categorization
Automated product categorization
Andreas Loupasakis

Automated product categorization
Automated product categorization   Automated product categorization
Automated product categorization
Warply

Pragmatic Code Coverage
Pragmatic Code CoveragePragmatic Code Coverage
Pragmatic Code Coverage
Alexandre (Shura) Iline

Lecture 1 (bce-7)
Lecture   1 (bce-7)Lecture   1 (bce-7)
Lecture 1 (bce-7)
farazahmad005

How and what to unit test
How and what to unit testHow and what to unit test
How and what to unit test
Eugenio Lentini

Thesis Defense (Gwendal DANIEL) - Nov 2017
Thesis Defense (Gwendal DANIEL) - Nov 2017Thesis Defense (Gwendal DANIEL) - Nov 2017
Thesis Defense (Gwendal DANIEL) - Nov 2017
Gwendal Daniel

Code Metrics
Code MetricsCode Metrics
Code Metrics
Attila Bertók

Rails Tips and Best Practices
Rails Tips and Best PracticesRails Tips and Best Practices
Rails Tips and Best Practices
David Keener

Design Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best PracticesDesign Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best Practices
Inductive Automation

Introduction to OpenSees by Frank McKenna
Introduction to OpenSees by Frank McKennaIntroduction to OpenSees by Frank McKenna
Introduction to OpenSees by Frank McKenna
openseesdays

Design Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best PracticesDesign Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best Practices
Inductive Automation

Intro_2.ppt
Intro_2.pptIntro_2.ppt
Intro_2.ppt
MumitAhmed1

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt
SharabiNaif

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt
Anonymous9etQKwW


Similar to EKON 23 Code_review_checklist (20)

Metrics ekon 14_2_kleiner
Metrics ekon 14_2_kleinerMetrics ekon 14_2_kleiner
Metrics ekon 14_2_kleiner

What’s eating python performance
What’s eating python performanceWhat’s eating python performance
What’s eating python performance

Dev buchan 30 proven tips
Dev buchan 30 proven tipsDev buchan 30 proven tips
Dev buchan 30 proven tips

CodeChecker Overview Nov 2019
CodeChecker Overview Nov 2019CodeChecker Overview Nov 2019
CodeChecker Overview Nov 2019

maXbox Starter 43 Work with Code Metrics ISO Standard
maXbox Starter 43 Work with Code Metrics ISO StandardmaXbox Starter 43 Work with Code Metrics ISO Standard
maXbox Starter 43 Work with Code Metrics ISO Standard

Tango with django
Tango with djangoTango with django
Tango with django

Automated product categorization
Automated product categorizationAutomated product categorization
Automated product categorization

Automated product categorization
Automated product categorization   Automated product categorization
Automated product categorization

Pragmatic Code Coverage
Pragmatic Code CoveragePragmatic Code Coverage
Pragmatic Code Coverage

Lecture 1 (bce-7)
Lecture   1 (bce-7)Lecture   1 (bce-7)
Lecture 1 (bce-7)

How and what to unit test
How and what to unit testHow and what to unit test
How and what to unit test

Thesis Defense (Gwendal DANIEL) - Nov 2017
Thesis Defense (Gwendal DANIEL) - Nov 2017Thesis Defense (Gwendal DANIEL) - Nov 2017
Thesis Defense (Gwendal DANIEL) - Nov 2017

Code Metrics
Code MetricsCode Metrics
Code Metrics

Rails Tips and Best Practices
Rails Tips and Best PracticesRails Tips and Best Practices
Rails Tips and Best Practices

Design Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best PracticesDesign Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best Practices

Introduction to OpenSees by Frank McKenna
Introduction to OpenSees by Frank McKennaIntroduction to OpenSees by Frank McKenna
Introduction to OpenSees by Frank McKenna

Design Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best PracticesDesign Like a Pro: Scripting Best Practices
Design Like a Pro: Scripting Best Practices

Intro_2.ppt
Intro_2.pptIntro_2.ppt
Intro_2.ppt

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt


More from Max Kleiner

EKON26_VCL4Python.pdf
EKON26_VCL4Python.pdfEKON26_VCL4Python.pdf
EKON26_VCL4Python.pdf
Max Kleiner

EKON26_Open_API_Develop2Cloud.pdf
EKON26_Open_API_Develop2Cloud.pdfEKON26_Open_API_Develop2Cloud.pdf
EKON26_Open_API_Develop2Cloud.pdf
Max Kleiner

maXbox_Starter91_SyntheticData_Implement
maXbox_Starter91_SyntheticData_ImplementmaXbox_Starter91_SyntheticData_Implement
maXbox_Starter91_SyntheticData_Implement
Max Kleiner

Ekon 25 Python4Delphi_MX475
Ekon 25 Python4Delphi_MX475Ekon 25 Python4Delphi_MX475
Ekon 25 Python4Delphi_MX475
Max Kleiner

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4
Max Kleiner

maXbox Starter87
maXbox Starter87maXbox Starter87
maXbox Starter87
Max Kleiner

maXbox Starter78 PortablePixmap
maXbox Starter78 PortablePixmapmaXbox Starter78 PortablePixmap
maXbox Starter78 PortablePixmap
Max Kleiner

maXbox starter75 object detection
maXbox starter75 object detectionmaXbox starter75 object detection
maXbox starter75 object detection
Max Kleiner

BASTA 2020 VS Code Data Visualisation
BASTA 2020 VS Code Data VisualisationBASTA 2020 VS Code Data Visualisation
BASTA 2020 VS Code Data Visualisation
Max Kleiner

EKON 24 ML_community_edition
EKON 24 ML_community_editionEKON 24 ML_community_edition
EKON 24 ML_community_edition
Max Kleiner

maxbox starter72 multilanguage coding
maxbox starter72 multilanguage codingmaxbox starter72 multilanguage coding
maxbox starter72 multilanguage coding
Max Kleiner

EKON 12 Running OpenLDAP
EKON 12 Running OpenLDAP EKON 12 Running OpenLDAP
EKON 12 Running OpenLDAP
Max Kleiner

EKON 12 Closures Coding
EKON 12 Closures CodingEKON 12 Closures Coding
EKON 12 Closures Coding
Max Kleiner

NoGUI maXbox Starter70
NoGUI maXbox Starter70NoGUI maXbox Starter70
NoGUI maXbox Starter70
Max Kleiner

maXbox starter69 Machine Learning VII
maXbox starter69 Machine Learning VIImaXbox starter69 Machine Learning VII
maXbox starter69 Machine Learning VII
Max Kleiner

maXbox starter68 machine learning VI
maXbox starter68 machine learning VImaXbox starter68 machine learning VI
maXbox starter68 machine learning VI
Max Kleiner

maXbox starter67 machine learning V
maXbox starter67 machine learning VmaXbox starter67 machine learning V
maXbox starter67 machine learning V
Max Kleiner

maXbox starter65 machinelearning3
maXbox starter65 machinelearning3maXbox starter65 machinelearning3
maXbox starter65 machinelearning3
Max Kleiner

EKON22_Overview_Machinelearning_Diagrams
EKON22_Overview_Machinelearning_DiagramsEKON22_Overview_Machinelearning_Diagrams
EKON22_Overview_Machinelearning_Diagrams
Max Kleiner

Ekon22 tensorflow machinelearning2
Ekon22 tensorflow machinelearning2Ekon22 tensorflow machinelearning2
Ekon22 tensorflow machinelearning2
Max Kleiner


More from Max Kleiner (20)

EKON26_VCL4Python.pdf
EKON26_VCL4Python.pdfEKON26_VCL4Python.pdf
EKON26_VCL4Python.pdf

EKON26_Open_API_Develop2Cloud.pdf
EKON26_Open_API_Develop2Cloud.pdfEKON26_Open_API_Develop2Cloud.pdf
EKON26_Open_API_Develop2Cloud.pdf

maXbox_Starter91_SyntheticData_Implement
maXbox_Starter91_SyntheticData_ImplementmaXbox_Starter91_SyntheticData_Implement
maXbox_Starter91_SyntheticData_Implement

Ekon 25 Python4Delphi_MX475
Ekon 25 Python4Delphi_MX475Ekon 25 Python4Delphi_MX475
Ekon 25 Python4Delphi_MX475

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4

maXbox Starter87
maXbox Starter87maXbox Starter87
maXbox Starter87

maXbox Starter78 PortablePixmap
maXbox Starter78 PortablePixmapmaXbox Starter78 PortablePixmap
maXbox Starter78 PortablePixmap

maXbox starter75 object detection
maXbox starter75 object detectionmaXbox starter75 object detection
maXbox starter75 object detection

BASTA 2020 VS Code Data Visualisation
BASTA 2020 VS Code Data VisualisationBASTA 2020 VS Code Data Visualisation
BASTA 2020 VS Code Data Visualisation

EKON 24 ML_community_edition
EKON 24 ML_community_editionEKON 24 ML_community_edition
EKON 24 ML_community_edition

maxbox starter72 multilanguage coding
maxbox starter72 multilanguage codingmaxbox starter72 multilanguage coding
maxbox starter72 multilanguage coding

EKON 12 Running OpenLDAP
EKON 12 Running OpenLDAP EKON 12 Running OpenLDAP
EKON 12 Running OpenLDAP

EKON 12 Closures Coding
EKON 12 Closures CodingEKON 12 Closures Coding
EKON 12 Closures Coding

NoGUI maXbox Starter70
NoGUI maXbox Starter70NoGUI maXbox Starter70
NoGUI maXbox Starter70

maXbox starter69 Machine Learning VII
maXbox starter69 Machine Learning VIImaXbox starter69 Machine Learning VII
maXbox starter69 Machine Learning VII

maXbox starter68 machine learning VI
maXbox starter68 machine learning VImaXbox starter68 machine learning VI
maXbox starter68 machine learning VI

maXbox starter67 machine learning V
maXbox starter67 machine learning VmaXbox starter67 machine learning V
maXbox starter67 machine learning V

maXbox starter65 machinelearning3
maXbox starter65 machinelearning3maXbox starter65 machinelearning3
maXbox starter65 machinelearning3

EKON22_Overview_Machinelearning_Diagrams
EKON22_Overview_Machinelearning_DiagramsEKON22_Overview_Machinelearning_Diagrams
EKON22_Overview_Machinelearning_Diagrams

Ekon22 tensorflow machinelearning2
Ekon22 tensorflow machinelearning2Ekon22 tensorflow machinelearning2
Ekon22 tensorflow machinelearning2


Recently uploaded

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
ecqow

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx
harshapolam10

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
IJECEIAES

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样
171ticu

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...
Prakhyath Rai

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx
MDSABBIROJJAMANPAYEL

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx
VANDANAMOHANGOUDA

4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf
4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf
4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf
Gino153088

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...
bijceesjournal

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf
21UME003TUSHARDEB

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1
PKavitha10

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
MadhavJungKarki

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone
bjmsejournal

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
PriyankaKilaniya

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...
bijceesjournal

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools
mahaffeycheryld

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM
Divyanshu


Recently uploaded (20)

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx

4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf
4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf
4. Mosca vol I -Fisica-Tipler-5ta-Edicion-Vol-1.pdf

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM


EKON 23 Code_review_checklist

  • 1. Code Review Checklist How far is a code review going? “Metrics measure the design of code after it has been written, a Review proofs it and Refactoring improves code.”
  • 2. 2 The Problem is • That the problem of source code smells is additive (new bugs arise but the old ones stay) • Das kann bei uns nicht passieren! – wieso ist das denn passiert? • Management is arrogance and developers are too proud to admit mistakes • Programmers don't die, they just GOSUB without RETURN.
  • 3. 3 Improve the Situation Agenda • Check your Documents with UML API? • A Docu Structure to the 5 Top Level Metrics • Back to Source Code Bugs & Smells • Improve your Code (Metric Based Refactoring) • Optimisation and Tools
  • 4. 4 API Layers to Structure Metrics are for detecting bad code entities • Function calls for type • Class blocks for object • Module components for file • Library package for directory • Framework deployment for device UEB: 640_API_LayerDetection_EKON23.TXT
  • 5. 5 API Layers to UML! Metrics are for detecting bad code entities • Function calls for Sequence Diagram • Class blocks for Class Diagram • Module components for Com.Diagram • Library package for Package Diagram • Framework deployment for Dep.D http://www.kleiner.ch/kleiner/UML_bigpicture.pdf
  • 6. 6 What‘s API Layering? Bad Coordination possible • Function with Threads • Class Access on objects with Null Pointer • Module Bad Open/Close of Input/Output Streams or I/O Connections component • Package return values or package namespace • Framework in deployment code • Docker Composer Access of Container image constructor on non initialized vars
  • 7. 7 Metrics deal with Bad Structure (how cohesion & coupling) • General Code Size (in module) • Cohesion (in classes and inheritance) • Complexity • Coupling (between classes or units) • Cyclic Dependency, Declare+Definition, ACD-Metric • Interfaces or Packages (design & runtime) • Static, Public, Private (inheritance or delegate) UEB: 10_pas_oodesign_solution.txt
  • 8. 8 Finally you can measure: Bad Habit (no naming convention, no coverage) Duplicated, dead code (side effects), bugs & smells Long Methods (to much code), missing layering Temporary Fields (confusion), comments or docs Long Parameter List (Object is missing) Data Classes (no methods) • Large Class with too many delegating methods In a Kiviat Chart you get a Best Practices Circle! UEB: 33_pas_cipher_file_1.txt
  • 10. 10 Review Doc Map TIOBE Metrics SONAR Rule Set 1. Code coverage [4] Coverage 2. Abstract documentation [6,8] Size, Issues 3. Cyclomatic complexity [7,3] Complexity, Maintainability 4. Compiler warnings [1] Reliability 5. Coding standards [1,3] Reliability, Maintainability 6. Code duplication [5] Duplication 7. Fan out [3,5] Maintainability, Duplication 8. Security flaws [2] Security https://www.tiobe.com/tqi/definition/ https://www.sonarqube.org/
  • 11. 11 Review Doc Structure II • Reliability means less Bugs The degree to which a system or component performs specified functions under specified conditions for a specified period of time. • Security means less Vulnerability The degree of protection of information and data so that unauthorized persons or systems cannot read or modify them and authorized persons or systems are not denied access to them. • Maintainability means less Code Smells The degree of effectiveness and efficiency with which the product can be modified in the sense of measured code smells which a non compliant to coding conventions or standards. • Operability means less Complexity The degree to which the product has attributes that enable it to be understood, learned, used and attractive to the user, when used under specified conditions. • Functionality means more Coverage and Size It measures the minimum number of test cases required for full test coverage.
  • 13. 13 When and why Metrics ? Before a Code Review By changes of a release Redesign with UML (Patterns or Profiles) Law of Demeter not passed Bad Testability (FAT or SAT) • Work on little steps at a time • Modify not only structure but also code format
  • 14. 14 Some Kind of wonderful ? • statusbar1.simpletext • simplepanel:= true! • TLinarBitmap = TLinearBitmap; //Spelling bug • aus Win32.VCL.Dialogs.pas • WndProcPtrAtom: TAtom = 0; • aus indy: self.sender! • procedure TIdMessageSender_W(Self: TIdMessage; const T: TIdEmailAddressItem); • begin Self.Sender := T; end; UEB: 8_pas_verwechselt.txt
  • 15. 15 Metric/Review Checklist 1. Standards - are the Pascal software standards for name conventions being followed? 2. Are all program headers completed? 3. Are changes commented appropriately? 4. Are release notes Clear? Complete? 5. Installation Issues, Licenses, Certs. Are there any? 6. Version Control, Are output products clear? 7. Test Instructions - Are they any? Complete? 8. "Die andere Seite, sehr dunkel sie ist" - "Yoda, halt's Maul und iß Deinen Toast!"
  • 16. 16 Top Ten Metrics 1. VOD Violation of Law of Demeter 2. Halstead NOpmd (Operands/Operators) 3. DAC (Data Abstraction Coupling)(Too many responsibilities or references in the field) 4. CC (Complexity Report), McCabe cyclomatic complexity, Decision Points) 5. CBO (Coupling between Objects) Modularity
  • 17. 17 Top Ten II 6. PUR (Package Usage Ratio) access information in a package from outside 7. DD Dependency Dispersion (SS, Shotgun Surgery (Little changes distributed over too many objects or procedures  patterns missed)) 8. CR Comment Relation 9. MDC (Module Design Complexity (Class with too many delegating methods) 10. NORM (remote methods called (Missing polymorphism))
  • 18. 18 Law of Demeter 1. [M1] an Objekt O selbst Bsp.: self.initChart(vdata); 2. [M2] an Objekte, die als Parameter in der Nachricht m vorkommen Bsp.: O.acceptmemberVisitor(visitor) visitor.visitElementChartData; 3. [M3] an Objekte, die O als Reaktion auf m erstellt Bsp.: visitor:= TChartVisitor.create(cData, madata); 4. [M4] an Objekte, auf die O direkt mit einem Member zugreifen kann Bsp.: O.Ctnr:= visitor.TotalStatistic
  • 19. 19 Demeter Test as SEQ UEB: 56_pas_demeter.txt
  • 20. 20 DAC or Modules of Classes Large classes with to many references • More than seven or eight variables • More than fifty methods • You probably need to break up the class in Components (Strategy, Composite, Decorator) TWebModule1 = class(TWebModule) HTTPSoapDispatcher1: THTTPSoapDispatcher; HTTPSoapPascalInvoker1: THTTPSoapPascalInvoker; WSDLHTMLPublish1: TWSDLHTMLPublish; DataSetTableProducer1: TDataSetTableProducer;
  • 21. 21 CC • Check Complexity function IsInteger(TestThis: string): Boolean; begin try StrToInt(TestThis); except on EConvertError do result:= False; else result:= True; end; end; Ueb: 164_code_reviews.txt
  • 23. 23 DD – Test keywords knowledge Procedure CopyRecord(const SourceTable, DestTable: TTable); var i: Word; begin DestTable.Append; For i:= 0 to SourceTable.FieldCount - 1 do DestTable.Fields[i].Assign(SourceTable.Fields[i]); DestTable.Post; end;
  • 24. 24 DD – use small procedures Procedure CopyRecord(const SourceTable, DestTable: TTable); var i: Word; begin DestTable.Append; For i:= 0 to SourceTable.FieldCount - 1 do DestTable.Fields[i].Assign(SourceTable.Fields[i]); DestTable.Post; end;
  • 25. 25 Why is Refactoring important? • Only defense against software decay. • Often needed to fix reusability bugs. • Lets you add patterns or templates after you have written a program; • Lets you transform program into framework. • Estimation of the value (capital) of code! • Necessary for beautiful software.
  • 26. 26 Refactoring Process The act of serialize the process:  Build unit test  Refactor and test the code (iterative!)  Check with Analyzer or another tool  Build the code  Running all unit tests  Generating the documentation  Deploying to a target machine  Performing a “smoke test” (just compile)
  • 27. 27 Let‘s practice • 1 • 11 • 21 • 1211 • 111221 • 312211 • ??? Try to find the next pattern, look for a rule or logic behind !
  • 28. 28 Before R. function runString(Vshow: string): string; var i: byte; Rword, tmpStr: string; cntr, nCount: integer; begin cntr:=1; nCount:=0; Rword:=''; //initialize tmpStr:=Vshow; // input last result for i:= 1 to length(tmpStr) do begin if i= length(tmpstr) then begin if (tmpStr[i-1]=tmpStr[i]) then cntr:= cntr +1; if cntr = 1 then nCount:= cntr Rword:= Rword + intToStr(ncount) + tmpStr[i] end else if (tmpStr[i]=tmpStr[i+1]) then begin cntr:= cntr +1; nCount:= cntr; end else begin if cntr = 1 then cntr:=1 else cntr:=1; //reinit counter! Rword:= Rword + intToStr(ncount) + tmpStr[i] //+ last char(tmpStr) end; end; // end for loop result:=Rword; end; UEB: 9_pas_umlrunner.txt
  • 29. 29 After R. function charCounter(instr: string): string; var i, cntr: integer; Rword: string; begin cntr:= 1; Rword:=' '; for i:= 1 to length(instr) do begin //last number in line if i= length(instr) then concatChars() else if (instr[i]=instr[i+1]) then cntr:= cntr +1 else begin concatChars() //reinit counter! cntr:= 1; end; end; //for result:= Rword; end; UEB: 12_pas_umlrunner_solution.txt
  • 30. 30 Refactoring Methods Einheit Refactoring Funktion Beschreibung Package Rename Package Rename of Packages Class Move Method Remove of Methods Class Extract Superclass Aus Methoden, Eigenschaften eine Oberklasse erzeugen und verwenden Class Introduce Parameter Replace of Expression w. Methodparameter Class Extract Method Heraustrennen einer Codepassage Interface Extract Interface Aus Methoden ein Interface erzeugen Interface Use Interface Erzeuge Referenzen auf Klasse Component Replace Inheritance with Delegation Ersetze vererbte Methoden durch Delegation in innere Klasse Class Encapsulate Fields Getter- and Setter capsulate Model Safe Delete Delete a Class with References
  • 31. 31 Metric based Refactoring :ExtractMethod(EM)-MoveMethod(MM)-DataObject(DO)-ExtractClass(EC) EM MM DO EC • Normalized Cohesion W B B B • Non-normalized Cohesion W B B B • General Coupling E B N S • Export Coupling E B E E • Aggregated import coupling B W W W • Best, Worst, Expected, Suboptimal
  • 32. 32 Audits & Metric Links: • https://www.sonarqube.org/ • http://www.softwareschule.ch/ • Report Pascal Analyzer: http://www.softwareschule.ch/download/pascal_analyzer.pdf • Refactoring Martin Fowler (1999, Addison-Wesley) • http://c2.com/cgi/wiki?CodeSmell • https://www.slideshare.net/maxkleiner1/code-review-with-sonar • Model View in Together: • www.softwareschule.ch/download/delphi2007_modelview.pdf
