1. 1/41
Closures & Functional
Programing
They are a block of code plus the
bindings to the environment they came
from (Ragusa Idiom).
“Refactoring is improving the design of code after it
has been written”

2. 2/41

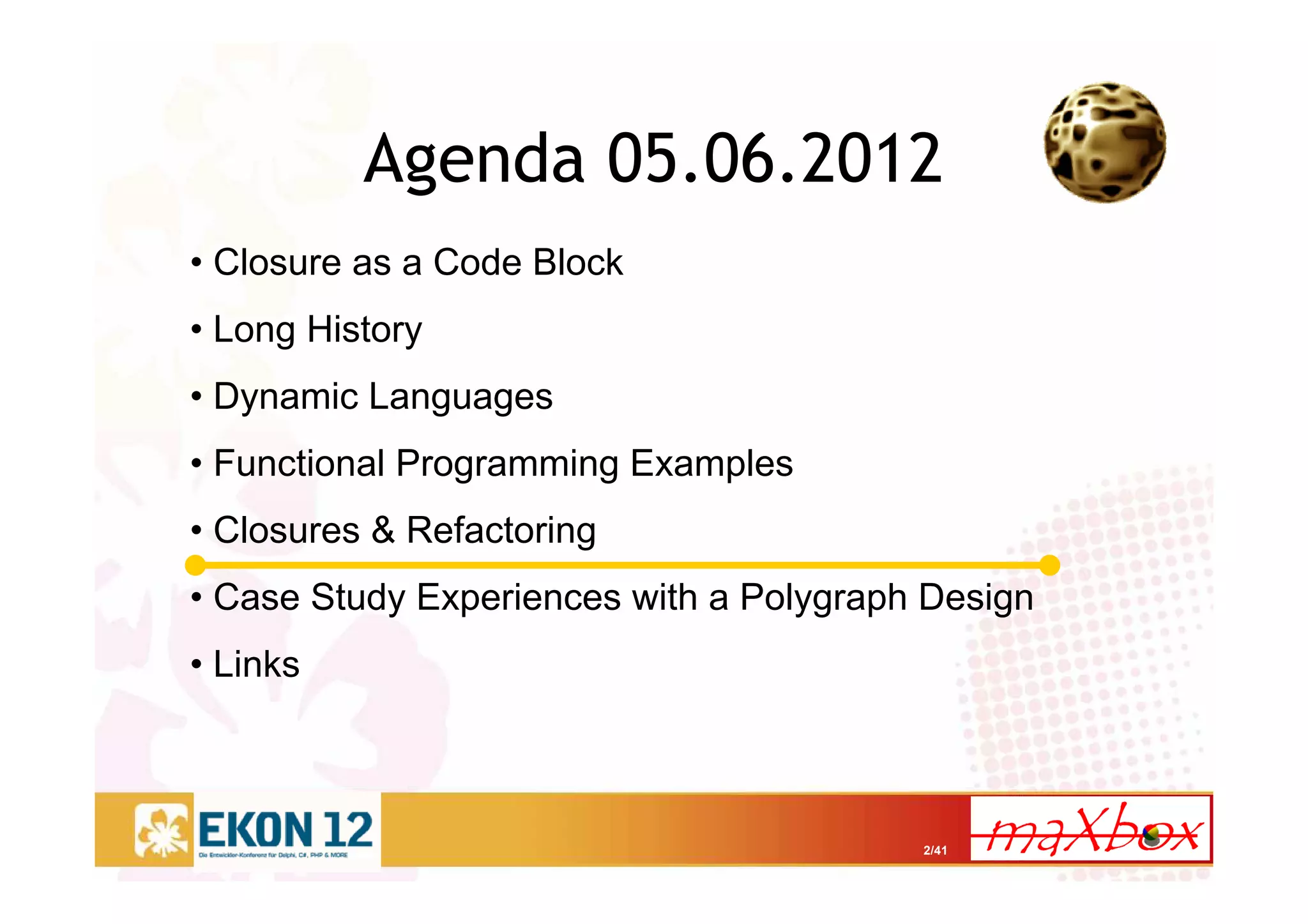

Agenda 05.06.2012
• Closure as a Code Block
• Long History
• Dynamic Languages
• Functional Programming Examples
• Closures & Refactoring
• Case Study Experiences with a Polygraph Design
• Links

3. 3/41

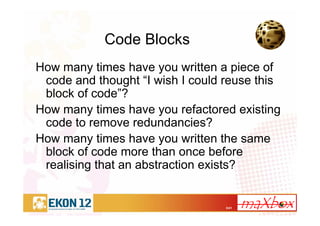

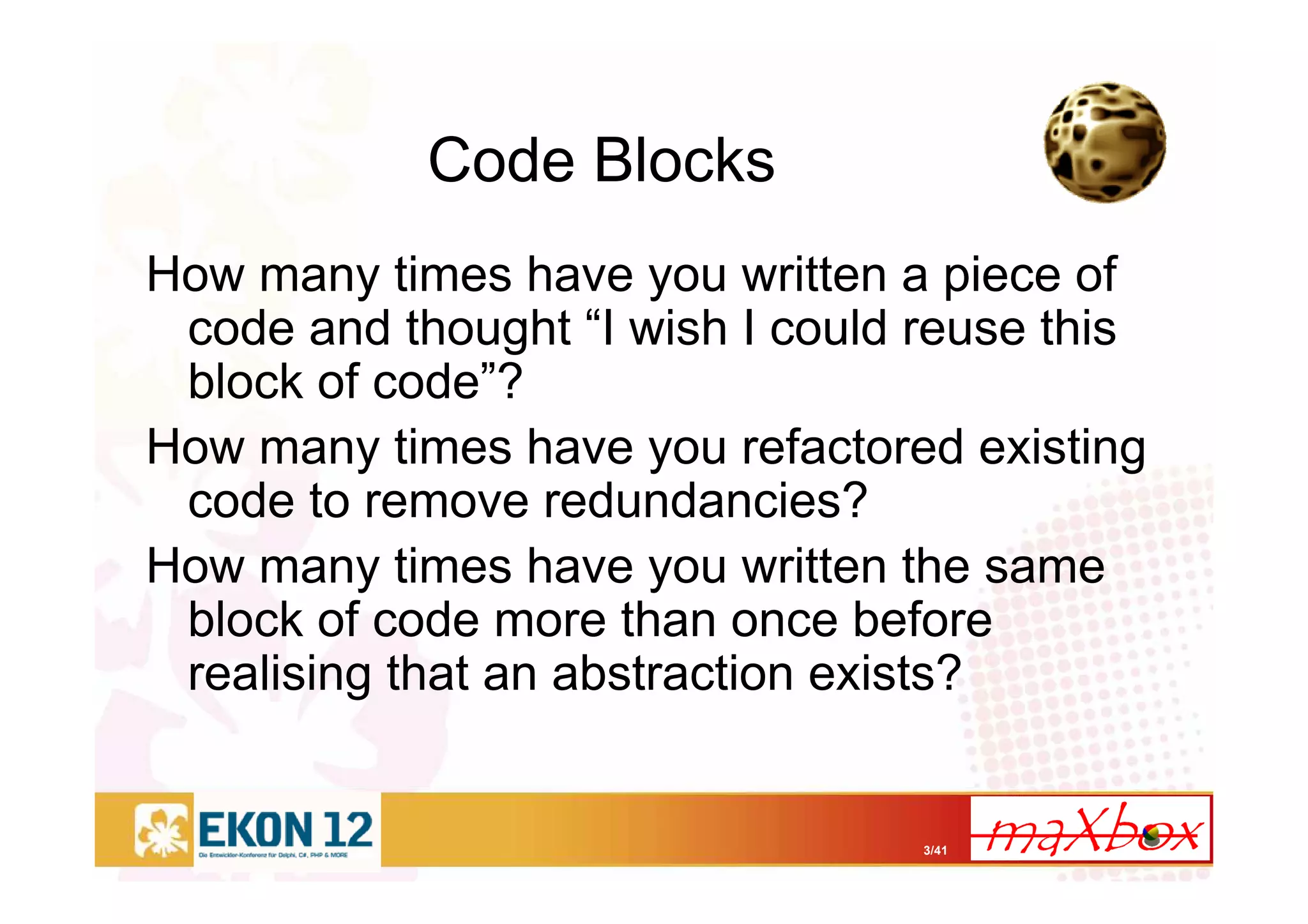

Code Blocks
How many times have you written a piece of
code and thought “I wish I could reuse this
block of code”?
How many times have you refactored existing
code to remove redundancies?
How many times have you written the same
block of code more than once before
realising that an abstraction exists?

4. 4/41
Why Closures?
Languages that support closures allow you to
define functions with very little syntax.
While this might not seem an important
point, I believe it's crucial - it's the key to
make it natural to use them frequently.
Look at Lisp, Smalltalk, or Ruby code and
you'll see closures all over the place.
UEB: demos/threads/thrddemo.exe

5. 5/41

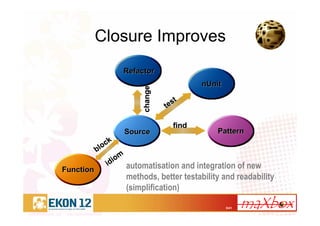

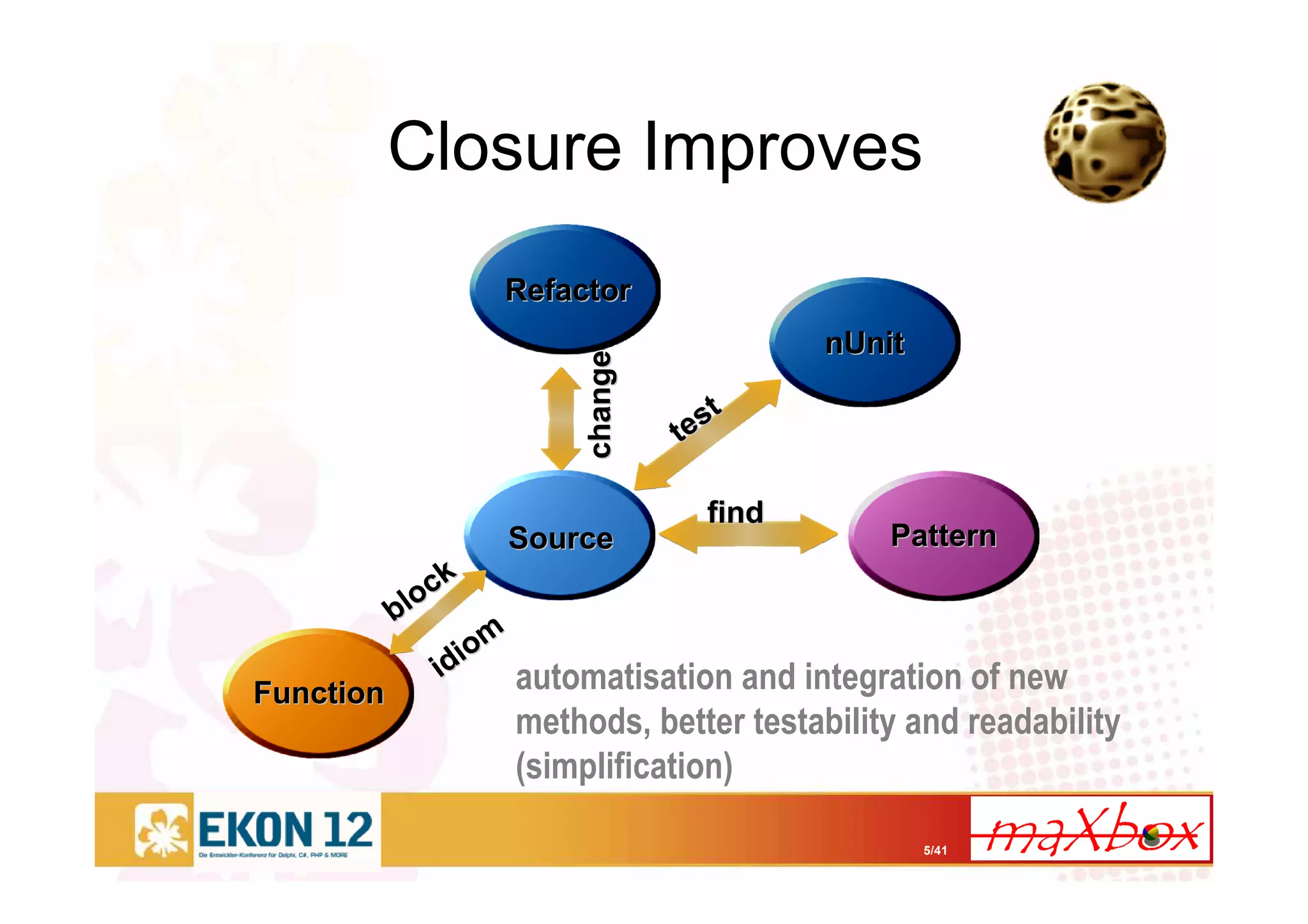

Closure Improves
automatisation and integration of new
methods, better testability and readability
(simplification)
SourceSource
findfind
FunctionFunction
nUnitnUnit
test
test
RefactorRefactor
changechange
PatternPattern
block
block
idiom
idiom

6. 6/41

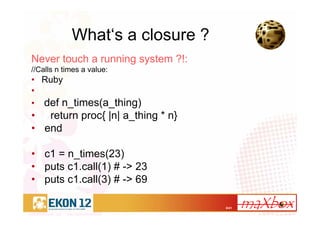

What‘s a closure ?
Never touch a running system ?!:
//Calls n times a value:
• Ruby
•
• def n_times(a_thing)
• return proc{ |n| a_thing * n}
• end
• c1 = n_times(23)
• puts c1.call(1) # -> 23
• puts c1.call(3) # -> 69

7. 7/41

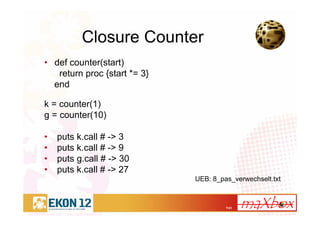

Closure Counter
• def counter(start)
return proc {start *= 3}
end
k = counter(1)
g = counter(10)
• puts k.call # -> 3
• puts k.call # -> 9
• puts g.call # -> 30
• puts k.call # -> 27
UEB: 8_pas_verwechselt.txt

8. 8/41

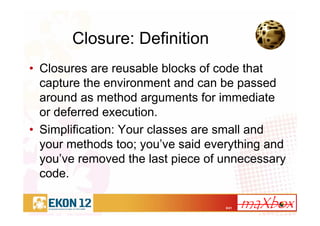

Closure: Definition
• Closures are reusable blocks of code that
capture the environment and can be passed
around as method arguments for immediate
or deferred execution.
• Simplification: Your classes are small and
your methods too; you’ve said everything and
you’ve removed the last piece of unnecessary
code.

9. 9/41

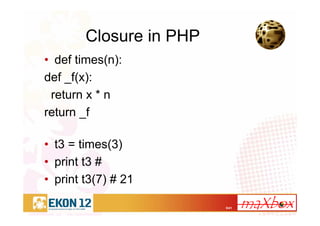

Closure in PHP
• def times(n):
def _f(x):
return x * n
return _f
• t3 = times(3)
• print t3 #
• print t3(7) # 21

10. 10/41

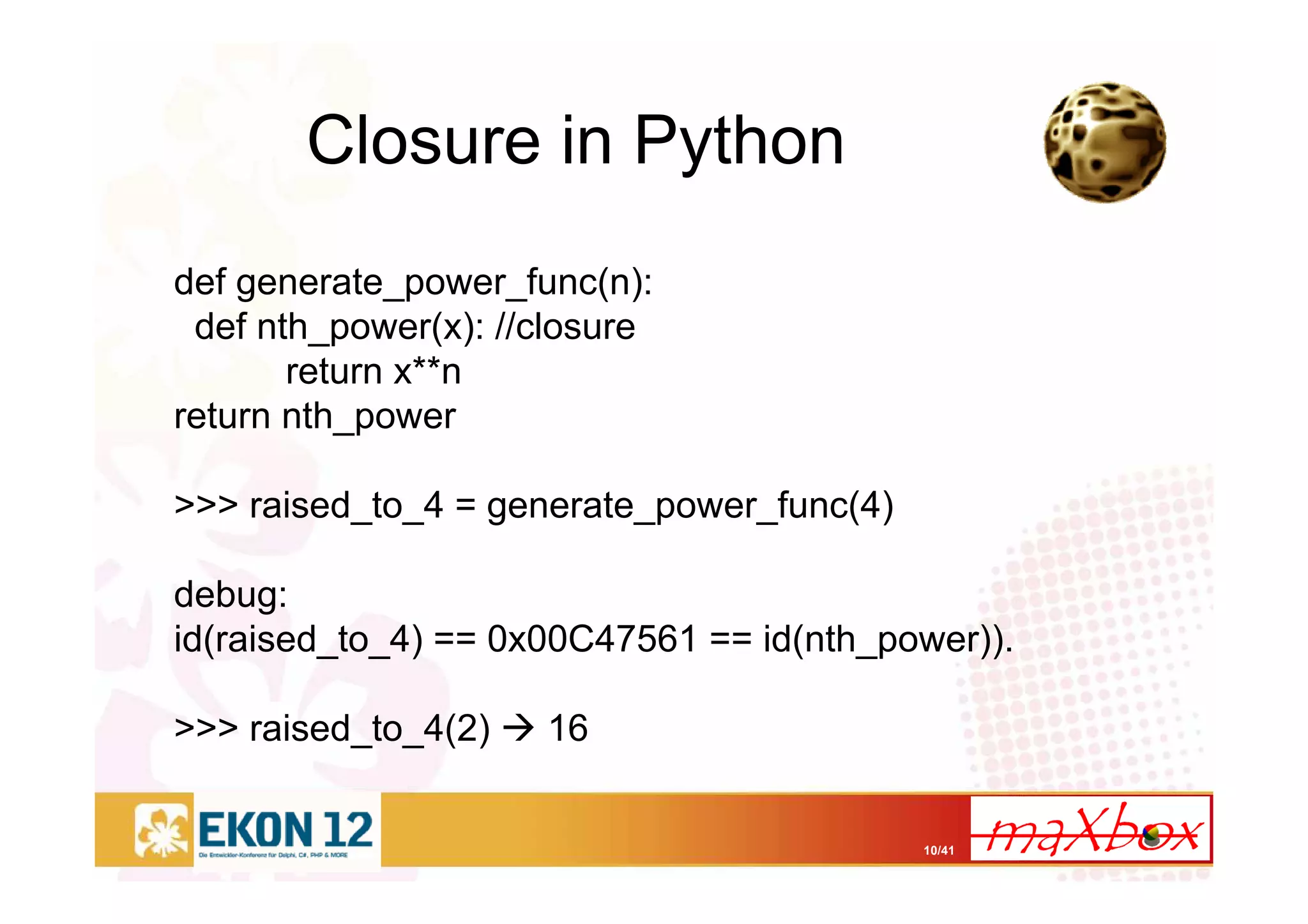

Closure in Python
def generate_power_func(n):
def nth_power(x): //closure
return x**n
return nth_power
>>> raised_to_4 = generate_power_func(4)
debug:
id(raised_to_4) == 0x00C47561 == id(nth_power)).
>>> raised_to_4(2) 16

11. 11/41

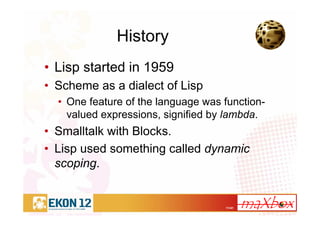

History
• Lisp started in 1959
• Scheme as a dialect of Lisp
• One feature of the language was function-
valued expressions, signified by lambda.
• Smalltalk with Blocks.
• Lisp used something called dynamic
scoping.

12. 12/41

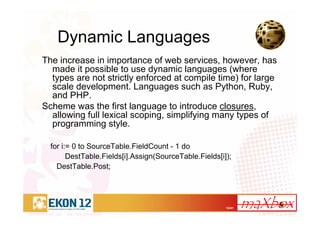

Dynamic Languages
The increase in importance of web services, however, has
made it possible to use dynamic languages (where
types are not strictly enforced at compile time) for large
scale development. Languages such as Python, Ruby,
and PHP.
Scheme was the first language to introduce closures,
allowing full lexical scoping, simplifying many types of
programming style.
for i:= 0 to SourceTable.FieldCount - 1 do
DestTable.Fields[i].Assign(SourceTable.Fields[i]);
DestTable.Post;

13. 13/41

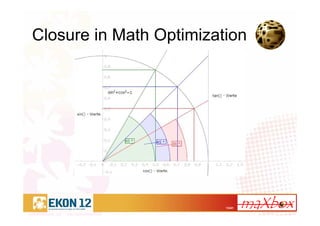

Closure in Math Optimization

14. 14/41

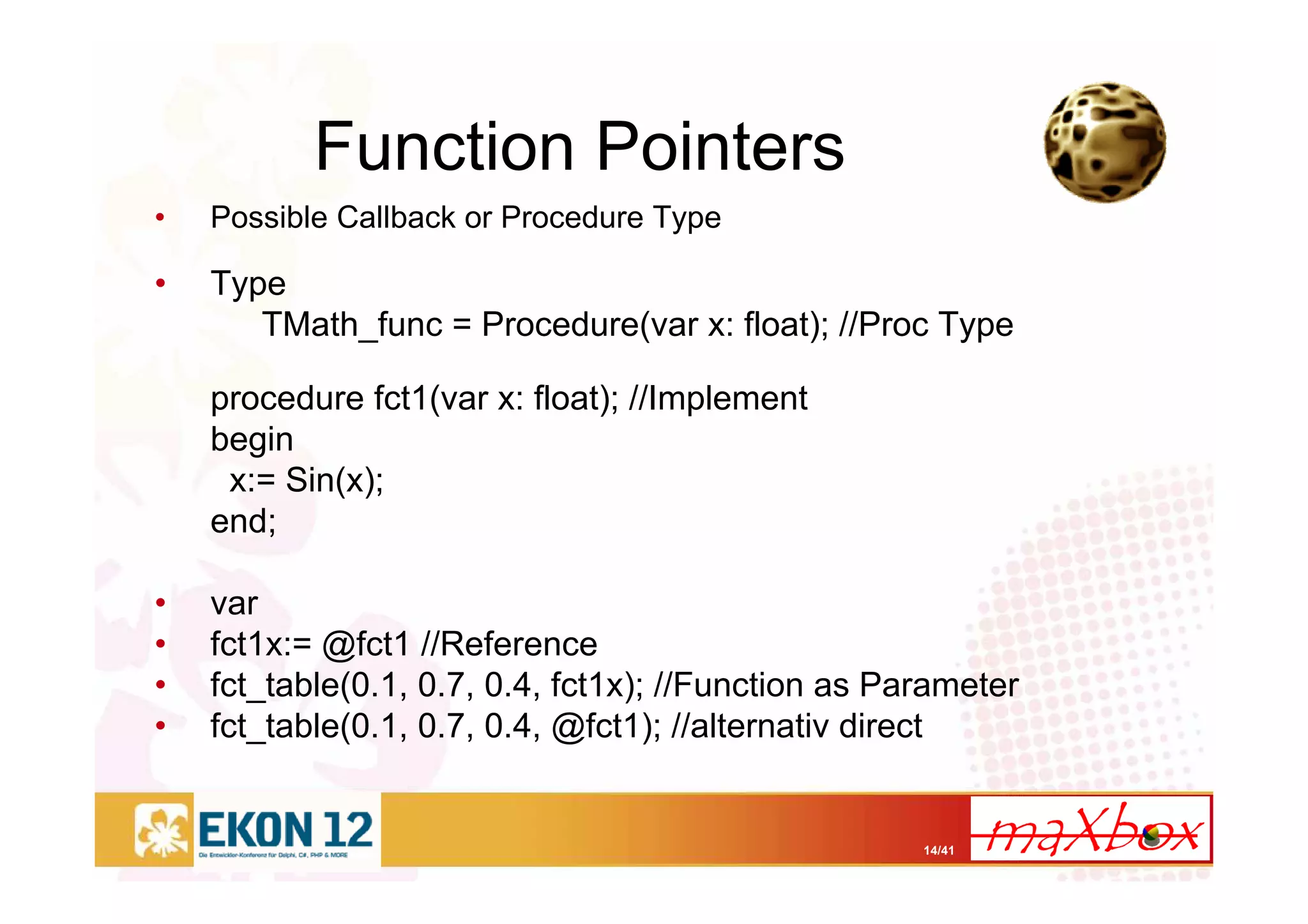

Function Pointers
• Possible Callback or Procedure Type
• Type
TMath_func = Procedure(var x: float); //Proc Type
procedure fct1(var x: float); //Implement
begin
x:= Sin(x);
end;
• var
• fct1x:= @fct1 //Reference
• fct_table(0.1, 0.7, 0.4, fct1x); //Function as Parameter
• fct_table(0.1, 0.7, 0.4, @fct1); //alternativ direct

15. 15/41

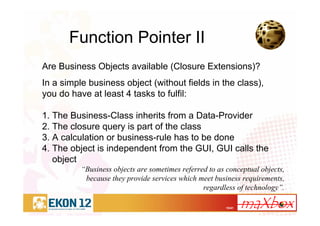

Function Pointer II
Are Business Objects available (Closure Extensions)?
In a simple business object (without fields in the class),
you do have at least 4 tasks to fulfil:
1. The Business-Class inherits from a Data-Provider
2. The closure query is part of the class
3. A calculation or business-rule has to be done
4. The object is independent from the GUI, GUI calls the
object
“Business objects are sometimes referred to as conceptual objects,
because they provide services which meet business requirements,
regardless of technology”.

16. 16/41
Delegates
Method Pointers (Object Organisation)
• ppform:= TForm.Create(self);
• with ppform do begin
• caption:= 'LEDBOX, click to edit, dblclick write out pattern'+
• ' Press <Return> to run the Sentence';
• width:= (vx*psize)+ 10 + 300;
• height:= (vy*psize)+ 30;
• BorderStyle:= bsDialog;
• Position:= poScreenCenter;
• OnKeyPress:= @FormKeyPress
• OnClick:= @Label1Click;
• OnClose:= @closeForm;
• Show;
• end
UEB: 15_pas_designbycontract.txt

17. 17/41

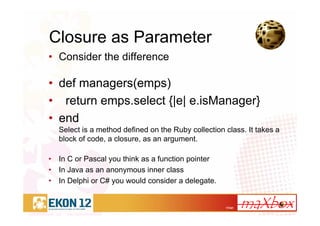

Closure as Parameter
• Consider the difference
• def managers(emps)
• return emps.select {|e| e.isManager}
• end
Select is a method defined on the Ruby collection class. It takes a
block of code, a closure, as an argument.
• In C or Pascal you think as a function pointer
• In Java as an anonymous inner class
• In Delphi or C# you would consider a delegate.

18. 18/41

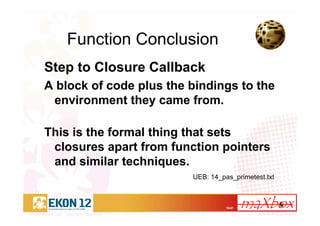

Function Conclusion
Step to Closure Callback
A block of code plus the bindings to the
environment they came from.
This is the formal thing that sets
closures apart from function pointers
and similar techniques.
UEB: 14_pas_primetest.txt

19. 19/41

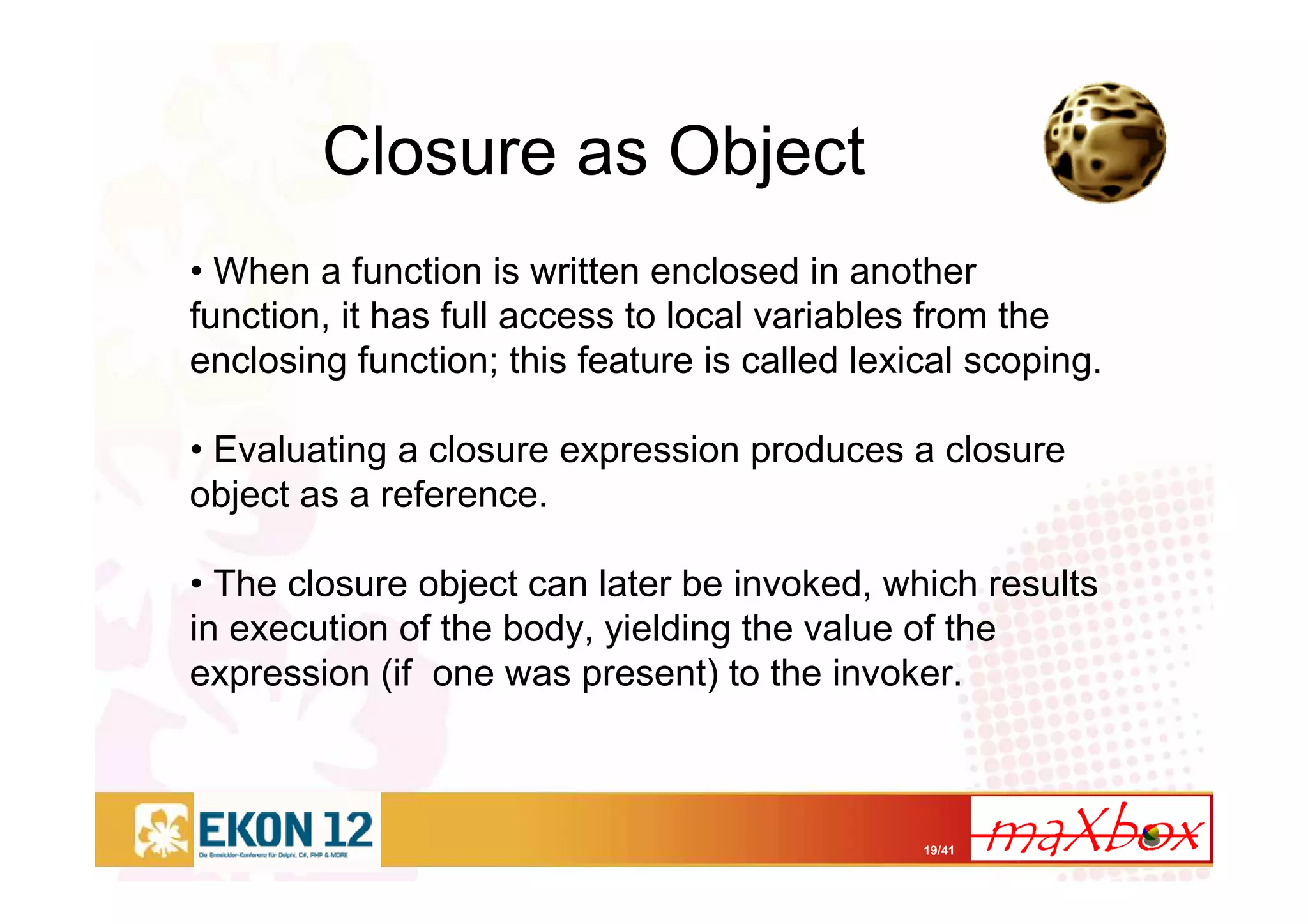

Closure as Object
• When a function is written enclosed in another
function, it has full access to local variables from the
enclosing function; this feature is called lexical scoping.
• Evaluating a closure expression produces a closure
object as a reference.
• The closure object can later be invoked, which results
in execution of the body, yielding the value of the
expression (if one was present) to the invoker.

20. 20/41

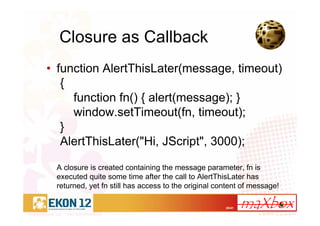

Closure as Callback
• function AlertThisLater(message, timeout)
{
function fn() { alert(message); }
window.setTimeout(fn, timeout);
}
AlertThisLater("Hi, JScript", 3000);
A closure is created containing the message parameter, fn is
executed quite some time after the call to AlertThisLater has
returned, yet fn still has access to the original content of message!

21. 21/41

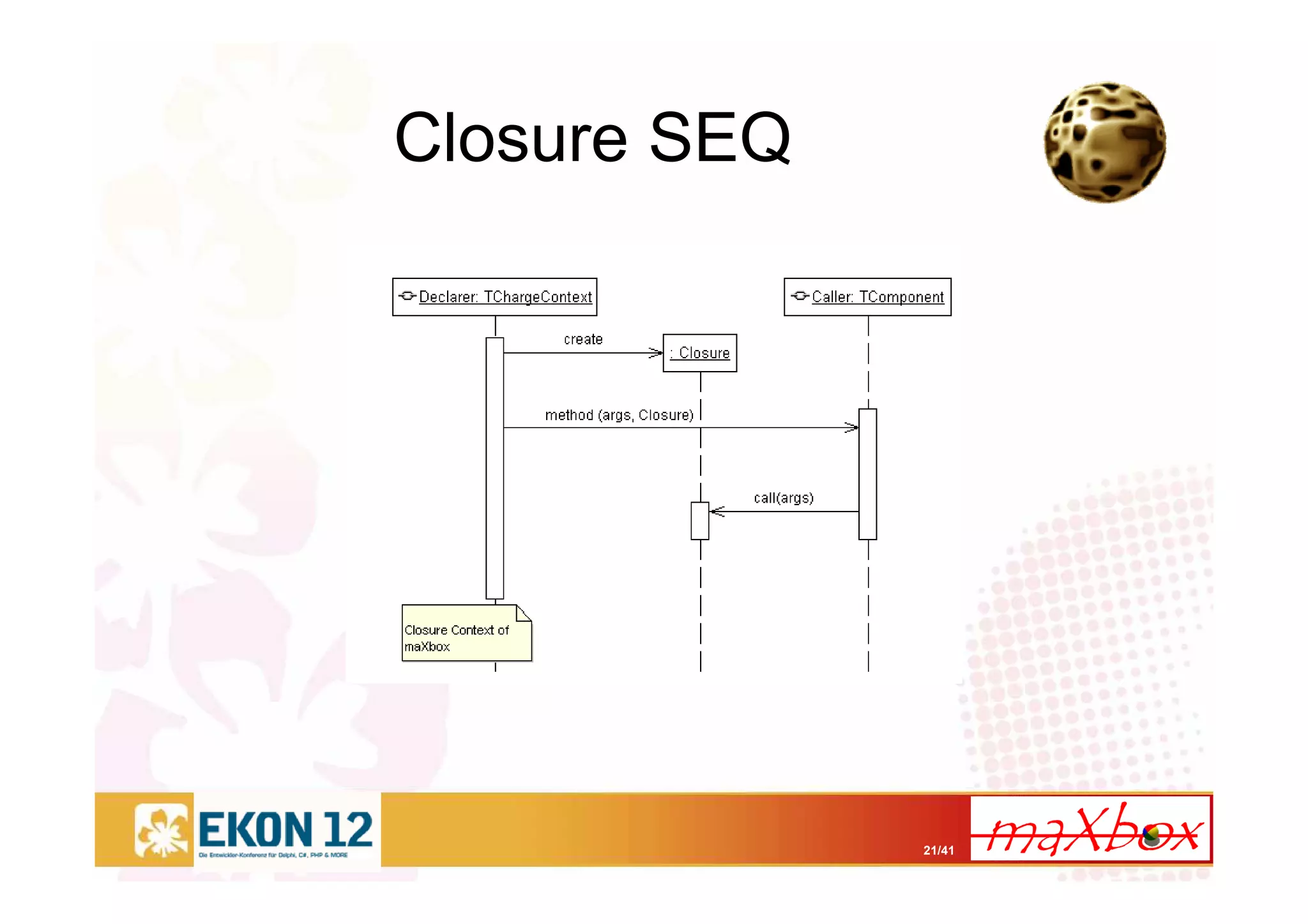

Closure SEQ

22. 22/41

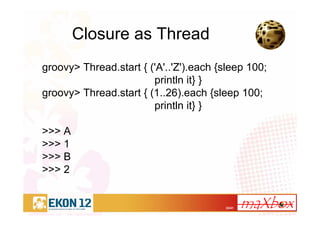

Closure as Thread
groovy> Thread.start { ('A'..'Z').each {sleep 100;
println it} }
groovy> Thread.start { (1..26).each {sleep 100;
println it} }
>>> A
>>> 1
>>> B
>>> 2

23. 23/41

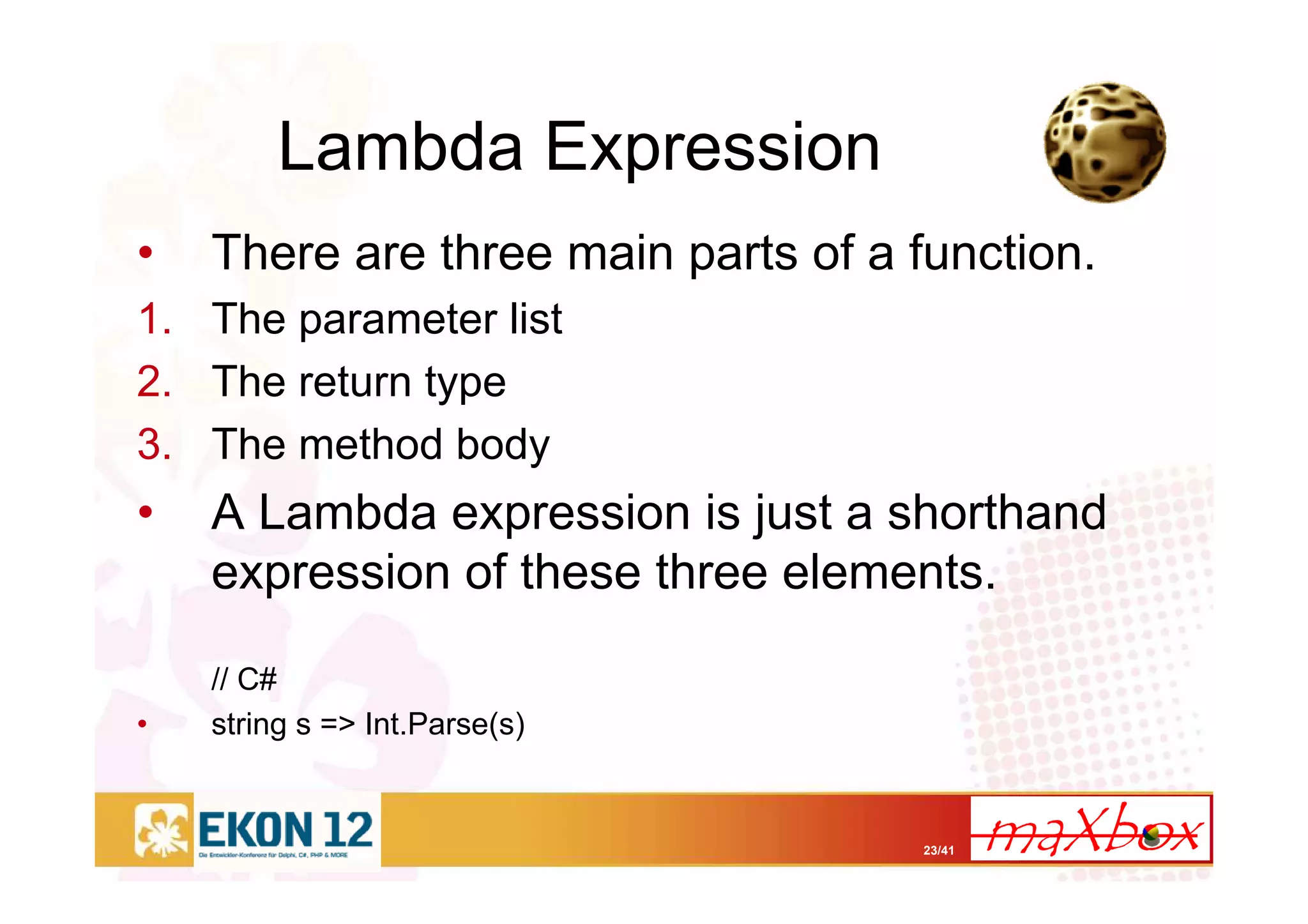

Lambda Expression
• There are three main parts of a function.
1. The parameter list
2. The return type
3. The method body
• A Lambda expression is just a shorthand
expression of these three elements.
// C#
• string s => Int.Parse(s)

24. 24/41

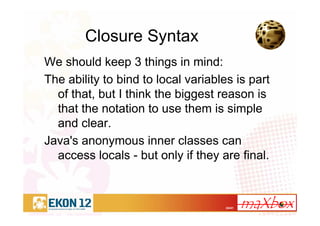

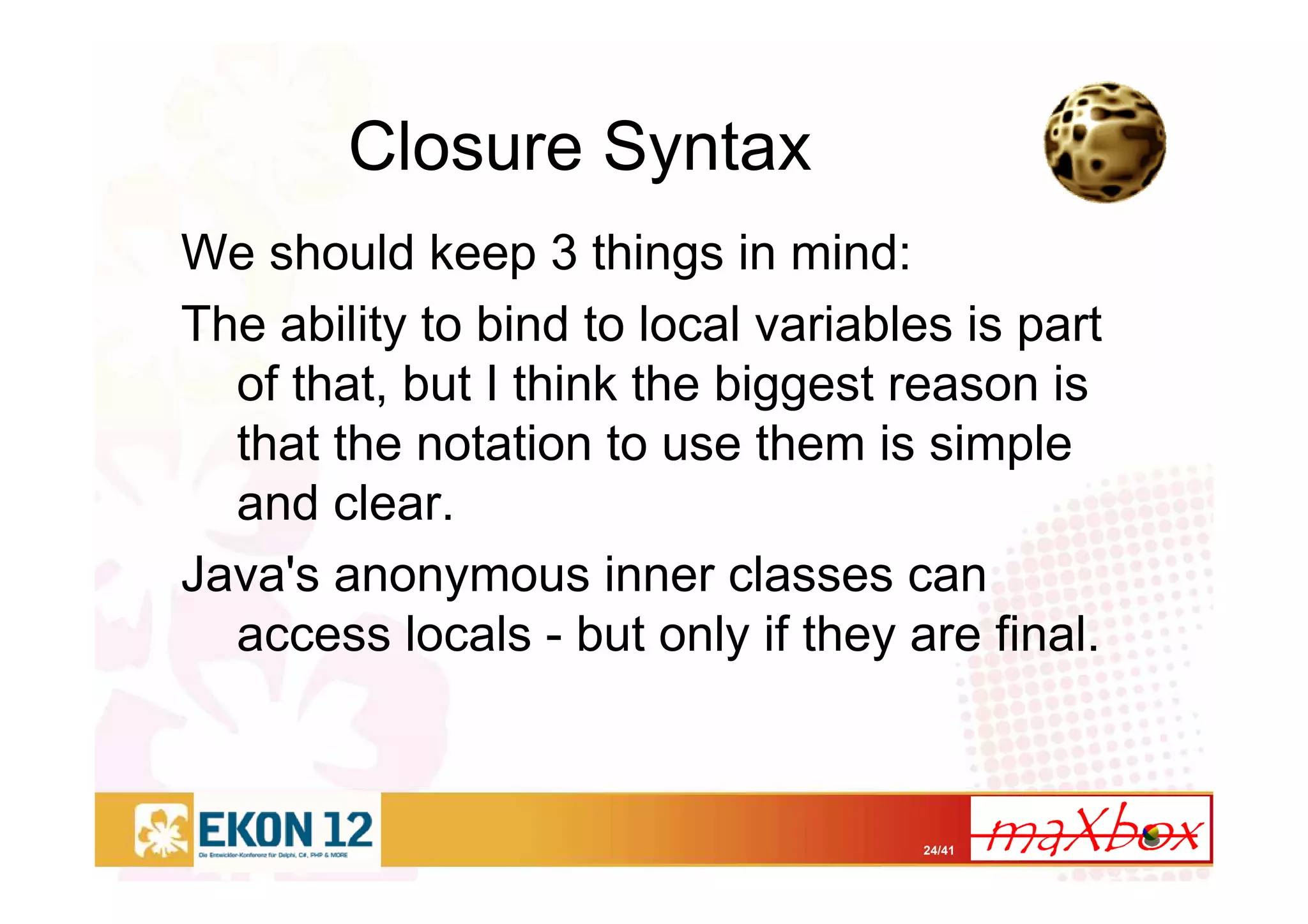

Closure Syntax
We should keep 3 things in mind:
The ability to bind to local variables is part
of that, but I think the biggest reason is
that the notation to use them is simple
and clear.
Java's anonymous inner classes can
access locals - but only if they are final.

25. 25/41

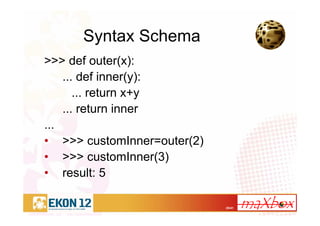

Syntax Schema
>>> def outer(x):
... def inner(y):
... return x+y
... return inner
...
• >>> customInner=outer(2)
• >>> customInner(3)
• result: 5

26. 26/41

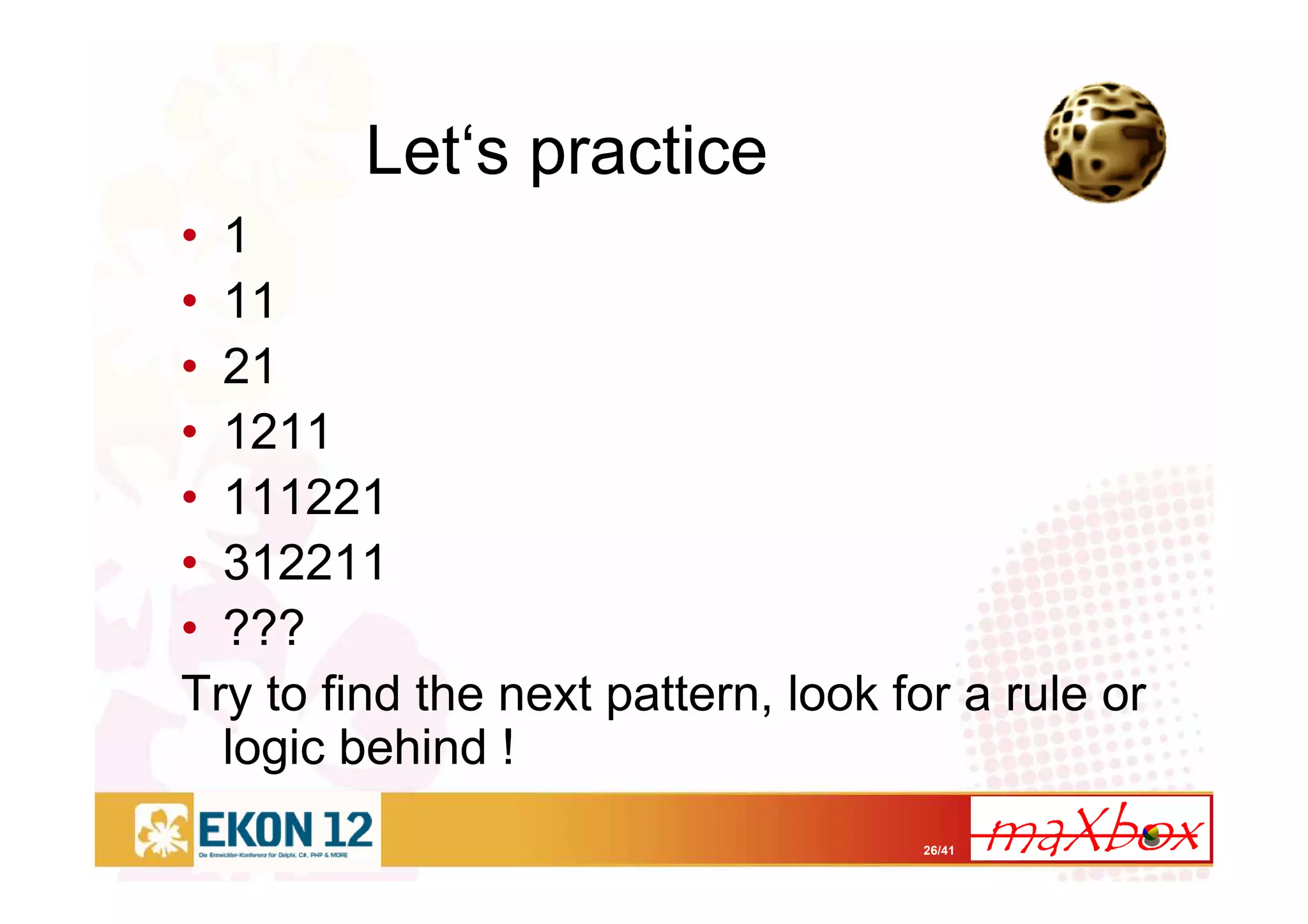

Let‘s practice
• 1
• 11
• 21
• 1211
• 111221
• 312211
• ???
Try to find the next pattern, look for a rule or
logic behind !

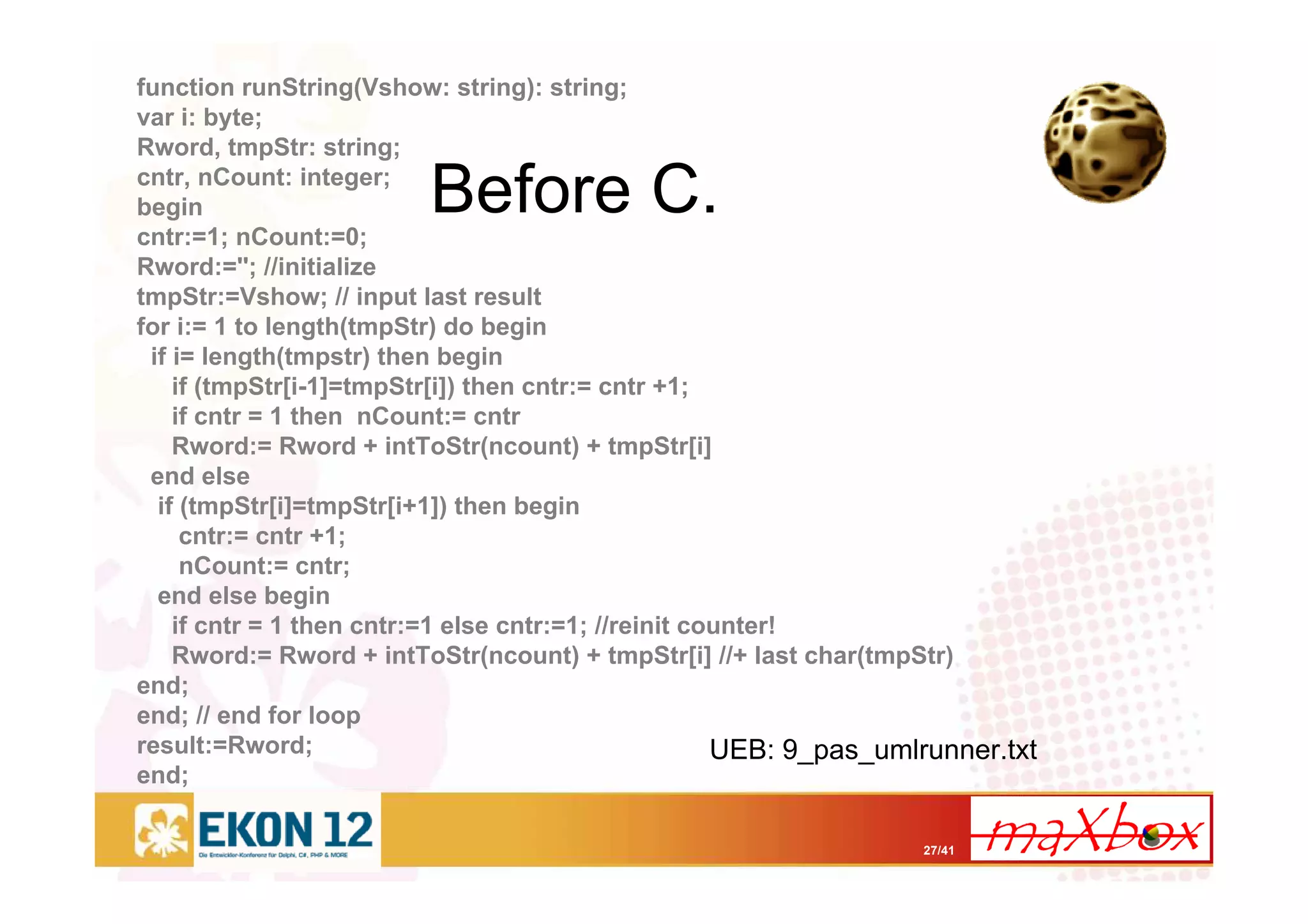

27. 27/41

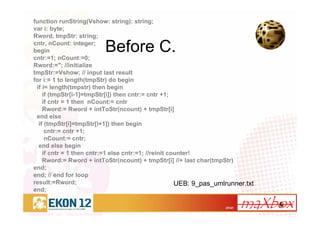

Before C.
function runString(Vshow: string): string;
var i: byte;
Rword, tmpStr: string;
cntr, nCount: integer;
begin
cntr:=1; nCount:=0;
Rword:=''; //initialize
tmpStr:=Vshow; // input last result
for i:= 1 to length(tmpStr) do begin
if i= length(tmpstr) then begin
if (tmpStr[i-1]=tmpStr[i]) then cntr:= cntr +1;
if cntr = 1 then nCount:= cntr
Rword:= Rword + intToStr(ncount) + tmpStr[i]
end else
if (tmpStr[i]=tmpStr[i+1]) then begin
cntr:= cntr +1;
nCount:= cntr;
end else begin
if cntr = 1 then cntr:=1 else cntr:=1; //reinit counter!
Rword:= Rword + intToStr(ncount) + tmpStr[i] //+ last char(tmpStr)
end;
end; // end for loop
result:=Rword;
end;
UEB: 9_pas_umlrunner.txt

28. 28/41
After C.
function charCounter(instr: string): string;
var i, cntr: integer;
Rword: string;
begin
cntr:= 1;
Rword:=' ';
for i:= 1 to length(instr) do begin
//last number in line
if i= length(instr) then
concatChars()
else
if (instr[i]=instr[i+1]) then cntr:= cntr +1
else begin
concatChars()
//reinit counter!
cntr:= 1;
end;
end; //for
result:= Rword;
end; UEB: 009_pas_umlrunner_solution_2step.txt

29. 29/41
Top 7 to avoid with Closures
1. Duplicated or Dead Code
2. Long Method
3. Large Class (Too many responsibilities)
4. Long Parameter List (Object or closure is missing)
5. Shotgun Surgery (Little changes distributed over
too many objects or procedures patterns
missed)
6. Data Clumps (Data always together (x,y -> point))
7. Middle Man (Class with too many delegating
methods)

30. 30/41

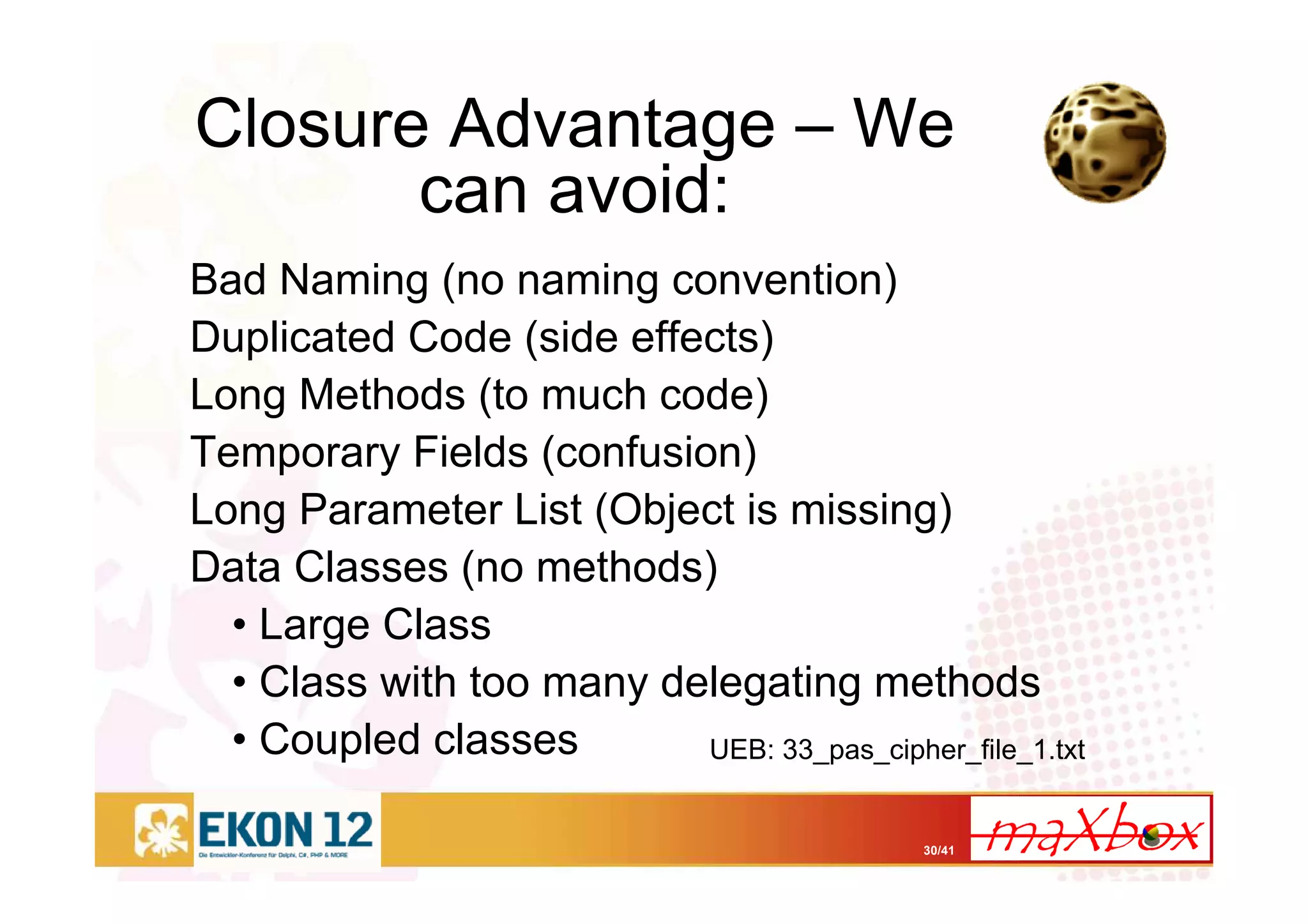

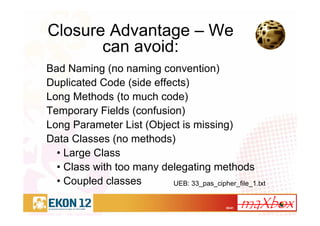

Closure Advantage – We
can avoid:
Bad Naming (no naming convention)
Duplicated Code (side effects)
Long Methods (to much code)
Temporary Fields (confusion)
Long Parameter List (Object is missing)
Data Classes (no methods)
• Large Class
• Class with too many delegating methods
• Coupled classes UEB: 33_pas_cipher_file_1.txt

31. 31/41

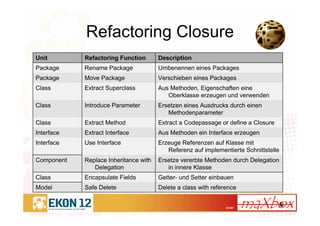

Refactoring Closure
Delete a class with referenceSafe DeleteModel
Getter- und Setter einbauenEncapsulate FieldsClass
Ersetze vererbte Methoden durch Delegation
in innere Klasse
Replace Inheritance with
Delegation
Component
Erzeuge Referenzen auf Klasse mit
Referenz auf implementierte Schnittstelle
Use InterfaceInterface
Aus Methoden ein Interface erzeugenExtract InterfaceInterface
Extract a Codepassage or define a ClosureExtract MethodClass
Ersetzen eines Ausdrucks durch einen
Methodenparameter
Introduce ParameterClass
Aus Methoden, Eigenschaften eine
Oberklasse erzeugen und verwenden
Extract SuperclassClass
Verschieben eines PackagesMove PackagePackage
Umbenennen eines PackagesRename PackagePackage
DescriptionRefactoring FunctionUnit

32. 32/41

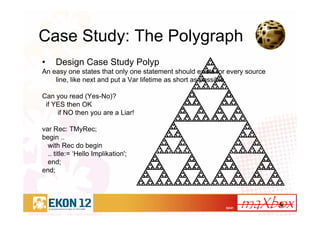

Case Study: The Polygraph
• Design Case Study Polyp
An easy one states that only one statement should exists for every source
line, like next and put a Var lifetime as short as possible.
Can you read (Yes-No)?
if YES then OK
if NO then you are a Liar!
var Rec: TMyRec;
begin ..
with Rec do begin
.. title:= ‘Hello Implikation';
end;
end;

33. 33/41
Polyp Design
Dependency Inversion

34. 34/41

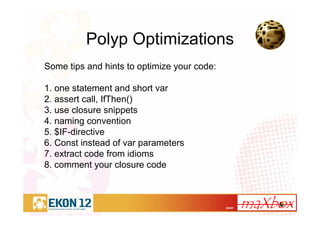

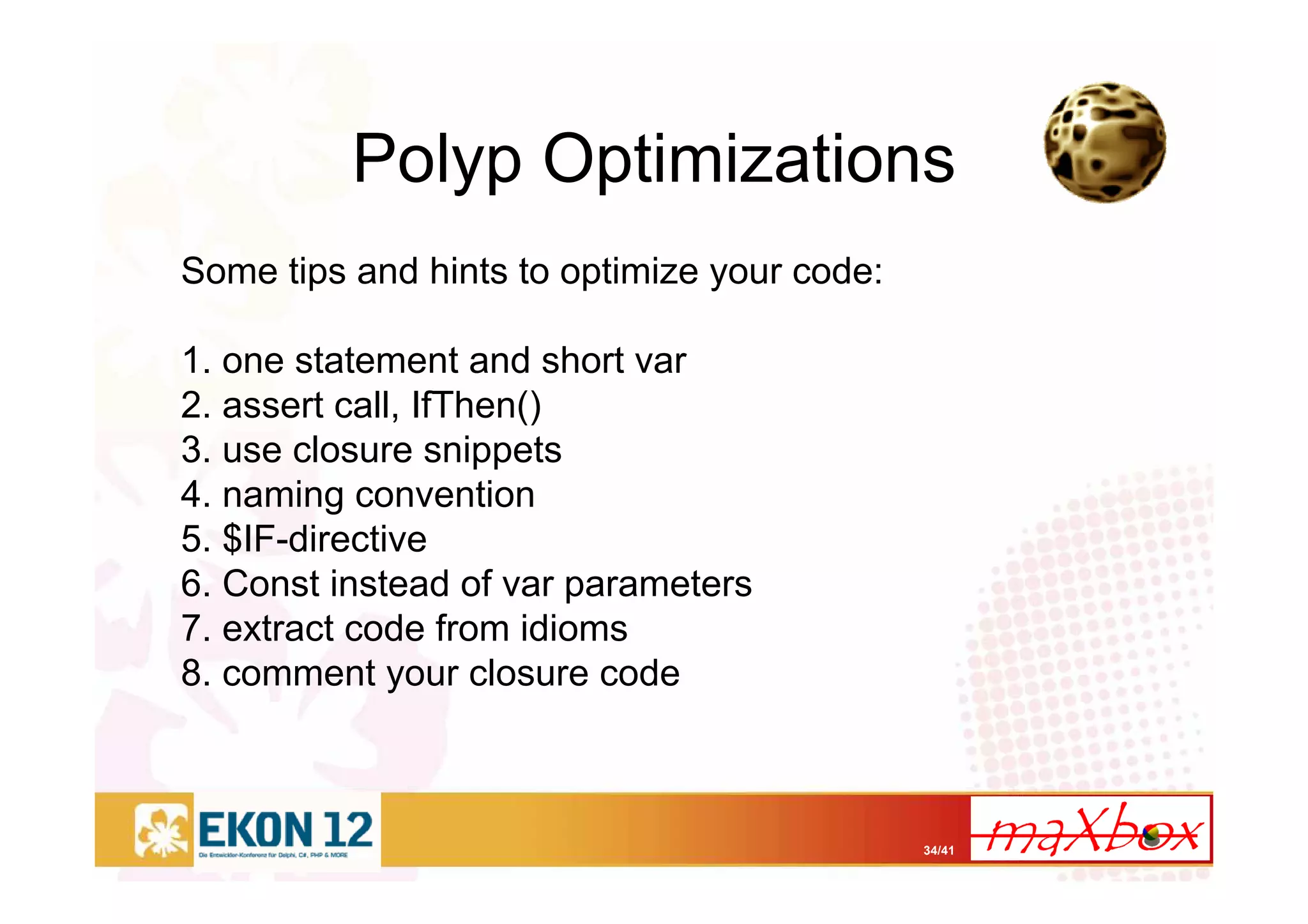

Polyp Optimizations
Some tips and hints to optimize your code:
1. one statement and short var
2. assert call, IfThen()
3. use closure snippets
4. naming convention
5. $IF-directive
6. Const instead of var parameters
7. extract code from idioms
8. comment your closure code

35. 35/41
Polyp Packages

36. 36/41

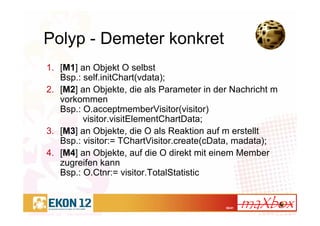

Polyp - Demeter konkret
1. [M1] an Objekt O selbst
Bsp.: self.initChart(vdata);
2. [M2] an Objekte, die als Parameter in der Nachricht m
vorkommen
Bsp.: O.acceptmemberVisitor(visitor)
visitor.visitElementChartData;
3. [M3] an Objekte, die O als Reaktion auf m erstellt
Bsp.: visitor:= TChartVisitor.create(cData, madata);
4. [M4] an Objekte, auf die O direkt mit einem Member
zugreifen kann
Bsp.: O.Ctnr:= visitor.TotalStatistic

37. 37/41

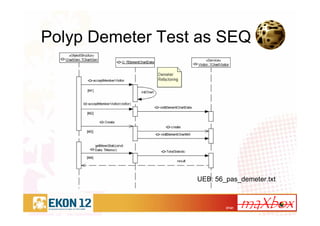

Polyp Demeter Test as SEQ
UEB: 56_pas_demeter.txt

38. 38/41

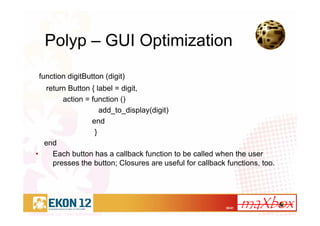

Polyp – GUI Optimization
function digitButton (digit)
return Button { label = digit,
action = function ()
add_to_display(digit)
end
}
end
• Each button has a callback function to be called when the user
presses the button; Closures are useful for callback functions, too.

39. 39/41
Final - $Closure Test

40. 40/41

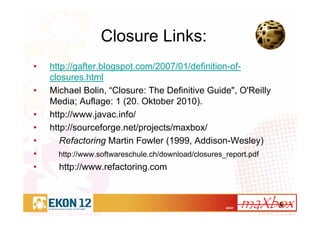

Closure Links:
• http://gafter.blogspot.com/2007/01/definition-of-
closures.html
• Michael Bolin, “Closure: The Definitive Guide", O'Reilly
Media; Auflage: 1 (20. Oktober 2010).
• http://www.javac.info/
• http://sourceforge.net/projects/maxbox/
• Refactoring Martin Fowler (1999, Addison-Wesley)
• http://www.softwareschule.ch/download/closures_report.pdf
• http://www.refactoring.com

41. 41/41
This is not The End:
Q&A?
max@kleiner.com
softwareschule.ch
