1. A Bumpy Road to Digital Twin
- What We’ve Learnt from Real Cases
Sanghee Shin(shshin@gaia3d.com )
16th November 2020
<ITEA3 Smart City Business Event 2020>

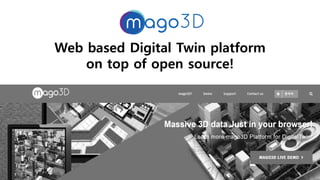

2. Web based Digital Twin platform
on top of open source!

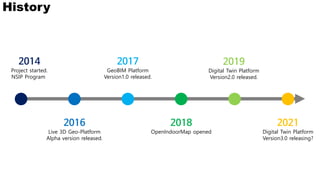

3. History
2014
Project started.
NSIP Program
2016
Live 3D Geo-Platform
Alpha version released.
2017
GeoBIM Platform
Version1.0 released.
2018
OpenIndoorMap opened
2019
Digital Twin Platform
Version2.0 released.
2021
Digital Twin Platform
Version3.0 releasing?

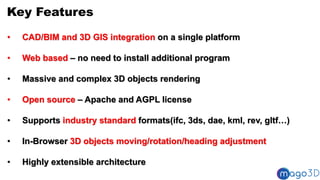

4. Key Features
• CAD/BIM and 3D GIS integration on a single platform
• Web based – no need to install additional program
• Massive and complex 3D objects rendering
• Open source – Apache and AGPL license
• Supports industry standard formats(ifc, 3ds, dae, kml, rev, gltf…)
• In-Browser 3D objects moving/rotation/heading adjustment
• Highly extensible architecture

5. https://github.com/gaia3d

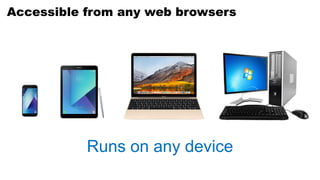

6. Runs on any device
Accessible from any web browsers

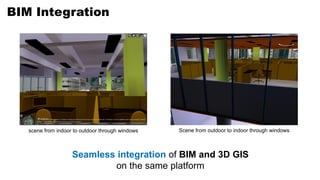

7. BIM Integration
Seamless integration of BIM and 3D GIS
on the same platform
scene from indoor to outdoor through windows Scene from outdoor to indoor through windows

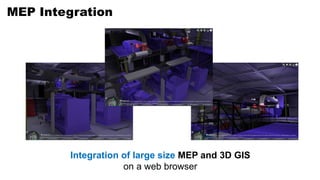

8. MEP Integration
Integration of large size MEP and 3D GIS
on a web browser

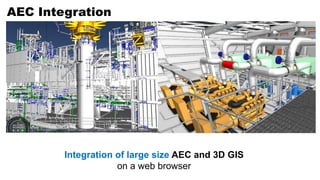

9. AEC Integration
Integration of large size AEC and 3D GIS
on a web browser

10. CityGML Integration
Integration of large size CityGML and 3D GIS on a web browser

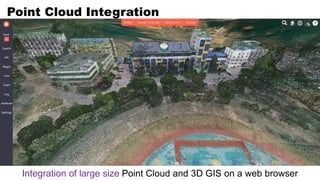

11. Point Cloud Integration
Integration of large size Point Cloud and 3D GIS on a web browser

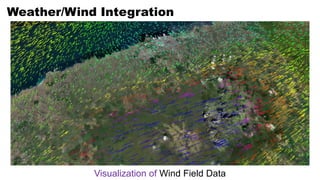

12. Weather/Wind Integration
Visualization of Wind Field Data

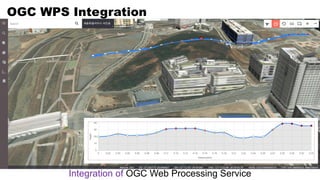

13. OGC WPS Integration
Integration of OGC Web Processing Service

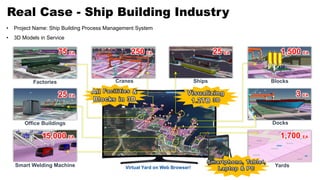

15. Real Case - Ship Building Industry
Yards
Cranes
Office Buildings
Factories
Docks
BlocksShips
Smart Welding Machine Virtual Yard on Web Browser!
1,500 EA25 EA250 EA75 EA
25 EA
15,000 EA 1,700 EA
3 EA
• Project Name: Ship Building Process Management System
• 3D Models in Service

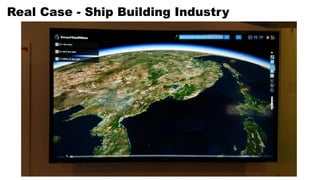

16. Real Case - Ship Building Industry

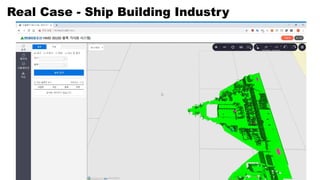

17. Real Case - Ship Building Industry

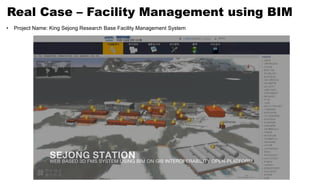

18. Real Case – Facility Management using BIM
• Project Name: King Sejong Research Base Facility Management System

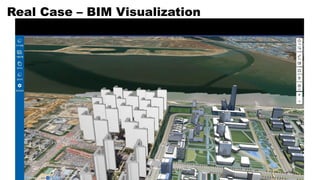

19. Real Case – BIM Visualization

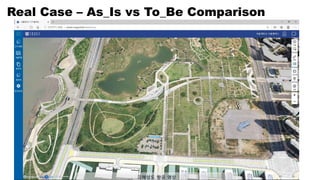

20. Real Case – As_Is vs To_Be Comparison

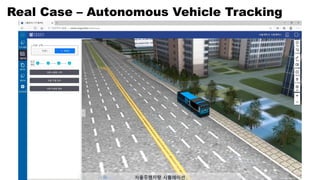

21. Real Case – Autonomous Vehicle Tracking

22. Real Case – Wind Data Visualization

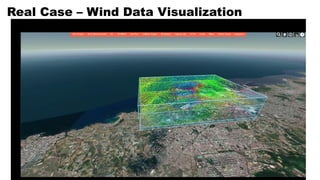

24. A City is NOT a Computer
<Source: https://www.ordnancesurvey.co.uk/business-government/innovation/happens/articles-ehs/smart-cities-digital-technologies>
“Despite the futuristic images the term conjures, a “smart city”
is merely a well-managed city aided by digital technologies.
One of the primary challenges in achieving success for smart
cities, and the reason many initiatives have failed to make it
past the pilot stage, is that they have been driven by a focus
on implementing the technology rather than achieving the
end policy goal, such as improving access to education, or
better transport links.”
<Source: https://placesjournal.org/article/a-city-is-not-a-computer/?cn-reloaded=1>

25. Overselling and Over-Expectations

26. There’s NO clean DATA
Raw Data Digital Twin

27. STANDARDS?
• Standards are not widely accepted across industries.
“Why should we export our Revit file to IFC?”
“We convert our 3D data to CityGML only because government order to do that.”
• Sometimes data converting lose some part of original information.
• Clients prefer to provide original native format.
• Converting format gives another hassles.

28. What is Your REAL PURPOSE?

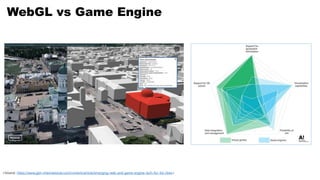

29. WebGL vs Game Engine
<Source: https://www.gim-international.com/content/article/emerging-web-and-game-engine-tech-for-3d-cities>

30. For more information, please visit http://mago3d.net
All the source codes are here:
https://github.com/Gaia3D/mago3d
https://github.com/Gaia3D/openindoormap
Thank you.
