This document provides a device modeling report for a general purpose rectifier diode with part number 5GLZ47A manufactured by Toshiba. It includes the SPICE model parameters for the diode, simulation results comparing the forward voltage and capacitance characteristics to measurements, and an evaluation of the reverse recovery characteristic.

1. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

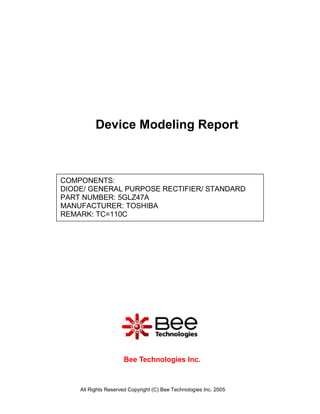

Device Modeling Report
Bee Technologies Inc.
COMPONENTS:
DIODE/ GENERAL PURPOSE RECTIFIER/ STANDARD
PART NUMBER: 5GLZ47A
MANUFACTURER: TOSHIBA
REMARK: TC=110C

2. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

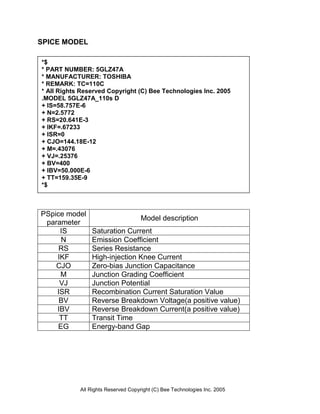

SPICE MODEL
PSpice model
parameter
Model description
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
*$
* PART NUMBER: 5GLZ47A
* MANUFACTURER: TOSHIBA
* REMARK: TC=110C
* All Rights Reserved Copyright (C) Bee Technologies Inc. 2005
.MODEL 5GLZ47A_110s D
+ IS=58.757E-6
+ N=2.5772
+ RS=20.641E-3
+ IKF=.67233
+ ISR=0
+ CJO=144.18E-12
+ M=.43076
+ VJ=.25376
+ BV=400
+ IBV=50.000E-6
+ TT=159.35E-9
*$

3. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

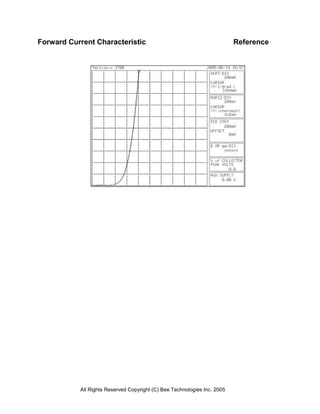

Forward Current Characteristic Reference

4. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

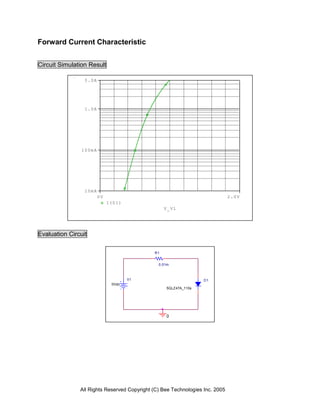

0
R1
0.01m
V1
0Vdc
D1
5GLZ47A_110s
V_V1
0V 2.0V
I(D1)
10mA
100mA
1.0A
5.0A
Forward Current Characteristic
Circuit Simulation Result
Evaluation Circuit

5. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

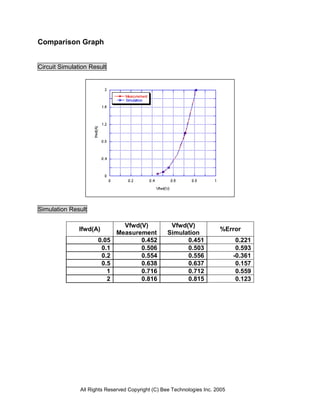

Comparison Graph
Circuit Simulation Result
Simulation Result
Ifwd(A)
Vfwd(V)
Measurement
Vfwd(V)
Simulation
%Error
0.05 0.452 0.451 0.221
0.1 0.506 0.503 0.593
0.2 0.554 0.556 -0.361
0.5 0.638 0.637 0.157
1 0.716 0.712 0.559
2 0.816 0.815 0.123

6. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

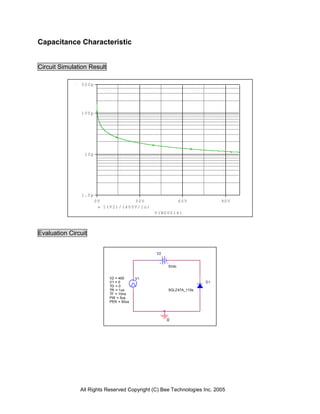

V(N00016)
0V 30V 60V 90V
I(V2)/(400V/1u)
1.0p
10p
100p
500p
V1
TD = 0
TF = 10ns
PW = 5us
PER = 50us
V1 = 0
TR = 1us
V2 = 400
D1
5GLZ47A_110s
0
V2
0Vdc
Capacitance Characteristic
Circuit Simulation Result
Evaluation Circuit

7. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

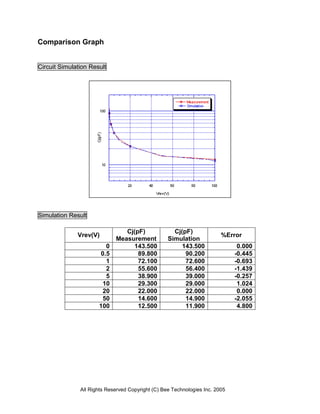

Comparison Graph
Circuit Simulation Result
Simulation Result
Vrev(V)
Cj(pF)
Measurement
Cj(pF)
Simulation
%Error
0 143.500 143.500 0.000
0.5 89.800 90.200 -0.445
1 72.100 72.600 -0.693
2 55.600 56.400 -1.439
5 38.900 39.000 -0.257
10 29.300 29.000 1.024
20 22.000 22.000 0.000
50 14.600 14.900 -2.055
100 12.500 11.900 4.800

8. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

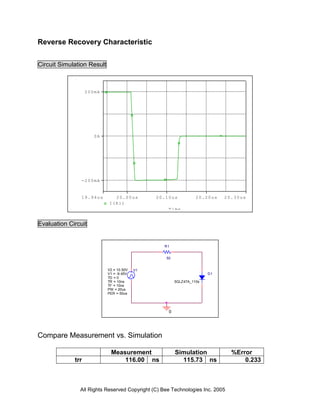

Time
20.00us 20.10us 20.20us 20.30us19.94us
I(R1)
-200mA
0A
200mA
D1
5GLZ47A_110s
R1
50
0
V1
TD = 0
TF = 10ns
PW = 20us
PER = 50us
V1 = -9.45V
TR = 10ns
V2 = 10.50V
Reverse Recovery Characteristic
Circuit Simulation Result
Evaluation Circuit
Compare Measurement vs. Simulation
Measurement Simulation %Error
trr 116.00 ns 115.73 ns 0.233

9. All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

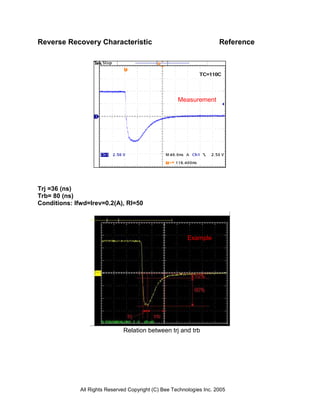

Reverse Recovery Characteristic Reference
Trj =36 (ns)
Trb= 80 (ns)
Conditions: Ifwd=Irev=0.2(A), Rl=50
Example
Relation between trj and trb
Measurement
