This document provides information needed to create a spice model for a 3-phase AC motor, including electrical parameters such as operating voltage range, rated current, voltage and torque constants, phase resistance and inductance. It also lists mechanical parameters for the motor such as rated speed, maximum speed, rated torque. The specific motor model is a Motenergy ME0913 with a rated speed of 3000 RPM, rated torque of 288 lb-in, and operating voltage range of 0-72V maximum.

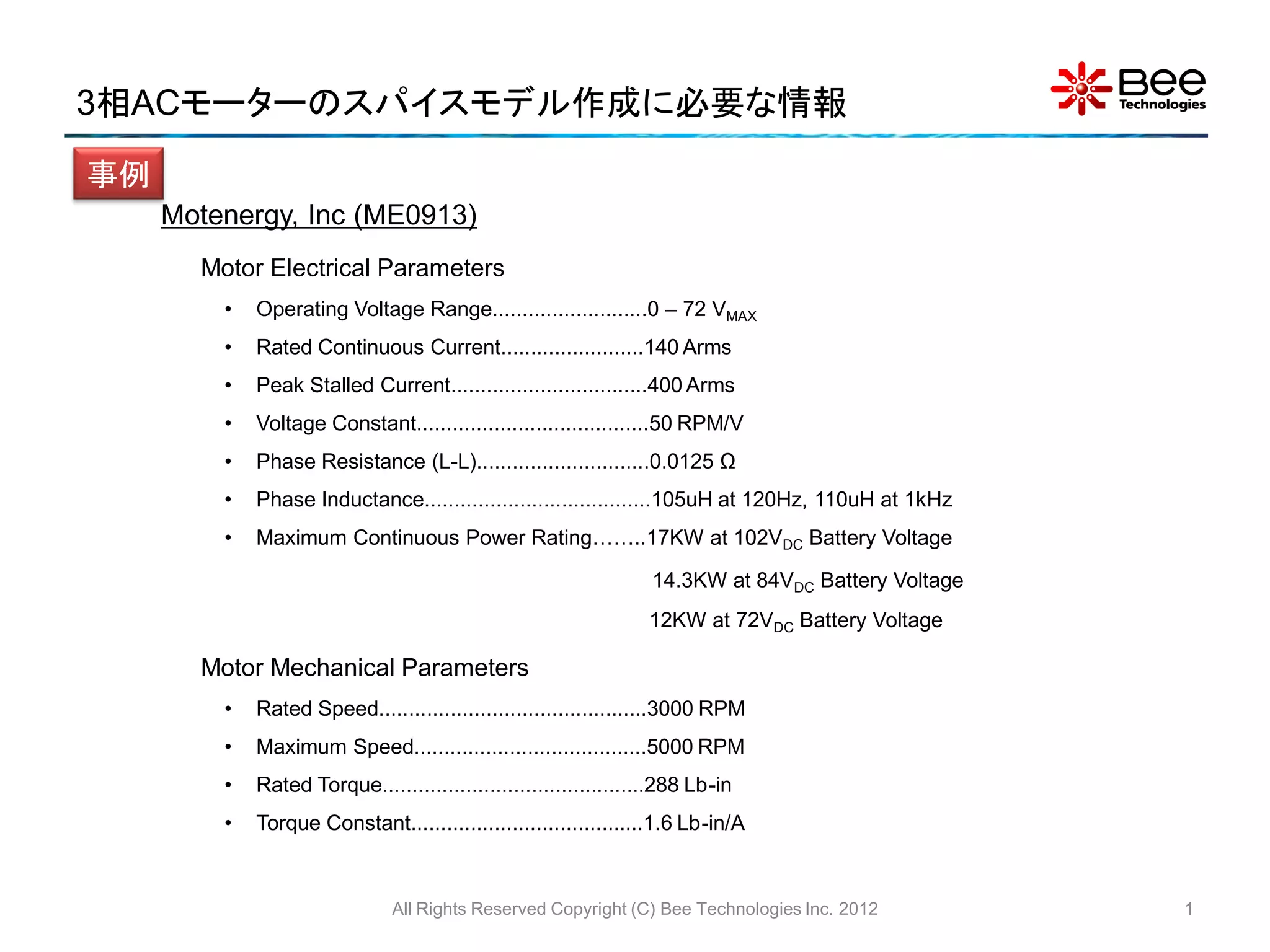

1. 3相ACモーターのスパイスモデル作成に必要な情報
事例
Motenergy, Inc (ME0913)
Motor Electrical Parameters
• Operating Voltage Range..........................0 – 72 VMAX
• Rated Continuous Current........................140 Arms
• Peak Stalled Current.................................400 Arms
• Voltage Constant.......................................50 RPM/V
• Phase Resistance (L-L).............................0.0125 Ω
• Phase Inductance......................................105uH at 120Hz, 110uH at 1kHz
• Maximum Continuous Power Rating……..17KW at 102VDC Battery Voltage
14.3KW at 84VDC Battery Voltage
12KW at 72VDC Battery Voltage
Motor Mechanical Parameters
• Rated Speed.............................................3000 RPM
• Maximum Speed.......................................5000 RPM
• Rated Torque............................................288 Lb-in
• Torque Constant.......................................1.6 Lb-in/A
