2nd periodical test in tle 10
This document appears to be the results of a periodic test in Technical Drafting (ICT) for 10th grade students at Anahawan National High School in Leyte, Philippines. It includes a multiple choice section with 30 questions testing students' knowledge of AutoCAD commands, tools and functions. It also includes an identification section where students are asked to match AutoCAD commands to example outputs and identify keyboard shortcuts. Finally, it provides a short output section directing students to create a floor plan for a 1 storey building with specific rooms and areas using a scale of 1:100.
2nd periodical test in tle 10

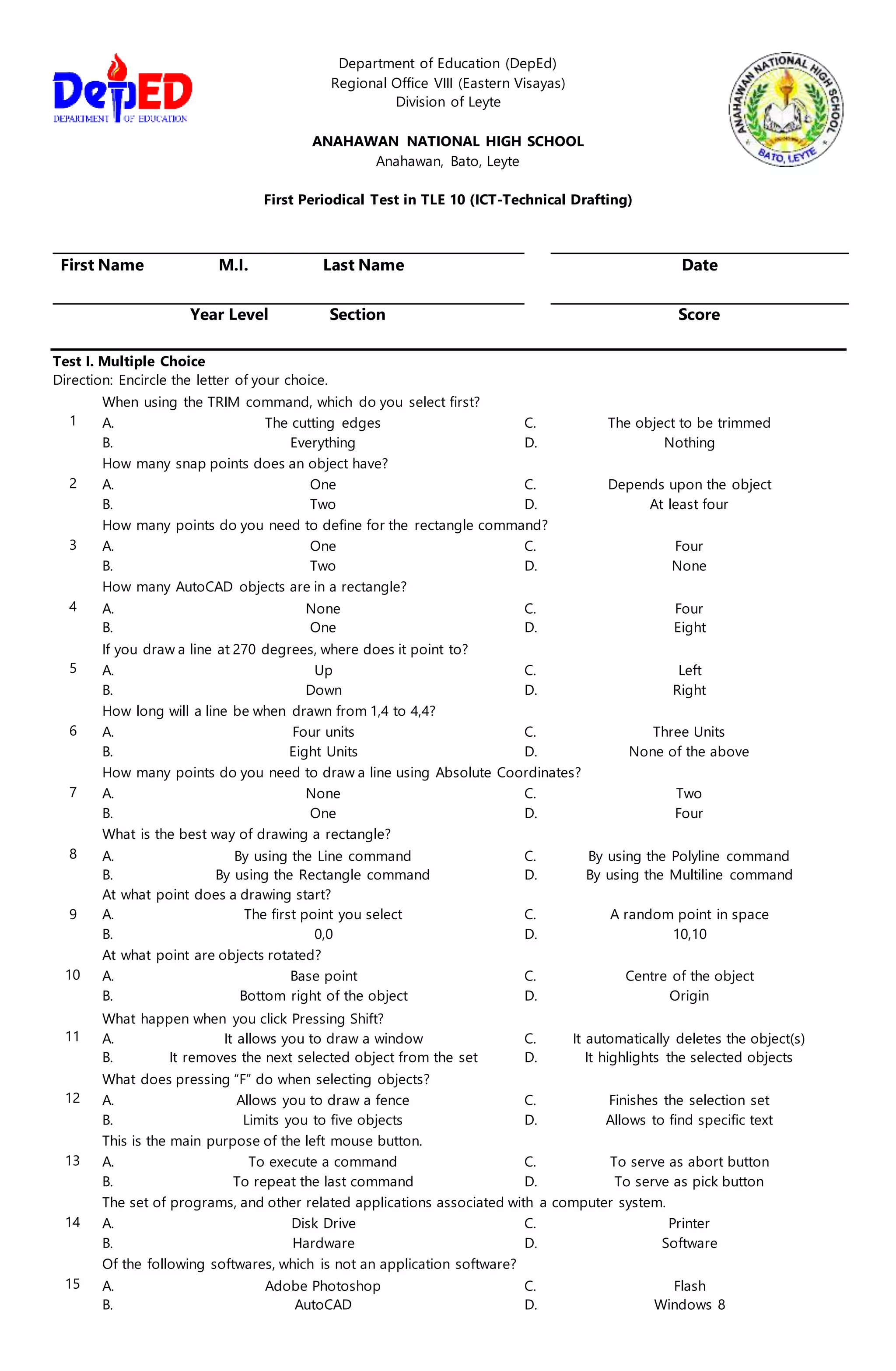

- 1. Department of Education(DepEd) Regional Office VIII (Eastern Visayas) Division of Leyte ANAHAWAN NATIONAL HIGH SCHOOL Anahawan, Bato, Leyte First Periodical Test in TLE 10 (ICT-Technical Drafting) First Name M.I. Last Name Date Year Level Section Score Test I. Multiple Choice Direction: Encircle the letter of your choice. 1 When using the TRIM command, which do you select first? A. The cutting edges C. The object to be trimmed B. Everything D. Nothing 2 How many snap points does an object have? A. One C. Depends upon the object B. Two D. At least four 3 How many points do you need to define for the rectangle command? A. One C. Four B. Two D. None 4 How many AutoCAD objects are in a rectangle? A. None C. Four B. One D. Eight 5 If you draw a line at 270 degrees, where does it point to? A. Up C. Left B. Down D. Right 6 How long will a line be when drawn from 1,4 to 4,4? A. Four units C. Three Units B. Eight Units D. None of the above 7 How many points do you need to draw a line using Absolute Coordinates? A. None C. Two B. One D. Four 8 What is the best way of drawing a rectangle? A. By using the Line command C. By using the Polyline command B. By using the Rectangle command D. By using the Multiline command 9 At what point does a drawing start? A. The first point you select C. A random point in space B. 0,0 D. 10,10 10 At what point are objects rotated? A. Base point C. Centre of the object B. Bottom right of the object D. Origin 11 What happen when you click Pressing Shift? A. It allows you to draw a window C. It automatically deletes the object(s) B. It removes the next selected object from the set D. It highlights the selected objects 12 What does pressing “F” do when selecting objects? A. Allows you to draw a fence C. Finishes the selection set B. Limits you to five objects D. Allows to find specific text 13 This is the main purpose of the left mouse button. A. To execute a command C. To serve as abort button B. To repeat the last command D. To serve as pick button 14 The set of programs, and other related applications associated with a computer system. A. Disk Drive C. Printer B. Hardware D. Software 15 Of the following softwares, which is not an application software? A. Adobe Photoshop C. Flash B. AutoCAD D. Windows 8
- 2. 16 Which of thefollowing options is not a type of workspaces? A. 2D Drafting & Annotation C. 3D Modeling B. My workspace D. AutoCAD Classic 17 Which of the function keys can be used for activating the Osnap Mode? A. F3 C. F9 B. F5 D. F8 18 Which command is used to change the size of an existing objects? A. Move C. Scale B. Rotate D. Zoom 19 Which command can be used to create a new text style (TS) and modify the existing ones? A. Dtext C. Text B. Mtext D. Style 20 What is the default file extension of an AutoCAD drawing? A. DWG C. DWS B. DWF D. DWT 21 If you draw a line at 270 degrees, where does it point to? A. Up C. Left B. Down D. Right 22 How do you select the last set of object(s) you selected? A. Type 'L' C. Type 'H' to highlight them B. Type 'P' D. Can’t be done 23 It is a client-software that lets users read or scan documents on the World Wide Web. A. Quick Access Toolbar C. Menu Browser B. Menu Bar D. Search Box 24 It is a tool that allows you to search for a particular data or document in a help file or to web. A. Quick Access Toolbar C. Menu Browser B. Menu Bar D. Search Box 25 It is the horizontal strip across the top of an application’s window. Each word on the strip has a context sensitive drop-down menu containing features and actions that are available for the application in use. A. Quick Access Toolbar C. Menu Browser B. Menu Bar D. Search Box 26 It is found at the bottom left hand corner of the AutoCAD drawing window. You will see a symbol like the one shown on the right. This is called the UCS (User Coordinate System) icon and it is there to remind you which is the X axis and which is the Y axis. A. WCS C. Draw Toolbar B. UCS D. Modify Toolbar 27 It snaps to the physical intersection of any two drawing objects (i.e. where lines, arcs or circles etc. cross each other) and to Polyline vertices. A. Intersection Osnap C. Parallel Osnap B. Extension Osnap D. Midpoint Osnap 28 It breaks to the mid points of lines and arcs and to the mid-point of polyline segments. A. Intersection Osnap C. Parallel Osnap B. Extension Osnap D. Midpoint Osnap 29 It enables you to snap to some point along the imaginary extension of a line, arc or polyline segment. A. Intersection Osnap C. Parallel Osnap B. Extension Osnap D. Midpoint Osnap 30 Which of the following can be joined using the Join command A. Arc C. Construction Line B. Circle D. Ray Test II. Identification A. Choose the best command from inside below that is applicable to the drawing. The given are on the left side and the output are on the right side. Pick your answer inside the box and write the letter of the corresponding choice only. a. Polygon b. Erase c. Scale d. Mirror e. Rotate f. Trim _______1. _______2.

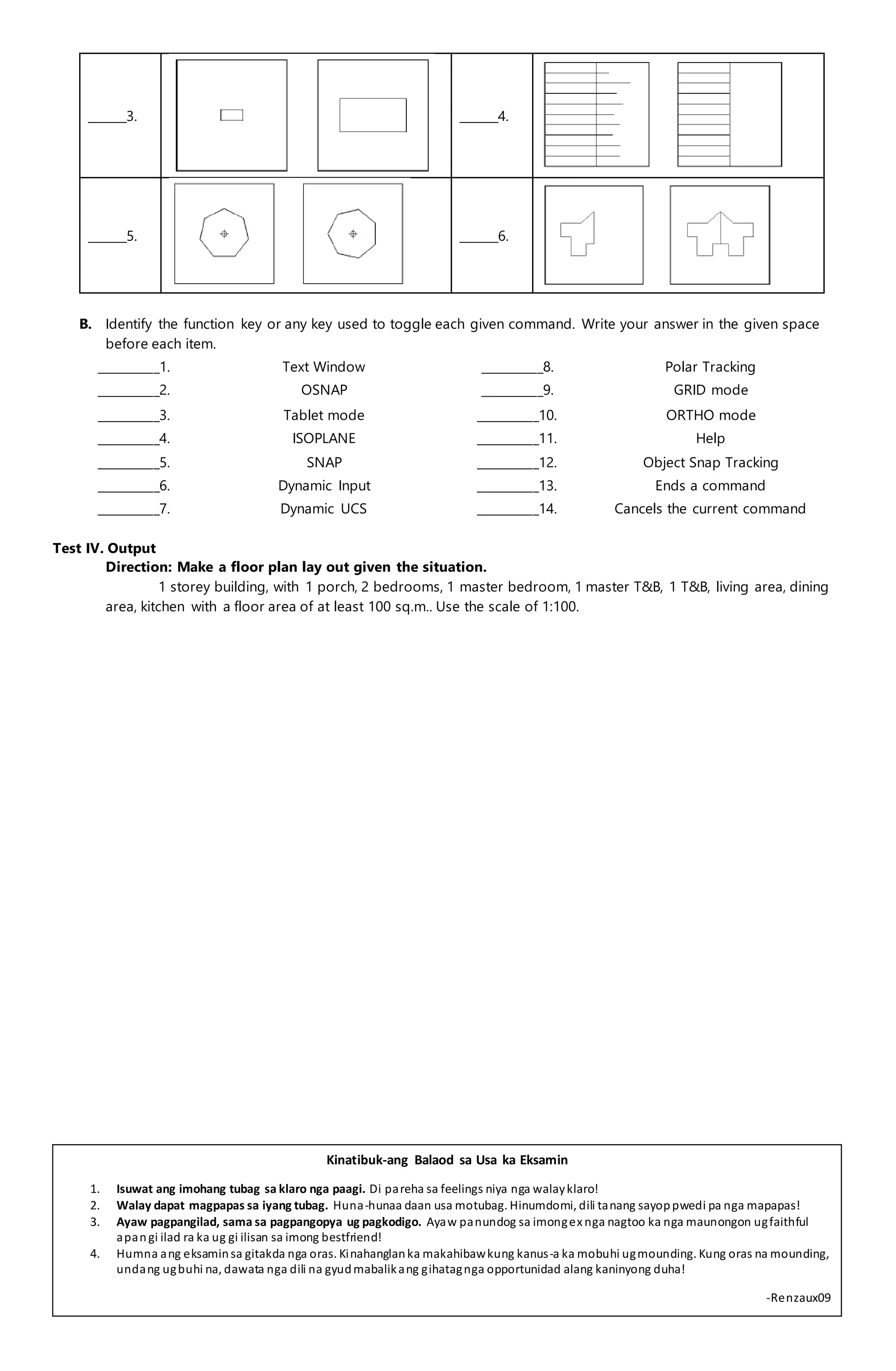

- 3. _______3. _______4. _______5. _______6. B.Identify the function key or any key used to toggle each given command. Write your answer in the given space before each item. ___________1. Text Window ___________8. Polar Tracking ___________2. OSNAP ___________9. GRID mode ___________3. Tablet mode ___________10. ORTHO mode ___________4. ISOPLANE ___________11. Help ___________5. SNAP ___________12. Object Snap Tracking ___________6. Dynamic Input ___________13. Ends a command ___________7. Dynamic UCS ___________14. Cancels the current command Test IV. Output Direction: Make a floor plan lay out given the situation. 1 storey building, with 1 porch, 2 bedrooms, 1 master bedroom, 1 master T&B, 1 T&B, living area, dining area, kitchen with a floor area of at least 100 sq.m.. Use the scale of 1:100. Kinatibuk-ang Balaod sa Usa ka Eksamin 1. Isuwat ang imohang tubag sa klaro nga paagi. Di pareha sa feelings niya nga walayklaro! 2. Walay dapat magpapas sa iyang tubag. Huna-hunaa daan usa motubag. Hinumdomi, dili tanang sayoppwedi pa nga mapapas! 3. Ayaw pagpangilad, sama sa pagpangopya ug pagkodigo. Ayaw panundog sa imongex nga nagtoo ka nga maunongon ugfaithful apangi ilad ra ka ug gi ilisan sa imong bestfriend! 4. Humna ang eksaminsa gitakda nga oras. Kinahanglanka makahibawkung kanus-a ka mobuhi ugmounding. Kung oras na mounding, undang ugbuhi na, dawata nga dili na gyudmabalikang gihatagnga opportunidad alang kaninyong duha! -Renzaux09
