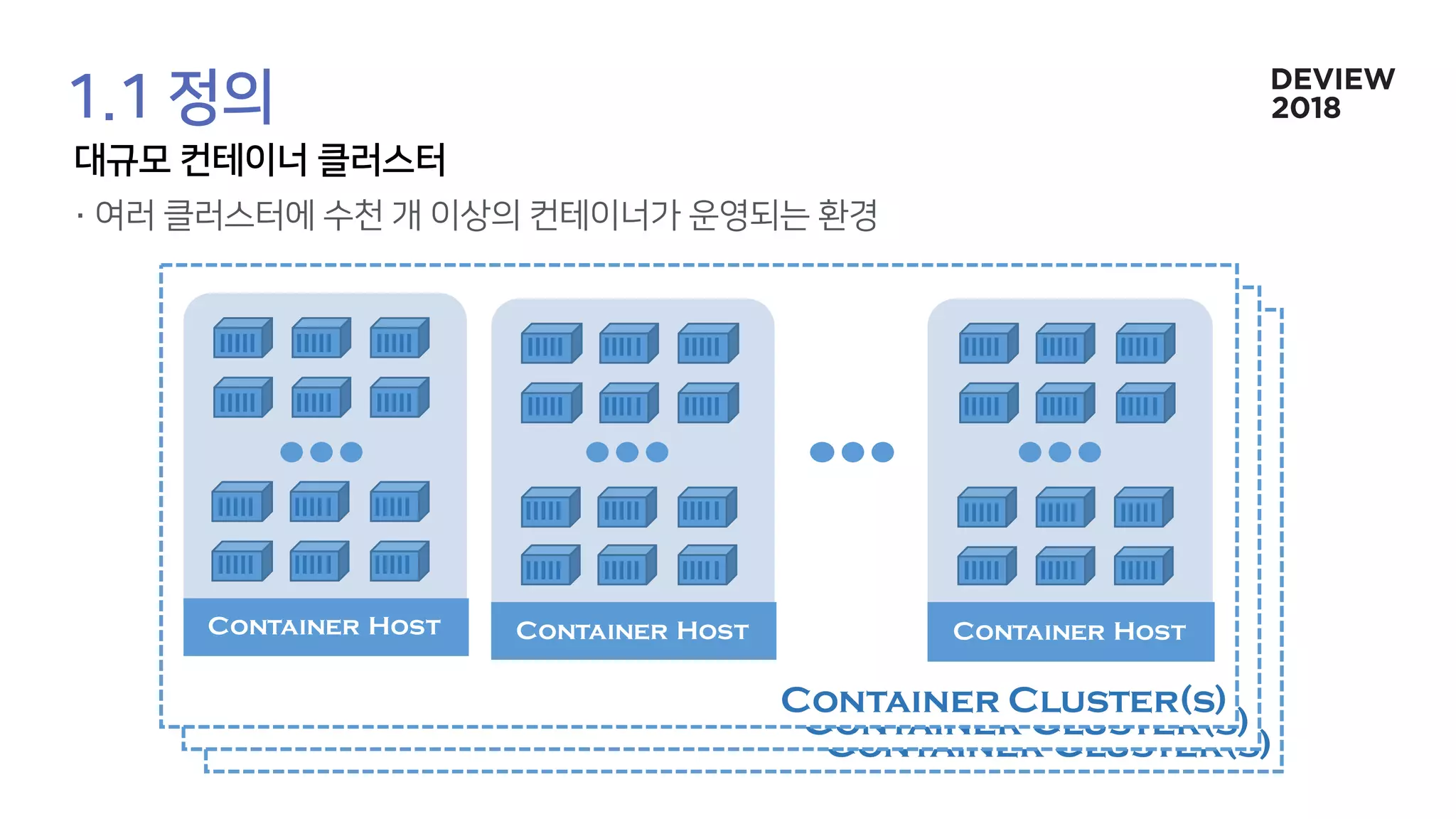

4. Container Cluster(s)
Container Cluster(s)
Container Cluster(s)

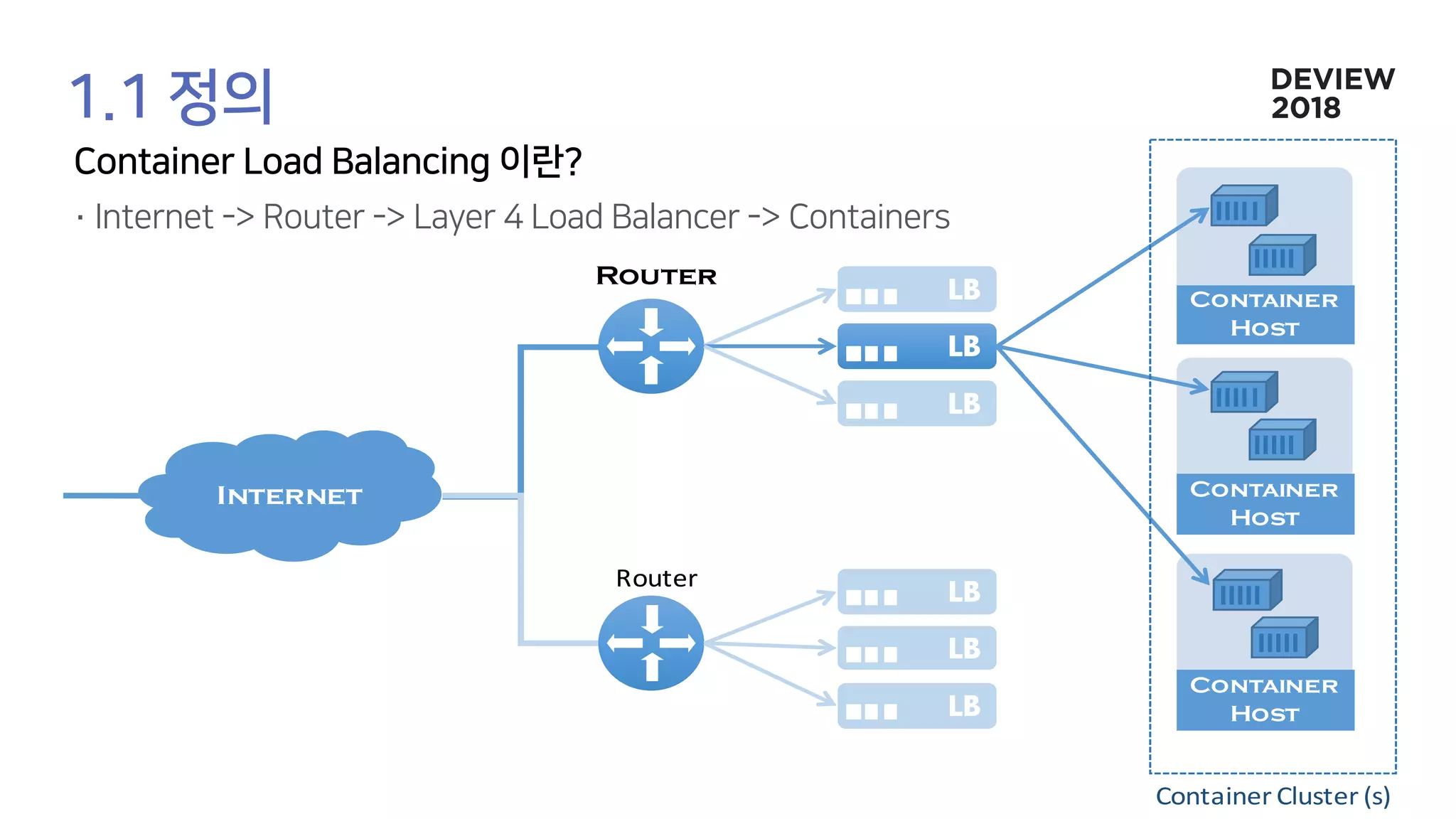

Container Host Container Host Container Host

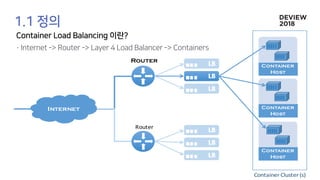

5. Internet
LB
LB
LB
Container
Host
Container
Host
Container
Host
LB
LB
LB
Router
Router
Container Cluster (s)

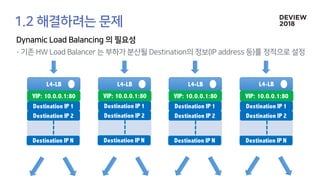

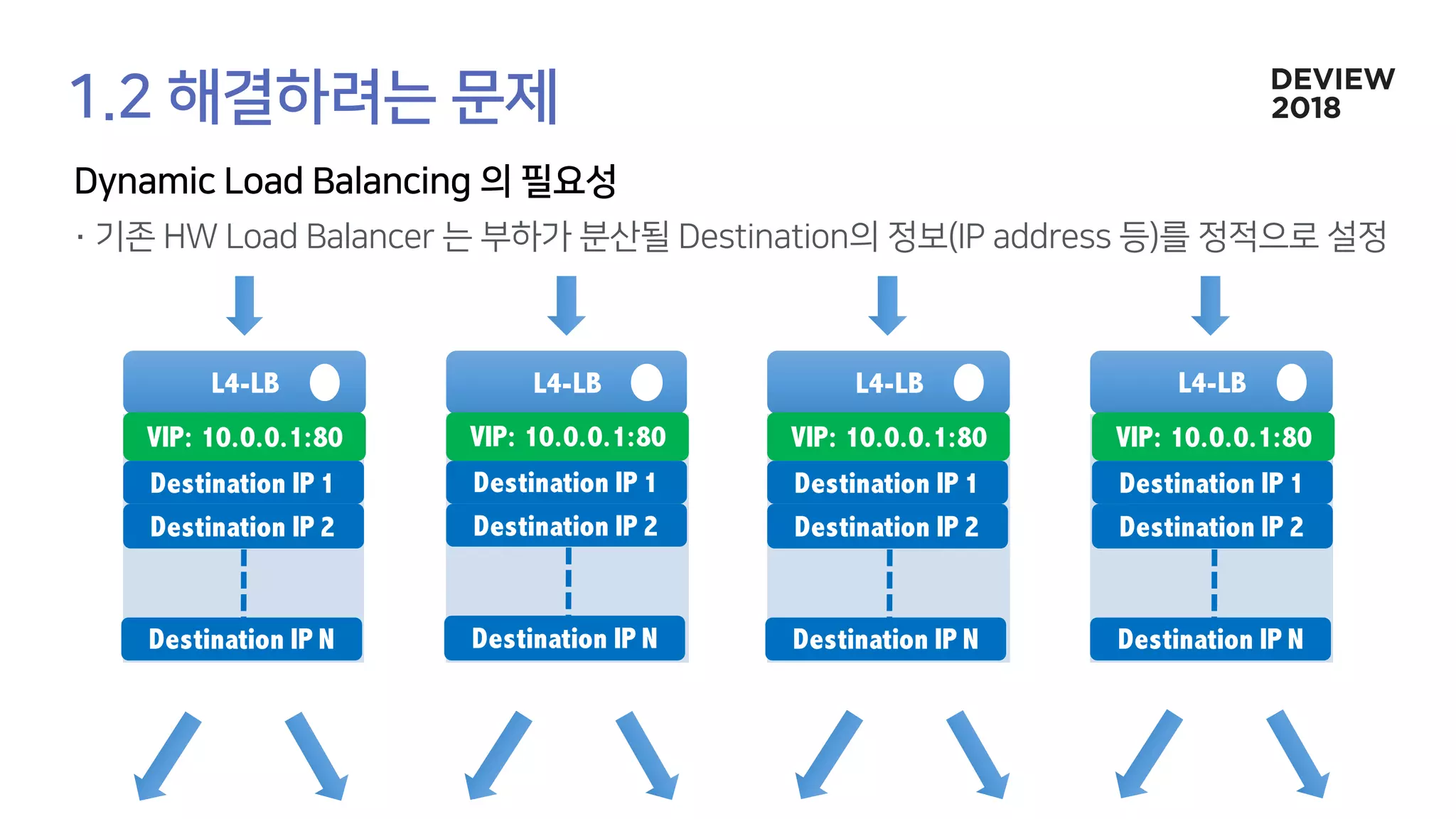

6. L4-LB L4-LB L4-LB L4-LB
VIP: 10.0.0.1:80
Destination IP 1
Destination IP 2
Destination IP N
VIP: 10.0.0.1:80
Destination IP 1
Destination IP 2
Destination IP N
VIP: 10.0.0.1:80
Destination IP 1
Destination IP 2
Destination IP N
VIP: 10.0.0.1:80
Destination IP 1
Destination IP 2
Destination IP N

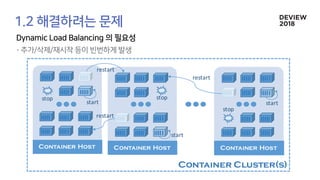

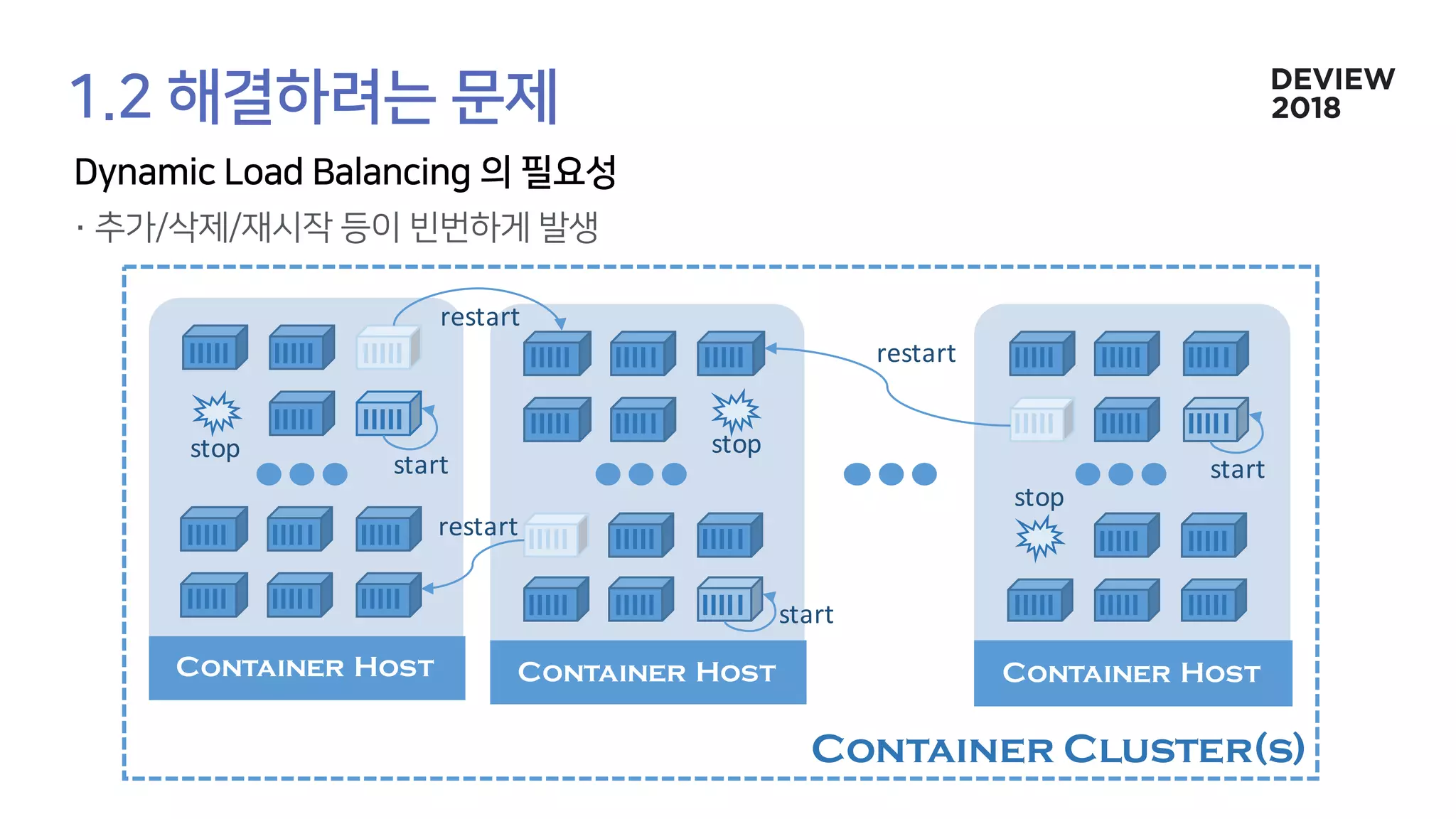

7. Container Cluster(s)
Container Host Container Host Container Host
restart
restart
restart
stop stop
stop
start
start
start

8. L4-LB L4-LB L4-LB L4-LB
VIP: 10.0.0.1:80
DIP 1 ... N
VIP: 10.0.0.1:80
DIP 1 ... N
VIP: 10.0.0.1:80
DIP 1 ... N
VIP: 10.0.0.1:80
DIP 1 ... N
Container Host Container Host Container Host
restart
restart
restart
stop stop
stop
start
start
start

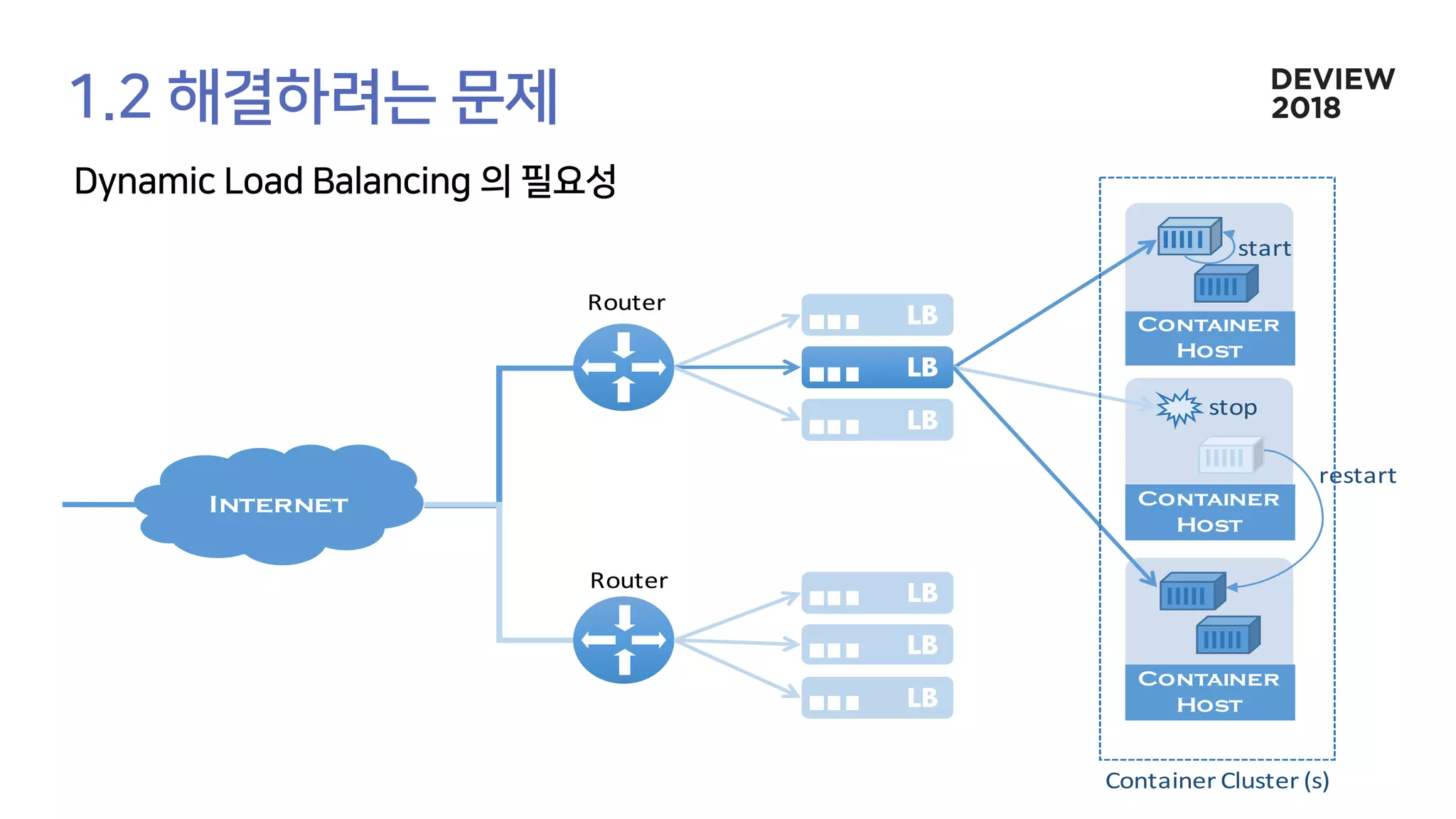

9. Internet
LB
LB
LB
Container
Host
Container
Host
Container
Host
LB
LB
LB
Router
Router
start
stop
restart
Container Cluster (s)

10. Container Host
Container Host
Container Host
Container Host
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB

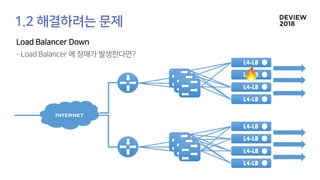

11. Internet
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB

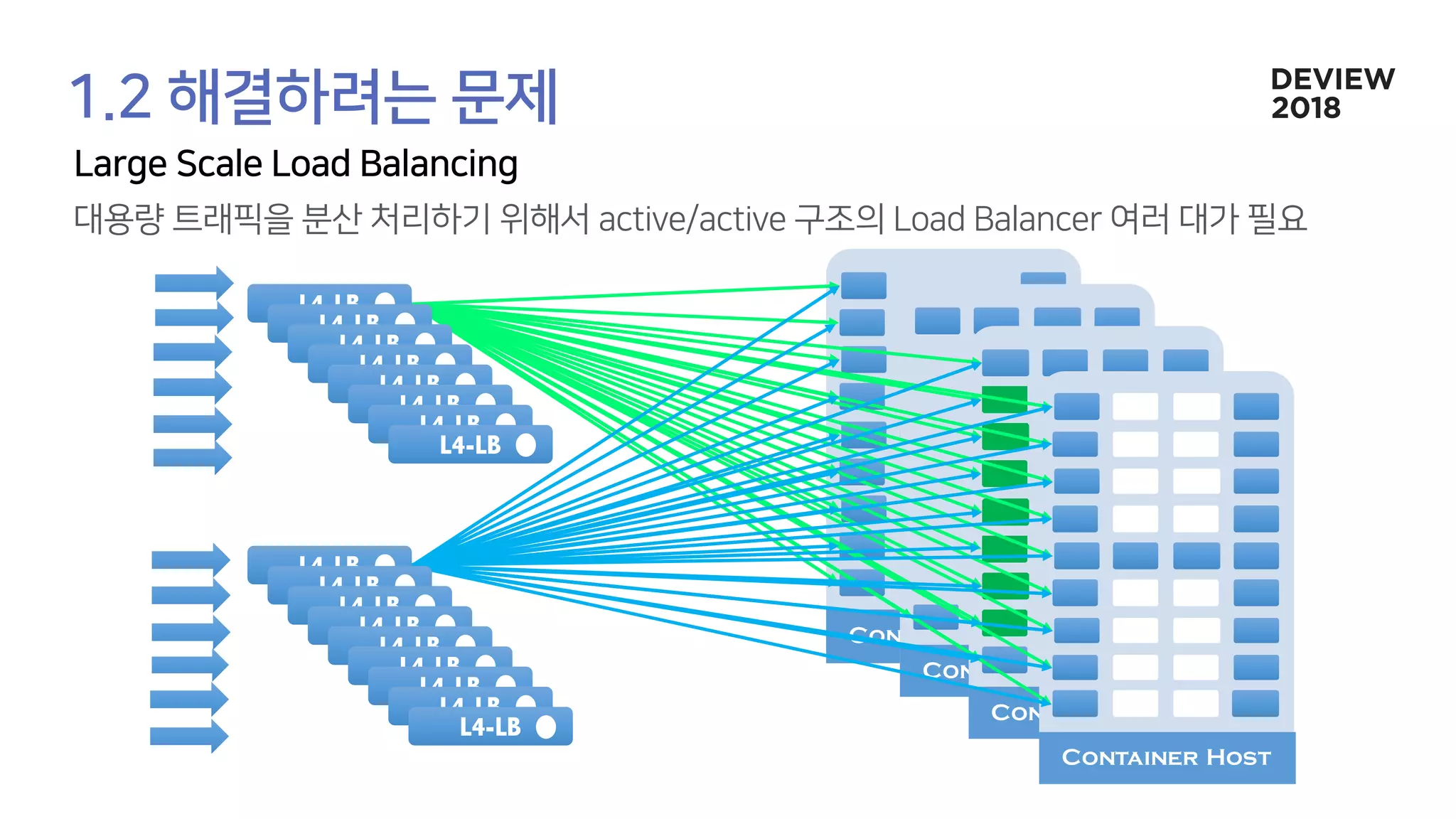

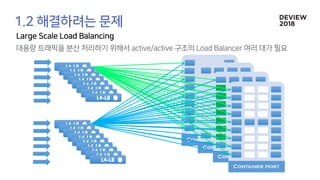

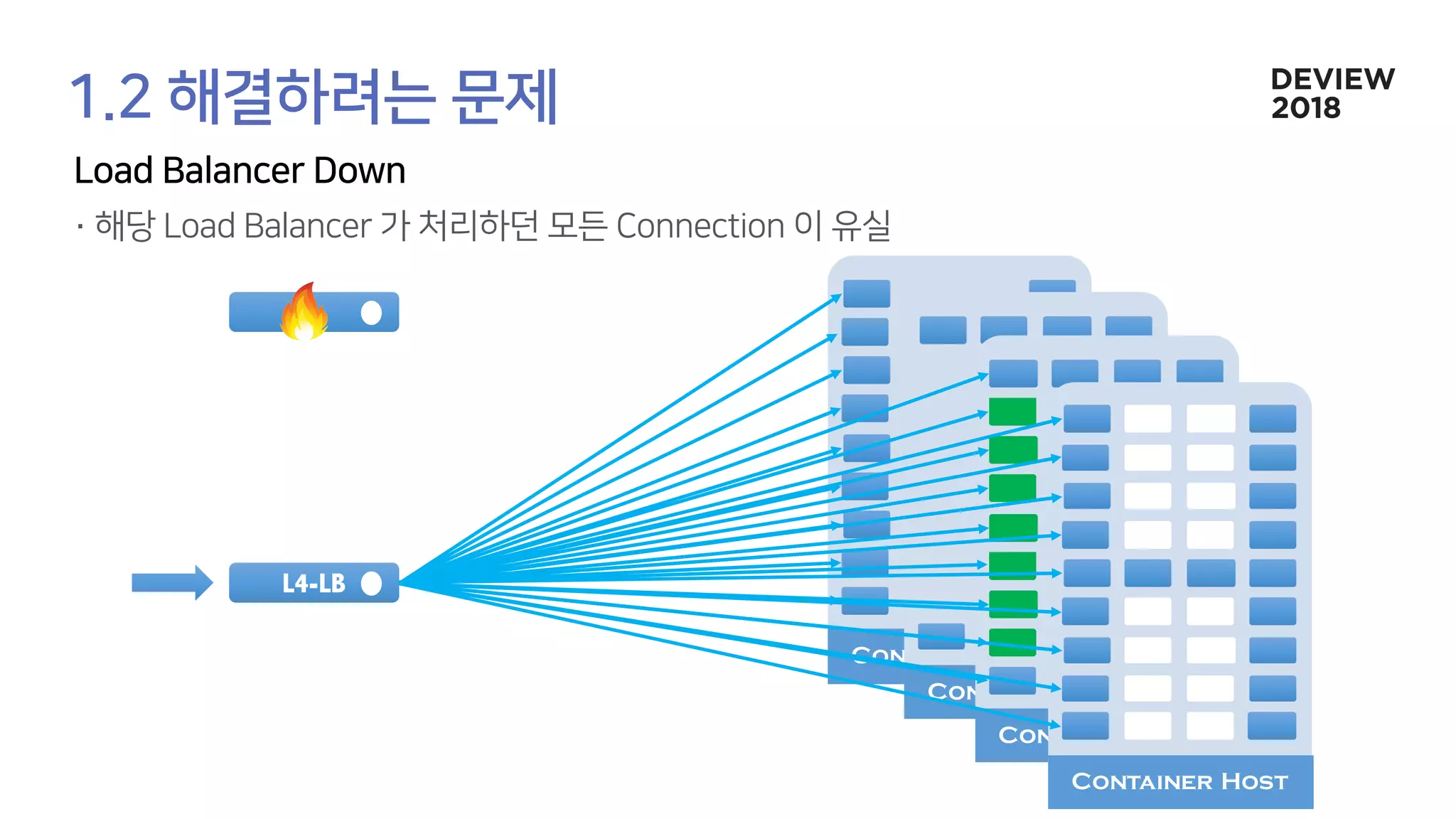

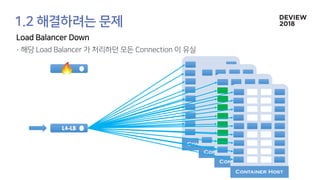

12. Container Host
Container Host
Container Host
Container Host
L4-LB

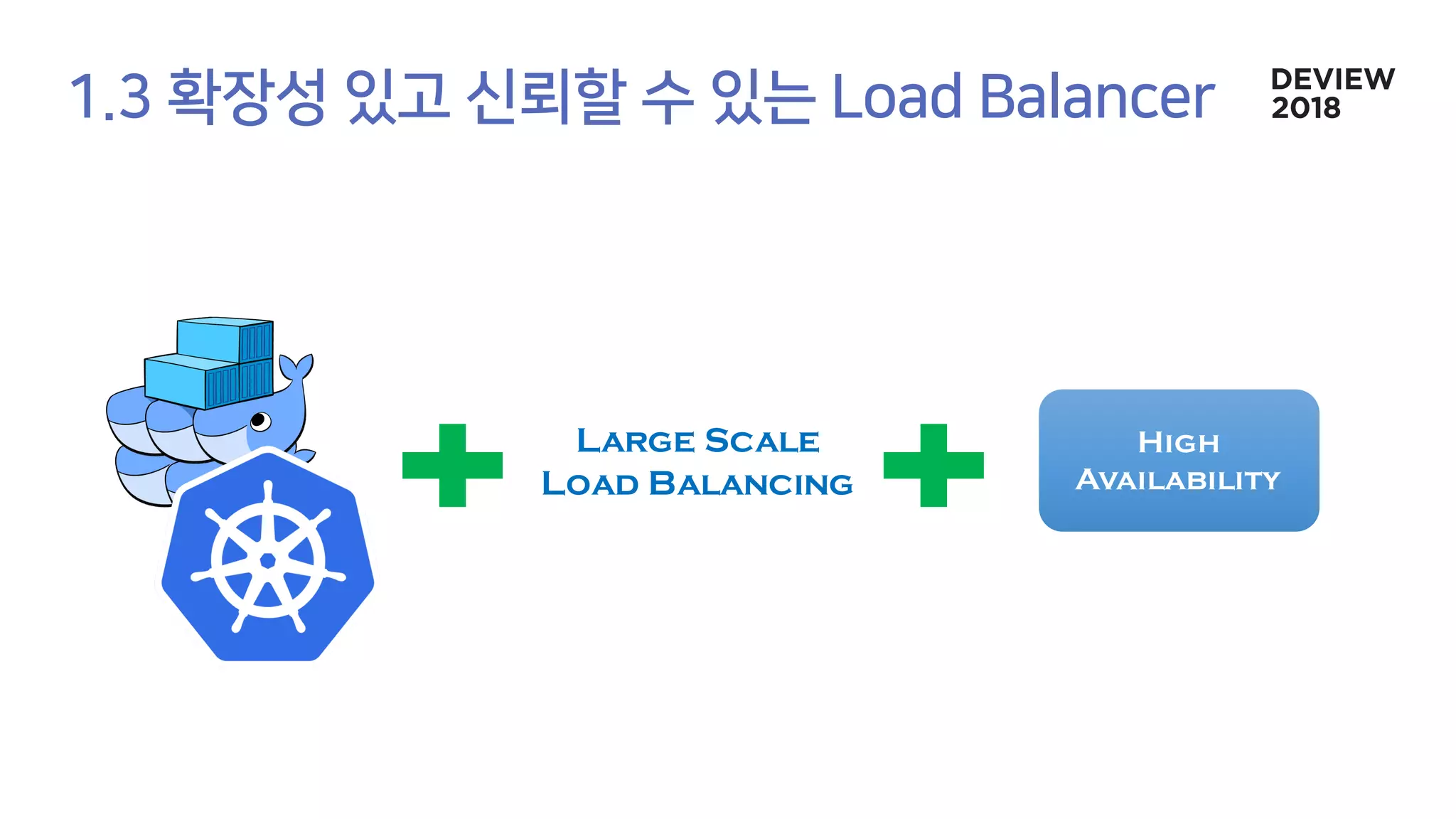

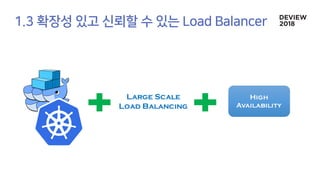

13. Large Scale
Load Balancing
High
Availability

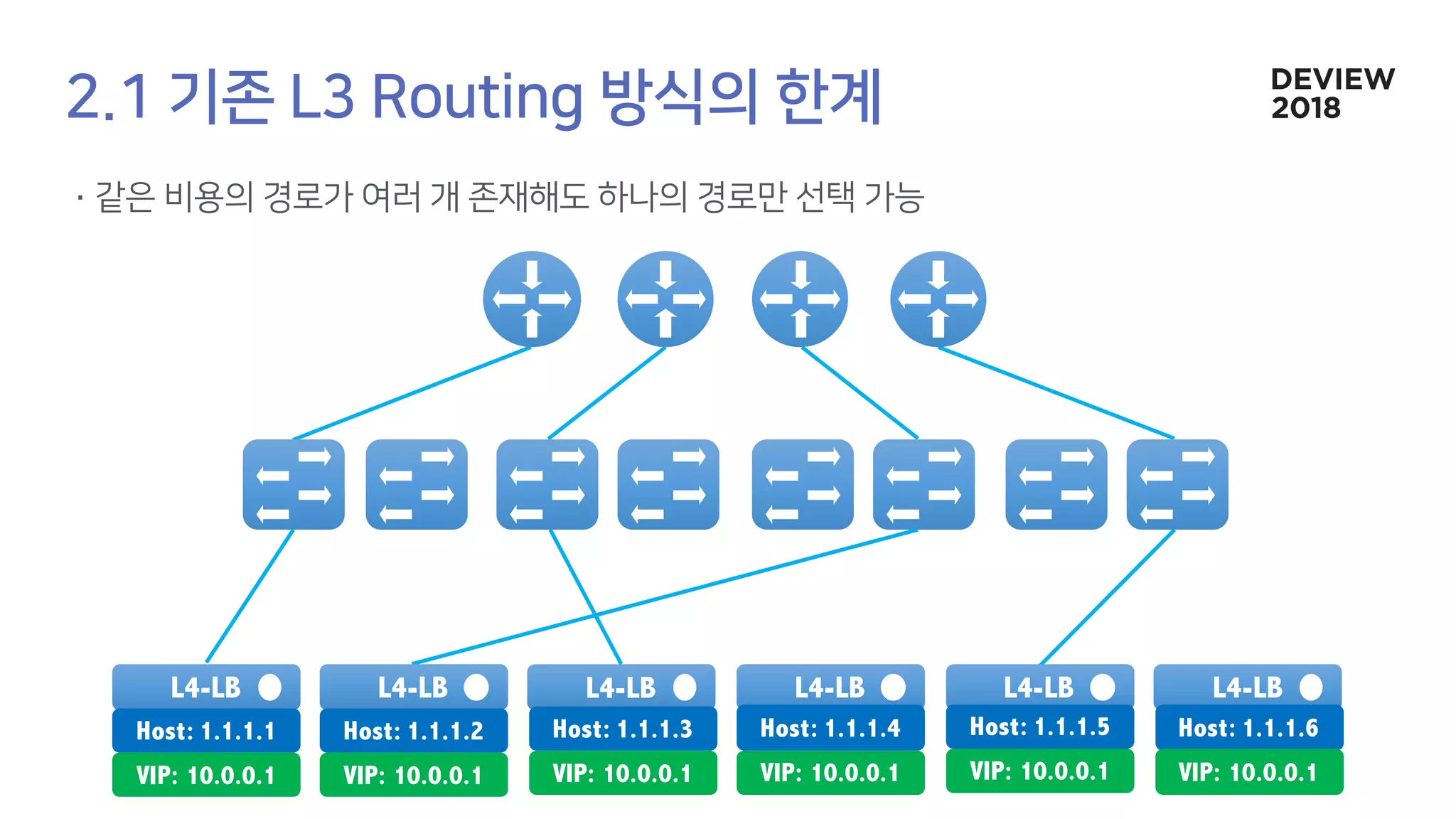

15. L4-LB L4-LB L4-LB L4-LB L4-LB L4-LB
Host: 1.1.1.1
VIP: 10.0.0.1
Host: 1.1.1.2
VIP: 10.0.0.1
Host: 1.1.1.3
VIP: 10.0.0.1
Host: 1.1.1.4
VIP: 10.0.0.1
Host: 1.1.1.5
VIP: 10.0.0.1
Host: 1.1.1.6
VIP: 10.0.0.1

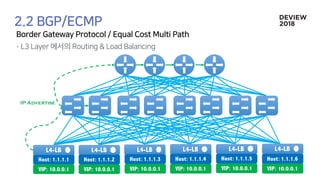

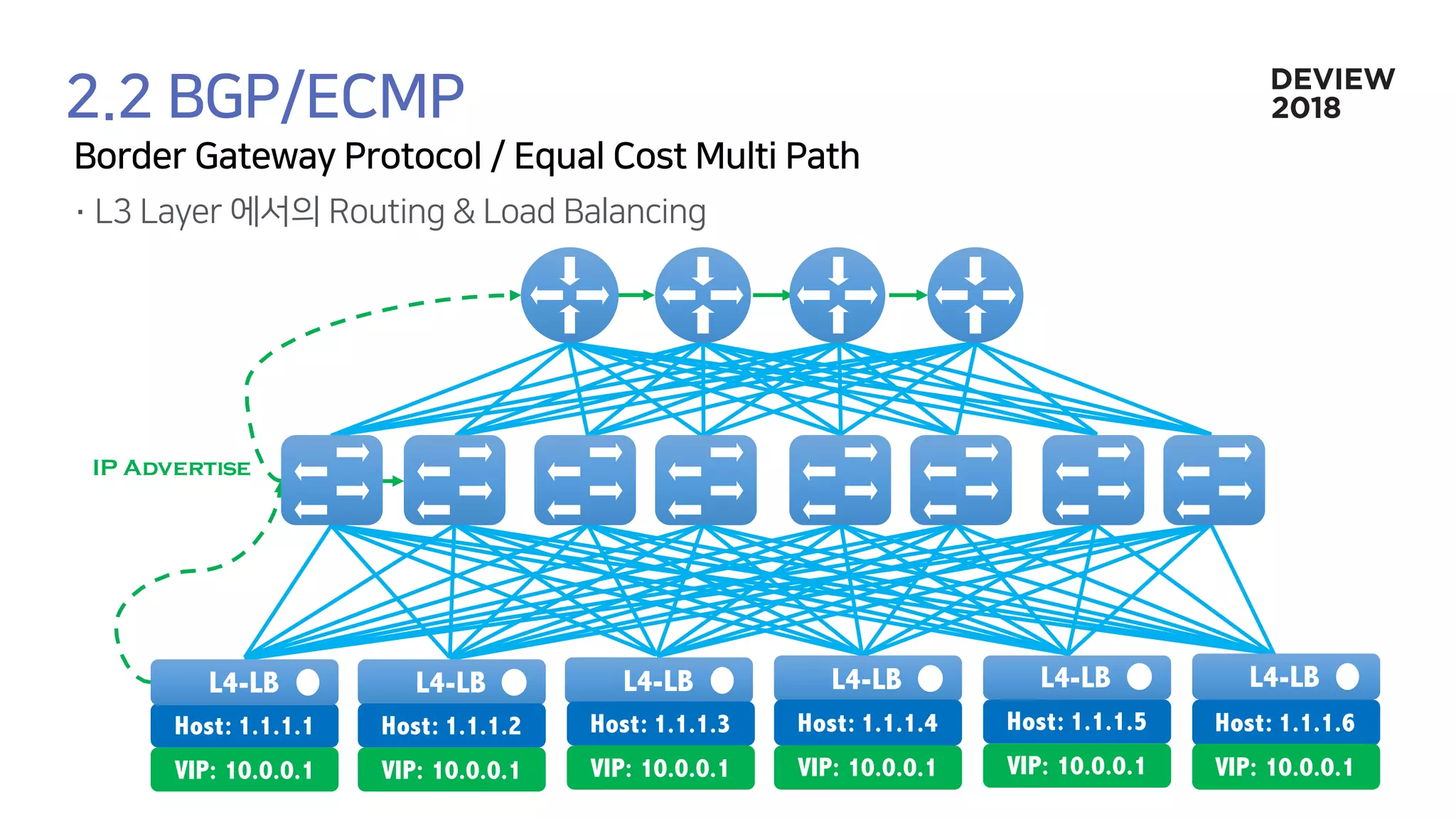

16. Host: 1.1.1.1
IP Advertise
L4-LB L4-LB L4-LB L4-LB L4-LB L4-LB
VIP: 10.0.0.1
Host: 1.1.1.2
VIP: 10.0.0.1
Host: 1.1.1.3
VIP: 10.0.0.1
Host: 1.1.1.4
VIP: 10.0.0.1
Host: 1.1.1.5
VIP: 10.0.0.1
Host: 1.1.1.6
VIP: 10.0.0.1

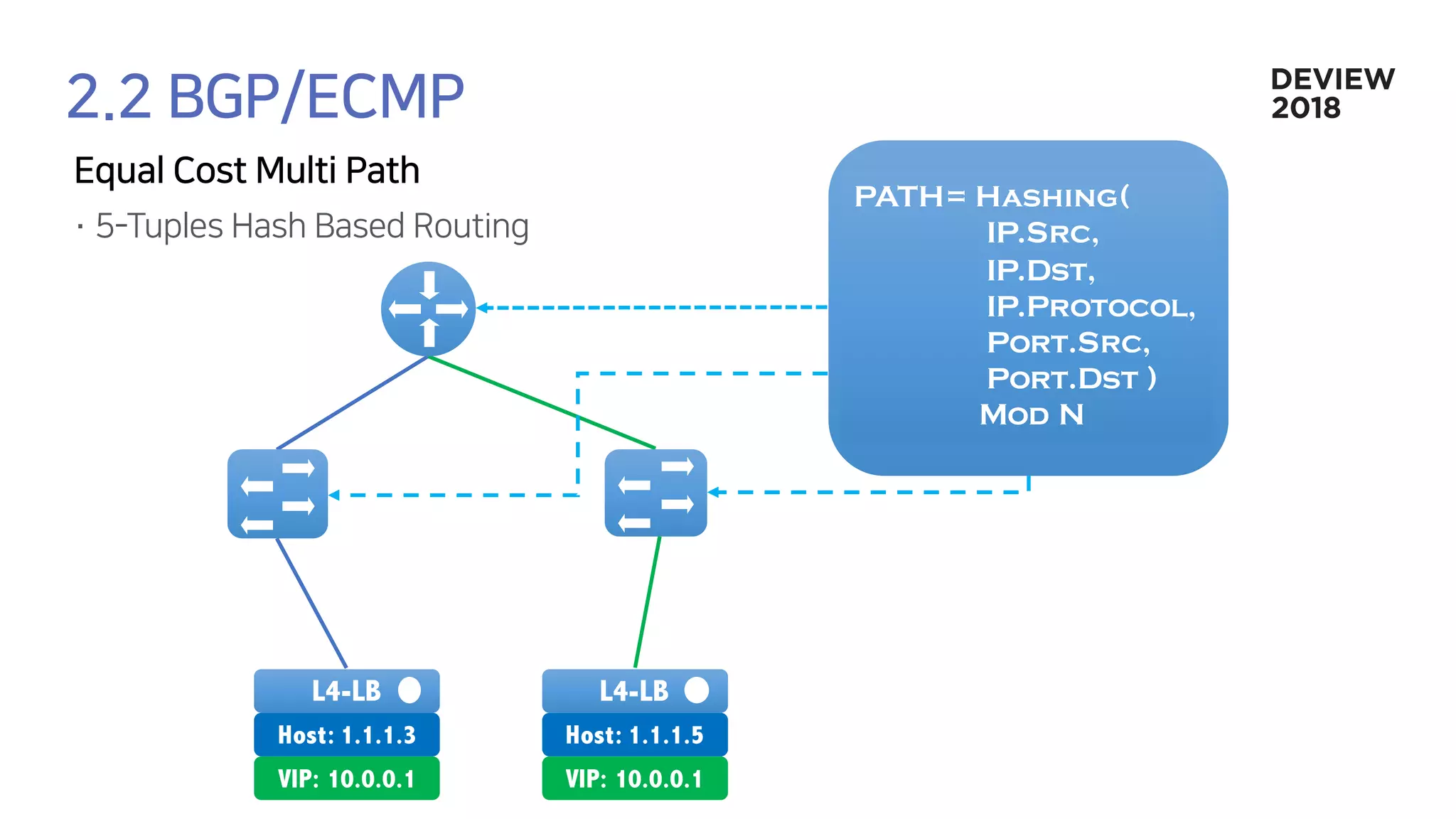

17. PATH= Hashing(
IP.Src,
IP.Dst,
IP.Protocol,
Port.Src,
Port.Dst )
Mod N
L4-LB L4-LB
Host: 1.1.1.3
VIP: 10.0.0.1
Host: 1.1.1.5
VIP: 10.0.0.1

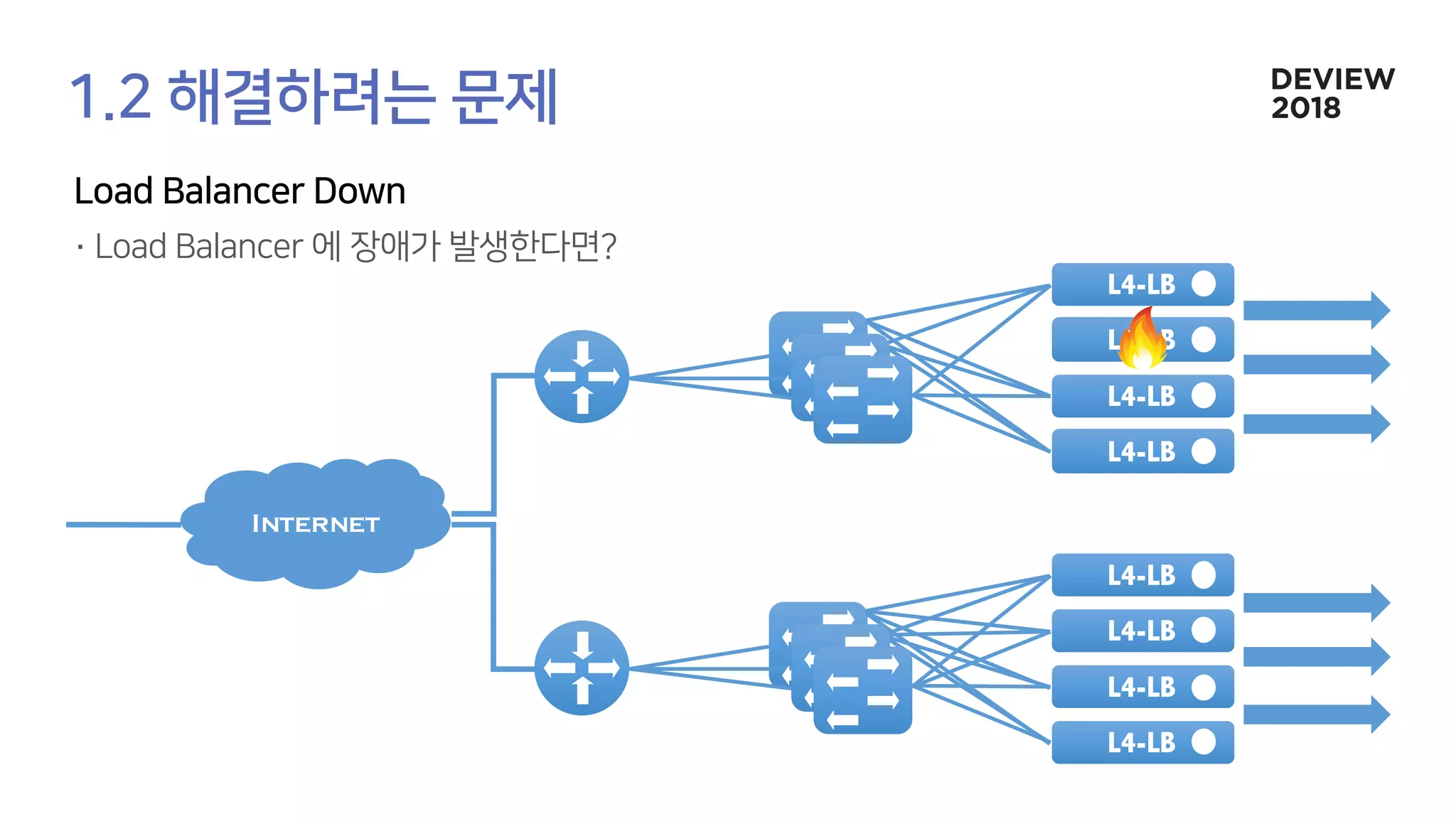

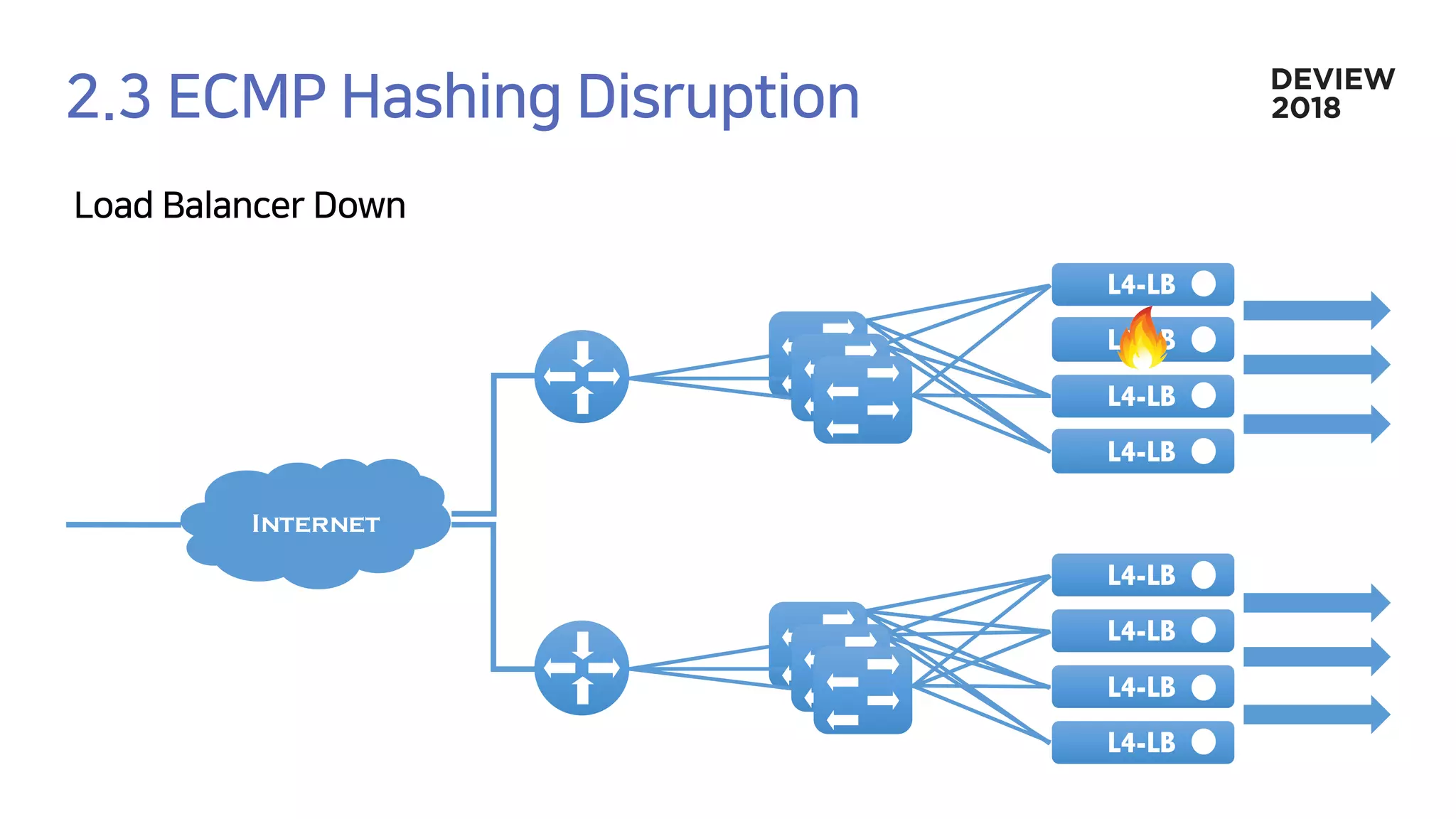

18. Internet
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB

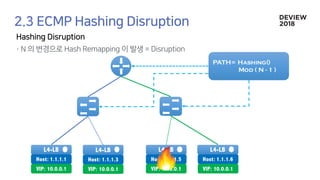

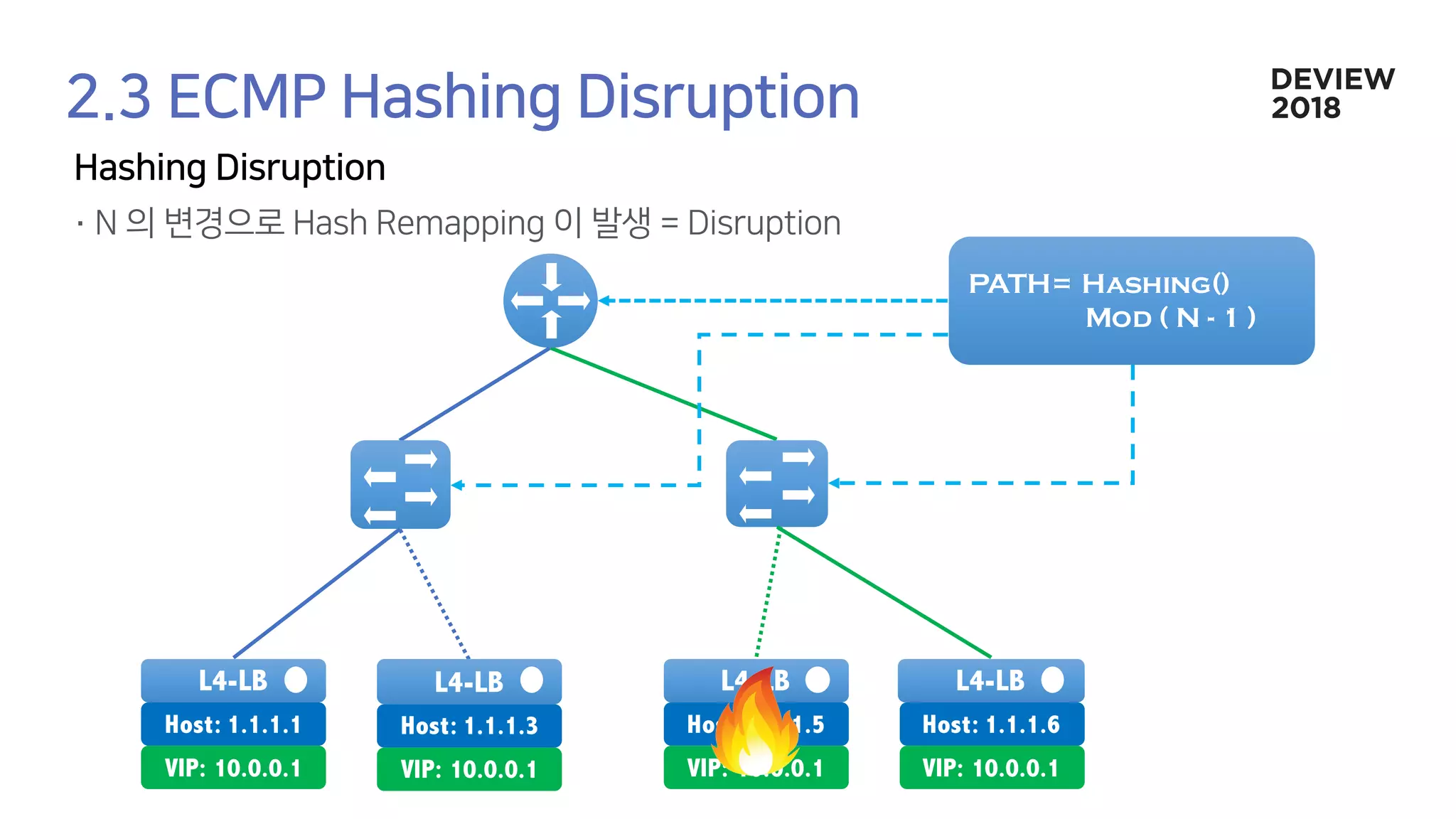

19. PATH= Hashing()
Mod ( N - 1 )
L4-LBL4-LBL4-LB L4-LB
Host: 1.1.1.1
VIP: 10.0.0.1
Host: 1.1.1.3
VIP: 10.0.0.1
Host: 1.1.1.5
VIP: 10.0.0.1
Host: 1.1.1.6
VIP: 10.0.0.1

20. 192.68.0.2
Container[0]
Container[1]
Container[2]
Container[3]
L4-LB

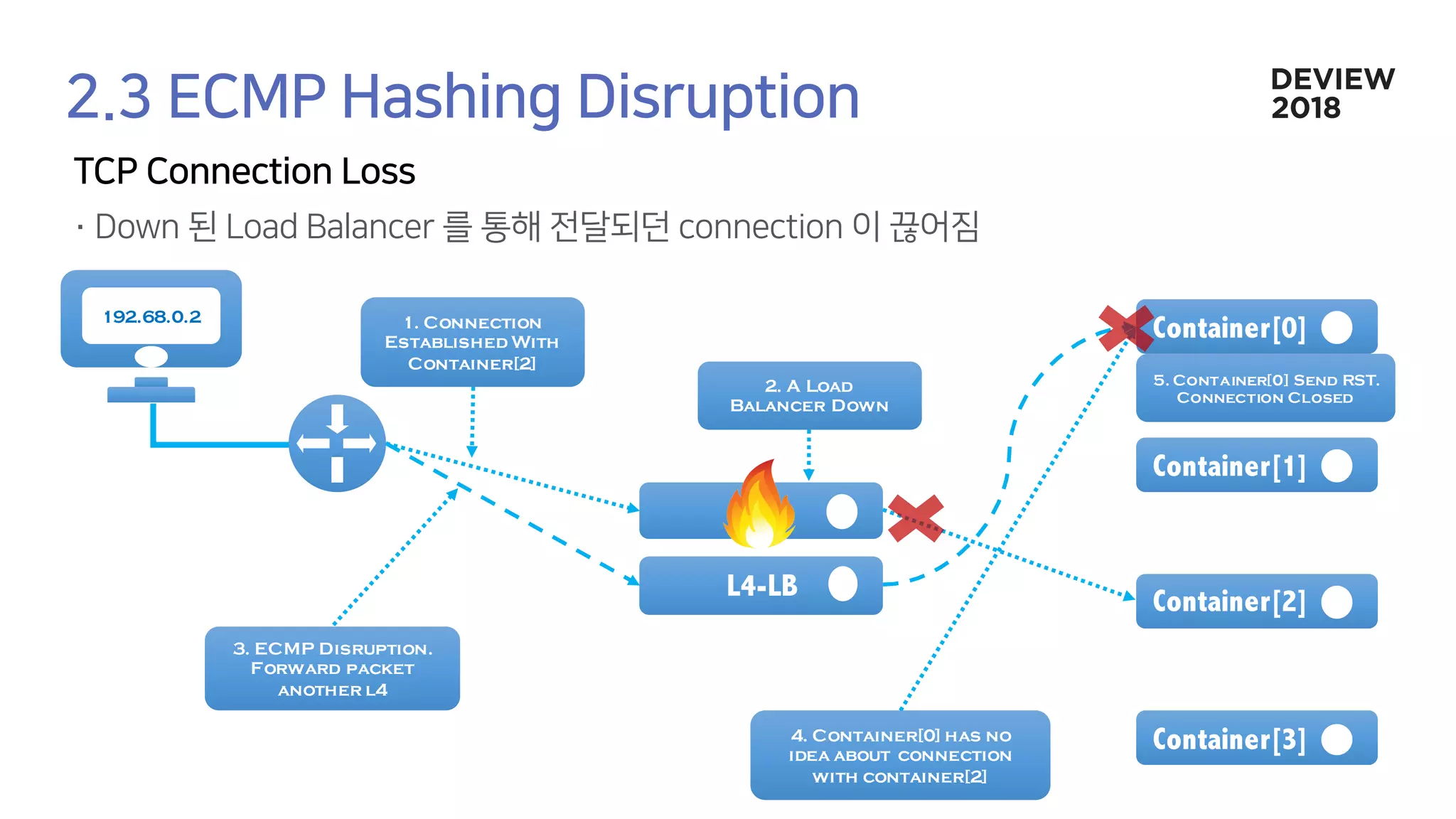

1. Connection
Established With
Container[2]
2. A Load
Balancer Down
3. ECMP Disruption.
Forward packet
another l4
4. Container[0] has no
idea about connection
with container[2]
5. Container[0] Send RST.
Connection Closed

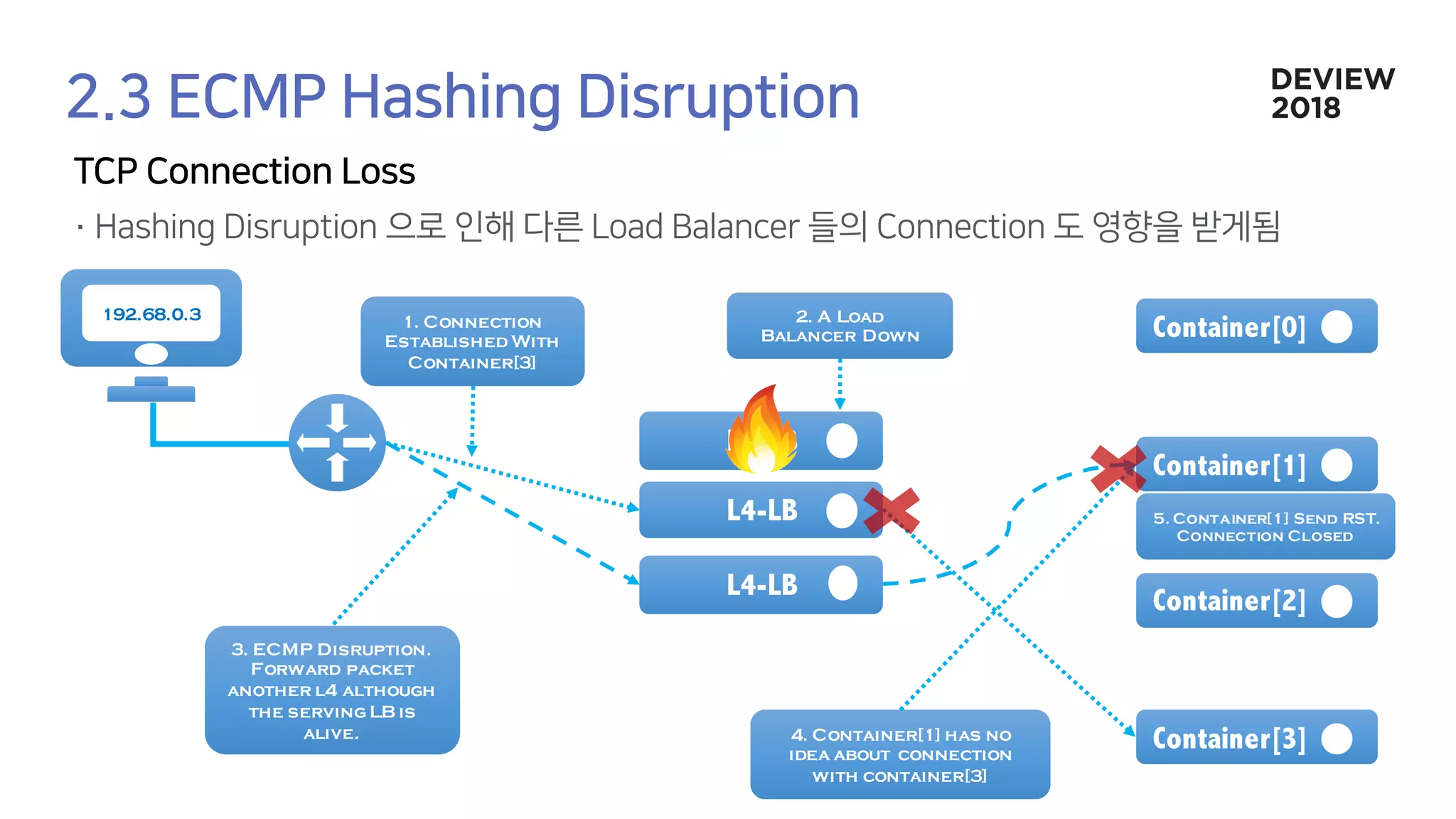

21. 192.68.0.3
Container[0]
Container[1]
Container[2]
Container[3]
L4-LB
L4-LB
1. Connection
Established With
Container[3]
2. A Load
Balancer Down
3. ECMP Disruption.
Forward packet
another l4 although
the serving LB is
alive. 4. Container[1] has no
idea about connection
with container[3]
5. Container[1] Send RST.
Connection Closed
L4-LB

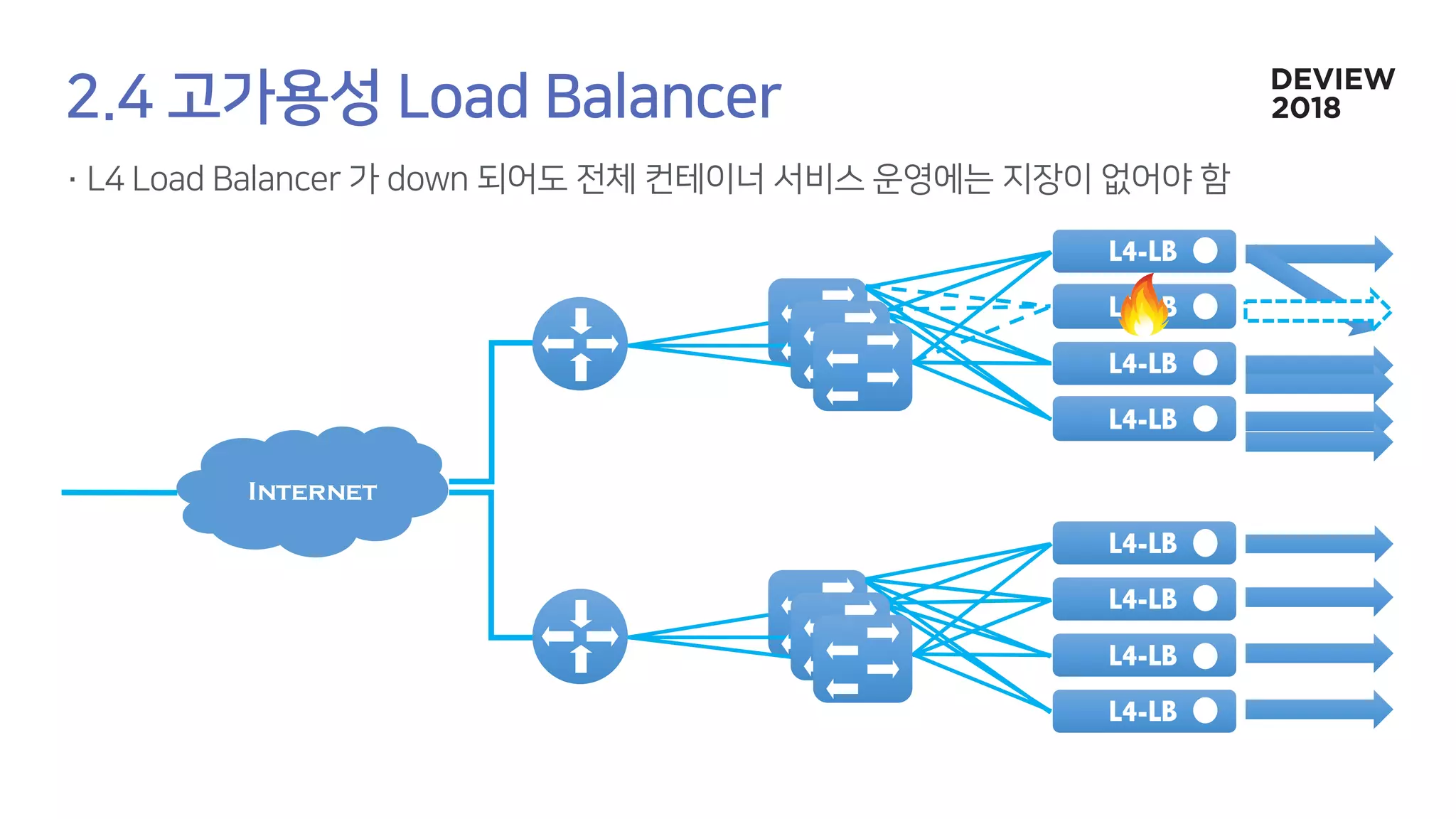

22. Internet
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB
L4-LB

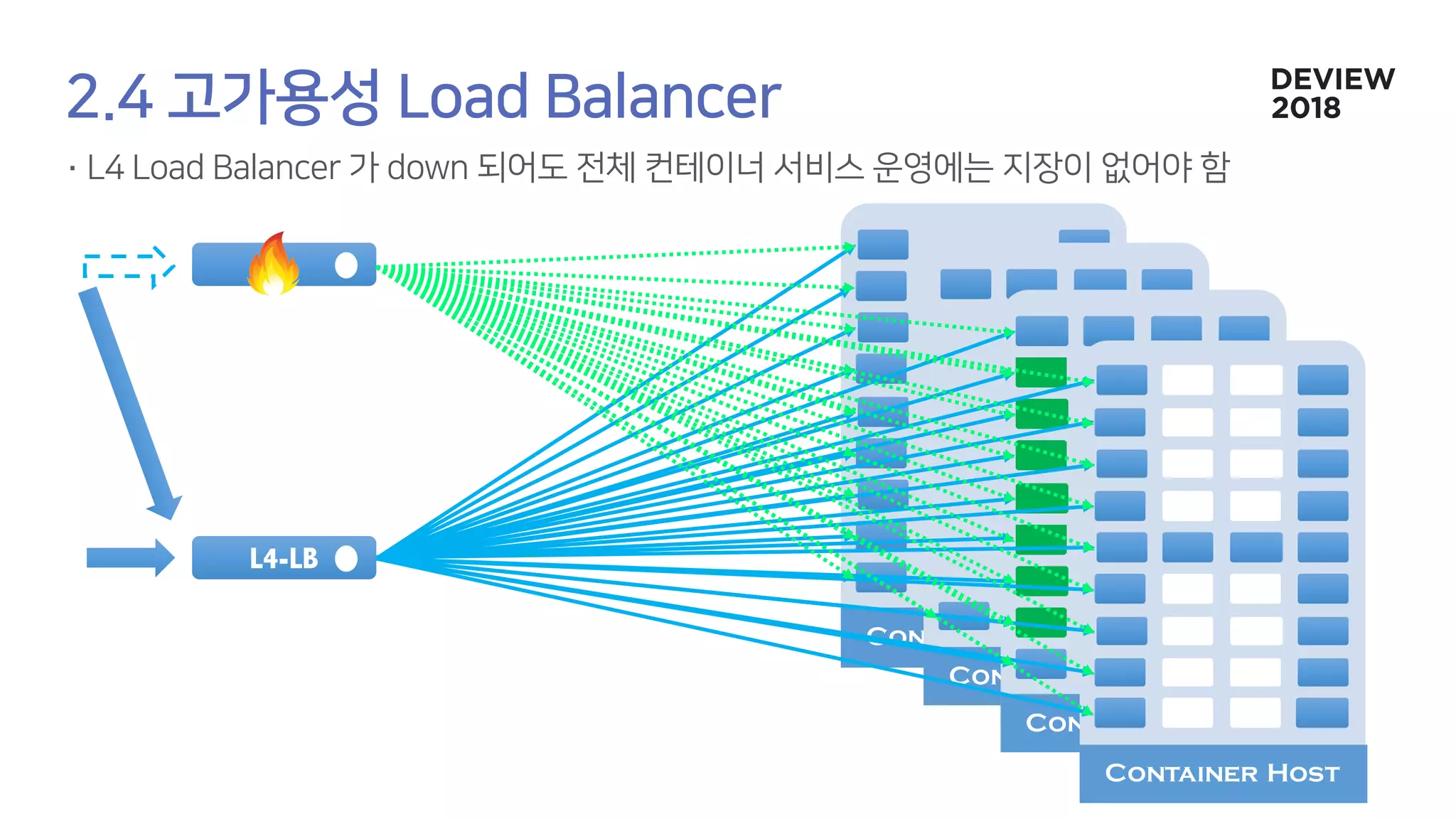

23. Container Host
Container Host
Container Host
Container Host
L4-LB

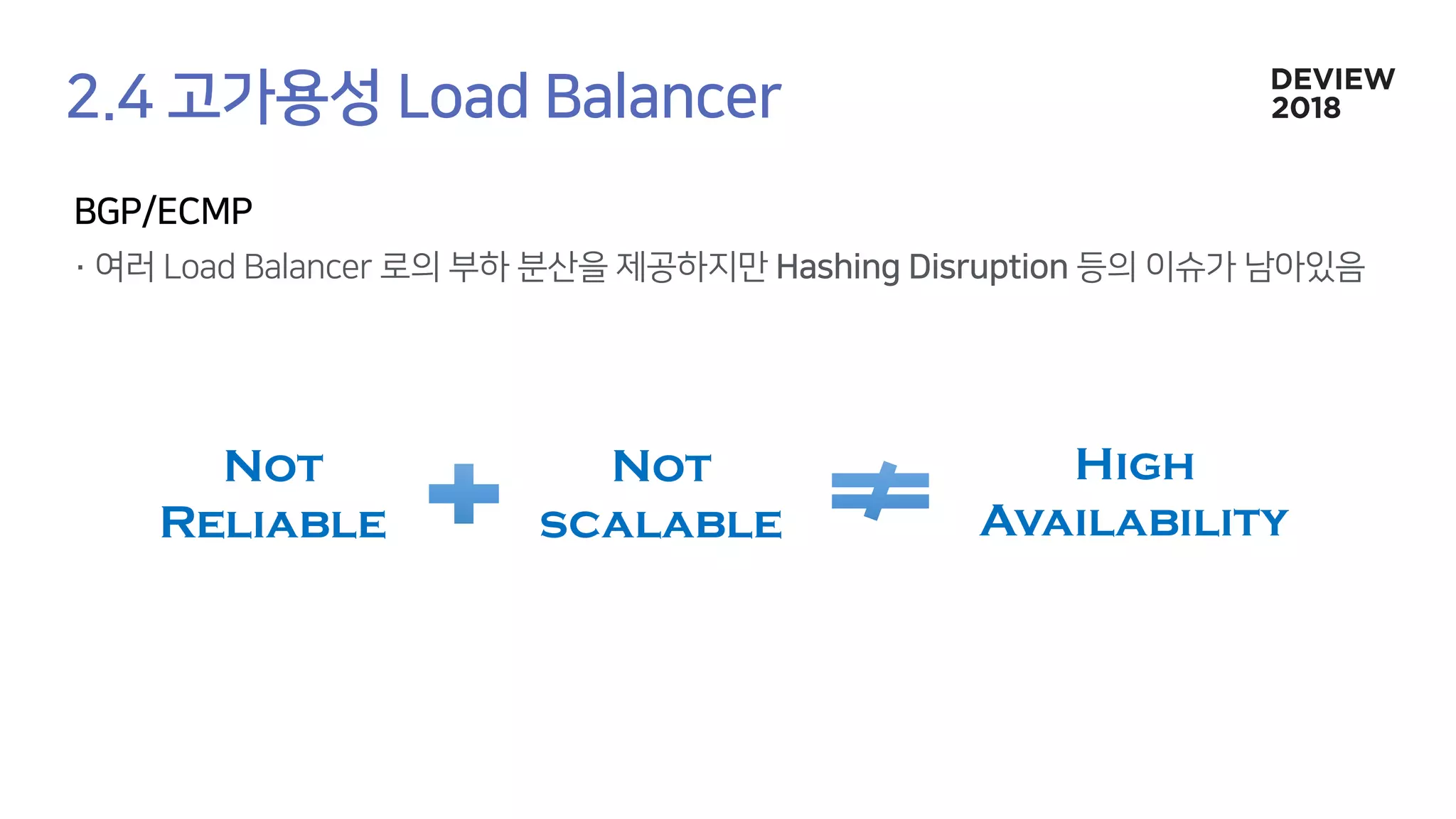

24. Not
Reliable
Not
scalable
High
Availability

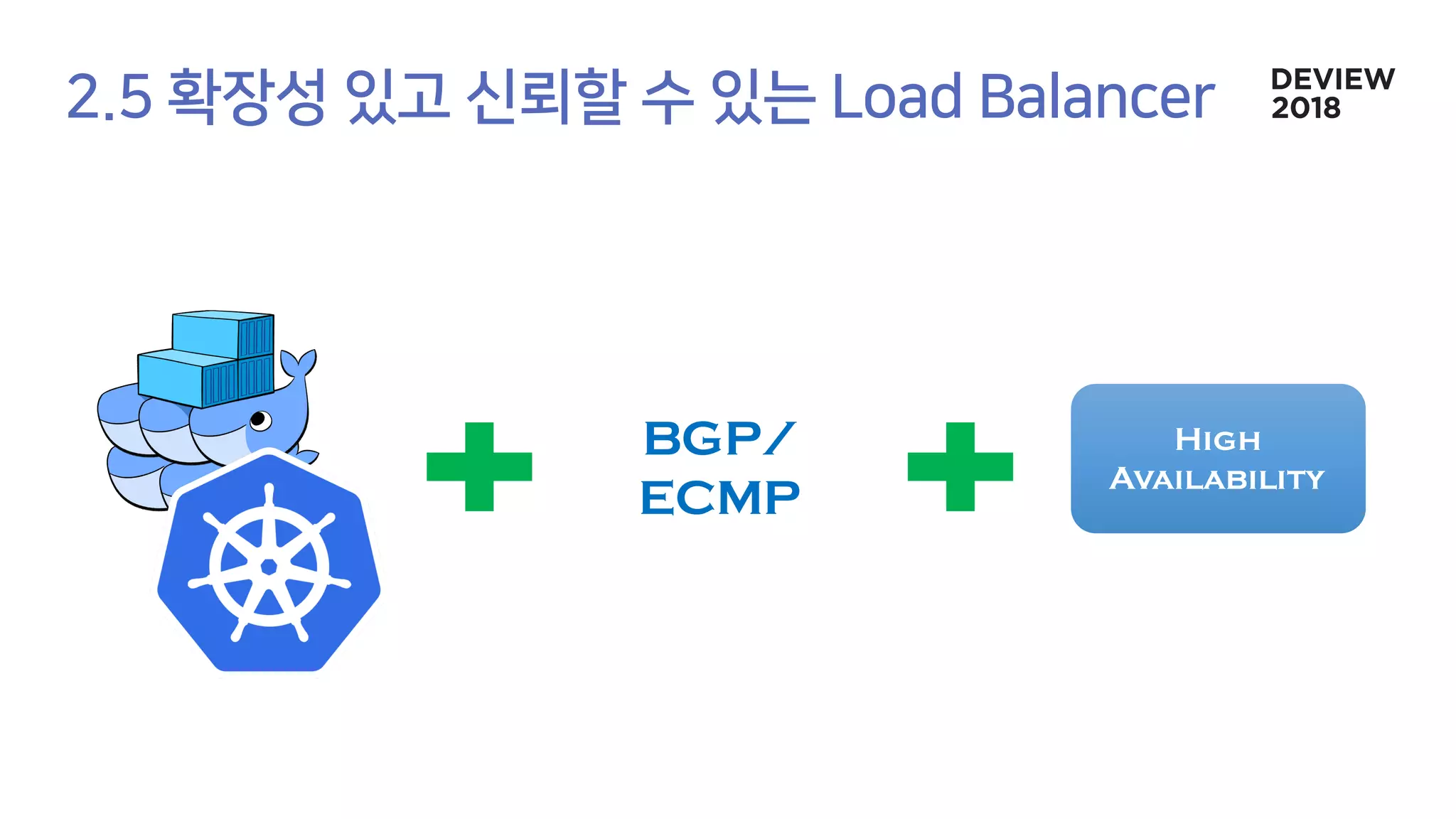

25. BGP/
ECMP
High
Availability

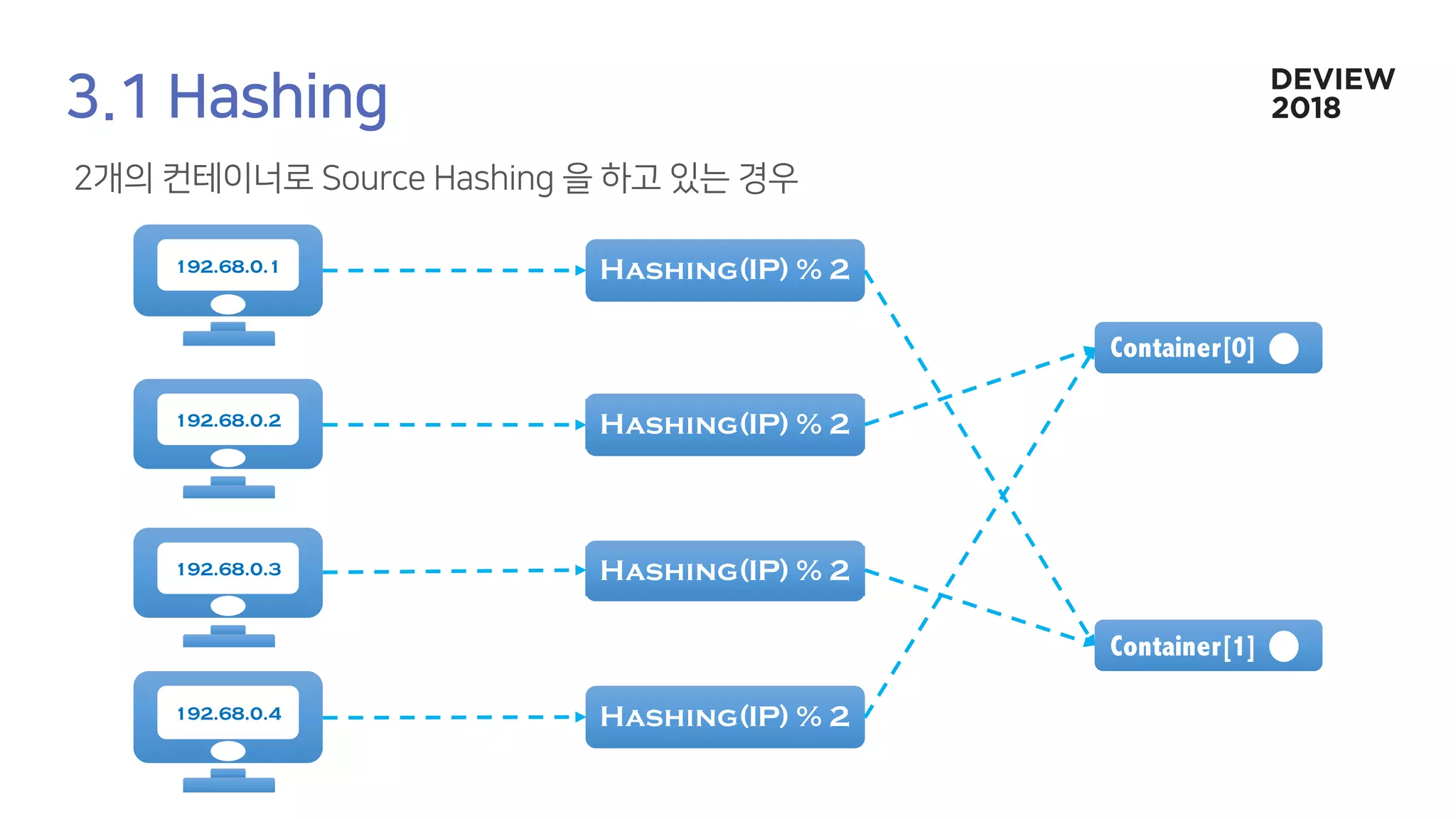

27. 192.68.0.1 Hashing(IP) % 2
Container[0]
Container[1]
Hashing(IP) % 2
Hashing(IP) % 2
Hashing(IP) % 2
192.68.0.2
192.68.0.3
192.68.0.4

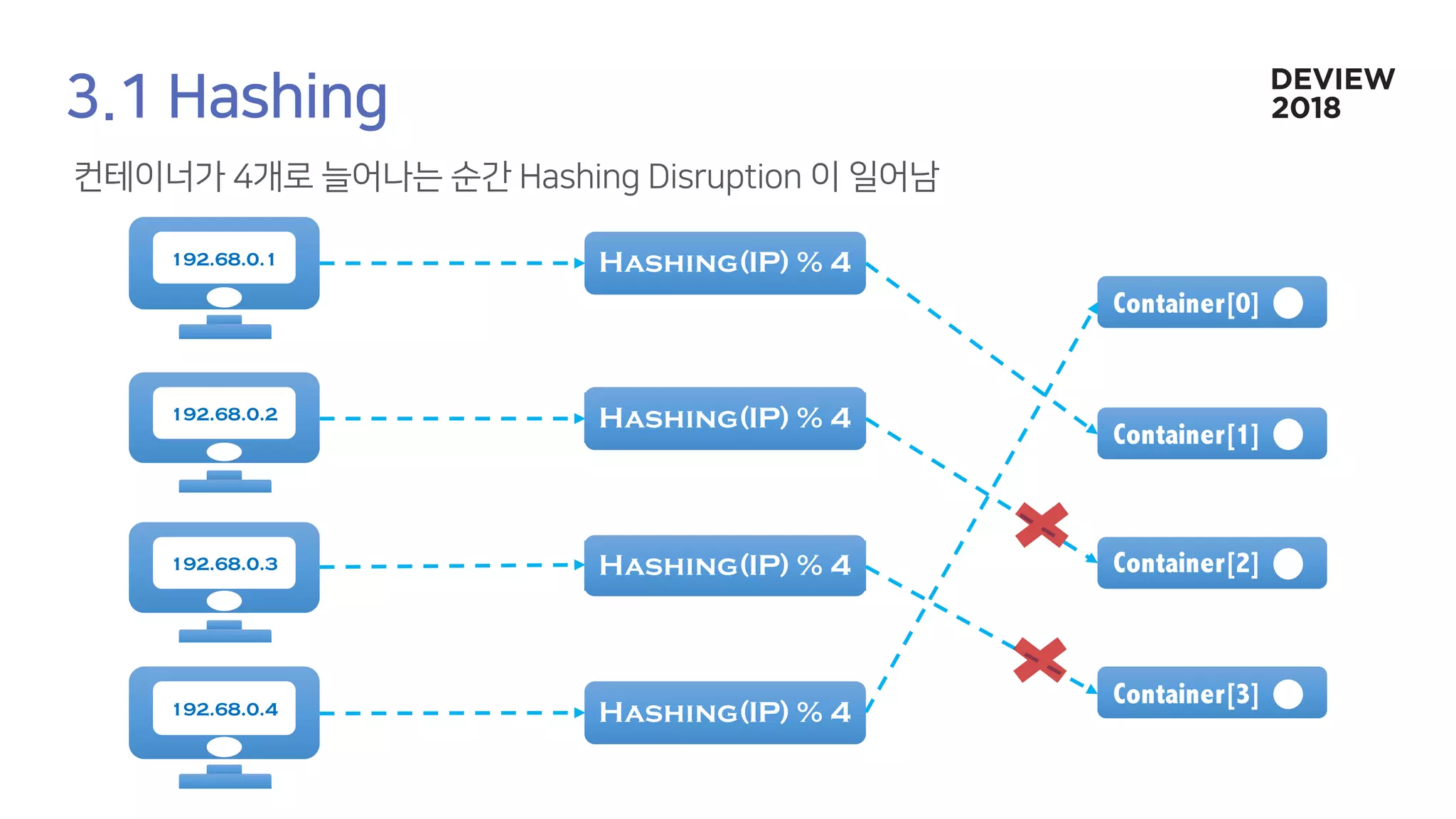

28. 192.68.0.1 Hashing(IP) % 4
Hashing(IP) % 4
Hashing(IP) % 4
Hashing(IP) % 4
192.68.0.2
192.68.0.3
192.68.0.4
Container[0]
Container[1]
Container[2]
Container[3]

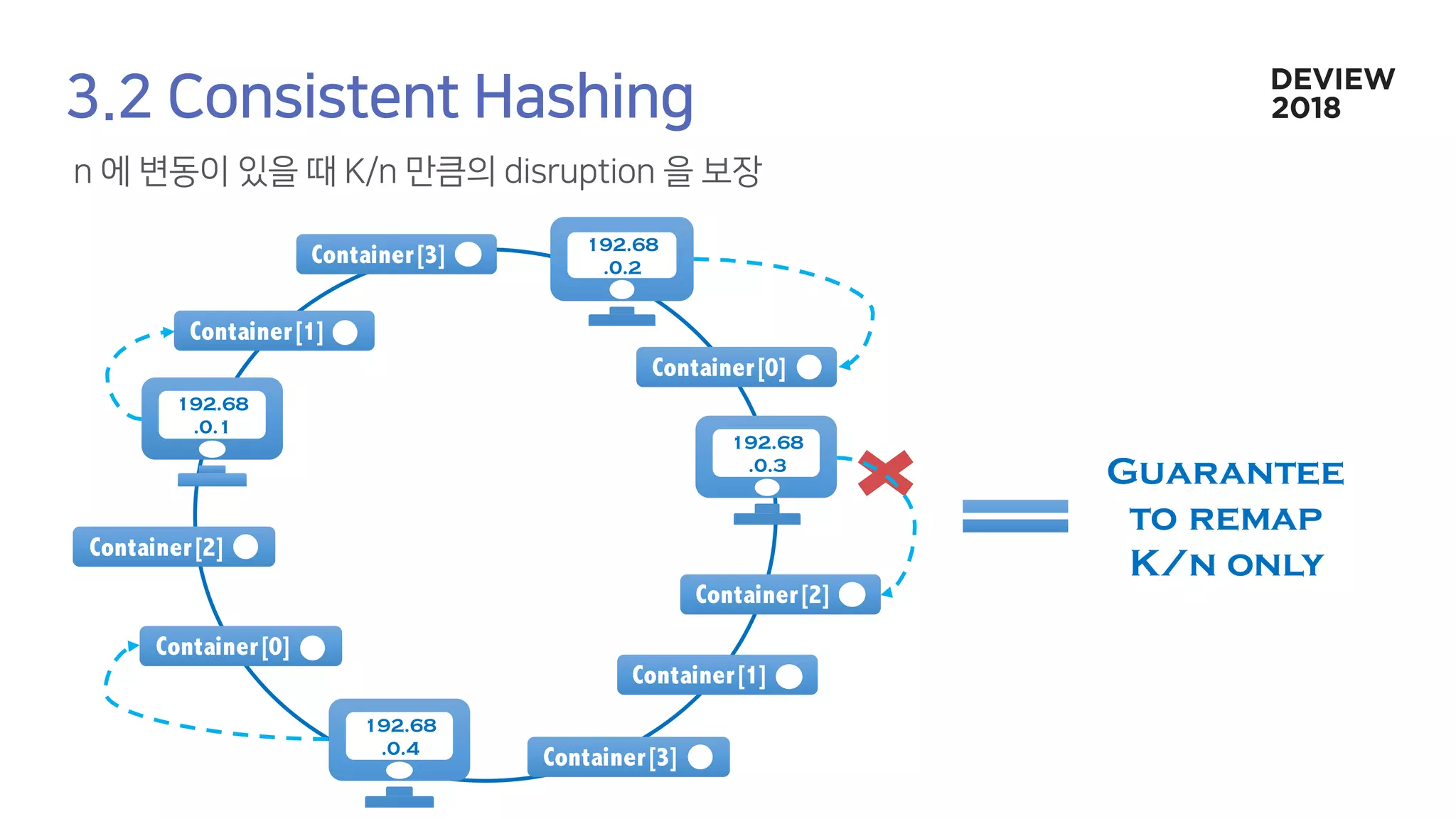

29. 192.68
.0.2
Container[0]
192.68
.0.3
Container[2]
192.68
.0.4
Container[0]
Container[3]
Container[2]
192.68
.0.1
Container[1]
Container[3]
Container[1]
Guarantee
to remap
K/n only

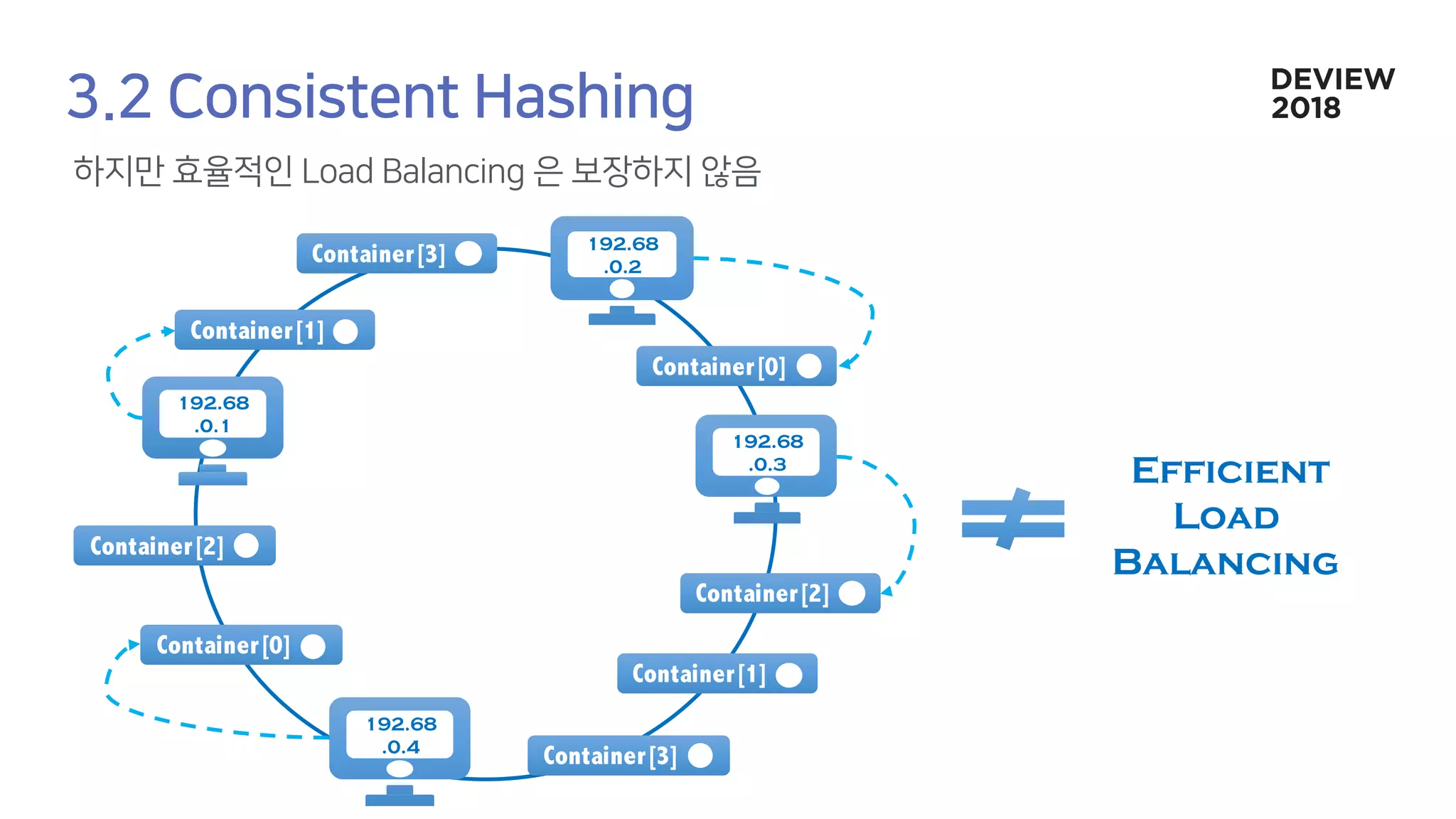

30. 192.68
.0.2
Container[0]
192.68
.0.3
Container[2]
192.68
.0.4
Container[0]
Container[3]
Container[2]
192.68
.0.1
Container[1]
Container[3]
Container[1]
Efficient
Load
Balancing

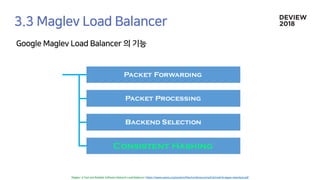

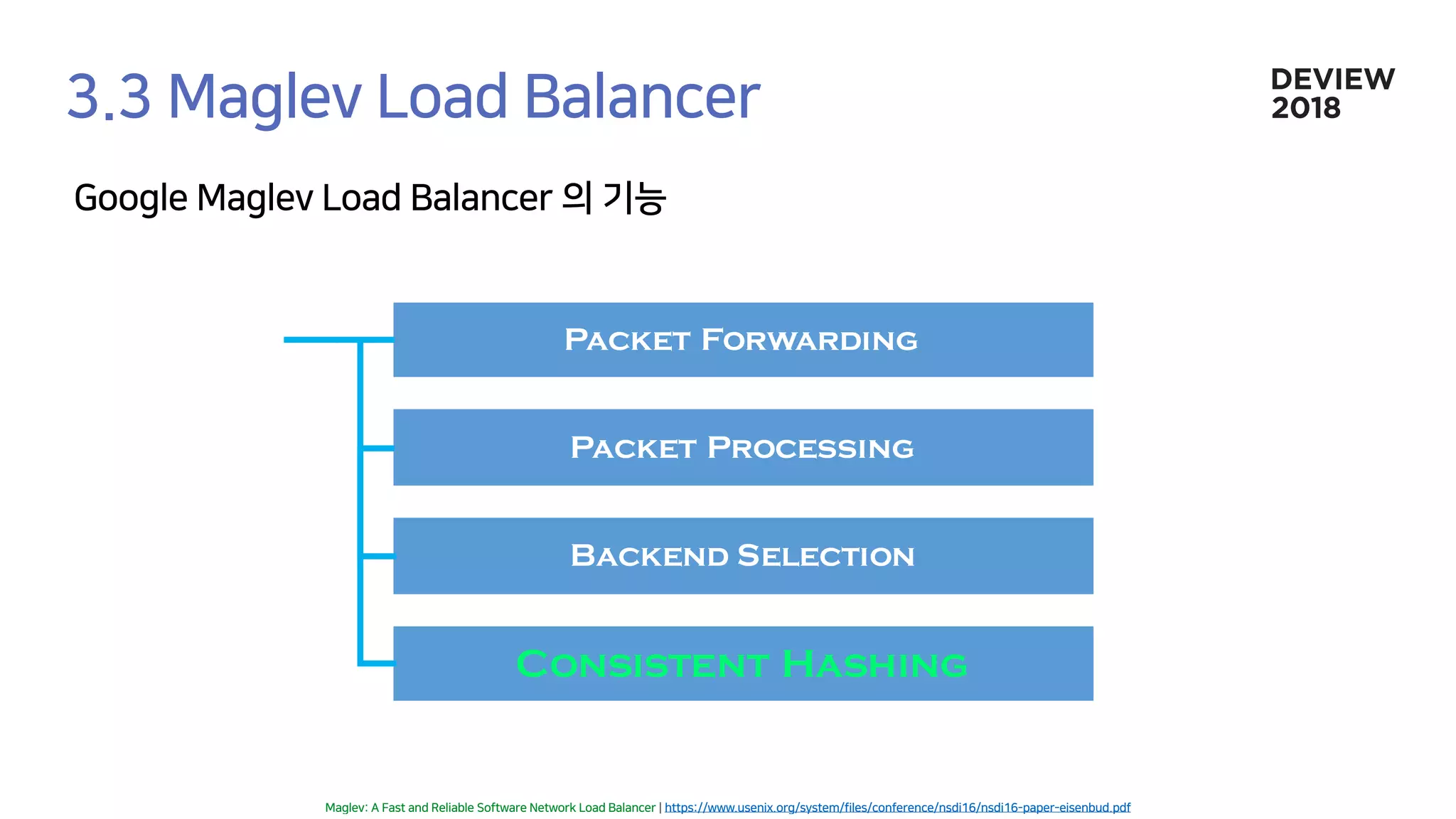

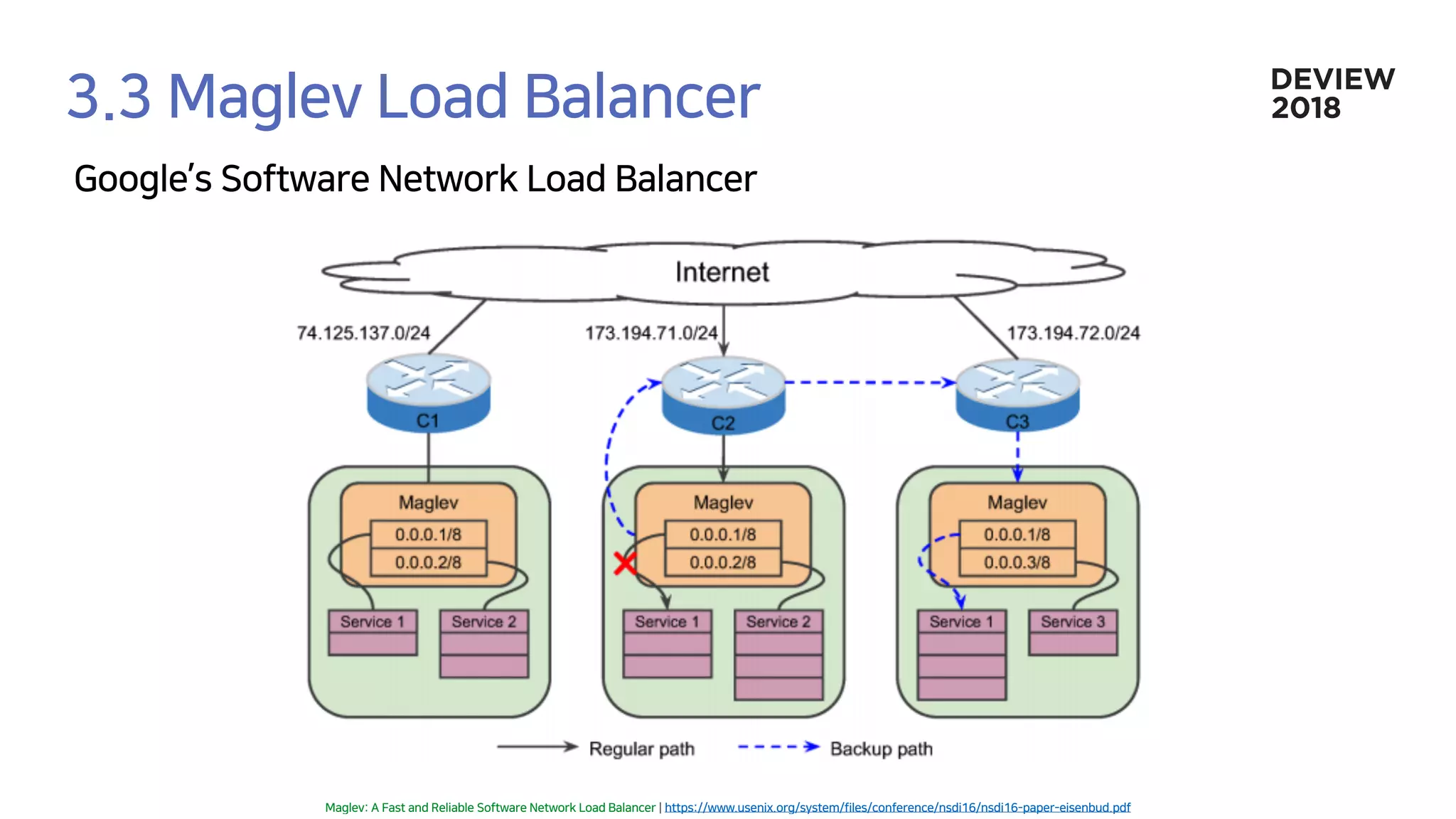

32. Consistent Hashing
Backend Selection
Packet Processing
Packet Forwarding

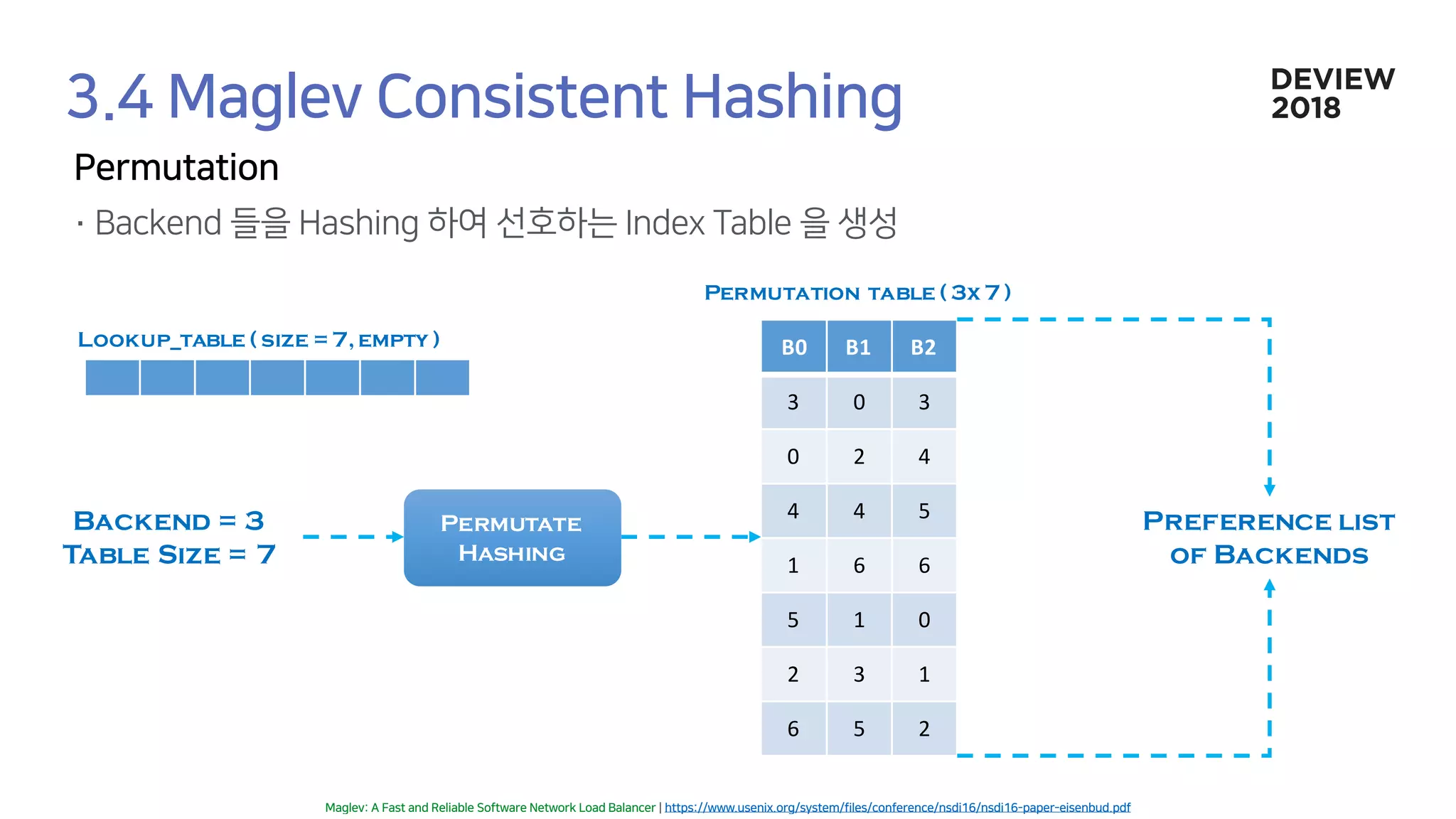

33. B0 B1 B2
3 0 3
0 2 4
4 4 5
1 6 6
5 1 0
2 3 1
6 5 2
Backend = 3
Table Size = 7
Permutate
Hashing
Permutation table ( 3x 7 )
Preference list
of Backends
Lookup_table ( size =7,empty )

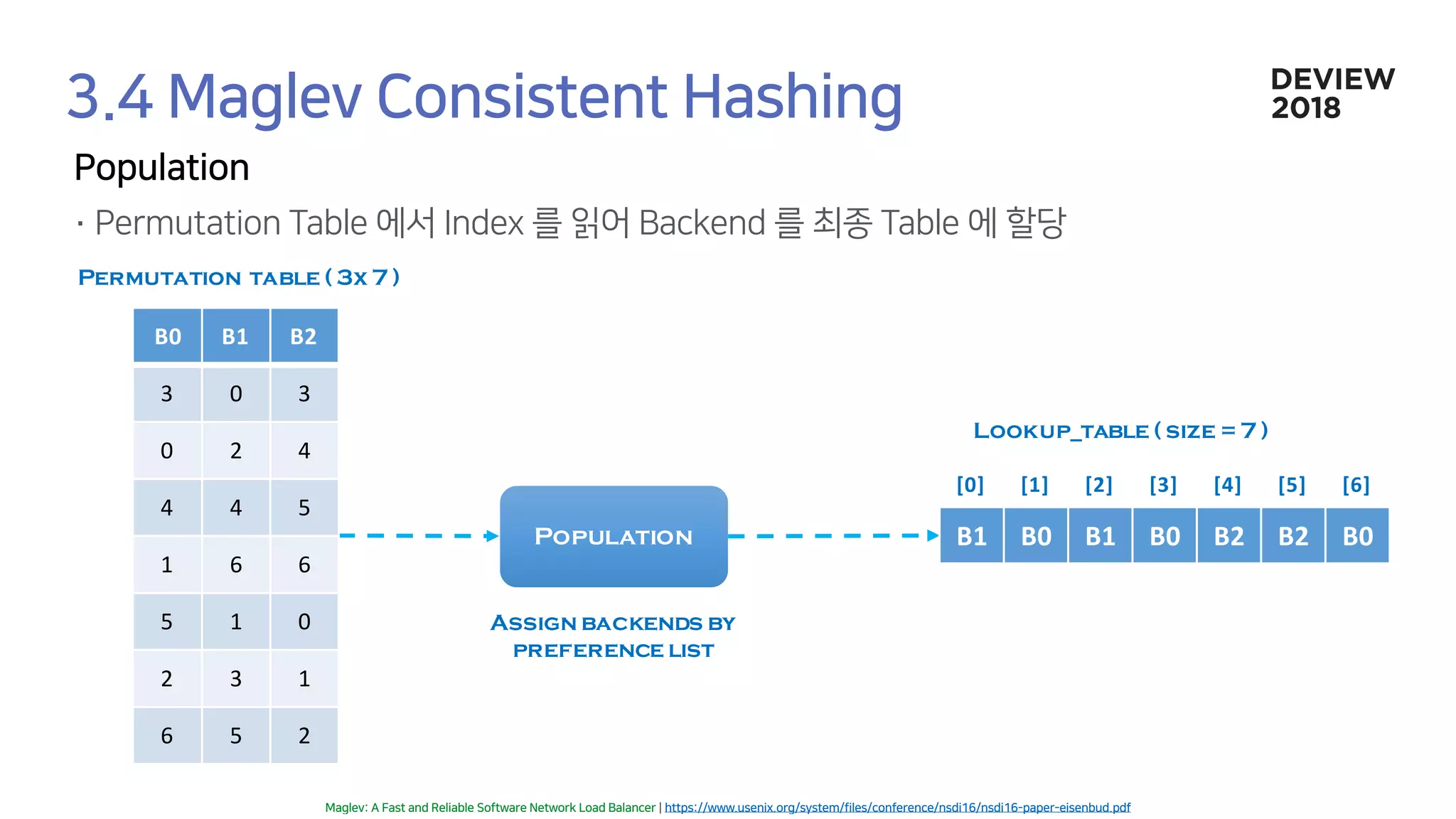

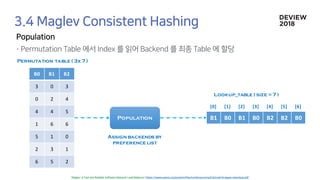

34. Population
Permutation table ( 3x 7 )
B1 B0 B1 B0 B2 B2 B0
Lookup_table ( size =7 )
B0 B1 B2
3 0 3
0 2 4
4 4 5
1 6 6
5 1 0
2 3 1
6 5 2
[0] [1] [2] [3] [4] [5] [6]
Assign backends by
preference list

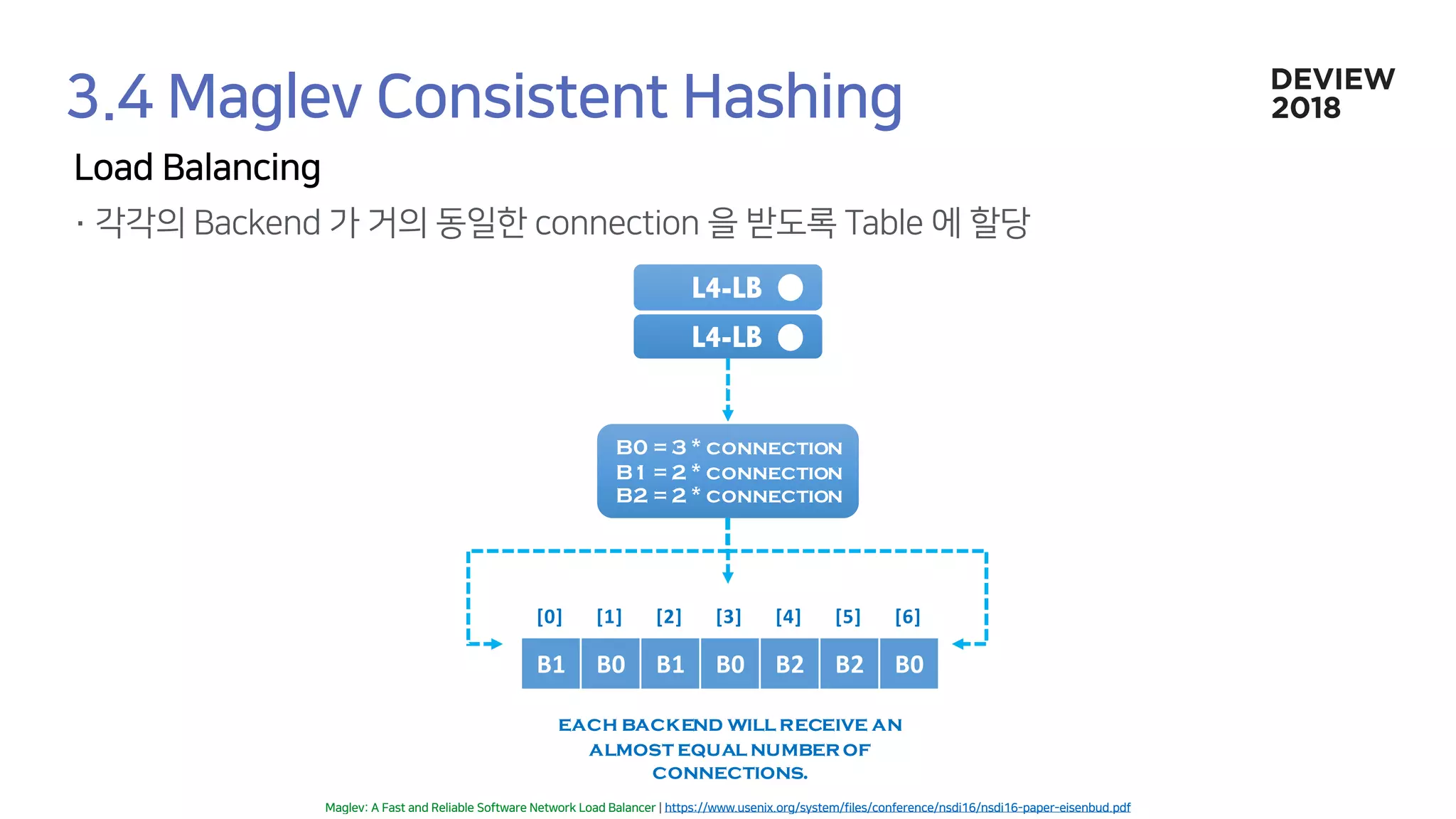

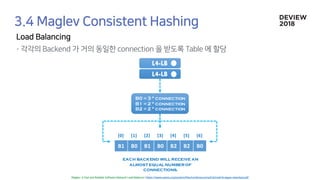

35. B1 B0 B1 B0 B2 B2 B0
each backend will receive an
almost equal numberof
connections.
[0] [1] [2] [3] [4] [5] [6]
L4-LB
L4-LB
B0 =3 * connection
B1 =2 * connection
B2 =2 * connection

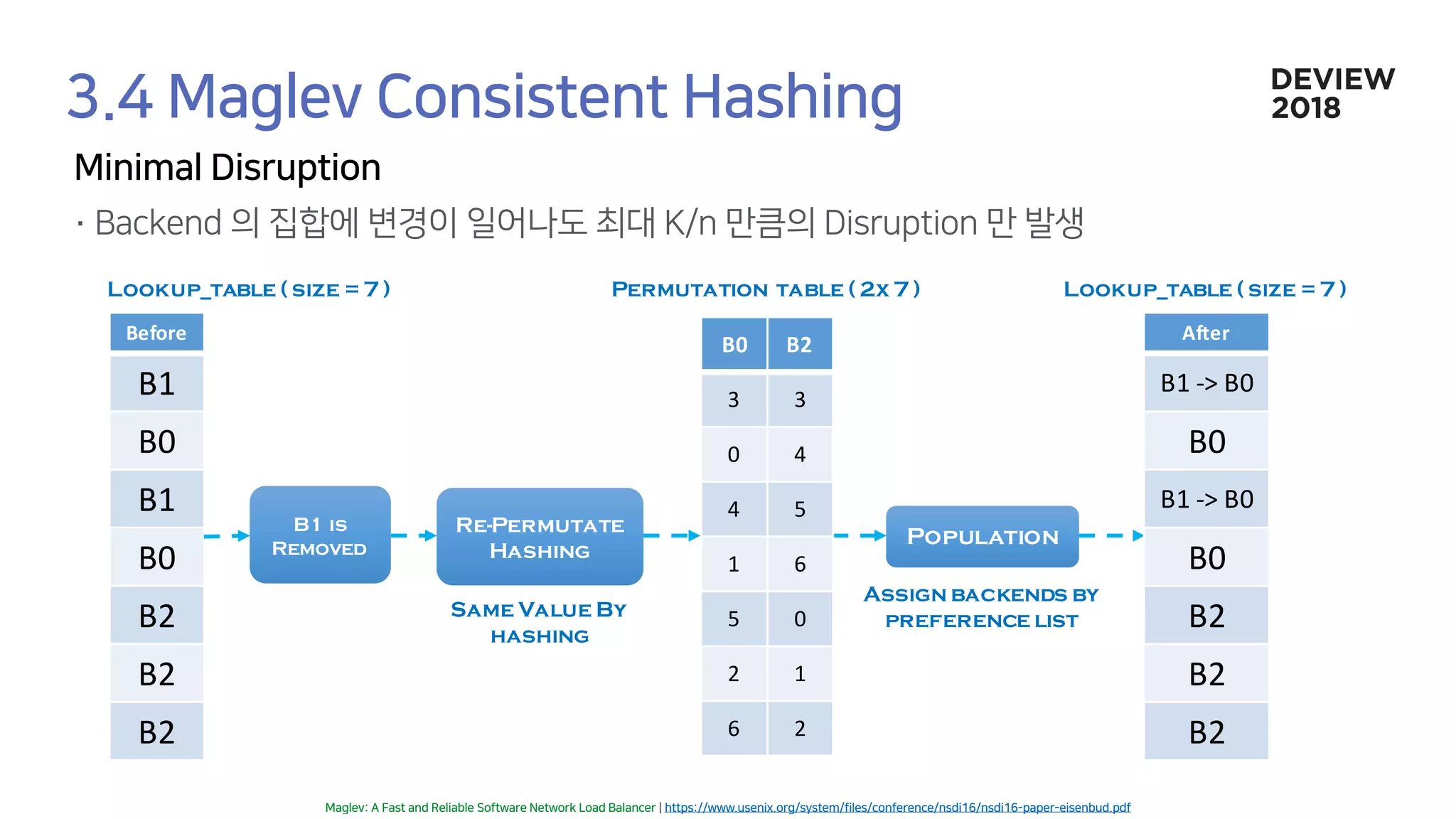

36. Population
Permutation table ( 2x 7 )
B0 B2
3 3
0 4
4 5
1 6
5 0
2 1
6 2
Assign backends by
preference list
Before
B1
B0
B1
B0
B2
B2
B2
B1 is
Removed
Re-Permutate
Hashing
Lookup_table ( size =7 )
After
B1 -> B0
B0
B1 -> B0
B0
B2
B2
B2
Same Value By
hashing
Lookup_table ( size =7 )

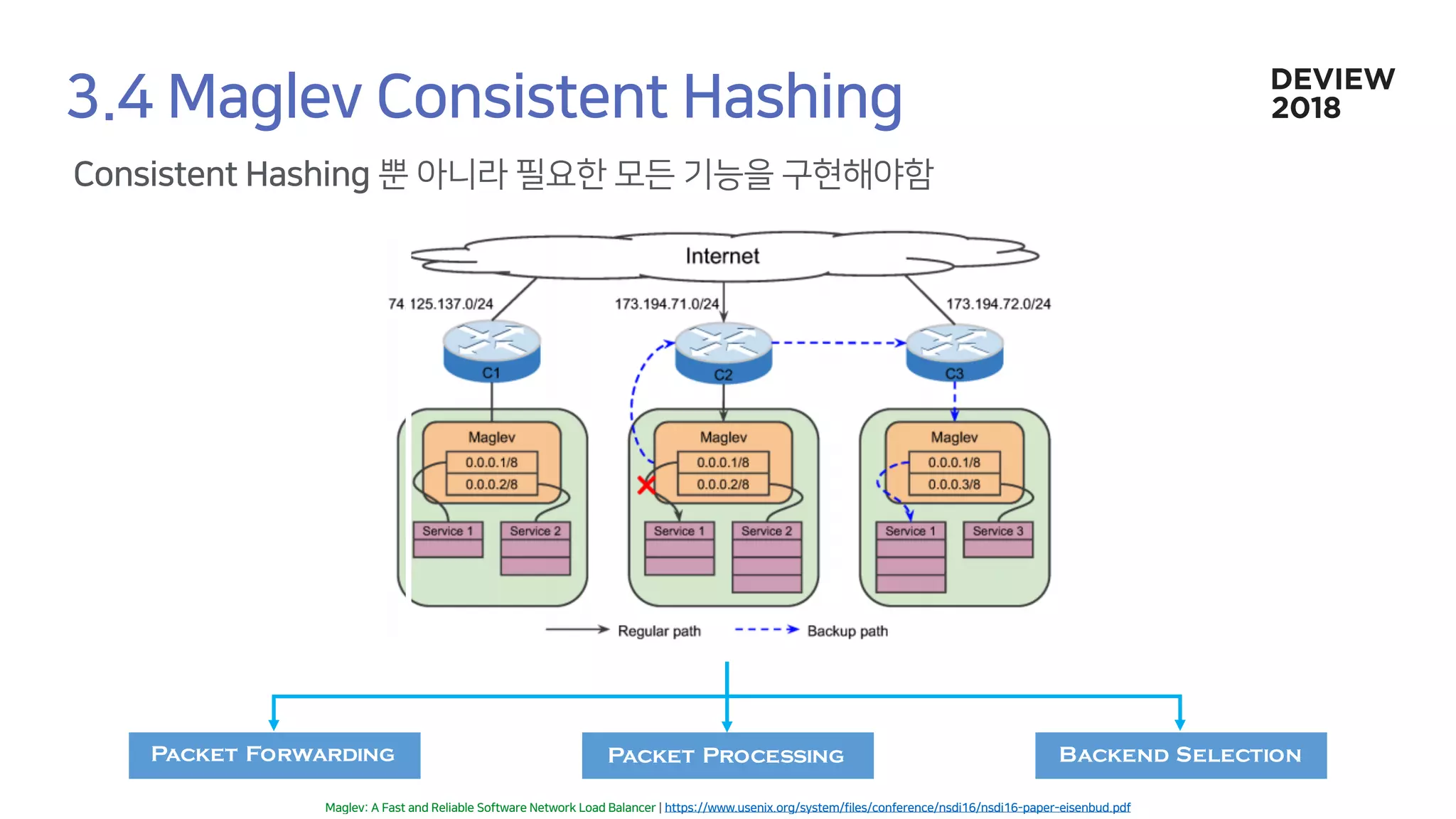

38. Backend SelectionPacket ProcessingPacket Forwarding

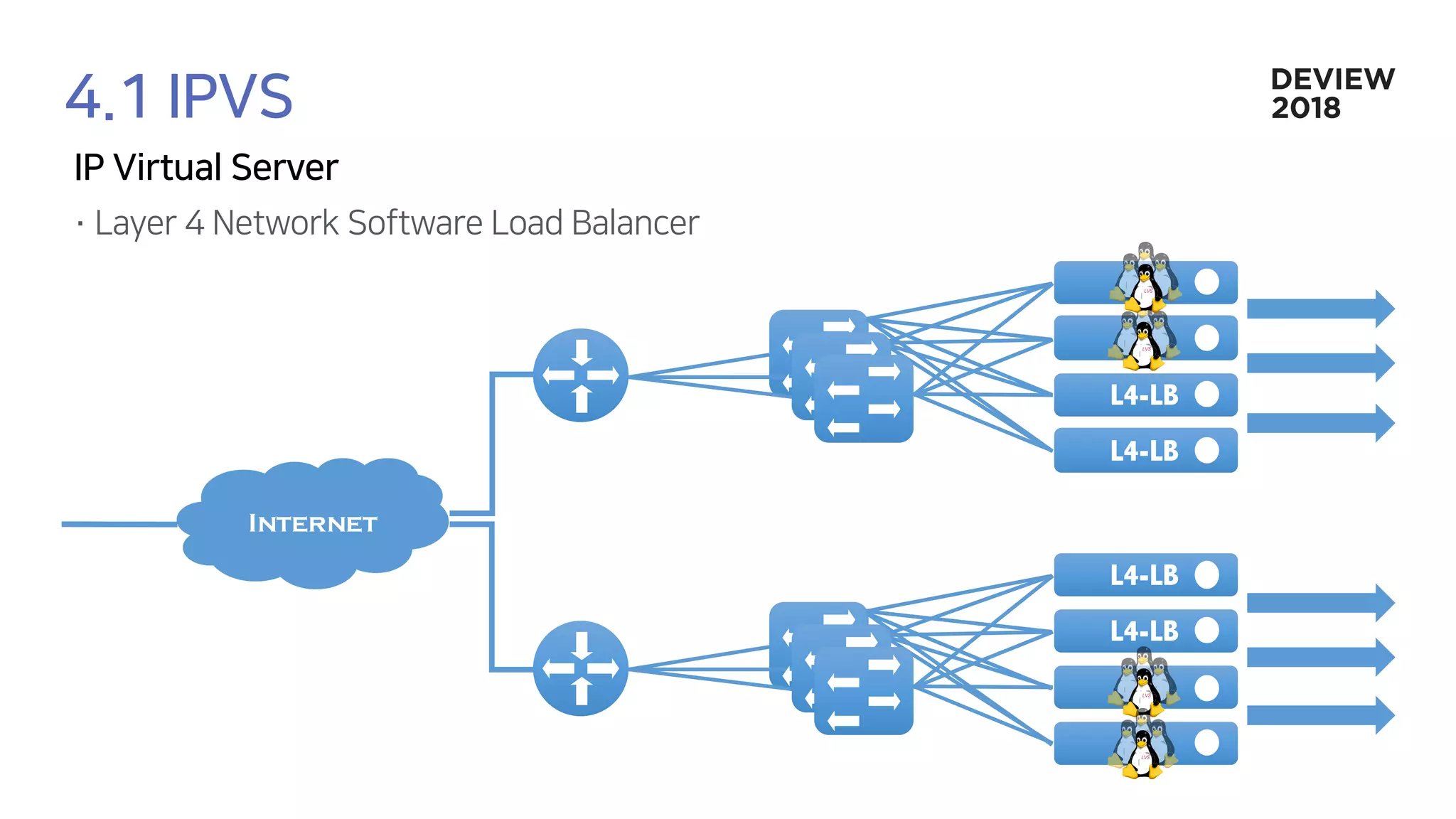

40. Internet
L4-LB
L4-LB
L4-LB
L4-LB

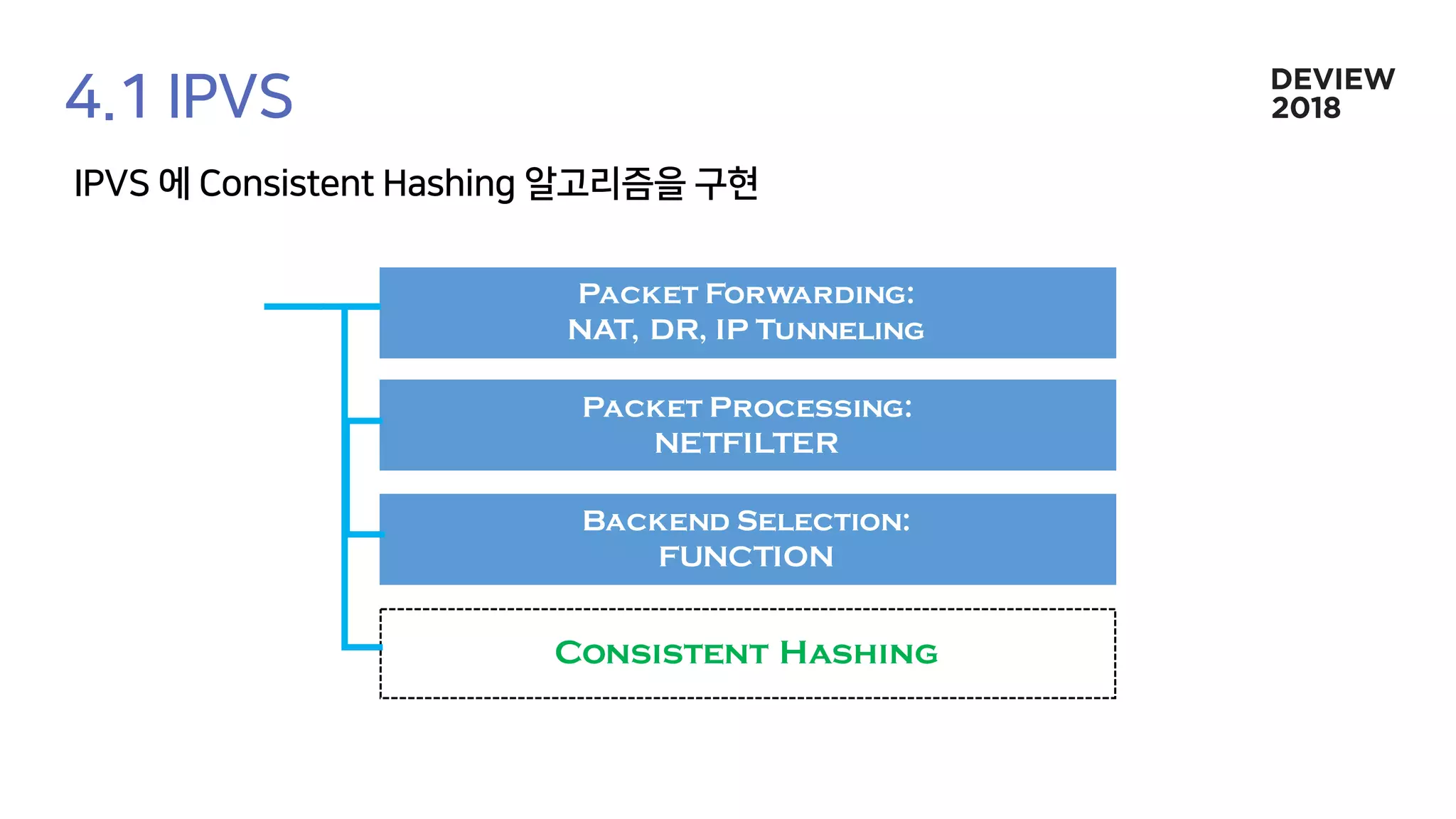

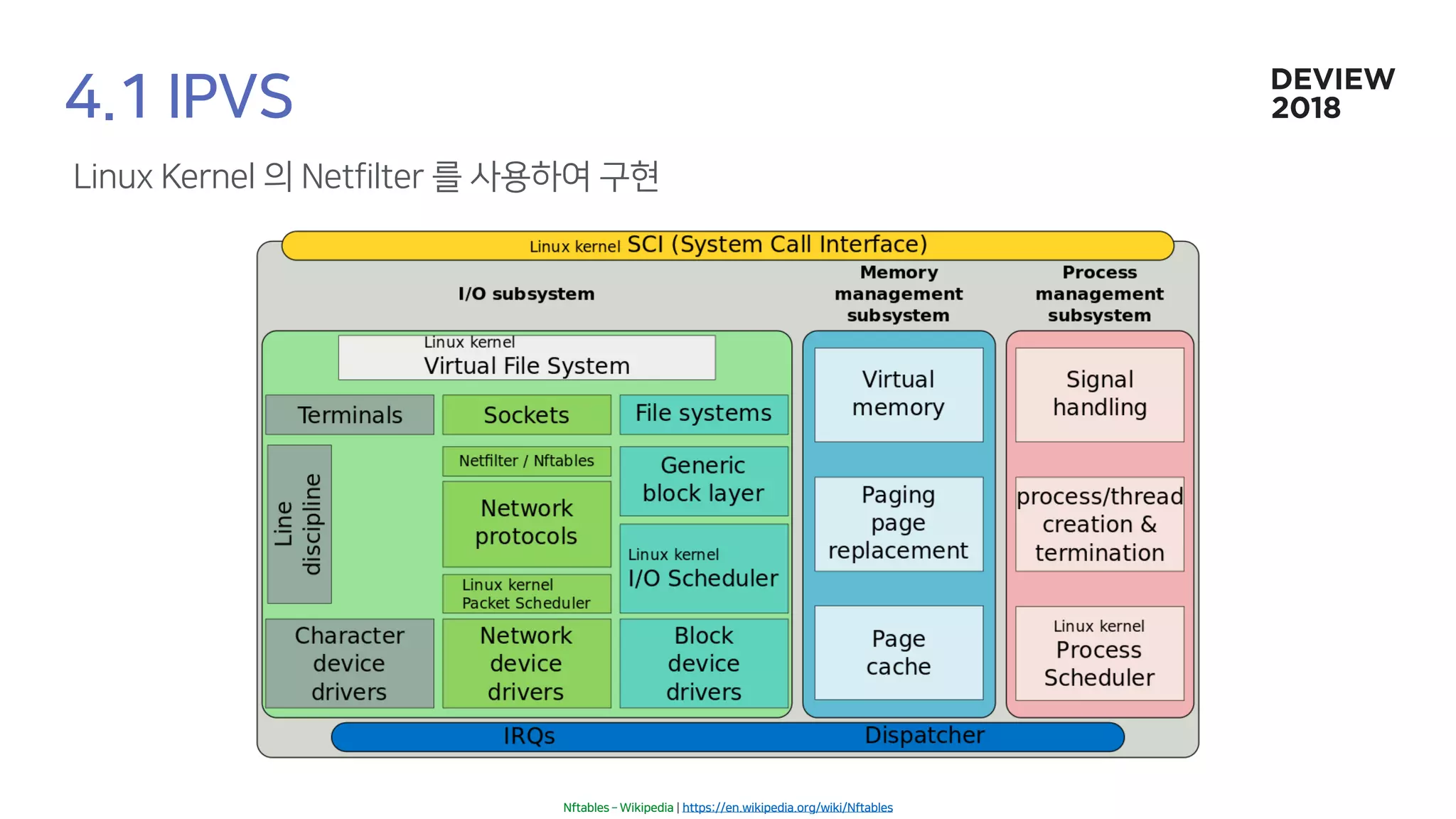

42. Consistent Hashing
Backend Selection:
FUNCTION
Packet Processing:
NETFILTER
Packet Forwarding:
NAT, DR, IP Tunneling

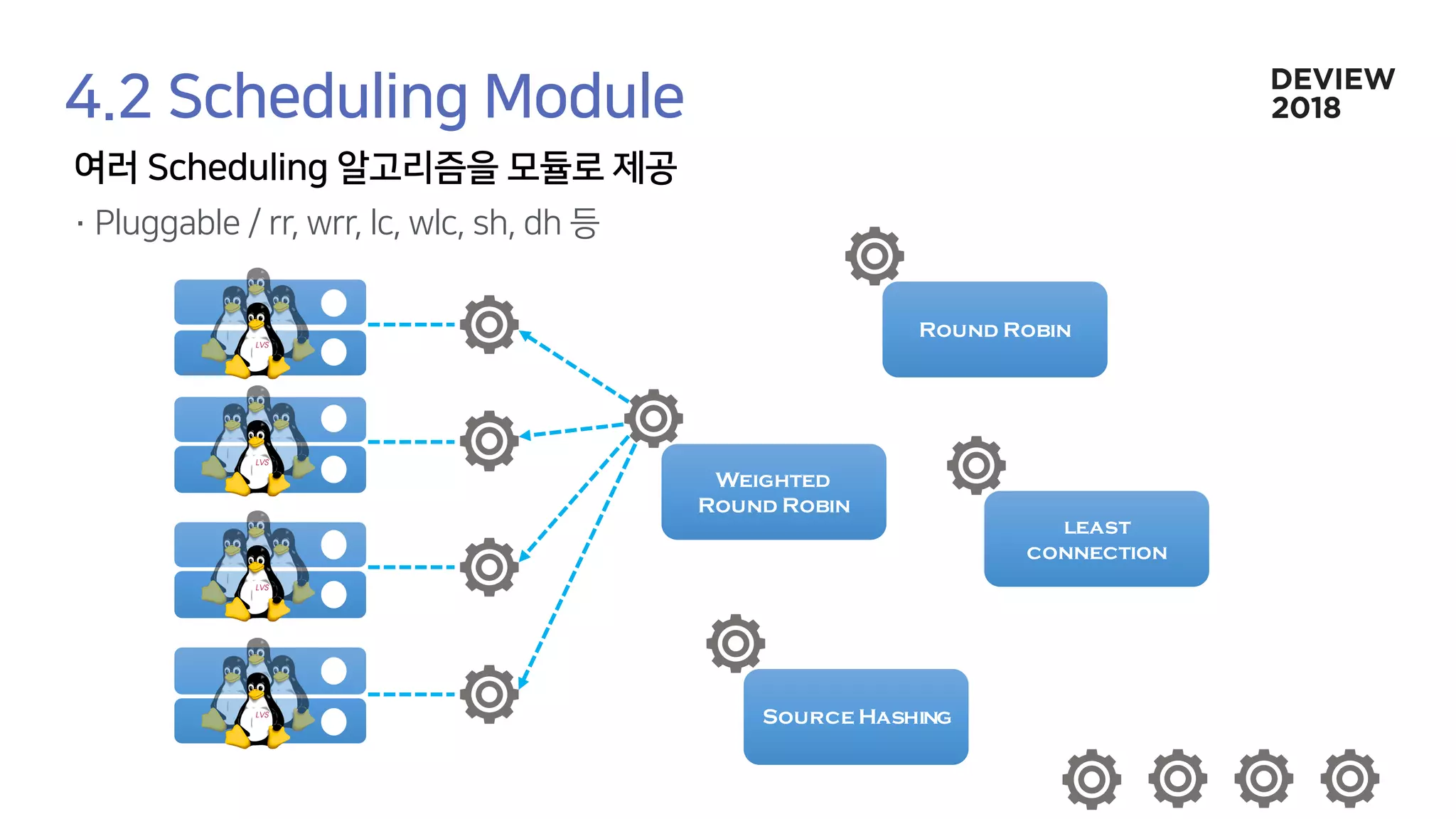

43. Weighted
Round Robin
Round Robin
Source Hashing
least
connection

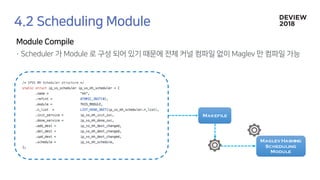

44. Makefile
Maglev Hashing
Scheduling
Module

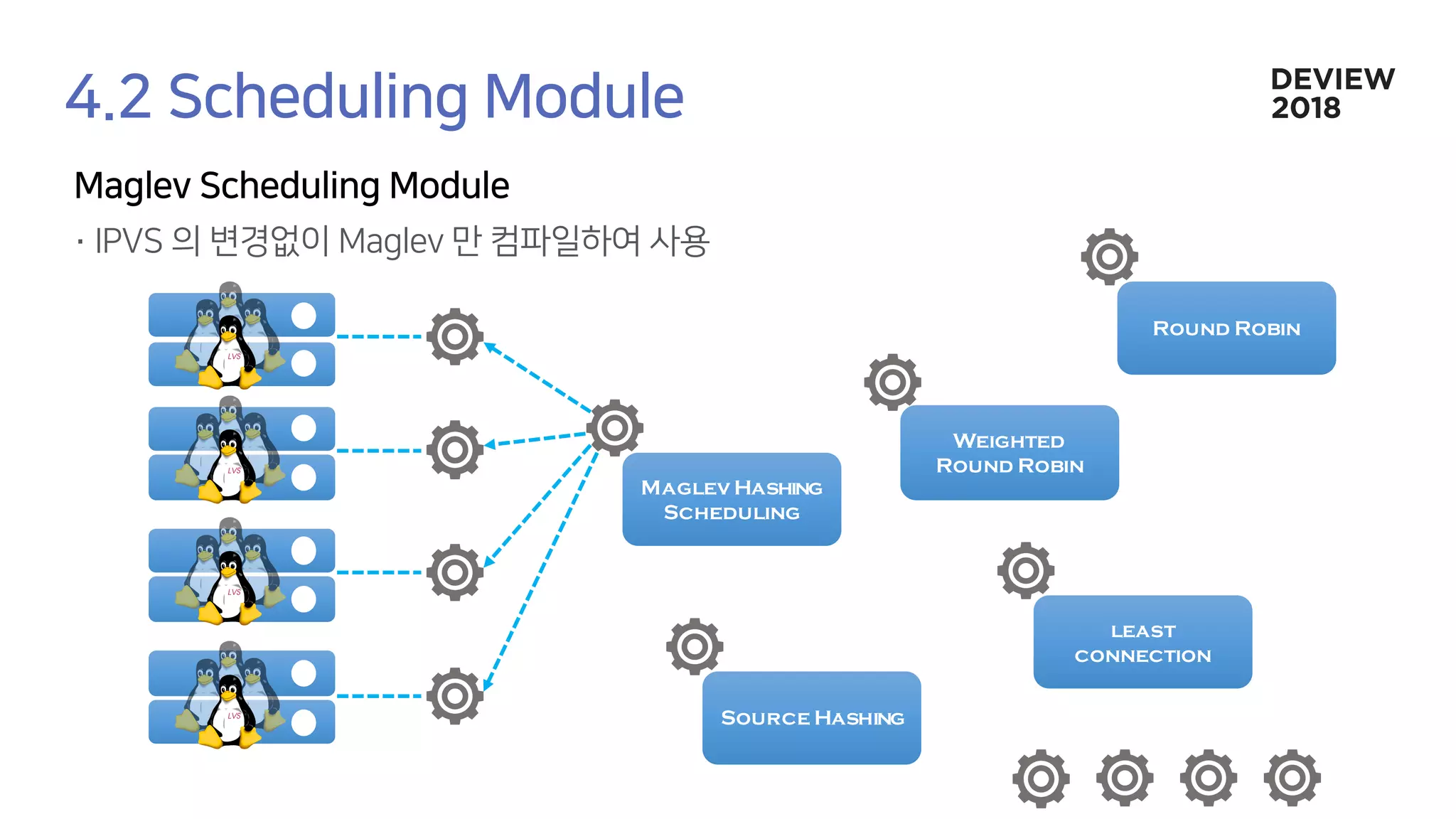

45. Maglev Hashing
Scheduling
Round Robin
Source Hashing
least
connection
Weighted
Round Robin

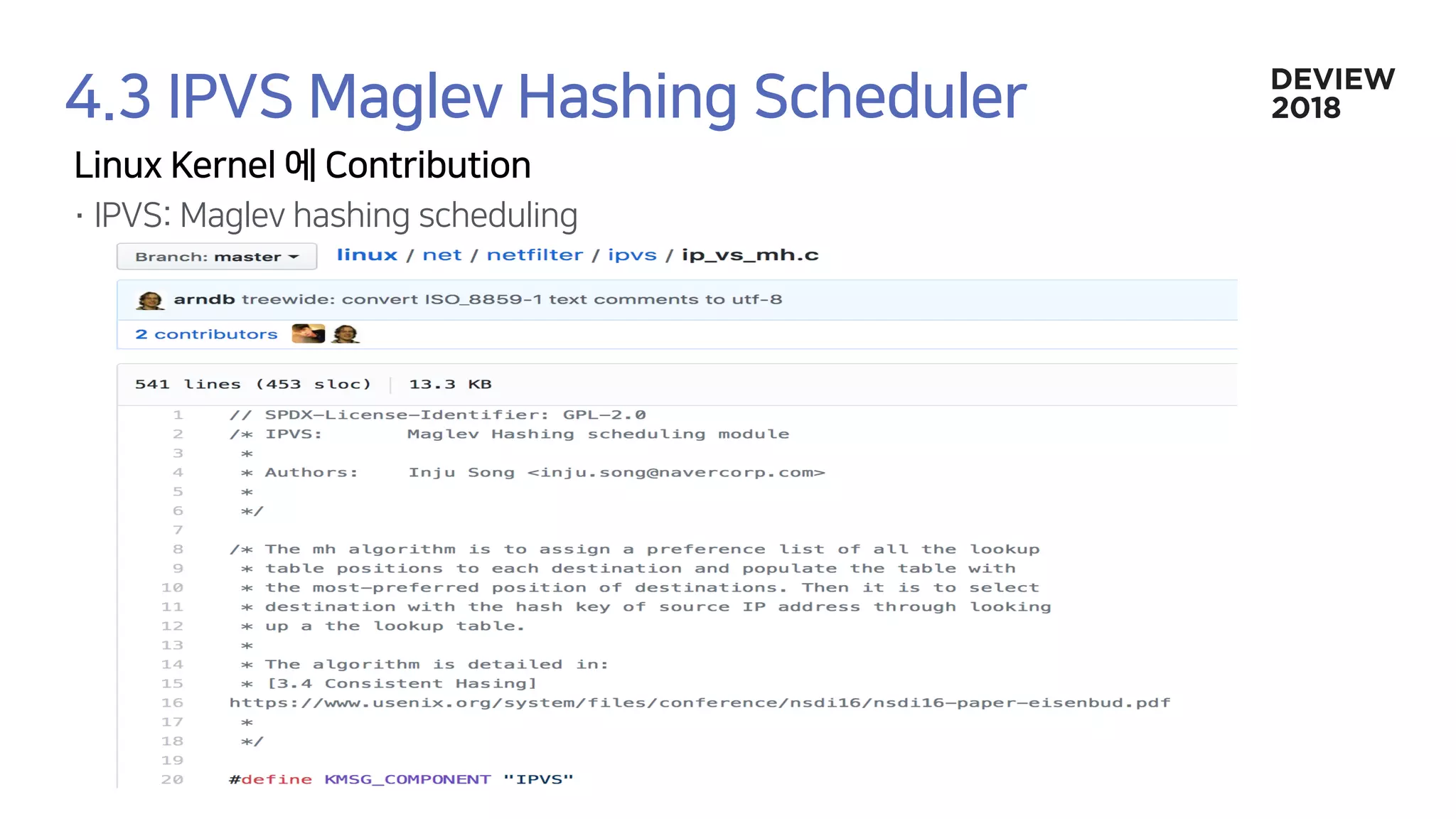

47. ...

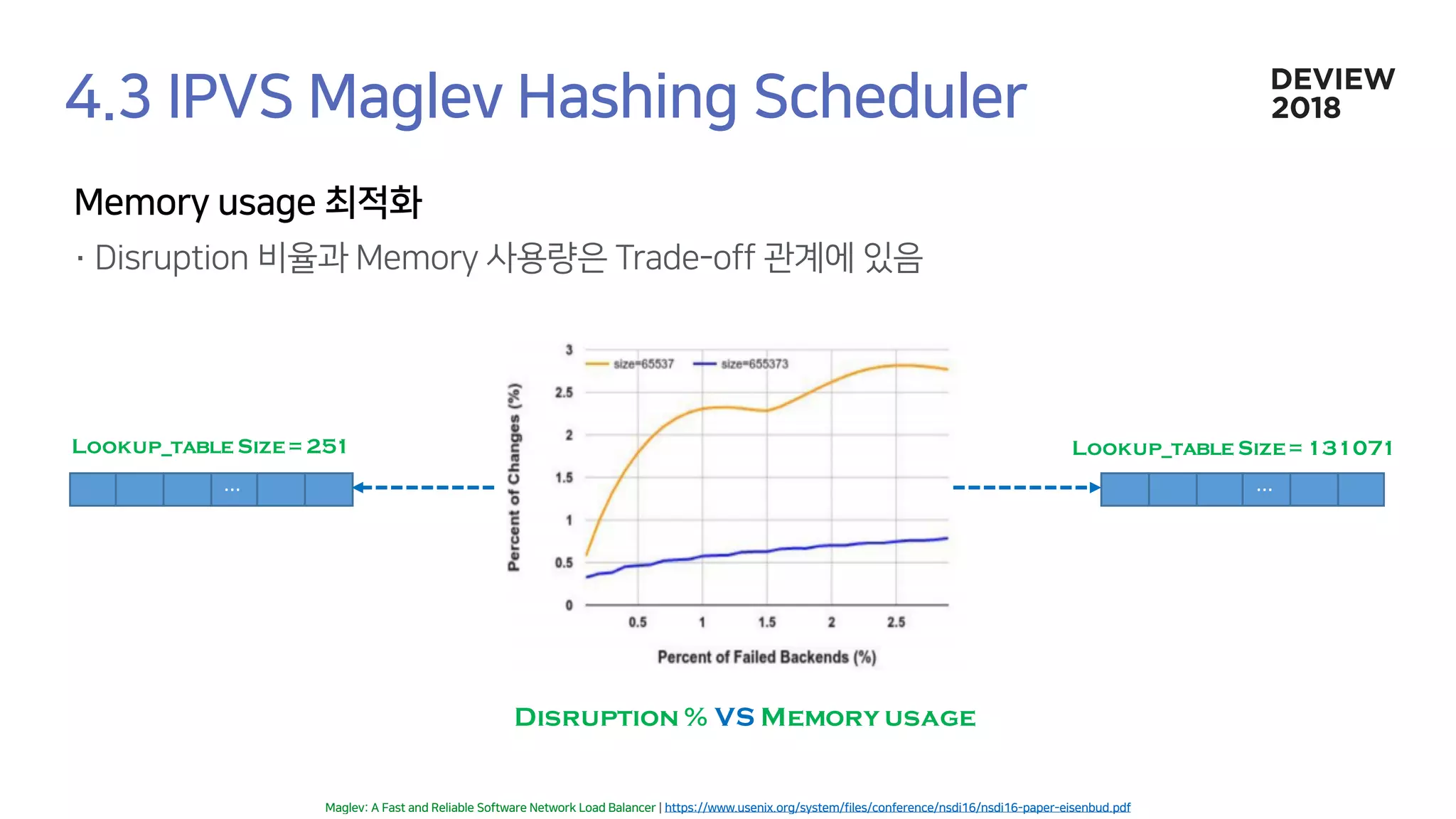

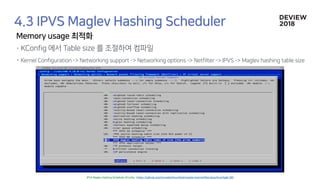

Lookup_table Size=251
...
Lookup_table Size=131071

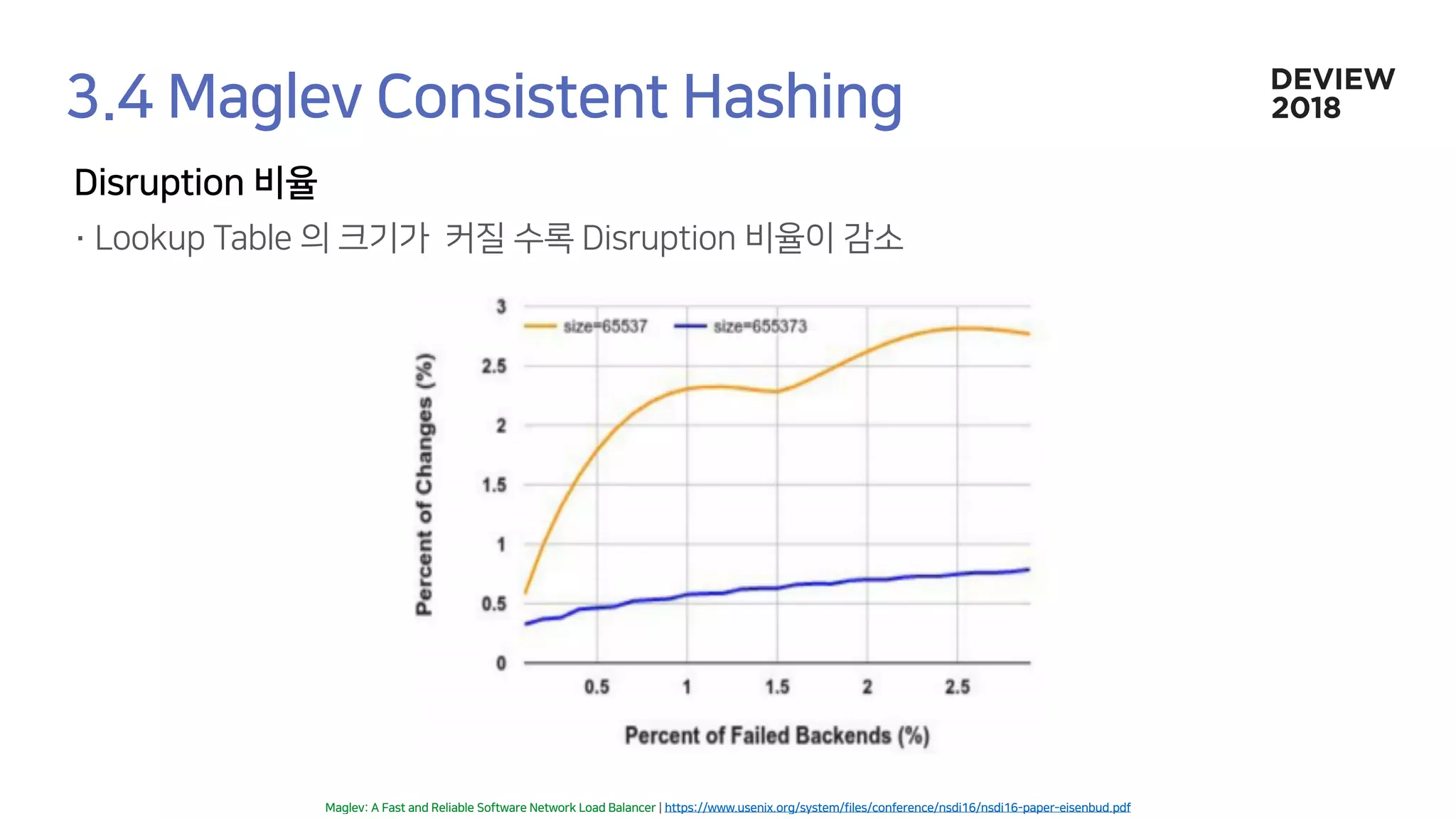

Disruption % VS Memory usage

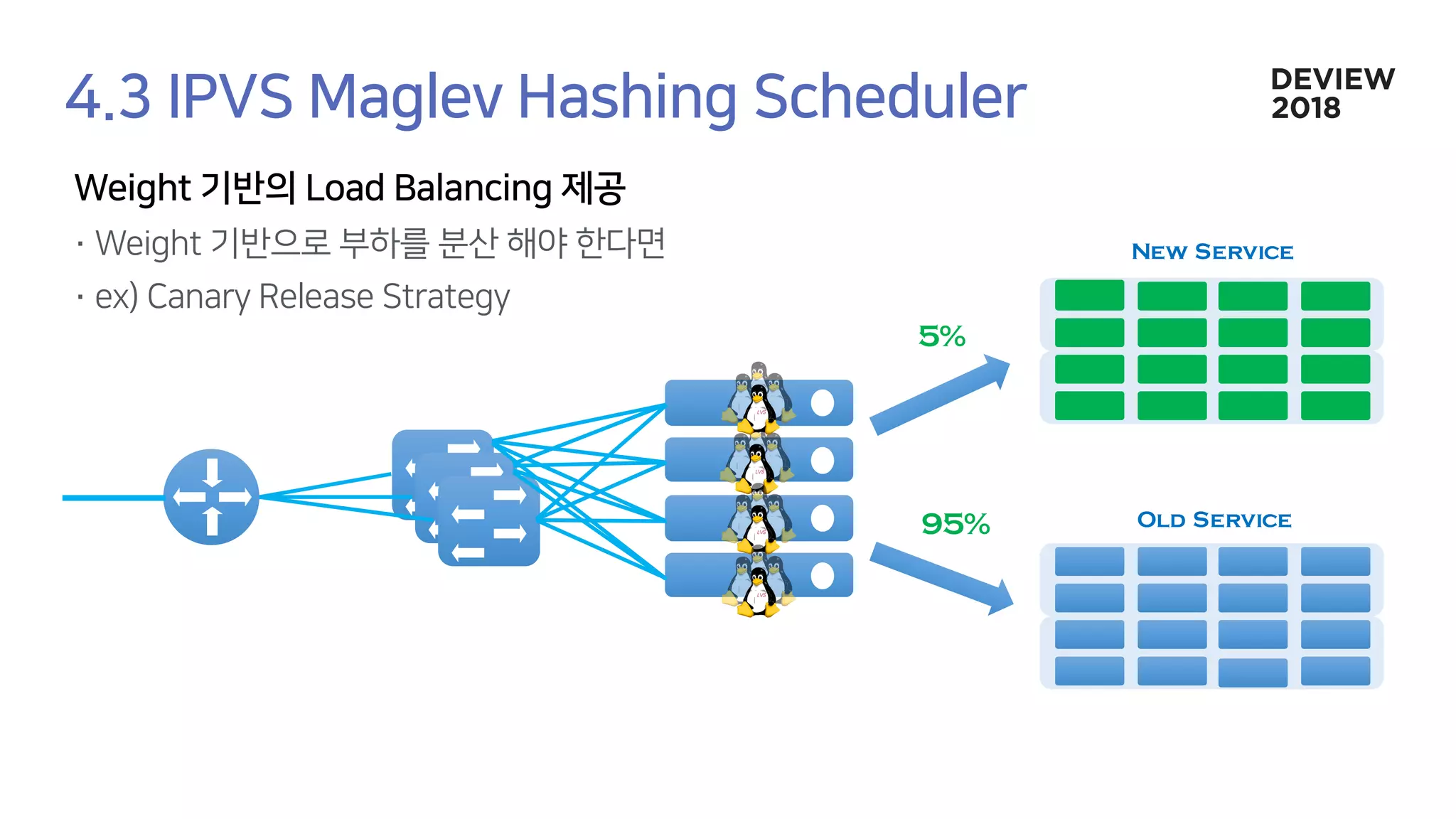

49. New Service
Old Service
5%
95%

50. Container Host
Container Host
Container Host
Container Host

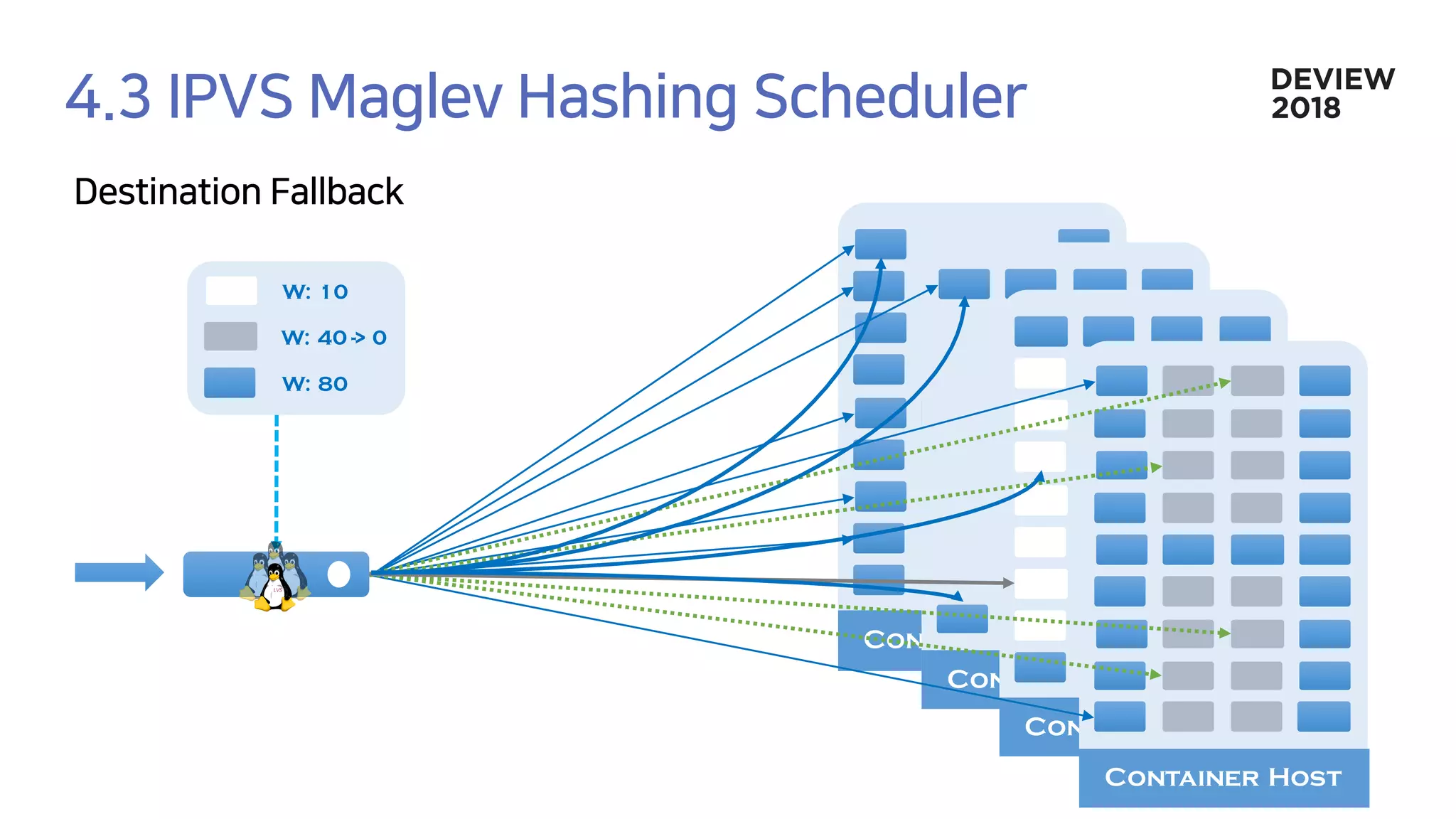

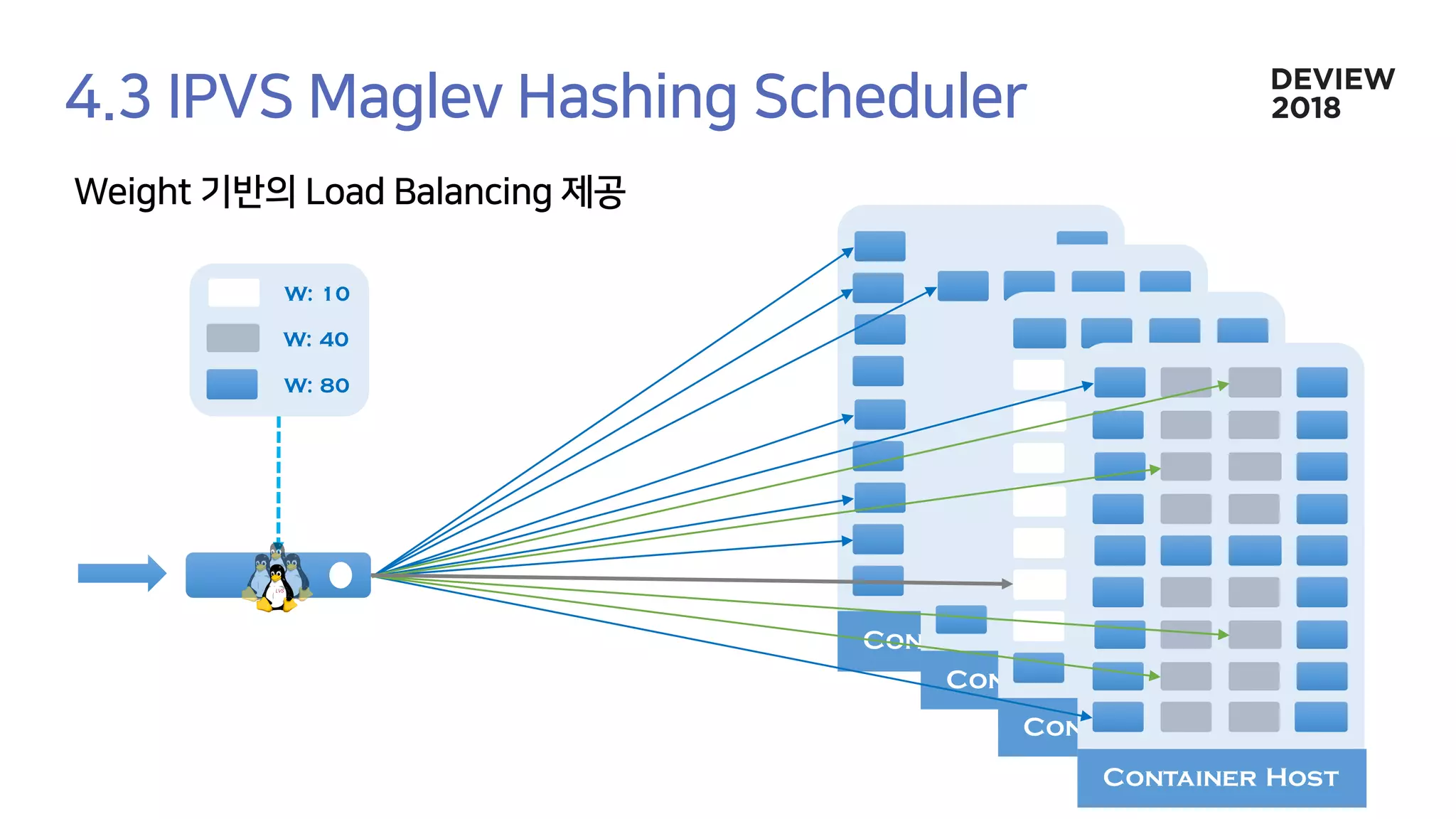

W: 10
W: 40
W: 80

51. Container Host
Container Host
Container Host
Container Host
W: 10
W: 40 -> 0
W: 80

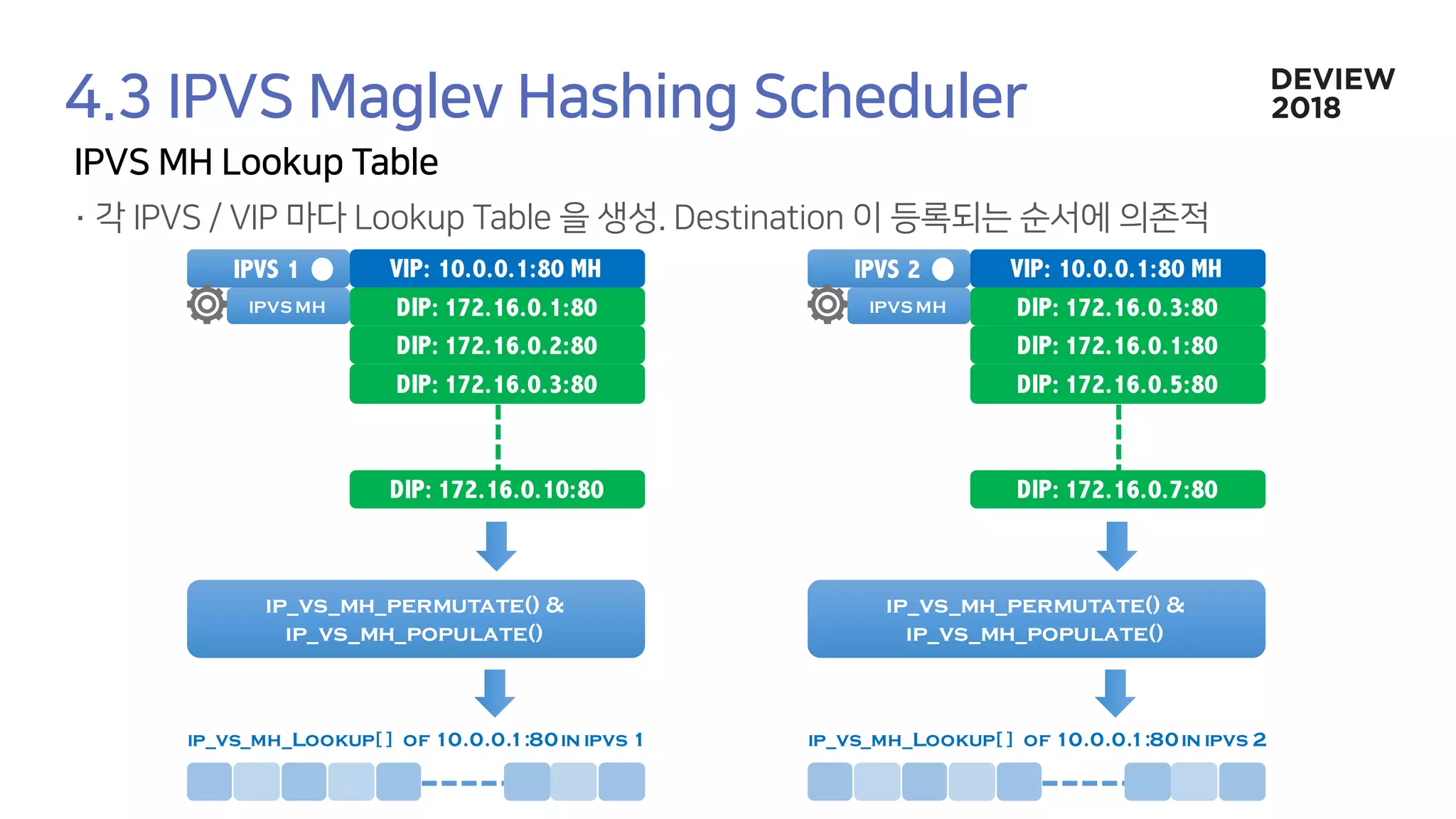

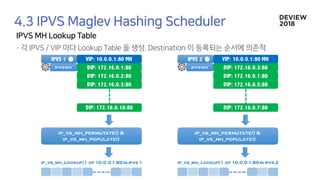

52. IPVS 1 VIP: 10.0.0.1:80 MH
DIP: 172.16.0.1:80
DIP: 172.16.0.2:80
DIP: 172.16.0.3:80
DIP: 172.16.0.10:80
IPVS 2 VIP: 10.0.0.1:80 MH
DIP: 172.16.0.3:80
DIP: 172.16.0.1:80
DIP: 172.16.0.5:80
DIP: 172.16.0.7:80
ip_vs_mh_Lookup[ ] of 10.0.0.1:80in ipvs 1
ip_vs_mh_permutate() &
ip_vs_mh_populate()
ip_vs_mh_Lookup[ ] of 10.0.0.1:80in ipvs 2
ip_vs_mh_permutate() &
ip_vs_mh_populate()
IPVS MH IPVS MH

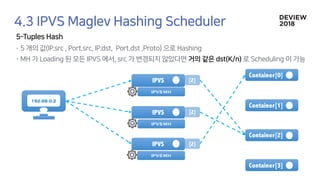

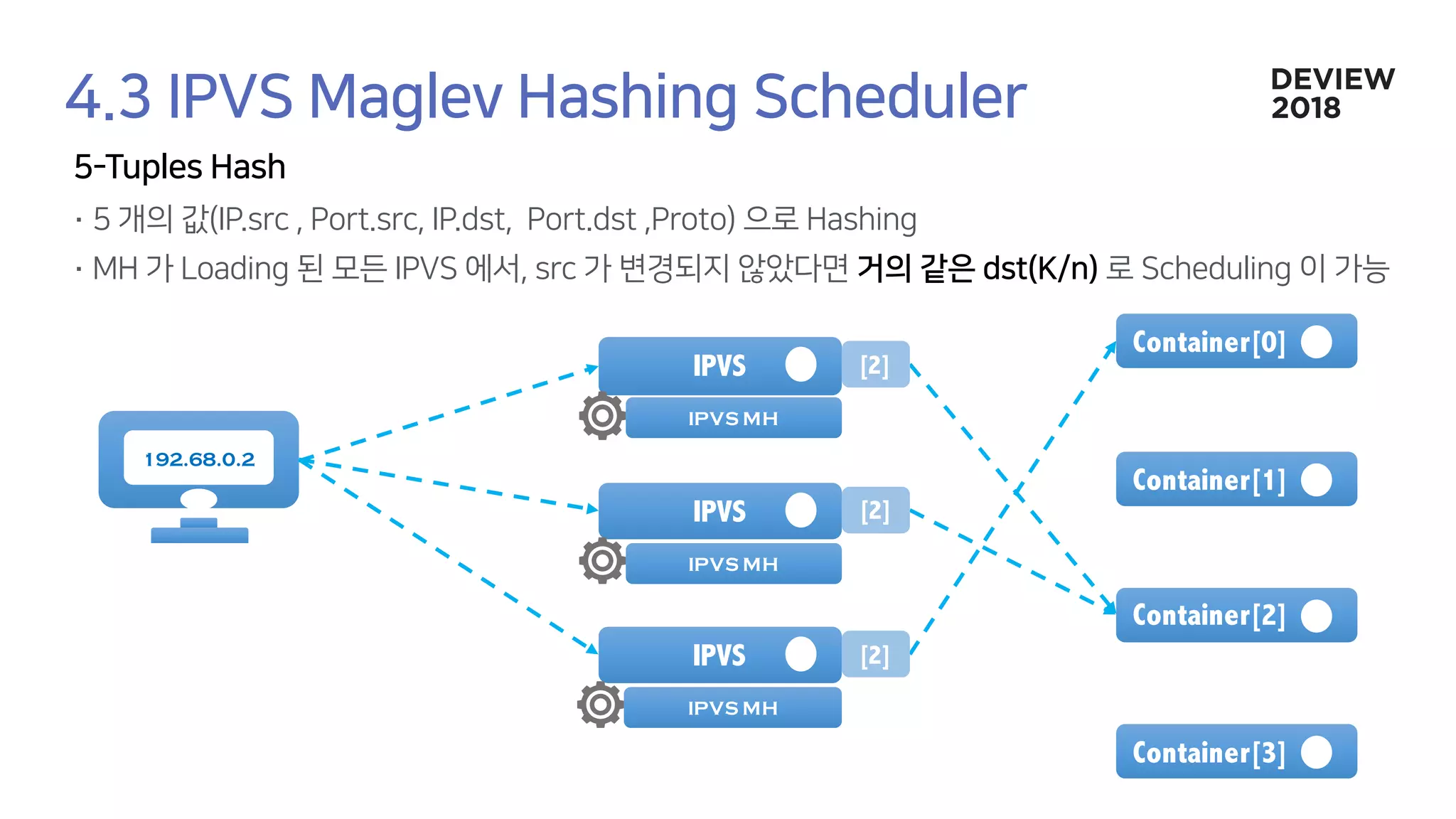

53. 192.68.0.2
IPVS
IPVS MH
IPVS
IPVS MH
IPVS
IPVS MH
Container[0]
Container[1]
Container[2]
Container[3]
[2]
[2]
[2]

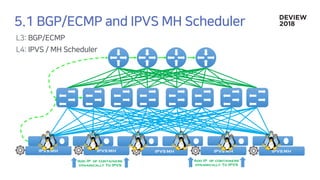

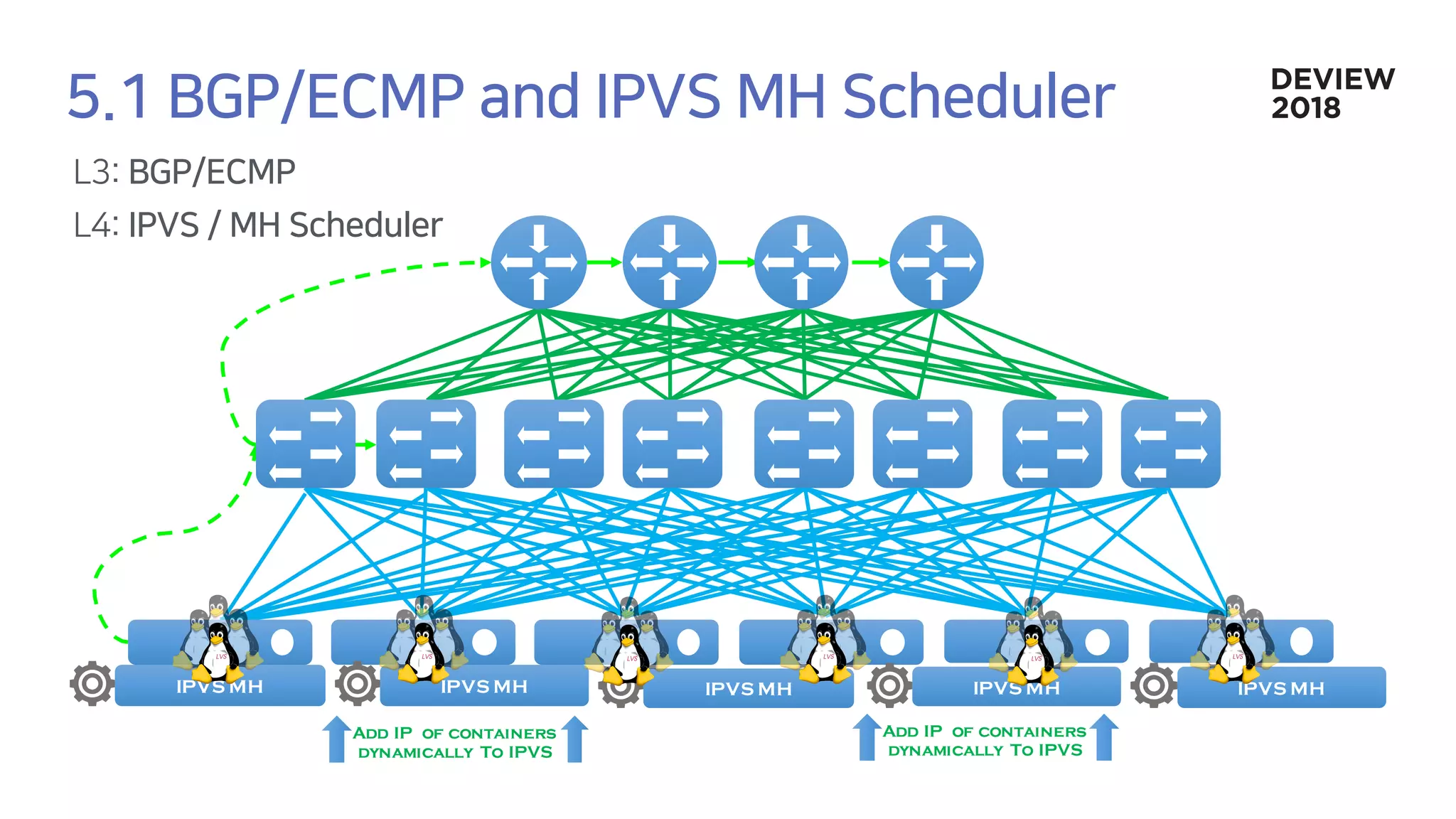

55. IPVS MH IPVS MH IPVS MH IPVS MH IPVS MH
Add IP of containers
dynamically To IPVS
Add IP of containers
dynamically To IPVS

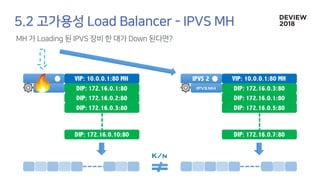

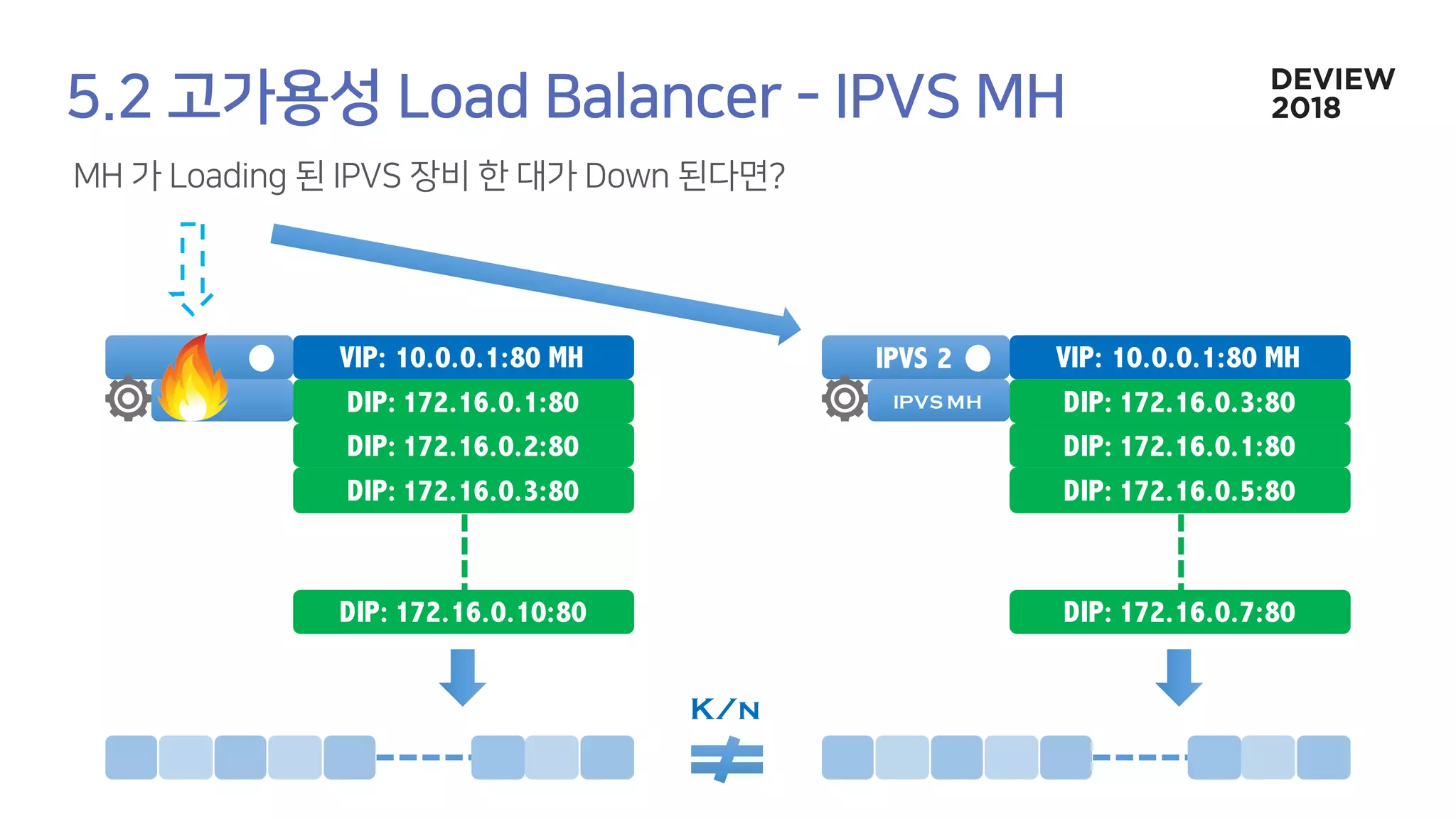

56. VIP: 10.0.0.1:80 MH
DIP: 172.16.0.1:80
DIP: 172.16.0.2:80
DIP: 172.16.0.3:80
DIP: 172.16.0.10:80
IPVS 2 VIP: 10.0.0.1:80 MH
DIP: 172.16.0.3:80
DIP: 172.16.0.1:80
DIP: 172.16.0.5:80
DIP: 172.16.0.7:80
K/n
IPVS MH

57. Container Host
Container Host
Container Host
Container Host
L4-LB

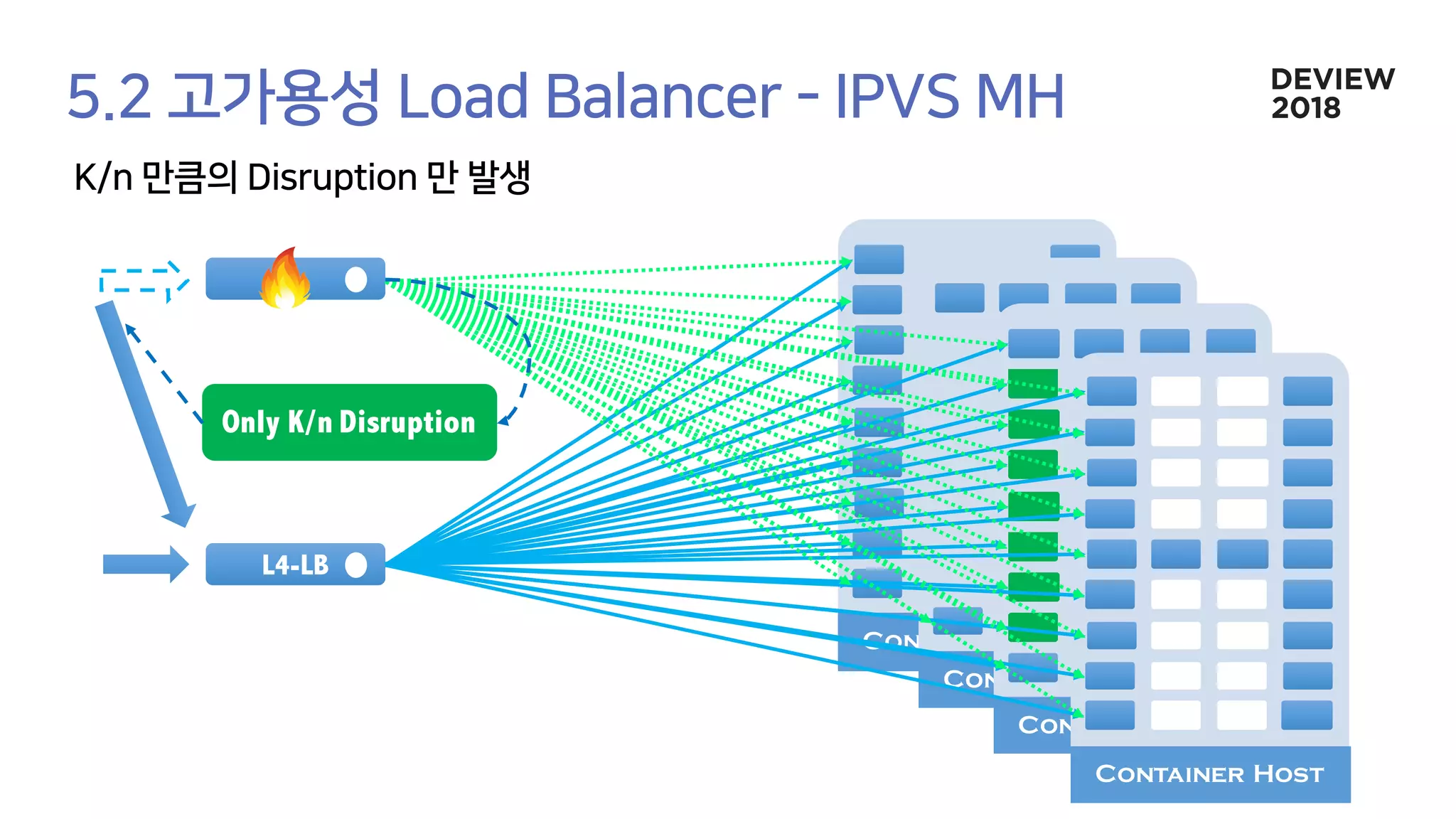

Only K/n Disruption

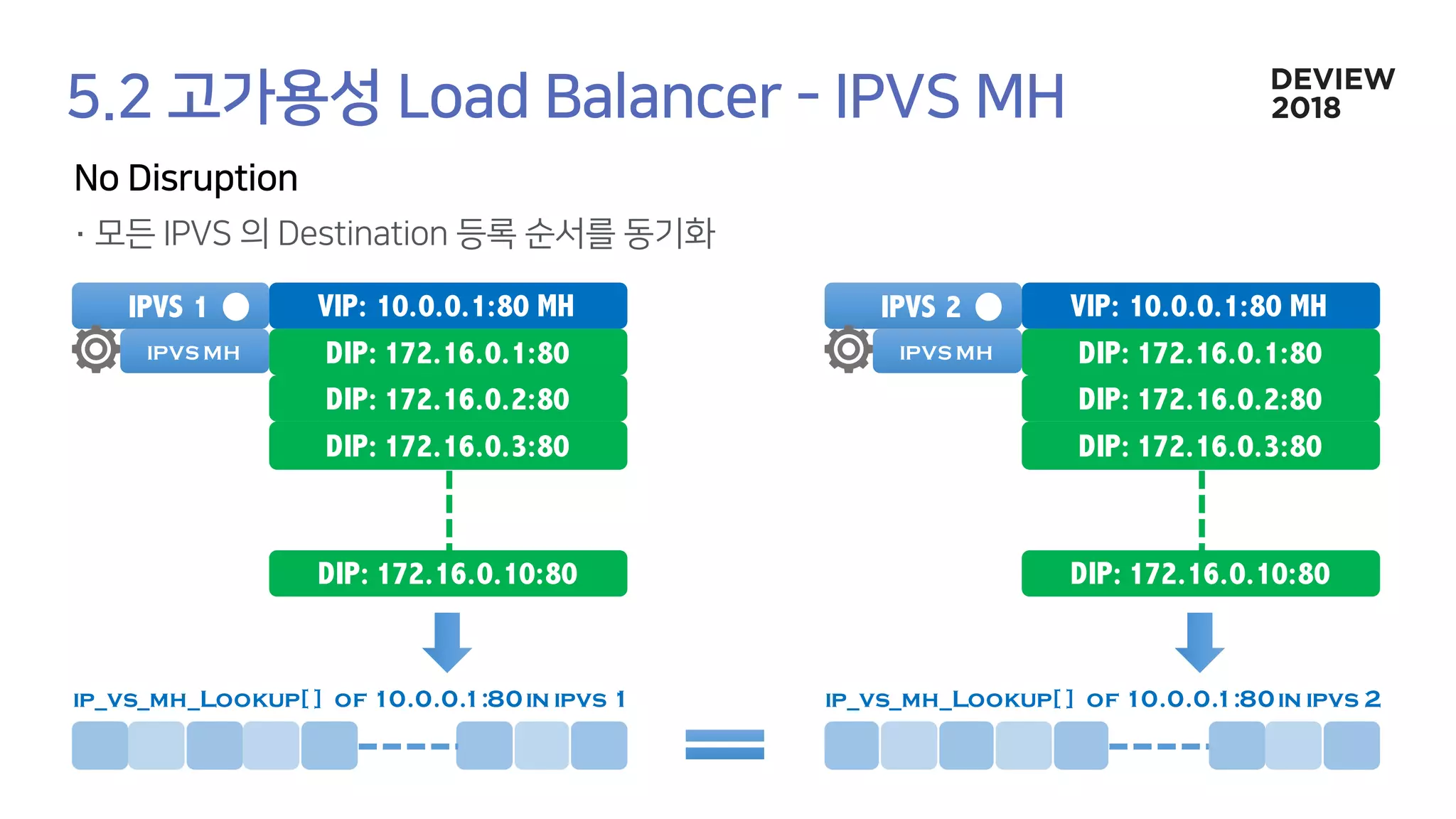

58. IPVS MH
IPVS 1 VIP: 10.0.0.1:80 MH
DIP: 172.16.0.1:80
DIP: 172.16.0.2:80
DIP: 172.16.0.3:80
DIP: 172.16.0.10:80
IPVS 2 VIP: 10.0.0.1:80 MH
DIP: 172.16.0.1:80
DIP: 172.16.0.2:80
DIP: 172.16.0.3:80
DIP: 172.16.0.10:80
IPVS MH
ip_vs_mh_Lookup[ ] of 10.0.0.1:80in ipvs 1 ip_vs_mh_Lookup[ ] of 10.0.0.1:80in ipvs 2

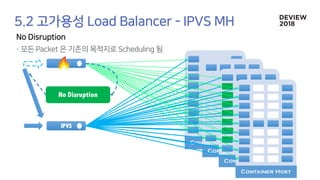

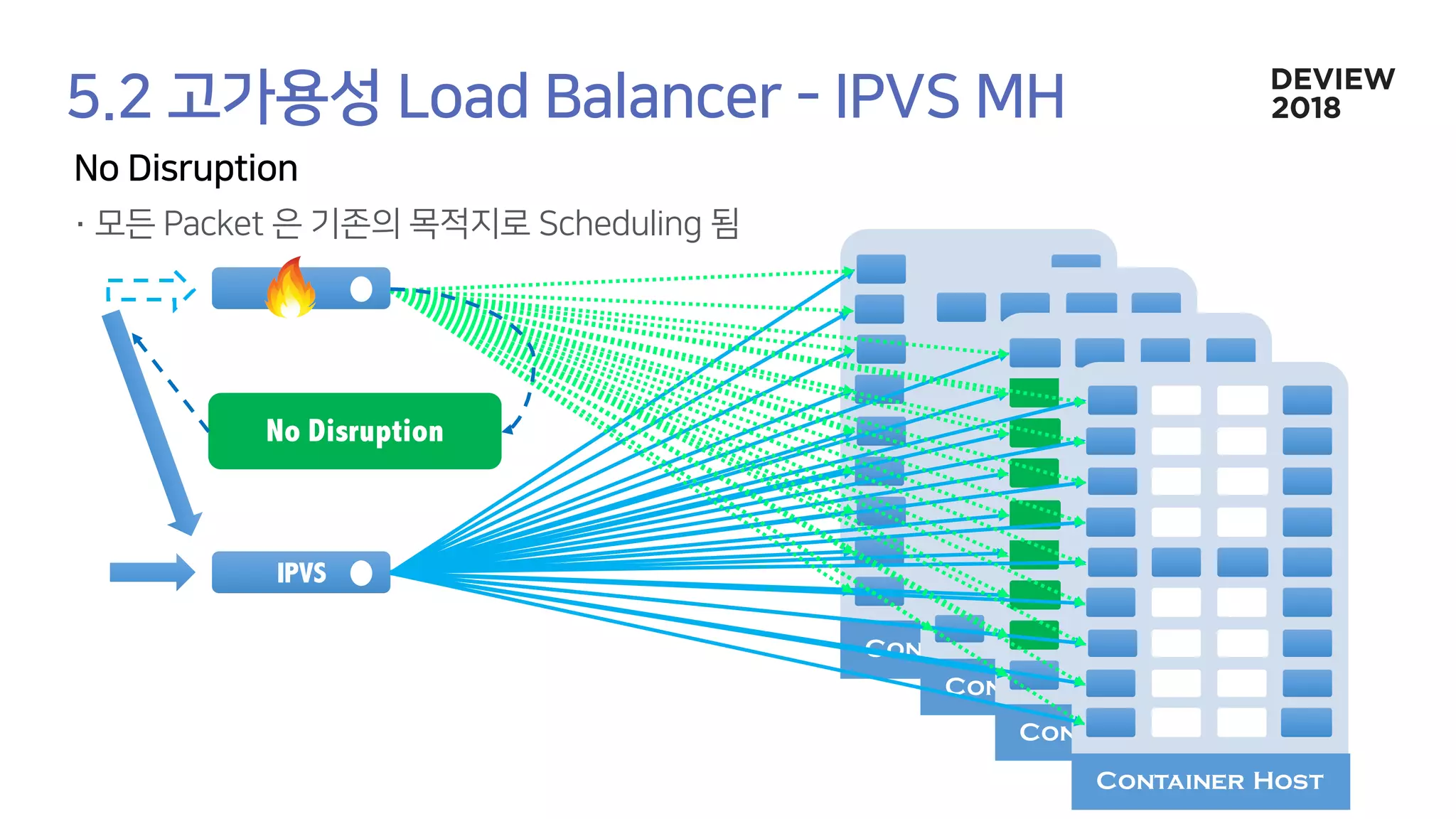

59. Container Host
Container Host
Container Host
Container Host
IPVS
No Disruption

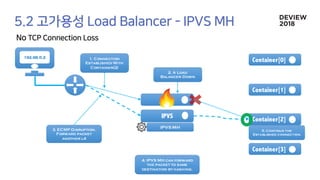

60. 192.68.0.2
Container[0]
Container[1]
Container[2]
Container[3]
IPVS

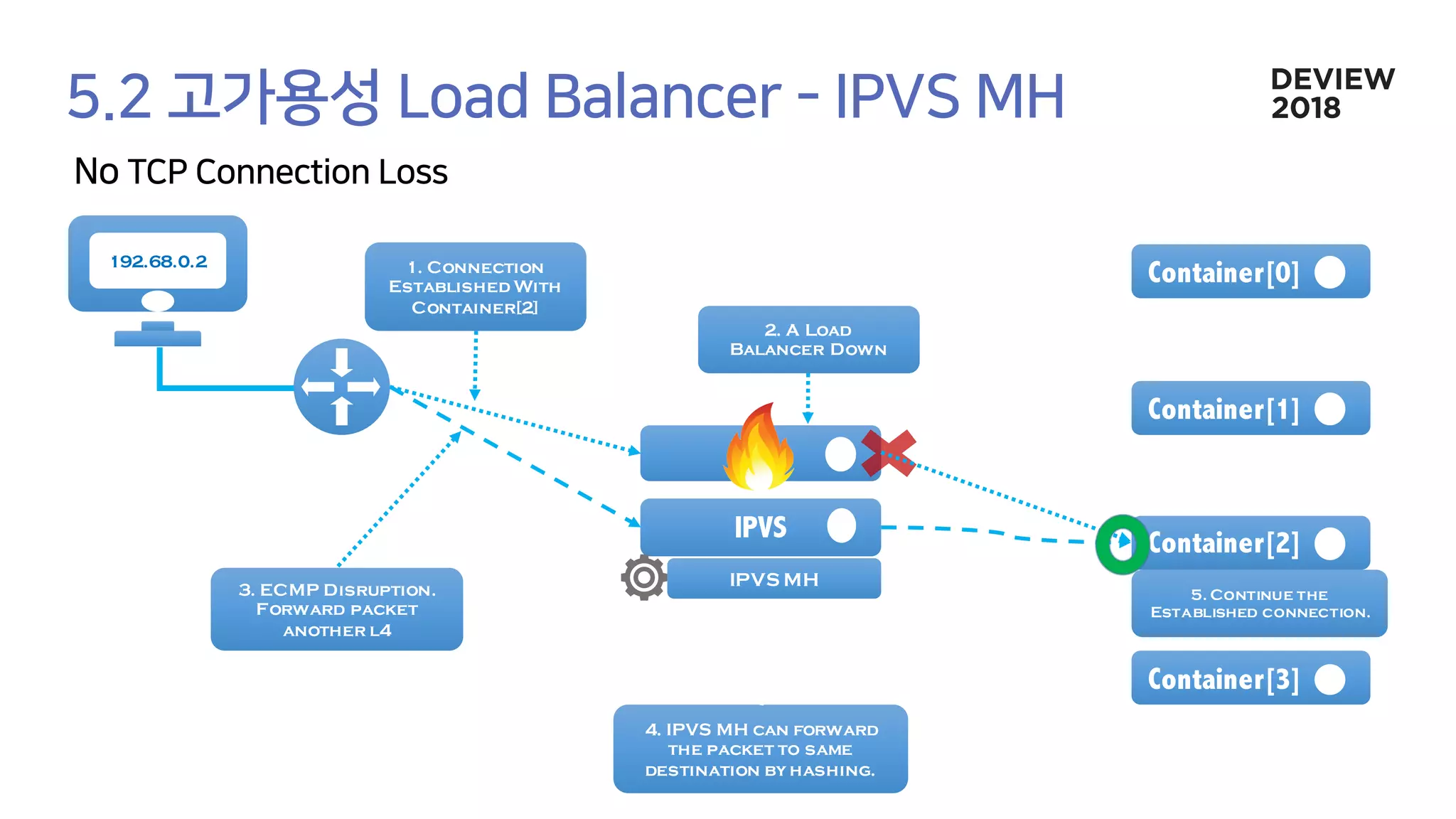

1. Connection
Established With
Container[2]
2. A Load
Balancer Down
3. ECMP Disruption.
Forward packet
another l4
4. IPVS MH can forward
the packet to same
destination by hashing.
IPVS MH
5. Continue the
Established connection.

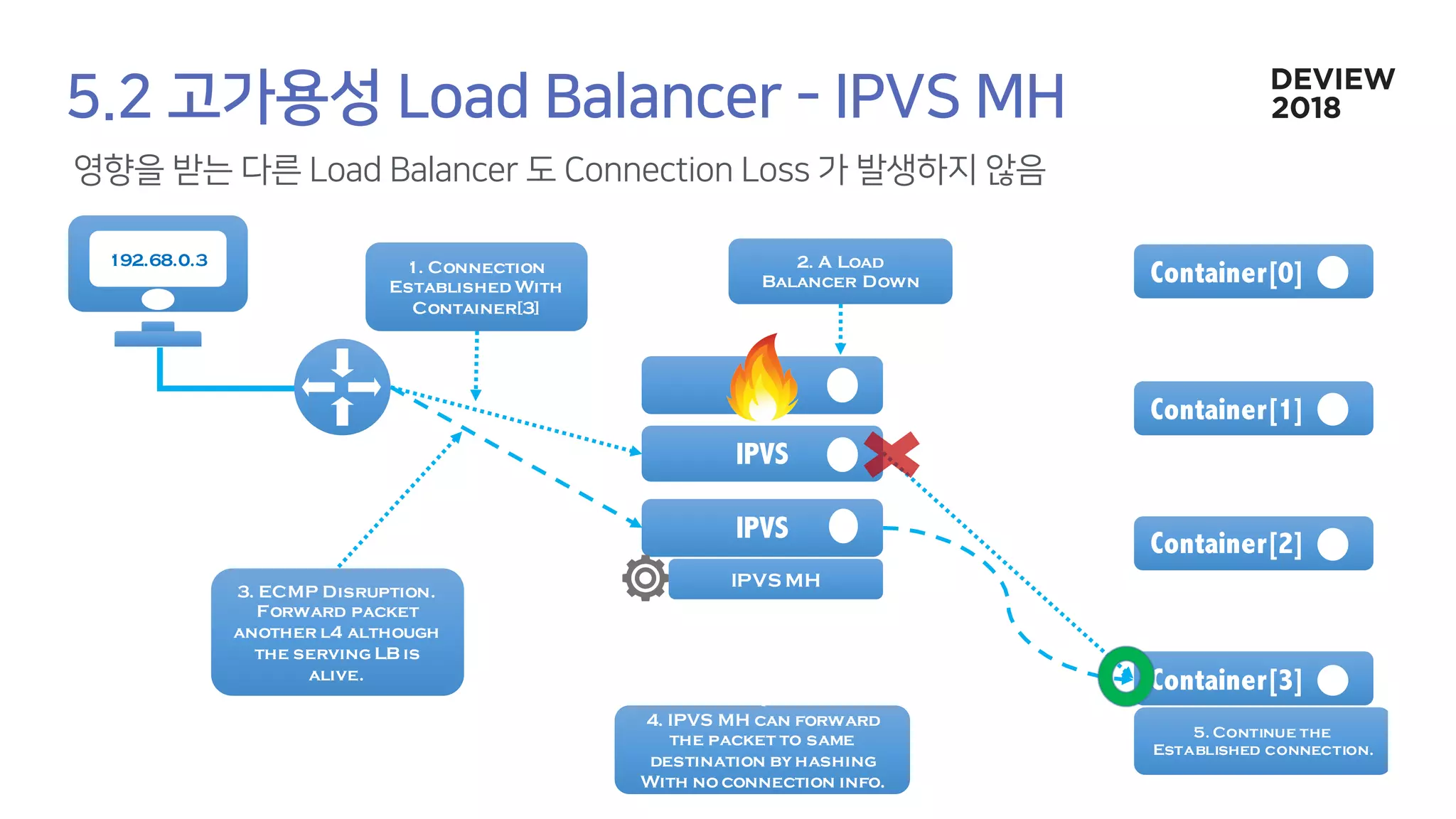

61. 192.68.0.3
Container[0]
Container[1]
Container[2]
Container[3]
IPVS
1. Connection
Established With
Container[3]
2. A Load
Balancer Down
3. ECMP Disruption.
Forward packet
another l4 although
the serving LB is
alive.
IPVS
IPVS MH
4. IPVS MH can forward
the packet to same
destination by hashing
With no connection info.
5. Continue the
Established connection.

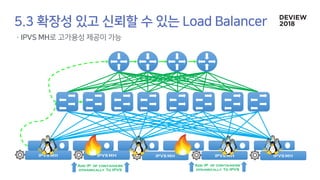

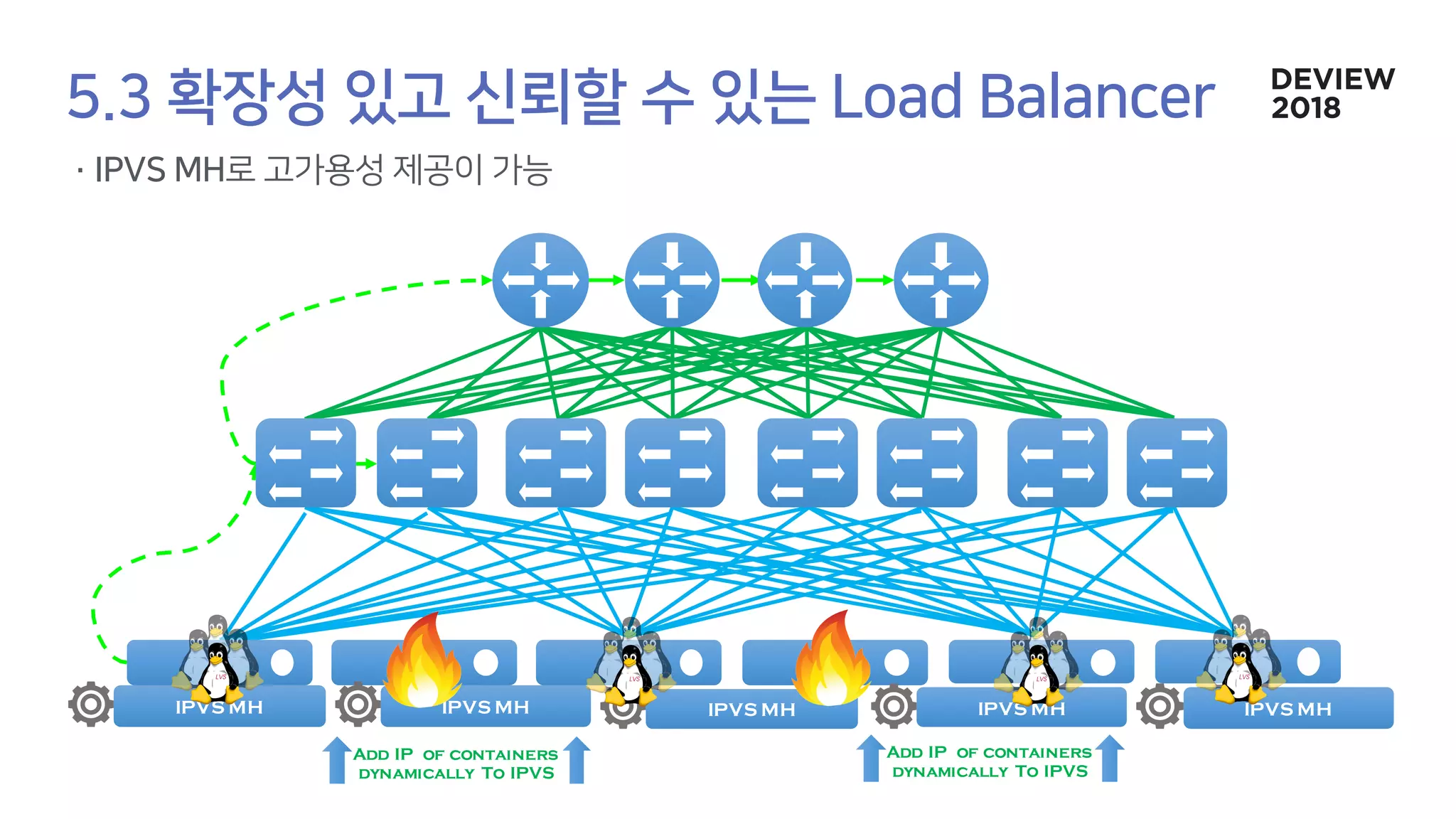

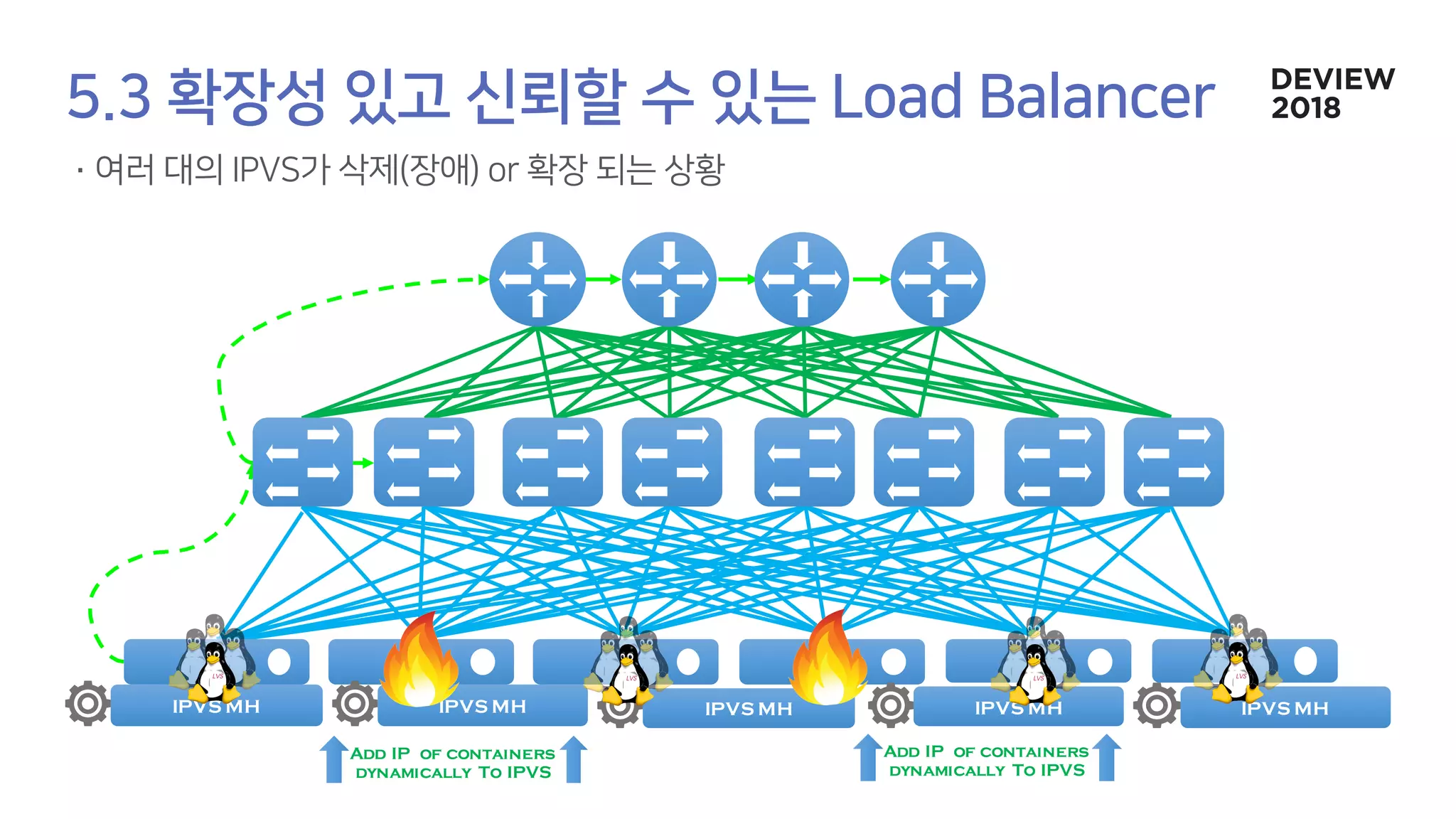

62. IPVS MH IPVS MH IPVS MH IPVS MH IPVS MH
Add IP of containers
dynamically To IPVS
Add IP of containers
dynamically To IPVS

63. IPVS MH IPVS MH IPVS MH IPVS MH IPVS MH
Add IP of containers
dynamically To IPVS
Add IP of containers
dynamically To IPVS

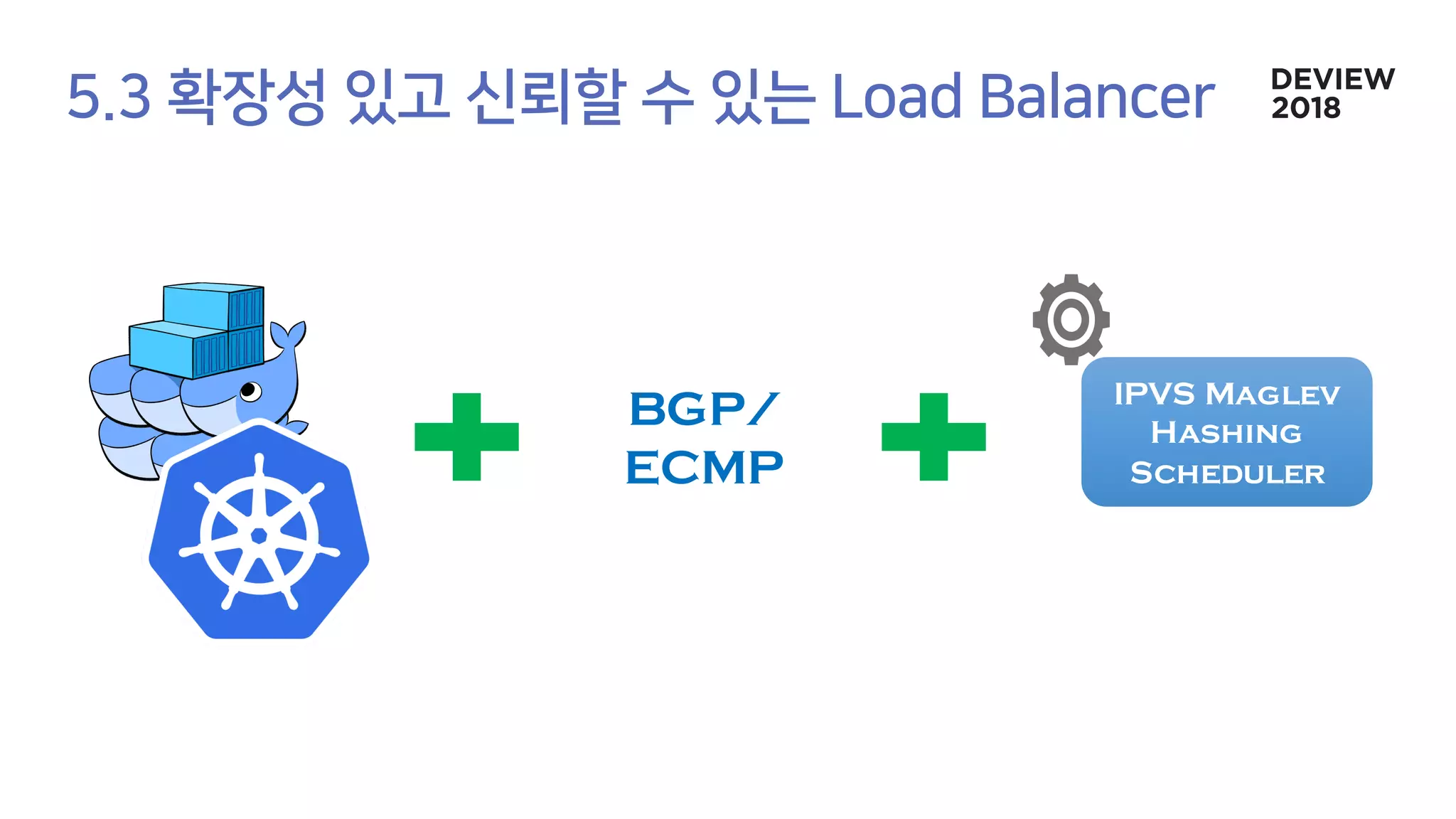

64. BGP/
ECMP
IPVS Maglev
Hashing
Scheduler

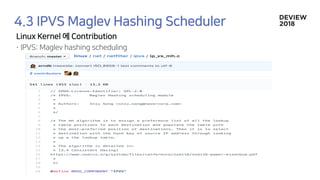

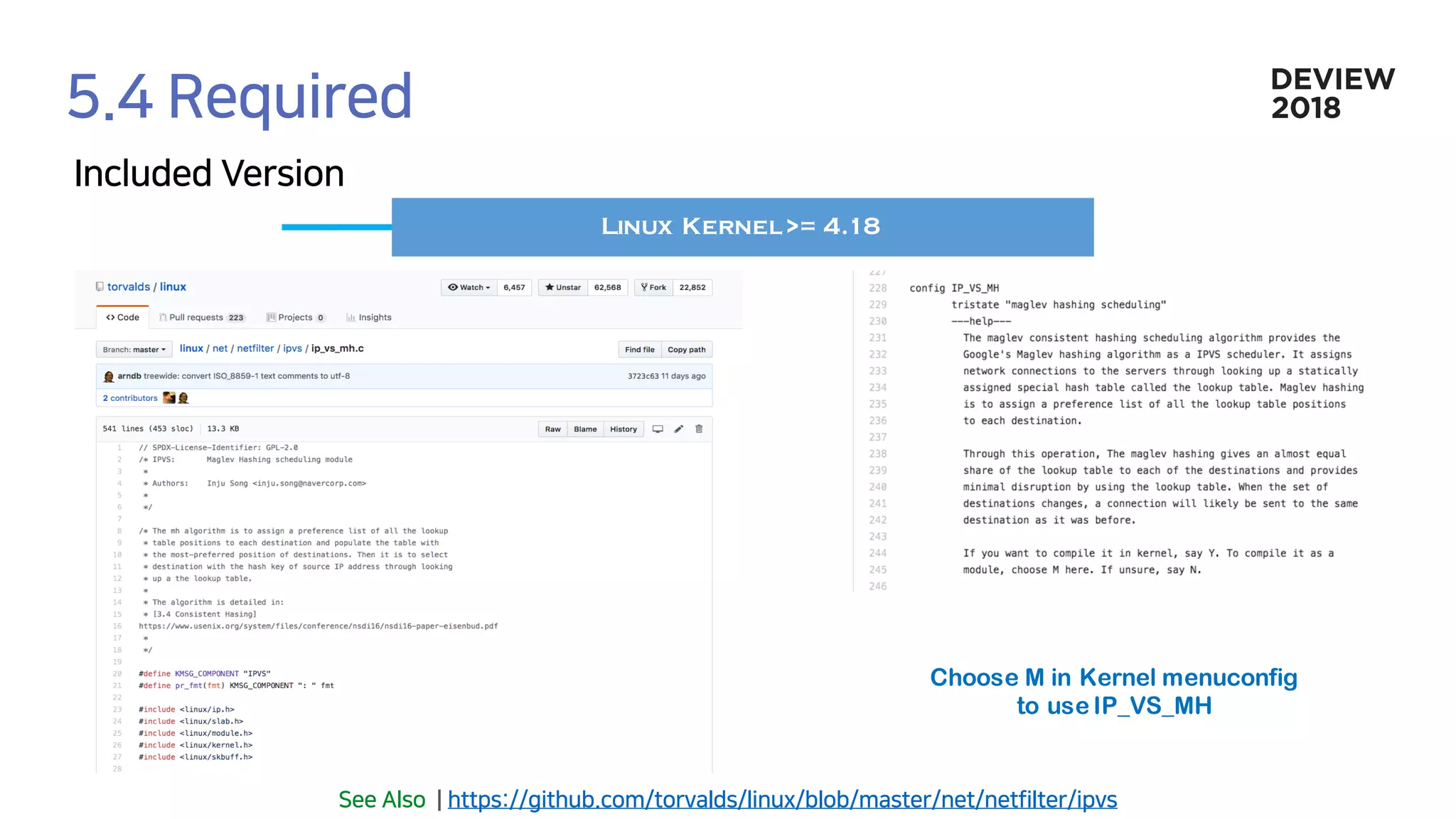

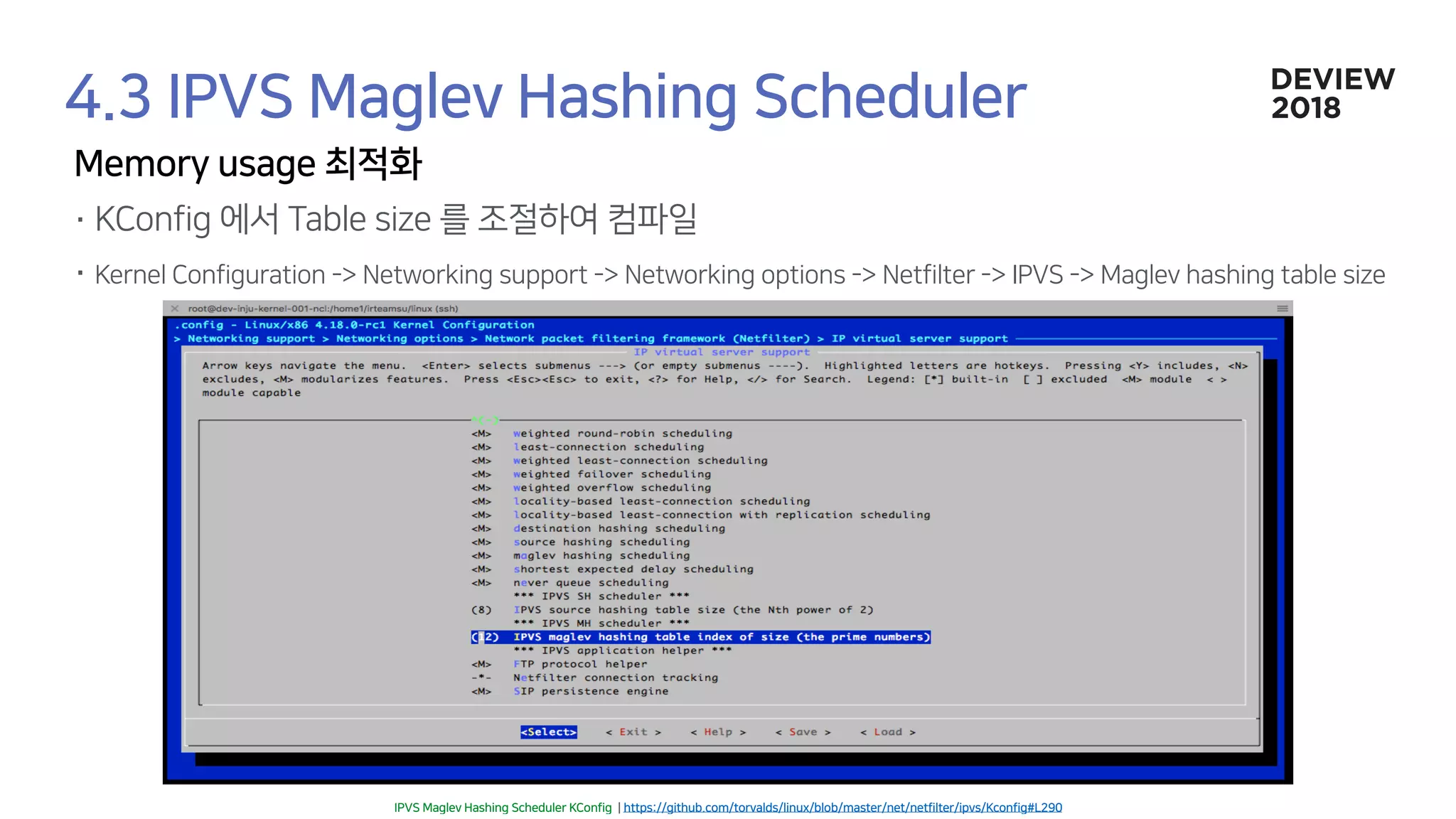

65. Linux Kernel >= 4.18
Choose M in Kernel menuconfig
to use IP_VS_MH

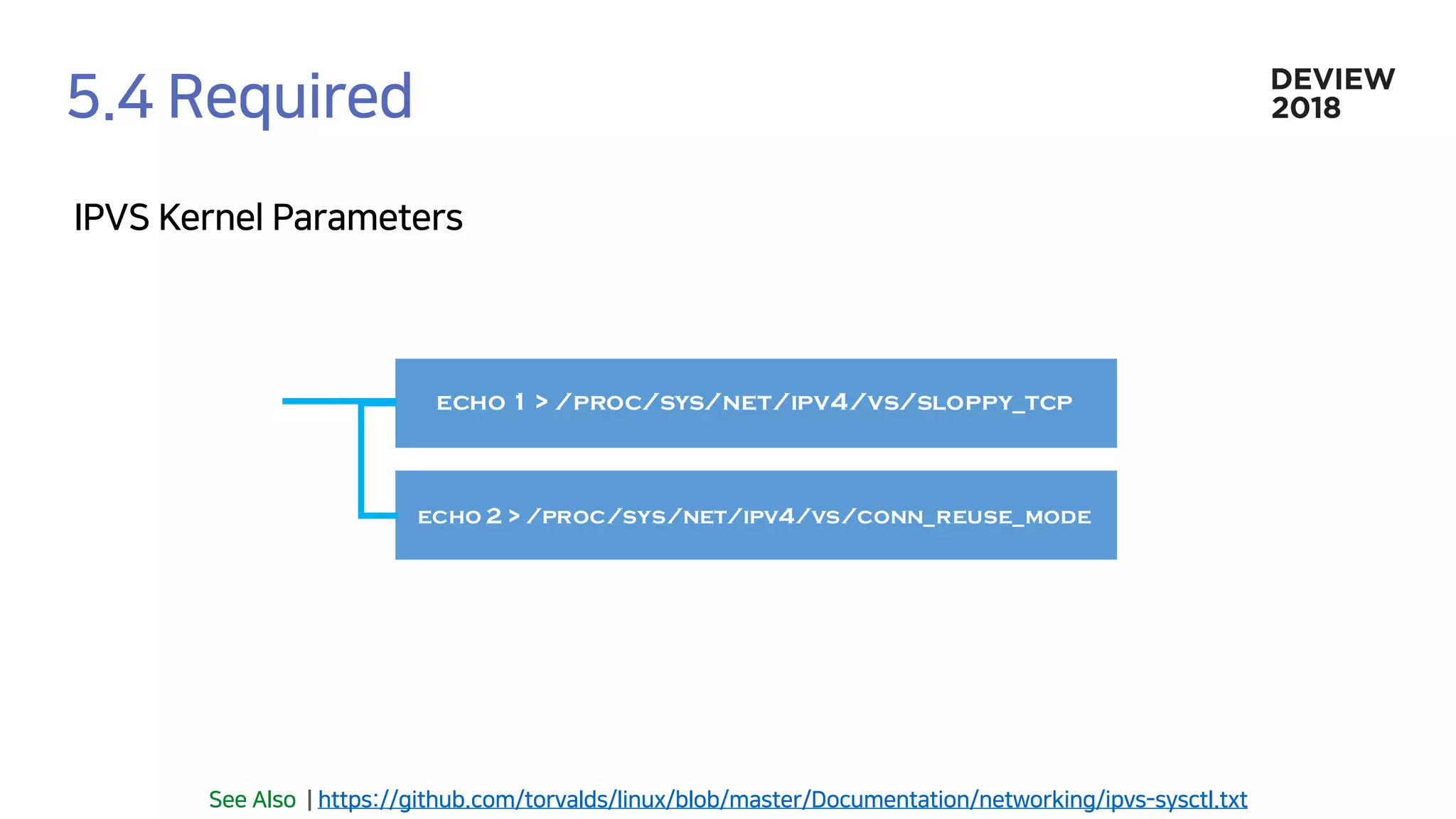

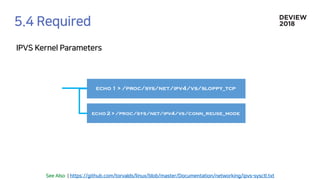

66. echo 1 > /proc/sys/net/ipv4/vs/sloppy_tcp
echo 2 > /proc/sys/net/ipv4/vs/conn_reuse_mode
