1. Lay a strong foundation with JupyterHub, SQL magics, and popular libraries to connect SQL users to their data and analyze it in notebooks. 2. Bring everything together in a secure and tightly integrated environment by combining JupyterHub with an enterprise gateway, using environment variables, and templatizing notebooks. 3. Take convenience to the next level by developing custom SQL magics, UI components, kernels and extensions tailored to the organization's needs.

1. Supercharging
SQL Users
with Jupyter notebooks
noteable
@noteable_io
@michelleufford
Michelle Ufford

2. 2
Unbreakable Kimmy Schmidt

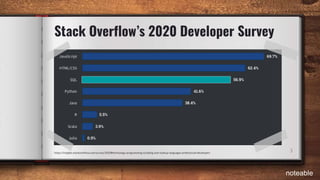

3. 3https://insights.stackoverflow.com/survey/2020#technology-programming-scripting-and-markup-languages-professional-developers
Stack Overflow’s 2020 Developer Survey
noteable

4. Challenges SQL users face
4
● Connecting
● Security
● Scheduling
Here be dragons

5. 3-Tier Action Plan
5
1 Foundation
Lay a strong foundation with
JupyterHub, SQL Magics, &
popular libraries & extensions.
noteable

6. 6

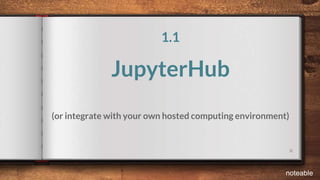

1.1
JupyterHub
(or integrate with your own hosted computing environment)
noteable

7. spawns
7

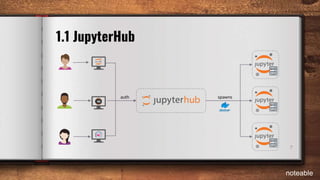

1.1 JupyterHub
auth
noteable

8. 8
1.2
SQL Magics
(it’s quite magical!)
noteable

9. 9

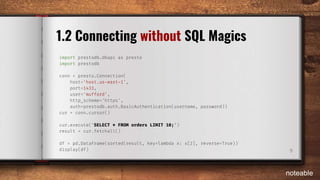

1.2 Connecting without SQL Magics
import prestodb.dbapi as presto
import prestodb
conn = presto.Connection(
host='host.us-east-1',
port=1433,
user='mufford',
http_scheme='https',
auth=prestodb.auth.BasicAuthentication(username, password))
cur = conn.cursor()
cur.execute('SELECT * FROM orders LIMIT 10;')
result = cur.fetchall()
df = pd.DataFrame(sorted(result, key=lambda x: x[2], reverse=True))
display(df)
noteable

10. 10

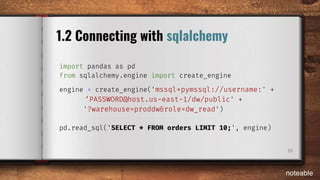

1.2 Connecting with sqlalchemy
import pandas as pd
from sqlalchemy.engine import create_engine
engine = create_engine('mssql+pymssql://username:' +
‘PASSWORD@host.us-east-1/dw/public' +
'?warehouse=proddw&role=dw_read')
pd.read_sql('SELECT * FROM orders LIMIT 10;', engine)
noteable

11. 11

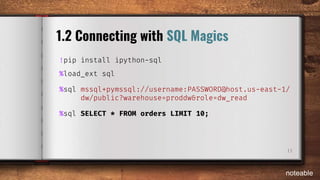

1.2 Connecting with SQL Magics
!pip install ipython-sql
%load_ext sql
%sql mssql+pymssql://username:PASSWORD@host.us-east-1/
dw/public?warehouse=proddw&role=dw_read
%sql SELECT * FROM orders LIMIT 10;
noteable

12. 1.3
Libraries
(the easiest way to become a hero)
12
noteable

13. 13

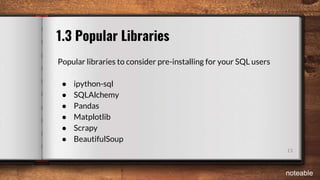

1.3 Popular Libraries
Popular libraries to consider pre-installing for your SQL users
● ipython-sql
● SQLAlchemy
● Pandas
● Matplotlib
● Scrapy
● BeautifulSoup
noteable

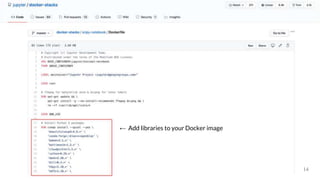

14. ← Add libraries to your Docker image
14

15. 15

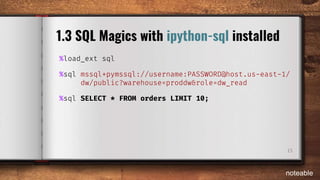

1.3 SQL Magics with ipython-sql installed
%load_ext sql
%sql mssql+pymssql://username:PASSWORD@host.us-east-1/
dw/public?warehouse=proddw&role=dw_read
%sql SELECT * FROM orders LIMIT 10;
noteable

16. 16
1.4
Extensions
(Excite your users with expedient extensions)
noteable

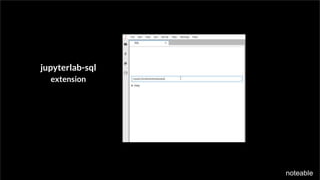

17. 1.4 Useful Extensions
jupyterlab-sql
extension
noteable

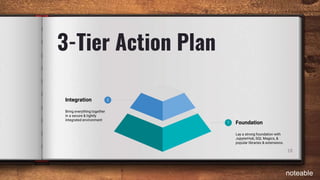

18. 3-Tier Action Plan
18
1
2
Foundation
Lay a strong foundation with
JupyterHub, SQL Magics, &
popular libraries & extensions.
Integration
Bring everything together
in a secure & tightly
integrated environment
noteable

19. 19

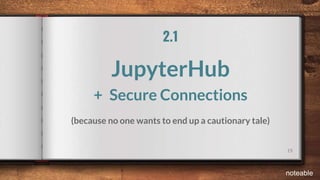

2.1
JupyterHub
+ Secure Connections
(because no one wants to end up a cautionary tale)
noteable

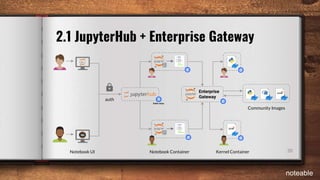

20. Enterprise
Gateway
20
2.1 JupyterHub + Enterprise Gateway
auth
Community Images
Notebook Container Kernel ContainerNotebook UI
noteable

21. 21
2.2

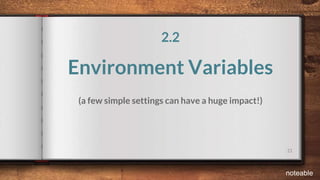

Environment Variables
(a few simple settings can have a huge impact!)
noteable

22. 22
2.2 Environment Variables in JupyterHub
--config.yaml--
hub:
extraEnv:
DW_PROD = mssql+pymssql://{user}:{password}@host
.us-east-1/dw/public?warehouse=proddw&role=dw_read
noteable

23. 23

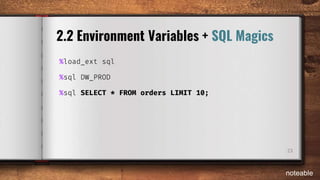

2.2 Environment Variables + SQL Magics
%load_ext sql
%sql DW_PROD
%sql SELECT * FROM orders LIMIT 10;
noteable

24. 24
2.2 More fun with Environment Variables
Useful environment variables to consider:
● Database connections
● Secrets
● APIs
● Cluster resources
● Serialization config
noteable

25. 25
2.3
Templates
(simple yet surprisingly powerful)
noteable

26. 26

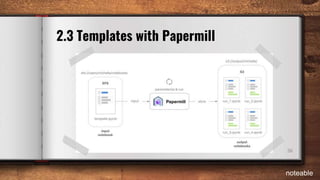

2.3 Templates with Papermill
noteable

27. 27
2.3 Templatize with Papermill
noteable

28. 28

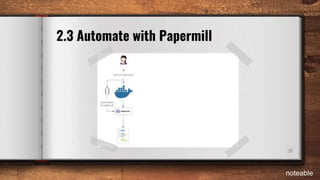

2.3 Automate with Papermill
noteable

29. 29

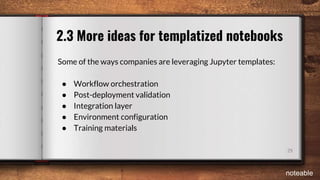

2.3 More ideas for templatized notebooks
Some of the ways companies are leveraging Jupyter templates:
● Workflow orchestration
● Post-deployment validation
● Integration layer
● Environment configuration
● Training materials
noteable

30. 3
1
2

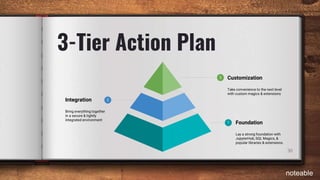

3-Tier Action Plan
30
Foundation
Lay a strong foundation with
JupyterHub, SQL Magics, &
popular libraries & extensions.
Customization
Take convenience to the next level
with custom magics & extensions
Integration
Bring everything together
in a secure & tightly
integrated environment
noteable

31. 31

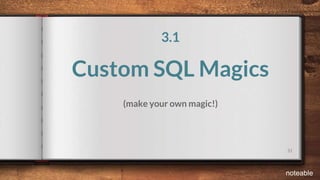

3.1
Custom SQL Magics
(make your own magic!)
noteable

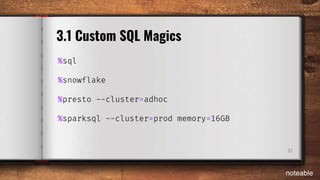

32. %sql
%snowflake
%presto --cluster=adhoc
%sparksql --cluster=prod memory=16GB
32
3.1 Custom SQL Magics
noteable

33. 33

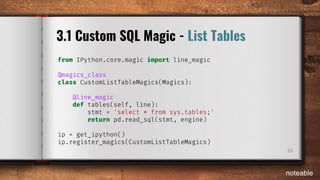

3.1 Custom SQL Magic - List Tables
from IPython.core.magic import line_magic
@magics_class
class CustomListTableMagics(Magics):
@line_magic
def tables(self, line):
stmt = 'select * from sys.tables;'
return pd.read_sql(stmt, engine)
ip = get_ipython()
ip.register_magics(CustomListTableMagics)
noteable

34. 34

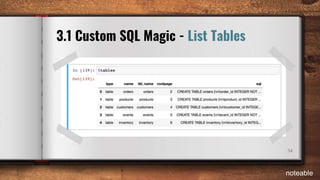

3.1 Custom SQL Magic - List Tables
noteable

35. 35

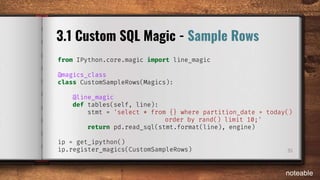

3.1 Custom SQL Magic - Sample Rows
from IPython.core.magic import line_magic
@magics_class
class CustomSampleRows(Magics):
@line_magic
def tables(self, line):
stmt = 'select * from {} where partition_date = today()
order by rand() limit 10;'
return pd.read_sql(stmt.format(line), engine)
ip = get_ipython()
ip.register_magics(CustomSampleRows)
noteable

36. 36
3.2
Custom UI
(99 UI problems but customizing makes it 100)
noteable

37. 37

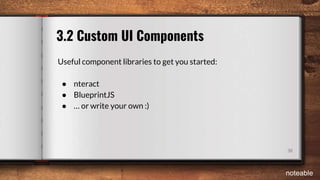

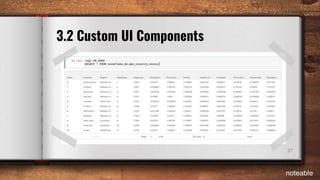

3.2 Custom UI Components
noteable

38. 38
3.2 Custom UI Components
Useful component libraries to get you started:
● nteract
● BlueprintJS
● … or write your own :)
noteable

39. 39

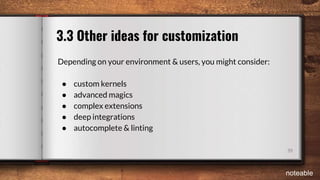

3.3 Other ideas for customization
Depending on your environment & users, you might consider:
● custom kernels
● advanced magics
● complex extensions
● deep integrations
● autocomplete & linting
noteable

40. Join the Noteable Insiders
Become a Noteable Insider at noteable.io/insider-program
Michelle Ufford
CEO
Elijah Meeks
Chief Visualization Officer
Matthew Seal
Chief Technology Officer
Carol Willing
Lead Technical Evangelist
Help us create a better SQL experience! 🙂
Meet the Noteable team
noteableSlides available at noteable.io/jupytercon

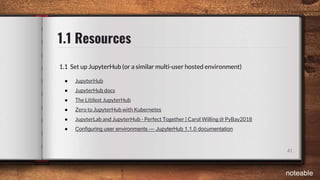

41. 1.1 Resources
41
1.1 Set up JupyterHub (or a similar multi-user hosted environment)
● JupyterHub
● JupyterHub docs
● The Littlest JupyterHub
● Zero to JupyterHub with Kubernetes
● JupyterLab and JupyterHub - Perfect Together | Carol Willing @ PyBay2018
● Configuring user environments — JupyterHub 1.1.0 documentation
noteable

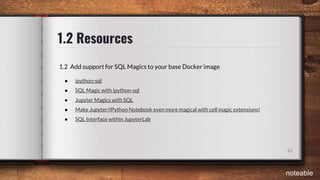

42. 1.2 Resources
42
1.2 Add support for SQL Magics to your base Docker image
● ipython-sql
● SQL Magic with ipython-sql
● Jupyter Magics with SQL
● Make Jupyter/IPython Notebook even more magical with cell magic extensions!
● SQL Interface within JupyterLab
noteable

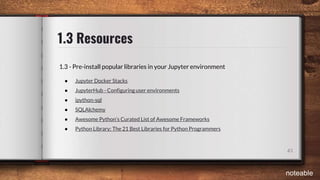

43. 1.3 Resources
43
1.3 - Pre-install popular libraries in your Jupyter environment
● Jupyter Docker Stacks
● JupyterHub - Configuring user environments
● ipython-sql
● SQLAlchemy
● Awesome Python’s Curated List of Awesome Frameworks
● Python Library: The 21 Best Libraries for Python Programmers
noteable

44. 1.4 Resources
44
1.4 - Install useful extensions for your users
● JupyterLab-SQL
● The Littlest JupyterHub - Enabling Jupyter Notebook extensions
● Adding Jupyter Notebook Extensions to a Docker Image
● Distributing Jupyter Extensions as Python Packages
● Unofficial Jupyter Notebook Extensions
● jupyterlab-extension public repos on GitHub
● The Top 47 Jupyterlab Extension Open Source Projects
● PyData Austin 2019: Customizing JupyterLab using extensions
noteable

45. 2.1 Resources
45
2.1 Secure connections in your JupyterHub with Enterprise Gateway
● Jupyter Enterprise Gateway on GitHub
● Jupyter Enterprise Gateway
● Jupyter Enterprise Gateway - Security Features
● Strata - Scaling Jupyter with Jupyter Enterprise Gateway
● Building analytical microservices powered by Jupyter Kernels - Luciano Resende & Kevin Bates
noteable

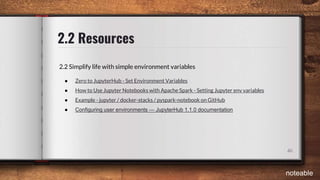

46. 2.2 Resources
46
2.2 Simplify life with simple environment variables
● Zero to JupyterHub - Set Environment Variables
● How to Use Jupyter Notebooks with Apache Spark - Setting Jupyter env variables
● Example - jupyter / docker-stacks / pyspark-notebook on GitHub
● Configuring user environments — JupyterHub 1.1.0 documentation
noteable

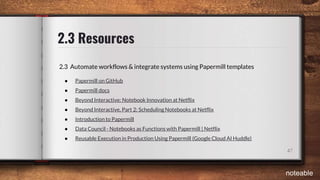

47. 2.3 Resources
47
2.3 Automate workflows & integrate systems using Papermill templates
● Papermill on GitHub
● Papermill docs
● Beyond Interactive: Notebook Innovation at Netflix
● Beyond Interactive, Part 2: Scheduling Notebooks at Netflix
● Introduction to Papermill
● Data Council - Notebooks as Functions with Papermill | Netflix
● Reusable Execution in Production Using Papermill (Google Cloud AI Huddle)
noteable

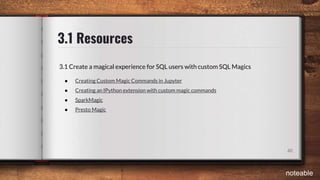

48. 3.1 Resources
48
3.1 Create a magical experience for SQL users with custom SQL Magics
● Creating Custom Magic Commands in Jupyter
● Creating an IPython extension with custom magic commands
● SparkMagic
● Presto Magic
noteable

49. 3.2 Resources
49
3.2 Take convenience to the next level with custom UI components
● nteract
● nteract on GitHub
● nteract component docs
● BlueprintJS
● Using JupyterLab components
● A very simple demo of interactive controls on Jupyter notebook
noteable

50. 3.3 Resources
50
3.3 Create a custom Jupyter experience tailored to your company/organization
● JupyterLab - Common Extension Points
● JupyterLab Extension Developer Guide
● How to Write a Jupyter Notebook Extension
● Example IPython magic functions for Pyspark
● Making kernels for Jupyter
noteable
