1. To SQL
OR
No (T) SQL?
PFCongres 2012 Jeroen van Dijk

2. JEROEN VAN DIJK
∂ Nerd chief @ ENRISE
∂ PHPBenelux board member
∂ Zend Certified Engineer
∂ Web technology freak
∂ Open source addict
JEROEN@ENRISE.COM @NEOREY

3. THE ENRISE RESTAURANT
∂ We want to prepare the best dishes
∂ With the best ingredients
∂ To create a magical client experience!
∂ You engineers are our top chefs!

5. WHAT IS
ACID?

7. EVER HEARD OF
CAP
THEOREM?

8. KNOW
ABC?
∂ Courtesy of Tim Anglade

9. Always
∂ Courtesy of Tim Anglade

10. Always
Be
∂ Courtesy of Tim Anglade

11. Always
Be
Caching
∂ Courtesy of Tim Anglade

12. Always
Be
Caching
∂ Courtesy of Tim Anglade

13. JOIN THE HYPE?
WANT!==HAVE
13

14. HAVE TO USE NOSQL?
SCALABILITY
&
PERFORMANCE
14

15. HAVE TO USE NOSQL?
SCALABILITY
&
PERFORMANCE
15

16. RECAP RDBMS GREATNESS
∂ Standard Query Language
∂ ACID: Atomicity, Consistency, Isolation, Durability
∂ Supported by everyone and everything
∂ Tuning options
∂ Battle tested!
∂ Open source?!
NOT ENOUGH?
16

17. MAKING LOADS OF MONEY?
17

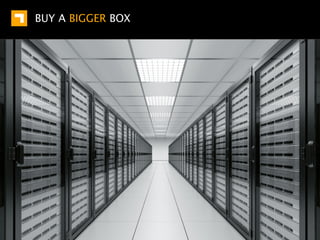

18. BUY A BIGGER BOX
18

19. NOT SO GREAT RDBMS FEATURES
∂ Vertical scalability
19

20. NOT SO GREAT RDBMS FEATURES
∂ Vertical scalability
∂ Horizontal scalability
20

21. NOT SO GREAT RDBMS FEATURES
∂ Vertical scalability
∂ Horizontal scalability
∂ Schema changes!
21

22. SINCE 2004
DATA++++++
22

23. WHO NEEDS
ACID!?

24. CAP THEOREM
AVAILABILITY
A
C P
CONSISTENCY PARTITION TOLERANCE

25. CAP THEOREM
AVAILABILITY
A
CA AP
PICK
TWO
C P
CONSISTENCY PARTITION TOLERANCE
CP

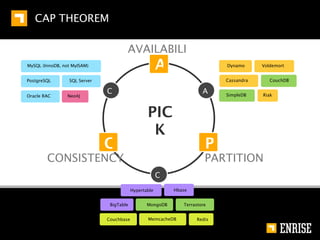

26. CAP THEOREM
AVAILABILITY
MySQL (InnoDB, not MyISAM) A Dynamo Voldemort
PostgreSQL SQL Server Cassandra CouchDB
CA AP
Oracle RAC Neo4J SimpleDB Riak
PICK
TWO
C P
CONSISTENCY PARTITION TOLERANCE
CP
Hypertable Hbase
BigTable MongoDB Terrastore
Couchbase MemcacheDB Redis

27. 4 NOSQL
TYPES

28. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT

29. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT

30. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT

31. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT

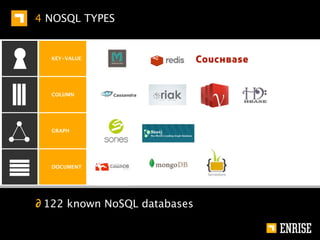

32. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ 122 known NoSQL databases

33. 4 NOSQL TYPES
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Focus from Redis, Riak, Neo4J, MongoDB

34. KEY - VALUE
KEY-VALUE ∂ Schema-less design
∂ Just strings of data
∂ Hard to query
COLUMN
∂ Mostly in memory
GRAPH
DOCUMENT

35. KEY - VALUE
KEY-VALUE
[
COLUMN “key1” => “value1”,
“key2” => “value2”,
GRAPH
“key3” => “value3”,
DOCUMENT
]

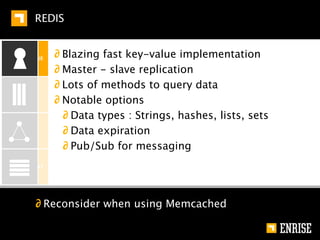

36. REDIS
KEY-VALUE
∂ Blazing fast key-value implementation
∂ Master - slave replication
∂ Lots of methods to query data
COLUMN
∂ Notable options
∂ Data types : Strings, hashes, lists, sets
GRAPH ∂ Data expiration
∂ Pub/Sub for messaging
DOCUMENT
∂ Reconsider when using Memcached

37. COLUMN
KEY-VALUE ∂ BigTable or Dynamo style
∂ Consistent hashing
∂ Vector clocks
COLUMN
∂ Hinted hand off
GRAPH
DOCUMENT

38. COLUMN
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Data stored in a ring

39. COLUMN
D
KEY-VALUE
COLUMN
C A
GRAPH
DOCUMENT
B
∂ Consistent hashing with 4 nodes

40. COLUMN
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Partitioning as done by Riak

41. COLUMN
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Read / Write....

42. COLUMN
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Anywhere in the ring

43. COLUMN
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ First node joins the cluster, claims all partitions

44. COLUMN
KEY-VALUE N=3 A
B
C
COLUMN
GRAPH
DOCUMENT
∂ Reading / writing is done to 3 nodes

45. COLUMN
KEY-VALUE N=3 A
B
W=2 C
COLUMN
R=2
GRAPH
DOCUMENT
∂ Reading / writing succeeds with 2 valid responses

46. COLUMN
KEY-VALUE N=3 A
[ Ov1,v2 ]
B
W=2 C [ Ov1 ]
COLUMN
R=2
D
[ Ov1,v2 ]
GRAPH
DOCUMENT
∂ Node C down, while new write action

47. COLUMN
KEY-VALUE N=3 A
[ Ov1,v2 ]
B
W=2 C [ Ov1,v2 ]
COLUMN
R=2
D
[ Ov1,v2 ]
GRAPH
DOCUMENT
∂ Node D hands the new version off

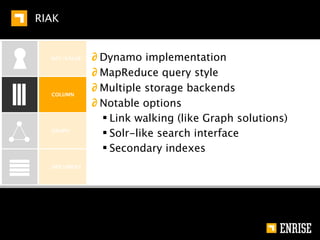

48. RIAK
KEY-VALUE ∂ Dynamo implementation
∂ MapReduce query style
∂ Multiple storage backends
COLUMN
∂ Notable options
§ Link walking (like Graph solutions)
GRAPH
§ Solr-like search interface
§ Secondary indexes
DOCUMENT

49. GRAPH
KEY-VALUE ∂ Relations more important then entities
∂ From RDBMS perspective : SELF JOINS
COLUMN
GRAPH
DOCUMENT

50. GRAPH
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Facebook style

51. GRAPH
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Betweenness centrality

52. GRAPH
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Degree centrality

53. GRAPH
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Closeness centrality

54. GRAPH
KEY-VALUE
COLUMN
GRAPH
DOCUMENT
∂ Twitter style

55. GRAPH
KEY-VALUE
2
COLUMN 1
9 3 2
1 2 1
GRAPH 2
3
3
DOCUMENT
∂ TomTom style

56. GRAPH
KEY-VALUE
2
COLUMN 1
9 3 2
1 2 1
GRAPH 2
3
3
DOCUMENT
∂ TomTom style

57. GRAPH
KEY-VALUE
2
COLUMN 1
9 3 2
1 2 1
GRAPH 2
3
3
DOCUMENT
∂ TomTom style

58. NEO4J
KEY-VALUE ∂ ACID compliant
∂ Enterprise product for HA ($$$)
∂ Custom query language
COLUMN
∂ Notable options
§ Self contained web admin
GRAPH
DOCUMENT

59. DOCUMENT
KEY-VALUE ∂ Largest resemblance with RDBMS
∂ MapReduce
∂ Software architect more important
COLUMN
GRAPH
DOCUMENT

60. MONGODB
KEY-VALUE ∂ MySQL of it’s generation?!
∂ Master - slave structure
∂ MapReduce
COLUMN
∂ Notable options
§ Geo indexes
GRAPH
DOCUMENT
SMALLEST LEARNING CURVE!

61. USE CASES
∂ Rapid changing data which fits in memory
KEY-VALUE
∂ Analytics, logging, real-time data collection
COLUMN
GRAPH
DOCUMENT

62. USE CASES
∂ Rapid changing data which fits in memory
KEY-VALUE
∂ Analytics, logging, real-time data collection
∂ Very good availability & fault tolerance
COLUMN
∂ Applications where seconds of downtime hurt
GRAPH
DOCUMENT

63. USE CASES
∂ Rapid changing data which fits in memory
KEY-VALUE
∂ Analytics, logging, real-time data collection
∂ Very good availability & fault tolerance
COLUMN
∂ Applications where seconds of downtime hurt
∂ For rich interconnected data
GRAPH
∂ Social relational data, geo & maps data
DOCUMENT

64. USE CASES
∂ Rapid changing data which fits in memory
KEY-VALUE
∂ Analytics, logging, real-time data collection
∂ Very good availability & fault tolerance
COLUMN
∂ Applications where seconds of downtime hurt
∂ For rich interconnected data
GRAPH
∂ Social relational data, geo & maps data
∂ MySQL like usage with indexes
DOCUMENT
∂ Any type of data you’d fit in MySQL

65. ONE USEFUL INGREDIENT
65

66. MORE GREAT TASTES
66

67. ∂ KLIK VOOR FOOTER
67

68. Polyglot persistence?
∂ KLIK VOOR FOOTER
68

69. ∂ THANK YOU! FEEDBACK? JOIND.IN/7084

70. ∂ MORE DETAILS? SCAN THIS CODE.
