Uploaded byWill Shen
20111018 boost and gtest
This document provides an overview and summary of Boost and Google Test (gtest). It discusses key Boost libraries like smart pointers, assign, foreach, and bind. It explains how Boost handles memory management and containers. It also covers the basics of gtest like writing assertions and test fixtures. The document recommends gtest as a lightweight unit testing framework compared to Cppunit.
More Related Content
20111018 boost and gtest
- 1. Boost & googletest Will Shen 2011/10/17

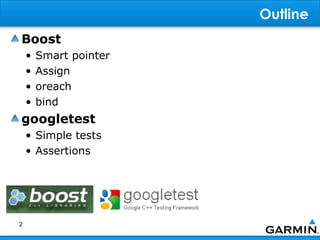

- 2. Outline Boost • Smart pointer • Assign • oreach • bind googletest • Simple tests • Assertions 2
- 3. Hundred of boostlibraries hpp hpp hpp + lib hpp + lib (.h+.cpp) (.h+.cpp) up to 90% without linking date_time filesystem regex program_otpions test thread python 3

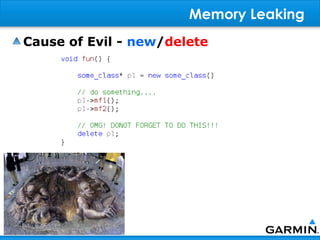

- 4. Memory Leaking Cause of Evil - new/delete 4

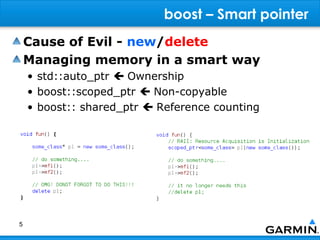

- 5. boost – Smartpointer Cause of Evil - new/delete Managing memory in a smart way • std::auto_ptr Ownership • boost::scoped_ptr Non-copyable • boost:: shared_ptr Reference counting 5

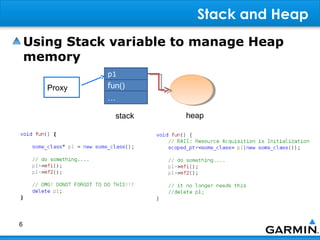

- 6. Stack and Heap Using Stack variable to manage Heap memory p1 Proxy fun() … stack heap 6

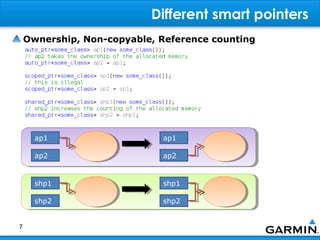

- 7. Different smart pointers Ownership, Non-copyable, Reference counting ap1 ap1 ap2 ap2 shp1 shp1 shp2 shp2 7

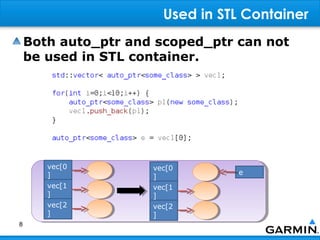

- 8. Used in STLContainer Both auto_ptr and scoped_ptr can not be used in STL container. vec[0 vec[0 ] e ] vec[1 vec[1 ] ] vec[2 vec[2 ] ] 8

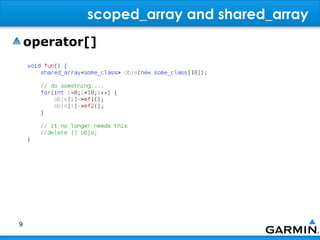

- 9. scoped_array and shared_array operator[] 9

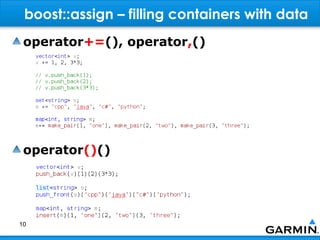

- 10. boost::assign – fillingcontainers with data operator+=(), operator,() operator()() 10

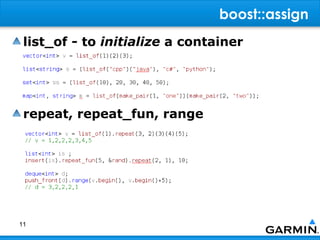

- 11. boost::assign list_of -to initialize a container repeat, repeat_fun, range 11

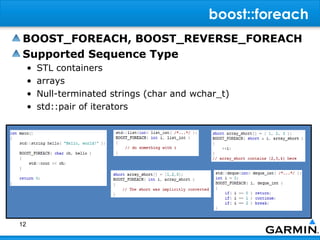

- 12. boost::foreach BOOST_FOREACH, BOOST_REVERSE_FOREACH Supported Sequence Type • STL containers • arrays • Null-terminated strings (char and wchar_t) • std::pair of iterators 12
- 13. boost::foreach + typeof BOOST_TYPEOF 13

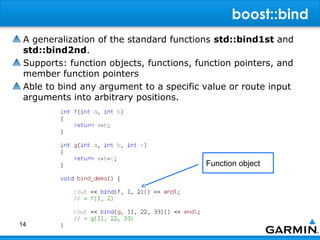

- 14. boost::bind A generalizationof the standard functions std::bind1st and std::bind2nd. Supports: function objects, functions, function pointers, and member function pointers Able to bind any argument to a specific value or route input arguments into arbitrary positions. Function object 14

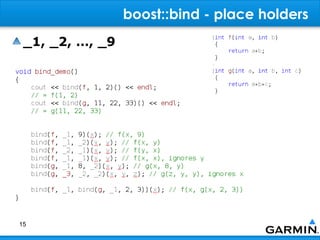

- 15. boost::bind - placeholders _1, _2, …, _9 15
- 16. Use boost::bind() inSTL algorithm binding member function 16

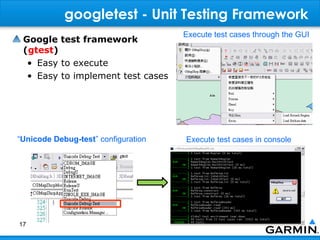

- 17. googletest - UnitTesting Framework Execute test cases through the GUI Google test framework (gtest) • Easy to execute • Easy to implement test cases “Unicode Debug-test” configuration Execute test cases in console 17

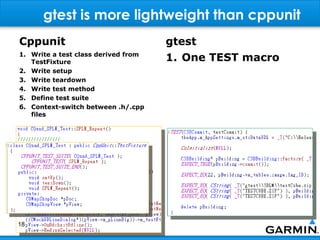

- 18. gtest is morelightweight than cppunit Cppunit gtest 1. Write a test class derived from TestFixture 1. One TEST macro 2. Write setup 3. Write teardown 4. Write test method 5. Define test suite 6. Context-switch between .h/.cpp files 18

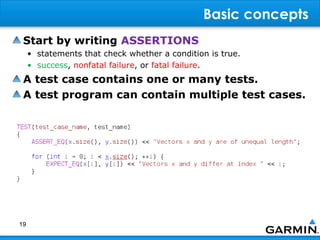

- 19. Basic concepts Startby writing ASSERTIONS • statements that check whether a condition is true. • success, nonfatal failure, or fatal failure. A test case contains one or many tests. A test program can contain multiple test cases. 19

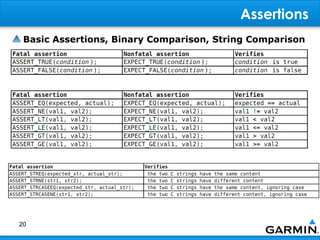

- 20. Assertions Basic Assertions,Binary Comparison, String Comparison 20

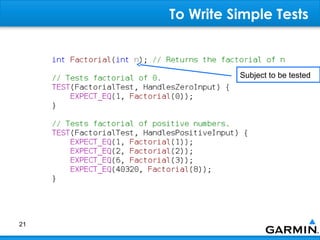

- 21. To Write SimpleTests Subject to be tested 21

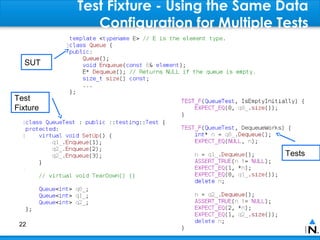

- 22. Test Fixture -Using the Same Data Configuration for Multiple Tests SUT Test Fixture Tests 22
- 23. gtest folder inGMapShop project Tests 23
- 24.
- 25.
- 26.
- 27.
- 28. More to talk Code Smell Refactoring method Principles of Object-oriented Design • SRP, OCP, LSP, DSP, DIP 28
