This document provides an overview of the Resource Description Framework (RDF). It begins with background information on RDF including URIs, URLs, IRIs and QNames. It then describes the RDF data model, noting that RDF is a schema-less data model featuring unambiguous identifiers and named relations between pairs of resources. It also explains that RDF graphs are sets of triples consisting of a subject, predicate and object. The document also covers RDF syntax using Turtle and literals, as well as modeling with RDF. It concludes with a brief overview of common RDF tools including Jena.

1. +
RDF
Mariano Rodriguez-Muro,
Free University of Bozen-Bolzano

2. +

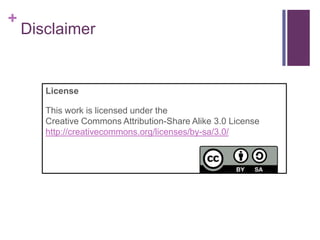

Disclaimer
License
This work is licensed under the
Creative Commons Attribution-Share Alike 3.0 License
http://creativecommons.org/licenses/by-sa/3.0/

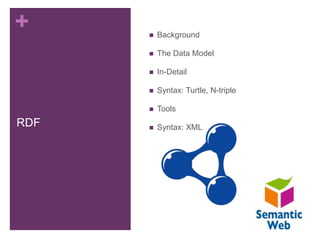

3. +
Background

The Data Model

In-Detail

Syntax: Turtle, N-triple

RDF

Tools

Syntax: XML

4. +
RDF
Background

5. +

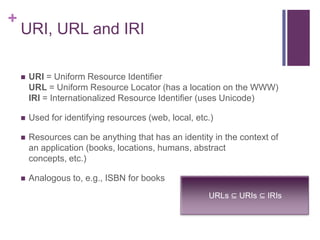

URI, URL and IRI

URI = Uniform Resource Identifier
URL = Uniform Resource Locator (has a location on the WWW)
IRI = Internationalized Resource Identifier (uses Unicode)

Used for identifying resources (web, local, etc.)

Resources can be anything that has an identity in the context of
an application (books, locations, humans, abstract
concepts, etc.)

Analogous to, e.g., ISBN for books
URLs ⊆ URIs ⊆ IRIs

6. +

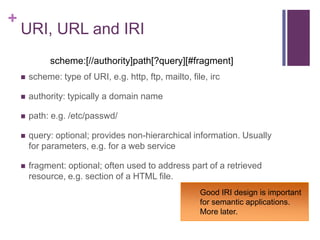

URI, URL and IRI
scheme:[//authority]path[?query][#fragment]

scheme: type of URI, e.g. http, ftp, mailto, file, irc

authority: typically a domain name

path: e.g. /etc/passwd/

query: optional; provides non-hierarchical information. Usually
for parameters, e.g. for a web service

fragment: optional; often used to address part of a retrieved
resource, e.g. section of a HTML file.
Good IRI design is important
for semantic applications.
More later.

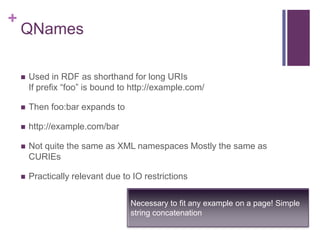

7. +
QNames

Used in RDF as shorthand for long URIs
If prefix “foo” is bound to http://example.com/

Then foo:bar expands to

http://example.com/bar

Not quite the same as XML namespaces Mostly the same as
CURIEs

Practically relevant due to IO restrictions
Necessary to fit any example on a page! Simple
string concatenation

8. +
RDF
The Data Model

9. +

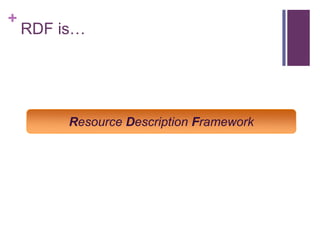

RDF is…
Resource Description Framework

10. +
RDF is…
The data model of Semantic Technologies
and of the Semantic Web.

11. +

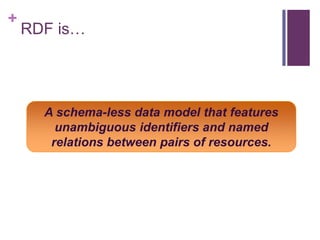

RDF is…
A schema-less data model that features
unambiguous identifiers and named
relations between pairs of resources.

22. +

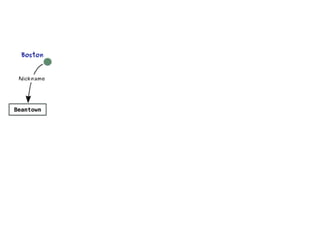

Unambiguous Names

How many things are named “Boston”? How about “Riverside”?

So, we use URIs. Instead of “Boston”:



http://dbpedia.org/resource/Boston
QName: db:Boston
And instead of “nickname” we use:

http://example.org/terms/nickname

QName: dbo:nickname

24. +

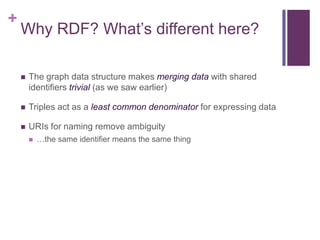

Why RDF? What‟s different here?


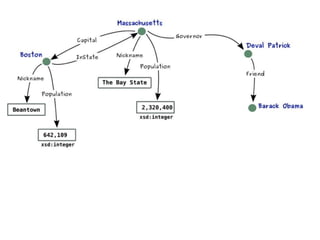

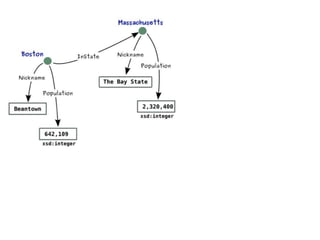

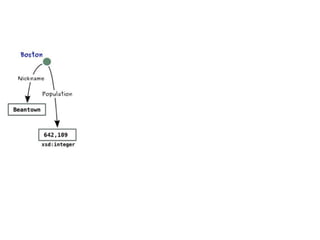

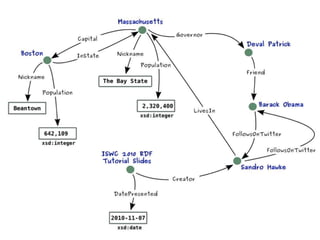

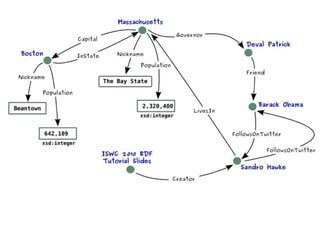

The graph data structure makes merging data with shared
identifiers trivial (as we saw earlier)

Triples act as a least common denominator for expressing data

URIs for naming remove ambiguity

…the same identifier means the same thing

25. +
RDF
In-Detail

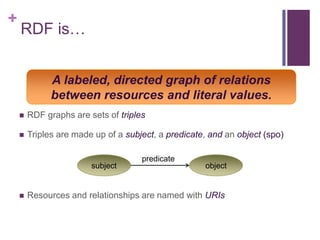

26. +
RDF is…
A labeled, directed graph of relations
between resources and literal values.

RDF graphs are sets of triples

Triples are made up of a subject, a predicate, and an object (spo)
subject

predicate
object
Resources and relationships are named with URIs

27. +

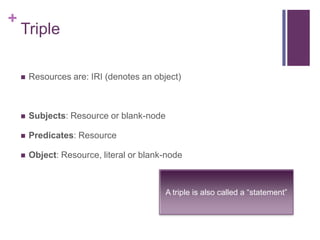

Triple

Resources are: IRI (denotes an object)

Subjects: Resource or blank-node

Predicates: Resource

Object: Resource, literal or blank-node
A triple is also called a “statement”

28. +

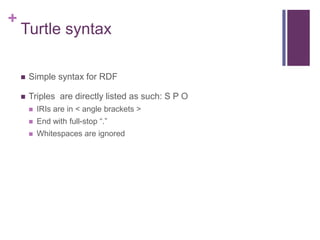

Turtle syntax

Simple syntax for RDF

Triples are directly listed as such: S P O

IRIs are in < angle brackets >

End with full-stop “.”

Whitespaces are ignored

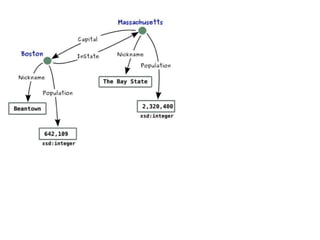

30. +

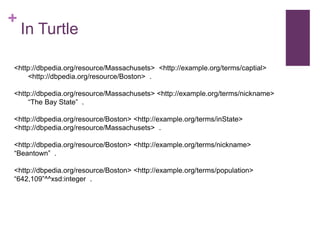

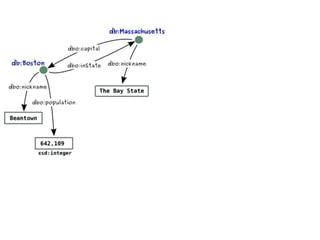

In Turtle

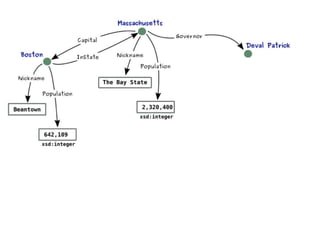

<http://dbpedia.org/resource/Massachusets> <http://example.org/terms/captial>
<http://dbpedia.org/resource/Boston> .
<http://dbpedia.org/resource/Massachusets> <http://example.org/terms/nickname>
“The Bay State” .
<http://dbpedia.org/resource/Boston> <http://example.org/terms/inState>
<http://dbpedia.org/resource/Massachusets> .
<http://dbpedia.org/resource/Boston> <http://example.org/terms/nickname>
“Beantown” .
<http://dbpedia.org/resource/Boston> <http://example.org/terms/population>
“642,109”^^xsd:integer .

31. +
Shortcuts

Prefixes (simple string concatenation)

Grouping of triples with the same subject using semi-colon „;‟

Grouping of triples with the same subject and predicate using
comma „,‟

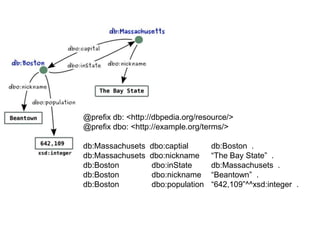

32. @prefix db: <http://dbpedia.org/resource/>
@prefix dbo: <http://example.org/terms/>
db:Massachusets
db:Massachusets
db:Boston
db:Boston
db:Boston
dbo:captial
dbo:nickname
dbo:inState
dbo:nickname
dbo:population
db:Boston .
“The Bay State” .
db:Massachusets .
“Beantown” .
“642,109”^^xsd:integer .

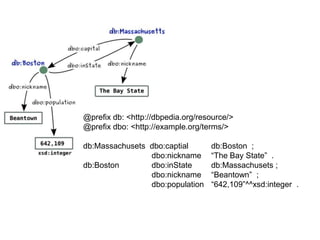

33. @prefix db: <http://dbpedia.org/resource/>
@prefix dbo: <http://example.org/terms/>
db:Massachusets dbo:captial
dbo:nickname
db:Boston
dbo:inState
dbo:nickname
dbo:population
db:Boston ;
“The Bay State” .
db:Massachusets ;
“Beantown” ;
“642,109”^^xsd:integer .

34. +
Literals

Represent data values

Encoded as strings (the value)

Interpreted by means of datatypes

Literals without a type are treated the same as string (but they are
not equal to strings)

An literal without a type is called plain literal. A plain literal may
have a language tag

Datatypes are not defined by RDF, we reuse XML datatypes.

RDF does not require implementation support for any datatype.
However, system generally implement most of XSD datatypes.

35. +

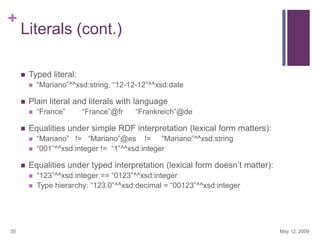

Literals (cont.)

Typed literal:


Plain literal and literals with language



“France”@fr
“Frankreich”@de
“Mariano” != “Mariano”@es != “Mariano”^^xsd:string
“001”^^xsd:integer != “1”^^xsd:integer
Equalities under typed interpretation (lexical form doesn‟t matter):


35
“France”
Equalities under simple RDF interpretation (lexical form matters):


“Mariano”^^xsd:string, “12-12-12”^^xsd:date
“123”^^xsd:integer == “0123”^^xsd:integer

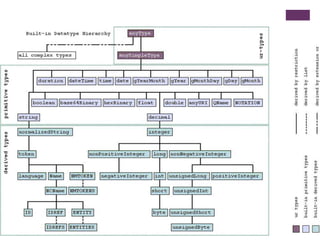

Type hierarchy: “123.0”^^xsd:decimal = “00123”^^xsd:integer
May 12, 2009

37. +

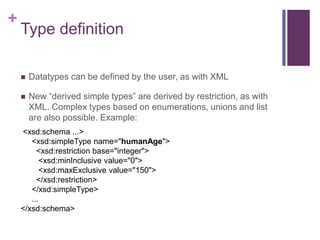

Type definition

Datatypes can be defined by the user, as with XML

New “derived simple types” are derived by restriction, as with
XML. Complex types based on enumerations, unions and list
are also possible. Example:
<xsd:schema ...>
<xsd:simpleType name="humanAge">
<xsd:restriction base="integer">
<xsd:minInclusive value="0">
<xsd:maxExclusive value="150">
</xsd:restriction>
</xsd:simpleType>
...
</xsd:schema>

38. +

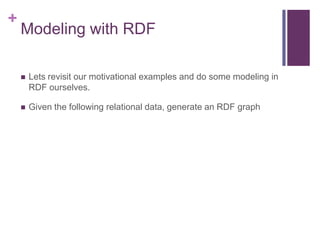

Modeling with RDF

Lets revisit our motivational examples and do some modeling in
RDF ourselves.

Given the following relational data, generate an RDF graph

39. +
39

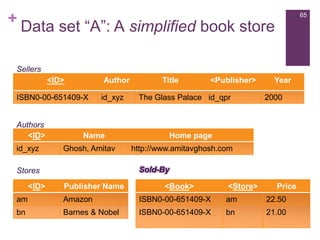

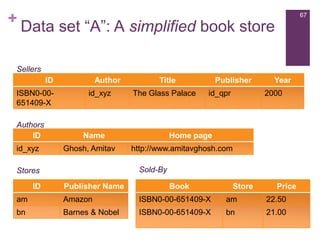

Exercise: Data set “A”: A simplified
book store
Sellers
<ID>
Author
ISBN0-00-651409-X
id_xyz
Authors
<ID>
id_xyz
Name
Ghosh, Amitav
Stores
<ID>
Publisher Name
am
Amazon
bn
Barnes & Nobel
Title
The Glass Palace
<Publisher>
id_qpr
Year
2000
Home page
http://www.amitavghosh.com
Generate the RDF graph.
Keys marked with <>.
Primary keys are underscored.
Steps: 1) Generate the graph 2) Adjust
identifier 3) Adjust name of relations
and types

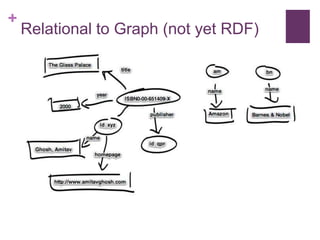

40. +
Relational to Graph (not yet RDF)

41. +

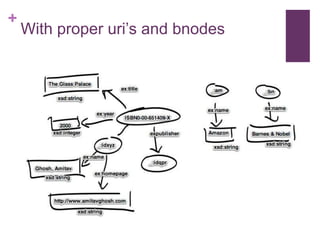

With proper uri‟s and bnodes

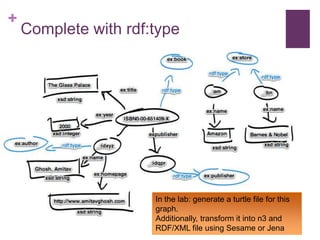

42. +
Complete with rdf:type
In the lab: generate a turtle file for this
graph.
Additionally, transform it into n3 and
RDF/XML file using Sesame or Jena

43. +
Tools
Systems and Frameworks

44. +

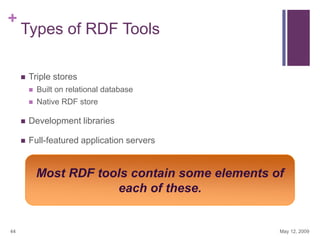

Types of RDF Tools

Triple stores

Built on relational database

Native RDF store

Development libraries

Full-featured application servers
Most RDF tools contain some elements of
each of these.
44
May 12, 2009

45. +

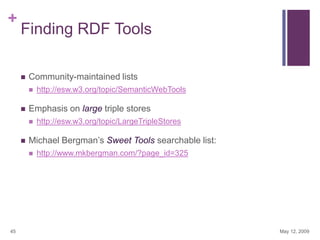

Finding RDF Tools

Community-maintained lists


Emphasis on large triple stores


http://esw.w3.org/topic/LargeTripleStores
Michael Bergman‟s Sweet Tools searchable list:

45
http://esw.w3.org/topic/SemanticWebTools
http://www.mkbergman.com/?page_id=325
May 12, 2009

46. +

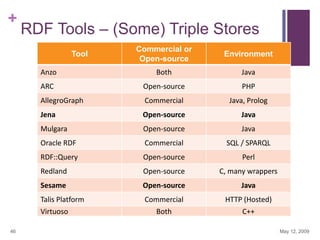

RDF Tools – (Some) Triple Stores
Commercial or
Open-source
Environment
Anzo
Both
Java
ARC
Open-source
PHP
AllegroGraph
Commercial
Java, Prolog
Jena
Open-source
Java
Mulgara
Open-source
Java
Oracle RDF
Commercial
SQL / SPARQL
RDF::Query
Open-source
Perl
Redland
Open-source
C, many wrappers
Sesame
Open-source
Java
Talis Platform
Commercial
HTTP (Hosted)
Both
C++
Tool
Virtuoso
46
May 12, 2009

47. +

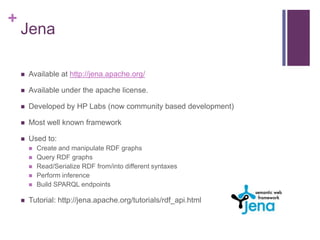

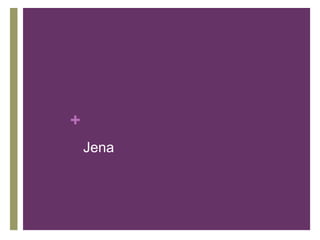

Jena

48. +
Jena

Available at http://jena.apache.org/

Available under the apache license.

Developed by HP Labs (now community based development)

Most well known framework

Used to:






Create and manipulate RDF graphs
Query RDF graphs
Read/Serialize RDF from/into different syntaxes
Perform inference
Build SPARQL endpoints
Tutorial: http://jena.apache.org/tutorials/rdf_api.html

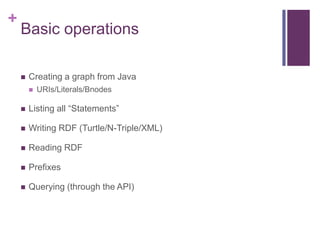

49. +
Basic operations

Creating a graph from Java

URIs/Literals/Bnodes

Listing all “Statements”

Writing RDF (Turtle/N-Triple/XML)

Reading RDF

Prefixes

Querying (through the API)

50. +

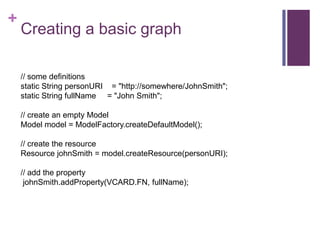

Creating a basic graph
// some definitions
static String personURI = "http://somewhere/JohnSmith";
static String fullName = "John Smith";
// create an empty Model
Model model = ModelFactory.createDefaultModel();
// create the resource
Resource johnSmith = model.createResource(personURI);
// add the property
johnSmith.addProperty(VCARD.FN, fullName);

51. +

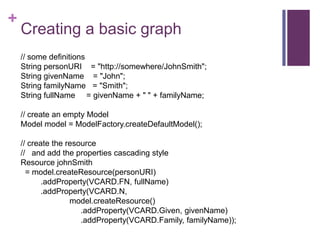

Creating a basic graph
// some definitions
String personURI = "http://somewhere/JohnSmith";
String givenName = "John";
String familyName = "Smith";
String fullName = givenName + " " + familyName;
// create an empty Model
Model model = ModelFactory.createDefaultModel();
// create the resource
// and add the properties cascading style
Resource johnSmith
= model.createResource(personURI)
.addProperty(VCARD.FN, fullName)
.addProperty(VCARD.N,
model.createResource()
.addProperty(VCARD.Given, givenName)
.addProperty(VCARD.Family, familyName));

52. +

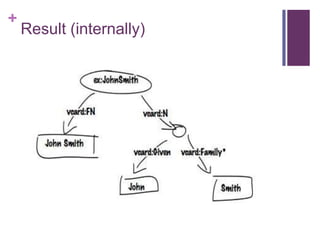

Result (internally)

53. +

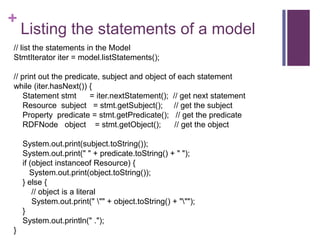

Listing the statements of a model
// list the statements in the Model
StmtIterator iter = model.listStatements();
// print out the predicate, subject and object of each statement
while (iter.hasNext()) {
Statement stmt
= iter.nextStatement(); // get next statement
Resource subject = stmt.getSubject(); // get the subject
Property predicate = stmt.getPredicate(); // get the predicate
RDFNode object = stmt.getObject();
// get the object
System.out.print(subject.toString());
System.out.print(" " + predicate.toString() + " ");
if (object instanceof Resource) {
System.out.print(object.toString());
} else {
// object is a literal
System.out.print(" "" + object.toString() + """);
}
System.out.println(" .");
}

54. +
Output
http://somewhere/JohnSmith http://www.w3.org/2001/vcard-rdf/3.0#N
anon:14df86:ecc3dee17b:-7fff .
anon:14df86:ecc3dee17b:-7fff http://www.w3.org/2001/vcard-rdf/3.0#Family
"Smith" .
anon:14df86:ecc3dee17b:-7fff http://www.w3.org/2001/vcard-rdf/3.0#Given
"John" .
http://somewhere/JohnSmith http://www.w3.org/2001/vcard-rdf/3.0#FN
"John Smith" .

55. +

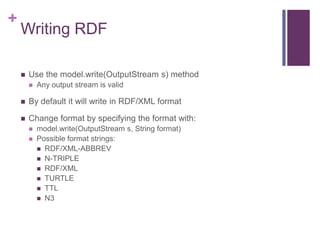

Writing RDF

Use the model.write(OutputStream s) method

Any output stream is valid

By default it will write in RDF/XML format

Change format by specifying the format with:


model.write(OutputStream s, String format)
Possible format strings:
 RDF/XML-ABBREV
 N-TRIPLE
 RDF/XML
 TURTLE
 TTL
 N3

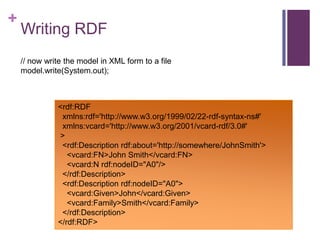

56. +
Writing RDF
// now write the model in XML form to a file
model.write(System.out);
<rdf:RDF
xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#'
xmlns:vcard='http://www.w3.org/2001/vcard-rdf/3.0#'
>
<rdf:Description rdf:about='http://somewhere/JohnSmith'>
<vcard:FN>John Smith</vcard:FN>
<vcard:N rdf:nodeID="A0"/>
</rdf:Description>
<rdf:Description rdf:nodeID="A0">
<vcard:Given>John</vcard:Given>
<vcard:Family>Smith</vcard:Family>
</rdf:Description>
</rdf:RDF>

57. +

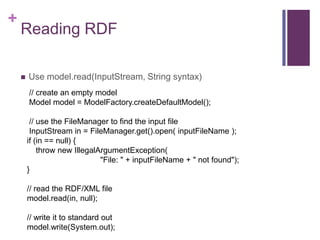

Reading RDF

Use model.read(InputStream, String syntax)
// create an empty model
Model model = ModelFactory.createDefaultModel();
// use the FileManager to find the input file
InputStream in = FileManager.get().open( inputFileName );
if (in == null) {
throw new IllegalArgumentException(
"File: " + inputFileName + " not found");
}
// read the RDF/XML file
model.read(in, null);
// write it to standard out
model.write(System.out);

58. +

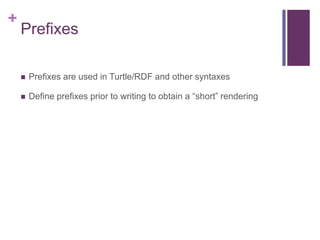

Prefixes

Prefixes are used in Turtle/RDF and other syntaxes

Define prefixes prior to writing to obtain a “short” rendering

59. +

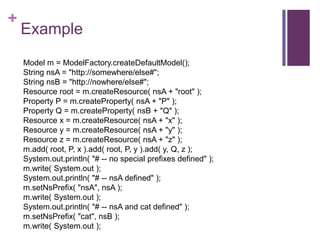

Example
Model m = ModelFactory.createDefaultModel();
String nsA = "http://somewhere/else#";
String nsB = "http://nowhere/else#";
Resource root = m.createResource( nsA + "root" );
Property P = m.createProperty( nsA + "P" );
Property Q = m.createProperty( nsB + "Q" );
Resource x = m.createResource( nsA + "x" );
Resource y = m.createResource( nsA + "y" );
Resource z = m.createResource( nsA + "z" );
m.add( root, P, x ).add( root, P, y ).add( y, Q, z );
System.out.println( "# -- no special prefixes defined" );
m.write( System.out );
System.out.println( "# -- nsA defined" );
m.setNsPrefix( "nsA", nsA );
m.write( System.out );
System.out.println( "# -- nsA and cat defined" );
m.setNsPrefix( "cat", nsB );
m.write( System.out );

60. +

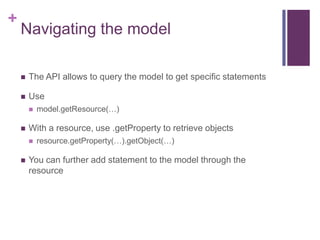

Navigating the model

The API allows to query the model to get specific statements

Use


With a resource, use .getProperty to retrieve objects


model.getResource(…)
resource.getProperty(…).getObject(…)
You can further add statement to the model through the
resource

61. // retrieve the John Smith vcard resource from the model
Resource vcard = model.getResource(johnSmithURI);
// retrieve the value of the N property
Resource name = (Resource) vcard.getProperty(VCARD.N)
.getObject();
// retrieve the value of the FN property
Resource name = vcard.getProperty(VCARD.N)
.getResource();
// retrieve the given name property
String fullName = vcard.getProperty(VCARD.FN)
.getString();

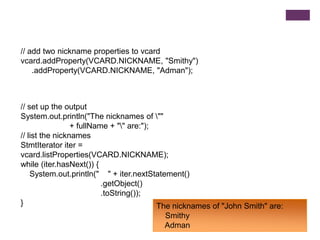

62. // add two nickname properties to vcard
vcard.addProperty(VCARD.NICKNAME, "Smithy")
.addProperty(VCARD.NICKNAME, "Adman");
// set up the output
System.out.println("The nicknames of ""
+ fullName + "" are:");
// list the nicknames
StmtIterator iter =
vcard.listProperties(VCARD.NICKNAME);
while (iter.hasNext()) {
System.out.println(" " + iter.nextStatement()
.getObject()
.toString());
}
The nicknames of "John Smith" are:
Smithy
Adman

63. +

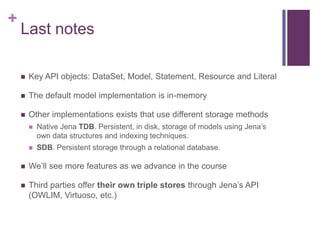

Last notes

Key API objects: DataSet, Model, Statement, Resource and Literal

The default model implementation is in-memory

Other implementations exists that use different storage methods

Native Jena TDB. Persistent, in disk, storage of models using Jena‟s
own data structures and indexing techniques.

SDB. Persistent storage through a relational database.

We‟ll see more features as we advance in the course

Third parties offer their own triple stores through Jena‟s API
(OWLIM, Virtuoso, etc.)

64. +

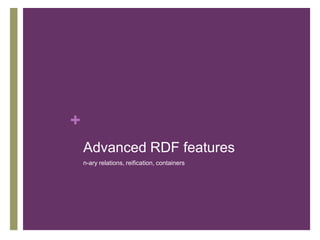

Advanced RDF features
n-ary relations, reification, containers

65. +
65
Data set “A”: A simplified book store
Sellers
<ID>
Author
ISBN0-00-651409-X
Authors
<ID>
id_xyz
id_xyz
Name
Ghosh, Amitav
<Publisher>
The Glass Palace id_qpr
Year
2000
Home page
http://www.amitavghosh.com
Sold-By
Stores
<ID>
Title
Publisher Name
<Book>
<Store>
Price
am
Amazon
ISBN0-00-651409-X
am
22.50
bn
Barnes & Nobel
ISBN0-00-651409-X
bn
21.00

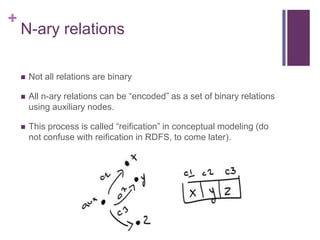

66. +
N-ary relations

Not all relations are binary

All n-ary relations can be “encoded” as a set of binary relations
using auxiliary nodes.

This process is called “reification” in conceptual modeling (do
not confuse with reification in RDFS, to come later).

67. +
67
Data set “A”: A simplified book store
Sellers
ID
ISBN0-00651409-X
Authors
ID
id_xyz
Author
id_xyz
The Glass Palace
Name
Ghosh, Amitav
Publisher
id_qpr
Year
2000
Home page
http://www.amitavghosh.com
Sold-By
Stores
ID
Title
Publisher Name
Book
Store
Price
am
Amazon
ISBN0-00-651409-X
am
22.50
bn
Barnes & Nobel
ISBN0-00-651409-X
bn
21.00

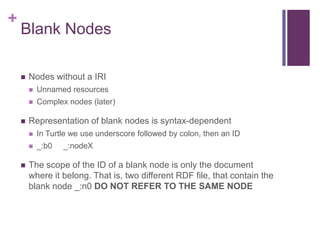

68. +
Blank Nodes

Nodes without a IRI



Unnamed resources
Complex nodes (later)
Representation of blank nodes is syntax-dependent



In Turtle we use underscore followed by colon, then an ID
_:b0
_:nodeX
The scope of the ID of a blank node is only the document
where it belong. That is, two different RDF file, that contain the
blank node _:n0 DO NOT REFER TO THE SAME NODE

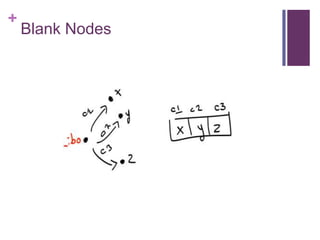

69. +
Blank Nodes

70. +
RDF Reification

How would you state in RDF:

“The detective supposes that the butler killed the gardener”

71. +
RDF Reification

How would you state in RDF:

“The detective supposes that the butler killed the gardener”

72. +

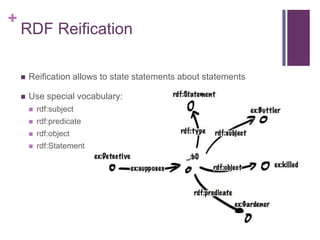

RDF Reification

Reification allows to state statements about statements

Use special vocabulary:

rdf:subject

rdf:predicate

rdf:object

rdf:Statement

73. +
RDF Reification

Reification allows to state statements about statements

Use special vocabulary:

rdf:subject

rdf:predicate

rdf:object

rdf:Statement
Warning: The triple
<Buttler> <Killed> <Gardener>
Is NOT in the graph.

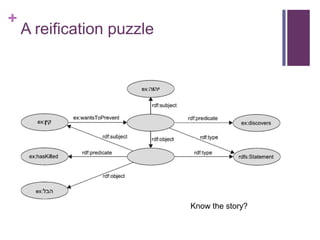

74. +
A reification puzzle
Know the story?

75. +

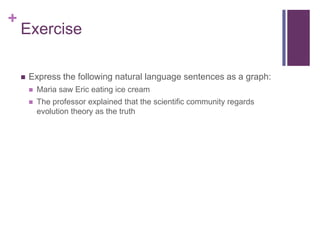

Exercise

Express the following natural language sentences as a graph:

Maria saw Eric eating ice cream

The professor explained that the scientific community regards
evolution theory as the truth

76. +
Containers

Groups of resources

rdf:Bag. Group, possibly with duplicates, no order.

rdf:Seq. Group, possibly with duplicates, order matters.

rdf:Alt. Group, indicates alternatives

Use rdf:type to indicate one type of container.

Use container membership properties to enumerate:

rdf:_1, rdf:_2, rdf:_3, …, rdf:_n

77. +
Example

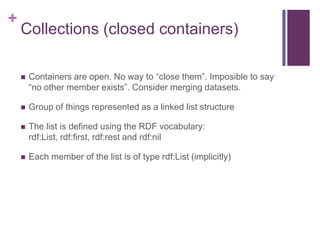

78. +
Collections (closed containers)

Containers are open. No way to “close them”. Imposible to say
“no other member exists”. Consider merging datasets.

Group of things represented as a linked list structure

The list is defined using the RDF vocabulary:
rdf:List, rdf:first, rdf:rest and rdf:nil

Each member of the list is of type rdf:List (implicitly)

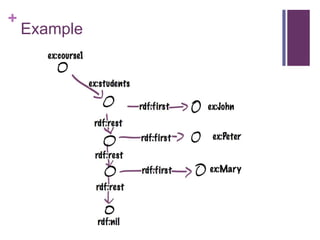

79. +
Example

80. +
Syntax
Turtle and N-Triple

81. +
Turtle

We already covered ALMOST the nuts and bolts

Missing: Blank nodes, Containers

82. +

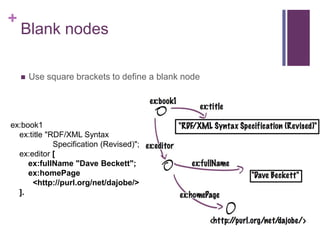

Blank nodes

Use square brackets to define a blank node
ex:book1
ex:title "RDF/XML Syntax
Specification (Revised)";
ex:editor [
ex:fullName "Dave Beckett";
ex:homePage
<http://purl.org/net/dajobe/>
].

83. +

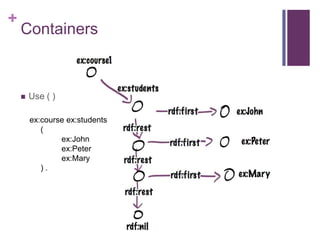

Containers

Use ( )
ex:course ex:students
(
ex:John
ex:Peter
ex:Mary
).

84. +
Turtle

Advantages and uses:

Easy to read and write manually or programmatically

Good performance for IO, supported by many tools

Turtle is not a W3C recommendation YET

85. +
N-Triples

Turtle minus:

No prefix definitions are allowed

No reference shortcuts (semi-colon, comma)

Every other shortcut 

Very simple to parse/generate (even through scripts)

Supported by most tools

VERY verbose. Wastes space/IO (problem is reduced with
compression)

86. +

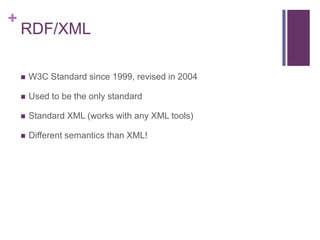

RDF/XML

W3C Standard since 1999, revised in 2004

Used to be the only standard

Standard XML (works with any XML tools)

Different semantics than XML!
