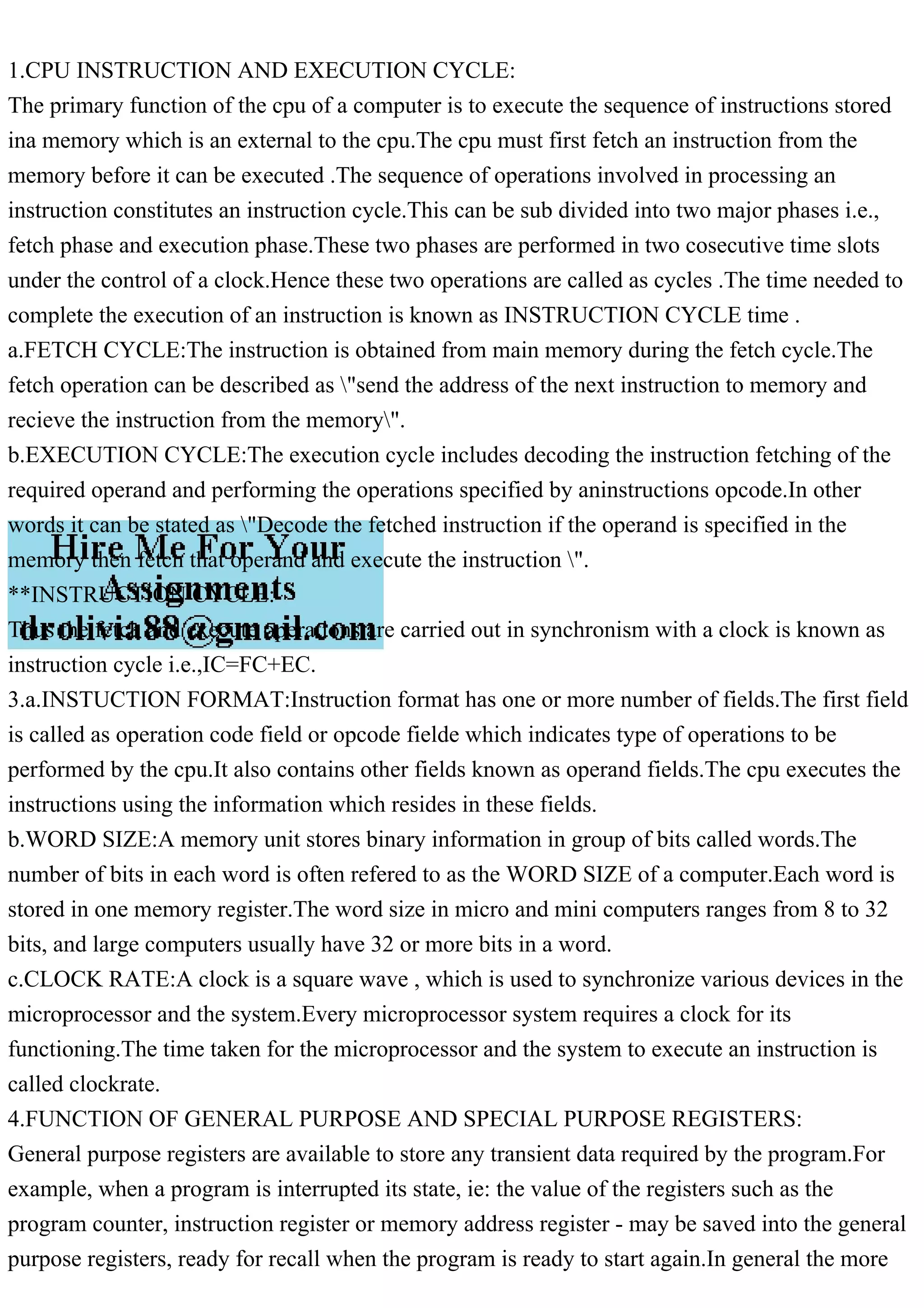

1.CPU INSTRUCTION AND EXECUTION CYCLE:
The primary function of the cpu of a computer is to execute the sequence of instructions stored
ina memory which is an external to the cpu.The cpu must first fetch an instruction from the
memory before it can be executed .The sequence of operations involved in processing an
instruction constitutes an instruction cycle.This can be sub divided into two major phases i.e.,
fetch phase and execution phase.These two phases are performed in two cosecutive time slots
under the control of a clock.Hence these two operations are called as cycles .The time needed to
complete the execution of an instruction is known as INSTRUCTION CYCLE time .
a.FETCH CYCLE:The instruction is obtained from main memory during the fetch cycle.The
fetch operation can be described as \"send the address of the next instruction to memory and
recieve the instruction from the memory\".
b.EXECUTION CYCLE:The execution cycle includes decoding the instruction fetching of the
required operand and performing the operations specified by aninstructions opcode.In other
words it can be stated as \"Decode the fetched instruction if the operand is specified in the
memory then fetch that operand and execute the instruction \".
**INSTRUCTION CYCLE:
Thus the fetch and execute operations are carried out in synchronism with a clock is known as
instruction cycle i.e.,IC=FC+EC.
3.a.INSTUCTION FORMAT:Instruction format has one or more number of fields.The first field
is called as operation code field or opcode fielde which indicates type of operations to be
performed by the cpu.It also contains other fields known as operand fields.The cpu executes the
instructions using the information which resides in these fields.
b.WORD SIZE:A memory unit stores binary information in group of bits called words.The
number of bits in each word is often refered to as the WORD SIZE of a computer.Each word is
stored in one memory register.The word size in micro and mini computers ranges from 8 to 32
bits, and large computers usually have 32 or more bits in a word.
c.CLOCK RATE:A clock is a square wave , which is used to synchronize various devices in the
microprocessor and the system.Every microprocessor system requires a clock for its
functioning.The time taken for the microprocessor and the system to execute an instruction is
called clockrate.
4.FUNCTION OF GENERAL PURPOSE AND SPECIAL PURPOSE REGISTERS:
General purpose registers are available to store any transient data required by the program.For
example, when a program is interrupted its state, ie: the value of the registers such as the
program counter, instruction register or memory address register - may be saved into the general
purpose registers, ready for recall when the program is ready to start again.In general the more
registers a CPU has available, the faster it can work.
A Special Function Register (or Special Purpose Register, or simply Special Register) is a
register within a microprocessor, which controls or mon.
