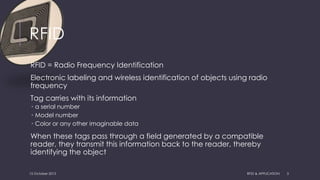

3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects using radio
frequency
Tag carries with its information
a serial number
Model number
Color or any other imaginable data
When these tags pass through a field generated by a compatible
reader, they transmit this information back to the reader, thereby
identifying the object
15 October 2015 RFID & APPLICATION 3

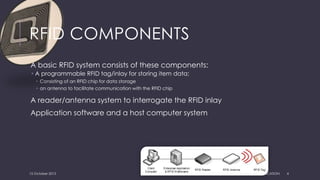

4. RFID COMPONENTS
A basic RFID system consists of these components:
A programmable RFID tag/inlay for storing item data;
Consisting of an RFID chip for data storage
an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system
15 October 2015 RFID & APPLICATION 4

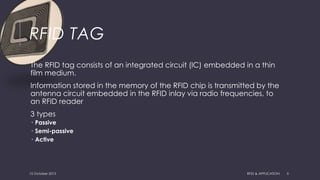

5. RFID TAG
The RFID tag consists of an integrated circuit (IC) embedded in a thin
film medium.
Information stored in the memory of the RFID chip is transmitted by the
antenna circuit embedded in the RFID inlay via radio frequencies, to
an RFID reader
3 types
Passive
Semi-passive
Active
15 October 2015 RFID & APPLICATION 5

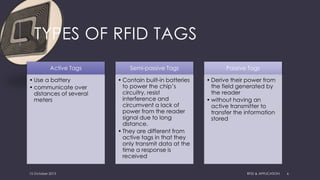

6. TYPES OF RFID TAGS
Active Tags
• Use a battery
• communicate over
distances of several
meters
Semi-passive Tags
• Contain built-in batteries
to power the chip’s
circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
• They are different from
active tags in that they
only transmit data at the
time a response is
received
Passive Tags
• Derive their power from
the field generated by
the reader
• without having an
active transmitter to
transfer the information
stored
15 October 2015 RFID & APPLICATION 6

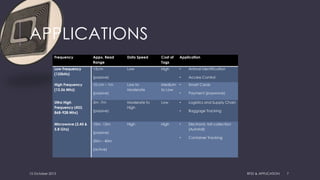

7. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Medium
to Low

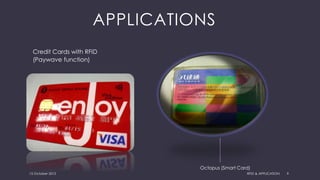

• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking
15 October 2015 RFID & APPLICATION 7

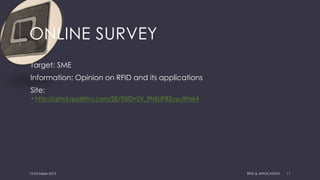

11. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4
15 October 2015 RFID & APPLICATION 11
12. SURVEY RESULT
15 October 2015 RFID & APPLICATION 12
6%
23%
24%
29%
6%
12%
Types of the companies answersing the questionnaire
Education Manufacturing Retailing Warehousing Transportation Others
15. CONCLUSION
Positive
RFID is a contactless reading technology and can read through other
materials
Hold more data than barcode does
RFID tags data can be changed or added
More effective, bring lots of convenience to us
Negative
Cost is relatively remain high (compare to barcode)
RFID signals may have problems with some materials
RFID standards are still being developed
15 October 2015 RFID & APPLICATION 15
