1. RFID APPLICATION
Tsang Chun Yin(15222845)
15 October 2015
Thursday, October 15, 2015RFID & its Applications
1

2. Thursday, October 15, 2015RFID & its Applications
2

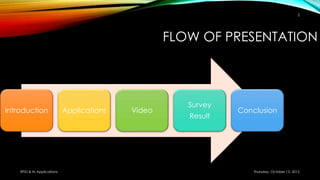

FLOW OF PRESENTATION
Introduction Applications Video
Survey
Result
Conclusion

3. RFID
• RFID = Radio Frequency Identification
• Electronic labeling and wireless identification of objects using radio
frequency
• Tag carries with its information
• a serial number
• Model number
• Color or any other imaginable data
• When these tags pass through a field generated by a compatible reader,
they transmit this information back to the reader, thereby identifying the
object
Thursday, October 15, 2015RFID & its Applications
3

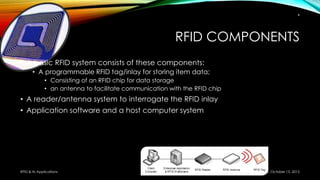

4. RFID COMPONENTS
• A basic RFID system consists of these components:
• A programmable RFID tag/inlay for storing item data;
• Consisting of an RFID chip for data storage
• an antenna to facilitate communication with the RFID chip
• A reader/antenna system to interrogate the RFID inlay
• Application software and a host computer system
Thursday, October 15, 2015RFID & its Applications
4

5. RFID TAG
• The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
• Information stored in the memory of the RFID chip is transmitted by the
antenna circuit embedded in the RFID inlay via radio frequencies, to an RFID
reader
• 3 types
• Passive
• Semi-passive
• Active
Thursday, October 15, 2015RFID & its Applications
5

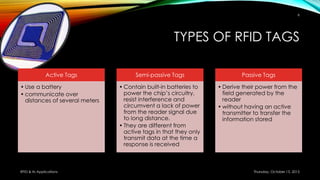

6. TYPES OF RFID TAGS
Active Tags
• Use a battery
• communicate over
distances of several meters
Semi-passive Tags
• Contain built-in batteries to
power the chip’s circuitry,
resist interference and
circumvent a lack of power
from the reader signal due
to long distance.
• They are different from
active tags in that they only
transmit data at the time a
response is received
Passive Tags
• Derive their power from the
field generated by the
reader
• without having an active
transmitter to transfer the
information stored
Thursday, October 15, 2015RFID & its Applications
6

7. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Mediu
m to
Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply
Chain
• Baggage Tracking
Microwave (2.45
& 5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll
collection (Autotoll)
• Container Tracking
Thursday, October 15, 2015RFID & its Applications
7

8. CURRENT APPLICATIONS
Thursday, October 15, 2015RFID & its Applications
8

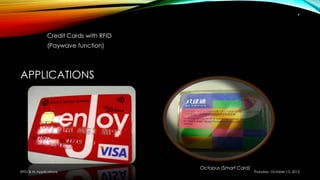

9. APPLICATIONS
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)
Thursday, October 15, 2015RFID & its Applications
9

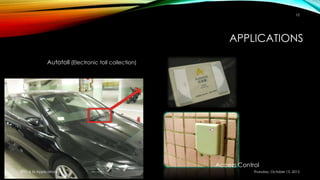

10. APPLICATIONS
Autotoll (Electronic toll collection)
Access Control
Thursday, October 15, 2015RFID & its Applications
10

11. ONLINE SURVEY
• Target: SME
• Information: Opinion on RFID and its applications
• Site:
• http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk
4
Thursday, October 15, 2015RFID & its Applications
11

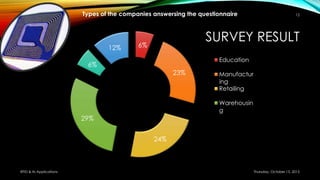

12. SURVEY RESULT
Thursday, October 15, 2015RFID & its Applications
12
6%
23%
24%
29%
6%
12%
Types of the companies answersing the questionnaire
Education
Manufactur
ing
Retailing
Warehousin
g

13. FURTHER DEVELOPMENT
• In medical uses and library management
Thursday, October 15, 2015RFID & its Applications
13

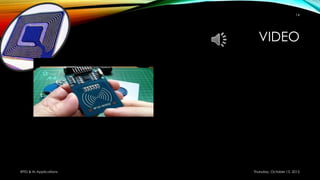

14. VIDEO
Thursday, October 15, 2015RFID & its Applications
14

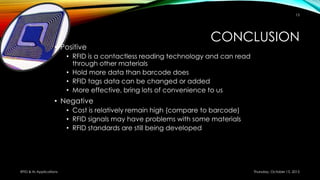

15. CONCLUSION
• Positive
• RFID is a contactless reading technology and can read
through other materials
• Hold more data than barcode does
• RFID tags data can be changed or added
• More effective, bring lots of convenience to us
• Negative
• Cost is relatively remain high (compare to barcode)
• RFID signals may have problems with some materials
• RFID standards are still being developed
