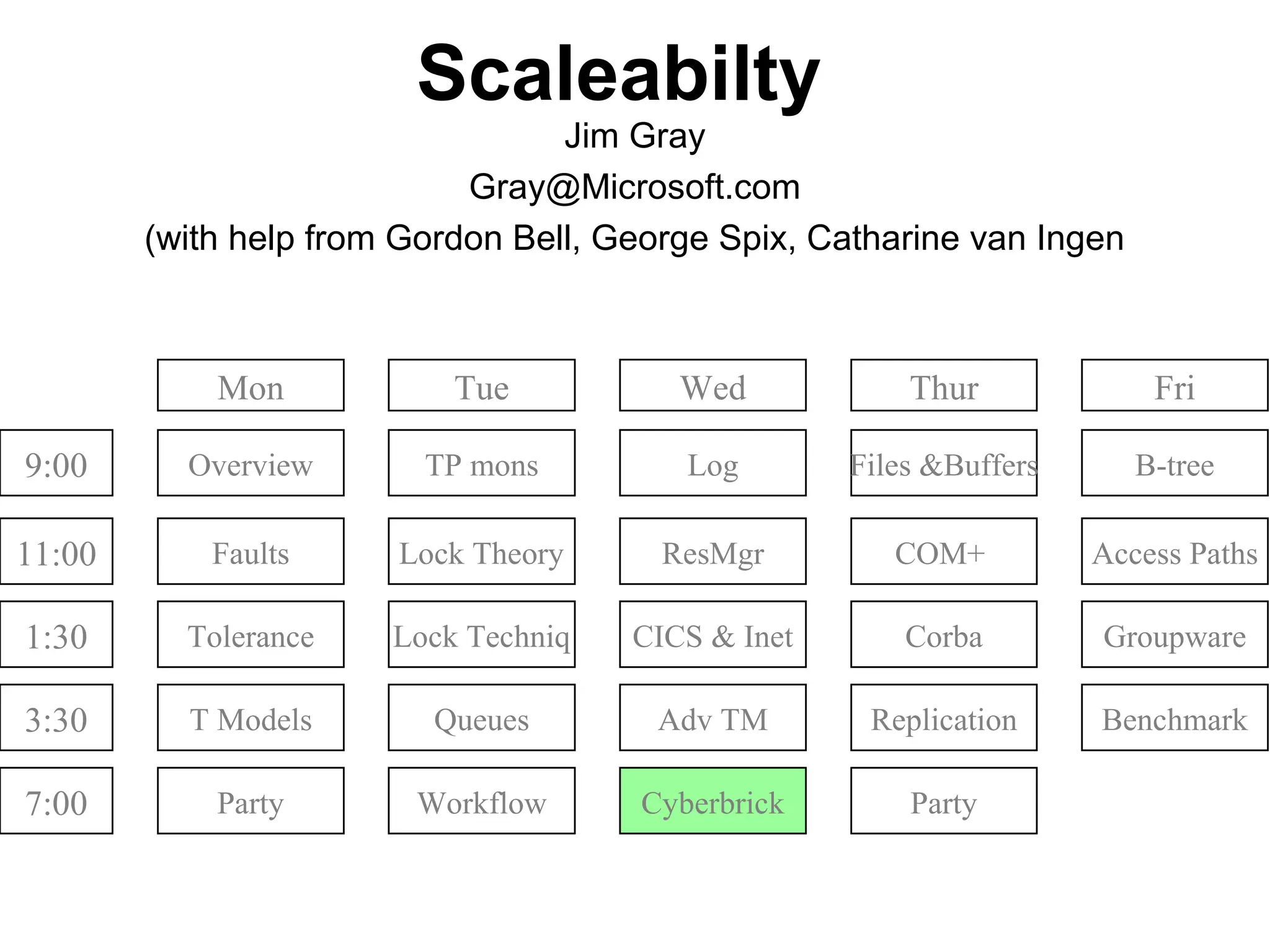

Scaleabilty
Jim Gray
Gray@Microsoft.com
(with help from Gordon Bell, George Spix, Catharine van Ingen
9:00
11:00
1:30
3:30
7:00
Overview
Faults
Tolerance
T Models
Party
TP mons
Lock Theory
Lock Techniq
Queues
Workflow
Log
ResMgr
CICS & Inet
Adv TM
Cyberbrick
Files &Buffers
COM+
Corba
Replication
Party
B-tree
Access Paths
Groupware
Benchmark
Mon Tue Wed Thur Fri

A peta-op business app?
• P&G and friends pay for the web (like they paid
for broadcast television) – no new money, but
given Moore, traditional advertising revenues can
pay for all of our connectivity - voice, video,
data…… (presuming we figure out how to & allow
them to brand the experience.)
• Advertisers pay for impressions and ability to
analyze same.
• A terabyte sort a minute – to one a second.
• Bisection bw of ~20gbytes/s – to ~200gbytes/s.
• Really a tera-op business app (today’s portals)

Scaleability
Scale Up and Scale Out
SMPSMP
Super ServerSuper Server
DepartmentalDepartmental
ServerServer
PersonalPersonal
SystemSystem
Grow Up with SMPGrow Up with SMP
4xP6 is now standard4xP6 is now standard
Grow Out with ClusterGrow Out with Cluster
Cluster has inexpensive partsCluster has inexpensive parts
Cluster
of PCs

There'll be Billions Trillions Of Clients
• Every device will be “intelligent”
• Doors, rooms, cars…
• Computing will be ubiquitous

Billions Of Clients
Need Millions Of Servers
MobileMobile
clientsclients
FixedFixed
clientsclients
ServerServer
SuperSuper
serverserver
ClientsClients
ServersServers
 All clients networkedAll clients networked
to serversto servers
 May be nomadicMay be nomadic
or on-demandor on-demand
 Fast clients wantFast clients want
fasterfaster serversservers
 Servers provideServers provide
 Shared DataShared Data
 ControlControl
 CoordinationCoordination
 CommunicationCommunication
Trillions
Billions

Thesis
Many little beat few big
 Smoking, hairy golf ballSmoking, hairy golf ball
 How to connect the many little parts?How to connect the many little parts?
 How to program the many little parts?How to program the many little parts?
 Fault tolerance & Management?Fault tolerance & Management?
$1$1
millionmillion $100 K$100 K $10 K$10 K
MainframeMainframe MiniMini
MicroMicro NanoNano
14"14"
9"9"
5.25"5.25" 3.5"3.5" 2.5"2.5" 1.8"1.8"
1 M SPECmarks, 1TFLOP1 M SPECmarks, 1TFLOP
101066
clocks to bulk ramclocks to bulk ram
Event-horizon on chipEvent-horizon on chip
VM reincarnatedVM reincarnated
Multi-program cache,Multi-program cache,
On-Chip SMPOn-Chip SMP
10 microsecond ram
10 millisecond disc
10 second tape archive
10 nano-second ram
Pico Processor
10 pico-second ram
1 MM
3
100 TB
1 TB
10 GB
1 MB
100 MB

4 B PC’s (1 Bips, .1GB dram, 10 GB disk 1 Gbps Net, B=G)
The Bricks of Cyberspace• Cost 1,000 $
• Come with
– NT
– DBMS
– High speed Net
– System management
– GUI / OOUI
– Tools
• Compatible with everyone else
• CyberBricks

Computers shrink to a point
• Disks 100x in 10 years
2 TB 3.5” drive
• Shrink to 1” is 200GB
• Disk is super computer!
• This is already true of
printers and “terminals”
Kilo
Mega
Giga
Tera
Peta
Exa
Zetta
Yotta

Super Server: 4T Machine
 Array of 1,000 4B machinesArray of 1,000 4B machines
1 b ips processors1 b ips processors
1 B B DRAM1 B B DRAM
10 B B disks10 B B disks
1 Bbps comm lines1 Bbps comm lines
1 TB tape robot1 TB tape robot
 A few megabucksA few megabucks
 Challenge:Challenge:
ManageabilityManageability
ProgrammabilityProgrammability
SecuritySecurity
AvailabilityAvailability
ScaleabilityScaleability
AffordabilityAffordability
 As easy as a single systemAs easy as a single system
Future servers are CLUSTERSFuture servers are CLUSTERS
of processors, discsof processors, discs
Distributed database techniquesDistributed database techniques
make clusters workmake clusters work
CPU
50 GB Disc
5 GB RAM
Cyber BrickCyber Brick
a 4B machinea 4B machine

Cluster Vision
Buying Computers by the Slice
• Rack & Stack
– Mail-order components
– Plug them into the cluster
• Modular growth without limits
– Grow by adding small modules
• Fault tolerance:
– Spare modules mask failures
• Parallel execution & data search
– Use multiple processors and disks
• Clients and servers made from the same stuff
– Inexpensive: built with
commodity CyberBricks

Systems 30 Years Ago
• MegaBuck per Mega Instruction Per Second (mips)
• MegaBuck per MegaByte
• Sys Admin & Data Admin per MegaBuck

Disks of 30 Years Ago
• 10 MB
• Failed every few weeks

1988: IBM DB2 + CICS Mainframe
65 tps
• IBM 4391
• Simulated network of 800 clients
• 2m$ computer
• Staff of 6 to do benchmark
2 x 3725
network controllers
16 GB
disk farm
4 x 8 x .5GB
Refrigerator-sized CPU

1987: Tandem Mini @ 256 tps
• 14 M$ computer (Tandem)
• A dozen people (1.8M$/y)
• False floor, 2 rooms of machines
Simulate 25,600
clients
32 node processor array
40 GB
disk array (80 drives)
OS expert
Network expert
DB expert
Performance
expert
Hardware experts
Admin expert
Auditor
Manager

1997: 9 years later
1 Person and 1 box = 1250 tps
• 1 Breadbox ~ 5x 1987 machine room
• 23 GB is hand-held
• One person does all the work
• Cost/tps is 100,000x less
5 micro dollars per transaction
4x200 Mhz cpu
1/2 GB DRAM
12 x 4GB disk
Hardware expert
OS expert
Net expert
DB expert
App expert
3 x7 x 4GB
disk arrays

mainframe
mini
micro
time
price
What Happened?
Where did the 100,000x come from?
• Moore’s law: 100X (at most)
• Software improvements: 10X (at most)
• Commodity Pricing: 100X (at least)
• Total 100,000X
• 100x from commodity
– (DBMS was 100K$ to start: now 1k$ to start
– IBM 390 MIPS is 7.5K$ today
– Intel MIPS is 10$ today
– Commodity disk is 50$/GB vs 1,500$/GB
– ...

SGI O2K UE10K DELL 6350 Cray T3E IBM SP2 PoPC
per sqft
cpus 2.1 4.7 7.0 4.7 5.0 13.3
specint 29.0 60.5 132.7 79.3 72.3 253.3
ram 4.1 4.7 7.0 0.6 5.0 6.8 gb
disks 1.3 0.5 5.2 0.0 2.5 13.3
Standard package, full height, fully populated, 3.5” disks
HP, DELL, Compaq are trading places wrt rack mount lead
PoPC – Celeron NLX shoeboxes – 1000 nodes in 48 (24x2) sq ft.
$650K from Arrow (3yr warrantee!) on chip at speed L2
Web & server farms, server consolidation / sqft
http://www.exodus.com (charges by mbps times sqft)

General purpose, non-
parallelizable codes
PCs have it!
Vectorizable
Vectorizable & //able
(Supers & small DSMs)
Hand tuned, one-of
MPP course grain
MPP embarrassingly //
(Clusters of PCs)
Database
Database/TP
Web Host
Stream Audio/Video
Technical
Commercial
Application
Taxonomy
If central control & rich
then IBM or large SMPs
else PC Clusters

Peta scale w/
traditional balance
2000 2010
1 PIPS processors
1015
ips
106
cpus @109
ips
104
cpus @1011
ips
10 PB of DRAM 108
chips @107
bytes
106
chips @109
bytes
10 PBps memory
bandwidth
1 PBps IO
bandwidth
108
disks 107
Bps
107
disks 108
Bps
100 PB of disk
storage
105
disks 1010
B 103
disks 1012
B
10 EB of tape
storage
107
tapes 1010
B 105
tapes 1012
B
10x every 5 years, 100x every 10 (1000x in 20 if SC)
Except --- memory & IO bandwidth

I think there is a worldI think there is a world
market for maybe fivemarket for maybe five
computers.computers.
““
””
Thomas Watson Senior,
Chairman of IBM, 1943

Microsoft.com: ~150x4 nodes: a crowd
(3)
Switched
Ethernet
Switched
Ethernet
www.microsoft.com
(3)
search.microsoft.com
(1)
premium.microsoft.com
(1)
European Data Center
FTP
Download Server
(1)
SQL SERVERS
(2)
Router
msid.msn.com
(1)
MOSWest
Admin LAN
SQLNet
Feeder LAN
FDDI Ring
(MIS4)
Router
www.microsoft.com
(5)
Building 11
Live SQL Server
Router
home.microsoft.com
(5)
FDDI Ring
(MIS2)
www.microsoft.com
(4)
activex.microsoft.com
(2)
(3)
register.microsoft.com
(2)
msid.msn.com
(1)
FDDI Ring
(MIS3)
www.microsoft.com
(3)
(1)
msid.msn.com
(1)
FDDI Ring
(MIS1)
www.microsoft.com
(4)
(2)
(2)
msid.msn.com
(1) Primary
Gigaswitch
Secondary
Gigaswitch
Staging Servers
(7)
support.microsoft.com
(2)
register.msn.com
(2)
MOSWest
DMZ Staging Servers
(1)
HTTP
Download Servers
(2) Router
(2)
SQL SERVERS
(2)
msid.msn.com
(1)
FTP
Download Server
(1)Router
Router
Router
Router
Router
Router
Router
Router
Internal WWW
SQL Reporting
home.microsoft.com
(4)
home.microsoft.com
(3)
home.microsoft.com
(2)
(1)
support.microsoft.com
(1)
Internet
13
DS3
(45 Mb/Sec Each)
2
OC3
(100Mb/Sec Each)
2
Ethernet
(100 Mb/Sec Each)
cdm.microsoft.com
(1)
FTP Servers
Download
Replication
Ave CFG:4xP6,
512 RAM,
160 GB HD
Ave Cost:$83K
FY98 Fcst:12
Ave CFG:4xP5,
256 RAM,
12 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
50 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6
512 RAM
28 GB HD
Ave CFG:4xP6,
256 RAM,
30 GB HD
Ave Cost:$25K
FY98 Fcst:2
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
50 GB HD
Ave CFG:4xP5,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
160 GB HD
Ave CFG:4xP6,
Ave CFG:4xP5,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave Cost:$28K
FY98 Fcst:7
Ave CFG:4xP5,
256 RAM,
20 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
50 GB HD
Ave CFG:4xP6,
512 RAM,
160 GB HD
Ave CFG:4xP6,
512 RAM,
160 GB HD
FTP.microsoft.com
(3)
Ave CFG:4xP5,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6,
512 RAM,
30 GB HD
Ave CFG:4xP6,
1 GB RAM,
160 GB HD
Ave Cost:$83K
FY98 Fcst:2
IDC Staging Servers
Live SQL Servers
SQL Consolidators
Japan Data Center
Internet
Internet
www.microsoft.com
(3)
Ave CFG:4xP6,
512 RAM,
50 GB HD

HotMail (a year ago):
~400 Computers Crowd (now 2x bigger)
Local
Director
Front Door
(P-200, 128MB)
140 +10/mo
FreeBSD/Apache
200MBpsInternetlink
Graphics
15xP6
FreeBSD/Hotmail
Ad
10xP6
FreeBSD/Apache
Incoming Mail
25xP-200
FreeBSD/hm-SMTP
Local
Director
Local
Director
Local
Director
Security
2xP200-FreeBSD
Member Dir
U Store
E3k,xxMB, 384GB RAID5 +
DLT tape robot
Solaris/HMNNFS
50 machines, many old
13 + 1.5/mo 1 per million users
Ad Pacer
3 P6
FreeBSD
Cisco
Catalyst 5000
Enet Switch
Local10MbpsSwitchedEthernet
M Serv
(SPAC Ultra-1, ??MB)
4- replicas
Solaris
Telnet
Maintenance
Interface

DB Clusters (crowds)
• 16-node Cluster
– 64 cpus
– 2 TB of disk
– Decision support
• 45-node Cluster
– 140 cpus
– 14 GB DRAM
– 4 TB RAID disk
– OLTP (Debit Credit)
• 1 B tpd (14 k tps)

The
Microsoft TerraServer Hardware
• Compaq AlphaServer 8400Compaq AlphaServer 8400
• 8x400Mhz Alpha cpus8x400Mhz Alpha cpus
• 10 GB DRAM10 GB DRAM
• 324 9.2 GB StorageWorks Disks324 9.2 GB StorageWorks Disks
– 3 TB raw, 2.4 TB of RAID53 TB raw, 2.4 TB of RAID5
• STK 9710 tape robot (4 TB)STK 9710 tape robot (4 TB)
• WindowsNT 4 EE, SQL Server 7.0WindowsNT 4 EE, SQL Server 7.0

TerraServer: Lots of Web Hits
• A billion web hits!
• 1 TB, largest SQL DB on the Web
• 100 Qps average, 1,000 Qps peak
• 877 M SQL queries so far
Sessions 10 m 77 k 125 k
71 Total Average Peak
Hits 1,065 m 8.1 m 29 m
Queries 877 m 6.7 m 18 m
Images 742 m 5.6m 15 m
Page Views 170 m 1.3 m 6.6 m
Users 6.4 m 48 k 76 k
0
5
10
15
20
25
30
35
6/22/98
6/29/987/6/987/13/987/20/987/27/988/3/988/10/988/17/988/24/988/31/989/7/989/14/989/21/989/28/9810/5/98
10/12/98
10/19/98
10/26/98
Date
Count
Sessions
Hit
Page View
DB Query

TerraServer Availability
• Operating for 13 months
• Unscheduled outage: 2.9 hrs
• Scheduled outage: 2.0 hrs
Software upgrades
• Availability:
99.93% overall up
• No NT failures (ever)
• One SQL7 Beta2 bug
• One major operator-assisted
outage

Backup / Restore
•
Configuration
StorageTek TimberWolf 9710
DEC StorageWorks UltraSCSI Raid-5 Array
Legato Networker PowerEdition 4.4a
Windows NT Server Enterprise Edition 4.0
Performance
Data Bytes Backed Up 1.2 TB
Total Time 7.25 Hours
Number of Tapes Consumed 27 tapes
Total Tape Drives 10 drives
Data ThroughPut 168 GB/Hour
Average ThroughPut Per Device 16.8 GB/Hour
Average Throughput Per Device 4.97 MB/Sec
NTFS Logical Volumes 2

tpmC vs Time
0
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
Jan-
95
Jan-
96
Jan-
97
Jan-
98
Jan-
99
Jan-
00
tpmC
h
Unix
NT
Windows NT Versus UNIX
Best Results on an SMP: SemiLog plot shows 3x (~2 year) lead by UNIX
Does not show Oracle/Alpha Cluster at 100,000 tpmC
All these numbers are off-scale huge (40,000 active users?)
tpmC vs Time
1,000
10,000
100,000
Jan-
95
Jan-
96
Jan-
97
Jan-
98
Jan-
99
Jan-
00
tpmC
h
Unix
NT

TPC C Improvements (MS SQL)
250%/year on Price,
100%/year performance
bottleneck is 3GB address space
1.5
2.755676
$/tpmC vs time
$10
$100
$1,000
Jan-94 Jan-95 Jan-96 Jan-97 Jan-98 Dec-98
$/tpmC
tpmC vs time
100
1,000
10,000
100,000
Jan-94 Jan-95 Jan-96 Jan-97 Jan-98 Dec-98
tpmC
40% hardware,40% hardware,
100% software,100% software,
100% PC Technology100% PC Technology

UNIX (dis) Economy Of Scale
Bang for the Buck
tpmC/K$
0
5
10
15
20
25
30
35
40
45
50
0 10,000 20,000 30,000 40,000 50,000 60,000
tpmC
tpmC/k$
Informix
MS SQL Server
Oracle
Sybase

Two different pricing regimes
This is late 1998 prices
TPC Price/tpmC
47
53
61
9
17.0
45
35
30
7
12
8
17
4 5 3
0
10
20
30
40
50
60
70
processor disk software net total/10
Sequent/Oracle 89 k tpmC @ 170$/tpmC
Sun Oracle 52 k tpmC @ 134$/tpmC
HP+NT4+MS SQL 16.2 ktpmC @ 33$/tpmC

Registers
On Chip Cache
On Board Cache
Memory
Disk
1
2
10
100
Tape /Optical
Robot
109
106
This ResortThis Resort
This Room
10 min
My Head 1 min
1.5 hrLos AngelesLos Angeles
2 YearsPluto
2,000 Years
Andromeda
Storage Latency: How far away is the data?

Thesis: Performance =Storage Accesses
not Instructions Executed
• In the “old days” we counted instructions and IO’s
• Now we count memory references
• Processors wait most of the time
SortDisc Wait
Where the time goes:
clock ticks used by AlphaSort Components
SortDisc Wait
OS
Memory Wait
D-Cache
Miss
I-Cache
MissB-Cache
Data Miss

Storage Hierarchy (10 levels)
Registers, Cache L1, L2
Main (1, 2, 3 if nUMA).
Disk (1 (cached), 2)
Tape (1 (mounted), 2)

Today’s Storage Hierarchy :
Speed & Capacity vs Cost Tradeoffs
1015
1012
109
106
103
TypicalSystem(bytes)
Size vs Speed
Access Time (seconds)
10-9 10-6 10-3 10 0 10 3
Cache
Main
Secondary
Disc
Nearline
Tape Offline
Tape
Online
Tape
104
102
100
10-2
10-4
$/MB
Price vs Speed
Access Time (seconds)
10-9 10-6 10-3 10 0 10 3
Cache
Main
Secondary
Disc
Nearline
Tape
Offline
Tape
Online
Tape

Meta-Message:
Technology Ratios Are Important
• If everything gets faster & cheaper at
the same rate
THEN nothing really changes.
• Things getting MUCH BETTER:
– communication speed & cost 1,000x
– processor speed & cost 100x
– storage size & cost 100x
• Things staying about the same
– speed of light (more or less constant)
– people (10x more expensive)
– storage speed (only 10x better)

Storage Ratios Changed
• 10x better access time
• 10x more bandwidth
• 4,000x lower media price
• DRAM/DISK 100:1 to 10:10 to 50:1
Disk Performance vs Time
1
10
100
1980 1990 2000
Year
accesstime(ms)
1
10
100
bandwidth(MB/s)
Disk Performance vs Time
(accesses/ second & Capacity)
1
10
100
1980 1990 2000
Year
Accessesper
Second
0.1
1
10
DiskCapackty
(GB)
Storage Price vs Time
0.01
0.1
1
10
100
1000
10000
1980 1990 2000
Year
$/MB

The Pico Processor
1 M SPECmarks
106
clocks/
fault to bulk ram
Event-horizon on chip.
VM reincarnated
Multi-program cache
Terror Bytes!
10 microsecond ram
10 millisecond disc
10 second tape archive 100 petabyte
100 terabyte
1 terabyte
Pico Processor
10 pico-second ram
1 MM
3
megabyte
10 nano-second ram 10 gigabyte

Bottleneck Analysis
• Drawn to linear scale
Theoretical
Bus Bandwidth
422MBps = 66 Mhz x 64 bits
Memory
Read/Write
~150 MBps
MemCopy
~50 MBps
Disk R/W
~9MBps

Bottleneck Analysis
• NTFS Read/Write
• 18 Ultra 3 SCSI on 4 strings (2x4 and 2x5)
3 PCI 64
~ 155 MBps Unbuffered read (175 raw)
~ 95 MBps Unbuffered write
Good, but 10x down from our UNIX brethren (SGI, SUN)
Memory
Read/Write
~250 MBps
PCI
~110 MBps
Adapter
~70 MBps
PCI
Adapter
Adapter
Adapter
155MBps

PennySort
• Hardware
– 266 Mhz Intel PPro
– 64 MB SDRAM (10ns)
– Dual Fujitsu DMA 3.2GB EIDE disks
• Software
– NT workstation 4.3
– NT 5 sort
• Performance
– sort 15 M 100-byte records (~1.5 GB)
– Disk to disk
– elapsed time 820 sec
• cpu time = 404 sec
PennySort Machine (1107$ )
board
13%
Memory
8%
Cabinet +
Assembly
7%
Network,
Video, floppy
9%
Software
6%
Other
22%
cpu
32%
Disk
25%

Penny Sort Ground Rules
http://research.microsoft.com/barc/SortBenchmark
• How much can you sort for a penny.
– Hardware and Software cost
– Depreciated over 3 years
– 1M$ system gets about 1 second,
– 1K$ system gets about 1,000 seconds.
– Time (seconds) = SystemPrice ($) / 946,080
• Input and output are disk resident
• Input is
– 100-byte records (random data)
– key is first 10 bytes.
• Must create output file
and fill with sorted version of input file.
• Daytona (product) and Indy (special) categories

How Good is NT5 Sort?
• CPU and IO not overlapped.
• System should be able to sort 2x more
• RAM has spare capacity
• Disk is space saturated
(1.5GB in, 1.5GB out on 3GB drive.)
Need an extra 3GB drive or a >6GB drive
CPU DiskFixed ram

Sandia/Compaq/ServerNet/NT Sort
• Sort 1.1 Terabyte
(13 Billion records)
in 47 minutes
• 68 nodes (dual 450 Mhz processors)
543 disks,
1.5 M$
• 1.2 GBps network rap
(2.8 GBps pap)
• 5.2 GBps of disk rap
(same as pap)
• (rap=real application performance,
pap= peak advertised performance)
Bisection Line (Each switch
on this line adds 3 links to
bisection width)
Y Fabric
(14 bidirectional
bisection links)
X Fabric
(10 bidirectional
bisection links)
To Y
fabric
To X
Fabric 512 MB
SDRAM
2 400 MHz
CPUs
6-port ServerNet I
crossbar switch
6-port ServerNet I
crossbar switch
Compaq Proliant 1850R
Server
4 SCSI busses,
each with 2 data
disks
The 72-Node 48-Switch ServerNet-I Topology Deployed at Sandia National Labs
PCI
Bus
ServerNet I
dual-ported
PCI NIC

SP sort
• 2 – 4 GBps!
432nodes
37racks
compute
488 nodes 55 racks
1952 processors, 732 GB RAM, 2168 disks
56nodes
18racks
Storage
Compute rack:
16 nodes, each has
4x332Mhz PowerPC604e
1.5 GB RAM
1 32x33 PCI bus
9 GB scsi disk
150MBps full duplex SP switch
Storage rack:
8 nodes, each has
1.5 GB RAM
3 32x33 PCI bus
30x4 GB scsi disk (4+1 RAID5)
56 storage nodes manage 1680 4GB disks
336 4+P twin tail RAID5 arrays (30/node)
432nodes
37racks
compute
488 nodes 55 racks
1952 processors, 732 GB RAM, 2168 disks
56nodes
18racks
Storage
Compute rack:
16 nodes, each has
1.5 GB RAM
1 32x33 PCI bus
9 GB scsi disk
Storage rack:
8 nodes, each has
1.5 GB RAM
3 32x33 PCI bus
30x4 GB scsi disk (4+1 RAID5)
56 storage nodes manage 1680 4GB disks
336 4+P twin tail RAID5 arrays (30/node)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
0 100 200 300 400 500 600 700 800 900
Elapsed time (seconds)GB/s
GPFS read
GPFS write
Local read
Local write

Progress on Sorting: NT now leads
both price and performance
• Speedup comes from Moore’s law 40%/year
• Processor/Disk/Network arrays: 60%/year
(this is a software speedup).
1.E+02
1.E+03
1.E+04
1.E+05
1.E+06
1.E+07
1.E+08
1985 1990 1995 2000
Ordinal+SGI
Sort Records/second vs Time
Bitton M68000
Cray YMP
IBM 3090
Tandem
Kitsuregawa
Hardware Sorter
Sequent Intel
HyperCube
IBM RS6000
NOW
Alpha
Penny
NTsort
Sandia/Compaq
/NT
SPsort/IB
1.E-03
1.E+00
1.E+03
1.E+06
1985 1990 1995 2000
Records Sorted per Second
Doubles Every Year
GB Sorted per Dollar
Doubles Every Year
Compaq/NTNT/PennySort
SPsort

Recent Results
• NOW Sort: 9 GB on a cluster of 100 UltraSparcs in 1 minute
• MilleniumSort: 16x Dell NT cluster: 100 MB in 1.18 Sec
(Datamation)
• Tandem/Sandia Sort: 68 CPU ServerNet
1 TB in 47 minutes
• IBM SPsort
408 nodes, 1952 cpu
2168 disks
17.6 minutes = 1057sec
(all for 1/3 of 94M$,
slice price is 64k$ for 4cpu, 2GB ram, 6 9GB disks + interconnect

Data Gravity
Processing Moves to Transducers
• Move Processing to data sources
• Move to where the power (and sheet metal) is
• Processor in
– Modem
– Display
– Microphones (speech recognition)
& cameras (vision)
– Storage: Data storage and analysis
• System is “distributed” (a cluster/mob)

Gbps SAN: 110 MBps
SAN:
Standard Interconnect
PCI: 70 MBps
UW Scsi: 40 MBps
FW scsi: 20 MBps
scsi: 5 MBps
• LAN faster than
memory bus?
• 1 GBps links in lab.
• 100$ port cost soon
• Port is computer
• Winsock: 110 MBps
(10% cpu utilization at each end)
RIP
FDDI
RIP
ATM
RIP
SCI
RIP
SCSI
RIP
FC
RIP
?

Disk = Node
• has magnetic storage (100 GB?)
• has processor & DRAM
• has SAN attachment
• has execution
environment
OS Kernel
SAN driver Disk driver
File SystemRPC, ...
Services DBMS
Applications

Standard Storage Metrics• Capacity:
– RAM: MB and $/MB: today at 10MB &
100$/MB
– Disk: GB and $/GB: today at 10 GB and
200$/GB
– Tape: TB and $/TB: today at .1TB and
25k$/TB (nearline)
• Access time (latency)
– RAM:100 ns
– Disk: 10 ms
– Tape: 30 second pick, 30 second position
• Transfer rate

SCAN?
• Kaps: How many KB objects served per
second
–The file server, transaction processing metr
–This is the OLD metric.
• Maps: How many MB objects served per
–The Multi-Media metric
• SCAN: How long to scan all the data
–The data mining and utility metric

(good 1998 devices packaged in
system
http://www.tpc.org/results/individual_results/Dell/dell.6100.9801.es.pdf)DRAM DISK TAPE robot
Unit capacity (GB) 1 18 35
Unit price $ 4000 500 10000
$/GB 4000 28 20
Latency (s) 1.E-7 1.E-2 3.E+1
Bandwidth (Mbps) 500 15 7
Kaps 5.E+5 1.E+2 3.E-2
Maps 5.E+2 13.04 3.E-2
Scan time (s/TB) 2 1200 70000
$/Kaps 9.E-11 5.E-8 3.E-3
$/Maps 8.E-8 4.E-7 3.E-3
$/TBscan $0.08 $0.35 $211
X 14

(good 1998 devices packaged in
system
http://www.tpc.org/results/individual_results/Dell/dell.6100.9801.es.pdf)4.E+03
500
5.E+05
500
2
9.E-11
8.E-08
0.08
28 15
99
13
1200
5.E-08
4.E-07
0.35
20 7
0.03 0.03
7.E+04
3.E-03 3.E-03
211
1.E-12
1.E-09
1.E-06
1.E-03
1.E+00
1.E+03
1.E+06
$/G
B
Bandw
idth
(M
bps)
Kaps
M
aps
Scan
tim
e
(s/TB)
$/Kaps
$/M
aps
$/TBscan
DRAM
DISK
TAPE robot X 14

Maps, SCANs
• parallelism: use many little devices in
parallel1 Terabyte
10 MB/s
At 10 MB/s:
1.2 days to scan
1 Terabyte
1,000 x parallel:
100 seconds SCAN.
Parallelism: divide a big problem into many smaller ones
to be solved in parallel.

a Card
The 1 TB disc card
An array of discs
Can be used as
100 discs
1 striped disc
10 Fault Tolerant discs
....etc
LOTS of accesses/second
bandwidth
14"
Life is cheap, its the accessories that cost ya.
Processors are cheap, it’s the peripherals that cost ya
(a 10k$ disc card).

Not Mainframe Silos
Scan in 27 hours.
many independent tape robots
(like a disc farm)
10K$ robot
14 tapes
500 GB
5 MB/s
20$/GB
30 Maps
100 robots
50TB
50$/GB
3K Maps
27 hr Scan
1M$

Myth
Optical is cheap: 200 $/platter
2 GB/platter
=> 100$/GB (2x cheaper than disc)
Tape is cheap: 30 $/tape
20 GB/tape
=> 1.5 $/GB (100x cheaper than disc).

Cost
Tape needs a robot (10 k$ ... 3 m$ )
10 ... 1000 tapes (at 20GB each) => 20$/GB ... 200$/GB
(1x…10x cheaper than disc)
Optical needs a robot (100 k$ )
100 platters = 200GB ( TODAY ) => 400 $/GB
( more expensive than mag disc )
Robots have poor access times
Not good for Library of Congress (25TB)
Data motel: data checks in but it never checks out!

The Access Time Myth
The Myth: seek or pick time
dominates
The reality: (1) Queuing dominates
(2) Transfer dominates
BLOBs
(3) Disk seeks often
short
Implication: many cheap servers
better than one fast expensive
server
Seek
Rotate
Transfer
Seek
Rotate
Transfer
Wait

What To Do About HIGH Availability
• Need remote MIRRORED site to tolerate
environmental failures (power, net, fire, flood)
operations failures
• Replicate changes across the net
• Failover servers across the net (some distance)
• Allows: software upgrades, site moves, fires,...
• Tolerates: operations errors, hiesenbugs,
server
client
State Changes server
>100 feet or >100 miles

Mflop/s/$K vs Mflop/s
0.001
0.010
0.100
1.000
10.000
100.000
0.1 1 10 100 1000 10000 100000
Mflop/s
Mflop/s/$K
LANL Loki P6
Linux
NAS Expanded
Linux Cluster
Cray T3E
IBM SP
SGI Origin 2000-
195
Sun Ultra
Enterprise 4000
UCB NOW
Scaleup Has Limits
(chart courtesy of Catharine Van Ingen)
• Vector Supers ~ 10x supers
– ~3 Gflops/cpu
– bus/memory ~ 20 GBps
– IO ~ 1GBps
• Supers ~ 10x PCs
– 300 Mflops/cpu
– bus/memory ~ 2 GBps
– IO ~ 1 GBps
• PCs are slow
– ~ 30 Mflops/cpu
– and bus/memory ~ 200MBps
– and IO ~ 100 MBps

TOP500 Systems by Vendor
(courtesy of Larry Smarr NCSA)
TOP500 Reports: http://www.netlib.org/benchmark/top500.html
CRI
SGI
IBM
Convex
HP
SunTMC
Intel
DEC
Japanese Vector Machines
Other
0
100
200
300
400
500 Jun-93
Nov-93
Jun-94
Nov-94
Jun-95
Nov-95
Jun-96
Nov-96
Jun-97
Nov-97
Jun-98
NumberofSystems
Other
Japanese
DEC
Intel
TMC
Sun
HP
Convex
IBM
SGI
CRI

NCSA Super ClusterNCSA Super Cluster
• National Center for Supercomputing Applications
University of Illinois @ Urbana
• 512 Pentium II cpus, 2,096 disks, SAN
• Compaq + HP +Myricom + WindowsNT
• A Super Computer for 3M$
• Classic Fortran/MPI programming
• DCOM programming model
http://access.ncsa.uiuc.edu/CoverStories/SuperCluster/super.html

Avalon: Alpha
Clusters for Science
http://cnls.lanl.gov/avalon/
140 Alpha Processors(533 Mhz)
x 256 MB + 3GB disk
Fast Ethernet switches
= 45 Gbytes RAM 550 GB disk
+ Linux…………………...
= 10 real Gflops for $313,000
=> 34 real Mflops/k$
on 150 benchmark Mflops/k$
Beowulf project is Parent
http://www.cacr.caltech.edu/beowulf/naegling.html
114 nodes, 2k$/node,
Scientists want cheap mips.

• Intel/Sandia:
9000x1 node Ppro
• LLNL/IBM:
512x8 PowerPC (SP2)
• LANL/Cray:
?
• Maui Supercomputer Center
– 512x1 SP2
Your Tax Dollars At Work
ASCI for Stockpile Stewardship

Observations
• Uniprocessor RAP << PAP
– real app performance << peak advertised performance
• Growth has slowed (Bell Prize
– 1987: 0.5 GFLOPS
– 1988 1.0 GFLOPS 1 year
– 1990: 14 GFLOPS 2 years
– 1994: 140 GFLOPS 4 years
– 1997: 604 GFLOPS
– 1998: 1600 G__OPS 4 years

Two Generic Kinds of computing
• Many little
– embarrassingly parallel
– Fit RPC model
– Fit partitioned data and computation model
– Random works OK
– OLTP, File Server, Email, Web,…..
• Few big
– sometimes not obviously parallel
– Do not fit RPC model (BIG rpcs)
– Scientific, simulation, data mining, ...

Many Little Programming Model
• many small requests
• route requests to data
• encapsulate data with procedures (objects)
• three-tier computing
• RPC is a convenient/appropriate model
• Transactions are a big help in error handling
• Auto partition (e.g. hash data and computation)
• Works fine.
• Software CyberBricks

Object Oriented Programming
Parallelism From Many Little Jobs
• Gives location transparency
• ORB/web/tpmon multiplexes clients to servers
• Enables distribution
• Exploits embarrassingly parallel apps (transactions)
• HTTP and RPC (dcom, corba, rmi, iiop, …) are basis
Tp mon / orb/ web server

Few Big Programming Model
• Finding parallelism is hard
– Pipelines are short (3x …6x speedup)
• Spreading objects/data is easy,
but getting locality is HARD
• Mapping big job onto cluster is hard
• Scheduling is hard
– coarse grained (job) and fine grain (co-schedule)
• Fault tolerance is hard

Kinds of Parallel
Execution
Pipeline
Partition
outputs split N ways
inputs merge M ways
Any
Sequential
Program
Any
Sequential
Program
Sequential
Sequential
SequentialSequential Any
Sequential
Program
Any
Sequential
Program

Why Parallel Access To
Data?
1 Terabyte
10 MB/s
At 10 MB/s
1.2 days to scan
1 Terabyte
1,000 x parallel
100 second SCAN.
Parallelism:
divide a big problem
into many smaller ones
to be solved in parallel.
BANDW
IDTH

Why are Relational
Operators
Successful for Parallelism?Relational data model uniform operators
on uniform data stream
Closed under composition
Each operator consumes 1 or 2 input streams
Each stream is a uniform collection of data
Sequential data in and out: Pure dataflow
partitioning some operators (e.g. aggregates, non-equi-join, sort,..)
requires innovation
AUTOMATIC PARALLELISM

Database Systems
“Hide” Parallelism
• Automate system management via tools
–data placement
–data organization (indexing)
–periodic tasks (dump / recover / reorganize)
• Automatic fault tolerance
–duplex & failover
–transactions
• Automatic parallelism
–among transactions (locking)
–within a transaction (parallel execution)

SQL a Non-Procedural
Programming Language
• SQL: functional programming language
describes answer set.
• Optimizer picks best execution plan
– Picks data flow web (pipeline),
– degree of parallelism (partitioning)
– other execution parameters (process placement, memory,...)
GUI
Schema
Plan
Monitor
Optimizer
ExecutionPlanning
Rivers
Executors

Partitioned
Execution
A...E F...J K...N O...S T...Z
ATable
Count Count Count Count Count
Count
Spreads computation and IO among processors
Partitioned data gives
NATURAL parallelism

N x M way
Parallelism
A...E F...J K...N O...S T...Z
Merge
Join
Sort
Join
Sort
Join
Sort
Join
Sort
Join
Sort
Merge
Merge
N inputs, M outputs, no bottlenecks.
Partitioned Data
Partitioned and Pipelined Data Flows

Automatic Parallel Object Relational DB
Select image
from landsat
where date between 1970 and 1990
and overlaps(location, :Rockies)
and snow_cover(image) >.7;
Temporal
Spatial
date loc image
Landsat
1/2/72
.
.
.
.
.
..
.
.
4/8/95
33N
120W
.
.
.
.
.
.
.
34N
120W
Assign one process per processor/disk:
find images with right data & location
analyze image, if 70% snow, return it
Answer
date, location,
& image tests

Data Rivers: Split + Merge Streams
Producers add records to the river,
Consumers consume records from the river
Purely sequential programming.
River does flow control and buffering
does partition and merge of data records
River = Split/Merge in Gamma =
Exchange operator in Volcano /SQL Server.
River
M Consumers
N producers
N X M Data Streams

Generalization: Object-oriented Rivers
• Rivers transport sub-class of record-set (= stream of objects)
– record type and partitioning are part of subclass
• Node transformers are data pumps
– an object with river inputs and outputs
– do late-binding to record-type
• Programming becomes data flow programming
– specify the pipelines
• Compiler/Scheduler does
data partitioning and
“transformer” placement

NT Cluster Sort as a Prototype
• Using
– data generation and
– sort
as a prototypical app
• “Hello world” of distributed processing
• goal: easy install & execute

Remote Install
RegConnectRegistry()
RegCreateKeyEx()
•Add Registry entry to each remote node.

Cluster StartupExecution
MULT_QI COSERVERINFO
•Setup :
MULTI_QI struct
COSERVERINFO struct
•CoCreateInstanceEx()
•Retrieve remote object handle
from MULTI_QI struct
•Invoke methods as usual
HANDLE
HANDLE
HANDLE
Sort()
Sort()
Sort()

Cluster Sort Conceptual Model
•Multiple Data Sources
•Multiple Data Destinations
•Multiple nodes
•Disks -> Sockets -> Disk -> Disk
B
AAA
BBB
CCC
A
AAA
BBB
CCC
C
AAA
BBB
CCC
BBB
BBB
BBB
AAA
AAA
AAA
CCC
CCC
CCC
BBB
BBB
BBB
AAA
AAA
AAA
CCC
CCC
CCC

How Do They Talk to Each Other?
• Each node has an OS
• Each node has local resources: A federation.
• Each node does not completely trust the others.
• Nodes use RPC to talk to each other
– CORBA? DCOM? IIOP? RMI?
– One or all of the above.
• Huge leverage in high-level interfaces.
• Same old distributed system story.
Wire(s)
h
streams
datagrams
RPC
?
Applications
VIAL/VIPL
streams
datagrams
RPC
?
Applications
