1. The Future of Tape!
Warum Sie weiterhin Tape einsetzen sollten!
Tape Storage Solutions
TAPE $AVES: COST • ENERGY • DATA • COMPANY
Josef (Sepp) Weingand
Business Development Leader DACH – Data Protection & Retention
Infos / Find me on: weingand@de.ibm.com, +49 171 5526783
http://sepp4backup.blogspot.de/
http://www.linkedin.com/pub/josef-weingand/2/788/300
http://www.facebook.com/josef.weingand
http://de.slideshare.net/JosefWeingand
https://www.xing.com/profile/Josef_Weingand
https://www.xing.com/net/ibmdataprotection
2. IBM SystemsIBM Systems
Warum Tape? Wofür Tape?
Kosten
Performance (single Stream,
Skalierbarkeit)
Sicherheit
Kapazität / Stellplatz
Roadmap
| 2
Backup
•Protecting Long Term Data & Disaster Recovery
• Using Air-Gap to protect Backup Data
• Last Line of Defense (Sicherheit)
•In Verbindung mit Disk/Flash für
Langzeitspeicherung (Kosten/Roadmap)
•Sicherung großer Datenmengen (Performance)
Archive
•Von „Content-Rich“ Daten
• Big Data / Much Data
• Wissenschaftliche / Engineering Data
• Video, Überwachung, TV, Automotive
•Cold Daten
• Unstructure Data / NAS (Never Access Storage)
• Microsoft Azure will use Tape
3. IBM SystemsIBM Systems

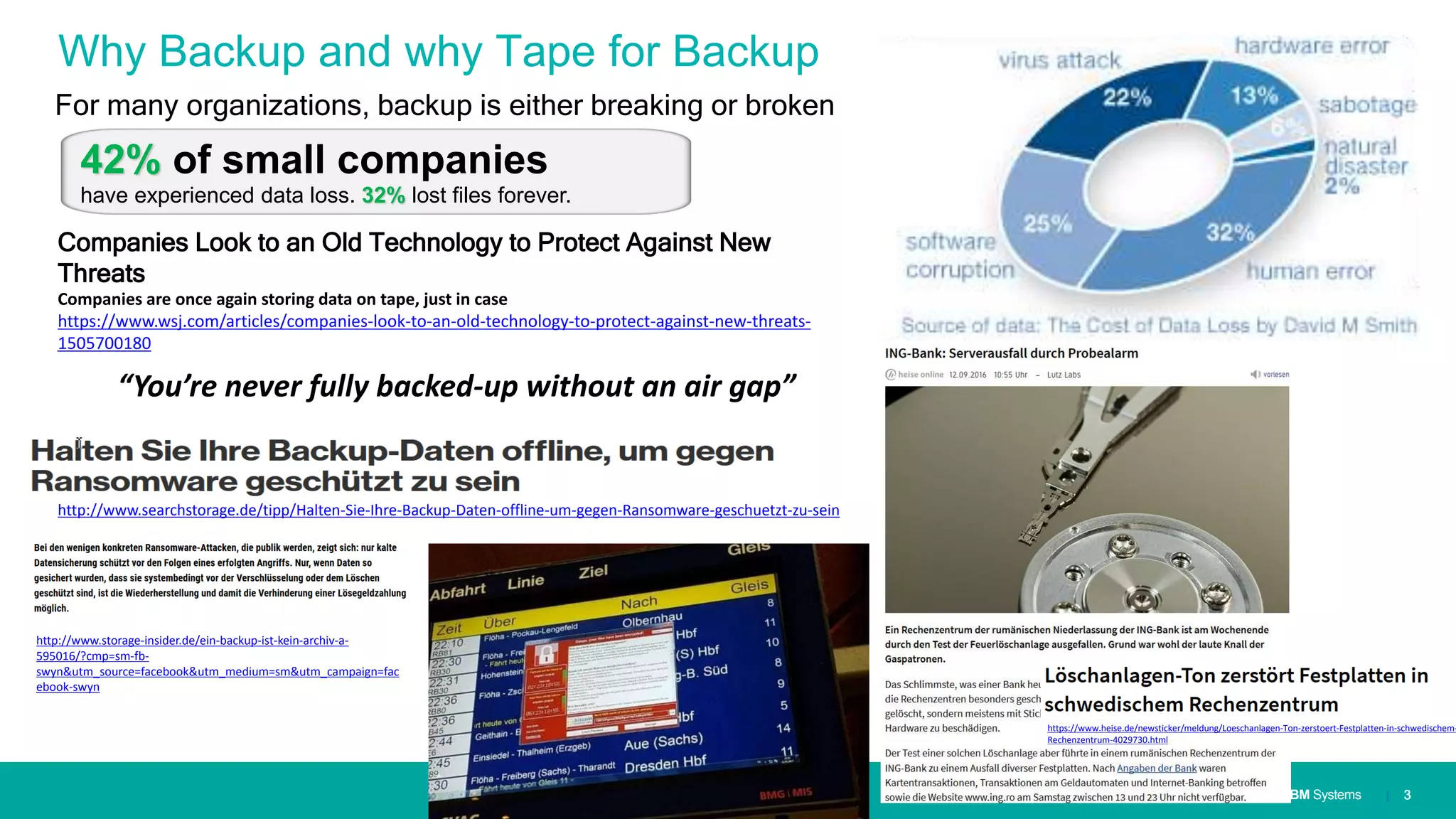

Why Backup and why Tape for Backup
For many organizations, backup is either breaking or broken
| 3
42% of small companies
have experienced data loss. 32% lost files forever.
http://www.storage-insider.de/ein-backup-ist-kein-archiv-a-
595016/?cmp=sm-fb-
swyn&utm_source=facebook&utm_medium=sm&utm_campaign=fac
ebook-swyn
http://www.searchstorage.de/tipp/Halten-Sie-Ihre-Backup-Daten-offline-um-gegen-Ransomware-geschuetzt-zu-sein
Companies Look to an Old Technology to Protect Against New
Threats
Companies are once again storing data on tape, just in case
https://www.wsj.com/articles/companies-look-to-an-old-technology-to-protect-against-new-threats-
1505700180
“You’re never fully backed-up without an air gap”
https://www.heise.de/newsticker/meldung/Loeschanlagen-Ton-zerstoert-Festplatten-in-schwedischem-
Rechenzentrum-4029730.html
4. IBM SystemsIBM Systems
Ransomware & Air Gap (=Tape)
| 4
Obviously a tape has the best air gap as it's totally disconnected from your network,
https://www.itweb.co.za/content/nG98YdqLkZAMX2PD
Tape Is Your Last Line of Defense Against Ransomware
Ransomware Attack: Tape Backups Just Made a Serious Comeback https://www.linkedin.com/pulse/ransomware-
attack-tape-backups-just-made-serious-comeback-wonski/
But the only way to create a physical air gap is to copy something to removable media and send that media offsite.
Generally speaking, this means tape. https://storageswiss.com/2017/09/07/video-can-disk-backups-have-an-air-gap/
Bottom line: Given the rising wave of cybercrime, the role of tape - based offline storage and cloud solutions taking
advantage of the “Tape Air Gap” is back in style.
• http://www.fujifilm.ca/products/tape_data_storage/case_studies/pdf/Tape_Air_Gap_Oct2017.pdf
One of the best ways to protect backups is to move to tape or other offline backups. Physical separation (air gap) is
the best protection. https://community.spiceworks.com/topic/1063448-how-to-protect-backup-from-ransom-ware-or-virus
Recently, tape has shown itself to be an effective means of providing an "air gap“ between live data and protected
data. This air gap is essential to thwarting more sophisticated ransomware and malware that attempts to corrupt live,
backup, and archive data simultaneously. While some are attempting to write-off tape, it has proven to be an
important building block of a complete modern data protection plan all at the industry's lowest cost per gigabyte.
https://www.lto.org/wp-content/uploads/2018/04/US43710518.pdf
5. IBM SystemsIBM Systems

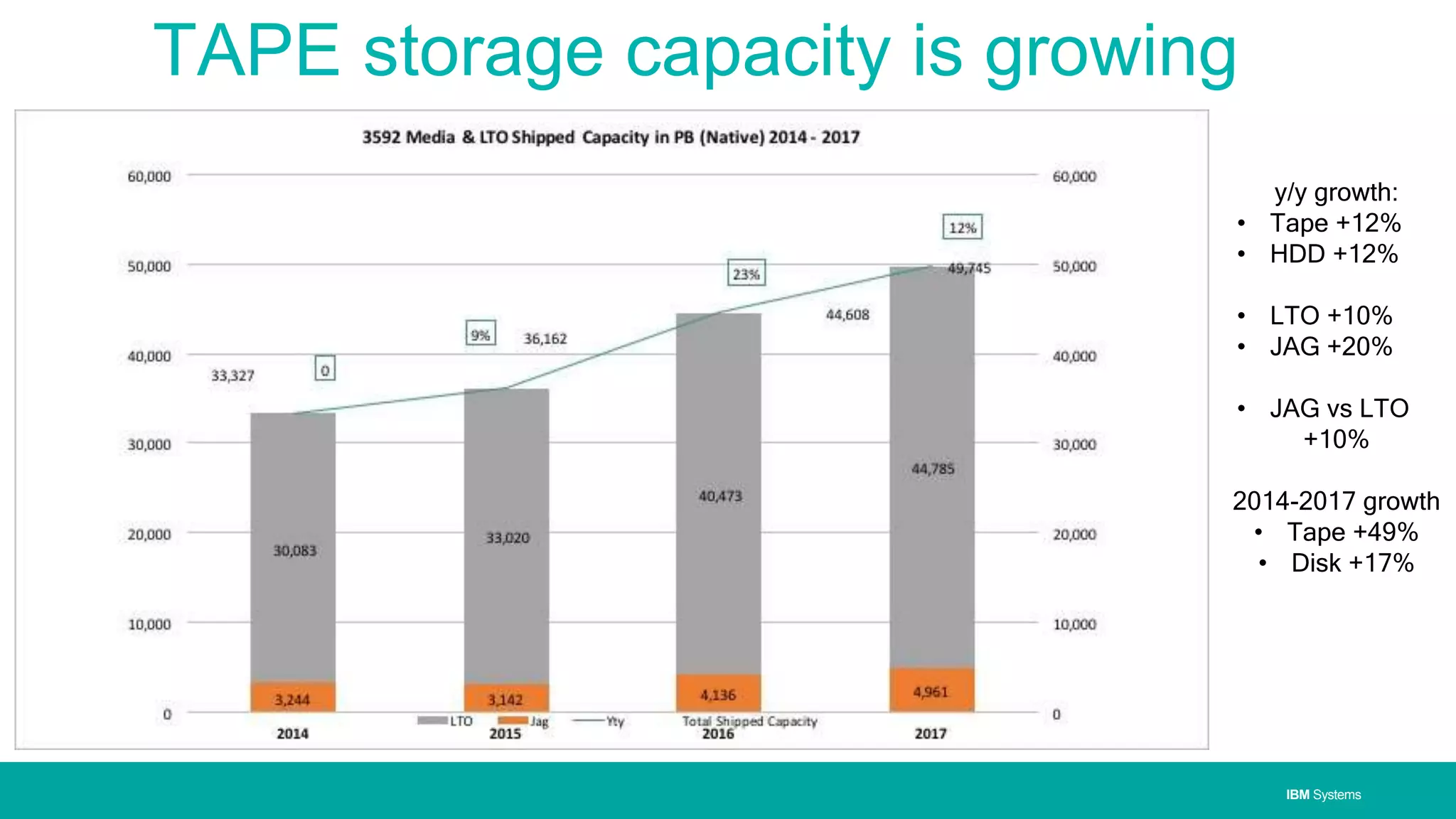

The data deluge
80% of all files created are inactive
no access in at least 3 months!
=> NAS: Never Access Storage
| 5
Source: D. Anderson, 2013 IEEE Conf. on Massive Data Storage
6. IBM SystemsIBM Systems
HDD ?!?
HDD has reached the limit of (known) materials to produce
larger write fields:
• Areal density/capacity scaling achieved by shrinking the same basic
technology to write smaller and smaller bits on disk
Technologies to go beyond the superparamagnetic limit:
• Two dimensional magnetic recording (TDMR)
• Heat Assisted Magnetic Recording (HAMR)
• Microwave Assisted Magnetic Recording (MAMR)
• Bit Patterned Media (BPM)

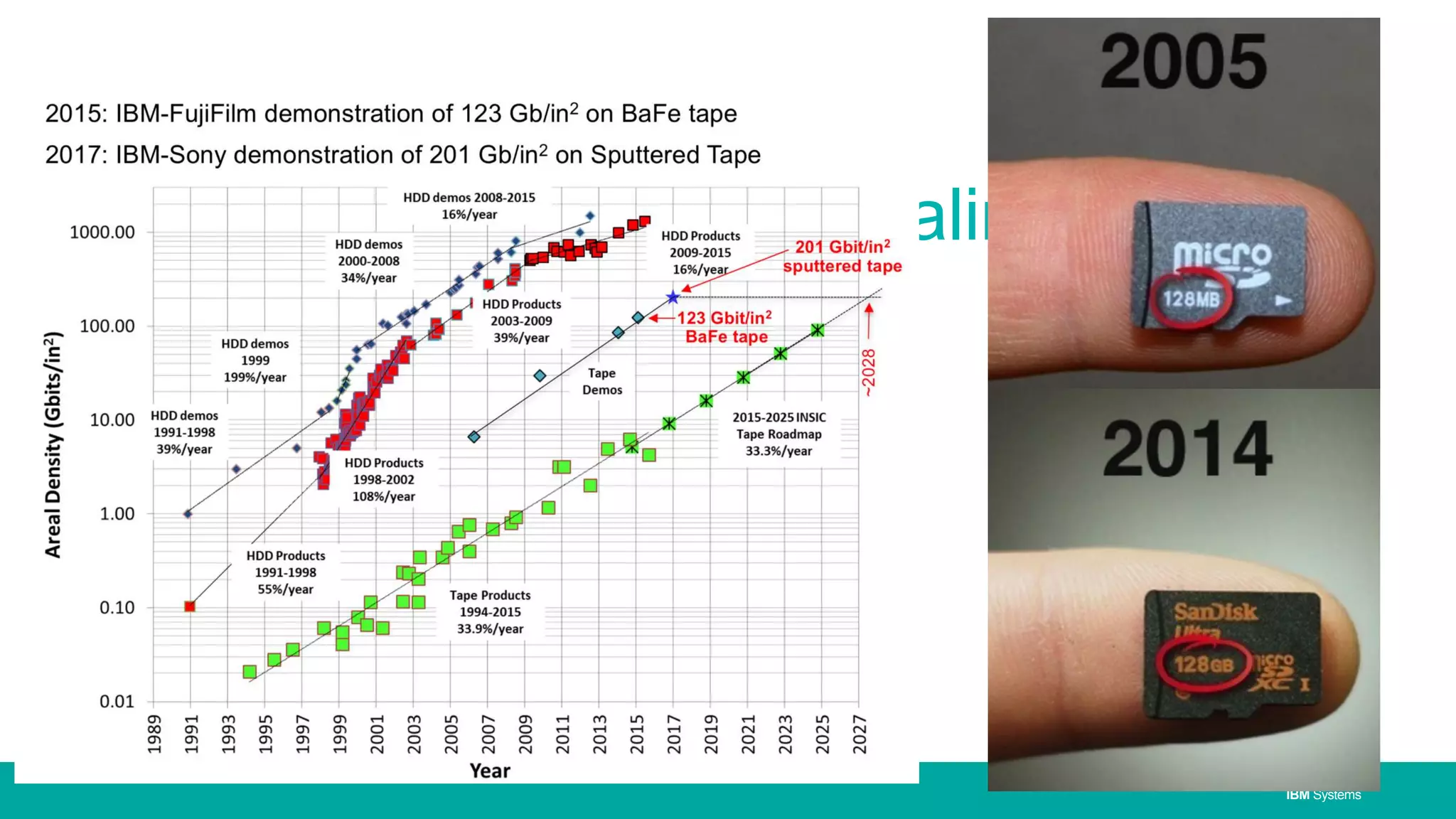

Recent Capacity Scaling of HDD: Volumetric Density
• Slow down in areal density scaling partially compensated by adding
more disks: conventional technology has reached space limit (~5
platters)
• Helium filled drive less turbulence thinner disks higher capacity
• WD 6TB (2013) 6 platters
• HGST 10TB Drive (2015) 7 platters w/ shingled magnetic recording
• Doesn’t scale: No space for more heads and platters!
| 6
Magnetic Media “Trilemma”:
7. IBM SystemsIBM Systems
NAND Area Density
NAND has three strategies for increasing bits per unit area in a silicon chip
1. Lithographic scaling of the bit cell (x, y) dimensions by reducing F*
• - 20nm to 16nm 1.56X more density
• - 16nm to 13nm 1.51X more density
2. Increasing the number of bits per cell
• - 1 bit per cell to MLC (2 bits per cell) 2.00x increase
• - MLC to TLC (3 bits per cell) 1.50x increase
3. 3D stacking (larger bit cell but multiple layers of cells)
• Example: 16 nm goes to 48 nm and cell design goes from 4F2 to 6F2 so cell area increases 13.5x But by using 27 layers the
effective density on the surface of the wafer increases by 2.00x (27/13.5)
| 7
3D Design Example
- Basic Cell 2F x 3F (F is minimum feature)
- 12 cells per layer
- 4 layers
- 2 bits or 3 bits per cell
F
http://www.theregister.co.uk/2016/11/21/ssd_ships_up_46_per_cent_and_128layer_3d_flash_coming/
9. IBM SystemsIBM Systems
IBM Resarch Rüschlikon: Tapetechnologie
Demonstration August 2017
Areal recording density :
201 Gb/in2
20x TS1155 areal density
330 TB cartridge capacity
This demonstration shows that tape technology has
the potential for significant capacity increase for
years to come!
HDD Technology:
• No room to continue adding platters
• HDD capacity will be driven by areal density scaling (10-20% /a)
Cost advantage of tape will continue to grow!
12. IBM SystemsIBM Systems

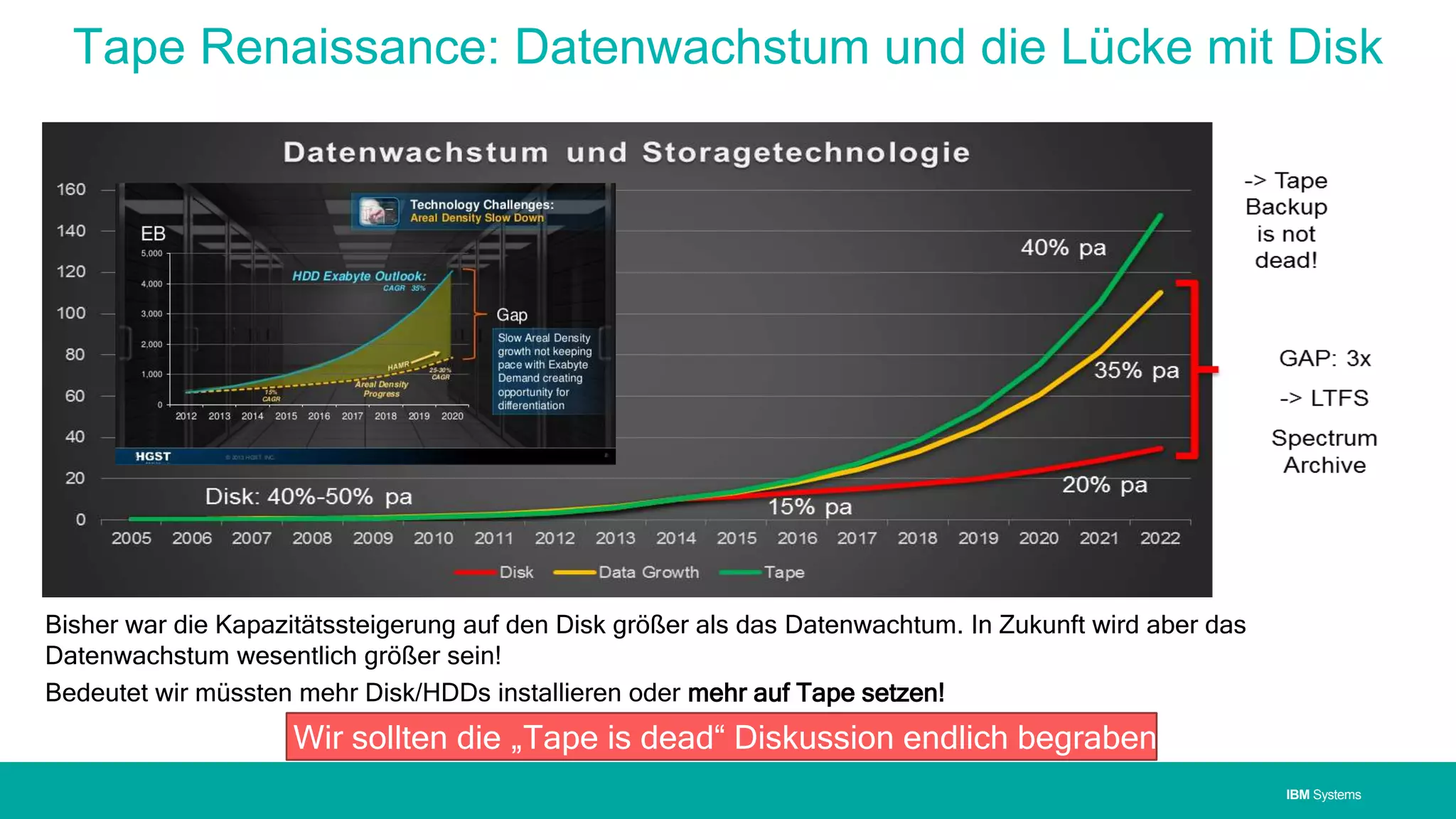

Tape Renaissance: Datenwachstum und die Lücke mit Disk
Bisher war die Kapazitätssteigerung auf den Disk größer als das Datenwachtum. In Zukunft wird aber das
Datenwachstum wesentlich größer sein!
Bedeutet wir müssten mehr Disk/HDDs installieren oder mehr auf Tape setzen!
Wir sollten die „Tape is dead“ Diskussion endlich begraben!
13. IBM SystemsIBM Systems
TAPE storage capacity is growing
significantly
y/y growth:
• Tape +12%
• HDD +12%
• LTO +10%
• JAG +20%
• JAG vs LTO
+10%
2014-2017 growth
• Tape +49%
• Disk +17%
14. IBM SystemsIBM Systems
Data Security / Protection mit Tape
Tape bietet:
• Read-After-Write Verification
• 2 independent ECC (=Raid6)
• IBM Jaguar Drives can recover a Media failure of about 11 mm
• Lifetime Warranty for IBM Tape Media
• Returns > 0,02% (10 000 Cartridges -> 2 broken)
• In addition Tape is a “offline” Media!
• No Virus, no software failure, no sabotage,
no human Errors,…“Tape is last line of defense!“
SAS HDDs Bit Error Rate 10^16
• NL SAS 10^15
• http://www.enterprisestorageforum.com/storage-technology/sas-vs.-sata-1.html
With NL SAS you will get a Data loss after 110 TB!!!!!
Example: 50 TB/daily; 2,5 PB capacity
• Raid5 with 8 TB (8+1) => 470 HDDs -> 0,12 TB per HDDs / daily ->
• Failure=Data Loss after ~950 days = 2,5 years
• With Tape: Data loss after 62 years!
| 15
15. IBM SystemsIBM Systems
Tape Saves the Day
Ben Treynor, VP Engineering and Site Reliability Czar for Google
Gmail, used the official Gmail blog to explain the situation and
provided a powerful endorsement for off-line removable tape
storage.
“I know what some of you are thinking: how could this happen if
we have multiple copies of your data, in multiple data
centers...well, in some rare instances software bugs can affect
several copies of the data. That’s what happened here. Some
copies of mail were deleted...To protect your information from
these unusual bugs, we also back it up to tape. Since the tapes are
offline, they’re protected from such software bugs”.
From Google blog at http://gmailblog.blogspot.com/2011/02/gmailback-soon-for-
everyone.html
Online disk data is
exposed to corruption
Use offline tape storage
for outstanding protection
The Last Line of Defense!
16. IBM SystemsIBM Systems
The more things change, the more they stay the same…
| 17
How to build a Zeta Byte of storage
on a budget
• Aaron Ogus, Microsoft Azure
• Data@Scale Seattle - June, 2015
• https://www.youtube.com/watch?v=iNO_tIbqy50
How Google Backs Up the Internet
• Raymond Blum, Google Site
Reliability
• NYC Tech Talk Series - October,
2013
• https://www.youtube.com/watch?v=eNliOm9NtCM
17. IBM SystemsIBM Systems
Microsoft Azure will use
Tape
Why Microsoft Azure will use Tape:
• The cheapest most economical way to store cold data, continued improvement with 30%+ CAGR and
easiest roadmap.
• Cheaper-Separating the media from the reader/writer
• Both Tape and Optical pull the media out of the reader/writer.
• 1 expensive part, and service any amount of media.
• Tape libraries can be more flexible in drive / media ratio
• New tape drives can store more data on older media
• Tape libraries have less environmental constraints
| 18
Faktor ~2 Faktor ~4
18. IBM SystemsIBM Systems
What storage technologies will win?
All of them. Flash
• Continued improvement, but will hit limits soon
• Expect to be in range of 15x-5x cost of HDD for foreseeable future
HDD
• Move to SMR, HAMR/EMR and BPM
• Expect 60TB+ drives in the early to mid 2020’s.
Optical
• Additional layers
• Very long media lifetime, but WORM
Tape (not dead)
• The cheapest most economical way to store cold data, continued improvement with 30%+ CAGR and
easiest roadmap.
| 19
Source: Auron Ogus – Microsoft Azure Storage Architect – Presentation @Edge2016
19. IBM SystemsIBM Systems | 20
Source: Auron Ogus – Microsoft Azure Storage Architect – Presentation @Edge2016
20. IBM SystemsIBM Systems
What makes up the cost of storage?
Data center space and power
• $6-12M / MW ≅ $9/W
Connection cost and power
• Media Slot Tax: As high as 50% for hot storage, as low as 20% for cold storage
Network infrastructure cost
• Below 10% for hot storage, nominal for cooling storage
Time to fill
• 50% full means 2x the cost
Media lifetime
• Twice the life is half the cost <unless new media is cheaper than maintenance>
| 21
Source: Auron Ogus – Microsoft Azure Storage Architect – Presentation @Edge2016
21. IBM SystemsIBM Systems
Cheaper-Separating the media from the
reader/writer
Both Tape and Optical pull the media out of the reader/writer.
1 expensive part, and service any amount of media.
Optical libraries fix the maximum ratio of drives / media
Tape libraries can be more flexible in drive / media ratio
New tape drives can store more data on older media
Tape libraries have tighter environmental constraints
Tape libraries require fiber channel infrastructure
| 22
Source: Auron Ogus – Microsoft Azure Storage Architect – Presentation @Edge2016
24. IBM SystemsIBM Systems
Preis pro GB/Month vs Performance
20 PB +30% pa; 16 Drives
| 25
2016 2017 2018 2019 2020 2021
€/GB pro Monat
16 Drives
Drives 28
Drives 44
Drives 60
ScaleOut
Cloud
20 PB +30% pa
2016 2017 2018 2019 2020 2021
€/GB pro Monat
Cloud
Tape
ScaleOut
Cloud: Price for Capacity only,
Cost for bandwidth & put & get & deletion are not included
25. IBM SystemsIBM Systems
Gesamtkosten
| 26
Cloud: Price for Capacity only,
Cost for bandwidth & put & get & deletion are not included
2016 2017 2018 2019 2020 2021
Gesamtkosten
Cloud
Tape
ScaleOut
26. IBM SystemsIBM Systems

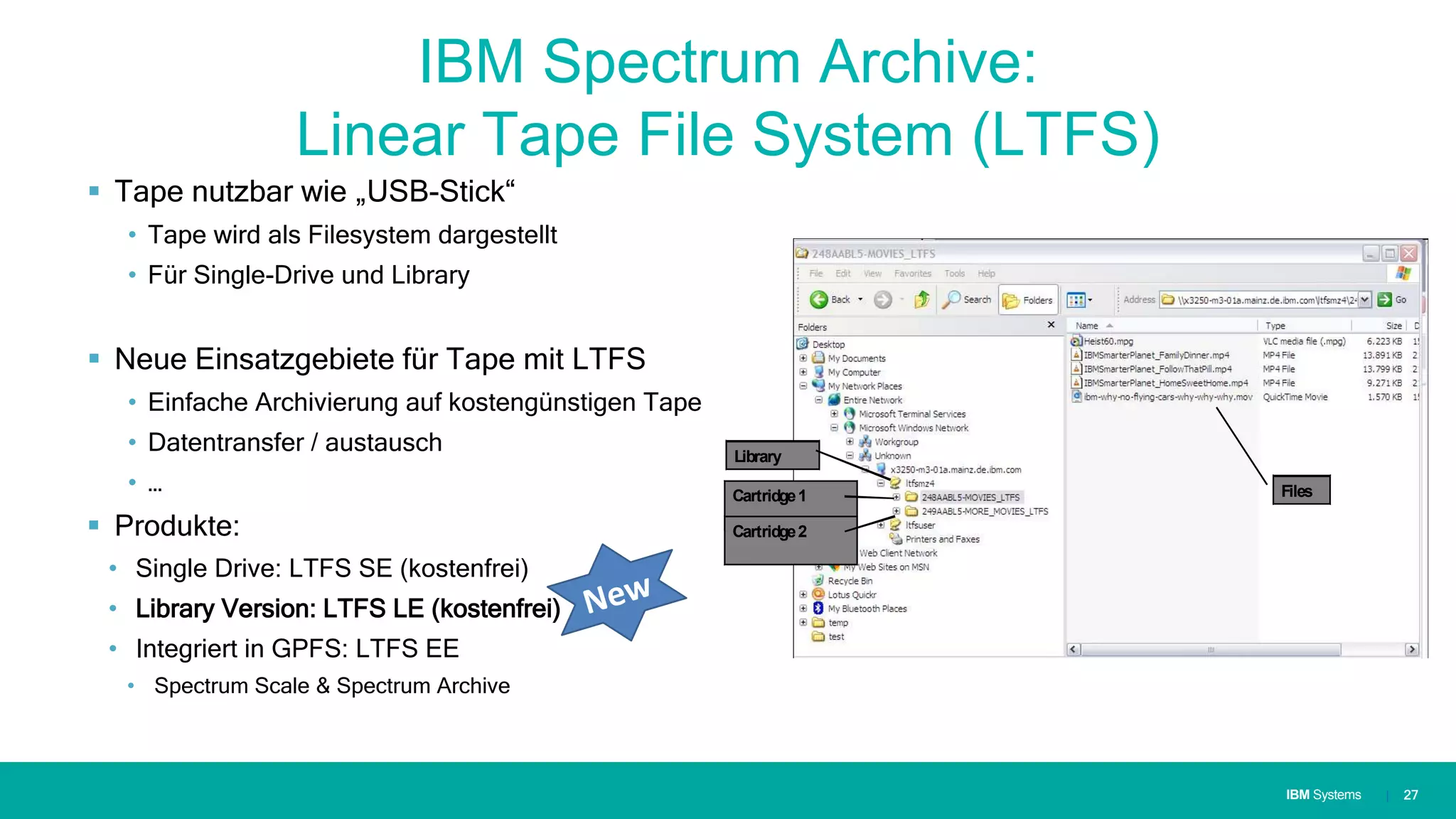

IBM Spectrum Archive:
Linear Tape File System (LTFS)
Tape nutzbar wie „USB-Stick“
• Tape wird als Filesystem dargestellt
• Für Single-Drive und Library
Neue Einsatzgebiete für Tape mit LTFS
• Einfache Archivierung auf kostengünstigen Tape
• Datentransfer / austausch
• …
Produkte:
• Single Drive: LTFS SE (kostenfrei)
• Library Version: LTFS LE (kostenfrei)
• Integriert in GPFS: LTFS EE
• Spectrum Scale & Spectrum Archive
| 27
FilesCartridge1
Library
Cartridge2
27. IBM SystemsIBM Systems

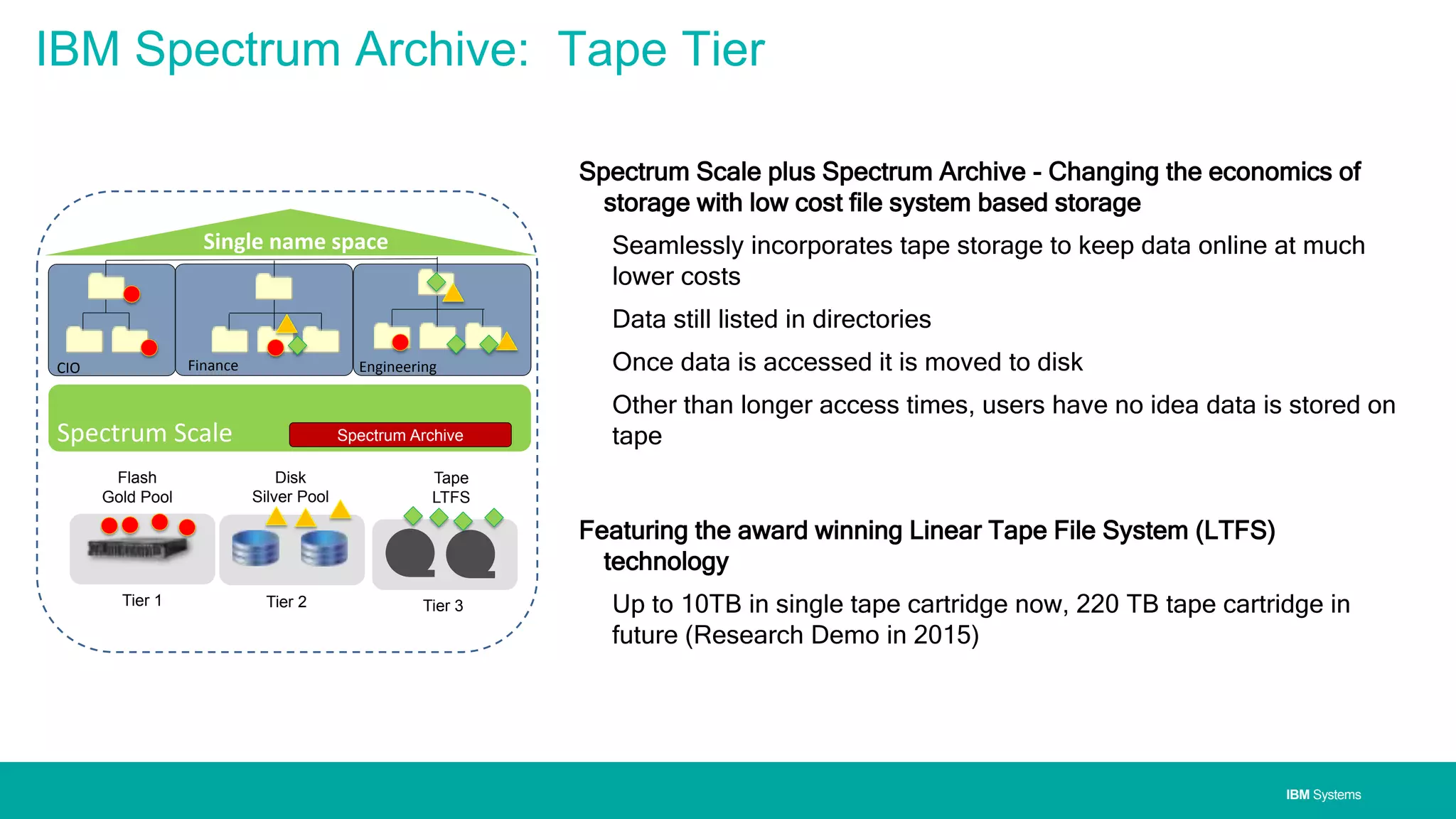

IBM Spectrum Archive: Tape Tier
Spectrum Scale plus Spectrum Archive - Changing the economics of
storage with low cost file system based storage
Seamlessly incorporates tape storage to keep data online at much
lower costs
Data still listed in directories
Once data is accessed it is moved to disk
Other than longer access times, users have no idea data is stored on
tape
Featuring the award winning Linear Tape File System (LTFS)
technology
Up to 10TB in single tape cartridge now, 220 TB tape cartridge in
future (Research Demo in 2015)
Flash
Gold Pool
Disk
Silver Pool
Tier 1 Tier 2
Single name space
Spectrum Scale
CIO Finance Engineering
Tape
LTFS
Tier 3
Spectrum Archive
28. IBM SystemsIBM Systems
IBM Spectrum Archive: Policy-based Cost Optimization
•Powerful policy engine
–Example: File Heat measures how often the file is accessed.
–As the file gets “cold” move it automatically to a lower cost
storage pool
–Information Lifecycle Management
–Fast metadata ‘scanning’ and data movement
–Automated data migration to based on threshold
•Users not affected by data migration
–Single namespace
–Persistent view of the data
•Tape as the external pool of Spectrum Scale
Small files last
accessed > 30
days
last accessed
> 60days
Silver pool is
>60% full Drain it
to 20%
accessed
today and
file size is
<1G
Send it back to
Silver pool when
accessed
System pool
(Flash)
Gold pool
(SSD)
Silver pool
( NL SAS)
TS4500
Spectrum Archive
Automation
29. IBM SystemsIBM Systems

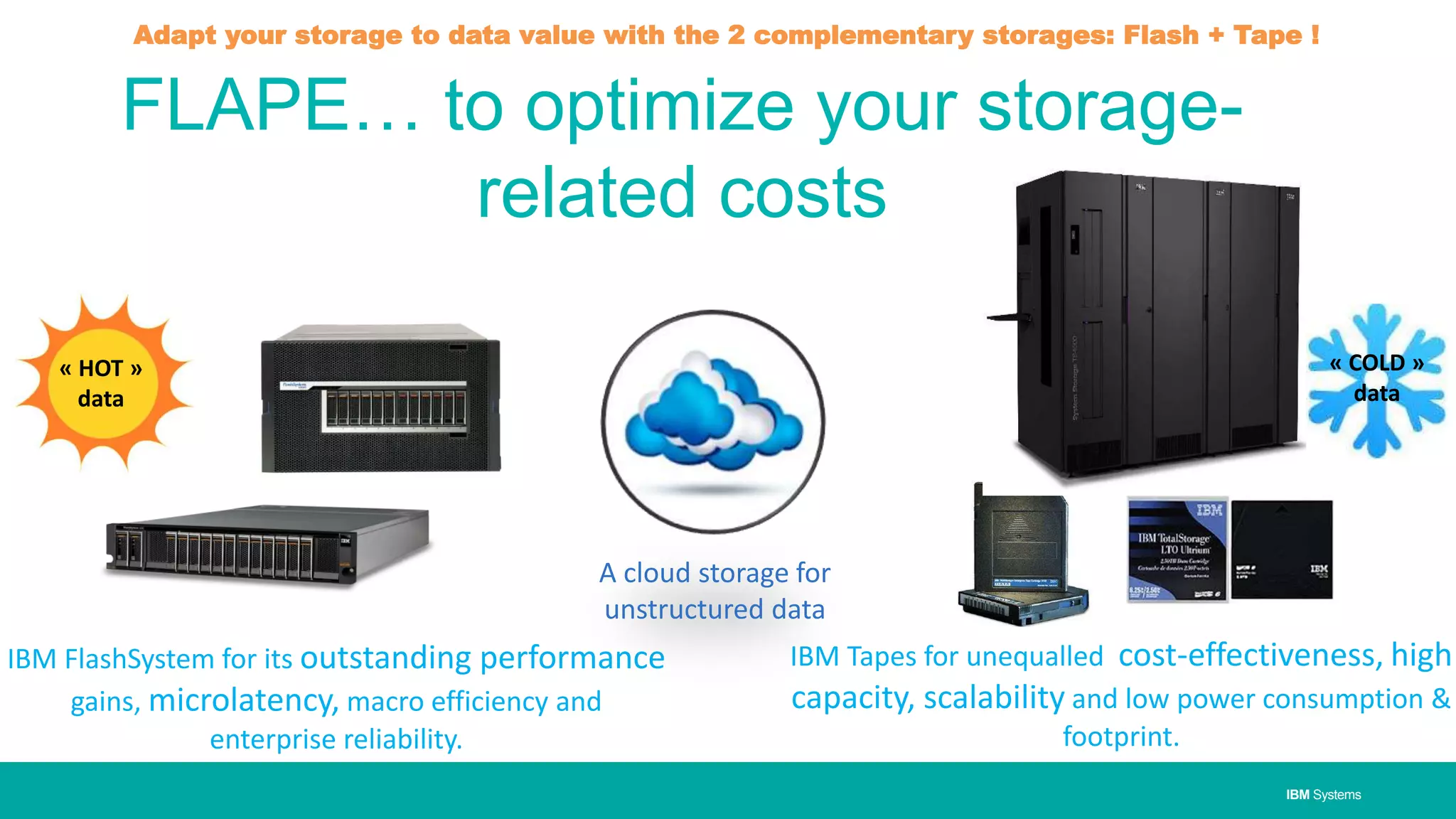

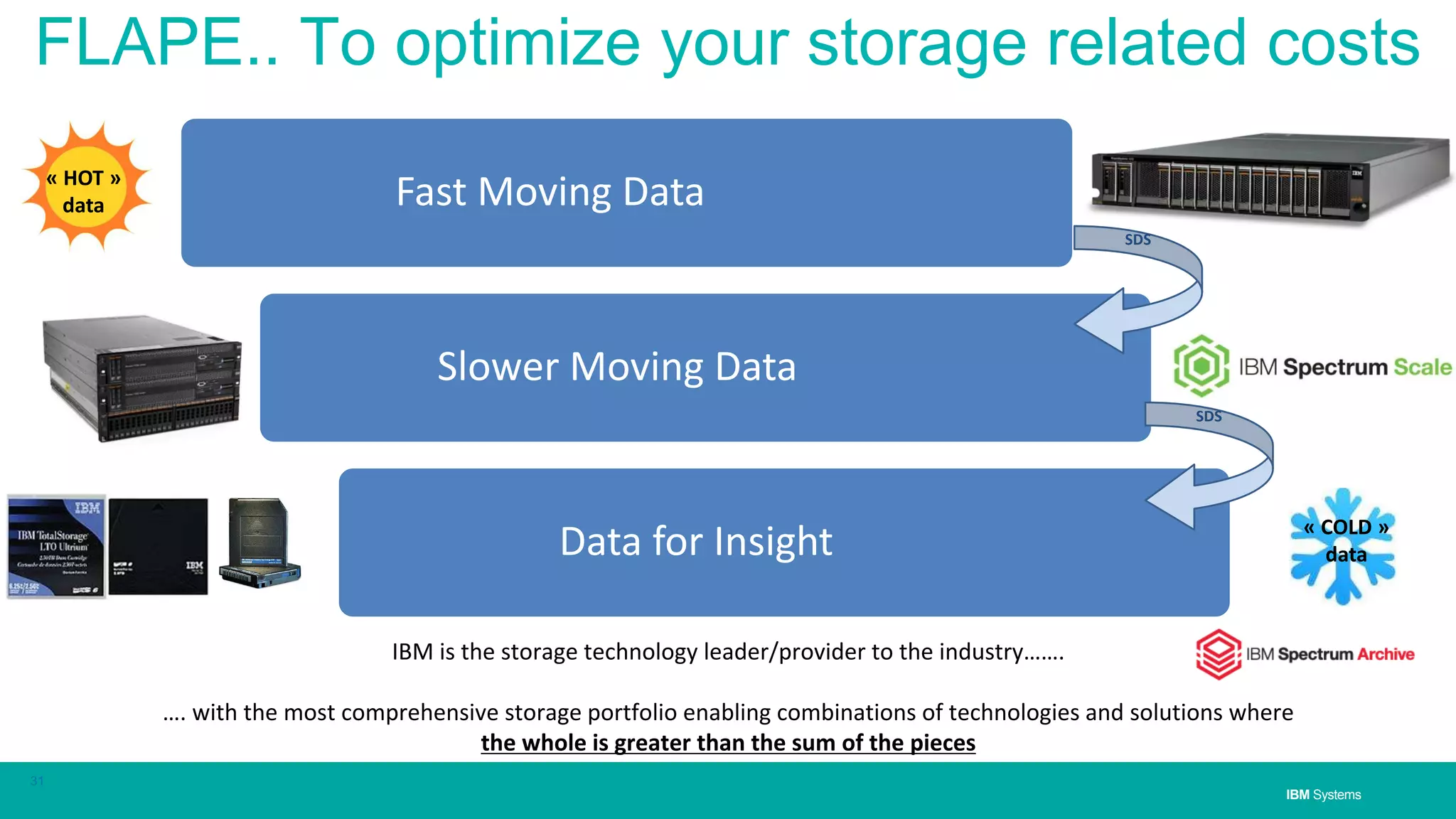

FLAPE… to optimize your storage-
related costs
Adapt your storage to data value with the 2 complementary storages: Flash + Tape !
IBM FlashSystem for its outstanding performance
gains, microlatency, macro efficiency and
enterprise reliability.
IBM Tapes for unequalled cost-effectiveness, high
capacity, scalability and low power consumption &
footprint.
« HOT »
data
« COLD »
data
A cloud storage for
unstructured data
30. IBM SystemsIBM Systems
IBM is the storage technology leader/provider to the industry…….
…. with the most comprehensive storage portfolio enabling combinations of technologies and solutions where
the whole is greater than the sum of the pieces
« HOT »
data
« COLD »
data
Fast Moving Data
Slower Moving Data
Data for Insight
SDS
SDS
FLAPE.. To optimize your storage related costs
31
33. IBM SystemsIBM Systems

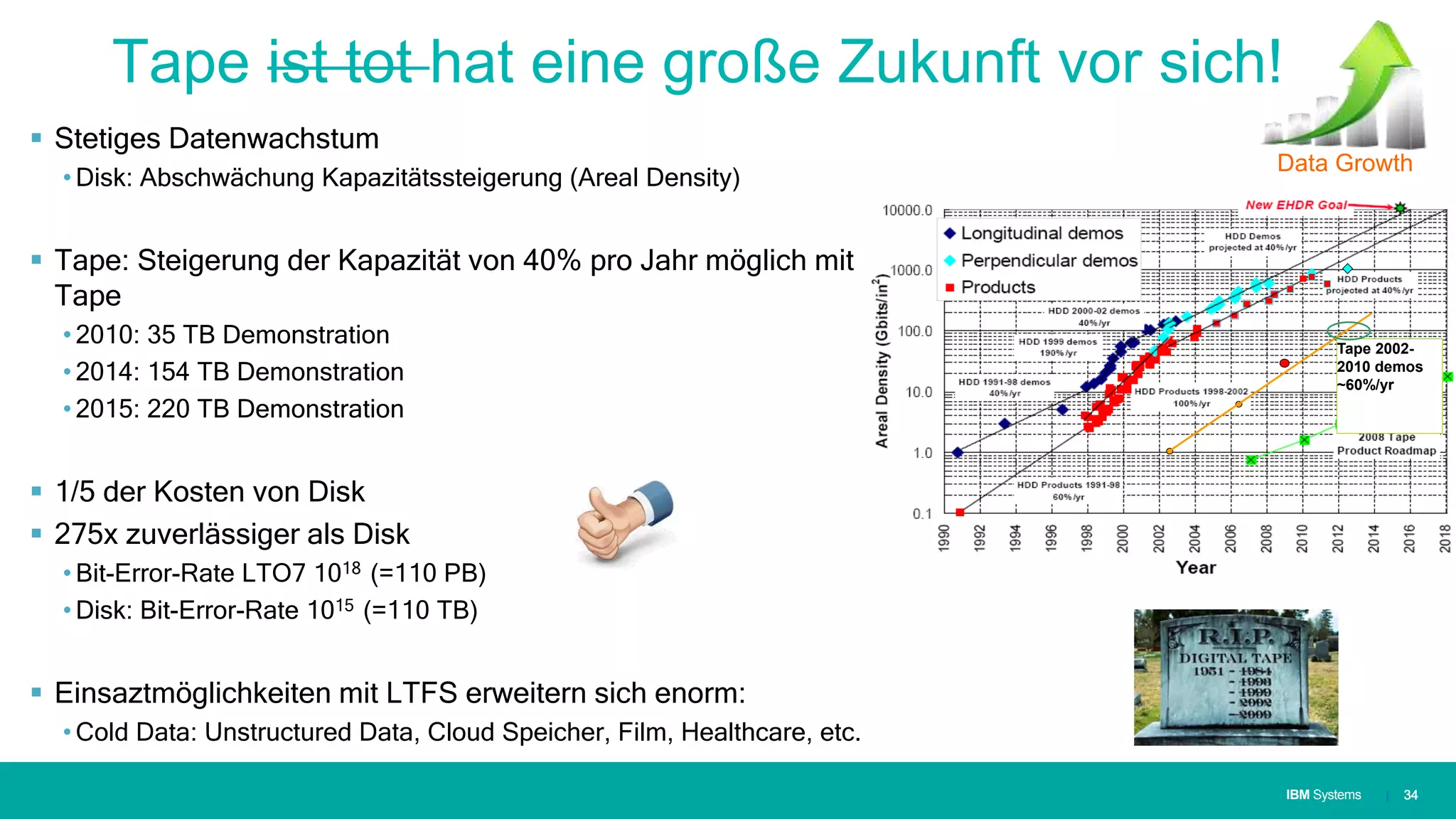

Tape ist tot hat eine große Zukunft vor sich!
Stetiges Datenwachstum
• Disk: Abschwächung Kapazitätssteigerung (Areal Density)
Tape: Steigerung der Kapazität von 40% pro Jahr möglich mit
Tape
• 2010: 35 TB Demonstration
• 2014: 154 TB Demonstration
• 2015: 220 TB Demonstration
1/5 der Kosten von Disk
275x zuverlässiger als Disk
• Bit-Error-Rate LTO7 1018 (=110 PB)
• Disk: Bit-Error-Rate 1015 (=110 TB)
Einsaztmöglichkeiten mit LTFS erweitern sich enorm:
• Cold Data: Unstructured Data, Cloud Speicher, Film, Healthcare, etc.
| 34
Tape 2002-
2010 demos
~60%/yr
Data Growth
34. IBM Systems
• IBM is the worldwide branded tape revenue share leader:
•#1 in total branded tape storage revenue share
•#1 in total branded tape drive revenue share
•#1 in total branded tape automation revenue share
35
Total Branded Tape
Storage Revenue Share
(Drives, Automation, Enterprise VT)
Branded Tape Drive
Revenue Share
Branded Tape Automation
Revenue Share
Others includes: Fujitsu; NEC; Hitachi; Toshiba; and Qualstar
IBM is #1 in the world for branded total tape revenue share 15 years running!
Dell
12.1%
HP
14.1%
IBM
32.1%
Oracle
18.0%
Others
2.0%
Overland
2.1%
Quantum
14.2%
Spectra Logic
5.4%
IDC Tape Market Share 4Q17 – Rolling 4 Quarters
35. IBM Systems 36

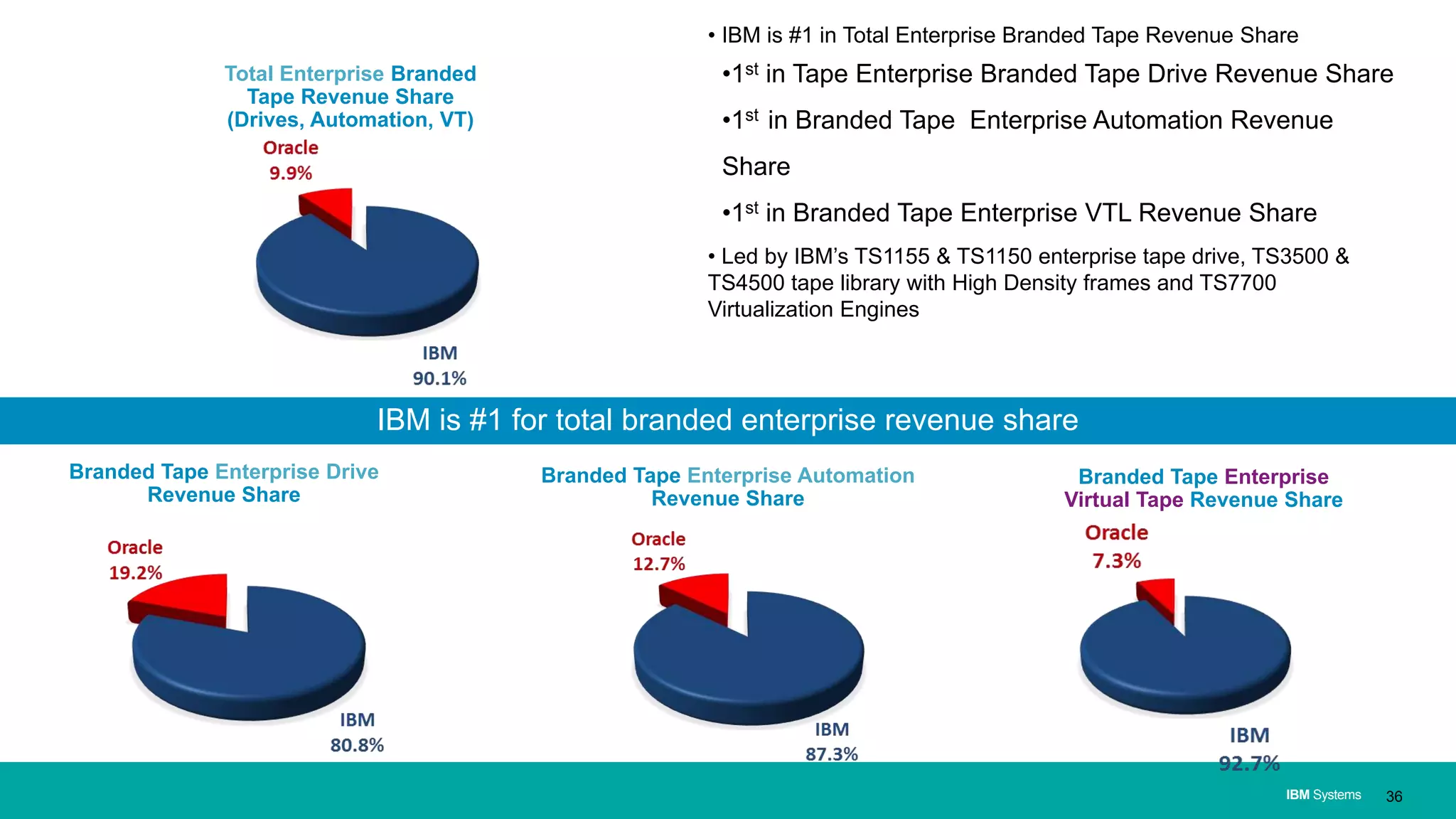

Branded Tape Enterprise Drive
Revenue Share
Branded Tape Enterprise Automation
Revenue Share
Total Enterprise Branded
Tape Revenue Share
(Drives, Automation, VT)
• IBM is #1 in Total Enterprise Branded Tape Revenue Share
•1st in Tape Enterprise Branded Tape Drive Revenue Share
•1st in Branded Tape Enterprise Automation Revenue
Share
•1st in Branded Tape Enterprise VTL Revenue Share
• Led by IBM’s TS1155 & TS1150 enterprise tape drive, TS3500 &
TS4500 tape library with High Density frames and TS7700
Virtualization Engines
Branded Tape Enterprise
Virtual Tape Revenue Share
Others includes: Fujitsu; NEC; Hitachi; Toshiba; and Qualstar
IBM is #1 for total branded enterprise revenue share
36. IBM SystemsIBM Systems
Branded Tape Automation Revenue Share
(Rolling 4 Quarters Through 2Q17)
Dell
12.1%
HP
15.3%
IBM
30.7%
Oracle
14.9%
Others
2.2%
Overland
2.0%
Quantum
15.6%
Spectra Logic
7.2%
IBM
85.3%
Oracle
14.7%
HP
2.7%
IBM
43.4%
Oracle
25.6%
Others
0.5%
Quantum
10.2%
SpectraLogic
17.5%
Branded Tape MR Automation
500+ slots Revenue Share
Branded Tape Enterprise Automation
Revenue Share
Source: IDC Branded Tape Report 2017 H1
37. IBM SystemsIBM Systems
http://searchdatabackup.techtarget.com/feature/IBM-
and-Dell-dominate-tape-storage-systems-user-ratings-
survey
Two recent user surveys
https://itbrandpulse.com/it-pros-vote-2018-storage-brand-leaders/
The Market Leader in Tape Libraries and
Mid-Range Tape Drives
IBM AWARDS
- Mid-Range Tape Drives
Breaking up the six-year Market Leader lock on Mid-Range Tape Drives, IBM pushed
past perennial champion Quantum to become this year’s 2018 Market, Performance,
Reliability, Service & Support, and Innovation leader. Quantum held on to Price and
kept HPE to an overall third.
- Tape Libraries
As in the Mid-Range Tape category, IBM was the IT professionals’ 2018 choice to
replace Quantum’s Market Leader hold on Tape Libraries. In addition, IBM collected
Performance, Reliability, Service & Support, and Innovation honors. Quantum
remained Price Leader and placed second across the board, followed by HPE.
38. IBM Systems
IBM DP&R Storage / Produkte
Tape Drives Tape Libraries Tape Virtualization & D2D
TS7700
• VTS für zOS
TS31/3200
• 22 / 44 Slots
TS2900
• 9 Slots
1 HH
128
Media
LTO 7
•6 TB
• 300 MB/sec
D2D
•V3700, V5000,V7000, XIV,
DS8000, GPFS/ESS, Flash
IBM Spectrum Protect / IBM Spectrum Archive
TS1140
• 4 TB
• 250 MB/sec
TSLM
TS4500
• 100 – 23 170
SlotsTS1150
• 10 TB
• 350 MB/sec
LTO 6
• 2500 GB
• 160 MB/sec
TS1155
• 15 TB
• 350 MB/sec
TS4300
• 32 – 272 Slots
• bis zu 21 Drives
21 HH
LTO8
• 12 TB
• 360 MB/sec
Whats new!
Oktober 2015
LTO 7 Tape Drive: 6 TB / 300 MB/sec
TS4500 18 Frame Support & Media Verfication
Dezember 2015
Spectrum Archive (LTFS EE): Multiple Library Support
Spectrum Archive (LTFS LL): Free of charge
Mai 2016
TS4500 HA Support + Mainframe Support; TS7760 Neue VTS-Hardware
Mai 2017
TS1155 Tape Drive: 15 TB / 360 MB/sec
Juli 2017
TS4300 Tape Library: 272 Slots / 21 LTO Drives
Oktober 2017
LTO 8: 12 TB / 360 MB/sec
November 2018
TS1160: 20 TB / 400 MB/sec
TS1160
• 20 TB
• 400 MB/sec
39. IBM SystemsIBM Systems
Whats new!
Oktober 2015
LTO 7 Tape Drive: 6 TB / 300 MB/sec
TS4500 18 Frame Support
TS4500 Media Verfication
Dezember 2015
Spectrum Archive (LTFS EE): Multiple Library Support
Spectrum Archive (LTFS LL): Free of charge
April 2016
ProtectTier: New Hardware DD6
Mai 2016
TS4500 HA Support
TS4500 Mainframe Support
TS7760 Neue VTS-Hardware
Mai 2017
TS1155 Tape Drive: 15 TB / 360 MB/sec
Juli 2017
TS4300 Tape Library: 272 Slots / 21 LTO Drives
Oktober 2017
LTO 8: 12 TB / 360 MB/sec
November 2018
TS1160: 20 TB / 400 MB/sec
| 40
40. IBM SystemsIBM Systems
Why IBM tape media?
Not all media is created equal - IBM Media is designed for increased reliability, performance,
stability and durability.
IBM Media and IBM Drives are designed and developed together – a winning combination.
IBM Media is built to rigorous IBM specifications
Easy initial sales when bundled with the IBM tape library and drives
Lifetime Warranty
• Limited lifetime: Free from manufacturing and material defects useful life of product
Single Point of Support helps alleviate your customers situation
• Media Recovery Lab in Mainz/Frankfurt helps to determine between Media and Drive Failure and may
recover tape data!
| 41
Proof point:
IBM media is so well designed and quality so tightly controlled that only <0.03% of LTO and
<0.02% of 3592 media is typically ever returned.
<300 per million LTO cartridges returned
<200 per million 3592 cartridges returned
And IBM is typically able to retrieve 100% of data.

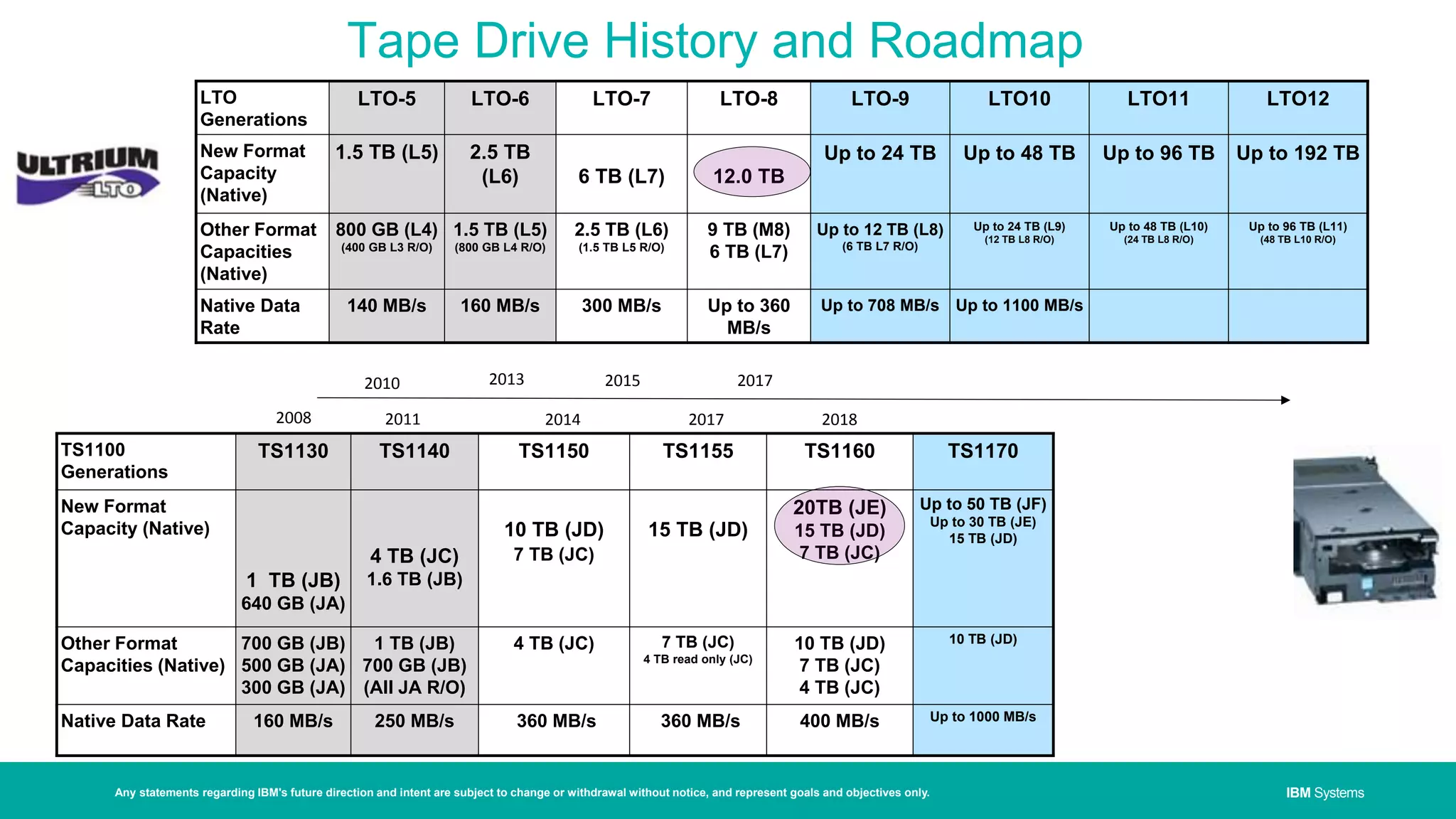

41. IBM SystemsIBM Systems
Tape Drive History and Roadmap
LTO
Generations
LTO-5 LTO-6 LTO-7 LTO-8 LTO-9 LTO10 LTO11 LTO12
New Format
Capacity
(Native)
1.5 TB (L5) 2.5 TB
(L6) 6 TB (L7) 12.0 TB
Up to 24 TB Up to 48 TB Up to 96 TB Up to 192 TB
Other Format
Capacities
(Native)
800 GB (L4)
(400 GB L3 R/O)
1.5 TB (L5)
(800 GB L4 R/O)
2.5 TB (L6)
(1.5 TB L5 R/O)
9 TB (M8)
6 TB (L7)
Up to 12 TB (L8)
(6 TB L7 R/O)
Up to 24 TB (L9)
(12 TB L8 R/O)
Up to 48 TB (L10)
(24 TB L8 R/O)
Up to 96 TB (L11)
(48 TB L10 R/O)
Native Data
Rate
140 MB/s 160 MB/s 300 MB/s Up to 360
MB/s
Up to 708 MB/s Up to 1100 MB/s
Any statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.
2008
2010
2011
2013
TS1100
Generations
TS1130 TS1140 TS1150 TS1155 TS1160 TS1170
New Format
Capacity (Native)
1 TB (JB)
640 GB (JA)
4 TB (JC)
1.6 TB (JB)
10 TB (JD)
7 TB (JC)
15 TB (JD)
20TB (JE)
15 TB (JD)
7 TB (JC)
Up to 50 TB (JF)
Up to 30 TB (JE)
15 TB (JD)
Other Format
Capacities (Native)
700 GB (JB)
500 GB (JA)
300 GB (JA)
1 TB (JB)
700 GB (JB)
(All JA R/O)
4 TB (JC) 7 TB (JC)
4 TB read only (JC)
10 TB (JD)
7 TB (JC)
4 TB (JC)
10 TB (JD)
Native Data Rate 160 MB/s 250 MB/s 360 MB/s 360 MB/s 400 MB/s Up to 1000 MB/s
2014
2015
2017
2017
2018
42. IBM SystemsIBM Systems

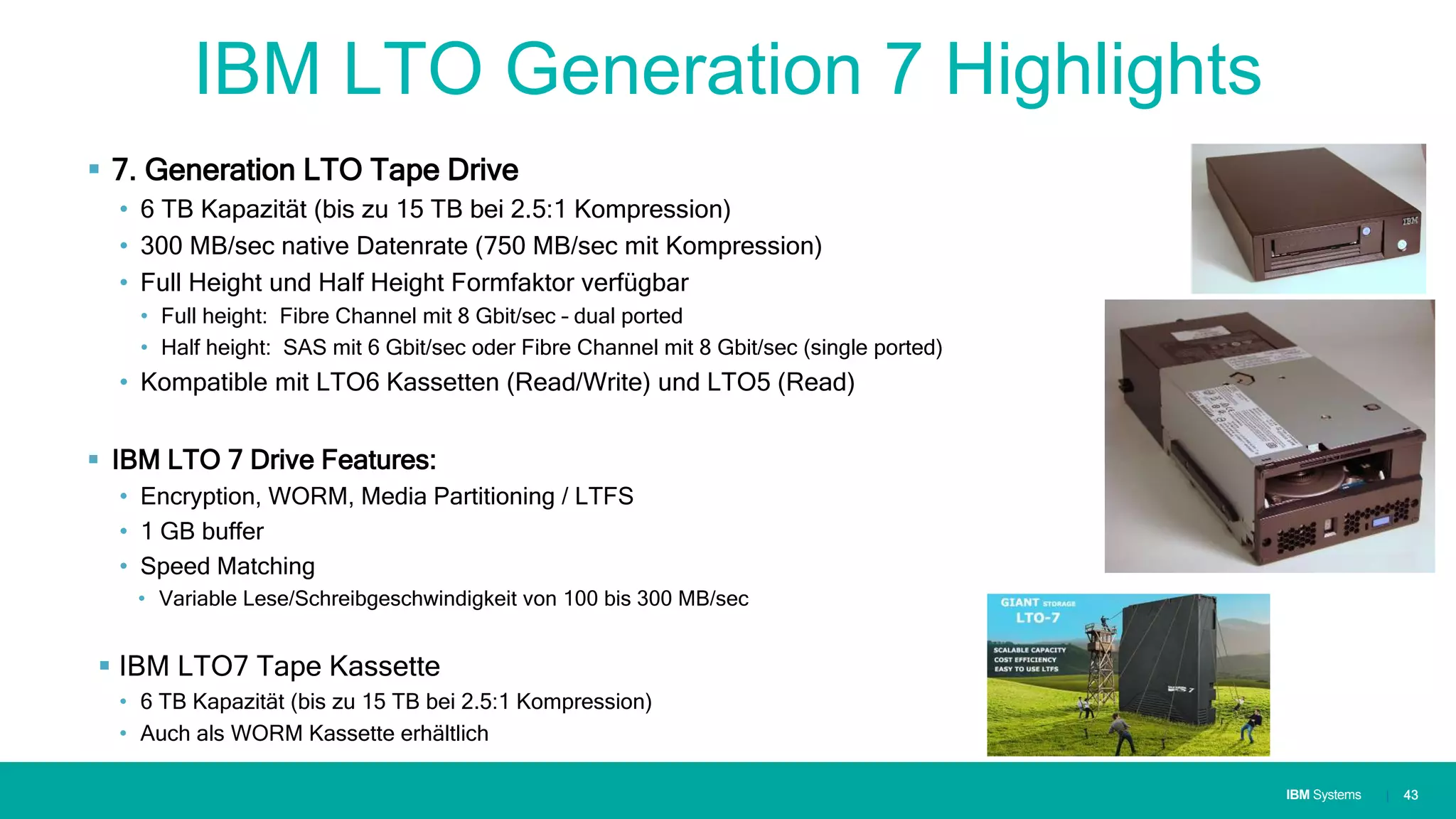

IBM LTO Generation 7 Highlights
7. Generation LTO Tape Drive
• 6 TB Kapazität (bis zu 15 TB bei 2.5:1 Kompression)
• 300 MB/sec native Datenrate (750 MB/sec mit Kompression)
• Full Height und Half Height Formfaktor verfügbar
• Full height: Fibre Channel mit 8 Gbit/sec – dual ported
• Half height: SAS mit 6 Gbit/sec oder Fibre Channel mit 8 Gbit/sec (single ported)
• Kompatible mit LTO6 Kassetten (Read/Write) und LTO5 (Read)
IBM LTO 7 Drive Features:
• Encryption, WORM, Media Partitioning / LTFS
• 1 GB buffer
• Speed Matching
• Variable Lese/Schreibgeschwindigkeit von 100 bis 300 MB/sec
IBM LTO7 Tape Kassette
• 6 TB Kapazität (bis zu 15 TB bei 2.5:1 Kompression)
• Auch als WORM Kassette erhältlich
| 43
43. IBM Systems
IBM Storage & SDI
Highlights
• Delivers increased capacity:
12 TB/Cartridge (uncompressed)
Full High Maximum data rate = 360 MB/s
Half High Maximum data rate = 300 MB/s
• Read/write support of LTO7 media (BaFe)
• Support to write-once-read-many (WORM) cartridges
• Available for IBM: TS2900, TS4300, TS4500, TS3500 /
TS3100, TS3200, TS3310 / TS2200
Features
• Encryption – AME and AES-256 standard support
• IBM Spectrum Archive™ support
Incorporates Linear Tape File System™ format
Platform Support

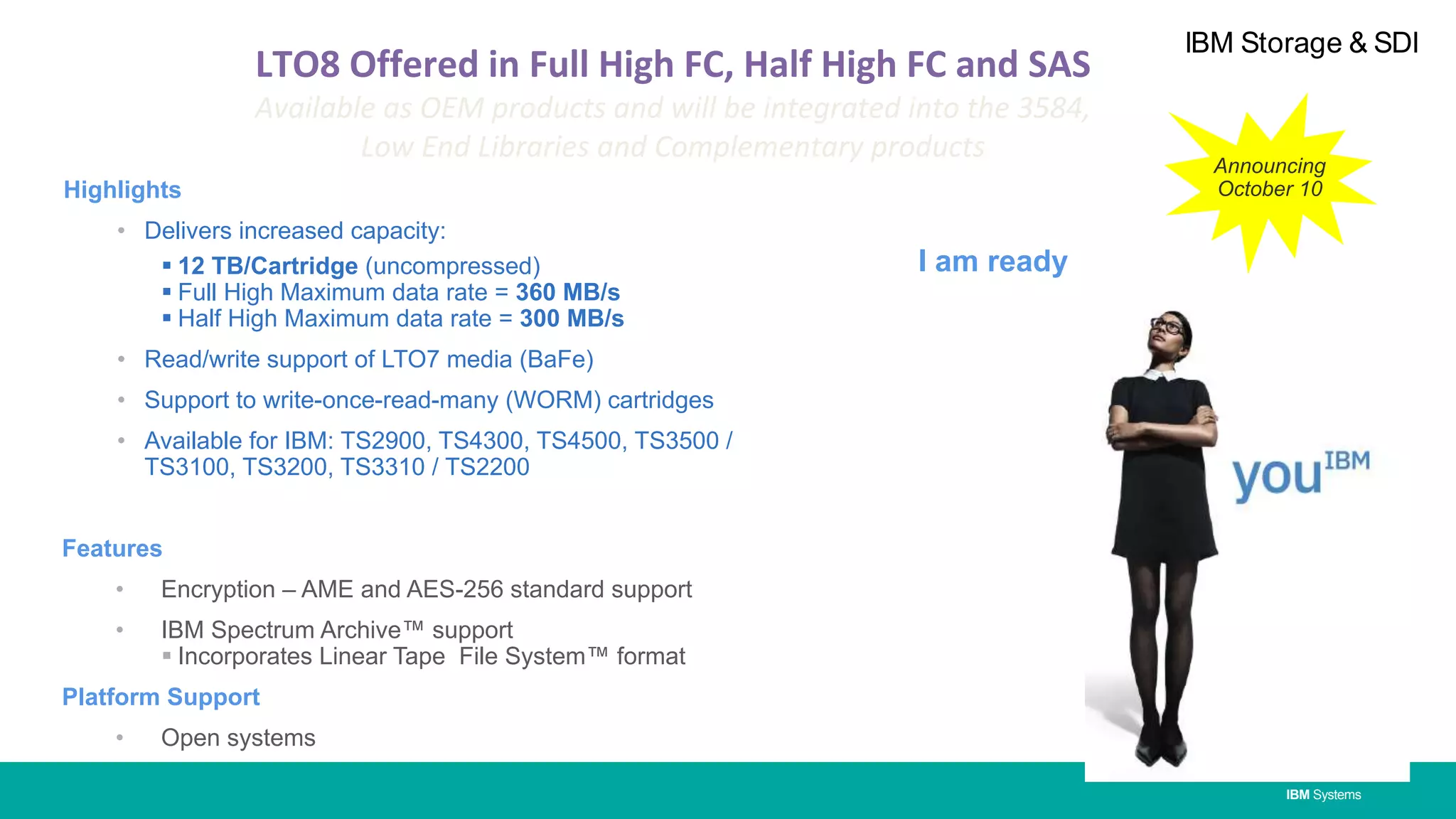

• Open systems
I am ready
Announcing
October 10
LTO8 Offered in Full High FC, Half High FC and SAS
Available as OEM products and will be integrated into the 3584,
Low End Libraries and Complementary products
44. IBM SystemsIBM Systems
New “LTO 8 Type M“ initialization option
New LTO generation 7 cartridges initialized as LTO - 8 Type M media will be able to store up to
22.5TB (9 TB native) of data.
• IBM refer this as “M8 media”
• New barcode label – LTO7 Cartridges need to have Barcode Label "M8" (Media Identifier)
• M8 needs to be initialized for 9 TB
• Works only for brand new Media
• Up-Format (eg. Jaguar) is not supported
• None initialized M8 Media will work in LTO7 Format (aka 6 TB)
TS4500, TS4300, TS2900, TS31/3200 & TS3310 support un-initialized M8 media and initialize M8
Media
• TS3500 supports only pre-intialized M8 Media
Inadvertent usage of un-initialized M8 media (when not supported) will result in a reduction in
capacity
No commitment that LTO9 can read M8
M8 has the best $/GB (below 1 Cent)
| 45

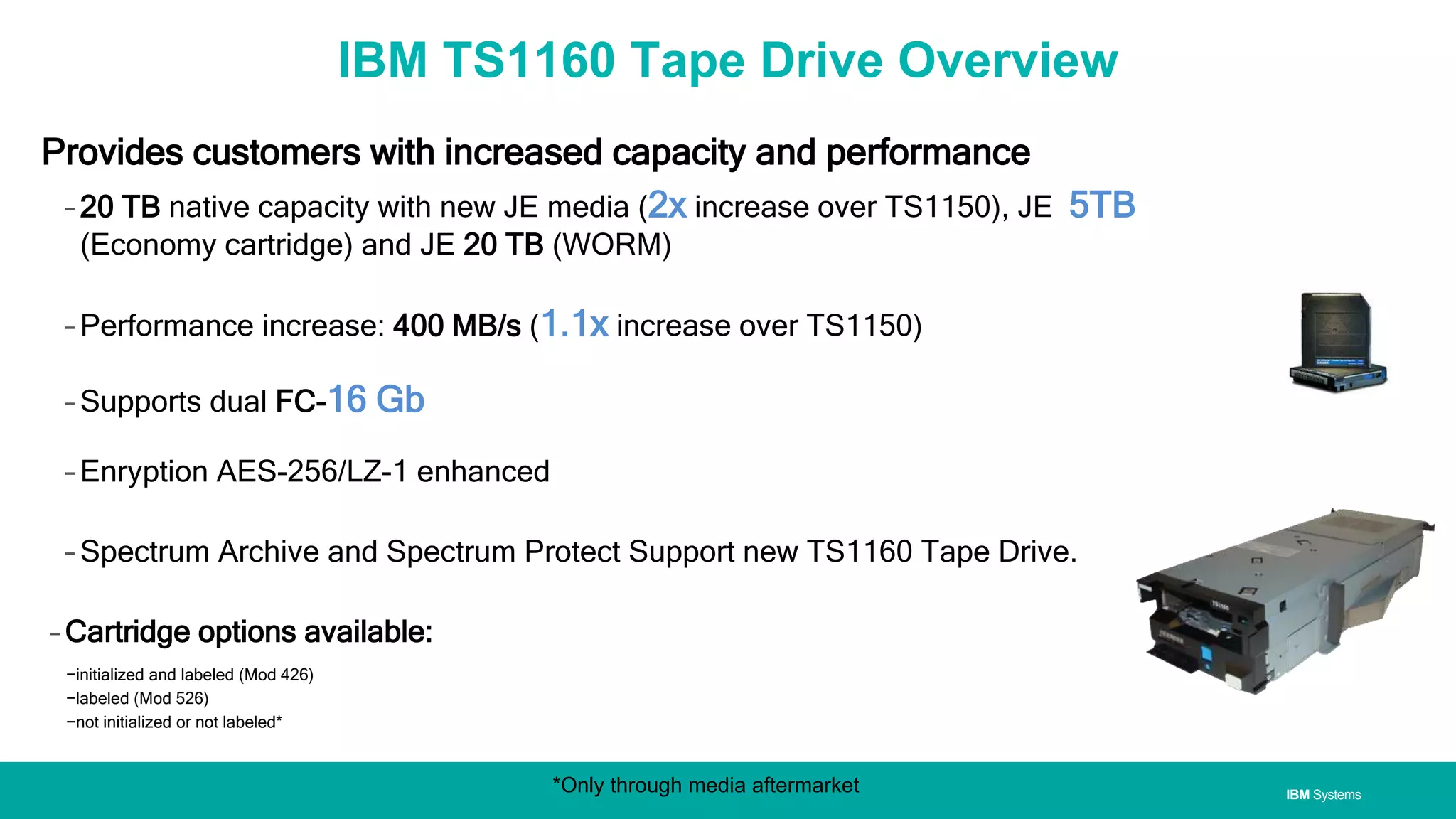

45. IBM Systems
IBM TS1160 Tape Drive Overview
Provides customers with increased capacity and performance
– 20 TB native capacity with new JE media (2x increase over TS1150), JE 5TB
(Economy cartridge) and JE 20 TB (WORM)
– Performance increase: 400 MB/s (1.1x increase over TS1150)
– Supports dual FC-16 Gb
– Enryption AES-256/LZ-1 enhanced
– Spectrum Archive and Spectrum Protect Support new TS1160 Tape Drive.
– Cartridge options available:
−initialized and labeled (Mod 426)
−labeled (Mod 526)
−not initialized or not labeled*
*Only through media aftermarket

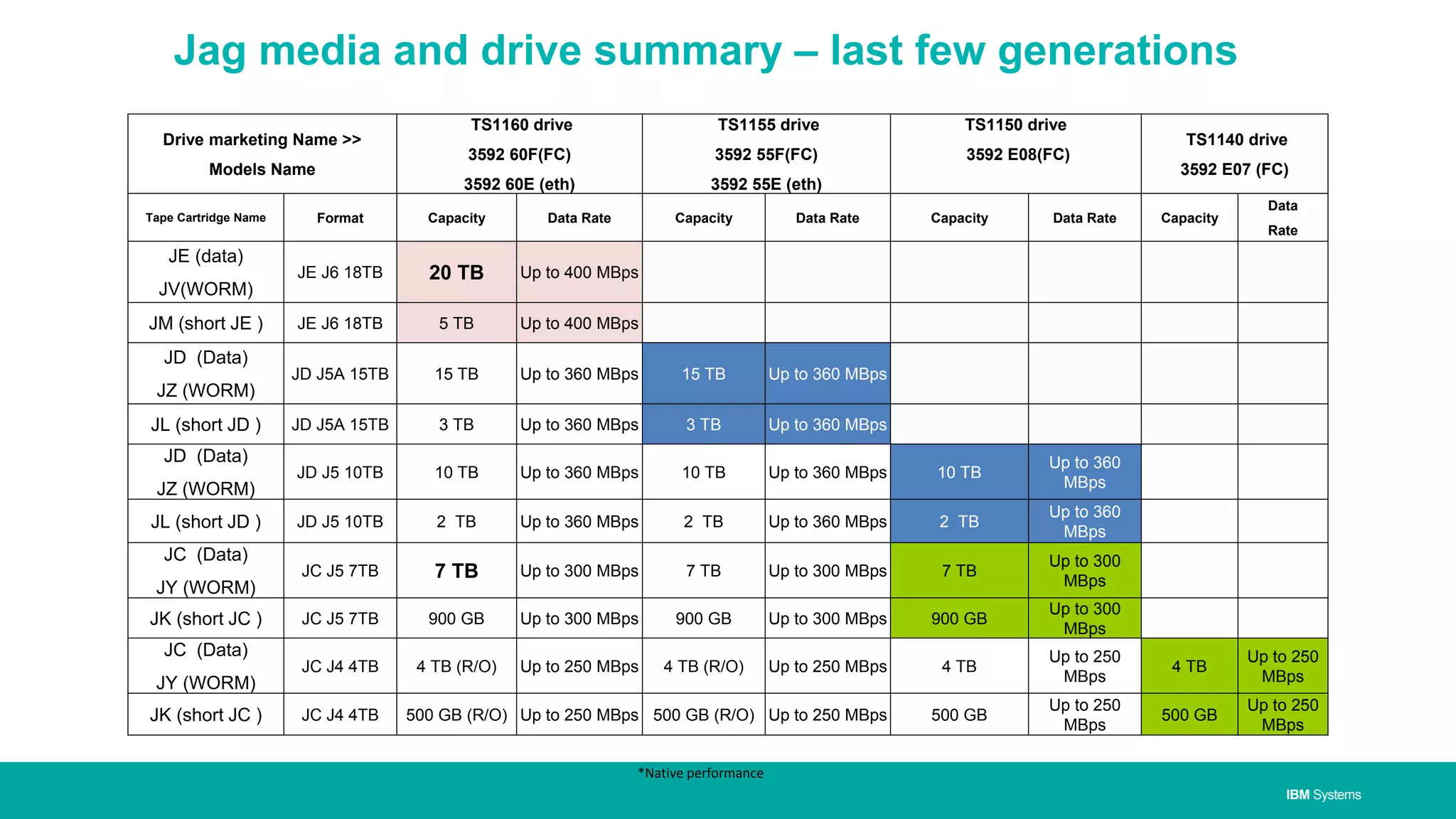

46. IBM Systems
Jag media and drive summary – last few generations
Drive marketing Name >>
Models Name
TS1160 drive
3592 60F(FC)
3592 60E (eth)
TS1155 drive
3592 55F(FC)
3592 55E (eth)
TS1150 drive
3592 E08(FC)
TS1140 drive
3592 E07 (FC)
Tape Cartridge Name Format Capacity Data Rate Capacity Data Rate Capacity Data Rate Capacity
Data
Rate
JE (data)
JV(WORM)
JE J6 18TB 20 TB Up to 400 MBps
JM (short JE ) JE J6 18TB 5 TB Up to 400 MBps
JD (Data)
JZ (WORM)
JD J5A 15TB 15 TB Up to 360 MBps 15 TB Up to 360 MBps
JL (short JD ) JD J5A 15TB 3 TB Up to 360 MBps 3 TB Up to 360 MBps
JD (Data)
JZ (WORM)
JD J5 10TB 10 TB Up to 360 MBps 10 TB Up to 360 MBps 10 TB
Up to 360
MBps
JL (short JD ) JD J5 10TB 2 TB Up to 360 MBps 2 TB Up to 360 MBps 2 TB
Up to 360
MBps
JC (Data)
JY (WORM)
JC J5 7TB 7 TB Up to 300 MBps 7 TB Up to 300 MBps 7 TB
Up to 300
MBps
JK (short JC ) JC J5 7TB 900 GB Up to 300 MBps 900 GB Up to 300 MBps 900 GB
Up to 300
MBps
JC (Data)
JY (WORM)
JC J4 4TB 4 TB (R/O) Up to 250 MBps 4 TB (R/O) Up to 250 MBps 4 TB
Up to 250
MBps
4 TB
Up to 250
MBps
JK (short JC ) JC J4 4TB 500 GB (R/O) Up to 250 MBps 500 GB (R/O) Up to 250 MBps 500 GB
Up to 250
MBps
500 GB
Up to 250
MBps
*Native performance

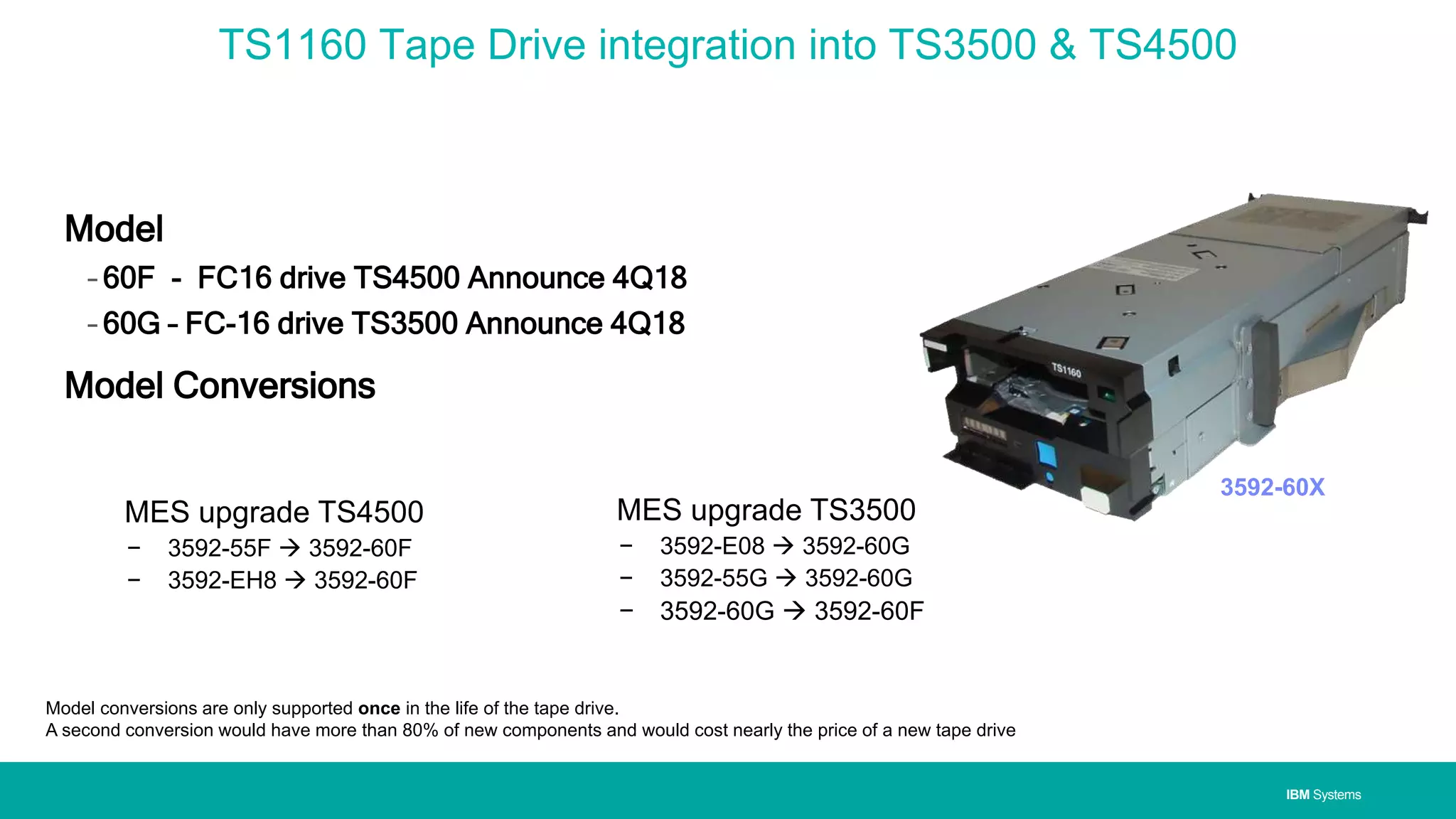

47. IBM Systems
TS1160 Tape Drive integration into TS3500 & TS4500
Model
– 60F - FC16 drive TS4500 Announce 4Q18
– 60G – FC-16 drive TS3500 Announce 4Q18
Model Conversions
3592-60X
MES upgrade TS4500
− 3592-55F 3592-60F
− 3592-EH8 3592-60F
MES upgrade TS3500
− 3592-E08 3592-60G
− 3592-55G 3592-60G
− 3592-60G 3592-60F
Model conversions are only supported once in the life of the tape drive.
A second conversion would have more than 80% of new components and would cost nearly the price of a new tape drive
48. IBM Systems
TS1160 integration into TS4500 Tape Library
What’s new?
• Support for TS1160 Enterprise Tape Drive
- Native data transfer of up to 400 MBps
• JE media specification tape cartridge compressed capacity of up
to 60 TB (up to 20 TB native)
• Increased capacity
- JE Media: up to 351 PB per library (up to 1.05 EB with 3 to 1
compression) (17,550 slots)
• IBM Spectrum Archive™ support
- Incorporates Linear Tape File System™ format
• Data security and regulatory compliance through support for
Encryption and WORM media on TS1160 Tape Drives
MES upgrade 55G / 55F / 60G
− 3592-55F 3592-60F
− 3592-EH8 3592-60F
49. IBM Systems

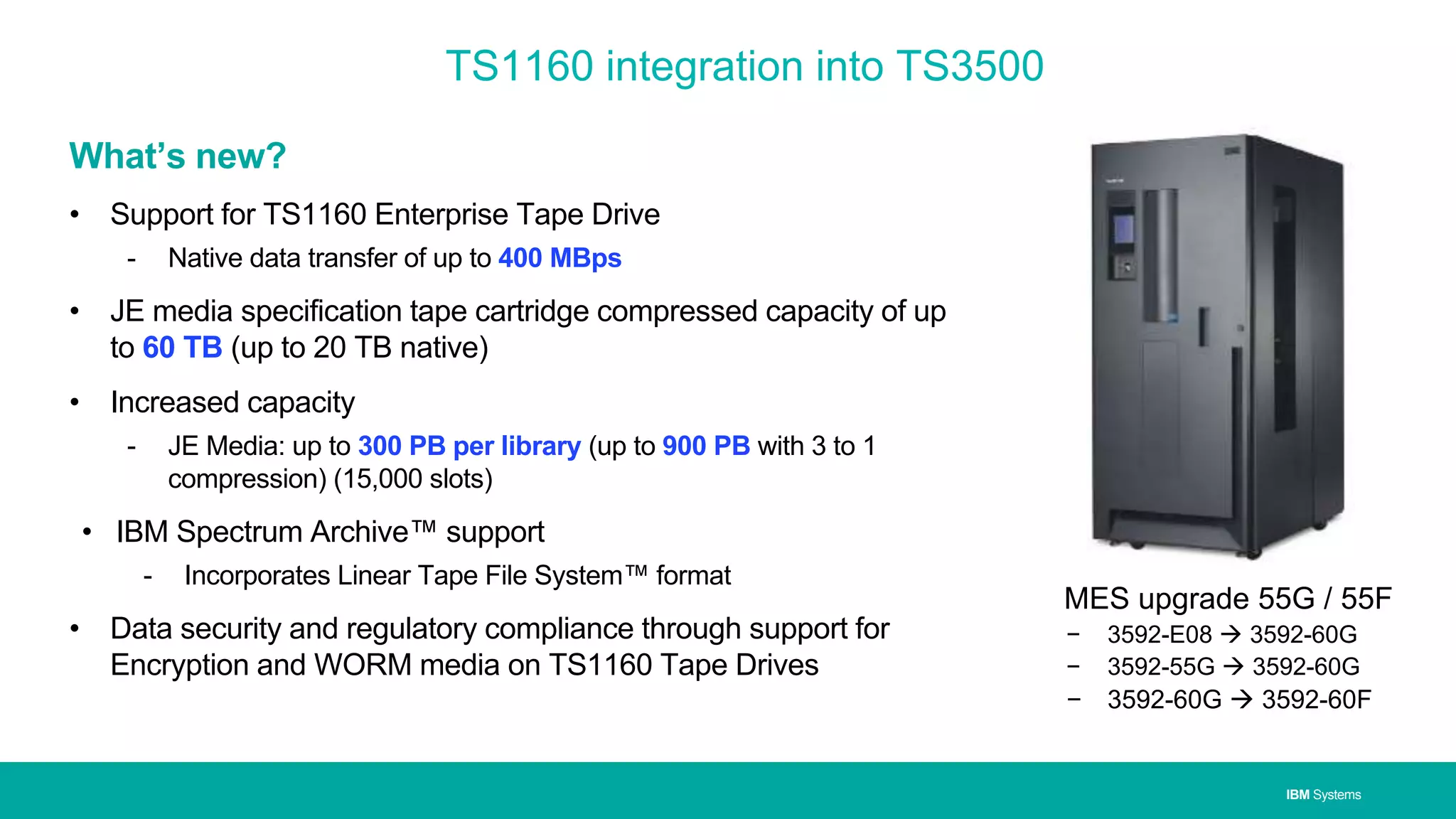

TS1160 integration into TS3500
What’s new?
• Support for TS1160 Enterprise Tape Drive
- Native data transfer of up to 400 MBps
• JE media specification tape cartridge compressed capacity of up
to 60 TB (up to 20 TB native)
• Increased capacity
- JE Media: up to 300 PB per library (up to 900 PB with 3 to 1
compression) (15,000 slots)
• IBM Spectrum Archive™ support
- Incorporates Linear Tape File System™ format
• Data security and regulatory compliance through support for
Encryption and WORM media on TS1160 Tape Drives
MES upgrade 55G / 55F
− 3592-E08 3592-60G
− 3592-55G 3592-60G
− 3592-60G 3592-60F
50. IBM SystemsIBM Systems
Vorteile der TS1160 Tape Drives
Reduzierung der Stellfläche aufgrund 20 TB vs. 12 TB
weniger Bedarf Kassetten, Slots und Stellfläche
Roadmap zeigt höhere Kapazitäten auch in Zukunft
Reduziert Backupzeiten & verkürzt Restorezeiten
schneller Datentransferrate
Bessere Zugrifszeit, Verbessertes „Virtual Backhitch“
Besserer ECC – sicherer!
Faktor 100 zu LTO
Investitionsschutz
Media Re-Use mit höherer Kapazität ermöglicht Weiternutzung vorhandener Tape Kassetten
Einfache Migration von älteren Generation
Einfache und schonende Migration
Roadmap!
2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026
LTO7 vs Jaguar
LTO Jaguar
20 PB Start, 10 Drives, jedes Jahr +20 PB,
10 Drives
LTO8
Jaguar Media-ReUse
51. IBM SystemsIBM Systems

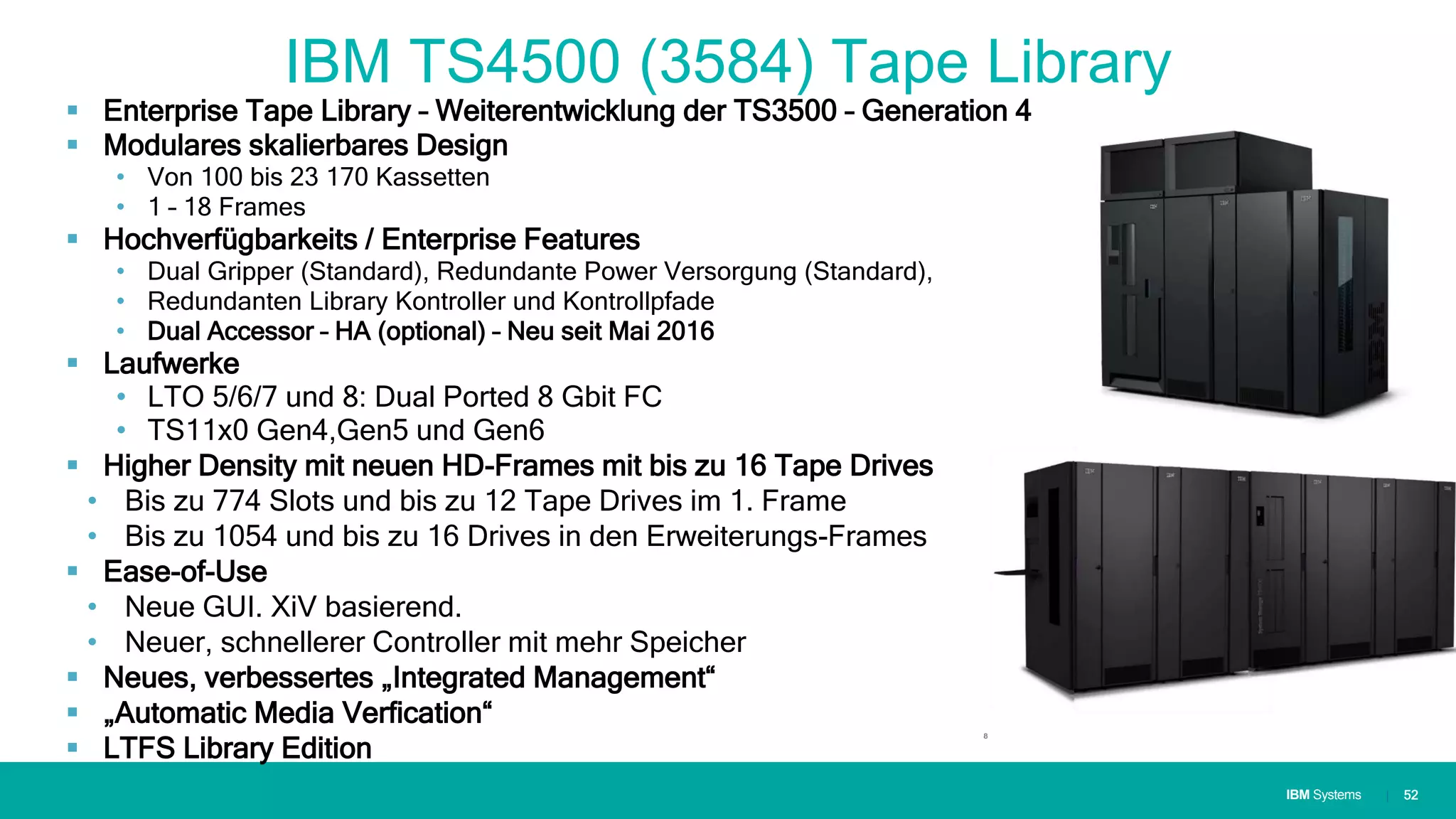

IBM TS4500 (3584) Tape Library
Enterprise Tape Library – Weiterentwicklung der TS3500 – Generation 4
Modulares skalierbares Design
• Von 100 bis 23 170 Kassetten
• 1 – 18 Frames
Hochverfügbarkeits / Enterprise Features
• Dual Gripper (Standard), Redundante Power Versorgung (Standard),
• Redundanten Library Kontroller und Kontrollpfade
• Dual Accessor – HA (optional) – Neu seit Mai 2016
Laufwerke
• LTO 5/6/7 und 8: Dual Ported 8 Gbit FC
• TS11x0 Gen4,Gen5 und Gen6
Higher Density mit neuen HD-Frames mit bis zu 16 Tape Drives
• Bis zu 774 Slots und bis zu 12 Tape Drives im 1. Frame
• Bis zu 1054 und bis zu 16 Drives in den Erweiterungs-Frames
Ease-of-Use
• Neue GUI. XiV basierend.
• Neuer, schnellerer Controller mit mehr Speicher
Neues, verbessertes „Integrated Management“
„Automatic Media Verfication“
LTFS Library Edition
| 52
52. IBM SystemsIBM Systems
TS4500 Standard Funktionen - OnBoard & Free of
Charge:
• Redundant AC & DC Power
• Transparent Controll Path und Data Path Failover
• WebGUI für Remote Operationg & Administration
• Command Line Interface (CLI)
• Call Home (VPN/IP)
• App für iOS
• Flexible und dynamische Partitionen
• Concurrent Firmeware Update für Drives und Library
• Automatic Media Verfication
• Dual Gripper
• Liftime Media, Drive und Library Statistik mit OnBoard Tape Systems Reporter
• LTFS Library Edition
53
53. The future of Tape
begins now
| 54IBM Systems
Das IBM Forschungslabor in Rüschlikon/Zürich konnte bereits eine
220 TB Tape Kassette demonstrieren. Dies zeigt das riesige
Potential der Tape Technologie im Vergleich zu anderen
Storagetechnologien auf und ermöglich eine sichere
Weiterentwicklung und stabile Roadmap.
Tape ist das günstigste Storage Tier; ideal für Cold Data /
Archive Daten
Tape ist das sicherste Medium; ideal für Backup
„Tape is the last Line of Defense!“
54. IBM Systems
Josef (Sepp) Weingand
Business Development Leader DACH – Data Protection & Retention
Infos / Find me on: weingand@de.ibm.com, +49 171 5526783
http://sepp4backup.blogspot.de/
http://www.linkedin.com/pub/josef-weingand/2/788/300
http://www.facebook.com/josef.weingand
http://de.slideshare.net/JosefWeingand
https://www.xing.com/profile/Josef_Weingand
https://www.xing.com/net/ibmdataprotection
57. IBM SystemsIBM Systems
Trademarks
58
The following terms are trademarks or registered trademarks of the IBM Corporation in either the United States, other countries or both.
– IBM, GDPS, Spectrum Storage, Spectrum Archive, Spectrum Scale, System Storage, System z, Virtualization Engine
Linear Tape File System, Linear Tape-Open, LTO, the LTO Logo, Ultrium, and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U.S. and other countries.
Other company, product or service names may be trademarks or service marks of others
