- 1. chips: the engine beneathyour apps marco@marcojacobs.nl

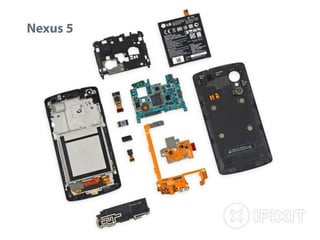

- 3. Phone 5 Nexus • Software • Electronics • Mechanics

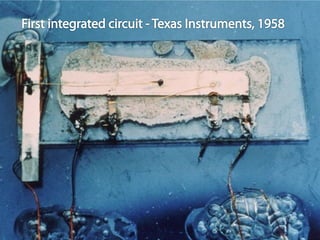

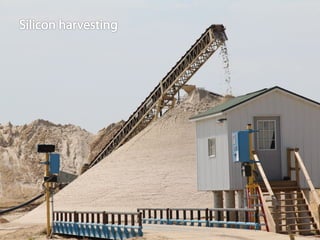

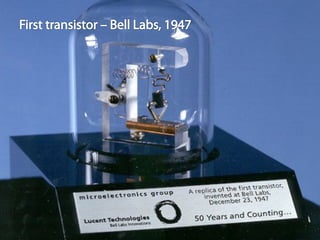

- 6.

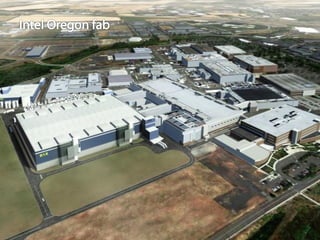

- 7.

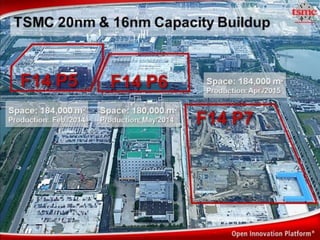

- 8.

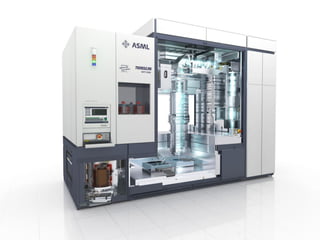

- 9.

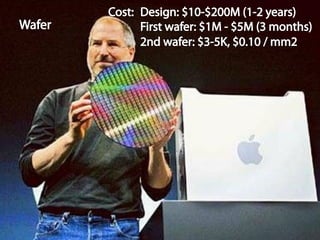

- 11.
- 12. Moore’s law “The numberof transistors per chip doubles approximately every 1.5 years”

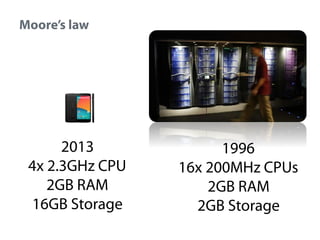

- 13. Moore’s law 2013 4x 2.3GHzCPU 2GB RAM 16GB Storage 1996 16x 200MHz CPUs 2GB RAM 2GB Storage

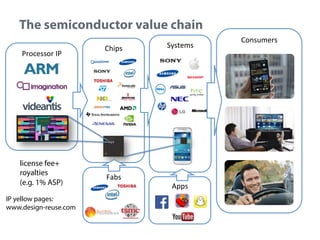

- 14. The semiconductor valuechain Processor'IP' license fee+ royalties (e.g. 1% ASP) IP yellow pages: www.design-reuse.com Chips' Fabs' Systems' Apps' Consumers'
- 16. Why phone drivesthe CE industry - volume 1.8B per year every 5 mins truck 9x around earth everyone wants to differentiate ! innovation

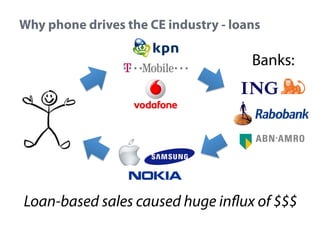

- 17. Why phone drivesthe CE industry - loans Banks: Loan-based sales caused huge influx of $$$

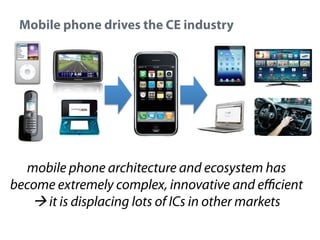

- 18. Mobile phone drivesthe CE industry mobile phone architecture and ecosystem has become extremely complex, innovative and efficient ! it is displacing lots of ICs in other markets

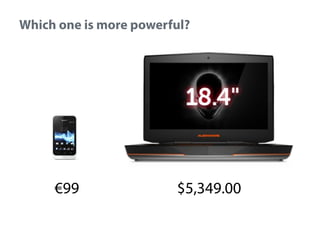

- 19. Which one ismore powerful? €99 $5,349.00
- 20.
- 21.
- 22.
- 23. Three kinds ofchips Where your software runs How it interacts with real world • Digital " Logic " SRAM (fastest memory, expensive) • Memory " DRAM (cheap, fast, but loses data without power) " Flash (cheap, slower, doesn’t loose data without power) • Analog / Mixed Signal " Radio waves + " Sensors, audio, etc. Typically built in different factories

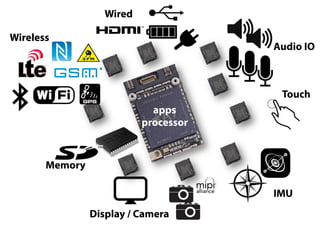

- 24. Wired Wireless Audio IO Touch Apps processor Memory IMU Display /Camera All digital chips get “sucked into the apps processor”
- 25.

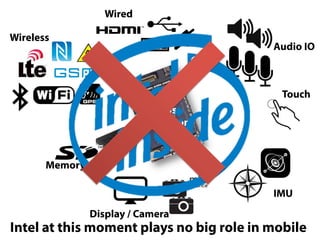

- 26. Wired Wireless Audio IO Touch Apps processor Memory IMU Display /Camera Intel at this moment plays no big role in mobile

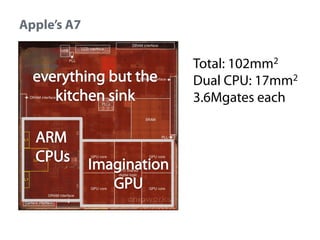

- 27. Apple’s A7 Total: 102mm2 DualCPU: 17mm2 3.6Mgates each
- 28. Page 291, http://www.ti.com/lit/ug/swpu249y/swpu249y.pdf TexasInstruments OMAP5 Dual' core' A15'+' NEON' audio' boLleneck' DRAM' DSP' HD' video'+' ARM9' Face'detect' Display' Imaging'' (+2'ARMs)' Imaging' 2D' GPU' USB' Flash'

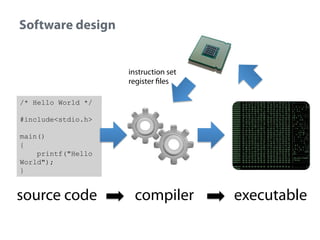

- 29. Software design instruction set registerfiles /* Hello World */ #include<stdio.h> main() { printf("Hello World"); } source code compiler executable

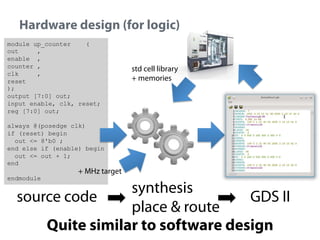

- 30. Hardware design (forlogic) module up_counter ( out , enable , counter , clk , reset ); output [7:0] out; input enable, clk, reset; reg [7:0] out; std cell library + memories always @(posedge clk) if (reset) begin out <= 8'b0 ; end else if (enable) begin out <= out + 1; end endmodule + MHz target synthesis source code GDS II place & route Quite similar to software design
- 31. Processors and logic:horses for courses CPU' Big' >1Mgate,'2GHz+' Small'' 10kgate,100MHz' generic processing (OS, web browser, database, etc) GPU' DSP' 2D / 3D UI / Gaming comms' became generic and so powerful, use it for generic compute audio' video' voice' hardwired' CPUs' 10S100kgate, 100S500MHz' modems camera, audio display, video apps programmers only exposed through APIs

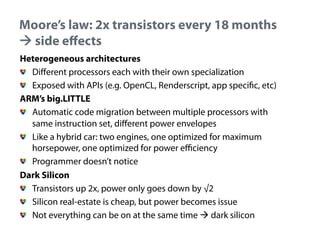

- 32. Moore’s law: 2xtransistors every 18 months ! side effects • Heterogeneous architectures " Different processors each with their own specialization " Exposed with APIs (e.g. OpenCL, Renderscript, app specific, etc) • ARM’s big.LITTLE " Automatic code migration between multiple processors with same instruction set, different power envelopes " Like a hybrid car: two engines, one optimized for maximum horsepower, one optimized for power efficiency " Programmer doesn’t notice • Dark Silicon " Transistors up 2x, power only goes down by √2 " Silicon real-estate is cheap, but power becomes issue " Not everything can be on at the same time ! dark silicon
- 33.

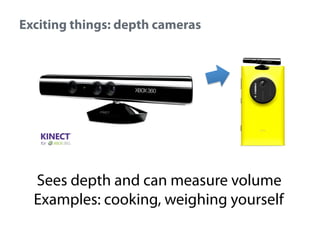

- 34. Exciting things: depthcameras Sees depth and can measure volume Examples: cooking, weighing yourself
- 35. Exciting things: gesturesinterfaces Think “Iron Man’s user interface”, without the holographic display Gestures go from 2D (touch) to 3D Examples: angry birds, layered keyboard

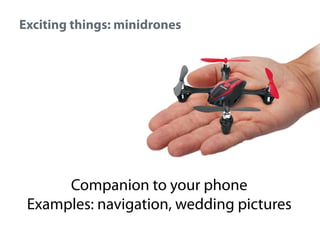

- 36. Exciting things: minidrones Companionto your phone Examples: navigation, wedding pictures
- 37.
