The FS-501Z series is an unmanaged industrial Ethernet switch offering 5 ports of 10/100Base-TX or 4 ports of 10/100Base-TX plus 1 port of 100Base-FX, with fiber options suitable for distances up to 120km. It operates within a temperature range of -10°C to 60°C (with testing at -20°C to 70°C) and supports a wide voltage range of 12 to 48VDC. Compliance with various EMI and safety regulations, along with features like DIN-rail mounting and automatic negotiation, makes it suitable for industrial environments.

1. FS-501Z series, Unmanaged
5-port 10/100BASE-TX Industrial Ethernet Switch
Features:
▲Provides unmanaged 5-port 10/100BASE-TX or
4-port 10/100BASE-TX plus 1-port 100BASE-FX
▲The fiber port is available with SC or ST with a fiber
connection that can reach up to 120KM(74.4miles)
▲-10°C to 60°C (-14°F to 140°F) and is tested for
functional operation at -20°C~70°C (-4°F~158°F)
▲10/100Mbps-Full/Half-duplex, Auto-Negotiation,
Auto-MDI/MDIX
▲Supports 12 to 48VDC Power inputs
▲Complies with IEC61000-6-2 EMC Generic standard
immunity for Industrial environment
▲Provides DIN-Rail mounting
▲Full wire-speed forwarding rate
Ordering Information:
Model Number Description
FS-501Z 5-port 10/100BASE-TX Unmanaged Industrial Ethernet Switch
FS-411Z-M-C02 4-port 10/100BASE-TX + 1-port 100BASE-FX Unmanaged Industrial Ethernet Switch
100FX Fiber Options:
Mode Connector Distance Note Power Supply : (Optional)
Multi-Mode SC 2KMs Option The Terminal Block type external
Multi-Mode ST 2KMs power supply are not included.
Single-Mode SC 20KMs Order the related parts are
Single-Mode SC 40KMs required.
Single-Mode ST 20KMs
Multi-Mode SC 2KMs WDMA/WDMB
Multi-Mode SC 5KMs WDMA/WDMB
Single-Mode SC 20KMs WDMA/WDMB
Single-Mode SC 40KMs WDMA/WDMB
Notes: 1. WDMA: TX: 1310nm/RX:1550nm, WDMB: TX: 1550nm/RX:1310nm
2. More 100FX Fiber options also available upon request.
TEL: 886-2-2658-6893 FELIZ Technology Co., Ltd. ver. 1.1
sales@feliz.com.tw www.feliz.com.tw page: 1/3

2. FS-501Z series, Unmanaged
5-port 10/100BASE-TX Industrial Ethernet Switch
Specifications:
Technology Interfaces
Standards ‧IEEE802.3 10BASE-T, IEEE802.3u Ethernet ‧10/100BASE-TX: 5 or 4 ports
100BASE-TX/100BASE-FX, IEEE802.3x Port ‧100BASE-FX: 0 or 1 ports
Forward and ‧14,880pps for 10Mbps LED ‧Per Unit: Power Status(Power 1)
Filtering Rate ‧148,810pps for 100Mbps Indicators ‧Per Port: 10/100TX, 100FX:
Packet Buffer Memory‧384K bits Link/Activity (Green),
Processing Type ‧Store-and-Forward Speed (Yellow)
‧Half-duplex back-pressure and
IEEE802.3x full-duplex flow control
Address Table Size ‧2048 MAC addresses
Latency ‧Less than 5.1µs
Power Mechanical
Input Casing
‧Input Voltage:12 to 48VDC(Terminal Block) ‧Plastic case
Power Consumption ‧2.4W Max. 0.2A @ 12VDC, 0.1A @ 24VDC, ‧IP30
0.05A @ 48VDC Dimensions ‧26mm x 70mm x 110mm
Overload Current ‧Present (WDH) (1.02" x 2.76" x 4.33")
Protection Weight ‧0.2Kg (0.44lb.)
Reverse Polarity ‧Present Installation ‧DIN-Rail (Top hat type 35mm)
Protection
Regulatory Approvals Environment
Safety ‧UL60950-1 Operating ‧-10°C to 60°C (14°F to 140°F)
EMI ‧FCC Part 15, Class A, VCCI Temperature Tested @ -20°C to 70°C
‧EN61000-6-3 (-4°F to 158°F)
- EN55022 Storage ‧-25°C to 85°C (-13°F to 185°F)
- EN61000-3-2 Temperature
- EN61000-3-3 Ambient ‧5% to 95% (non-condensing)
Environmental Test ．IEC60068-2-6 Fc (Vibration Resistance) Relative
Compliance ．IEC60068-2-27 Ea (Shock) Humidity
．IEC60068-2-32 Ed (Free Fall, 1M)
TEL: 886-2-2658-6893 FELIZ Technology Co., Ltd. ver. 1.1
sales@feliz.com.tw www.feliz.com.tw page: 2/3

3. FS-501Z series, Unmanaged
5-port 10/100BASE-TX Industrial Ethernet Switch

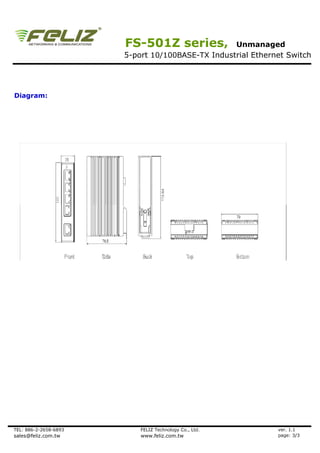

Diagram:
